Instruction Manual
32” HD Smart TV - BP320HSG9800
CONTENTS
General
Safety
4
Ins
tallation
8
Wall
Mounting Instructions
9
C
ontrols and Connections
10
R
emote Control 12

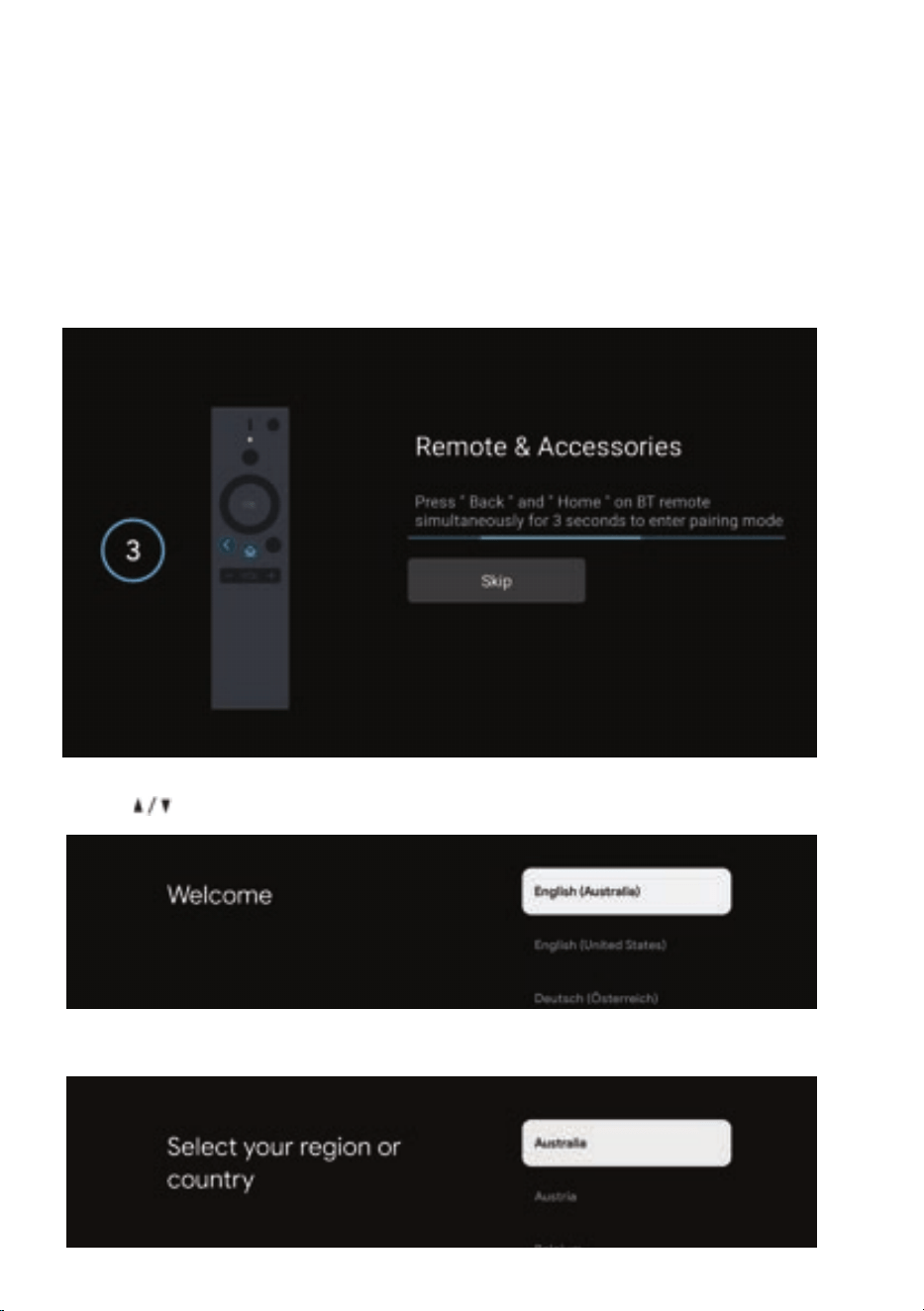

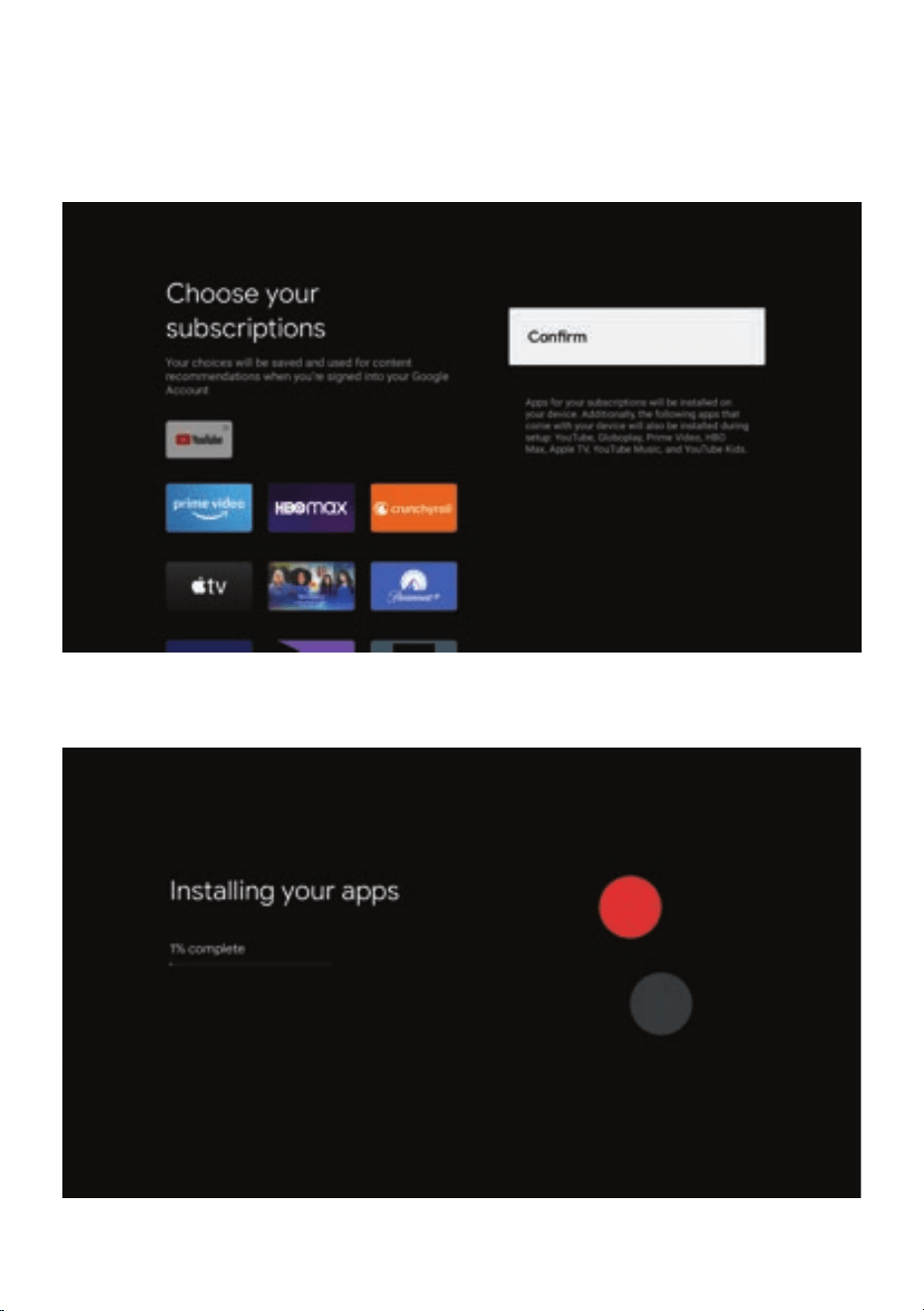

Initial Setup
15
W
i-Fi
17
Google
17
A

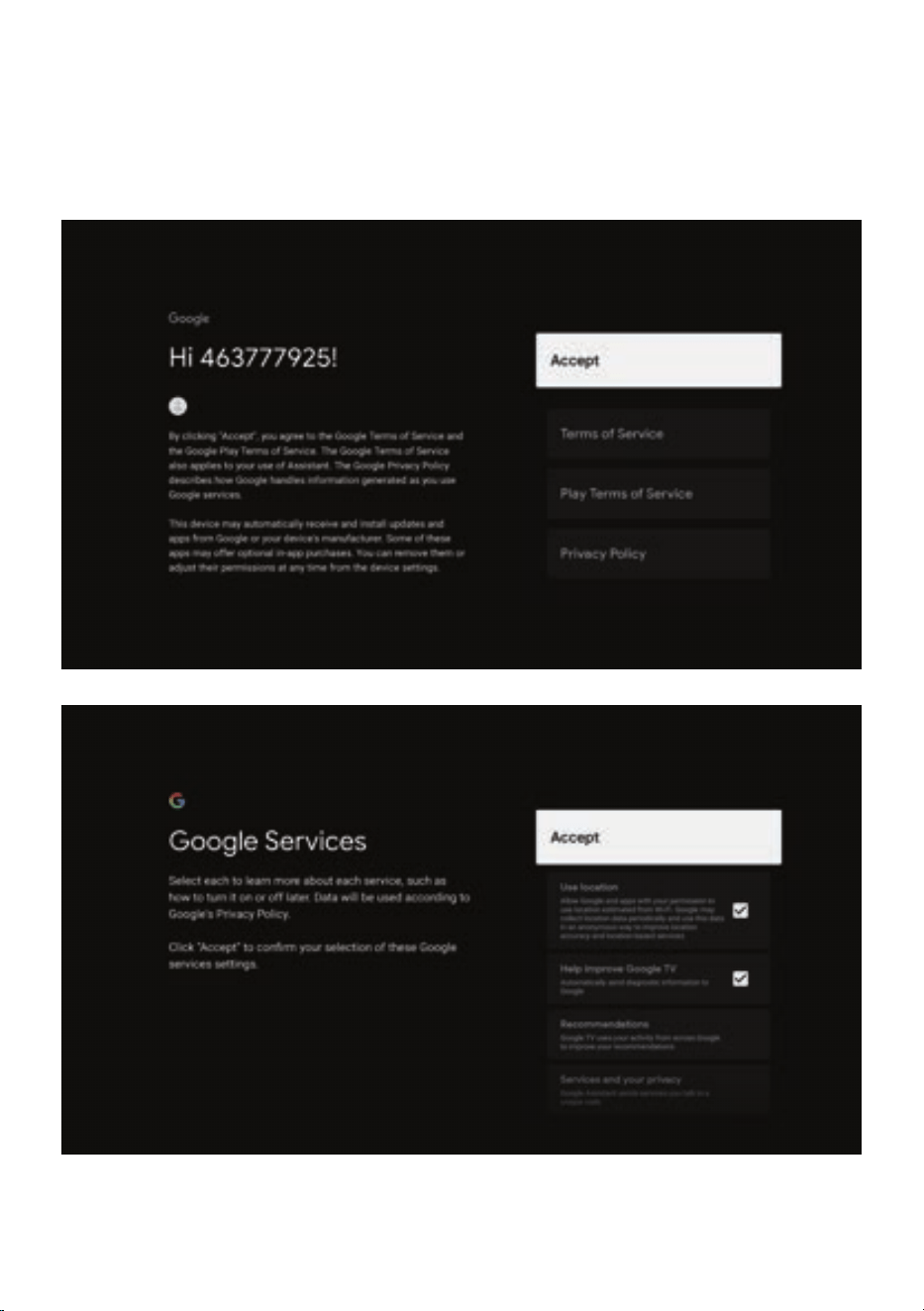

cceptance - Terms of Service
18
Google
Assistant Setup 19
Date & Time
21

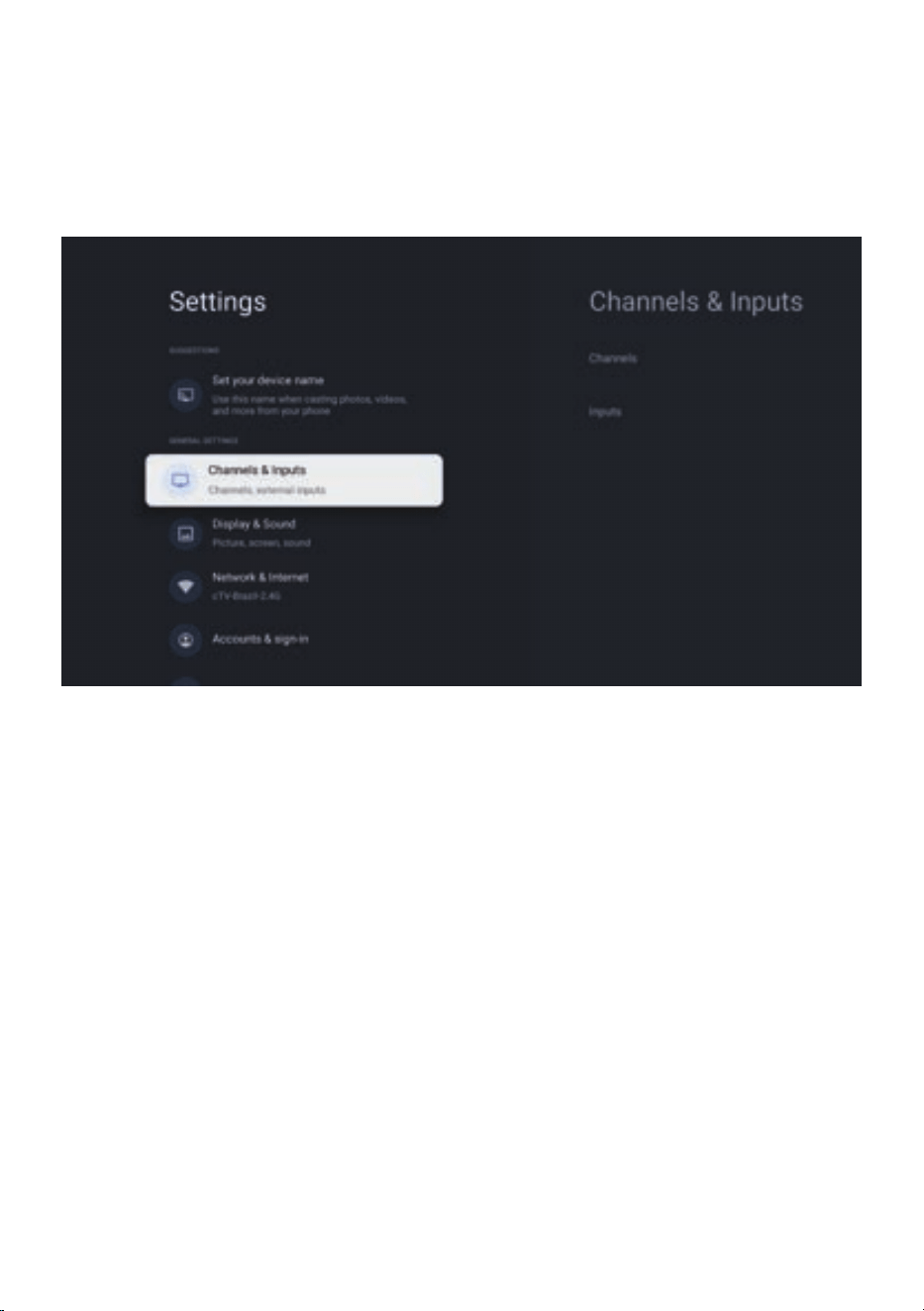

Channel
Installation
21
Google
TV™
22
Dashboard
23
Google
Assistant 24
MENU
25
26

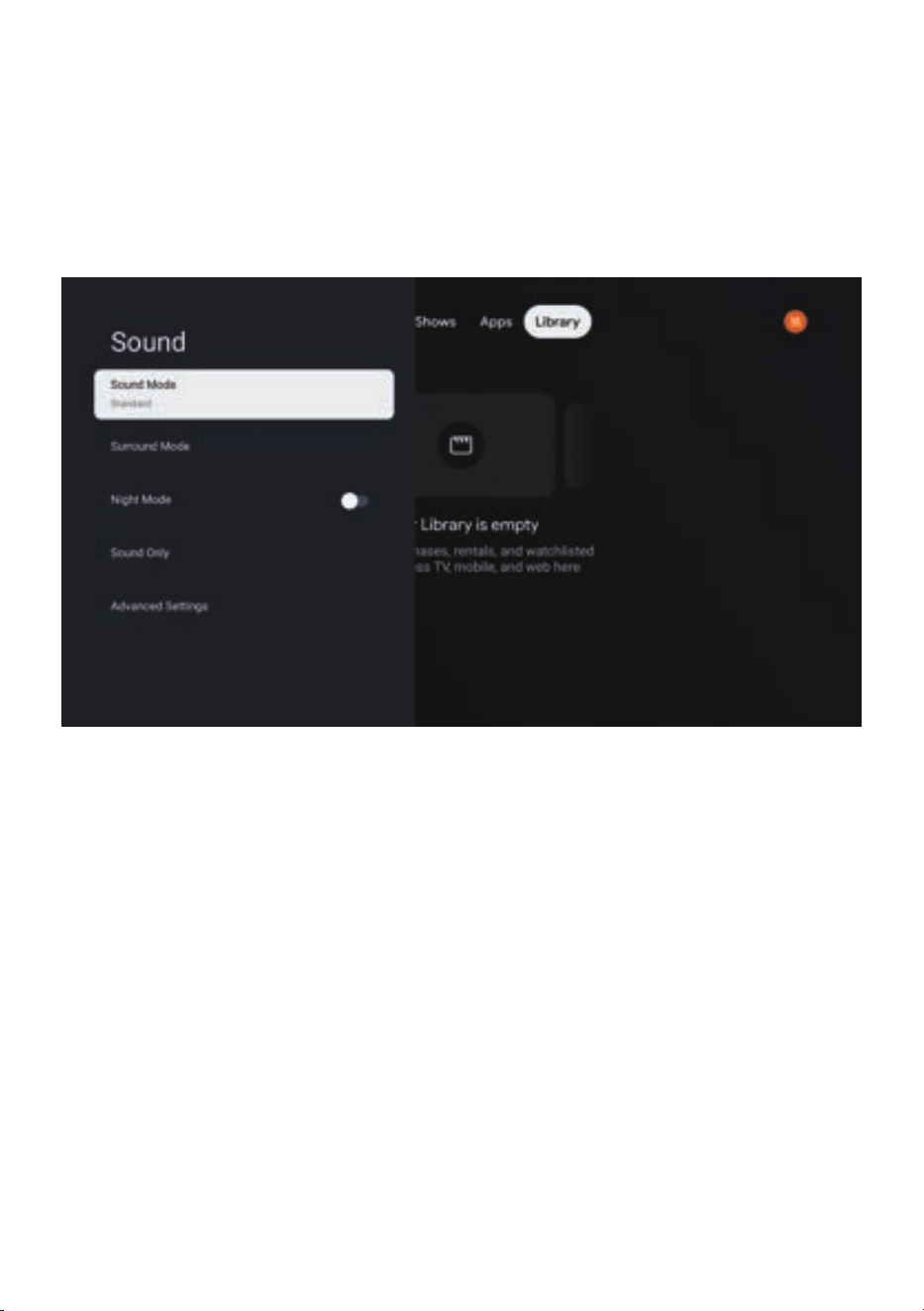

Sound
2
7
Sy
stem
28

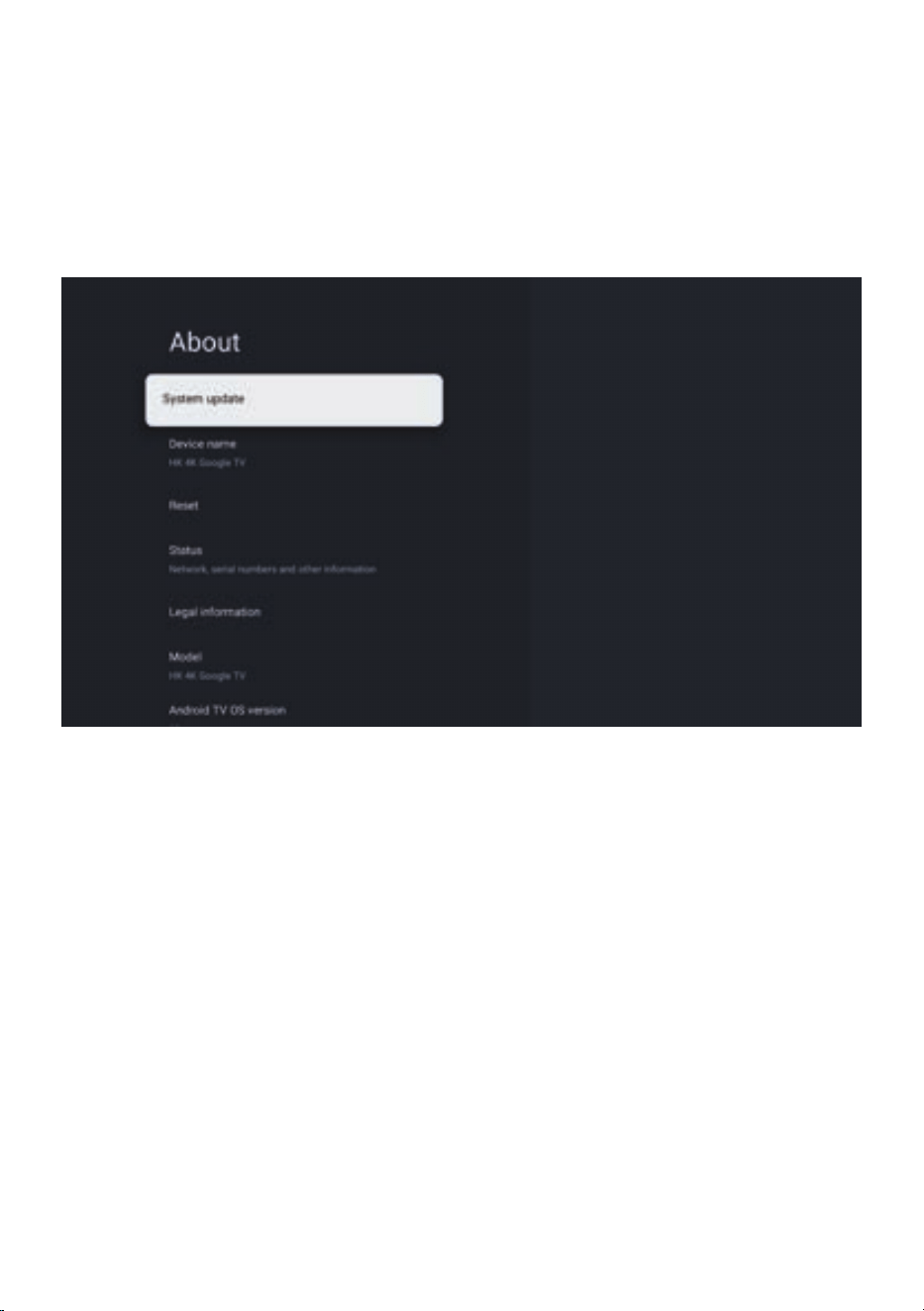

About 29
Parental Control
30
P
VR (Personal Video Recording)
31
F
AQs
32
Specifica
tions
34
Cus
tomer Helpline Last Page
4
Read this manual thoroughly before you start using the TV.
Store this manual, the completed warranty card, your receipt and the product packaging.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
The lightning flash with symbol within the
triangle is intended to warn you of a
non-insulated dangerous voltage in the
pr
oduct
’s enclosure that could be of
sucient magnitude to generate a risk of
electric shock to persons.
The exclamation point within the triangle
is intended to warn you to the presence
of important operating and maintenance
instructions in the documents included with
the product.
The lightning flash symbol within the triangle is intended to warn you of
non-insulated dangerous voltage the product’s enclosure that could be of
sucient magnitude to generate a risk of electric shock to persons.
• Using Cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture
and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the television
or its controls and to call for an adult to assist.
IMPORTANT INFORMATION
The cover (or back) of the unit should
not be removed to prevent risk of electric
shock.
This unit must be serviced by a qualified
service personnel only.
GENERAL SAFETY
5
Installation
Please follow instruction when installing this product in accordance with the instruction
manual. This product must be positioned in a suciently stable location, it can be
potentially hazardous due to falling and can cause injury, particularly to children if it
positioned incorrectly.
• Befor
e installing this TV set, make sure your outlet voltage corresponds to the voltage
stated on the product rating label
• Do not use a damaged power cord, plug or loose outlet. Doing so may cause an
electric shock.
• Do not plug several devices into the same outlet. Doing so may cause the outlet to
overheat and start a fire. Make sure the outlet is readily accessible during operation
of the equipment.
• Do not bend, twist or kink the power cord excessively.
• Do not allow anything to rest on or roll over the power cord and antenna cable.
Doing so may cause a fire or an electric shock.
• Do not run the power cord near heat-producing appliances such as radiators, stoves or
irons. The excessive heat could melt the insulation and expose live wires, resulting in
fire or electric shock.
• Unplug this TV during lightning storms or when unused for long periods of time.
Not doing so may result in fire or electric shock.
• Do not cover the ventilation openings of the product with items such as newspapers,
tablecloths, curtains etc or insert objects into the slots available on the products.
As this could result in the product temperature rising and could cause a fire.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the
unit from the outlet and contact the service center. Failure to do so may result in fire
or electric shock.
• When not using the unit for long periods of time or when you are moving the unit
please ensure to disconnect the power cord from the wall socket.
• Do not expose this appliance to rain or moisture as it may result in fire or an
electric shock hazard
• Do not tamper or change or modify the product in an
y way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids
such as vases.
• Danger of explosion if ba
ttery is incorrectly placed. Replace with same or equivalent type.
IMPORTANT INFORMATION
GENERAL SAFETY (CONT.)
6
If a television is not positioned in a suciently stable location, it can be potentially
hazardous due to falling. Many injuries, particularly to children, can be avoided by taking
simple precautions such as:
•
Using cabinets or stands r
ecommended by the manufacturer of the television.
•
Only using furniture tha
t can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
•
Not placing the tele
vision on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the television to a suitable support.
•
Not standing the t
elevision on cloth or other materials placed between the television
and supporting furniture.
•
Educa
ting children about the dangers of climbing on furniture to reach the television
or its controls.
It is STRONGLY RECOMMENDED that you ANCHOR this product.
Toppling furniture and TV’s can cause serious injury or death.
TO HELP AVOID ANY SERIOUS OR FATAL INJURY, WE STRONGLY RECOMMEND THAT THIS
PRODUCT BE PERMANENTLY FIXED TO THE WALL OR OTHER SUITABLE SURFACE. FIXING
DEVICES ARE NOT INCLUDED SINCE DIFFERENT SURFACE MATERIALS REQUIRE DIFFERENT
ATTACHMENTS. PLEASE SEEK PROFESSIONAL ADVICE IF YOU ARE IN DOUBT WHAT
FIXING DEVICE TO USE.
WARNING!
GENERAL SAFETY (CONT.)
• Please beware that Dust could accumulate over time on the unit and cause it to generate
heat and or deteriorate insulation, which in turn may result in an electrical fire.
•
The pr
oduct is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or young children of any age, They must be supervised
product by a person responsible for their safety.
•
Batt
eries from the remote control must be only removed by an adult, the adult must
ensure to keep them out of reach of infants and children. Seek medical attention
immediately if a child has swallowed a battery.
•
Batt
eries (battery pack or batteries installed) shall not be exposed to excessive heat such
as sunshine, fire or the like.
•
To maintain the pr
oduct do not use any chemical or cleaning agent or wet cloth, please
only ensure to utilize a dry cloth to wipe it down from marks or dust and only after
unplugging the product from the power socket.
•
Please ensure t
o contact our call center for any repair or service required for the products.
•
Make sur
e to always carry TV from the sides, always be sure to have assistance by another
person. Do not carry the TV from the middle.
7
This symbol indicates that the appliance has double insulation between the
dangerous mains voltage and the parts accessible to the user. In the event of
repairs use only identical spare parts.
Please make sure upon positioning this product, the place is:
•
Not wet or damp and W
ell ventilated
•
Aw
ay from direct sunlight or heaters.
•
Aw
ay from splashes or food.
•
Prot
ected from excessive dust or grease.
•
Do not install this equipment in a c
onfined space such as a bookcase or similar unit.
•
Do not install the TV set near hea
t sources such as radiators, stoves or other audio
visual equipment that produce heat.
•
Do not place c
ontainers with liquids, if liquid falls inside the products it may result in
short-circuit, fire or electric shock.
•
Do not place small metallic objects on t
op of the unit. Metal object falls inside the
product it may result in short-circuit, fire or electric shock.
•
Do not use or st
ore flammable or combustible materials near the unit. Doing so may
result in fire or explosion. Do not place any naked flame sources, such as lit candles,
cigarettes or incense sticks on top of the TV set.
•
The ant
enna must be installed away from high-voltage power line,
•
Please contact an ant
enna professional installer to install the antenna to avoid
incorrect installation which could result in fire, electric shock or serious injury.
•
Install the unit a
t a reasonable distance from the wall to ensure sucient ventilation.
•
If mains plug or an appliance c
oupler is used as the disconnect device, the disconnect
device shall remain readily operable.
GENERAL SAFETY (CONT.)
The terms HDMI, HDMI High-Definition Multimedia
Interface, HDMI Trade dress and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
8
Install the stand as described below, or if you want to mount it to a wall, please contact a
professional installer.
Please ensure the TV is not plugged into the wall socket and furthermore we recommend
to get another person to assist in the following task.
Attaching the stand
Step 1
Place a soft cushioned material on top of a flat surface to prevent damaging the screen
panel. Then place the TV screen flat on top, with the screen side facing down, as
illustrated on the right.
Step 2

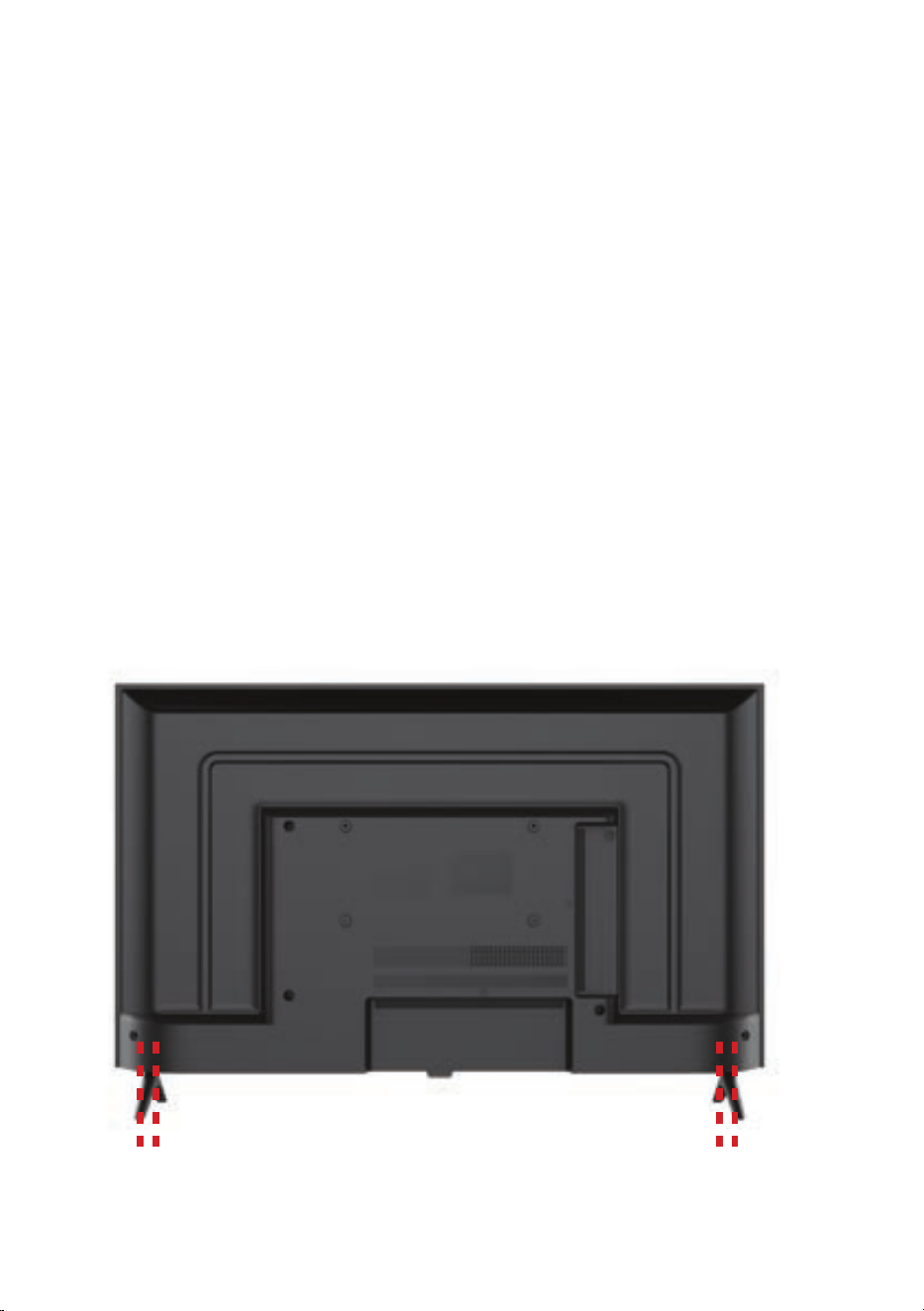

Align the stand leg to the installation point, as illustrated below.
Step 3
Tighten the screws (supplied) with a screwdriver to ax the stand to the panel, as
illustrated on the right.
CAUTION!
Do not apply excessive force as this may damage the screw holes.
INSTALLATION
9
Wall-Mounting Instructions
Please ensure the TV is not plugged into the wall socket and furthermore we recommend
to get another person to assist in the following task.
• We recommend you use a professional installer as we assume no liability for any eventual
damage to the product or injury to yourself if you mount the TV on your own.
NOTE: If you are wall-mounting the TV, this should be done by a qualified installer.
INSTALLATION (CONT.)
BACK OF TV

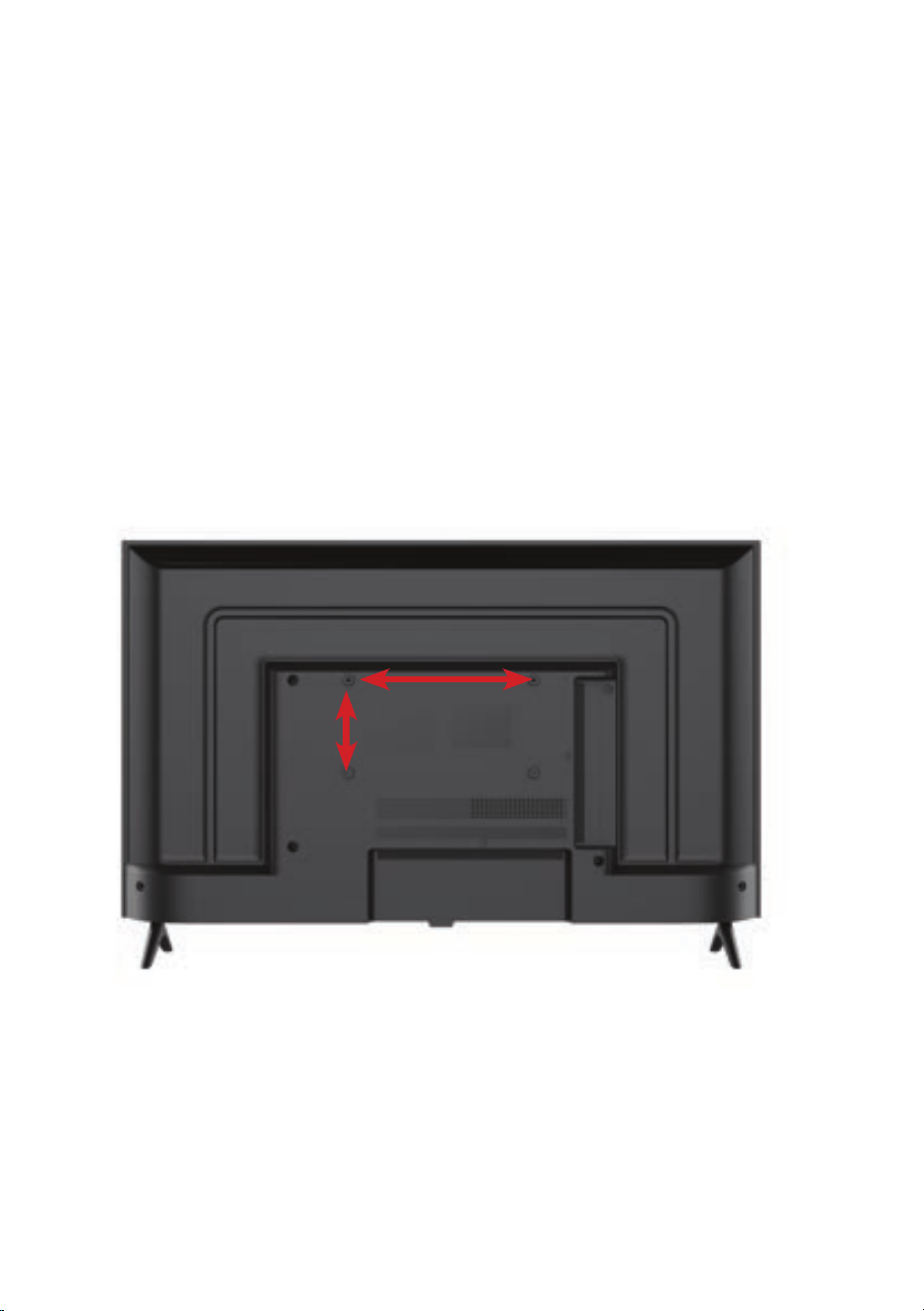

VESA PATTERN: 200 (w) x 100 (h) mm
10
CONTROLS AND CONNECTIONS

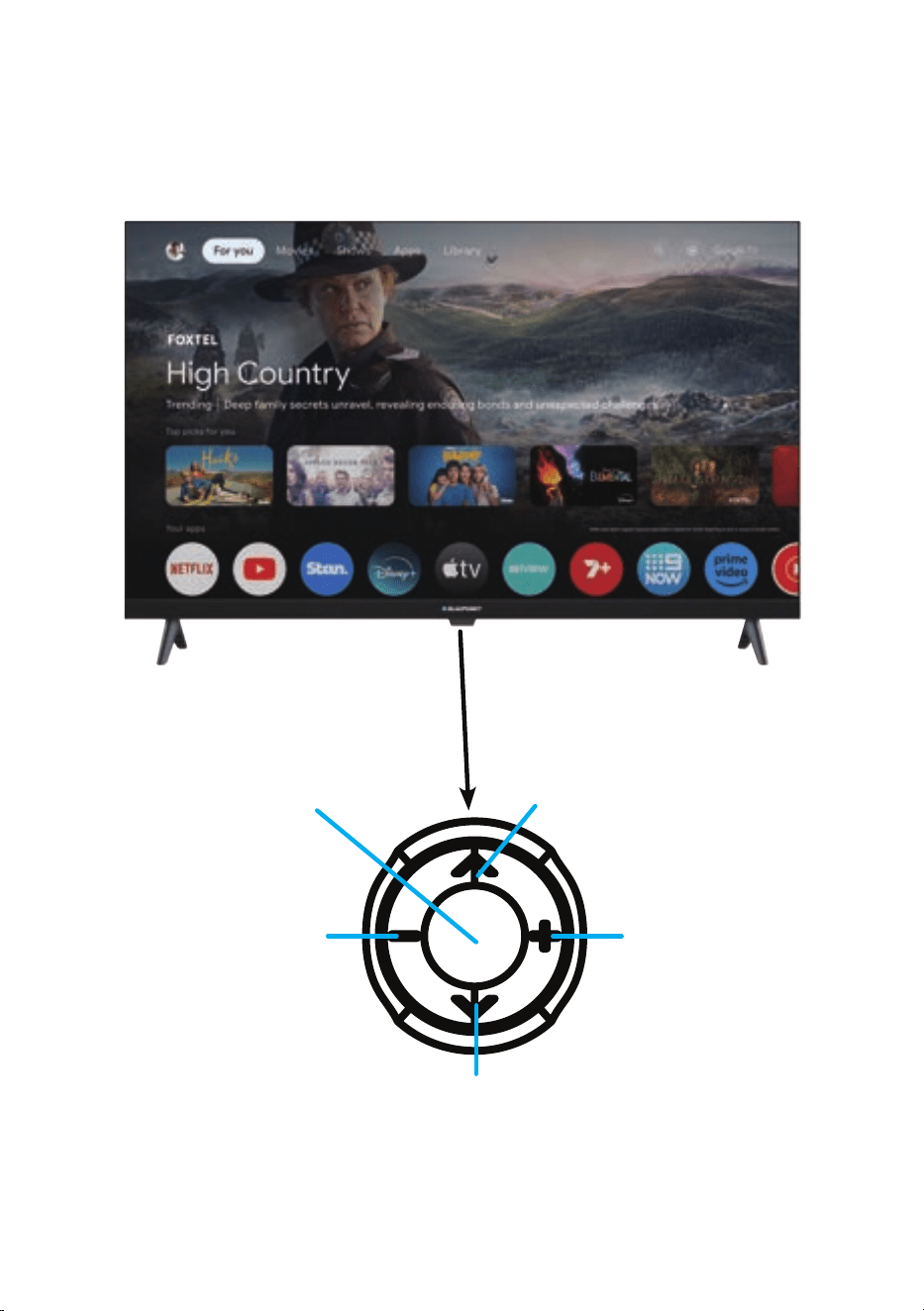

VOLUME UPVOLUME
DOWN
OK/SELECT
DOWN/
CHANNEL
DOWN
UP/
CHANNEL UP
11
USB connection
Insert a USB storage device into the USB port to record, playback of video/music/photo.
CONTROLS AND CONNECTIONS
BOTTOM PORTS
SIDE PORTS
5 6 7 8 9 10
1. HDMI 1 (ARC)
2. ANT (ANTENNA)
3. HEADPHONE
4. USB 1 & USB 2
5. RJ45 (ETHERNET)
6. OPTICAL
7. VIDEO
8. AUDIO LEFT & RIGHT
9. HDMI 3
10. HDMI 2
1 2 3 4
12
REMOTE CONTROL
1
3
8
11
9
2
5
4
10
13
14
12
6
7
15
13
REMOTE CONTROL

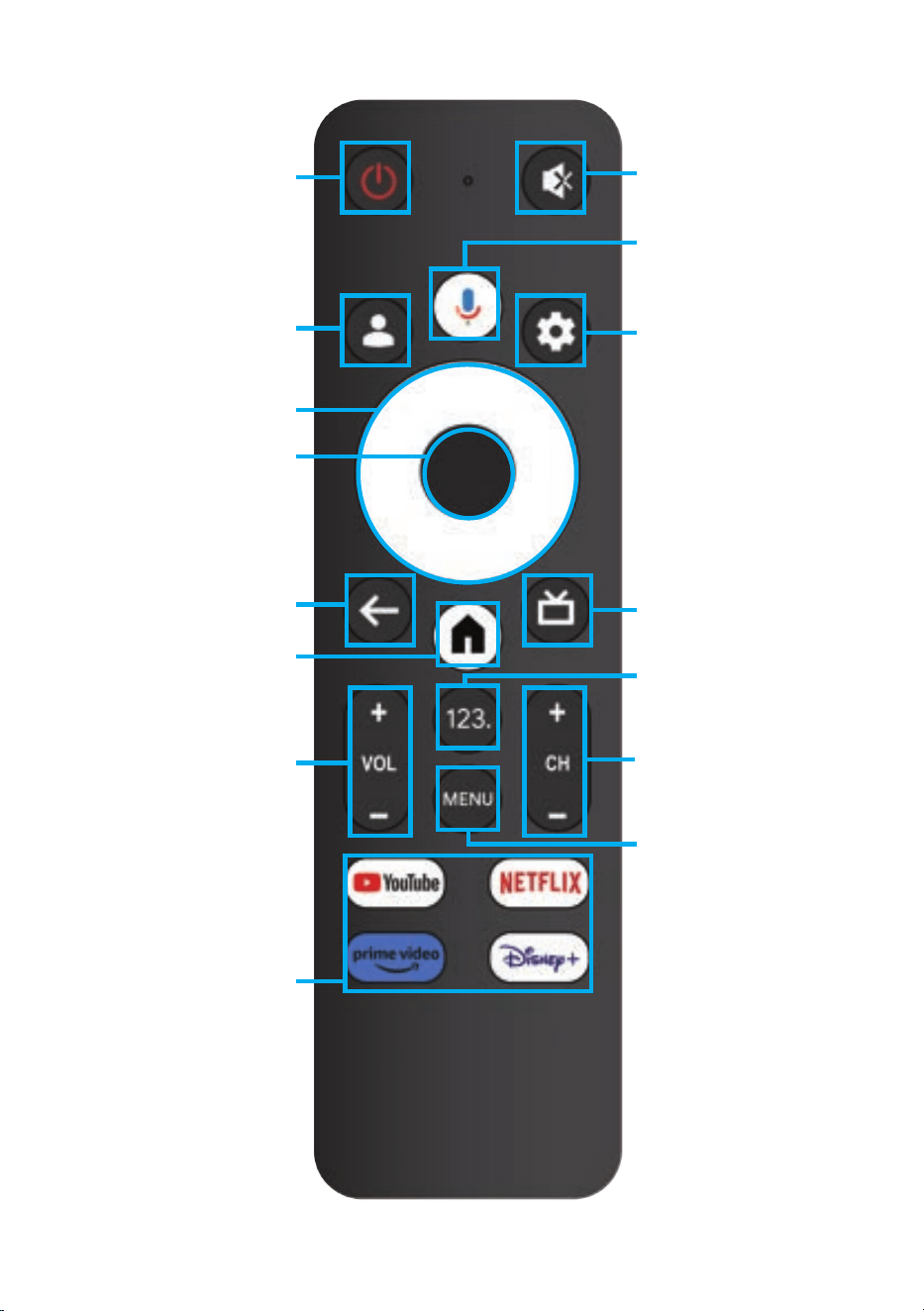

1. POWER: Turn the TV on/o.
2. MUTE: Turn the sound on or o.
3. MEMBER: Choose or add an account.
4. : Start a voice search or speak to Google Assistant.
5. SETTING: Press to open the setting option.
6. ARROWS: Navigate on-screen menu.
7. OK: OK to confirm selection.
8. BACK: Return to previous menu.
9. HOME: Open Android TV home page.
10. GUIDE: Select electronic program guide, in DTV mode,it will
display all the information of program in a week when
pressing this button.
11. VOLUME: Increase or decrease TV volume.
12. KEYBOARD: Press to open the virtual keyboard.
13. CHANNEL: Next or previous TV channel.
INFO: Display channel information.
14. MENU: Display Menu
15. APPS: Open Netflix, YouTube, PrimeVideo, Disney
14
REMOTE CONTROL (CONT.)

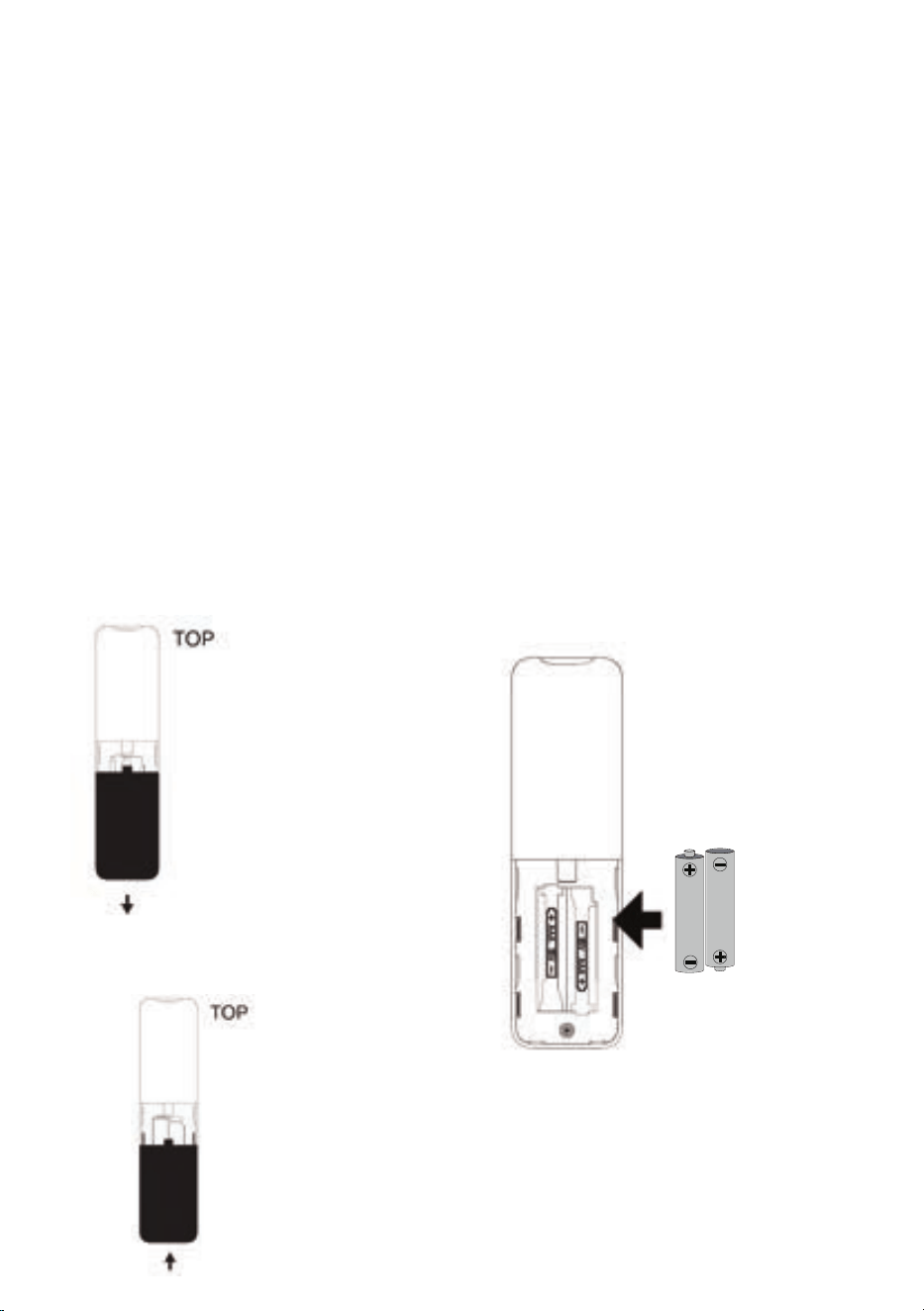

Using the Remote Control
• Do not mix old and new batteries in the remote
•
Do not use dier
ent types of battery
• If you do not intend to use the unit for a long time, please remove batteries from the
remote to avoid accident.
•
Keep ba
tteries away from children and pets.
• Never throw batteries into a fire.
•
Do not drop
, or impact the remote control as it void warranty immediately.
• The remote control operate at a range of 5 to 6M eectively
•
Do not expose the r
emote control sensor to a bright light.
How to open back of remote control to replace batteries
Place/Replace the batteries making sure that the 2x AAA batteries
(included) polarities (+/-) match the battery compartment polarities (+/-).
1. Open the battery compartment
cover on the back side.
3. Close the cover
2. Insert 2 x 1.5V AAA batteries in
correct polarity. Do not mix old
or used batteries with new ones.
15
INITIAL SETUP
Use the buttons to select system language, then press OK/SELECT to confirm.
Select CORRECT country you are located in otherwise Google TV will not work correctly.
For the first initial setup, on screen setup wizard will guide you through setting up your TV.
Please follow according to onscreen guide to setup your TV correctly.
Be sure to follow the below prompts to pair your Bluetooth remote control. After the pairing is
successful, you can now operate the TV.
Press BACK and HOME buttons on RC at the same time for 3 seconds to enter pairing mode.
16
INITIAL SETUP (Cont.)

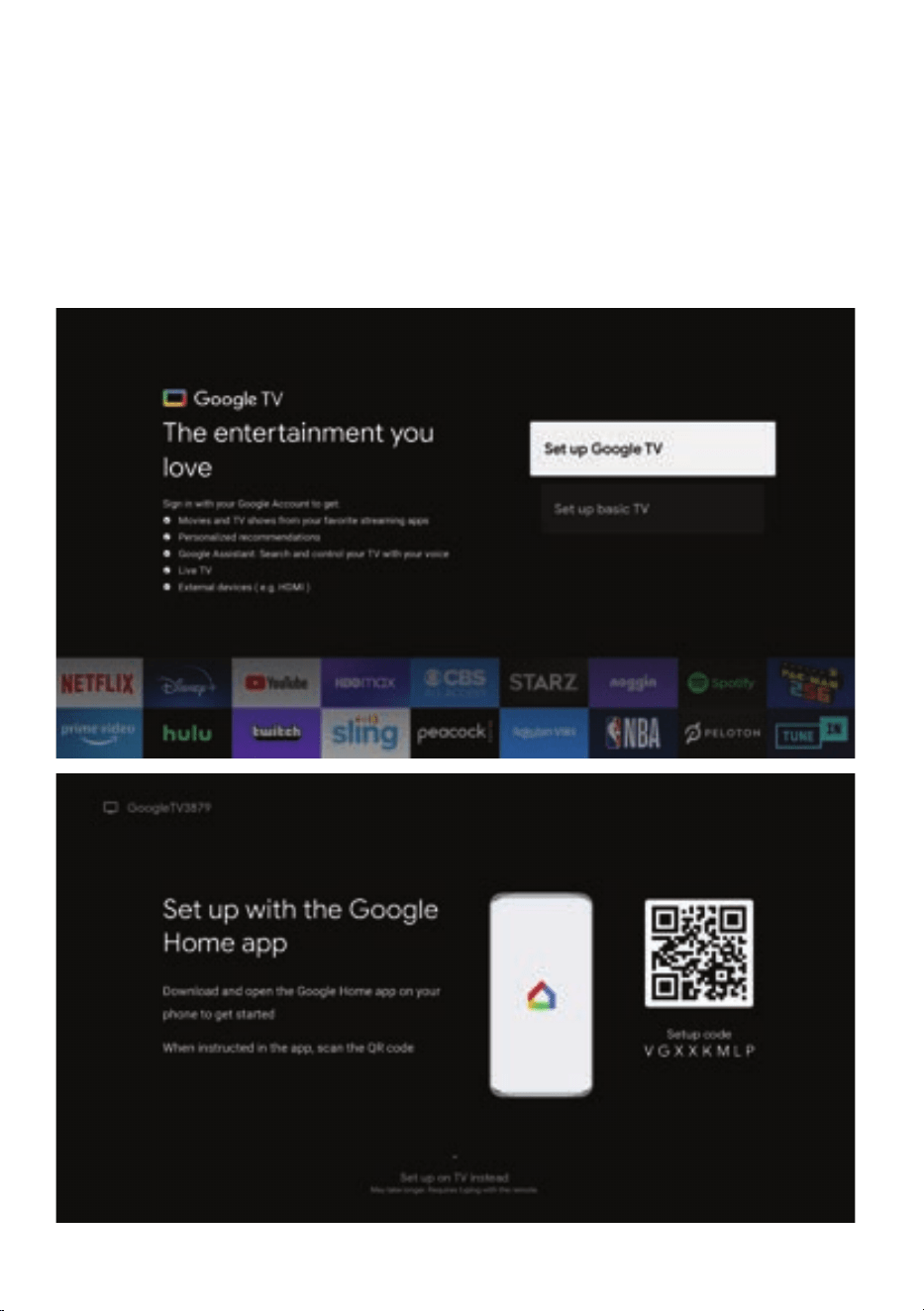

At the Initial Setup you will be asked whether you want to setup your Google TV now or just
proceed with basic setup of scanning your live DTV Channels.
If you want to SKIP Google TV Setup steps - SELECT “SET UP BASIC TV” and proceed to page
21 DATE & TIME
If you select “SET UP GOOGLE TV” please follow the below instructions below:
17
WI-FI
GOOGLE

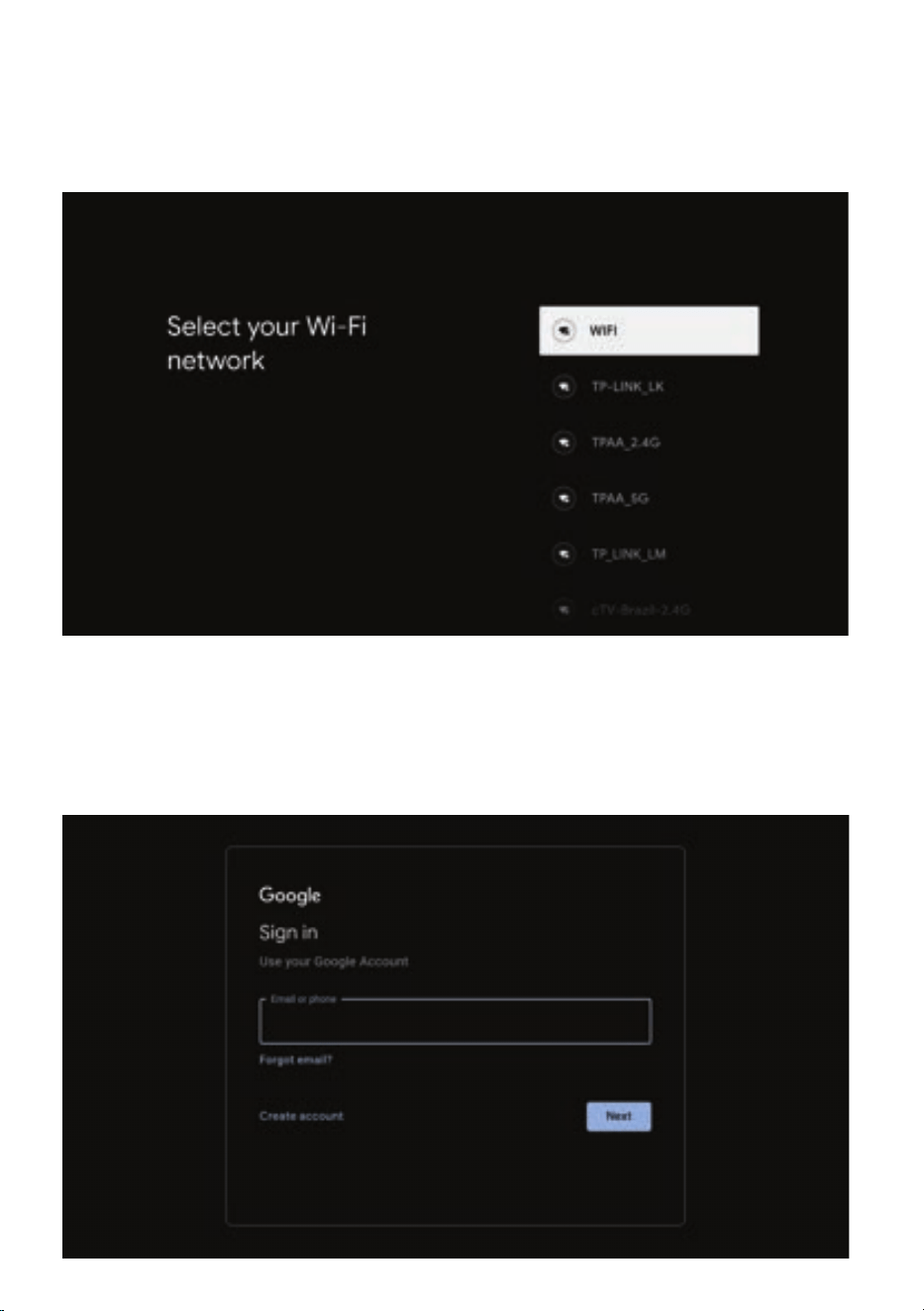

Select your home Wi-Fi network and enter in the password to start connection process.
Once successfully connected you will proceed to the next step.
To have access and to download applications from Google Play, you must sign in with a Google
Account. Once you open Google Play, you will be prompted to sign in or create a new account.
18
ACCEPTANCE - TERMS OF SERVICE
By accepting the Google Terms of Service to improve the product experience, Select “ACCEPT”
to proceed with this condition.
19
GOOGLE ASSISTANT SETUP

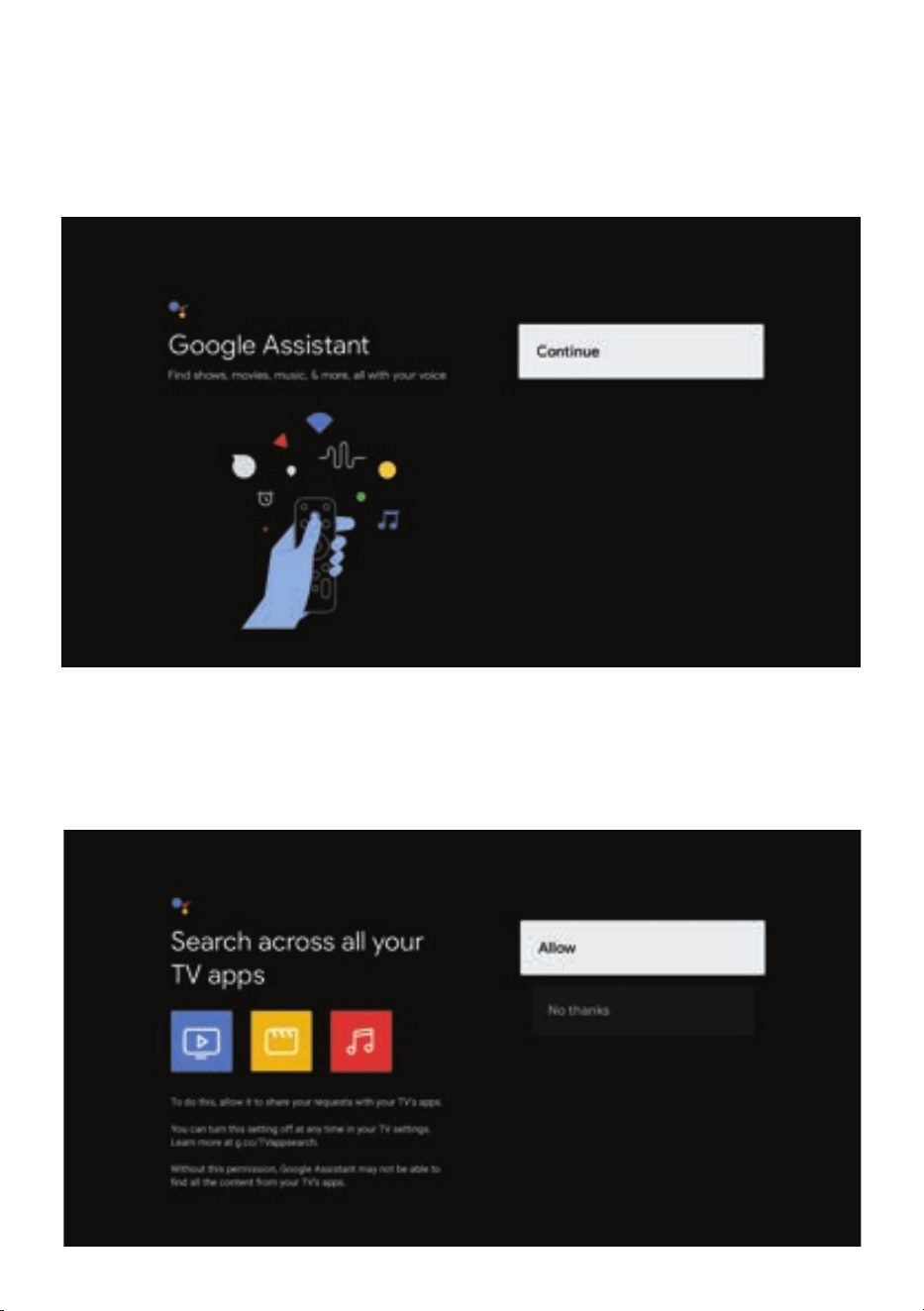

Now starts the process of setting up your Google Assistant to work best for you.
Please select Continue to start this process.
For the best experience with Google Assistant, please select “Allow” for Google Assistant
to share requests with your TV’s Installed apps.
Without this permission, Google Assistant may not be bale to find all the content
from your TV’s Apps.
20
GOOGLE ASSISTANT SETUP (CONT.)
If you have select “Allow” in the previous step, content recommendations can now be provided
to you.
21
Channel Installation
DATE & TIME

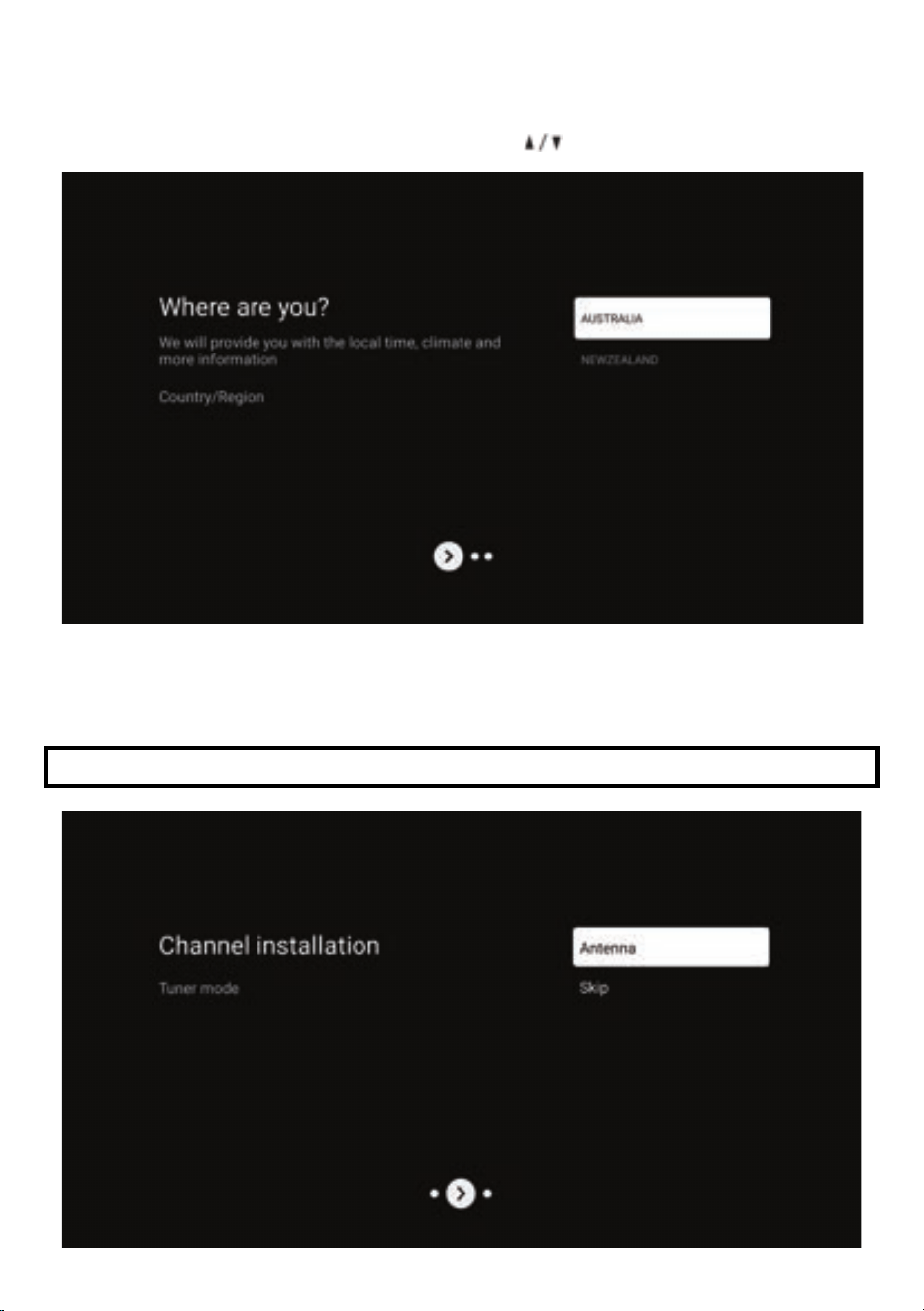

Select the country you are using the device in with the directional buttons.
NOTE: Please make sure Antenna (RF) cable is plugged into the TV port located on back of TV.
Make sure to select “ANTENNA” to scan for channels using antenna cable.
22
GOOGLE TV

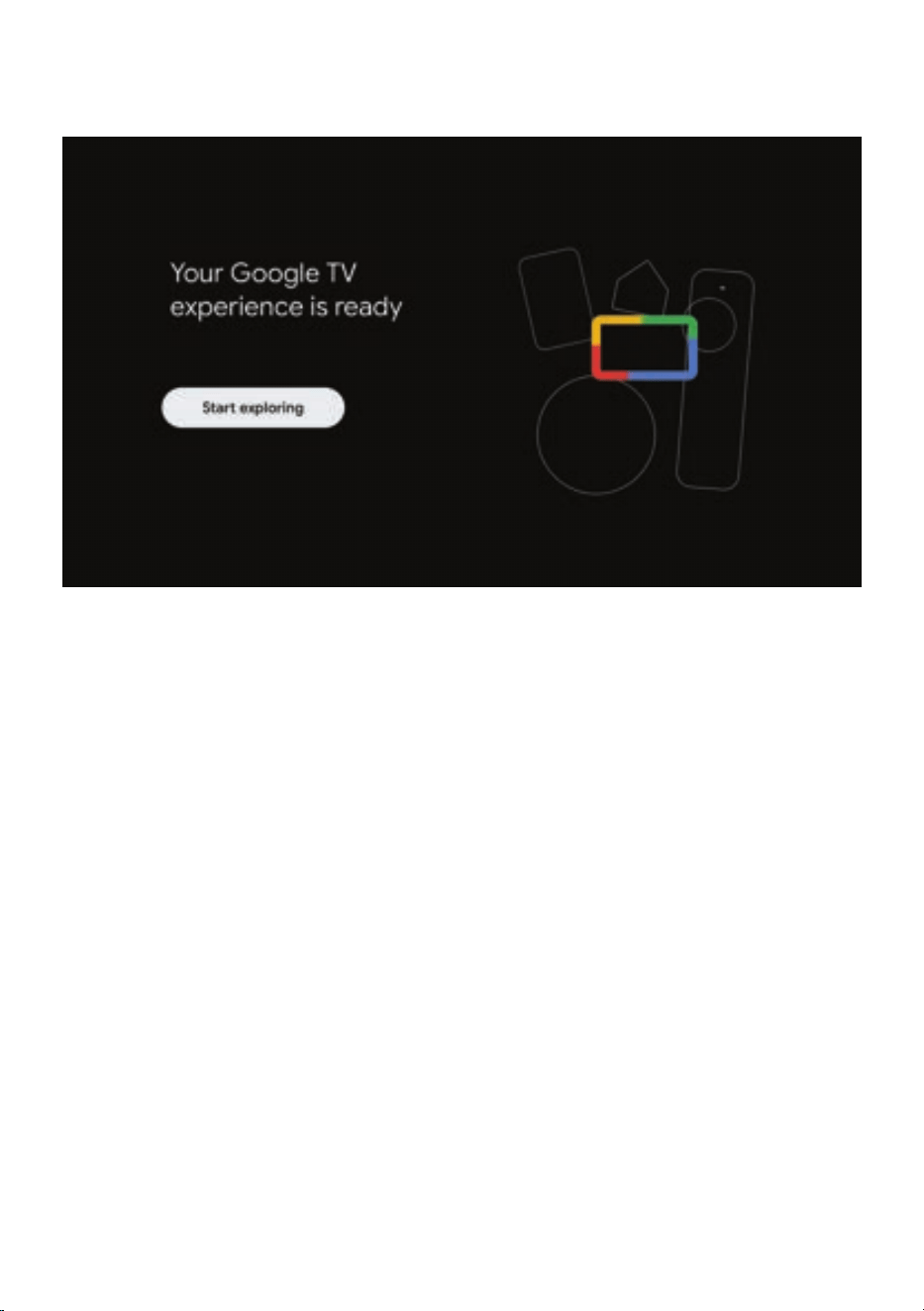

Once you have completed initial setup, you will now enter the Google TV home screen.
23
GOOGLE TV (CONT.)

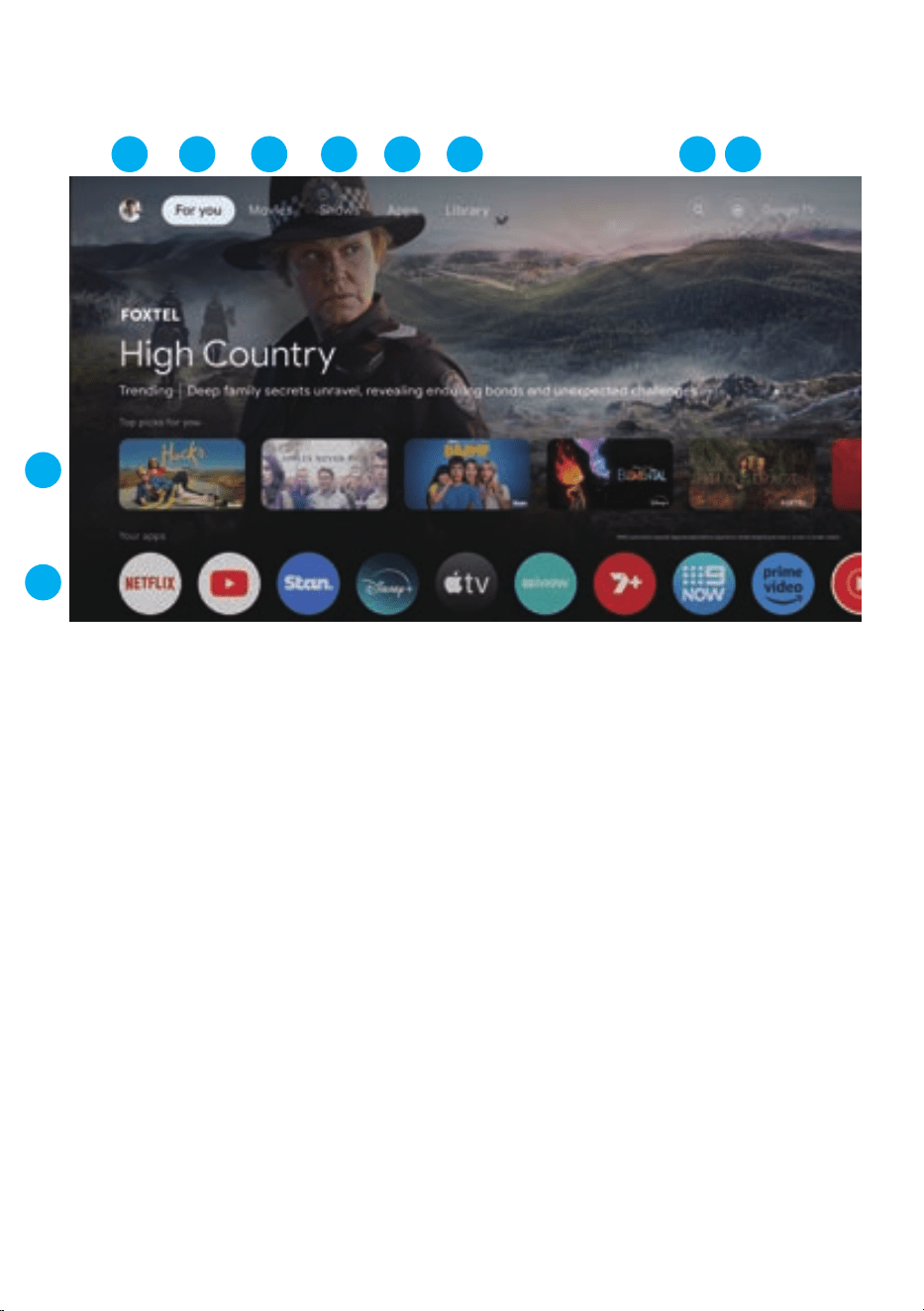

1. PROFILE - Select this option if you want to access:
Add or Manage Google Account
2. FOR YOU - Main page for advertised TV shows, Live TV, Installed Apps, and top
picks based on content recommendations tailored for you.
9 - Each row past this point will display recommended content from the apps you
already have installed.
10 - Apps you have installed. At the end of this row of apps, Select the + box and
add your app that you have downloaded and installed to the home screen of
your Google TV.
3. MOVIES - This menu is all movies recommended for you to watch.
4. SHOWS - This menu is all TV shows r
ecommended for you to watch.
5. APPS - To search for and download/install onto your Google TV.
6. LIBRARY - All installed app will appear in this menu, including updates and more.
7. SEARCH - Press the Google Assistant button on your remote to do more on your
TV with your voice, or select “Search” and type in what you are looking for.
8. SETTINGS - To Access Settings, Date & Time, TV Inputs, Picture (TV Display).
9
8
10
3 4 6 7521
24
What’s the weather today?
GOOGLE ASSISTANT
Ask Google to search for the latest blockbuster, stream shows, or open multiplayer games.
Have it dim the lights by connecting smart home devices. Manage tasks and see your
calendar. Or ask it questions and see the answers on your TV.
Do more on your TV with your voice. Press the Google Assistant button on your remote to
quickly search 400,000+ movies and shows, get recommendations to match your mood, control
smart home devices, and more.
“What’s the
weather today?”
25
SETTINGS MENU
To access SETTINGS menu:
1. Select Profile Icon (#1 on page 23) menu
2. Select Settings
SETTINGS AVAILABLE ARE:
- Set your Device Name - This is to pick a Chromecast name, when searching to chromcast
content from smartphone to TV, this name will appear on your smart device.
- Channels & Inputs - Live TV and TV inputs menu
- Display & Sound - Picture and Audio settings
- Network & Internet - Wi-Fi or Ethernet connection settings
- Accounts & Sign in - Google Account settings
- Television
- About
- System
26
PICTURE MENU
To access PICTURE menu:
1. Select Profile Icon (#1 on page 23) menu
2. Select Settings
2. Go down and select Display & Sound.
3. Then select Picture
27
SOUND MENU
To access SOUND menu:
1. Select Profile Icon (#1 on page 23) menu
2. Select Settings
2. Go down and select Display & Sound.
3. Then select Sound
28

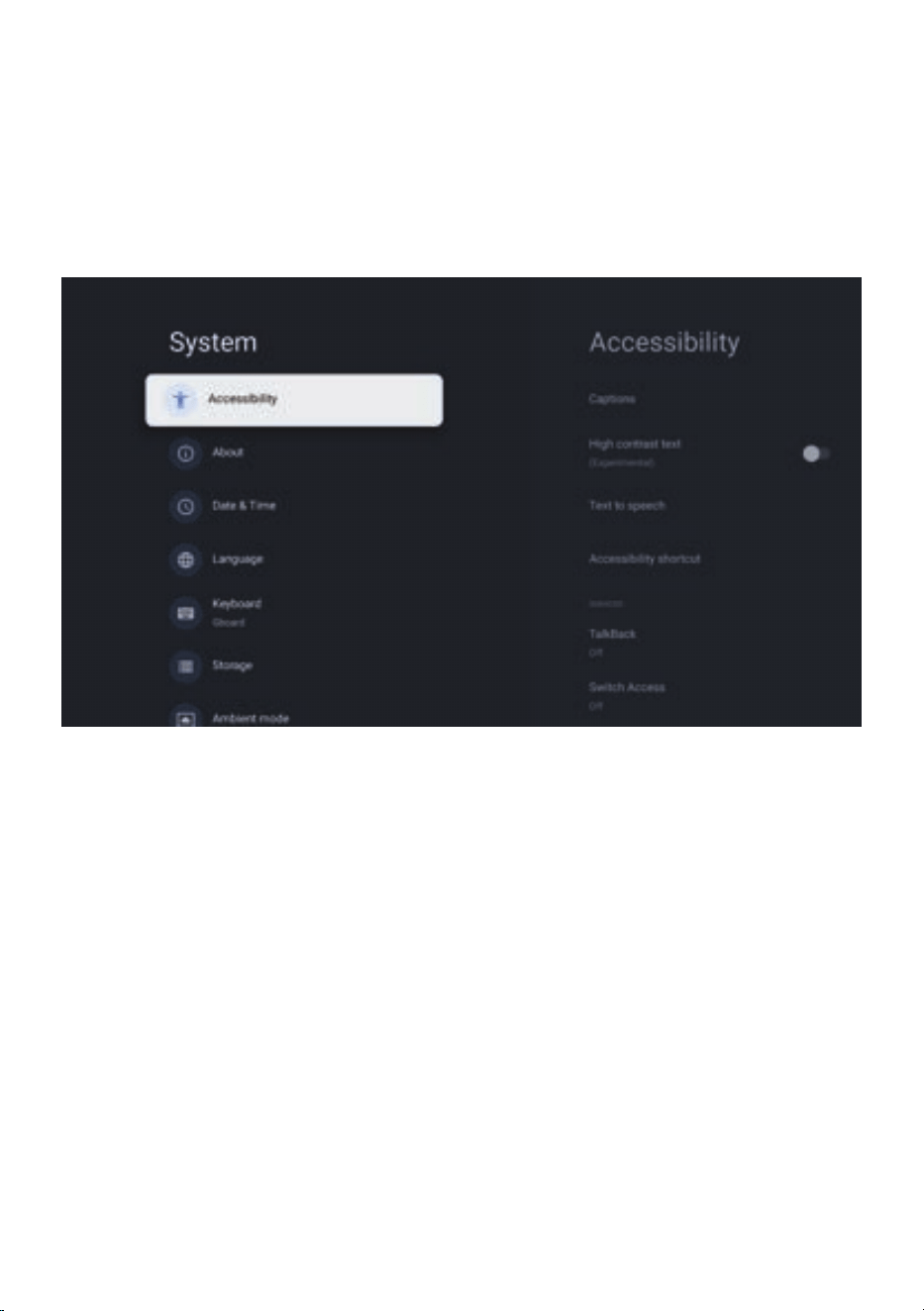

SYSTEM MENU
To access SYSTEM menu:
1. Select Profile Icon (#1 on page 23) menu
2. Select Settings
2. Go down and select SYSTEM
29
ABOUT MENU
To access ABOUT menu:
1. Select Profile Icon (#1 on page 23) menu
2. Select Settings
2. Go down and select ABOUT
30

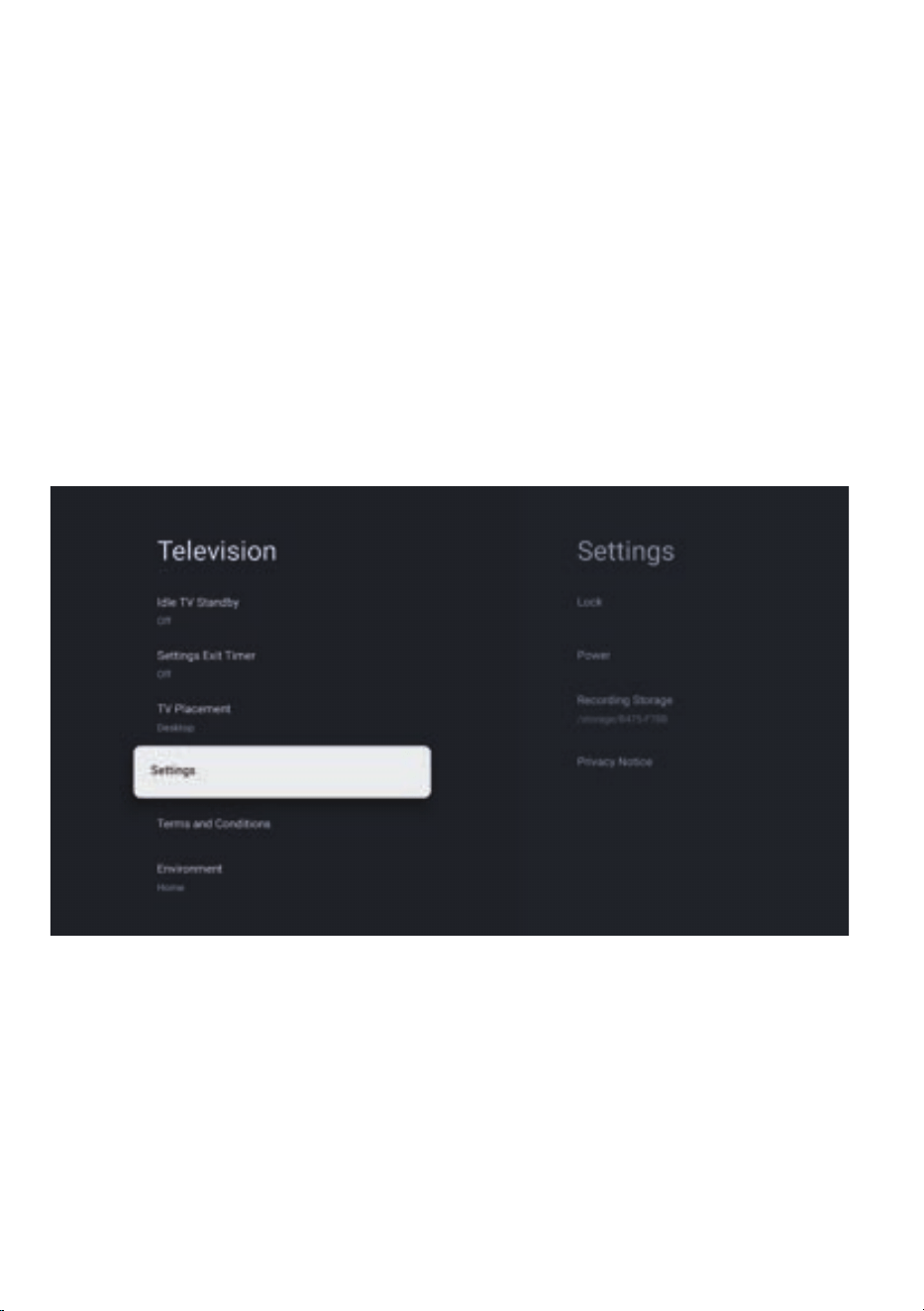

PARENTAL CONTROL
To access PARENTAL CONTROL menu,
1. Select Profile Icon (#1 on page 23) menu
2. Select Settings
3. Go down and select System
4. Go down and select Television
5. Go down and select Settings
6. Go down and select LOCK
From here you have the option to select and create a new password to lock the channels
you want to lock.
Note: please make sure to store/save password somewhere you can access at a later date.
Forgetting password, you may need to factory reset TV to use again.
31
PVR (PERSONAL VIDEO RECORDER)
To access RECORDING menu, (PVR)
1. While watching Live TV, press “OK” on remote control.
2. Press “Start recording” and then choose the recording time.
IMPORTANT - You must have a USB Drive inserted into the USB Port of the TV to in order to
use any of these “RECORD” functions. (Must be FAT32 format)
32

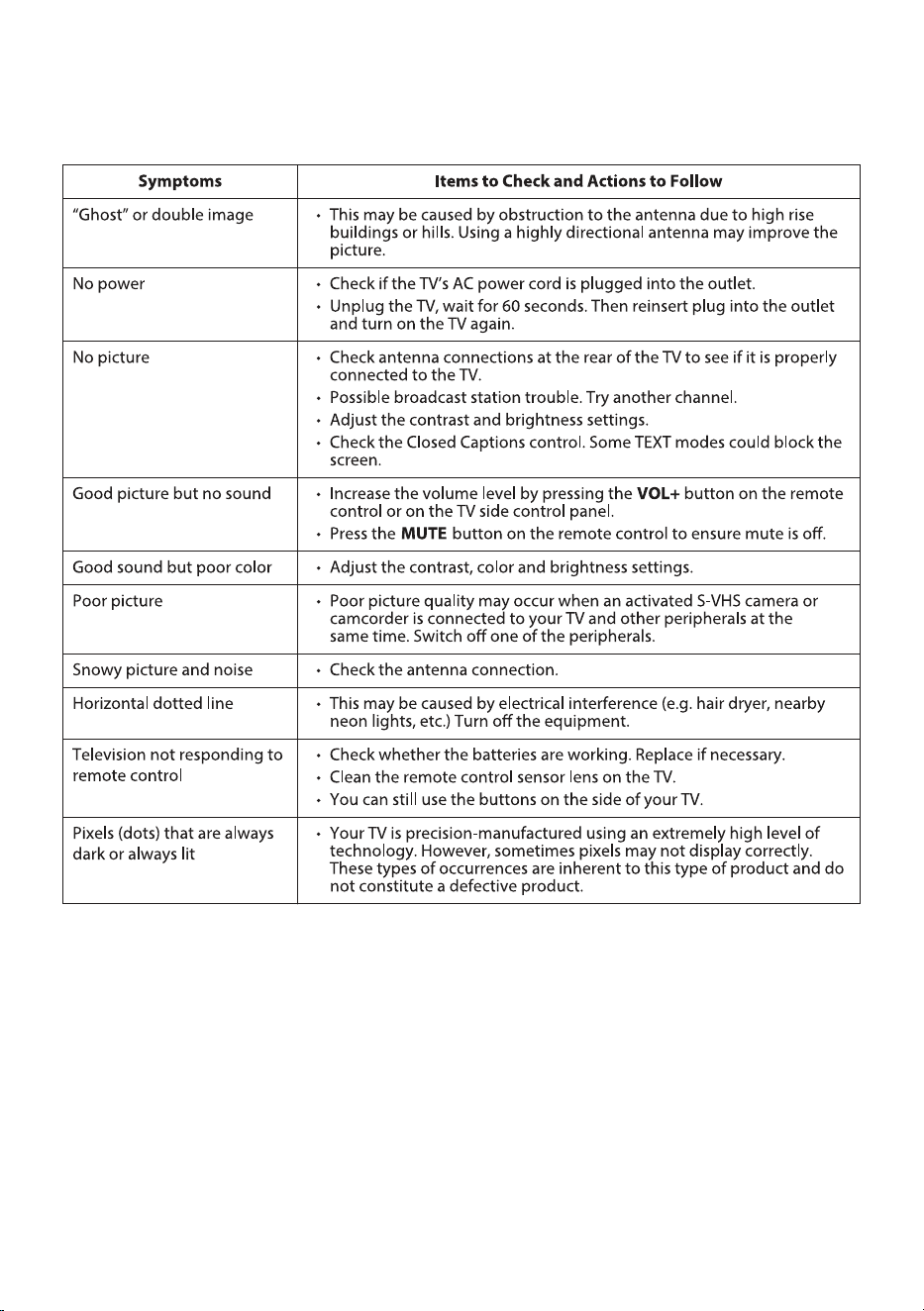

GENERAL PROBLEMS WITH TV SET
FAQS
33
FAQS (Cont.)
MY REMOTE CONTROL ISN’T PAIRING WITH MY ANDROID TV?
If your remote control is not pairing or becomes disconnected, please recon-
nect it and pair it again in the Settings menu:
1. Press SETTINGS Icon
2. Select “REMOTES & ACCESSORIES”
3. Select “PAIR ACCESSORY”
4. Follow the onscreen instructions to pair your remote. Once you detect
your Bluetooth Remote control, Press OK on remote control to select
it and pair.
If it doesnt connect, try the process again until it pairs, otherwise contact our
call centre.
NOTE: NOTE: You can still use your remote control without pairing. However,
Google Assistant will not be available until the remote control is paired.
ANDROID TV REMOTE CONTROL - APP
If you want to control your TV via your smart device. Search for:
“Android TV remote control” app and download. Once following prompts to
connect your smart device to your Android TV, you will then be able to control
your TV from your smart phone.
TURN OFF SUBTITLES ON LIVE TV?
To turn o subtitles on your Android TV, while watching Live TV:
1.
While watching Live TV, press “OK” on remote control.
2. Go down and select “Subtitle language”.
3. Switch all choices of subtitles to OFF.
Once all options for subtitle are switched o, then you can exit and continue
watching Live TV!
If the Subtitle persists to appear, you may need a software update or for further
assistance please contact our customer support centre.
34
Operating System Google TV™
Resolution 1366 x 768
Display Colours 16.7 Million
Contrast ratio: 3000 : 1
Aspect Ratio 16 : 9
Refresh Rate 60Hz
ETHERNET / WiFi Yes/802.11 a/b/g/n/ac
Multimedia Playback
Format under
USB Mode
Movie: MPEG, TS, TRP, TP, MP4, MOV, 3GP, AVI, MKV, ASF, FLV,
WEBM
Music: MPEG1, MPEG2, VORBIS, LPCM, FLAC
Photo: JPEG, BMP, PNG, GIF
Power Source 100-240V ~ 50/60Hz
Power Consumption 48W
USB 5V
---
max. 500mA
Dimensions
With stand: 715.7 (w) × 196.4 (d) × 464.9 (h) mm
Without stand: 715.7 (w) × 82.3 (d) × 430.1 (h) mm
Weight
Net: 3.9 kg
Gross: 5.1 kg
Accessories
1 x Instruction Manual 2 x AAA Batteries
1 x Remote Control 2 x TV Stand ( Left and Right)
1 x Warranty Card Screws (For TV Stand)
SPECIFICATIONS
NOTE: This document is for reference only, the operation interface is subject to the
TV software.
35
CUSTOMER SUPPORT:
info@ayonz.com
02 8279 8606
DISTRIBUTED BY:
Ayonz Pty Ltd
