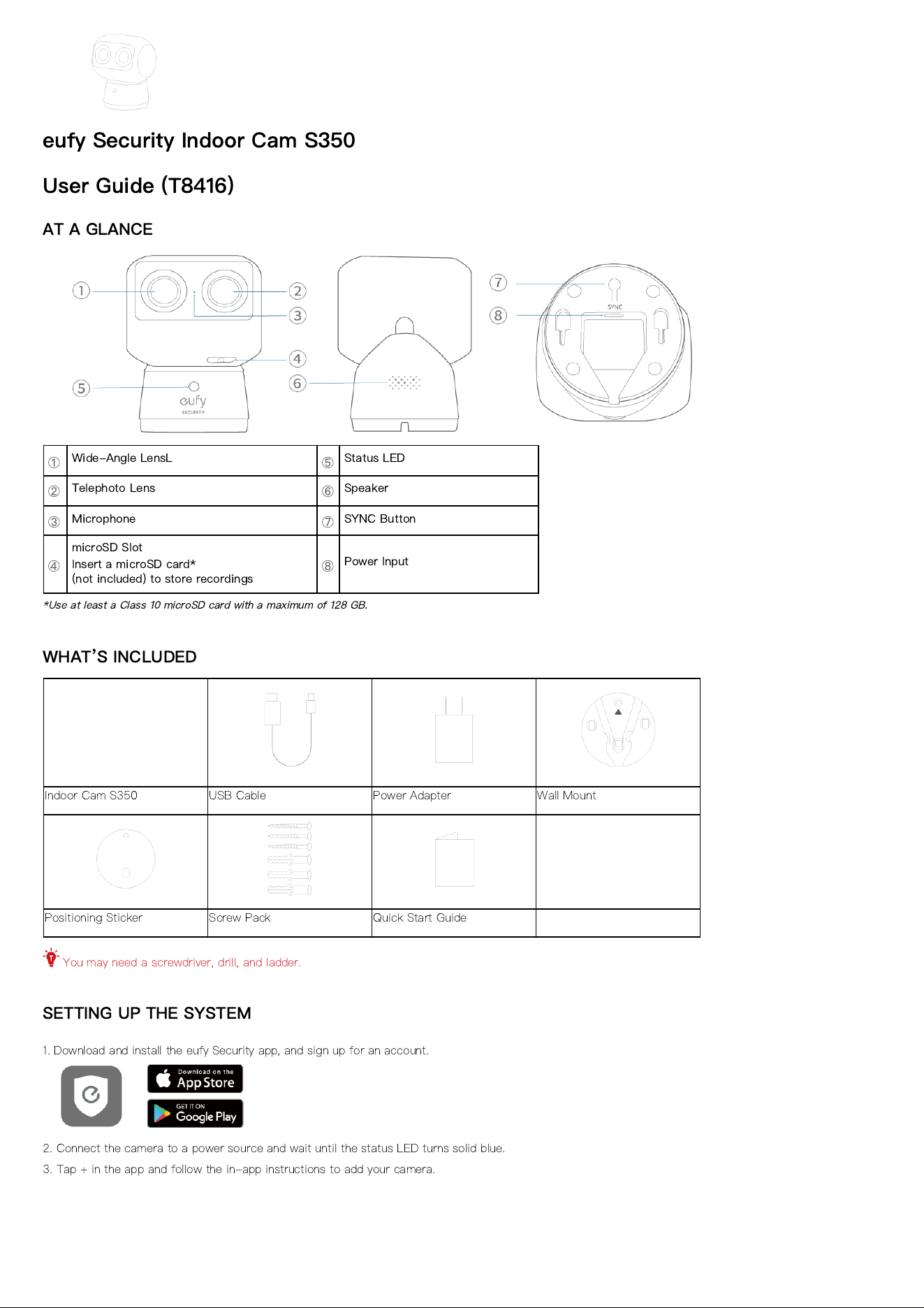

eufy Security Indoor Cam S350
User Guide (T8416)
AT A GLANCE
①
Wide-Angle LensL
⑤
Status LED
②
Telephoto Lens
⑥
Speaker
③
Microphone
⑦
SYNC Button
④
microSD Slot
Insert a microSD card*
(not included) to store recordings
⑧
Power Input
*Use at least a Class 10 microSD card with a maximum of 128 GB.
WHAT
’
S INCLUDED
Indoor Cam S350 USB Cable Power Adapter Wall Mount
Positioning Sticker Screw Pack Quick Start Guide
You may need a screwdriver, drill, and ladder.
SETTING UP THE SYSTEM
1. Download and install the eufy Security app, and sign up for an account.
2. Connect the camera to a power source and wait until the status LED turns solid blue.
3. Tap + in the app and follow the in-app instructions to add your camera.

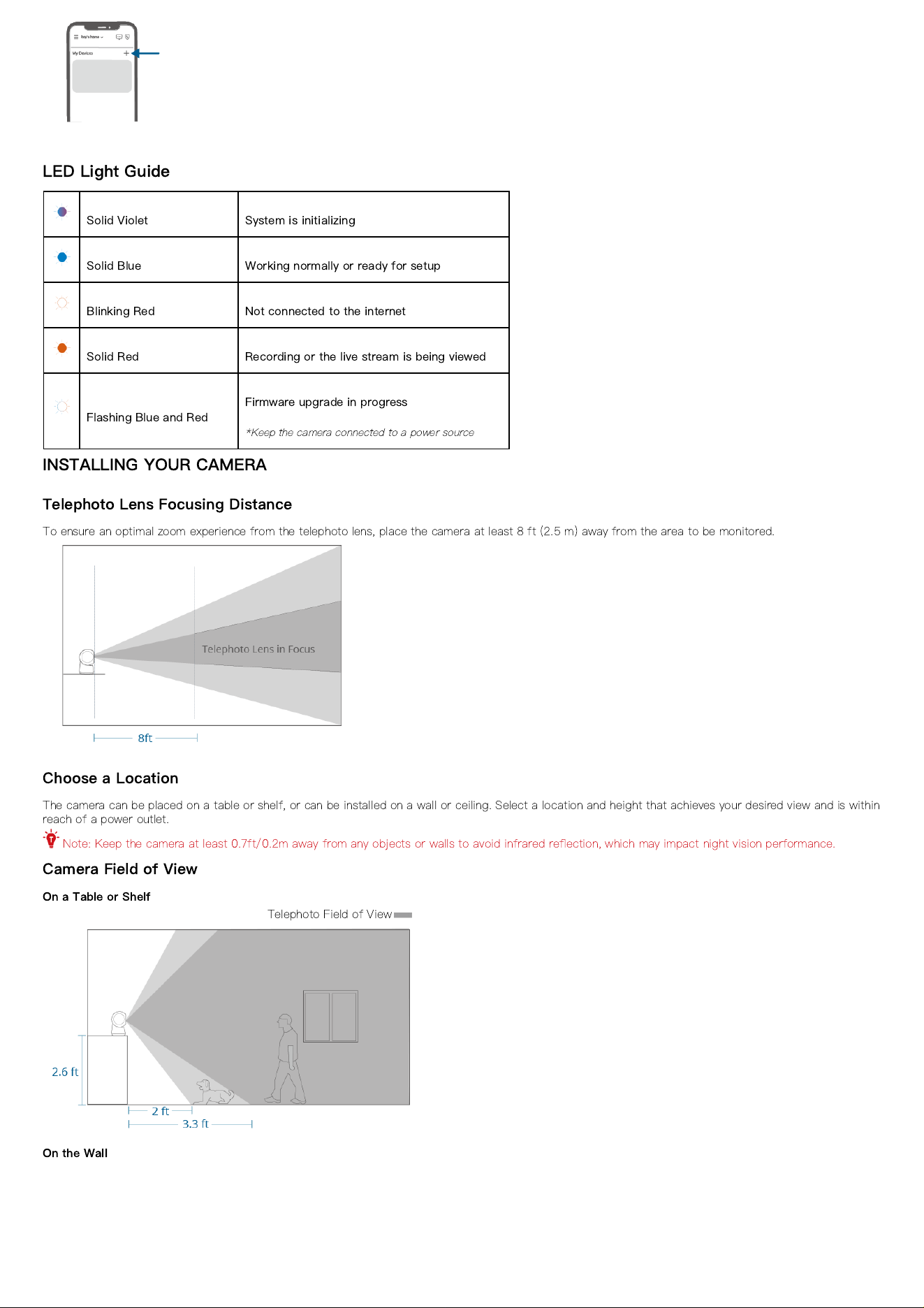

LED Light Guide
Solid Violet System is initializing
Solid Blue Working normally or ready for setup
Blinking Red Not connected to the internet
Solid Red Recording or the live stream is being viewed
Flashing Blue and Red
Firmware upgrade in progress
*Keep the camera connected to a power source
INSTALLING YOUR CAMERA
Telephoto Lens Focusing Distance
To ensure an optimal zoom experience from the telephoto lens, place the camera at least 8 ft (2.5 m) away from the area to be monitored.
Choose a Location
The camera can be placed on a table or shelf, or can be installed on a wall or ceiling. Select a location and height that achieves your desired view and is within
reach of a power outlet.
Note: Keep the camera at least 0.7ft/0.2m away from any objects or walls to avoid infrared re
fl
ection, which may impact night vision performance.
Camera Field of View
On a Table or Shelf
Telephoto Field of View
On the Wall
On the Ceiling

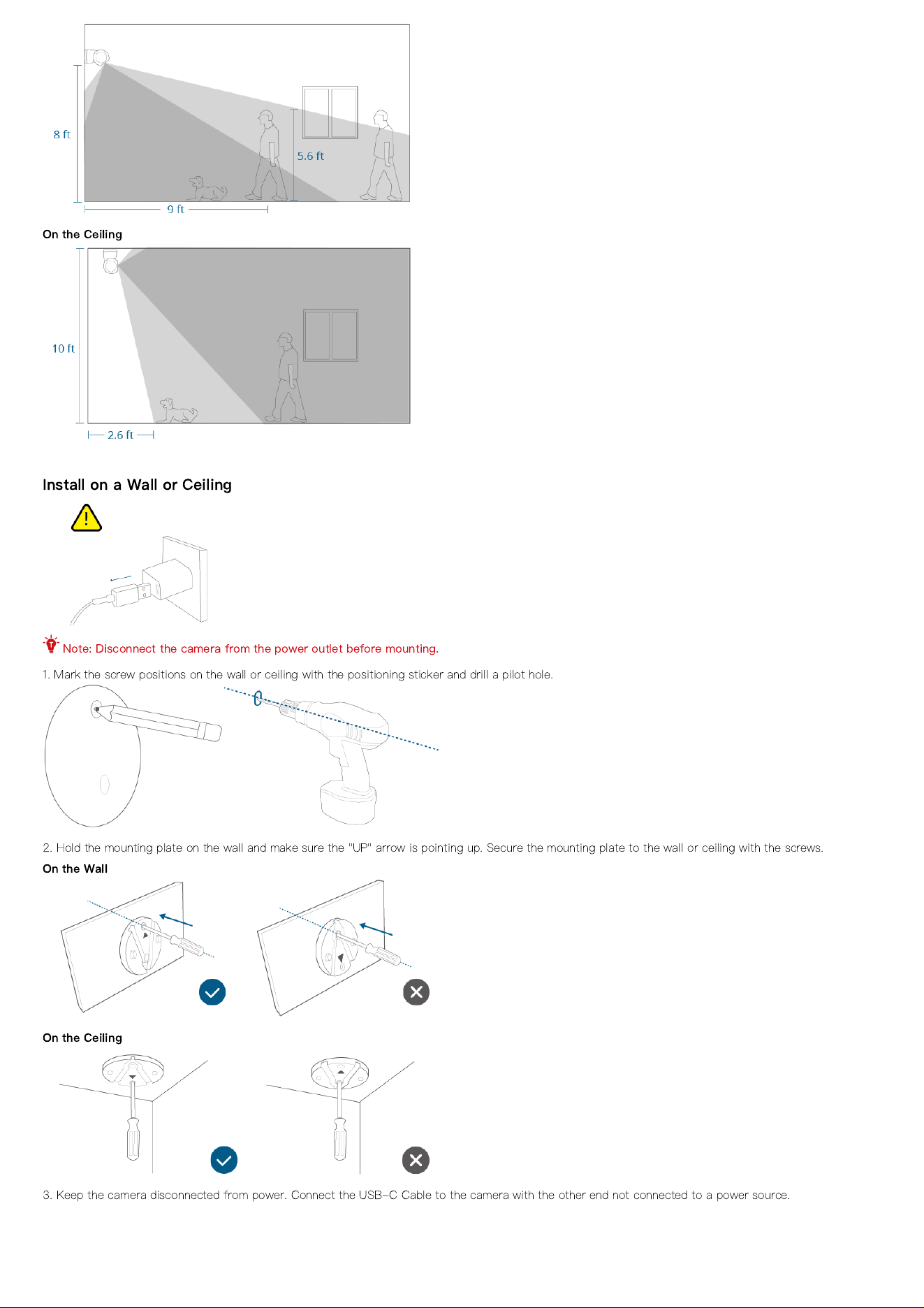

Install on a Wall or Ceiling
Note: Disconnect the camera from the power outlet before mounting.
1. Mark the screw positions on the wall or ceiling with the positioning sticker and drill a pilot hole.
2. Hold the mounting plate on the wall and make sure the "UP" arrow is pointing up. Secure the mounting plate to the wall or ceiling with the screws.
On the Wall
On the Ceiling
3. Keep the camera disconnected from power. Connect the USB-C Cable to the camera with the other end not connected to a power source.

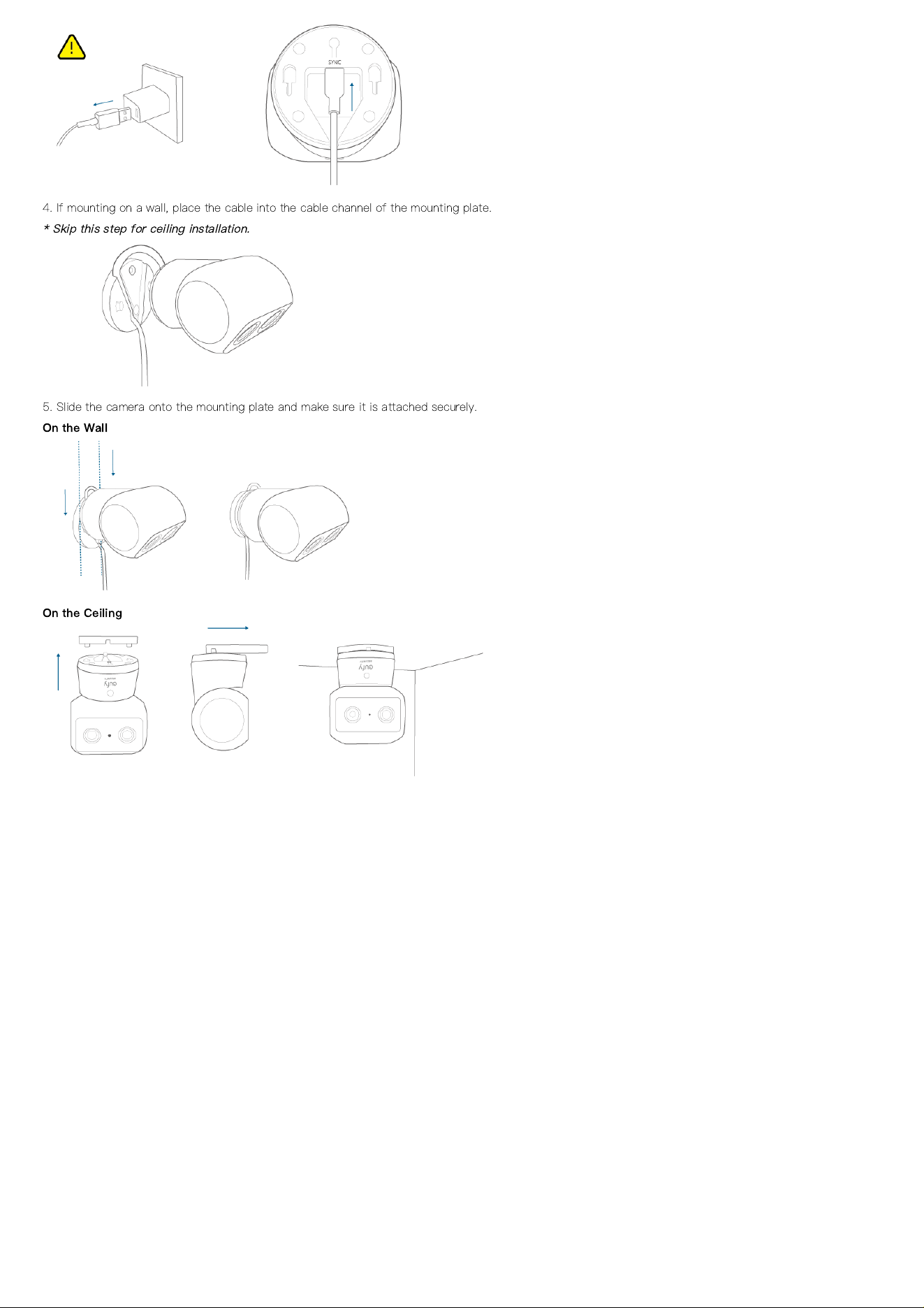

4. If mounting on a wall, place the cable into the cable channel of the mounting plate.
* Skip this step for ceiling installation.
5. Slide the camera onto the mounting plate and make sure it is attached securely.
On the Wall
On the Ceiling
