VACUUM PACKING MACHINE
USER MANUAL
Model: DZ-260A-V1, DZ-260A-V2,DZ-260A-V3
，
DZ-260S-V1, DZ-260S-V2, DZ-260S-V3
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
DZ-260A-V1
DZ-260A-V2
DZ-260A-V3
DZ-260S-V1
DZ-260S-V2
DZ-260S-V3
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
VACUUM PACKING MACHINE
- 2 -
1. Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions may
result in serious personal injury.
GENERAL SAFETY RULES
Please read the entire operating instructions before using the products for
the first time; They contain important information about the correct
operation.
The guarantee/warranty will be void if damage is incurred resulting from
non-compliance with the operating instructions.Liability for any and all
consequential damage is excluded!
We do not assume any liability for damage to property or personal injury
caused by improper use or the failure to observe the safety instructions! In
such cases the guarantee/warranty will be void
The unauthorized conversion,modification of disassembly of the products
is inadmissible because of safety and approval reasons (CE).
The product is not a toy and must be kept out of the reach of children.
Particular care must therefore be exercised if children are present.
The product must not get damp or wet,it is only intended for use in dry,
indoor locations(not bathrooms or similarly damp areas).There is a risk of a
fatal electric shock.
Do not expose the product or its accessories to damp or extremely high or
low temperatures.
Do not leave packing materials unattended.They may become dangerous
playing material for children.
- 3 -
Dropping,falling,pressure or tensile forces could destroy or at least limit the
function of the product.
Never position the device in the vicinity of combustible or easily
inflammable materials.
Always make sure that the rotary table on which the object is placed is
located in the center of the housing!
This machine uses plastic film or plastic aluminum film as materials to
vacuum package paste foods, fruits, sauce vegetables, chemicals,
pharmaceuticals, electronic components, precision instruments, rare
metals, and other items. Products packaged under vacuum are not easily
oxidized or moldy. Especially suitable for industries such as tea, food, and
medicine.
If you have reason to assume that safe operation is no longer
possible,disconnect the device immediately and secure it against
inadvertent operation.
It can be assumed that safe operation is no longer possible if:
- the device shows visible signs of damage,
- the device no longer functions,
- after a longer period of storage under unfavourable conditions,
- following heavy stress during transportation.
SAVE THESE INSTRUCTIONS
- 4 -
MODEL AND PARAMETERS
Model
DZ-260
A-V1
DZ-260
A-V2
DZ-260
A-V3
DZ-260
S-V1
DZ-260
S-V2
DZ-260S
-V3
Seal
Length
260mm
260mm
260mm
260mm
260mm
260mm
Chamber
Dimension
s
330×270×50mm
330×270×50mm
Vacuum
Pump Type
Oil
Pump
Oil
Pump
Oil
Pump
Oil
Pump
Oil
Pump
Oil
Pump
Pumping
Speed of
Vacuum
Pump
6.5m³/h
6.5m³/h
6.5m³/h
4.2m³/h
4.2m³/h
4.2m³/h
Voltage
AC
120V
60Hz
AC
230V
50Hz
AC
230V
50Hz
AC
120V
60Hz
AC
230V
50Hz
AC 230V
50Hz
Max.
Power
950W
950W
950W
950W
950W
950W
Vacuum
Pump
Power
180W
180W
180W
120W
120W
120W
Machine
Material
201 Stainless Steel
201 Stainless Steel
- 5 -

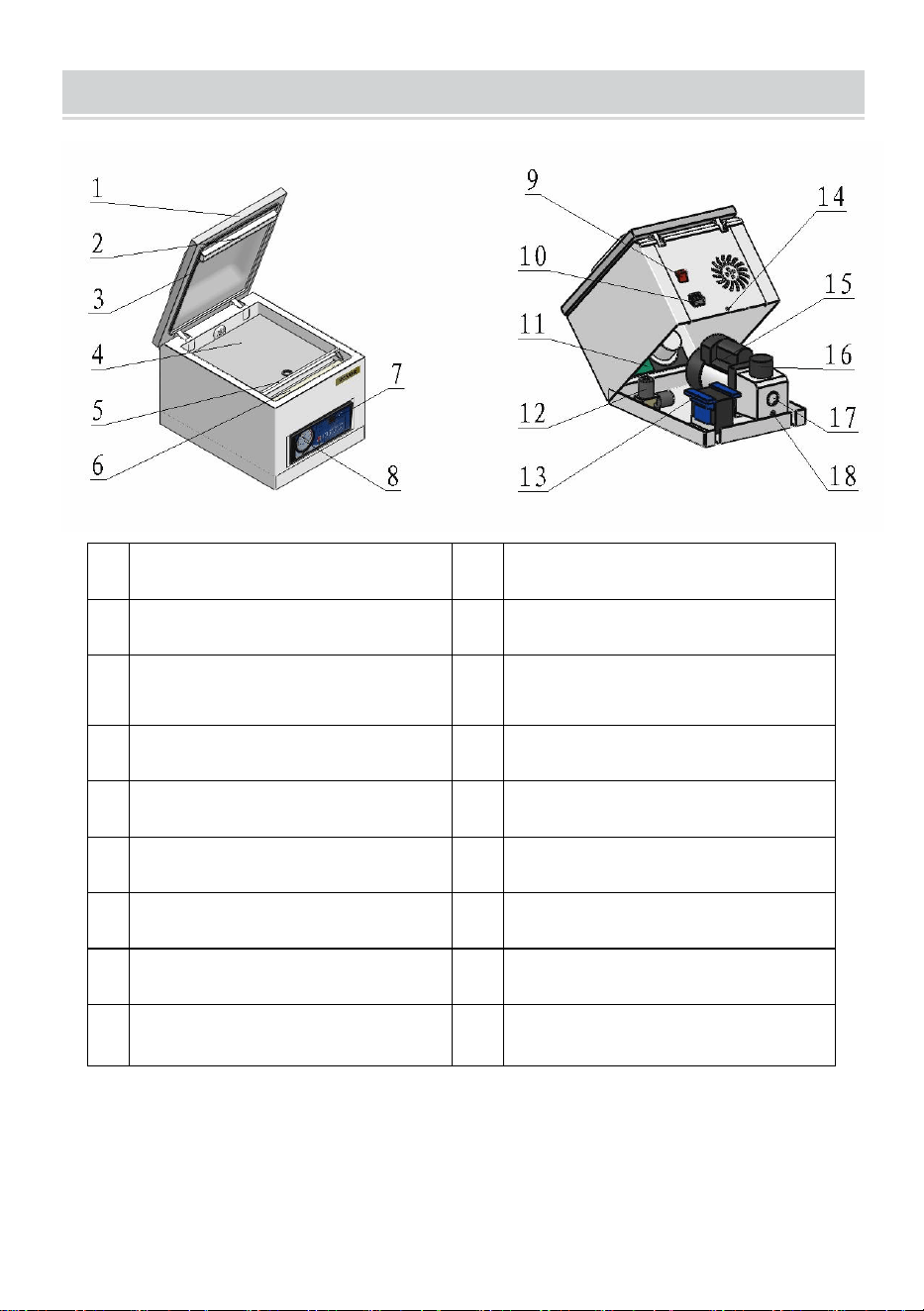

STRUCTURE DIAGRAM
1
Vacuum cover
10
Power plug
2
Silicone strip
11
Circuit board
3
Vacuum sealing bar
12
Vacuum pump solenoid
valve
4
Base plate
13
Heating transformer
5
Bag pressing rod
14
Rear cover screw hole
6
Sealing heating strip
15
Vacuum pump
7
Indicator
16
Oil injection port
8
Vacuum gauge
17
Oil level observation window
9
Power switch
18
Oil drain screw
- 6 -
PARTS LIST
DZ-260
A-V1
DZ-260
A-V2
DZ-260
A-V3
DZ-260
S-V1
DZ-260
S-V2
DZ-260
S-V3
Heating Wire
×1
×1
×1
×1
×1
×1
Teflon Cloth
×1
×1
×1
×1
×1
×1
Filler Board
×1
×1
×1
×1
×1
×1
Vacuum
Pump Oil
×1
×1
×1
×1
×1
×1
Allen Key
×1
×1
×1
×1
×1
×1
Vacuum Bag
×30
×30
×30
×30
×30
×30
Chamber
Sealing Strip
×1
×1
×1
×1
×1
×1
Power Cord
×1
×1
×1
×1
×1
×1
Fuse
×2
×2
×2
×2
×2
×2
User Manual
×1
×1
×1
×1
×1
×1
Model
Parts
- 7 -

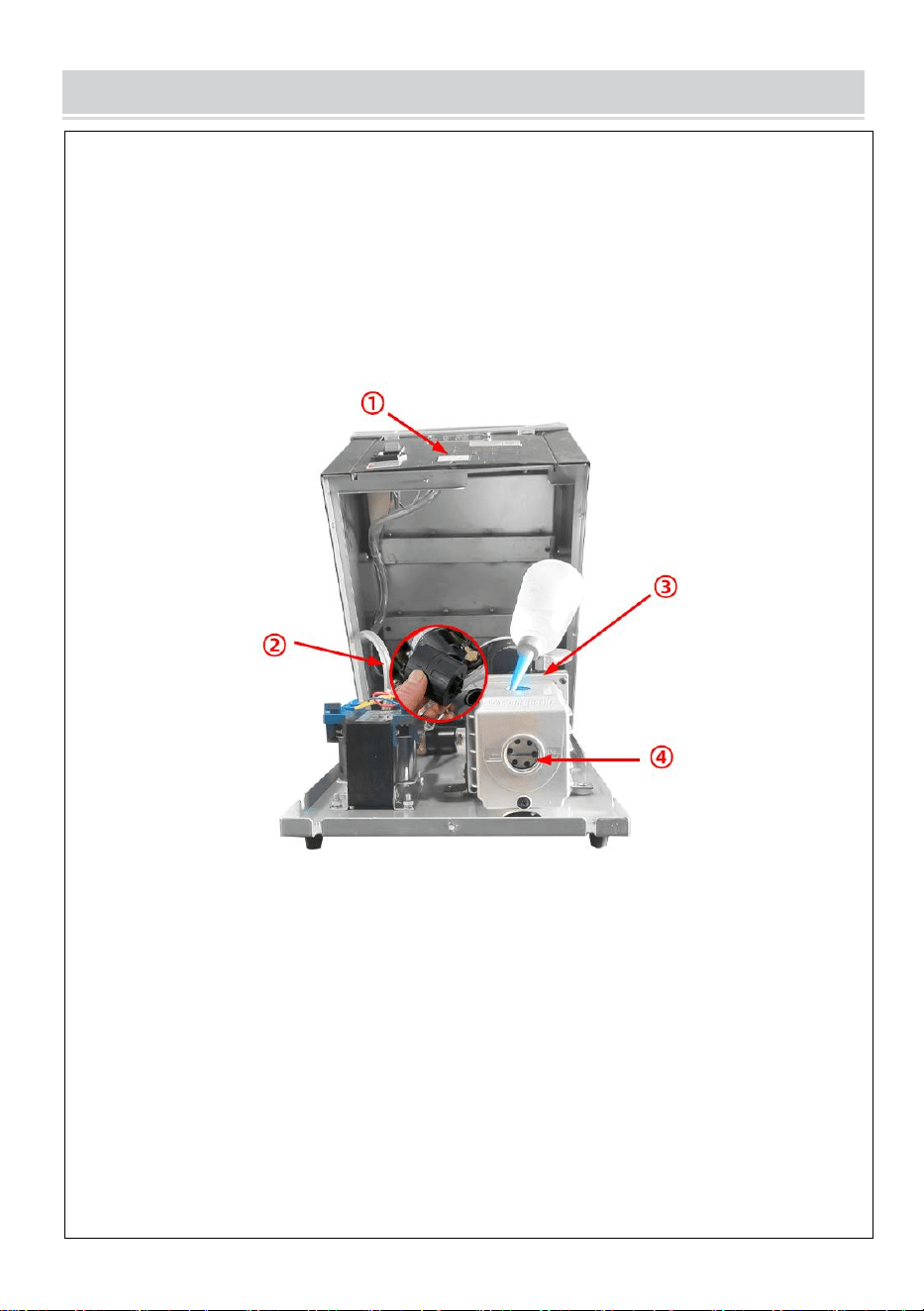

OPERATING INSTRUCTIONS
1.
①:Unscrew back cover screw and lift back cover;
②:Take out the oil mist filter;
③:Add vacuum pump oil;
④:Oil level between 1/2-3/4 of the observation hole(do not fill);
⑤:After adding the oil,screw back the oil mist filter, close the back cover.
It is strictly prohibited to start the vacuum pump without oil.

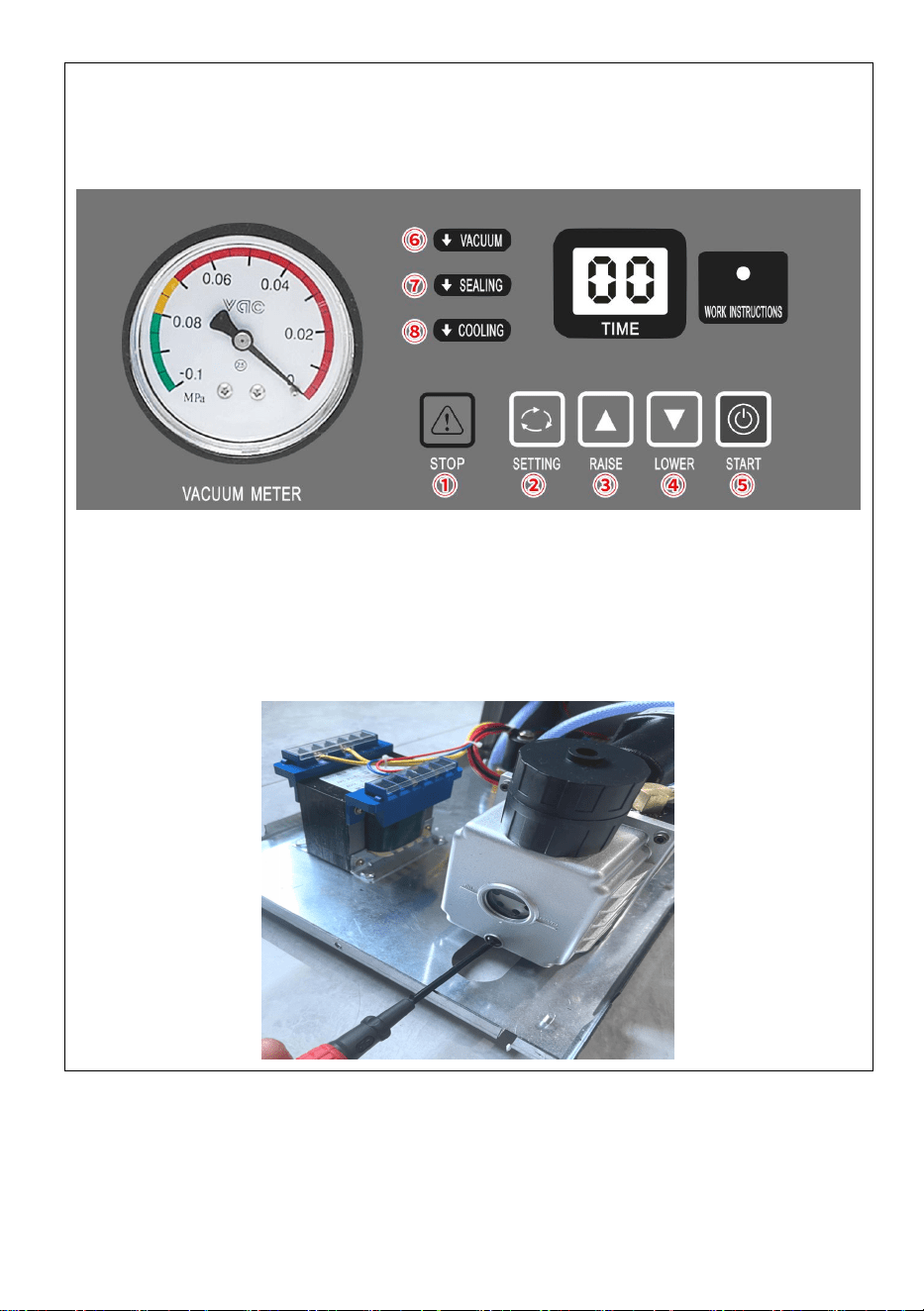

2.PANEL USAGE INSTRUCTIONS
Step 1:Connect the matching power supply
Step 2: Open
POWER SWITCH
Step 3：⑥VACUUM :Click the ②SETTING button on the control panel, select the
target setting.Click the ③RAISE or ④LOWER button to set the ideal vacuum
time. Vacuum time is generally set to 30-40S.
Step 4: ⑦SEALING :Click the ②SETTING button twice, and the sealing time is
generally set to 1.5-2S. The sealing time is set according to the thickness of the
vacuum bag. It is strictly prohibited to set the sealing time too long or burn out the
sealing heating strip.
- 8 -
Step 5: ⑧COOLING:After setting the sealing time, click the ②SETTING button
again to set the cooling time, usually 3-5 seconds. After setting the cooling time,
click the ②SETTING button and the control panel will display the letter ED ,
indicating the end of the setting process.
3.When the machine needs to change oil or is not used for a long time, loosen
the screw under the oil window and drain the vacuum pump oil. Suggest
replacing the vacuum pump oil after the machine has been working continuously
for 800 hours.
- 9 -

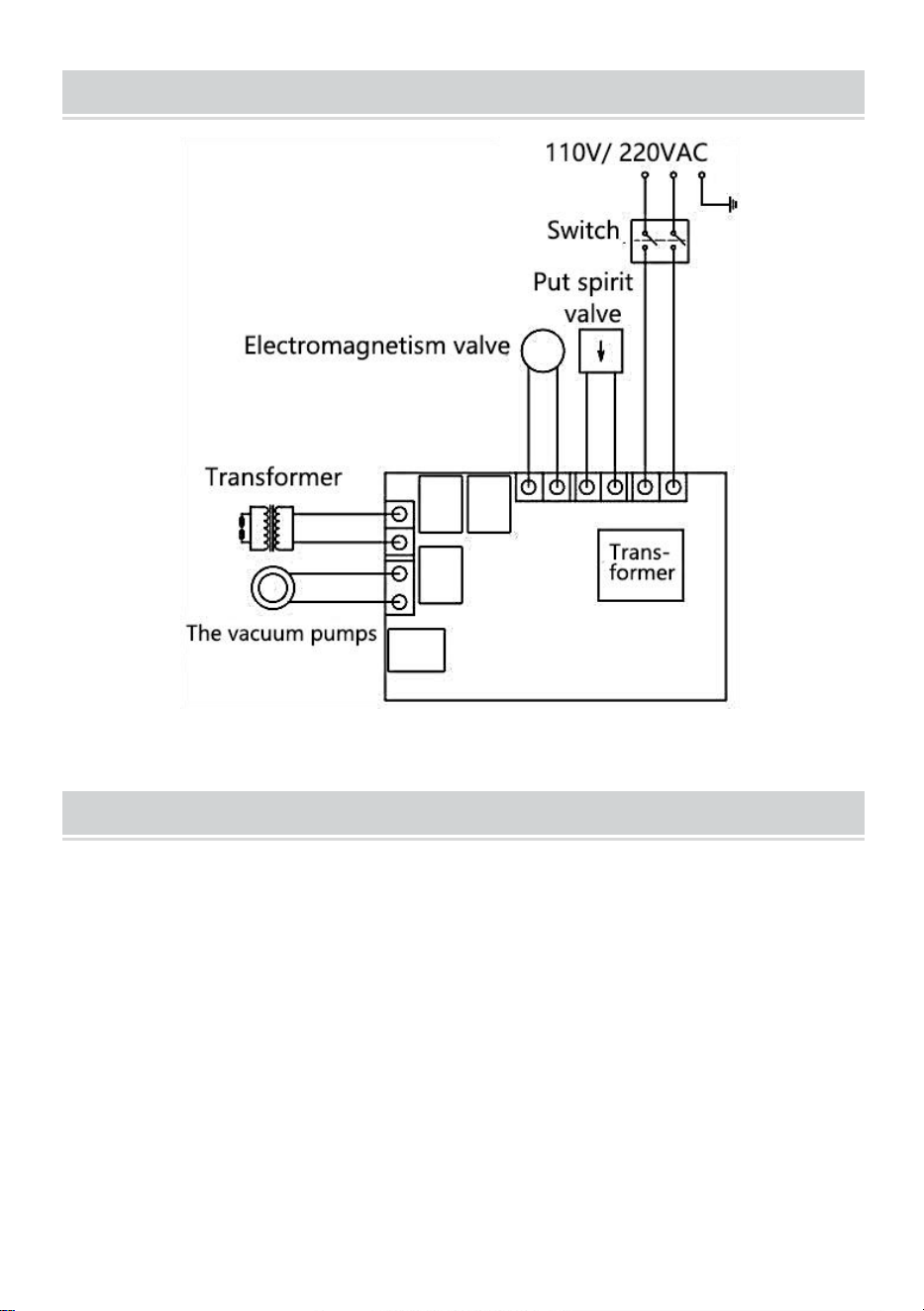

CIRCUIT DIAGRAM
MAINTENANCE
1. After using , the surface of the machine should be cleaned and residual
materials inside the machine should be removed.
2. When storing, keep in a clean, dry, and safe location away from
children.
3. All maintenance, service, and repairs not discussed in the manual
should only be performed by qualified service technicians.

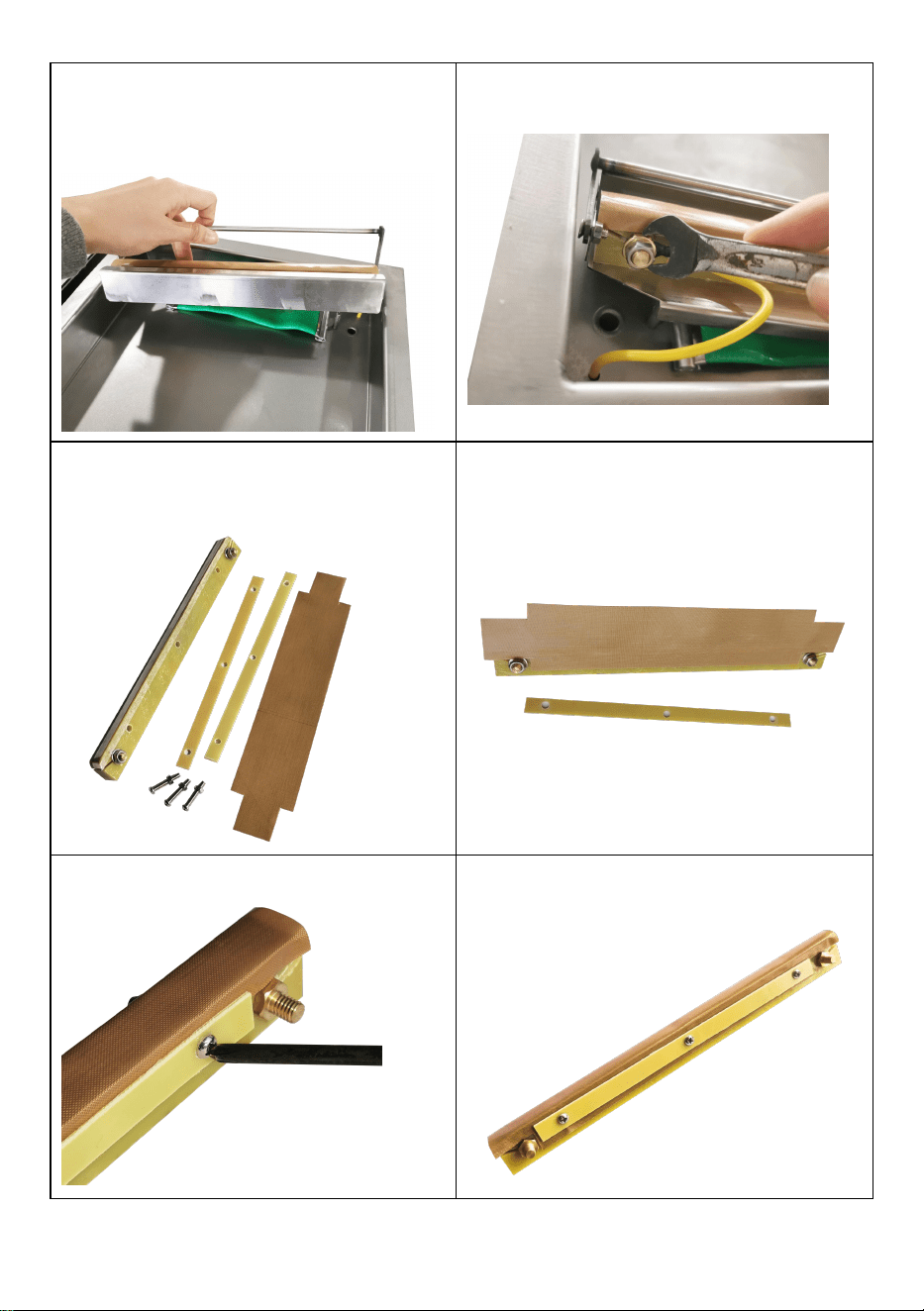

Replace the high temperature cloth(Teflon Cloth)
- 10 -
1. Remove the screws on both
sides of the tray, and then pick up
the whole tray.
2. Remove the upper screws .
3. Remove the old
high-temperature cloth.
4.Apply new high temperature cloth.
5.Reinstall the original screws
6.Completing the Installation.
- 11 -

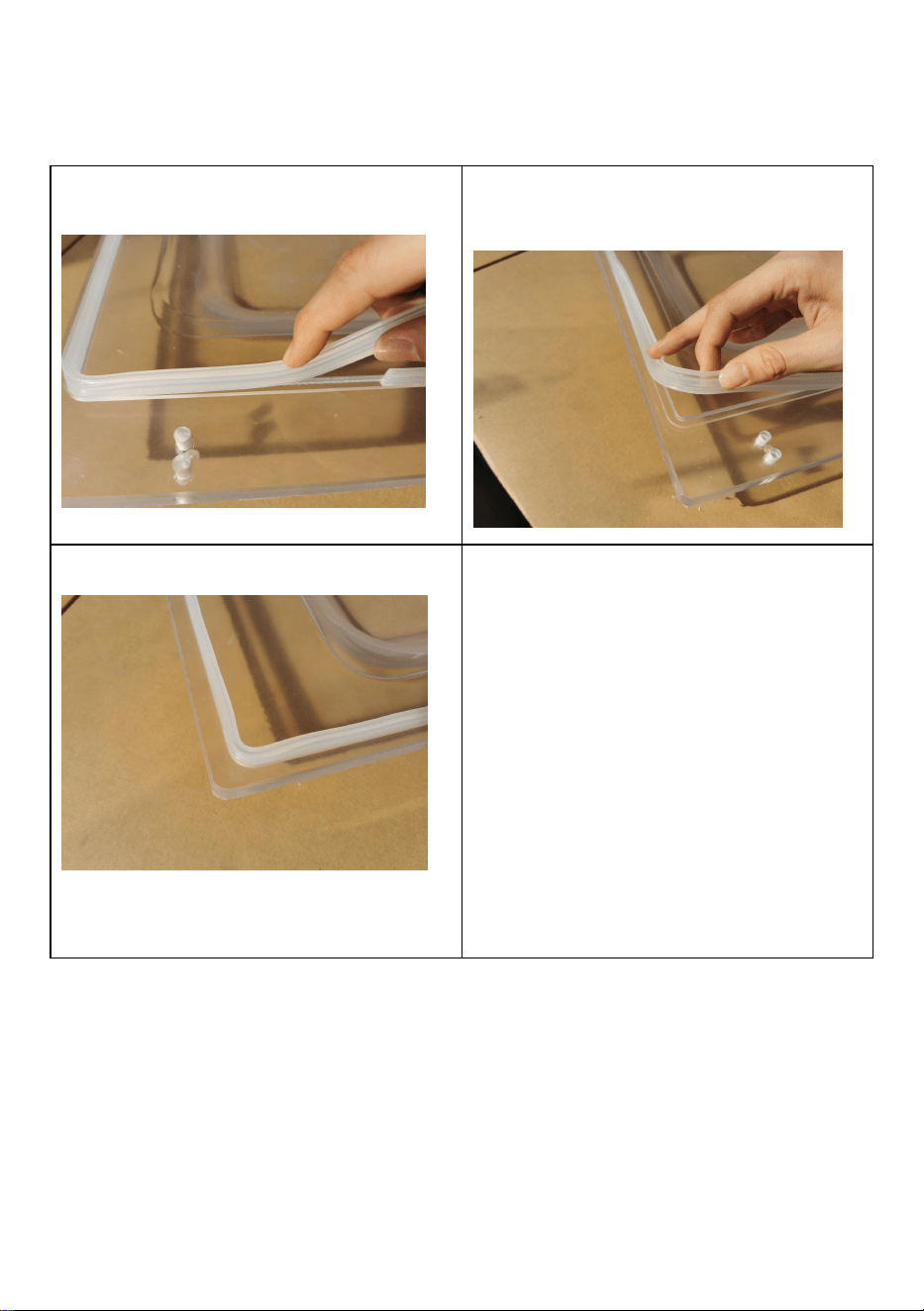

Replace the Chamber Sealing Strip
1. Remove the Chamber Sealing
Strip.
2.Replace the Chamber Sealing
Strip with a new one
3.Completing the Installation
- 12 -

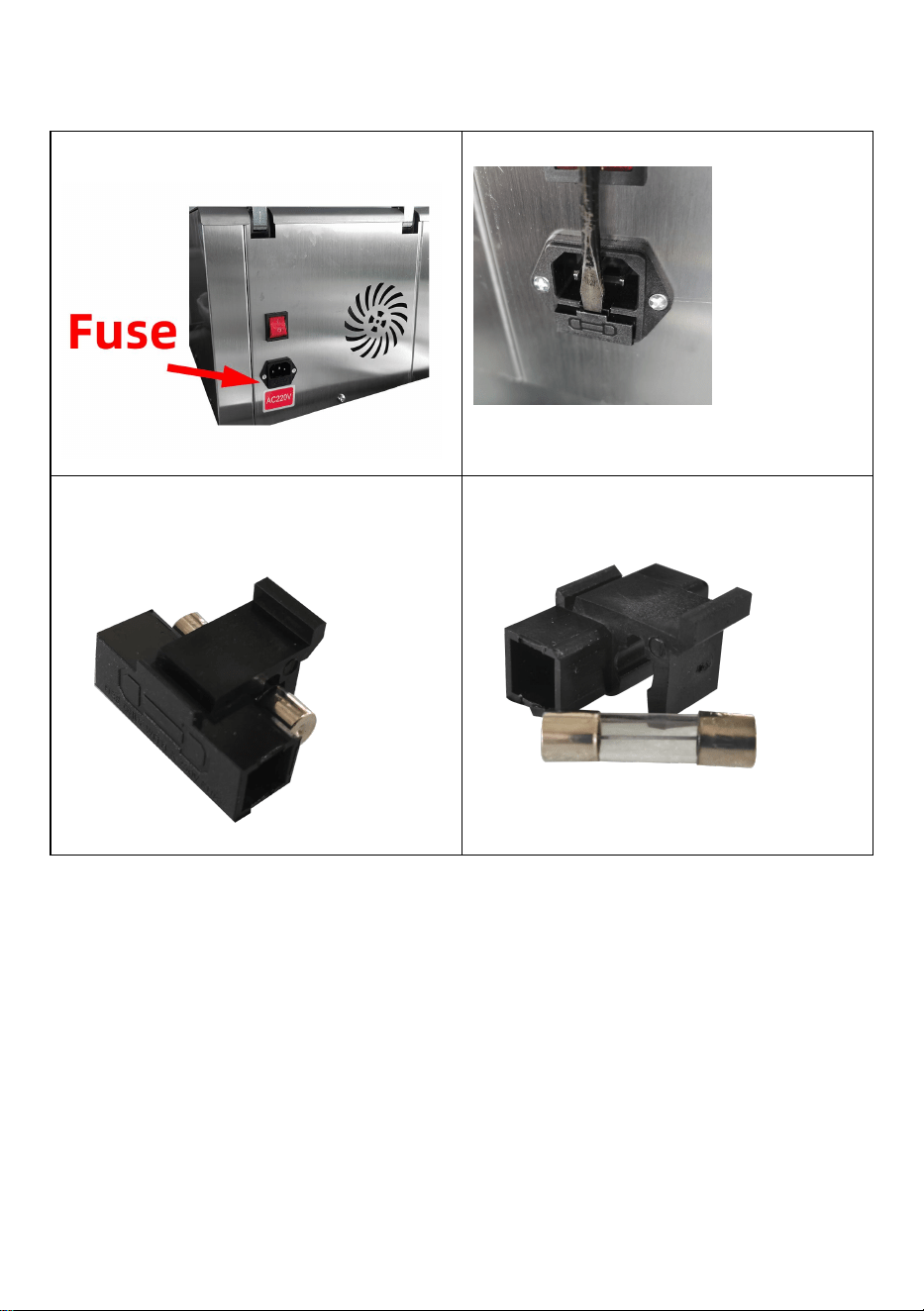

lf the fuse is damaged, replace it as shown
1.Find the power outlet on the back
2.Take out slot
3.The fuse is in the groove of the
card slot
4. Take out a fuse
- 13 -
TROUBLESHOOTING AND SOLUTIONS
Problem
Possible Cause
Solution
The machine doesn't
work and the control
panel shows nothing.
1.No connection of the
power supply.
2.The contact of the
power switch looses.
1.Check whether the
plug and socket are
effectively connected.
2.Check whether the
wiring of the power input
part inside the machine
is loose or detached.
The control panel
startup,but the machine
doesn't work.
The parameter is being
set.
Complete the parameter
setting.
The best vacuum state
can’t be achieved.The
vacuumizing speed is
slow.
1.Short vacuumizing
time.
2.The oil in the vacuum
pump is not enough or
the oil is not clean.
3.Air leakage and wear
of the sealing ring.
1.Extend the vacuum
time.
2.Check the oil level,
refuel or change the oil
(pay attention to the oil
type (vacuum oil
46#,68#) and oil
quantity.
3.Replace the sealing
ring.
Sealing failure or
poor sealing.
1.The bags are not
correctly placed on the
heating plates.
2.Too long/short sealing
time.
3.Inappropriate heating
temperature..
4.Silicon strip damaged
or with impurity.
5.Damage of electric
heating wire.
1.Place the bags on the
plate in order.
2.Shorten/prolong the
sealing time.
3.Choose proper
temperature.
4.Clean or replace the
silicon
rubber.
5.Change electric
heating wire.
- 14 -
