Rev. Level - B
6. THE CORD MAY NOW BE COILED AND PLACED ON THE CORD HOLDER.
1. USE THE #8-32X.375" SELF TAPPING SCREWS TO MOUNT THE POWER STRIP INSIDE THE TOP AREA AND TO MOUNT THE CORD HOLDER
ON THE BACK OF THE CART.
2. USE THE GREEN GROUND SCREW TO ATTACH THE GROUNDING STRAP TO THE CART USING A WRENCH OR SOCKET.
©2017 MATCO TOOLS. All rights reserved. Matco Tools® and their
respective logos are trademarks or registered trademarks of Matco Tools
in the United States and in other countries.
3. PUSH THE POWER CORD THROUGH THE GROMMET.
4. INSERT THE GROMMET INTO THE 1.75" DIA. HOLE FROM THE INSIDE TO PREVENT CORD DAMAGE.
5. USE THE 10-32 EXTRENAL TOOTH LOCKNUT ON THE BACK SIDE OF THE CART ON THE GREEN GROUND SCREW TO SECURE
GROUNDING.
CART-POWER3
CART-POWER3

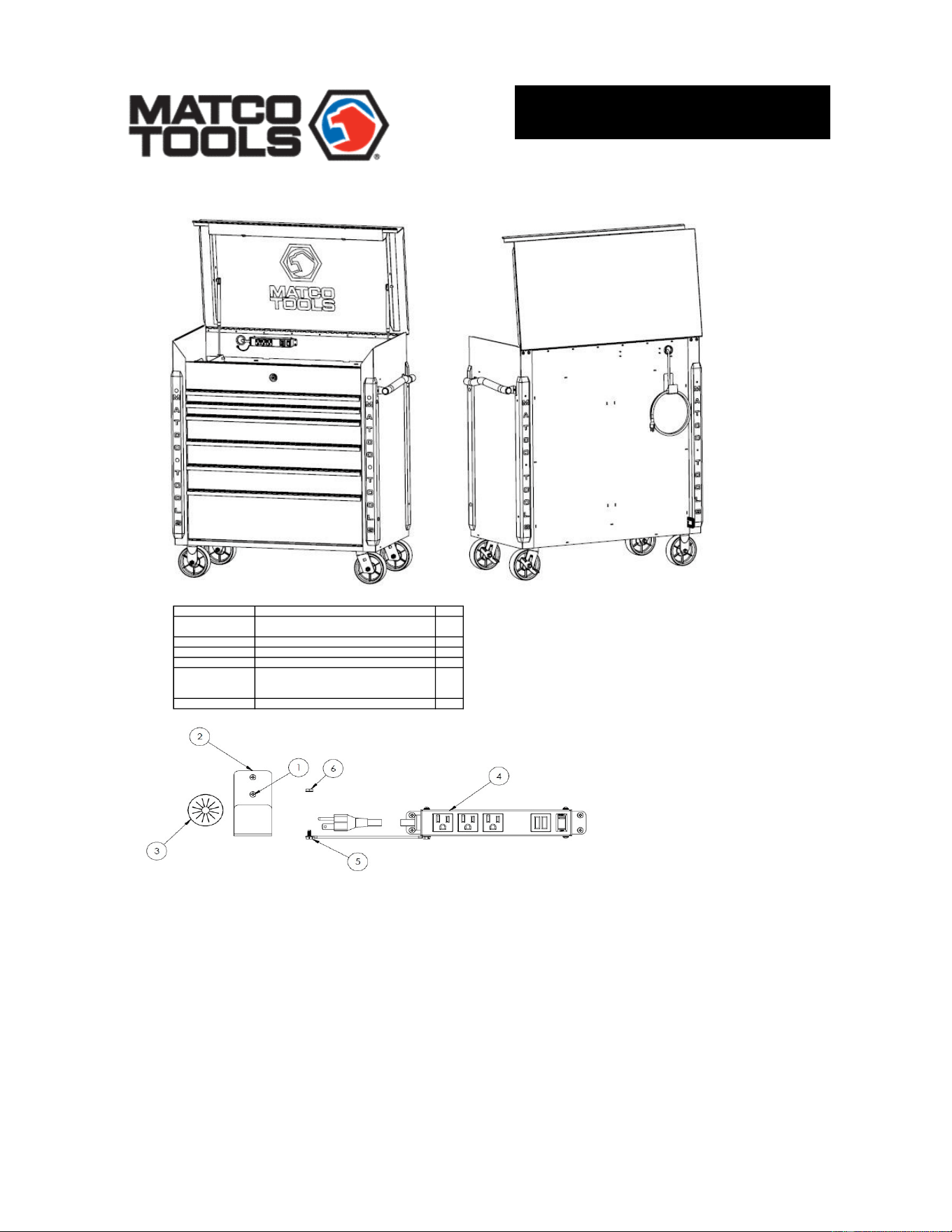

INSTALLATION INSTRUCTIONS
IF THE CART DOES NOT HAVE THE GROMMET AND MOUNTING HOLES REFER TO "CART POWER3 DRILL TEMPLATE".
IF THE CART HAS THE GROMMET HOLE AND MOUNTING HOLES FOR THE POWER STRIP AND CORD HOLDER, MOUNT THE POWER STRIP
AND CORD HOLDER WITH THE INCLUDED HARDWARE. FOLLOW INSTRUCTIONS 1-5.
ITEM NO.
DESCRIPTION
QTY.
1
#8-32 X 0.5" STEEL/ZINC PLATED, PAN HD,
TRILOBULAR, SELF TAPPING SCREW
6
2
CORD HOLDING BRACKET
1
3
CORD GROMMET FOR 1.75" DIA. HOLE
1
4
CART-POWER3 OUTLET POWER STRIP
1
5
#10-32 X 0.375" HEX FLANGED HEAD
ELECTRICAL GROUND SCREW, GREEN DYED
1
6
#10-32 EXTERNAL TOOTH LOCK NUT
1
TOOLS NEEDED
Rev. Level - A
CART-POWER3 DRILL
TEMPLATE
CART-POWER3 DRILL TEMPLATE
INSTALLATION INSTRUCTIONS
TOUCH UP PAINT
5/16" SOCKET OR WRENCH
DEBURRING TOOL, COUNTERSINK, OR FILE
DRILL
1.75" DIA. PUNCH OR HOLE SAW
0.125"/0.140" DIA. DRILL
#20 (0.161") DIA. DRILL
CENTER PUNCH
PHILLIPS SCREW DRIVER
©2017 MATCO TOOLS. All rights reserved. Matco Tools® and their
respective logos are trademarks or registered trademarks of Matco
Tools in the United States and in other countries.
12. INSERT THE GROMMET INTO THE 1.75" DIA. HOLE FROM THE INSIDE TO PREVENT CORD DAMAGE.
©2017 MATCO TOOLS. All rights reserved. Matco Tools® and their respective
logos are trademarks or registered trademarks of Matco Tools in the United
States and in other countries.
13. USE THE 10-32 EXTRENAL TOOTH LOCKNUT ON THE BACK SIDE OF THE CART ON THE GREEN GROUND SCREW TO
SECURE GROUNDING.
FOR THE MSC CARTS: SEE FIG. 1 MOUNT THE STRIP AS TO NOT INTERFERE WITH LOCKING MECHANISM
FOR THE JSC750/770: THE 1.75" HOLE IS ALREADY ON THE CART. USE IT AS YOUR REFERENCE POINT.
(SEE FIG. 3)
INSTALLATION INSTRUCTIONS

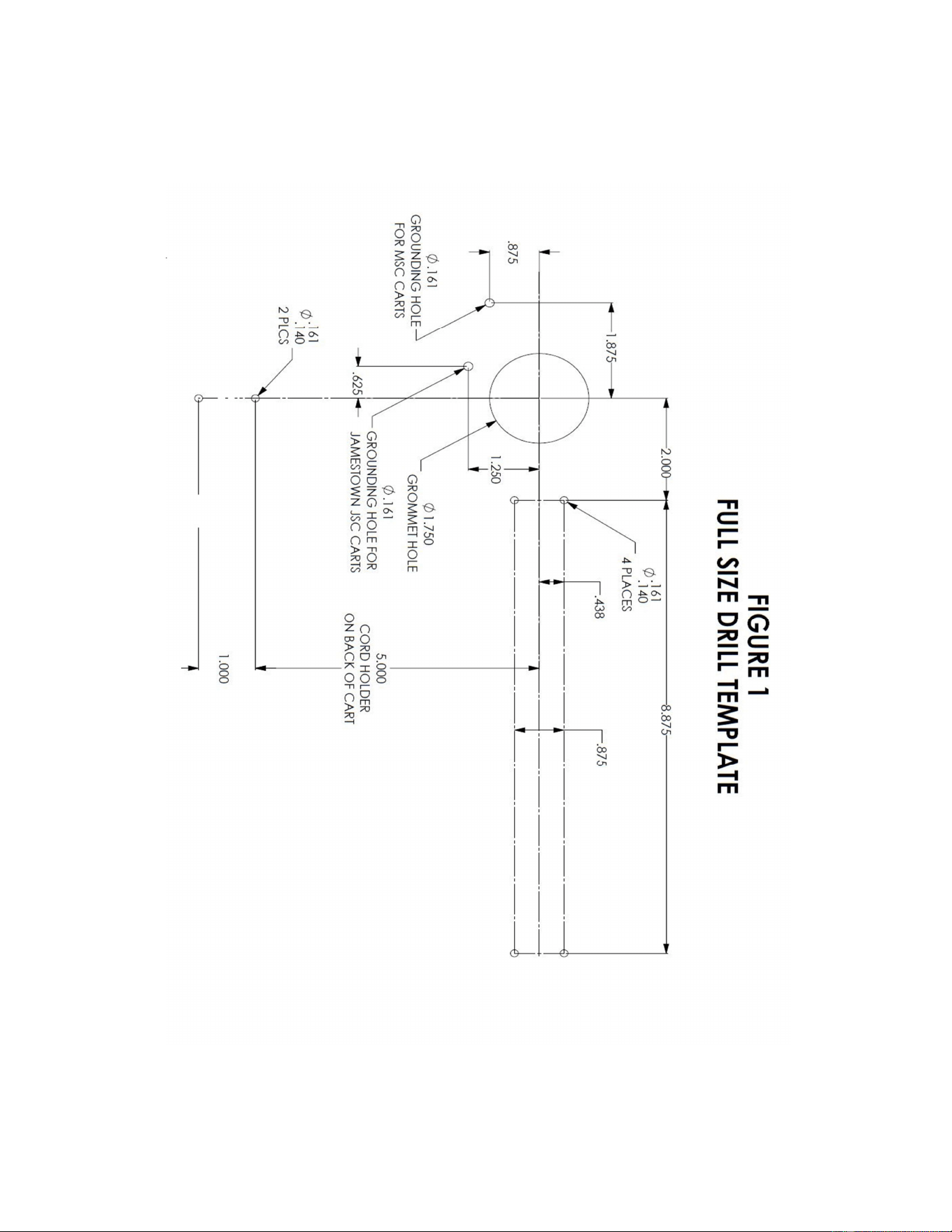

1. LAYOUT MOUNTING HOLE PATTERN FOR THE CART THAT YOU HAVE. (SEE FIG. 1 FULL SIZE DRILL TEMPLATE)
CART-POWER3 DRILL
TEMPLATE
CART-POWER3 DRILL TEMPLATE

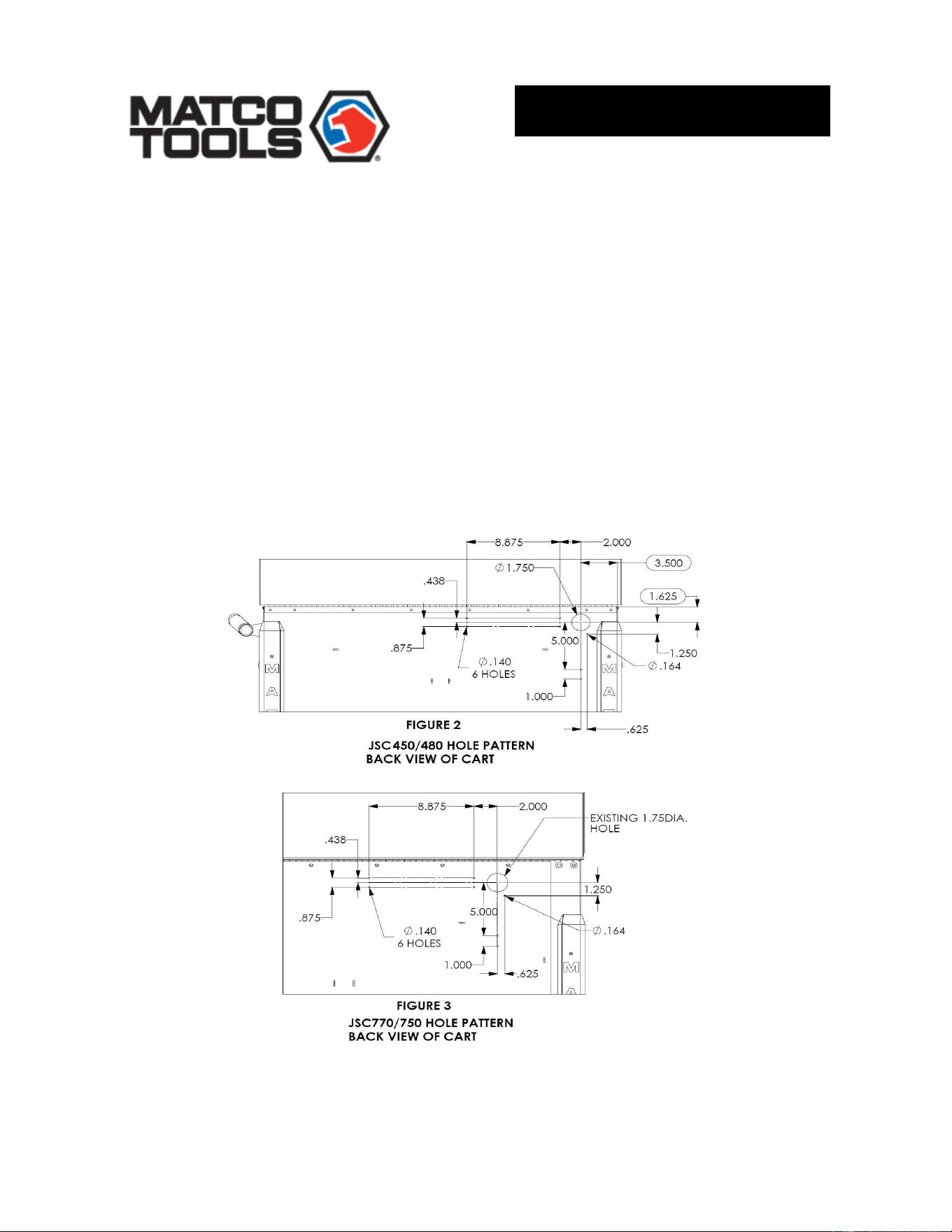

FOR THE JSC450/480: SEE FIG. 2 FOR THE LOCATION OF THE 1.75" DIA. HOLE. USE IT AS YOUR REFERENCE
POINT. (DIMENSIONS WITH OVAL AROUND THEM)
2. IT IS RECOMMENDED TO TEST THE 1.75" DIA. HOLE CUTTER ON SCRAP METAL BEFORE CUTTING THE CART. THIS IS TO
CHECK THE GROMMET FIT IN THE CUT HOLE.
3. CENTER PUNCH THE HOLE PATTERN.
11. PUSH THE POWER CORD THROUGH THE GROMMET.
14. THE CORD MAY NOW BE COILED AND PLACED ON THE CORD HOLDER.
8. IT IS RECOMMENDED TO NOT DEBURR THE SCREW HOLES SINCE THEY ARE SELF TAPPING.
4. USE THE CUTTER / PUNCH TO MAKE THE 1.75" DIA. HOLE.
5. USE THE 0.125" / 0.140" DIA. DRILL BIT TO CUT THE MOUNTING HOLES FOR THE #8-32X.500 SELF TAPPING
SCREW. (QTY. 6)
6. USE THE #20 (0.161") DIA. DRILL BIT TO CUT THE GROUND SCREW MOUNTING HOLE. (QTY. 1)
7. DEBURR AND TOUCH UP PAINT ON THE 1.75" GROMMET HOLE IF NEEDED.
9. USE THE #8-32X.375 SELF TAPPING SCREWS TO MOUNT THE POWER STRIP INSIDE THE TOP AREA AND TO MOUNT THE
CORD HOLDER ON THE BACK OF THE CART.
10. USE THE GREEN GROUND SCREW TO ATTACH THE GROUNDING STRAP TO THE CART USING A WRENCH OR SOCKET.
TEMPLATE TO BE MANUALLY LAID OUT ON FULL SIZE SHEET.
DO NOT PRINT
IT SHOULD FIT ON AN 11" X 17" SHEET OF PAPER.
VERIFY DIMENSIONS ARE 100% ACCURATE ON LAYOUT TEMPLATE.
