SKU Number: 453-6340/453-6355
Model Number: RR001/RR001BK
3.1 Cu.ft COMPACT REFRIGERATOR
Questions, problems, missing parts?
Please email us at [email protected], or call us at
1-888-722-5089
www.P65Warnings.ca.gov.
6. Can holder
7. Temperature control
8. Adjustable leg
9. Small Stick
1. Big glass shelf
2. Small glass shelf
3. Crisper
4. Plastic bar
5. Door bin
9
This small stick can prevent the hole from
blocking, and help the fridge defrosting water
could flow to the water tray. Just keep it in
the hole.
Small Stick(Part 9)
3
Can holders
at least 24
2
Door bins
please contact us immediately.
philips
Turning the temperature control to "0" position stops the cooling cycle but does not shut off the
power to the unit.
If the unit is unplugged, has lost power, or is turned off, you must wait 3 to 5 minutes before
restarting the unit. lf you attempt to restart before this time delay, the unit will not start.
Your unit has only one control for regulating the temperature in the compartment. The temperature
control is located on the upper right-hand side of the refrigerator.
The range of the temperature control is from position "0" to "7".
- Setting the control to "0", the appliance will be off.
- Setting the control from "1" to "7", the fridge inside temperature will be adjusted from high to low.
The first time you turn the unit on, set the temperature control to "7". After 24 to 48 hours, adjust
the temperature control to the setting that best suits your needs.
The setting of "4" should be appropriate for home or office use.
When the room temperature is high, such as in summer, it is recommended to set the temperature
control to "5" ~ "7". When the room temperature is low, such as in winter, The recommended
control setting is "1" ~ "3".
at
.
philips
for at least

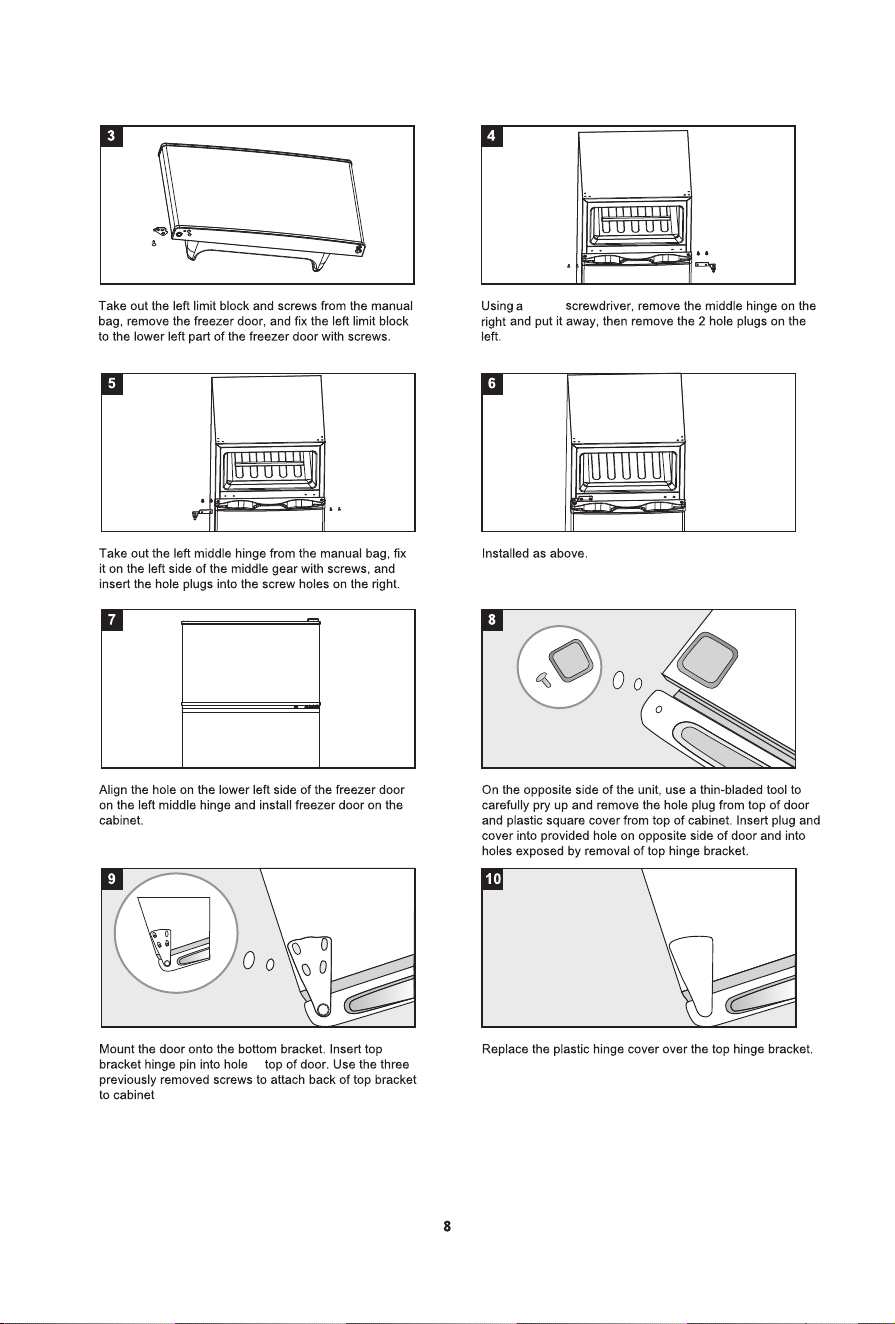

To reverse the door at the bottom, repeat the steps 2-10.
Remove the screw by using a screwdriver.
Loose the housing for light & switch.
Take off the clear plastic cover for light bulb.
Remove the old light bulb and replace it with a
new one (120V 15W).
Re-install the clear plastic cover.
Re-install the housing, and push it into place.
Re-install the screw for securing.
1-888-722-5089.
