SKU Number: 453-6353
Model Number: RR013BK
3.5 Cu.ft COMPACT REFRIGERATOR
Questions, problems, missing parts?
Please email us at [email protected], or call us at
1-888-722-5089

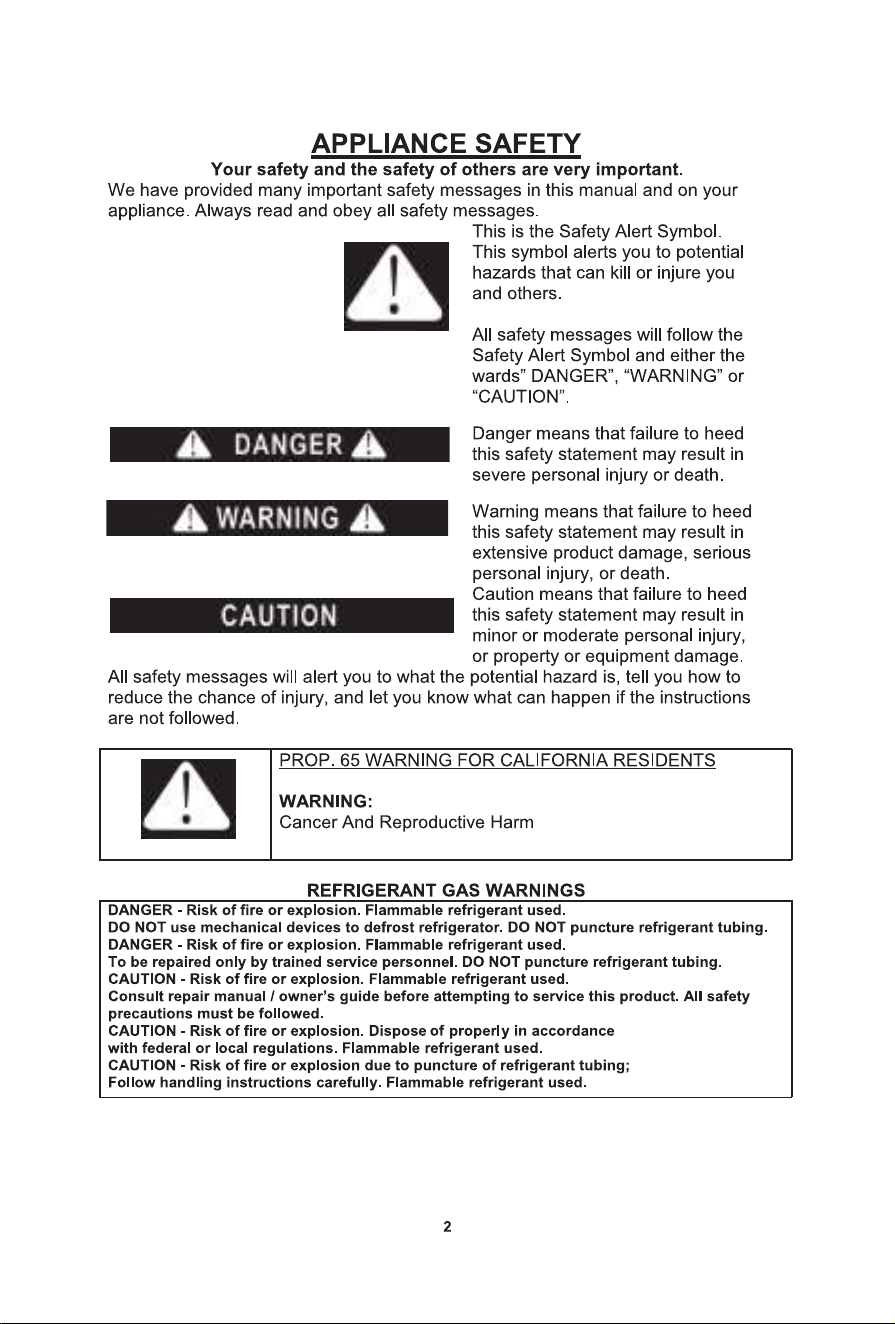

www.P65Warnings.ca.gov.
5. Defrost button
6. Can holder
7. Door bin
8. Adjustable leg
1. Chiller compartment
2. Water tray
3. Glass shelf
4. Temperature control
Water tray
3
Can holders
at least 24
3 Door bins
please contact us immediately.
philips
When the room temperature is high, such as in summer, it is recommended to set the temperature
control to "4" ~ "6". When the room temperature is low, such as in winter, the recommended
control setting is "1" ~ "2".
Press the defrost button (in the center of the temperature control) to defrost when necessary,
and the compressor stops when defrosting. After defrosting, the sensor temperature reaches
the start-up point (generally about 41°F), the compressor starts, the button automatically springs
up, and the refrigerator works normally.
If the defrost cycle is completed and the defrost button does not resile, please rotate the
button
counterclockwise slowly till the defrost button comes out.
Your unit has only one control for regulating the temperature in the compartment. The temperature
control is located on the upper right-hand side of the refrigerator.
The range of the temperature control is from position "0" to "6".
The setting of "3" should be appropriate for home or office use.
The first time you turn the unit on, set the temperature control to "6". After 24 to 48 hours, adjust
the temperature control to the setting that best suits your needs.
- Setting the control to "0", the appliance will be off.
- Setting the control from "1" to "6", the fridge inside temperature will be adjusted from high to low.
On the opposite side of the unit, use a thinbladed tool to
carefully pry up and remove the hole plug from top of and
plastic square cover from top of cabinet.Insert plug and
cover into provided hole on opposite side of door and into
holes exposed by removal of top hinge bracket.
Mount the door onto the bottom bracket.Insert top bracket
hinge pin into hole in top of door. Use the three previously
removed screws to attach back of top bracket to cabinet.
CAUTION: lf the refrigerator has been placed in a horizontal or tilted position forease of doing reversal, wait 24
hours before plugging it in. Plugging in sooner mayresult in permanent damage to cooling system.
Replace the plastic hinge cover over the top hinge bracket.
Unscrew and remove the leveling foot from the bottom hinge
bracket.Using a slotted screwdriver, remove the two screws
attaching the bottom hinge bracket to the cabinet.Unscrew
the foot from the other side of cabinet.Attach bracket and
feet to opposite sides from which removed.
Check that the door is aligned horizontally and vertically with the the perimeter ofthe cabinet opening before finally
tightening the top hinge. After tightening, adjust the leveling feet if necessary to align the door evenly with the floor.
Unplug refrigerator from power outlet.
Loosen and remove the bulb from its socket by rotating counterclockwise.
Insert new bulb and screw into socket.
Plug refrigerator back into power outlet.
lf the interior 15 watt appliance light bulb burns out, remove the light bulb cover and replace
bulb as follows:
Interior light bulb replacement
