Vevor CY-9 3KW Diesel Parking Heater 12V Air Heater Double User Manual

Technical Support and E-Warranty Certificate www.vevor.com/support

DIESEL HEATER

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only

represents an estimate of savings you might benefit from buying certain

tools with us compared to the major top brands and doses not necessarily

mean to cover all categories of tools offered by us. You are kindly

reminded to verify carefully when you are placing an order with us if you

are actually saving half in comparison with the top major brands.

- 1 -

MODEL:CY-5002 MODEL:CY-5004

MODEL:CY-5001

Have product questions? Need technical support? Please feel free to

Technical Support and E-Warranty Certificate

www.vevor.com/support

NEED HELP? CONTACT US!

This is the original instruction, please read all manual instructions

carefully before operating. VEVOR reserves a clear interpretation of our

user manual. The appearance of the product shall be subject to the

product you received. Please forgive us that we won't inform you again if

there are any technology or software updates on our product.

DIESEL HEATER

- 2 -

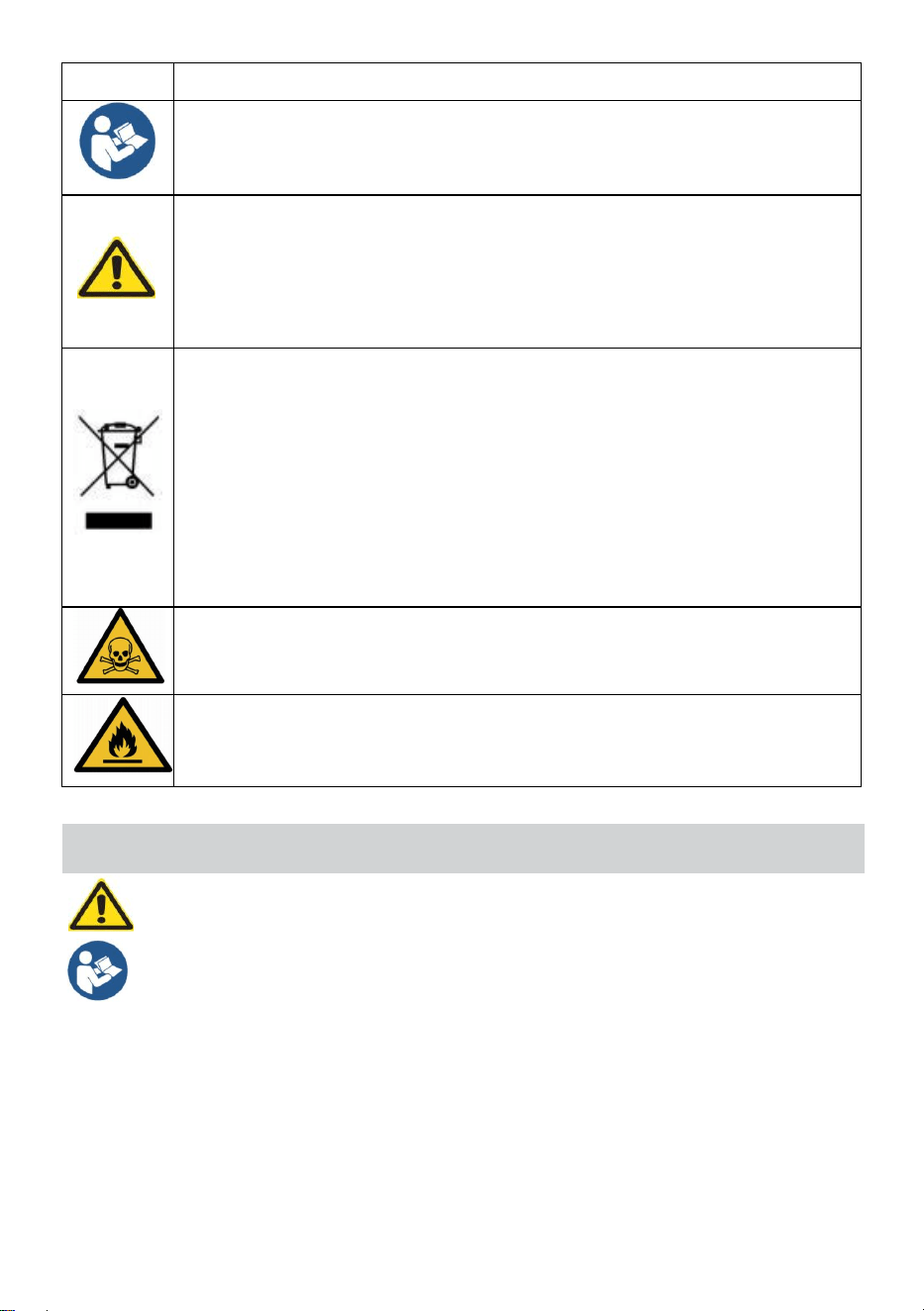

Symbol

Symbol Description

Warning: To reduce the risk of injury, the user must read the

instructions manual carefully.

This symbol, placed before a safety comment, indicates a kind

of precaution, warning, or danger. Ignoring this warning may

lead to an accident. To reduce the risk of injury, fire, or

electrocution, please always follow the recommendations

shown below.

CORRECT DISPOSAL:This product is subject to the provision of

European Directive 2012/ 19/EC. The symbol showing a wheelie

bin crossed through indicates that the product requires separate

refuse collection in the European Union. This applies to the

product and all accessories marked with this symbol. Products

marked as such may not be discarded with normal domestic

waste, but must be taken to a collection point for recycling

electrical and electronic devices.

Warning:

Toxic material. Take care to avoid coming into

contact with toxic material.

Warning: Flammable material. Take care to avoid causing a fire

by igniting flammable material.

SAFETY INSTRUCTION

WARNING：

Read all safety warnings, instructions, illustrations, and specifications

provided with this diesel heater. Failure to follow all instructions listed

below may result in electric shock, fire, and /or serious injury.

1. The following measures shall not be adopted



Change the important component of the diesel heater.



Make use of spare parts from other manufacturers without permission.



Disobey the instruction and guide during installation or operation.

2. Only allow using original attachment and spare parts during installation and

maintenance.

3. The heaters shall not be used in places where they may form flammable vapor

or dust, for example:

- 3 -

 Fuel depot



Carbon storehouse

 Timber storehouse

 Granary and similar sites

 Diesel/petrol station

And keep away from fuel tanks, compression tanks, fire extinguishers, clothes, or

other flammable objects.

4. Do not use cigarette lighter for startup.

5. Do not use the heater in closed and/or unventilated places.

6. The heaters shall be turned off when filling fuel.

7. Do not cut off the electric power in operation.

8. If the fuel leak or discharge from the fuel system of heaters, please contact

VEVOR for repair.

9. Place the exhaust outlet outside to prevent any penetration of exhaust fumes.

10. In the process of work, it is forbidden to cut off the electric power directly to

stop the heater from working.

11. Seal all gaps between the mounting plate and the car body.

12. The machine will stop heating after over-temperature protection. Please do

not power off. After the machine is naturally cooled and turned off, it can be

restarted.

13. After turning off the machine, please do not immediately disconnect the power

supply. It takes 3-5 minutes for the machine to stop working completely.

14. After starting the machine for 3-5 minutes, it will work normally and heat up.

Please wait patiently.

15. When the heater is just started, the current is relatively high, so an adapter

with a voltage of 12V and a current of 15A or greater is required for the power

supply.

16. This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

17. WARNING: Flammable material

During installation/use, service, and disposal of the appliance, please

pay attention that there should be no flammable substances around the

exhaust pipe. The temperature of the exhaust pipe is very high when it

is working. Take care to avoid causing a fire by igniting flammable material.

- 4 -

18. WARNING: Toxic material

19. During installation/use, service, and disposal of the appliance, please install

the appliance with space for ventilation to prevent carbon monoxide

poisoning. Place the exhaust outlet outdoors to prevent exhaust gas

from seeping in.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) This product may cause harmful interference.

2)This product must accept any interference received, including interference that

may cause undesired operation.

WARNING: Canges or modifications to this product are not expressly approved

by the party. Responsibility for compliance could void the user's authority to

operate the product.

Note: This product has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules, These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This product generates, uses and can radiate radio frequency energy, and if not

installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this product does cause

harmful interference to radio or television reception, which can be determined by

turning the product off and on, the user is encouraged to try to correct the

interference by one or more of the following measures.

 Reorient or relocate the receiving antenna.



Increase the distance between the product and the receiver.



Connect the product to an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for assistance.

- 5 -

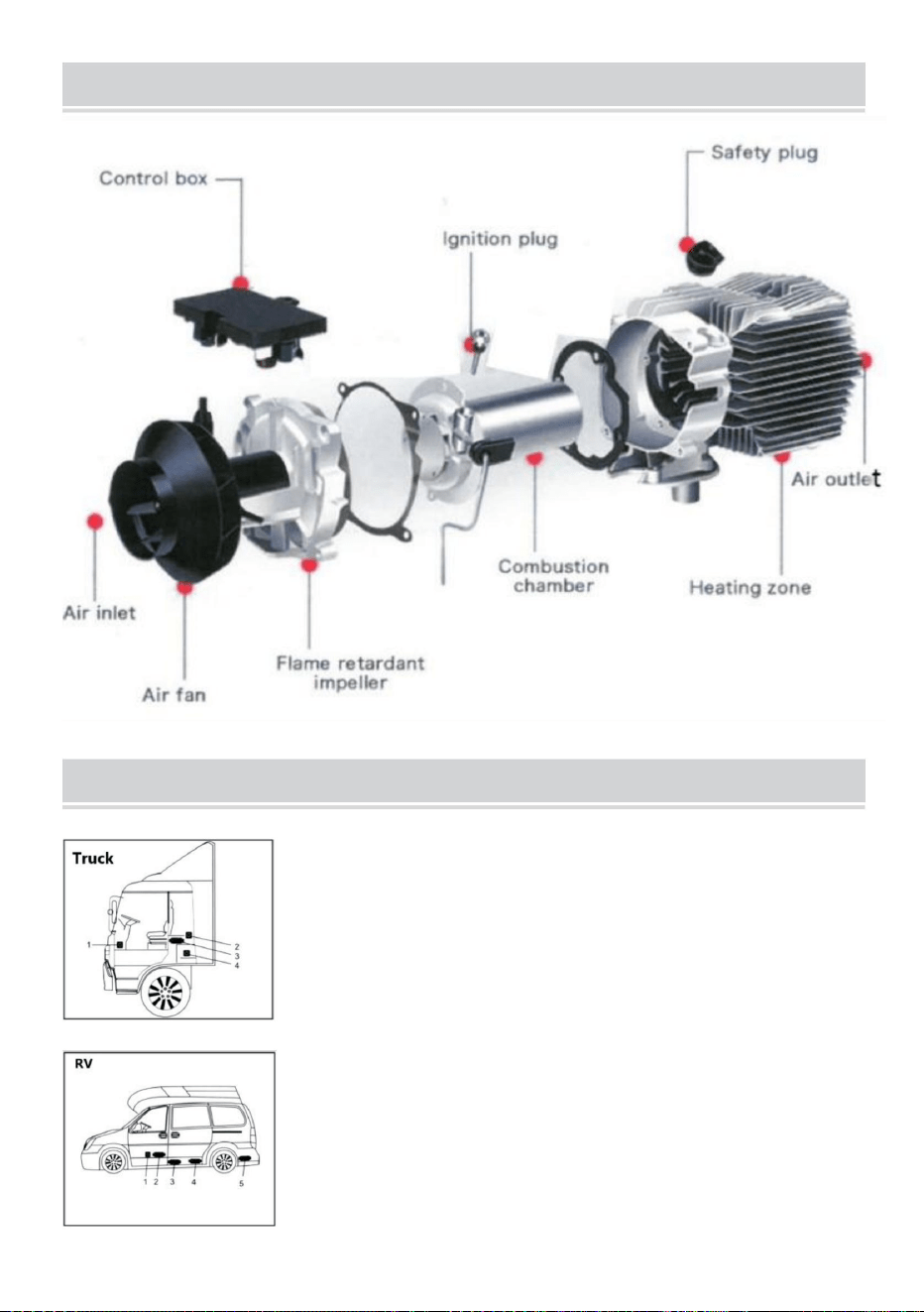

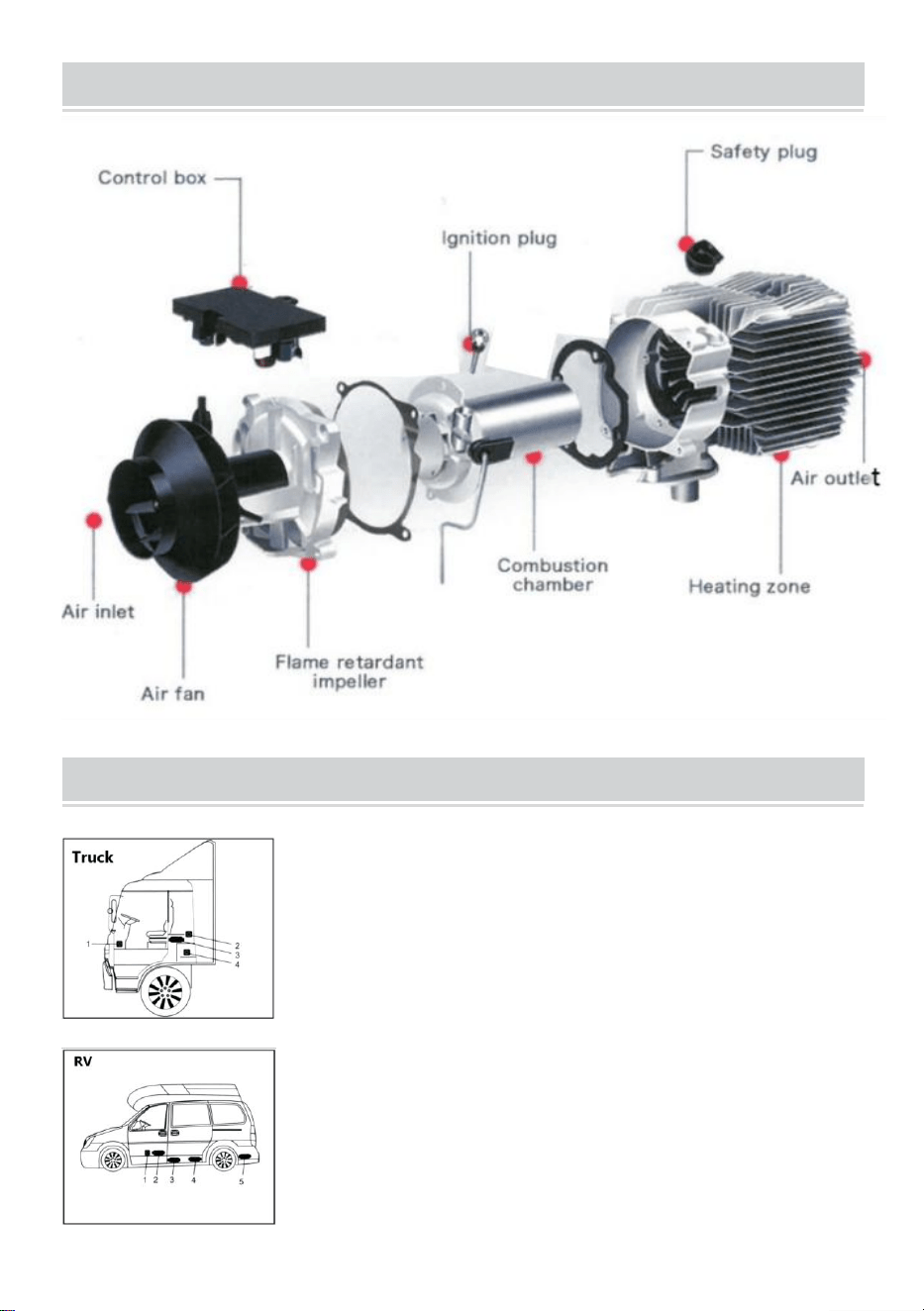

INTERNAL STRUCTURE

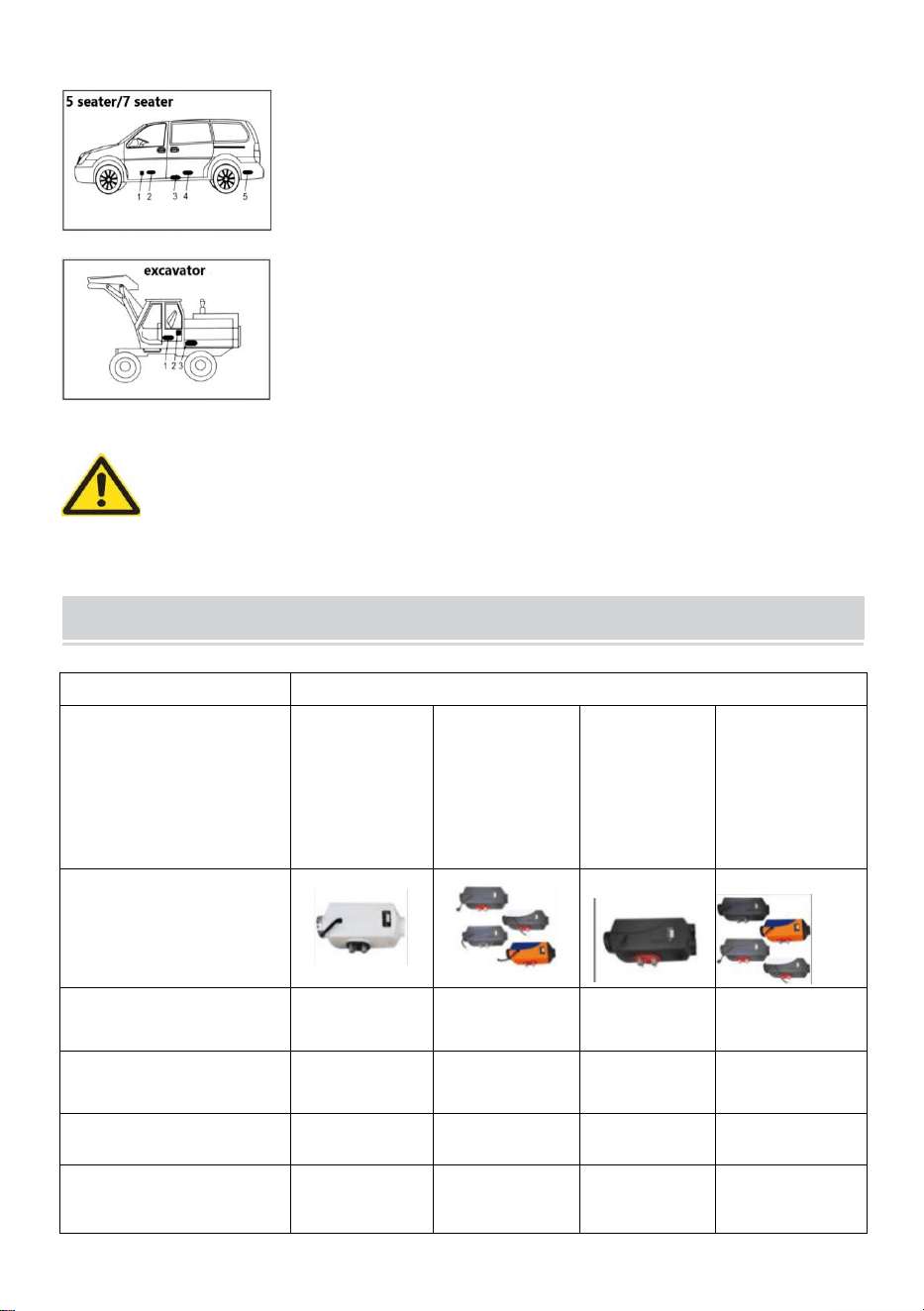

INSTALLATION POSITION

1. On the co-driver's legroom.

2. On the back wall of the cab.

3. Driver's seat backrest.

4. Within the tool box.

1. In front of the passenger seat.

2. Between the driver seat and passenger seat.

3. 3 & 4 under the container.

4. In the trunk.

- 6 -

It is recommended to use high-grade diesel fuel when refueling the

diesel heater. Other types of fuels, such as kerosene, vegetable oil,

gasoline, waste oil, etc., cannot be used. Otherwise, the heater

may have an unpleasant odor and malfunction during operation.

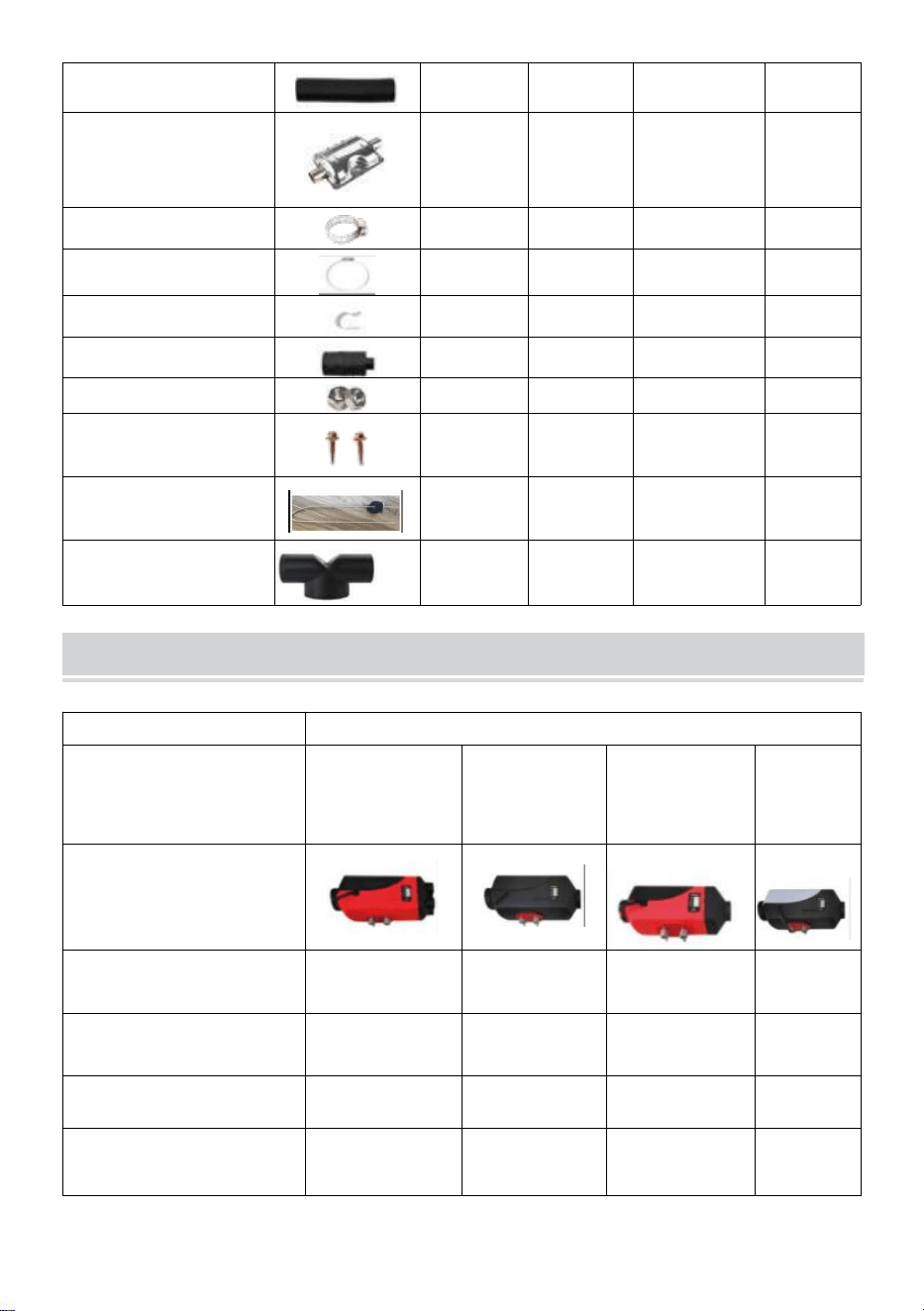

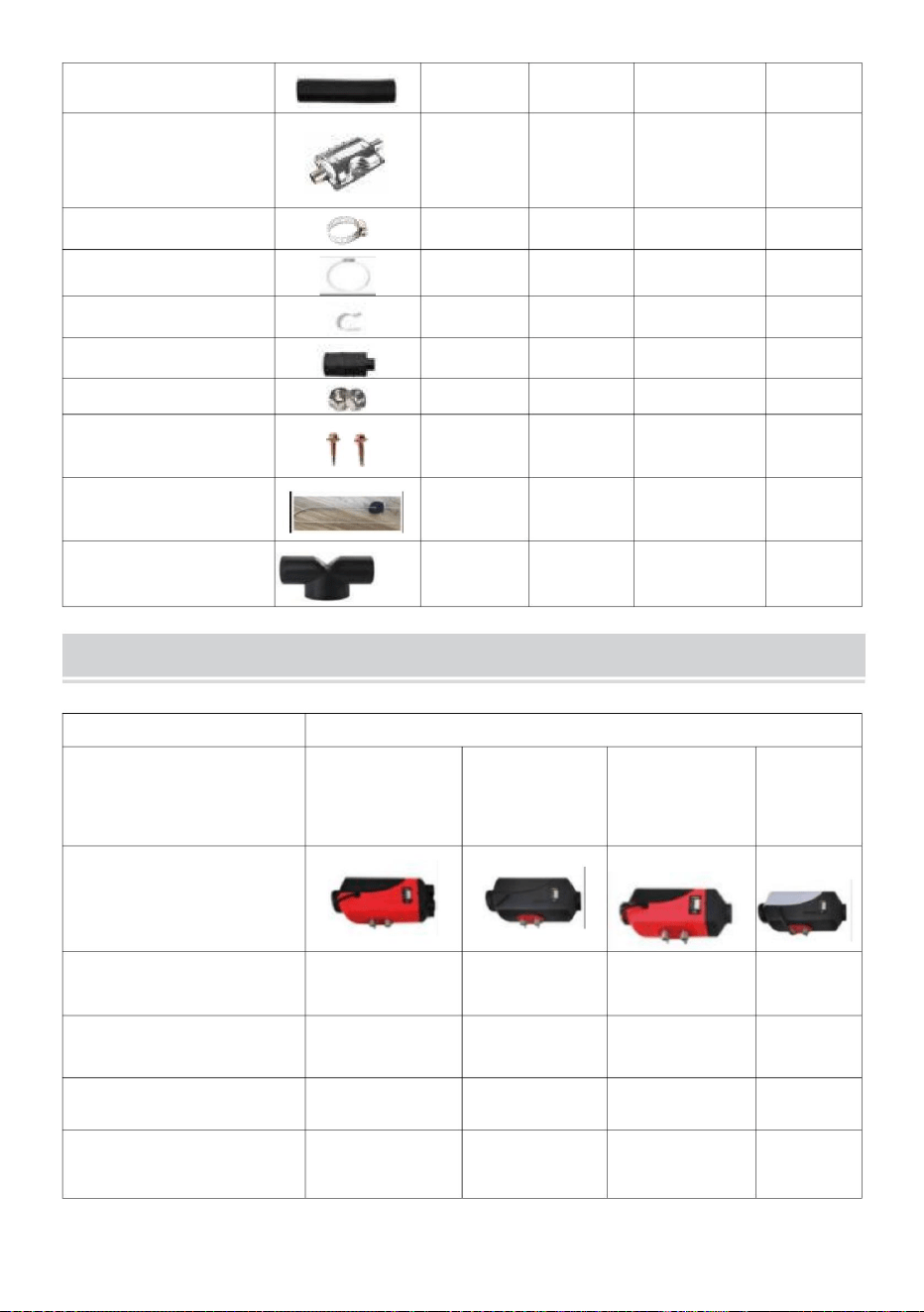

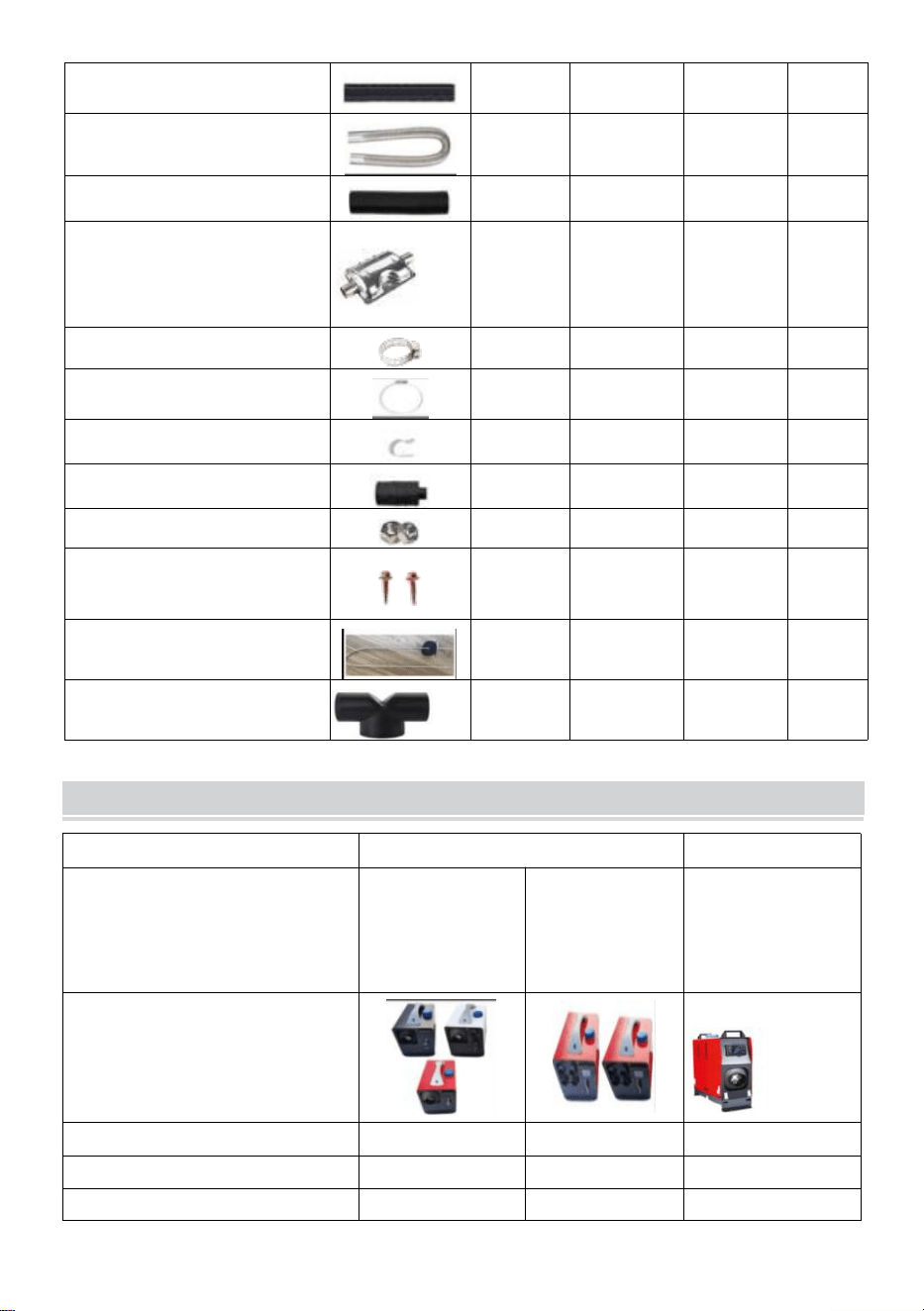

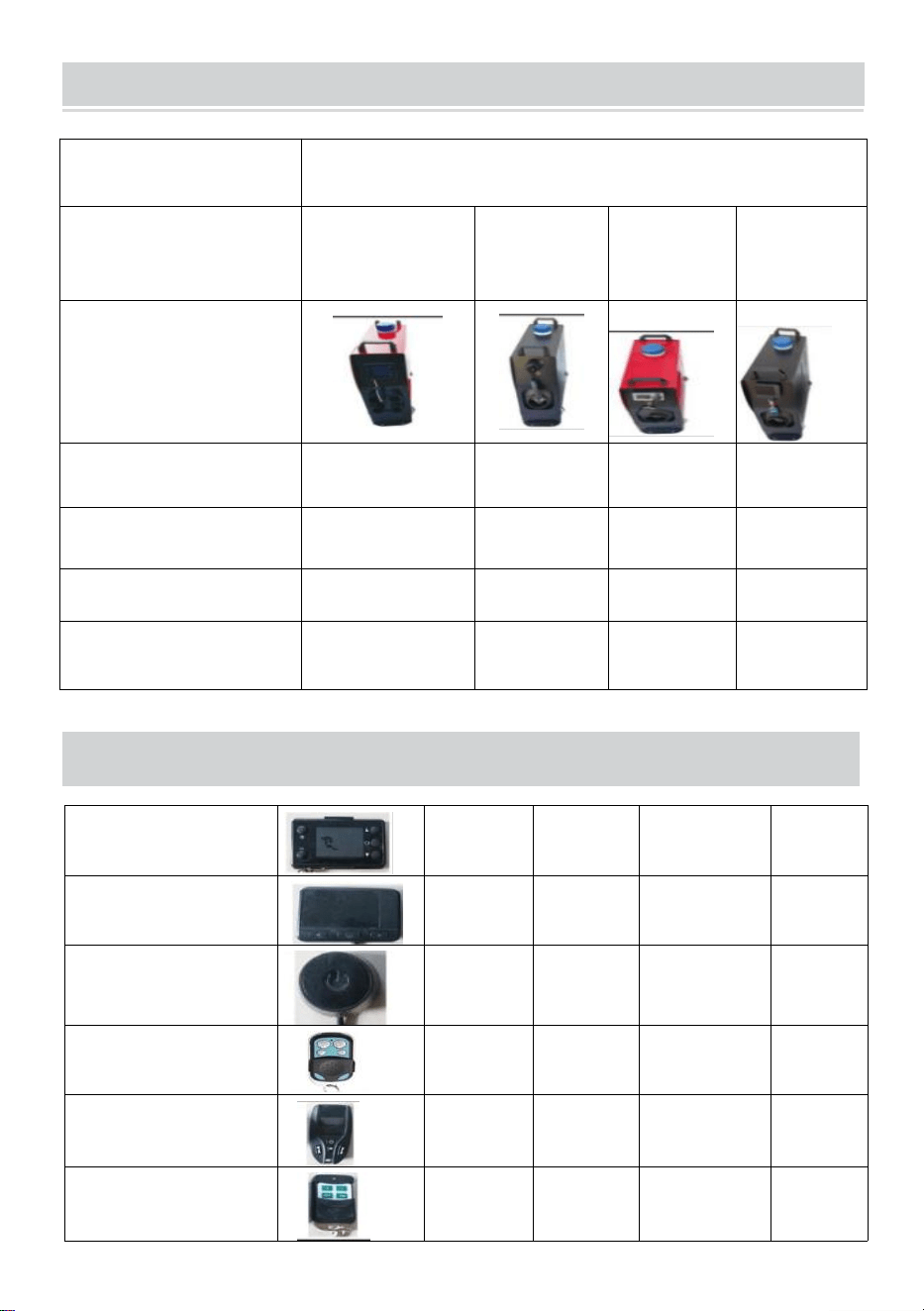

MODEL

Series Model

CY-5001

Product Model

CY-18

CY-5

CY-6

CY-7

CY-14

CY-16

CY-13

CY-1

CY-2

CY-9

CY-10

Appearance

Power ZWH

5KW

5/8KW

8KW

3/5KW

Heating medium

Air

Fuel

Diesel

Ratings

12V/40W

12V40W

The heater is mainly installed in the passenger

room or baggage room of the vehicle. If it cannot

be installed, fix the heater under the underside

of the vehicle, but be ware of splashing.

1. Inside the driver's seat.

2. On the back wall of the cab.

3. Inside the protection box.

- 7 -

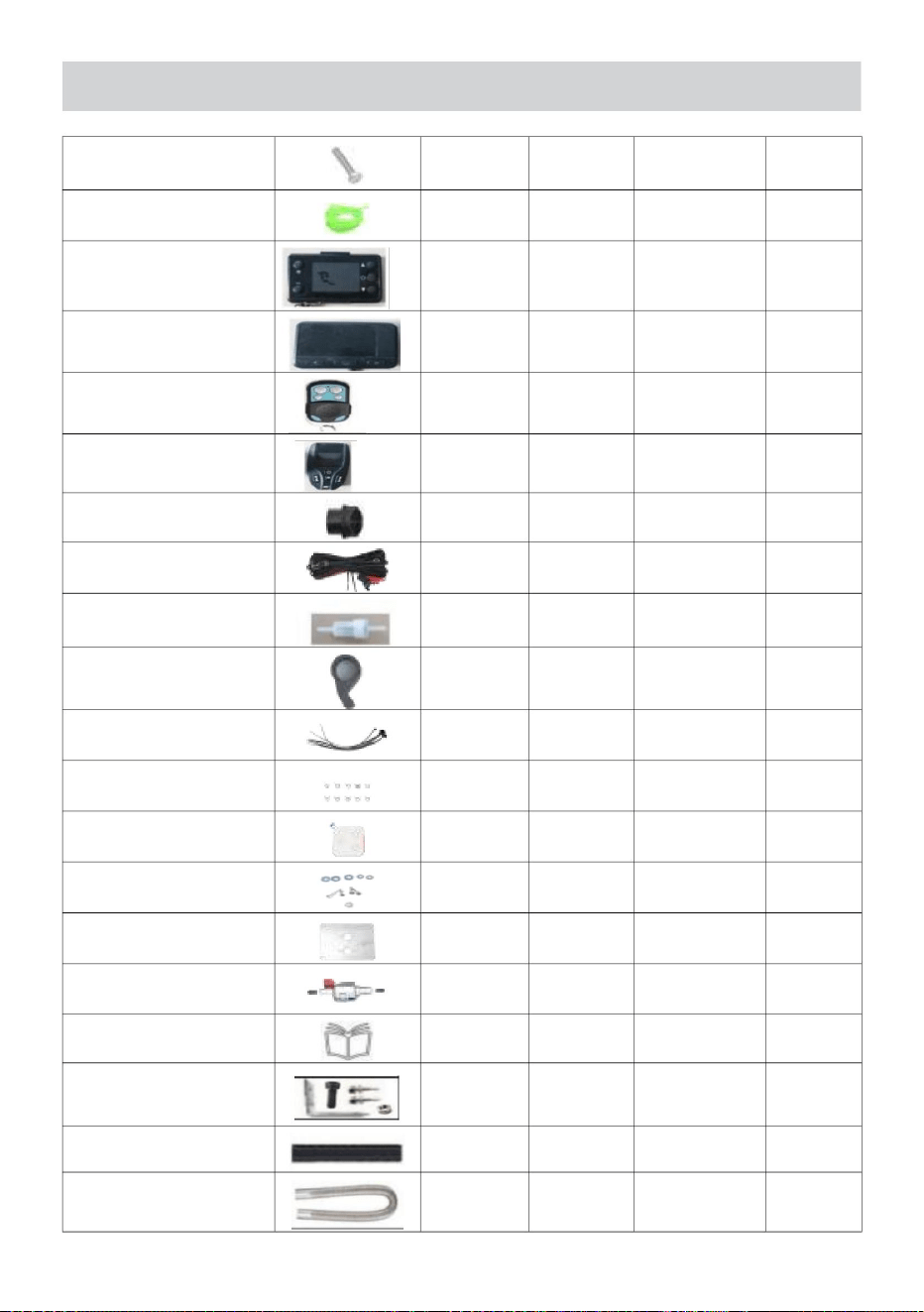

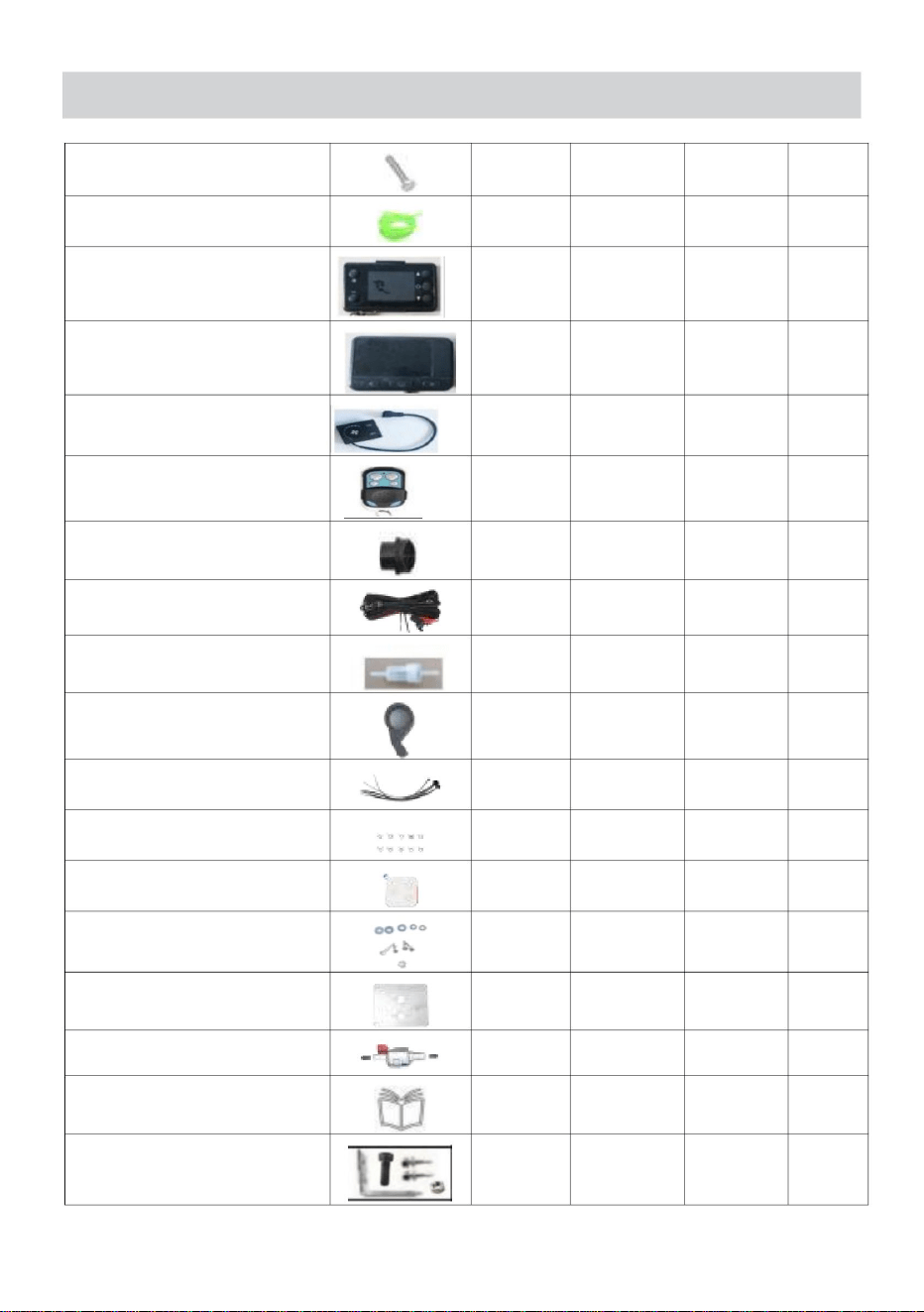

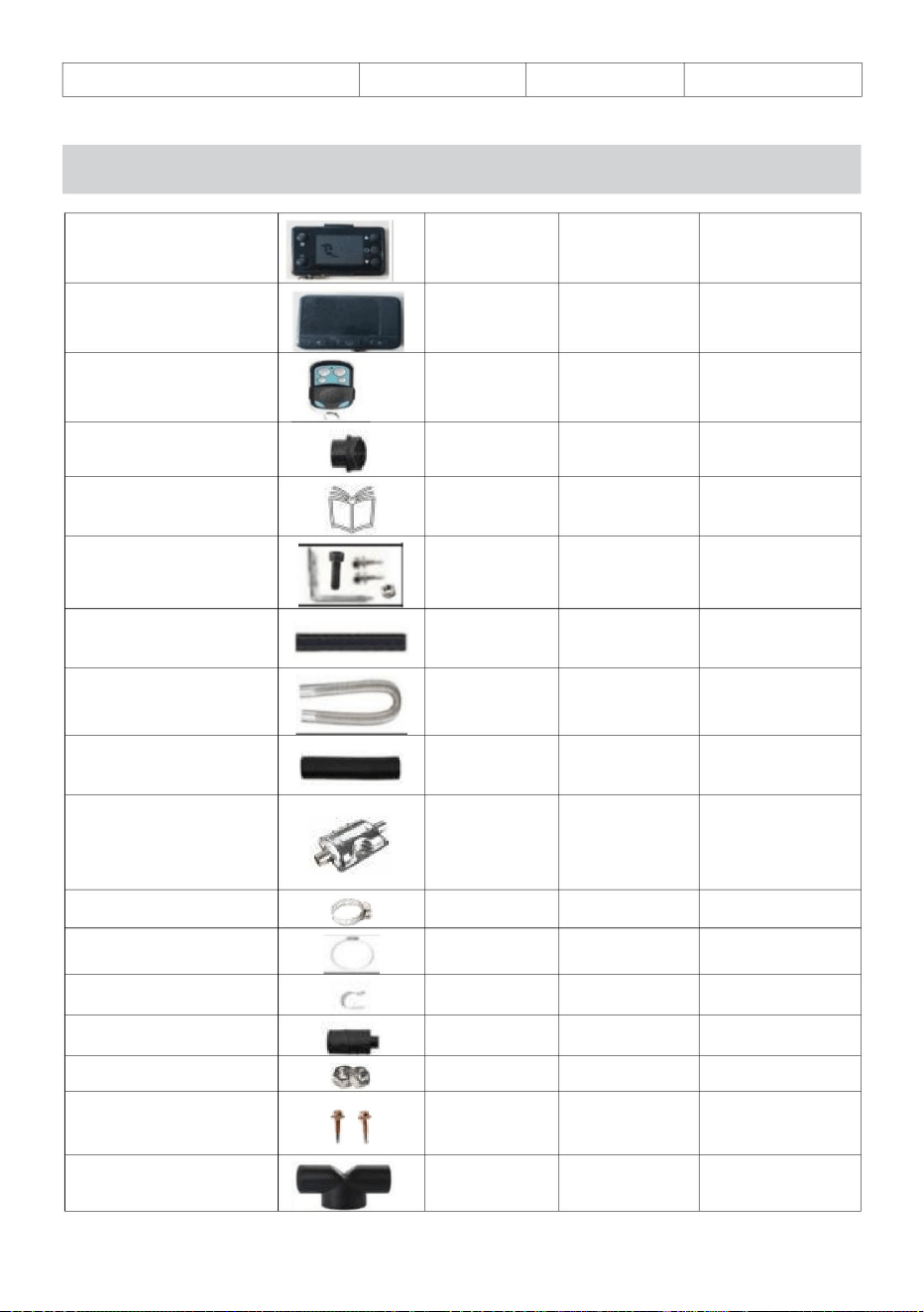

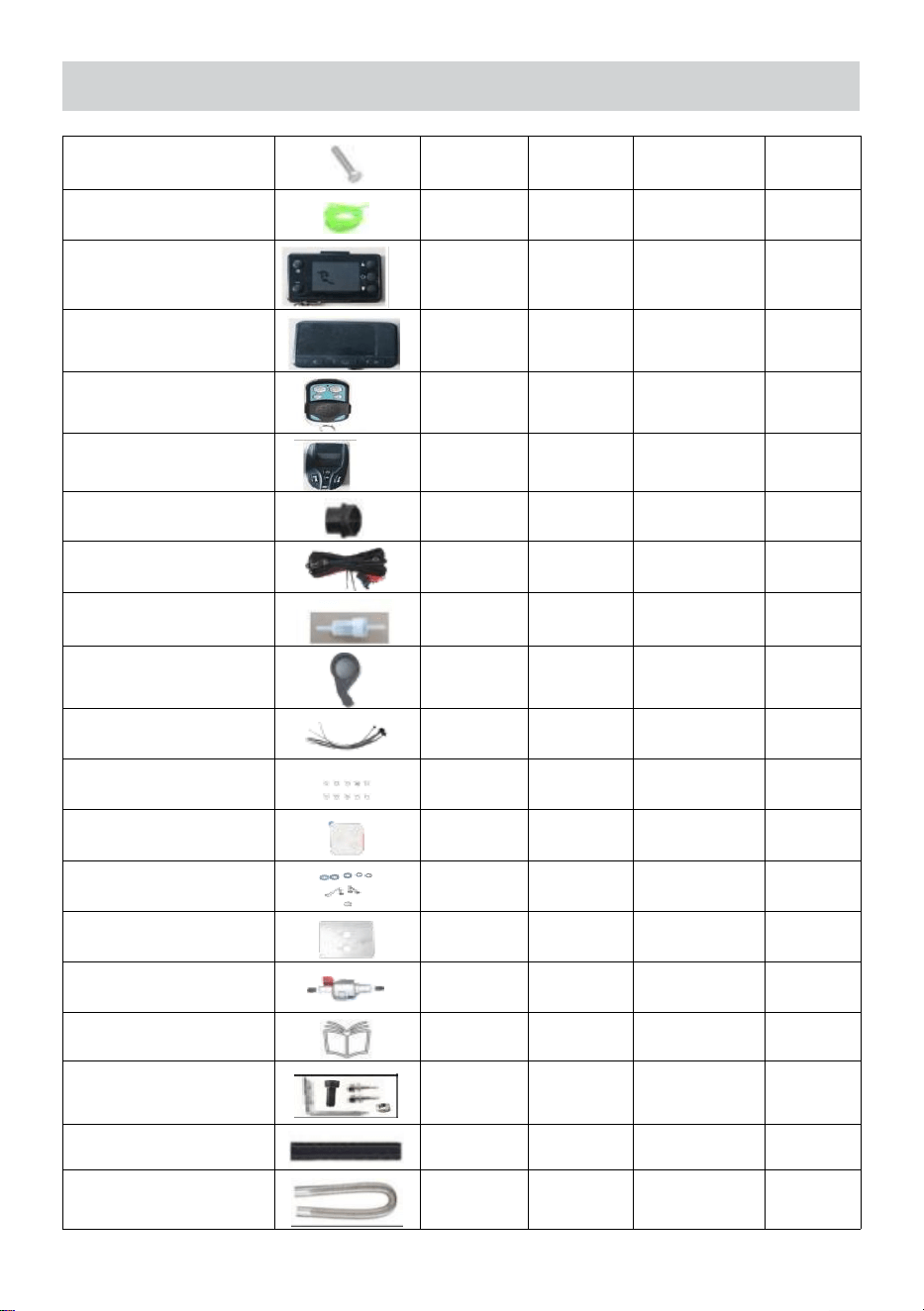

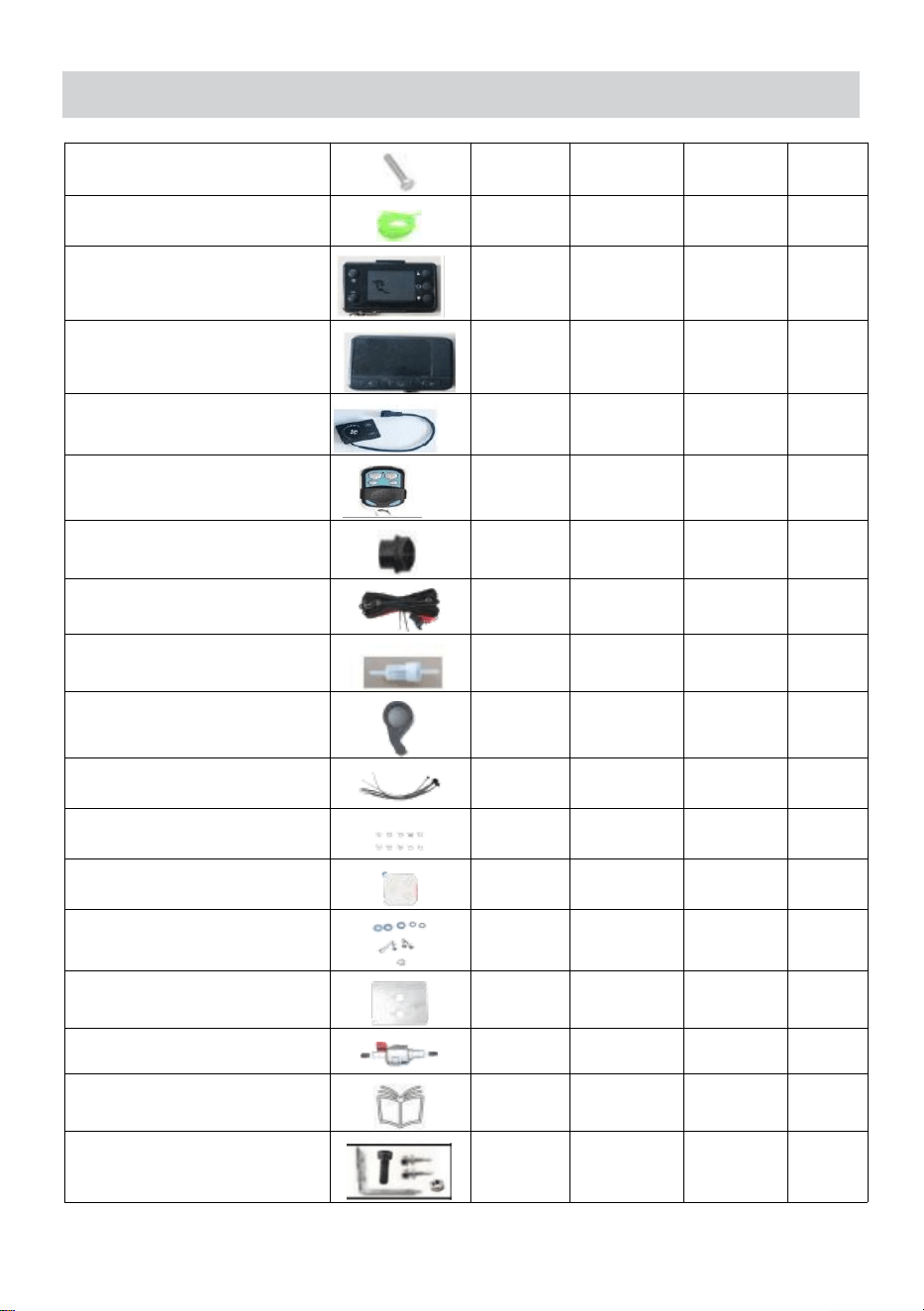

PACKING LIST

Machine fixing

screws

Oil pipe

Liquid crystal switch

Remote control

Rotary tuyere

Power cord

Oil filter

Fuel pump sheath

with a screw

Ribbon

Oil pipe clip

Fuel tank

Oil tank accessories

Machine fixing piece

Fuel pump

User Manual

Muffler

Accessories

Intake pipe

Exhaust pipe

- 8 -

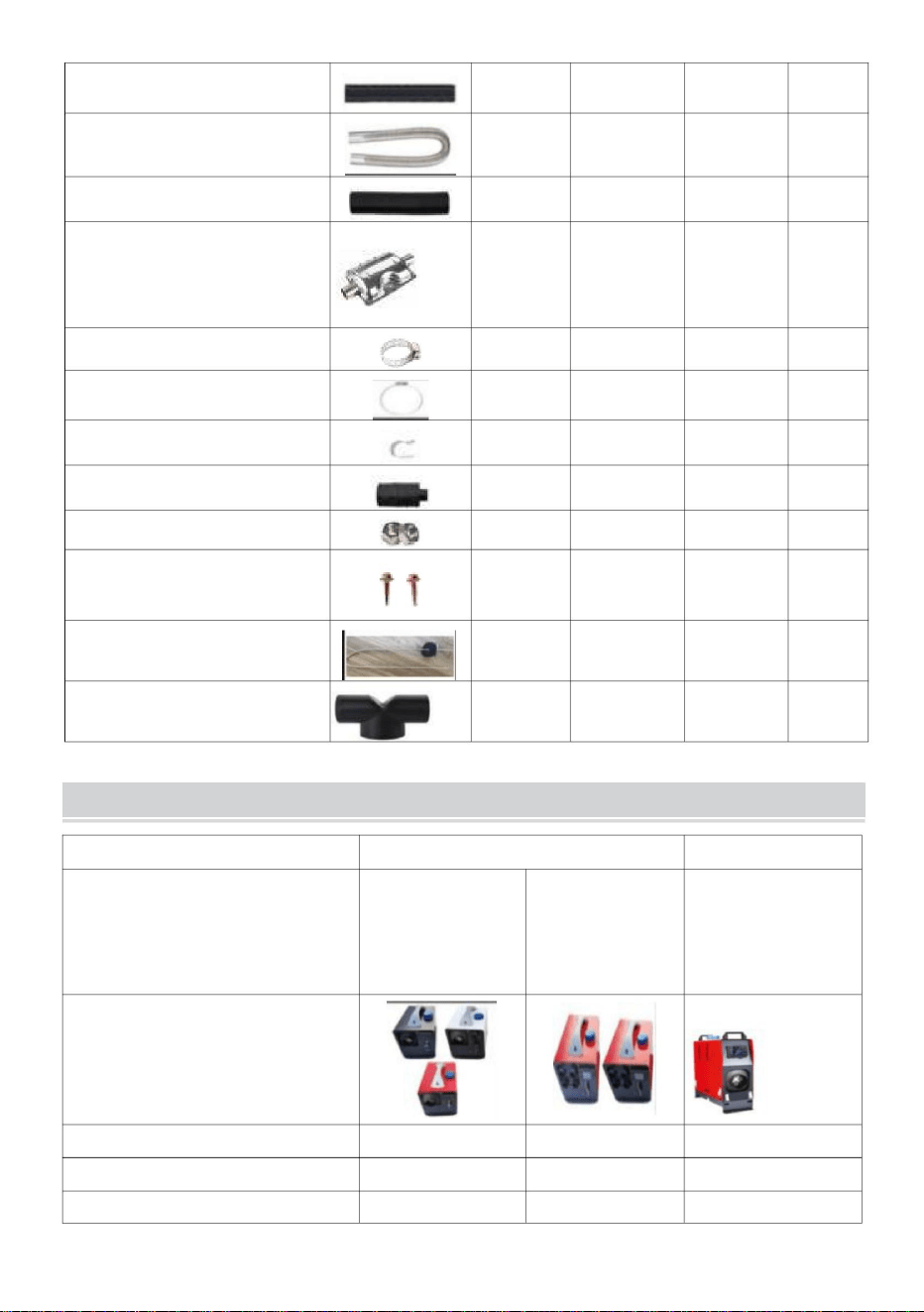

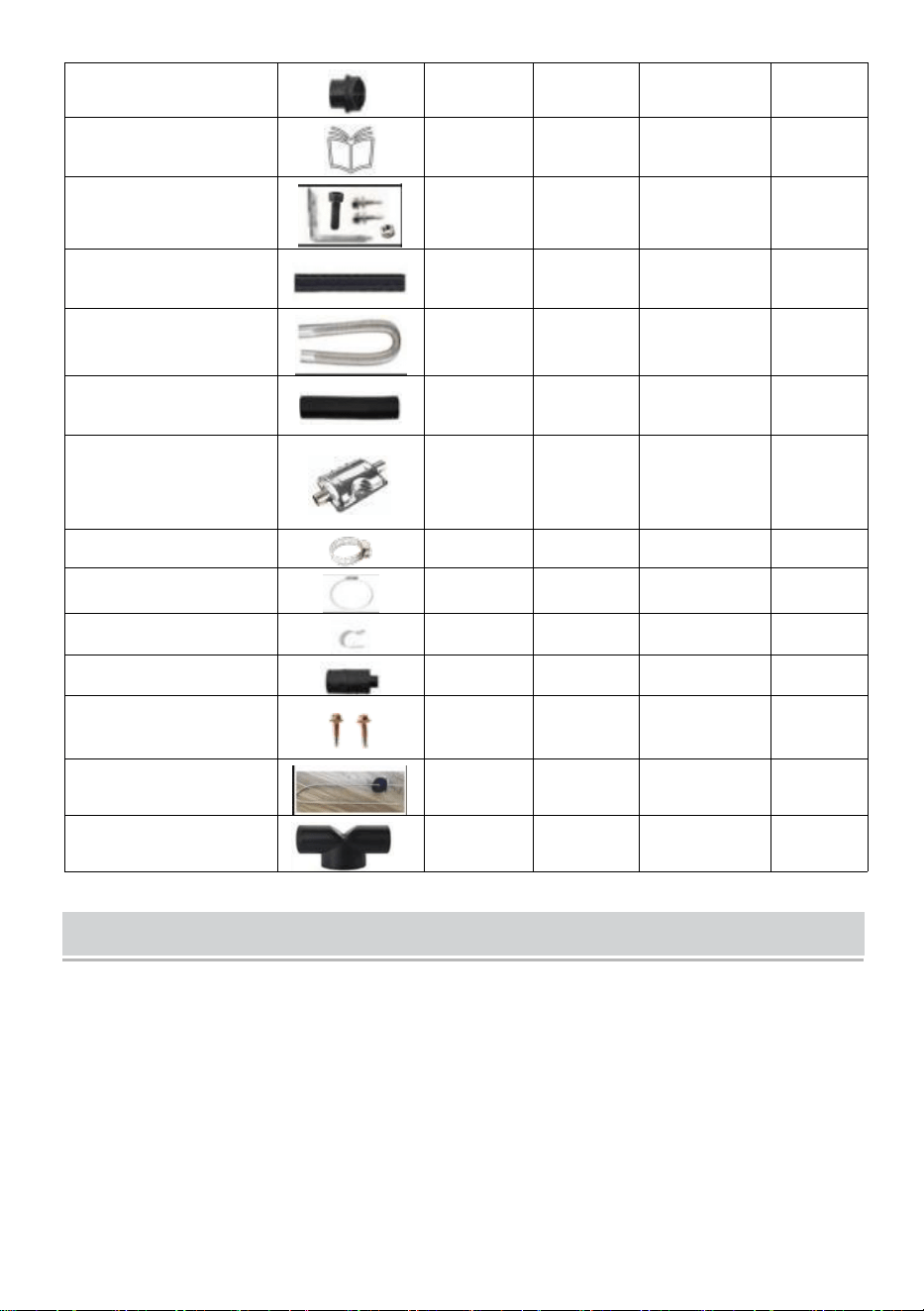

Blowpipe

Silencer with

1fixing piece

and 2 screws

Blowpipe clamp

Clamp

Pipe clip

Air filter element

Nut

The screw for the

lock catch

Oil extractor

tee

MODEL

Series Model

CY-5001

Product Model

CY-11

CY-19

CY-8

CY-16

Appearance

Power ZWH

8KW

5KW

2KW

5KW

Heating medium

Air

Fuel

Diesel

Ratings

12V/40W

12V40W

- 9 -

PACKING LIST

Machine fixing screws

Oil pipe

Liquid crystal switch

Remote control

Rotary tuyere

Power cord

Oil filter

Fuel pump sheath with a

screw

Ribbon

Oil pipe clip

Fuel tank

Oil tank accessories

Machine fixing piece

Fuel pump

User Manual

Muffler

Accessories

- 10 -

MODEL

Series Model

CY-5004

CY-5002

Product Model

CY-24

CY-25

CY-26

CY-27

CY-28

CY-23

CY-36

CY-31

Appearance

Power ZWH

5/8KW

5KW

5/8KW

Heating medium

Air

Fuel

Diesel

Intake pipe

Exhaust pipe

Blowpipe

Silencer with

1fixing piece

and 2 screws

Blowpipe clamp

Clamp

Pipe clip

Air filter element

Nut

The screw for the

lock catch

Oil extractor

tee

- 11 -

Ratings

12V/40W

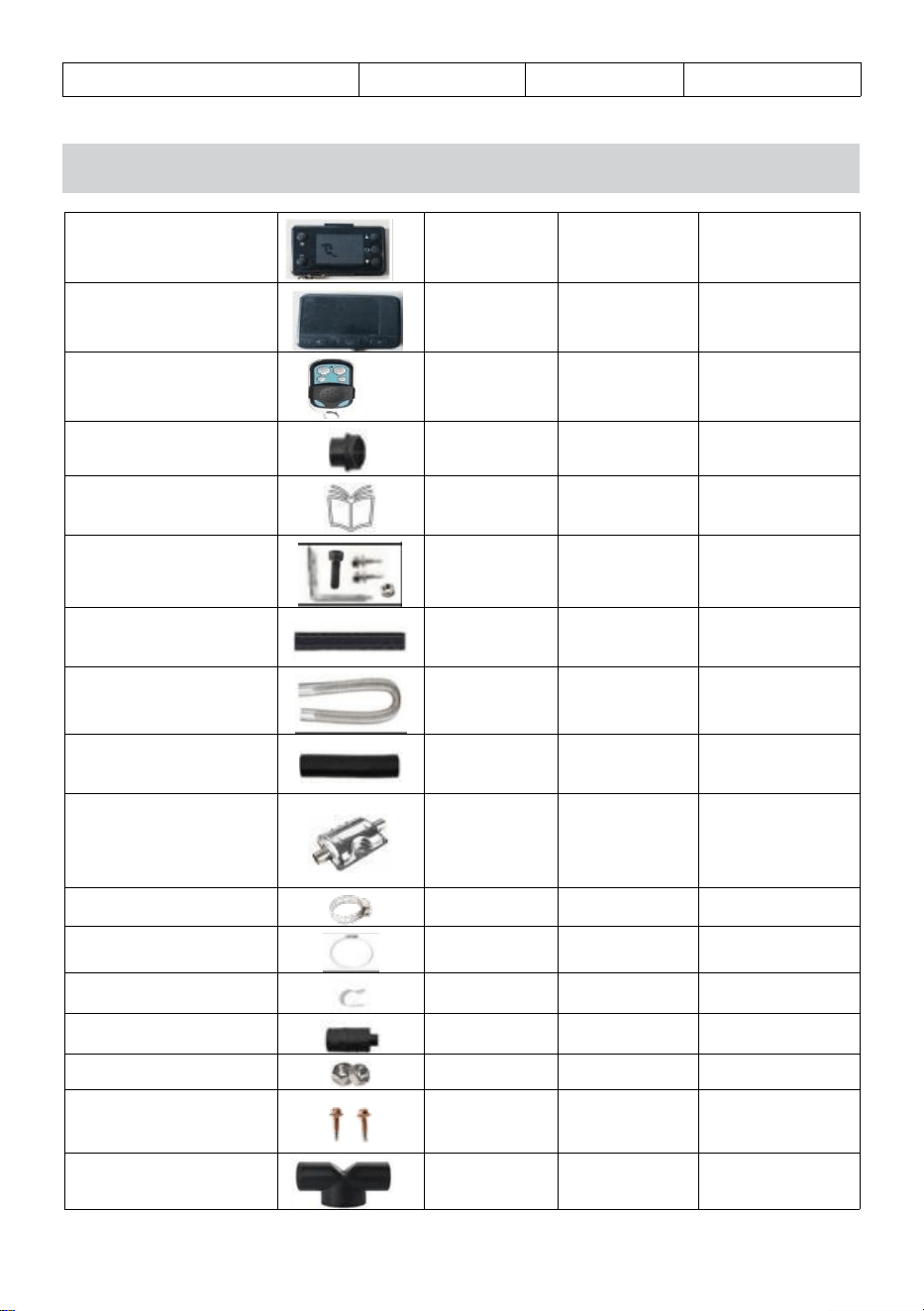

PACKING LIST

Liquid crystal switch

Remote control

Rotary tuyere

User Manual

Muffler

Accessories

Intake pipe

Exhaust pipe

Blowpipe

Silencer with

1fixing piece

and 2 screws

Blowpipe clamp

Clamp

Pipe clip

Air filter element

Nut

The screw for the

lock catch

tee

- 12 -

MODEL

PACKING LIST

Series Model

CY-5002

Product Model

CY-38

CY-35

CY-32

CY-39

Appearance

Power ZWH

5KW

8KW

5KW

8KW

Heating medium

Air

Fuel

Diesel

Ratings

12V/40W

Liquid crystal switch

Remote control

- 13 -

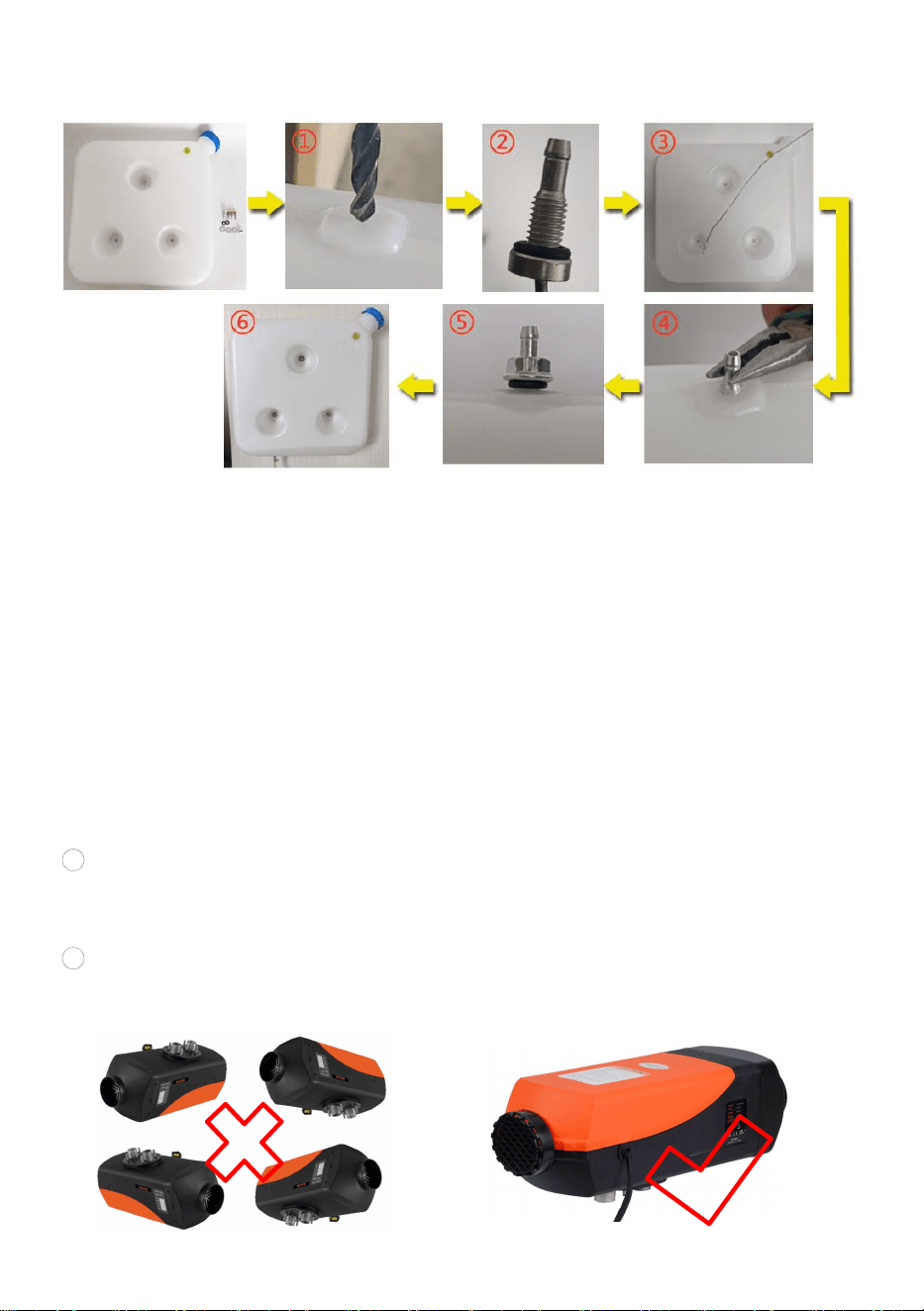

INSTALLATION OF FUEL TANK AND NOZZLE

1. Splitting machine

Please strictly follow the following diagram to avoid inevitable losses

caused by oil leakage during use:

①

Drill holes with a 7.5mm drill bit at the protruding position of the fuel tank

② Cover the fuel tank nozzle with a gasket

③Fix the fuel tank nozzle with iron wire and thread it into the punching

position along the fuel tank opening

④Swivel the pointed pliers to remove the fuel tank nozzle

⑤Insert washers and nuts for locking

Rotary tuyere

User Manual

Muffler

Accessories

Intake pipe

Exhaust pipe

Blowpipe

Silencer with

1fixing piece

and 2 screws

Blowpipe clamp

Clamp

Pipe clip

Air filter element

The screw for the

lock catch

Oil extractor

tee

- 14 -

⑥The three installation holes of the fuel tank are fixed with bolts and washers,

and the installation is completed

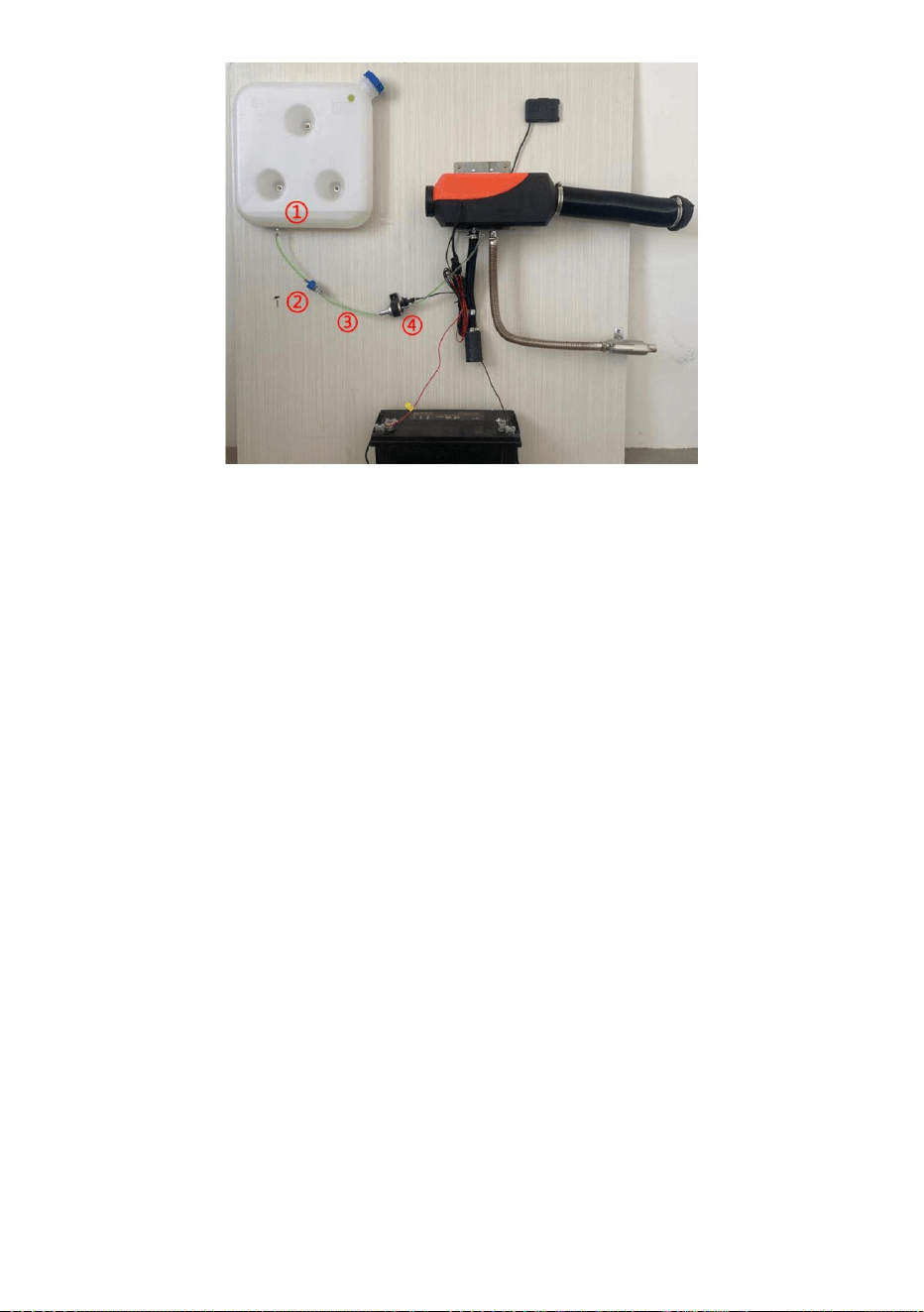

Fuel Tank Installation Diagram

Refer to the installation diagram below and carefully read the precautions

when installing or using:

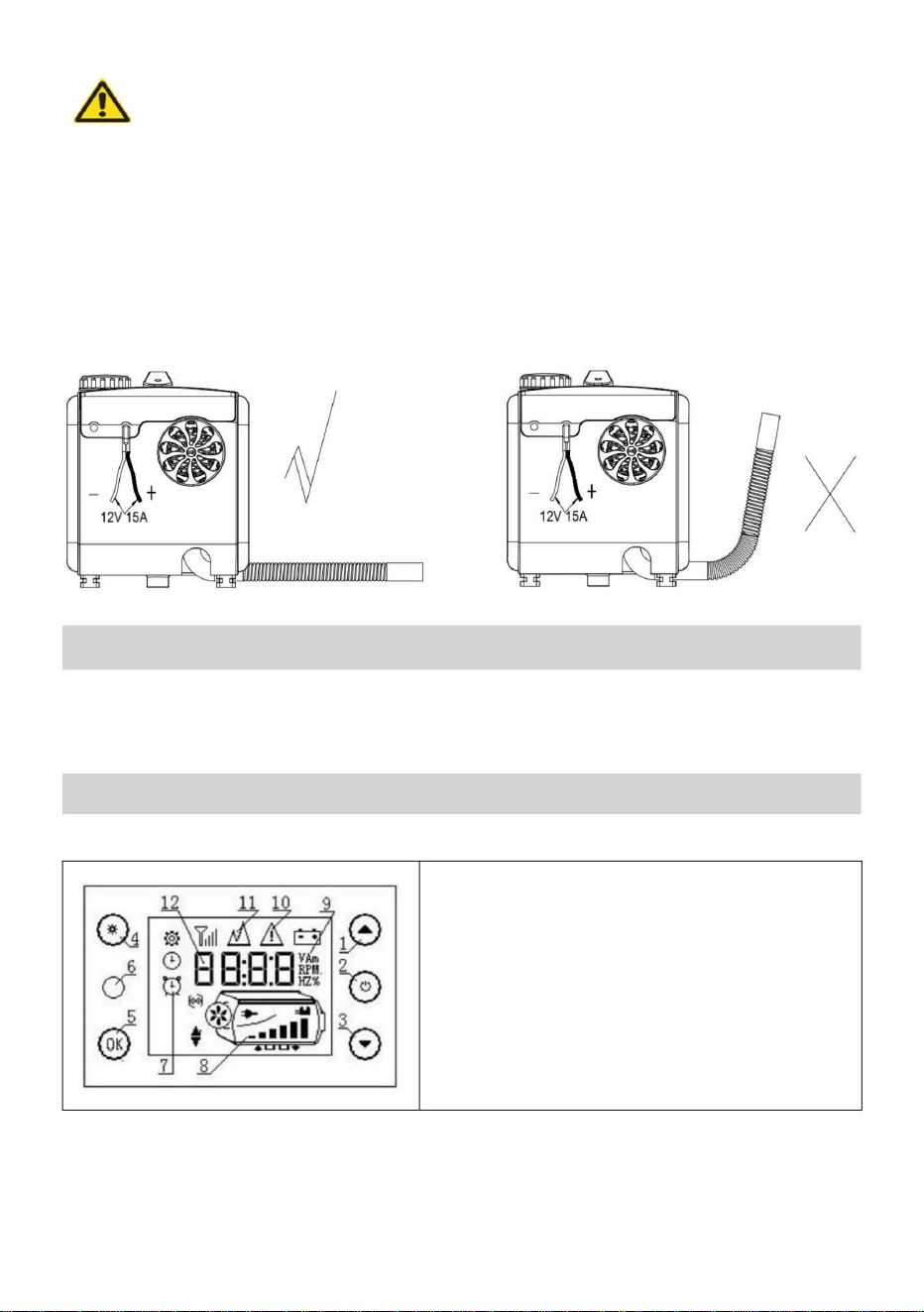

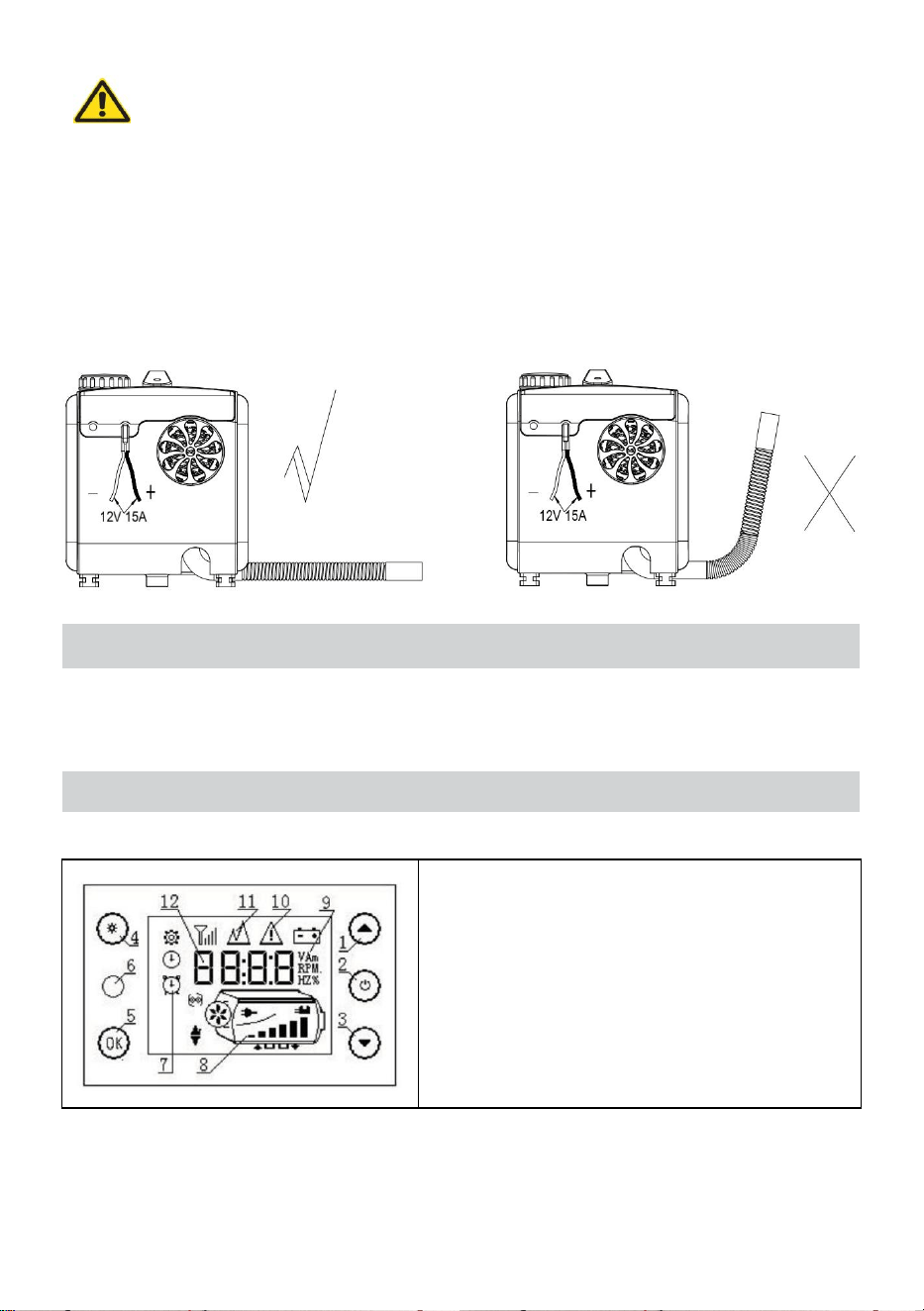

1. No Side Installation:

※ Side installation of the diesel heater will result in oil leaks inside the machine

after a period of use, producing a large amount of smoke and carbon monoxide

poisoning. During installation, leave a space of 10cm around the heater to ensure

good ventilation.

※ If installing the heater inside a building:

With the heater placed indoors: Make holes in the wall for the exhaust pipe to

be placed outdoors. Pay attention to insulating the exhaust pipe as it can become

very hot and could cause a fire.

With the heater placed outdoors: It's necessary to extend the exhaust pipe to

avoid the exhaust from being sucked into the building from the back fan position

of the heater, which can lead to carbon monoxide poisoning.

- 15 -

Incorrect Installation Direction Correct Installation Direction

※ If installing the heater inside a building: ① With the heater placed indoors:

Make holes in the wall for the exhaust pipe to be placed outdoors. Pay

attention to insulating the exhaust pipe as it can become very hot and could

cause a fire. ② With the heater placed outdoors: It's necessary to extend the

exhaust pipe to avoid the exhaust from being sucked into the building from

the back fan position of the heater, which can lead to carbon monoxide

poisoning.

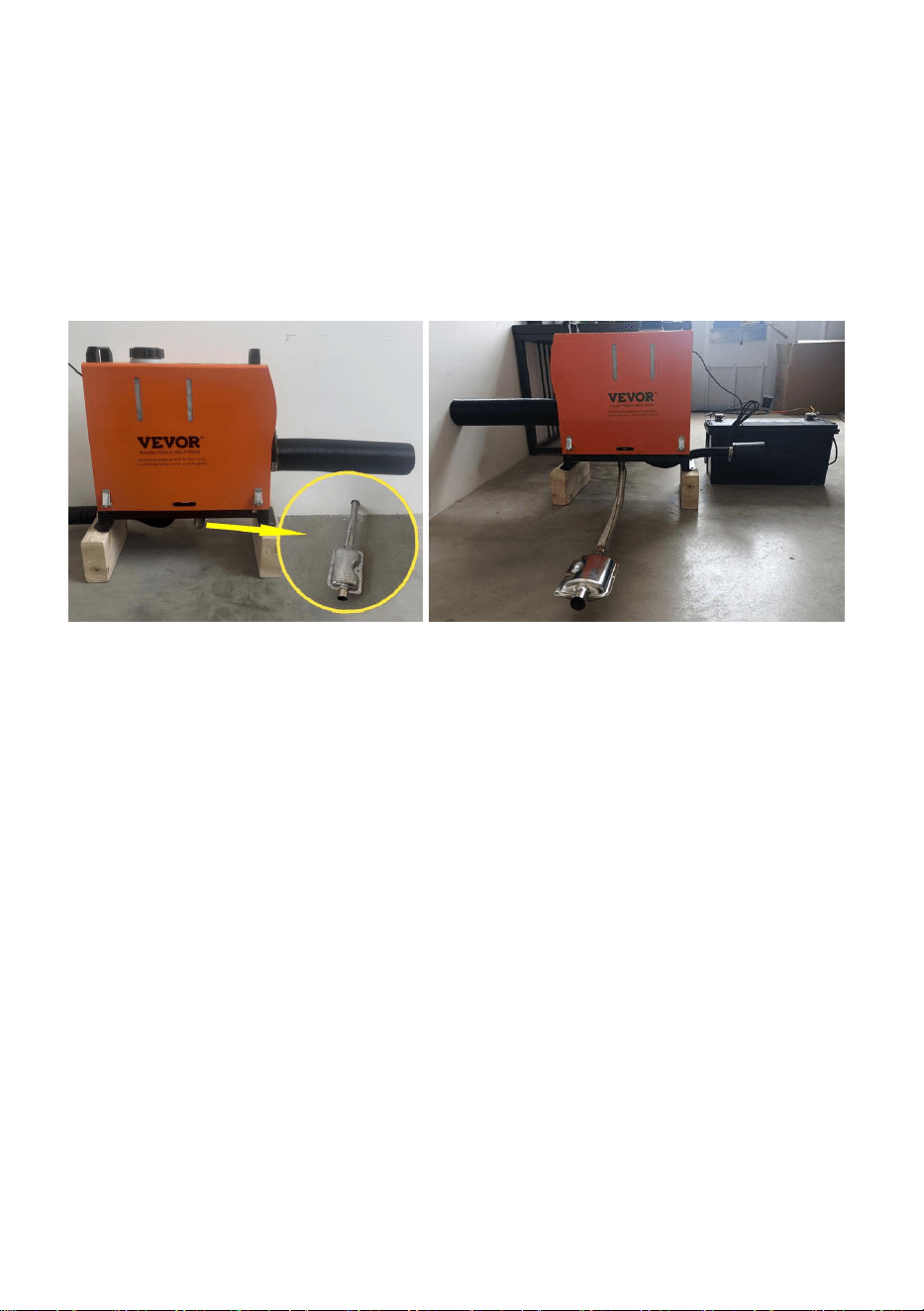

Indoor installation Outdoor installation diagram

(wooden floor exhaust pipes need to be protected)

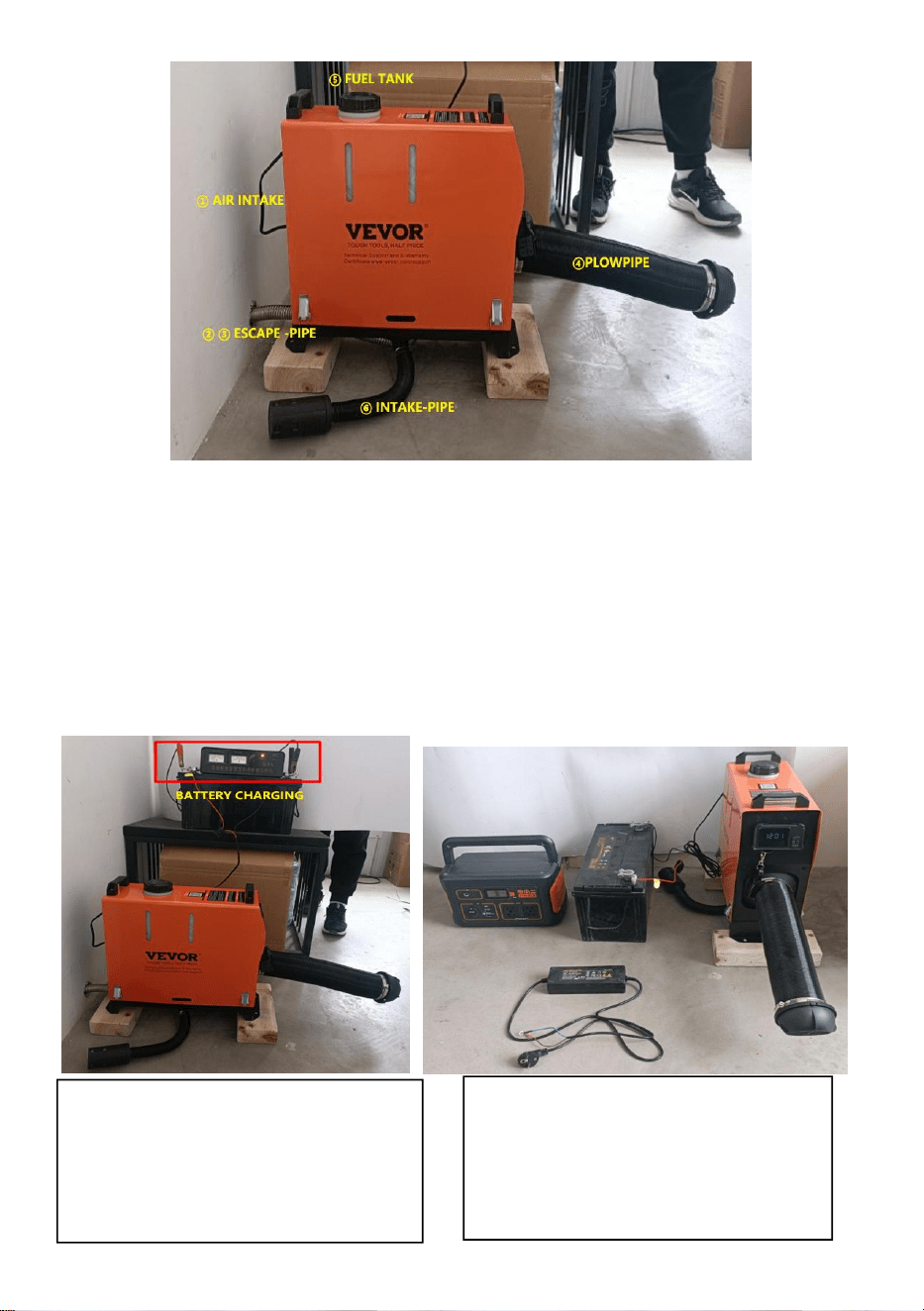

※ Installation position and precautions

①Reserve a 4-inch gap between the air inlet for unobstructed air intake

② Keep the bottom exhaust pipe at a distance of 2 inches from the ground,

and prevent fires if the exhaust pipe temperature is high;

③ Do not bend the exhaust pipe excessively, as it may cause uneven

exhaust flow;

④ The air outlet duct is not easily too long and multiple bends can cause heat

to be unable to be discharged, resulting in a high temperature fault;

⑤ When refueling the fuel tank, do not flow onto the casing, as it will flow

along the inside of the machine to the exhaust pipe position, causing smoke.

Fill the oil level close to the fuel tank port；

⑥Do not block the intake pipe, which will cause insufficient oxygen and the

heater will not work；

- 16 -

Installation location precautions - schematic diagram

2. Precautions for the power supply:

※ The power supply for the diesel heater must meet the following requirements:

Voltage: 12V; Current: ≥20A, either from a direct power source or a battery. When

insufficient current can cause malfunction. Ensure a firm and secure connection

to the battery. Using clamps for fixation can result in poor contact.

1. Do not use the heater when

charging the battery

2.The current is low and it does

not work

Suggest using energy storage

power, batteries, and adapters

for power supply

- 17 -

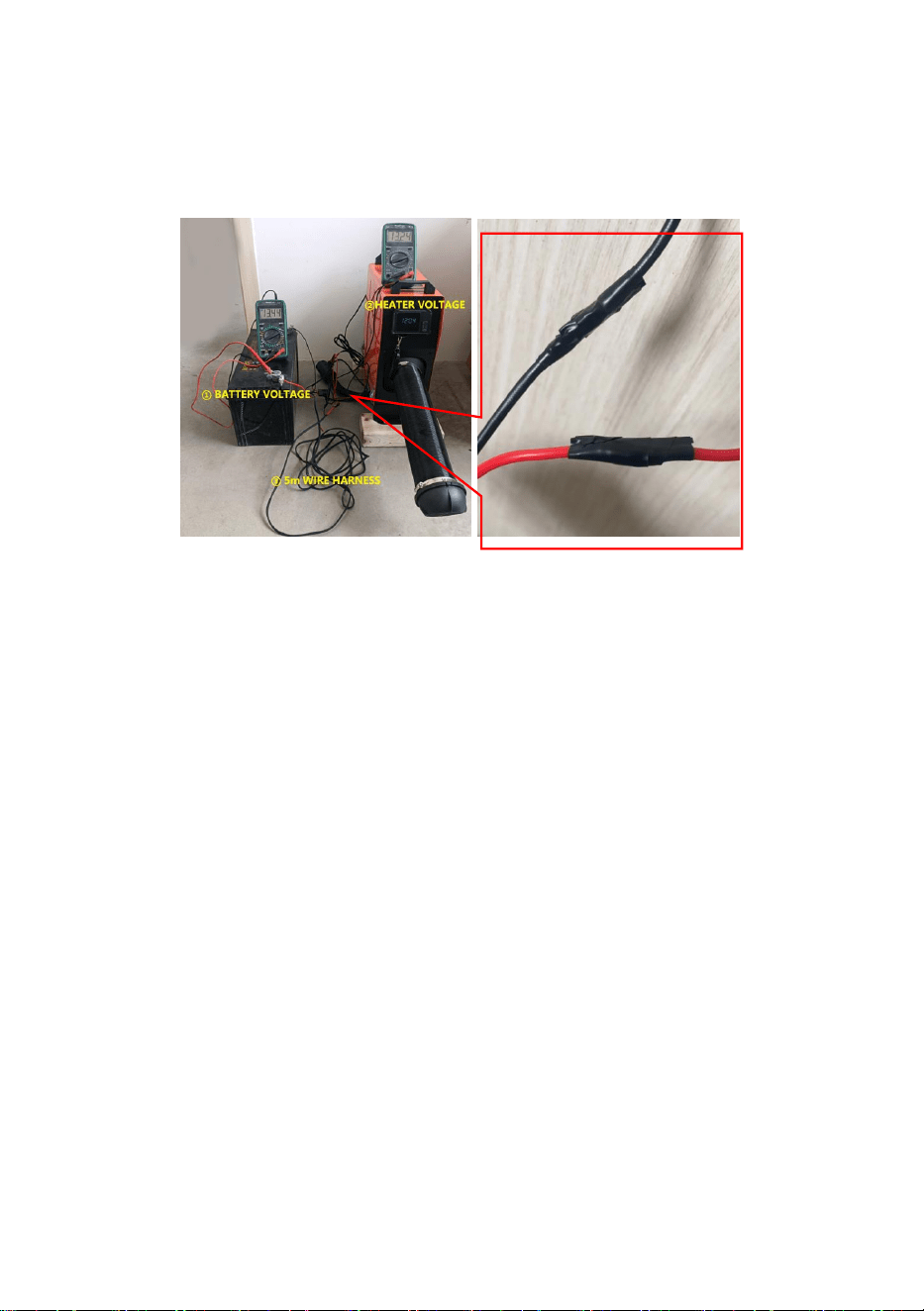

※When extending the power cable for the diesel heater, the wire diameter should

be >2㎟. Using a thin wire can lead to insufficient current, causing the heater not

to work. After connecting, use insulating tape to protect the connection and

prevent electrical leakage, which might lead to fires.

※Do not disconnect the power when the diesel heater is operating at high

temperatures. This can cause backfire due to high temperatures. Repeatedly

doing so can cause permanent damage. Solutions:

- If power is cut and you immediately turn on the heater: Wait until the internal

heat of the heater has completely dissipated before turning it on for normal

operation.

- If the heater is turned on a long time after a power cut: Incomplete combustion

inside may produce a large amount of smoke. Wait for the smoke to clear, and

the heater will automatically start and operate normally.

- 18 -

Abnormal power outage and smoke coming from the intake pipe

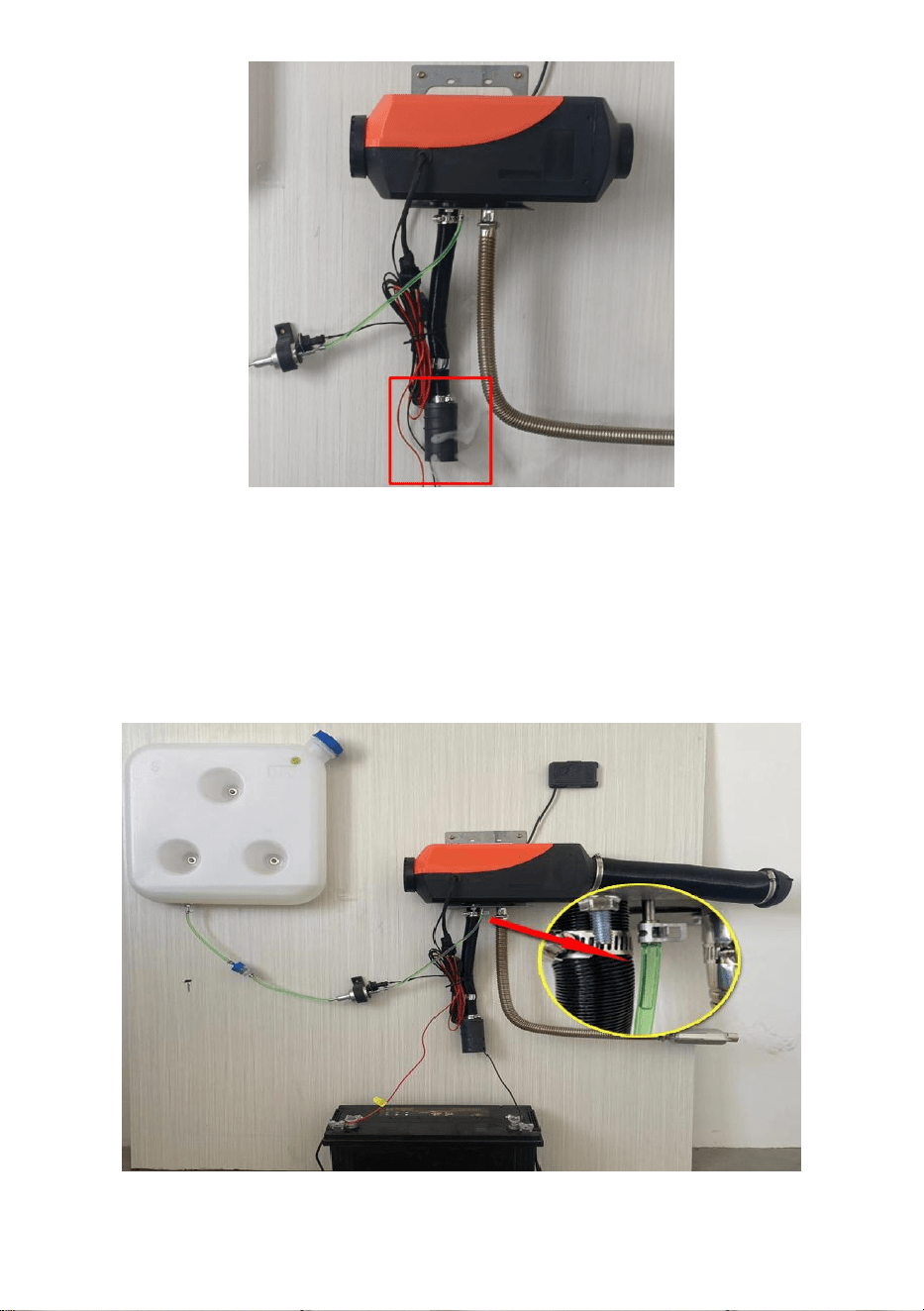

3. After the heater is installed, you need to manually pump oil before

turning it on:

※ The fuel line of the heater is long. Before initially starting the heater, manually

pump oil up to the fuel inlet. Otherwise, when turned on, the heater will take over

30 minutes to detect the fuel (during this time, it will continuously check for the

fuel signal). Once the ignition plug detects the fuel, it will ignite and heat. Refer to

the LCD switch user guide for detailed instructions on manual fuel pumping.

The first work requires manual pumping of oil to the position shown in the

diagram and starting up

- 19 -

※ When manually pumping fuel, pump just up to the fuel inlet. Over-pumping can

result in the heater emitting a large amount of white smoke. Quick solution:

Detach the fuel line, turn on the heater and let it stop naturally, then restart it.

Repeat this process until no smoke is emitted. Reconnect the fuel line and turn

the heater on to resume normal operation.

※ After starting the diesel heater, continuously blow air into the air pipe using an

air pump or a high-speed blower until the heater starts and functions normally. If

white smoke appears after operating for a period: This indicates that the

atomizing net is clogged. Remove the ignition plug, take out the atomizing net,

clean its surface or replace it with a new one.

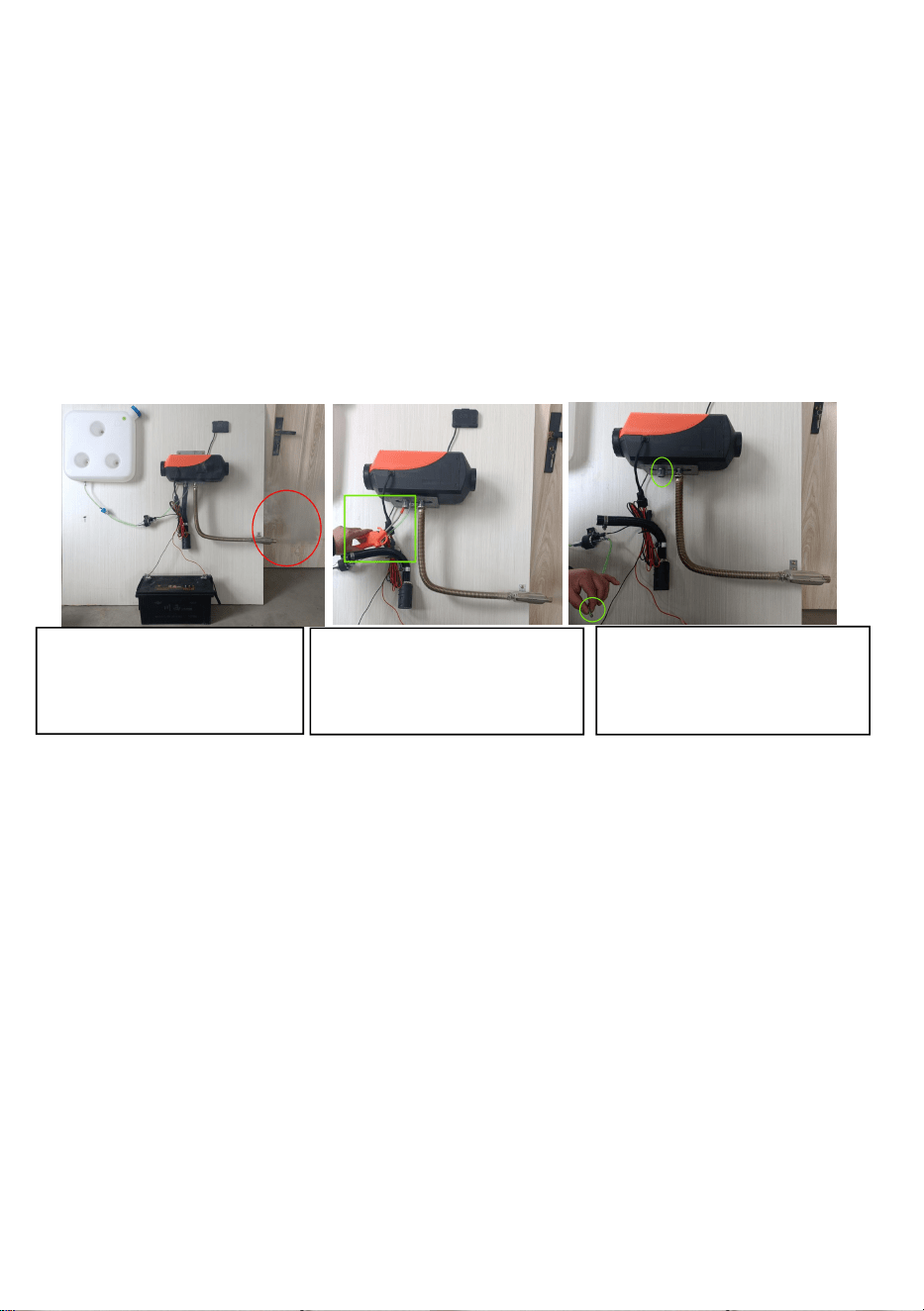

※ Oil circuit fault, such as E4/E8/E10 fault code, indicates that there is

no oil heater or heat in the machine. The following steps need to be

followed for troubleshooting：

①Is there a shortage of oil in the fuel tank;

② Whether the oil filter is blocked;

③ Is there any bending of the oil pipe that cannot accommodate oil;

④ Is the oil pump not working;

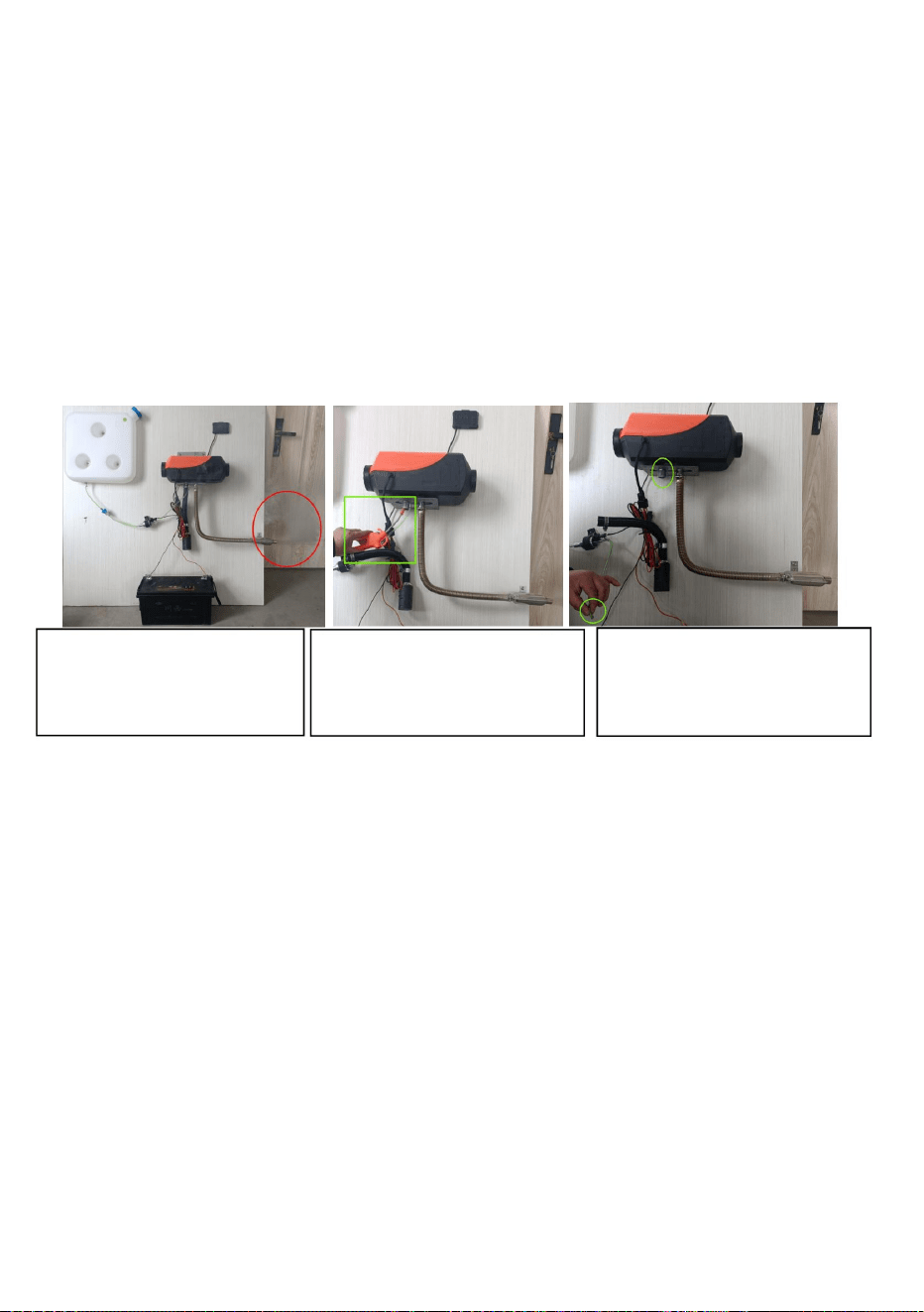

Excessive pump oil

produces white smoke

Blow the air gun

towards the intake pipe

to assist combustion

Remove the oil pipe

and insert it after it is

normal

- 20 -

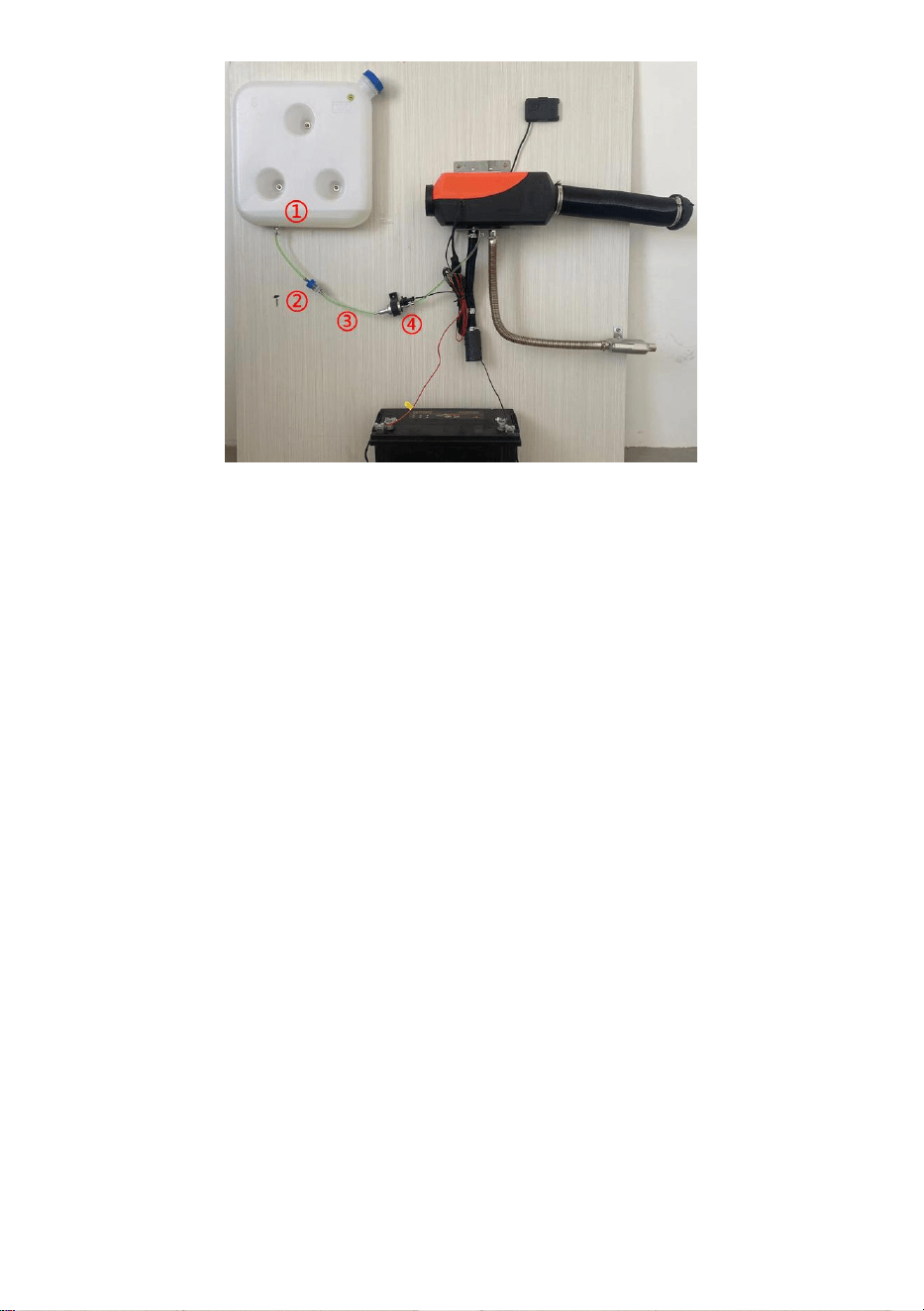

Inspection diagram

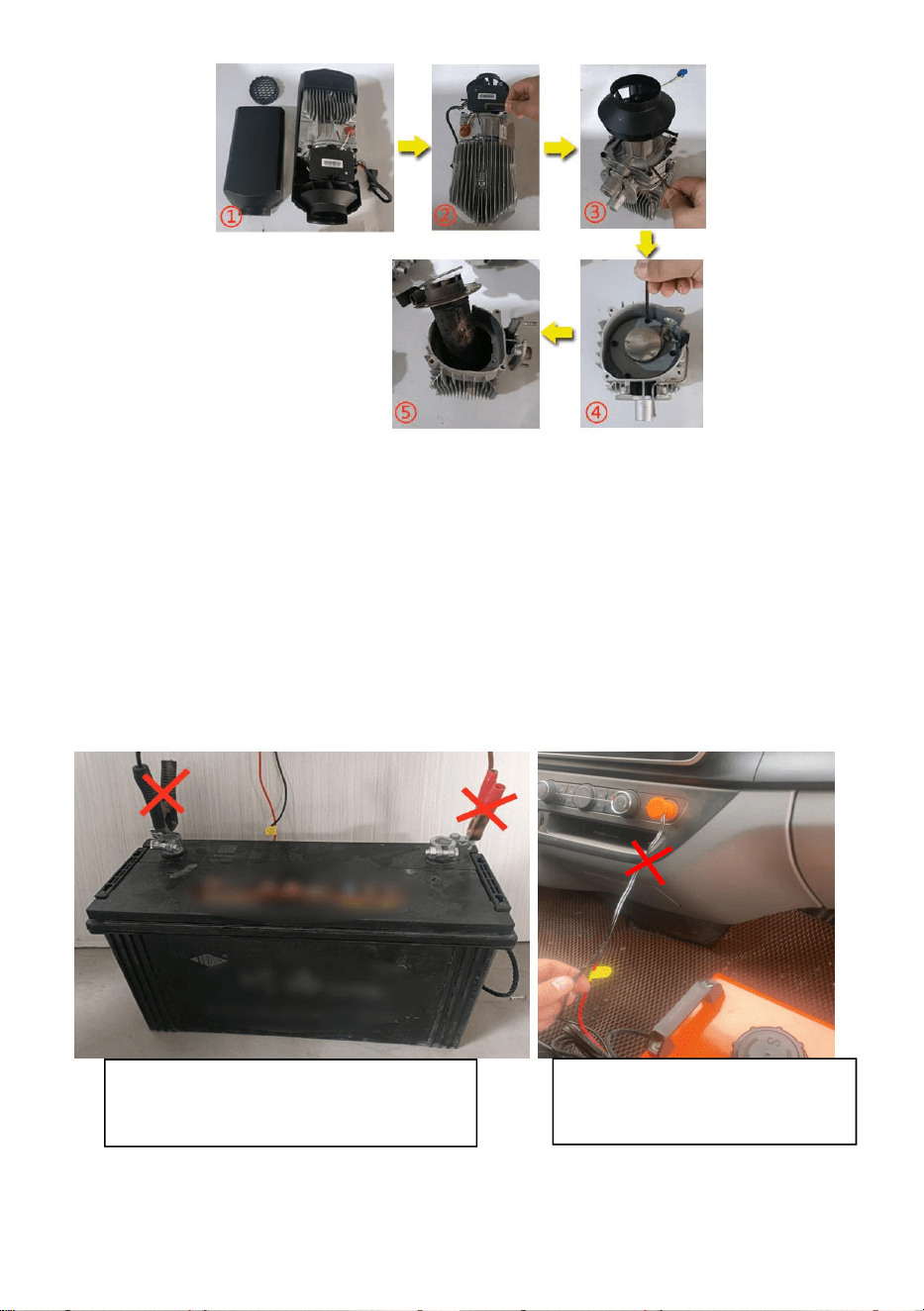

※ Maintenance:If black smoke is found during the operation of the

heater for a period of time or the second year of use, it indicates that

there is carbon accumulation in the combustion chamber that needs to

be cleaned in a timely manner. The operation method is as follows:

①Remove the outer shell;

②Remove the motherboard bolts with an Allen wrench;

③ Remove the four bolts of the fan assembly with an Allen wrench;

④Remove the four bolts of the combustion chamber with an Allen wrench;

⑤ Remove the combustion chamber and replace it with a new recovery

heater;

- 21 -

Schematic diagram of combustion chamber replacement

Cautions for Diesel Heater Power Supply:

※ Diesel heater power supply requirements: Voltage: 12V; Current: ≥ 20A;

Use either a power source or a battery. （Avoid charging the battery while

supplying power to the heater, as low current may lead to malfunctions.

Ensure a secure battery connection without using clamps to prevent poor

contact. Using the car's cigarette lighter as a power source is not

recommended due to insufficient current.）

Fixing the battery clamp can

easily cause poor contact

Cigarette lighter current

low does not work

- 22 -

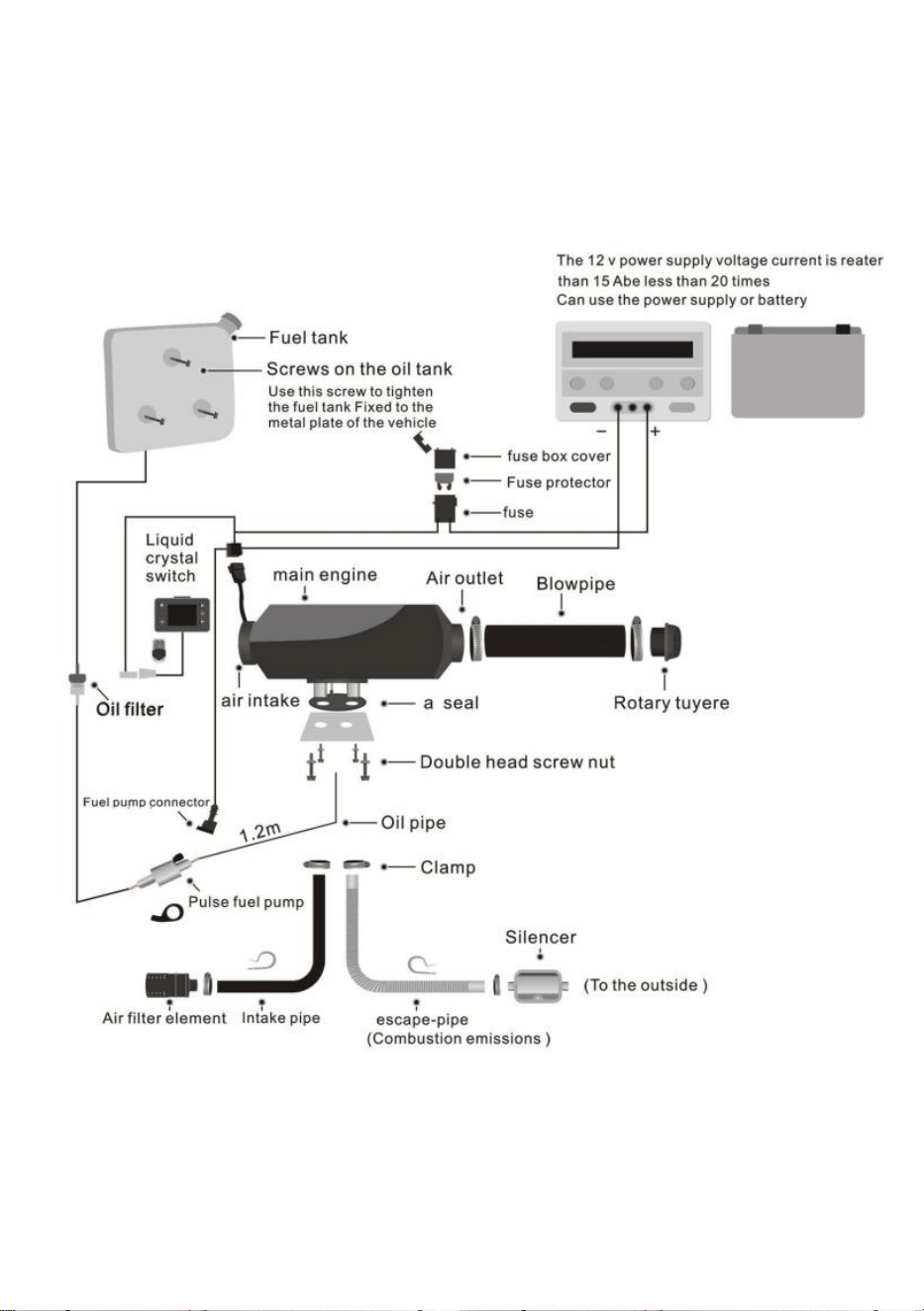

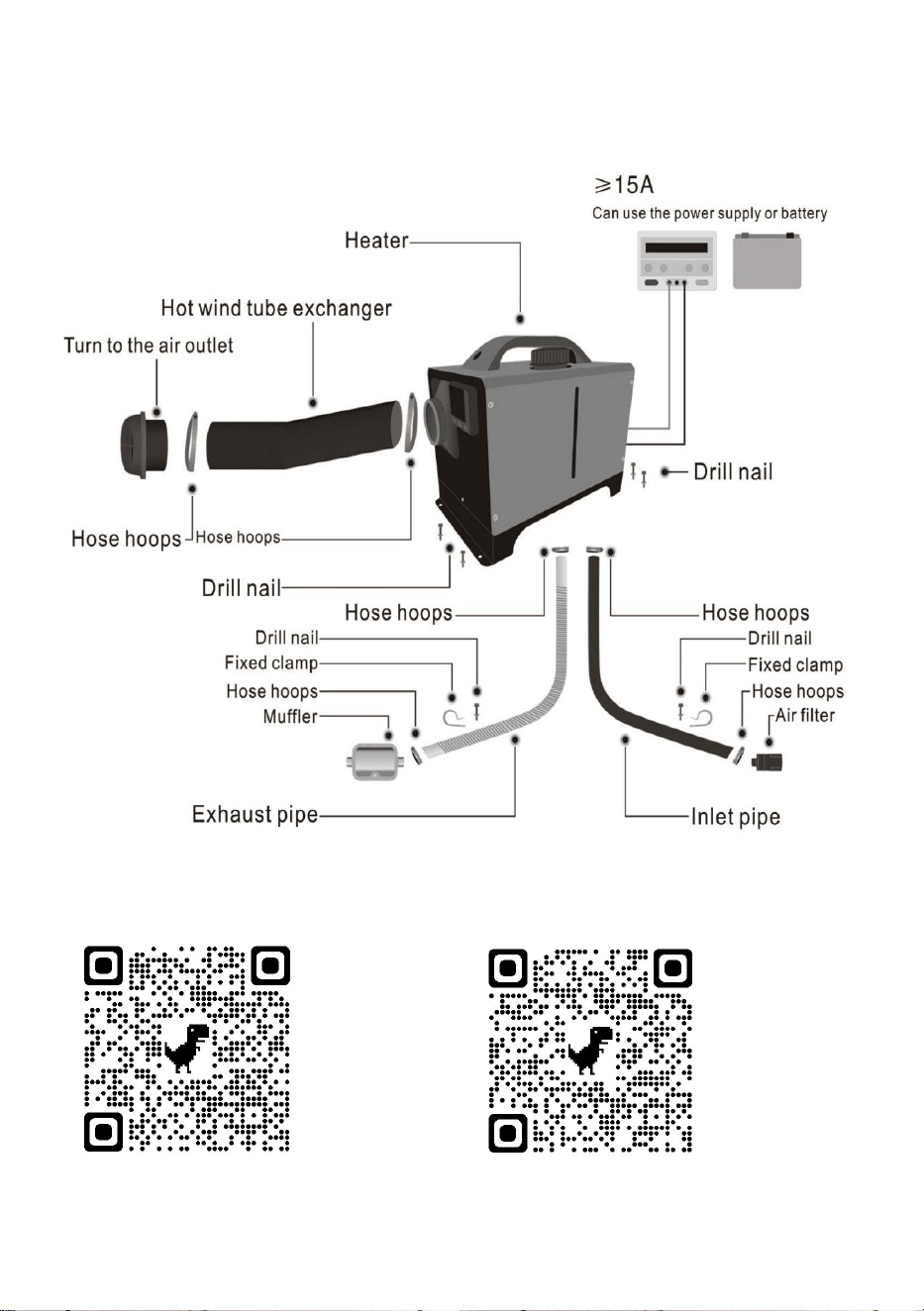

CY-5001:

(CY-1,CY-2,CY-3,CY-4,CY-5,CY-6,CY-7,CY-8,CY-9,CY-

10,CY-11,CY-12,CY-13,CY-14,CY-15,CY-16,CY-17,CY-

18,CY-19,CY-20,CY-21,CY-22)

(Split type)

During installation, the oil tank should be properly placed above the main

engine to facilitate the operation of the fuel pump.

- 23 -

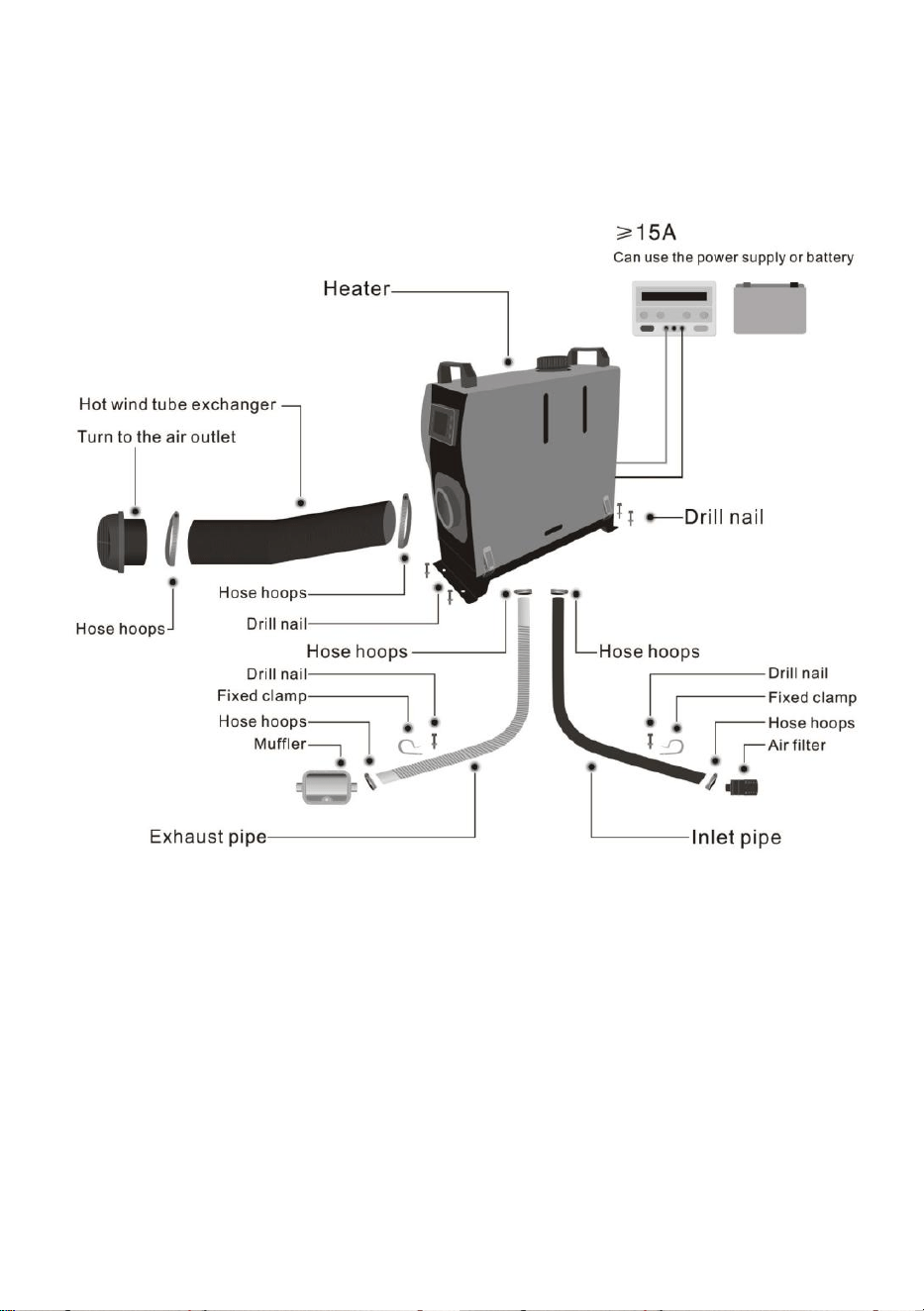

CY-5002:

(CY-30,CY-31,CY-32,CY-33,CY-34,CY-35,CY-36,CY-

37,CY-38,CY-39)

(Vertical type)

- 24 -

CY-5004:

(CY-23,CY-24,CY-25,CY-26,CY-27,CY-28,CY-29)

(Horizontal type)

For specific installation, please scan the QR code to view the installation

video

CY-5001video QR code CY-5002/CY-5004 video QR code

- 25 -

Warning：

1. The air inlet shall not be blocked, and keep the inlet open and clear.

2. Keep the exhaust pipe clear.The exhaust pipe outlet shall be kept away from

anything flammable, and avoid heating and igniting the flammable goods and

loading cargo on the ground.

3. To ensure optimal combustion, please remember that the smoke exhaust pipe

cannot be placed upward, but must be placed horizontally or downward.

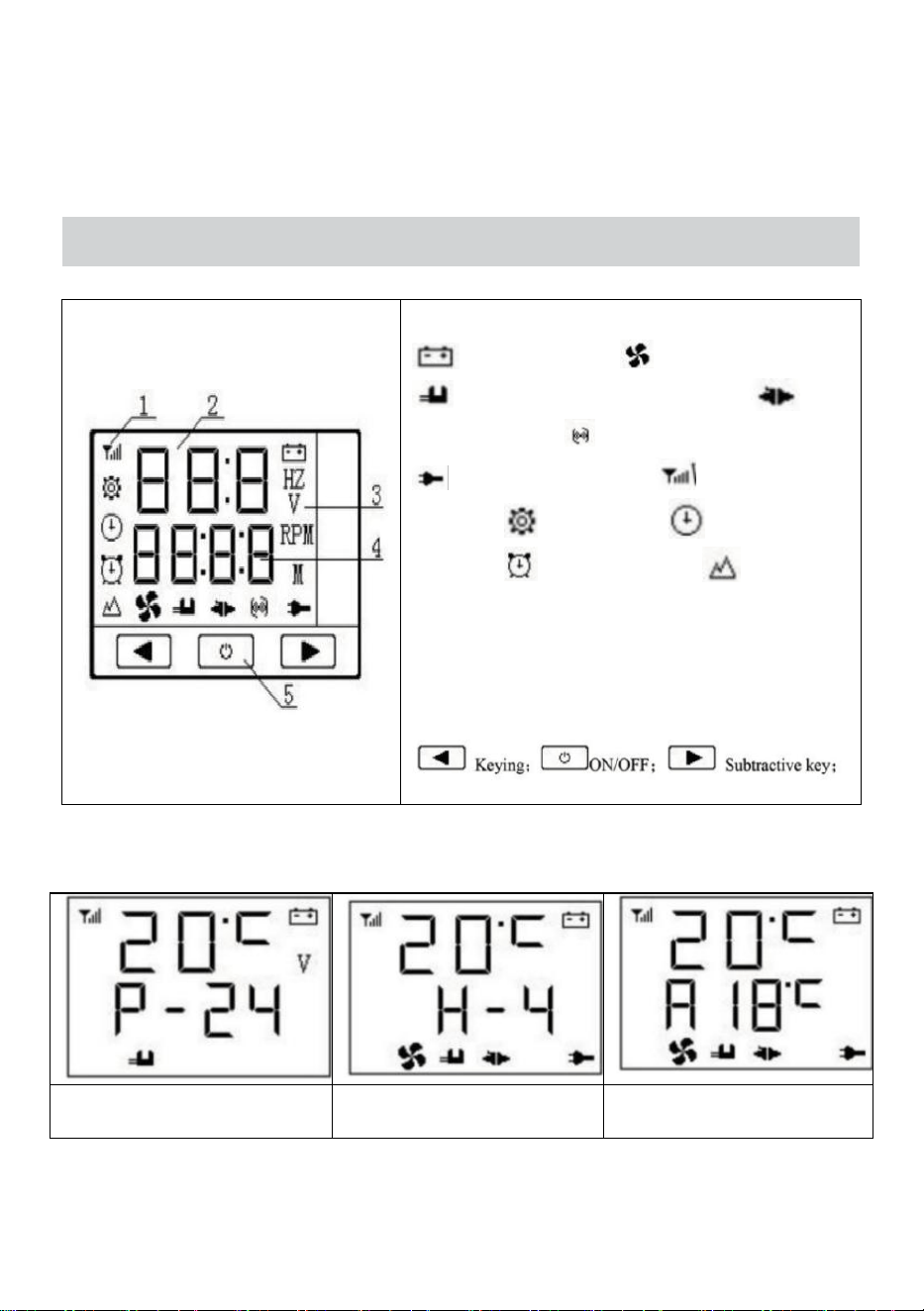

REMOTE CONTROL OPERATION INSTRUCTIONS

Panel operation instructions

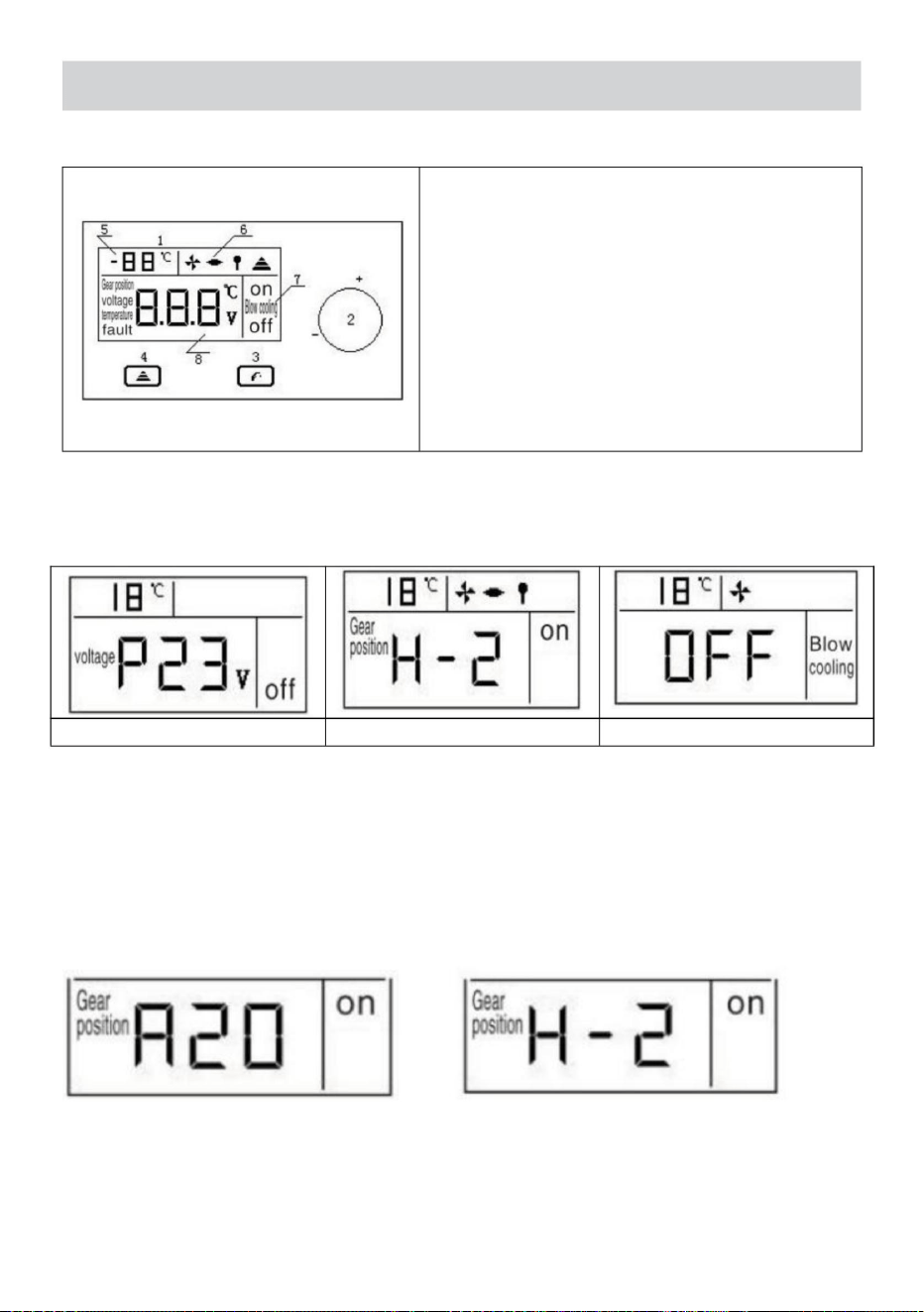

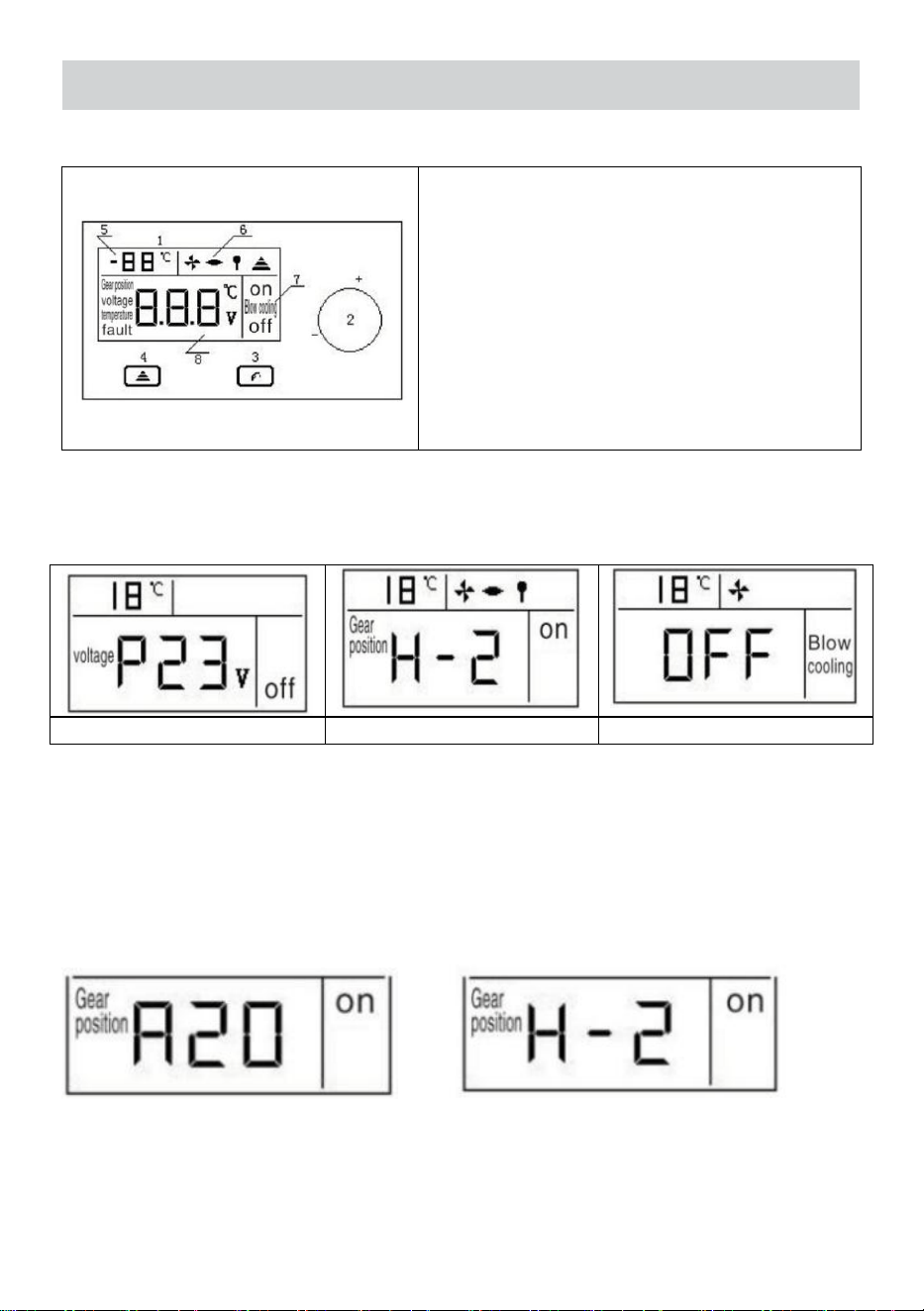

1. The control panel is shown in the following figure

1. Adding keys;2.0n/0ff button;

3.Subtraction key; 4. Set key;

5.0K key;6. Infrared receiver head;

7. State symbols; 8. Host schematic

diagram;

9.Data unit;10. Fault symbols;

11. Plateau symbol; 12. Display data and

parameters;

- 26 -

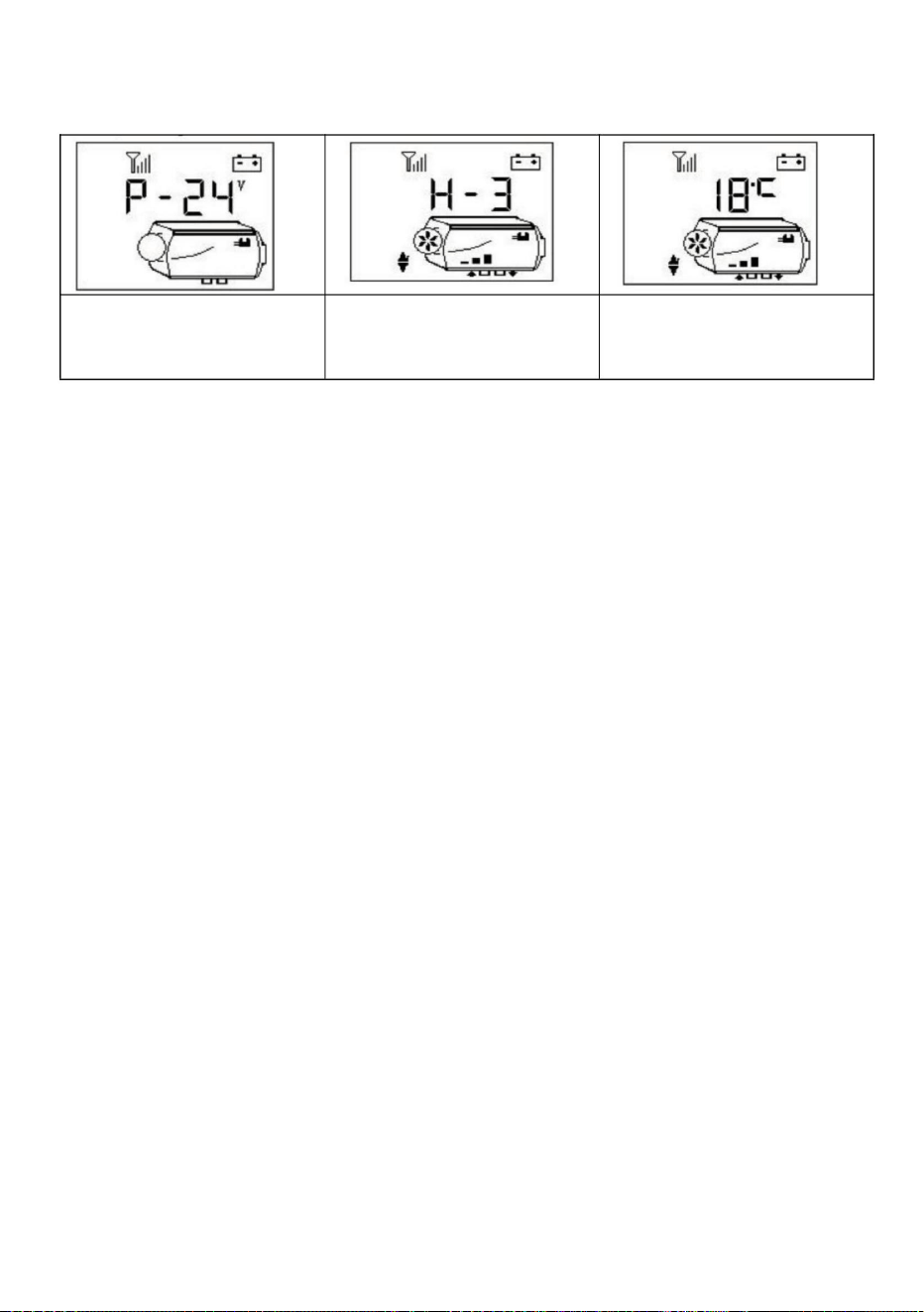

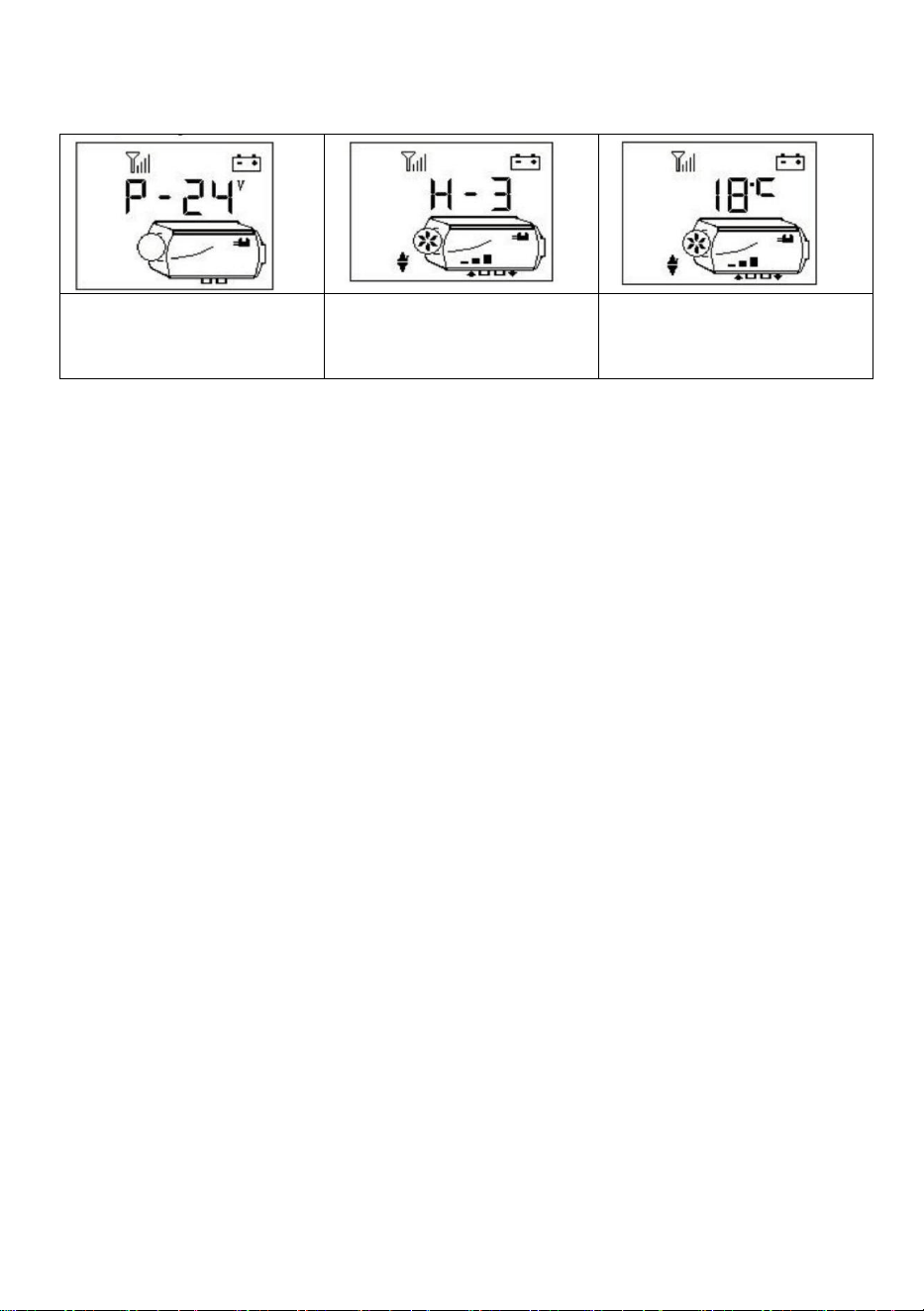

2. Usage operation

1. On/off Operation

Power off status

Power on status

(manual mode)

Power on status

(automatic mode)

1)Power on operation

In the shutdown state, press and hold the "o" button for 2 seconds to turn on the

device, and the display will show "Power on status" as shown in the above picture.

2) Shutdown operation

In the power on state,long press the "o"button for 2 seconds, and the device

enters the shutdown and cooling process, displaying"OFF".After the device cools

down，it shuts down and displays the "shutdown status" as shown in the above

picture. Do not force power off when displaying "OFF". Power off may damage

accessories due to high temperature inside the machine and inability to dissipate

heat! Wait until the machine is displayed in the shutdown state before powering

off!.

3) Manual mode operation

The manual mode consists of 6 gears (H1-H6). H6 represents the maximum

power,as shown in the "power on state" in the figure above, Use the "▲" or "▼"

key to increase/decrease the gear.

4) Automatic mode operation

Automatic mode, as shown in the above figure, with a setting of 20 ℃. Use the

"▲" or "▼" keys to increase or decrease the temperature value, and set the range

to 5-30℃.Long press the "☀" button for 2 seconds to switch between

manual/automatic modes.

1. Switching to display data on startup

Short press the "OK" button to switch between displaying data in the

following order:

Power on status: gear(or set temperature)->shell temperature ->working voltage -

>ambient temperature ->scheduled power on time ->scheduled shutdown time.

Shutdown status: working voltage ->ambient temperature ->timed startup time -

>timed shutdown time.

2. Temperature unit switching

- 27 -

Simultaneously press and hold the "o"+"▲"keys for 2 seconds to switch the

temperature unit to "Fahrenheit/Celsius".

3. Manual oiling operation

In the shutdown state, press the "▲" or "▼" button simultaneously for 2

seconds to manually control the oil pump to pump oil. Release the button and

stop pumping oil. Please use with caution!

4. Plateau mode operation

Simultaneously press and hold the "

☀

"+"▲" keys for 2 seconds to enter high-

altitude mode. The icon displays the start of high-altitude mode.In high-

altitude mode, the wind oil ratio decreases to adapt to high-altitude hypoxia, and

then press and hold the "☀"+"OK" keys for 2 seconds to exit high-altitude mode.

Please use with caution!

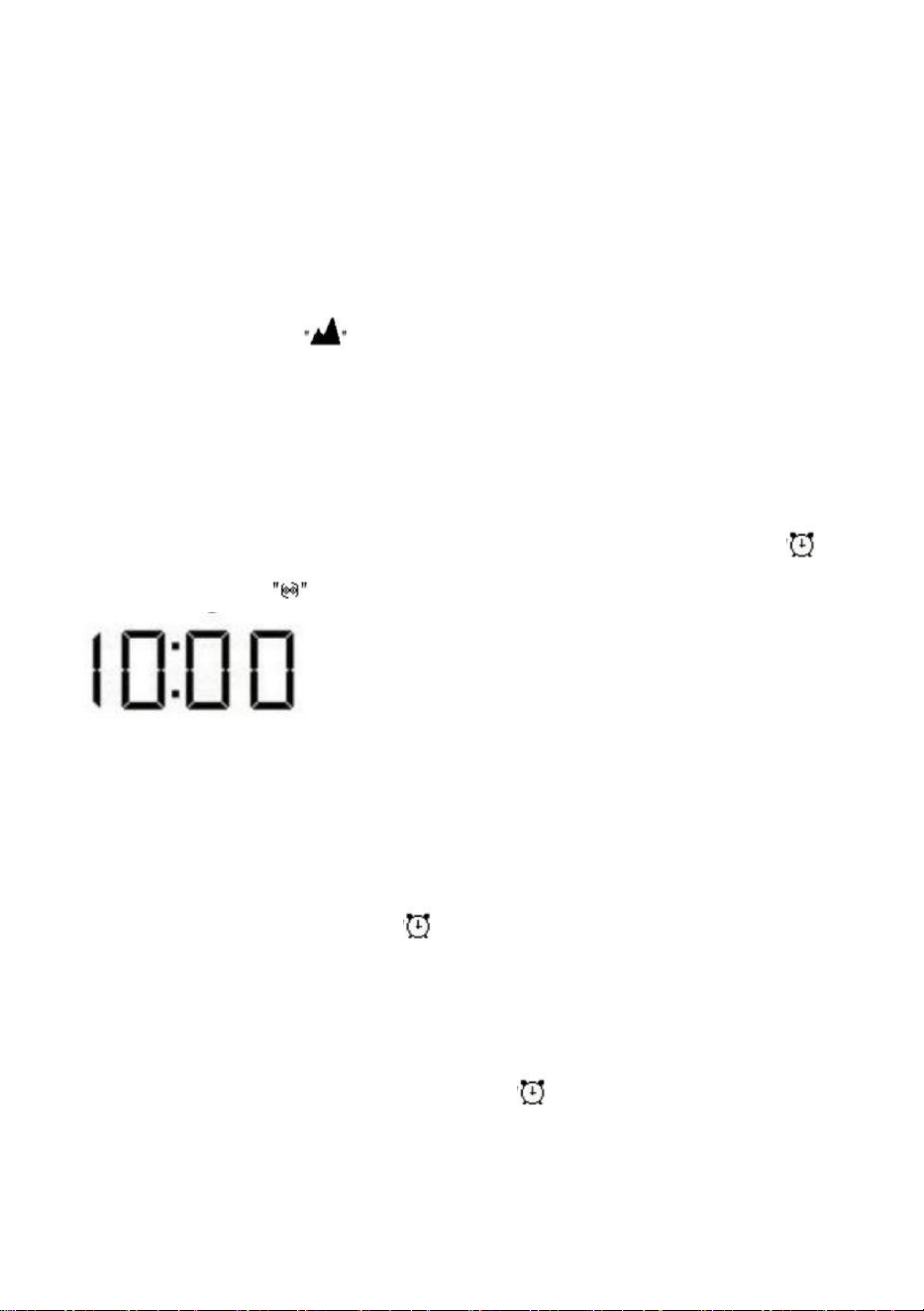

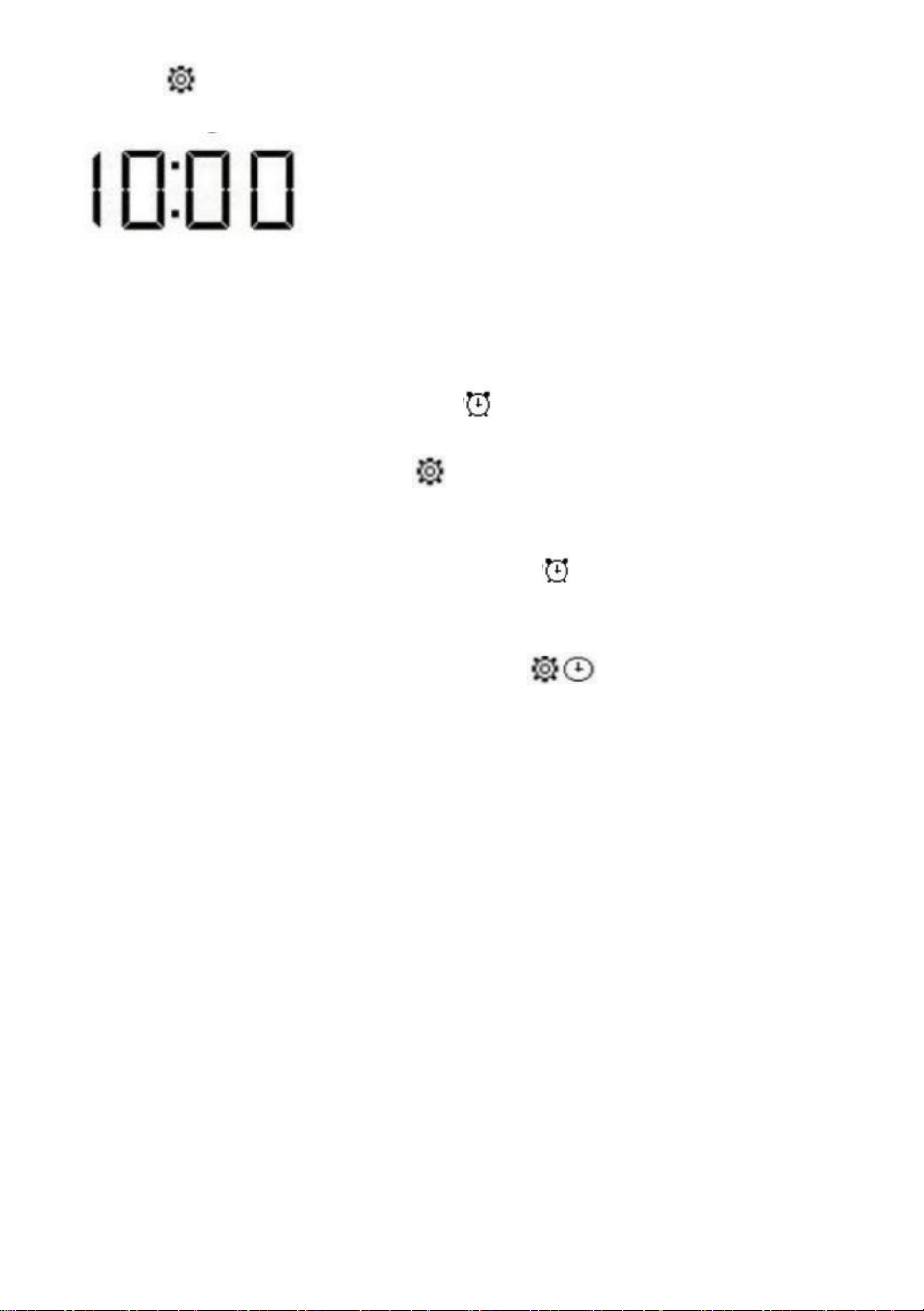

5. Time on/off time operation

When the timer function is not enabled, press and hold the "OK"+ "▼" keys for 2

seconds to enter the timer setting interface, and the indicator symbol "

☀”

will

be displayed. Display to set the shutdown time and not to set the startup time.

1) Press the "▲" or "

▼

" key to adjust the time value. The time adjustment range

is from 00:00 to 23:59

2)Press the "o"key to switch and adjust the number position, and the

corresponding number will flash.

3)Press the "OK" button or operate without a button for 15 seconds to save the

set value. If you are setting the startup time, switch to the shutdown time setting,

and then turn on the timer function. If it stays on, exit this interface.

4) Press the "☀" key to not save the set value. If you are setting the startup time,

switch to the shutdown time setting. 0therwise, exit this interface.If set to 00:00, it

means that the corresponding timing function is disabled.

5)When the timer function is running, press and hold the "OK"+"▼"" keys for 2

seconds to turn off the timer function, and the " " symbol will turn off.

After activating the timer function, the clock will automatically start up when it

reaches the scheduled startup time; Automatically shut down when the scheduled

shutdown time is reached. When the panel is powered off, the timer function

status will be saved, and after power on, the timer function status will be restored.

- 28 -

If the timer function is not manually turned off, as long as the clock reaches the

scheduled on/off time, the device will automatically turn on/off.

6. Clock synchronization operation

Press and hold the "OK" button for 2 seconds to enter the clock adjustment

interface, and the indicator symbol ☀ will be displayed.

1)Press the "▲" or "

▼

" key to adjust the time value. The time adjustment range

is from 00:00 to 23:59

2)Press the "o"key to switch and adjust the number position, and the

corresponding number will flash.

3) After adjusting the time, press the "OK" button or operate without a button for

15 seconds to exit this interface.

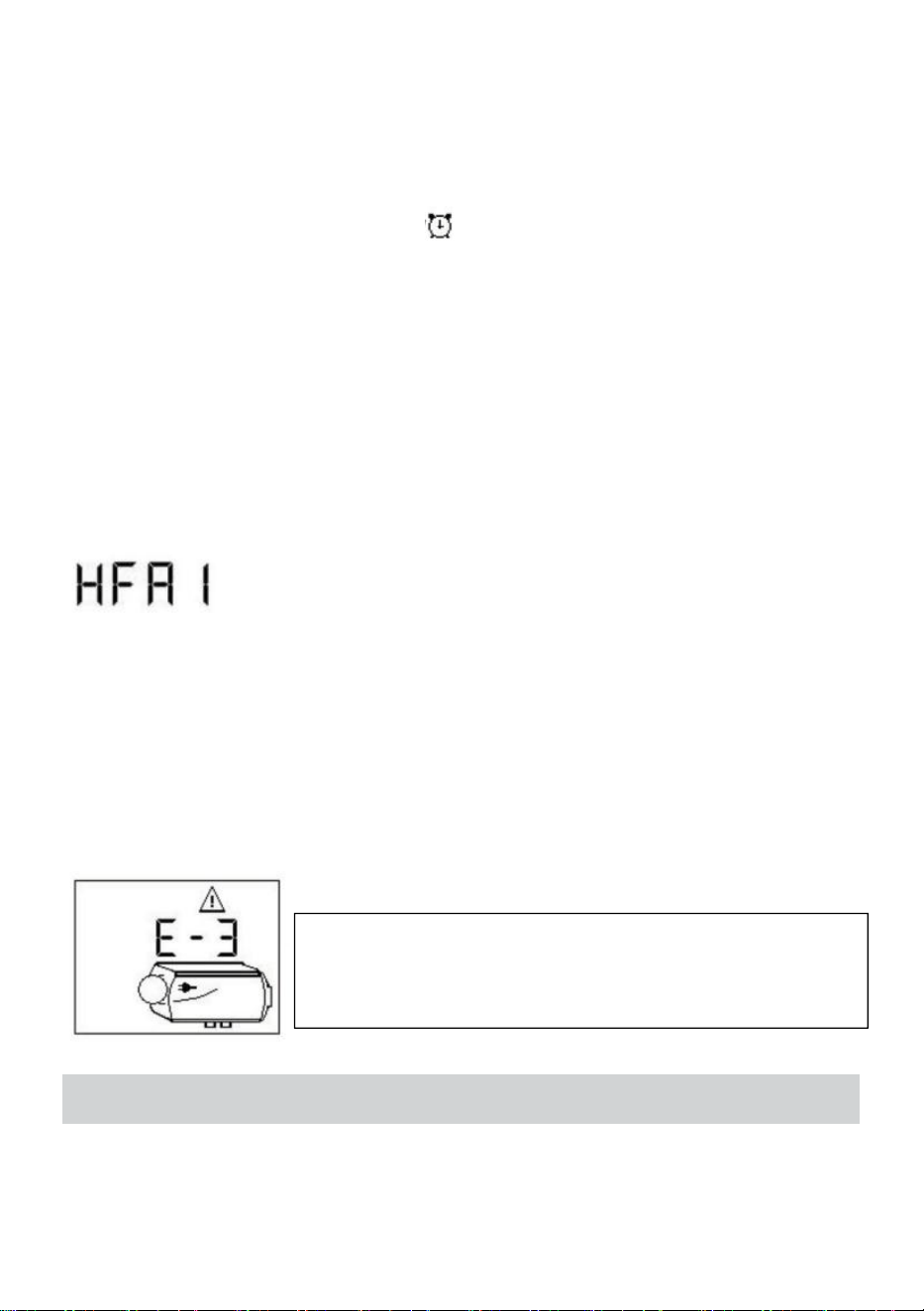

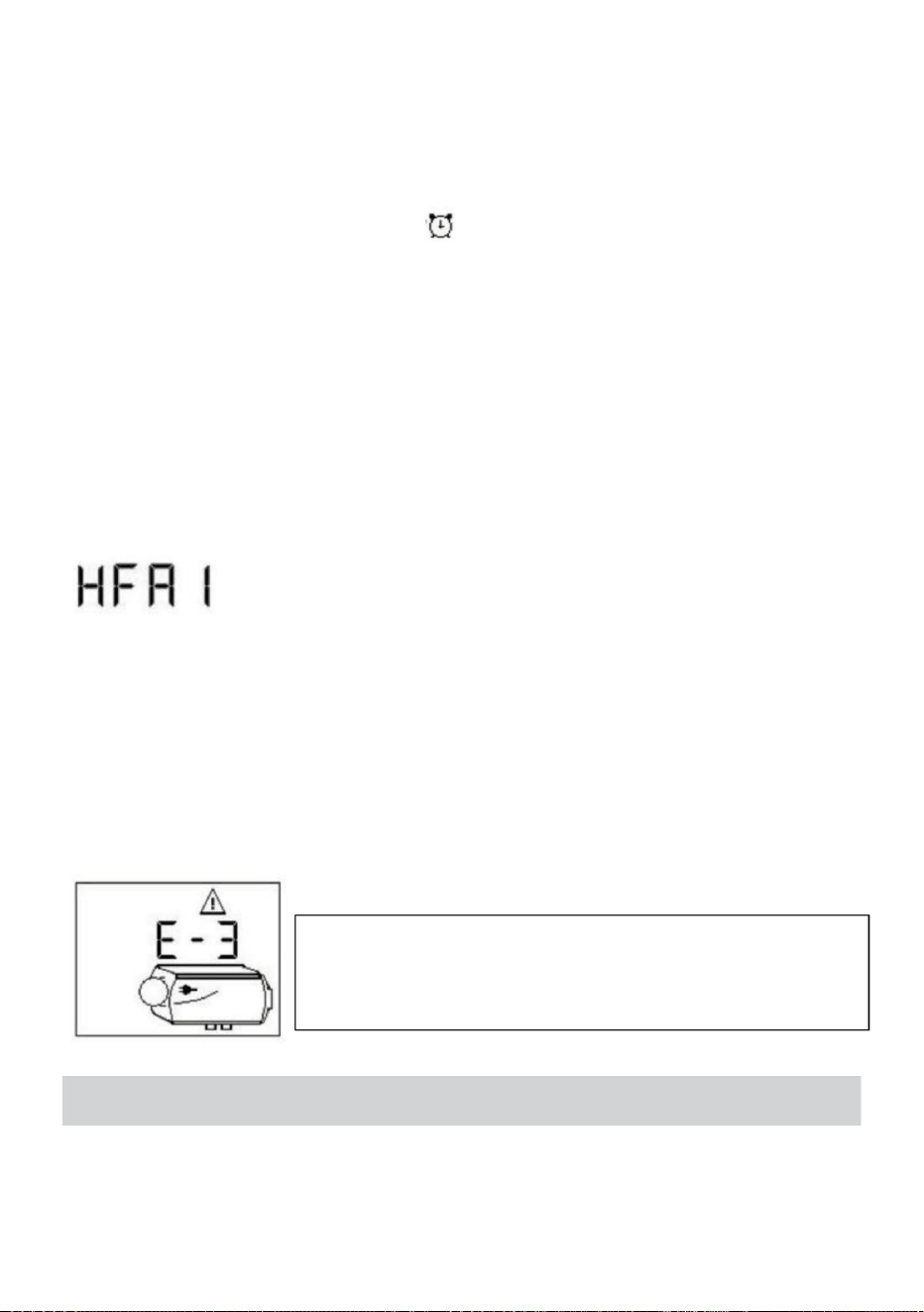

7. Remote control matching operation

In the shutdown state, press and hold the "o"

keys simultaneously to enter

the remote control matching interface, as shown in the following figure.

1)Press the "▲" or "▼"key to adjust the fourth digit value to the remote control

number, with a value range of 1-4, corresponding to four remote controls.

2)Select the remote control number, press any key on the remote control, the

machine will successfully match the code and exit the match status.

3)Press the "o" key to exit the remote code pairing.

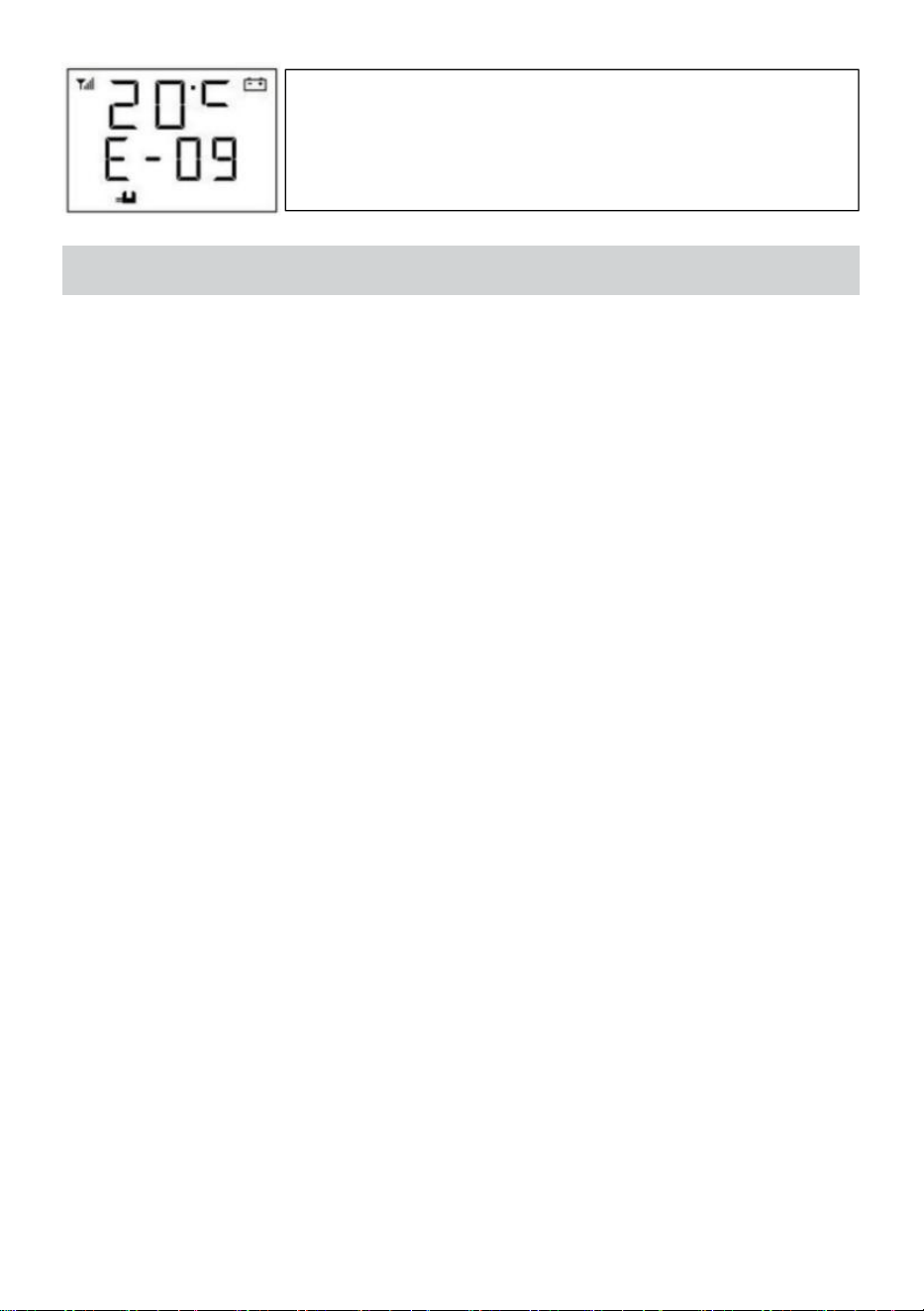

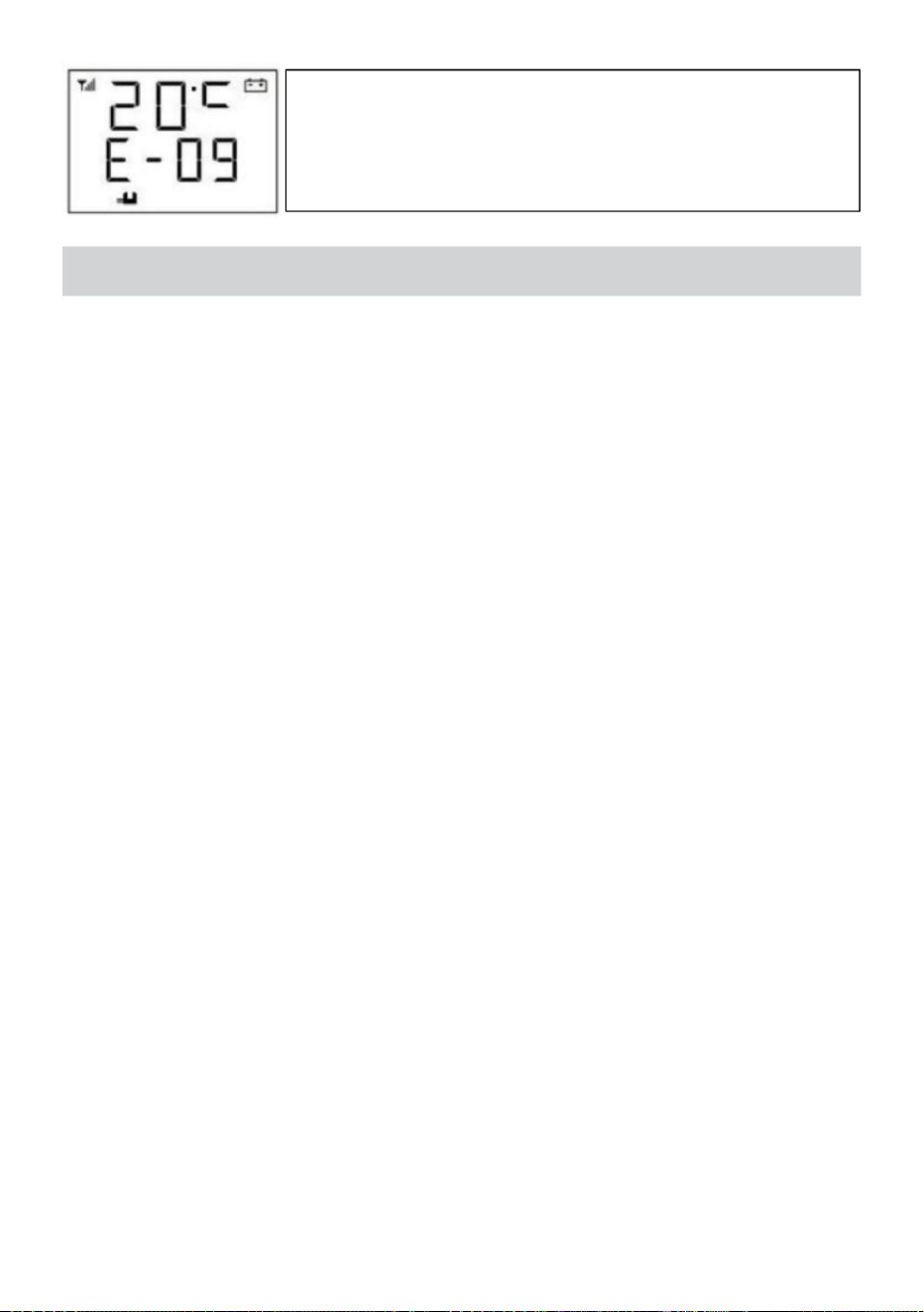

8. Fault alarm

As shown in the figure below, the corresponding fault symbol flashes, and the

corresponding faulty component icon flashes. The displayed data is the fault

code, and its meaning can be found in the fault table.

Instructions for use

1.It is prohibited to use in environments with high humidity, conductive

dust.flammable and explosive gases, dust, materials, corrosive media, strong

light exposure, and strong magnetic, high-voltage, and high current

equipment in the vicinity.

*Spark plugs, oil pumps, fans, sensors, power

supplies, and other symbols flash to indicate that the

corresponding components have malfunctioned.

- 29 -

2.Power supply voltage range: DC24V controller applicable(18-32)V;

DC12Vcontroller is suitable for(9-16)V; Different voltage controllers are not

interchangeable and are prohibited from exceeding the applicable voltage

range.

3.The 5kW controller can only be used on a 5kW engine body; The 2kW

controller can only be used on a 2kW engine.

4. If the controller or external components are damaged, the same model and

parameter components must be selected and replaced by professional

personnel.

5. Do not open the controller shell without permission.

6.The equipment must be installed strictly according to requirements and

used under safe conditions.

7.Our company is not responsible for any losses or damages caused by

incorrect connections, short circuits, or damages to external components or

circuits in the controller.

8. When the body is hot and the fan cannot operate normally, it is necessary

to quickly cool down the body, Blow cold air into the combustion intake hole to

cool down and lower the body temperature below 80 ℃ .Prevent high-

temperature damage to components or fire.

9. When heating the equipment, it is necessary to ensure that each air duct is

unobstructed and that the pipeline is free of bends, pressures, and blockages

in order to effectively ensure the heating efficiency and normal operation of

the equipment. Blocked channels can cause high temperatures in the body,

reduce heating efficiency, shorten equipment lifespan, or damage equipment.

The use of qualified fuel is essential to ensure the normal use and lifespan of

the equipment.

*We are not responsible for any losses or liabilities caused by failure to install

and use according to the above provisions.

*The ignition point of cotton and sponge is 150℃, the ignition point of paper is

130 C, the ignition point of cloth is 270 ℃ , and the ignition point of diesel is

220 ℃ , The hot air outlet can be higher than 150 ℃ , and the exhaust

temperature of waste pipes can be higher than 270℃.

Fault table

Fault

code

Cause of

malfunction

treatment

E-2

Power supply

voltage range

Normal range:24V(18-32V)，12V(9-16V)Check if

the battery or generator is functioning properly,and

check if the fuse is aging

- 30 -

E-3

Ignition plug

malfunction

1) Check if the ignition plug connection plug is

loose or if the wire is short circuited to the casing

2) Check if the ignition plug is damaged

E-4

Oil pump

malfunction

Check if the oil pump connection wires and

connectors are damaged, loose,oxidized,short

circuited,or disconnected.

E-5

High temperature

alarm (inlet

air>50℃；

casing>230℃)

1) Check if the heating air duct is unobstructed

2) Check if the fan is running normally

3) Check if the temperature sensor is

functioning properly

E-6

Fan Failure

1)Check if the impeller is stuck

2)Check if the connecting plug is loose

3) The gap between the magnet on the wind

turbine and the Hall sensor on the controller is

too large

4)Whether the circuit is short circuited or open

circuited; Motor leakage

E-7

Communication

Failure

Detecting wiring harnesses

E-8

Turn off the engine

1) Check for oil shortage,low temperature

solidification of oil, blocked oil circuit, and stuck

oil pump

2) Check if the oxygen intake and exhaust ducts

are unobstructed

3) Check if the casing temperature sensor is in

full contact with the casing and if the pressure

spring is strong.

E-9

Sensor fault

Is the temperature sensor connection wire and

connector damaged or loose, and is the sensor

damaged

E-10

Unsuccessful

startup

1) The temperature of the casing is too high,

and it failed to cool the casing after starting for 3

minutes

2) There is a large amount of white smoke in the

exhaust gas

2.1)Check if the filter screen next to the ignition

plug is clean. If it is not clean,clean or replace it

2.2)Check if the oil pump sprays oil forcefully

- 31 -

2.3)Check if the ignition plug is aging

3)There is a small amount of white smoke or no

smoke in the exhaust gas

3.1)Check for oil shortage, frozen or blocked oil

circuits

3.2)Check if the oil pump is stuck or damaged,

and if the oil pump is not functioning properly

3.3)Check if the combustion intake and exhaust

channels are unobstructed

3.4)Check if the ignition plug is damaged

3.5)Is the clearance between the inner wind

turbine too large

4)Ignite normally but still report ignition failure

fault

Check if the casing temperature sensor is in full

contact with the casing, if the pressure spring is

strong, and if the sensor is functioning properly

Code of use

1 .It is prohibited to use in high humidity, conductive dust, flammable and

explosive gases, dust, materials, corrosive media, strong light, strong

magnetic, high voltage and high current equipment nearby.

3. Voltage range of power supply: DC24V controller is suitable for (18-

32)V;DC12V controller is suitable for (9-16) V, different voltage controllers are

not universal, and it is forbidden to use beyond the applicable voltage range.

3.The 5KW controller must be used on the 5KW organism, the 2KW controller

must be used on the 2KW organism.

4.If the controller or external device is damaged, it must be replaced by the

prototype device and professionals.

5.It is forbidden to open the controller shell privately

6.Equipment must be installed strictly and must be used under safe conditions.

7.The company is not responsible for the loss and liability of the controller due

to the misconnection short circuit and damage of the external devices and

lines.

8.At the high temperature of the body, the fan can not operate, so it must be

cooled quickly for the body to make its temperature. Cooling air is injected

from the combustion inlet to make the body temperature less than 100 ℃.

Prevent high temperature from burning parts or causing fire.

*Our company is not responsible for any loss or liability caused by the failure

to install and use according to Article 1 to 6.

- 32 -

Operation instructions for parking heater

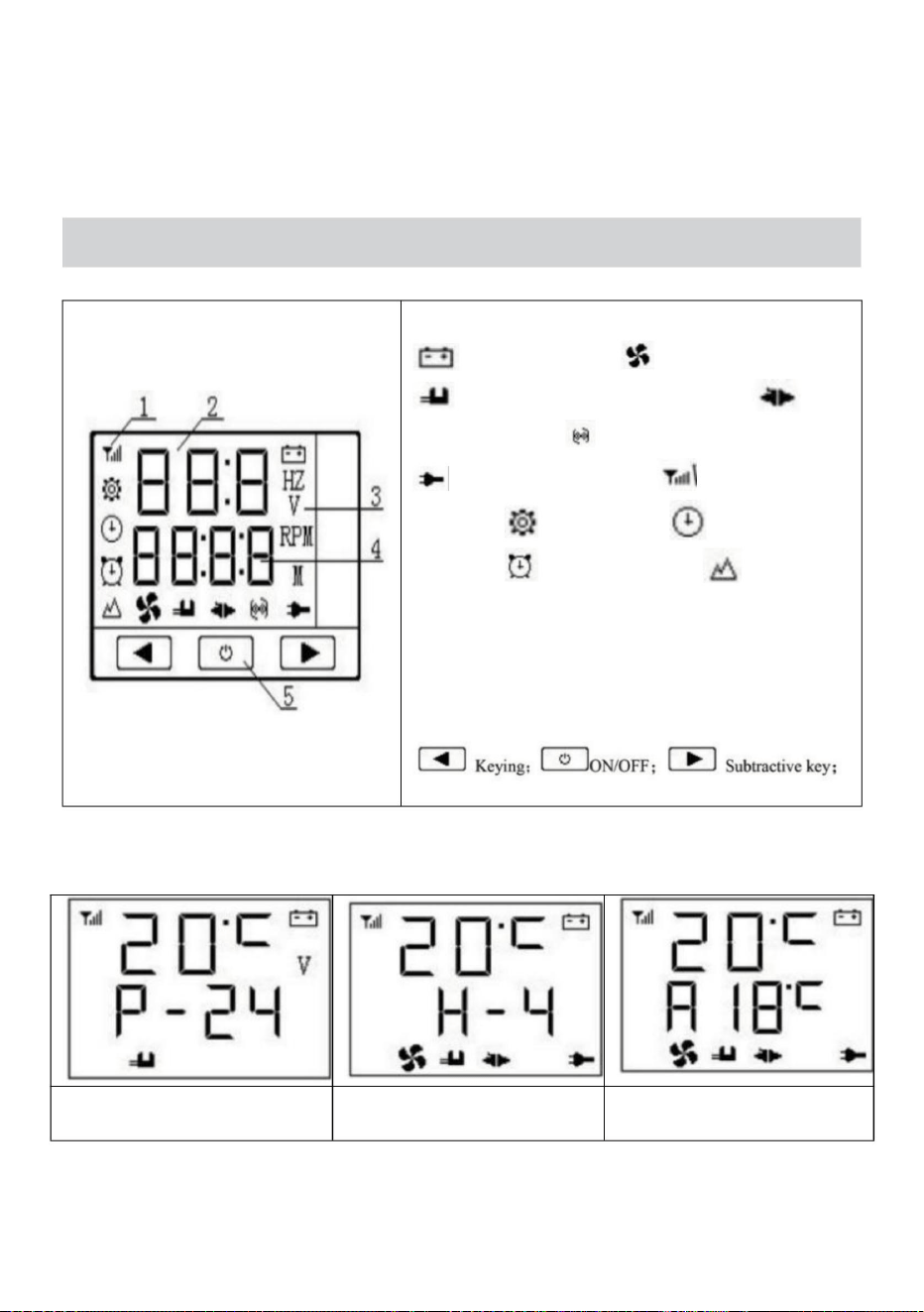

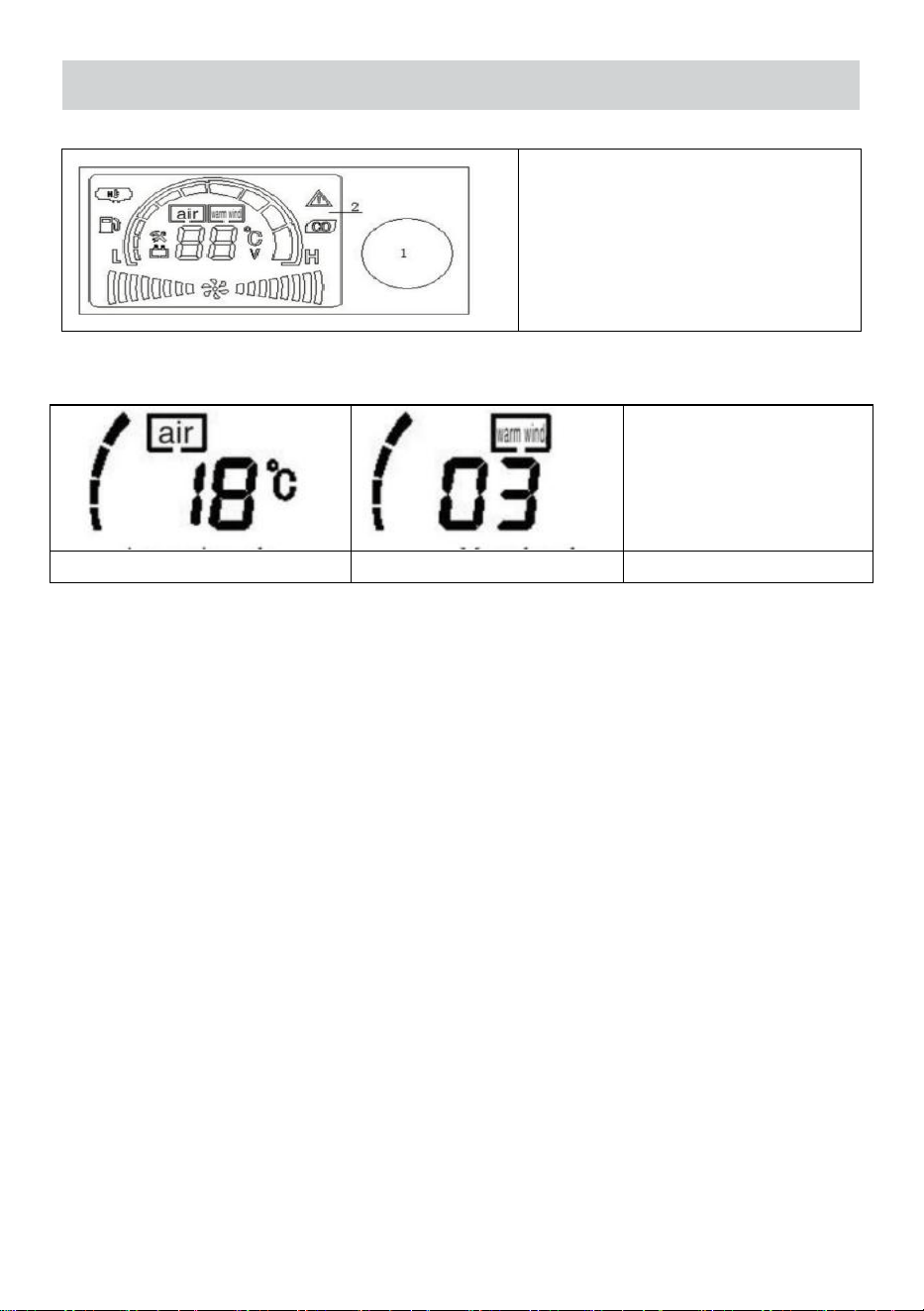

1. The control panel is shown below

1. LCD screen;2.knob key;

3.”oil pump”key ; 4. “plateau” key;

5.temperature in the area where the

display panel is located;

6. icons are represented separately：

fan、oil pump、ignition plug、plateau

model;

7.display equipment working status;

8.display data parameters;

2. Use operation

1. work Operation

shutdown status

Boot mode

cooling status

1) on/off operation

In shutdown state, long press”knob button” for two seconds, the

device boots.

On-state, long press”knob button” for two seconds, equipment

enters”blown-cold state”of shutdown process, display “OFF”

At this time ,as a blower,do not force power off,direct power failure can

damage parts because the body temperature is too high to dissipate heat,only

when the machine is shown to be shut down can the power be cutoff!

Automatic catch manual transmission

2)Manual mode operation

Manual mode has six gears (Hl-H6) h6 represents maximum power, as

shown above ,on-state,switch gears by knob key,clockwise clocks are

overshifting operations ,whereas downshifting operations are.

- 33 -

3)automatic mode operation

automatic mode as shown above, A20 represents a constant temperature

of 20 degrees.On-state, long press two seconds, enter automatic gear

and adjust temperature, if there is a temperature on the left side, the control

temperature can be adjusted by rotating the knob key. short press to exit

to adjust temperature.

*Symbols are always bright to indicate the operation of corresponding

devices,Its symbols represent the following meanings

:fan; :oil pump; :ignition plug

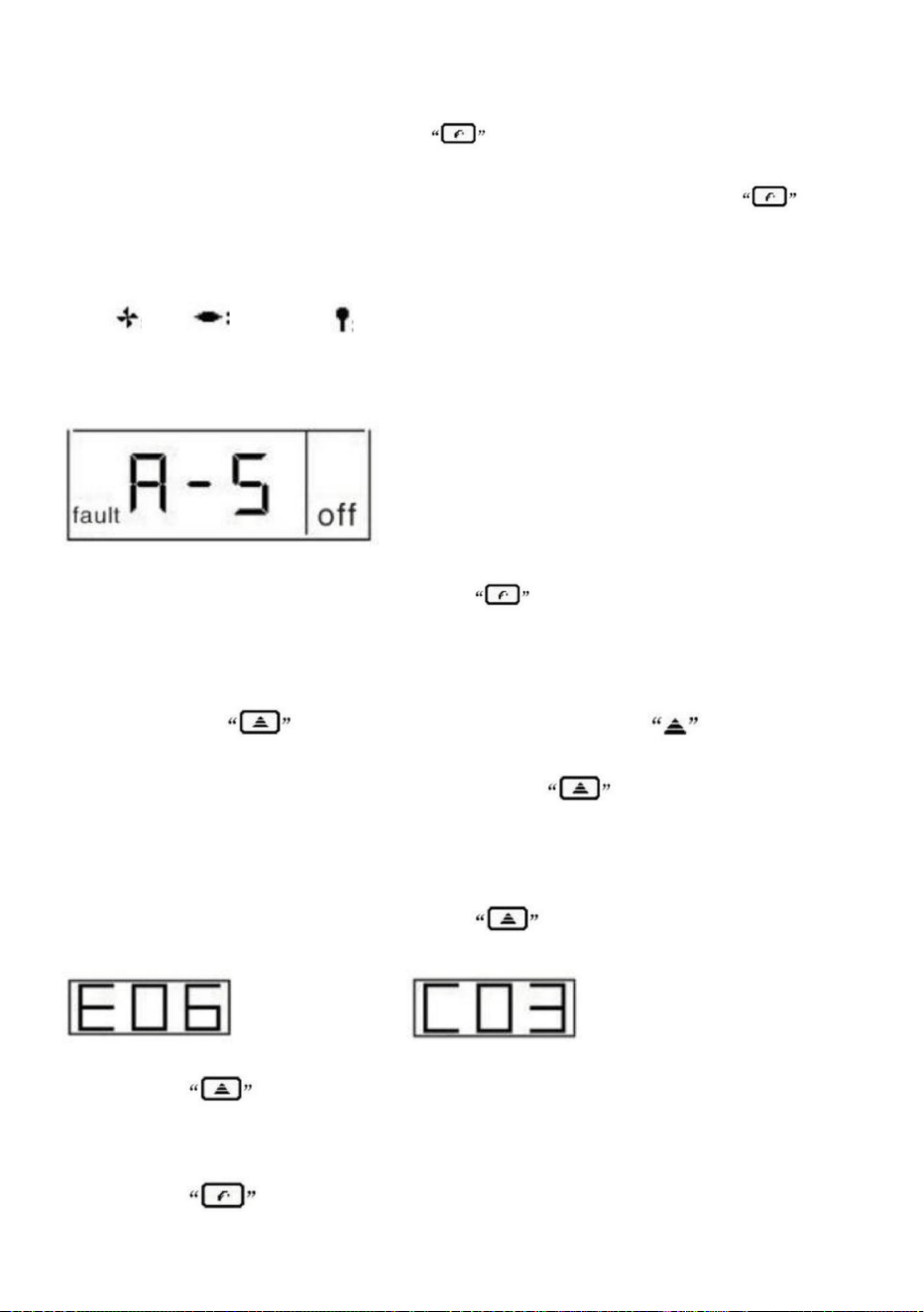

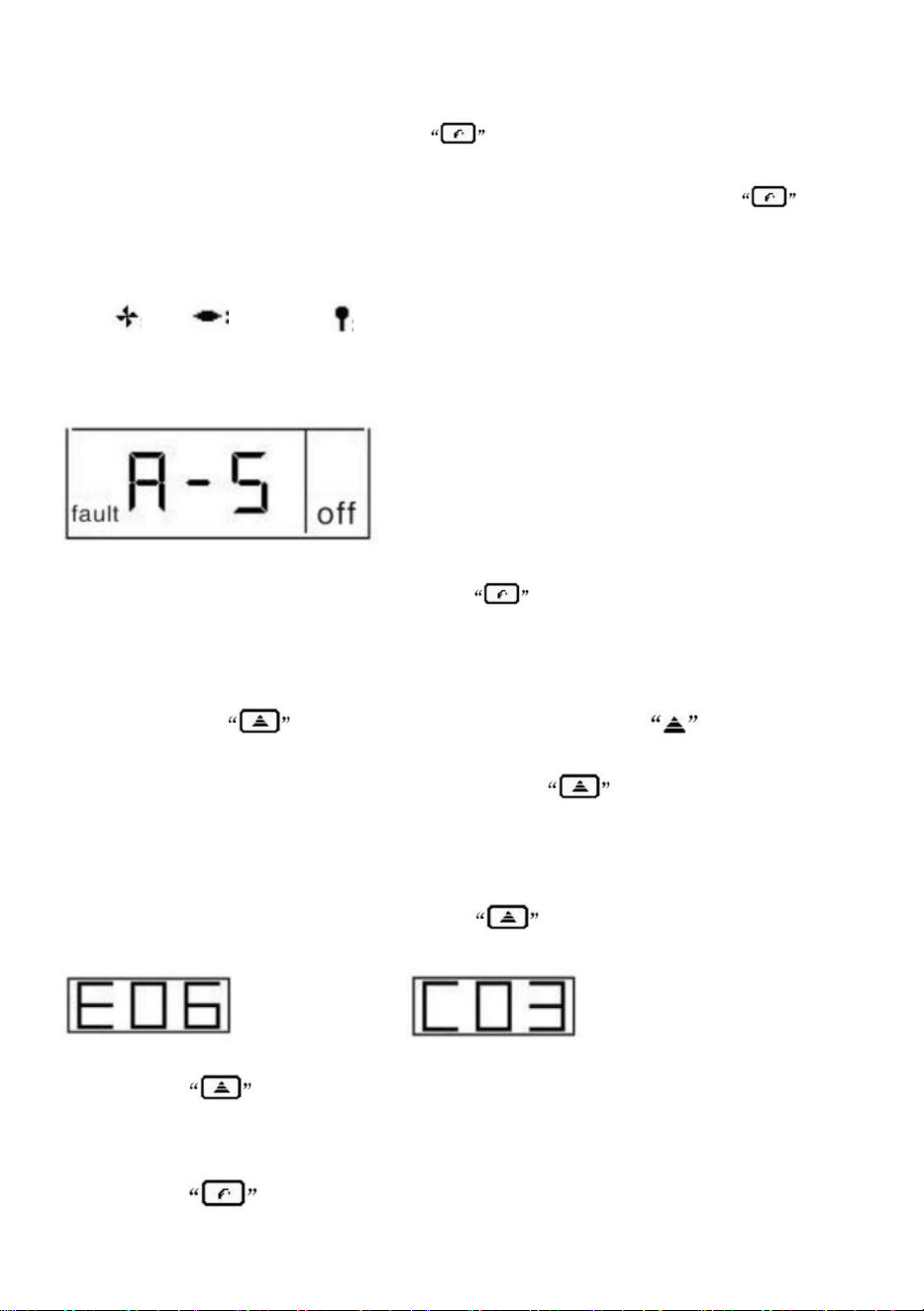

4)The fault alarm display is as follows.

If the corresponding symbol of the device fault flickers, the third bit is

shown as the fault code.Please refer to the fault table for its meaning.

2、manual oiling operation

In shutdown state, after long press key two seconds, manual

control of pumping,stop oiling after releasing the key.

please use cautiously!

3、plateau model operation

Long press key 2 seconds into plateau mode, Display Start

Plateau Mode. In the plateau mode, the ratio of wind to oil is reduced to adapt

to the plateau hypoxia, and then long press the key two seconds to exit

the plateau mode.

please use cautiously!

4、Timing operation

In the stop state, after pressing the and”knob button”for two

seconds,enter the timing settings,as shown below.

Timing boot timing shutdown

1)press the switch timing boot or regular shutdown setting.

2)press"▲" or "▼"key to ad just values

3)according to the "on/off" button to save Settings, and exit timing Settings.

4) press the exit timing setting does not save the Settings.

- 34 -

* Unit is hour, maximum setting time is 24 hours. "E06" means a delay of 6

hours and "C03" means a delay of 3 hours.

5)In the state of shutdown,At the same time, press

the and button.two seconds for a long time to start the machine

at a regular time. In the working state, press the and button

two seconds for a long time at the same time, start and shut down at a fixed

time, the first decimal flicker after start, as shown in the following figure.

Timely start-up status, long press and button two seconds, close

the timing; short press button,show the remaining time.

、

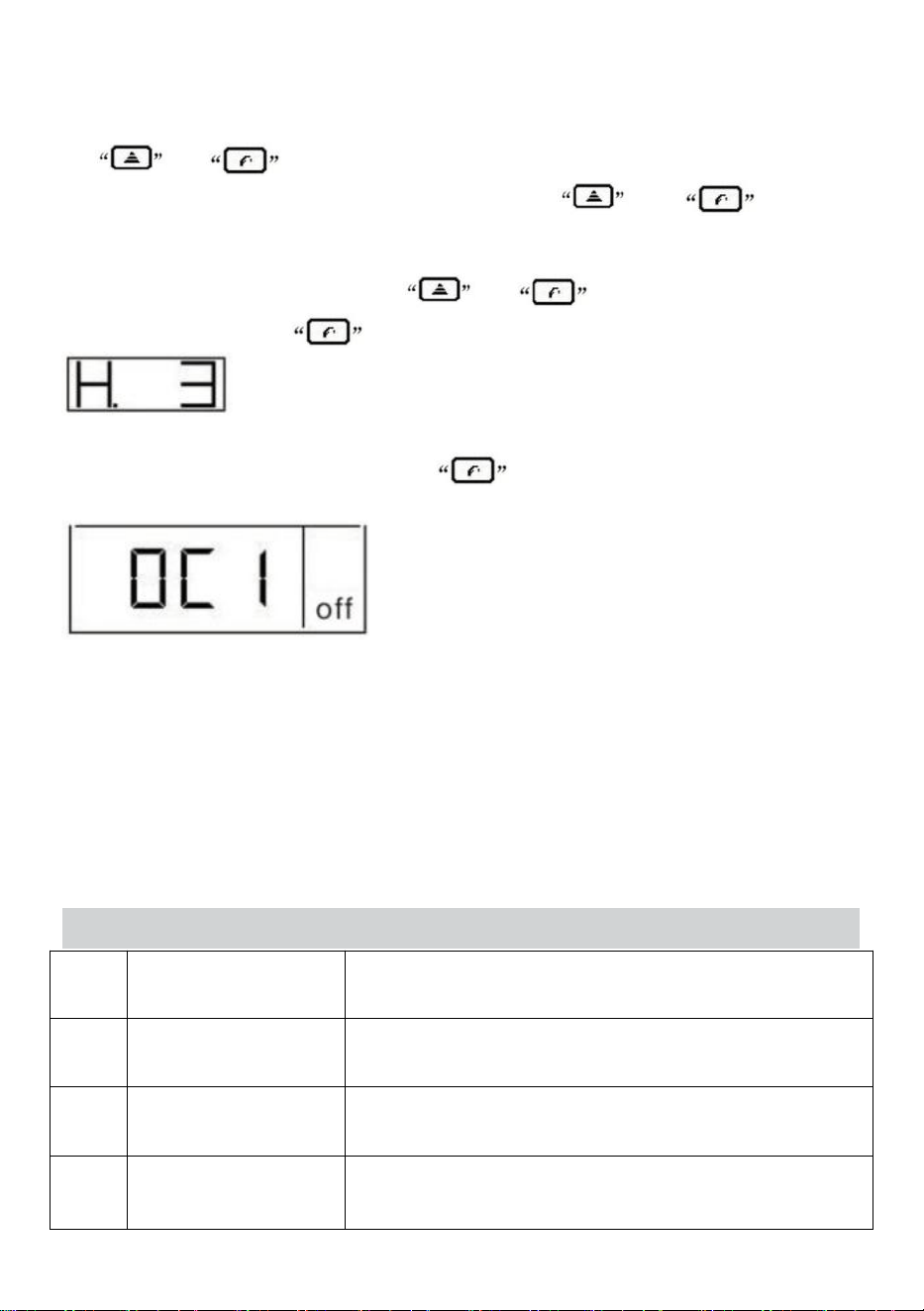

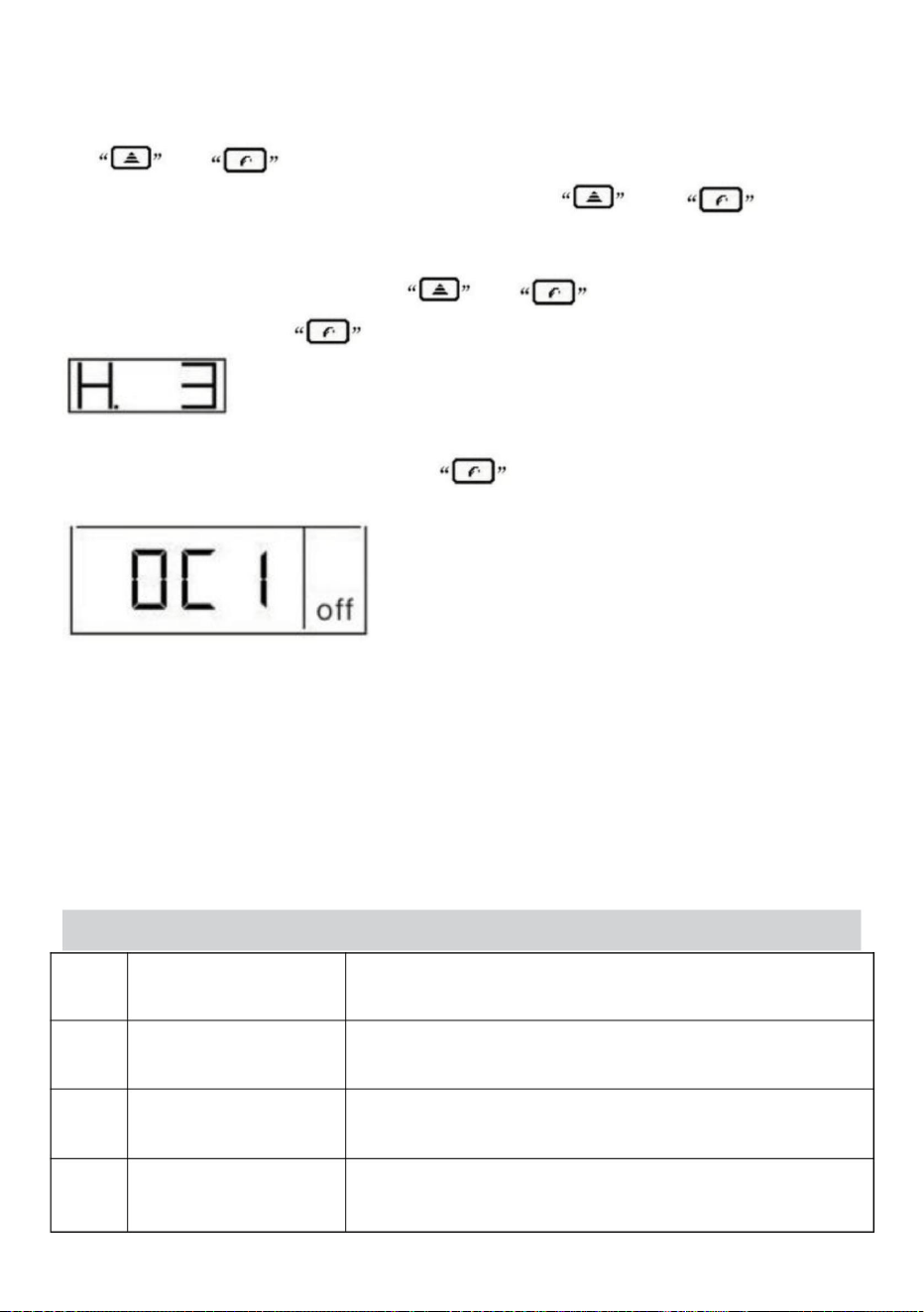

Remote control code-matching operation

In the shutdown state, after pressing and“knob button” for 2

seconds, enter the remote control code as follows.

1) Rotating the "knob key" to adjust the third digit value to the number of the

remote controller, the numerical range is 1-5, corresponding to five remote

controllers.

2) Select the number of the remote control, press one key of the remote

control at will, and the machine successfully checks the code and exits the

checking state.

3) Press the "Knob Press" button to exit the remote control code.

*Requirements for remote control: frequency band 433MHZ, 24 bits code.The

remote control function is an optional function. Please specify the order.

Fault table

Fault

code

Cause of failure

solutions

Power supply

voltage range

Normal range:24V(18-32V)，12V(9-16V)

Check whether the battery or generator is normal

Oil pump Failure

Check for damage, loosening of oil pump

connections and connectors

Ignition plug

Failure

Check whether the ignition plug connector is

loose

- 35 -

Failure of Fan

1)Check whether the impeller is stuck

2)Check if the connecting plug-in is loose

Sensor failure

Whether the temperature sensor connectors and

connectors are damaged or loosened, whether

the sensor is damaged or not

Unsuccessful

startup

1) The shell temperature is too high to blow the

cooling shell for 3 minutes after starting.

2) There is a lot of white smoke in the exhaust

gas

2.1) Check whether the fan is working properly

2.2)Check whether the filter beside the ignition

plug is clean, not clean or replaced.

2.3) Check whether the intake and exhaust

passages of combustion are unobstructed

2.4) Check whether the ignition plug is aging

3)A small amount of white smoke or no smoke in

the exhaust gas

3.1) Check for oil shortage, frozen oil pipeline,

and blocked oil pump.

3.2) Check whether the ignition plug is damaged

3.3) Check whether the housing temperature

sensor installation is loose

High temperature

alarm

(intake>50℃；

casing>200℃)

1) Check whether the heating duct is

unobstructed

2)Check whether the fan is working properly

Flameout alarm

1)Check for oil shortage, frozen oil pipeline, oil

pump jam

2)Check whether the fan is working properly

Code of use

1.It is forbidden to use in excessive humidity, conductive dust, corrosive medium,

strong light, strong magnetism, high voltage, high current and other environments.

2.Voltage range of power supply: 24V controller is suitable for (18-32)V;12V

controller is suitable for (9-16) V；different voltage controllers are not universal,

and it is forbidden to use beyond the applicable voltage range.

3.The 5KW controller must be used on the 5KW organism, the 2KW controller

must be used on the 2KW organism.

4.If the controller or external device is damaged, it must be replaced by the

prototype device and professionals.

5.It is forbidden to open the controller shell privately

- 36 -

6.Equipment must be installed strictly and must be used under safe conditions.

7.The company is not responsible for the loss and liability of the controller due to

the misconnection short circuit and damage of the external devices and lines.

*Our company is not responsible for any loss or liability caused by the failure to

install and use according to Article 1 to 6.

Operating instructions for parking heater

1. The control panel is shown in the following figure

1. Indicator

Power symbol； Fan symbol；

Temperature sensor symbol； Oil

pump symbol； Communication symbol；

Igniter plug symbol； Wireless

symbol； Set symbol； Clock

symbol； Timing symbol； Plateau

symbol；

2. Display ambient temperature;

3. Unit symbol ;

4. Display data and parameters;

5.Key;

2. Use operation

1. On/off Operation

shutdown status

Power on status

(manual mode)

Power on status

(automatic mode)

1)Power on operation

In the shutdown state, press and hold the "o" button for 3 seconds to turn on the

device, and the display will show "Startup status" as shown in the above picture.

- 37 -

2) Shutdown operation

In the power on state,long press the "o"button for 3 seconds, and the device

enters the shutdown and cooling process, displaying"OFF".After the device cools

down，it shuts down and displays the "shutdown status" as shown in the above

picture. Do not force power off when cooling the machine body.Direct power off

may damage components due to high body temperature and inability to dissipate

heat! Wait until the machine is displayed in the shutdown state before powering

off!.

3) Manual mode operation

There are a total of 6 gears (H1-H6). H6 represents the maximum power,as

shown in the figure "power on state(manual mode)", Use the "◄" or "►" key to

increase or decrease the gears.

4) Automatic mode operation

Automatic mode, as shown in the above figure, "power on state(automatic

mode)"indicates setting 18 ℃. Use the"◄" or "►" keys to increase or decrease

the temperature value,set the range to 5-35℃, and switch between

manual/automatic modes by pressing the "◄" + "o"keys while in the startup state .

2. Switching to display data on startup

Short press the "o"key to switch between displaying data in the following order:

In the startup state: gear(or set temperature)->working voltage->casing

temperature->time startup time ->time shutdown time.

In shutdown mode: working voltage->time startup time ->time shutdown time.

3. Manual pump oil operation

In the shutdown state, press the "o"+"►" keys simultaneously to enter the manual

oil pumping mode, display HoF, then press the "◄" key again, display HoN, and

start oiling. Press the "►" button or no button for 3 minutes to exit the manual oil

pumping mode and stop pumping.

This function is for the convenience of oil-free use in the oil circuit,please use it

with caution!

4. Temperature unit switching operation

In power on state,press the "o"+"►"keys simultaneously to switch between

Fahrenheit/Celsius temperature units.

5. Plateau mode operation

At the same time, press the "◄" or "►" keys to enter high-altitude mode. and the

icon displays the activation of high-altitude mode.In high-altitude mode, the

wind oil ratio decreases to adapt to high-altitude hypoxia, Press the"◄" or "►"

keys simultaneously to exit plateau mode.

6. Time on/off time operation

Press and hold the "◄" keys for 2 seconds to enter the timing interface, and the

will light up. indicates that the time can be set.

- 38 -

Displaying indicates a scheduled shutdown,and vice versa indicates a

scheduled startup.

1) Press the"◄" or "►" key to adjust the time value. With a time adjustment range

of 00:00 to 23:59

2)Short press the "o"key to switch and adjust the number position.

3)Long press the "o" button for 2 seconds to save the set value. If the scheduled

startup time is set,it will enter the scheduled shutdown time setting.Otherwise exit

the time setting,turn on the timer ,and the

will remain

on.

4)If there is no button operation for 15 seconds, save the current set value,exit the

time setting, turn on timing, and the will remain on.

If set to 00:00, it means that the corresponding timing function is disabled.

When the timer function is turned on, press and hold the "◄" button for 2

seconds to turn off the timer function and turn off

7. Clock synchronization operation

ln the shutdown state, press the "o"+"◄" keys simultaneously to enter the clock

adjustment interface ，and the indicator symbol will be displayed. Power

on the switch to directly enter the clock adjustment interface.

1)Press the "▲" or "▼" key to adjust the time value. The time adjustment range

is from 00:00 to 23:59

2)Press the "o"key to switch and adjust the number position, and the

corresponding number will flash.

3) Press and hold the "o" button for 2 seconds, or operate without a button for 15

seconds,the save the setting and exit this interface.

8. Remote control matching operation

In the shutdown state, press and hold the "►" button for 2 seconds to display

HFA1

1)Press the

"◄" or "►"

key to adjust the fourth digit value to the remote control

number, with a value range of 1-4, corresponding to four remote controls.

2)Select the remote control number, press any key on the remote control, the

machine will successfully match the code and exit the match status.

3)Press the "o" key to exit the remote code pairing.

*Remote control requirements：frequency band 433MHz ， 24 bit code. The

remote control function is an optional feature. please specify when ordering.

9. Fault alarm

- 39 -

Instructions for use

1.It is prohibited to use in environments with high humidity, conductive

dust.flammable and explosive gases, dust, materials, corrosive media, strong

light exposure, and strong magnetic, high-voltage, and high current

equipment in the vicinity.

2.Power supply voltage range: DC24V controller applicable(18-32)V; DC12V

controller is suitable for(9-16)V; Different voltage controllers are not

interchangeable and are prohibited from exceeding the applicable voltage

range.

3.The 5kW controller can only be used on a 5kW engine body; The 2kW

controller can only be used on a 2kW engine.

4. If the controller or external components are damaged, the same model and

parameter components must be selected and replaced by professional

personnel.

5. Do not open the controller shell without permission.

6.The equipment must be installed strictly according to requirements and

used under safe conditions.

7.Our company is not responsible for any losses or damages caused by

incorrect connections, short circuits, or damages to external components or

circuits in the controller.

8. When the body is hot and the fan cannot operate normally, it is necessary

to quickly cool down the body, Blow cold air into the combustion intake hole to

cool down and lower the body temperature below 80 ℃ .Prevent high-

temperature damage to components or fire.

9. When heating the equipment, it is necessary to ensure that each air duct is

unobstructed and that the pipeline is free of bends, pressures, and blockages

in order to effectively ensure the heating efficiency and normal operation of

the equipment. Blocked channels can cause high temperatures in the body,

reduce heating efficiency, shorten equipment lifespan, or damage equipment.

The use of qualified fuel is essential to ensure the normal use and lifespan of

the equipment.

*We are not responsible for any losses or liabilities caused by failure to install

and use according to the above provisions.

*The ignition point of cotton and sponge is 150℃, the ignition point of paper is

130 C, the ignition point of cloth is 270 ℃ , and the ignition point of diesel is

As shown in the figure, the displayed data is a fault

code. Please refer to the fault table for its

meaning,and the corresponding faulty component

icon will flash.

- 40 -

220 ℃ , The hot air outlet can be higher than 150 ℃ , and the exhaust

temperature of waste pipes can be higher than 270℃.

Fault table

Fault

code

Cause of

malfunction

treatment

E-2

Power supply

voltage range

Normal range:24V(18-32V)，12V(9-16V)Check if

the battery or generator is functioning properly,and

check if the fuse is aging

E-3

Ignition plug

malfunction

1) Check if the ignition plug connection plug is

loose or if the wire is short circuited to the casing

2) Check if the ignition plug is damaged

E-4

Oil pump

malfunction

Check if the oil pump connection wires and

connectors are damaged, loose,oxidized,short

circuited,or disconnected.

E-5

High temperature

alarm (inlet

air>50℃；

casing>230℃)

1) Check if the heating air duct is unobstructed

2) Check if the fan is running normally

3) Check if the temperature sensor is functioning

properly

E-6

Fan Failure

1)Check if the impeller is stuck

2)Check if the connecting plug is loose

3) The gap between the magnet on the wind

turbine and the Hall sensor on the controller is too

large

4)Whether the circuit is short circuited or open

circuited; Motor leakage

E-7

Communication

Failure

Detecting wiring harnesses

E-8

Turn off the engine

1) Check for oil shortage,low temperature

solidification of oil, blocked oil circuit, and stuck oil

pump

2) Check if the oxygen intake and exhaust ducts

are unobstructed

3) Check if the casing temperature sensor is in full

contact with the casing and if the pressure spring is

strong.

- 41 -

E-9

Sensor fault

Is the temperature sensor connection wire and

connector damaged or loose, and is the sensor

damaged

E-10

Unsuccessful

startup

1) The temperature of the casing is too high, and it

failed to cool the casing after starting for 3 minutes

2) There is a large amount of white smoke in the

exhaust gas

2.1)Check if the filter screen next to the ignition

plug is clean. If it is not clean,clean or replace it

2.2)Check if the oil pump sprays oil forcefully

2.3)Check if the ignition plug is aging

3)There is a small amount of white smoke or no

smoke in the exhaust gas

3.1)Check for oil shortage, frozen or blocked oil

circuits

3.2)Check if the oil pump is stuck or damaged, and

if the oil pump is not functioning properly

3.3)Check if the combustion intake and exhaust

channels are unobstructed

3.4)Check if the ignition plug is damaged

3.5)Is the clearance between the inner wind turbine

too large

4)Ignite normally but still report ignition failure fault

Check if the casing temperature sensor is in full

contact with the casing, if the pressure spring is

strong, and if the sensor is functioning properly

Code of use

1 .It is prohibited to use in high humidity, conductive dust, flammable and

explosive gases, dust, materials, corrosive media, strong light, strong magnetic,

high voltage and high current equipment nearby.

Voltage range of power supply: DC24V controller is suitable for (18-32)V;DC12V

controller is suitable for (9-16) V, different voltage controllers are not universal,

and it is forbidden to use beyond the applicable voltage range.

3.The 5KW controller must be used on the 5KW organism, the 2KW controller

must be used on the 2KW organism.

4.If the controller or external device is damaged, it must be replaced by the

prototype device and professionals.

- 42 -

5.It is forbidden to open the controller shell privately

6.Equipment must be installed strictly and must be used under safe conditions.

7.The company is not responsible for the loss and liability of the controller due to

the misconnection short circuit and damage of the external devices and lines.

8.At the high temperature of the body, the fan can not operate, so it must be

cooled quickly for the body to make its temperature. Cooling air is injected from

the combustion inlet to make the body temperature less than 100 ℃. Prevent high

temperature from burning parts or causing fire.

*Our company is not responsible for any loss or liability caused by the failure to

install and use according to Article 1 to 6.

Operation instructions for parking heater

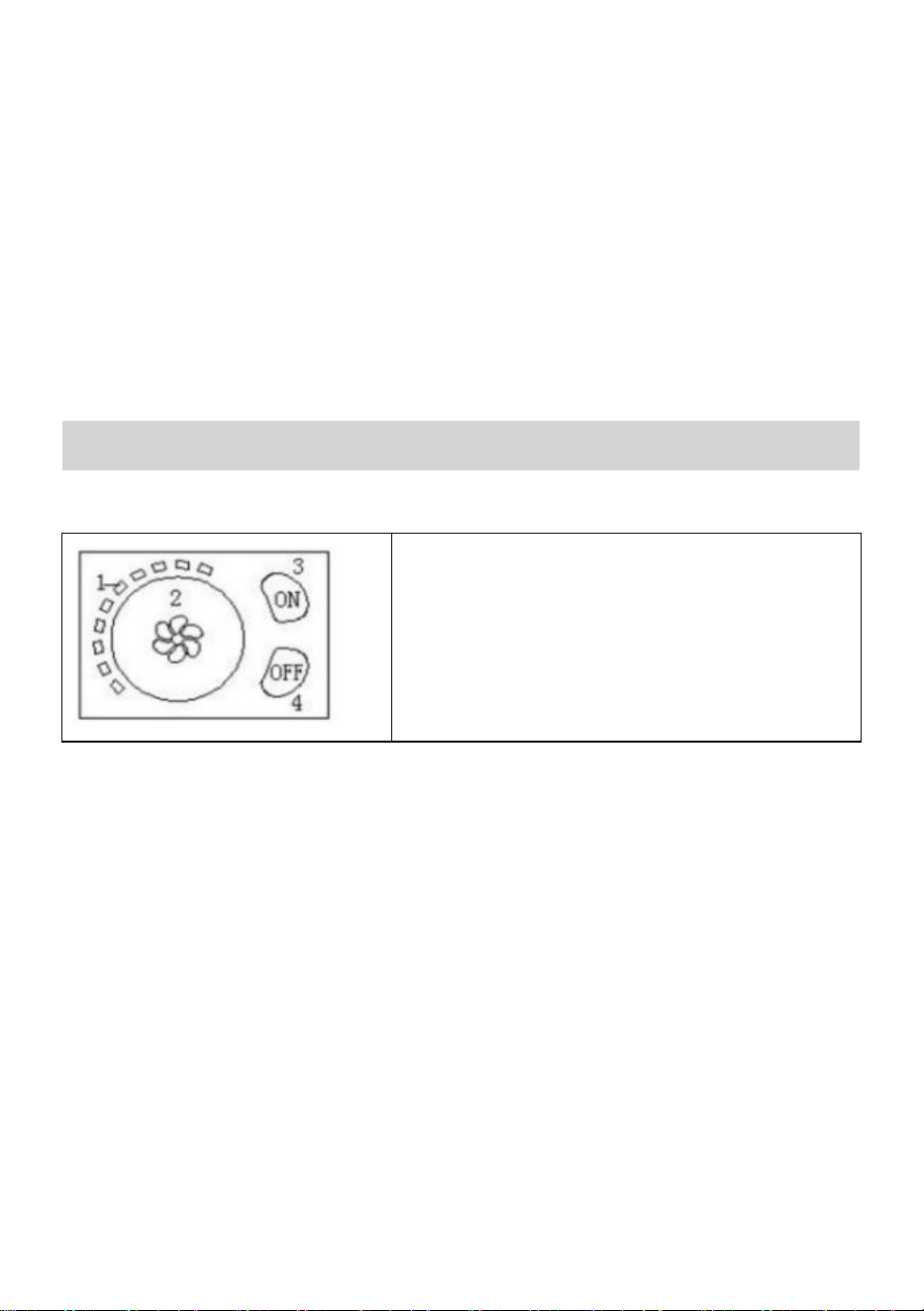

1. The control panel is shown in the figure below

1. LCE indicator bar;

2. Rotary dial;

3. Boot key ;

4. Shutdown key;

2. Operation

1. work Operation

1) on/off operation

In the shutdown state, press "ON" to start the device. The symbol of the fan blade

is green, and the led indicator bar displays the gear.

In the startup state, press "OFF", the symbol of the fan blade is red, and the

equipment enters the shutdown process "cooling state",. At this time, for cooling

the engine body, please do not forcibly cut off the power. "If the power is cut off

directly, the accessories will be damaged because the temperature of the engine

body is too high to dissipate heat!", The power can be cut off when the fan blade

symbol is off.

2)Gear shift operation

In the power on state. Rotate the rotary dial to realize gear up/down

adjustment.There are 6 gears in total.

3) Manual oiling operation

- 43 -

In the shutdown state, long press the "OFF" key for 2s, manually control the oil

pump to pump oil, and release the key to stop pumping oi. Please use with

caution!

4)Plateau mode operation

Press the "OFF"+"ON" keys at the same time to enter the plateau mode, and

the10th LED is on. in the plateau mode, the wind oil ratio is reduced to adapt to

plateau hypoxia, and then press the "OFF"+"ON" keys at the same time to exit the

plateau mode.

2. trouble display

The LED indicator flashes to show the fault number. Fault table corresponding to

Fault table

Fault

code

Cause of failure

Treatment

Supply voltage

range

Normal range:24V(18-32V)，12V(9-16V)

Check whether the battery or generator is normal

and whether the fuse is aged

Ignition plug fault

1) Check whether the connector of ignition plug is

loose or whether the wire is short circuited to

housing

2) Inspect the ignition plug for damage

Oil pump Failure

Check the oil pump connecting wire and connector

for damage, looseness,oxidation,short circuit and

open circuit

High temperature

alarm (air

inlet>50℃；

enclosure>230℃)

1) Check whether the heating duct is smooth

2) Check whether the fan operates normally

3) Check whether the temperature sensor is

normal

- 44 -

Fan fault

1) Check whether the impeller is stuck

2) Check if the connecting is loose

3) The clearance between the magnet on the wind

wheel and the hall sensor on the controller is too

large

4) Whether the line is short circuited or open

circuited;Motor leakage

Unsuccessful

startup

1) The casing temperature is too high, and the

casing fails to be cooled after 3 minutes of startup

2) Large amount of white smoke in exhaust gas

2.1) Check whether the filter screen beside the

ignition plug is clean, clean or replace it if it is not

clean

2.2)Check whether the fuel injection of the oil pump

is powerful

2.3) Check whether the ignition plug is aged

3) Exhaust gas has a small amount of white smoke

or smokeless

3.1) Check whether there is oil shortage, oil circuit

is frozen or blocked

3.2) Check whether the oil pump is stuck or

damaged

3.3)Check whether the combustion intake and

exhaust passages are smooth

3.4) Check whether the ignition plug is damaged

3.5) Whether the clearance of the inner wind

turbine is too large

4)The ignition is normal, but the failure of ignition is

still reported

Check whether the casing temperature sensor is in

full contact with the casing, whether the

compression spring is strong, and whether the

sensor is normal

Sensor failure

Whether the connecting wire and connector of the

temperature sensor are damaged or loose,and

whether the sensor is damaged

Code of Practice

- 45 -

1. It is prohibited to use it in environments with high humidity, conductive

dust.flammable and explosive gases, dust, materials, corrosive media, strong light,

strong magnetism, high voltage, and high current equipment in the vicinity.

2. Power supply voltage range: DC24V controller applicable(18-32)V; DC12V

controller is suitable for(9-16)V; Different voltage controllers are not

interchangeable and are prohibited from exceeding the applicable voltage range.

3. The 5kW controller can only be used on a 5kW engine body; The 2kW

controller can only be used on a 2kW engine.

4. If the controller or external components are damaged, the same model and

parameter components must be selected and replaced by professional personnel.

5. It is forbidden to open the controller shell without permission.

6. The equipment must be installed in strict accordance with the requirements and

must be used under safe conditions.

7. The company will not be responsible for the loss and liability caused by the

wrong connection, short circuit and damage of external components and lines of

the controller.

8. When the machine body is at high temperature and the fan cannot operate

normally.the machine body must be cooled quickly. Blow cold air from the

combustion intake hole to cool down, so that the body temperature is lower than

80 ℃. Prevent high temperature from scalding parts or causing fire.

9. When heating the equipment, it is necessary to ensure that all air ducts are

unblocked"without folding, pressing or blocking", so as to effectively ensure the

heating efficiency and normal operation of the equipment. The blocked passage

will cause high temperature of the body, reduce the heating efficiency, shorten the

service life of the equipment or damage the equipment. The normal use and

service life of the equipment can only be ensured by using qualified fuel.

*The company will not be responsible for any loss or liability caused by the failure

to install and use according to Article 1 to 6.

*The ignition point of cotton and sponge is 150℃, the ignition point of paper is

130 C, the ignition point of cloth is 270℃, and the ignition point of diesel is 220 ℃,

The hot air outlet can be higher than 150℃, and the exhaust temperature of

waste pipes can be higher than 270℃.

- 46 -

Instructions for using and operating the parking heater

1. The control panel is shown in the figure below

1. Knob button;

2. LCD screen;

2. Operation

Automatic mode

Manual mode

1.on/off operation

In the shutdown state, briefly press "knob button" to start the device.

In the power on state, briefly press the "knob button" to enter the shutdown

process of "cooling state" and display "OF".At this time, please do not forcefully

cut off the power to cool the body. "Directly cutting off the power will damage the

accessories due to the high temperature of the body being unable to dissipate

heat!" Wait until the display is turned off before cutting off the power!

2.Manual mode operation

The manual mode consists of 6 gears, 06 representing maximum power.As

shown in the above figure, switch gears by rotating the rotation button" to

"clockwise for up shifting, and vice versa for downshifting"

3. Automatic mode operation

The automatic mode is shown in the figure above, indicating an automatic

constant temperature of 18 degrees. The temperature can be adjusted and

controlled by rotating the "rotation button", with a temperature setting range of 5-

35℃.

In the power on state, press and hold the "knob button" for 2 seconds to switch

between manual/automatic modes.

4.Engineering mode operation

- 47 -

In the shutdown state, press and hold the "knob button" for 3 seconds to enter

engineering mode. Rotate the “Rotate Button”

Switching engineering options: power voltage-ambient temperature-manual pump

oil-wireless remote control code matching.

l)Manual oil pump operation

When the engineering option displays "Ho",briefly press the"rotation button" to

display "p-". The oil pump starts pumping oil, and then briefly press the "rotation

button" or for 3 minutes to exit manual pumping,and the oil pump stops working.

2)Wireless remote control code matching

When the engineering option displays "rF", briefly press the "Rotate button" to

display "rl". The trailing value is the remote control number,ranging from 1 to 5,

corresponding to 5 remote controls. Rotate the "Rotate button" to select. Press

any key on the remote control, the machine will successfully check the code and

exit the check status

*Remote control requirements: frequency band 433MH7, 24 bit code.

5.The fault alarm display is shown in the following figure.

If the corresponding symbol for the device fault flashes, please refer to the fault

table for the meaning of the fault code

Instructions for Use

1.It is prohibited to use it in environments with high humidity, conductive

dust.flammable and explosive gases, dust, materials, corrosive media, strong light,

strong magnetism, high voltage, and high current equipment in the vicinity.

2.Power supply voltage range: DC24V controller applicable(18-32)V; DC12V

controller is suitable for(9-16)V; Different voltage controllers are not

interchangeable and are prohibited from exceeding the applicable voltage range.

3.The 5kW controller can only be used on a 5kW engine body; The 2kW controller

can only be used on a 2kW engine.

4. If the controller or external components are damaged, the same model and

parameter components must be selected and replaced by professional personnel.

5. It is forbidden to open the controller shell without permission.

6. The equipment must be installed in strict accordance with the requirements and

must be used under safe conditions.

- 48 -
