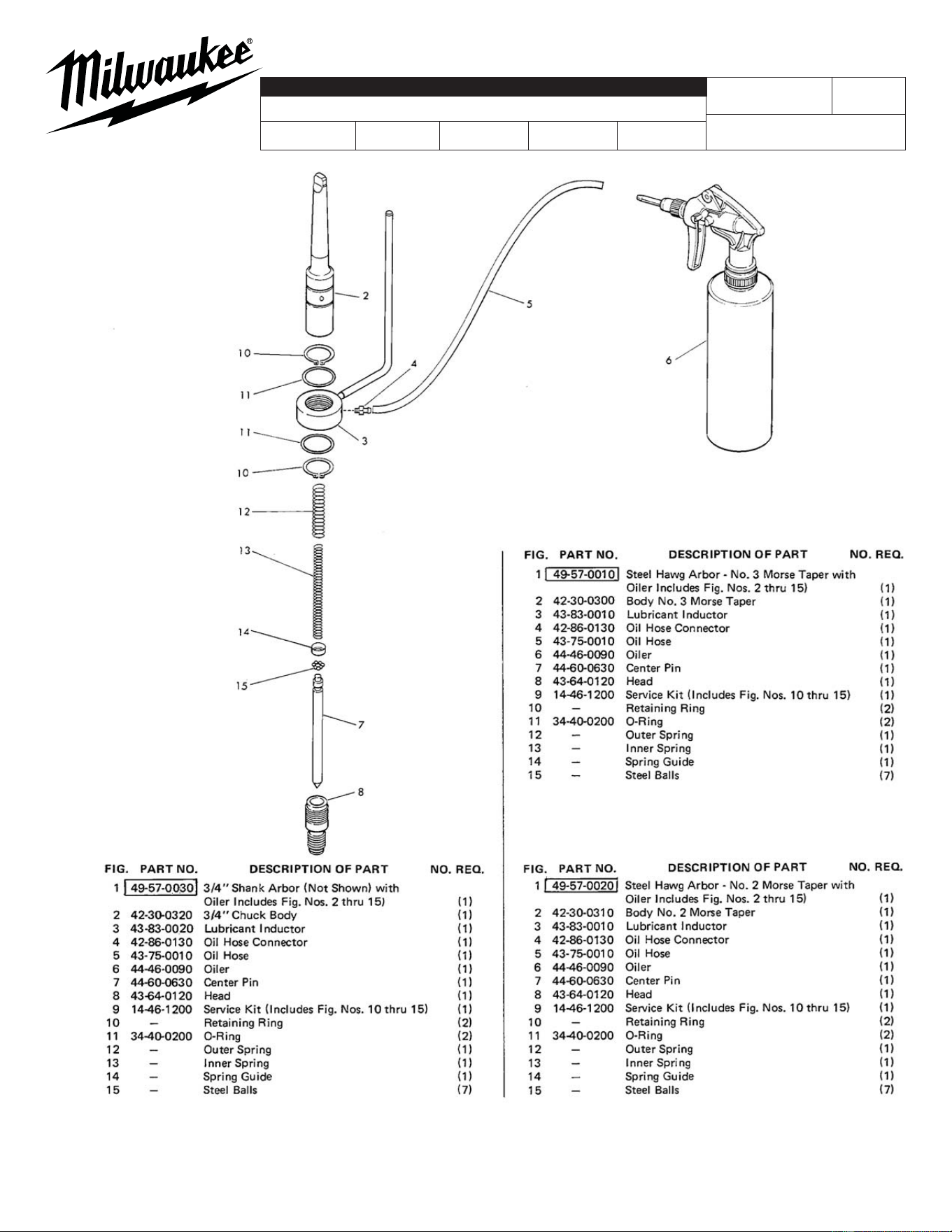

MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. Lisbon Road., Brookfi eld, WI 53005
Drwg. 2
BULLETIN NO.
54-14-0100
SERVICE PARTS LIST
CATALOG NO. 49-57-0010 49-57-0020 49-57-0025 49-57-0030
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
ARBOR ASSEMBLIES FOR STEEL HAWG BITS
DATE
Apr 2007
WIRING INSTRUCTION

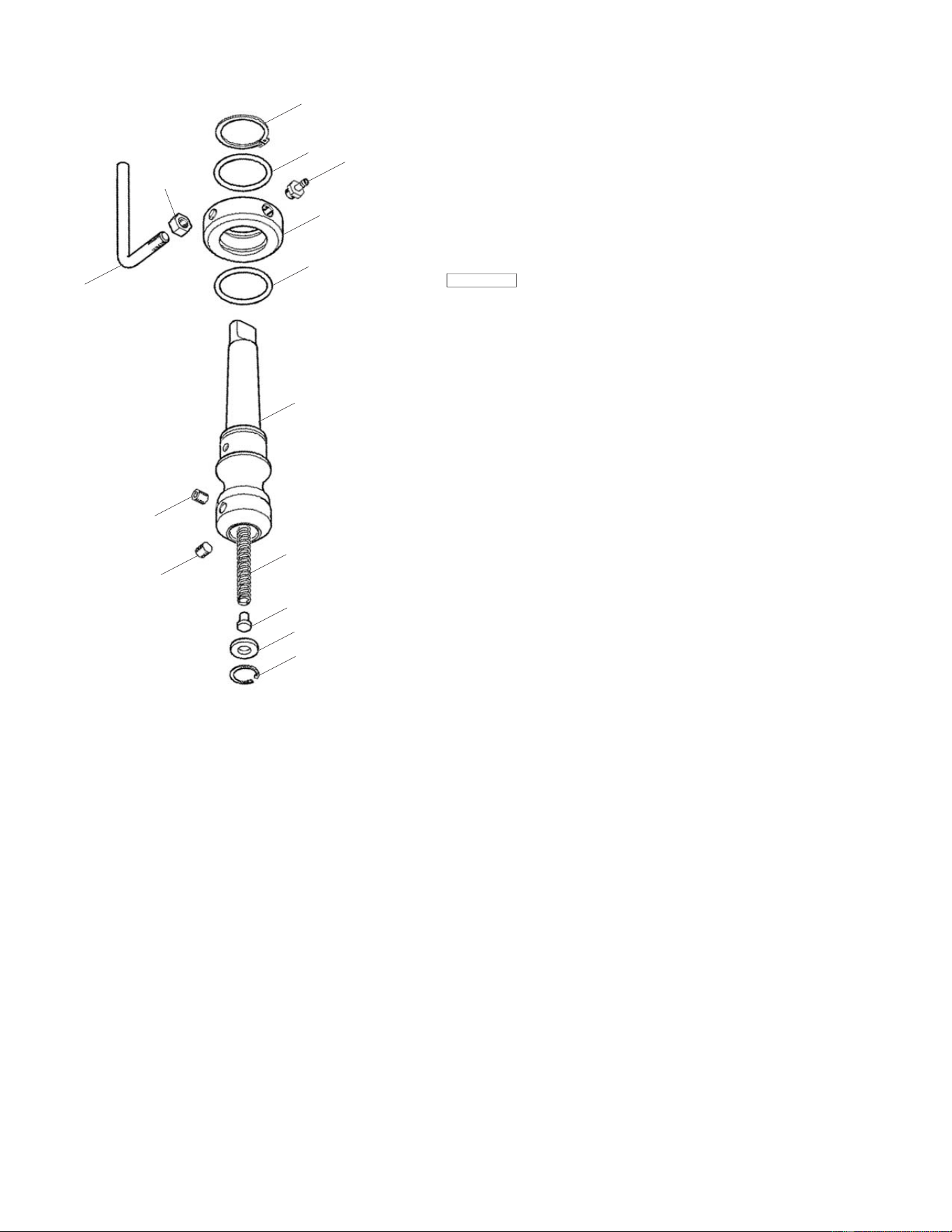

FIG. PART NO. DESCRIPTION OF PART NO REQ.
1 49-57-0025 #3 Morse Taper Arbor Assembly
Includes 2 thru 13 (1)
2 42-30-0025 Body MK-3 Taper (1)
3 42-09-0025 Stop Angle (1)
4 43-83-0025 Lubricant Inductor (1)
5 42-32-0025 Bolt (1)
6 43-44-0030 Gasket (1)
7 40-50-0180 Ejector pressure spring (1)
8 05-88-0025 Screw Nut (1)
9 06-83-0025 Clamping Screw (2)
10 34-60-0025 Retaining Ring (inside) (1)
11 34-60-0035 Retaining Ring (outside) (1)
12 34-40-0025 O-Ring (2)
13 42-86-0025 Angle hose screw joint (1)
11
12
13
4
12
2
7
5
6
10
9
9
3
8
