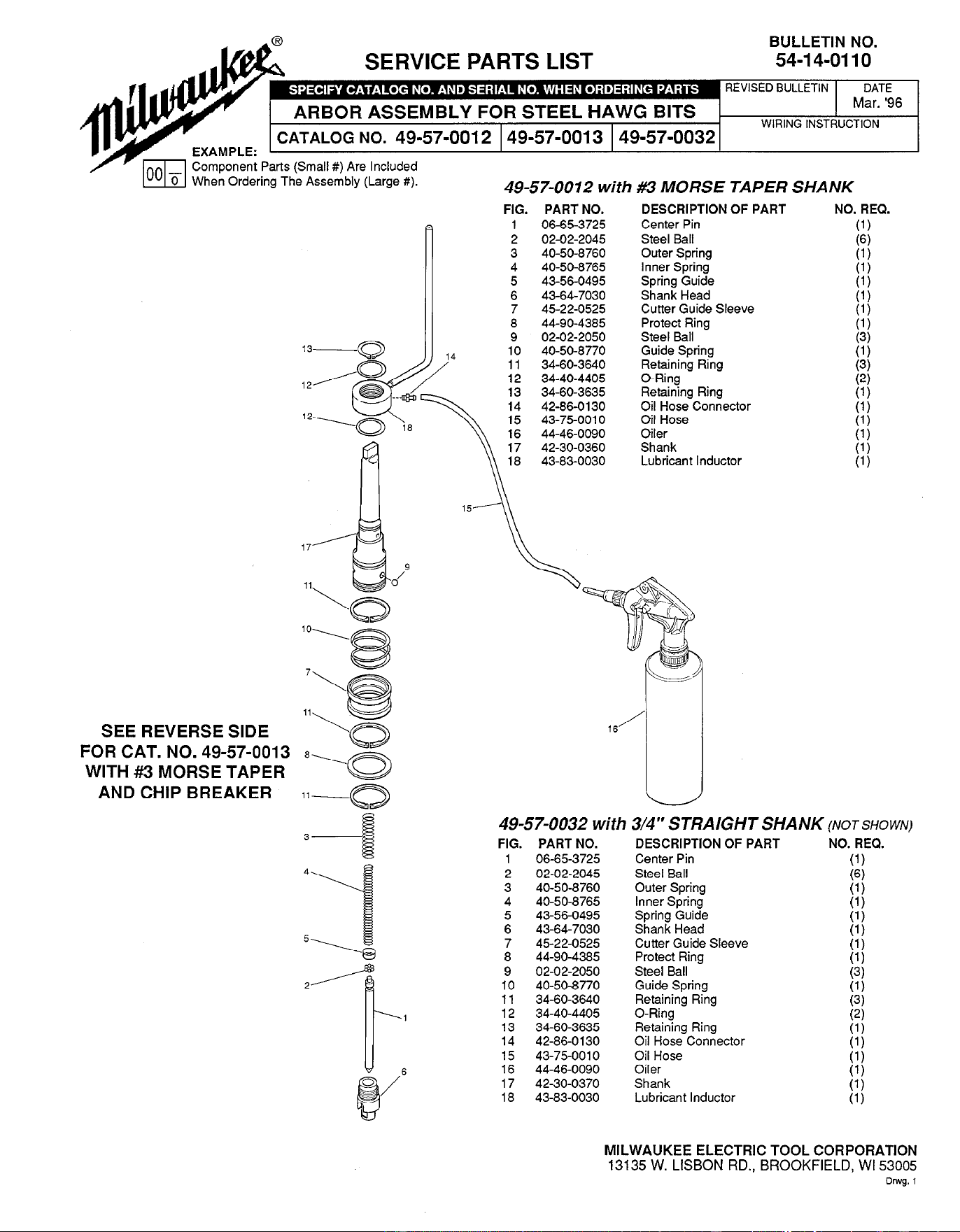

BULLETIN NO.
?
SERVICE PARTS LIST
54-14-0110
,
CATALOG NO. 49-57-0012 49-57-0013 49-57-0032
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
49-57-0012 with #3 MORSE TAPER SHANK
ARBOR ASSEMBLY FOR STEEL HAWG BITS
WIRING INSTRUCTION
SEE REVERSE SIDE
FOR CAT. NO. 49-57-0013
WITH #3 MORSE TAPER
AND CHIP BREAKER
FIG.
1
2
3
4
5
6
7
8
9
PART NO.
06-65-3725
02-02-2045
40-50-8760
40-50-8765
43-56-0495
43-64-7030
45-22-0525
44-90-4385
02-02-2050
40-50-8770
34-60-3640
12 34-40-4405
34-60-3635
42-86-0130
15
43-75-0010
16 44-46-0090
17 42-30-0360
18 43-83-0030
DESCRIPTION OF PART
Center Pin
Steel Ball
Outer Spring
Inner Spring
Spring Guide
Shank Head
Cutter Guide Sleeve
Protect Ring
Steel Ball
Guide Spring
Retaining Ring
O-Ring
Retaining Ring
z; :I: Connector
Oiler
Shank
Lubricant Inductor
49-57-0032 with 314” STRAIGHT SHANK (NOT SHOWN)
FIG. PART NO.
DESCRIPTION OF PART
1 06-65-3725
Center Pin
2 02-02-2045
Steel Ball
3 40-50-8760
Outer Spring
4 40-50-8765
Inner Spring
5 43-56-0495
Spring Guide
6 43-64-7030
Shank Head
7 45-22-0525
Cutter Guide Sleeve
8 44-90-4385
Protect Ring
9 02-02-2050
Steel Ball
10 40-50-8770
Guide Spring
11 34-60-3640
Retaining Ring
12 34-40-4405
O-Ring
13 34-60-3635
Retaining Ring
14 42-86-0130
Oil Hose Connector
15 43-75-0010
Oil Hose 16 44-46-0090
Oiler
17 42-30-0370
Shank
18 43-83-0030
Lubricant Inductor
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Dlwg. 1

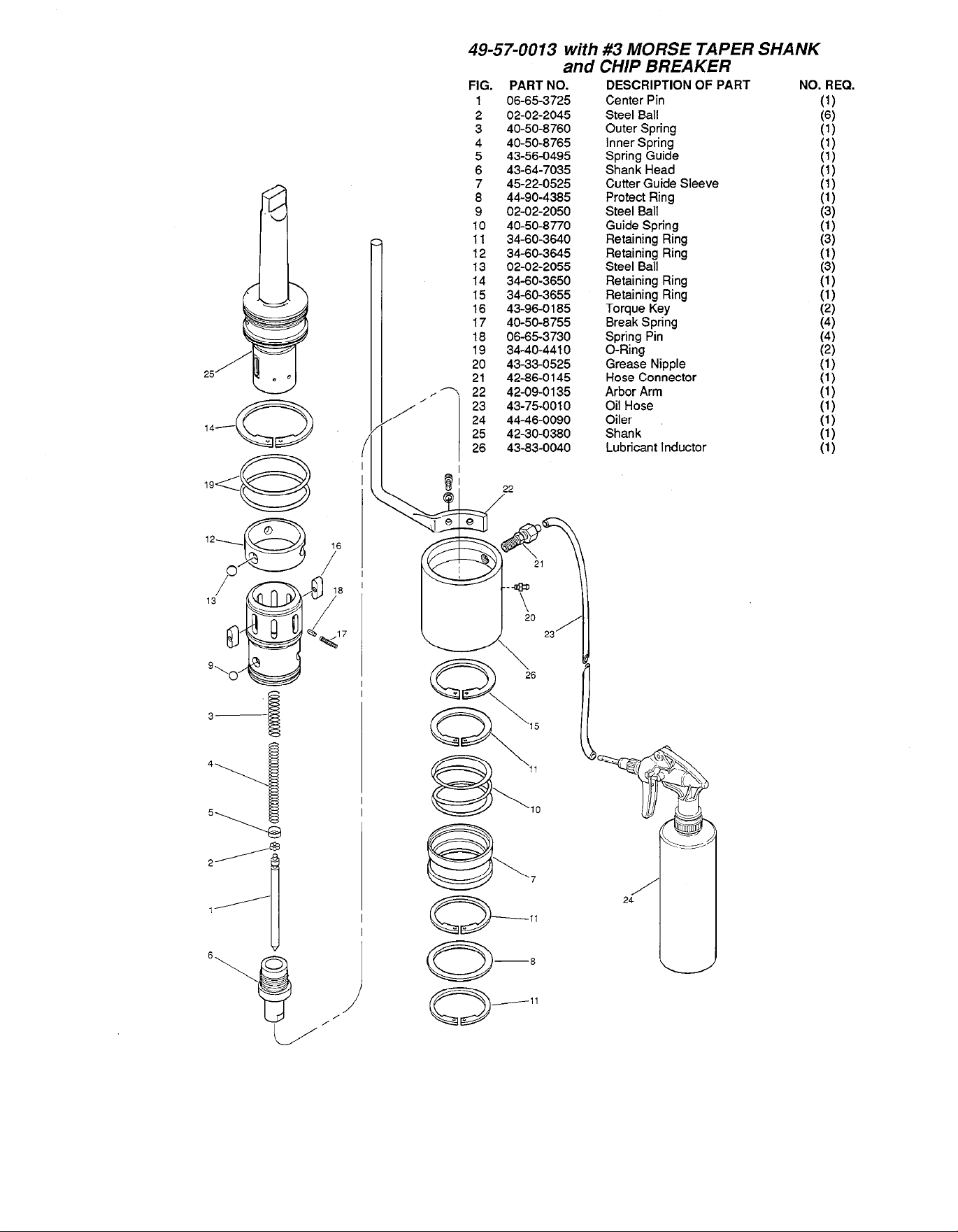

49-57-0013 with #3 MORSE TAPER SHANK
and CHIP BREAKER
25
FIG. PART NO.
1 06-65-3725
2 02-02-2045
3 40-50-8760
4 40-50-8765
5 43-56-0495
6 43-64-7035
7 45-22-0525
8 44-90-4385
9 02-02-2050
10 40-50-8770
Protect Ring
Steel Ball
Guide Spring
DESCRIPTION OF PART
Center Pin
Steel Ball
Outer Spring
Inner Spring
Spring Guide
Shank Head
Cutter Guide Sleeve
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
34-60-3640
34-60-3645
02-02-2055
34-60-3650
34-60-3655
43-96-0185
40-50-8755
06-65-3730
34-40-4410
43-33-0525
42-86-0145
42-09-0135
43-75-0010
44-46-0090
42-30-0380
43-83-0040
Retaining Ring
Retaining Ring
Steel Ball
Retaining Ring
Retaining Ring
Torque Key
Break Spring
Spring Pin
O-Ring
Grease Nipple
Hose Connector
Arbor Arm
Oil Hose
Oiler
Shank
Lubricant Inductor
