DE’LONGHI
COOKING
INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
DMX64VL
CERAMIC COOKER
distributed by
Able Appliances Pty Ltd.
22
Dear Customer,
Thank you for having purchased and given your preference
to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of the
features oered by your appliance.
Please keep this booklet in a safe place. It may be useful
in future, either to yourself or to others in the event that
doubts should arise relating to its operation.
This appliance must be used only for the task it
has explicitly been designed for, that is for cooking
foodstus. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL
This appliance has been designed and constructed in accordance with the following
codes and specications:
AS/NZS 60335.1
Household and similar electrical appliances - Safety General
requirements
AS/NSZ 60335.2.6
Safety Particular requirements for stationary cooking ranges, hobs,
ovens and similar appliances
AS/NZS CISPR 14.1 Electromagnetic Compatibility Requirements
33
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
■ This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products and it fullls all the safety requirements shown
in this manual, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
■ After having unpacked the appliance, check to ensure that it is
not damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
■ Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
■ Some appliances are supplied with a protective lm on steel and
aluminium parts. This lm must be removed before using the
appliance.
■ IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
44
■ Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
■ Do not operate your appliance by means of an external timer or
separate remote-control system.
■ Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
■ WARNING: Ensure that the appliance is switched o before
replacing the oven lamp to avoid the possibility of electric shock.
■ Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
■ Do not touch the appliance with wet or damp hands (or feet).
■ Do not use the appliance whilst in bare feet.
■ If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
■ The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
■ After use, ensure that the knobs/controls are in the o position.
■ Children less than 8 years of age shall be kept away unless
continuously supervised.
■ This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
55
■ The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
■ WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on
the hob and inside the oven).
– The door is hot, use the handle.
– To avoid burns and scalds, young children should be kept
away.
■ Make sure that electrical cables connecting other appliances in
the proximity of the cooker cannot come into contact with the hob
or become entrapped in the oven door.
■ WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o the appliance and then cover ame e.g.
with a lid or a re blanket.
■ WARNING: Danger of re: do not store items on the cooking
surfaces.
■ DO NOT MODIFY THIS APPLIANCE.
■ THIS APPLIANCE SHALL NOT BE USED AS A SPACE HEATER.

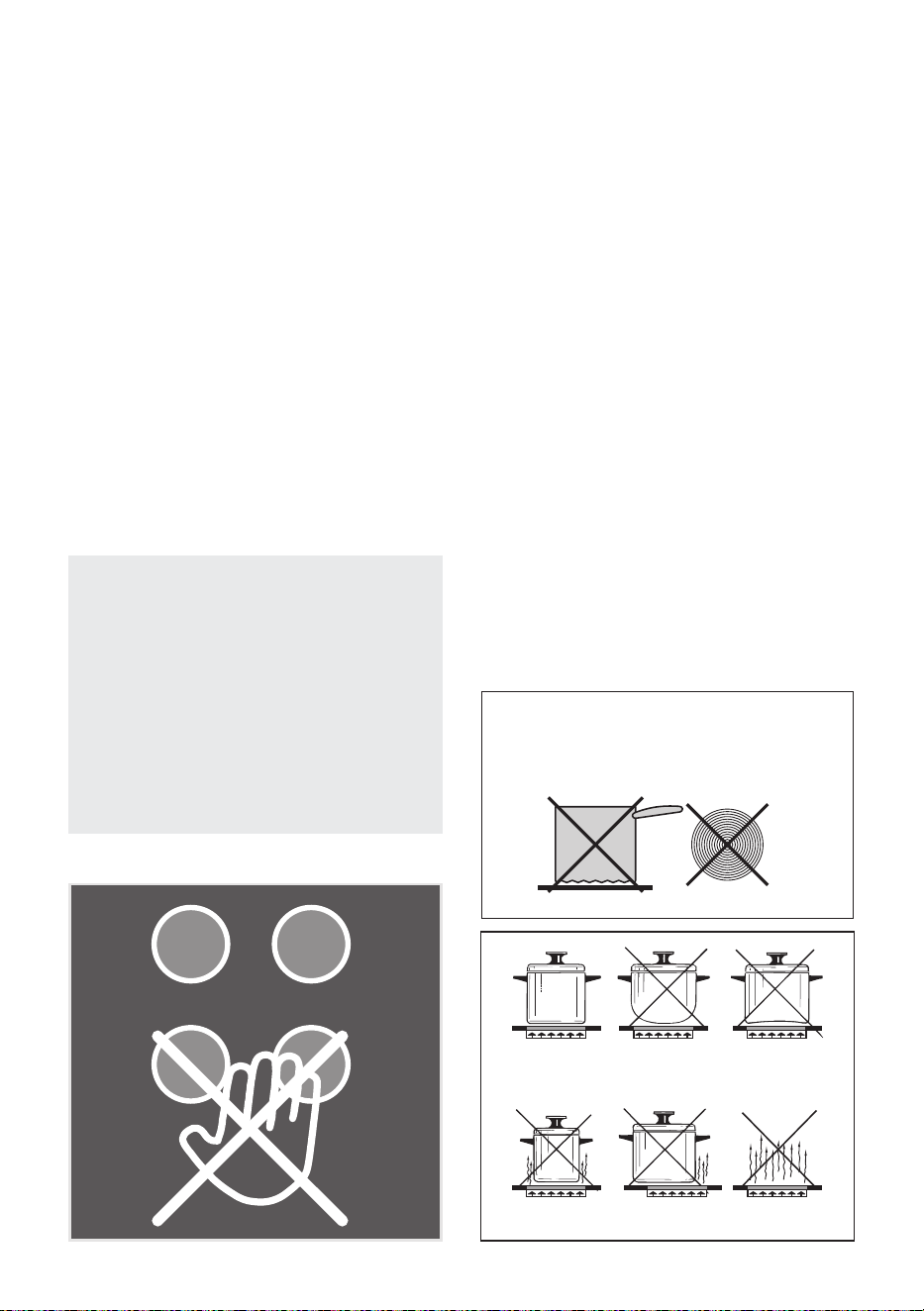

■ Do not place or leave empty pans on the glass ceramic hob.
■ Do not allow heavy or sharp objects to drop on the glass ceramic
hob.
■ Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
■ WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
■ WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
66
intended to be touched and may contain sharp or rough edges,
that may cause injury.
■ FIRST USE OF THE OVEN - it is advised to follow these
instructions:
– Furnish the interior of the oven as described in the chapter
“USE AND CARE”.
– Switch on the empty oven on max to eliminate grease from the
heating elements.
– Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent; then dry carefully.
■ CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
■ Do not line the oven walls or base with aluminium foil. Do not place
baking trays or the drip tray on the base of the oven chamber.
■ Do not cover the hob with aluminium foils.
■ FIRE RISK! Do not store ammable material in the oven or in the
storage compartment.
■ Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
■ Do not hang towels, dishcloths or other items on the appliance or
its handle – as this could be a re hazard.
■ Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
■ Do not stand on the cooker or on the open oven door.
■ Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
■ SAFE FOOD HANDLING: Leave food in the oven for as short
a time as possible before and after cooking. This is to avoid
contamination by organisms which may cause food poisoning.
Take particular care during warmer weather.

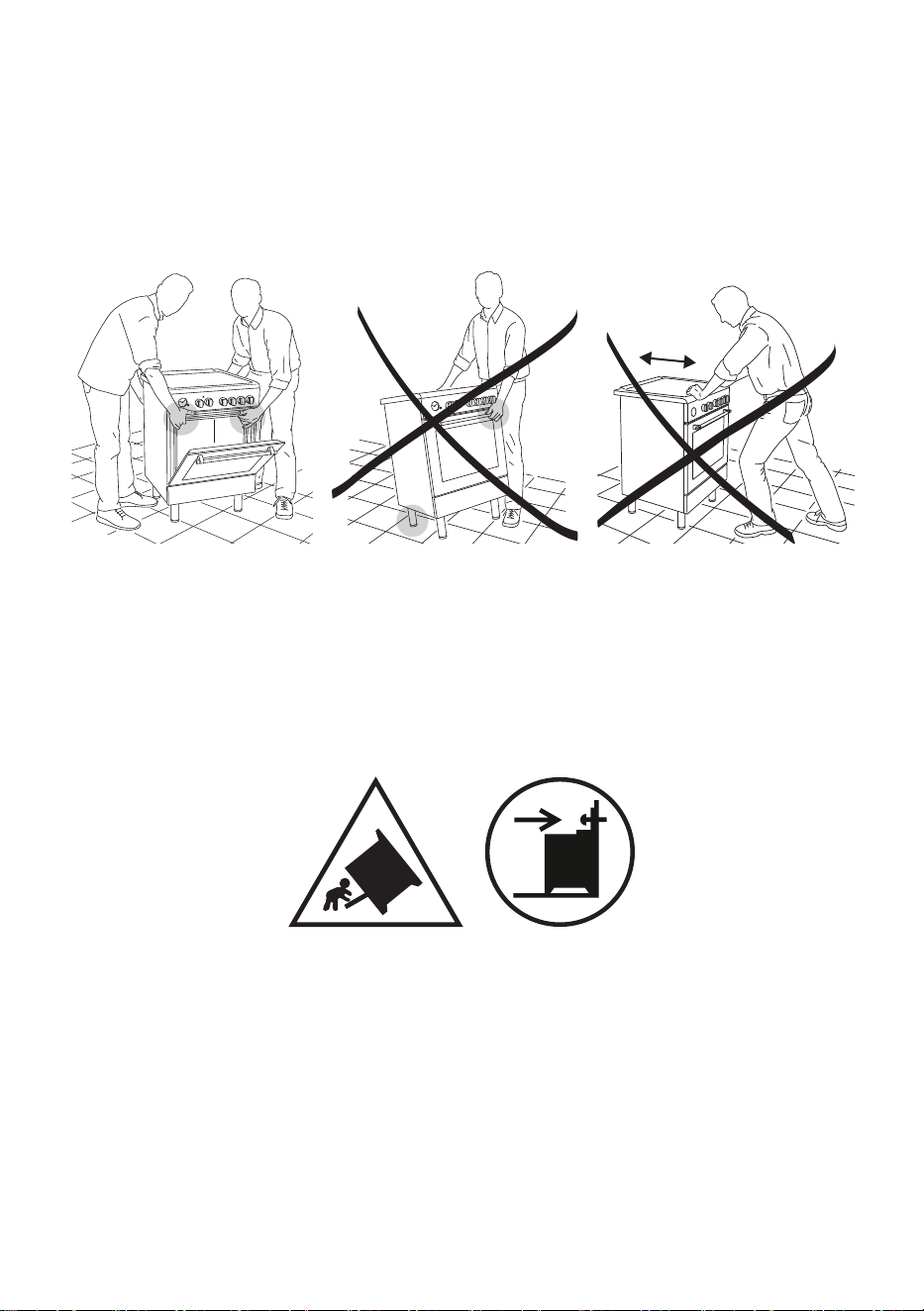

■ WARNING: Take care NOT to lift the cooker by the door handle.
77
■ CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
■ The appliance must not be installed behind a decorative door in
order to avoid overheating.

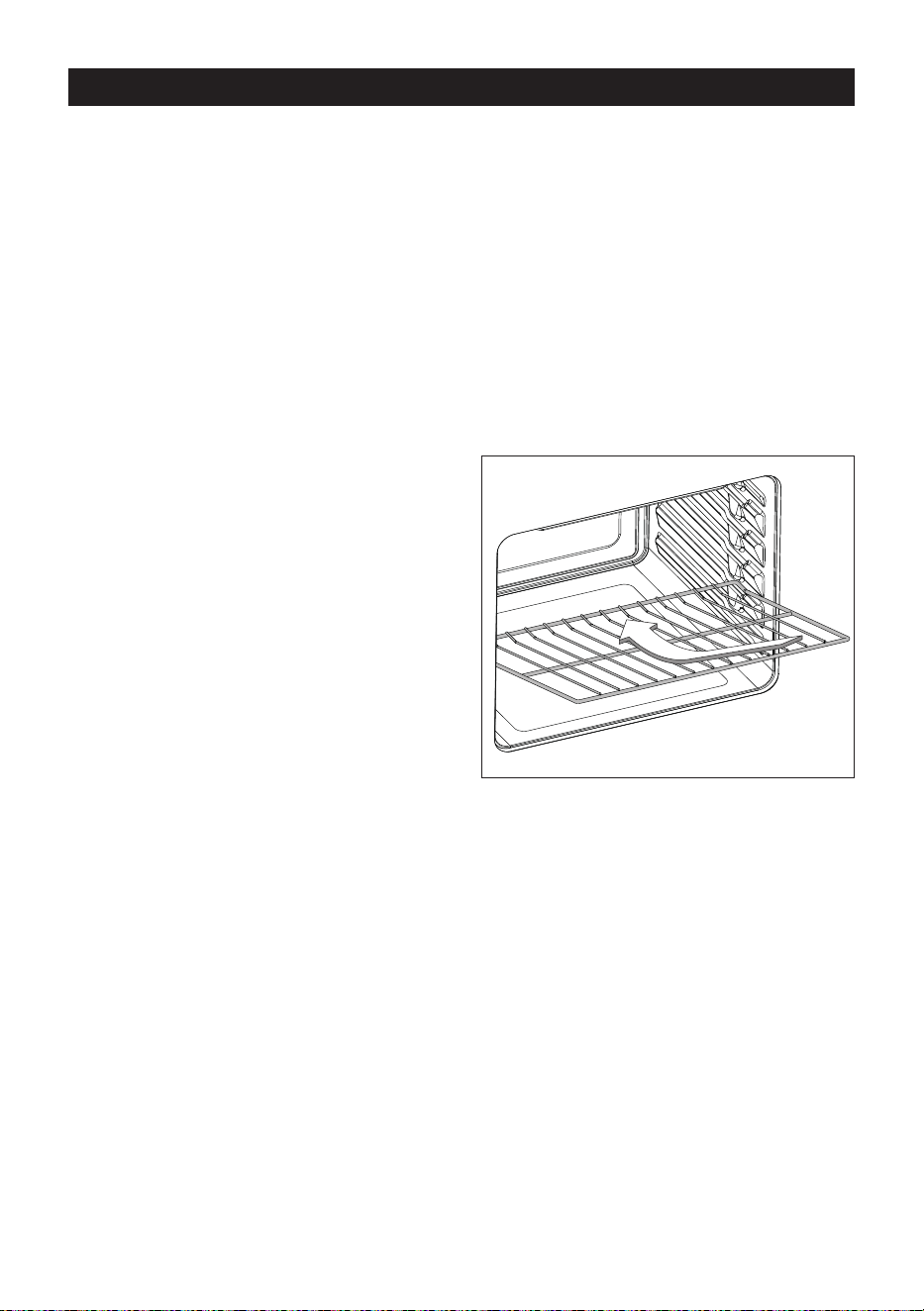

■ The oven accessories (e.g. oven wire rack) must be tted
correctly as indicated at page 17.
■ IMPORTANT NOTE: The oven shelves (for some products one
shelf only is provided) have not been designed to place the food
directly on the shelf itself. When cooking, always place the food
in special containers or use specic materials suitable for the
food contact.
■ If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
■ If the appliance is not tted with a supply cord and a plug, or with
other means for disconnection from the supply mains having a
contact separation in all poles that provide full disconnection under
overvoltage category III conditions, means for disconnection
must be incorporated in the xed wiring in accordance with the
wiring rules.
■ WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
■ WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
88
INSTALLATION
CAUTION:
■ This appliance must be installed in accordance with these installation instructions.
■ This appliance shall only be serviced by authorised personnel.
■ This appliance is to be installed only by an authorised person in compliance
with the current electrical regulations and in observation of the instructions
supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
■ Incorrect installation, for which the manufacturer accepts no responsibility, may
cause personal injury of damage.
■ Always disconnect the appliance from mains power supply before carrying out
any maintenance operations or repairs.

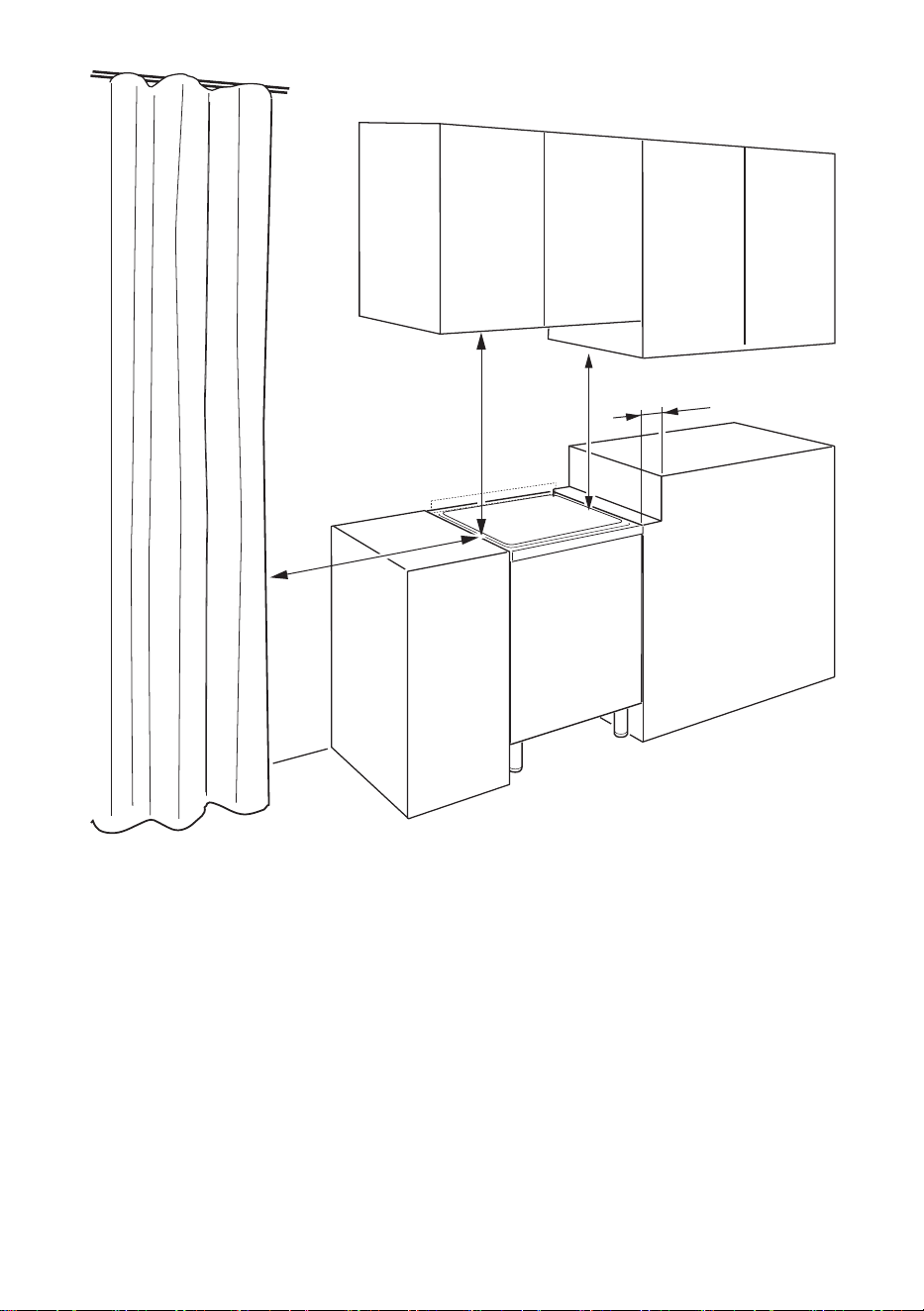

LOCATION

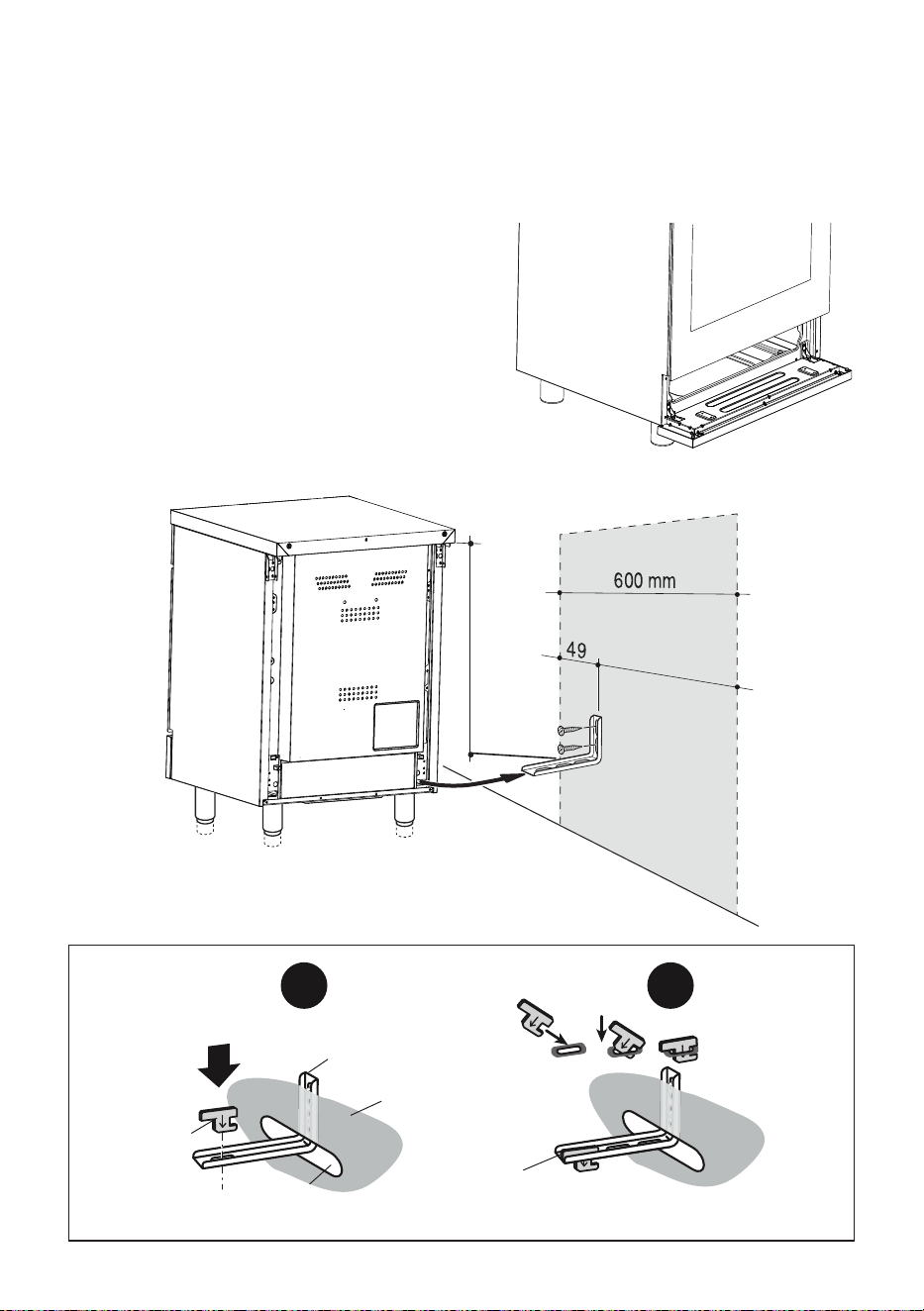

■ The cooker can be installed in a cabinet (Fig. 1).
■ The cooker must be installed no less than 50 mm away from any side wall which
exceed the height of the cooktop.

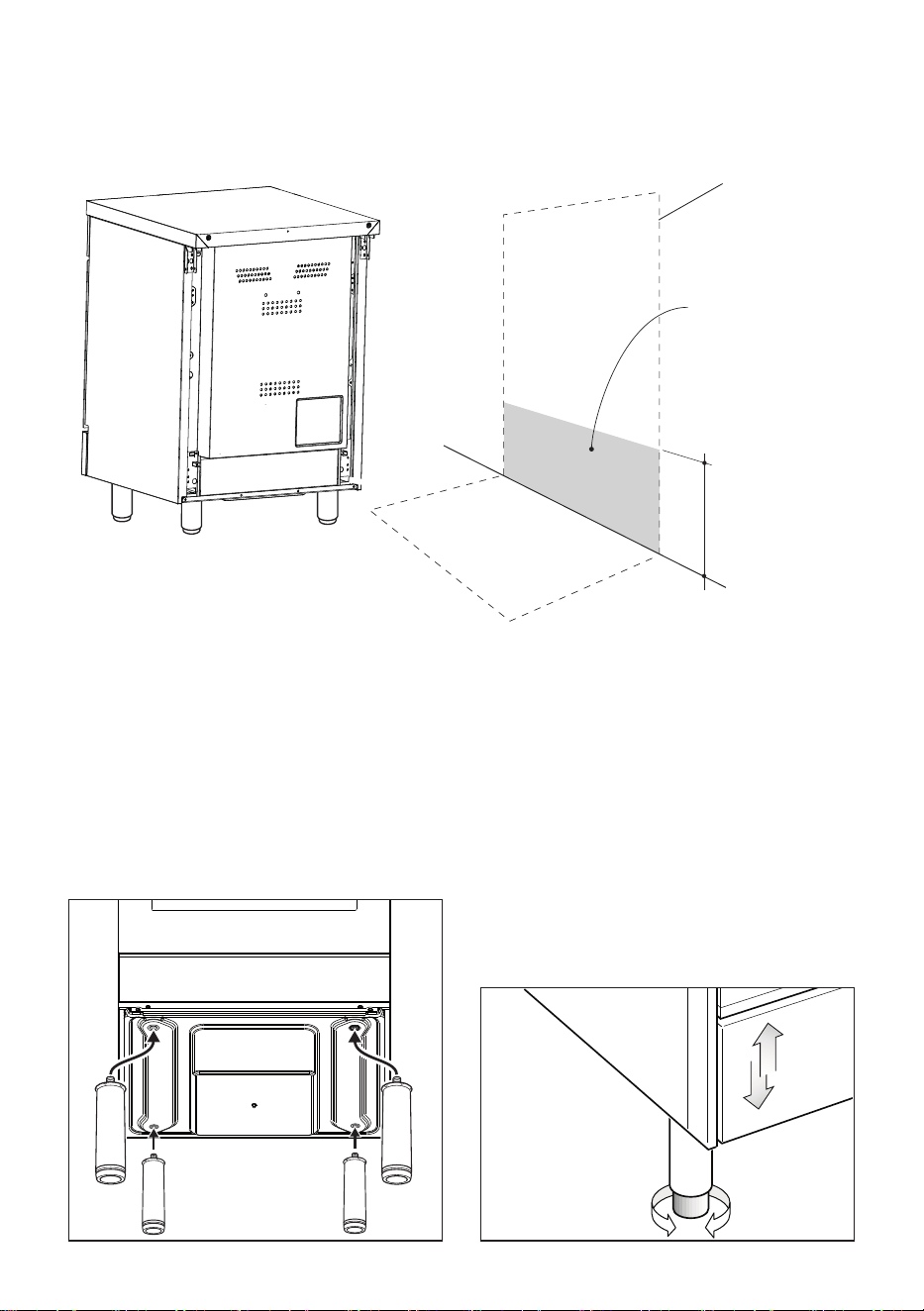

■ Installing the cooker above a plinth without tting the adjustable feet: In that case the
cooker stands directly above the plinth; make sure you provide safety measures to
keep it in place.
Revise the installation dimensions accordingly considering that the feet have the
following measures:
– min 107 mm - max 160 mm;
■ The appliance must be housed in heat resistant units.
■ The walls of the units must be capable of resisting temperatures of 50 °C above
room temperature.
■ Do not install the appliance near inammable materials (e.g. curtains).
■ If you stand the cooker on a pedestal, make sure you provide safety measures
to keep it in place.
99
Cooker overall dimensions [mm]
■ height: min 872 - max 925
■ width: 600
■ depth: 600
450 mm
50 mm
650 mm
500 mm
Figure 1
1010
max 268 mm
Dotted line
showing the
position of the
cooker when
installed
Area for
ELECTRIC
connection
Figure 2
FITTING THE ADJUSTABLE FEET
The adjustable feet must be tted to the base of the cooker before use (gs. 3, 4).
Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for
the tting of the feet.
Fit the no. 4 (four) legs by screwing them tight into the support base as shown in gure 3.
LEVELLING THE COOKER
The cooker may be levelled by screwing the lower ends of the feet IN or OUT (g. 4).
Figure 4
Figure 3
LOCATING THE AREA FOR ELECTRICAL CONNECTION
1111
MOVING THE COOKER
WARNING: When raising cooker to upright position always ensure two people carry out
this manoeuvre to prevent damage to the adjustable feet (g. 5a).
WARNING - Be careful: Do not lift the cooker by the door handle when raising to the
upright position (g. 5b).
WARNING: When moving cooker to its nal position DO NOT DRAG (g. 5c). Lift feet clear
of oor (g. 5a).
Figure 5a Figure 5b
Figure 5c
ANTI-TILT BRACKET
Important!
To restrain the appliance and prevent it tipping accidentally, t a bracket to its rear
to x it securely to the wall. Make sure you also t the supplied lock pin to the anti-
tilt bracket.
To t the anti-tilt bracket:
1. After you have located where the cooker is to be positioned, mark on the wall the place
where the two screws of the anti-tilt bracket have to be tted. Please follow the indications
given in g. 8.
2. Drill two 8 mm diameter holes in the wall and insert the plastic plugs supplied.
Important!
Before drilling the holes, check that you will not damage any pipes or electrical
wires.
1212
705 mm
551
Figure 7
3. Loosely attach the anti-tilt bracket with the two screws supplied.
4. Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can
engage in the slot on the cooker’s back, as shown in g. 7.
5. Tighten the screws attaching the anti-tilt bracket.
6. Push the cooker against the wall so that the anti-tilt bracket is fully inserted in the slot
on the cooker’s back.
7. Access the bracket and t the lock pin:
■ Open the pivoting panel (g. 6).
■ Fit the lock pin through the bracket, as
shown (g. 8).
■ Close the pivoting panel.
Fitting the lock pin through
the bracket
Lock pin
correctly
fitted
Lock pin
Slot on the
cooker’s back
Cooker’s
back
Anti-tilt bracket
attached on the
rear wall
1 2
Figure 8
Figure 6
1313
ELECTRICAL REQUIREMENTS
■ The appliance must be connected to the mains checking that the voltage corresponds
to the value given in the rating plate and that the electrical cable sections can withstand
the load specied on the plate.
■ A suitable disconnection switch must be incorporated in the permanent wiring, mounted
and positioned to comply with the local wiring rules and regulations. The switch must
be of an approved type installed in the xed wiring and provide a 3 mm air gap contact
separation in all poles in accordance with the local wiring rules.
In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must
be installed in the active (phase) conductor of the xed wiring.
■ The switch must always be accessible.
■ The power supply cable must not touch the hot parts and must be positioned so that it
does not exceed 50 °C above ambient.
■ To connect the cooker to the mains electricity supply, do not use adapters, reducers or
branching devices as they can cause overheating and burning.
■ This cooker must be connected to a suitable double pole control unit adjacent to the
cooker. No diversity can be applied to this control unit.
■ This cooker must be connected to electrical supply using V105 insulated cable.
In New Zealand, this appliance must be connected to the electrical supply using a
cable tted with an appropriately rated plug. The plug must be compatible with the
socket-outlet tted to the nal subcircuit in the xed wiring that is intended to supply
the appliance.
■ Once the appliance has been installed, the switch or socket must always be accessible.
■ If the supply cord is damaged it must be replaced by the manufacturer or it’s Service
Agent or a similarly qualied person in order to avoid a hazard.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualied
electrician. He should also check that the domestic electrical system is suitable for the
power drawn by the appliance.
Replacing the power cord must be done by a qualied electrician in accordance with
the instructions supplied by the manufacturer and in compliance with established
electrical regulations.
1414
CONNECTION OF THE POWER SUPPLY CABLE
Important! The appliance must be connected to the electricity supply only by an
authorised person.

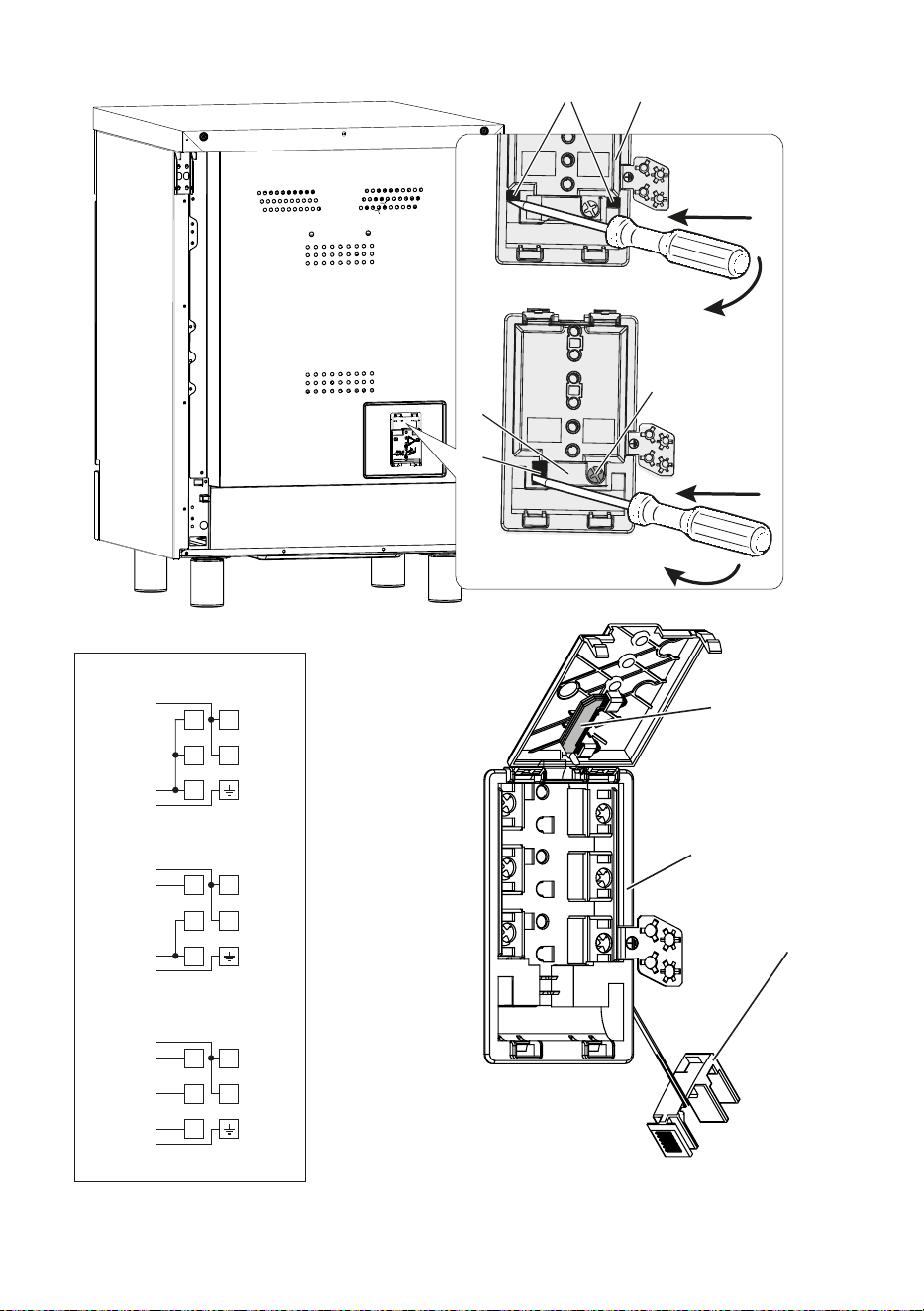

To connect the feeder cable to the cooker it is necessary to carry out the following operations:
■ Unhook the terminal board cover “A” by inserting a screwdriver into the two hooks “B”
(g.10). Open completely the terminal block cover “A”.
■ Unscrew the screw “C”, then unhook the cable clamp “D” by inserting a screwdriver
into the hook “E”. Remove completely the cable clamp “D” (g. 10).
■ Connect the phase, neutral and earth wires to terminal board “F” according to the
diagrams in g. 11; the U bolts “G” (g. 10) shall be used as indicated in the diagrams
in g. 11 (they are supplied already tted to the terminals or inside the terminal board,
behind the cover).
■ Strain the feeder cable and block it with cable clamp “D” (by hooking hook “E” and
screwing screw “C”).
■ Close the cover “A” of the terminal board “F” (check the two hooks “B” are correctly
hooked).

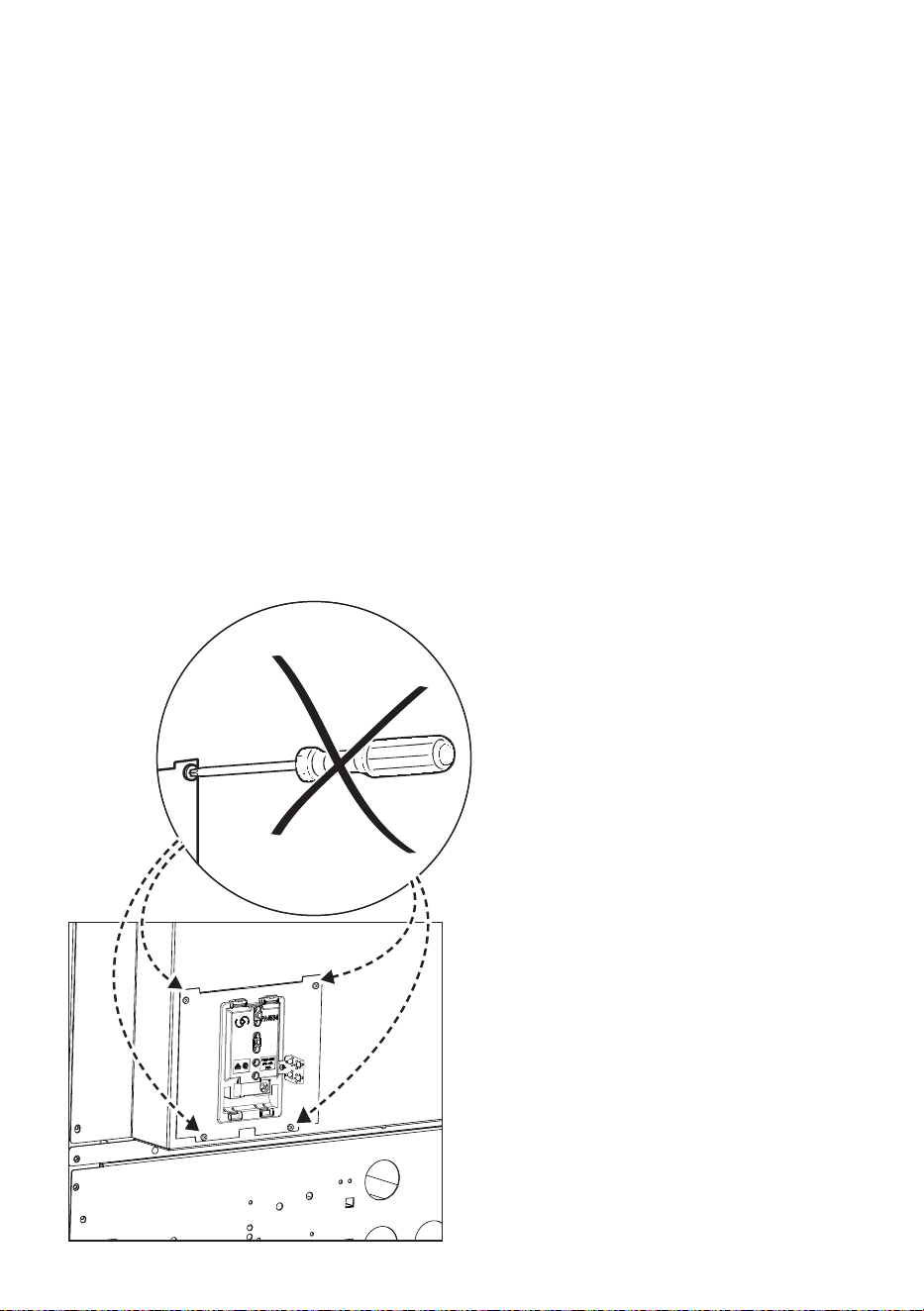

IMPORTANT: To connect the power supply cable DO NOT unscrew the screws xing
the cover plate behind the terminal block.
If the supply cord (not supplied with the appliance) is damaged, it must be replaced
by the manufacturer or its service agent or a similarly qualied person in order to
avoid a hazard.
Figure 9
VOLTAGE AND POWER
CONSUMPTION
220-240/380-415 V 3N, 50-60 Hz
8600 W (37.39 A) (@230V) (diversity not
applied)
FEEDER CABLE SECTION (USE
A TYPE OF CABLE ACCORDING
TO THE APPLICABLE LOCAL
REGULATIONS)
220-240 V ac 3 x 4 mm
2
(*)
380-415 V 3N ac 5 x 1,5 mm
2
(*)
380-415 V 2N ac 4 x 2,5 mm
2
(*)
(*) Connection with wall box connection
– Diversity factor applied.
– A diversity factor may be applied to
the total loading of the appliance
only by a suitably qualied person.
1515
220 - 240 V ac
L
1
N (L2)
PE
4
2
5
1
3
380 - 415 V 2N ac
L
1
N
PE
4
2
5
1
3
L2
380 - 415 V 3N ac
L
3
N
PE
4
2
5
1
3
L1
L2
G
F
D
B A
1
2
1
2
C
D
E
Figure 10
Figure 11
1616
USE AND CARE
CAUTION:
■ This appliance must be used only for the task it has explicitly been designed for, that
is for domestic cooking of foodstus. Any other form of usage is to be considered as
inappropriate and therefore dangerous.
■ Do NOT place combustible materials or products on this appliance at any time.
■ Do NOT use or store ammable materials in the appliance storage compartment or
near this appliance.
■ WARNING: Accessible parts will become hot when in use. To avoid burns and scalds,
young children should be kept away.
■ Do NOT spray aerosols in the vicinity of this appliance while it is in use.
■ Do NOT modify this appliance.
USING THE OVEN FOR THE FIRST
TIME
To eliminate traces of grease in
manufacture it is necessary to preheat
the oven as indicated in the chapter
“COOKING WITH ELECTRIC OVEN”.
To t the oven accessories operate as
follows:
■ The oven shelf is provided with a
security block to prevent accidental
extraction. It must be inserted operating
as per gure 12.
■ To remove it, operate in the reverse
order.
Figure 12
1717
Figure 13

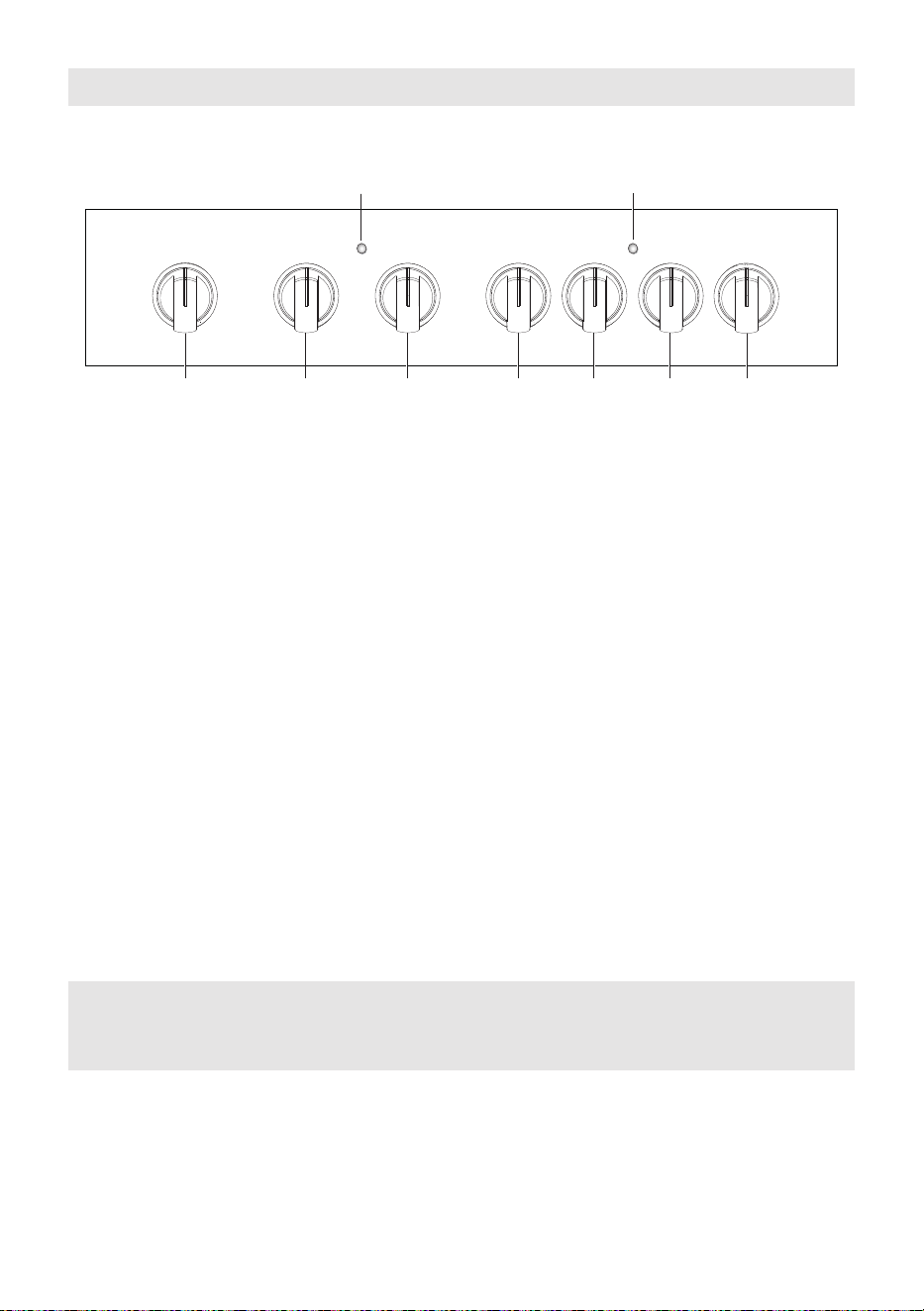

CONTROL PANEL
123456
9
7
8
CONTROLS DESCRIPTION
1. Front right cooking zone control knob
2. Rear right cooking zone control knob
3. Rear left cooking zone control knob
4. Front left cooking zone control knob
5. Electric oven thermostat control knob
6. Electric oven selector control knob

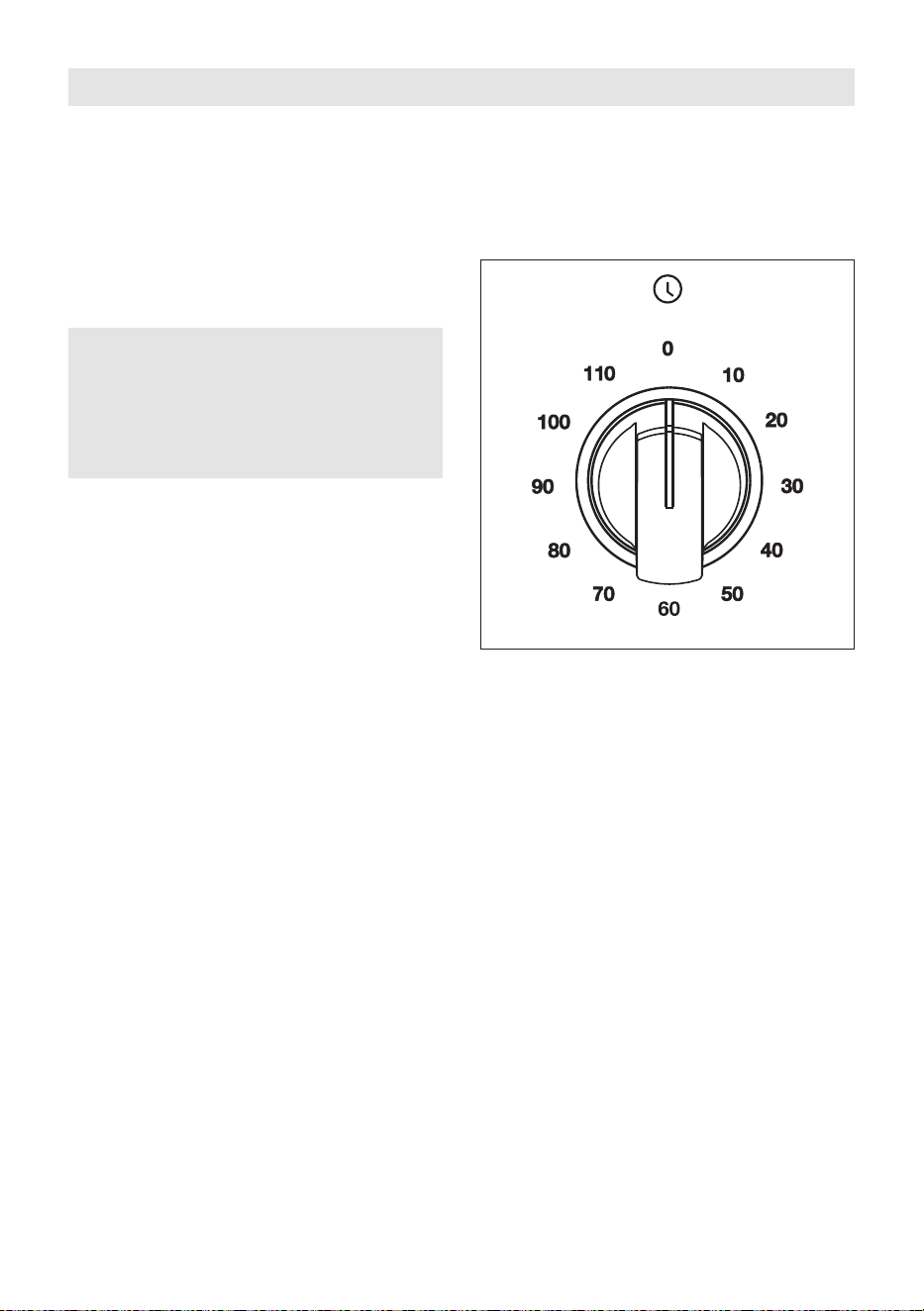

7. 120 minutes alarm control knob
8. Oven temperature indicator light
9. Hob elements ON indicator light
Note: Your appliance has been tted with a cooling fan to achieve optimum eciency of the
controls and to ensure lower surface temperatures are maintained.
When the oven is operating the cooling fan motor switches ON/OFF depending on temperature.
Depending on cooking temperatures and times, the cooling fan may run on even after
appliance has been switched o. The duration of this time is dependent on previous
cooking temperature and duration.
NOTES:
The knobs and symbols may vary.
The symbols may be printed on the knob itself or on the control panel.
1818
Figure 14
VITROCERAMIC HOB
Attention:
Detach the appliance from the mains if the ceramic glass is cracked and contact the After-
Sales Service.
Metallic objects such as knives, forks, spoons and lids should not be placed on the hob
surface since they can get hot.

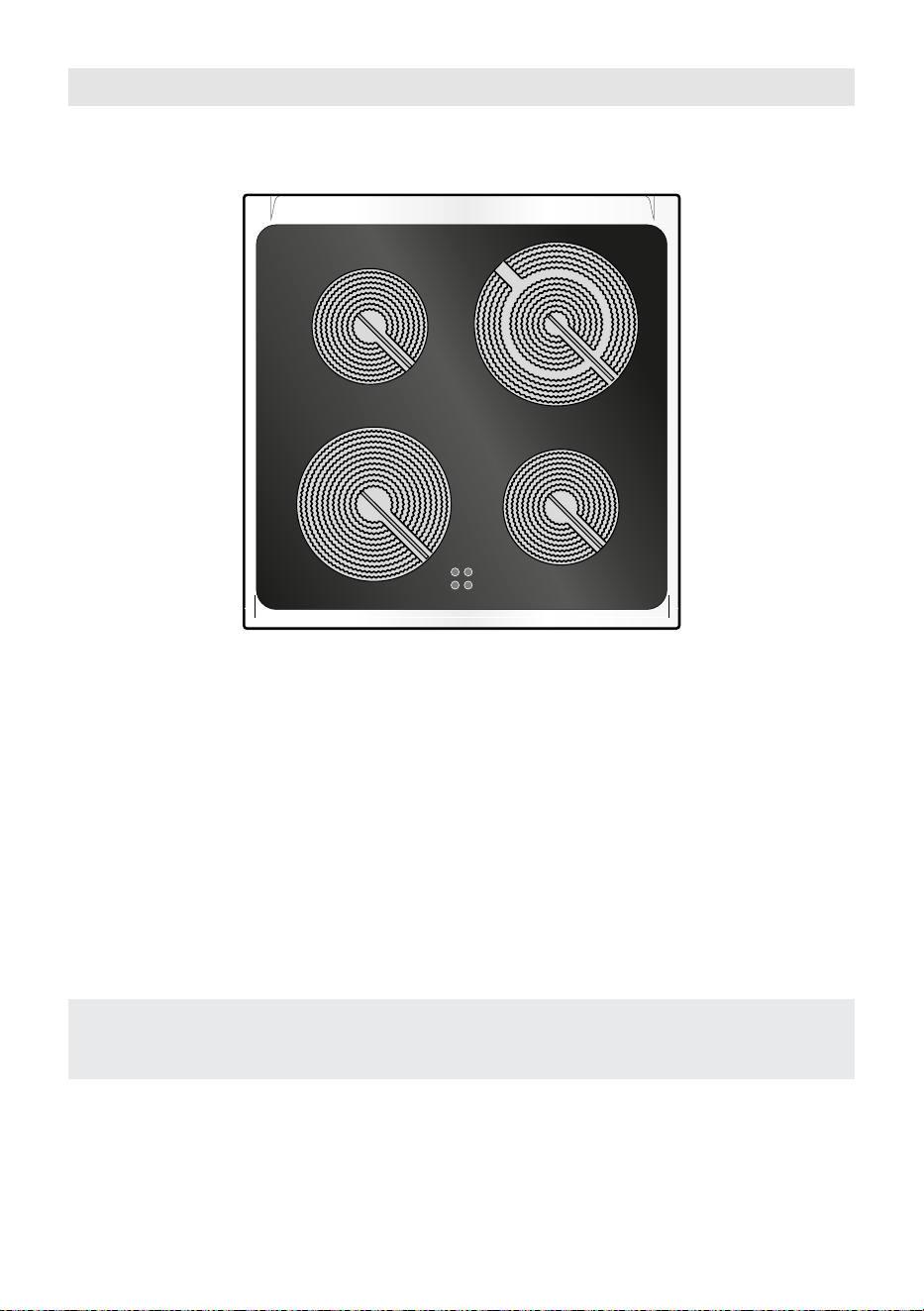

VITROCERAMIC COOKING HOB
1. ‘Hi-light’ cooking zone, Ø 145 mm 1200 W (@230V)
2. Double ‘Hi-light’ cooking zone, Ø 210/120 mm 2200/750 W (@230V)
3. ‘Hi-light’ cooking zone, Ø 180 mm 1800 W (@230V)
4. Residual heat indicators
1
3
2
1
4
This gure is indicative only.
Caution! Do not cover the hob with aluminium foils.
1919
1
2
3
4
5
6
7
8
9
10
11
12
The ceramic surface of the hob allows a fast transmission of heat in the vertical direction,
from the heating elements underneath the ceramic glass to the pans set on it.
The heat does not spread in a horizontal direction, so that the glass stays “cool” at only a
few centimeters from the cooking plate.
The cooking zones are shown by painted disks on the ceramic surface.
Before switching on the cooktop make sure that it is clean.
Important note:
The heating elements incorporate a thermolimiter that switches the element ON/OFF
during all settings to protect the ceramic glass from overheating.
The use of incorrect pans and/or wrong pan positioning will cause the temperature limiter
to operate more frequently, resulting in a reduction of cooking performance.
The temperature limiter can be seen under the glass dissecting the element. This is not a
fault with the appliance.

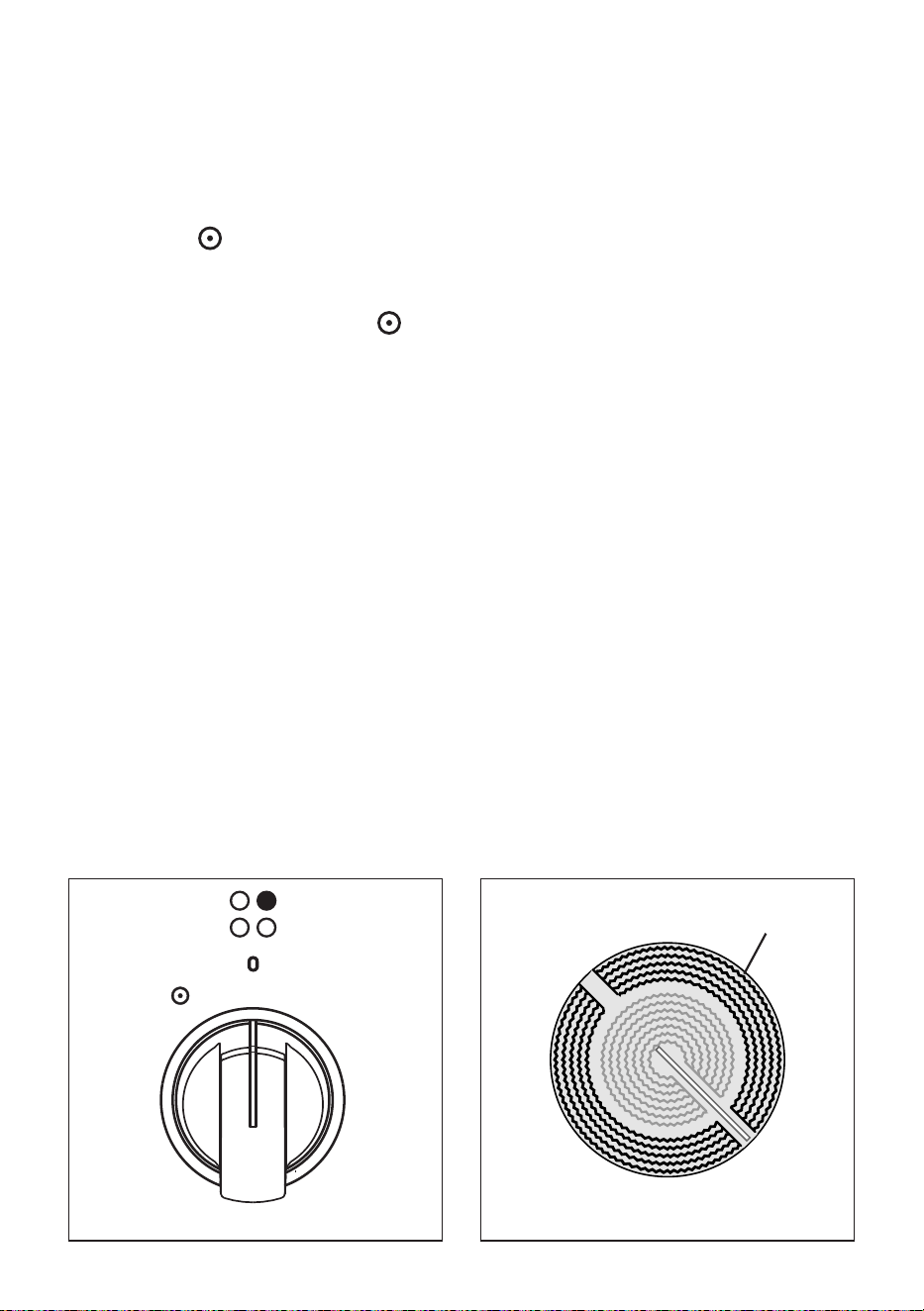

“HI-LIGHT” RADIANT ZONES
The heating element (g. 16) is formed of a coil of resistant material which reaches the
working temperature quickly.
Operation of the cooking zone is controlled by a continuous energy regulator from ‘1‘ to ‘12‘
(maximum temperature) (g. 15).
HOW TO USE THE VITROCERAMIC HOB

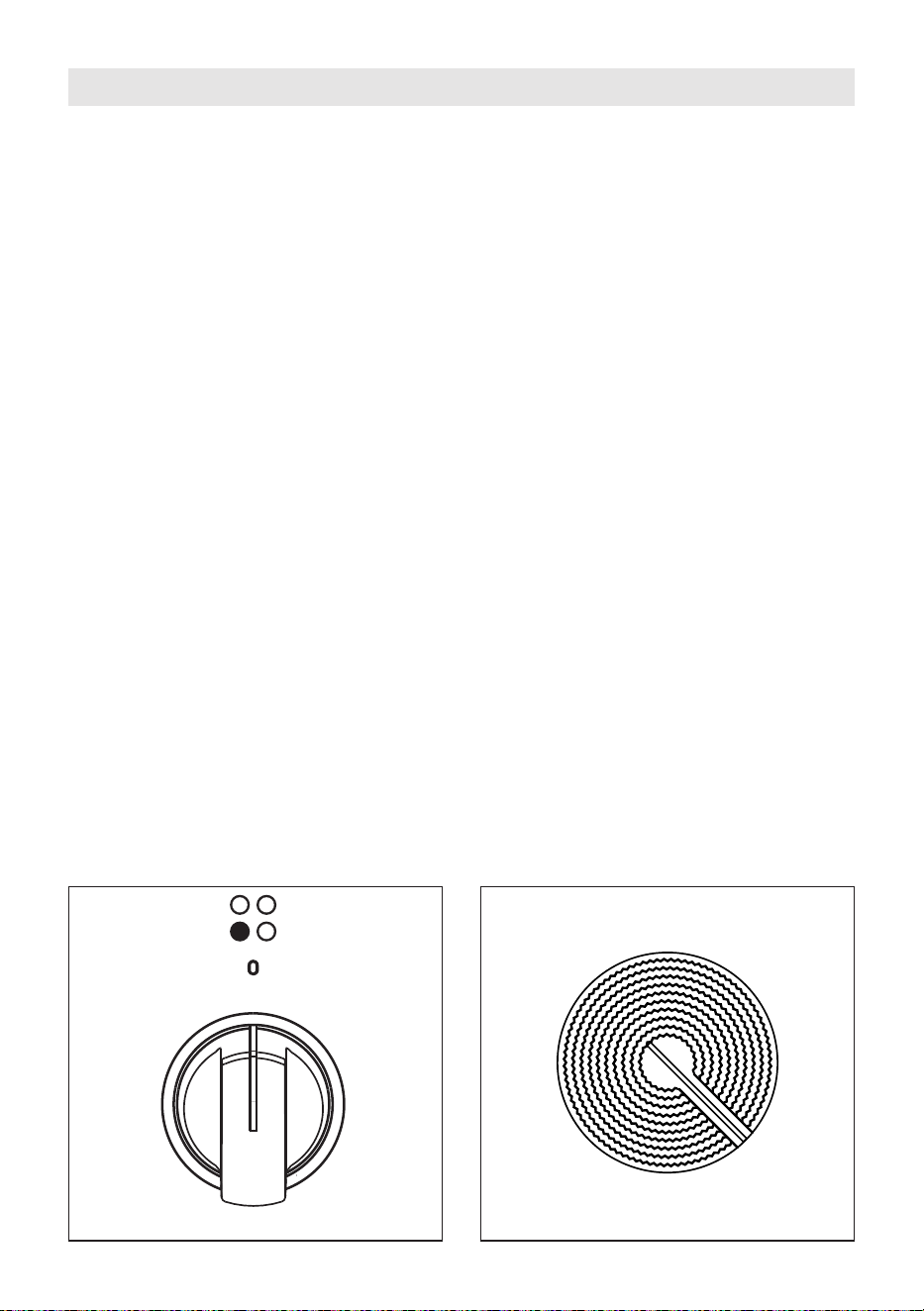

Figure 15 Figure 16
2020
1
2
3
4
5
6
7
8
9
10
11
12
Second element
“HI-LIGHT” DOUBLE RADIANT ZONE
The heating element is formed of a coil of resistant material which reaches the working
temperature quickly.
Operation of the cooking zone is controlled by a continuous energy regulator from ‘1‘ to ‘12‘
(maximum temperature) (g. 17).
To turn on both zones of the double element, turn the double element knob fully clockwise
to the position .
To reduce the heat of the full double element, turn its knob anticlockwise to setting ‘12‘ or
lower. Adjust the heat during cooking as necessary.
Note: if you leave the knob at the position, the full double element will remain at the
highest heat setting.
To return to using only the inner zone of the double element, rst turn the knob to the ‘0‘ (o)
position (you should feel a click) and then clockwise to a setting from ‘1‘ to ‘12’.
DOUBLE ZONE
Figure 17 Figure 18
2121
Knob
setting
TYPE OF COOKING
0 Switched OFF
1
2
For melting operations
(butter, chocolate).
2
3
4
To maintain food hot and to
heat small quantities of liquid
(sauces, eggs).
4
5
6
To heat bigger quantities;
to whip creams and sauces
(vegetables, fruits, soups).
6
7
Slow boiling, i.e.: boiled
meats, spaghetti, soups,
continuations of steam
cooking of roasts, stews,
potatoes.
7
8
For every kind of frying,
cutlets, uncovered cooking,
i.e.: risotto.
8
9
10
Browning of meats,
roasted potatoes, fried sh,
omelettes, and for boiling
large quantities of water.
11
12
Fast frying, grilled steaks,
etc.
Switching on the second
element (double zones only)
■ Please note that these are only guidelines, you will quickly learn from experience
which setting is correct for your needs.
ECONOMIC COOKING
■ The ceramic glass retains heat, so you may nd that you can switch o the heat 5
minutes before you nish cooking.
■ To reduce the cooking time, the plate can be set to the maximum setting at the
beginning. It can then be reduced later.
1
2
3
4
5
6
7
8
9
10
11
12
COOKING HINTS:
Roasting - Frying
Cooking Warming
Temperature control knob
Elements usage table
Figure 19
2222
RESIDUAL HEAT INDICATORS
The hob also features no.4 warning lamps
which are wired to the corresponding plate.
When the temperature of a cooking plate is
over 60 °C, the warning lamp is also lit-up
to warn of heat on the surface of the hob.
This lamp also stays on after the cooking
plate has been switched o to shown that
the hob surface is still hot.
This residual heat lasts for a rather long
time after the cooking plate has been
switched o.
During this spell of time you should
avoid touching the hob surface over
the cooking plate; please pay special
attention to children.
The lamp will switch o automatically as
soon as the surface temperature of the
cooking plate falls below 60 °C.
COOKING HINTS:
■ To reduce the cooking time, you can
turn the control knob to the max when
you switch the plate on. After a short
time you can set the control knob to
the position required for cooking.
■ You should only use pots and pans
with at bases (pans with the test mark
for glass-ceramic hobs are available
from specialist shops). The diameter
of the pan should match that of the
cooking plate (or be slightly bigger) to
make the most of the energy.
■ Since the cooking surface will stays
hot for a certain time after the plate
has been switched o, you can switch
it o 5 or 10 minutes before the end of
the cooking. The residual heat of the
hob will complete the cooking.
■ To save electricity, use pan lids
whenever possible.
■ Never cook the food directly on the
glass ceramic cooktop, but in special
pans or containers.
DO NOT USE GLASSWARE ON CERAMIC HOBS.
DO NOT USE PANS WITH ROUGHT CIRCULAR
MACHINED BASE.
Caution!
The cooking hob becomes very hot
during operation.
Keep children well out of reach.
Do not scratch the cooktop with
cutting or sharp objects.
Do not use the glass ceramic surface
as a work surface.
Figure 20
2
3
2
4
1
Figure 21
Figure 22
2323
SAFETY HINTS
■ Make sure that the hob is clean before you use it.
■ Always ensure that the base of your saucepan is clean and dry before placing on the
hob.
■ Before switching on make sure that you have the correct knob for the hotplate chosen.
It is advisable to put the pan on the hotplate before switching on and to take it away
after switching o.
■ Use cookware with at and even bottoms (be careful when using cast iron vessels).
Uneven bottoms can scratch the glass ceramic surfaces. Be careful that the bottom is
clean and dry.
■ Pots with aluminium bottoms may leave silver streaks or spots on the hob.
■ Do not leave wet or damp lids on the hob.
■ The glass-ceramic surface and pans must be clean. Carefully eliminate any food
remains (especially containing sugar), dirt etc. with the aid of a cleansing agent.
■ Make sure that the handles of cookware do not stick out over the edge of the cooker,
to avoid them being knocked over by accident. This also makes it more dicult for
children to reach the cooking vessels.
■ Do not lean over the cooking zones when they are switched on.
■ Do not drop heavy or sharp objects on the glass ceramic cooktop. If the surface is
broken or damaged unplug the appliance and contact the after-sales service.
■ Do not put aluminium foil or plastic objects on the cooking zones when they are hot.
■ Remember that the cooking zones remain hot for some time after they are switched
o (about 30 mm).
■ Follow the cleaning instructions carefully.
■ Never use the glass surface for storage.
■ DO NOT use the hob if the glass surface is broken or cracked in any way.
Please disconnect the appliance from the mains and call the After-Sales Service.
WARNING:
■ HOBS BECOME VERY HOT WITH USE, AND RETAIN THEIR HEAT FOR A LONG
TIME AFTER COOKING HAS FINISHED. CHILDREN SHOULD BE SUPERVISED
AT ALL TIMES AND BE PREVENTED FROM TOUCHING THE HOT SURFACES
UNTIL SUCH TIME AS THE APPLIANCE HAS COOLED.
COOKWARE:
It is very important that the pans used on the hobs are made of a suitable material and have
the correct base as follows:
■ The base should be at and smooth.
■ Any rough part on the pan base could scratch the hob surface.
■ Choose pans which are the same size as the hotplates and with bases that are as non
reective as possible, e.g. dull and dark.
Only pans recommended for use on ceramic hobs should be used.
Pans made of the following materials can cause problems:
Cast Iron ■ The base may be rough which will scratch the hob.
Toughened Glass ■ If the pans become too hot, the hob may overheat causing
the safety cut out to operate too frequently thus reducing the
cooking eciency.
Copper ■ Can easily distort and will therefore not form a good contact
between base and hob which will result in uneven cooking.
2424
COOKING WITH ELECTRIC OVEN
NOTE: When using the oven for the rst
time, in order to eliminate any traces of
substances or odours left over from the
production process, switch the oven on
and run it empty (without the accessories,
which should be washed separately),
keeping the installation environment
suciently ventilated:
■ for 60 minutes in the position
(thermostat in position 250 °C);
■ for 15 minutes in the position
(thermostat in position 225 °C).
Smells and fumes produced during this
burn o process are not a cause of alarm.
Adequate ventilation should however be
provided in the room where the appliance is
installed, e.g. by opening a window.
When the oven has cooled down
completely, disconnect the appliance from
the electrical power supply and clean
the inside of the oven as described in
“CLEANING AND MAINTENANCE”.
Attention: The oven door becomes
very hot during operation.
Keep children away.
WARNING: The door is hot, use the
handle.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside
the oven.
Do not line the oven walls or oor
with aluminium foil. Do not place
any trays on the base of the oven
chamber.
RISK OF IRREPARABLE DAMAGE
TO THE ENAMEL.
THERMOSTAT CONTROL KNOB
To turn on the heating elements of the
oven, set function selector knob to the
required position and the thermostat knob
to the desired temperature.
To set the temperature, line up the
temperature knob indicator with the
required temperature (or line up the
temperature on the knob with the indicator
on the control panel).
The elements will turn on or o automatically
which is determined by the thermostat.
The operation of the heating elements is
signaled by a light placed on the control
panel.
2525
FUNCTION
NAME OF THE
FUNCTION
DESCRIPTION OF THE FUNCTION
DEFROSTING
FROZEN FOODS
Only the oven fan is switched on.
To be used with the thermostat knob in the “ ” (o)
position because the other positions have no eect.
The defrosting is done by simple ventilation without heat.
Recommended for:
To rapidly defrost frozen foods; 1 kilogram requires
about one hour. The defrosting times vary according to
the quantity and type of foods to be defrosted.
TRADITIONAL
CONVECTION
COOKING
The upper and lower heating elements are switched
on.
The heat is diused by natural convection and the
temperature must be regulated between the minimum
and the maximum position with the thermostat knob.
Recommended for:
For foods which require the same cooking temperature
both internally and externally, i. e. roasts, meringue,
etc.
CONVECTION
COOKING
WITH
VENTILATION
The upper and lower heating elements and the fan
motor are switched on.
The heat coming from the top and bottom is diused
by forced convection.
The temperature must be regulated between
the minimum and the maximum position with the
thermostat knob.
Recommended for:
For foods of large volume and quantity which require
the same internal and external degree of cooking; for
ex: rolled roasts, turkey, legs, cakes, etc.
LOWER HEATING
ELEMENT
WITH
VENTILATION
The lower heating element and the fan motor are
switched on.
The heat coming from the bottom is diused by forced
convection.
The temperature must be regulated between the
minimum and 250 °C maximum with the thermostat knob.
Recommended for:
To complete cooking of dishes that require higher
temperature at the bottom.
Depending on your model, your oven may only have some of these functions.
For best results, always preheat the oven.
NOTE: The symbols shown in this section are for guidance only and represent the
primary function.
2626
GENTLE
COOKING
This function is particularly benecial for the gentle
cooking of small quantities of food on a single shelf.
It is recommended to place the food on the rst rack
from the bottom.
It is not necessary to preheat the oven and use with
the oven door closed.
Cooking times may be longer than standard functions.
Do not use this function to preheat the oven.
UPPER
HEATING
ELEMENT
In this position only the upper heating element is
switched on.
Heat is distributed by natural convection.
The temperature must be regulated between
the minimum and the maximum position with the
thermostat knob.
Recommended for:
To complete cooking of dishes that require higher
temperature at the top.
LOWER HEATING
ELEMENT
In this position only the lower heating element is
switched on.
Heat is distributed by natural convection.
The temperature must be regulated between the
minimum and 250 °C maximum.
Recommended for:
To complete cooking of dishes that require higher
temperature at the bottom.
DOUBLE GRILL
COOKING
The infrared heating element and the upper heating
element is switched on. The heat is diused by
radiation.
Use with the oven door closed and the thermostat
knob must be regulated between the minimum and
225 °C maximum.
For correct use see chapter “USE OF THE GRILL”.
Recommended for:
Intense grilling action for cooking with the broiler;
browning, crisping, “au gratin”, toasting, etc.
2727
OPTIONAL ADDITIONAL FUNCTIONS TO THE PRIMARY FUNCTION

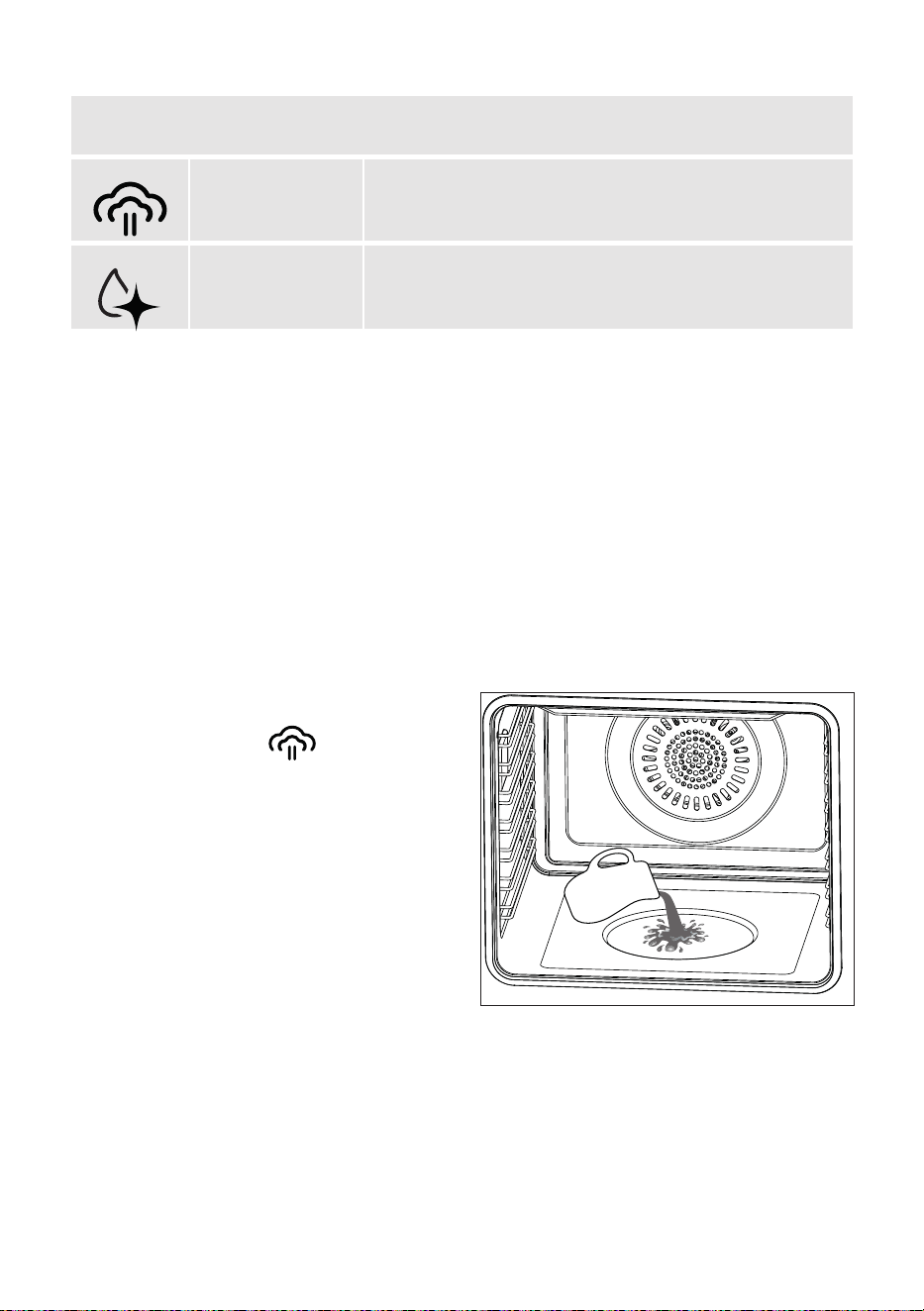

EASY STEAM See chapter “EASY STEAM”
IDROCLEAN
For the Idroclean function, see chapter “CLEANING
AND MAINTENANCE”
Depending on your model, your oven may only have some of these additional functions.
(*) Not all of the accessories / ovenware are included in the standard equipment.

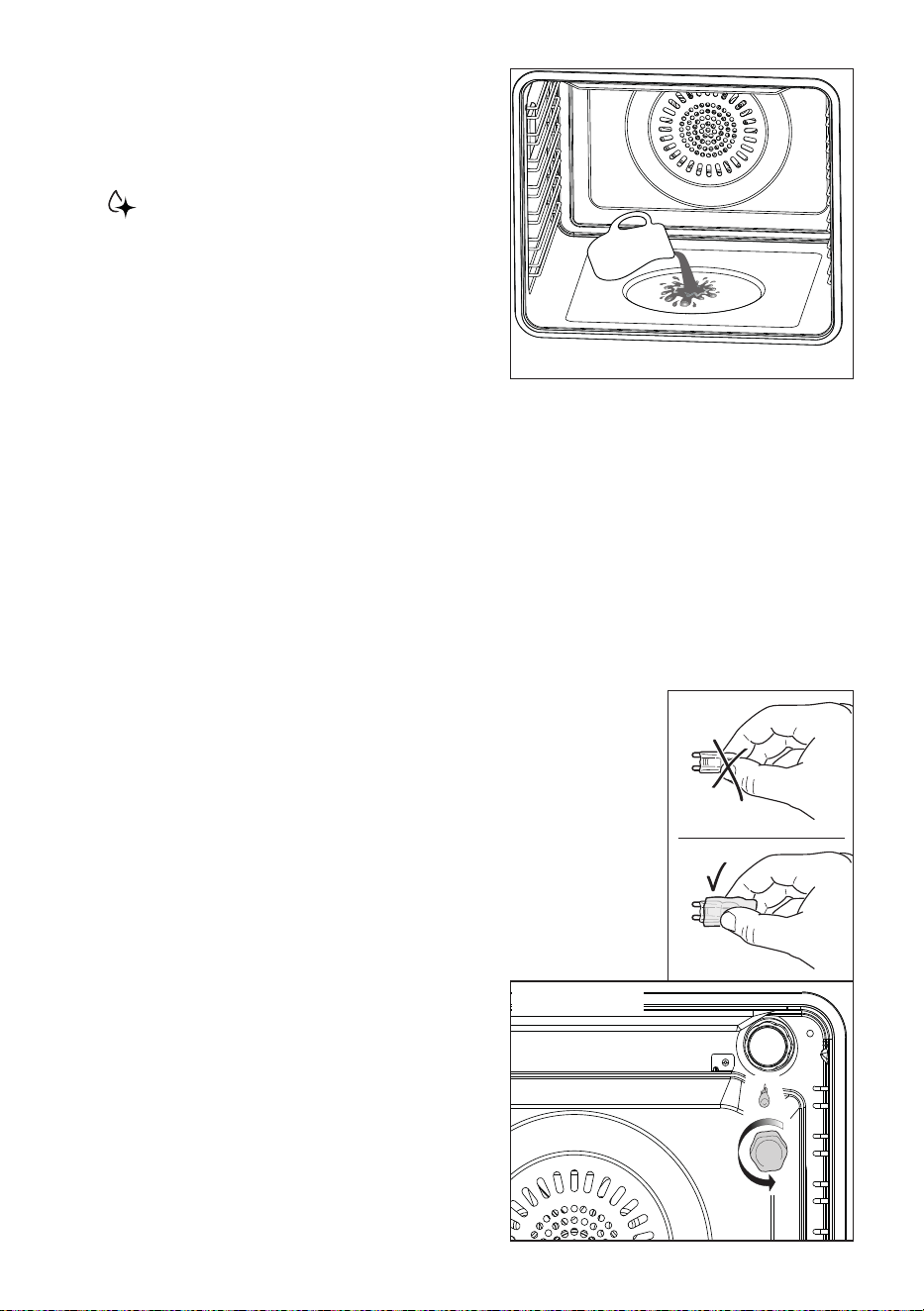

EASY STEAM
By evaporating water inside the oven, the
Easy Steam function helps make
food soft on the inside and crisp on the
outside.
1. With the oven cold, pour 250 ml of
drinking water (or the quantities of
water indicated in the cooking tables)
into the circular well on the floor of
the oven.
2. Place the food in the oven and
activate the Easy Steam function.
Caution: never open the door or
top up the water when cooking is
in progress. Burns hazard!
3. At the end of the cooking process,
open the door slowly and let the
steam out.
Caution: to prevent the formation of lime-scale, you are advised to clean the bottom
of the oven after each cooking cycle with Easy Steam, once the oven has cooled
down completely.
You are also advised to wipe the condensation off the door glass with a soft cloth
(see “CLEANING AND MAINTENANCE”).
Alternate Easy Steam cycles with conventional cooking cycles.
Max 250 ml
Figure 23
2828
STERILIZATION
Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the
following way:
a. Set the switch to position depending on model.
b. Set the thermostat knob to position 185 °C and preheat the oven.
c. Fill the baking tray with hot water.
d. Set the jars into the baking tray making sure they do not touch each other and the door
and set the thermostat knob to position 135 °C.
When sterilization has begun, that is, when the contents of the jars start to bubble, turn o
the oven and let cool.
REGENERATION
Set the switch to position and the thermostat knob to position 150 °C.
Bread becomes fragrant again if wet with a few drops of water and put into the oven for
about 10 minutes at the highest temperature.
COOKING DIFFERENT DISHES AT THE SAME TIME
With the function selector in position , the ventilated oven allows you to cook dierent
types of food at the same time.
Fish, cakes and meat can be cooked together without the smells and avours mixing.
The only precautions required are the following:
■ The cooking temperatures must be as close as possible with a maximum dierence of
20 - 25 °C between the dierent foods.
■ Dierent dishes must be placed in the oven at dierent times according to the cooking
time required for each one. This type of cooking obviously provides a considerable
saving on time and energy.
USE OF THE GRILL
Leave to warm up for approximately 5 minutes with the door closed.
Place the food inside positioning the rack as near as possible to the grill.
Insert the baking tray under the rack to collect the cooking juices.
Always grill with the oven door closed.
CAUTION: You can only use the grill function after an oven-cooking cycle if the temperature
you set is higher than the one just used for oven cooking.
Do not grill for longer than 60 minutes at any one time.
CAUTION: When the grill is on, some parts may become hot.
Keep children away.
OVEN COOKING
To cook, before introducing the food, preheat the oven to the desired temperature.
When the oven has reached the desired temperature, introduce the food, control the
cooking time and tum o the oven 5 minutes before the theoretical time to recuperate the
stored heat.
2929

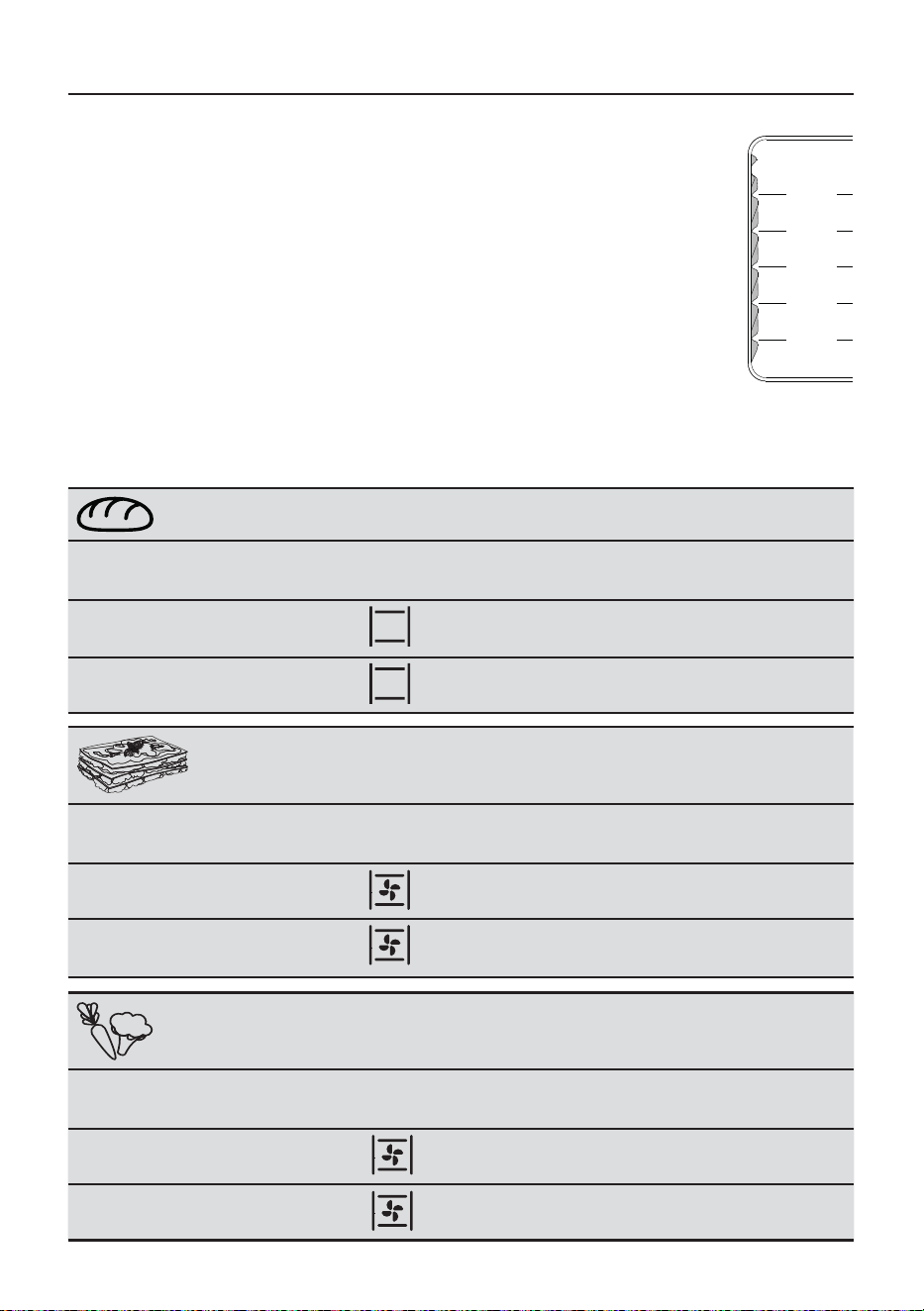

COOKING ADVICE
The cooking settings specied in the tables below are guidelines and
may vary according to the type and quantity of ingredients and the type of
accessory used.
The appliance’s cooking performance may dier from the performance of
your previous appliance. You may therefore need to review the settings you
usually use (temperature, cooking time and which level you place the oven
grid on) according to the recommendations provided in the tables.
Remember to use ovenproof dishes and to adjust the oven temperature
during cooking if necessary. For best results, always preheat the oven.
Not all of the accessories/ovenware are included in the standard equipment.
Those that are not included can be ordered as optional accessories or
purchased on the open market.
1
Livelli
2
3
4
5
1
Livelli
2
3
4
5
1
Livelli
2
3
4
5
6
7
L
e
v
e
l
s
BAKERY
WEIGHT
[gr]
TEMP.
[°C]
FUNCTION
LEVELS
[1÷5]
LEVELS
[1÷7]
TIME
[min.]
WATER
[ml]
ACCESSORIES
/
DISHES
FOCACCIA
WITH OLIVES
400-500
245-260
2-3 3 20-25
Aluminium
baking tray
CLASSIC
FOCACCIA
400-500
225-240
2-3 3 20-25
Aluminium
baking tray
FIRST COURSES
WEIGHT
[gr]
TEMP.
[°C]
FUNCTION
LEVELS
[1÷5]
LEVELS
[1÷7]
TIME
[min.]
WATER
[ml]
ACCESSORIES
/
DISHES
LASAGNE
900-1000
175-190 2-3 3 25-35
Aluminium
baking tray
AUBERGINE
PARMESAN
600-750 180-200 2-3 3 20-30
Aluminium
baking tray
Depending on your model, your oven may only have some of these functions.
VEGETABLES
WEIGHT
[gr]
TEMP.
[°C]
FUNCTION
LEVELS
[1÷5]
LEVELS
[1÷7]
TIME
[min.]
WATER
[ml]
ACCESSORIES
/
DISHES
POTATOES 240-260 170-190 2-3 3 35-45 Baking tray
CARROTS 150-170 170-190 2-3 3 30-40 Baking tray
3030
FISH
WEIGHT
[gr]
TEMP.
[°C]
FUNCTION
LEVELS
[1÷5]
LEVELS
[1÷7]
TIME
[min.]
WATER
[ml]
ACCESSORIES
/
DISHES
SEA BASS
900-1000
175-190 3 4 30-40 Baking tray
BAKED SEA
BREAM
450-550 175-180 2-3 3 25-35 Baking tray
SWEETS
WEIGHT
[gr]
TEMP.
[°C]
FUNCTION
LEVELS
[1÷5]
LEVELS
[1÷7]
TIME
[min.]
WATER
[ml]
ACCESSORIES
/
DISHES
SPUNGE
CAKE
360-430 175-180 2-3 3 20-30
Round cake tin
JAM CROSTATA
700-800 175-185 2-3 3 20-30 Cake tin
MUFFIN 350-450 160-180 2 2 20-35 140-160 Mun cups
STRUDEL 650-750 175-185 2-3 3 25-35 Baking tray
POUND CAKE
680-730 175-185 2-3 3 35-45
Round cake tin
APPLE CAKE
1350-1500
175-185 2-3 3 35-45
Round cake tin
BISCUITS
135-150
175-185 2 2 12-18 Dessert dish
BISCUITS
270-300
175-185
Multilevel
2 and 4
Multilevel
2 and 4
12-18 Dessert dish
3131
120’ ALARM
NOTES:
The knobs and symbols may vary.
The symbols may be printed on the
knob itself.
The minute counter is a timed acoustic
warning device which can be set for a
maximum of 120 minutes.
The knob (g. 24) must be rotated clockwise
as far as the 120 minutes position and
then set to the required time by rotating it
counterclockwise.
ATTENTION - MOST IMPORTANT: This
is only an alarm that DOES NOT switch
o the oven or grill.
REMEMBER TO TURN OFF THE
OVEN/GRILL MANUALLY.
Figure 24
3232
CLEANING AND MAINTENANCE
GENERAL ADVICE
■ Before you begin cleaning, you must ensure that the appliance is switched o
and disconnected from the electrical power supply.
■ Important: The use of suitable protective clothing/gloves is recommended when
handling or cleaning of this appliance.
■ Important: The manufacturer declines all liability for possible damage caused by
the use of unsuitable products to clean the appliance.
■ It is advisable to clean when the appliance is cold and especially when cleaning the
enamelled parts.
■ Avoid leaving alkaline or acidic substances (lemon juice, vinegar, etc.) on the surfaces.
■ Avoid using cleaning products with a chlorine or acidic base.
■ Clean the surfaces with a damp cloth and using neutral, non-aggressive detergents.
Complete the cleaning with a dry, clean cloth.
IMPORTANT: Never use abrasive products (e.g. certain type of sponges) and/or
aggressive products (e.g. caustic soda, detergents containing corrosive substances)
that could irreversibly damage the surfaces.
■ Do not use a steam cleaner because the moisture can get into the appliance thus
make it unsafe.
■ Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven
door glass since they can scratch the surface, which may result in shattering of
the glass.
■ Under no circumstances should any external covers be removed for servicing or
maintenance except by suitable qualied personnel.
WARNING! When correctly installed, your product meets all safety requirements
laid down for this type of product category. However special care should be taken
around the rear or the underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges, that may cause injury.
3333
Do not place or leave empty pans on
the glass ceramic hob.
Do not allow heavy or sharp objects to
drop on the glass ceramic hob.
Do not scratch the hob with sharp
objects. Don’t use the hob as a work
surface.
WARNING: If the hob is cracked or
otherwise damaged by falling objects
etc., disconnect the appliance from the
electrical power supply to avoid the
possibility of electric shock and call
Customer Service.
CLEANING THE CERAMIC HOB
• Before you begin cleaning make sure that the appliance is switched o.
• Remove spillages and other types of incrustations.
• Dust or food particles can be removed with a damp cloth.
• If you use a detergent, please make sure that it is not abrasive or scouring. Abrasive
or scouring powders can damage the glass surface of the hob.
• All traces of the cleaner have to be removed with a damp cloth.
• Dust, fat and liquids from food that has boiled over must be removed as soon as
possible. If they are allowed to harden they become increasingly dicult to remove.
This is especially true in the case of sugar/syrup mixtures which could permanently pit
the surface of the hob if left to burn on it.
• It is highly recommended to keep o the hob any article which can melt: plastic,
aluminium foil, sugar, sugar syrup mixtures etc.
• If any of these products has melted on the ceramic surface, you should remove it
immediately (when the surface is still hot) by using a suitable scraper to avoid any
permanent damage to the surface of the hob.
• Avoid using any knife or sharp utensil since these can damage the ceramic.
• Do not use steel wool or an abrasive sponge which could scratch the surface in an
irreparable way

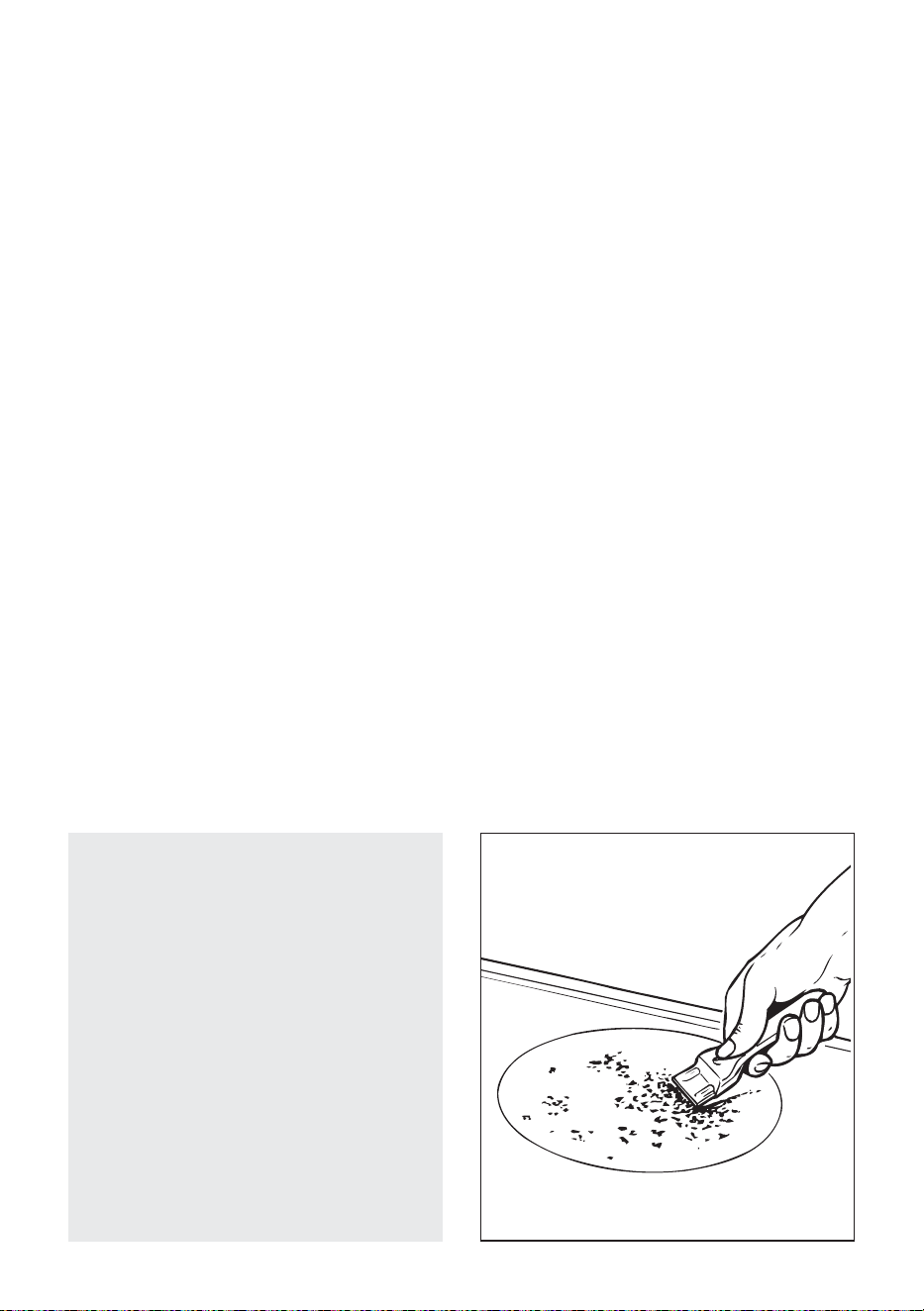

ATTENTION: MOST IMPORTANT!
If cleaning the glass ceramic hob using a special tool (i.e. scraper) take extra care to
avoid damage to the seal at the edges of the glass ceramic surface.
Figure 25
3434
ENAMELLED PARTS
All the enamelled parts must be cleaned with a sponge and soapy water or other non-
abrasive products.
Dry preferably with a microbre or soft cloth.
Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if
left too long.
STAINLESS STEEL, ALUMINIUM PARTS, PAINTED AND SILK-SCREEN
PRINTED SURFACES
Clean using an appropriate product. Always dry thoroughly.
IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion.
You are advised to use a soft cloth and neutral soap.
CAUTION: Do not use abrasive substances or non-neutral detergents as these will
irreparably damage the surface.
INSIDE OF OVEN
The oven should always be cleaned after use when it has cooled down.
The cavity should be cleaned using a mild detergent solution and warm water.
Suitable proprietary chemical cleaners may be used after rst consulting with the
manufacturers recommendations and testing a small sample of the oven cavity.
Abrasive cleaning agents or scouring pads/cloths should not be used on the cavity surface.
NOTE: The manufacturers of this appliance will accept no responsibility for damage caused
by chemical or abrasive cleaning.
Do not store ammable material in the oven.
Let the oven cool down and pay special attention no to touch the hot heating
elements inside the oven cavity.
GRILL HEATING ELEMENT
■ The heating element is self-cleaning and does not require maintenance.
CLEANING THE CIRCULAR WELL ON THE FLOOR OF THE OVEN
After using the Easy Steam and Idroclean functions, you are advised to clean and dry the
circular well on the oor of the oven.
All enamelled parts must be cleaned using a sponge and soapy water or other suitable
non-abrasive products.
Dry with a soft cloth.
3535
IDROCLEAN
1. With the oven cold, remove all
accessories, pour 100 ml of drinking water
into the circular well on the oor of the
oven and switch on the Idroclean function
at 80 - 90 °C. Do not use any type of
detergent.
2. Run the function for at least 35 minutes,
depending on the type of dirt: the moisture
generated inside the oven will help remove
the dirt.
3. Once the oven is completely cold, wipe
the inside of the oven with a damp cloth to
remove any residues, and use a soft cloth
to wipe any condensation o the inside of the oven or the inside of the door glass.
The Idroclean function provides quick, everyday, detergent-free cleaning, but is not a
substitute for the more thorough cleaning needed to remove baked-on dirt: for this
purpose, clean by hand, using specic products. For best results, the Idroclean function
should be used after each cooking cycle.
CAUTION: Never open the oven door or top up the water in the well on the oor of
the oven when the Idroclean function is in operation. Burns hazard!
REPLACING THE OVEN LIGHT
WARNING: Ensure the appliance is switched o before
replacing the lamp to avoid the possibility of electric shock.
■ Let the oven cavity and the heating elements to cool down.
■ Switch o the electrical supply.
■ Remove the protective cover (g. 27).
■ Replace the halogen lamp with a new one suitable for
high temperatures having the following specications:
220-240 V ac, 50 - 60 Hz and same power (check watt
power as stamped in the bulb itself) of the replaced lamp.
IMPORTANT WARNING: Never replace the lamp with
bare hands; contamination from your ngers can cause
premature failure. Always use a clean
cloth or gloves.
■ Ret the protective cover.
NOTE: Oven bulb replacement is not covered
by your guarantee.
The intended purpose of the lamp, tted on this
appliance, is to illuminate the oven cavity and
thus help the user to better monitor the food
while cooking. This lamp is not suitable for other
usage (e.g. environments lighting).
This product contains a light source of energy
eciency class G.
100 ml
Figure 26
WRONG
CORRECT
Figure 27
3636

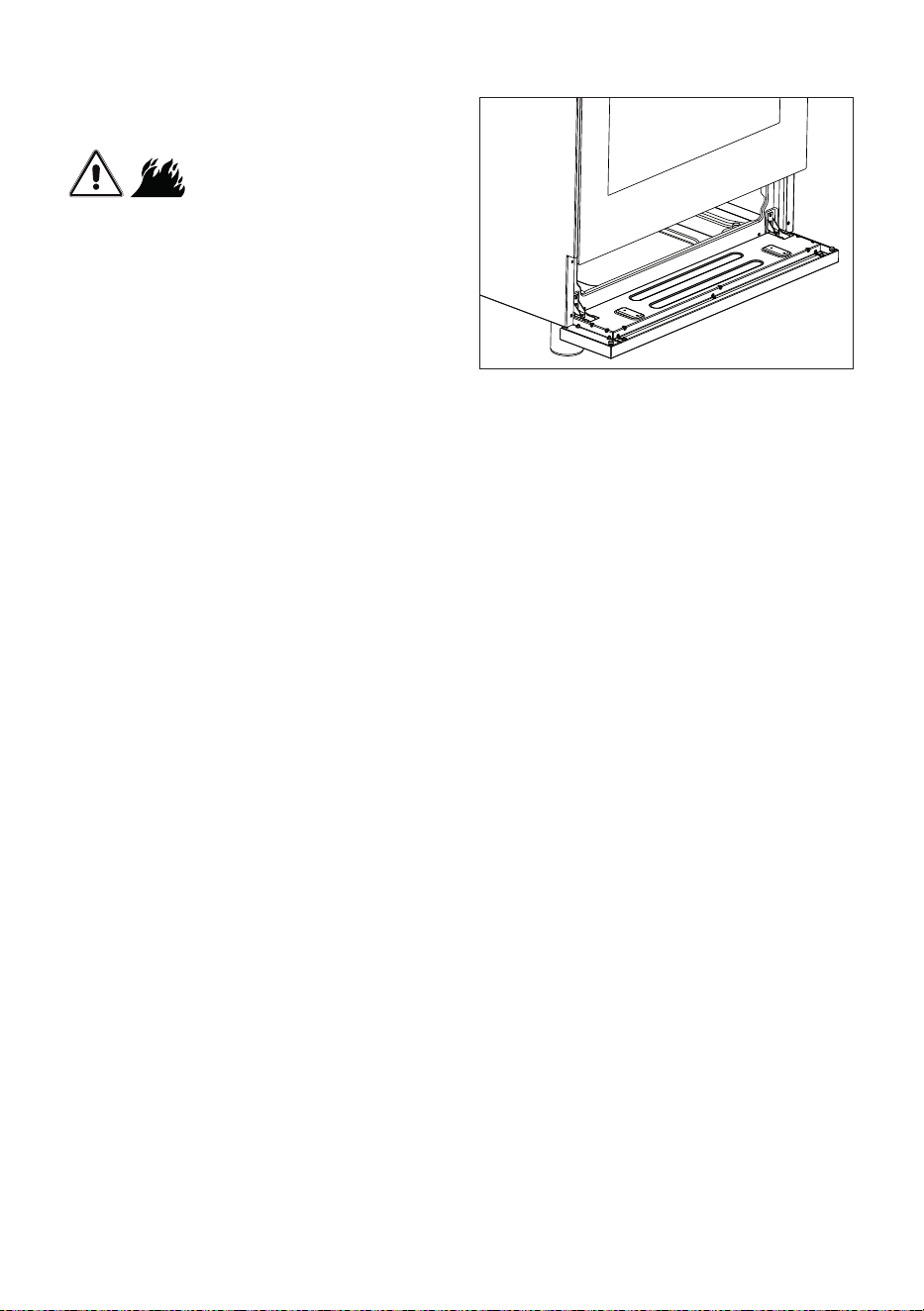

STORAGE COMPARTMENT
The storage compartment is accessible
through the pivoting panel (g. 28).
Do not store ammable
material in the storage compartment.
Figure 28
REMOVING AND REPLACING THE INNER DOOR GLASS PANE FOR CLEANING
If you wish to clean the inner pane of glass of the door, make sure you follow the precautions
and instructions very carefully.
Replacing the glass pane and the door incorrectly may result in damage to the appliance
and may void your warranty.
IMPORTANT!
■ Take care, the oven door is heavy. If you have any doubts, do not attempt to remove
the door.
■ Make sure the oven and all its parts have cooled down. Do not attempt to handle the
parts of a hot oven.
■ Take extreme care when handling the glass pane. Avoid the edges of the glass
bumping against any surface. This may result in the glass shattering.
■ CAUTION:
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door
panes of glass since they can scratch the surface, which may result in shattering of
the glass.
■ If you notice any sign of damage on any of the glass panes (such as chipping, or
cracks), do not use the oven. Call your Authorised Service Centre or Customer Care.
■ Make sure you replace the glass pane correctly. Do not use the oven without glass
pane correctly in place.
■ If the glass pane feels dicult to remove or replace, do not force it. Call your Authorised
Repairer or Customer Care for help.
Note: service visits providing assistance with using or maintaining the product are not
covered by your warranty.
3737
B
A
C

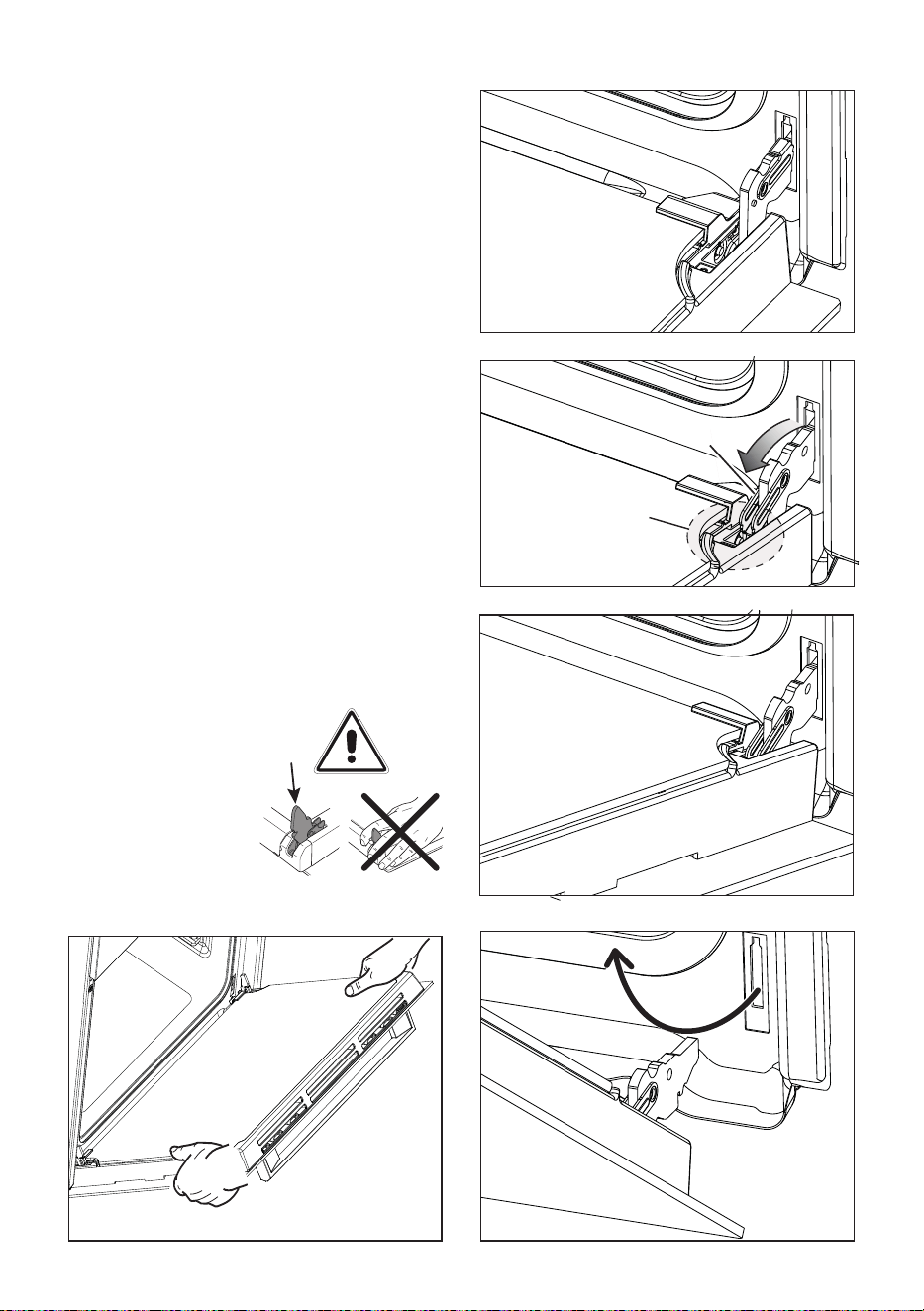

REMOVING THE OVEN DOOR
The oven door can easily be removed as
follows:
■ Open the door to the full extent (g.
30).
■ Open the lever “A” completely on the
left and right hinges (g. 31).
■ Hold the door as shown in g. 29.
■ Gently close the door until left and
right hinge levers “A” are hooked to
part “B” of the door (gs. 31, 32).
■ Withdraw the hinge hooks from their
location following arrow “C” (g. 33).
■ Rest the door on a soft surface.
Important!
Always keep a safe distance from the door
hinges, paying special attention to the position
of your hands.
If the door hinges are
not correctly hooked,
they could unhook
and close suddenly
and unexpectedly
with risk of injury.
Figure 29
Figure 30
Figure 31
Figure 32
Figure 33
3838
1
1
2
3
4

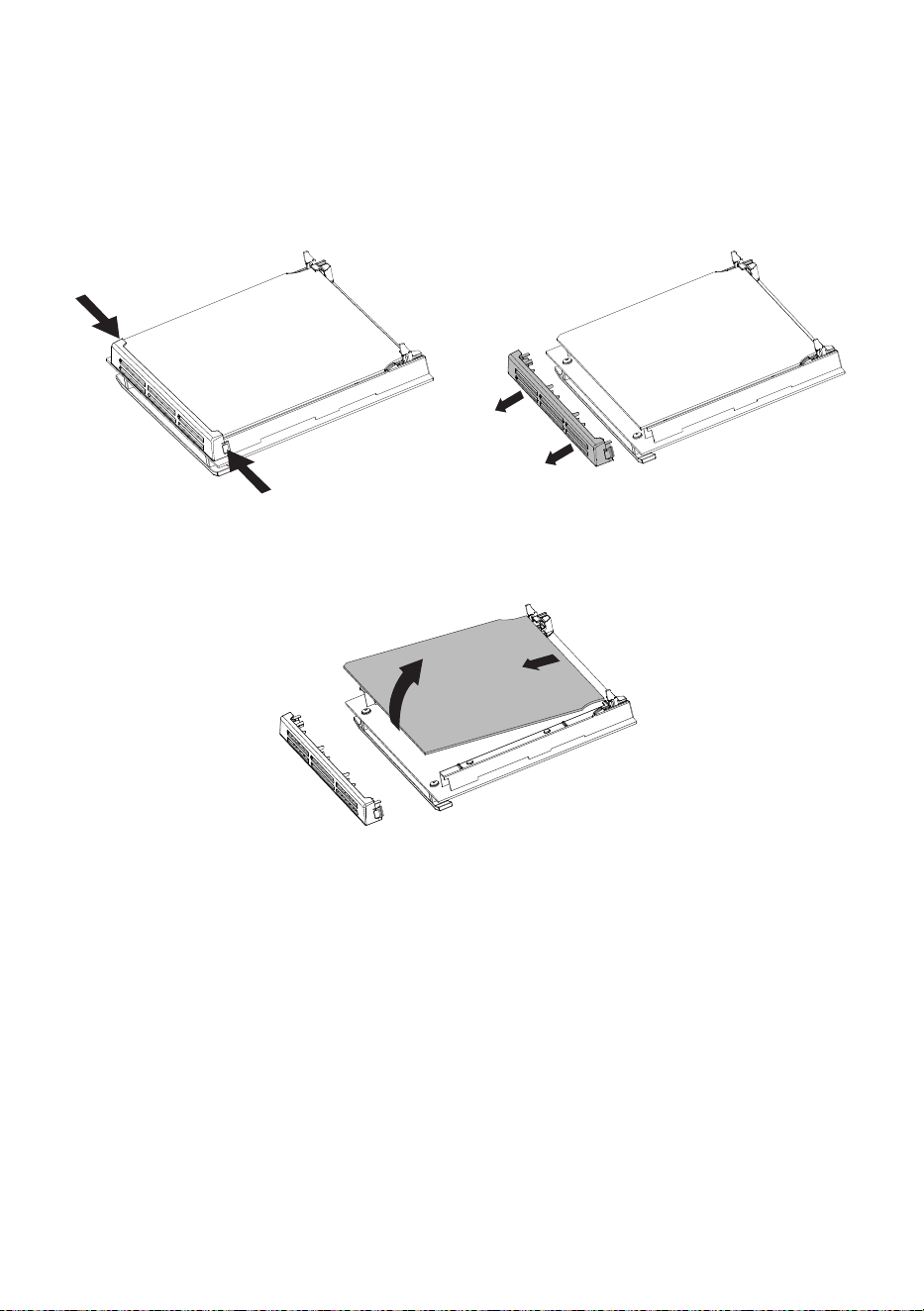

To remove the inner pane
■ Touch the glass retainer tabs in on both sides of the door and remove the glass
retainer (figs. 34, 35).
■ Gently lift and pull out the inner pane of glass by releasing it from the bottom retainers.
Do not angle the pane too much as you may damage the glass (fig. 36).
Figure 34 Figure 35
Figure 36
3939
3
3
4

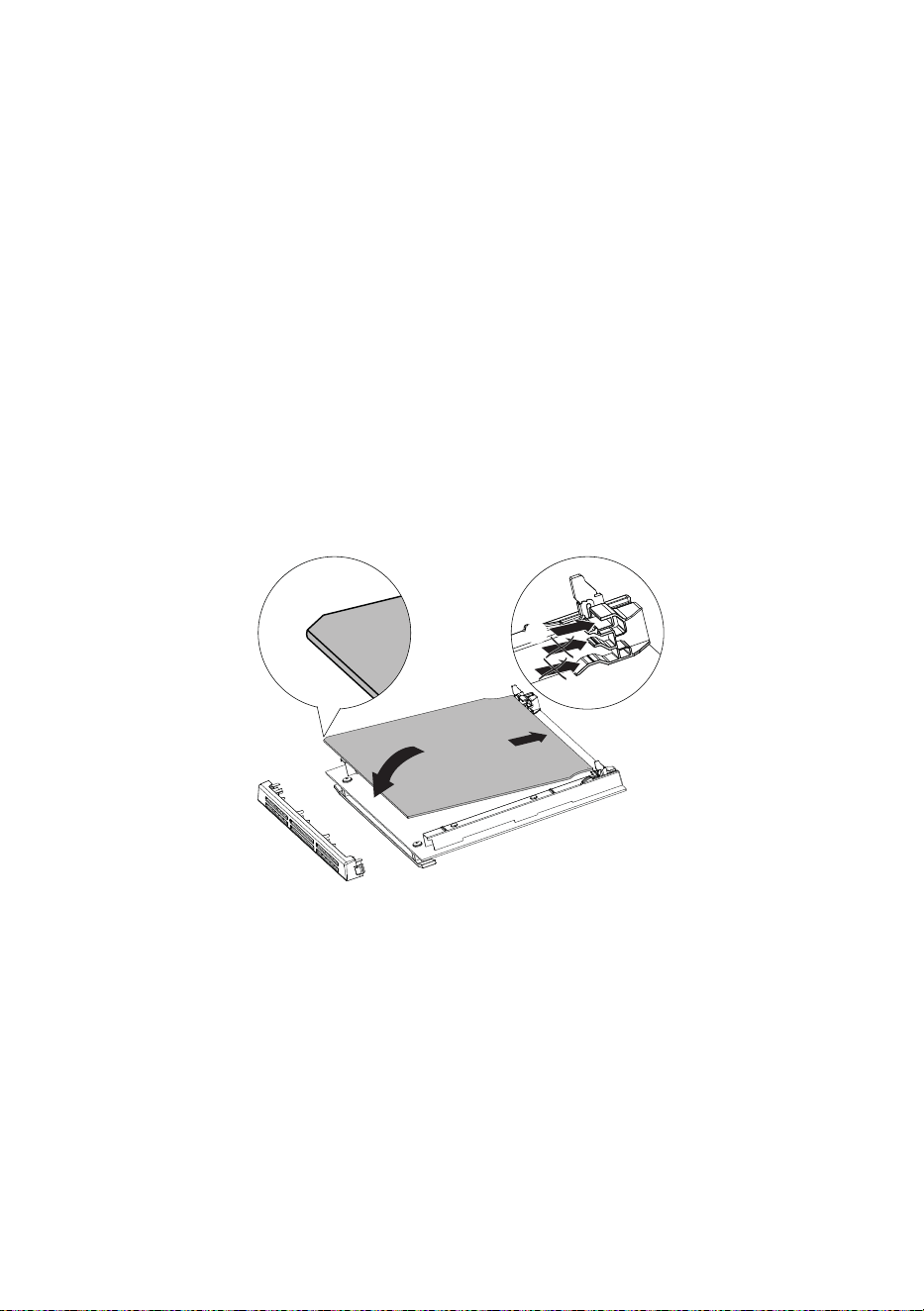

After cleaning replace the door glass pane
When replacing the glass pane make sure that:
■ you replace the inner pane correctly as shown. The pane must be in the position
described below in order to t into the door and to ensure that the oven operates safely
and correctly;
■ you take extra care not to bump the edges of the glass against any object or surface;
■ you do not force the pane into place. If you are experiencing diculties replacing the
pane, remove it and start the process again from the beginning. If this still does not
help, call Customer Care.
Replace the inner pane
Make sure you fit the glass the right way up, with the beveled top corner in the correct
position.
■ Slot the bottom of the pane into the lower notch at the bottom of the door.
■ Position the pane by gently lowering it.
■ Slide the glass retainer back into place and ensure it is fully clipped securely in place.
IMPORTANT!
Make sure the glass retainer is correctly and firmly in place and the glass pane
is secure.
Figure 37
4040
SERVICE AND MAINTENANCE
SERVICING THE APPLIANCE
Service may be obtained by contacting our Customer Service Centre to locate the nearest
Authorised Able Appliances Service Agent (Able Appliances Pty Ltd.).
Servicing shall be carried out only by authorized personnel.
The appliance shall not be modied.
TROUBLESHOOTING
If you experience a problem with your oven, check the following points before calling our
Customer Service Centre for assistance.
1. The power is switched on.
2. The controls are switched on.
3. Both the fuse and the mains fuse are intact.
Should you still require assistance please contact our Customer Service Centre for your
nearest Authorised Able Appliances Service Agent.
4141

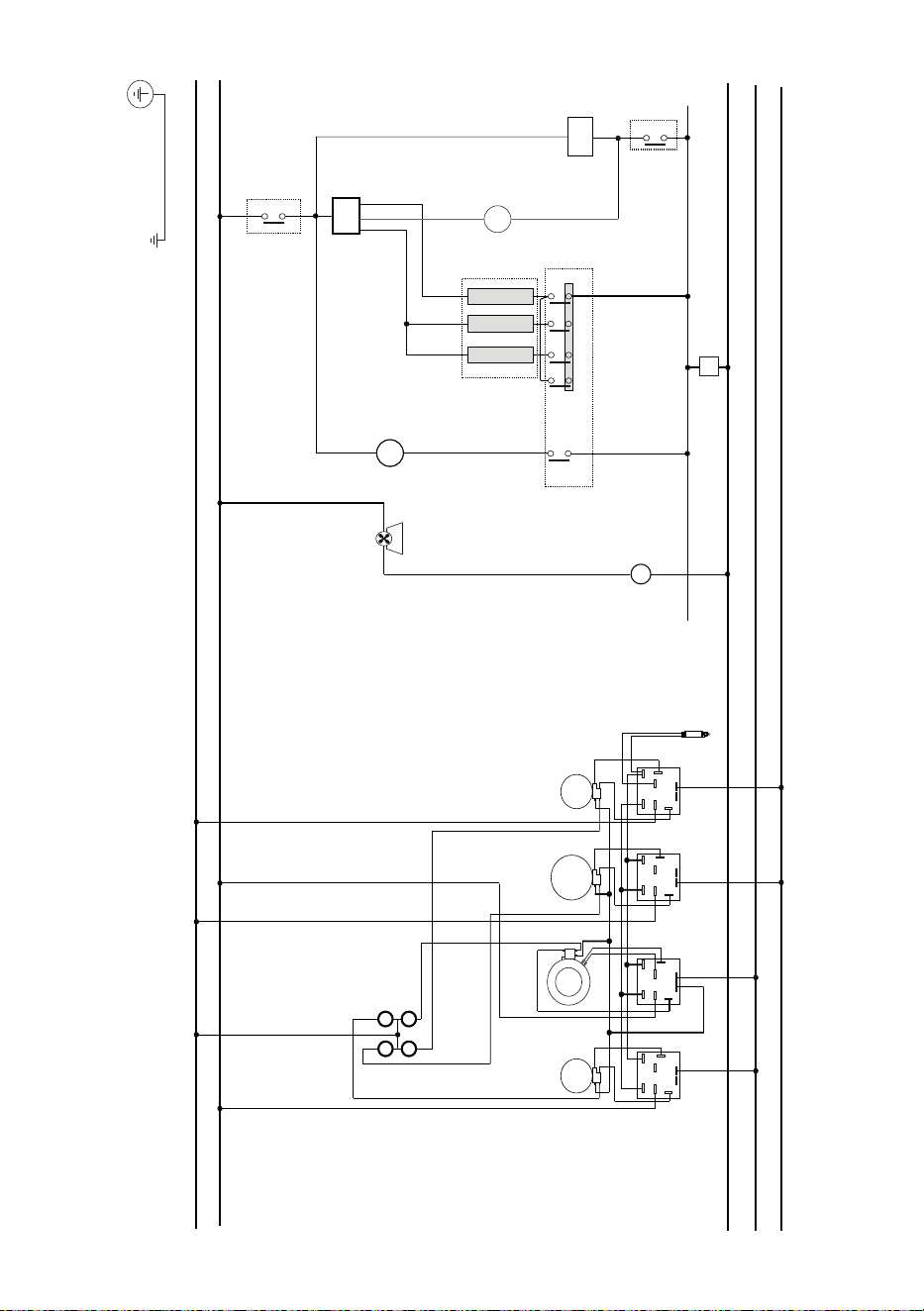

ELECTRIC DIAGRAM
N
N
R
S
T
1
1a
2
2a
6
6a4a
4
3
3a
5
5a
9
9a
BOTTOM
GRILL
TOP
P1
P2
P4
HHH
2
S
2
S
2
S
4 4 4
S1 S1S1 S1
S2 S2S2 S2
4
4
4
4
P1 P1P1 P1
P2 P2P2 P2
2 2
2
2
P3
4
4A
S H
2
4a
Oven
heating
elements
Oven
lamp
Hob on
indicator
lamp
Thermostat
pilot lamp
Earth connection
Oven switch
Thermal overload
Thermal
overload
F1 - F2 - F3 - F4
Energy
regulators
P1 - P2 - P3 - P4
Hob radiant
hotplates
F1 F2 F3
F4
Hob
residual
heat lamps
Oven
fan
motor
Cooling
fan motor
Oven
thermostat
Figure 38
4242
4343
www.delonghicookingappliances.com.au
Cod. 1106731 - ß1
Descriptions and illustrations in this booklet are given as simply indicative.
The manufacturer reserves the right, considering the characteristics of the
models described here, at any time and without notice, to make eventual necessary
modifications for their construction or for commercial needs.
