Parts ManualParts ManualParts ManualParts Manual
Mfg. No: 19V332-0142-F1
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
Table Of ContentsTable Of ContentsTable Of ContentsTable Of Contents
Model ComponentsModel ComponentsModel ComponentsModel Components PagePagePagePage
Air Cleaner Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Blower Housing Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Carburetor Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Controls Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Crankcase Cover/Sump Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Crankshaft Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cylinder Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cylinder Head Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Exhaust Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

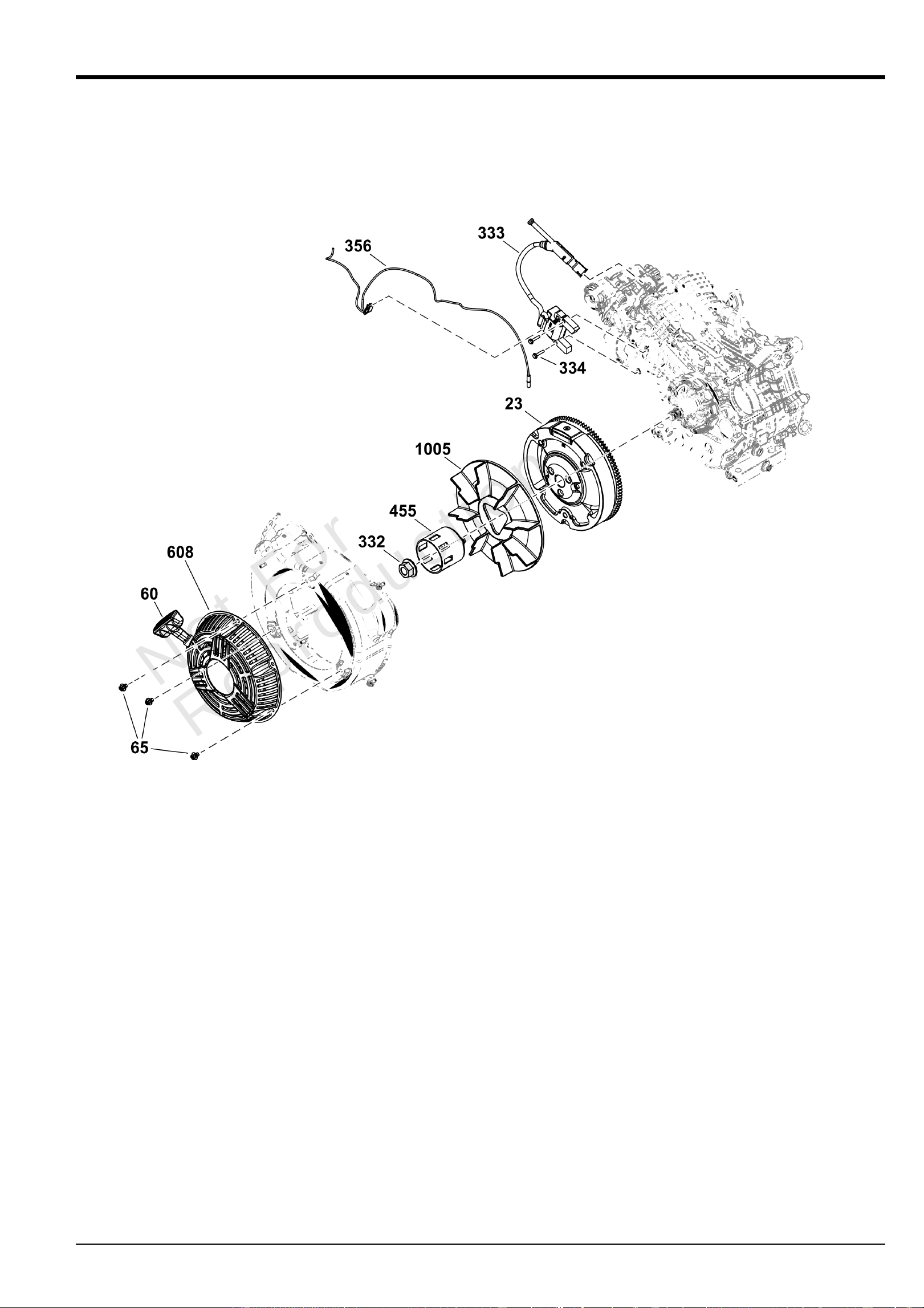

Flywheel, Ignition, and Starter Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Fuel Supply Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Lubrication Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
3 04-Sep-2025

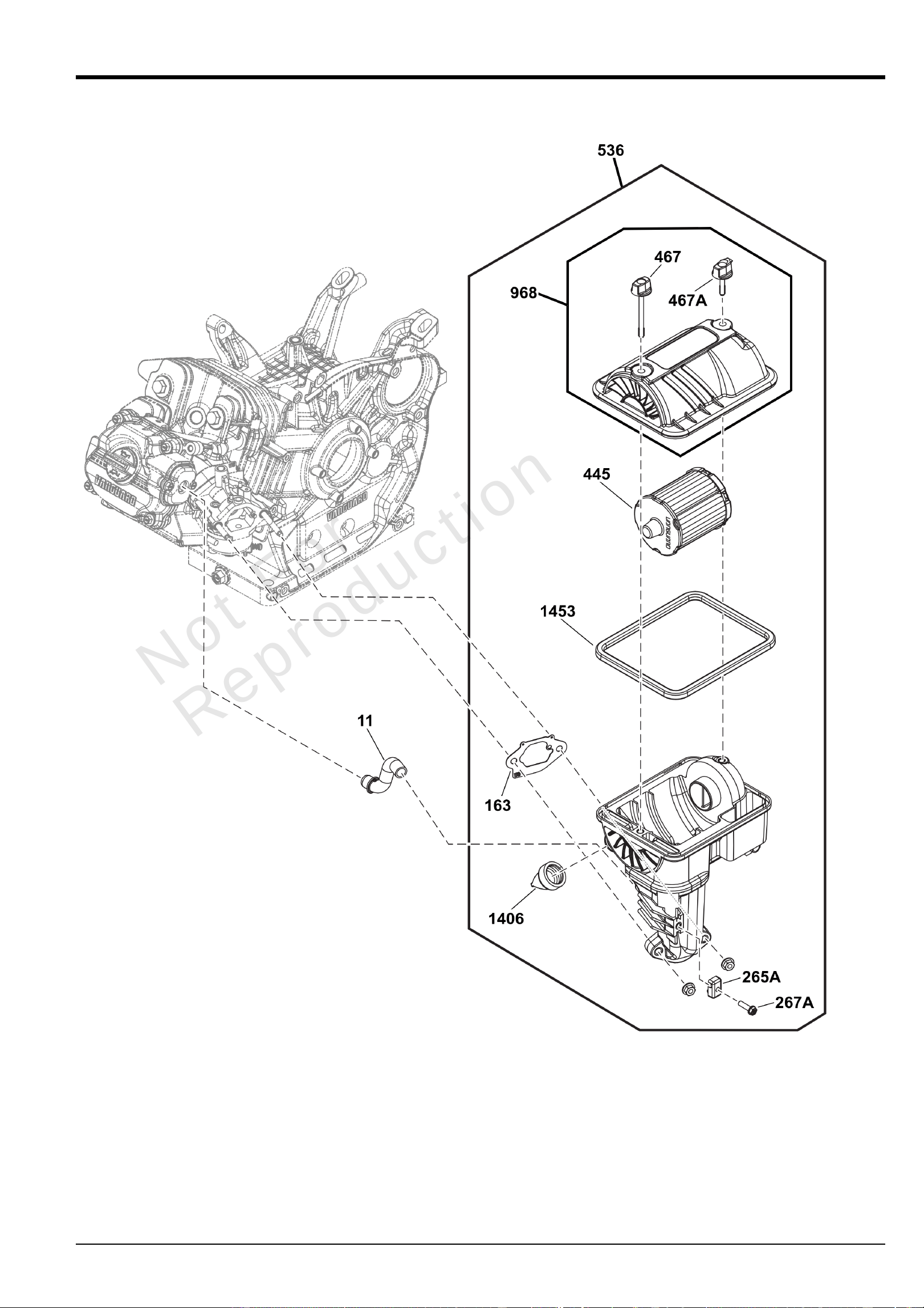

Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
4 04-Sep-2025
Air Cleaner GroupAir Cleaner GroupAir Cleaner GroupAir Cleaner Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
11 ----- 1 TUBE, Breather
-(Part information located in Cylinder Head Group.)
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor Group.)
265A 84004472 1 CLAMP, Casing
267A 84004279 1 SCREW
-(Casing Clamp)
445 84005174 1 FILTER, A/C Cartridge
467 84004159 1 KNOB, Air Cleaner Cover
467A 596759 1 KNOB, Air Cleaner Cover
536 84012982 1 CLEANER, Air
968 84012984 1 COVER, Air Cleaner
1406 597065 1 VALVE, Debris
1453 84012983 1 SEAL, Air Cleaner Cover
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
5 04-Sep-2025

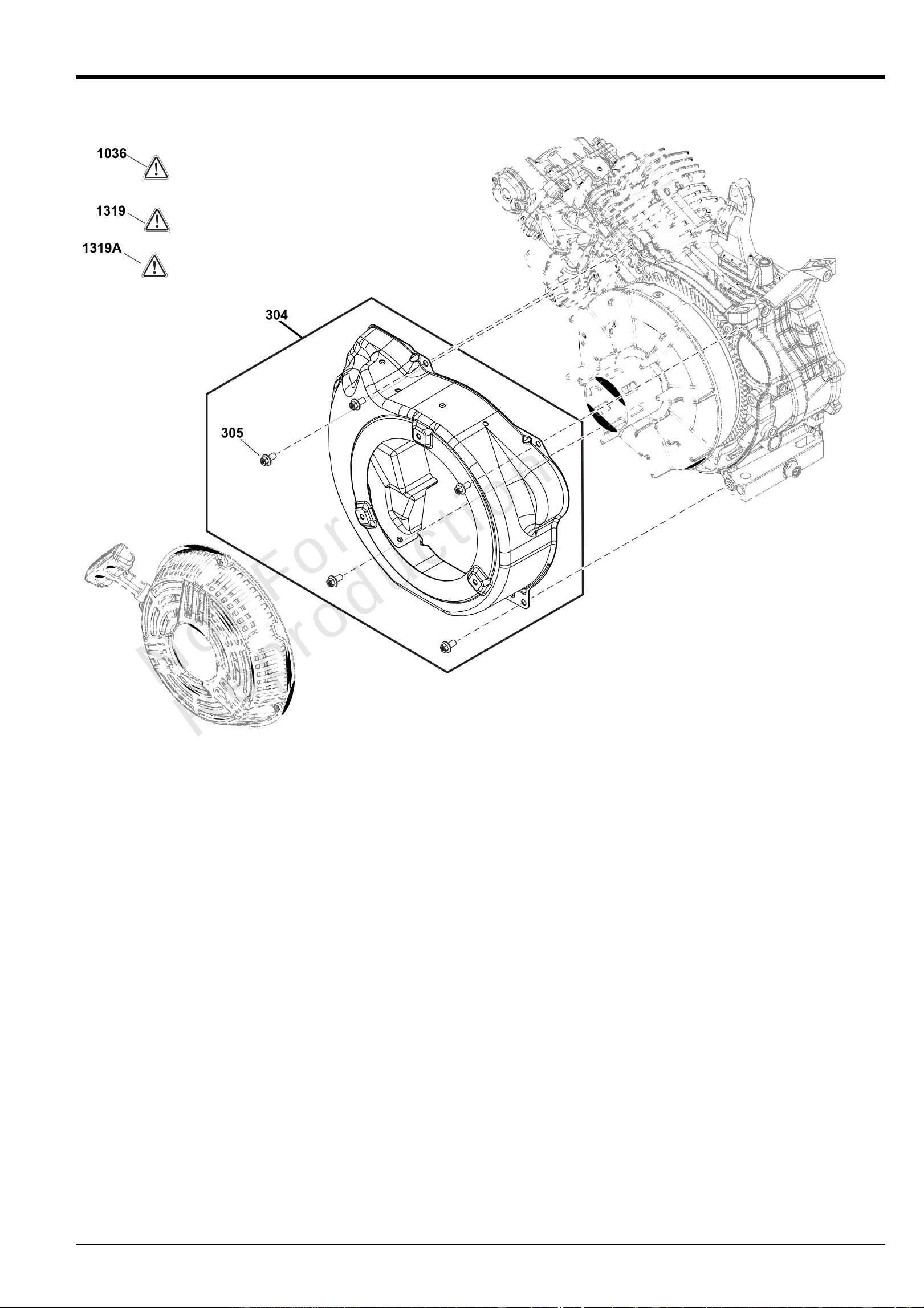

Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
6 04-Sep-2025
Blower Housing GroupBlower Housing GroupBlower Housing GroupBlower Housing Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
304 84012906 1 HOUSING, Blower
305 597078 5 SCREW
-(Blower Housing)
1036 ----- 1 LABEL, Emissions
-(Available From A Briggs & Stratton Authorized Service Dealer)
1319 797669 1 LABEL, Warning
-(Required When Replacing Parts With Warning Labels Affixed)
1319A 278911GS 1 LABEL, Warning
-(Required When Replacing Parts With Warning Labels Affixed)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
7 04-Sep-2025

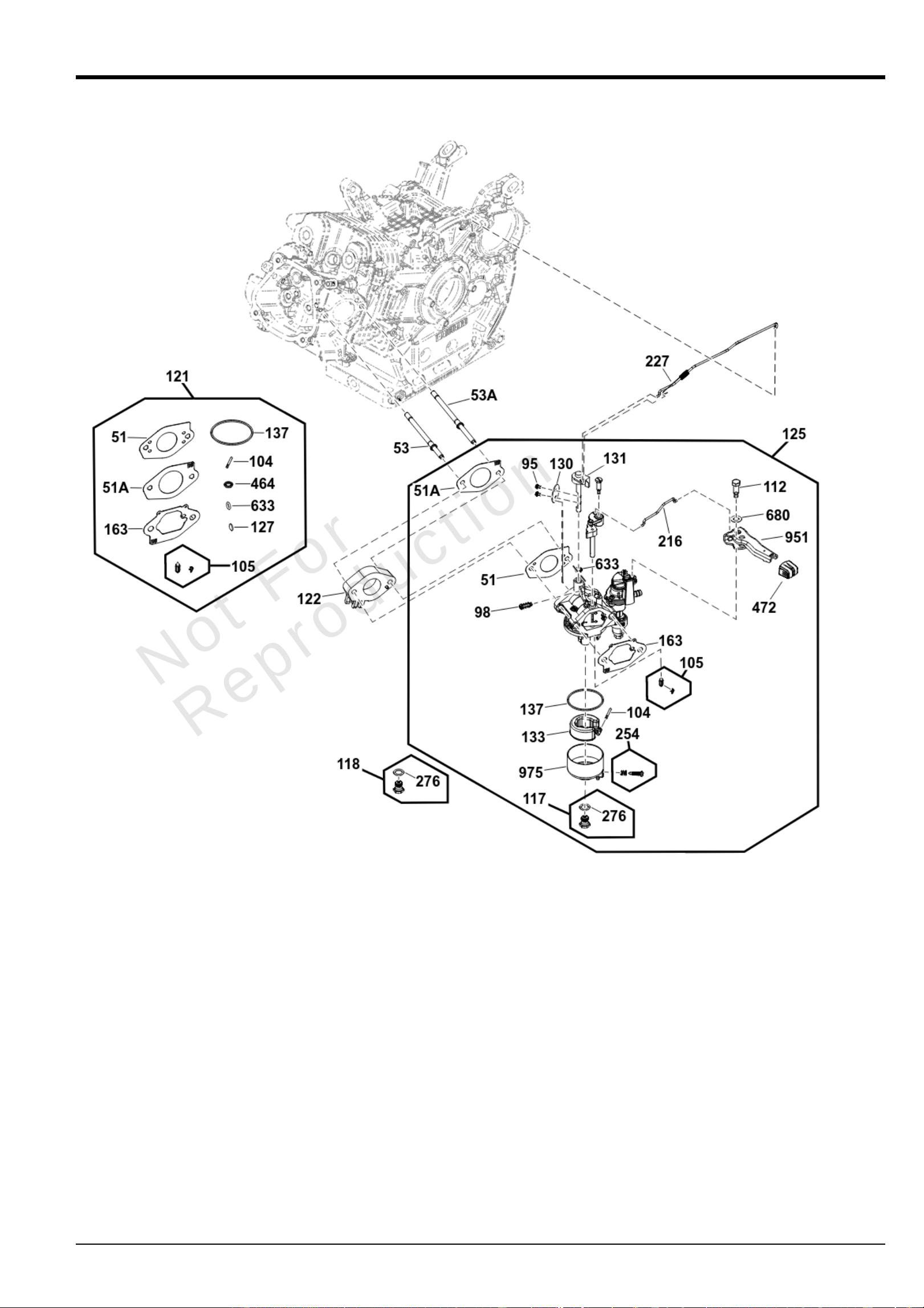

Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
8 04-Sep-2025
Carburetor GroupCarburetor GroupCarburetor GroupCarburetor Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
51 ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
51A ----- 1 GASKET, Intake
-(Part information located in Cylinder Head Group.)
53 84004315 1 STUD
-(Carburetor) (Short)
53A 84004311 1 STUD
-(Carburetor) (Long)
95 797161 2 SCREW
-(Throttle Valve)
98 797156 1 KIT, Idle Speed
104 597533 1 PIN, Float Hinge
105 84004840 1 VALVE, Float Needle
112 84003640 1 SCREW
-(Choke Lever)
117 84012917 1 JET, Main
-(Standard)
118 84012927 1 JET, Main
-(High Altitude)
121 84013147 1 KIT, Carburetor Overhaul
-(Service Kits can include parts not for this engine.)
122 84004306 1 SPACER, Carburetor
125 84012915 1 CARBURETOR
127 84004841 1 PLUG, Welch
130 84004397 1 VALVE, Throttle
131 84004396 1 SEAL, Choke/Throttle Shaft
133 84004822 1 FLOAT, Carburetor
137 84004205 1 GASKET, Float Bowl
163 84004165 1 GASKET, Air Cleaner
216 84005080 1 LINK, Choke
227 ----- 1 LEVER, Governor Control
-(Part information located in Controls Group.)
254 595322 1 DRAIN, Carburetor Bowl
276 797632 1 WASHER, Sealing
464 565320 1 SEAL, O-Ring
-(Fuel Shut-off Valve)
472 84002963 1 KNOB, Control
633 84004398 1 SEAL, Choke/Throttle Shaft
680 84005074 1 WASHER
-(Choke Lever)
951 84004369 1 LEVER, Choke
975 84004204 1 BOWL, Float
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
9 04-Sep-2025

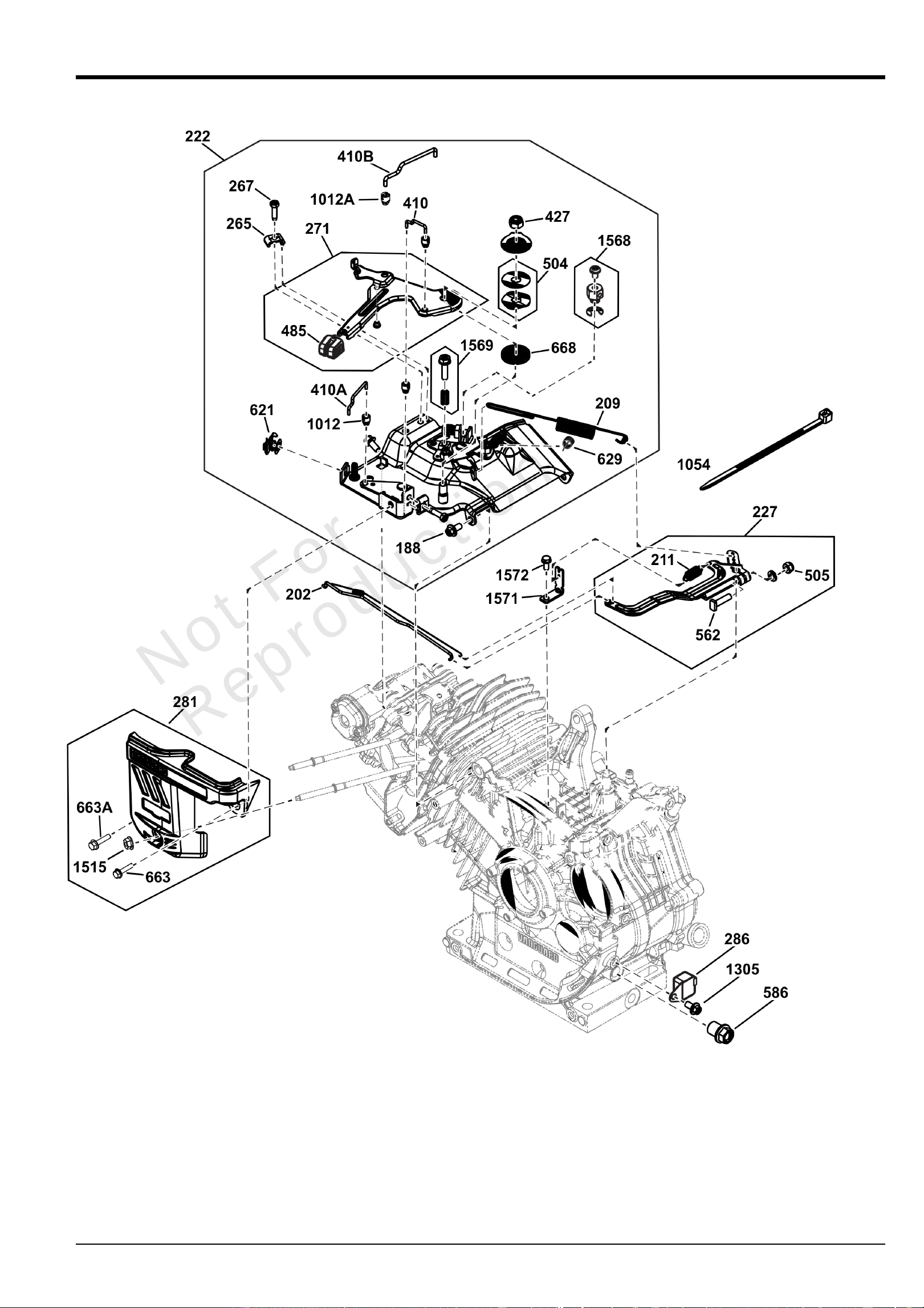

Controls GroupControls GroupControls GroupControls Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
10 04-Sep-2025
Controls GroupControls GroupControls GroupControls Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
188 597078 2 SCREW
-(Control Bracket)
202 84012971 1 LINK, Mechanical Governor
209 84012981 1 SPRING, Governor
211 691278 1 SPRING, Governor
222 84012987 1 BRACKET, Control
227 84012966 1 LEVER, Governor Control
265 691024 2 CLAMP, Casing
267 597027 2 SCREW
-(Casing Clamp)
271 84013136 1 LEVER, Control
281 84012985 1 PANEL, Control
286 84002122 1 MODULE, Oil Sensor
410 84012988 1 LINK, Control
410A 84012989 1 LINK, Control
410B 84013420 LINK, Control
427 84004395 1 NUT
-(Control Bracket)
485 84002965 1 KNOB, Control
504 84004943 1 SET, Friction Washer
505 590641 1 NUT
-(Governor Control Lever)
562 597121 1 BOLT
-(Governor Control Lever)
586 84004724 1 NUT
-(Oil Sensor)
621 84007989 1 SWITCH, Stop
629 84004146 1 SPRING, Throttle Return
663 84004256 1 SCREW
-(Control Panel)
663A 597078 1 SCREW
-(Control Panel)
668 84004140 1 SPACER
1012 84004145 3 RETAINER, Link
1012A 84004144 2 RETAINER, Link
1054 280275 1 TIE, Cable
1515 590692 1 NUT
-(Control Panel)
1305 597078 1 SCREW
-(Oil Sensor Module)
1568 84005001 2 RETAINER, Wire
1569 84005002 1 KIT, Fixed Speed
1571 84004201 1 BRACKET, Governed Idle Spring
1572 597036 1 SCREW
-(Governed Idle Spring Bracket)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
11 04-Sep-2025

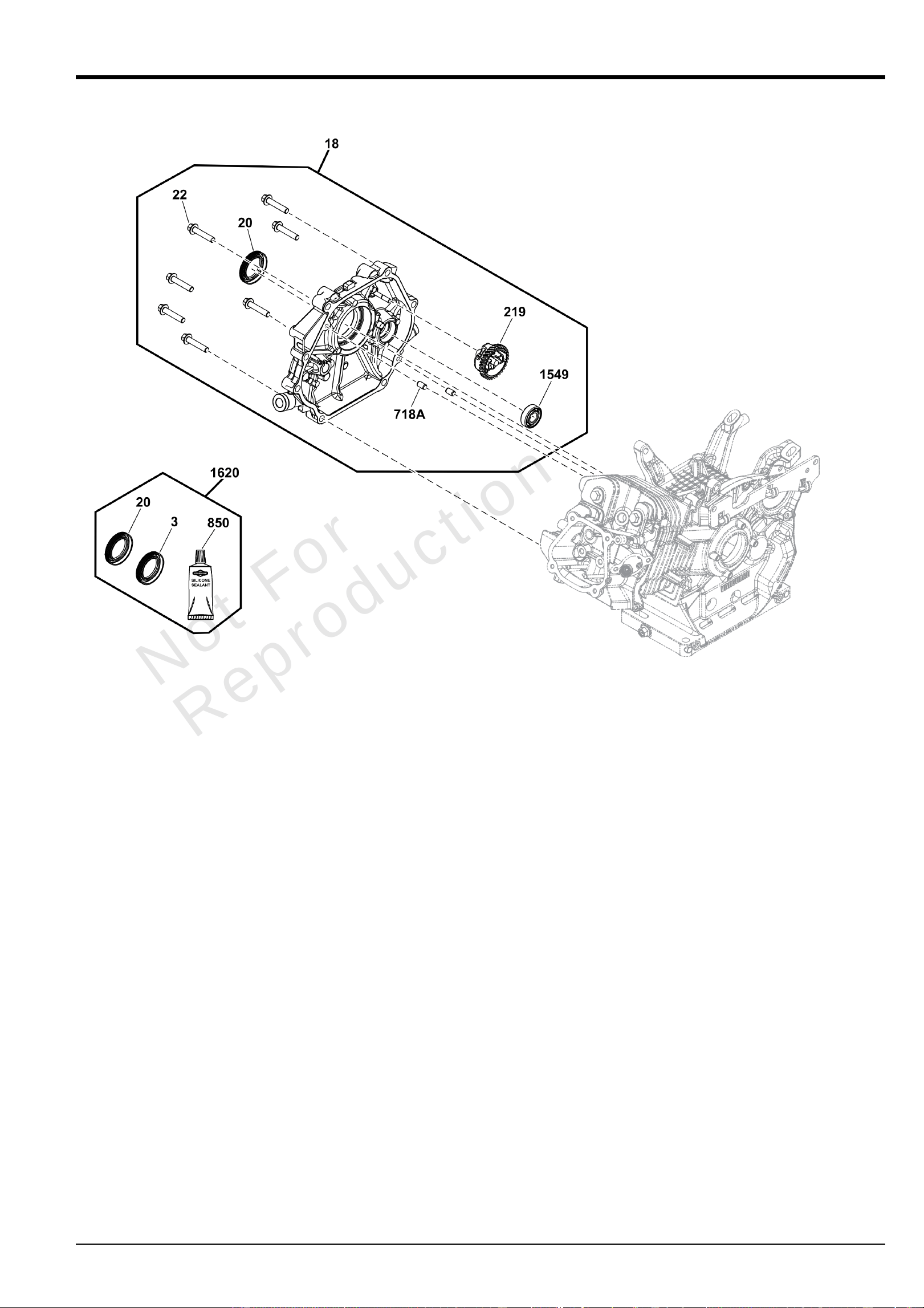

Crankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
12 04-Sep-2025
Crankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump GroupCrankcase Cover/Sump Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 ----- 1 SEAL, Oil
-(Part information located in Cylinder Group.)
18 84013262 1 COVER, Crankcase
20 84012973 1 SEAL, Oil
-(PTO Side)
22 84004103 7 SCREW
-(Crankcase Cover/Sump)
219 84012978 1 GEAR, Governor
718A ----- 2 PIN, Locating
-(Part information located in Cylinder Group.)
850 ----- 1 SEALANT, Liquid
-(Part information located in Cylinder Group.)
1549 ----- 1 BEARING, Ball
-(Part information located in Crankshaft Group.)
1620 84008367 1 GASKET SET, Crankcase
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
13 04-Sep-2025

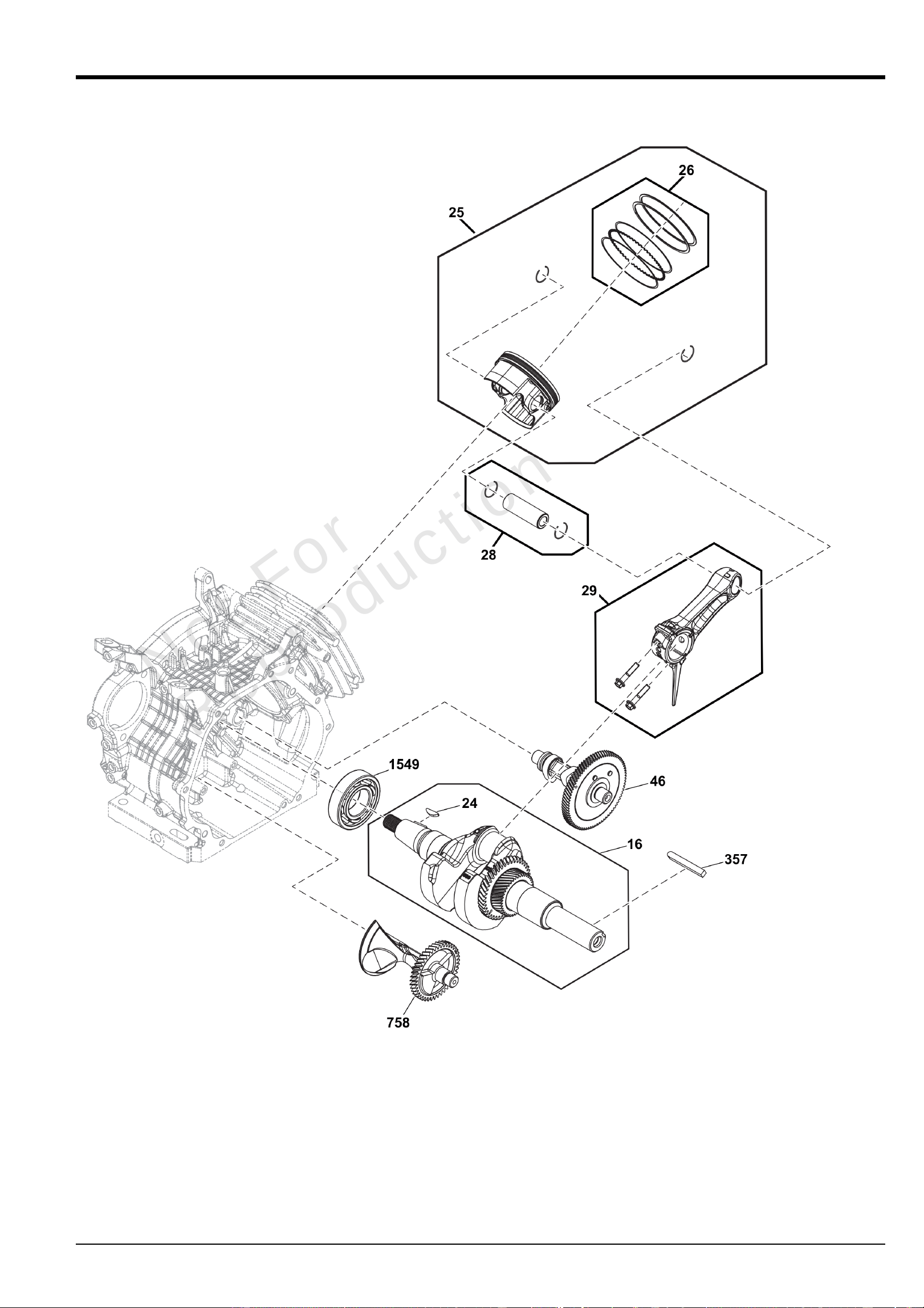

Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
14 04-Sep-2025
Crankshaft GroupCrankshaft GroupCrankshaft GroupCrankshaft Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
16 84013425 1 CRANKSHAFT
24 596976 1 KEY, Flywheel
25 84012961 1 PISTON ASSEMBLY
25 84012991 1 PISTON ASSEMBLY
-(.020" Oversize)
26 84012963 1 SET, Ring
26 84012992 1 SET, Ring
-(.020" Oversize)
28 84012962 1 PIN, Piston
29 84012964 1 ROD, Connecting
46 84012970 1 CAMSHAFT
357 590960 1 KEY, Drive Pulley
758 84012972 1 COUNTERWEIGHT
1549 84003459 1 BEARING, Ball
-(Crankshaft)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
15 04-Sep-2025

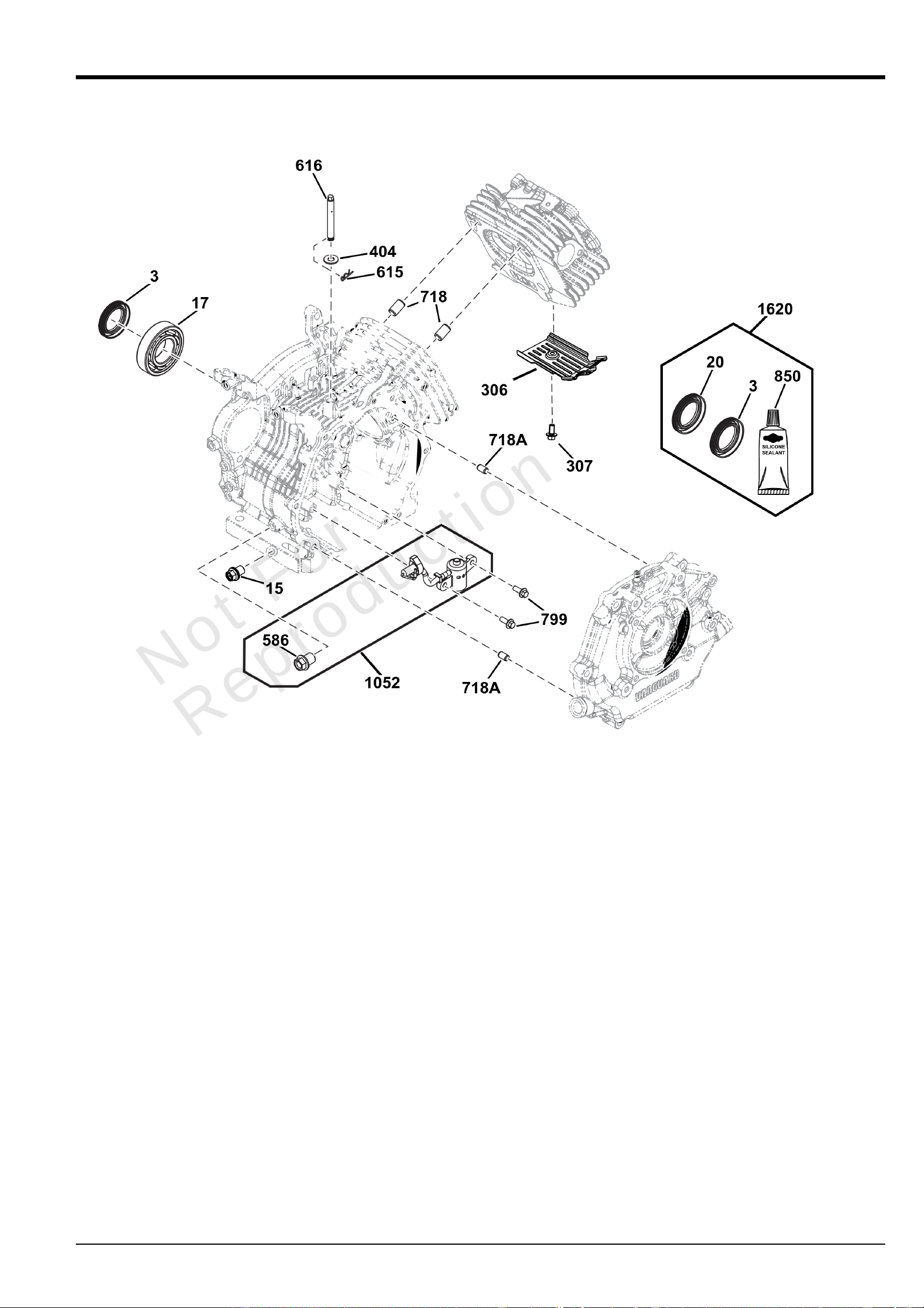

Cylinder GroupCylinder GroupCylinder GroupCylinder Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
16 04-Sep-2025
Cylinder GroupCylinder GroupCylinder GroupCylinder Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
3 84012973 1 SEAL, Oil
-(Magneto Side)
15 84004108 2 PLUG, Oil Drain
17 84004100 1 BEARING, Ball
-(Cylinder)
20 ----- 1 SEAL, Oil
-(Part information located in Crankcase Cover/Sump Group.)
306 ----- 1 SHIELD, Cylinder
-(Part information located in Cylinder Head Group.)
307 ----- 1 SCREW
-(Part information located in Cylinder Head Group.)
404 84004197 1 WASHER
-(Governor Crank)
586 ----- 1 NUT
-(Part information located in Lubrication Group.)
615 84004198 1 RETAINER, Governor Shaft
616 84012968 1 CRANK, Governor
718 84004120 2 PIN, Locating
718A 590713 2 PIN, Locating
799 ----- 2 SCREW
-(Part information located in Lubrication Group.)
850 100106 1 SEALANT, Liquid
1052 ----- 1 SENSOR, Oil
-(Part information located in Lubrication Group.)
1620 ----- 1 GASKET SET, Crankcase
-(Part information located in Crankcase Cover/Sump Group.)
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
17 04-Sep-2025

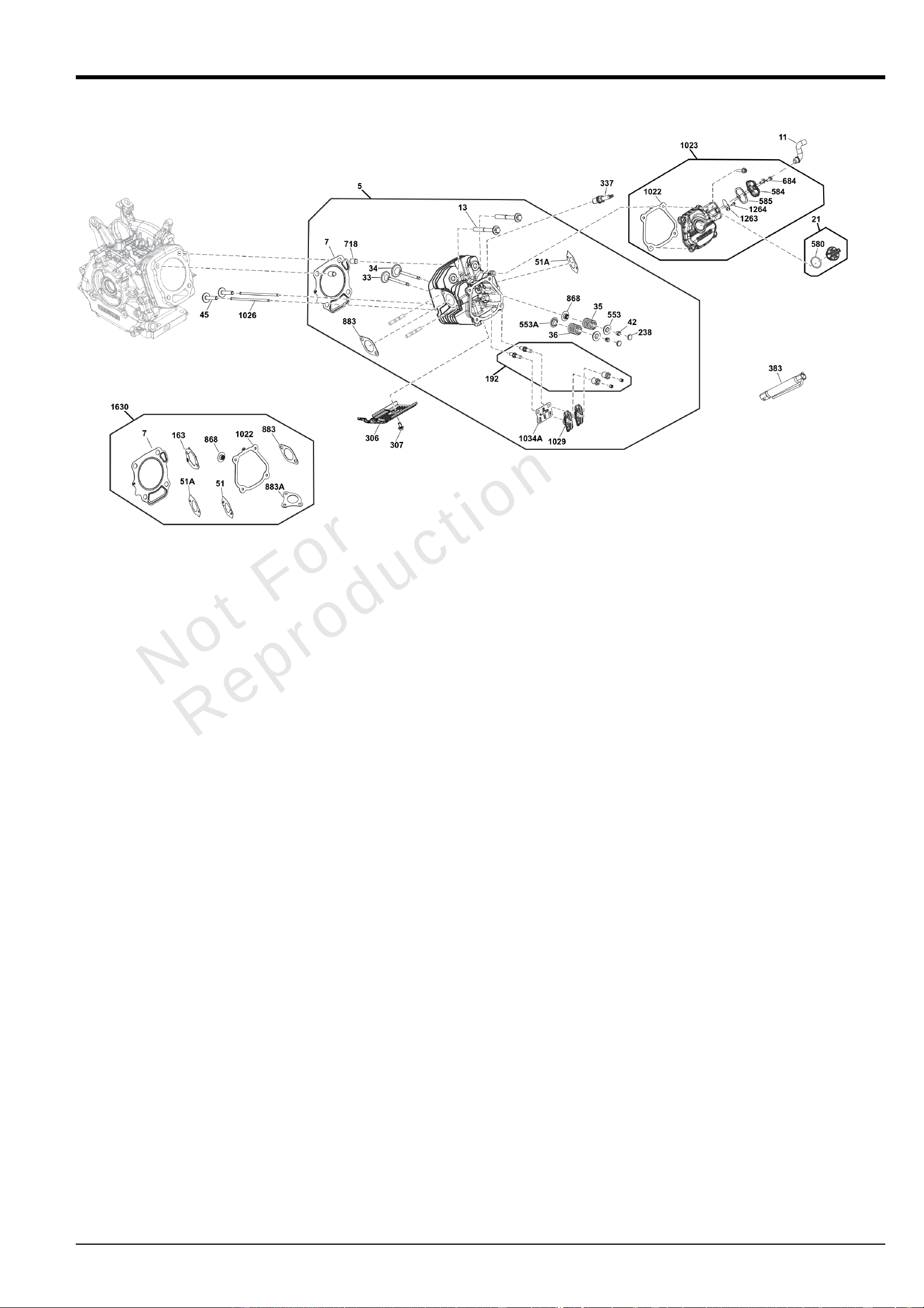

Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
18 04-Sep-2025
Cylinder Head GroupCylinder Head GroupCylinder Head GroupCylinder Head Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
5 84013261 1 HEAD, Cylinder
7 84012965 1 GASKET, Cylinder Head
11 84004125 1 TUBE, Breather
13 84004122 4 SCREW
-(Cylinder Head)
21 84006593 1 CAP, Oil Fill
33 84004114 1 VALVE, Exhaust
34 84004113 1 VALVE, Intake
35 84004112 2 SPRING, Valve
-(Intake)
36 84004112 2 SPRING, Valve
-(Exhaust)
42 84004116 4 KEEPER, Valve
45 84004130 2 TAPPET, Valve
51 84004164 1 GASKET, Intake
51A 84004166 1 GASKET, Intake
163 ----- 1 GASKET, Air Cleaner
-(Part information located in Carburetor Group.)
192 84006535 2 ADJUSTER, Rocker Arm
238 84006534 2 CAP, Valve
306 84004123 1 SHIELD, Cylinder
307 597078 1 SCREW
-(Cylinder Shield)
337 597383 1 PLUG, Spark
383 19576S 1 WRENCH, Spark Plug
553 84004117 2 RETAINER, Valve Spring
553A 84004118 1 RETAINER, Valve Spring
580 809894 1 SEAL, O-Ring
-(Oil Fill Cap)
584 597011 1 COVER, Breather Passage
585 597010 1 GASKET, Breather Passage
684 597012 2 SCREW
-(Breather Passage Cover)
718 ----- 2 PIN, Locating
-(Part information located in Cylinder Group.)
868 84004111 1 SEAL, Valve
883 ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
883A ----- 1 GASKET, Exhaust
-(Part information located in Exhaust Group.)
1022 84004126 1 GASKET, Rocker Cover
1023 84004124 1 COVER, Rocker
1026 84012969 2 ROD, Push
1029 84004110 2 ARM, Rocker
1034A 84005043 1 GUIDE, Push Rod
1263 697124 1 REED, Breather
1264 793453 1 SCREW
-(Breather Reed)
1630 84013149 1 GASKET SET, Valve
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
19 04-Sep-2025

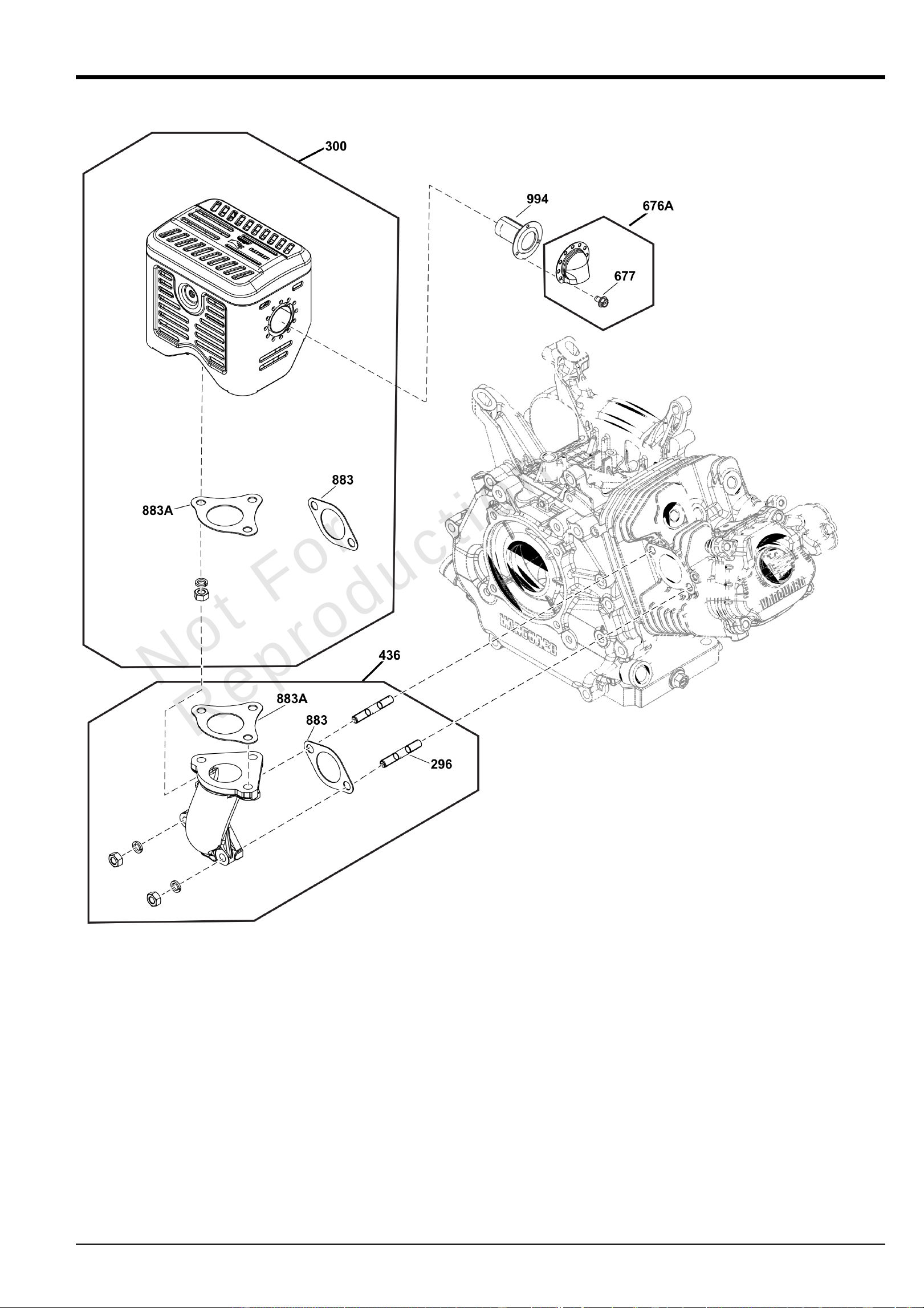

Exhaust GroupExhaust GroupExhaust GroupExhaust Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
20 04-Sep-2025
Exhaust GroupExhaust GroupExhaust GroupExhaust Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
296 84012974 2 STUD
-(Muffler)
300 84012910 1 MUFFLER
436 84012990 1 MANIFOLD, Exhaust
676A 84004474 1 DEFLECTOR, Muffler
677 699203 3 SCREW
-(Muffler Deflector)
883 84004409 1 GASKET, Exhaust
883A 84004471 1 GASKET, Exhaust
994 793985 1 ARRESTOR, Spark
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
21 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
22 04-Sep-2025
Flywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter GroupFlywheel, Ignition, and Starter Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
23 84004284 1 FLYWHEEL
60 597080 1 GRIP, Starter Rope
65 590683 3 SCREW
-(Rewind Starter)
332 591988 1 NUT
-(Flywheel)
333 84004162 1 ARMATURE, Magneto
334 699477 2 SCREW
-(Magneto Armature)
356 84004209 1 WIRE, Stop
455 84012976 1 CUP, Flywheel
608 84004174 1 STARTER, Rewind
1005 84012975 1 FAN, Flywheel
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
23 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
24 04-Sep-2025
Fuel Supply GroupFuel Supply GroupFuel Supply GroupFuel Supply Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
187 84012980 1 LINE, Fuel
190 84004226 2 SCREW
-(Fuel Tank)
229 84004227 2 WASHER
-(Fuel Tank)
276 84004253 2 WASHER, Sealing
601 791850 2 CLAMP, Hose
705 707919 2 NUT
-(Fuel Tank)
957A 84007570 1 CAP, Fuel Tank
972 84012979 1 TANK, Fuel
1345 792917 1 FILTER, Filler Neck
1509 797346 1 OUTLET, Tank
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
25 04-Sep-2025

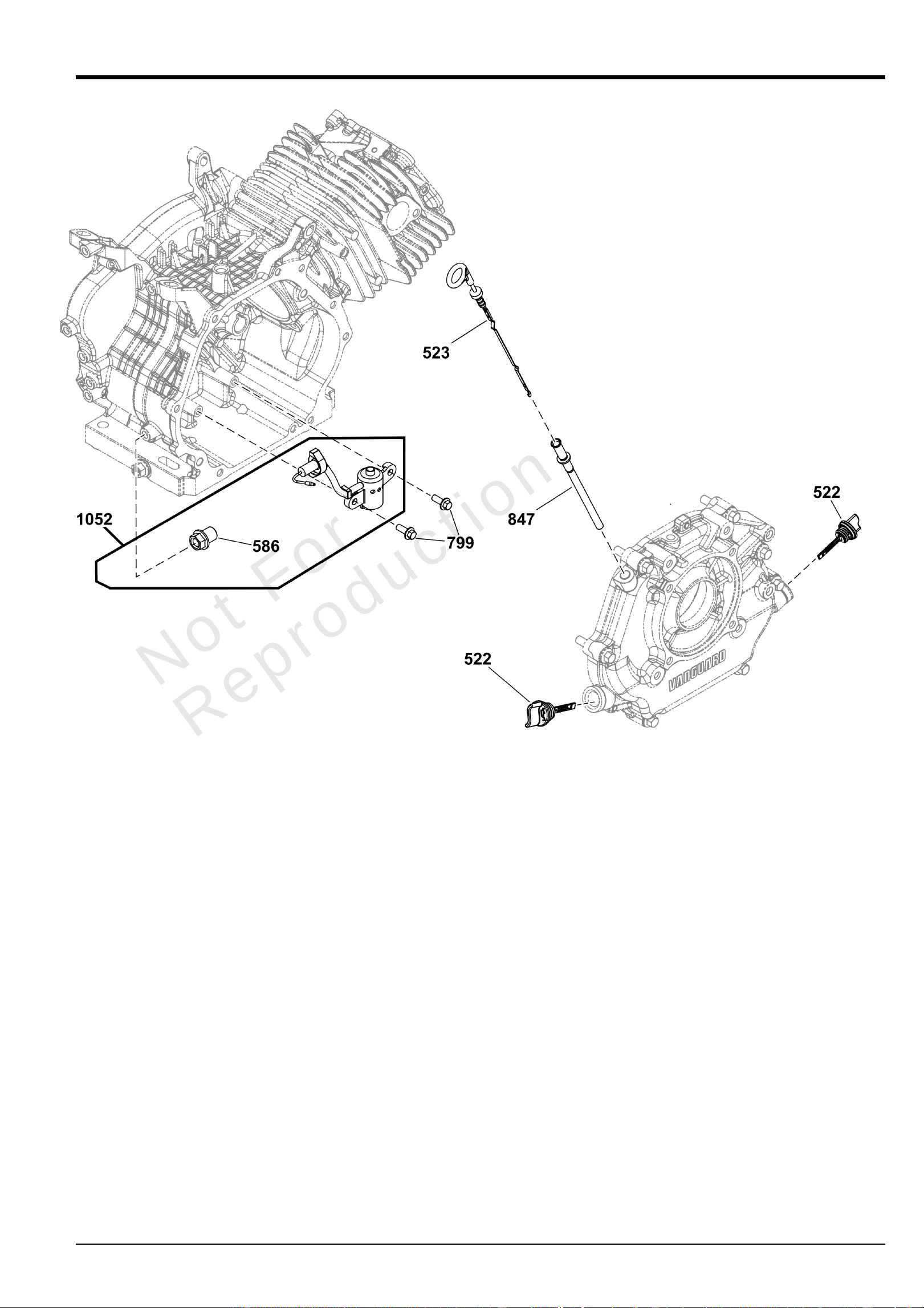

Lubrication GroupLubrication GroupLubrication GroupLubrication Group
Mfg. No: 19V332-0142-F1
Not For
Reproduction
Copyright © Briggs & Stratton. All Rights reserved
26 04-Sep-2025
Lubrication GroupLubrication GroupLubrication GroupLubrication Group
REF NOREF NOREF NOREF NO PART NOPART NOPART NOPART NO QTYQTYQTYQTY DESCRIPTIONDESCRIPTIONDESCRIPTIONDESCRIPTION
522 84004104 2 PLUG, Dipstick/Fill
523 84004105 1 DIPSTICK
586 84004724 1 NUT
-(Oil Sensor)
799 590703 2 SCREW
-(Oil Sensor)
847 84004831 1 TUBE, Dipstick
1052 84004948 1 SENSOR, Oil
Not For Reproduction
Copyright © Briggs & Stratton. All Rights reserved
27 04-Sep-2025
Copyright © Briggs & Stratton. All Rights reserved
04-Sep-2025
