MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.

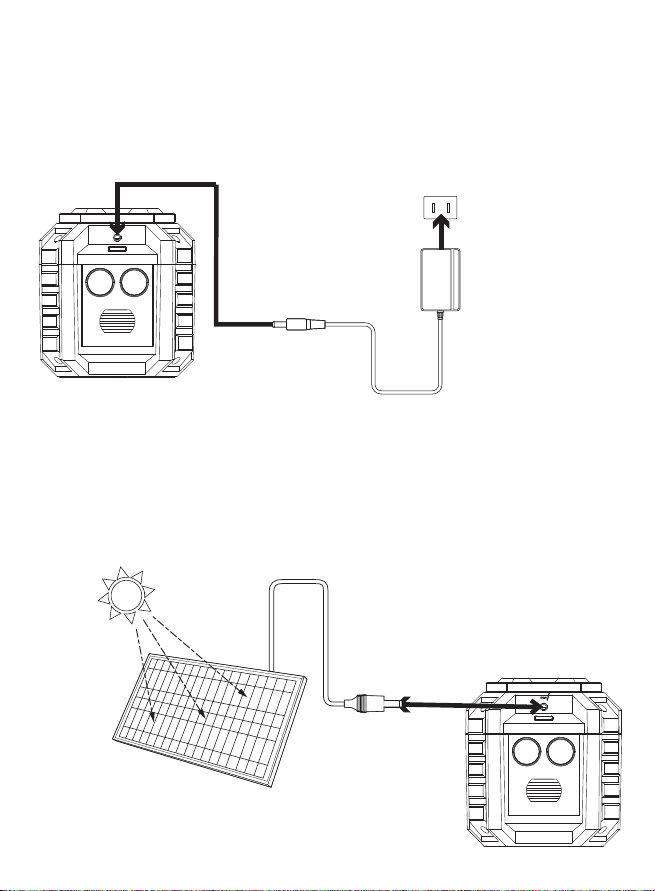

5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
service@marbero.com
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
MADE IN CHINA
【
I
】
PRODUCT PARAMETERS
AC Output
AC Con�nuous Power Output: 100W/150W Max
2 x Ultra bright LED Flashlight
1 x
Portable Power Sta�on
1 x Power Adapter
1 x Cigare�e Lighter Adapter 1 x Car Charger Adapter
1 x Solar Panel 1 x User manual
Package include
Lifecycle >500 �mes
Opera�on temperature
Charge temperature
-10℃-40℃/ 14℉ - 104℉
0℃-40℃/ 32℉ - 104℉
Power Indicator
LED Indicators
【
II
】
PRODUCT DESCRIPTION
Capacity
Dimensions(LWH)
Weight
Built-in Ba�ery
40500mAh/150Wh
184.5x109.5x118.5mm/7.26x4.31x4.66in
about 1.3Kg/2.86lb
High Quality Lithium ion Ba�eries
Adapter: DC15V/2A
Solar Panel Charging: 13V~22V/2A Max
Input Recharging
DC Output
Fully Charged Time
USB Output
Adapter 15V/2A:7~8 hours
1 x USB Output 4V~9V/2.1A Max(QC3.0)
3x USB Output 5V/2.1A Max
4 x DC Output 9~12V/10A/15A Max
Rated Power: 100W, Max Power: 150W
【
III
】
PRODUCT INSTRUCTION
※ There may be some differences on different spare parts.Please adhere to the actual product instead.
AC Outlet
5.5mm DC Output
(9V~12.6V)/10A/15A Max
USB Output 4V~9V/2.1A Max
Support Qualcomm QuickCharge 3.0
3x USB Output 5V/2.1A Max
AC Power Switch
AC Indicator
USB Out/Ba�ery Check
Ba�ery indicator
1) How to provide power for DC12V appliances(such as head lamp, fan) with this product?
The 5.5mm 12V DC output is plug and play. Plug your appliances to the DC output port to gain
power.
No�ces: Please confirm whether your DC12V appliance support charging with 5.5mm DC
header interface (The diameter of the DC Port of the Product is: 5.5mm),otherwise it is unable
to connect with the DC output, you can consult the electrical manufacturer, buy the
corresponding adapter and connect with it.
Note:
The12V DC output voltage is range between 9V~12.6V, maximum output current is
15A. DC output voltage drops while ba�ery capacity drops due to chemical characteris�cs of
the ba�ery. If your appliance is not built-in input voltage stabilizing func�on, it may
shutdown when input voltage is too low, please unplug your device from the unit in �me.
And please charge the unit in �me.
※
Protec�on Mode:
Short-circuit/Overpower Protec�on: If the DC output is short-circuited or overpowered(-
Load(s) power>150W), the unit will shutdown to protect itself. Please clear the problem and
recharge the unit to recover from protec�on mode.
When the AC port is not in use, turn it o to conserve power.
Short-circuit/Overpower Protec�on: If the AC output is short-circuited or overpowered(Load(s)
power>100W), the unit will shutdown AC output to protect itself. Please clear the problem and
re-press the AC bu�on for AC output.
Some devices, such as refrigerator, ice maker or a laser printer may require a surge power to
start or work during a very �me period, the surge power could exceed 150W or even higher,
this could cause overpower protec�on with this unit. Please remove the devices and consult
with the device manufacturers for more informa�on. Please clear the problem and re-press the
AC bu�on for AC output.
Connect the standard USB cable of digital appliance to the USB output of the unit, press the Ba�ery check
bu�on to switch on to gain power.
If the unit fail to supply power to the USB appliances automa�cally, press the
AC power output bu�on to switch on manually.Please switch off the AC power output bu�on to save power
when USB digital appliances are fully charged.
This unit is built with dualwhite LED flashlight. Press the flashlight bu�on to switch on
flashlight and single press the bu�on to switch to blink, Press the bu�on to switch off.
5) How to charge the unit?
a.Charge through AC Wall Charger
Using the included AC Wall Charger, plug the unit into any wall outlet to charge the unit. You will
know the unit is charging when the blue LED ba�ery indicators are blinking. The unit is fully
charged when all ba�ery indicators stop blinking and remain solid. A�er the unit is fully
charged, please remove the AC wall charger in �me.
【
Left
】
【
Top
】
【
Rear
】 【
Front
】
【
Right
】
【
Right
】
AC Power
Bulb Type
Limited Appliance Wa�age<100W,Lamp,
Electric Fan, TV, etc. AC will shutdown when it’s short
circuited or power overloaded. Remove the device and
charge the unit to recover from short-circuit or
overpower protec�on.
3.5mm DC Input
Charging port
Flashlight Switch
Ultra Bight LED
Flashlight
Cooling vents
Handle
【
Rear
】
Protec�on Mode:
3) How to provide power for USB digital appliances with this product?
4) How to use the flashlight
Warning!Do not point directly at the eyes of human in case of any damage due to
the strong light.
SmartPhone,Tablet,Etc.
【
Front
】
Support 5.5mm DC12V car kits with DC-Cigare�e
Lighter Adapter, such as Vacuum Cleaner,Infla�on
Pump,Electric wrench,fridge,etc.
【
Left
】
▲
Input Charging
13V~22V/2A Max
【
Left
】
▲
AC Adapter (charger) 15V/2A
AC Socket
▼
or charge car kits via DC to Cigare�e Litghter Connector
5.5mm DC12V for Fan or LED
lights (power<150W)
110V/60Hz±10% Modified SineWave
a) This product is built in high quality original lithium ion ba�ery, it has no memory effect but
high-capacity, and it is durable. However, we s�ll recommend you toapply in the range of 10
℃ ~30 ℃, so as to obtain the op�mal charging capacity.
b) When charging, in order to avoid interference, please stay away from TV, radio and other
equipment.
c) If the device has not been used for a long �me, please disconnect the cable and store.
d) Some portable devices may need to be set in charge mode to charge, see the corresponding
equipment use manual for more informa�on.
e) In order to extend the life of product (lithium ba�ery), it is best to charge within 3 months,
and charge at least once within 6 months.
f) If this unit is not in charge, and the DC and USB are not in use, it will automa�cally shut
down in 4 seconds.
【
V
】
PRODUCT APPLICATION SKILLS
Contact Us：
折叠示意图：
英文
封
面
生产大货时，必须参照
右边示意图折叠好!!!
尺寸：525x142.5mm
四折页(105x142.5mm)
材质：128g铜版纸，双面印刷
备注：图中 虚线为
折叠线不需要印刷
正 面
背面
ABOUT THE SOLAR GENERATOR
ATTENTION!
This manual is to help you use the product correctly; it does not represent any descrip�on on
the hardware and so�ware configura�on of the product. About the product configura�on,
please refer to the contract related to this product (if there is), or consult to the seller that sells
the product. Pictures in this manual is for reference only, if there are individual pictures do not
match the actual, please prevail in actual products.
Thank you for applying our mul�-func�on portable solar generator in case of power failure or
you need to charge on a travel, you can temporarily charge your electrical or digital devices with
this unit. This unit can provide usb, dc and ac output. You can keep laptops, appliances, lights
and more going for hours longer. With the included solar panel,you can charge the ba�ery
wherever and whenever there is sunlight.Before using this unit, please read the user manual
carefully and properly keep it for reference.
The unit provides Modied Sine Wave output
The unit provides Modified Sine Wave output, and can be compa�ble to AC electric appliance
that works with sinusoidal waveform(power <100w). However, anything that uses an ac motor
isn't going to work to full capacity on a modified sine wave. Such as an electrical fan, it will even
make the electric appliance arouse some noise.Appliances like refrigerators, microwaves, and
compressors that use AC motors and some delicate medical equipment will be be�er off with a
pure sine wave inverter. This product is only used for emergency, it cannot replace the normal
alterna�ng current, for long-term use, please adapts the power sta�on specifica�on required by
electrical appliances.
b. Charge from solar panel[not included]
1. Make sure Voc(open circuit voltage) of the solar panel does not exceed 22V.
2. Place your solar panel where it will get as much direct sunlight as possible.
3. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Using the included car charger, plug the unit into a 12V cigare�e lighter (car port) of your car.
You will know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
Attention:1.Charging from a 12V carport is for emergency charge only, it cannot fully charge
the unit. 2. To avoid car battery power loss. Charging this unit through your car cigarette
lighter is only available when your car engine is started. 3.This unit can be charged by 12v
gasoline car port. It cannot be charged from a 24v car port.
c. Charge from your car with a 12V cigarette lighter.
I.Solar panel specication
d.Charge with included solar panel.
1. Place the included solar panel where it will get as much direct sunlight as possible.
2. Plug the output of the solar panel into the input of the unit to start charging.You will
know the unit is charging when the blue LED Ba�ery Indicator lights up and blinks. The
unit is fully charged when all ba�ery indicators stop blinking and remain solid.
II.Connection
DC to DC Cable
DC5.5mm/2.1mm to
DC3.5mm/1.35mm connector
A. Cloudy weather and indirect sunlight may cause fluctua�ons in the current. This in turn may hinder
or prevent charging. Place the solar charger in direct sunlight or wait for the weather to clear.
B. Wipe the panels clean with a damp cloth between usage to prevent scratching.
C. Avoid exposure to fire, water and chemical liquid.
IV
.
Cau�on
III
.What if the solar panel is not charging my devices?
1. This charger is not waterproof. Avoid exposure to water, rain, and moist environments.
2. Be�er unplug the solar panel from the unit when Sun is set,or the solar panel might ac�vate the unit
and the ba�ery internal power consump�on might exceed the input power, result in power loss instead
of charging.
【
IV
】
SECURITY AND MAINTENANCE
Do not short-circuit the unit. To avoid short-circui�ng, keep the unit away from all metal
objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high
temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabili�es, or lack of experience and knowledge, unless they have been
given supervision or instruc�on concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use cau�on when handling.
Do not charge the unit over the required �me.
Disconnect the unit when fully charged.
Use the unit properly to avoid electronic shock.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
k)
l)
m)
n)
Please deal with scrap products in accordance with the regula�ons, do not treat the built-in
ba�ery as a household garbage, so as not to cause the explosion and pollu�on.
The product is only used for emergency situa�ons, it cannot replace the standard DC or AC
power of household appliances or digital products.
【
VII
】
Battery information
【
VIII
】
Statement
Your device has an internal, non-removable, rechargeable ba�ery. Do not a�empt to remove
the ba�ery, as you may damage the device.
The ba�ery can be charged and discharged over 500 �mes, but it will eventually wear out.
All rights reserved. Reproduc�on in whole or in part without wri�en permission is prohibited.
All other trademarks are trademarks of their respec�ve owners. Features and specifica�ons are
subject to change without no�ce.
Always return your used electronic products, ba�eries, and packaging materials to dedicated
collec�on points. This way you help prevent uncontrolled waste disposal and promote the
recycling of materials.
【
VI
】
Recycle
Model:M270SL30
PORTABLE SOLAR GENERATOR
Instruction Manual
DC Output
Folding Size
Unfold Size
Weight
QC3.0 USB Output
Type-C Output
Solar Panel Rate Power 30W
0.99kg / 2.18lb
5V/3.4A, 9V/2.5A, 12V/2A±5%
5V/3A, 9V/2.22A, 12V/1.6A±5%
16.5V/1.82A (max)
212x304x30mm / 8.34x11.96x1.18in
646x304x20mm / 25.43x11.96x0.78in
