SAFETY GUIDE
CLSV-B4KC
CLSV-B4DC
USER GUIDE
DON’TS
• Don’t leave the charger plugged in when unattended.
• Don’t use the machine if it is faulty or has been dropped, damaged or left
outdoors.
• Don’t use the machine to pick up any flammable or combustible materials
(lighter fluid, petrol, kerosene etc.) or use the machine in an area with explosive
vapours or liquid.
• Don’t use the machine to pick up hot coals, cigarette butts, matches or smoking
hot burning items or use in an area where there may be harmful fluids
(chlorine, bleach and ammonia drain cleaner).
• Don’t handle the charger, battery or use the machine with wet hands.
• Don’t unplug the charger by pulling on the power cord. The power cord cannot
be replaced. If the cord is damaged the charger should be scrapped.
• Don’t attempt to remove blockages with sharp objects as this may cause
damage to the machine.
• Don’t use the machine with the incorrect battery or charger as this may result
in damage or injury to the user. The correct battery charger information is listed
on the battery pack ratings label.
• Don’t charge the battery outdoors, or leave the charger connected to the mains
when not in use.
• Don’t use the machine with a damaged battery. If the battery is damaged
contact us on: 08000 927737
• Don’t use on a surface that is damaged, uneven or incorrectly fitted.
• Don’t over fill the dirt container to avoid blocking the air flow through the machine.
• The brushbar in the floorhead and mini motorised pet tool constantly rotates
when activated. Never use them on one spot for an extended period of time as
the brushbar may damage the floor surface.
DO’S
• Only VAX ONEPWR batteries (BV15020/BV15030/BV25040) and charger
(BV05100UK) should be used with this machine.
• Always stand the charger on a stable, level surface, uncovered and away from any
heat source.
SAFETY GUIDE
This machine is intended for household use only and NOT for commercial or
industrial use.
PLEASE KEEP INSTRUCTIONS FOR FURTHER USE AND USE ONLY AS
INSTRUCTED IN THIS GUIDE.
The full user guide can be found at: support.vax.co.uk
PET & CAR
CLSV-B4DC
CLSV-B4KC
VAX Ltd, Artillery House, Heritage Way,
Droitwich, WR9 8YB, UK
• Always protect the charger power cord from heated surfaces or near open flames.
• Always remove the battery from the machine before carrying out any maintenance
or if storing unused for a long period of time.
• Only VAX ONEPWR recommended tools and accessories should be used with this
machine.
• Keep all openings clear, free from debris and don’t overfill the dirt container as this
may affect the airflow/suction.
• Turn off all controls on the machine before disconnecting or connecting the
battery.This machine is not intended to be used or cleaned by persons with
reduced physical, sensory or mental capabilities, or lack of experience or
knowledge, unless they have been given instructions concerning the safe use
of the machine by a person legally responsible for their safety. They should be
supervised whilst using the machine. Children shall not use, clean or play with this
machine, which when not in use should be secured out of their reach.
• Only use the machine indoors on dry surfaces and keep the area you’re cleaning
well lit.
• Keep fingers, hair and loose clothing away from moving parts and openings whilst
using the machine.
• Store the machine in a cool, dry area. Keep the machine away from rain and
moisture.
• Use only CE approved 13amp extension cords, non-approved extension cords
may overheat. Care should be taken to arrange the extension cord as it can be a
trip hazard.
• Take extra care when using the machine on the stairs.
• Always turn the brushbar off when cleaning hard floors and surfaces.
To prevent any damage being sustained, test on an inconspicuous area of the
flooring/surface first.
• Always make sure the separator and filter are fitted correctly before using your
machine and only use the machine with the filter and separator in place.
• Always check the powered floorhead, mini motorised pet tool and accessories are
free from damage, dirt and debris before using.
• This machine does not stay upright without constant support. Between uses, lie
flat on the floor in a suitable location so that it does not become a trip hazard or
can be stepped on.
BATTERY SAFETY PRECAUTIONS
• Replace the battery with a VAX ONEPWR battery only. Use of another battery
may present a risk of fire or explosion.
• Don’t attempt to disassemble the battery, remove any component projecting
from the battery terminals and do not dispose of in a fire. The battery and
charger have no user serviceable parts. Fire or injury may result.
• Prior to disposal, protect exposed terminals with heavy insulating tape to
prevent shorting. The battery is to be disposed of safely at your local battery
recycling centre.
• When the battery pack is not in use, keep it away from other metal objects
that can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• In case of battery leakages, avoid any contact with skin and contact us on:
08000 927737
2
Welcome to the VAX family!
You are now the proud owner of a VAX Blade 4 Pet & Car.
Here, you’ll find everything you need to know about your machine and, most importantly, instructions on
how to get started so that you can get cleaning!
2
6
7
8
9

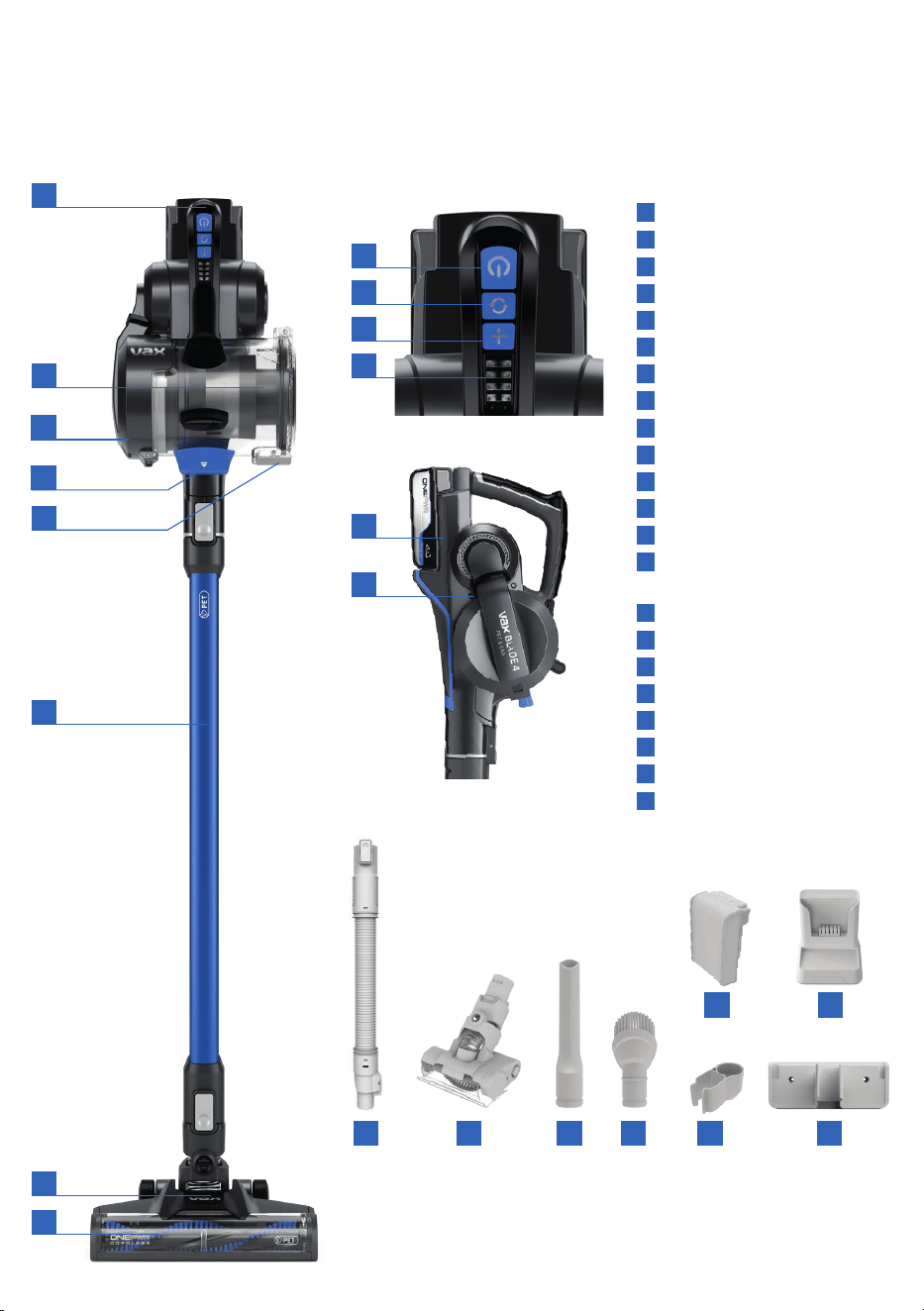

1
Carry handle
2
Dirt container
3
Filter cover and filter
4
Dirt container release latch
5
Dirt release button
6
Power ON/OFF
7
Brushbar ON/OFF
8
Boost ON/OFF
9
Battery level indicator light
10
Reach wand
11
Powered floorhead
12
Brushbar
13
Battery dock
14
Filter cover release tab
(hidden)
15
ONEPWR Battery*
16
ONEPWR Charger
17

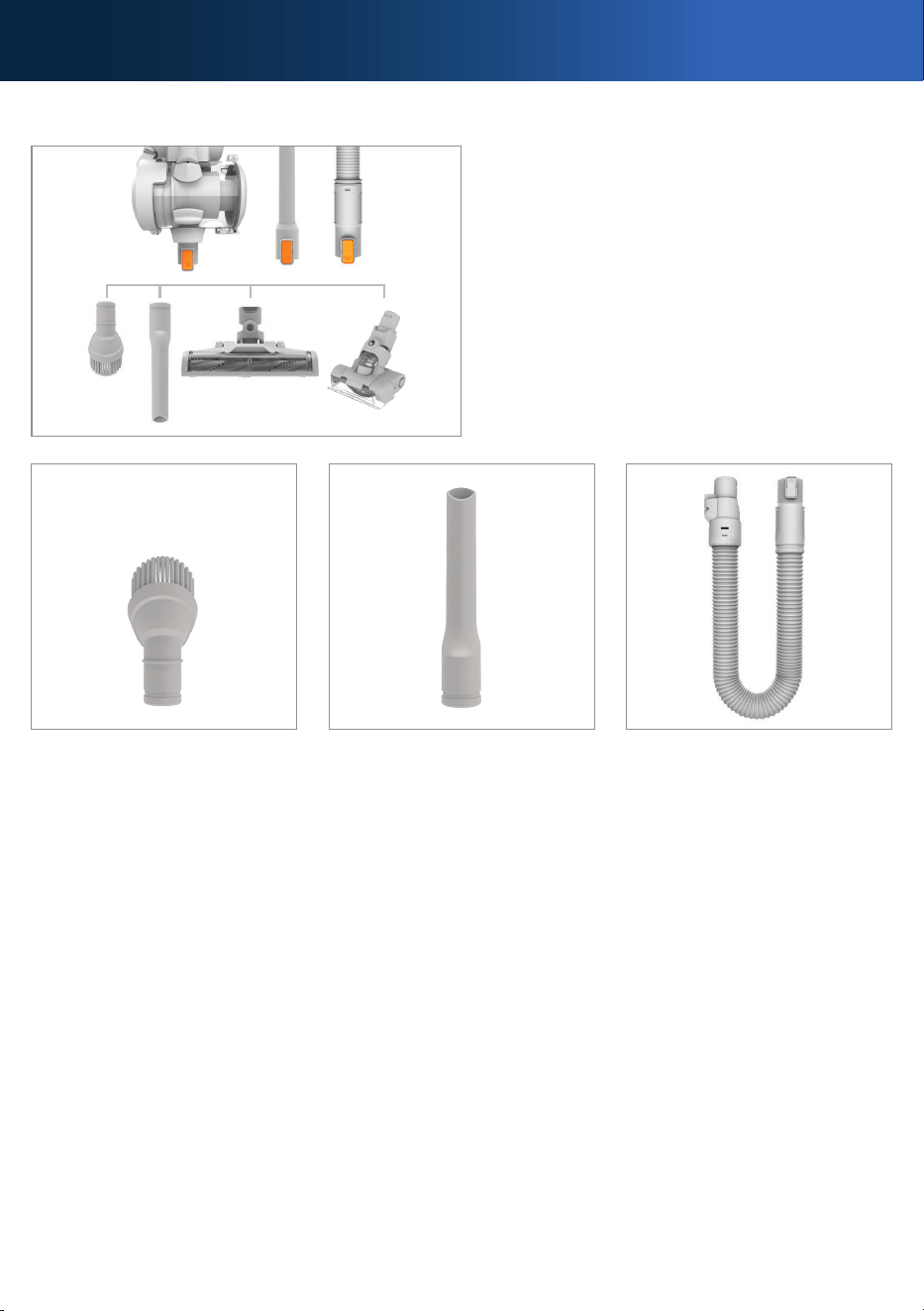

Powered hose
18
Mini motorised pet tool
19
Crevice tool
20
Dusting brush
21
Crevice tool storage caddy
22
Wall mount
screws and wall plugs
13
14
Weight 2.9kg (without battery pack). Dirt bin capacity 0.6L.
Runtime and charge time dependent on battery pack and mode used.
*2 x ONEPWR Batteries with model CLSV-B4DC only.
Subject to technical change without notice. Images are illustrative only.
16
21
19 20
2218
17
1
2
5
3
4
10
11
12
15
*
3
Registration & Support
All ONEPWR products come with
a standard one year warranty
Register your product to receive
2 YEARS FREE additional
warranty
†
For details visit: vax.co.uk/registration
Scan here
For help and support with
your new product
or visit us online: support.vax.co.uk
Still need to get in touch?
Our UK based Customer Care Team are here to
support you. For help with assembly, operational or
performance problems, or buying and fitting new
accessories, you can find all our contact details at
vax.co.uk/contact
This user guide can be found online at:
support.vax.co.uk
† Registration required. Terms and conditions apply,
see vax.co.uk for details.
2
Press the battery symbol
to check the battery status
Charging the battery
Fully charge the battery
before first use
1

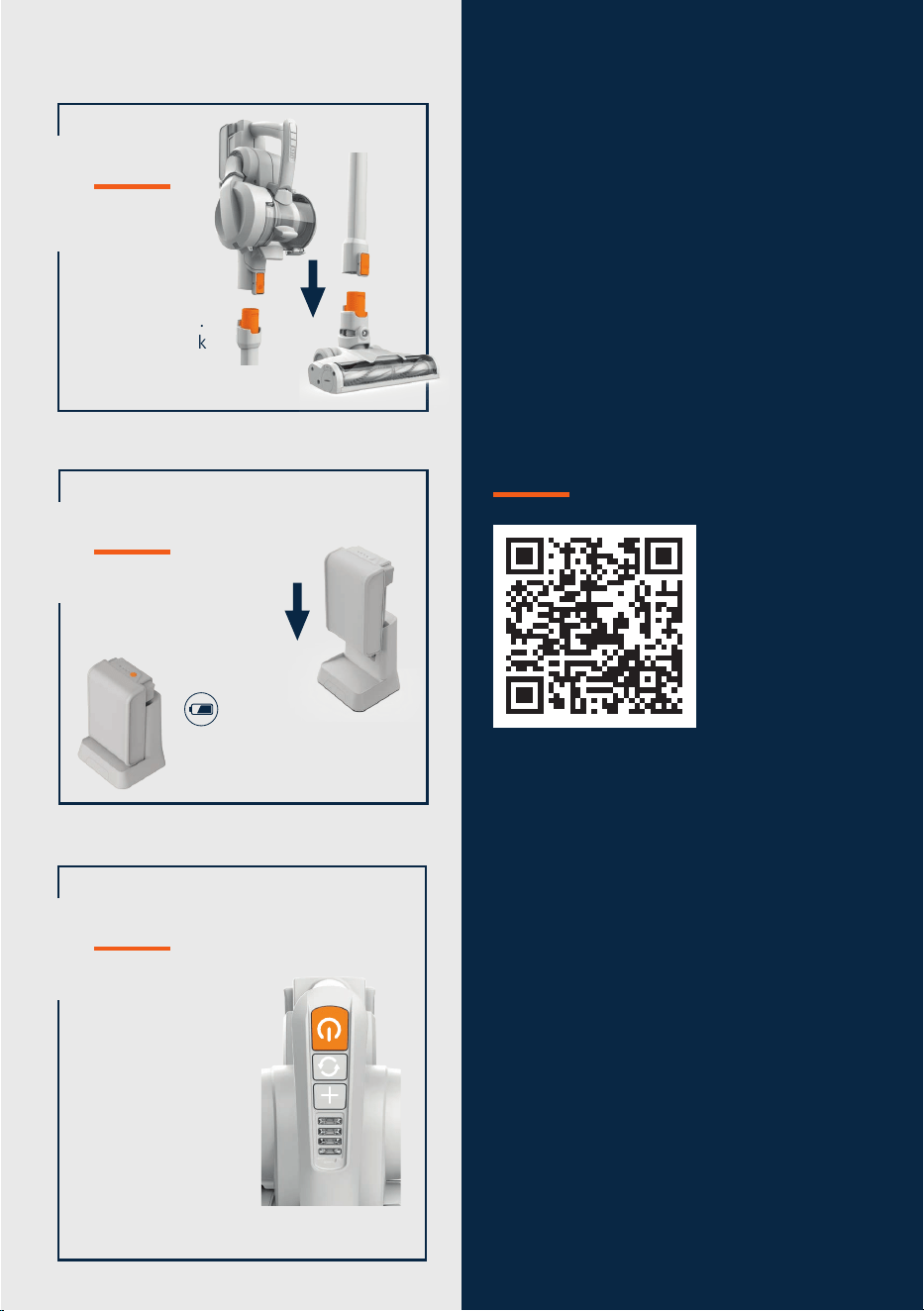

Assembly
Attach the
handheld to
the wand,
then attach
the floorhead.
They will click
into place
when fitted.
3
Operation
Switch on the
machine and
select a mode
BRUSHBAR
Switch ON for
carpets and OFF
for hard floors
BOOST
Increases suction
3
Quick Start
4
support.vax.co.uk
WARRANTY & TECHNICAL
WARRANTY
If a VAX ONEPWR machine is used
in the way it is intended and it breaks
down within the guarantee period, it’s
our responsibility to repair or replace it.
Here’s what isn’t covered:
• Normal wear and tear of consumable
items, for example: belts, filters,
brushbars, fuses etc.
• Batteries which have become faulty
as a result of improper handling.
• Batteries which have a reduced
service life as a result of normal wear.
• Accidental damage
- Damage as a result of use not in
accordance with the product
user guide.
- Damage caused by not carrying out
regular maintenance.
- Damage to the charger cable.
- Blockages caused by misuse.
• Faults caused by:
- Negligent use, misuse, neglect or
careless operation of the machine.
- Use of the machine cleaner which
is not in accordance with the
user guide.
- Use of a VAX ONEPWR machine
for anything other than normal
domestic household purposes
in the country in which it was
purchased.
- Use of parts, accessories and
consumables, which are not
genuine VAX components.
- Faulty installation or repairs –
unless carried out by a qualified
electrician or engineer.
TECHNICAL
Statement of Compliance: Manufacturer/EU importer: VAX Limited, hereby on our
own responsibility, declare that the VAX Blade 4 Pet & Car is manufactured in
compliance with the following Legislation:
Safety: 2014/35/EU Low Voltage Directive/Electrical Equipment (Safety)
Regulations 2016. EMC: 2014/30/EU Electromagnetic Compatibility Directive/
Electromagnetic Compatibility Regulations 2016.
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice.
VAX is a trade mark of Techtronic Cordless GP.
© 2021 Techtronic Cordless GP. All rights reserved.
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
5
GETTING STARTED
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.

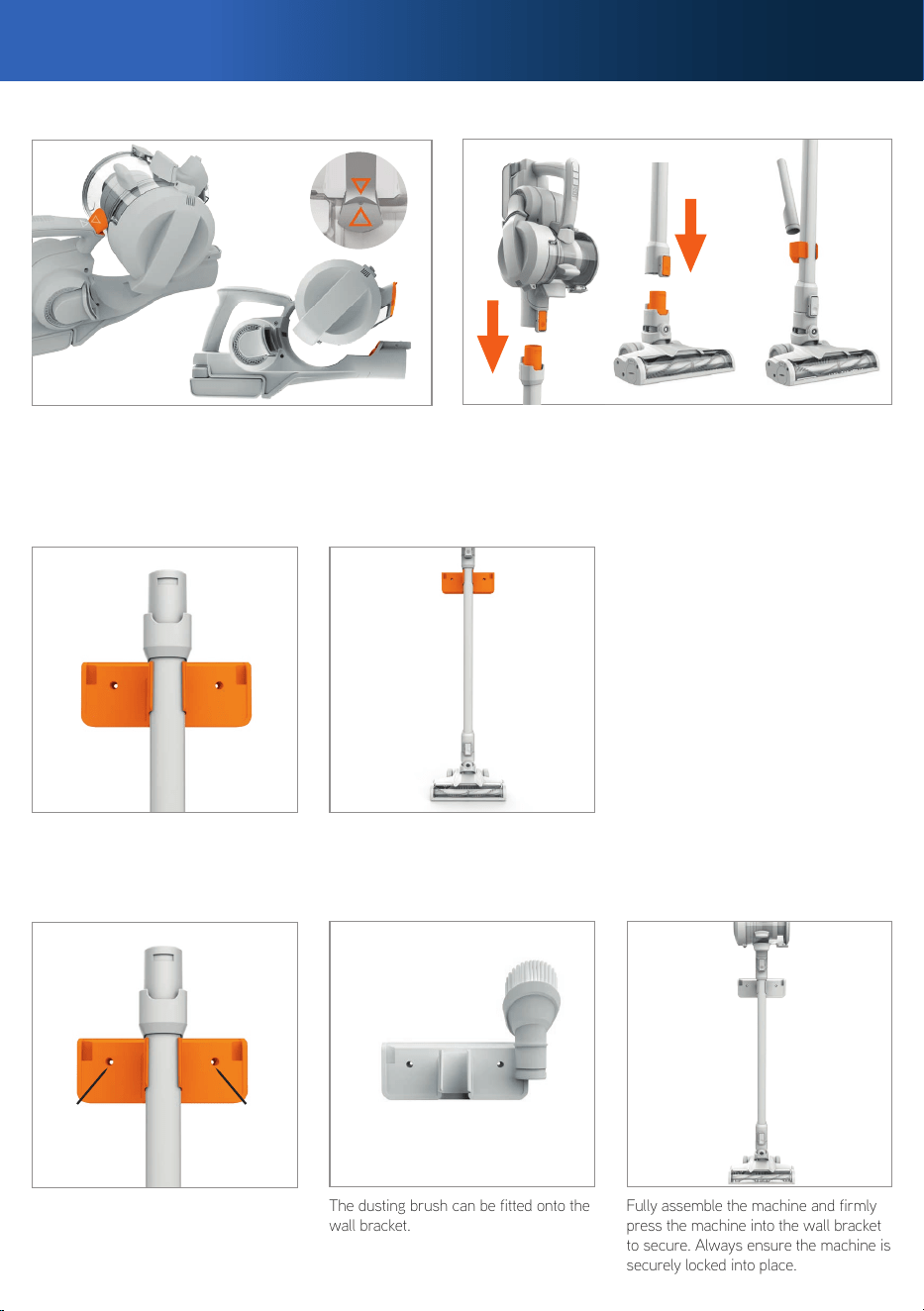

ATTACHING THE WALL MOUNT
Without the handheld attached to the
reach wand and powered floorhead,
push the wall bracket onto the top and
back of the reach wand.
Choose a location for the machine to be stored. Stand the powered floorhead and wand
against the wall, ensuring the powered floorhead is flat on the floor.
Holding the wall bracket securely against
the wall, make a small mark for each
screw. Secure the wall bracket to the
wall using the wall plugs and screws.
The dusting brush can be fitted onto the
wall bracket.
Fully assemble the machine and firmly
press the machine into the wall bracket
to secure. Always ensure the machine is
securely locked into place.
ASSEMBLY
To assemble the dirt container, line up the arrow on the dirt
container connection with the arrow on the handle. Push the
dirt container onto the handle until it clicks into place.
Attach the handheld to the reach wand until it clicks into place.
Attach the reach wand to the powered floorhead until it clicks
into place. Push the tool caddy onto the reach wand and slot the
crevice tool into place.
6
support.vax.co.uk
GETTING STARTED
CHARGING THE BATTERY

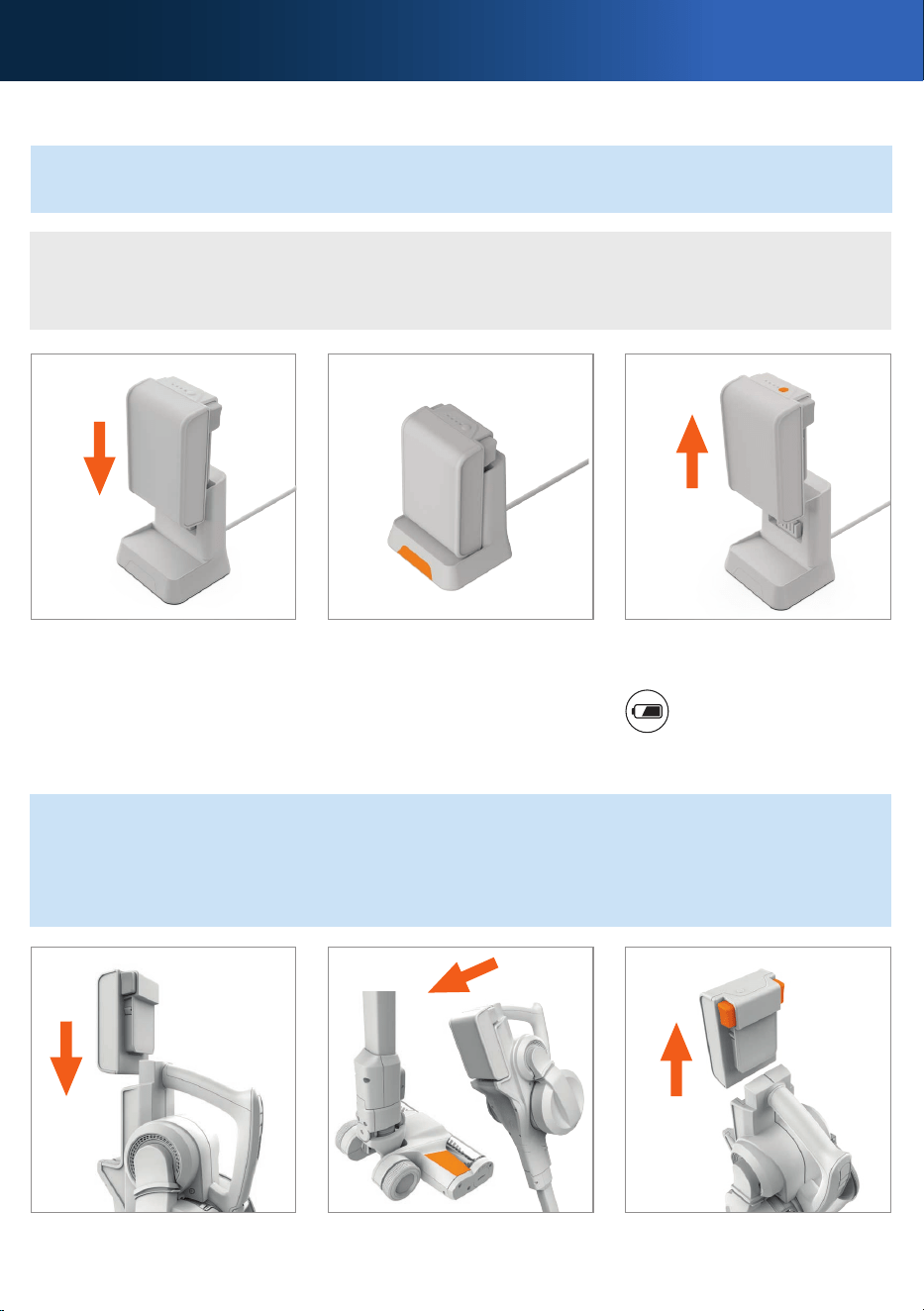

Slide the battery down on to the charger. The charger light will flash white to
show when the battery is charging.
The light on the charger will stop
flashing and go off when the battery
is fully charged.
Once fully charged, slide the battery off
the charger to remove.
To check the battery charge
level press the battery symbol.
THIS MACHINE IS ONLY TO BE USED WITH VAX ONEPWR BATTERIES AND CHARGER.
PLEASE READ THE SAFETY GUIDE BEFORE USE.
NOTE: Before first use, ensure the battery is fully charged. Failure to fully charge the battery
before first use may result in poor battery performance. The life expectancy of the battery will vary
depending on the usage of the machine.
OPERATION
Place your foot on the powered floorhead.
Pull the handle backwards to recline.
To remove the battery press both the
buttons to release.
Slide the battery into the handheld until
it clicks into place.
WARNING: The brushbar in the powered floorhead and mini motorised pet tool constantly rotates
when switched on. Never use the powered floorhead or tool on one spot for an extended period of
time as the brushbar may damage the surface. Always turn the brushbar off when cleaning hard
floors and surfaces. To prevent any damage being sustained, test on an inconspicuous area of the
flooring/surface first.
7
GETTING STARTED

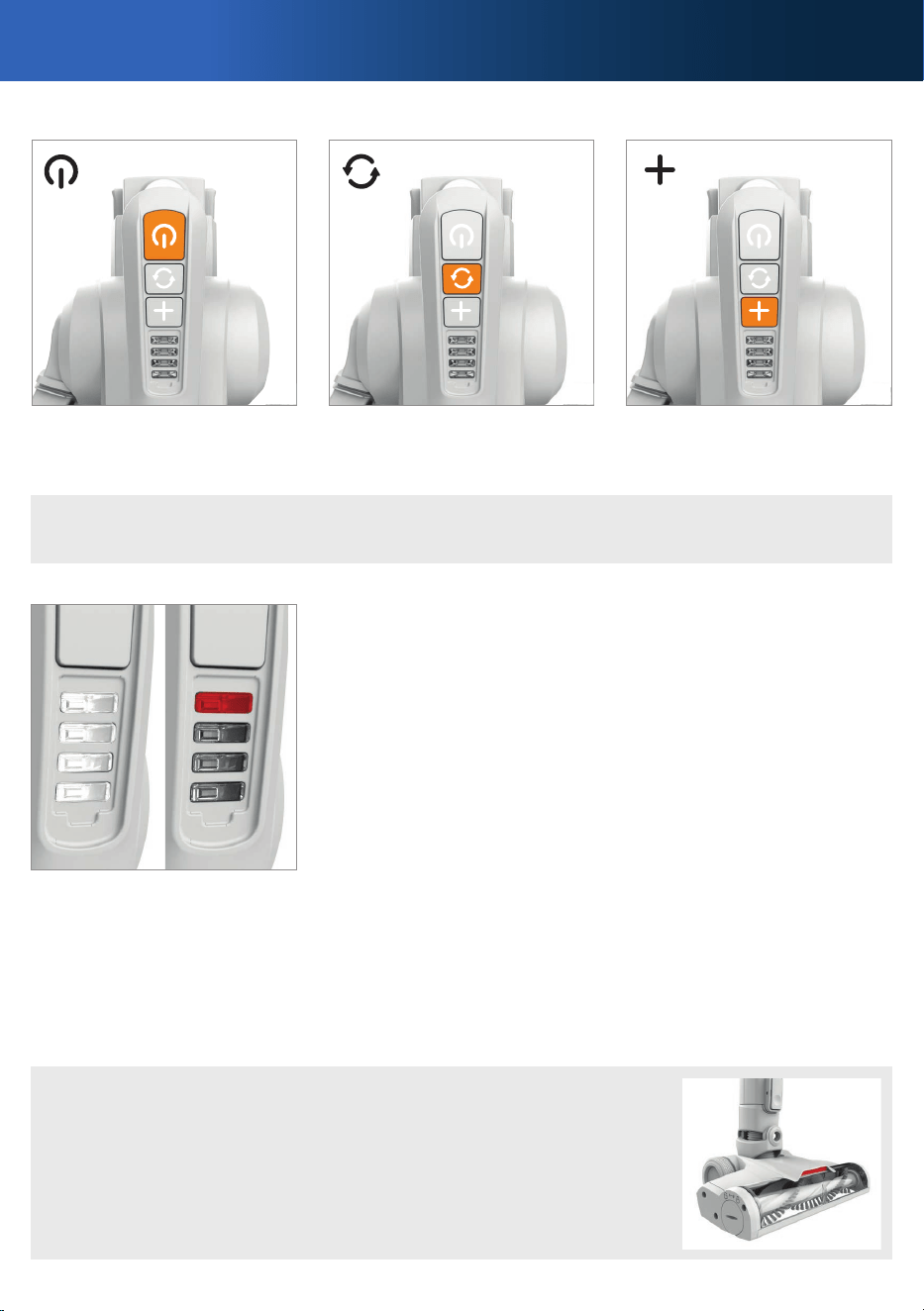

Press the brushbar on/off button to
switch the brushbar on the powered
floorhead or mini motorised pet tool on.
Press the boost button on to increase
the suction for particularly dirty areas.
Press the on/off button to switch the
machine on.
CAUTION: If the brushbar in the powered floorhead has been
obstructed, the brushbar motor protection sensor may have been
activated. The brushbar will stop, the light on the powered floorhead
will illuminate red and the machine may switch off. To reset remove
the powered floorhead from the reach wand/handheld and clear any
obstruction. Wait 1 minute before refitting the powered floorhead tool,
switch the machine on and press the brushbar ON/OFF button.
OPERATION
NOTE: The powered floorhead brushbar should be ON for carpets and OFF for hard floors.
Constant use of the boost mode and brushbar will reduce the battery runtime.
When the machine is in use the battery
level indicator lights will illuminate
indicating how much charge is
remaining. When less than 20% charge
is remaining the bottom light will flash
red indicating the battery is running low
and charging is required.
8
support.vax.co.uk
GETTING STARTED
All of the accessories, including the powered floorhead and
mini motorised pet tool can be attached directly onto the
handheld, reach wand or powered hose.
The powered hose, crevice tool and dusting brush can be
used for hard to reach places and at different heights for
above floor cleaning.
To remove the tools, press the button on the handheld, reach
wand or powered hose and pull to release.
Soft bristled dusting brush
For delicate surfaces and skirting
boards. Use with boost mode for
optimum performance.
Crevice cleaning tool
Long and thin for tight and hard to
reach areas.
Powered hose
Extends to reach confined spaces.
Powered for use with the mini
motorised tool and floorhead.
Can also be used with the standard
dusting brush and crevice tool.
USING THE TOOLS
*
*Tools dependent on model - see page 5. Additional tools can be purchase at vax.co.uk.
9
GETTING STARTED
NOTE: If the brushbars have been obstructed, the brushbar motor protection sensor may have been
activated. The brushbars will stop and the machine may switch off. To reset remove the tool from the
reach wand/handheld and clear any obstruction. Wait 1 minute before before refitting. Once refitted
switch the machine on and select a floor mode button to reactivate the tool.
USING THE MINI MOTORISED TOOL

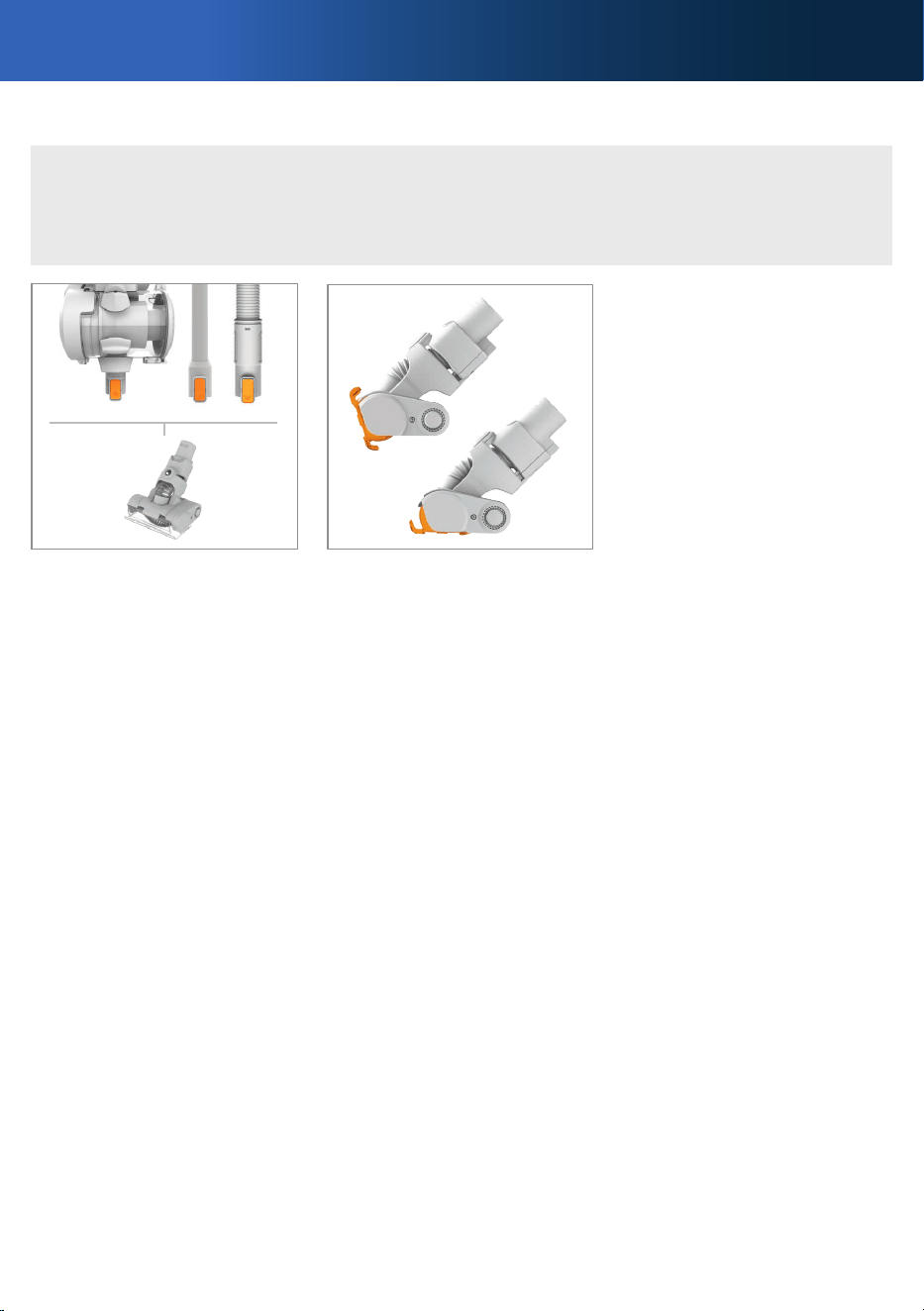

Slide the mini motorised pet tool onto
the handheld, reach wand or powered
hose until it clicks into place.
The mini motorised base plate can
be rotated so it can be used flat or
horizontally for all angle cleaning.
10
support.vax.co.uk
CLEANING & MAINTENANCE
REMOVING AND REFITTING THE DIRT CONTAINER
EMPTYING THE DIRT CONTAINER
WARNING: Always remove the battery before carrying out any maintenance or troubleshooting.
CAUTION: Don’t over fill the dirt container to avoid blocking the air flow through the machine.
For best cleaning results, empty the dirt container after every use. Filters should be tapped over a
bin every 4-6 uses to remove dirt and debris and washed every 3 months. Filters should be replaced
every 6-9 months depending on the level of use.

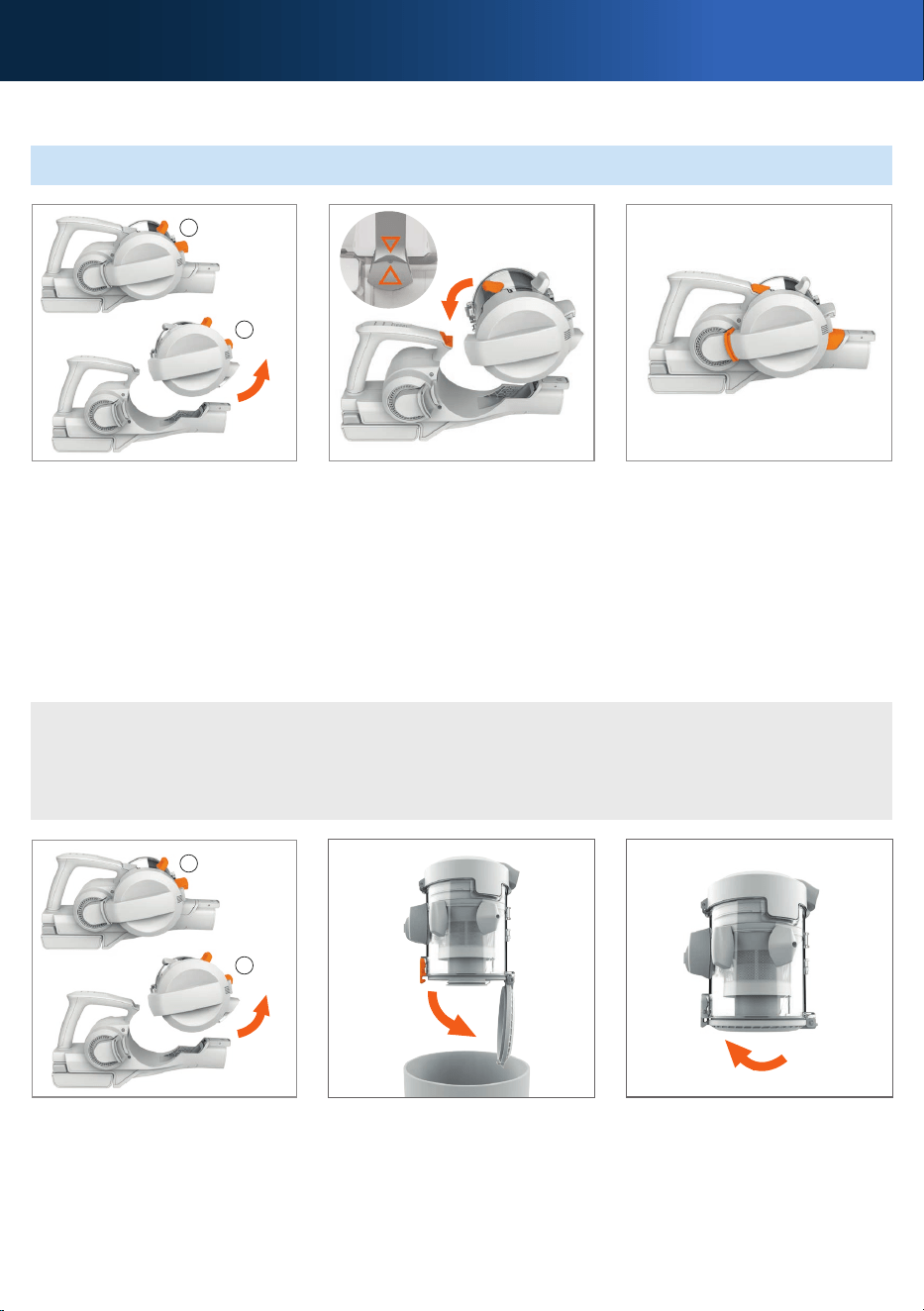

1. Squeeze the latch on the dirt
container to release.
2. Tilt and lift to remove from the
handheld.
1. Squeeze the latch on the dirt
container to release.
2. Tilt and lift to remove from the
handheld.
Hold the dirt container over a bin and
press the dirt release button to allow dirt
and debris to fall out.
To close, push the dirt release door until
it clicks into place.
To refit, line up the dirt container
connection with the handheld handle.
Push the dirt container back onto the
handle until it clicks into place.
When correctly fitted all 3 connection
points will be aligned and will sit flush.
1
1
2
2
11
CLEANING & MAINTENANCE
CLEANING THE FILTER AND SEPARATOR

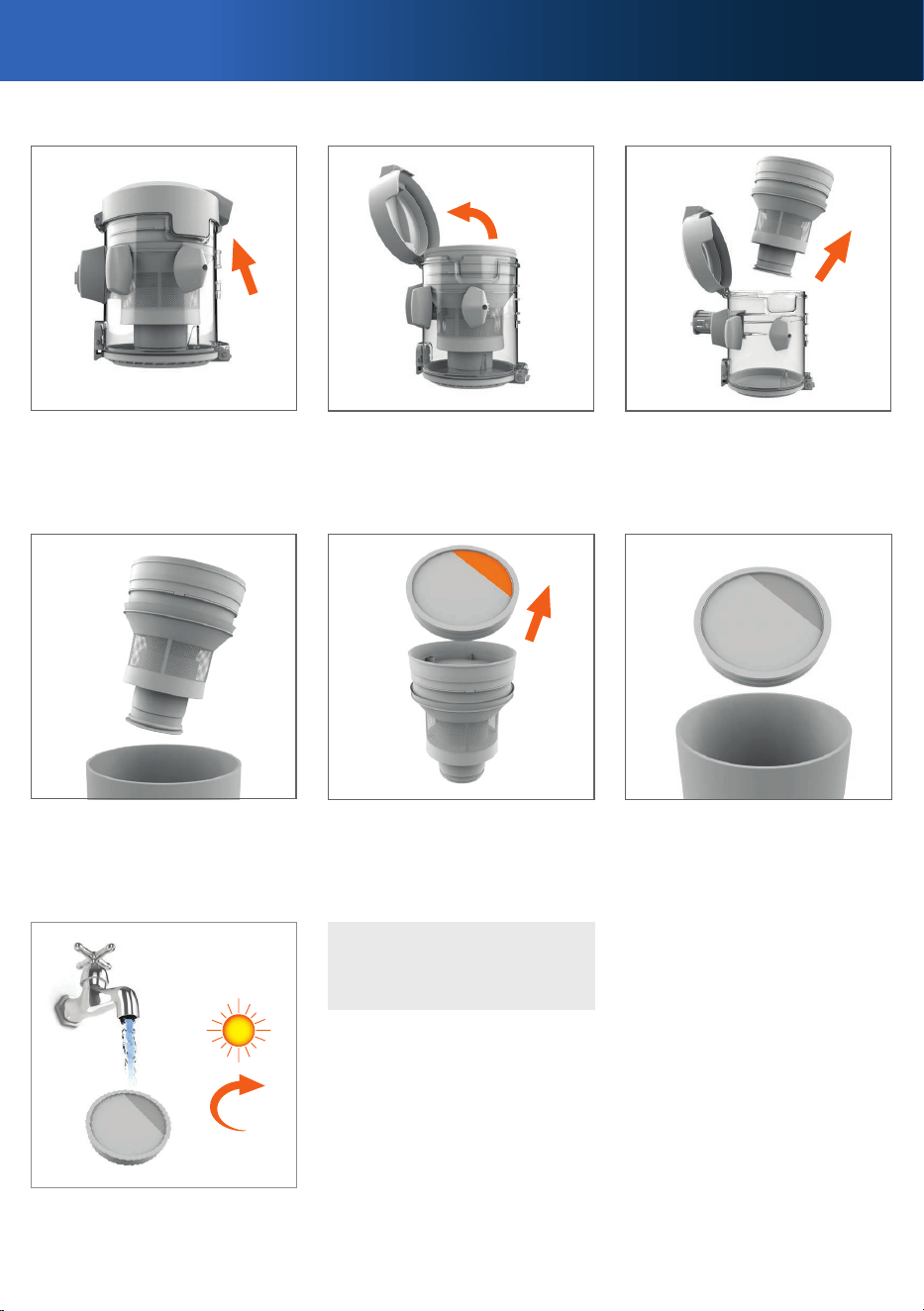

Push the tab on the lid of the dirt container and lift the cover to access the filter.
Lift the filter and separator from the
dirt container.
Tap the separator over a bin to remove
dirt and debris and wipe over the metal
shroud with a dry cloth.
Pull the tab on the filter to remove from
the separator.
Tap the filter against the bin to remove
any dirt and debris.
Wash the filter under running water
(40°C max). Leave for at least 24hrs or
until fully dry before replacing.
24hr
40°C
MAX
CAUTION: Ensure both
the filter and separator are
refitted before use.
12
support.vax.co.uk
CLEANING & MAINTENANCE

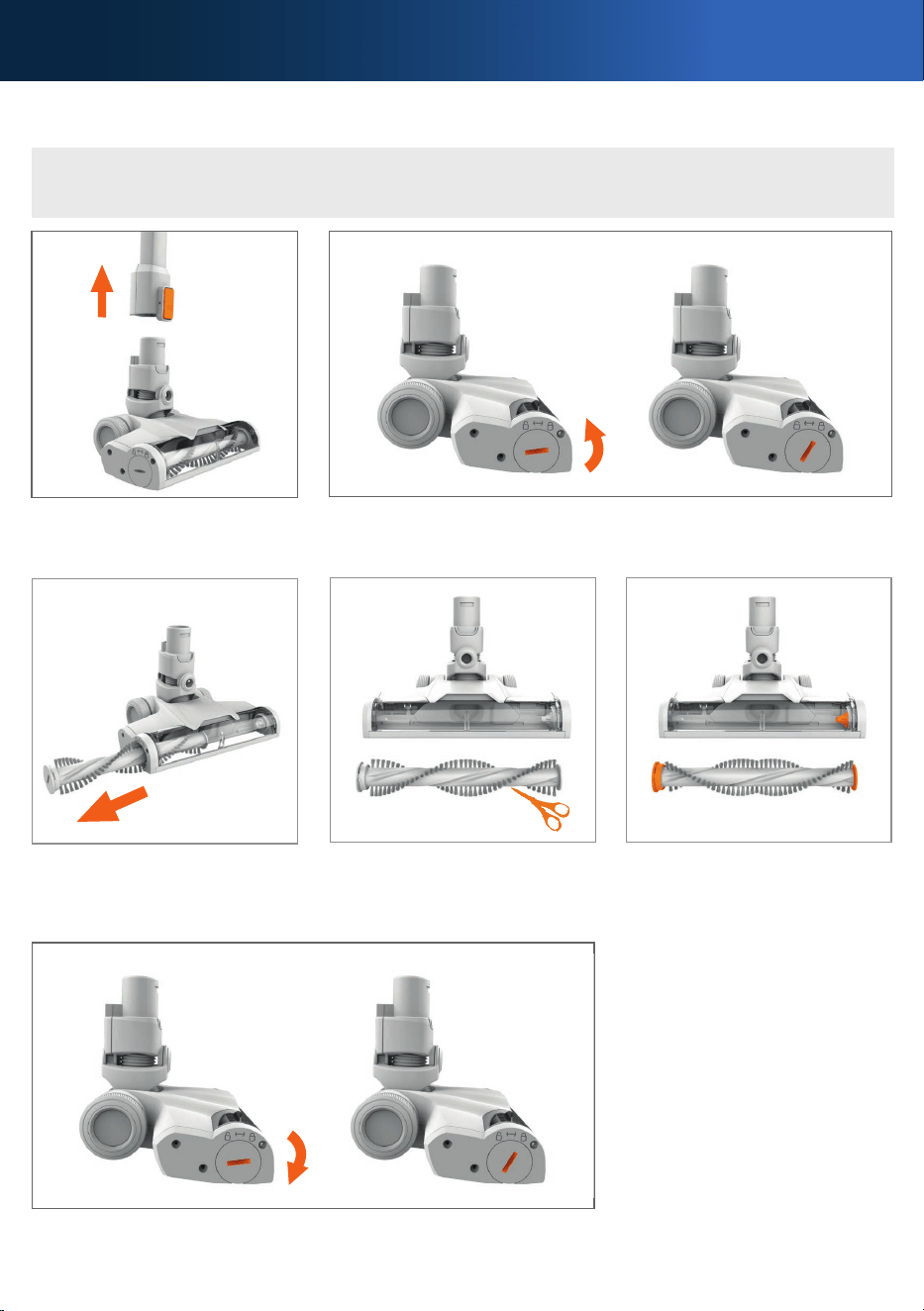

REMOVING AND CLEANING THE POWERED FLOORHEAD BRUSHBAR
Pull the brushbar out from the brushbar
housing.
To remove any threads or hair, slide
the blade of a pair of scissors into the
groove on the brushbar and cut along
the groove.
Clear any dirt/debris from the end caps
and inside the housing of the powered
floorhead.
Using a coin, push and turn the brushbar lock anticlockwise to release the brushbar.Press the button on the reach wand to
remove the powered floorhead from
the machine.
Refit the brushbar into the powered floorhead. Align the arrow on the brushbar cover
so it points north, firmly push and twist clockwise to lock.
NOTE: For best performance and to reduce hair and dirt build up, remove and clean the brushbar
every 1-2 months (depending on the level of use).
13
CLEANING & MAINTENANCE

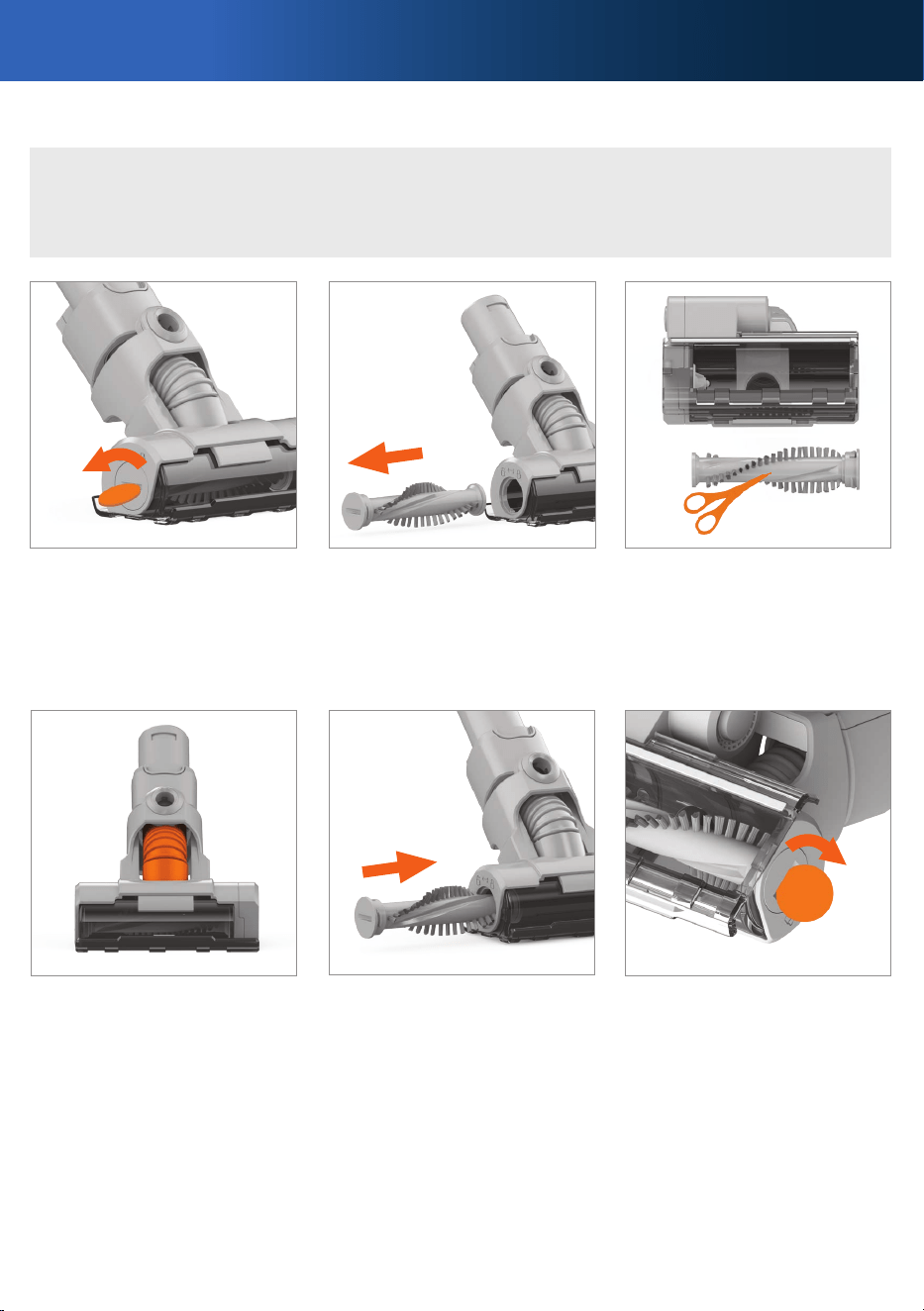

REMOVING AND CLEANING THE PET TOOL BRUSHBAR
Pull the brushbar out from the
brushbar housing.
Using a coin, turn the brushbar lock
anticlockwise to release the brushbar.
To remove any threads or hair slide
the blade of a pair of scissors into the
groove on the brushbar and cut along
the groove. Clear any dirt/debris inside
the housing of the floorhead.
CAUTION: If the brushbar in the mini motorised pet tool has been obstructed, the brushbar motor
protection sensor may activate. The brushbar will stop and the machine may switch off. To reset
remove the tool from the reach wand/handheld and clear any obstruction. Wait 1 minute before
refitting the tool, switch the machine on and press the brushbar ON/OFF button.
Check the inlet for any blockages and use
a blunt object to remove the blockage.
Refit the brushbar and turn the brushbar lock clockwise to lock.
14
support.vax.co.uk
CLEANING & MAINTENANCE

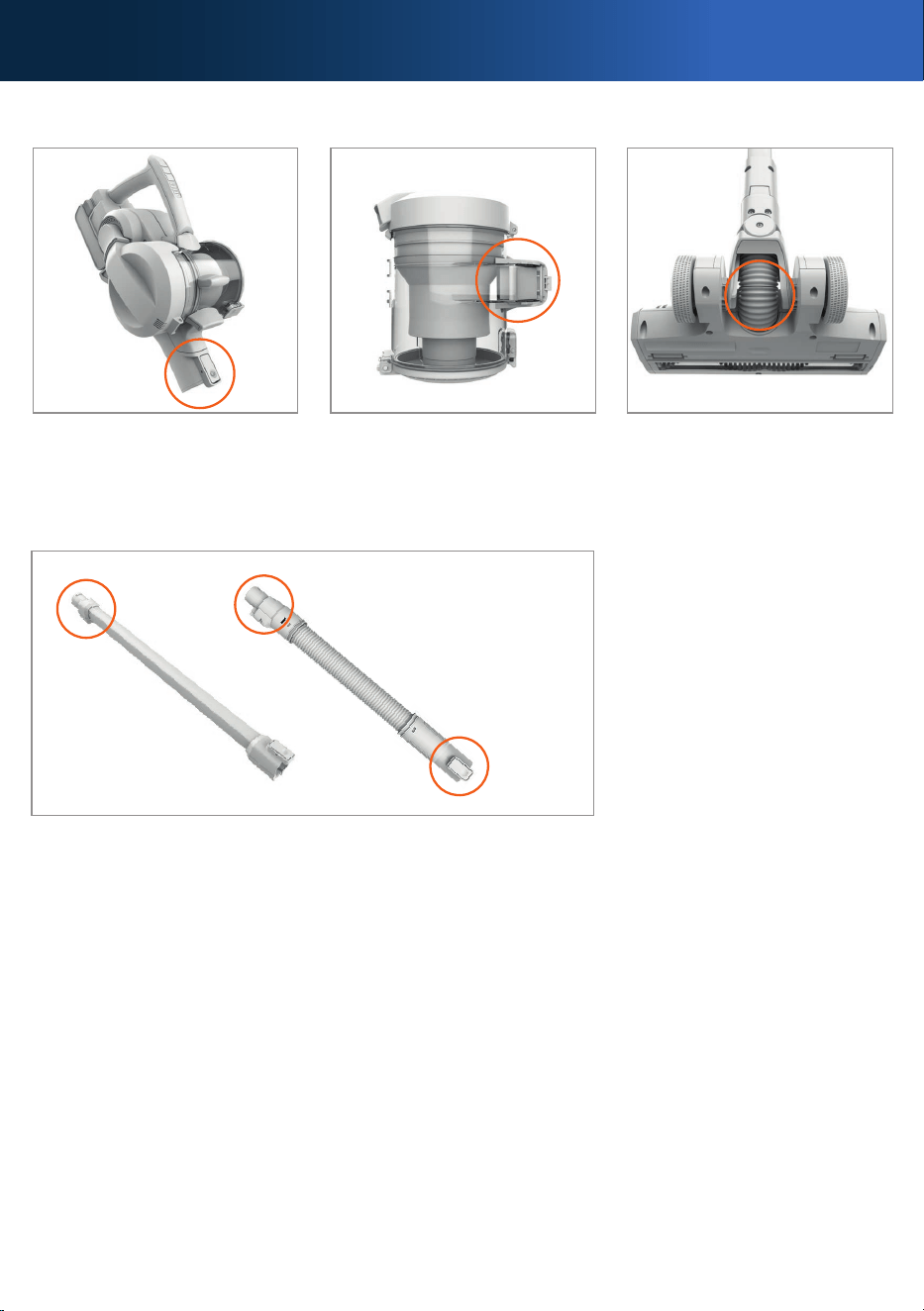

To test for a blockage in the reach wand or powered hose, drop a small ball of paper
into the wand/hose. The paper will drop through if the wand/hose is clear. Use a
broom handle or similar blunt object to remove any blockage.
CHECKING FOR BLOCKAGES
Press the handheld release button and
remove the reach wand. Check and clear
any dirt and debris from the handheld
connection point.
Press the dirt container release button
and remove the dirt container. Check
and clear any dirt and debris from
behind the dirt container flap.
Check the powered floorhead for any
blockages and use a blunt object to
remove the blockage.
15
TROUBLESHOOTING
THERE IS AN ACCESSORY MISSING
Check the contents on the back of the box.
WHY DOES THE MACHINE HAVE NO POWER?
• The battery is not fitted correctly. See OPERATION page 6.
• The battery has no charge. See CHARGING THE BATTERY page 6.
• The motor thermostat may have tripped. Empty the dirt container and check for blockages.
Clean the filters and allow the machine to cool for approximately 1 hour. If you have washed
the filters, wait 24 hours to fully dry before placing back on the machine.
See CLEANING THE FILTER AND SEPARATOR page 11.
• The brushbar motor sensor in the powered floorhead or mini motorised pet tool has been
activated. To reset remove the powered floorhead/tool from the reach wand/handheld and clear
any obstruction. Wait 1 minute before refitting the powered floorhead/tool, switch the machine on
and press the brushbar ON/OFF button. See OPERATION page 7.
WHY WON’T THE MACHINE PICK UP?
• The dirt container may not be correctly fitted. See REMOVING AND REFITTING THE DIRT
CONTAINER page 9.
• The dirt container may be blocked. Check the dirt container and handheld inlet for blockages.
See EMPTYING THE DIRT CONTAINER page 10.
• The filters may be clogged. See CLEANING THE FILTER AND SEPARATOR page 11.
• There may be a blockage. See CHECKING FOR BLOCKAGES page 14.
• The brushbar on the powered floorhead has not been activated. See OPERATION page 7.
• The powered floorhead may be blocked. See REMOVING AND CLEANING THE POWERED
HEAD BRUSHBAR page 12.
• The machine, powered floorhead and reach wand may not be correctly fitted.
See ASSEMBLY page 5.
WHY IS THERE A RED LIGHT?
• Battery charge is running low (<20%). See CHARGING THE BATTERY page 6.
WHY IS THERE A RED LIGHT ON THE POWERED FLOORHEAD?
• The powered floorhead brushbar has been obstructed. See REMOVING AND CLEANING THE
POWERED FLOORHEAD BRUSHBAR page 12.
WHY WON’T THE BRUSHBAR IN THE POWERED FLOORHEAD OR PET TOOL TURN?
• The brushbar in the powered floorhead or mini motorised pet tool has not been activated.
Go to OPERATION page 7.
• The tool/brushbar may be obstructed. See REMOVING AND CLEANING THE POWERED
FLOORHEAD BRUSHBAR page 12 and REMOVING AND CLEANING THE PET TOOL BRUSHBAR
page 13.
• The machine, reach wand, powered hose, powered floorhead and mini motorised pet tool may not
be correctly fitted. See ASSEMBLY page 5 and USING THE TOOLS page 8.
VAX Ltd, Artillery House, Heritage Way, Droitwich, WR9 8YB, UK.
info@vax.co.uk vax.co.uk
For how-to videos and
warranty registration visit
www.vax.co.uk
