用户手册
MDC22P2ASS(WQP6-3602M-US)
MIDEA美国(6套美洲移动机,
无软水,双速,两层碗篮)
6720603295
MDC22P2ASS
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.
Dishwasher
version A - 12 - 2023
02
15
12
22
25
29
32
07
08
SAFETY INSTRUCTIONS
SPECIFICATIONS
PRODUCT OVERVIEW
PRODUCT INSTALLATION
OPERATION INSTRUCTIONS
CLEANING AND MAINTENANCE
TROUBLESHOOTING
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT
WARRANTY
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
CONTENTS
SAFETY INSTRUCTIONS
02
YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT
To prevent injury to the user or other people and property damage, the
instructions shown here must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage, including death.
The level of risk is shown by the following indications.
This symbol indicates the possibility of dangerous voltage
constituting a risk of electrical shock is present that could
result in death or serious injury.
This symbol indicates the possibility of injury or
damage to property.
This symbol indicates the possibility of death or serious
injury.
WARNING
CAUTION
WARNING
03
WARNING/GROUNDING INSTRUCTIONS
Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrican or
service representative if you are in doubt whether the appliance is
properly grounded. Do not modify the plug if provided with the
appliance. If the plug will not fit the outlet, hve a proper outlet
installed by a qualified electrician.
For a grounded, cord-connected appliance:
This appliance must be grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. If this appliance
is equipped with a cord having an equipment-grounding conductor and
a grounding plug, the plug must be plugged into an appropriate outlet
that is installed
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent
wiring system, or an equipment-grounding conductor must be run with
the circuit conductors and connected to the equipment-grounding
terminal or lead on the appliance.
WARNING
When using your dishwasher, follow basic precautions, including the
following:
•
Read all instructions before using the dishwasher.
Use the dishwasher only for its intended function.
Use only detergents or rinse/wetting agents recommended for use
in a dishwasher and keep them out of the reach of children.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the
door seal.
Load sharp knives with the handles up to reduce the risk of
cut-type injuries.
Do not wash plastic items unless they are marked “Dishwasher
Safe” or the equivalent. For plastic items not so marked, check the
manufacturer’s recommendations.
Items that are not dishwasher safe may melt and create a potential
fire hazard.
Do not touch the heating element during or immediately after use.
Do not operate your dishwasher unless all enclosure panels are
properly in place.
•
•
•
•
•
•
•
•
•
04
•
Do not tamper with controls.
Do not abuse, sit on, or stand on the dishwasher door, or dish racks.
To reduce the risk of injury, do not allow children to play in or on a
dishwasher.
Under certain conditions, hydrogen gas may be produced in a
hot-water system that has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not
been used for such a period, before using the dishwasher turn on
all hot-water faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen gas. As the
gas is flammable, do not smoke or use an open flame during this
time.
Severe product damage and/or injury could result from the use of
unqualified service technicians or non-original replacement parts.
All repairs must be performed by a qualified service technician
using only original equipment factory replacement parts.
Do not store or use combustible materials, gasoline or other
flammable vapors and liquids in the vicinity of this or any other
appliance.
Keep young children and infants away from dishwasher when it is
operating.
Do not use the dishwasher if it has a damaged power line or plug,
and do not plug the dishwasher into a damaged outlet. Failure to
observe these instructions may result in electrical shock.
This manual does not cover every possible condition or situation
that may occur.
Remove the door to the washing compartment when removing an
old dishwasher from service or discarding it.
•
•
•
•
•
•
•
•
•
SAVE THESE INSTRUCTIONS
THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY
WARNING
Tip Over Hazard
•
Do not use dishwasher until completely installed.
•
Do not push down on open door.
•
Doing so can result in serious injury or cuts.
05
State of California Proposition 65 Warnings:
WARNING: Cancer and Reproductive Harm
-www.P65Warnings.ca.gov.
CAUTION
•
Never use harsh chemicals to clean your dishwasher. Some
chloride-containing products can damage your dishwasher and
may present health hazards!
Never use steam cleaning products to clean your dishwasher. The
manufacturer will not be responsible for the possible damages or
consequences.
To a void possible dishwasher damage, do not use harsh chemicals,
abrasive cleaners, scouring pads (metal or plastic), or abrasive
cloths/paper towels to clean your dishwasher’s exterior door panel.
Your dishwasher’s exterior door panel can be damaged by doing so.
It is highly recommended that the user become familiar with the
procedure to shut off the incoming water supply and the procedure
to shut off the incoming power supply. See the Installation
Instructions or contact your installer for more information.
If the dishwasher drains into a food disposer, make sure disposer is
completely empty before running dishwasher.
NSF/ANSI 184 Certified residential dishwashers are not intended
for licensed food establishments.
Protect your dishwasher from the elements. Protect against
freezing to avoid possible damage to the fill valve. Damage caused
by freezing is not covered by the warranty.
•
•
•
•
•
•
•
Not for outdoor use.
06
OPERATING REQUIREMENTS
ELECTRICAL REQUIREMENTS
WARNING
Electrical Shock Hazard
•
Electrically ground dishwasher.
•
Connect ground wire to green ground connector in terminal box.
•
Do not use an extension cord.
•
Failure to follow these instructions can result in death, fire, or electrical
shock.
This dishwasher is designed for operation on an adequately wired
individual 120 V, 60 Hz, 15- or 20-amp fused electrical supply with
copper wire only. It is recommended that a time-delay fuse or circuit
breaker is used, and that a separate circuit serving only this appliance
is provided. If an outlet is used, the outlet should be placed in adjacent
cabinet.
LOCATION REQUIREMENTS
•
Install where dishwasher is protected from the elements. Protect against
freezing to avoid possible rupture of fill valve. Such ruptures are not covered
by the warranty. For winter storage information, see “Storing” in the
“Dishwasher Care” section.
•
Install and level dishwasher on a floor that will hold the weight and in an
area suitable for its size and use.
WATER SUPPLY REQUIREMENTS
•
The water supply temperature should be 120°F to 150°F (49°C to 66°C).
•
The water supply must maintain water pressure between 20 and 80 psi for
sufficient flow.
07
SPECIFICATIONS

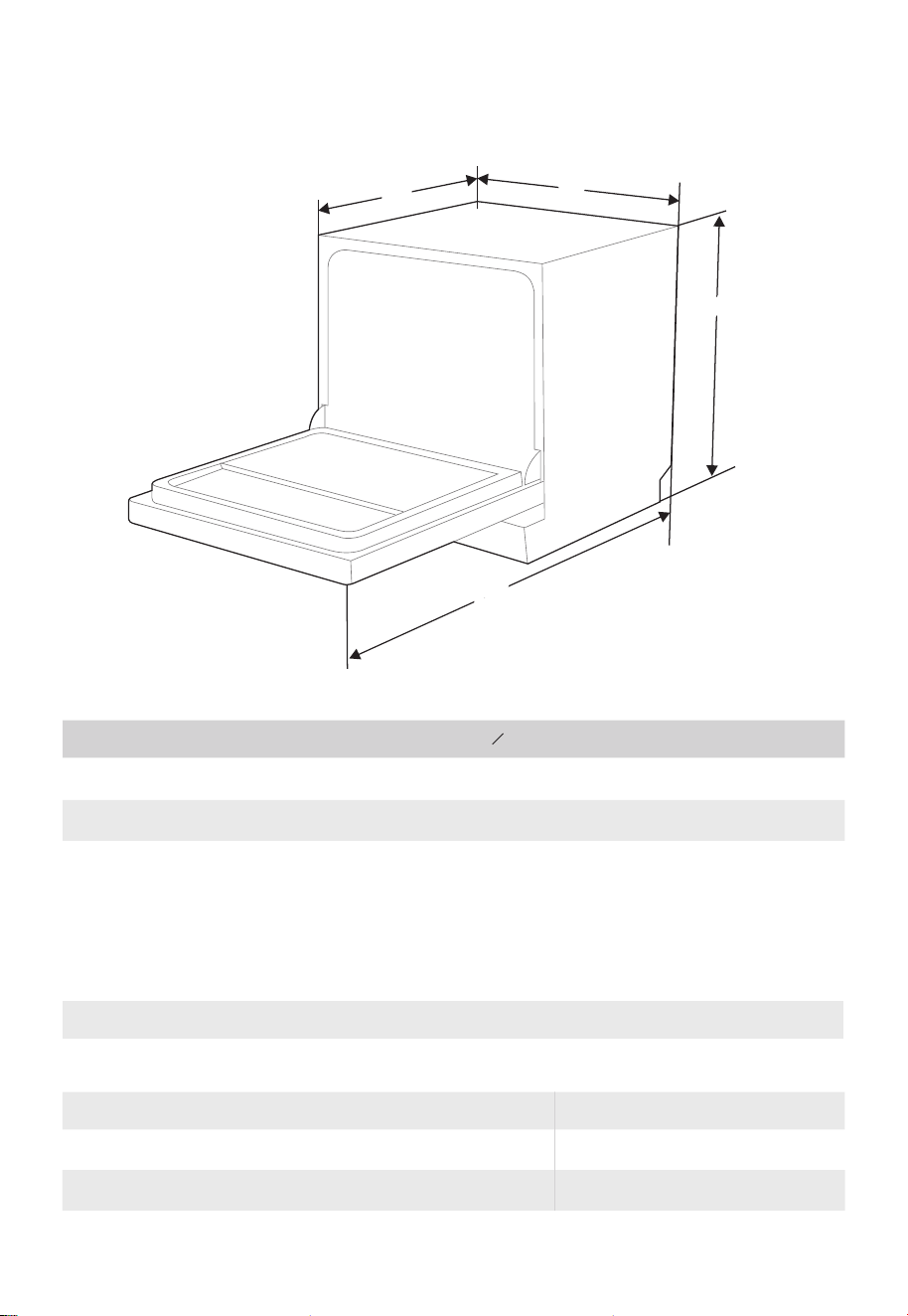

W
D1
H
D2
Height (H)
Width (W)
Depth (D1)
Depth (D2)
17
1
inches
22
inches
20 inches (with the door closed)
32 inches (with the door opened 90°)
Product information sheet
Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010:
Standard place setting
Rated voltage / frequency
Used water pressure
6
AC 120V/60Hz
5.8-145 psi (40-1000 kPa)
4
08

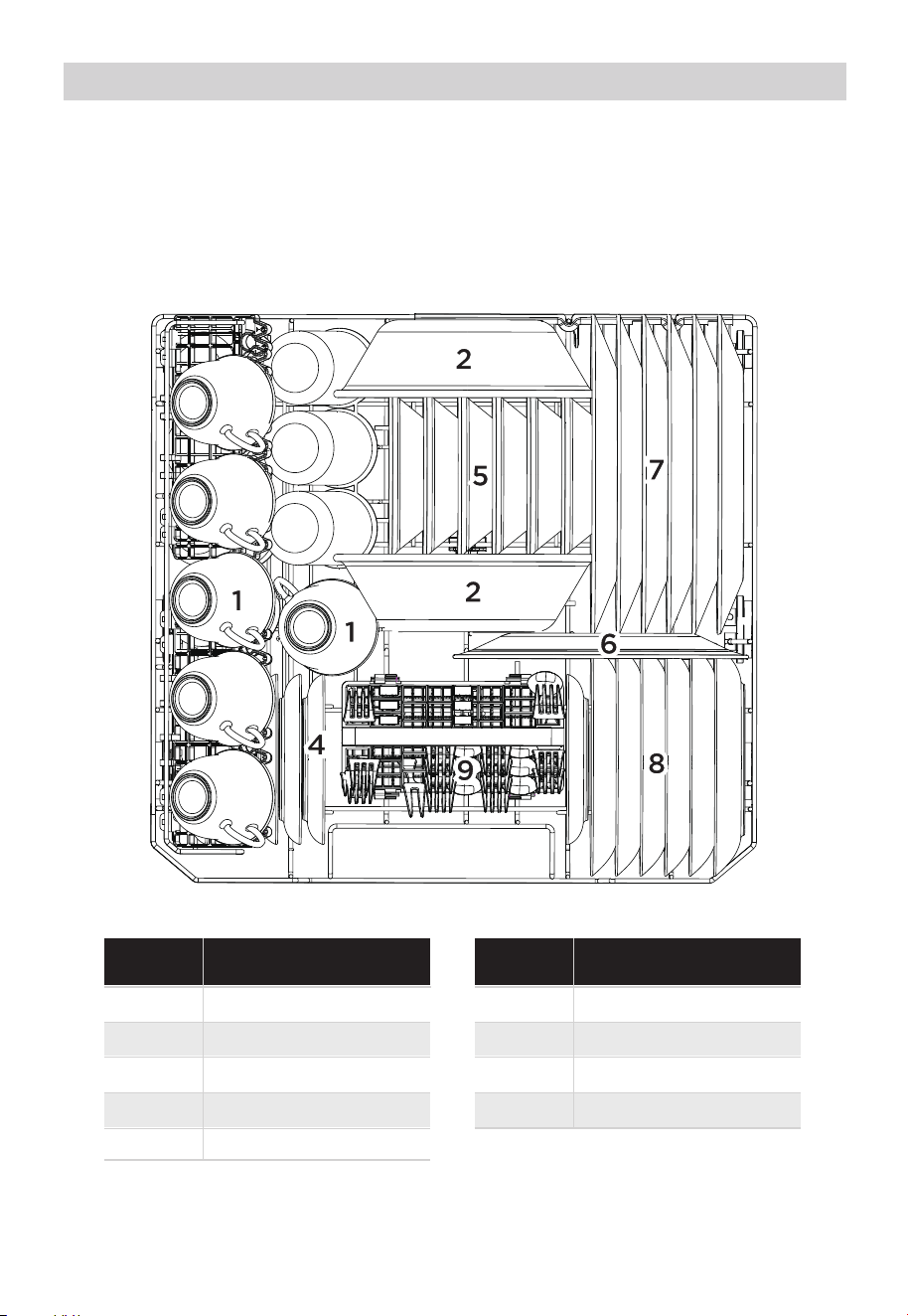

Cutlery rack Basket
Cup rack
Product
PRODUCT OVERVIEW
IMPORTRANT
To get the best performance from your dishwasher, read all operating
instructions before using it for the first time.
NOTE
Pictures are only for reference, different models may be different.

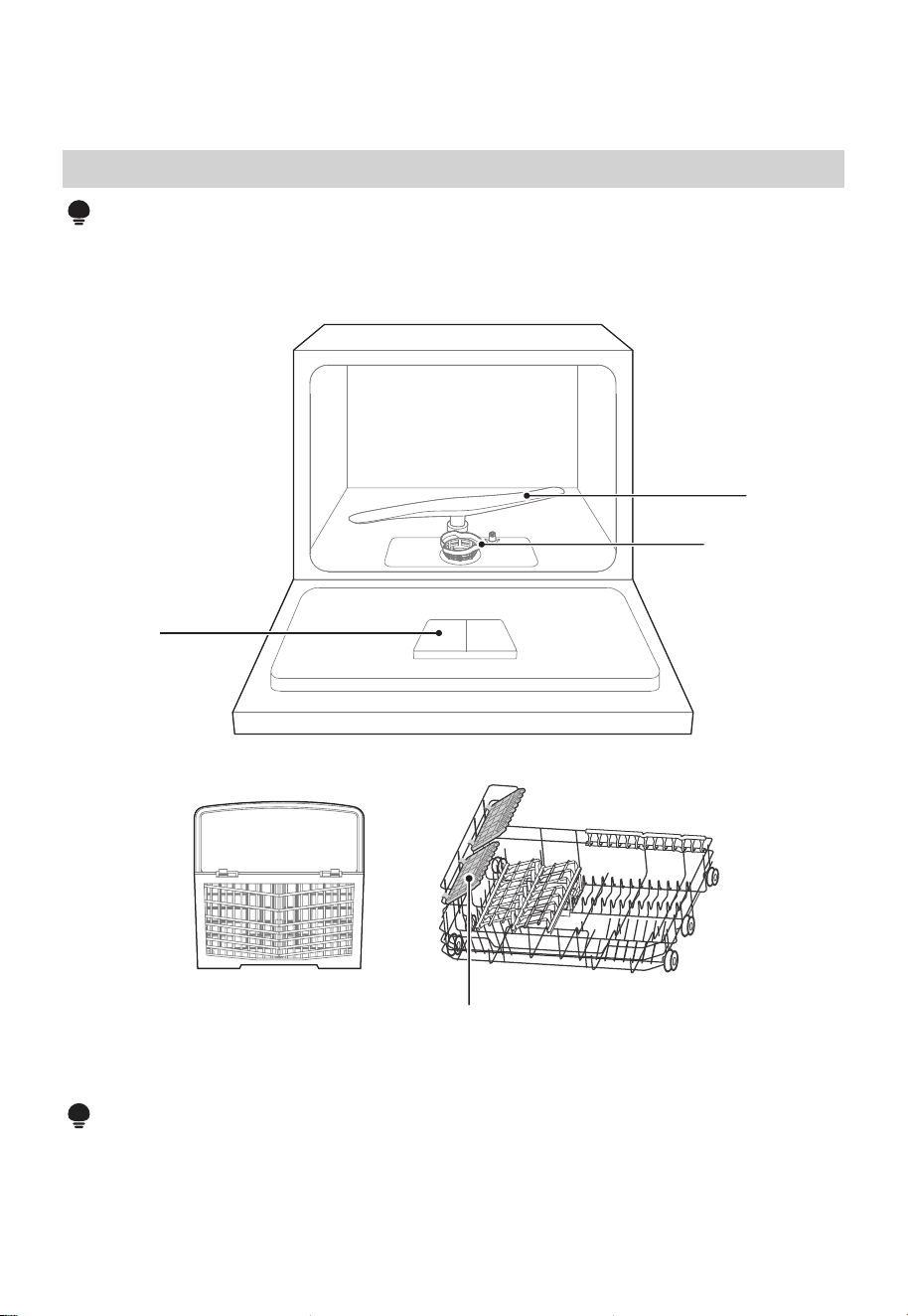

Spray arm
Filter assembly
Dispenser
09
About Power Connection
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing
connection from the power cord.
The installation of the pipes and electrical equipments should
be done by professionals.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher
to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or
circuit breaker recommended and provide separate circuit serving only this appliance.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly.
If the electrical socket to which the appliance must be connected is not appropriate
for the plug, replace the socket, rather than using a adaptors or the like as they could
cause overheating and burns.
Ensure that proper earthing exists before use
WARNING
WARNING
Attention
PRODUCT INSTALLATION
WARNING
10
Water Connection

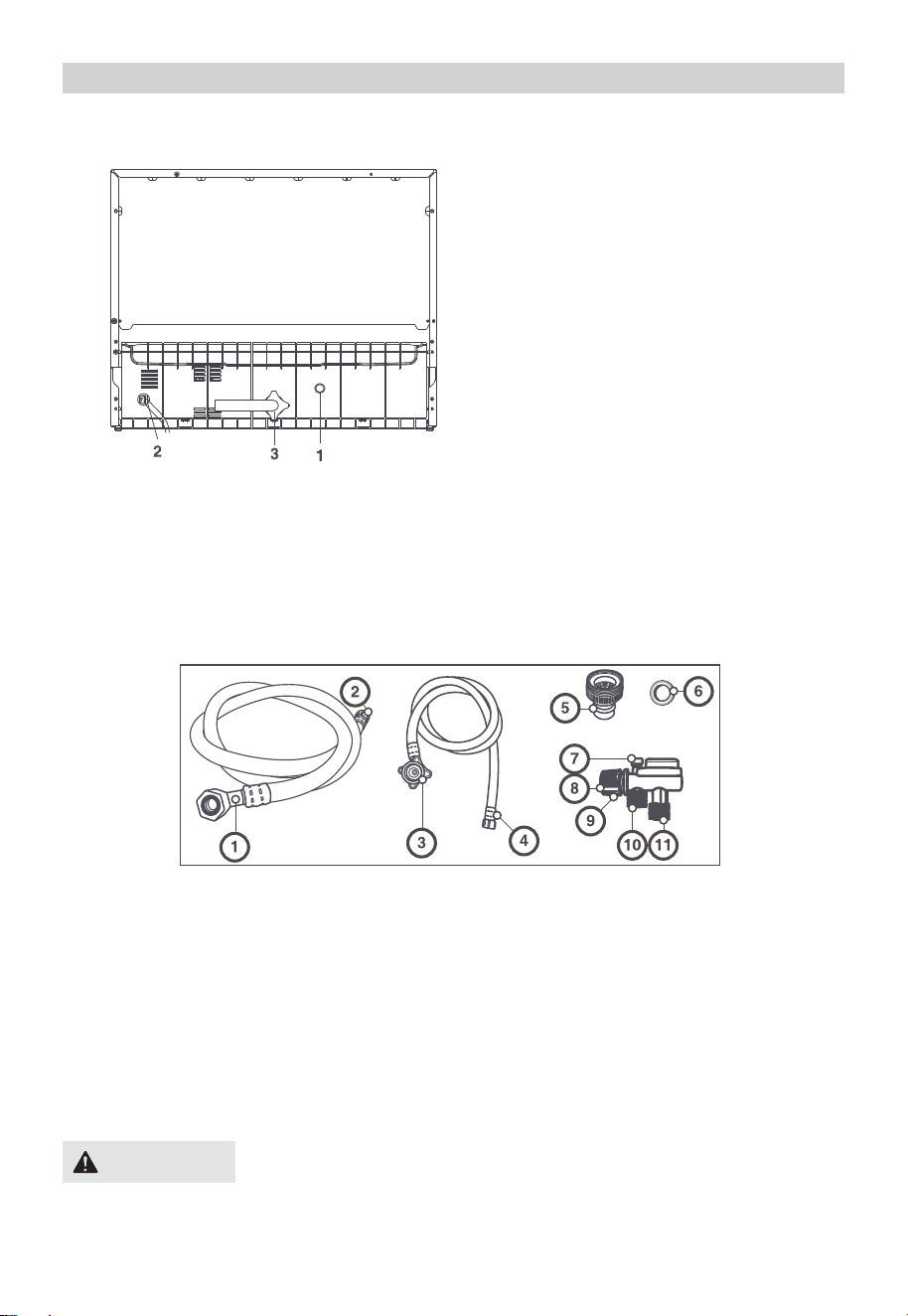

Rear of Dishwasher:
1. Drain Port
2. Power Cord
3. Inlet Port
Back View
Quick Connect Assembly
Drain
Hose
Inlet
Hose
Qulck Connect
Your dishwasher comes equipped with a quick connect assembly (includes inlet and
drain hose). The faucet adapter must be installed on the faucet before you can
connect the dishwasher. This adapter is included inside your dishwasher, The faucet
adapter is compatible with faucets inclusive of either male(outside)or female (inside)
threaded faucet connections.
Quick Connect Assembly
Drain Hose:
1.Drain port connection
2.Quick connectconnection
Inlet Hose:
3. Inlet port connection
4.Quick connectconnection
Faucet Adapter:
5.Faucet Adapter
6. Faucet washer
Qulck Connect:
7.Pressure relief valve
8.Faucet adapterconnection
9.Locking collar
10.Inlet hose connection
11.Drain hose connection
In order to avoid that there is more water staying in the inlet hose, please close the
faucet after using
11
1. Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (use Teflon
tape to eliminate if necessary).
2.Connect the six-sided connection of the drain hose to the drain port connection on
the back of the dishwasher cabinet. Do not over-tighten (to avoid damage to
threads).
3.Connect the star-shaped connection of the inlet hose to the inlet port on the back of
the dishwasher cabinet. Do not over-lighten (to avoid damage to threads).
4.Connect the circular connection of the drain hose onto the longer (bottom) male
connection on the quick connect.
5.Connect the circular connection of the inlet hose onto the shorter (top) male
connection on the quick connect.
6.Attach the quick connect onto the faucet adapter, by pulling down the outer locking
collar on the quick connect, while pushing the quick connect upward onto the faucet
adapter
.
7.When the quick connect snaps onto the faucet adapter, release the locking collar.
Verify the connection is secure.
8.Slowly open the hot water line and check for any sign of water leaks at all hose
connections. If leaks are located, immediately close the water supply and repair the
hose connections.
Important
1. Once you open the water supply line, (even if it is closed immediately thereafter), the
inlet hose will be pressurized.
2. To relieve water pressure from inside the inlet hose, (make sure the water line (faucet)
is closed): press and hold the red pressure relief button on the quick connect until the
flow of water stops.
FAILURE TO RELIEVE WATER PRESSURE, BEFORE DISCONNECTING THE
QUICK-CONNECT FROM THE FAUCET, WILL RESULT IN BACK-PRESSURE
OVER-SPRAY. THE TEMPERATURE OF INCOMINGWATER CAN BE VERY HOT, AND
BACK-PRESSURE OVER-SPRAY COULD CAUSE SEVERE BURNS AND/OR SCALDING.
DANGER
DO NOT LET CHILDREN DISCONNECT THE DISHWASHER; CLOSE SUPERVISION
OFCHILDRENIS ALWAYS IMPORTANT AROUND APPLIANCES.
NOTE:
Hard water conditions will adversely affect the washing performance of your dishwasher.
Hard water condltlons wlll also contrlbute to 'llme' (whlte fllm substance) deposlts
and/or 'scallng' on the stainless steel surface of the dishwasher tub and heater element,
located in the sump underneath the removable filter screen. To assist in minimizing these
conditions, it is recommended to periodically operate/rinse the inside of the dishwasher
(empty) using 1 cup of white vinegar at least once a week.
Disconnecting your Dishwasher
1. Shut off the water supply at the faucet.
2. Disconnect the power supply cord
The following things should be checked before starting the dishwasher.
1
.
The dishwasher is level and fixed properly.
2. The inlet valve is open.
3. There is a leakage at the connections of the conducts.
4. The wires are tightly connected.
5. The power is switched on.
6. The inlet and drain hoses are knotted.
7. All packing materials and printings should be taken out from the dishwasher.
Starting the Dishwasher
After installation, please make sure to keep this manual.
The content of this manual is very helpful to the users.
Attention:
EXTENDED
DRY
QUICK
Control Panel
OPERATION INSTRUCTIONS
Description
●
No.1 Press this button to turn on or turn off the dishwasher.
12
POWER
1 2 2 3 4 5 6 7 8
●
No.2 CYCLES
●
Heavy cycle is for pots, pans, casseroles and dinnerware with
dried-on or baked on soil.
HEAVY
●
Normal cycle with only the Heat Dry option selected is
recommended to completely wash and dry a full load of
normally soiled dishes. The energy usage label is based on this
cycle and option combination with the upper rack in the raised
position.
NORMAL
●
Auto cycle uses sensors in the dishwasher to determine the
soil level of the dish load, and then adjusts the wash cycle to
optimize wash performance, water and energy usage.
AUTO
●
Quick cycle is for lightly soiled or well-rinsed dish loads.
QUICK
RINSE
●
For lightly soiled crockery and glass.
DELICATE
Press the control for the desired wash cycle. The control
illuminates to indicate the cycle selected.
13
Description
No.3
No.4
EXTENDED DRY
POWER WASH
START
●
●
For better drying result. (It can only be used with
ECO, IntensiveCare+, 90 min, Whisper, Glass,
HygieneCare+)
To wash very dirty, hard to clean dishes. (It can't
not be used with Auto, Rapid, MachineCare+)
●
To show the reminding time, delay time, error code
etc.
No.5
Screen
Child lock
●
This function allows you to lock the buttons on the
control panel, so children cannot accidently start the
dishwasher by pressing the buttons on the panel.
Only the Power button remains active.
To lock or unlock the buttons on the control panel,
press and hold the CHILD LOCK button
simultaneously.
No.6
Child lockNo.7
No.8
Delay
●
Press the button to increase the delay start time.
Delay a cycle for up to 24 hours in one-hour
increments.
●
To start the selected washing program.
Press the button for 3 seconds to cancel the program
when the dishwasher is working.
●
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is
low on dishwasher rinse aid and needs to be refilled.
14
NORMAL
(*Test cycle)
QUICK
RINSE
Pre-wash 1
Main wash
(48-52
°C
)(118.4-125.6°
F
)
Rinse 1
Last Rinse(65
°C
)(149°
F
)
Drying
Pre-wash 1(45
°C
)
(
113°
F
)
Pre-wash 2(50
°C
)
(
122°
F
)
Main wash(55
°C
)
(
131°
F
)
Rinse 1(55
°C
)
(
131°
F
)
Rinse 2(60
°C
)
(
140°
F
)
Pre-wash
Rinse
6.3-14.4L
1.66-3.8gal.
0.38
-0.42
10.5L
2.77gal.
0.31
127-155
45
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information about
the programs. Consumption values and program duration are only indicative except
for the ECO program.
Programmes
Program
Description
Of Cycle
Running
Time(min)
Energy
(kWh)
Water
gal.(L)
Rinse
Aid
AUTO
Pre-wash
Main wash
(52-60
°C
)(125.6-140°
F
)
Rinse
Last Rinse
(65-67
°C
)
(
149-152.6°
F
)
Drying
4.3L
1.14gal.
0.0324
7.6-14.4L
2.0-3.8gal.
0.39
-0.48
137-166
HEAVY
Pre-wash 1
Pre-wash 2
Main wash(60
°C
)
(
140°
F
)
Rinse 1
Rinse 2
Last Rinse(68
°C
)
(
154.4°
F
)
Drying
12.5L
3.3gal.
0.49100
DELICATE
Pre-wash
Main wash(50°C
)
(122
°
F
)
Rinse 1
Rinse 2(60°C
)
(140
°
F
)
Drying
8.5L
2.25gal.
0.28
70
15
Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.
For washing the following cutlery/dishes
Are not suitable
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Very small items should not be washed in the dishwasher as they could easily fall
out of the basket.
NOTE
Are of limited suitability
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
(Features and appearance of baskets and cutlery baskets may vary from your model.)
Place objects in the dishwasher in the following way:
tems such as cups, glasses, pots, pans, etc. must face downwards.
Curved items, or ones with recesses, should be loaded aslant so that water can run off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotate freely during washing.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwards
so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage, glasses should not touch one another.
Long bladed knives stored in an upright position are a potential hazard!
Long and sharp items of cutlery such as carving knives must be positioned
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
LOADING THE BASKETS
16
Loading the basket (6 place setting)
The upper basket has been designed for small plates, mugs, glasses, and plastic items
marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so
that the front of each plate faces the back of the plate in front of it, and the open sides
of the plates at the center of the dishwasher face each other.
When loading dishes, pull the upper basket out sufficiently so you can load it without
striking the counter.
3
Number Item
1
2
3
4
5
Cups
Serving bowl
Glasses
Saucers
Fruit bowl
Number Item
6
7
8
9
Oval platter
Dinner plates
Bread and butter plates
Cutlery basket
Number Item
1
2
3
4
5
6
Soup spoons
Knives
Salad forks
Forks
Large spoons
Large forks
17

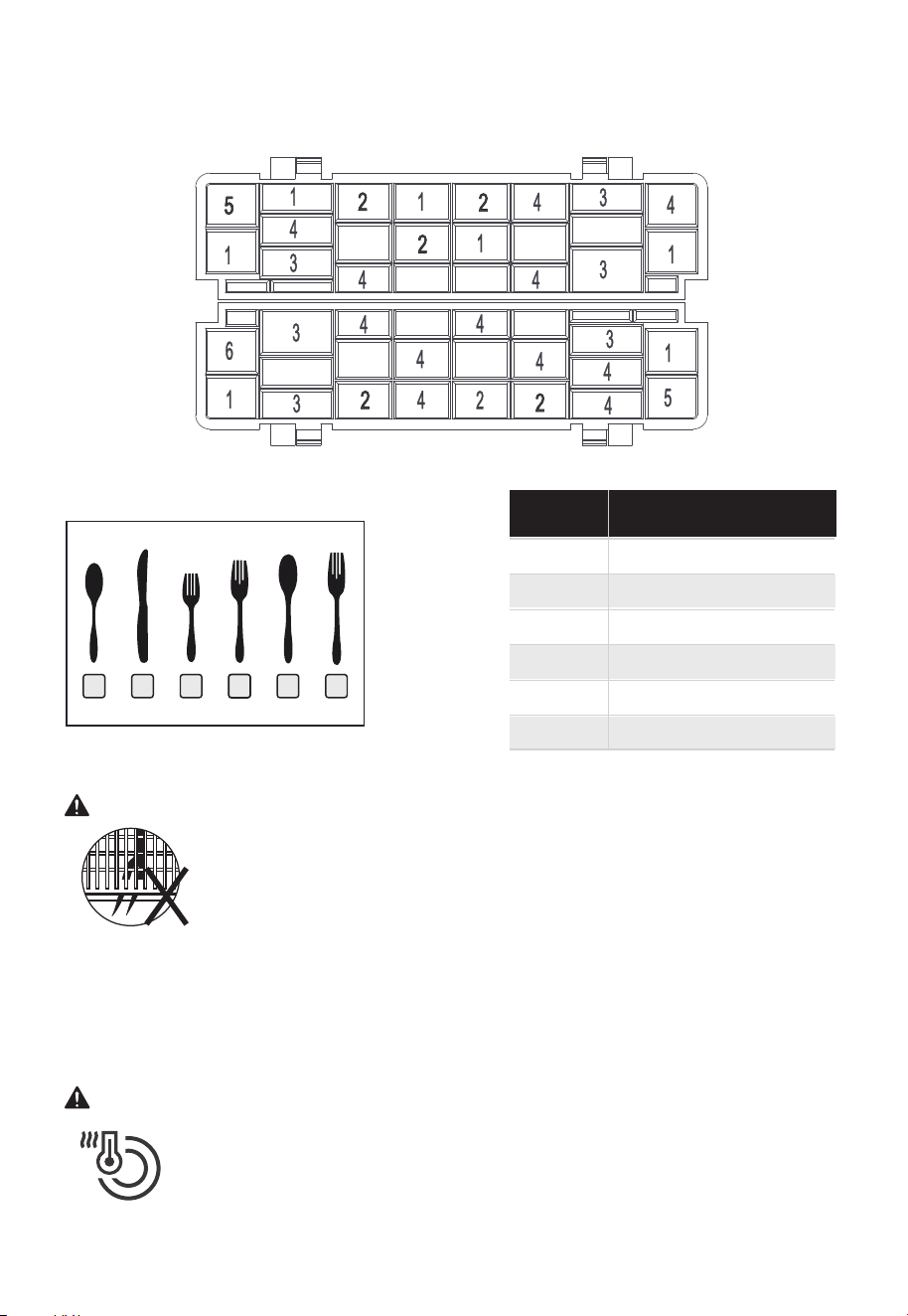

Loading the cutlery basket
The silverware basket can be divided into three separate modules that can be used in
both upper and lower racks
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend
that you empty the lower basket first, followed by the upper basket.
321 5444 6
Do not let any item extend through the bottom.
Always load sharp utensils with the sharp point down!
Be sure nothing protrudes though bottom of the basket
or rack to block the lower spray.
WARNING
WARNING
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
18
When to refill the rinse aid dispenser
TAdd rinse aid into the dispenser, when the rinse aid symbol( ) is illuminated on
the LED Display.
Function Of The Rinse Aid And Detergent
The rinse aid is released during the final rinse to prevent water from forming droplets on
your dishes, which can leave spots and streaks. It also improves drying by allowing water
to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any
other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage
the appliance.
Proper Use of Detergent
Use only detergent specifically made for dishwashers use. Keep your detergent
fresh and dry.
Do not fill detergent into the dispenser until you are ready to start the dishwasher.
Dishwasher detergent is corrosive! Keep dishwasher detergent out of the
reach of children.
WARNING
WARNING
19
Filling The Rinse Aid Reservoir
Adjusting the rinse aid reservoir

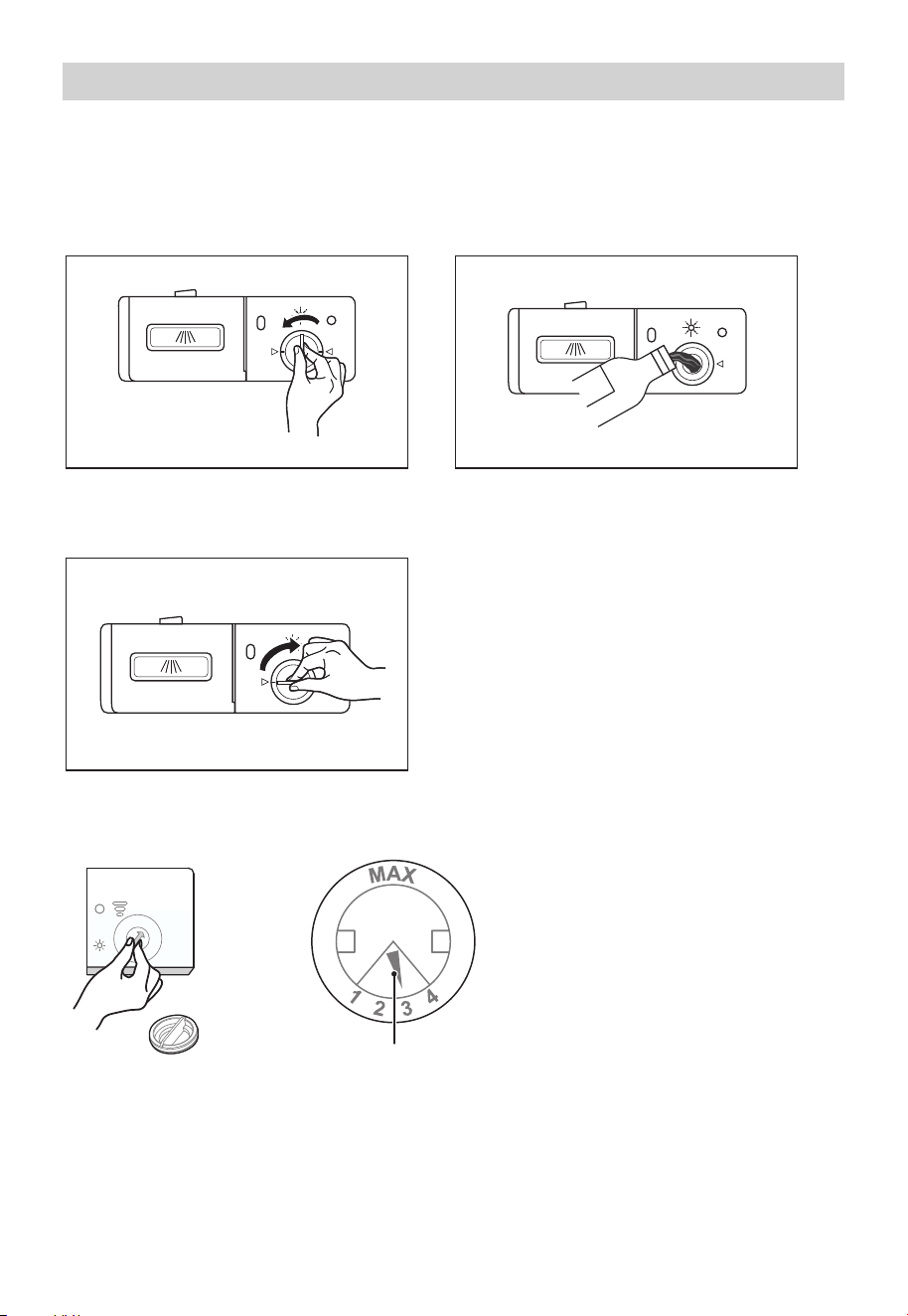

Turn the rinse aid indicator dial to a number between 1 and 4. The higher the number,
the more rinse aid the dishwasher uses.
If the dishes are not drying properly or are spotted, adjust the dial to the next higher
number until your dishes are spot-free. Reduce it if there are sticky whitish stains on
your dishes or a bluish film on glassware or knife blades.
The rinse aid is released during the final rinse to prevent water from forming droplets on
your dishes, which can leave spots and streaks. It also improves drying by allowing water
to roll off the dishes. Your dishwasher is designed to use liquid rinse aids.
3. Close the rinse aid reservoir cap by
rotating it clockwise.
1. Remove the rinse aid reservoir cap 2
by rotating it counterclockwise.
2. Carefully pour in the rinse-aid into
its dispenser, whilst avoiding it to
overflow.
Adjust lever(Rinse)
20
Saving Energy
1. Pre-rinsing of tableware items leads to increased water and energy consumption
and is not recommended.
2. Washing tableware in a household dishwasher usually consumes less energy and
water in the use phase than hand dishwashing when the household dishwasher is
used according to the instructions.

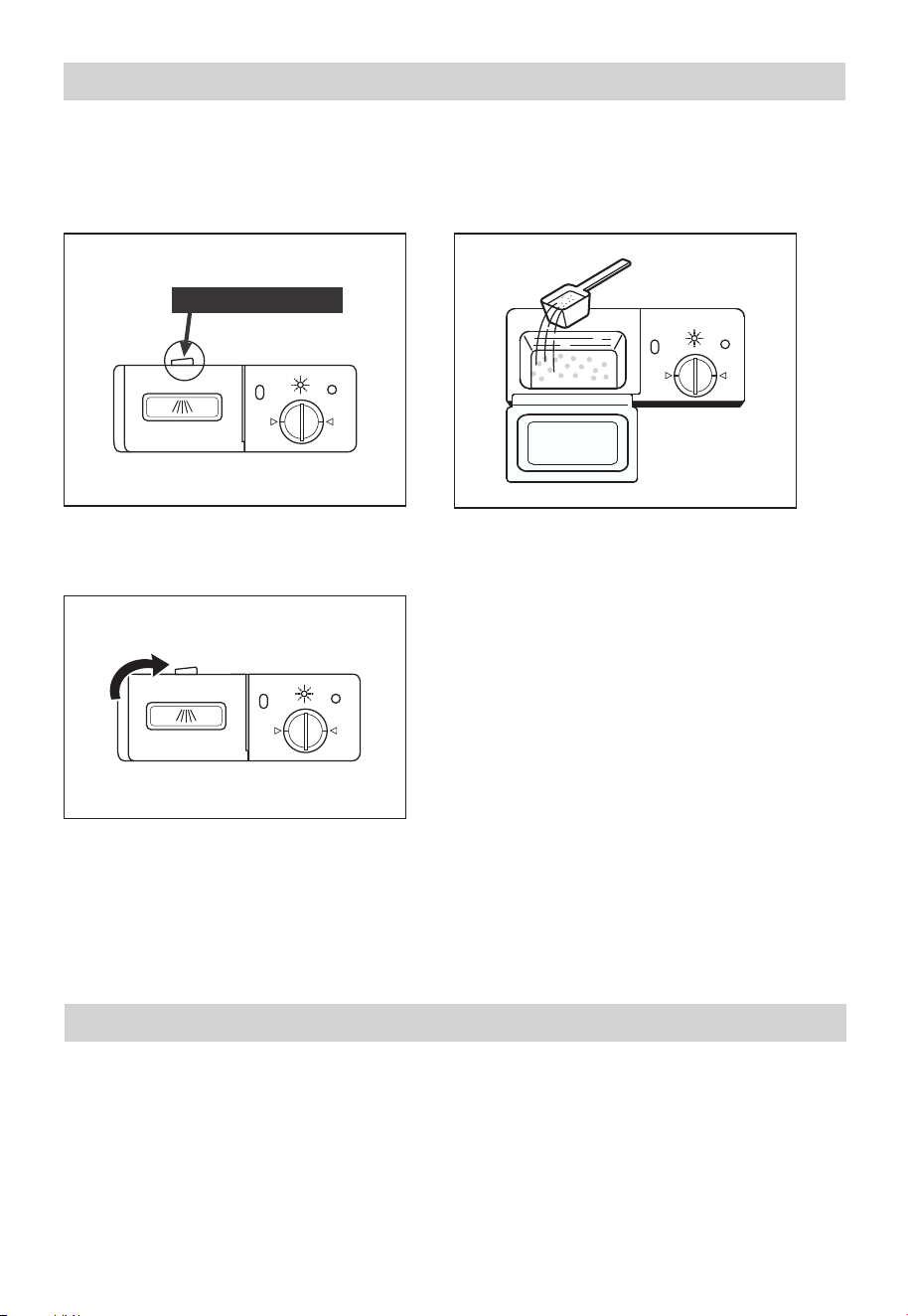

Filling The Detergent Dispenser
1. Press the release latch on the
detergent dispenser to open
the cover.
2. Fill detergent to the lower fill line A.
(15 grams) for lightly soiled dishes
such as glassware.For a normal soil
level fill to the MAX fill line B (25
grams).
3. Close the cover and press on it until
it locks into place.
Push latch to open
B
A
Starting A Program
Change the Programs
Forgot to Add a Dish?
1. Pour in the detergent.
2. Insert the plug into the socket. The power supply refer to last page ”Product fiche”.
Make sure that the water supply is turned on to full pressure.
3. Open the door, press the Power button.
4. Choose a program, the response light will turn on. Then press the Start/Pause
button, the dishwasher will start its cycle after a few seconds.
Premise: You can modify the washing program at the beginning of the cycle. Otherwise,
the detergent may havealready been released, and the appliance may have already
drained the wash water, lf thisis the case, the detergent dispenser must be refilled (see
the section entitled “Loading the Detergent”）.
21
To change the washing program, press the Start/pause button to pause the machine,
then pressthe program button more than three seconds to set the machine into standby,
then you canchanae the program to the desired cycle settina.
(See the section entitled “Starting a wash cycle”)
A forgotten dish can be added any time before the detergent cup opens.
1.Press the start/pause button.
2.Open the door a little to stop the washing.
3.After the spray arms stop working, you can open the door completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the start/pause button, the dishwasher will run after 10 seconds.
The lights show the state of the dishwasher:
a)All phase lights off-----------Stand by
b)The displaynoblinking ------------------Paused
c)The display blinking ----------Running
22
External Care
CLEANING AND MAINTENANCE
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.When
the dishwasher is being loaded, food and drink residues may drip onto the sides of
the dishwasher door. These surfaces are outside the wash cabinet and are not
accessed by water from the spray arms. Any deposits should be wiped off before the
door is closed.
Internal Care
Filtering system
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle, including foreign objects such as tooth picks or shards. The collected
coarse debris may cause the filters to clog. Check the condition of the filters regularly,
carefully remove foreign objects and clean the parts of the filtering system if necessary
with water. Follow the steps below to clean the filter.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth only.
To avoid penetration of water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because they
may scratch the finish. Some paper towels may also scratch or leave marks on the
surface.
Pictures are only for reference, different models of the filtering system and spray
arms may be different.

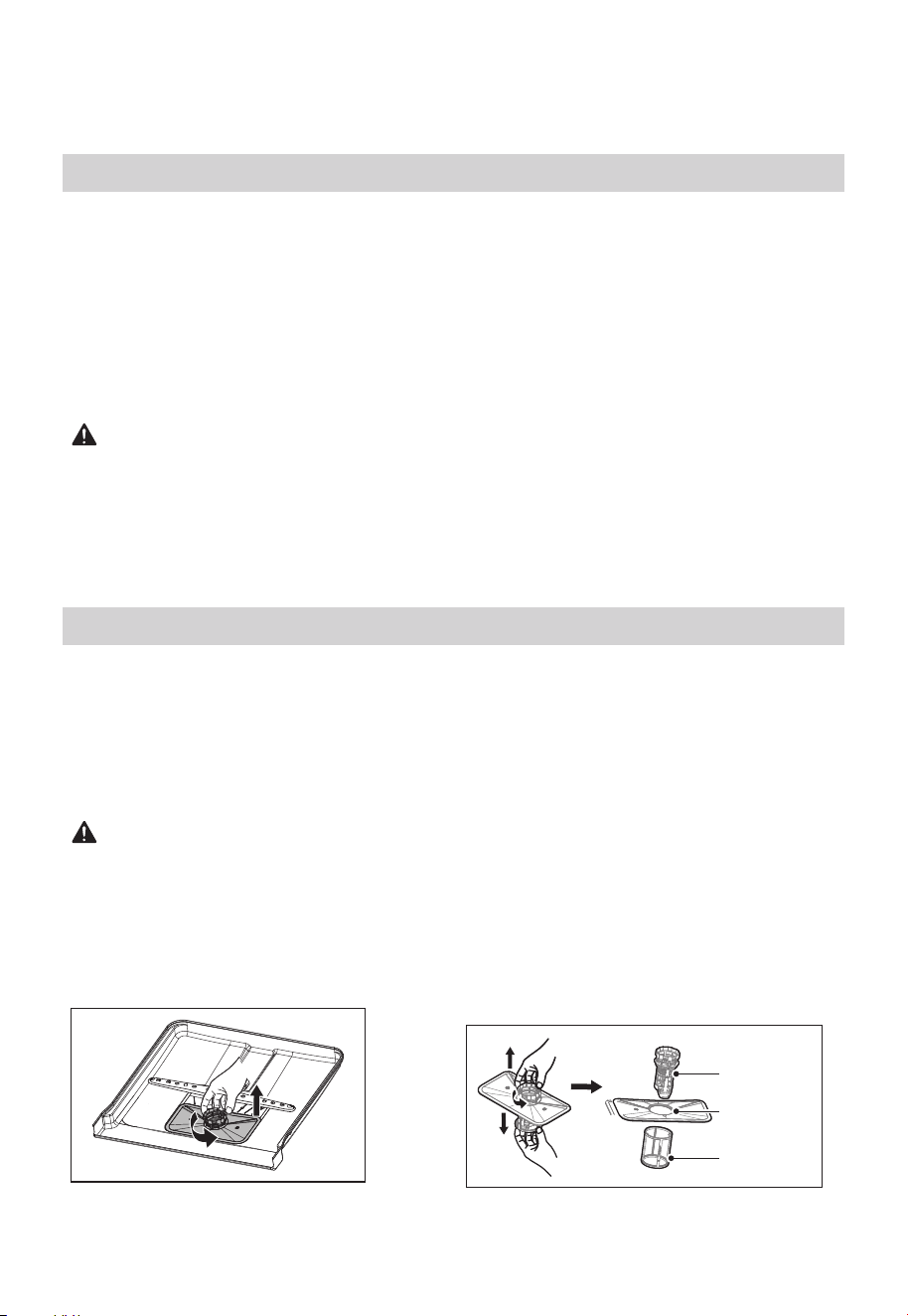

1. Hold the coarse filter and rotate
it anticlockwise to unlock the
filter. Lift the filter upwards and
out of the dishwasher.
2. The fine filter can be pulled off the
bottom of the filter assembly. The
coarse filter can be detached from
the main filter by gently squeezing
the tabs at the top and pulling it away.
WARNING
WARNING
Main filter
Coarse filter
Fine filter
23
3. Larger food remnants can be
cleaned by rinsing the filter under
running water. For a more thorough
clean, use a soft cleaning brush.
4. Reassemble the filters in the reverse
order of the disassembly, replace the
filter insert, and rotate clockwise to
the close arrow.
EN
Do not over tighten the filters. Put the filters back in sequence securely, otherwise
coarse debris could get into the system and cause a blockage.
Never use the dishwasher without filters in place. Improper replacement of the filter
may reduce the performance level of the appliance and damage dishes and utensils.
WARNING

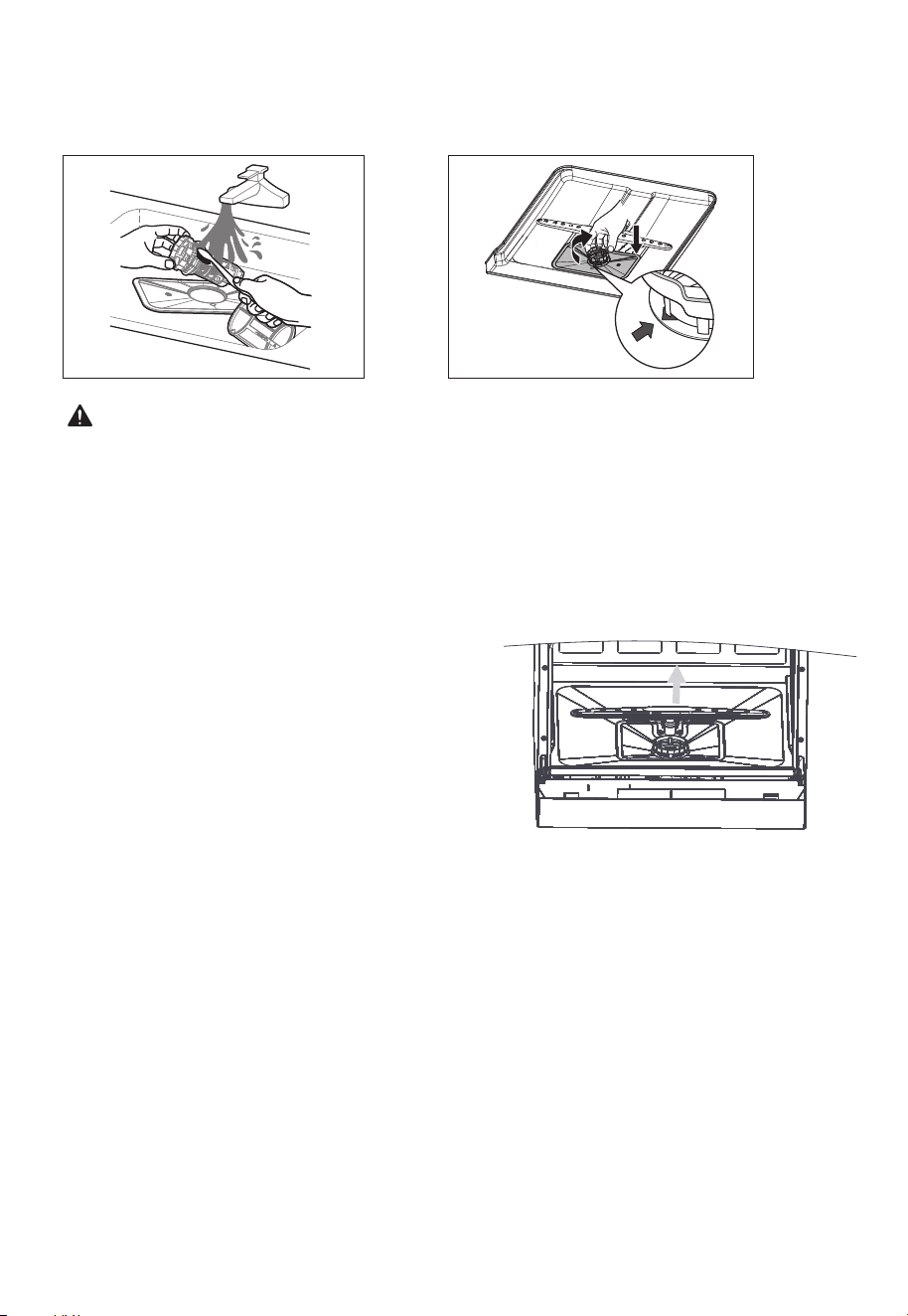

Cleaning the Spray Arms
The spray arms can be easily removed for
periodic cleaningofthe nozzles, to prevent
possible clogging.Wash themunder running
water and carefully replace them in their
seats.checking that their rotary movement is in
no way impeded.
Grasp the middle of the spray arm, pull it
upwards to removeit. Wash the arms under a jet
of running water and return themcarefully to
their seat. After reassembly, check that the
sprayarms turn freely.Otherwise,check that they
have beeninstalled correctly.
Frost precaution
Please take frost protection measures on the dishwasher in winter. Every time after
washing cycles, please operate as follows:
1. Cut off the electrical power to the dishwasher at the supply source.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in
the sump.
After every wash, turn off the water supply to the appliance and leave the door
slightly open for a while so that moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always remove the plug from the socket.
To clean the exterior and rubber parts of the dishwasher, do not use solvents or
abrasive cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened
with water an a little vinegar, or a cleaning product made specifically for dishwashers.
It is recommend that you run a wash cycle with the dishwasher empty and then
remove the plug from the socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door seals to last longer and prevent
odors from forming within the appliance.
If the appliance must be moved, try to keep it in the vertical position. If absolutely
necessary, it can be positioned on its back.
One of the factors that cause odours to form in the dishwasher is food that remains
trapped in the seals. Periodic cleaning with a damp sponge will prevent this from
occurring.
24
Caring For The Dishwasher
After every wash
Remove the plug
No solvents or abrasive cleaning
When not in use for a long time
Moving the appliance
Seals
25
EN
TROUBLESHOOTING
Possible reason SolutionProblem
Dishwasher doesn't
start
Before Calling For Service
Reviewing the charts on the following pages may save you from calling for service.
Replace fuse or reset circuit breaker.
Remove any other appliances sharing
the same circuit with the dishwasher.
Make sure the dishwasher is turned
on and the door is closed securely.
Make sure the power cord is
properly plugged into the wall socket.
Stained tub interior
Spilled rinse aid. Always wipe up rinse aid spills
immediately.
Detergent with
colourant
may have been used.
Make sure that the detergent has no
colourant.
Water not pumped
form dishwasher
Check that the water supply is
connected properly and the water
is turned on.
Door of dishwasher
not properly closed.
Make sure to close the door
properly and latch it.
Twisted or trapped
drain hose.
Check the drain hose.
Filter clogged. Check the filter system.
Foam in the tub
Check the kitchen sink to make sure
it is draining well. If the problem is
the kitchen sink that is not draining ,
you may need a plumber rather than
a serviceman for dishwashers.
Fuse blown, or the
circuit break tripped.
●
Power supply is not
turned on.
●
Water pressure is low
●
●
●
●
Kitchen sink clogged.
●
Wrong detergent.
●
●
●
Use only the special dishwasher
detergent to avoid suds. If this occurs,
open the dishwasher and let suds
evaporate. Add 1 liter of cold water
to the bottom of the dishwasher.
Close the dishwasher door, then select
any cycle. Initially, the dishwasher will
drain out the water. Open the door
after draining stage is complete and
check if the suds have disappeared.
Repeat if necessary.
26
Possible reason SolutionProblem
There are rust
stains on cutlery
The affected items
are not corrosion resistant.
Avoid washing items that are not
corrosion resistant in the dishwasher.
Items are blocking
the movement of
the spray arms.
Rearrange the items so that the spray
can rotate freely.
The filter combination
is not clean or is not
correctly fitted in the
base of wash cabinet.
This may cause the spray
arm jets to get blocked.
Clean and/or fit the filter correctly.
Clean the spray arm jets.
Knocking noise in
the dishwasher
Rattling noise in
the dishwasher
Interrupt the program and
rearrange the items which are
obstructing the spray arm.
Items of crockery
are loose in the
dishwasher.
Interrupt the program and
rearrange the items of crockery.
Knocking noise in
the water pipes
The dishes
are not clean
This may be caused
by on-site installation
or the cross-section
of the piping.
This has no influence on the
dishwasher function. If in doubt,
contact a qualified plumber.
See the “Preparing And Loading
Dishes”.
Select a more intensive program.
Not enough detergent
was dispensed.
Use more detergent, or change
your detergent.
●
A spray arm is knocking
against an item in a
basket
●
●
●
Cloudiness on
glassware.
Combination of soft
water and too much
detergent.
Use less detergent if you have soft
water and select a shorter cycle to
wash the glassware and to get
them clean.
●
The dishes were not
loaded correctly.
The program was
not powerful enough.
●
●
●
●
●
White film on
inside surface
Hard water minerals.
To clean the interior, use a damp
sponge with dishwasher detergent
and wear rubber gloves. Never use
any other cleaner than dishwasher
detergent otherwise, it may cause
foaming or suds.
●
Black or grey
marks on dishes
Detergent left in
dispenser
Aluminium utensils
have rubbed against
dishes
Use a mild abrasive cleaner to
eliminate those marks.
Dishes block
detergent dispenser
Re-loading the dishes properly.
●
●
27
Possible reason SolutionProblem
The dishes aren't
drying
Use gloves if detergent residue can
be found on dishes to avoid skin
irritations.
With a short program, the
washing temperature is lower,
decreasing cleaning performance.
Choose a program with a long
washing time.
Improper loading
●
Increase the amount of rinse-aid/refill
the rinse-aid dispenser.
Too little rinse-aid
●
●
Dishes are removed
too soon
Wrong program has
been selected.
●
Use of cutlery with a
low-quality coating.
●
Self-repair or non-professional repair may cause serious risks to the safety of the user
of the appliance and impact warranty.
Water drainage is more difficult with
these items. Cutlery or dishes of this
type are not suitable for washing in
the dishwasher.
Do not empty your dishwasher
immediately after washing. Open
the door slightly so that the steam
can come out. Take out the dishes
until the inside temperature is safe
to touch. Unload the lower basket
first to prevent the dropping water
from the upper basket.
Meanings Cause SolutionCode
E1
E4
ERROR CODES
If there is a malfunction the dishwasher will display an error code. The following table
shows possible error codes and their causes.
WARNING
Ed
Not enough
water flow in
allotted time
Low or No water
flow.
Confirm water is turned on to the
dishwasher. Verify water pressure.
NOTE: Water supply must maintain water
pressure between 20 and 80 psi for
sufficient flow.
Overflow or leak
sensor activated
Too much water in
the tub or a leak.
First, turn off water to the dishwasher.
Check filter system for blockage.
IMPORTANT:Watch for broken glass in
the filter. If there is no water in the tub,
contact Customer Service.
Communication
exception
When the display board
can’t receive or the main
board can’t send signal
over 20 seconds, the
dishwasher will warning
for Ed.
Contact Customer Service.
●
●
●
If overflow occurs, turn off the main water supply before calling a service.
If there is water in the base pan because of an overfill or small leak, the water should
be removed before restarting the dishwasher.
If there is an error code that cannot be solved, please request professional assistance.
WARNING
28
29
logo, word marks, trade name, trade dress and all versions thereof are
trademarks, copyrights and other intellectual property rights, and all goodwill derived
from using any part of an Midea trademark. Use of Midea trademark for commercial
purposes without the prior written consent of Midea may constitute trademark
infringement or unfair competition in violation of relevant laws.
This manual is created by Midea and Midea reserves all copyrights thereof. No entity or
individual may use, duplicate, modify, distribute in whole or in part this manual, or
bundle or sell with other products without the prior written consent of Midea.
All the described functions and instructions were up to date at the time of printing this
manual. However, the actual product may vary due to improved functions and designs.
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT
Important instructions for environment
Compliance with RoHS Directive
Package information
30
DISPOSAL AND RECYCLING
Compliance with the WEEE Directive and Disposing of the Waster Product:
This product complies with EU WEEE Directive (2012/19/EU). This product bears a
classification symbol for waster electrical and electronic equipment (WEEE).
This symbol indicates that this product shall not be disposed
with other household wastes at the end of its service life. Used
recycling of electrical electronic devices. To find these
collection systems please contact to your local authorities or
retailer where the product was purchased. Each household
performs important role in recovering and recycling of old
appliance. Appropriate disposal of used appliance helps
prevent potential negative consequences for the environment
and human health.
The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does
not contain harmful and prohibited materials specified in the Directive.
Packaging materials of the product are manufactured from
recyclable materials in accordance with our National Environ-
ment Regulations. Do not dispose of the packaging materials
together with the domestic or other wastes. Take them to the
packaging material collection points designated by the local
authorities.
31
DATA PROTECTION NOTICE
For the provision of the services agreed with the customer,
we agree to comply without restriction with all stipulations of applicable data protection
law, in line with agreed countries within which services to the customer will be delivered,
as well as, where applicable, the EU General Data Protection Regulation (GDPR).
Generally, our data processing is to fulfil our obligation under contract with you and for
product safety reasons, to safeguard your rights in connection with warranty and
product registration questions. In some cases, but only if appropriate data protection is
ensured, personal data might be transferred to recipients located outside of the
European Economic Area.
Further information are provided on request. You can contact our Data Protection
[email protected]. To exercise your rights such as right to object your
personal date being processed for direct marketing purposes, please contact us via
[email protected]. To find further information, please follow the QR Code.
32
MIDEA
DISHWASHER
LIMITED
WARRANTY
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE
IS REQUIRED TO OBTAIN WARRANTY SERVICE.
Please have the following information available when
you call the Customer Service Center:
Name, address and telephone number
Model number and serial number
A clear, detailed description of the problem
Proof of purchase including dealer or retailer
name and address
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires
repair. Some questions can be addressed without service. Please take a few minutes to
review the Troubleshooting section of the User Manual, or visit http://us.Midea.com/support
2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the
U.S. and Canada.
Midea Customer Service
In the U.S.A. or Canada, call 1-866-646-4332.
If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to
determine whether another warranty applies.
LIFETIME LIMITED WARRANTY
WHAT IS COVERED
FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)
For one year from the date of delivery, if this major appliance is installed, operated and
maintained according to instructions attached to or furnished with the product, Midea America
Corporation (hereafter “Midea”) will pay for factory specified replacement parts and repair labor
to correct defects in materials or workmanship that existed when this major appliance was
purchased, or at its sole discretion replace the product. In the event of product replacement,
your appliance will be warranted for the remaining term of the original unit’s warranty period.
LIFETIME LIMITED WARRANTY (STAINLESS STEEL TUB AND INNER DOOR LINER ONLY)
For the lifetime of the product from the date of original purchase, when this major appliance is
installed, operated and maintained according to instructions attached to or furnished with the
product, Midea will pay for factory specified parts and repair labor for the following components
to correct non-cosmetic defects in materials or workmanship that existed when this major
appliance was purchased:
Stainless steel tub
Inner door liner
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea
designated service company. This limited warranty is valid only in the 50 States of the United
States or Canada and applies only when the major appliance is used in the country in which it
was purchased. This limited warranty is effective from the date of original consumer purchase.
Proof of original purchase date is required to obtain service under this limited warranty.
Monday~Friday 8 am-7 pm EST,Saturday 9 am-4 pm EST.
33
LIFETIME LIMITED WARRANTY
WHAT IS NOT COVERED
1. Commercial, non-residential or multiple-family use, or use inconsistent with published user,
operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance
with electrical or plumbing codes or correction of household electrical or plumbing (i.e. house
wiring, fuses, plumbing or water inlet hoses).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine Midea parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, electrical issues, acts of God or use with
products not approved by Midea.
7. Repairs to parts or systems to
correct product damage or defects caused by unauthorized
service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes
unless such damage results from defects in materials and workmanship and is reported to
Midea within 30 days.
9. Routine maintenance of the product.
10. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments
including but not limited to high salt concentrations, high moisture or humidity or exposure to
chemicals.
11. Pick-up or delivery. This product is intended for in-home repair.
12. Travel or transportation expenses for service in remote locations where an authorized Midea
servicer is not availabl
e.
13. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative
panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing,
removal or replacement of the product.
14. Service or parts for appliances with original model/serial numbers removed, altered or not
easily identified.
The cost of repair or replacement under these excluded circumstances shall be borne by the
customer.
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation
may not apply to you. This warr
anty gives you specific legal rights, and you also may have other
rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Midea makes no representations about the quality, durability, or need for service or repair of this
major appliance other than the representations contained in this warranty. If you want a longer
or more comprehensive warranty than the limited warranty that comes with this major appliance,
you should ask Midea or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation
of incidental or
consequential damages, so these limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you also may have other rights that vary from
state to state or province to province.
00000000000000
此红框内丝印此用户手册对应的14位物料编码 红色框不需印刷
字体为Gotham-Book 8pt 位置大小严格按图纸操作
