Model No.:BC-145B
Read this booklet thoroughly before using
and save it for future reference
COMPACT
REFRIGERATOR
FOR BUILT-IN INSTALLATION
INSTRUCTION MANUAL
CONTENTS
IMPORTANT SAFEGUARDS ······················ 1
························ 4
NAME OF THE PARTS
····················· 4
BEFORE PUTTING INTO USE
··························
7
HOW TO OPERATE
······················
5
TIPS FOR ENERGY SAVING
··························
5
HOW TO INSTALL
···················· 9CLEANING AND MAINTENANCE
······················ 10TROUBLESHOOTING GUIDE
IMPORTANT SAFEGUARDS 1
Before using the electrical appliance, there are some basic safety precautions to be
followed:
3. Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
4. The main power supply must be properly grounded. Never remove the ground prong from the
plug and never use the two-prong adapter.
5. Do not run the cord over carpeting or other heat insulators. Do not cover the cord. Keep the
cord away from traffic areas and do not submerge it in water.
6. Do not operate the appliance with a damaged cord or plug. lf the appliance shows any signs
of malfunction or impairment, please return it to an authorized service center for examination or
repair.
7. lf the supply cord is damaged, it must be replaced exclusively by the manufacturer or a quali-
fied service center to prevent potential hazards.
8. This refrigerator must be positioned where the plug is accessible. Never unplug the unit often
by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
1.DANGER: Risk of child entrapment.
Before you throw away your old refrigerator or freezer:
Take off the doors.
Leave the shelves in place so that children could not climb inside easily.
2. The appliance must be correctly installed and connected to the power supply in accordance
with the installation instructions before it is used.(see: "HOW TO INSTALL").
WARNING: Keep all ventilation openings clear of obstruction, including that in the appliance
enclosure or in the built-in structure
WARNING: Do not use mechanical devices or any other means that not recommended by the
manufacturer to accelerate the defrosting process.
WARNING: Do not use electrical appliances not recommended by the manufacturer in the
food storage compartments.
WARNING: Do not damage the refrigerant circuit.
9. Do not use an extension cord as possible for this can degrade the performance of the unit. lf
an extension cord must be used, use only those corresponding to the appliance's power con-
sumption rating to prevent overheating. Keep extension cords clear of walkways to avoid tripping
risks.
10. When transporting the refrigerator, keep the unit in the upright position. Do not tilt the unit
beyond 45 degree or place the unit in upside down position. Do not tip over.
IMPORTANT SAFEGUARDS 2
11. Do not touch the cooled surfaces while the appliance operates , especially not with wet hands,
because your skin may stick to the cold surfaces.
12.lt is recommended that the refrigerator is positioned away from any combustible sources such
as gas, petrol, alcohol, lacquer and banana oil, etc. The aforementioned objects should not be
stored in the refrigerator under any circumstances.
13. lf the unit fails to cool properly, dispose of the spoiled food as needed.
14.Unplug your unit first before cleaning or making any repairs.
NOTE: If for any reason this product requires repair, we strongly recommend that a certified
technician perform the service. Repairs made by non-qualified personnel will void the warranty.
17.The appliance can be used by people with reduced physical sensory or mental capabilities, as
long as they have been given supervision or instruction concerning the proper use of the unit
and understand the potential hazards involved.
16. The rating nameplate is located on the inside or the rear and side wall outside the unit.
18. Please dispose of the appliance according to the local regulations as the appliance contains
flammable gas and refrigerant.
19. Follow local regulations regarding disposal of the appliance due to flammable refrigerant and
gas. All refrigeration products contain refrigerants, which under the guidelines of federal law
must be removed before disposal. lt is the consumer's responsibility to comply with federal and
local regulations when disposing this product.
20. Do not operate your refrigerator in the presence of explosive fumes. Do not use flame or make
fire near the unit.
15. Do not defrost the appliance with other electric devices (hair dryer etc.)and never scrape the
ice or frost layer with sharp tools.
WARNING: Do not damage the refrigerant circuit.
IMPORTANT SAFEGUARDS 3
Safety Instruction for the Refrigerant
DANGER-Risk of Fire or Explosion. FLAMMABLE REFRGERANT used. Do not use mechanical device to
defrost refrigerator. Do not puncture the refrigerant tubing.
DANGER-Risk of Fire or Explosion. FLAMMABLE REFRIGERANT used. To be repaired only by trained
service personnel.
DANGER-Risk of Fire or Explosion. FLAMMABLE REFRIGERANT used. Dispose of the unit in accordance
with the federal or local regulations.
HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
NAME OF THE PARTS
BEFORE PUTTING INTO USE
4
Height adjustable feet
Operation panel
Removable
food shelf
Hot air
outlet frame
Door lock
Door
Door handle
(not shown and need to be
assembled by yourself)
1. Before connecting the appliance to the power supply, let the unit stand upright for 4 hours,
which will reduce the possibility of the cooling system malfunctioning due to the improper han-
dling and moving during transportation.
2. Clean your unit thoroughly before putting into use. (see "clean and maintenance")
3. Refer to the parts diagram on the next page to insure proper positioning of internal compo-
nents.
TIPS FOR ENERGY SAVING
HOW TO INSTALL
5
1. Keep the refrigerator doors closed as much as possible, particularly in warm or humid condi-
tions.
2. Maintain adequate ventilation space around the rear and sides of the unit. This unit can either
be built-in installation or stand alone. When in built-in installation, do not place the rear of the
unit against the wall too closely.
3. Allow warm food to cool to room temperature before placing it in the refrigerator.
4. Do not obstruct the hot air outlet frame at the front bottom of the unit.
1. Install the unit at a location away from extreme heat and cold. This unit should be far away
from the heating source, such as stoves, heater, or radiators, and should be prevented from
direct sunlight.
1. Use a Phillips screwdriver to pre-install the two mounting screws on the door.
2. Align the hole in the handle with the preinstalled screws and insert it
3. Fasten the handle by fixing the two screws into the handle with the provided allen wrendh.
For installing the hande, please follow the below steps:
2. Place the unit on a horizontal surface that is strong enough to support the unit when it is fully
loaded. Carpeting or any other soft or uneven surfaces are not recommended. You can adjust
the front feet located at the bottom of the unit to level it.
3. Allow sufficient clearance between the unit and the sidewall to ensure that the door will be
opened without obstruction.
Installing instruction of door handle
1
2
3
HOW TO INSTALL 6

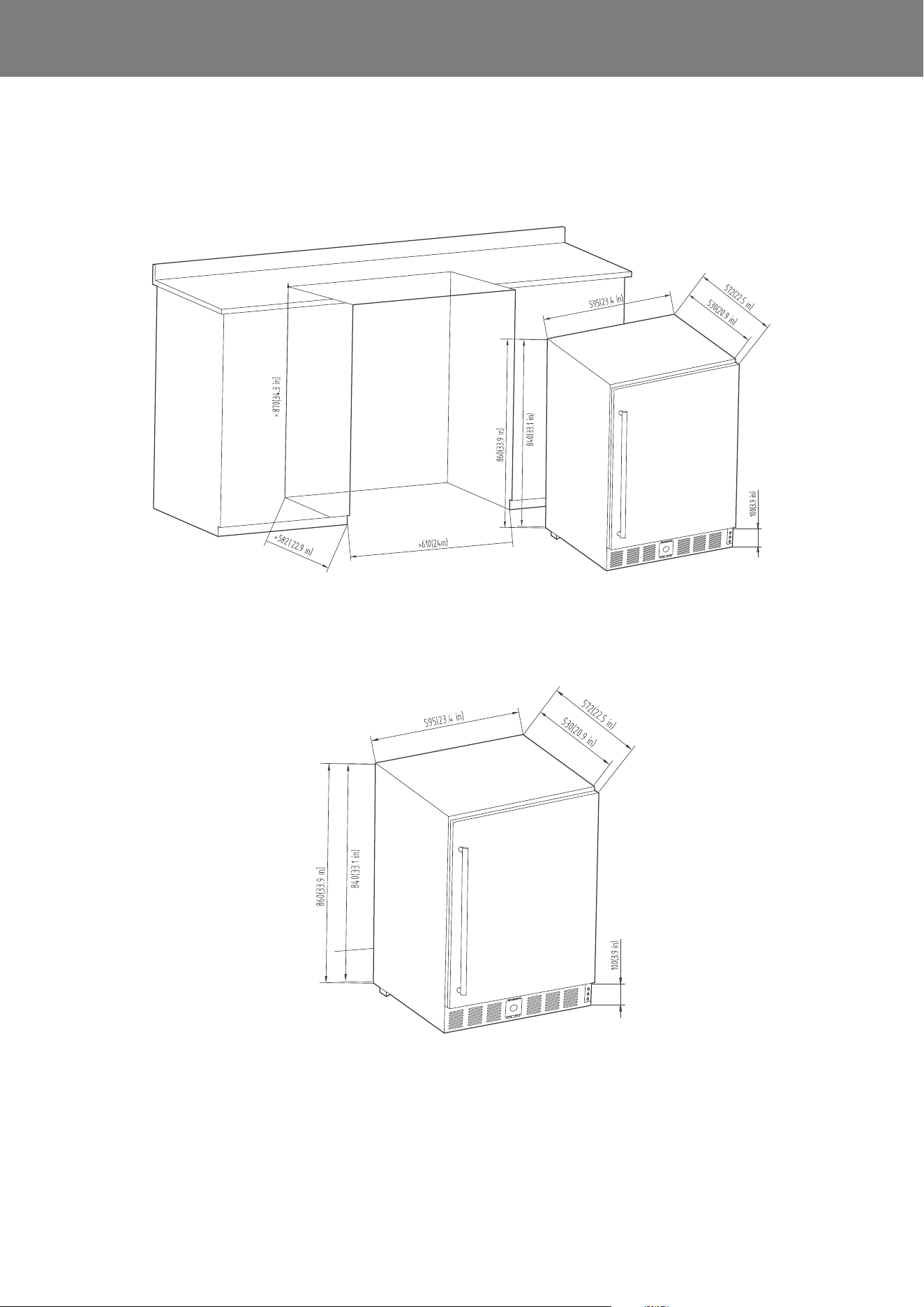

4. This refrigerator is designed for recessed or built-in installation.
5. For under-counter built-in installation, please follow the following diagram and leave enough
space for the unit.
6. For free-standing installation, it is suggested to allow 2 inches of space between the unit's
side, rear and the wall. In addition, sufficient clearance (160 degree) should be maintained to
allow the door to open properly.
7. The appliance must be correctly connected to the corresponding power supply and be cer-
tainly grounded.
Note: The front grille must not be obstructed.
Note: The refrigerator is not designed to be installed in an outside area such as a garage or a
porch. Ambient temperatures of below 50 or above 90 Fahrenheit will hinder the proper perfor-
mance of the appliance.
HOW TO OPERATE 7
1. Remove the packaging material.
2. Clean the unit thoroughly. Wipe the outside with a soft dry cloth and the interior with a clean
moist cloth.
3. Connect the power cord to a standard wall outlet, you will hear a beep sound, which is normal.
And then the actual internal temperature will be shown on the control panel.
4. Do not put food into the unit within 2 hours after the power on.
5. Note that you can lock the door to avoid children accidentally straying into. Insert the attached
key into the door lock on the bottom of the appliance and rotate clockwise for one and a half
cycles to lock the door.
Note: lf the unit is brought in from outside in the winter season, give it a few hours to warm up to
the room temperature before plugging it in. Also, after transportation and moving of the unit,
please wait for at least 4 hours before plugging it in.
Starting your new refrigerator
°F
There are three buttons and a temperature display window on the control panel, letting you
operate the unit at your desirable way.
The operation panel
Press the two buttons & to adjust the set temperature to your desired value. With each
pressing, the temperature will change 1 Fahrenheit.
The default setting is 39 Fahrenheit and the setting range is from 32 to 50 Fahrenheit.
Temperature adjustment
HOW TO OPERATE 8
The unit has built with an internal LED light in the cooling compartment, which is controlled by the
magnetic door switch and the light button " "on the control panel. Normally when you open
the door, the LED light will be on, while closing the door, the LED light will be off at once. But if you
press the" " button for more than 3 seconds, the supply power to the LED light will be cut off,
neither opening nor closing the door will activate it. lf you want to remove the lock to the LED light,
just press the " " button for more than 3 seconds again.
Interior Light control
Note: Please wait for 3 to 5 minutes before restarting the unit after unplugging it, for the unit
may fail to operate properly if being restarted too quickly.
CLEAN AND MAINTENANCE 9
1. The refrigerator should be cleaned on a regular basis.
Cleaners: Never use harsh, abrasive cleaners or any other heavy-duty cleaners and solvents.
Exterior: Wipe the surface with damp, sudsy cloth, rinse and dry it. For stubborn stains and for
periodic waxing, use silicon wax.
Refrigeration section: Wash the shelves and other removable parts in warm sudsy water, rinse
and dry them. Wash the rest of the interior with warm sudsy water or baking soda solution (3
tablespoons to 1 liter of water), rinse and dry it.
Magnetic door seals: Wash it with warm sudsy water.
The Finishing Touch: Replace all parts and return the thermostat dial to your desired setting.
2. lt is necessary to maintain enough ventilation space around the unit to attain the proper per-
formance, dissipation of heat, high efficiency and low power consumption. Clearance of a mini-
mum 2 inches should be maintained at the rear and sides of the unit. And especially do not
obstruct the hot air outlet frame. (see: "HOW TO INSTALL")
3. To attain proper performance, be sure to plug the appliance into a properly grounded 115/60
Hz outlet.
4. Do not modify the power cord under any circumstance to allow the unit to be plugged into a
non-grounded outlet. To avoid overheating damage to the power cord, please ensure that it
does not come in proximity or in direct contact with the compressor of the unit.
5. Please avoid installing the refrigerator in a location where the appliance will come in contact
with water or moisture to minimize the risk of metal parts rusting.
6. The refrigerator should not be installed near any heat source or in a location where it will come
in direct contact with the sunlight.
7. The components, if need to be replaced, should be replaced with same components, and
should be replaced by the manufacturer or its service agent or a similarly qualified person in
order to minimize the risk of possible ignition and degradation of the cooling performance due to
incorrect parts or improper maintenance.
TROUBLESHOOTING GUIDE 10
When the fridge is not in use for a prolonged period.
1. Remove the plug from the outlet.
2. Remove all contents from the fridge.
3. Dry the interior and leave the door open for a few days.
When the refrigerator does not work:
1. Check if there is a power failure.
2. Check if the power plug is plugged into the power outlet
3. Check that the fuse has not blown in main supply circuit.
When you wish to move the fridge:
1. Secure all movable parts and contents. (pack them separately if necessary.)
2. Transport the fridge only in an upright position, for the compressor may be damaged in any
other position.
If the refrigerator seems too warm inside:
1. Check to see that the door is closing properly and the door seal is not damaged.
2. Check that the interior circulation is not obstructed by having too many goods stored. (The
fridge is overloaded)
3. Did you store anything hot without cooling it to room temperature first?
4. ls there sufficient clearance around all sides and above the fridge?
5. Do anything obstruct the front hot air outlet frame?
When the refrigerator is cooling excessively:
1.The temperature may be set too low.
2. lf you place food that contain a lot of moisture directly under the cool outlets, they will freeze
easily. This does not indicate a unit malfunction.
When the defrosting water overows inside the refrigerator and onto the oor:
1. Check that the drain pipe and the drain hose are not clogged.
2. Check that the drain pan is housed properly.
When condensation forms on the outside of the refrigerator:
1. Condensation may form on the outside of the unit when the humidity level is too high such as
during a wet season, the same result as the condensation formed when chilled water is poured
into a glass. Therefore, this does not indicate a failure. Wipe it dry with a dry cloth.
WHAT TO DO
TROUBLESHOOTING GUIDE 11
If the fridge starts making any unusual noises:
1. ls it wobbling? Re-level it and check if it now operates properly.
2. Have any objects fallen behind the fridge? lf so, remove them and check if the unit now
operates properly.
3. Are any containers inside the fridge vibrating or resonating? lf so, rearrange them and then
check if it now operates properly.
Thank you for purchasing this product! lf you have any
questions about the product such as missing parts, damaged
products, product assembling and operation, please contact
us via customer service phone:
213-446-7172
ROWAN ELECTRIC APPLIANCE LLC
8:30am-5:30pm P.S.T. Monday to Friday
V1
