U.S. Patent No. D710,802
OWNER’S MANUAL
12039 Smith Ave.
Santa Fe Springs CA 90670
USA / 1-877-338-0999
www.championpowerequipment.com
6250 Starting Watts/5000 Running Watts (LPG)
6900 Starting Watts/5500 Running Watts (Gasoline)
DUAL FUEL GENERATOR
SAVE THESE INSTRUCTIONS
Important safety instructions
are included in this manual.
MADE IN CHINA
REV 100231-20190404
Manual Start
100231
MODEL NUMBER
T
h
r
e
e
Y
e
a
r
L
i
m
i
t
e
d
W
a
r
r
a
n
t
y
G
a
r
a
n
t
í
a
l
i
m
i
t
a
d
a
d
e
t
r
e
s
a
ñ
o
s
T
h
r
e
e
Y
e
a
r
L
i
m
i
t
e
d
W
a
r
r
a
n
t
y
G
a
r
a
n
t
í
a
l
i
m
i
t
a
d
a
d
e
t
r
e
s
a
ñ
o
s
*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.
Have questions or need assistance?
Do not return this product to the store!
WE ARE HERE TO HELP!
Visit our website:
www.championpowerequipment.com
for more info:
• Product Info & Updates
• Frequently Asked Questions
• Tech Bulletins
• Product Registration
– or –
Call our Customer Care Team Toll-Free at:
1-877-338-0999
AN IMPORTANT MESSAGE ABOUT TEMPERATURE:
Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to
40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to
50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be
brought back within this range before operation. In any event, the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and other vents.
Parts Ordering:
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
100231
TABLE OF CONTENTS
Introduction ............................. 1
Manual Conventions. . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Rules . ............................ 3
Fuel Safety . .......................... 5
Safety Label Locations . .................. 6
Controls and Features ...................... 7
Generator . ............................ 7
Power Panel ........................... 8
Parts Included ......................... 9
Wheel Kit .......................... 9
Other ............................. 9
Assembly .............................. 10
Remove the Generator from the Shipping Carton . 10
Install the Wheel Kit .................... 10
Install the Support Leg .................. 10
Add Engine Oil ........................ 11
Add Fuel (Gas) ........................ 12
Connecting Liquid Petroleum Gas
(LPG) Cylinder ....................... 13
Grounding ........................... 13
Operation . ............................. 14
Generator Location ..................... 14
Grounding ........................... 14
Surge Protection ....................... 14
Fuel Selector Switch .................... 15
Starting the Engine ..................... 15
Gasoline ......................... 15
LPG ............................ 16
Connecting Electrical Loads ............... 16
Do Not Overload Generator . ............... 17
Capacity .......................... 17
Power Management . .................. 17
Stopping the Engine .................... 18
Operation at High Altitude ............... 18
Maintenance and Storage ................... 19
Engine Maintenance .................... 19
Oil .............................. 19
Spark Plugs ........................ 19
Air Filter .......................... 19
Spark Arrester ...................... 20
Cleaning .......................... 20
Adjustments . ....................... 20
Maintenance Schedule ................ 20
Generator Maintenance .................. 20
Storage ............................. 21
Generator Storage . ................... 21
Specifications . .......................... 22
Engine Specifications ................... 22
Generator Specifications ................. 22
Fuel ............................... 22
Spark Plugs .......................... 22
Maintenance Valve Clearance .............. 22
An Important Message About Temperature .... 22
Oil ................................ 22
Parts Diagram ........................ 23
Parts List . ........................... 24
Engine Parts Diagram ................... 25
Engine Parts List ...................... 26
Wiring Diagram . ....................... 27
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . 28
Manual Start
DUAL FUEL GENERATOR
6250 Starting Watts/5000 Running Watts (LPG)
6900 Starting Watts/5500 Running Watts (Gasoline)
686
618.5
704.42
1
ENGLISH 100231
INTRODUCTION
Record the model and serial numbers as well as date and place of purchase for future reference. Have this
information available when ordering parts and when making technical or warranty inquiries.
Champion Power Equipment Support
Model Number
Serial Number
Date of Purchase
Purchase Location
1-877-338-0999
100231
For Oil Type see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.
Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and
Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines.
With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying
service.
Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we
reserve the right to change, alter and/or improve the product and this document at any time without prior notice.
Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also
highly value your safety and the safety of others, we would like you to take the time to review this product manual
and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please
always exercise common sense and always error on the side of caution when operating the product to ensure no
accidents, property damage, or injury occurs. We want you to continue to use and be satisfied with your CPE/CET
product for years to come.
2
100231 ENGLISH
MANUAL CONVENTIONS
This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol
is used with a key word to alert you to potential hazards in operating and owning power equipment.
Follow all safety messages to avoid or reduce the risk of serious injury or death.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in minor
or moderate injury.
CAUTION
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, may result in property damage.
CAUTION
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in death
or serious injury.
DANGER
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
WARNING
If you have questions regarding your generator, we can
help. Please call our help line at 1-877-338-0999
NOTE
3
ENGLISH 100231
SAFETY RULES
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death. If you start to feel dizzy or weak, get to fresh
air immediately.
Operate generator outdoors only in a well ventilated
area.
DO NOT operate the generator inside any building,
including garages, basements, crawlspaces and
sheds, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER CARBON MONOXIDE: using a generator
indoors CAN KILL YOU IN MINUTES.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
Traumatic amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged
or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in damp
areas and areas containing conductive material such
as metal decking.
Use approved transfer equipment to isolate generator
from your electric utility and Notify your utility
company before connecting your generator to your
power system.
DANGER
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it
cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can
occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all
sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from
combustible materials.
WARNING
Read this manual thoroughly before operating your
generator. Failure to follow instructions could result
in serious injury or death.
WARNING
Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
WARNING
4
100231 ENGLISH
SAFETY RULES
Improper treatment or use of the generator can
damage it, shorten its life and void your warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
CAUTION
Rapid retraction of the starter cord will pull hand and
arm towards the engine faster than you can let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to avoid
kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
WARNING
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it.
DO NOT overload the generator.
Start the generator and allow the engine to stabilize
before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect before
stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Medical and Life Support Uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support
devices or life support appliances.
NEVER use this product to power medical devices
or medical appliances.
Inform your electricity provider immediately if you
or anyone in your household depends on electrical
equipment to live.
Inform your electrical provider immediately if a
loss of power would cause you or anyone in your
household to experience a medical emergency.
WARNING
Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
WARNING
5
ENGLISH 100231
Gasoline and Gasoline Vapors (Gas):
– GAS IS HIGHLY FLAMMABLE AND EXPLOSIVE.
– Gas can cause a fire or explosion if ignited.
– Gas is a liquid fuel but it’s vapors can ignite.
– Gas is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
– Gas has a distinctive odor, this will help detect
potential leaks quickly.
– In any gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be
turned OFF. This is because if a fire is extinguished
and a supply of fuel is not turned OFF, then an
explosion hazard could be created.
– Gas expands or contracts with ambient temperatures.
Never fill the gas tank to full capacity, as gas needs
room to expand if temperatures rise.
Propane/Liquefied Petroleum Gas (LPG):
– LPG IS HIGHLY FLAMMABLE AND EXPLOSIVE.
– Flammable gas under pressure can cause a fire or
explosion if ignited.
– LPG is heavier than air and can settle in low places
while dissipating.
– LPG has a distinctive odor added to help detect
potential leaks quickly.
– In any petroleum gas fire, flames should not be
extinguished unless by doing so the fuel supply
valve can be turned OFF. This is because if a fire is
extinguished and a supply of fuel is not turned OFF,
then an explosion hazard could be created.
– When exchanging LPG cylinders, be sure the cylinder
valve is of the same type.
– Always keep the LPG cylinder in an upright position.
– LPG will burn skin if it comes in contact with it.
Keep any and all LPG away from skin at all times.
SAFETY RULES
Fuel Safety
GASOLINE, GASOLINE VAPORS AND LIQUID
PETROLEUM GAS (LPG) ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.
Fire or explosion can cause severe burns or death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
DANGER
When adding or removing Gas:
Turn the generator off and let it cool for at least two
minutes before removing the fuel cap. Loosen the cap
slowly to relieve pressure in the tank.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gas directly into the generator at the gas
station. Use an approved container to transfer the fuel to
the generator.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames, pilot
lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator:
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Allow spilled fuel to evaporate fully before attempting to
start the engine.
Make certain that the generator is resting firmly on level
ground.
When operating the generator:
DO NOT move or tip the generator during operation.
DO NOT tip the generator or allow fuel or oil to spill.
When transporting or servicing the generator:
Make certain that the fuel shutoff valve is in the off
position and the fuel tank is empty.
Make certain that a LPG cylinder is not attached to
generator and is securely stowed away.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights, heat
and other sources of ignition.
Do not store generator, gas or LPG cylinder near
furnances, water heaters, or any other appliances that
produce heat or have automatic ignitions.
Never use a gas container, LPG connector hose,
gas tank, LPG cylinder or any other fuel item that is
damaged or appears damaged.
WARNING
6
100231 ENGLISH
SAFETY RULES

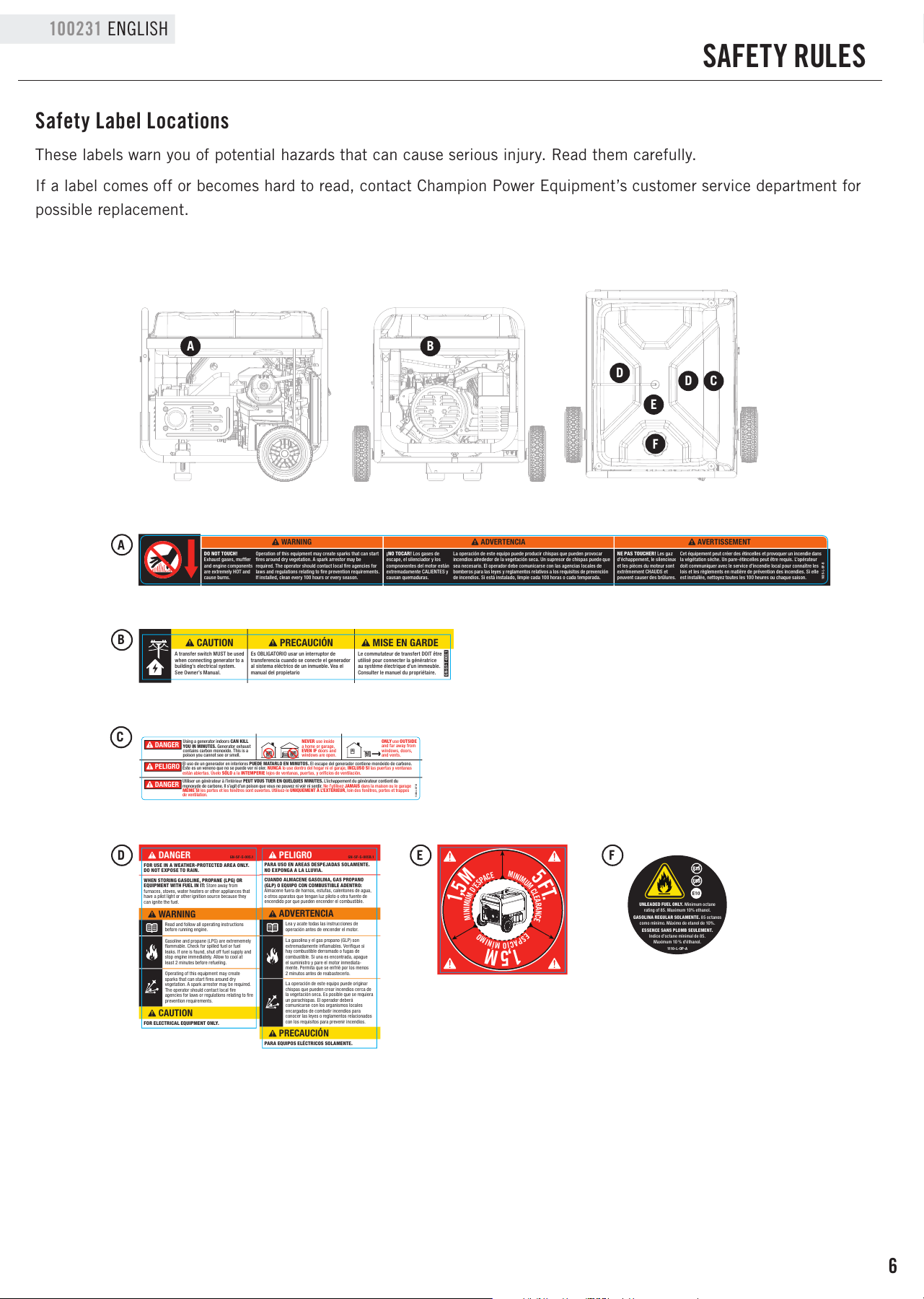

Safety Label Locations
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Champion Power Equipment’s customer service department for
possible replacement.
A B
E
CD
D
F
M
I
N
I
M
U
M
C
L
E
A
R
A
N
C
E
5
F
T
.
E
S
P
A
C
I
O
M
Í
N
I
M
O
1
,
5
M
M
I
N
I
M
U
M
D
'
E
S
P
A
C
E
1
,
5
M
E
! WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
! ADVERTENCIA
¡NO TOCAR! Los gases de
escape, el silenciador y los
compnonentes del motor están
extremadamente CALIENTES y
causan quemaduras.
La operación de este equipo puede producir chispas que pueden provocar
incendios alrededor de la vegetación seca. Un supresor de chispas puede que
sea necesario. El operador debe comunicarse con las agencias locales de
bomberos para las leyes y reglamentos relativos a los requisitos de prevención
de incendios. Si está instalado, limpie cada 100 horas o cada temporada.
! AVERTISSEMENT
NE PAS TOUCHER! Les gaz
d’échappement, le silencieux
et les pièces du moteur sont
extrêmement CHAUDS et
peuvent causer des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans
la végétation sèche. Un pare-étincelles peut être requis. L’opérateur
doit communiquer avec le service d’incendie local pour connaître les
lois et les règlements en matière de prévention des incendies. Si elle
est installée, nettoyez toutes les 100 heures ou chaque saison.
1035 -L-SF- B
A
B
CAUTION
A transfer switch MUST be used
when connecting generator to a
building’s electrical system.
See Owner’s Manual.
PRECAUCIÓN
Es OBLIGATORIO usar un interruptor de
transferencia cuando se conecte el generador
al sistema eléctrico de un inmueble. Vea el
manual del propietario
MISE EN GARDE
Le commutateur de transfert DOIT être
utilisé pour connecter la génératrice
au système électrique d’un immeuble.
Consulter le manuel du propriétaire.
GN-SF-T-002.1
D
WHEN STORING GASOLINE, PROPANE (LPG) OR
EQUIPMENT WITH FUEL IN IT: Store away from
furnaces, stoves, water heaters or other appliances that
have a pilot light or other ignition source because they
can ignite the fuel.
FOR USE IN A WEATHER-PROTECTED AREA ONLY.
DO NOT EXPOSE TO RAIN.
Operating of this equipment may create
sparks that can start fires around dry
vegetation. A spark arrester may be required.
The operator should contact local fire
agencies for laws or regulations relating to fire
prevention requirements.
Read and follow all operating instructions
before running engine.
Gasoline and propane (LPG) are extrememely
flammable. Check for spilled fuel or fuel
leaks. If one is found, shut off fuel supply and
stop engine immediately. Allow to cool at
least 2 minutes before refueling.
FOR ELECTRICAL EQUIPMENT ONLY.
DANGER
WARNING
CAUTION
GN-SF-E-005.1
CUANDO ALMACENE GASOLINA, GAS PROPANO
(GLP) O EQUIPO CON COMBUSTIBLE ADENTRO:
Almacene fuera de hornos, estufas, calentones de agua,
o otros aparatos que tengan luz piloto o otra fuente de
encendido por que pueden encender el combustible.
PARA USO EN AREAS DESPEJADAS SOL AMENTE.
NO EXPONGA A LA LLUVIA.
La operación de este equipo puede originar
chispas que pueden crear incendios cerca de
la vegetación seca. Es posible que se requiera
un parachispas. El operador deberá
comunicarse con los organismos locales
encargados de combatir incendios para
conocer las leyes o reglamentos relacionados
con los requisitos para prevenir incendios.
Lea y acate todas las instrucciones de
operación antes de encender el motor.
La gasolina y el gas propano (GLP) son
extremadamente inflamables. Verifique si
hay combustible derramado o fugas de
combustible. Si una es encontrada, apague
el suministro y pare el motor inmediata-
mente. Permita que se enfrié por los menos
2 minutos antes de reabastecerlo.
PARA EQUIPOS ELÉCTRICOS SOLAMENTE.
PELIGRO
ADVERTENCIA
PRECAUCIÓN
GN-SF-S-005B.1
El uso de un generador en interiores PUEDE MATARLO EN MINUTOS. El escape del generador contiene monóxido de carbono.
Éste es un veneno que no se puede ver ni oler. NUNCA lo use dentro del hogar ni el garaje, INCLUSO SI las puertas y ventanas
están abiertas. Úselo SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
! PELIGRO
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
1308 -L-SF- B
Utiliser un générateur à l’intérieur PEUT VOUS TUER EN QUELQUES MINUTES. L’é c h a p p e m e nt d u g é n é r a te u r c o n t i e n t d u
monoxyde de carbone. Il s’agit d’un poison que vous ne pouvez ni voir ni sentir. Ne l’utilisez JAMAIS dans la maison ou le garage
MÊME SI les portes et les fenêtres sont ouvertes.
Utilisez-le UNIQUEMENT À L’EXTÉRIEUR, loin des fenêtres, portes et trappes
de ventilation.
! DANGER
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
! DANGER
C
F
1110- L-OP -A
UNLEADED FUEL ONLY. Minimum octane
rating of 85. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 85 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT.
Indice d’octane minimal de 85.
Maximum 10 % d'éthanol.
7
ENGLISH 100231
Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the
controls and features. Save this manual for future reference.
Generator

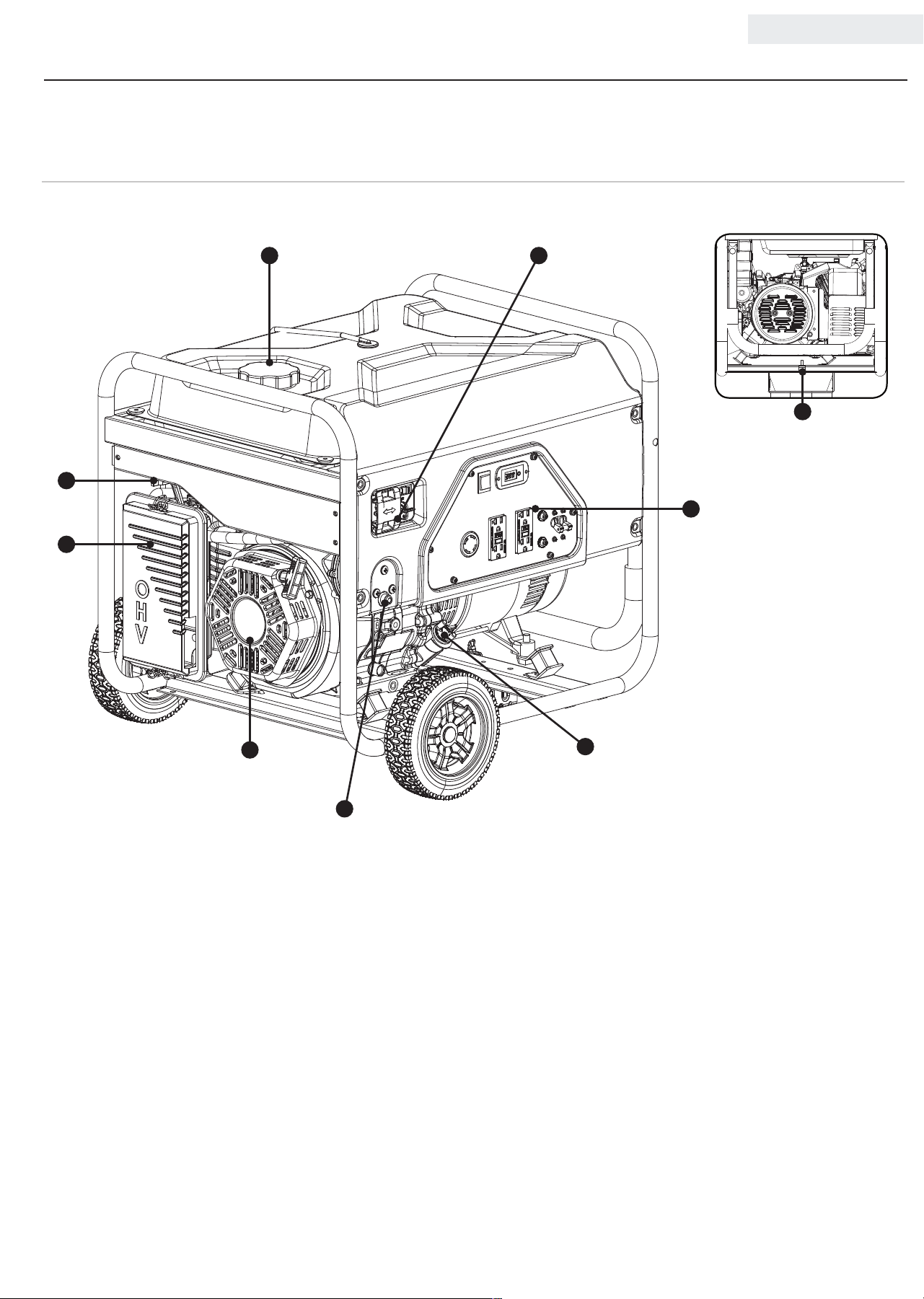

CONTROLS AND FEATURES
68
6
618.5
7
04.
42
(1) Gas fuel tank – 6 gal. (22.9 L) capacity fuel tank.
(2) Choke – Used to start the engine.
(3) Air cleaner – Protects the engine by filtering dust
and debris from the intake air.
(4) Recoil starter – Used to manually start the engine.
(5) LPG hose connector
(6) Oil filler cap – Check and fill engine oil level.
(7) Power panel – See “Power Panel” section.
(8) Fuel selector switch – Used to select fuel source.
(9) Ground terminal – Consult an electrician for local
grounding regulations.
1
4
3
2
6
5
7
8
9
8
100231 ENGLISH

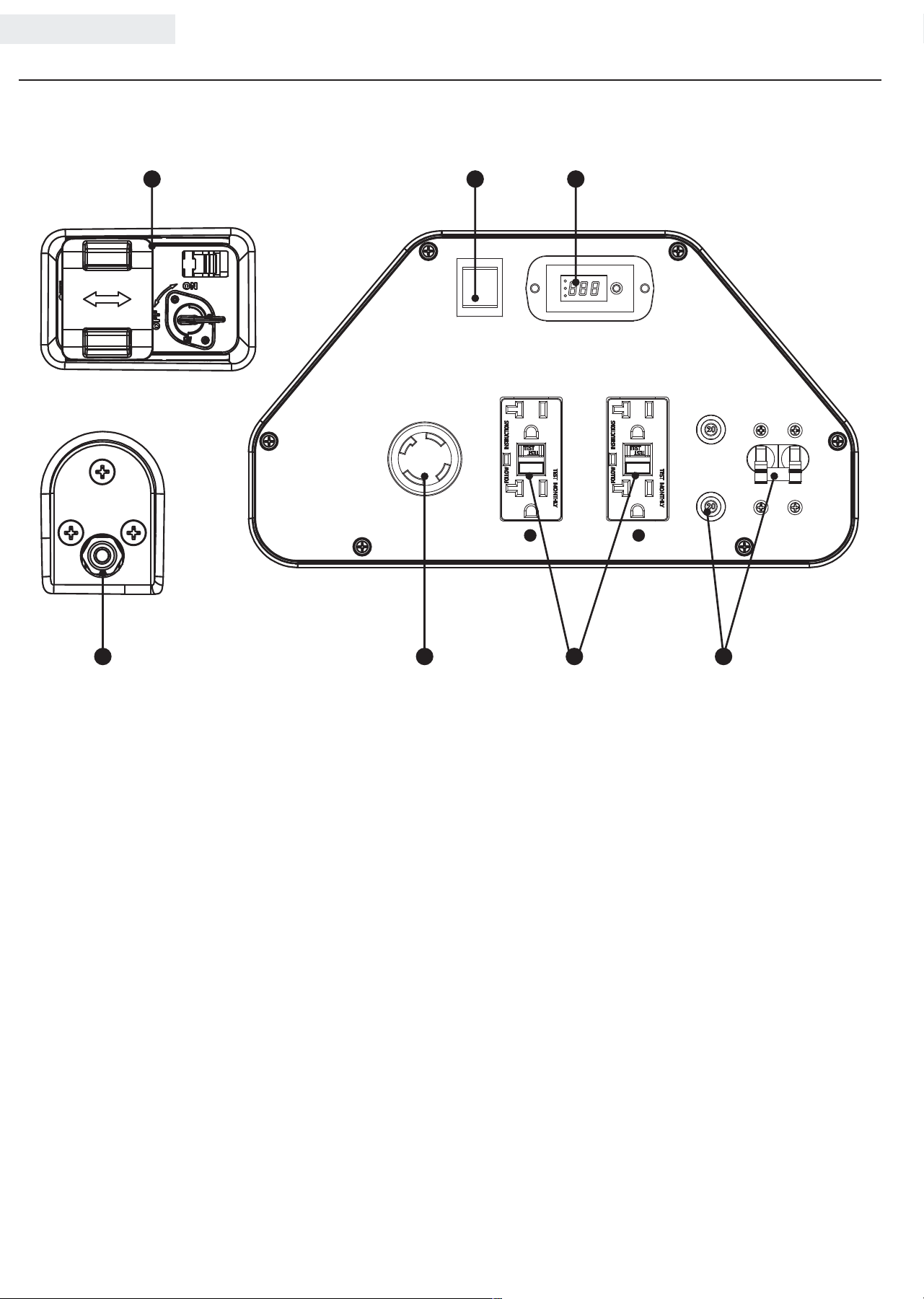

Power Panel
CONTROLS AND FEATURES
1 2 3
A B
4 5
(1) Fuel selector switch – Used to select and turn on
gas or LPG fuel source.
(2) Engine switch – Used to start or stop the
generator. When operating by propane, this switch
will NOT stop the engine.
(3) Intelligauge – Three mode digital meter for
displaying running hours, voltage and hertz.
(4) LPG hose connector – Used to connect LPG hose
to generator.
(5) 120/240 volt AC, 30 Amp twist-lock receptacle
(NEMA L14-30R) –
May be used to supply
electrical power for the operation of 120/240 Volt
AC, 30 Amp, single phase 60 Hz electrical loads.
(6) 120 volt AC, 20 Amp GFCI duplex (2)
(NEMA 5-20R) – May be used to supply electrical
power for the operation of 120 Volt AC, 20 Amp,
single phase 60 Hz electrical loads.
(7) Circuit breakers
7
6
9
ENGLISH 100231
CONTROLS AND FEATURES

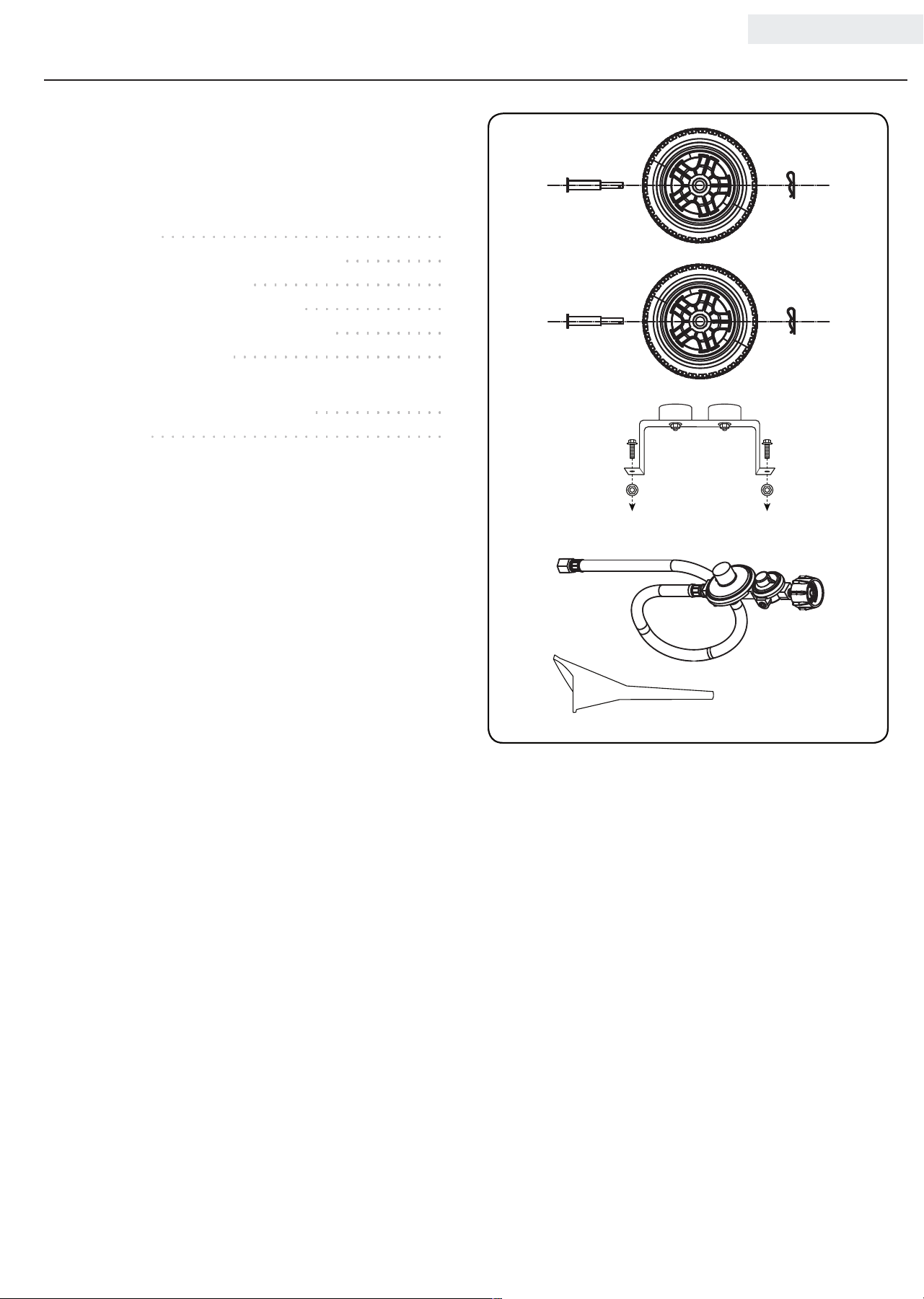

Your 100231 dual fuel generator ships with the following
parts:
Wheel kit
– 8 in. wheel . ........................... 2
– Pin roll Ø16 x Ø10 x 97 (for wheels) .......... 2
– “R” shape pin Ø2 x 33 ................... 2
– Support leg w/vibration mounts . ............. 1
– Flange bolt (M8x16 for support leg) . .......... 2
– Flange lock nut (M8) ..................... 2
Other
– LPG hose with regulator (3.3 ft.) . ............ 1
– Oil funnel . ............................ 1
Parts included
10
100231 ENGLISH
ASSEMBLY
Your generator requires some assembly. This unit ships
from our factory without oil. It must be properly serviced
with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our help line at 1-877-338-0999. Please
have your serial number and model number available.
Remove the Generator from the Shipping Carton
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the
generator.
3. Carefully cut each corner of the box from top to
bottom. Fold each side flat on the ground to provide a
surface area to install the wheel kit and support leg.

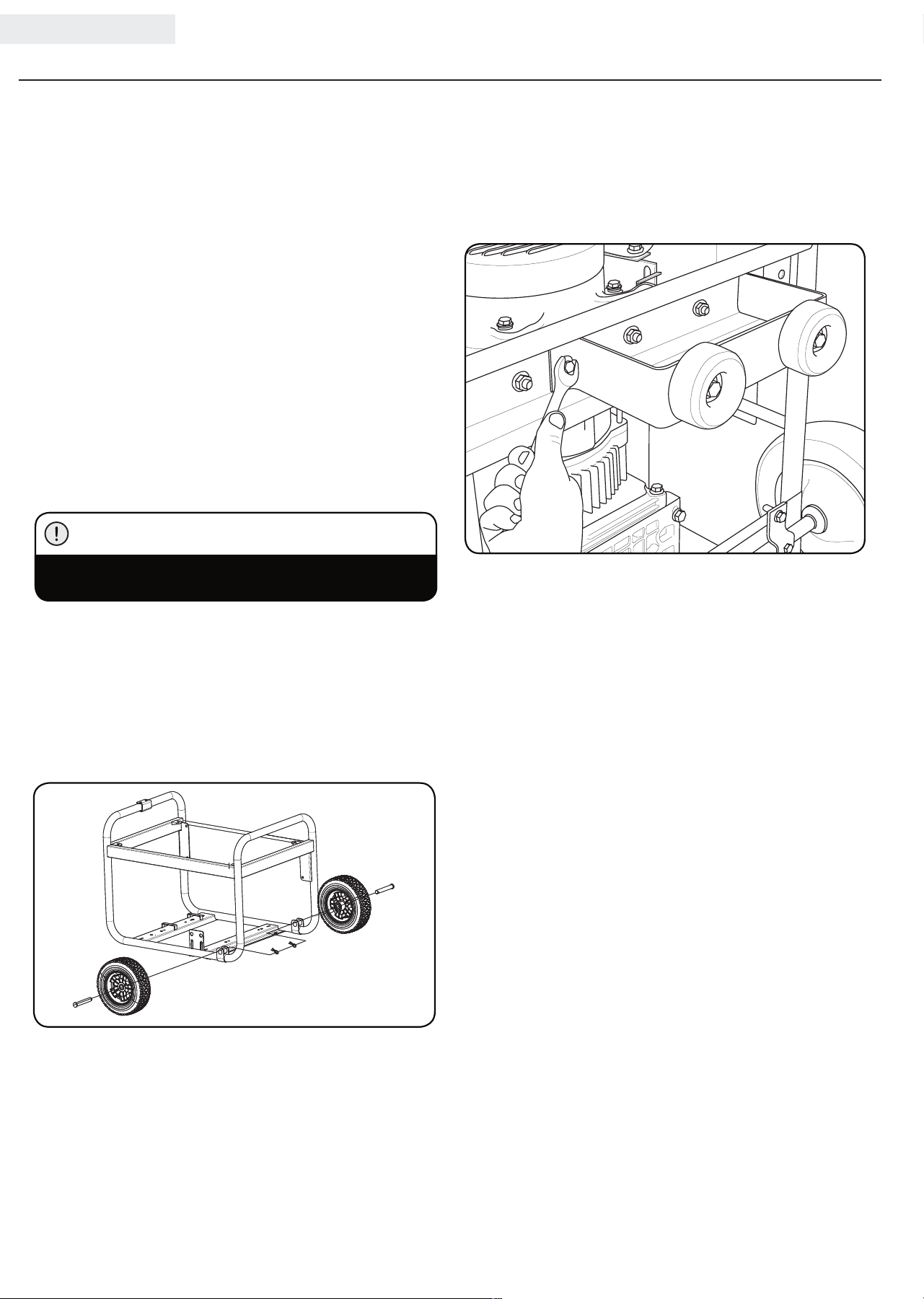

Install the Wheel Kit
The wheel kit is not intended for over-the-road use.
CAUTION
1. Before adding fuel and oil, tip the generator on it’s side.
2. Slide the wheel pin roll through the wheel from
the outside.
3. Slide the wheel pin roll through the mount point on
the frame.
4. Secure with the R-Pin Ø2 x 33.
5. Repeat steps 2-4 to attach the second wheel.
Install the Support Leg
1. Attach the support leg to the generator frame with
flange bolts (M8x16) and flange lock nuts (M8).
2. Tip the generator slowly so that it rests on the
wheels and support leg.
11
ENGLISH 100231
1. Place the generator on a flat, level surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add up to 1.2 qt. (1.1 L) of oil (not included) and
replace oil fill cap/dipstick. DO NOT OVERFILL.
4. Check engine oil level daily and add as needed.

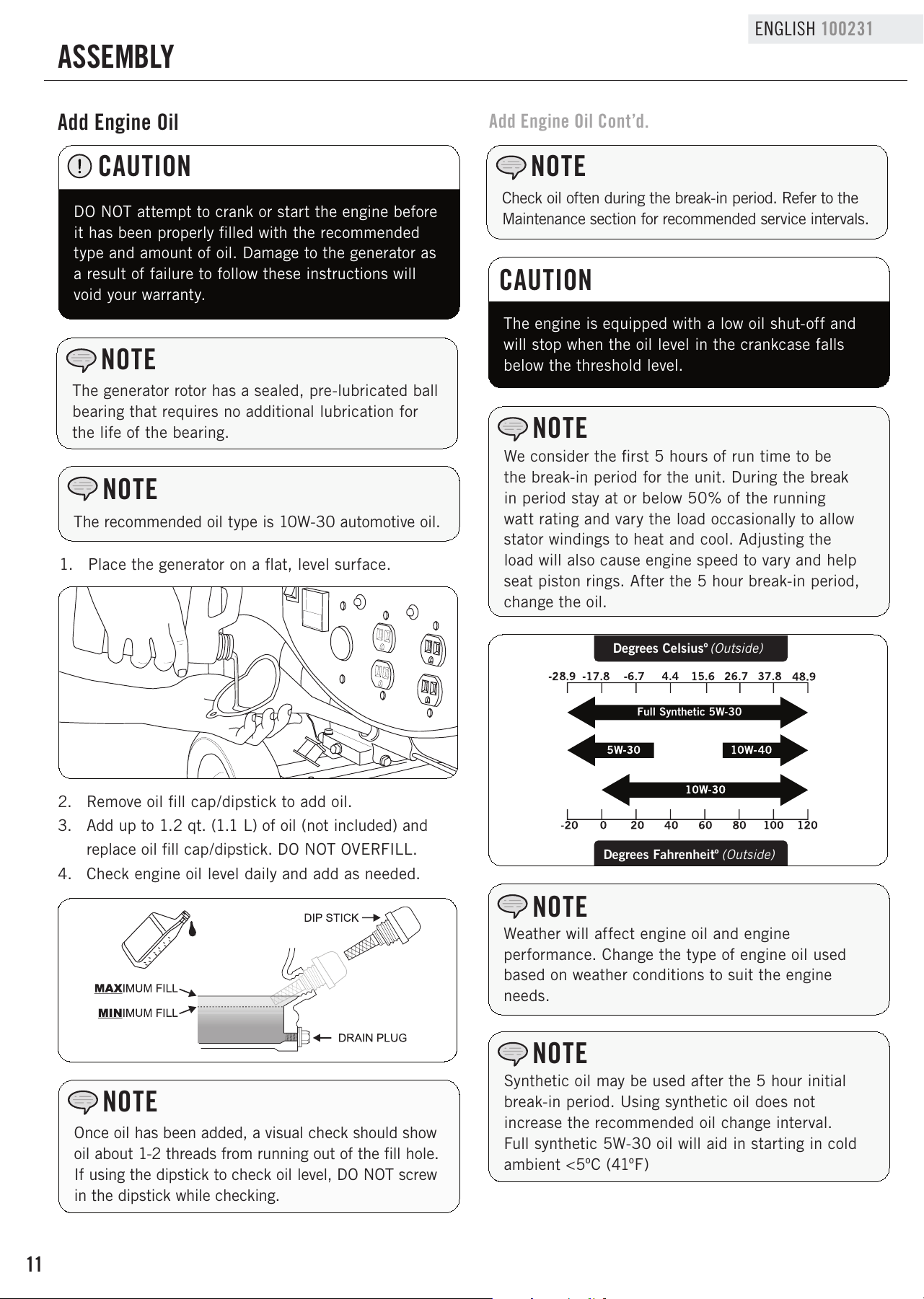

Add Engine Oil
ASSEMBLY
Add Engine Oil Cont’d.

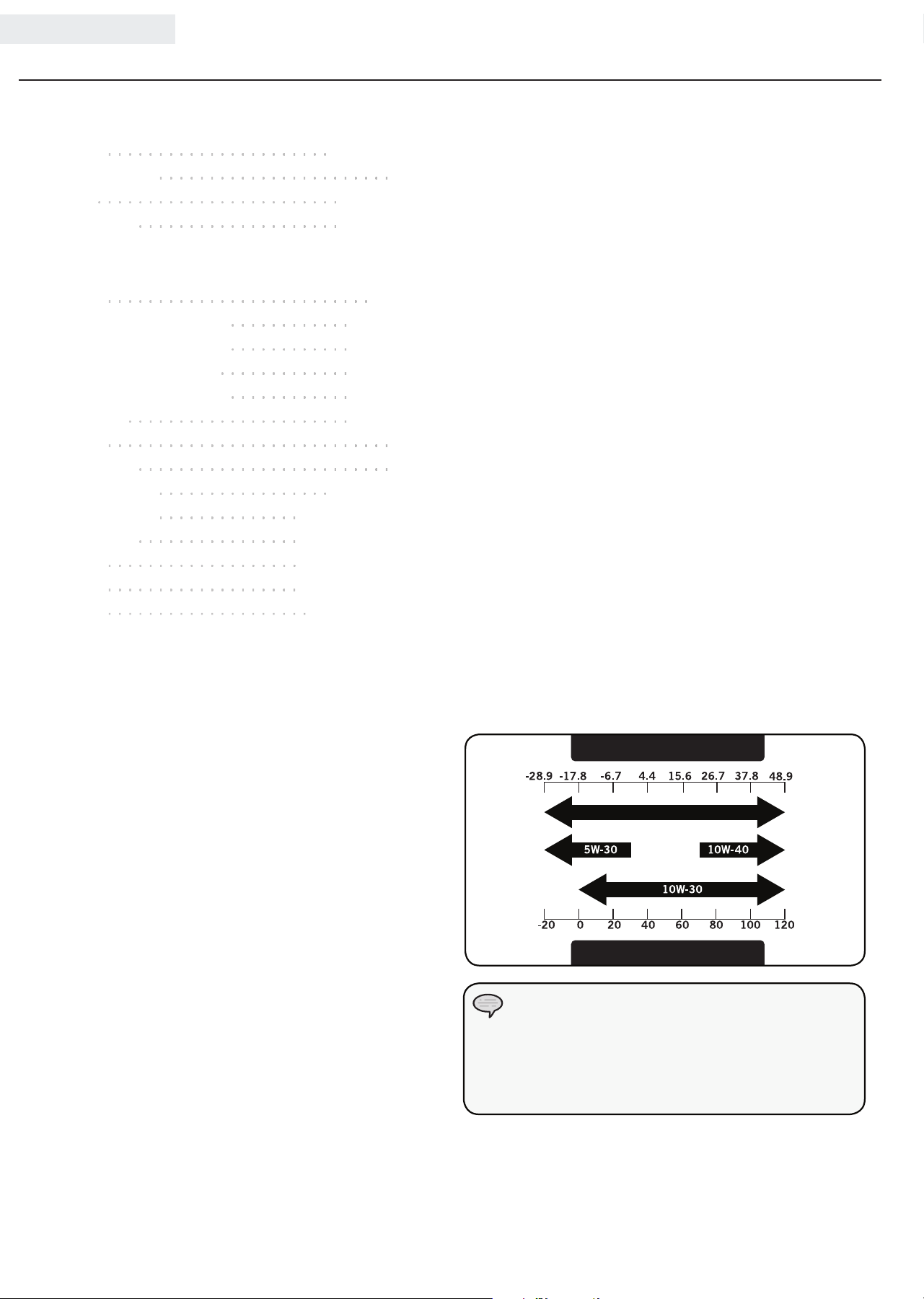

Full Synthetic 5W-30
Degrees Celsiusº
(Outside)
(Outside)
Degrees Fahrenheitº
The engine is equipped with a low oil shut-off and
will stop when the oil level in the crankcase falls
below the threshold level.
CAUTION
DO NOT attempt to crank or start the engine before
it has been properly filled with the recommended
type and amount of oil. Damage to the generator as
a result of failure to follow these instructions will
void your warranty.
CAUTION
The generator rotor has a sealed, pre-lubricated ball
bearing that requires no additional lubrication for
the life of the bearing.
NOTE
The recommended oil type is 10W-30 automotive oil.
NOTE
Synthetic oil may be used after the 5 hour initial
break-in period. Using synthetic oil does not
increase the recommended oil change interval.
Full synthetic 5W-30 oil will aid in starting in cold
ambient <5ºC (41ºF)
NOTE
We consider the first 5 hours of run time to be
the break-in period for the unit. During the break
in period stay at or below 50% of the running
watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the
load will also cause engine speed to vary and help
seat piston rings. After the 5 hour break-in period,
change the oil.
NOTE
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
Check oil often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
NOTE
12
100231 ENGLISH
ASSEMBLY
Add Fuel (Gas) Cont’d.
Our engines work well with 10% or less ethanol
blend fuels. When using blended fuels there are
some issues worth noting:
– Ethanol-gasoline blends can absorb more water
than gasoline alone.
– These blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor.
– With gravity-fed fuel supplies, this compromised
fuel can be drawn into the carburetor and cause
damage to the engine and/or potential hazards.
– There are only a few suppliers of fuel stabilizer
that are formulated to work with ethanol blend
fuels.
– Any damages or hazards caused by using
improper fuel, improperly stored fuel, and/
or improperly formulated stabilizers, are not
covered by manufacture’s warranty.
It is advisable to always shut off the fuel supply,
run the engine to fuel starvation and drain the tank
when the equipment is not in use for more than 30
days.
NOTE

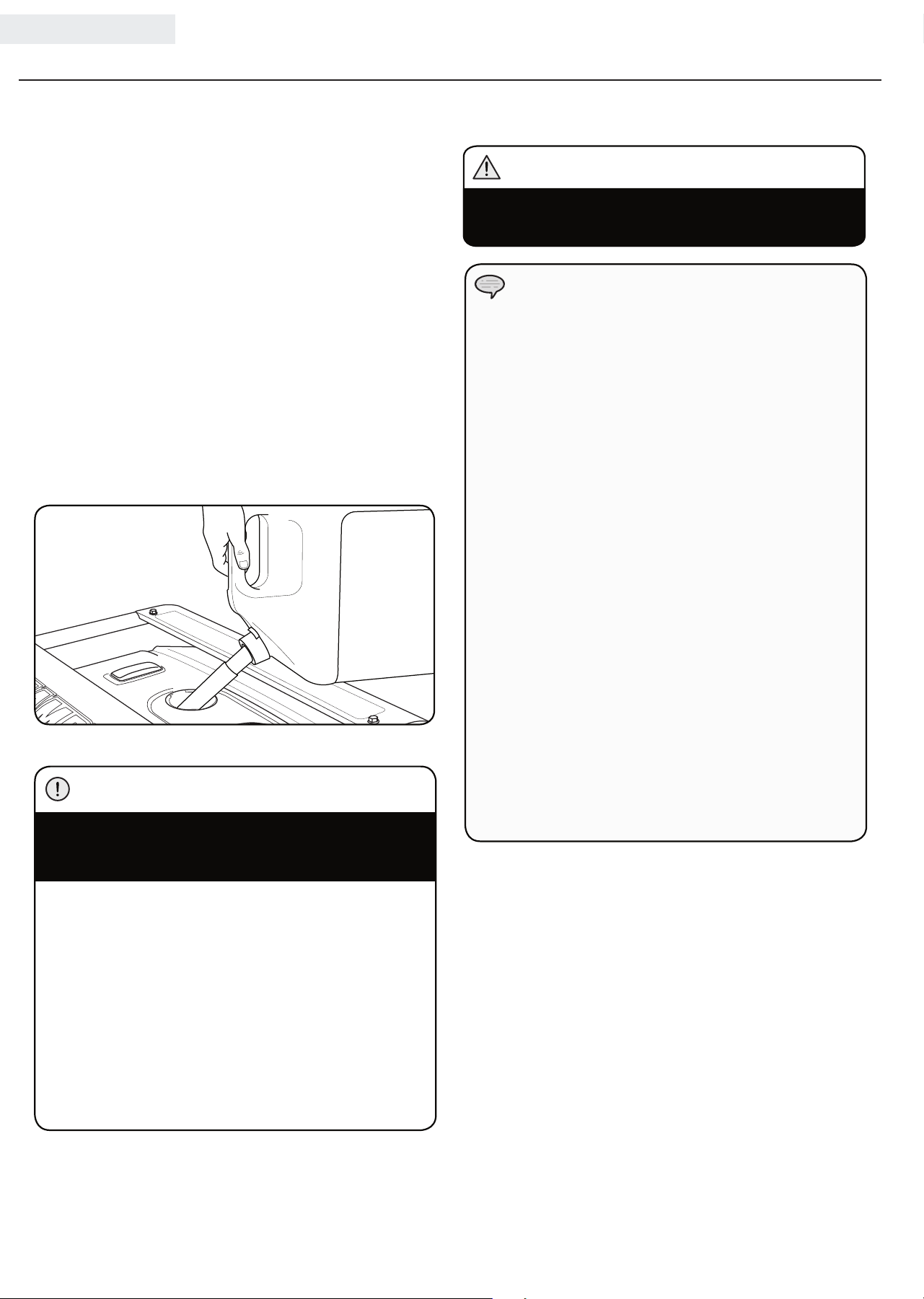

Add Fuel (Gas)
1. Use clean, fresh, regular unleaded fuel with a
minimum octane rating of 85 and an ethanol content
of less than 10% by volume.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap.
5. Slowly add fuel to the tank. DO NOT OVERFILL.
Fuel can expand after filling. A minimum of
¼ in. (6.4 mm) of space left in the tank is required
for fuel expansion, more than ¼ in. (6.4 mm) is
recommended. Fuel can be forced out of the tank as
a result of expansion if it is overfilled, and can affect
the stable running condition of the product. When
filling the tank, it is recommended to leave enough
space for the fuel to expand.
6. Screw on the fuel cap and wipe away any spilled fuel.
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼ in. (6.4 mm) below the
top of the tank to allow for fuel expansion.
DO NOT pump gas directly into the generator at the
gas station. Use an approved container to transfer
the fuel to the generator.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
CAUTION
Pouring fuel too fast through the fuel screen may
result in blow back of fuel at the operator while filling.
WARNING
13
ENGLISH 100231
ASSEMBLY
Do not allow children to tamper or play with the
cylinder or hose connections.
CAUTION
Use approved LPG cylinders equipped with an
OPD (overfilling prevention device) valve. Always
keep the cylinder in a vertical position with the
valve on top and installed at ground level on a flat
surface Cylinders must not be installed near any
heat source and should not be exposed to sun, rain,
and dust. When transporting and storing, turn off
the cylinder valve and fuel valve, and disconnect
the cylinder. Plug the outlet, usually by a plastic
protective cap, if one is available. Keep cylinders
away from heat and ventilated when in a vehicle.
CAUTION
Connecting a LPG Cylinder Cont’d.
– Use only standard 20 or 30 pound capacity LP
tanks with Type 1, right hand Acme threads.
– Verify the requalification date on the tank has
not expired.
– All new cylinders must be purged of air and
moisture prior to filling. Used cylinders that have
not been plugged or kept closed must also be
purged.
– The purging process should be done by a LPG
supplier. (Cylinders from an exchange supplier
should have been purged and filled properly
already).
– Always position the cylinder so the connection
between the valve and the gas inlet won’t cause
sharp bends or kinks in the hose.
NOTE

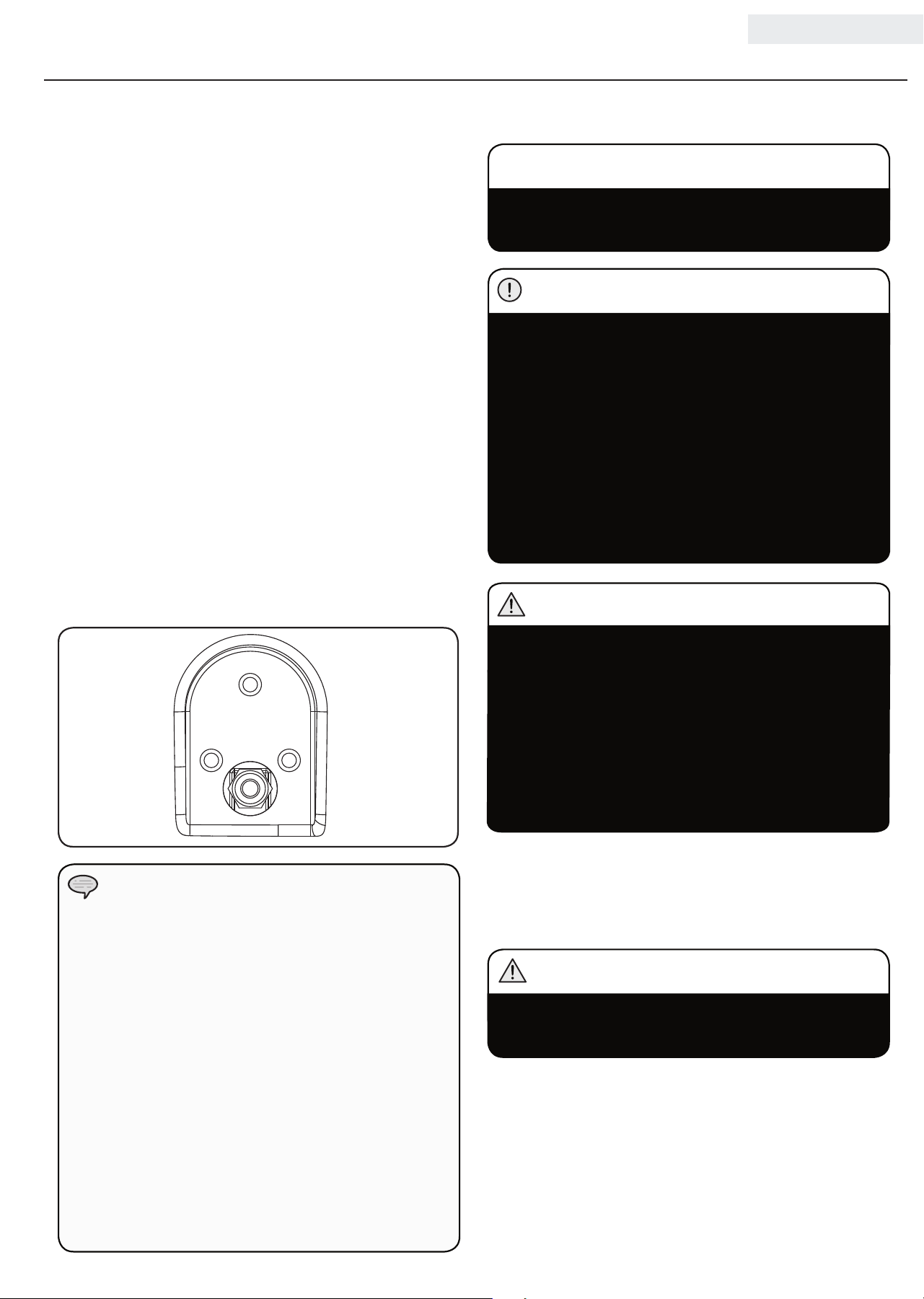

Connecting a LPG Cylinder
1. Make sure the fuel valve on the generator is in the off
position.
2. Attach the LPG hose (included) to the LPG hose
connector on the side of the generator and tighten
with a 19 mm or adjustable wrench.
Important: DO NOT use tape or any other type of
sealant to seal LPG hose connection.
3. Remove the safety plug or cap from the cylinder
valve.
4. Attach the other end of the hose to the LPG
connector on the cylinder and hand tighten.
5. Check all connections for leaks by wetting the fittings
with a solution of soap and water. Bubbles which
appear or bubbles which grow indicate that a leak
exists. If a leak exists at a fitting then turn off the
gas valve at the tank and tighten the fitting. Turn the
gas back on and recheck the fitting with the soap
and water solution. If the leak continues or if the leak
is not at a fitting then do not use the generator and
contact customer service.
If there is a strong smell of gas: Close off the gas
supply at the cylinder. Use soapy water, which will
produce a large bubble at the point of any leak, to
check the hose, and connections on the cylinder valve
and the generator. Do not smoke or light a cigarette,
or check for leaks using a match, open flame source
or lighter. Contact a qualified technician to inspect
and repair the LPG system if a leak is found, before
using the generator.
WARNING
Grounding
Your generator must be properly connected to an
appropriate ground to help prevent electric shock.
A ground terminal has been provided on the lower frame
crossmember below the alternator. For remote grounding,
connect of a length of heavy gauge (12 AWG minimum)
copper wire between the generator ground terminal and a
copper rod driven into the ground. We strongly recommend
that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Failure to properly ground the generator can result
in electric shock.
WARNING
14
100231 ENGLISH
OPERATION
Generator Location
NEVER operate the generator inside any building,
including garages, basements, crawlspaces and sheds,
enclosure or compartment, including the generator
compartment of a recreational vehicle. Please consult
your local authority. In some areas, generators must
be registered with the local utility. Generators used at
construction sites may be subject to additional rules and
regulations. Generators should be on a flat, level surface
at all times. (Even while not in operation) Generators
must have at least 5 ft. (1.5 m) of clearance from all
combustible material. In addition to clearance from
all combustible material, generators must also have
at least 3 ft. (91.4 cm) of clearance on all sides to
allow for adequate cooling, maintenance and servicing.
Generators should never be started or operated in the
back of a SUV, camper, trailer, in the bed of a truck
(regular, flat or otherwise), under staircases/stairwells,
next to walls or buildings, or in any other location that
will not allow for adequate cooling of the generator
and/or the muffler. DO NOT contain generators during
operation. Allow generators to properly cool before
transport or storage.
Place the generator in a well-ventilated area. DO NOT
place the generator near vents or intakes where exhaust
fumes could be drawn into occupied or confined
spaces. Carefully consider wind and air currents when
positioning generator.
Failure to follow proper safety precautions may void
manufacturer’s warranty.
Do not operate or store the generator in rain, snow,
or wet weather.
Using a generator or electrical appliance in wet
conditions, such as rain or snow, or near a pool or
sprinkler system, or when your hands are wet, could
result in electrocution.
WARNING
WARNING
During operation the muffler and exhaust fumes
produced will become hot. If adequate cooling and
breathing space are not supplied, or if the generator
is blocked or contained, temperatures can become
extremely heated and may lead to fire.
Surge Protection
Electronic devices, including computers and many
programmable appliances use components that are
designed to operate within a narrow voltage range and
may be affected by momentary voltage fluctuations.
While there is no way to prevent voltage fluctuations, you
can take steps to protect sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in surge suppressors
on the outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet
styles. They’re designed to protect against virtually
all short-duration voltage fluctuations.
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
CAUTION
Grounding
The generator system ground is located on the lower frame
crossmember below the alternator. The system ground is
connected to the AC neutral wire.
15
ENGLISH 100231
OPERATION
The fuel selector switch cover is specifically
designed not to slide to either side while a specific
fuel has been selected and the valve is in the “ON”
position. Only when the fuel valves are in the “OFF”
position can the cover slide side to side.
NOTE
The fuel selector is locked into place once a
“CLICK” sound is made. Only then can a fuel valve
be turned to the vertical position.
NOTE

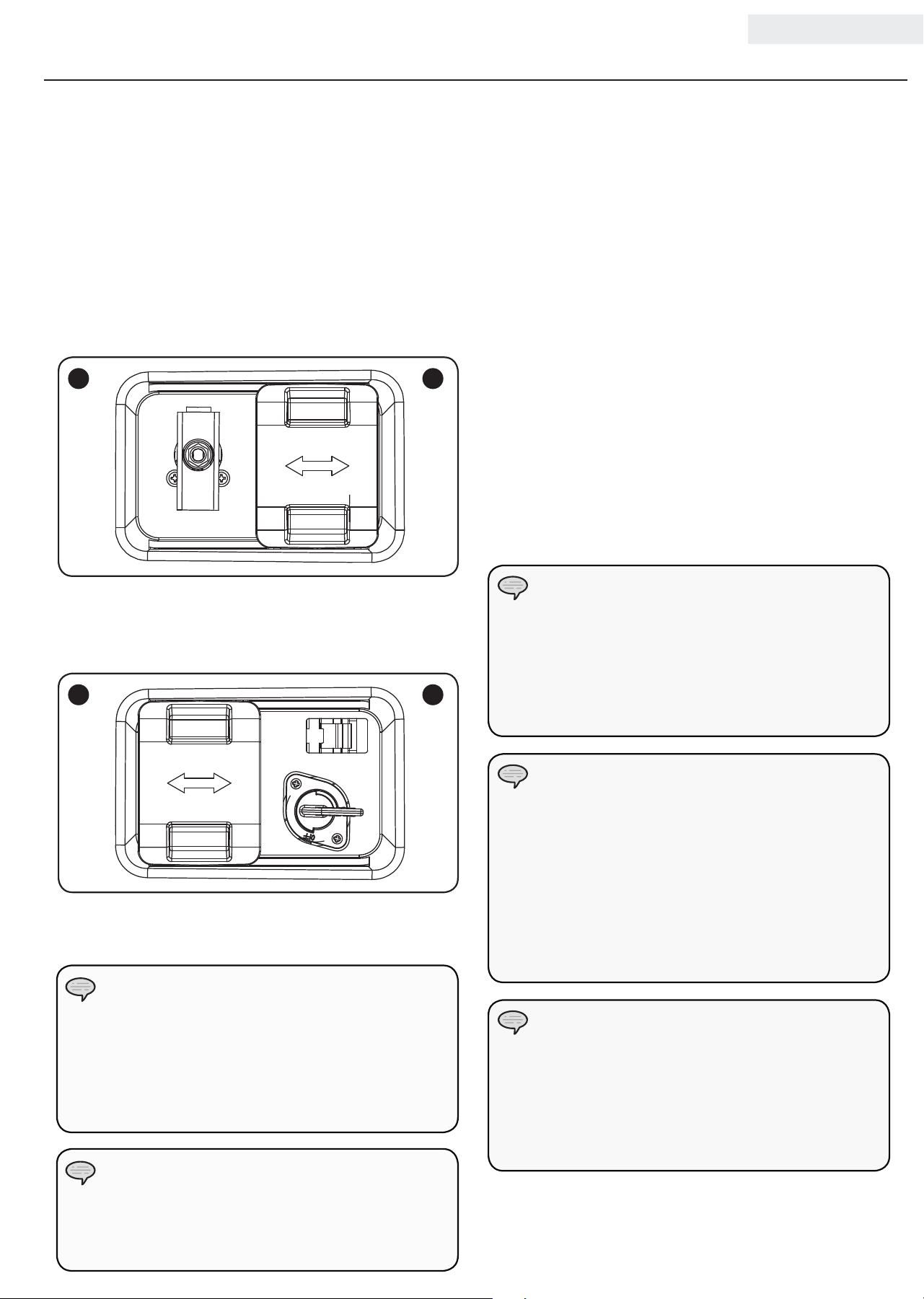

Fuel Selector Switch
The fuel selector switch on the front panel of the
generator is designed specifically to choose between the
fuel source desired, Gas or Propane (LPG).
To select a fuel source simply slide the switch cover to
either the right or left, and this will uncover the fuel
valve of the fuel selected.
The propane fuel valve (A) is to the left of the switch
cover.
The gasoline fuel valve (B) is to the right of the switch
cover.
1A
2B
Once a fuel source has been selected, the user must
turn the fuel valve to the vertical position to open the
fuel valve. (1)
To turn a fuel valve to the off position the valve must be
in the horizontal position. (2)
Starting the Engine in ambient > 15°C (59°F)
Gas
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
3. Turn the gasoline fuel valve to the “ON” position.
4. Move the choke lever to the “100% CHOKE” detent
position.
a. For restarting a warm engine, move the choke
lever to the “75% CHOKE” detent position.
5. Press the engine switch to the “ON” position.
6. RECOIL START: Pull the starter cord slowly until
resistance is felt and then pull rapidly.
7. Do not over-choke. As soon as engine starts, gradually
move the choke lever to the “RUN” position over a 2-5
second duration.
Keep choke lever in “CHOKE” position for only 1
pull of the recoil starter. After first pull, move choke
lever to the “RUN” position for up to the next 3
pulls of the recoil starter. Too much choke leads to
sparkplug fouling/engine flooding due to the lack of
incoming air. This will cause the engine not to start.
NOTE
For gasoline restarts with hot engine in hot ambient
> 30°C (86°F) Keep choke lever in “75% CHOKE”
detent position for only 1 pull of the recoil starter.
After first pull, move choke lever to the “RUN”
position for up to the next 3 pulls of the recoil
starter.
Too much choke leads to sparkplug fouling/engine
flooding due to the lack of incoming air. This will
cause the engine not to start.
NOTE
For gas starting in in cold ambient < 15°C (59°F)
the choke must be in the “100% CHOKE” detent
position for recoil start procedures. Do not over-
choke. As soon as engine starts, gradually move
the choke lever to the “RUN” position over a 5-20
second duration.
NOTE
16
100231 ENGLISH
OPERATION
If the engine starts but does not run make certain
that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will
prevent the engine from running when the oil level
falls below a critical threshold.
NOTE
LPG
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator.
Never start or stop the generator with electrical
devices plugged in or turned on.
3. Fully open the LPG cylinder fuel knob.
4. Turn the LPG fuel valve to the “ON” position.
5. Press the engine switch to the “ON” position.
6. RECOIL START: Move the choke lever to the “100%
Choke” detent position.
a. For restarting a warm engine, move the choke
lever to the “100% CHOKE” detent position.
7. PULL-TO-PRIME: Pull the starter cord slowly until
resistance is felt and then pull rapidly. Pull with
“100% CHOKE” 1-2 times until you feel a few
combustion pulses that indicates that the engine
momentarily started.
8. Move the choke lever to the “RUN” position.
9. Pull the starter cord slowly until resistance is felt and
then pull rapidly.
10. If engine fails to start in 1-pull with choke in the
“RUN”, then move choke to “100% CHOKE” and
repeat the PULL-TO-PRIME step.
For LPG starting in cold ambient < 15°C (59°F)
Move the choke lever to the “100% CHOKE” for
recoil start. To pull to prime for recoil start, pull
with “100% CHOKE” 1-3 times until you feel a few
combustion pulses that indicates that the engine
momentarily started.
NOTE
Connecting Electrical Loads
1. Let the engine stabilize and warm up for a few
minutes after starting
2. Plug in and turn on the desired 120/240 Volt AC
single phase, 60 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT connect 50 Hz loads to the generator.
– DO NOT overload the generator.
Connecting a generator to your electric utility
company’s power lines or to another power source
may be against the law. In addition this action,
if done incorrectly, could damage your generator
and appliances and could cause serious injury or
even death to you or a utility worker who may be
working on nearby power lines. If you plan to run a
portable electric generator during an outage, please
notify your electric utility company immediately
and remember to plug your appliances directly
into the generator. Do not plug the generator into
any electric outlet in your home. Doing so could
create a connection to the utility company power
lines. You are responsible for ensuring that your
generator’s electricity does not feed back into the
electric utility power lines.
If the generator will be connected to a building
electrical system, consult your local utility company
or a qualified electrician. Connections must isolate
generator power from utility power and must comply
with all applicable laws and codes.
WARNING
17
ENGLISH 100231
OPERATION
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and
starting watts necessary for your purposes.
1. Select the electrical devices you plan on running at
the same time.
2. Total the running watts of these items. This is
the amount of power you need to keep your items
running.
3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Surge wattage is the extra
burst of power needed to start some electric driven
equipment. Following the steps listed under “Power
Management” will guarantee that only one device will
be starting at a time.
Power Management
Use the following formula to convert voltage and
amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and attached
devices, follow these steps to add electrical load:
1. Start the generator with no electrical load attached
2. Allow the engine to run for several minutes to stabilize.
3. Plug in and turn on the first item. It is best to attach
the item with the largest load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional item.
Never exceed the specified capacity when adding
loads to the generator.
NOTE
NOTE
Observing frost on LPG containers and regulators
is common during operation and normally is not
an indication of a problem. As LPG vaporizes and
travels from the tank to the generator engine it
expands. The amount of frost that forms can be
affected by the size of the container, the amount of
fuel being used, the humidity of the air and other
operating conditions. In unusual situations this
frost may eventually restrict the flow of gas to the
generator resulting in deteriorating performance.
For example, if the tank temperature is reduced
to a very low level then the rate at which the LPG
vaporizes is also reduced and may not provide
sufficient fuel flow to the engine. This is not an
indication of a problem with the generator but
only a problem with the flow of gas from the LPG
container. If generator performance seems to be
deteriorating at the same time that ice formation is
observed on tank valve, hose or regulator then some
actions may be taken to eliminate this symptom.
In these rare situations it can be helpful to reduce
or eliminate the cold fuel system effects by doing
one of the following:
– Exchanging fuel tanks to allow the first tank to
warm up, repeating as necessary
– Placing the LPG container at the end of the
generator near the handle, where engine fan air
flows out from the generator. This air is slightly
heated by flowing over the engine. The container
should not be placed in the path of the muffler
outlet.
– The container can be temporarily warmed by
pouring warm water over the top of the tank.
18
100231 ENGLISH
Operation using the alternative main jet at
elevations lower than the recommended minimum
altitude can damage the engine. For operation at
lower elevations, the standard main jet must be
used. Operating the engine with the wrong engine
configuration at a given altitude may increase
its emissions and decrease fuel efficiency and
performance.
WARNING
Operation at High Altitude
The density of air at high altitude is lower than at sea
level. Engine power is reduced as the air mass and air-
fuel ratio decrease. Engine power and generator output
will be reduced approximately 3½% for every 1000 ft.
of elevation above sea level. This is a natural trend and
cannot be changed by adjusting the engine. At high
altitudes increased exhaust emissions can also result
due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting,
increased fuel consumption and spark plug fouling.
To alleviate high altitude issues other than the natural
power loss, Champion Power Equipment can provide a
high altitude carburetor main jet. The alternative main
jet and installation instructions can be obtained by
contacting Customer Support. Installation instructions
are also available in the Technical Bulletin area of the
Champion Power Equipment internet site.
The part number and recommended minimum altitude
for the application of the high altitude carburetor main
jet is listed in the table below.
In order to select the correct high altitude main jet
it is necessary to identify the carburetor model. For
this purpose, a code is stamped on the side of the
carburetor. Select the correct main jet part number
corresponding to the carburetor code found on your
particular carburetor.
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start
or stop the generator with electrical devices plugged
in or turned on.
2. Let the generator run at no-load for several minutes
to stabilize internal temperatures of the engine and
generator.
3. Turn the fuel valve to the “OFF” position if operating
by gas.
4. Turn the LPG cylinder knob to the “CLOSE” or off
position if operating by LPG.
5. Let the engine run until fuel starvation has stopped
the engine. This usually takes a few minutes.
6. Press the engine switch to the “OFF” position.
Important: Always ensure that the fuel valve and the
engine switch are in the “OFF” position when the engine
is not in use.
When turning off the generator after LPG operation, make
sure the LPG cylinder knob is in the fully closed position.
NOTE
If the engine will not be used for a period of two (2) weeks
or longer, please see the Storage section for proper engine
and fuel storage.
NOTE
OPERATION
Carburetor
Code
Main Jet Part Number Altitude
P27-7-H
Standard
46.131017.20.H
5000 Feet
(1524 Meters)
Altitude
46.131017.20.01.H
P27-7-Z
Standard
46.131017.20.Z
Altitude
46.131017.20.01.Z
P27-7-Y
Standard
46.131017.20.Y
Altitude
46.131017.20.01.Y
19
ENGLISH 100231

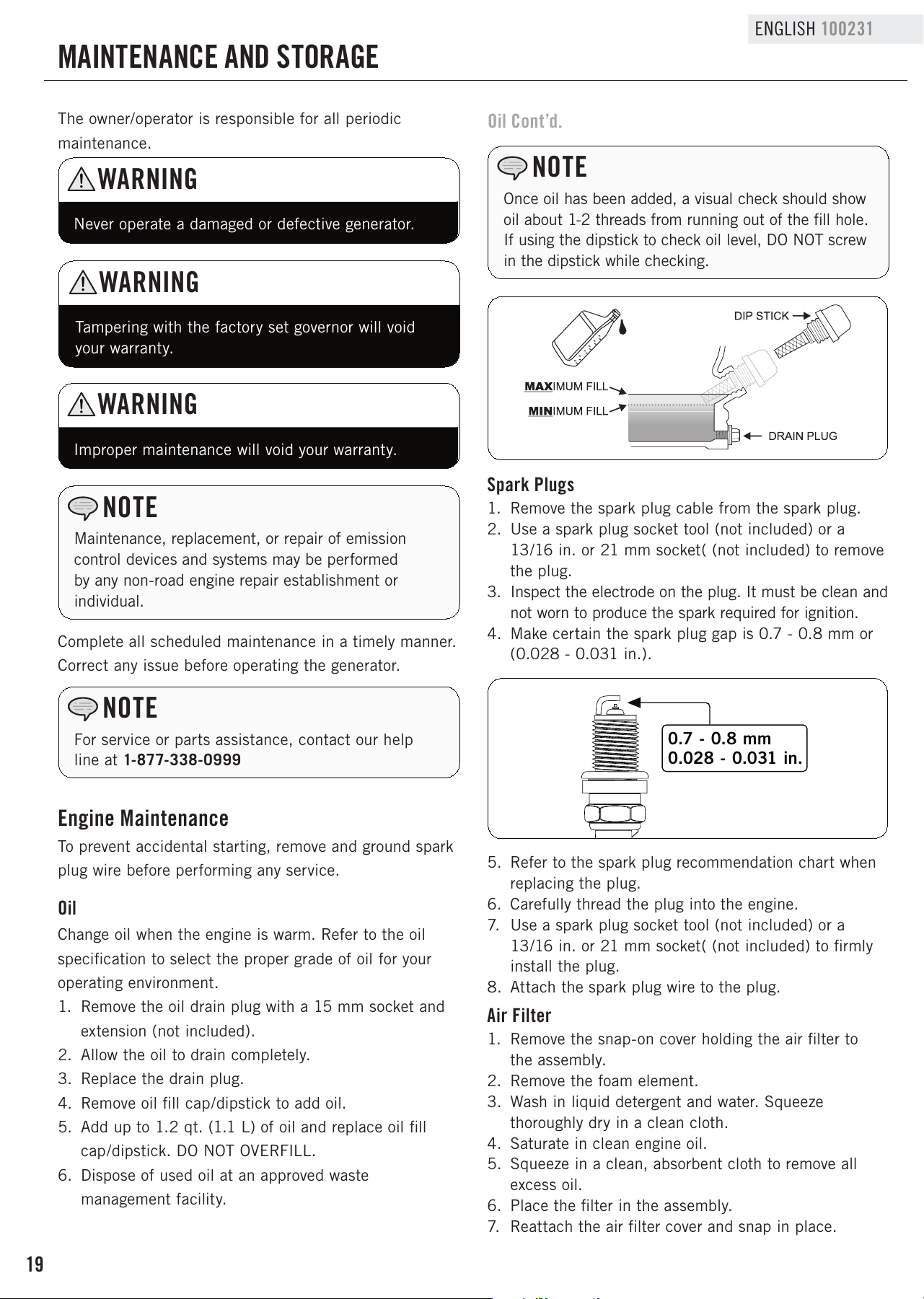

MAINTENANCE AND STORAGE
The owner/operator is responsible for all periodic
maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
Never operate a damaged or defective generator.
Tampering with the factory set governor will void
your warranty.
For service or parts assistance, contact our help
line at 1-877-33 8-0999
NOTE
Maintenance, replacement, or repair of emission
control devices and systems may be performed
by any non-road engine repair establishment or
individual.
NOTE
WARNING
WARNING
Improper maintenance will void your warranty.
WARNING
Oil Cont’d.
Once oil has been added, a visual check should show
oil about 1-2 threads from running out of the fill hole.
If using the dipstick to check oil level, DO NOT screw
in the dipstick while checking.
NOTE
Air Filter
1. Remove the snap-on cover holding the air filter to
the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water. Squeeze
thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to remove all
excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in place.
Spark Plugs
1. Remove the spark plug cable from the spark plug.
2. Use a spark plug socket tool (not included) or a
13/16 in. or 21 mm socket( (not included) to remove
the plug.
3. Inspect the electrode on the plug. It must be clean and
not worn to produce the spark required for ignition.
4. Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
5. Refer to the spark plug recommendation chart when
replacing the plug.
6. Carefully thread the plug into the engine.
7. Use a spark plug socket tool (not included) or a
13/16 in. or 21 mm socket( (not included) to firmly
install the plug.
8. Attach the spark plug wire to the plug.
0.7 - 0.8 mm
0.028 - 0.031 in.
Engine Maintenance
To prevent accidental starting, remove and ground spark
plug wire before performing any service.
Oil
Change oil when the engine is warm. Refer to the oil
specification to select the proper grade of oil for your
operating environment.
1. Remove the oil drain plug with a 15 mm socket and
extension (not included).
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add up to 1.2 qt. (1.1 L) of oil and replace oil fill
cap/dipstick. DO NOT OVERFILL.
6. Dispose of used oil at an approved waste
management facility.
20
100231 ENGLISH
Adjustments
The air-fuel mixture is not adjustable. Tampering
with the governor can damage your generator and
your electrical devices and will void your warranty.
CPE recommends that you contact our service line at
1-877-338-099 9 for all other service and/or adjustment
needs.
Maintenance Schedule
Follow the service intervals indicated in the following
maintenance schedule.
Service your generator more frequently when operating
in adverse conditions.
Contact our helpline at 1-877-338-0 999 to locate the
nearest Champion Power Equipment certified service
dealer for your generator or engine maintenance needs.
Use a damp cloth to clean exterior surfaces of the engine.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the engine.
Cleaning
DO NOT spray engine with water.
CAUTION
Water can contaminate the fuel system.

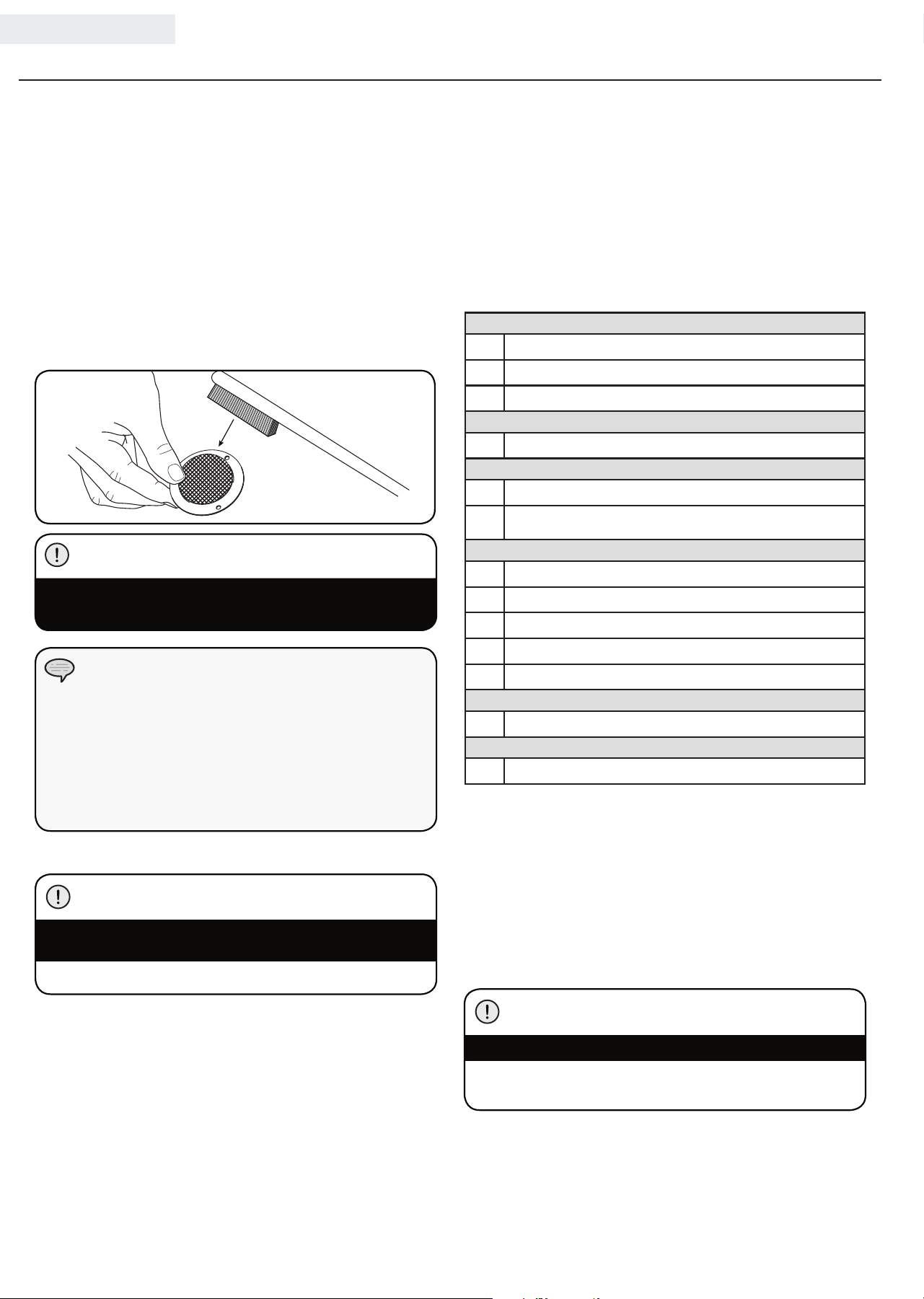

Spark Arrester
1. Allow the engine to cool completely before servicing
the spark arrester.
2. Remove the three screws holding the cover plate
which retains the end of the spark arrester to the
muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits from the spark
arrester screen with a wire brush.
5. Replace the spark arrester if it is damaged.
6. Position the spark arrester in the muffler and attach
with the three screws.
Failure to clean the spark arrester will result in degraded
engine performance.
CAUTION
MAINTENANCE AND STORAGE
*To be performed by knowledgeable, experienced owners or
Champion Power Equipment certified dealers.
Generator Maintenance
Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in
a clean, dry operating environment. DO NOT expose the
unit to extreme conditions, excessive dust, dirt, moisture
or corrosive vapors.
Use a damp cloth to clean exterior surfaces of the generator.
Use a soft bristle brush to remove dirt and oil.
Use an air compressor (25 PSI) to clear dirt and debris
from the generator.
Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.
DO NOT use a garden hose to clean the generator.
Water can enter the generator through the cooling
slots and damage the generator windings.
CAUTION
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
Check hoses for leaks
First 5 hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load or in hot
environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance*
Clean spark arrester
Clean fuel tank and filter*
Every 250 hours
Clean combustion chamber*
Every 3 years
Replace fuel line and LPG hose
Federal and local laws and administrative requirements
indicate when and where spark arresters are required.
When ordered, spark arresters are required for operation
of this generator in National Forest lands. In California,
this generator must not be used on any forest- covered
land, brush-covered land, or grass- covered land unless
the engine is equipped with a spark arrester.
NOTE
21
ENGLISH 100231
MAINTENANCE AND STORAGE
Generator exhaust contains odorless and colorless
carbon monoxide gas.
To avoid accidental or unintended ignition of your
generator during periods of storage, the following
precautions should be followed:
– When storing the generator for short or extended
periods of time make sure that the engine switch
and the fuel valve are set in the OFF position.
DANGER
Storage
The generator should be started at least once every
14 days and allowed to run for at least 20 minutes.
For longer term storage, please follow these guidelines.
Generator Storage
1. Add a properly formulated fuel stabilizer to the gas
tank.
2. Be sure all appliances are disconnected from the
generator.
3. Run the generator for a few minutes so the treated
fuel cycles through the fuel system and carburetor.
4. Turn the gas fuel valve to the “Off” position.
5. Let the generator run until fuel starvation has
stopped the engine. This usually takes a few minutes.
6. Press the engine switch to the “OFF” position.
7. The generator needs to cool completely before
cleaning and storage.
8. Remove the spark plug cap, then pull the recoil grip
3 times to drain the gasoline from the carburetor
jets.
9. Remove the spark plug and pour about a tablespoon
of oil into the cylinder. Crank the engine slowly to
distribute the oil and lubricate the cylinder.
10. Reattach the spark plug.
11. Clean the generator according to the maintenance
section.
12. Store the unit in a clean, dry place out of direct
sunlight.
22
100231 ENGLISH
Oil
Use 10W-30 automotive oil.
Oil capacity is up to 1.2 qt. (1.1 L).
DO NOT OVERFILL.
Please reference the following chart for recommended
oil types for use in the generator.
Fuel
Fuel (Gas) capacity is 6 gal. (22.9 L).
– Use regular unleaded gasoline with a minimum
octane rating of 85 and an ethanol content of less
than 10% by volume.
– Use only an approved LPG cylinder equipped with an
OPD valve.
SPECIFICATIONS
Engine Specifications
– Model ...................... YF188FD-L_G
– Displacement ....................... 389cc
– Type ........................ 4-Stroke OHV
– Start Type .................... Manual Start
Generator Specifications
– Model .......................... 100231
– Running Wattage (Gas) ............ 5500 Watts
– Running Wattage (LPG) ............ 5000 Watts
– Starting Wattage (Gas) . ............ 6900 Watts
– Starting Wattage (LPG) ............ 6250 Watts
– AC Load ...................... 120/240 V
– Phase ............................ Single
– Frequency ......................... 60 Hz
– Fuel Capacity ................. 6 gal. (22.9 L)
– Gross Weight .............. 174.4 lb. (79.1 kg)
– Net Weight . ............... 162.5 lb. (73.7 kg)
– Height . .................. 24.4 in. (61.9 cm)
– Width ................... 27.7 in. (70.4 cm)
– Length. . . . . . . . . . . . . . . . . . . . 27 in. (68.6 cm)
Maintenance Valve Clearance
– Intake: 0.13 – 0.17 mm (0.005 – 0.007 in.)
– Exhaust: 0.18 – 0.22 mm (0.007 – 0.009 in.)
Note: Tech bulletin regarding the valve adjustment
procedure is on www.championpowerequipment.com.
Spark Plugs
OEM spark plug: NHSP F6RTC
Replacement spark plug: NGK BPR6ES or equivalent
Make certain the spark plug gap is 0.7 - 0.8 mm or
(0.028 - 0.031 in.).
An Important Message About Temperature
Your Champion Power Equipment product is designed
and rated for continuous operation at ambient
temperatures up to 40°C (104°F). When your product is
needed your product may be operated at temperatures
ranging from -15°C (5°F) to 50°C (122°F) for short
periods. If the product is exposed to temperatures
outside this range during storage, it should be brought
back within this range before operation. In any event,
the product must always be operated outdoors, in a
well-ventilated area and away from doors, windows and
other vents.
Full Synthetic 5W-30
Degrees Celsiusº
(Outside)
(Outside)
Degrees Fahrenheitº
Weather will affect engine oil and engine
performance. Change the type of engine oil used
based on weather conditions to suit the engine
needs.
NOTE
23
ENGLISH 100231
SPECIFICATIONS

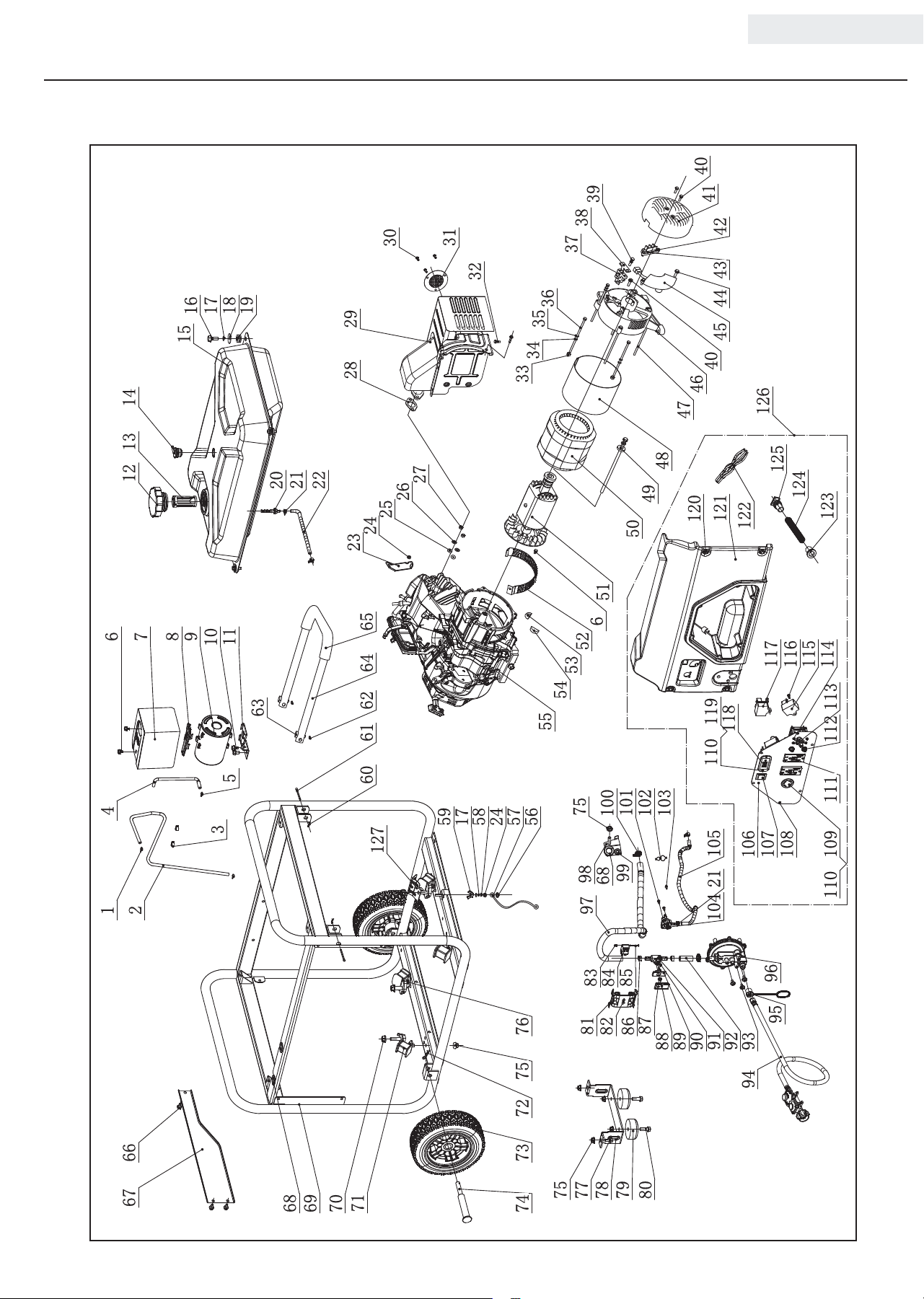

Parts Diagram
23
24
25
26
27
28 29
30
31
32
33
34
35
36
37
38
39
40
41
42434445
46
47
48
49
50
51
52
53
54
55
12 13 14
15
16
17
18
19
20
21
22
77
78
79
80
81
82
83
84
85
87
89
90
91
86
92
95
96
97
98
99
101
104
103
105
115
117
116
123
124
125
21
120
121
102
88
9394
100
106
107
108
109110 111
112 113
114
118
110 119
122
126
56
57
24
58
59
60 61
62
63
64 65
6667
68
69
70
71
727374 75 76
1
2
3
4
5
6
7
8
9
10
11
75
75
68
6
40
17
127
24
100231 ENGLISH
Parts List
# Part Number Description Qty
1
2.06.006 Clamp, Ø7 x Ø1 2
2
152.070014.05 Pipe, Reversal Valve, 810 mm 1
3
2.05.001 Clamp, Ø8 x 6.5 2
4
152.070013.03 Pipe, Air Cleaner, 135 mm 1
5
2.06.004 Clamp, Ø8 x Ø1 1
6
1.5789.0608 Flange Bolt M6 x 8 3
7
152.070018.02 Board, Heat Insulation 1
8
152.070702.06 Support Arm, Top 1
9
152.070700.02 Carbon Canister, 650 cc 1
10
1.16674.0812 Flange Bolt M8 x 12 2
11
152.070702.05 Support Arm, Bottom 1
12
122.070100.07 Fuel Tank Cap 1
13
122.070300.03 Fuel Filter 1
14
24.070800.00 Reversal Valve 1
15
152.071000.31.48 Fuel Tank, 22.9L, Yellow 1
16
1.5789.0620.1 Flange Bolt M6 x 20, Black 4
17
1.93.06 Lock Washer Ø6 5
18
2.03.004.1
Flat Washer, Ø24 x Ø6.5 x 1.5,
Black
4
19
122.070015.01 Mount Vibration, Fuel Tank 4
20
21.070600.03 Connect, Zinc Alloy 1
21
2.06.016 Clamp, Ø8.7 x b8 4
22
152.070011.08 Fuel Pipe, 265 mm 1
23
45.090006.20 Holder, Air Cleaner 1
24
1.6177.1.06 Lock Nut M6, Flange 2
25
1.848.08 Washer Ø8 2
26
1.93.08 Lock Washer Ø8 2
27
1.6175.08 Nut M8 2
28
46.100001.07 Gasket, Exhaust 1
29
46.101000.12.2 Muffler Assembly 1
30
1.9074.4.0510 Screw/Washer Assembly M5 x 10 3
31
46.101300.00 Spark Arrester Assembly 1
32
1.16674.0820 Flange Bolt M8 x 20 2
33
1.6175.05 Nut M5 2
34
1.97.1.05 Washer Ø5 2
35
1.93.05 Lock Washer Ø5 2
36
2.08.097 Bolt M5 x 184 2
37
152.190300.00 Carbon Brush Assembly 1
38
122.190004.01 Pinch, Carbon Brush 1
39
1.9074.15.0520 Bolt/Washer Assembly M5 x 20 1
40
1.16674.0512.2 Flange Bolt M5 x 12 3
41
152.190003.00.48 Generator End Cover, Yellow 1
42
1.9074.17.0516 Screw/Washer Assembly M5 x 16 2
43
122.190400.00 Terminal Block 1
44
1.16674.0516 Flange Bolt M5 x 16 2
45
153.190200.03 AVR 1
46
152.190002.00 End Housing 1
47
2.08.096
Flange Bolt/Washer Assembly
M6 x 149
4
48
151.191002.15 Stator Cover 1
49
2.08.095
Flange Bolt/Washer Assembly
M10 x 235
1
50
151.191200.19
Stator Assembly, Al,
Ø190 x 110 mm, CSA
1
51
151.191100.15
Rotor Assembly, Al,
Ø190 x 110 mm, CSA
1
52
152.192300.01 Air Guide 1
53
152.190005.00 Rubber, Fore-Cover, A 1
54
152.190005.01 Rubber, Fore-Cover, B 1
55
46.491 Engine, 389cc 1
56
1.862.06 Lock Washer Ø6, Toothed 1
57
5.1900.026 Grounding Line 150 mm 1
58
1.97.1.06.2 Washer Ø6 2
59
1.62.06 Butterfly Type Nut M6 1
60
11.110008.00 "R" Shape 2
61
152.200703.05 Long Pin, Handle 2
62
1.894.1.08 Circlip Ø8 2
63
152.200703.02 Short Pin, Handle 2
64
152.200701.16.2 Handle, U Shape 1
# Part Number Description Qty
65
152.200702.02 Cover, Handle 1
66
1.5789.0612.1 Flange Bolt M6 x 12, Black 3
67
152.200800.09.2 Decorative Plate 1
68
152.070031.00 Jacket, LPG Hose 3
69
65271.0.8.2 Frame, 680 x 567 x 569 1
70
1.6177.1.10 Lock Nut M10, Flange 4
71
152.201200.03 Motor Mount 1 2
72
2.16.001 Pin Ø2 x 33, "R" Shape 2
73
122.201701.07.48 8 in. Wheel, PU, Yellow 2
74
122.201501.23 Pin Roll, Wheel, Ø16 x Ø10 x 97 2
75
1.6177.1.08 Lock Nut M8, Flange 9
76
152.201200.04 Motor Mount 2 2
77
1.5789.0816 Flange Bolt M8 x 16 2
78
152.200002.00.2 Support Leg, 60 mm 1
79
152.201400.00 Rubber, Support 2
80
1.5789.0825 Flange Bolt M8 x 25 2
81
152.201004.00 Lock Catch 2
82
152.200019.00.48 Switch Handle, Yellow 1
83
1.6170.03 Nut M3 1
84
5.1050.000 Switch 1
85
1.819.1.0330 Screw M3 x 30 1
86
2.06.032 Clip Ø17 2
87
1.6182.05 Lock Nut M5 1
88
122.070032.00 Sleeve, Knob 1
89
122.070025.02 Knob 1
90
1.819.0408 Screw M4 x 8 2
91
122.074000.01 Cut-off Valve, B 1
92
152.070012.05 Pipe, 40 mm 1
93
2.08.055 Bolt M6 x 14 3
94
47.130021.01
LPG Hose with regulator
3.3 ft., 1 m
1
95
9.1500.002 Sleeve, Connector 1
96
47.136000.01 Pressure Reducing Valve 1
97
152.070012.06 Pipe, 750 mm 1
98
152.200018.00 Supporter 1
99
152.070031.01 Jacket, Fuel Hose 1
100
2.06.023 Clamp, Ø20 2
101
1.845.4816 Screw ST4.8 x 16 2
102
2.06.050 Clip,Ø8 x Ø18 1
103
1.845.3513 Screw ST3.5 x 13 1
104
122.070400.06 Fuel Valve 1
105
152.070011.09 Fuel Pipe, 480 mm 1
106
152.19.17.2 Control Panel 1
107
5.1000.004.3 Ignition Switch, Red 1
108
1.9074.4.0514.1
Screw/Washer Assembly M5 x 14,
Black
6
109
5.1120.009 Receptacle L14-30R 1
110
1.6177.1.04.1 Lock Nut M4,Flange, Black 8
111
5.1120.050 Receptacle 5-20R, Duplex, GFCI 2
112
5.1210.920
20Amp Circuit Breaker,
Push Button
2
113
5.1240.230 23Amp Circuit Breaker, Double Pole 1
114
1.9074.4.0306.1
Screw/Washer Assembly M3 x 6,
Black
4
115
5.1810.003 VFO Diode 1
116
1.823.0514 Screw M5 x 14, Black 2
117
5.1820.004 Charger 1
118
5.1430.002 Intelligauge 1
119
1.9074.4.0414.1
Screw/Washer Assembly M4 x 14,
Black
2
120
1.5789.0615.1 Flange Bolt M6 x 15, Black 4
121
152.210002.17 Control Box 1
122
100231.21.10 Wire Assembly 1
123
122.210003.01 Wire Jacket, Control Box 1
124
5.1330.017 Sheath, Wire, Ø17 x 300mm 1
125
152.210003.02 Plug, End Cover 1
126
100231.21 Control Panel Assembly 1
127
152.100007.00 Insulation Board, Motor Mount 1
25
ENGLISH 100231
SPECIFICATIONS

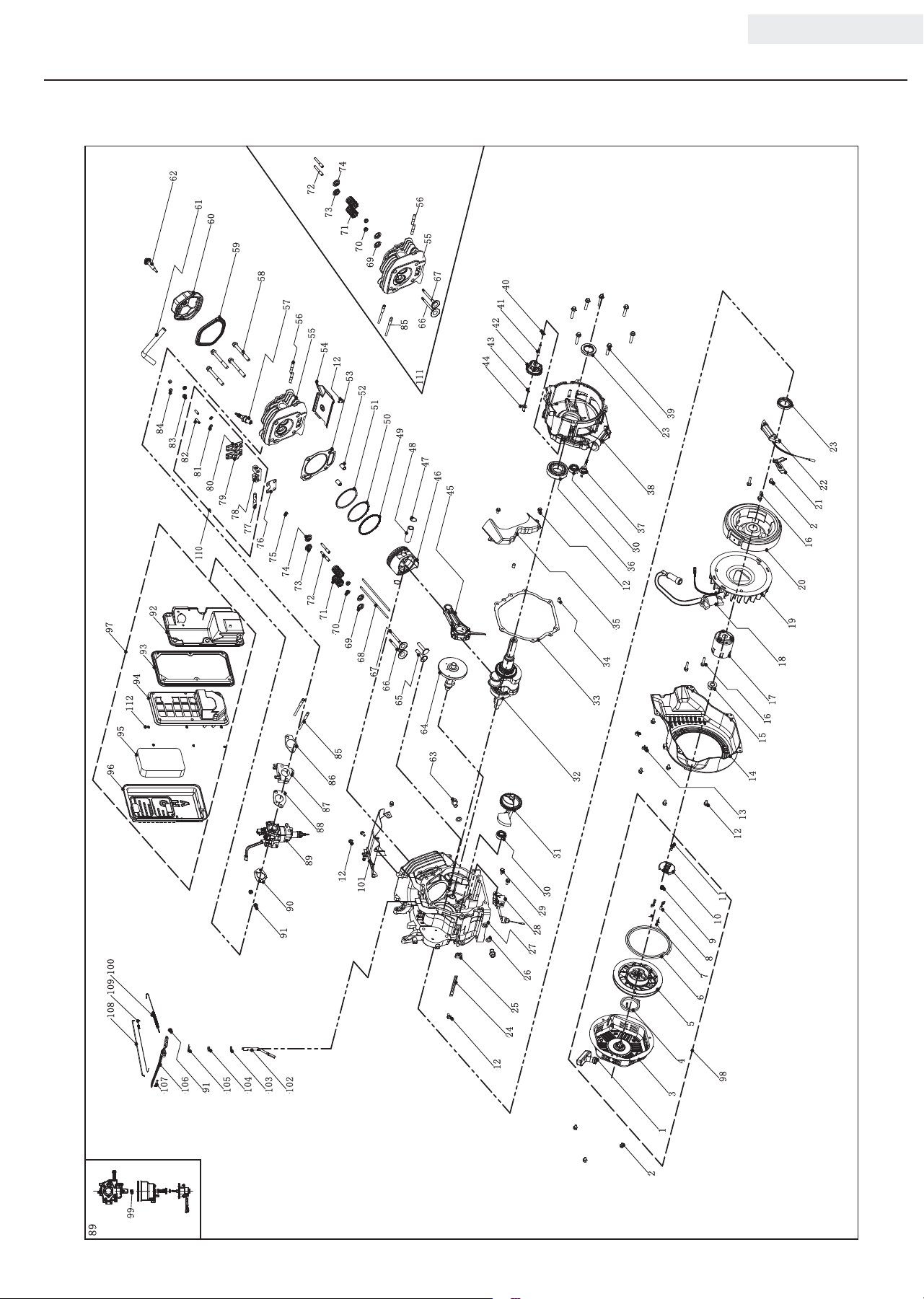

Engine Parts Diagram
98
22
23
2
16
21
36
30
37
38
23
39
33
34
35
12
32
28
29
30
31
26
27
12
24
25
40
41
42
43
44
45
46
47
48
49
50
51
52
53
12
54
55
56
57
58
59
60
61
62
80
81
82
83
84
78
79
74
75
76
77
72
73
68
69
70
71
67
65
66
63
64
85
86
87
88
90
91
101
12
89
102
103
104
105
106
107
91
100108 109
92
93
97
94
95
96
89
99
11
10
7
8
9
6
5
14
12
13
18
15
16
17
20
19
2
1
3
4
11 0
56
55
67
66
85
69
70
71
73
72
74
111
112
26
100231 ENGLISH
# Part Number Description Qty
1
21.061300.00 Handle, Recoil, Soft 1
2
1.5789.0608 Flange Bolt M6 x 8 4
3
46.061100.00.2 Cover, Recoil Starter, Black 1
4
45.060005.00 Spring, Recoil Starter 1
5
45.061102.00 Reel, Recoil Starter 1
6
2.10.003.1 Rope Ø4 x 1550, Black 1
7
45.060003.00 Spring, Ratchet 2
8
45.060002.00 Starter Ratchet, Steel 2
9
45.060009.00 Spring, Ratchet Guide 1
10
45.060007.00 Ratchet Guide 1
11
45.060008.00 Screw, Ratchet Guide 1
12
1.5789.0612 Flange Bolt M6 x 12 12
13
2.05.009 Clamp Ø12.5 x 7 2
14
46.080100.01.48 Fan Cover, Yellow 1
15
2.02.007 Nut M16 x 1.5 1
16
1.5789.0629 Flange Bolt M6 x 29 4
17
45.060001.00 Pulley, Starter 1
18
46.123000.03 Ignition Coil 1
19
47.080001.00 Cooling Fan 1
20
46.120100.06 Flywheel 1
21
45.030006.00 Plate, Coil 1
22
45.121000.00 Coil, Charging 1
23
2.11.007 Oil Seal Ø35 x Ø52 x 8 2
24
2.05.050 Wire Clip, 100 mm 1
25
45.030032.00 Sheath, Wire 1
26
2.03.023
Washer Ø12.5 x Ø20 x 2,
Drain Bolt
2
27
46.030100.01 Crankcase 1
28
45.127000.02 Oil Level Sensor 1
29
1.5789.0615 Flange Bolt M6 x 15 2
30
1.276.6202 Bearing 6202 2
31
47.050006.00 Weight Balancer 1
32
45.050100.14 Crankshaft Assembly 1
33
46.030008.00 Gasket, Crankcase Cover 1
34
2.04.001 Dowel Pin Ø9 x 14 2
35
46.080600.00 Air Guide, Right Side 1
36
1.276.6207 Bearing 6207 1
37
46.031000.01.48 Oil Dipstick Assembly, Yellow 1
38
45.030007.00 Cover, Crankcase 1
39
1.5789.0840 Flange Bolt M8 x 40 7
40
2.03.021.1 Washer Ø6.4 x Ø13 x 1, Black 1
41
45.110013.00 Shaft, Governor Gear 1
42
45.110100.00 Gear, Governor 1
43
21.110011.00 Clip, Governor Gear 1
44
45.110012.00 Bushing, Govornor Gear, Steel 1
45
47.050200.00 Connecting Rod Assembly 1
46
46.050005.00 Piston 1
47
2.09.004 Circlip Ø21 x Ø1 2
48
45.050003.00 Pin, Piston 1
49
46.050303.00 Ring, Oil 1
50
46.050302.00 Ring, Second Piston 1
51
46.050301.00 Ring, First Piston 1
52
2.04.004 Dowel Pin Ø12 x 20 2
53
46.030009.02 Cover, Cylinder Head 1
54
46.080400.00 Air Guide, Lower 1
55
46.010100.00 Cylinder Head 1
56
2.01.010 Stud Bolt M8 x 35 2
# Part Number Description Qty
57
2.15.002(F6RTC) Spark Plug F6RTC 1
58
2.08.014 Flange Bolt M10 x 80 4
59
46.020002.00 Gasket, Cylinder Head Cover 1
60
46.021000.00 Cover, Cylinder Head 1
61
45.020001.02 Breather Tube 1
62
45.020100.00 Bolt, Cylinder Head Cover 1
63
2.08.039 Drain Bolt M12 x 1.5 x 15 2
64
46.041000.00 Camshaft 1
65
45.040013.00 Lifter, Valve 2
66
45.040002.00 Valve, Intake 1
67
45.040006.00 Valve, Exhaust 1
68
46.040005.00 Push Rod 2
69
45.040015.00 Retainer, Valve Spring 2
70
45.040017.00 Oil Seal, Valve 2
71
45.040003.00 Spring, Valve 2
72
23.040010.00 Bolt, Rocker Arm 2
73
45.040001.00 Retainer, Intake Valve Spring 1
74
45.040007.00 Retainer, Exhaust Valve Spring 1
75
45.040008.00 Rotator, Exhaust Valve 1
76
46.040004.00 Guide Plate, Push Rod 1
77
46.040016.00 Shaft, Rocker Arm 1
78
46.040201.00 Retainer, Rocker Arm 1
79
46.040009.00 Rocker Arm, Intake Valve 1
80
46.040018.00 Rocker Arm, Exhaust Valve 1
81
1.97.1.06 Washer Ø6 2
82
22.040012.00 Screw, Valve Adjustment 2
83
1.6177.1.06 Flange Nut M6 2
84
21.040021.00 Nut M6 x 0.5, Lock 2
85
2.01.008 Stud Bolt M6 x M8 x 105 2
86
46.130002.20 Gasket, Insulator 1
87
45.130001.00 Insulator, Carburetor 1
88
46.130003.20 Gasket, Carburetor 1
89
46.131000.28 Carburetor 1
90
46.130004.20 Gasket, Air Cleaner 1
91
1.6177.06 Flange Nut M6 3
92
46.091100.03 Base, Air Cleaner 1
93
45.091002.20 Seal, Air Cleaner 1
94
45.091001.20 Separator, Air Cleaner 1
95
45.091003.20 Element, Air Cleaner 1
96
46.091200.04 Cover, Air Cleaner 1
97
46.091000.03.2 Air Cleaner Assembly, Black 1
98
46.061000.00 Recoil Assembly 1
99
46.131017.20 Main Jet, Standard 1
46.131017.20.01 Main Jet, Altitude /
100
45.110007.01 Spring, Governor 1
101
46.080300.20 Air Guide, Upper 1
102
45.110001.00 Shaft, Governor Arm 1
103
2.03.019 Washer Ø8.2 x Ø17 x 0.8 1
104
2.11.006 Oil Seal Ø7 x Ø14 x 5 1
105
45.110008.00 Pin, Shaft 1
106
45.110003.01 Arm, Governor 1
107
2.08.040 Bolt M6x21, Governor Arm 1
108
45.110006.00 Rod, Governor 1
109
45.110005.00 Spring, Throttle Return 1
110
46.040200.00 Rocker Arm Assembly 1
111
46.010000.00 Cylinder Head Assembly 1
112
1.6177.1 Flange Nut M5 6
27
ENGLISH 100231

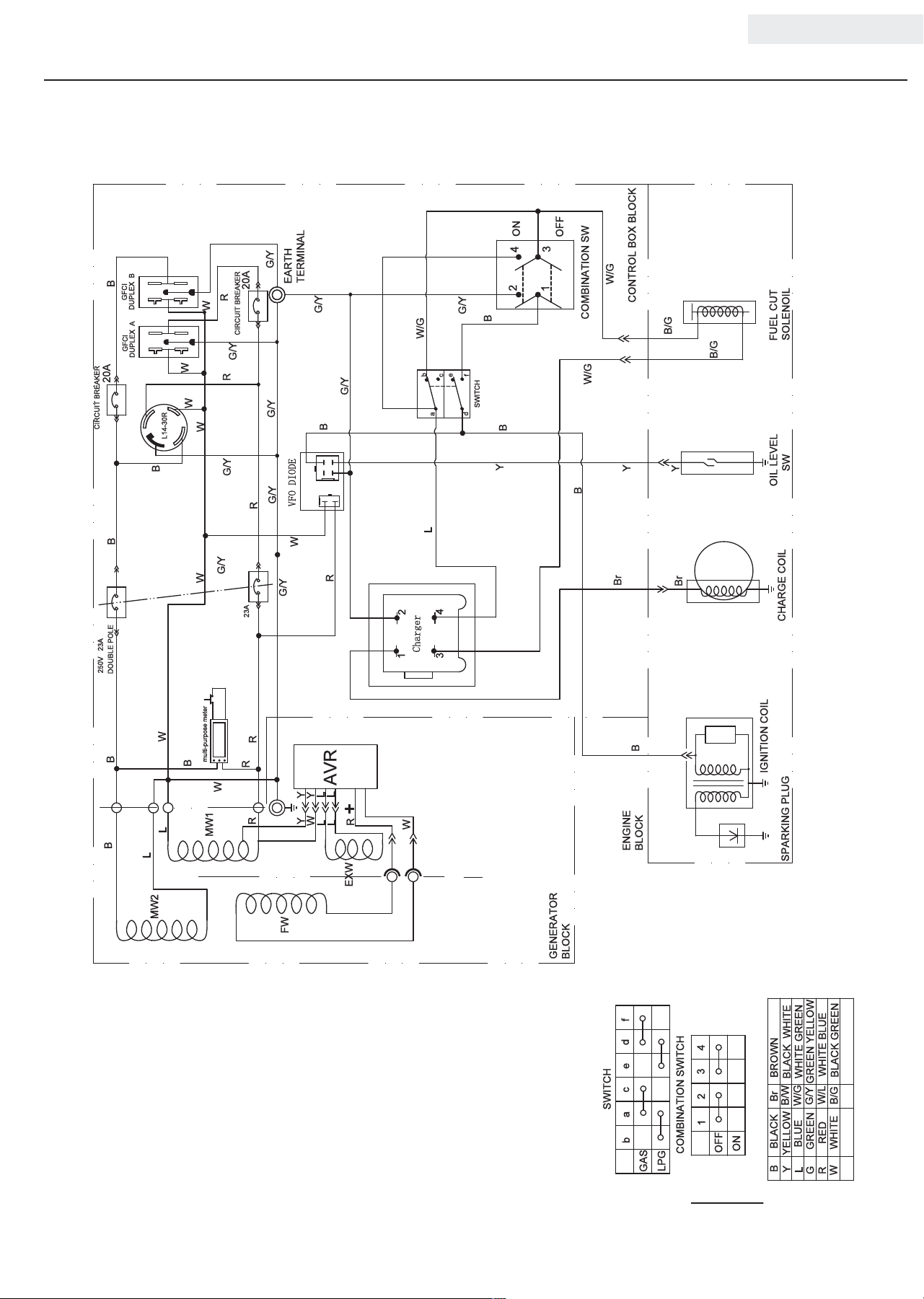

Wiring Diagram
SPECIFICATIONS
B
Y
ENGINE
BLOCK
GENERATOR
BLOCK
SPARKING PLUG
IGNITION COIL
OIL LEVEL
SW
CONTROL BOX BLOCK
COMBINATION SW
B
3
4
2
1
OFF
ON
COMBINATION SWITCH
4
2
3
1
ON
Y
AVR
W
R
Y
W
L
L
R
W
+
MW1
FW
EXW
MW2
B
L
Y
Y
L
L
L
B
R
B
R
multi-purpose meter
FUEL CUT
SOLENOIL
B/G
B/G
W/G
W/G
OFF
G/Y
G/Y
G/Y
3
4
2
1
G/Y
EARTH
TERMINAL
G/Y
G/Y
L14-30R
B
W
W
R
R
G/Y
B
B
W
G/Y
W
CIRCUIT BREAKER
CIRCUIT BREAKER
250V 23A
DOUBLE POLE
20A
20A
R
G/Y
W
DUPLEX A
DUPLEX B
B
W
R
B
B
G/Y
Y
GAS
LPG
SWITCH
c
e
a
b
f
d
SWITCH
a
c
d
f
b
e
Br
CHARGE COIL
23A
L
W
G
B
Y
R
YELLOW
BLACK
BLUE
GREEN
RED
WHITE
Br
WHITE BLUE
GREEN YELLOW
WHITE GREEN
BROWN
BLACK WHITE
B/W
W/L
G/Y
W/G
B/G
BLACK GREEN
GFCI
GFCI
W
W/G
L
Br
VFO DIODE
Charger
28
100231 ENGLISH
TROUBLESHOOTING
For further technical support:
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
Problem Cause Solution
Generator will not start No fuel Add fuel
Faulty spark plug Replace spark plug
Unit loaded during start up Remove load from unit
Generator will not start;
Generator starts but runs roughly
Low oil level Fill crankcase to the proper level
Place generator on a flat, level surface
Choke in the wrong position Adjust choke
Spark plug wire loose Attach wire to spark plug
Generator shuts down during operation Out of fuel Fill the gasoline tank or fill LPG cylinder
Low oil level Fill crankcase to the proper level. Place
generator on a flat, level surface
Generator cannot supply enough power or
overheating
Generator is overloaded Review load and adjust. See “Power
Management”
Insufficient ventilation Check for air restriction. Move to a well
ventilated area
No AC output Cable not properly connected Check all connections
Connected device is defective Replace defective device
Circuit breaker is open Reset circuit breaker
Faulty brush assembly Replace brush assembly (Service Center)
Faulty AVR (auto voltage regulator) Replace AVR (Service Center)
Loose wiring Inspect and tighten wiring connections
Other Contact the help line
Repeated circuit breaker tripping Overload Review load and adjust. See “Power
Management”
Faulty cords or device Check for damaged, bare or frayed wires.
Replace defective device
WARRANTY*
CHAMPION POWER EQUIPMENT
3 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of three years (parts and labor) from
the original date of purchase and 270 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage
covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
When applicable, this warranty does not apply to products used
for prime power in place of a utility.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product.
THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB
EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE)
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670 USA
www.championpowerequipment.com
Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
24/7 Tech Support: 1-562-204-1188
*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S. Environment Protection Agency
(EPA) and/or California Air Resources Board (CARB). Whichever warranty applies for the longer period, either this 3 year limited warranty or the applicable Emission Control System Warranty,
shall supersede the other.
Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board
(CARB) Exhaust and Evaporative emissions regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Exhaust and Evaporative Emission
Control Systems Warranty on your 2019 small off-road engine (SORE) and engine powered equipment. In California, new equipment that
use small off-road engines (SORE) must be designed, built and equipped to meet the State’s stringent anti smog standards. In the other
states, new engines and equipment must be designed, built and equipped, at the time of sale, to meet U.S. EPA regulations for small off-
road engines (SORE). CPE must warrant the exhaust and evaporative emission control system on your small off-road engine (SORE) for
the period listed below, provided there has been no abuse, neglect, unapproved modification, or improper maintenance of your equipment
leading to the failure of the exhaust and evaporative emission control systems.
Your evaporative emission control system may include parts such as: carburetors, fuel tanks, fuel lines, (for liquid fuel and fuel vapors),
fuel caps, valves, canisters, filters, clamps, connectors, and other associated components. Also included for your exhaust emission control
system may be fuel-injection system, the ignition system, catalytic converter and other exhaust emission related assemblies. Where a
warrantable condition exits, CPE will repair your small off-road engine (SORE) at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S WARRANTY COVERAGE:
This exhaust and evaporative emission control system is warranted for two years. If any exhaust and evaporative, emission related part on
your engine or equipment is defective in, the part will be repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine (SORE) owner, you are responsible for the performance of the required maintenance listed in your Owner’s
Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-road engine (SORE), but CPE cannot
deny warranty coverage solely for the lack of receipts.
As the small off-road engine (SORE) owner, you should be aware that CPE may deny you warranty coverage if your small, off-road engine
(SORE) or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE distribution center, service center or alternative service
outlet as described in (3)(f.) below or CPE dealer or CPE, Santa Fe Springs, Ca. as soon as the problem exists. The warranty repairs shall be
completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty coverage, you should contact:
Champion Power Equipment, Inc.
Customer Service
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
tech@championpowerequipment.com
CHAMPION POWER EQUIPMENT, INC. (CPE),
THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA)
AND THE CALIFORNIA AIR RESOURCES BOARD (CARB) EMISSION CONTROL SYSTEM WARRANTY
EXHAUST AND EVAPORATIVE EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Exhaust and Evaporative Emission Control System (ECS) Warranty
Coverage.
1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (SORE) (for other states,
1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its
original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that each of its
small off-road engines (SORE) is:
2a. Designed, built and equipped to conform to U.S. EPA emissions standards for spark-ignited engines at or below 19 kilowatts and
all applicable regulations adopted by the California Air Resources Board, and
2b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects
to the part as described in the engine manufacturer’s application for certification for a period of two years.
3. THE WARRANTY ON EXHAUST AND EVAPORATIVE EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
3a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners Manual shall be warranted for
the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by CPE according
to Subsection “d” below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the
ECS Warranty Period.
3b. Any warranted, exhaust and evaporative emissions-related part which is scheduled only for regular inspection as specified in the
Owners Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or
replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall
be warranted for the remainder of the ECS Warranty Period.
3c. Any warranted, exhaust and evaporative emissions-related part which is scheduled for replacement as required maintenance in
the Owner’s Manual shall be warranted for the period of time prior to the first scheduled replacement point for that part. If the part
fails prior to the first scheduled replacement, the part shall be repaired or replaced by CPE according to Subsection “d” below.
Any such exhaust and evaporative emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the
remainder of the ECS Warranty Period prior to the first scheduled replacement point for such emissions-related part.
3d. Repair or replacement of any warranted, exhaust and evaporative emissions-related part under this ECS Warranty shall be
performed at no charge to the owner at a CPE Authorized Service Outlet.
3e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS Warranty is in
fact defective, provided that such diagnostic work is performed at a CPE Authorized Service Outlet.
3f. CPE shall pay for covered exhaust and evaporative emissions warranty repairs at non-authorized service outlets under the
following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S. Census 2000 without a CPE
Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile limitation does not apply in the
following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska, Nevada, New Mexico, Oregon, Texas, Utah and
Wyoming.
3g. CPE shall be liable for damages to other original engine components or approved modifications proximately caused by a failure
under warranty of an emission-related part covered by the ECS Warranty.
3h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted exhaust and evaporative emission-related parts
sufficient to meet the expected demand for such exhaust and evaporative emission-related parts.
3i. Any CPE Authorized and approved exhaust and evaporative emission-related replacement part may be used in the performance
of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce CPE’s
warranty obligation.
3j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids this ECS Warranty and
shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable hereunder for failures of any warranted
parts of a CPE engine caused by the use of such an unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list
applicable to the engine)
Systems covered by this
warranty
Parts Description
Fuel Metering System Fuel regulator, Carburetor and internal parts
Air Induction System Air cleaner, Intake manifold
Ignition System Spark plug and parts, Magneto ignition system
Exhaust System Exhaust manifold, catalytic converter
Miscellaneous Parts Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed systems.
Evaporative Emissions Fuel Tank, Fuel Cap, Fuel Lines (for liquid fuel and fuel vapors), Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls, Vacuum Control Diaphragms,
Control Cables, Control Linkages, Purge Valves, Gaskets, Liquid/Vapor Separator, Carbon Canister,
Canister Mounting Brackets, Carburetor Purge Port Connector
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original
purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to
sell and service that CPE product during his normal business hours. Alternate service locations defined in Section (3)(f.) above must be
approved by CPE prior to service. Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not
be denied because the engine was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty service, please write or call
Customer Service at Champion Power Equipment, Inc.
Champion Power Equipment, Inc.
12039 Smith Ave.
Santa Fe Springs, CA 90670
1-877-338-0999
Attn.: Customer Service
tech@championpowerequipment.com
