USER MANUAL
WM-630 Model Series
2001-112124-03 WM-630 USER MANUAL
Table of Contents
Safety Information
Before installing your range hood, read the entire instruction
manual. Installers, leave this manual with the homeowner.
WARNING
SUITABLE FOR USE IN HOUSEHOLD COOKING AREA
ONLY. TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY, OBSERVE THE FOLLOWING:
1. Use this range hood only in the manner intended by the
manufacturer. If you have the questions, contact Hauslane
at 1-800-929-0168 or email at info@hauslane.com.
2. Before servicing or cleaning, switch power o at service
panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnect-
ing means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable
codes and standards, including fire-rated construction
codes and standards.
4. Sucient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel-burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guidelines and
safety standards such as those published by the National
Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not dam-
age electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control
device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boil
overs cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
cooking flaming foods.
3. Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet
or metal tray, then turn o the burner. BE CAREFUL
TO PREVENT BURNS. IF THE FLAMES DO NOT GO
OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN as you may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels.
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how
to operate it.
B. The fire is small and contained.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
Safety Information ..........................................2
Warranty Information .................................... 3
Specifications ................................................. 4
Package Contents .......................................... 4
Parts Needed .................................................. 4
Tools Needed .................................................. 4
Preparation: What to Do Before Installation 5
Read This Manual .................................................................................5
Remove Packaging .............................................................................5
Ensure There is Proper Height Clearance .................................5
Check Your Power Supply and Ducts ......................................... 5
Complete Duct Work (for Ducted Mode) .................................. 5

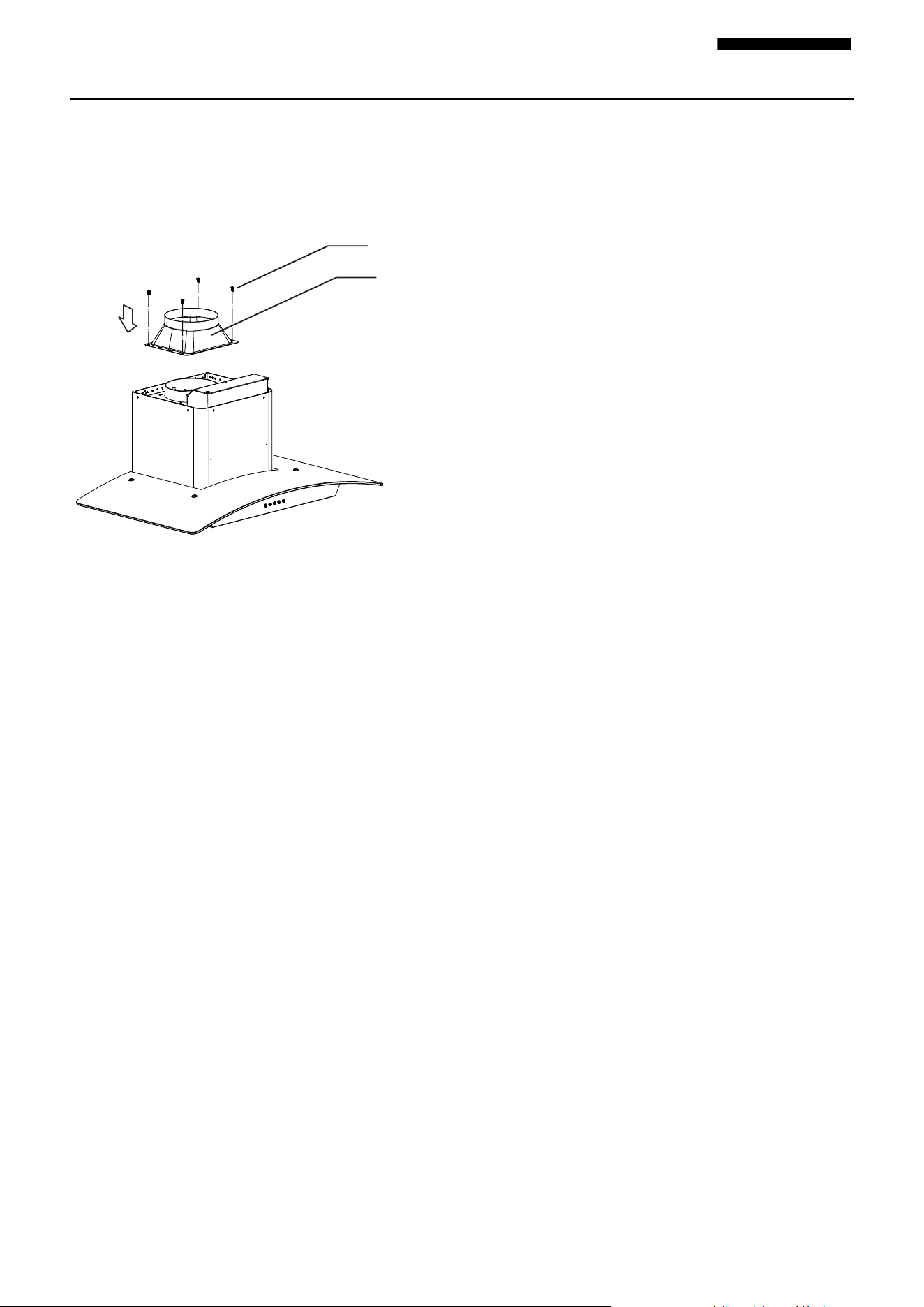

Figure Out Ducting Requirements & Install Adapter ...........6
Find a Helper .........................................................................................6
How to Install Your Range Hood ..................7
Test the Unit ........................................................................................... 7

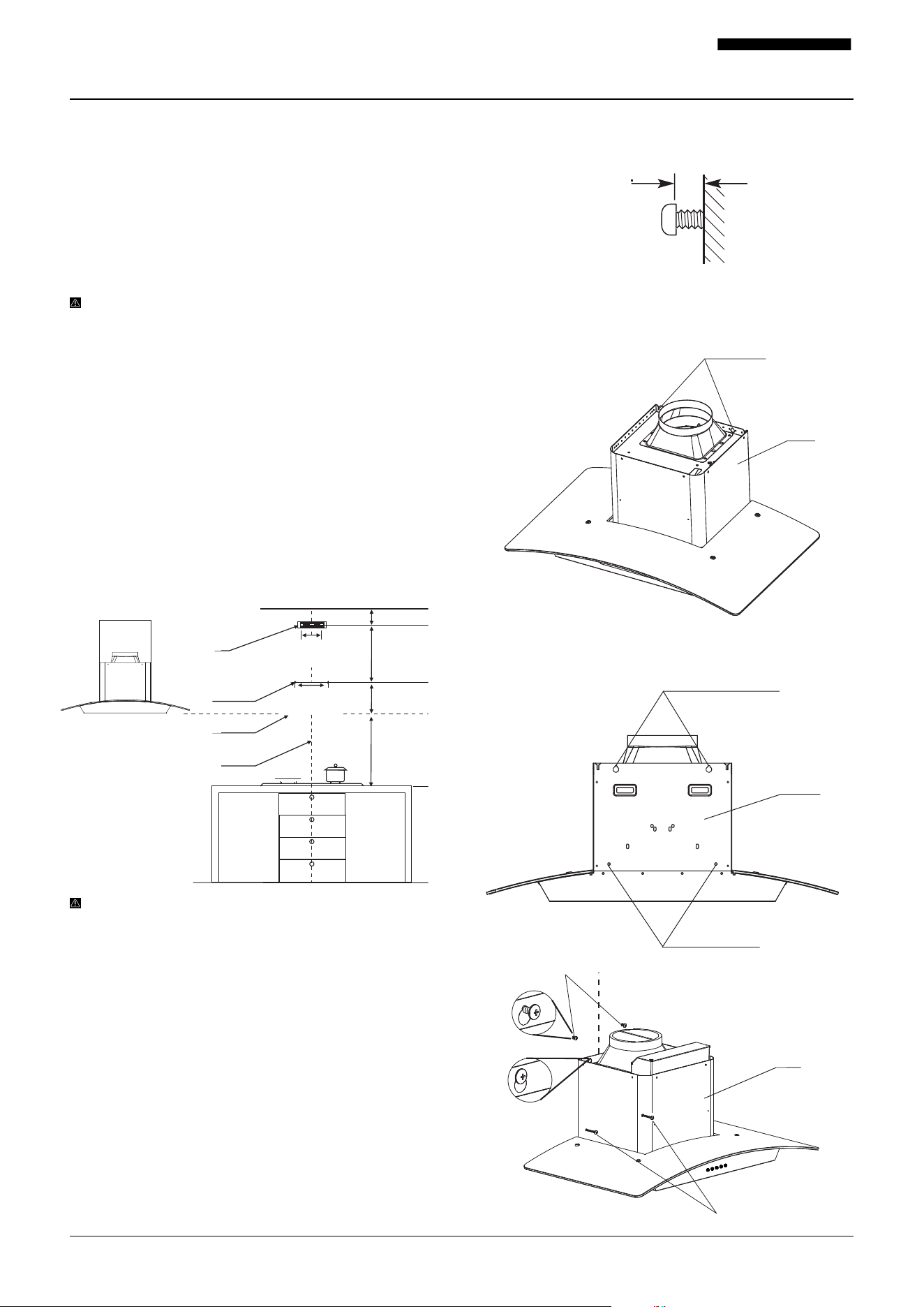

Drilling the Pilot Holes ....................................................................... 7
Mounting the Hood ............................................................................. 7
Attach Duct to Outlet Adapter (for Ducted Mode Only) ..8

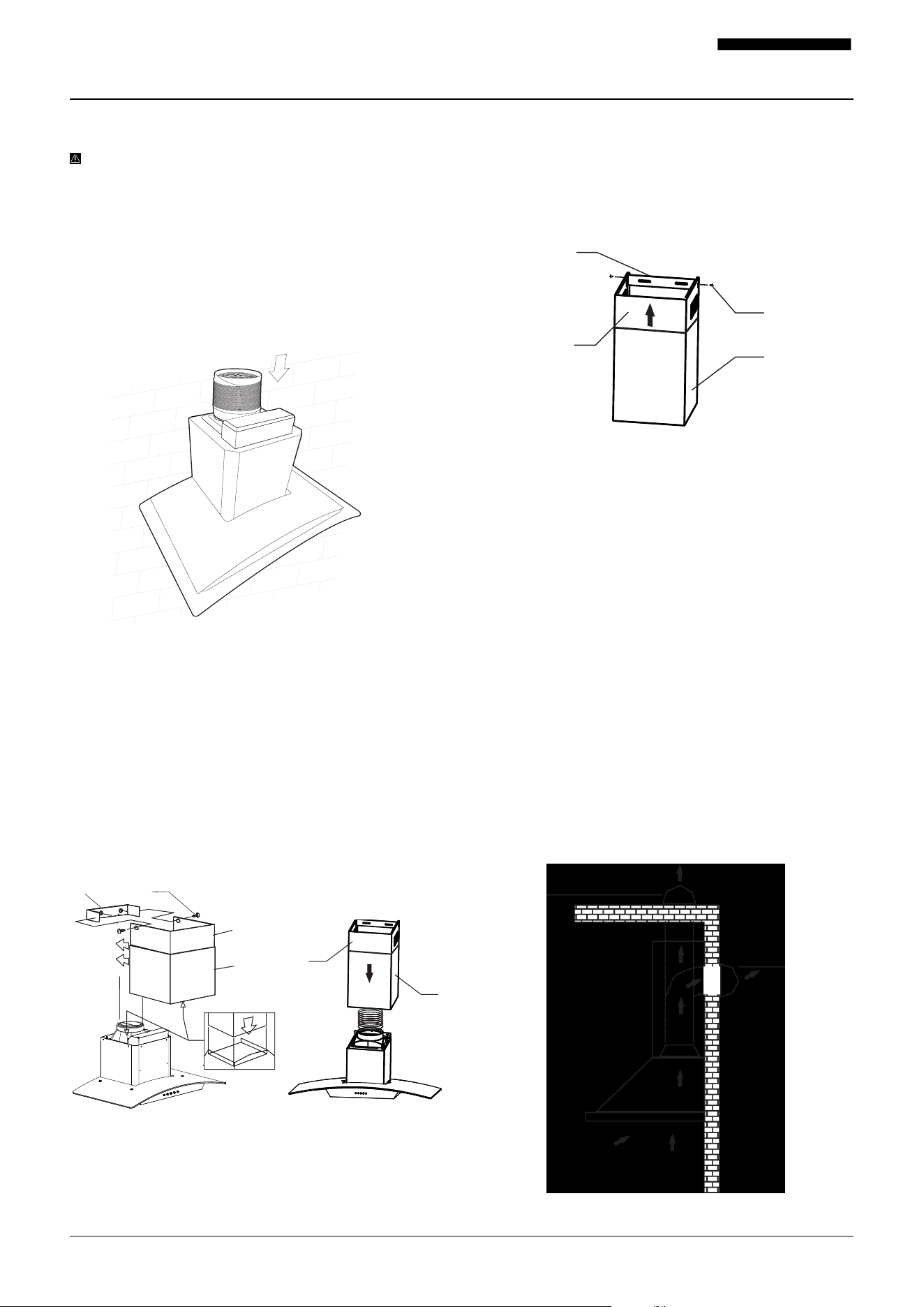

Assemble the Chimney Bottom ....................................................8
Assemble the Chimney Top ............................................................8

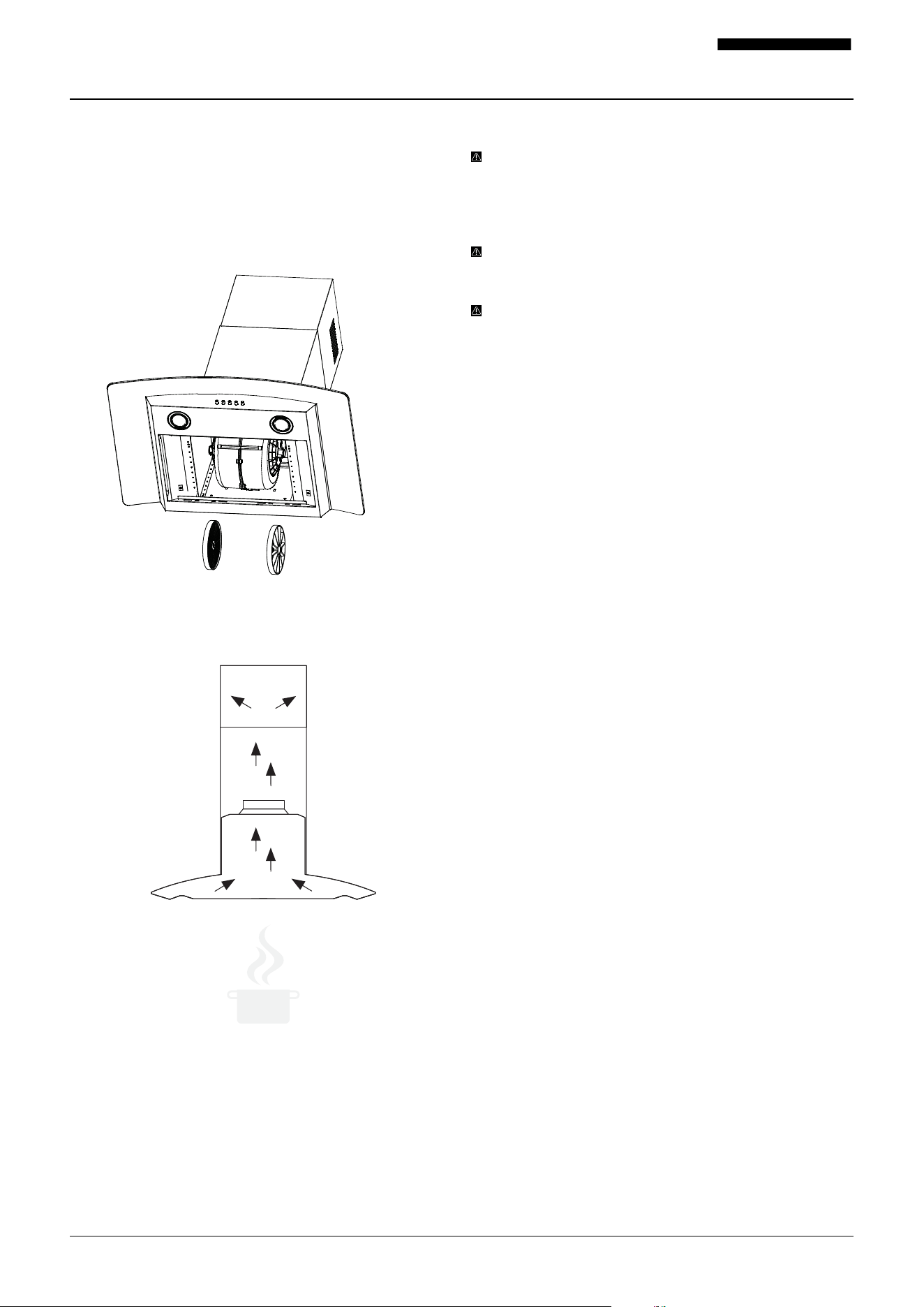

Install Charcoal Filter (for Non-ducted Mode) ........................9
How to Use Your Range Hood .................... 10
Using the Front Control Panel ......................................................10

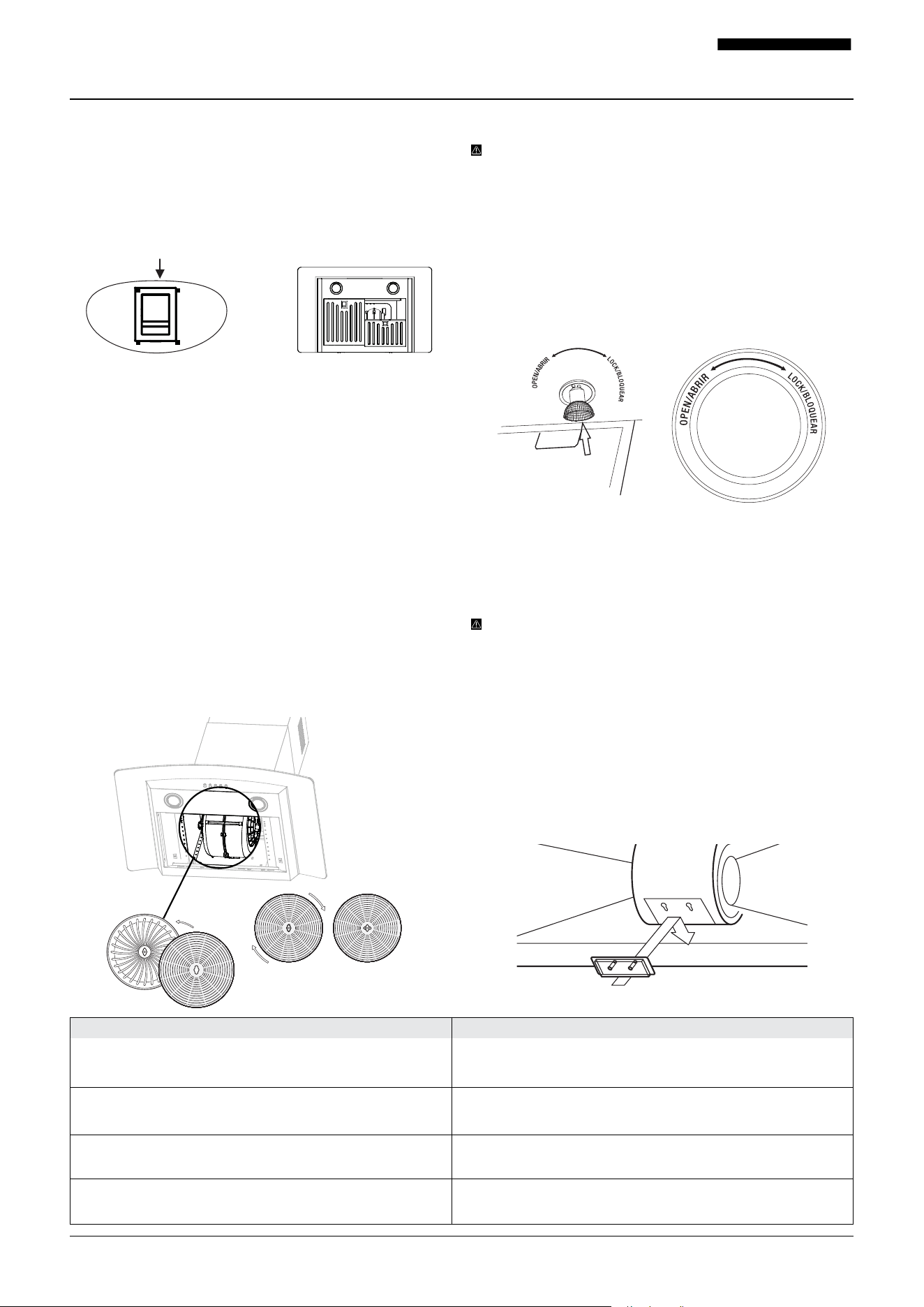

Basic Maintenance Instructions .................. 11
Maintaining the Stainless Steel Baffle Filters...........................11
Replacing the Non-Ducted Recirculation
Charcoal Filters .....................................................................................11
Replacing the LED Lamps ................................................................11
Cleaning the Range Hood ................................................................11
Cleaning the Oil Cup ..........................................................................11
Troubleshooting Tips .................................... 12
Contact Hauslane .......................................... 13
3001-112124-03 WM-630 USER MANUAL
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. To avoid damage and noisy and/or unbalanced impellers,
keep drywall/construction dust, etc. o power unit.

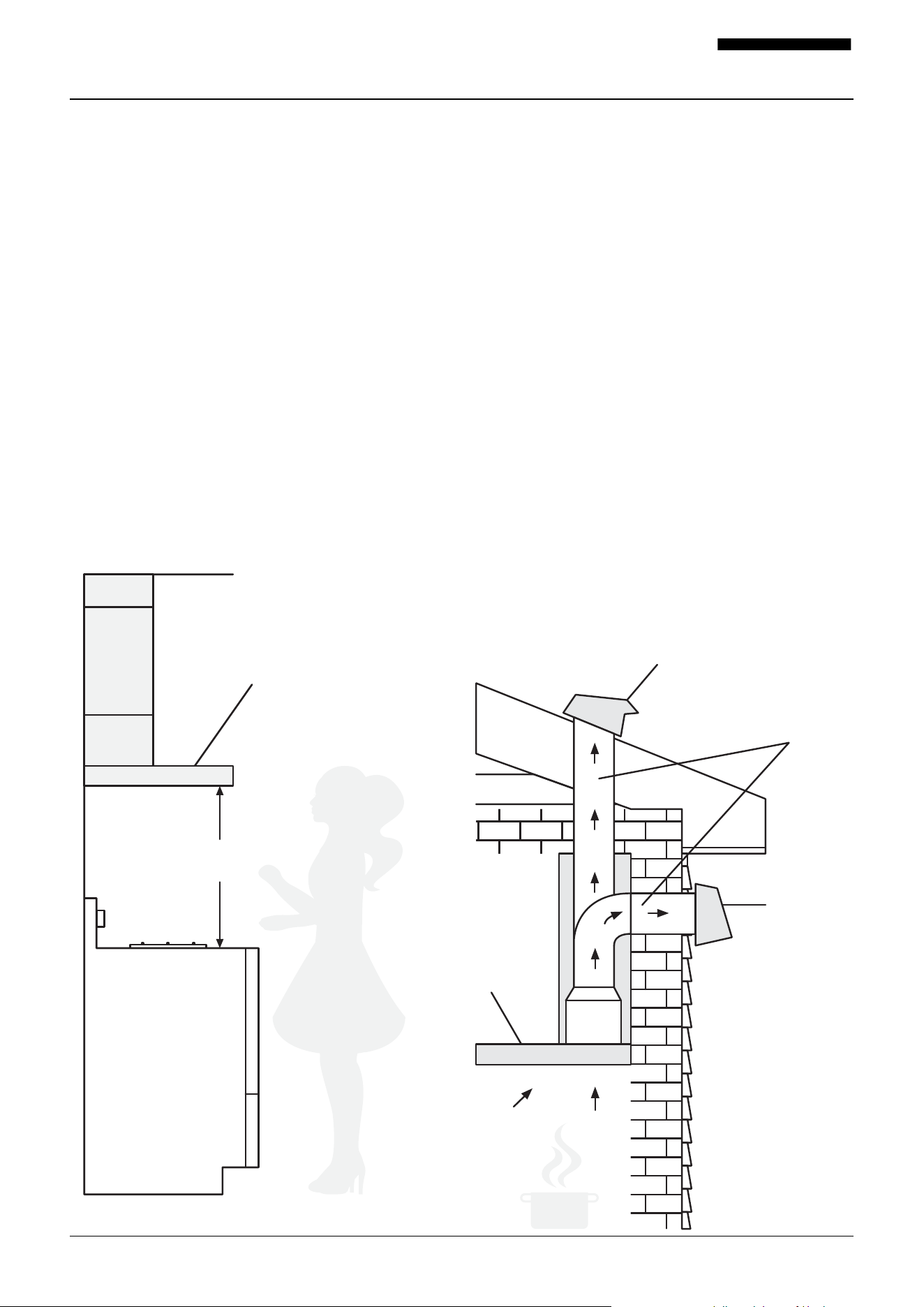

3. Mount your range hood so that the bottom of the hood
is 24” to 30” above the cooking surface. The minimum
hood distance above cooktop must not be less than 24”;
any installation less than 24” may cause overheating and
cause damage to the range hood. For gas ranges, the
required distance is 30”. Do not exceed the maximum
height of 30” while in operation. HAUSLANE does not
warrant this improper installation.
4. Two to three installers are recommended because of the
larger size and weight of this hood.
5. To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside. Do not exhaust air into spaces
within walls and ceiling or into attics, crawl space or
garages.
6. Because of the high exhausting capacity of this hood,
you should make sure enough air is entering the house to
replace exhausted air by opening a window close to or in
the kitchen.
7. Use with approved cord-connection kit only.
8. Please read product specification label on range hood for
further information and requirements.
Warranty Information
This range hood is warranted to the original purchaser to
be free of defects in material and workmanship for two (2)
years from the date of purchase.
Our obligation shall be limited to the repair or replace-
ment of a unit (at our discretion) that may prove, by our
sole examination, to be defective under normal use and
service during the warranty period. We may issue credit in
the amount of the invoice value of the defective product
(or a percentage of it according to use) in lieu of repair or
replacement. Any failure of this product that is not traceable
to a defect in material or workmanship is not covered by this
warranty. These non-warrantable items include, but are not
limited to:
• Any defects or damage to light bulbs
• Change in color or finish due to chemical usage
• Improper installation not in accordance with the
instructions
• Dents, bumps, and scratches incurred during shipping,
handling, or installation
• Damage caused by failure to follow care and cleaning
guidelines, including damage caused by the use of abra-
sive cleaners
• Alterations made to the unit by the purchaser or installer
• Damage caused by accidental impact, fire, flood, freez-
ing, and normal wear
• Bends and warping caused by forced connections,
over-tightened fittings, and inadequate support during
installation
A thorough inspection must be made before installation and
any damage must be promptly reported. We will not be lia-
ble for failures or damage that could have been discovered
or avoided by proper inspection and testing prior to installa-
tion. Incidental repairs that would involve a minimum of time
and eort on behalf of the purchaser will not be considered
warranty work and no compensation will be deemed forth
coming.
This warranty is non-transferable and shall be voided if
the unit is removed from its initial installation or if it is not
installed following the instructions.
Under no circumstance shall we be held liable for personal
injury or property damage resulting from improper instal-
lation or use of this product. We will not be held liable for
inconvenience caused by loss of use of this product, costs
incurred for labor or materials, removal and installation of
replacement units, or any other incidental or consequential
damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.
This warranty does not extend to commercial and institu-
tional installation or use.
Warranty Claim Procedure
If a claimable defect occurs, please contact our customer
service team at 1.800.929.0168 (8 a.m.–5 p.m., PST, Monday
–Friday). or email us at info@hauslane.com.
Before you make your claim call, please ensure that you
have:
• Description of the range hood
• Proof of sale
• Details regarding the defect
• Name(s) and address(es) of the owner and installer
Claims must be filled out in writing and returned within six
(6) months of the appearance of a defect. Failure to comply
with this stipulation will make this warranty null and void.
We reserve the right to a thirty-day (30) delay following
the receipt of a claim in which to inspect the product. We
assume no responsibility for labor costs, removing or replac-
ing a previously installed product, transportation, or the
return of a product.
CALIFORNIA RESIDENTS ONLY
WARNING:
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
4001-112124-03 WM-630 USER MANUAL

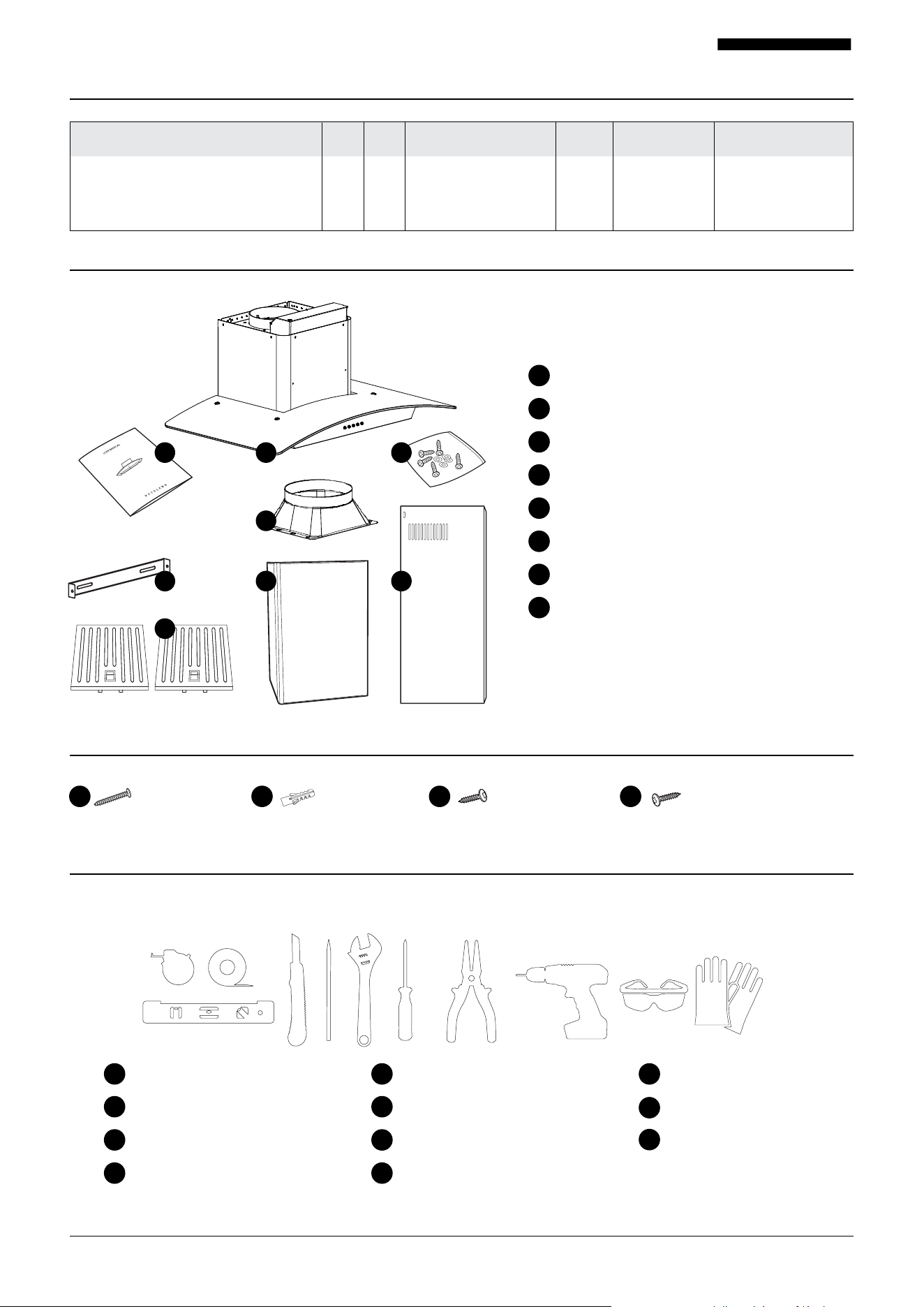

Specifications
Package Contents
Tools Needed
Parts Needed
Measuring Tape
Utility Knife
Philips Screwdriver
Safety Goggles
6 x AA Hood
Mounting Screws
Aluminum Foil Tape
Pencil
Needle Nose Pliers
Safety Gloves
6 x BB Drywall
Anchor
Level
Adjustable Wrench
Electric Drill & Extended
length head driver bit
4 x CC Adapter
Mounting Screws
4 x DD Chimney Mounting
Bracket Screws
1
1
2
2
3
3 4
4 5
6
7 8
9
10
11
Range Hood
User Manual
Duct Adapter
Bag of Screws
Chimney Mounting Bracket
Bottom Chimney
Top Chimney
2 x Bae Filters (Preinstalled)
1
7
2
8
3
4
5
6
2 1
3
6 7
4
5
Before you begin the installation process, gather the following tools:
Dimensions Volts Hertz
Fan CFM Speeds Light Wattage Stainless Steel Grade
30”: 29 3/4” W x 18 7/8” D x 21” - 41.1” H
36”: 35 5/8” W x 18 7/8” D x 21” - 41.1” H
120 60
Equivalent Airflow: 750
Laboratory Airflow: 340
3
3W x 2 LED
(GU10 Base)
430
1 2
3
4 5 6 7 8 9 10
11
12
13
1 2
3
4 5 6 7 8 9 10
11
12
13
1 2
3
4 5 6 7 8 9 10
11
12
13
1
10
4 6 8
2
11
5 7
9
3
8
5001-112124-03 WM-630 USER MANUAL
Preparation: What to Do Before Installation
Before installing your range hood, carefully follow these steps:
1. Read This Manual
Read through all the steps. If you fail to read the instruc-
tions carefully, we will not be responsible for damages
incurred on your part. If you’re not confident in your
abilities to install the range hood properly, we recommend
hiring a certified technician to complete the installation.
2. Remove Packaging
Open the box and carefully unbox the range hood.
Remove any packaging, including the plastic wrap and
protective plastic film, from the hood and the chimney
covers. You can use stainless steel cleaner to wipe down
the surface if desired. Keep all packaging materials until
you are satisfied with our product.
3. Ensure There is Proper Height Clearance
To ensure the highest performance, the bottom of your
range hood must be between 24” and 30” from the top of
the cooking surface. For gas ranges, the required distance
is 30”. Do not exceed the maximum height of 30” while in
operation.
This is very important! Installing at the incorrect height
could lead to drastic reduction in the range’s performance
or even cause a fire.
4. Check Your Power Supply and Ducts
Check to ensure your main voltage is in line with the
required voltage outlined on the rating plate inside this
hood. Also check the domestic power supply to guaran-
tee adequate earthing before installation. When ducting
to the outside, don’t connect the range hood to exhaust
ducts that carry any type of combustion fumes like
fireplaces, boilers, or any similar items. The vents should
have a short, straight run to the outside. Avoid any elbows
if possible, and if an elbow is required, a minimum of a
12”straight run is imperative before the elbow.
5. Complete Duct Work (For Ducted Mode)
Decide where the ductwork (not included) will run
between the hood and the outside. Please note that a
straight, short duct will allow the hood to perform more
eciently. Install a roof/wall cap. Connect metal ductwork
to cap and work back towards hood location. Check and
properly tape all joints on ductwork to ensure proper
connections.
Attach an adequate length of approximately 6 inches
round duct to the air outlet adapter. The air must not be
discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels. Be sure to
fulfill all regulations concerning air discharge. Install a
roof/wall cap. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal
the joints between ductwork sections. (The roof/wall cap
should be sourced locally).
Roof Cap
Wall Cap
Duct
Hood
24”
minimum
Hood
6001-112124-03 WM-630 USER MANUAL
Preparation: What to Do Before Installation
6. Figure Out Ducting Requirements & Install Adapter
Install duct adapter by placing adpter on top of vent exit
and securing the 4 screws (CC).
7. Find a Helper
This range hood is best installed by two or more people
due to its size and weight. Again, it is recommended to
hire a certified technician for installation to reduce the risk
of damage or injury.
CC
Duct Adapter
7001-112124-03 WM-630 USER MANUAL
When you’ve completed all the preparation steps, you’re
ready to install your range hood.
1. Test the Unit
Check your range hood for damaged or missing parts.
Plug it in to an outlet to ensure the fan and lights work. If
anything is damaged or missing, contact the manufacturer
to get the issues solved. Don’t throw away packaging until
you’re sure you are fully satisfied with the product.
IMPORTANT: Power the range hood and test all
functions before proceeding with the installation. If the
range hood is not working properly, please contact us
immediately (1.800.929.0168 / info@hauslane.com).
2. Drilling the Pilot Holes
• Mark a vertical center line (1) on the supporting wall up
to the ceiling, or as high as practical, at the center of the
area where the hood will be installed.
• Mark a horizontal line (2) above the range at the
preferred distance between 24 to 36 inches (607-
762 mm). Consult the user manual of your range if so
required.
• Position chimney mounting bracket (C) on the wall as
shown about 1 inch (25.4 mm) from the ceiling.
3. Mounting the Hood
Due to the size and weight of this range hood, the
supports must be firmly attached to the wall. For
drywall or plaster walls, range hood must be attached
to a wooden wall stud. If this is not possible, a support
structure must be built behind the plaster or drywall
(preterred).
• Using a 3/8 in (9mm) drill bit, enlarge the pilot holes
and insert the plastic wall anchors (BB) into the wall
along the line that is 11.4 inch (290mm) above the
horizontal line (2). Insert screws and leave a 0.25 inch
(6.4mm) gap between the wall and the back of the
screw head to slide the range hood into place.
Ensure the screws and anchors (AA and BB) are
parallel with the horizontal line (2).
• Hook the hood body (A) onto the screws (AA and BB)
mounted onto the wall and securely tighten the screws
(AA and BB) to secure the hood body (A) on the wall.
• Install two additional hood body mounting screws
(AA) into the auxiliary mounting holes to secure the
hood body (A) in place.
WARNING: For drywall or plaster walls, mounting
screws must be secured to wooden wall studs or a support
structure directly (without supplied anchors) or using
fastening hardware appropriate for your wall type.
How to Install Your Range Hood
0.25in
(6.4mm)
Main Mounting Holes
Auxiliary Mounting Holes
A
AA & BB
A
Ceiling
7.8in
(200mm)
1 in (25.4mm)
9.8 in - 28.9in
(250-735mm)
11.4in
(290mm)
24 - 36in
(607-914mm)
7.8in
(200mm)
1
2
C
AA & BB
AA & BB
A
AA
8001-112124-03 WM-630 USER MANUAL
5. Telescopic Chimney Assembly
Chimney Bottom: Carefully slide the bottom chimney
(C) down outside the top chimney (D), and then carefully
place the bottom chimney (C) into the recessed area of
the hood body top.
Optionally fix the bottom chimney (C) with the three
chimney bottom screws (DD) supplied from inside of hood
body.
Chimney Top: Raise the top chimney (D) up inside the
bottom chimney (C). Secure the top chimney (D) to the
chimney mounting bracket (B) that is securely attached
on the wall with the two chimney bracket screws (CC)
supplied from two sides.
D
D
C
C
B CC
D
C
B
CC
Cap
Cap
• Decide where the duct (Not included) will run between
the hood and the outside.
• A straight, short duct run will allow the hood to
perform most eciently.
• Long duct runs, elbows, and transitions will reduce
the performance of the hood. Use as few of them as
possible. Larger ducting may be required for best
performance with longer duct runs.
• Attach an adequate length of 6 inch flexible duct to
the air outlet adapter.
• The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels. Regulations concerning the discharge of
air have to be fulfilled.
• Install a roof/wall cap. Connect round metal ductwork
to cap and work back towards hood location. Use duct
tape to seal the joints between ductwork sections.
(The roof / wall cap should be sourced locally).
How to Install Your Range Hood
4. Attach Duct to Outlet Adapter (for Ducted Mode Only)
CAUTION: to reduce risk of fire, use metal ductwork
only.
Now, attach an adequate length of 6-inch round duct (not
included) to the top of the outlet adapter. Secure the duct,
taping all joints to ensure proper connection. The max
length of flexible duct is 59 inch.
Secure the duct. Check and properly tape all joints on the
duct work to ensure proper connections.
9001-112124-03 WM-630 USER MANUAL
6. Install Charcoal Filter (Non-Ducted Only)
Easy to install. Just twist and lock into place on the
blower.
Note: Charcoal filters are sold separetly. Order part
number CFI011. We recommend replacing the charcoal
filter every 2 months or more frequently if in heavy used.
Please note that the air will flow out from the two grids on
the two sides of the chimney top.
Be Careful with Electrical Connections.
WARNING: Electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and
standards. Turn o electrical power at service entrance
before wiring.
WARNING: Do not use the plug and an extension cord
other than the ones initially supplied with the hood.
WARNING:The ground connection of this hood is
compulsory. Do not remove ground prong of the plug.
How to Install Your Range Hood
10001-112124-03 WM-630 USER MANUAL
How to Use Your Range Hood
Now that your range hood is installed, it’s time to learn how to use it. It is very simple to use and is operated entirely using
the front control panel.
Using the Front Control Panel
Use the simple front control panel to turn the lights and fan on or o.
Light On / O
High Fan Speed
Medium Fan Speed
Low Fan Speed
Power On / O
1
1
2
3
4
5
2 3 4 5
11001-112124-03 WM-630 USER MANUAL
Basic Maintenance Instructions
Your range hood requires some easy routine maintenance to
keep it running eciently.
Maintaining the Stainless Steel Bae Filters
Clean the grease filters frequently—we suggest cleaning
every 2 weeks, or more frequently for heavy use. For your
convenience, the filters are dishwasher safe!
1. Remove the bae filters by lifting up the latch. This will
disengage the filters from the hood. Tilt the filter lift out
and remove.
2. Wash the filters, taking care not to bend them. Allow them
to be dry before replacing.
3. When replacing the filters, make sure that the latch is
visible from the outside.
Replacing the Non-Ducted Recirculation Charcoal Filters
Charcoal filters are not included. Order part number CFI011.
It is not washable and should be replaced approximately
every 2 months, or more frequently for heavy use.
1. Install the charcoal filter by removing the grease filter and
placing the charcoal filter on the side of the motor and
turn to lock its position.
2. After placing the charcoal filter, re-install the grease filter.
Cleaning the Range Hood
This range hood will look great and function correctly for a
long time with proper care.
Here are a few do’s and dont’s when caring for your range
hood.
WARNING: Failure to maintain basic standards of care
and cleaning will increase the risk of fire.
Cleaning the Oil Cup
The oil cup is located in the motor blower and must be
cleaned frequently. Do not let the oil cup get more than
half full.
1. Remove the oil cup by sliding it out carefully.
2. To clean, simply use a warm detergent.
3. Allow the oil cup to dry before reinstalling.
DO’S DONT’S
Clean the range hood with warm, soapy cloth or a
stainless-steel polish.
Don’t use cleaners or cloths that are corrosive or abrasive.
Don’t use detergents with ingredients like chloride, iodide, or fluoride.
Clean the hood in line with the grain of the stainless steel. Don’t leave dirt or soap residue on the hood. This can damage the sur-
face. Wash the hood’s surface and rinse immediately with clean water.
After cleaning with soap, rinse with clean water and wipe
with a clean, dry cloth.
Don’t let particles, especially construction particles (from sanding,
etc.) enter the hood. Cover the hood during room renovations.
Check the ducts and vents regularly to make sure they
are not clogged.
Don’t use flammable agents near the stove, as these can cause
explosions.
Maintaining the Lighting
CAUTION: Always switch o the electrical supply
before replacing lamps.
This range hood uses two GU-10 LED 3W light bulbs.
1. Switch o power and wait for 5 minutes to ensure bulbs
have cooled down.
2. Wearing protective gloves, rotate the light bulb
counterclockwise to disengage the bulb.
3. Place the new light bulb into the socket and rotate
clockwise until fixed.
Fig.2
Lift Up Lift Out
12001-112124-03 WM-630 USER MANUAL
Troubleshooting Tips
WARNING: Please turn o the power circuit or power breaker panel before troubleshooting this range hood.
Failure to do so can cause death or serious injury.
PROBLEM SOLUTION
My range hood won’t work. 1. Make sure the power supply and wiring are connected securely.
2. Double-check to see that the power breaker is on and the power
supply is live.
3. Check to see that the control panel cables are connected correctly
to the switchboards.
The fan is operating weakly.
1. Check to ensure the hood is firmly secured to the cabinet/wall.
Tighten or add screws if necessary.
2. Confirm that the motor is firmly in place and secured safely. If it is
not, tighten it.
3. If those steps haven’t resolved the issue, your fan may be damaged. If
it is damaged, you may need to replace it.
The fan is not working properly even though the lights are
working.
1. Double-check to ensure the duct size is correct.
2. Clean ducts or filters if they’re dirty. Also, check to make sure the
mesh enclosure on the hood is receiving proper air ventilation.
3. If possible, check to see that the damper is functioning properly
regarding the opening.
My range hood vibrates while the fan is operating.
1. Double-check that the fan is not jammed /that it isn’t scraping any
of the surfaces of the hood.
2. If this doesn’t work, you may need to replace the motor as it may
be defective.
1. The minimum distance between the cooking area and the appli-
ance should be 24” or 30” maximum. Check to see if this is correct.
2. Make sure that the duct is not susceptible to easy wind opening.
3. Make sure the fan speed is at the appropriate rate. The heavier the
cooking, the greater the speed of the hood should be set.
4. Closing the windows and doors in the room will allow the vent to
work much better.
5. As noted during the installation process, all ductwork must be
done correctly. You may need to reduce the length of ductwork or
reduce elbows.
6. Make sure all joinery in ductwork is sealed and secured properly.
1. Check to see if lightbulb is loose and needs to be tightened.
2. If tightening doesn’t fix the problem, replace bulb with a new one and
see if that solves the issue.
3. If replacement and/or tightening does not solve, you may need to
replace the lighting service system on the hood.
1. Perform a power cycle reset by unplug the power cord, wait 10 sec-
onds, and plug the power cord back.
2. If Step 1 doesn’t resolve the issue, please contact us immediately for
a control panel replacement.
The vent hood is not working eciently.
The light is not working.
The touch panel is not responding.
Still experiencing problems after following these steps?
Contact a technician to assist. Contact us at 1.800.929.0168 or info@hauslane.com.
13001-112124-03 WM-630 USER MANUAL
Extended Warranties
If you are interested in an extended warranty,
sign up on our website at www.hauslane.com
Parts and Accessories
If you need replacement parts or accessories,
visit www.hauslane.com
Contact Us
We’d be happy to answer your questions or
resolve any issues you may have.
Phone: 1.800.929.0168
Email: info@hauslane.com
Find Us and Connect with Us
@HauslaneOcial
Created by Dave Robson
from the Noun Project
