USER MANUAL
WM-739 Model Series
2001-120524-03 WM-739 USER MANUAL
Table of Contents
Safety Information
Before installing your range hood, read the entire instruction
manual. Installers, leave this manual with the homeowner.
WARNING
SUITABLE FOR USE IN HOUSEHOLD COOKING AREA
ONLY. TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK, OR INJURY, OBSERVE THE FOLLOWING:
1. Use this range hood only in the manner intended by the
manufacturer. If you have the questions, contact Hauslane
at 1-800-929-0168 or email at info@hauslane.com.
2.
panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnect-
ing means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
qualified personnel in accordance with all applicable
codes and standards, including fire-rated construction
codes and standards.
4.
exhausting of gases through the flue (chimney) of
fuel-burning equipment to prevent back drafting. Follow
the heating equipment manufacturer’s guidelines and
safety standards such as those published by the National
Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not dam-
age electrical wiring and other hidden utilities.
6. Ducted
fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control
device.
8. To reduce the risk of fire, use only steel ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings. Boil
overs cause smoking and greasy spillovers that may ignite.
Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
cooking flaming foods.
3. Clean venti
lating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for
the size of the surface element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet
TO PREVENT BURNS. IF THE FLAMES DO NOT GO
OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE
DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN as you may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels.
This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:
A. You own a Class ABC extinguisher and you know how
to operate it.
B. The fire is small and contained.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tip
s” published by NFPA.
Safety Information ..........................................2
Warranty Information .................................... 3
Specifications ................................................. 4
Package Contents .......................................... 4
Parts Needed .................................................. 4
Tools Needed .................................................. 4
Preparation: What to Do Before Installation 5
Read This Manual ................................................................................. 5
Remove Packaging .............................................................................5
Ensure There is Proper Height Clearance ................................. 5
Check Your Power Supply and Ducts .........................................5
Complete Duct Work (for Ducted Mode) ..................................5
Figure Out Ducting Requirements & Install Adapter ...........6
Find a Helper .........................................................................................6
How to Install Your Range Hood ..................7
Test the Unit ........................................................................................... 7
Place the Chimney Mounting Bracket .........................................7
Mount the Hood ...................................................................................7
Attach Duct to Outlet Adapter (for Ducted Mode Only) .. 7
Assemble the Chimney Bottom ....................................................8
Assemble the Chimney Top ............................................................8
Install Charcoal Filter (for Non-ducted Mode) ........................8
How to Use Your Range Hood ...................... 9
Using the Front Control Panel ........................................................9
Basic Maintenance Instructions ................. 1 0
......................... 10
Replacing the Non-Ducted Recirculation
Charcoal Filters ...................................................................................1 0
Replacing the LED Lamps .............................................................. 1 0
Cleaning the Range Hood .............................................................. 1 0
Cleaning the Oil Cup ........................................................................1 0
Troubleshooting Tips ..................................... 1 1
Contact Hauslane .......................................... 1 2
3001-120524-03 WM-739 USER MANUAL
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. To avoid damage and noisy and/or unbalanced impellers,
3. Mount your range hood so that the bottom of the hood
is 24” to 30” above the cooking surface. The minimum
hood distance above cooktop must not be less than 24”;
any installation less than 24” may cause overheating and
cause damage to the range hood. For gas ranges, the
required distance is 30”. Do not exceed the maximum
height of 30” while in operation. HAUSLANE does not
warrant this improper installation.
4. Two to three installers are recommended because of the
larger size and weight of this hood.
5. To reduce the risk of fire and to properly exhaust air, be
sure to duct air outside. Do not exhaust air into spaces
within walls and ceiling or into attics, crawl space or
garages.
6. Because of the high exhausting capacity of this hood,
you should make sure enough air is entering the house to
replace exhausted air by opening a window close to or in
the kitchen.
7. Use with approved cord-connection ki
t only.
8. Please read product specification label on range hood for
further information and requirements.
Warranty Information
This range hood is warranted to the original purchaser to
be free of defects in material and workmanship for two (2)
years from the date of purchase.
Our obligation shall be limited to the repair or replace-
ment of a unit (at our discretion) that may prove, by our
sole examination, to be defective under normal use and
service during the warranty period. We may issue credit in
the amount of the invoice value of the defective product
(or a percentage of it according to use) in lieu of repair or
replaceme
nt. Any failure of this product that is not traceable
to a defect in material or workmanship is not covered by this
warranty. These non-warrantable items include, but are not
limited to:
• Any defects or damage to light bulbs
• Change in color or finish due to chemical usage
• Improper installation not in accordance with the
instructions
• Dents, bumps, and scratches incurred during shipping,
handling, or installation
• Damage caused by failure to follow care and cleaning
guidelines, incl
uding damage caused by the use of abra-
sive cleaners
• Alterations made to the unit by the purchaser or installer
• Damage caused by accidental impact, fire, flood, freez-
ing, and normal wear
• Bends and warping caused by forced connections,
over-tightened fittings, and inadequate support during
installation
A thorough inspection must be made before installation and
any damage must be promptly reported. We will not be lia-
ble for failures or damage that could have been discovered
or avoided
by proper inspection and testing prior to installa-
tion. Incidental repairs that would involve a minimum of time
warranty work and no compensation will be deemed forth
coming.
This warranty is non-transferable and shall be voided if
the unit is removed from its initial installation or if it is not
installed following the instructions.
Under no circumstance shall we be held liable for personal
injury or property damage resulting from improper instal-
lation or use of this product. We will not be held liable for
inconvenience caused by loss of use of this product, costs
incurred for labor or materials, remo
val and installation of
replacement units, or any other incidental or consequential
damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.
This warranty does not extend to commercial and institu-
tional installation or use.
Warranty Claim Procedure
If a claimable defect occurs, please contact our customer
service team at 1.800.929.0168 (8 a.m.–5 p.m., PST, Monday
–Friday). or email us at info@hauslane.com.
Before you make your claim ca
ll, please ensure that you
have:
• Description of the range hood
• Proof of sale
• Details regarding the defect
• Name(s) and address(es) of the owner and installer
Claims must be filled out in writing and returned within six
(6) months of the appearance of a defect. Failure to comply
with this stipulation will make this warranty null and void.
We reserve the right to a thirty-day (30) delay following
the receipt of a claim in which to inspect the product. We
assume no responsibility for labor costs, remov
ing or replac-
ing a previously installed product, transportation, or the
return of a product.
CALIFORNIA RESIDENTS ONLY
WARNING:
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
4001-120524-03 WM-739 USER MANUAL

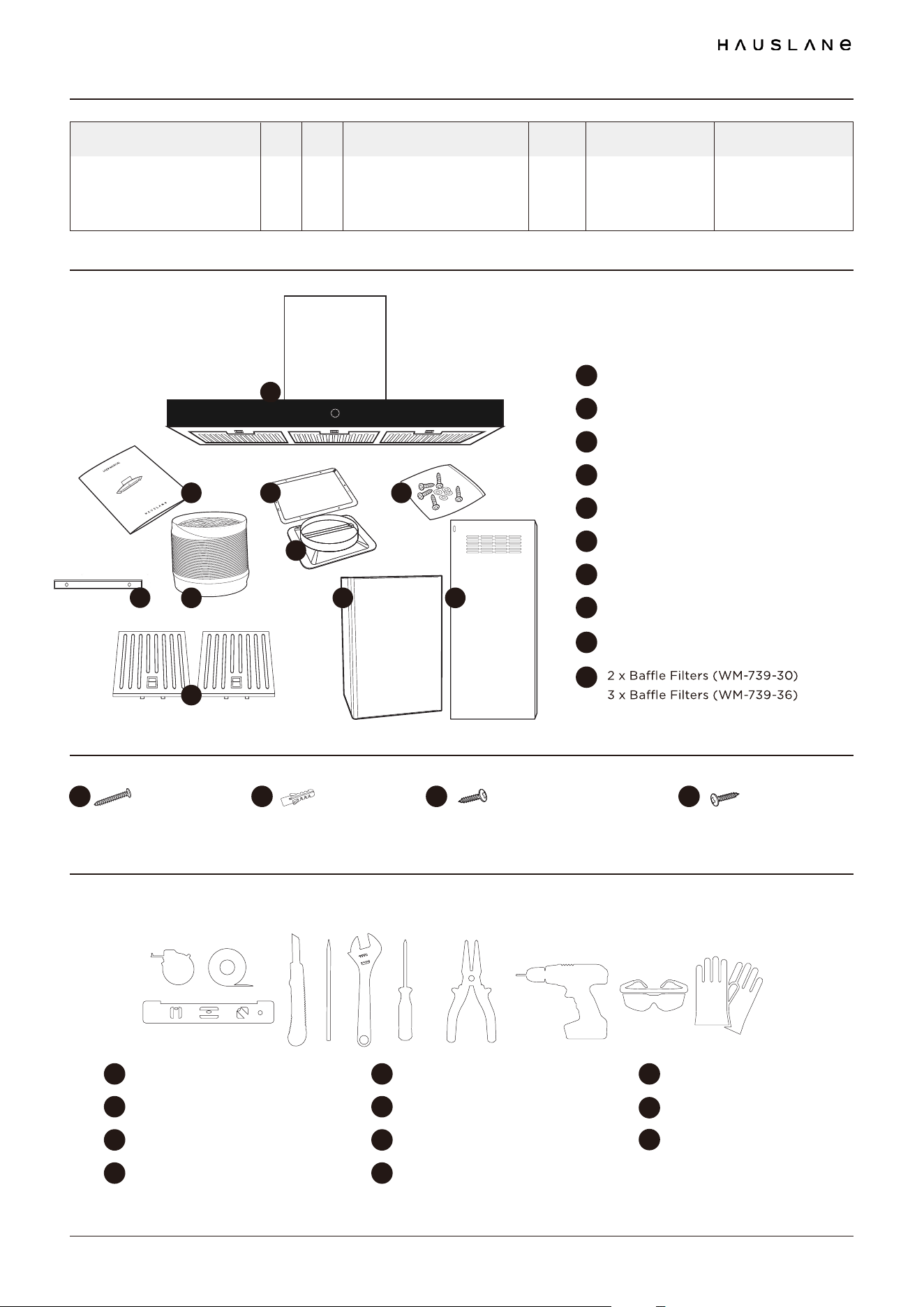

Specifications
Package Contents
Tools Needed
Parts Needed
Measuring Tape
Utility Knife
Philips Screwdriver
Safety Goggles
4 x AA Hood
Mounting Screws
Aluminum Foil Tape
Pencil
Needle Nose Pliers
Safety Gloves
4 x BB Drywall
Anchor
Level
Adjustable Wrench
Electric Drill & Extended
length head driver bit
2 x CC Chimney Mounting
Bracket Screws
6 x EE Adapter
Mounting Screws
1
1
2
2
3
3 4
4 5
6
7 8
9
10
11
Range Hood
User Manual
Rubber Seal
Duct Adapter
Bag of Screws (AA)
Chimney Mounting Bracket
Flexible Aluminum Duct
Bottom Chimney
Top Chimney
(Preinstalled)
1
7
2
8
9
10
3
4
5
6
1
2
6
7 8 9
3 5
4
Before you begin the installation process, gather the following tools:
Dimensions Volts Hertz
Fan CFM Speeds Light Wattage Stainless Steel Grade
30”: 29 3/4” W x 20 1/4” D
36”: 35 3/4” W x 20 1/4” D
120 60
Equivalent Airflow: 900
Laboratory Airflow: 450
3 3W x 2 LED
430
10
1 2
3
4 5 6 7 8 9 10
11
12
13
1 2
3
4 5 6 7 8 9 10
11
12
13
1 2
3
4 5 6 7 8 9 10
11
12
13
1
10
4 6 8
2
11
5 7
9
3
5001-120524-03 WM-739 USER MANUAL
Preparation: What to Do Before Installation
Before installing your range hood, carefully follow these steps:
1. Read This Manual
Read through all the steps. If you fail to read the instruc-
tions carefully, we will not be responsible for damages
incurred on your part. If you’re not confident in your
abilities to install the range hood properly, we recommend
hiring a certified technician to complete the installation.
2. Remove Packaging
Open the box and carefully unbox the range hood.
Remove any packaging, including the plastic wrap and
protective plastic film, from the hood and the chimney
covers. You can use stainless steel cleaner to wipe down
the surface if desired. Keep all packaging materials until
you are satisfied with our product.

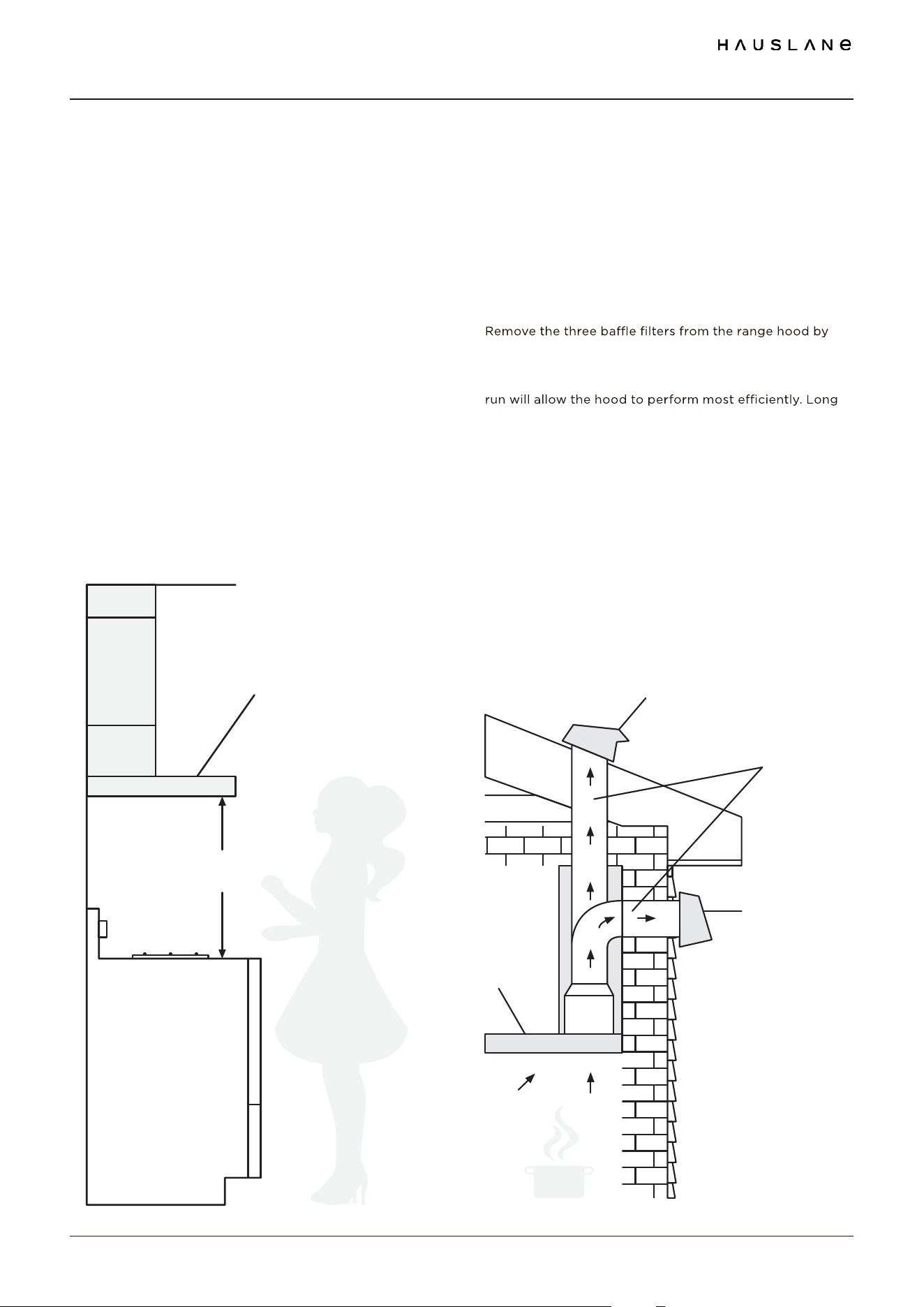

3. Ensure There is Proper Height Clearance
To ensure the highest performance, the bottom of your
range hood must be between 24” and 30” from the top of
the cooking surface. For gas ranges, the required distance
is 30”. Do not exceed the maximum height of 30” while in
operation.
This is very import
ant! Installing at the incorrect height
could lead to drastic reduction in the range’s performance
or even cause a fire.
4. Check Your Power Supply and Ducts
Check to ensure your main voltage is in line with the
required voltage outlined on the rating plate inside this
hood. Also check the domestic power supply to guaran-
tee adequate earthing before installation. When ducting
to the outside, don’t connect the range hood to exhaust
ducts that carry any type of combustion fumes like
fireplaces,
boilers, or any similar items. The vents should
have a short, straight run to the outside. Avoid any elbows
if possible, and if an elbow is required, a minimum of a
12”straight run is imperative before the elbow.
5. Complete Duct Work (For Ducted Mode)
pulling the levers out and slowly removing them. Set them
aside. Decide where the ductwork (not included) will run
between the hood and the outside. A straight, short duct
duct runs, elbows, and transitions will reduce the perfor-
mance of the hood. Use as few of them as possible. Larger
ducting may be required for best performance with longer
duct runs.
Attach an adequate length of approximately 6 inches
round duct to the air outlet adapter. The air must not be
discharged into a flue that is used for exhausting fumes
from appliances burning gas or other fuels. Be sure to
fulfill all regulations concerning air discharge. Install a
roof/wall cap. Connect round metal ductwork to cap and
work back towards hood location. Use duct tape to seal
the joints between ductwork sections. (The roof/wall cap
should be sourced locally).
Roof Cap
Wall Cap
Duct
Hood
24”
minimum
Hood
6001-120524-03 WM-739 USER MANUAL
Preparation: What to Do Before Installation

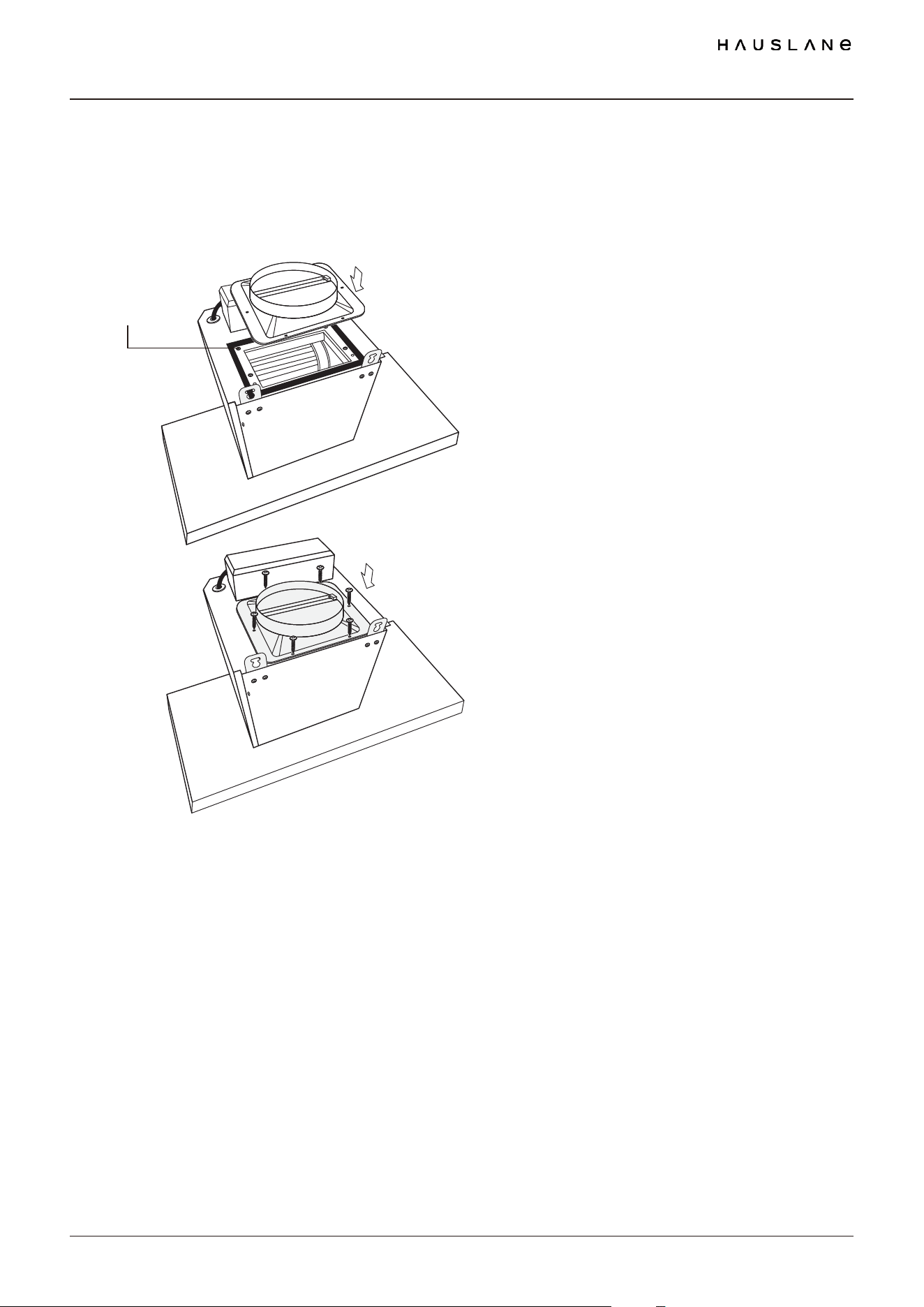

6. Figure Out Ducting Requirements & Install Adapter
Install duct adapter by placing adpter on top of vent exit
and securing the 6 screws (EE).
7. Find a Helper
This range hood is best installed by two or more people
due to its size and weight. Again, it is recommended to
hire a certified technician for installation to reduce the risk
of damage or injury.
Adapter Rubber Seal
7001-120524-03 WM-739 USER MANUAL
4. Attach Duct to Outlet Adapter (for Ducted Mode Only)
CAUTION: to reduce risk of fire, use metal ductwork
only.
Now, attach an adequate length of 6-inch round duct (#7)
to the top of the outlet adapter. Secure the duct, taping all
joints to ensure proper connection. Then, make sure the
two flappers on the damper assembly operate freely.
When you’ve completed all the preparation steps, you’re
ready to install your range hood.
1. Test the Unit
Check your range hood for damaged or missing parts.
Plug it in
to an outlet to ensure the fan and lights work. If
anything is damaged or missing, contact the manufacturer
to get the issues solved. Don’t throw away packaging until
you’re sure you are fully satisfied with the product.
IMPORTANT: Power the range hood and test all
functions before proceeding with the installation. If the
range hood is not working properly, please contact us
immediately (1.800.929.0168 / info@hauslane.com).

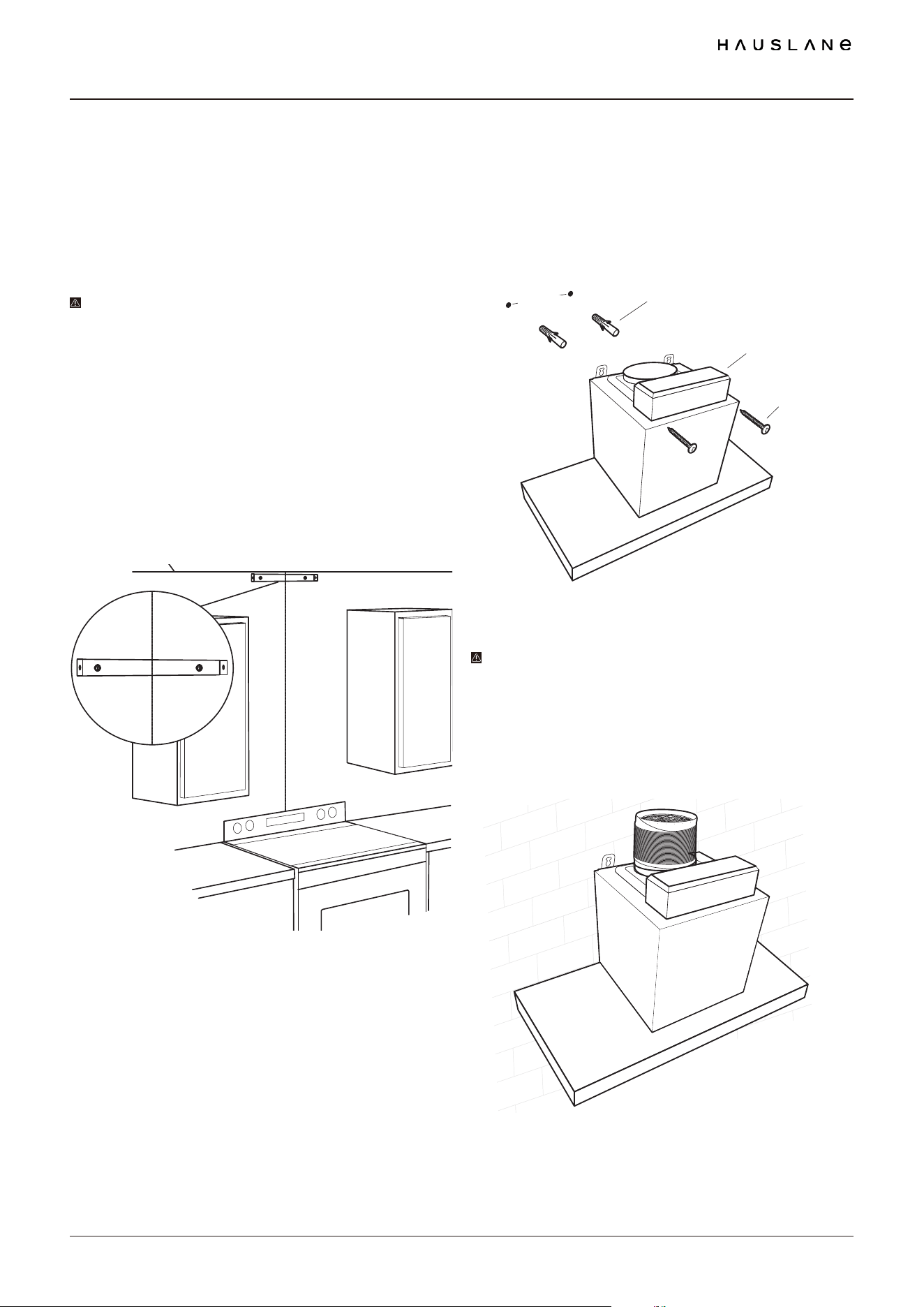

2. Place the Chimney Mounting Bracket
Secure the chimney mounting
bracket (#6) to the wall
using two hood mounting screws (AA) and brick anchors
(BB) if need. Make sure that the top of the bracket is
about one inch from the ceiling or upper limit of the
installation area,aligning the center notch with the vertical
reference line.
Or, if you have a helper:
One person should hold the hood exactly where you want
it to be installed. While one person holds the hood firmly
against the wall, the other person should install the screws
through the hood and tighten them securel
y.
3. Mounting the Hood
If you are the only person installing the hood:
Install the two hood mounting screws (AA) along with
the corresponding anchors (BB) if it is a brick wall. The
distance between the two screws should be 8-3/4”. Use a
level to ensure the two screws are level.
Hook the hood body onto the screws (AA) that are
already mounted onto the wall and securely tighten the
screws.
How to Install Your Range Hood
Roof Line
8 3/4”
Brick Anchors
(Only for brick wall installation)
Hood body
Hood body
mounting screws
8001-120524-03 WM-739 USER MANUAL
Be Careful with Electrical Connections.
WARNING: Electrical wiring must be done by a qualified
person(s) in accordance with all applicable codes and
before wiring.
WARNING: Do not use the plug and an extension cord
other than the ones initially supplied with the hood.
WARNING:The ground connection of this hood is
compulsory. Do not remove ground prong of the plug.

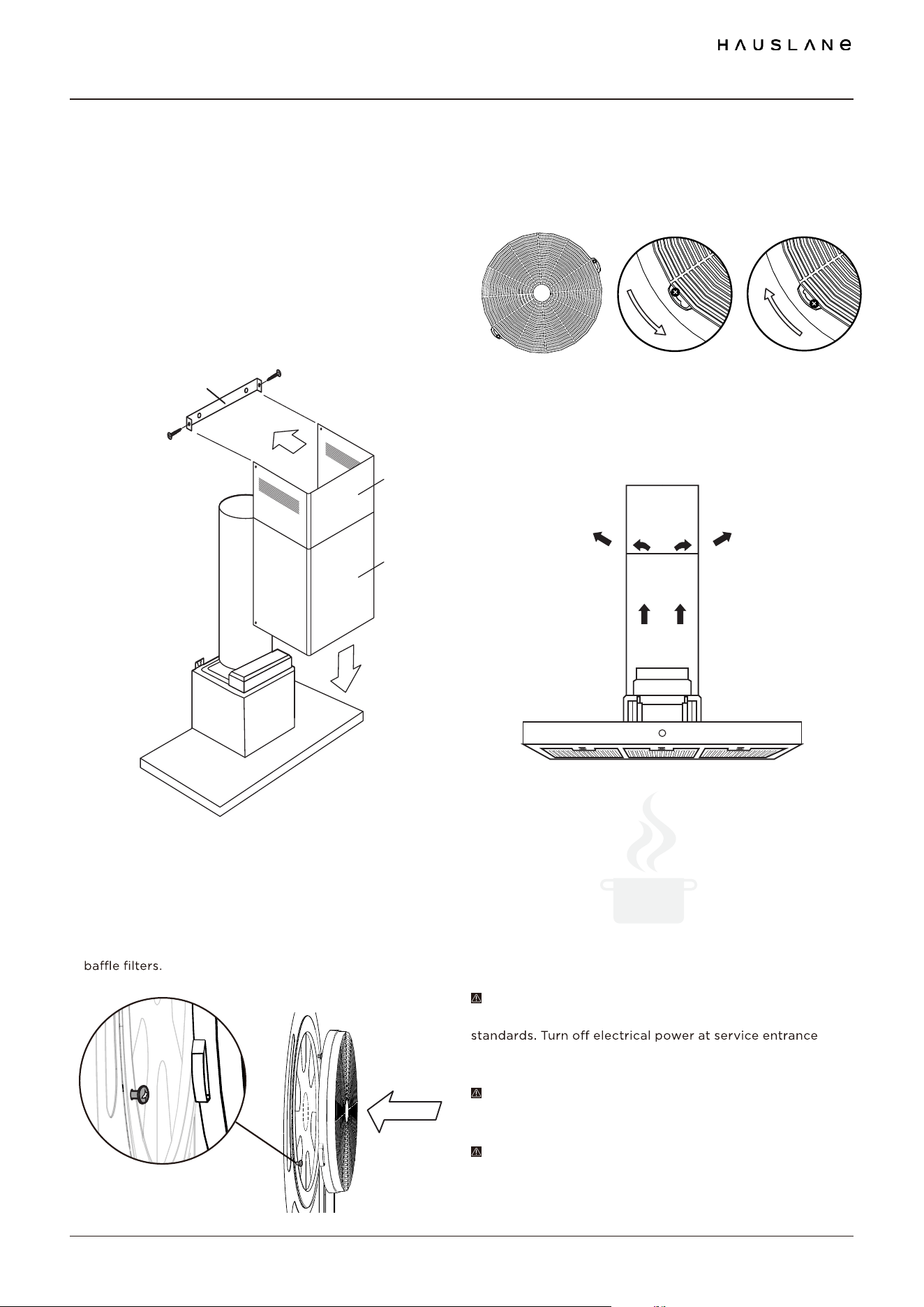

5. Telescopic Chimney Assembly
Chimney Bottom: Carefully slide the chimney bottom
(#8) down outside the chimney top (#9) partly, and then
carefully place the chimney bottom (#8) into the recessed
area of the hood body top.
Chimney Top: Ensure the chimney mounting bracket (#6)
is secretly attached to the wall. Raise the chimney top
(#9) up inside the chimney bottom (#8). Secure the chim-
ney top (#9) to the chimney mounting bracket (#6) with
chimney mounting bracket screws (CC) from two sides.
#9
#8
6. Install Charcoal Filter (Non-Ducted Only)
If it is not possible to vent to the outside, the range hood
can be operated non-ducted. Install the supplied adapter
(if possible) and open an area on the top of the cabinet
equal to the diameter of the damper collar to allo
w air to
recirculate. To install the charcoal filter, first remove the
On the right side of the motor housing you will see two
screws standing out. Alsing the charcoal filter assembly
tabs with the standing out screws. Once in place, turn the
charcoal filter counter clockwise to lock in. To remove the
charcoal filter, turn the the charcoal filter clockwise.
Note: Charcoal filters are sold separetly. Order part
number CFI010. We recommend replacing the charcoal
filter every 2 months or more frequently if in heavy used.
How to Install Your Range Hood
Lock in UninstallCharcoal Filter
#6
9WM-739 USER MANUAL001-120524-03
How to Use Your Range Hood
Now that your range hood is installed, it’s time to learn how to use it. It is very simple to use and is operated entirely using
the front control panel.

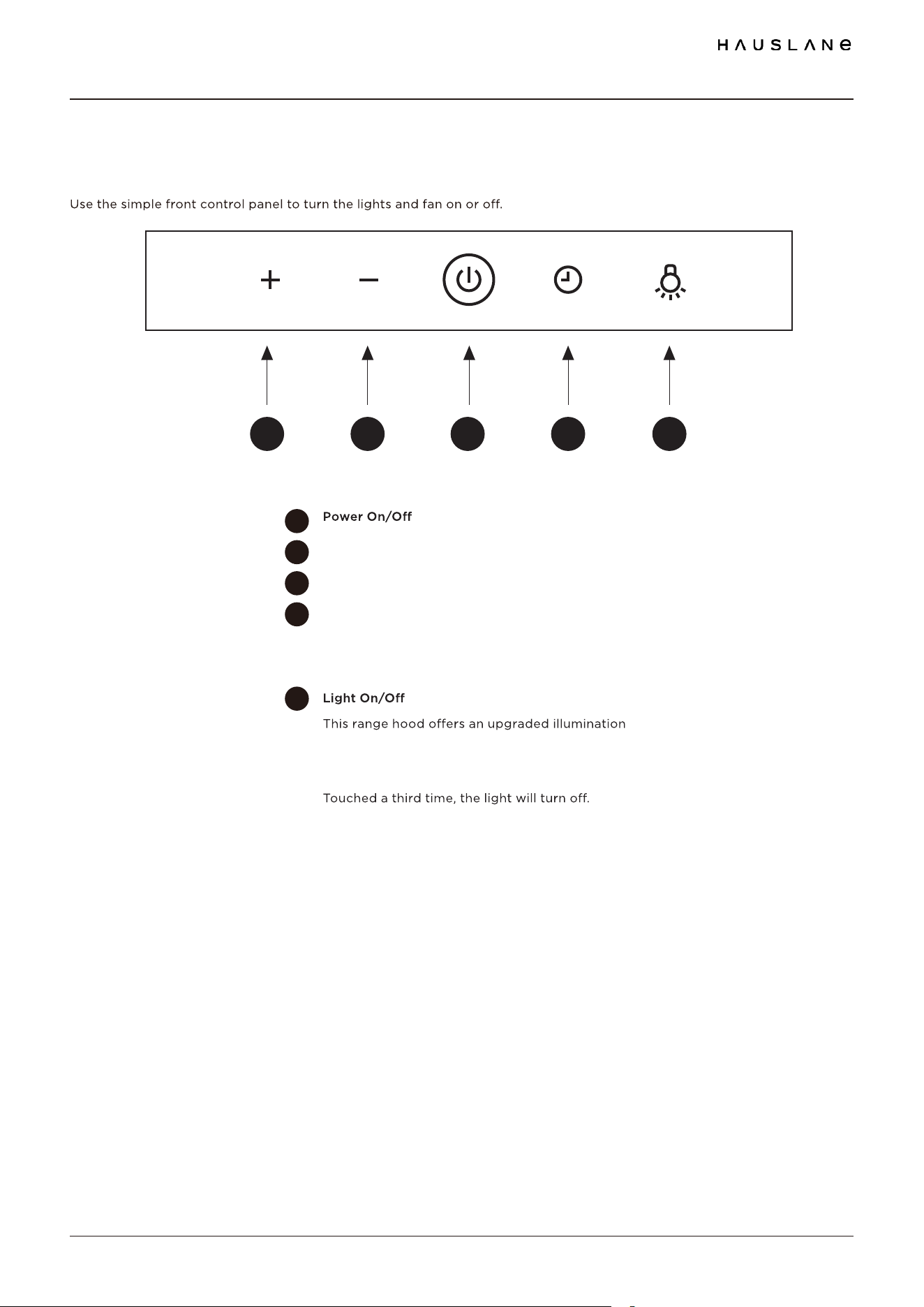

Using the Front Control Panel
12
3
4 5
1
2
3
4
5
Down
Up
Delay Function
When the hood is in operation, touch this button to enter
60S delay setting mode.
mechanism and has 2 light intensity levels. By touching
the light button a low light intensity is set. If the button is
pressed a second time, a high light intensity will be set.
10001-120524-03 WM-739 USER MANUAL

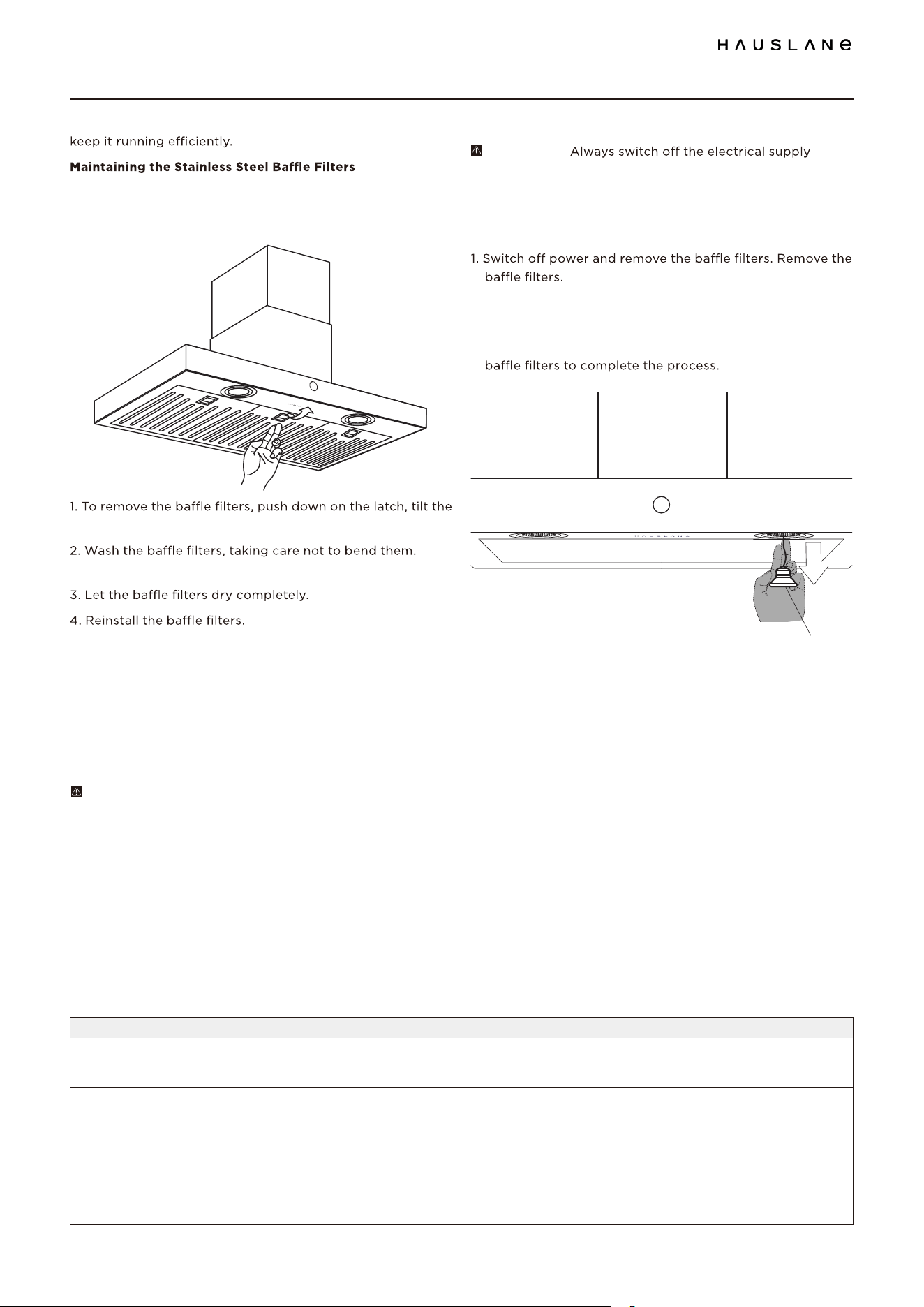

Basic Maintenance Instructions
Your range hood requires some easy routine maintenance to
Clean the grease filters frequently—we suggest cleaning
every 2 weeks, or more frequently for heavy use.
filter, and lift out.
Alternatively, place them in dishwater.
Cleaning the Range Hood
This range hood will look great and function correctly for a
long time with proper care.
Here are a few do’s and dont’s when caring for your range
hood.
WARNING: Failure to maintain basic standards of care
and cleaning will increase the risk of fire.
DO’S DONT’S
Clean the range hood with warm, soapy cloth or a
stainless-steel polish.
Don’t use cleaners or cloths that are corrosive or abrasive.
Don’t use detergents with ingredients like chloride, iodide, or fluoride.
Clean the hood in line with the grain of the stainless steel. Don’t leave dirt or soap residue on the hood. This can damage the sur-
face. Wash the hood’s surface and rinse immediately with clean water.
After cleaning with soap, rinse with clean water and wipe
with a clean, dry cloth.
Don’t let particles, especially construction particles (from sanding,
etc.) enter the hood. Cover the hood during room renovations.
Check the ducts and vents regularly to make sure they
are not clogged.
Don’t use flam
mable agents near the stove, as these can cause
explosions.
Replacing the LED Lamps
CAUTION:
before replacing lamps.
This range hood requires two LED lamps (3W). The light
bulbs can be order from www.hauslane.com part #
LTG019A.
2. Disconnect the light from the range hood.
3. Push out the light bulb from inside. Install new lights by
connecting the wire and pushing up the light. Reinstall
Cleaning the Oil Cup
The oil cup is located in the motor blower and must be
cleaned frequently. Do not let the oil cup get more than
half full.
1. Remove the oil cup by sliding it out carefully.
2. To clean, simply use a warm detergent.
3. Allow the oil cup to dry before reinstalling.
Connection point
11001-120524-03 WM-739 USER MANUAL
Troubleshooting Tips
WARNING:
Failure to do so can cause death or serious injury.
PROBLEM SOLUTION
My range hood won’t work. 1. Make sure the power supply and wiring are connected securely.
2. Double-check to see that the power breaker is on and the power
supply is live.
3. Check to see that the control panel cables are connected correctly
to the switchboards.
The fan is operating weakly.
1. Check to ensure the hood is firmly secured to the cabinet/wall.
Tighten or add screws if necessary.
2. Confirm that the motor is firmly in place and secured safely. If it is
not, tighten it.
3. If those steps haven’t resolved the issue, your fan may be damaged. If
it is damaged, you may need to replace it.
The fan is not working properly even though the lights are
working.
1. Double-check to ensure the duct size is correct.
2. Clean ducts or filters if they
’re dirty. Also, check to make sure the
mesh enclosure on the hood is receiving proper air ventilation.
3. If possible, check to see that the damper is functioning properly
regarding the opening.
My range hood vibrates while the fan is operating.
1. Double-check that the fan is not jammed /that it isn’t scraping any
of the surfaces of the hood.
2. If this doesn’t work, you may need to replace the motor as it may
be defective.
1. The minimum distance between the cooking area and the appli-
ance should be 24” or 30” maximum. Check to see if this is correct.
2. Make sure that the duct is not susceptible to easy wind opening.
3. Make sure the fan speed is at the appropriate rate. The heavier the
cooking, the greater the speed of the hood should be set.
4. Closing the windows and doors in the room will allow the vent to
work much better.
5. As noted during the installation process, all ductwork must be
done correctly. You may ne
ed to reduce the length of ductwork or
reduce elbows.
6. Make sure all joinery in ductwork is sealed and secured properly.
1. Check to see if lightbulb is loose and needs to be tightened.
2. If tightening doesn’t fix the problem, replace bulb with a new one and
see if that solves the issue.
3. If replacement and/or tightening does not solve, you may need to
replace the lighting service system on the hood.
1. Perform a power cycle reset by unplug the power cord, wait 10 sec-
onds, and plug the power
cord back.
2. If Step 1 doesn’t resolve the issue, please contact us immediately for
a control panel replacement.
The light is not working.
The touch panel is not responding.
Still experiencing problems after following these steps?
Contact a technician to assist. Contact us at 1.800.929.0168 or info@hauslane.com.
Extended Warranties
If you are interested in an extended warranty,
sign up on our website at www.hauslane.com
Parts and Accessories
If you need replacement parts or accessories,
visit www.hauslane.com
Contact Us
We’d be happy to answer your questions or
resolve any issues you may have.
Phone: 1.800.929.0168
Email: info@hauslane.com
Find Us and Connect with Us
Created by Dave Robson
from the Noun Project
