DEEP GROOVE BEARING PULLER SET
MODEL NO: PS110
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using
tools.
8 DO NOT use tools if damaged or worn.
9 Maintain the tools in good and clean condition for best and safest performance.
9 Ensure all threads are clean and well lubricated.
9 Always check that puller is correctly assembled and is square with the workpiece.
9 If vehicle is raised, ensure it is adequately supported with axle stands, ramps, etc. as appropriate.
9 Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockists.
9 Where possible shield workpiece with canvas or similar to provide protection against failed parts.
8 DO NOT heat puller jaws when heating a gear or bearing as this will aect the temper and, therefore, the strength of the material.
8 DO NOT hit workpiece, with a hammer if workpiece has not moved with maximum puller force applied. Use a larger capacity
puller.
9 Account for all tools and parts being used and DO NOT leave them in or on the vehicle.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions, or proprietary manual, to establish the correct procedure
and data. These instructions for use are provided as a guide only.
2. INTRODUCTION
Suitable for gearboxes, electric motors, agricultural machinery and general machinery. Features reversible jaws allowing internal and
external pulling operations. Adjustable shims for precise t into the deep grove bearing. Ideal for use with a ratchet or spanner.
Manufactured from high-grade steel for added strength and durability. Supplied in a storage case.
3. CONTENTS
PS110 Issue:1 14/01/25
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing

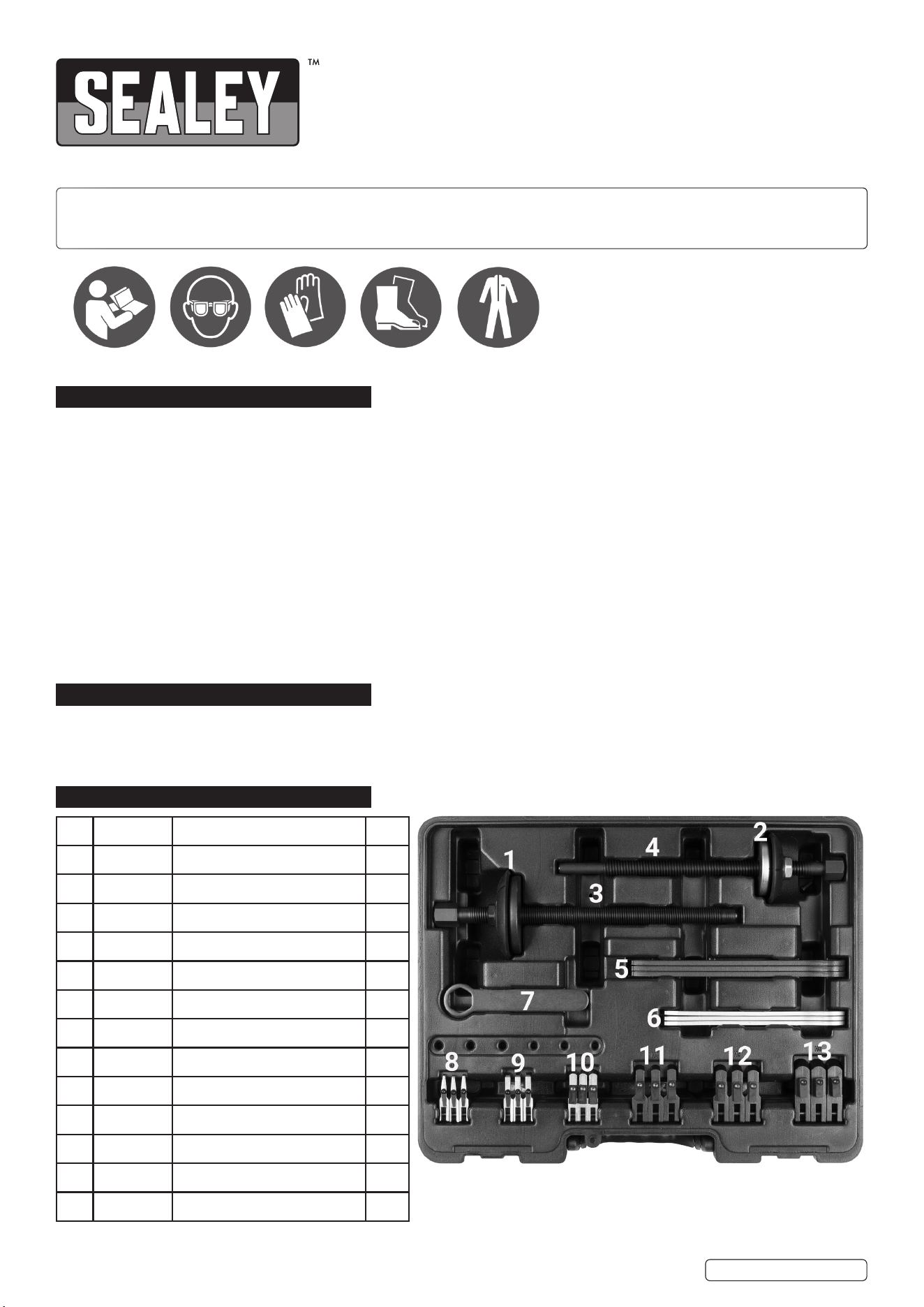

No. Part No. Description Qty.
1 PS110-A1 Jaw Hook Holder Large 1
2 PS110-A2 Jaw Hook Holder Small 1
3 PS110-B1 Draw Bar Large 1
4 PS110-B2 Draw Bar Small 1
5 PS110-C1 Jaw Hook Large 3
6 PS110-C2 Jaw Hook Small 3
7 PS110-D Spanner 1
8 PS110-E1 Jaw with 3pcs washer (0.3mm) 3
9 PS110-E2 Jaw with 3pcs washer (0.3mm) 3
10 PS110-E3 Jaw with 4pcs washer (0.5mm) 3
11 PS110-E4 Jaw with 4pcs washer (0.5mm) 3
12 PS110-E5 Jaw with 4pcs washer (0.5mm) 3
13 PS110-E6 Jaw with 6pcs washer (1.0mm) 3
4. a ASSEMBLY
4.1.
4.2.
4.3.
4.4.
4.5.
4.6.
4.7.
4.8.
4.9.
4.10.
4.11.
4.12.
4.13.
4.14.
4.15.
4.16.
4.17.
4.18.
.
5. OPERATION
5.1. Assemble as above.
5.2. Hold spanner in one hand and wind draw bar (3/4) to remove bearing. DO NOT use air tools.
6. MAINTENANCE
6.1. Keep draw bars well lubricated (see above).
6.2. Keep components clean and store in a dry, childproof location.
Original Language Version
© Jack Sealey Limited

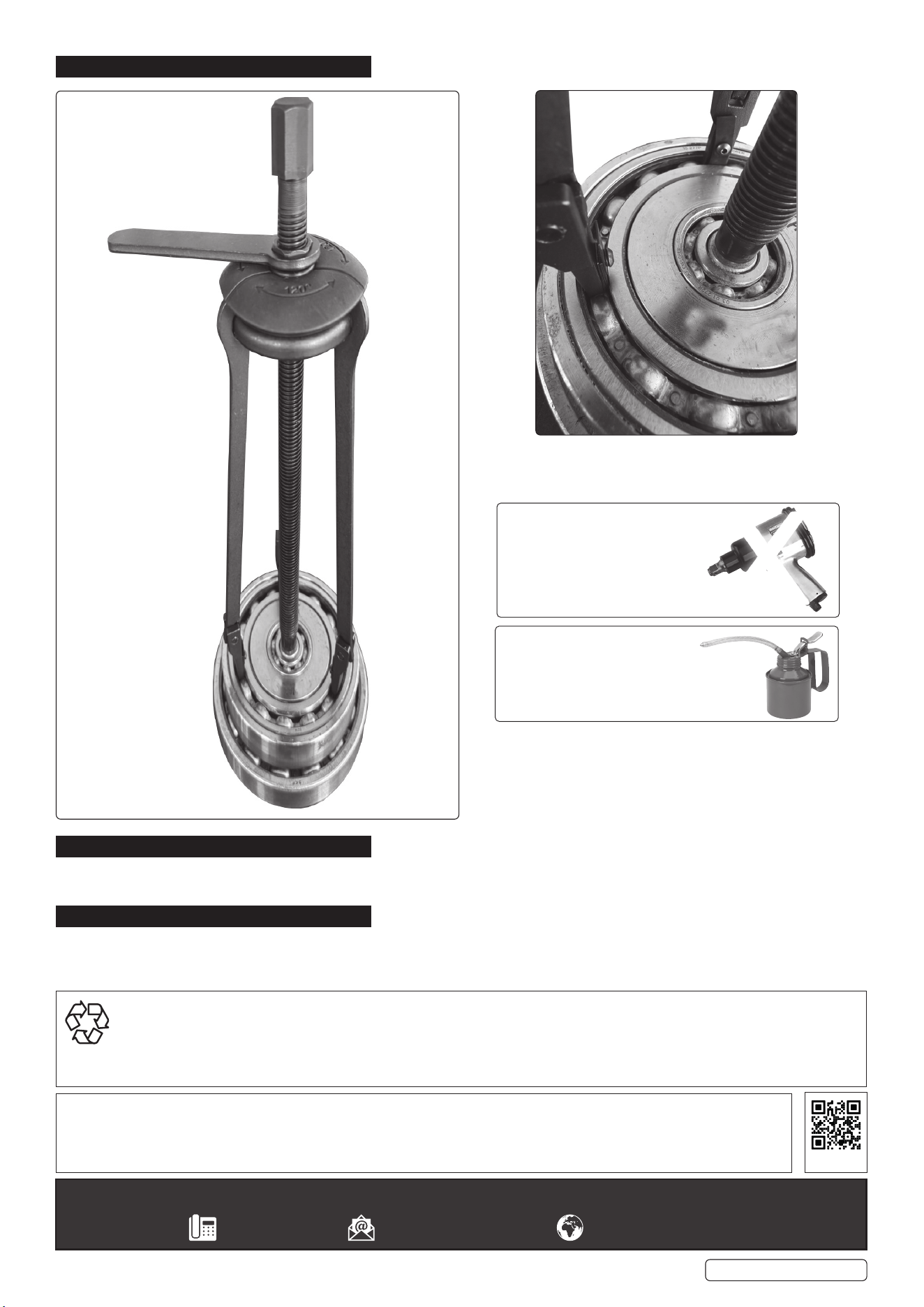

Use ‘washer (shims) to pack legs against
bearing
Hold Spanner (7)
DO NOT use air
tools to turn
Space Jaw Hooks
120° apart. Rubber
‘cap’ holds Jaw
Hooks in place
Attach Jaw pieces to Jaw
Hooks (5/6) to face
inwards (internal)
pull or to face outwards
(external) pull, then hang
off Jaw Hook Holder
(1/2).
X
DO NOT USE AIR TOOLS
ALWAYS KEEP DRAW BARS
WELL LUBRICATED. MOLYBDENUM/
COPPER BASED GREASE
RECOMMENDED.
