5PC BLIND BEARING PULLER SET
MODEL NO: AK714.V4
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
AK714.V4 Issue 2 (4) 10/06/24
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are adhered to when using this
product.
8 DO NOT use this product if damaged.
9 Maintain product in good and clean condition for best and safest performance.
9 If the vehicle to be worked on is raised, ensure that it is adequately supported with axle stands or ramps and chocks.
9 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9 Wear suitable clothing to avoid snagging. DO NOT wear loose jewellery and tie back long hair.
9 Account for all tools and parts being used.
9 Ifworkingothevehicle,securetheworkpieceinaviceorclampittoaworkbench.
8 DO NOToperatepullerifyouaretiredorundertheinuenceofalcohol,drugsorintoxicatingmedication.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions, or a proprietary manual, to establish the current
procedure and data. These instructions are provided as a guide only.
2. INTRODUCTION

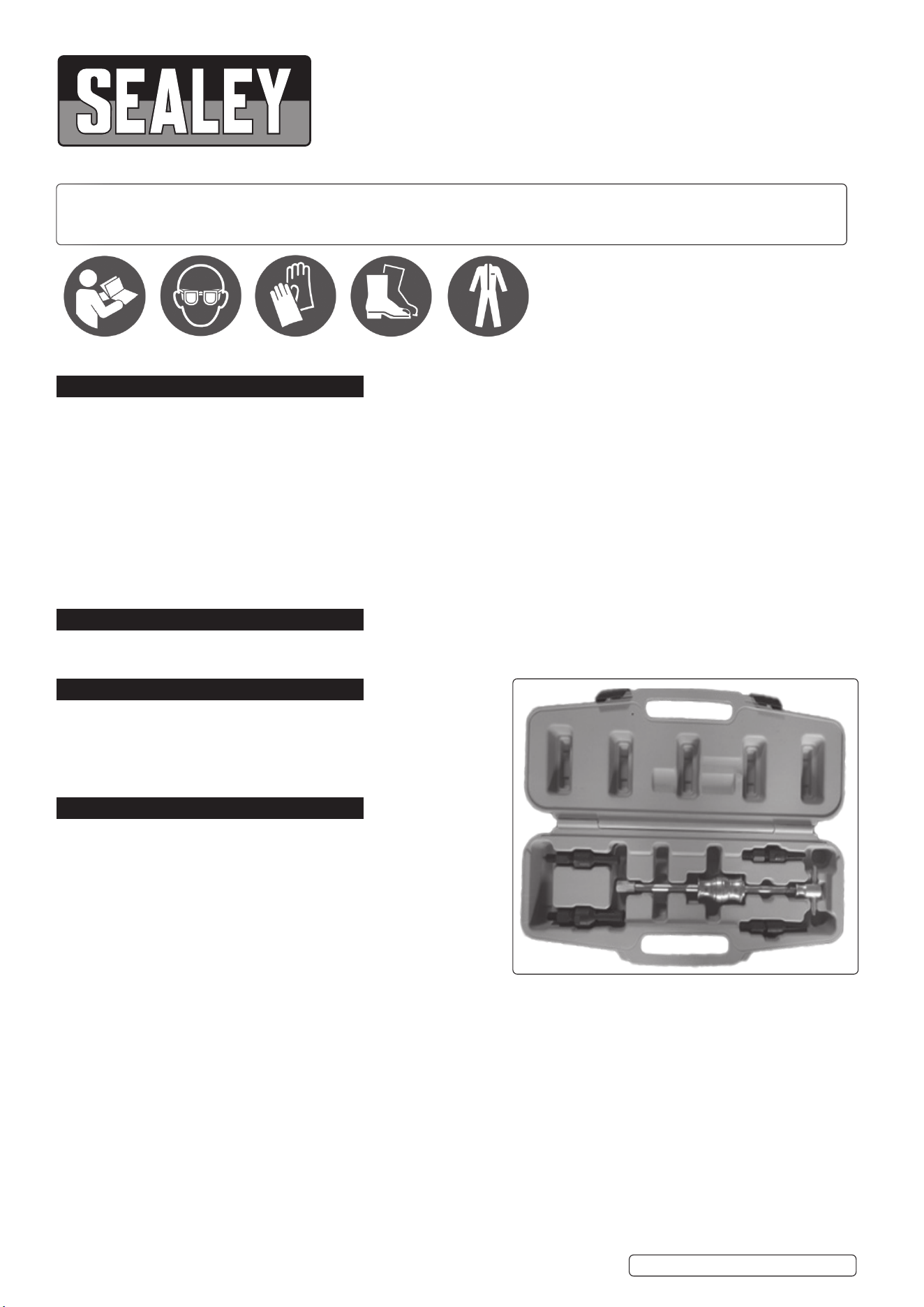

Fully chromed carbon steel medium stroke slide hammer. 370mm Overall length with 0.85kg hammer. Bearing extractor collets with
internal capacity from 11 to 32mm. Supplied in storage case.
3. SPECIFICATION
Model No.: .............................................................AK714.V4
Collet Sizes Ø: ........................................11-16mm (3/8-1/2”)
............................................................ 15-19mm(9/16-11/16”)
...................................................................18-25mm(5/8”-1”)
................................................................. 26-32mm(1-1 1/4”)
4. CONTENTS
11mm - 16mm Attachment (Part No: AK714.V4-01)
15mm - 19mm Attachment (Part No: AK714.V4-02)
18mm - 25mm Attachment (Part No: AK714.V4-03)
26mm - 32mm Attachment (Part No: AK714.V4-04)
Slide hammer (Part No: AK714.V4-05)
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.

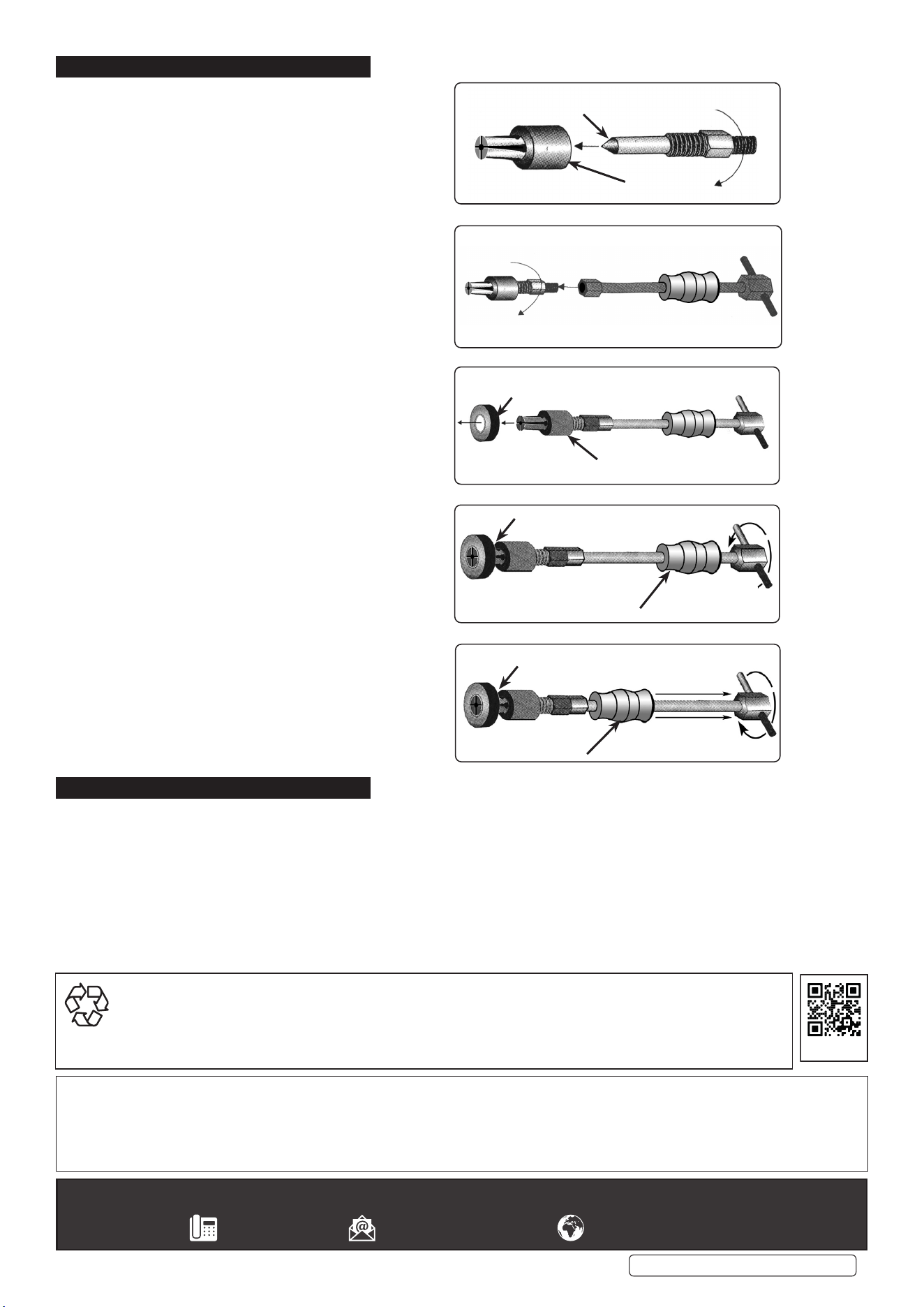

5.1. Prior to use of the required
attachment, disassemble and
grease as shown in fig.1.
Reassemble the attachment.
5.2. Screw the attachment into the
shaft, as shown in fig.2. Tighten
the attachment using a wrench.
NOTE: DO NOT over tighten.
5.3. Ensure the attachment jaws
are completely closed and insert
the attachment into the inner
diameter of the bearing, fig.3.
5.4 Turn the handle clockwise to
open the attachment jaws to
grip the bearing. See fig.4.
5.5. Hold the bearing puller as shown
in fig.5, slide the hammer to the
bearing end of the shaft and
then forcefully pull the hammer
to the other end of the shaft.
5.6. Ensure the bearing is being
pulled out evenly, if not, remove
the puller attachment and, using
a soft faced mallet, tap the
bearing until it is seated evenly.
5.7. Repeat paragraphs 5.5 and 5.6
until the bearing has been
removed.
5.8. Turn the handle anticlockwise to
close the jaws in order to
release the bearing from the
attachment head. See fig.5.
Loosen
Grease
Attachment Head
Fig.1
Tighten
Fig.2
Bearing
Attachment Head
Fig.3
Attachment Head
Hammer
Open jaws
Fig.4
Attachment Head
Hammer
Close Jaws
Fig.5
5. OPERATION
6. MAINTENANCE
6.1. After use, account for all components, clean with a lightly oiled cloth and return them to the carry case.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
AK714.V4 Issue 2 (4) 10/06/24
