VSN# BH10-093-999-02
Instruction Manual
34” Rectangle Wood Burning Fire Pit
Questions, problems, missing parts? Before returning to the store,
Call Yayi Customer Care. at
855-600-9294
From 9:00 AM to 5:00 EST or email
VSN# BH10-093-999-02
Safety Information:
PLEASE READ AND UNDERSTAND THIS ENTIRE MANUAL BEFORE ATTEMPTING TO
ASSEMBLE, OPERATE OR INSTALL THE PRODUCT.
Warnings:
This fire bowl is intended for outdoor use only, never burn in vehicles, tents or indoor.
Do not use the fire bowl to cook food, the fire bowl is not designed for grilling food.
This fire bowl is intended to burn wood logs only. Do not use on wooden decks. Do not burn
coal, leaves, or other combustible materials in the fire bowl. Keep away from combustible
materials .
Not for use by children. Keep children and pets away from the fire bowl.
The fire bowl is hot. Use with caution. Do not touch the hot fire bowl with bare hands.
Never leave the burning fire bowl unattended, and always extinguish the fire completely.
Do not use fire bowl near flammable or combustible objects or materials.
When the fire bowl is in use, the handle on the mesh screen can reach extreme
temperatures that can cause serious injury to an unprotected hand. Use a poker or an
appropriate heat resistant glove or pad when handling.
The poker handle may become hot during and after use.
Check local fire regulations and municipal by-laws for safe use.
Some parts may contain sharp edges—especially as noted in the manual. Wear protective
gloves if necessary.
Fuels used in wood or charcoal burning appliances, and the products of combustion of such
fuels, can expose you to chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to the State of California to
cause birth defects or other reproductive harm.
For more information go to: www.P65Warnings.ca.gov.
Pre-Assembly:
TOOLS REQUIRED ( Not Included )
Page No.2
VSN# BH10-093-999-02
FIRE PIT PARTS LIST
HARDWARE LIST
Page No.3
No. PARTS Qty
A Handle 1
B Safety Mesh Screen 1
C Wood Grate 1
D Fire Bowl 1
E Base 1
F Poker 1
G Cover 1
No. Hardware Qty
AA M6 Nut 1
BB M6x12mm Bolt 4
VSN# BH10-093-999-02

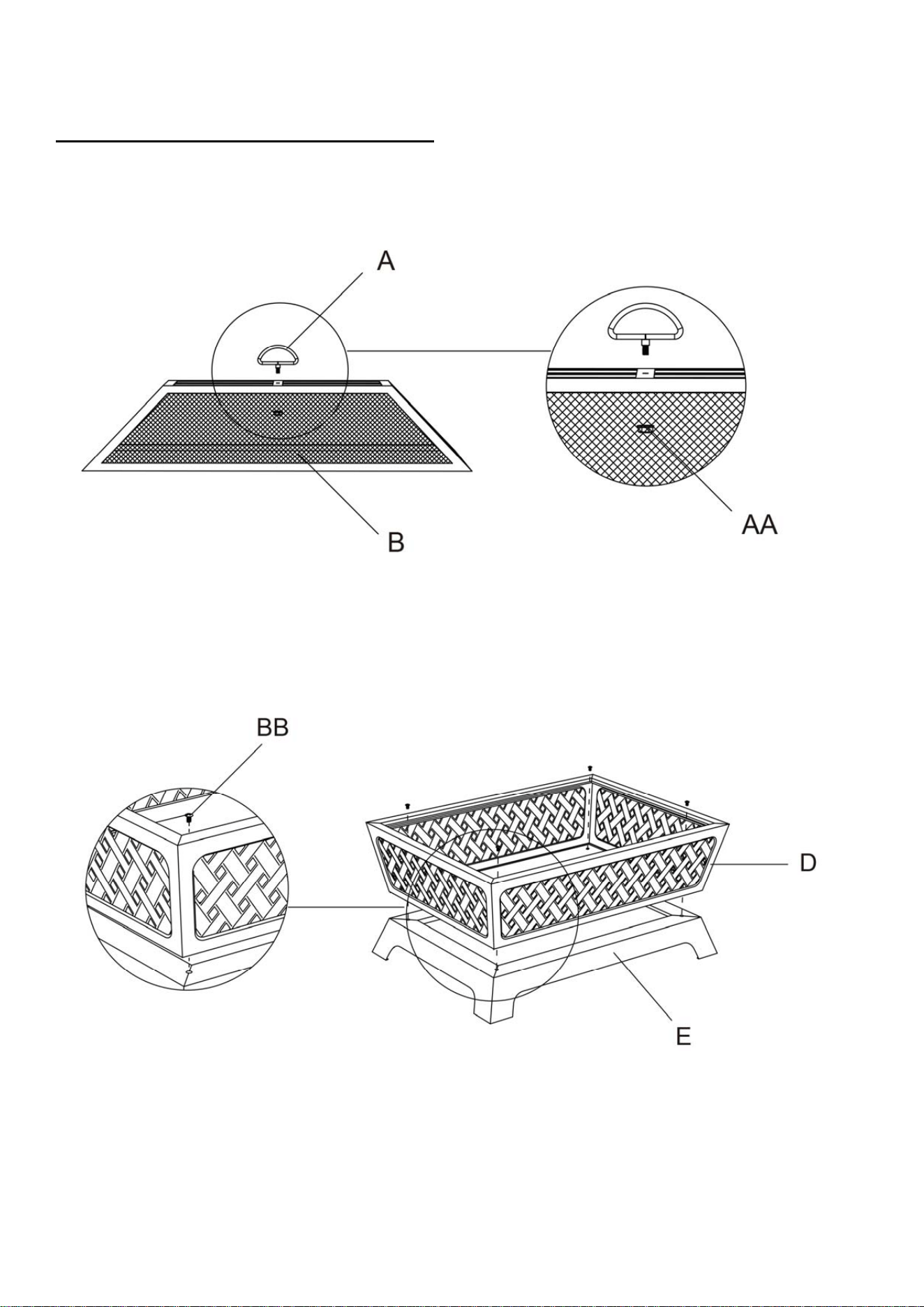

Step By Step Assembly Instructions:
Step 1: Insert Handle (A) into hole in Safety Mesh Screen (B) and tighten it with M6 Nut (AA)
underside to secure.
Step 2: Attach Fire Bowl (D) to the Base (E) by using M6 x 12 mm bolt (BB), tighten all the
hardware at this time.
Page No.4
VSN# BH10-093-999-02

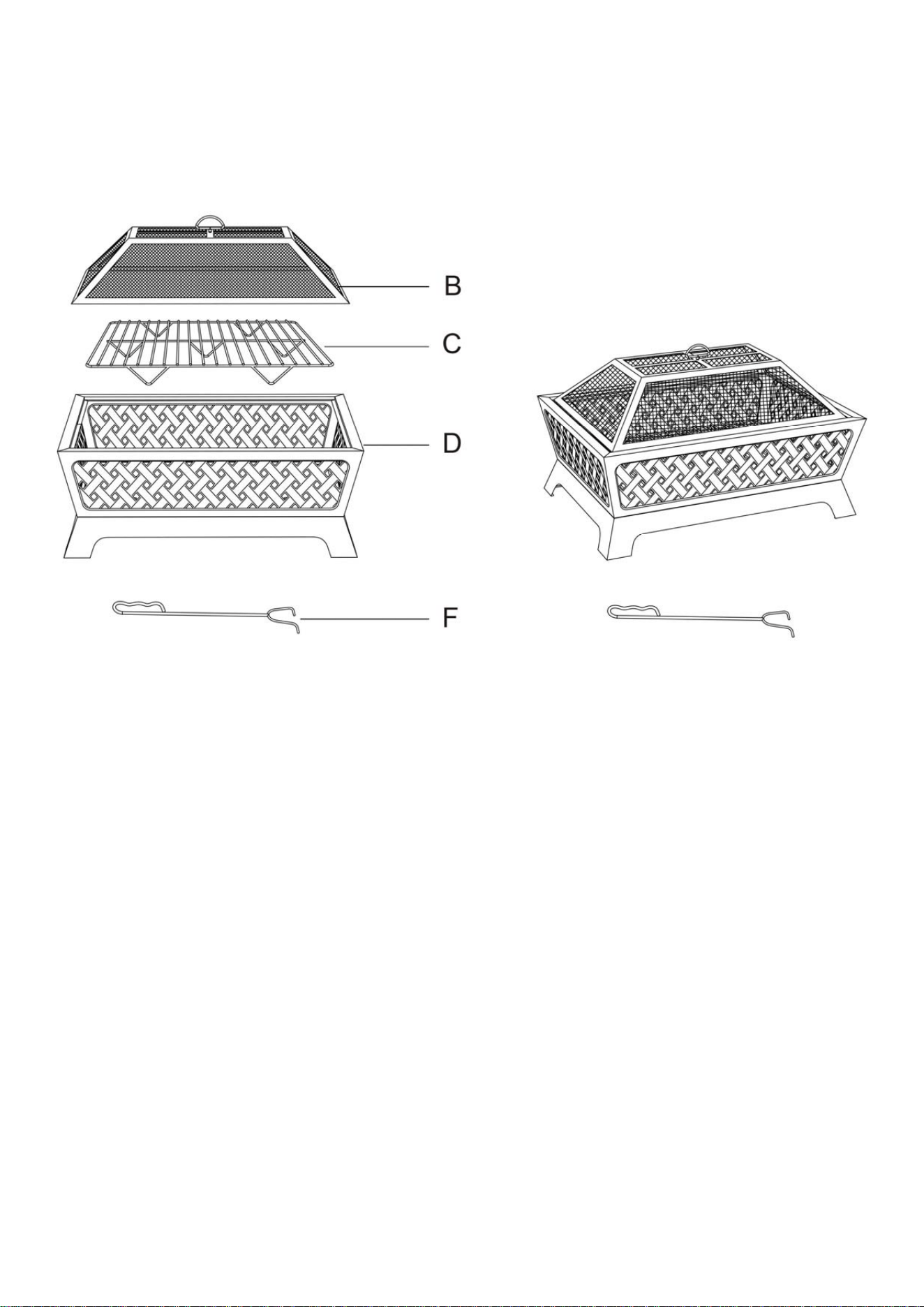

Step 3: For fire pit use, put Wood Grate(C) into Fire Bowl (D), and then put Safety Mesh Screen (B)
onto the Fire Bowl (D). Finally place Poker (F) beside base assembly.
Page No.5
VSN# BH10-093-999-02
Operating Instruction:
WARNING: Before using this outdoor Fire pit , make sure you have read, understand and are
following all information provided in the important Safeguards presented on page 2. Failure to Follow
those instructions can cause death, serious injury or property damage.
Lighting Instructions:
CAUTION: Do NOT add gasoline, kerosene, diesel fuel, lighter fluid or alcohol to relight or
enhance an existing fire.
WARNING: Do NOT burn over 5 lbs untreated wood or fire logs in this fire pit.
Tending the fire:
You may need to shift and/or add logs for an ideal experience.
CAUTION: Do NOT place hot fire pit tools onto combustible surfaces such as grass,
wooden deck or furniture.
1. Using heat resistant gloves and long handled fire pit tools, carefully remove the spark guard.
2. While using a long handled fire pit tool, shift coals and logs to allow additional airflow.
CAUTION: Do NOT add gasoline, kerosene, diesel fuel, lighter fluid or alcohol to relight or
enhance an existing fire.
3. Wait until glowing coals have developed before adding any additional wood. If additional wood is required,
place wood on top of coals. Be careful not to shift ashes
4. Using heat resistant gloves and long handled fire pit tool. Carefully replace the spark guard.
Extinguishing:
1. Allow fire to burn itself out.
2. Do NOT use water to extinguish as this is dangerous and can cause damage to the outdoor fire pit.
Page No.6
VSN# BH10-093-999-02
Maintenance:
To extend the life of your fire pit, clean it after each use.
To Protect fire pit finish, use a soft cloth in lieu of bare hands while handling.
Clean the fire bowl after each use once ashes have cooled.
Care and Cleaning:
Do not attempt to clean the fire pit until the fire is completely out and cooled completely.
Use a soft cloth to wipe the fire pit and poker.
Do not attempt to clean while hot.
Storage:
Do not attempt to move the fire pit while it is hot or in use.
Store assembled in a cool, dry location away from children and pets.
Keep the fire pit covered when cooled and not in use.
Page No.7
