1
INSTRUCTION MANUAL
5000W Inverter Generator
Model # AM5046C
2
3
CONTENTS
TECHNICAL DATA......................................................................................................................................................... 3
INTRODUCTION ............................................................................................................................................................. 4
SAFETYINFORMATION................................................................................................................................................4
GENERAL SAFETY RULES ............................................................................................................................................5
IMPORTANTSAFETYINSTRUCTIONS .......................................................................................................................6
SYMBOLS........................................................................................................................................................................ 7
KNOWING YOUR INVERTER GENERATOR .............................................................................................................. 8
GENERATOR PREPARATION.....................................................................................................................................12
GENERATOR OPERATION ......................................................................................................................................... 15
MAINTENANCE............................................................................................................................................................ 18
TROUBLESHOOTING ...................................................................................................................................................22

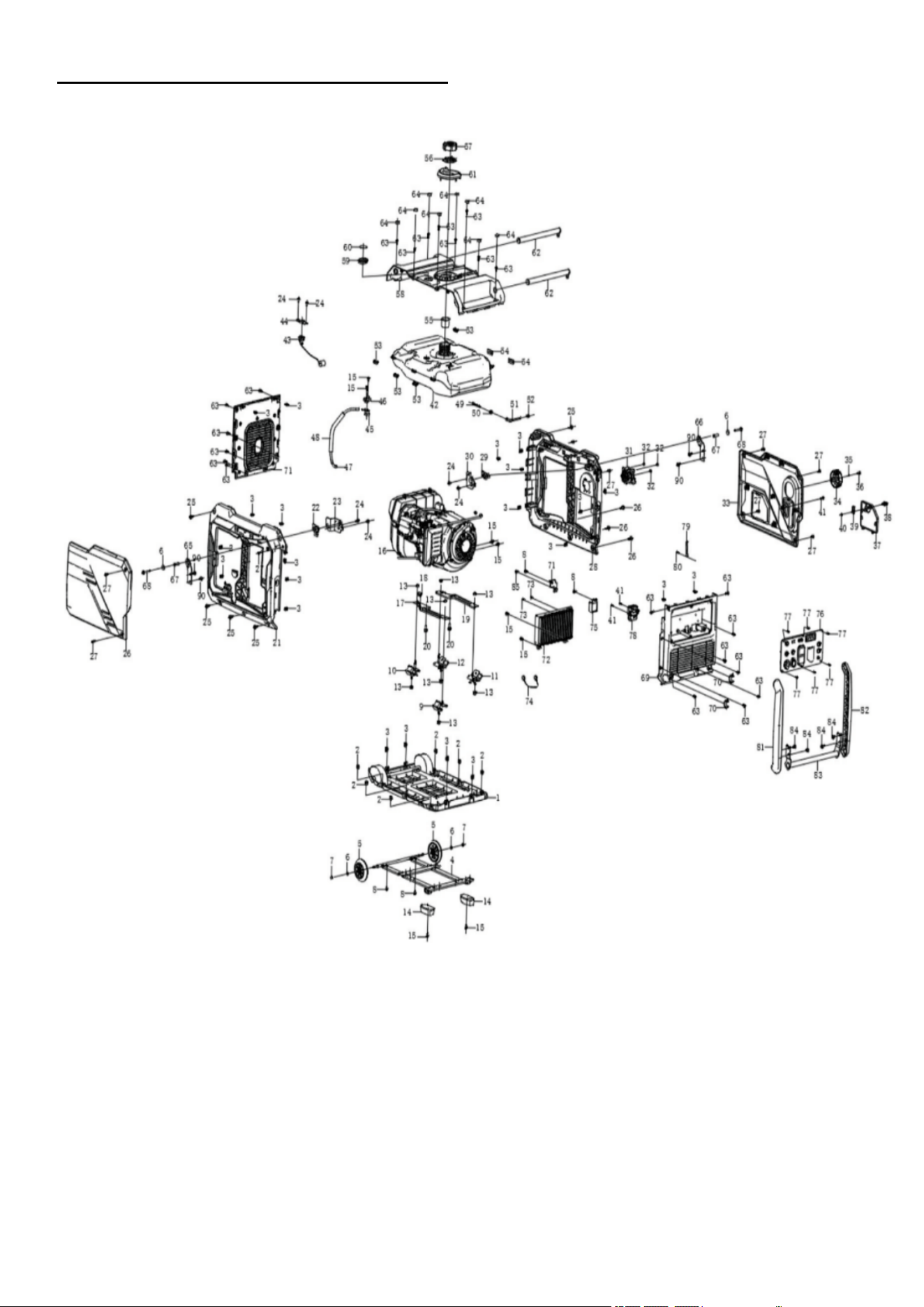

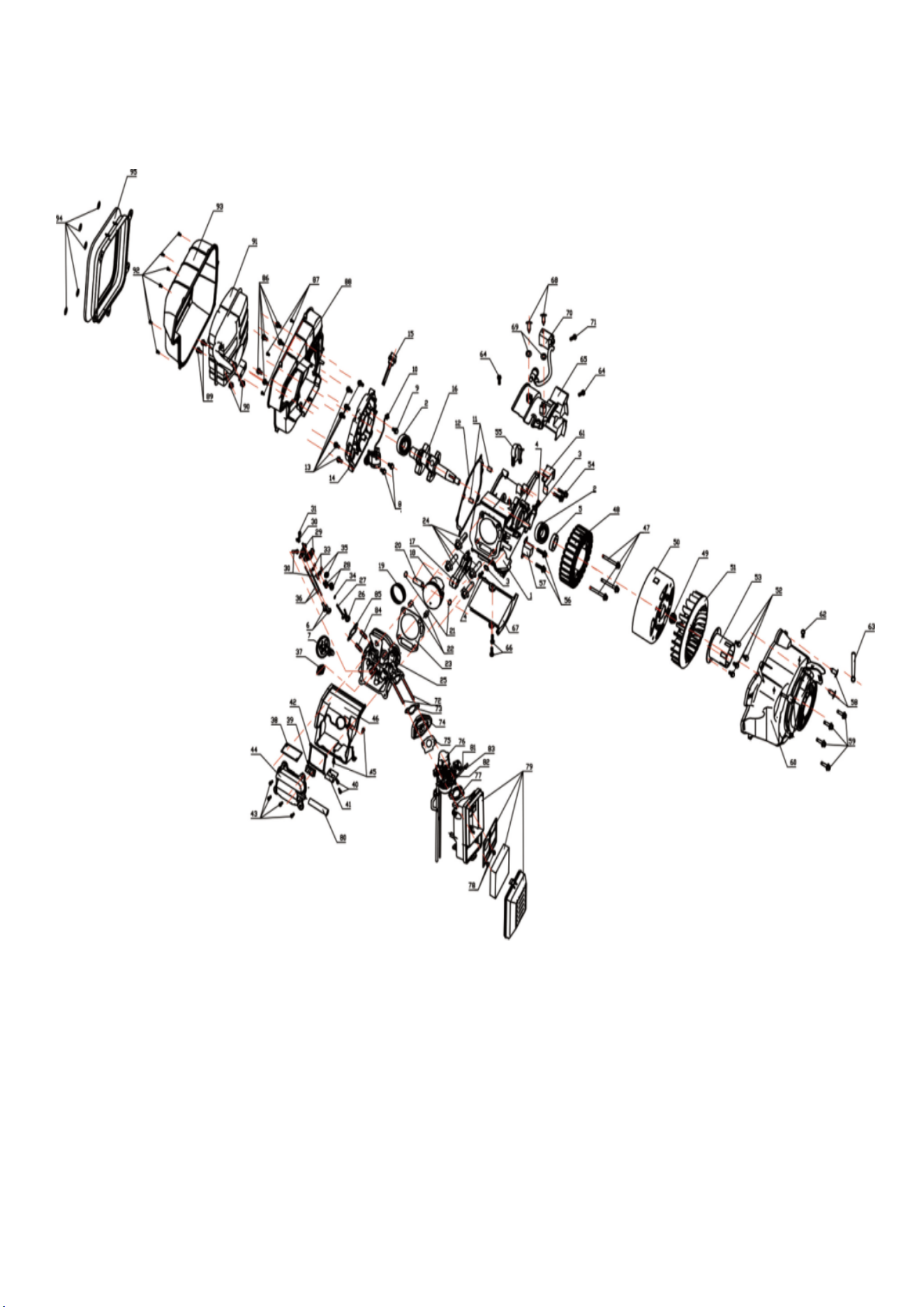

EXPLODED VIEW & PARTS LIST ..............................................................................................................................24
WARRANTY.................................................................................................................................................................. 28
TECHNICAL DATA
5000W inverter generator Model#AM5046C
Engine type: 4 stroke, OHV, single cylinder with forced
air-cooling system
Start type: Manual
Phase: Single
Rated wattage: 4000 W
Surge wattage: 5000 W
Rated voltage: 120 V
Rated current: 33.3 A
Rated frequency: 60 Hz
Displacement: 223 cc
Run time at 50% load: 10 hour
Spark plug gap: 0.6-0.7 mm (0.024-0.028 in.)
Fuel tank capacity: 3.43Gallon (13L)
Engine oil capacity: 21.1Fl.oz (0.6L)
USB output voltage: 5V
DC output: 12V/8.3A
CO alarm: Yes
Noise rating: 71dB at 23 feet
Package dimensions(L x W x H): 25.4x17.8x23.5 inch
Gross weight: 89 lbs
4
INTRODUCTION
Thank You for Purchasing a Amerisun Product. This manual provides information regarding the safe
operation and maintenance of this product. Every effort has been made to ensure the accuracy of the
information in this manual. Amerisun reserves the right to change this product and specifications at any
time without prior notice.
Please keep this manual available to all users during the entire life of the generator. This manual
contains special messages to bring attention to potential safety concerns, generator damage as well
as helpful operating and servicing information. Please read all the information carefully to avoid injury and
machine damage.
QUESTIONS? PROBLEMS?
Please contact our Customer Service Dept. with any questions and/or comments, either by Email:
help solve any issues that you might encounter.
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road
Equipment), are certified to operate on regular unleaded gasoline, and may include the following emission
control systems: (EM) Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
SAFETY INFORMATION
Before operating this generator, read and observe all warnings, cautions, and instructions on the generator
and in this Owner’s Manual.
NOTE: The following safety information is not meant to cover all possible conditions and situations that
may occur. Read the entire Owner’s Manual for safety and operating instructions. Failure to follow
instructions and safety information could result in serious injury or death.
This safety alert symbol is used to identify safety information about hazards that can result in personal
injury.
A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate
the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to
represent the type of hazard.
DANGER Indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING Indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION when used without the alert symbol, indicates a situation that could result in damage to the
engine or generator.
5
GENERAL SAFETY RULES
DANGER: CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide
(CO). This is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are
breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels of
carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These
openings can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING: The exhaust from this product contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator may emit highly flammable and explosive gasoline vapors, which
can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even
if it isn’t directly in contact with gasoline.
● Do not operate near open flame.
● Do not smoke near generator.
● Always operate on a firm, level surface.
● Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before
removing fuel cap. Loosen cap slowly to relieve pressure in tank.
● Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank.
● Allow for expansion.
● Always check for spilled fuel before operating.
● Empty fuel tank before storing or transporting the generator.
WARNING: This generator produces powerful voltage, which can result in electrocution.
● ALWAYS ground the generator before using it (see the “Generating set ground” portion of the
“GENERATOR PREPARATION” section).
● Generator should only be plugged into electrical devices, either directly or with an extension cord.
● NEVER connect to a building electrical system without a qualified electrician. Such connections must
comply with local electrical laws and codes. Failure to comply can create a back-feed, which may result
in serious injury or death to utility workers.
● Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel
work. GFCIs are available in-line with some extension cords.
● Do not use in rainy conditions.
● Do not touch bare wires or receptacles (outlets).
● Do not allow children or non-qualified persons to operate.
WARNING: This generator produces heat when running. Temperatures near exhaust can exceed
150℉ (65℃).
● Do not touch hot surfaces. Pay attention to warning labels on the generator identifying hot parts of the
machine.
6
● Allow generator to cool down after use before touching engine or areas of the generator that become
hot during use.
CAUTION: Misuse of this generator can damage it or shorten its life.
● Only use generator for its intended purposes.
● Operate only on dry, level surfaces.
● Allow generator to run for several minutes before connecting electrical devices.
● Shut off and disconnect any malfunctioning devices from generator.
● Do not exceed the wattage capacity of the generator by plugging in more electrical devices than the unit
can handle.
● Do not turn on electrical devices until after they are connected to the generator. Turn off all connected
electrical devices before stopping the generator.
● Turn the engine switch to “OFF” position when the engine is not running.
IMPORTANT SAFETY INSTRUCTIONS
● Ensure that adequate ventilation is provided while the generator is in operation.
● The muffler is hot when the generator is running and just stopping. Be careful not to touch it.
● Under certain conditions, gasoline is extremely flammable and explosive.
● Be sure to add gasoline in a well-ventilated place. Turn off the engine and let it cool before filling.
● When refueling, keep away from the open fire.
● If there is oil spill while refueling, wipe the spilled gasoline immediately.
● Using should be prohibited in places with high fire risk.
● Do not connect the generator to the power system, or it may cause people to die from electric shock
when they come into contact with the wire; damage the generator or damage the home appliance.
● A pre-operation check must be performed before starting the engine to avoid accidents or equipment
damage.
● Generators must operate at least one meter away from the building and other equipment.
● Please put the generator on the horizontal ground. If the generator is tilted, it may cause gasoline
overflow.
● Be sure to master how to quickly shut off generators and understand the operation of all control
components.
● Children and pets must stay away from the operating area. While the engine is running, all personnel
must be away from its rotating parts.
● If the operation is not proper, there is a potential danger to the generator. Do not operate the generator
with a wet hand.
● Do not operate in the rain, snow, lest wet generator.
● Maintenance of generators to be operated by professionals.
● Generators vibrate in normal use. During and after the use of the generator, inspect both the generator as
well as extension and power supply cords for damage resulting from vibration. Have damaged items
repaired or replaced as necessary. Do not use plugs or cords that show signs of damage such as broken or
cracked insulation.
For power outages, permanently installed stationary generators are better suited for providing backup power
to the home. Even a properly connected portable generator can become overloaded. This may result in
overheating or stressing of the components, possibly leading to a generator failure.
7

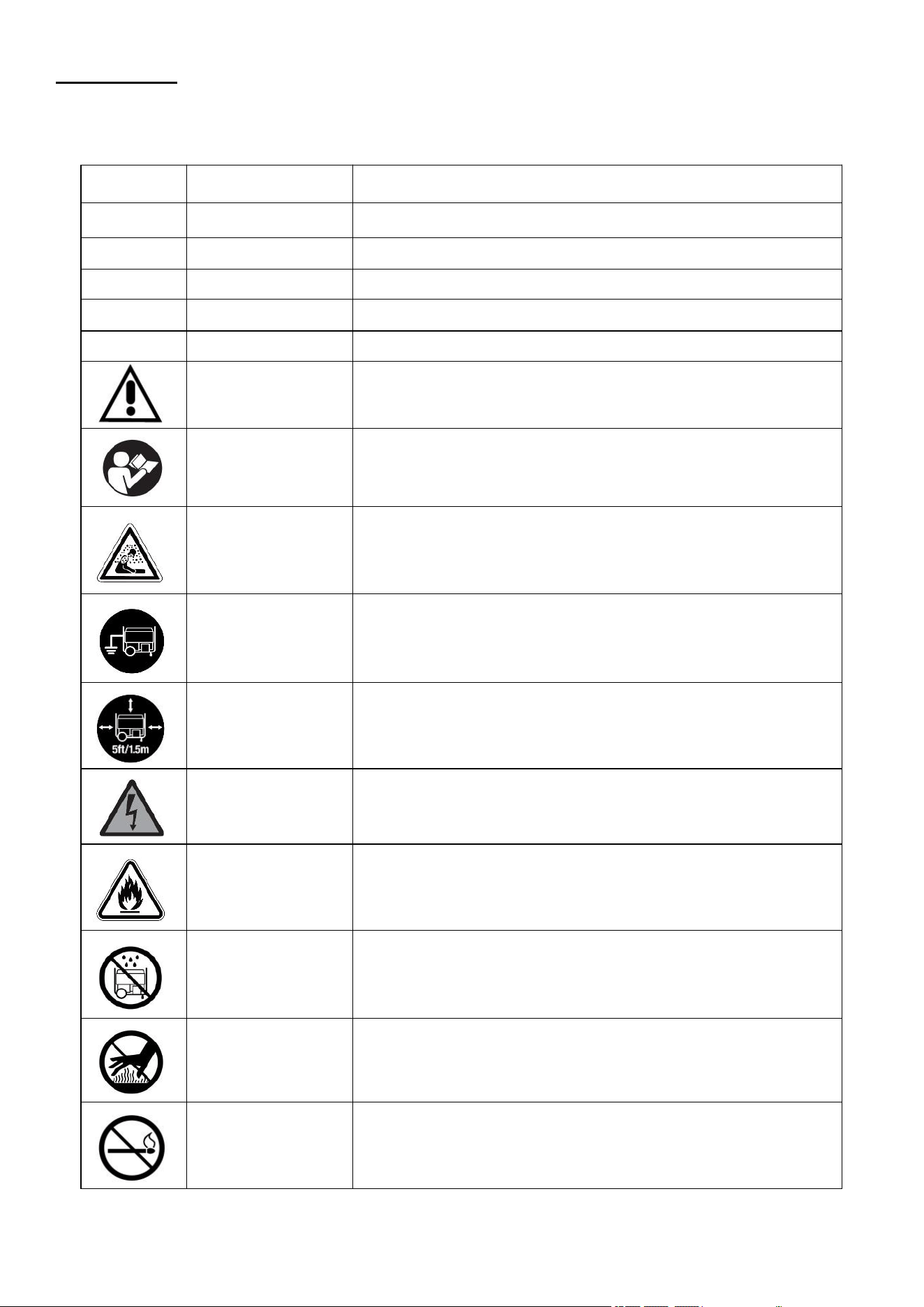

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL
NAME
DESIGNATION/EXPLANATION
V
Volts
Voltage
A
Amperes
Current
Hz
Hertz
Frequency (cycles per second)
W
Watts
Power
MIN
Minutes
Time
Safety Alert
Precautions that involve your safety.
Read the user’s
manual
To reduce the risk of injury, user must read and understand
user’s manual before using this product.
Carbon monoxide
hazard
Never operate the generator in an enclosed area. Engine
exhause contains carbon monoxide. Only operate the
generator outside and away from windows, doors and vents.
Ground
Consult with local electrician to determine grounding
requirements before operation.
Clearance
Keep all objects at least 5 feet (1.5m) from generator. Heat
from the muffler and exhaust gas can ignite combustible
objects.
Electric shock
alert
Beware of electric shock hazard.
Fire/Explosion
Fuel and its vapors are extremely flammable and explosive.
Fire or explosion can cause severe burns or death. Keep
generator at least 5 feet (1.5m) from all objects to prevent
combustion.
Wet conditions
alert
Do not expose to rain or use in damp locations.
Hot Surface
To reduce the risk of injury or damage, avoid contact with any
hot surface.
Open Flame Alert
Fuel and its vapors are extremely flammable and explosive.
Keep fuel away from smoking, open flames, sparks, pilot
lights, heat, and other ignition sources.
8

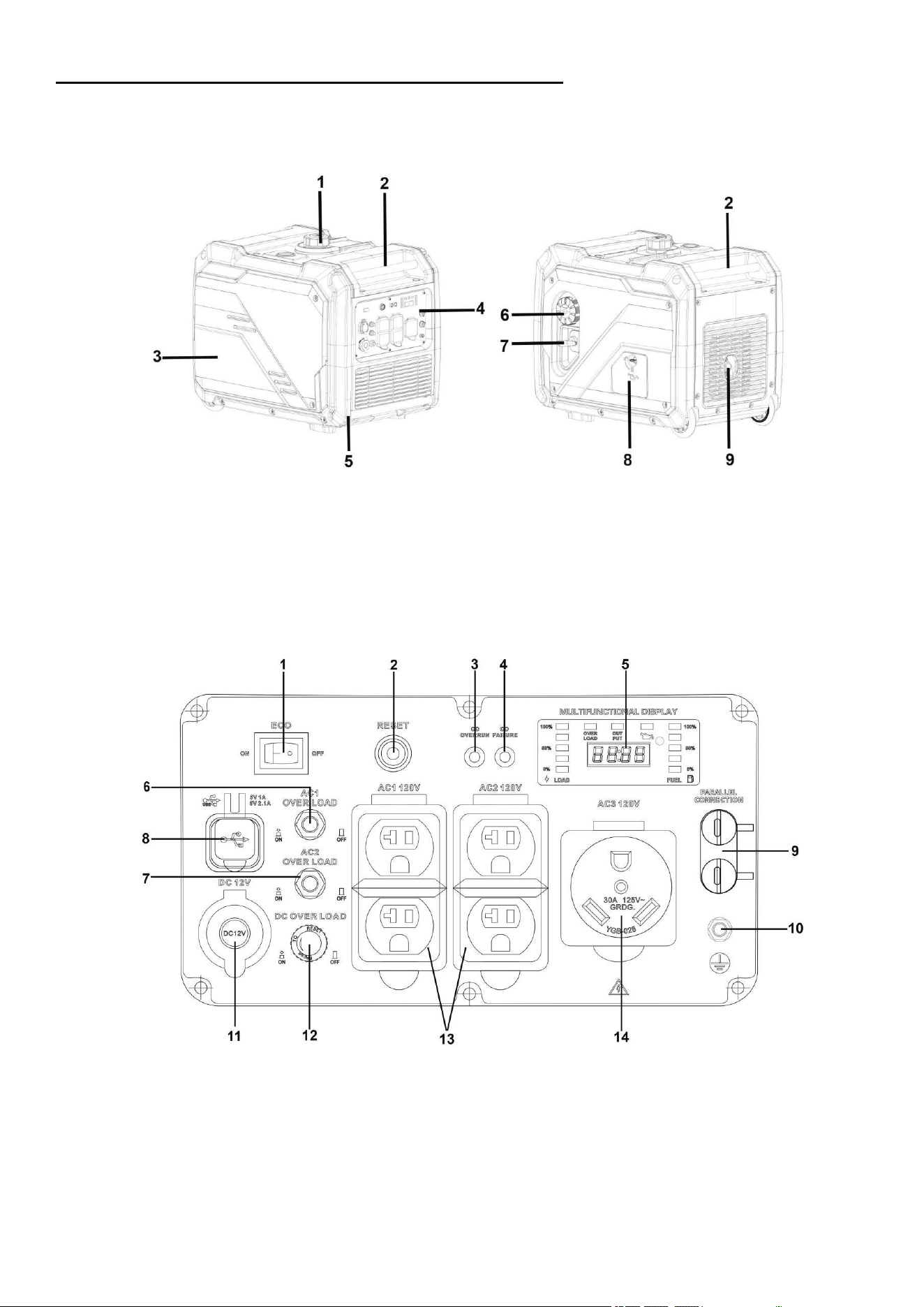

KNOWING YOUR INVERTER GENERATOR
Use the illustrations below to become familiar with the locations and functions of the various components and
controls of this generator.
CONTROL PANEL
1
Fuel tank cap
4
Control panel
7
Recoil starter
2
Carrying handle
5
Carrying handle
8
Oil maintenance cover
3
Spark plug&air filter
maintenance cover
6
Fuel tap
9
Muffler exhaust exit
1
ECO switch
6
AC1 circuit breaker
11
12V DC port
2
AC reset
7
AC2 circuit breaker
12
DC breaker
3
CO alarm light
8
USB port
13
20A AC output receptacle
4
CO failure light
9
Parallel kit terminal
14
30A RV receptacle
5
Multi-function meter
10
Ground(earth)terminal
9
CO Alarm Light(Red)
When the concentration of CO exceeds the standard, the CO alarm light will turn on Red and the generator
stops soon.
CO Failure Light(Yellow)
When the CO sensor is broken, the CO failure light will be on Yellow.

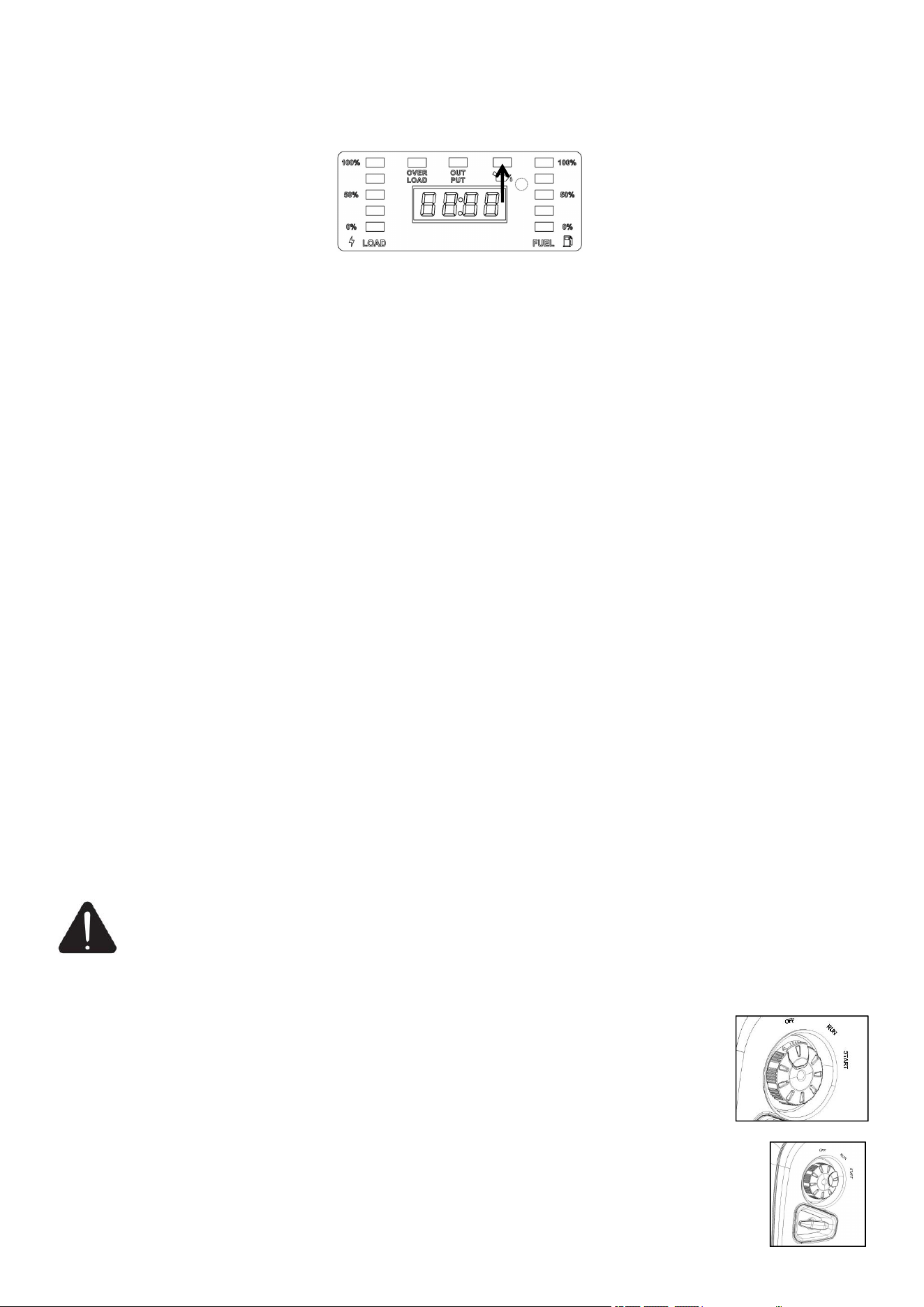

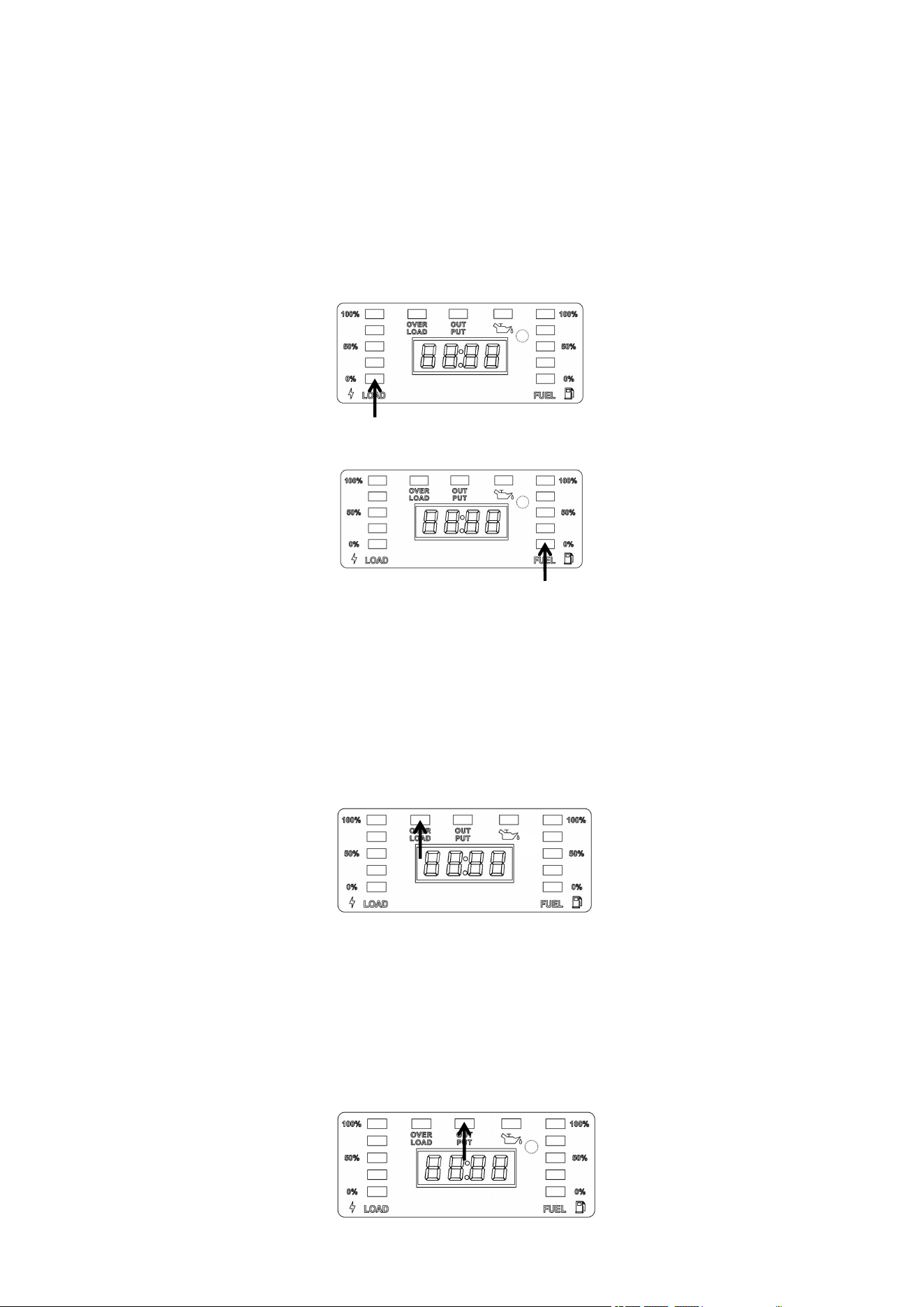

MULTI-FUNCTION METER
Load Indicator
The load indicator on the left side of the meter shows the loaded electric devices load percent.
Fuel Level Indicator
The indicator on the right side of the meter is designed to remind the fuel level in current time. Remind us to
add the fuel in time.
Overload Indicator (Red)
When the overload indicator is blinking, it indicates that the generating set is overload and then the AC
protector works. It will stop the output of generating set to protect the electric equipment and the generating
set itself. At this time, the overload indicator (red) will blinks, but the engine is still in running state. Please
take following measures:
1. Turn off the connected electrical equipment and remove them. Then stop the engine.
2. Reduce the total power rate of connected electrical equipment within the rated output range.
3. Check whether the cool air inlet is blocked by foreign matters and whether the relevant control parts are
abnormal. If there is any problem, remove it immediately.
4. Restart the engine after checking.
If the overload indicator (red) is extinguished and the operation indication (green) is on, reconnect the
electrical equipment, otherwise shut down the engine and check for malfunction.
NOTE: When using the electrical equipment with high starting current(like compressor and sinking
pump...), the overload indicating light may will flash for few seconds. But this doesn’t belongs to troubles
as aforementioned.
Running Indicator (Green)
The output indicator lights up when generating set starts and has normal output.
10
Oil Warning Light (Yellow)
The low oil level alarm system is designed to prevent engine damage due to insufficient oil in the crankcase.
The low oil level alarm system automatically shuts down the engine before the engine oil in the crankshaft
box is lowered to safety (the generator engine switch remains “ON”).
After the low oil level alarm system shuts down the engine, if you start the engine again, the low oil alarm
indicator (yellow) light flashes and the engine cannot run. If this happens, fill recommended oil and then
restart the generator.
V.F.T display
The V.F.T meter can be used for displaying voltage, frequency(hertz),run time and total run time as
applicable. (Display mode depends on the configuration). The LCD displays each item automatically.
Reset Button
The reset button is used to restore output if an overload occurs. To restore output, reduce the loads and
press the reset button.
Grounding Terminal
The grounding terminal is designed to prevent electric shock by connecting it to the grounding wire. The
generating set must be properly grounded before operation.
ECO switch
When the energy-saving switch is in the energy-saving position, the generator is in the energy-saving state.
When disconnecting or using low power, the engine automatically returns to a low speed state, thus
reducing engine fuel consumption
Full speed
“full speed” means that the energy-saving state(ECO switch) is in OFF position and the engine is always at
high speed, which is suitable for the situation where the load of electrical appliances varies greatly.
When the energy-saving switch is in full-speed position, the engine will remain in a high speed state.
● In order to reduce the change of voltage, the energy saving switch should be in the position of "full
speed" when the electrical equipment needs a large instantaneous power, or when the generator is
connected with the load of the high power apparatus at the same time.
● When using 12 V DC output, put the energy-saving switch in full-speed position.
WARNING: In the non-overload state, the output can not be restored by pressing the reset key.
Each time the engine is started, the number of effective operation times of the protection cut-off switch is 5
times, or the engine needs to be restarted.
Fuel Tap
Fuel tap is a device that controls the flow of fuel from the tank to the carburetor. Please
make sure it is on position of “OFF” when generator stops.

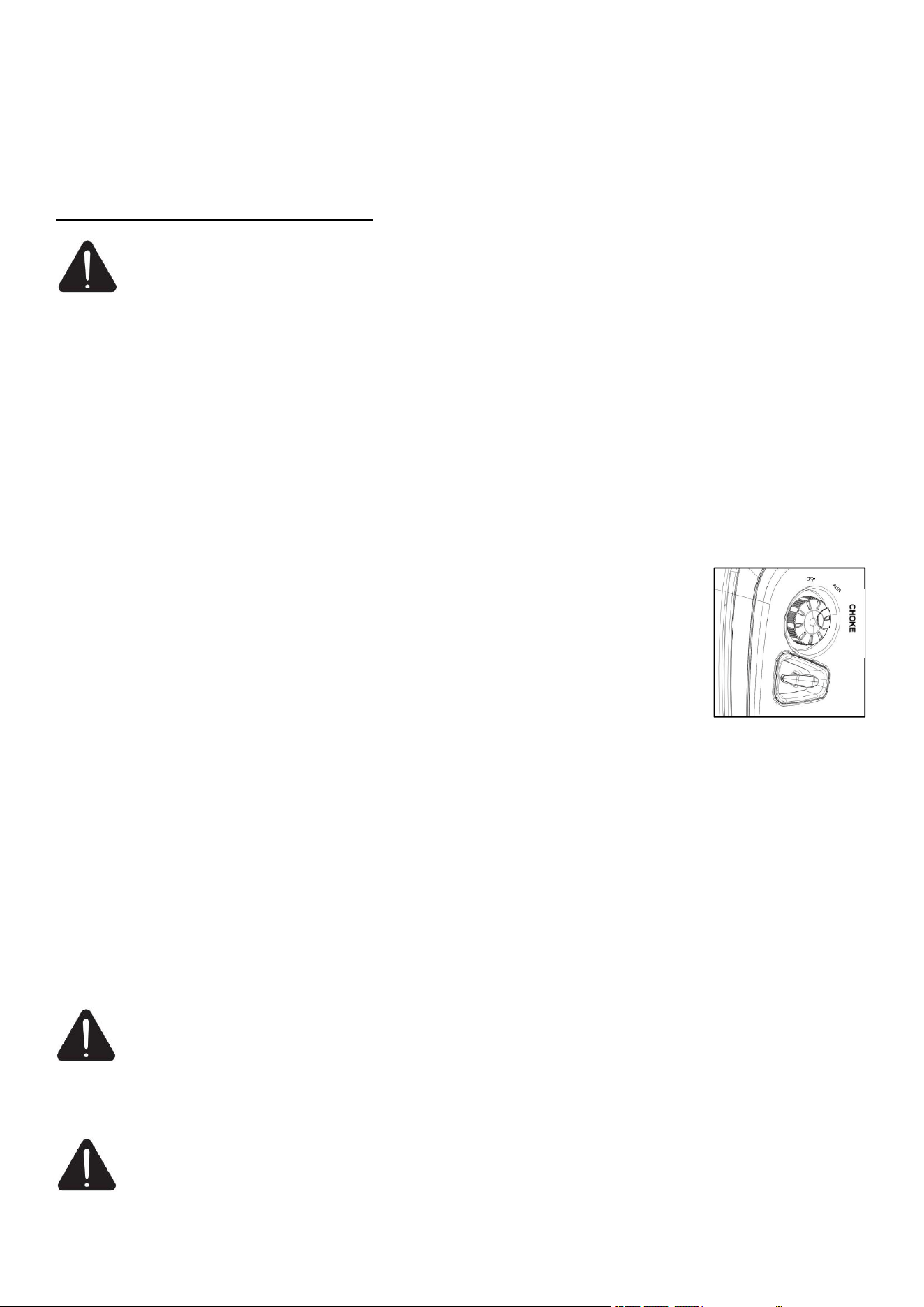

Choke Valve
Choke valve is used to provide a rich mixture of oil to a gasoline engine when the cold engine
is started.
When the cold gasoline engine starts, rotate the start switch to put the fuel tap to the
"CHOKE" position.
11
When the gasoline engine starts up warmly, the starting switch is rotated to put the fuel tap
to the "ON" position.

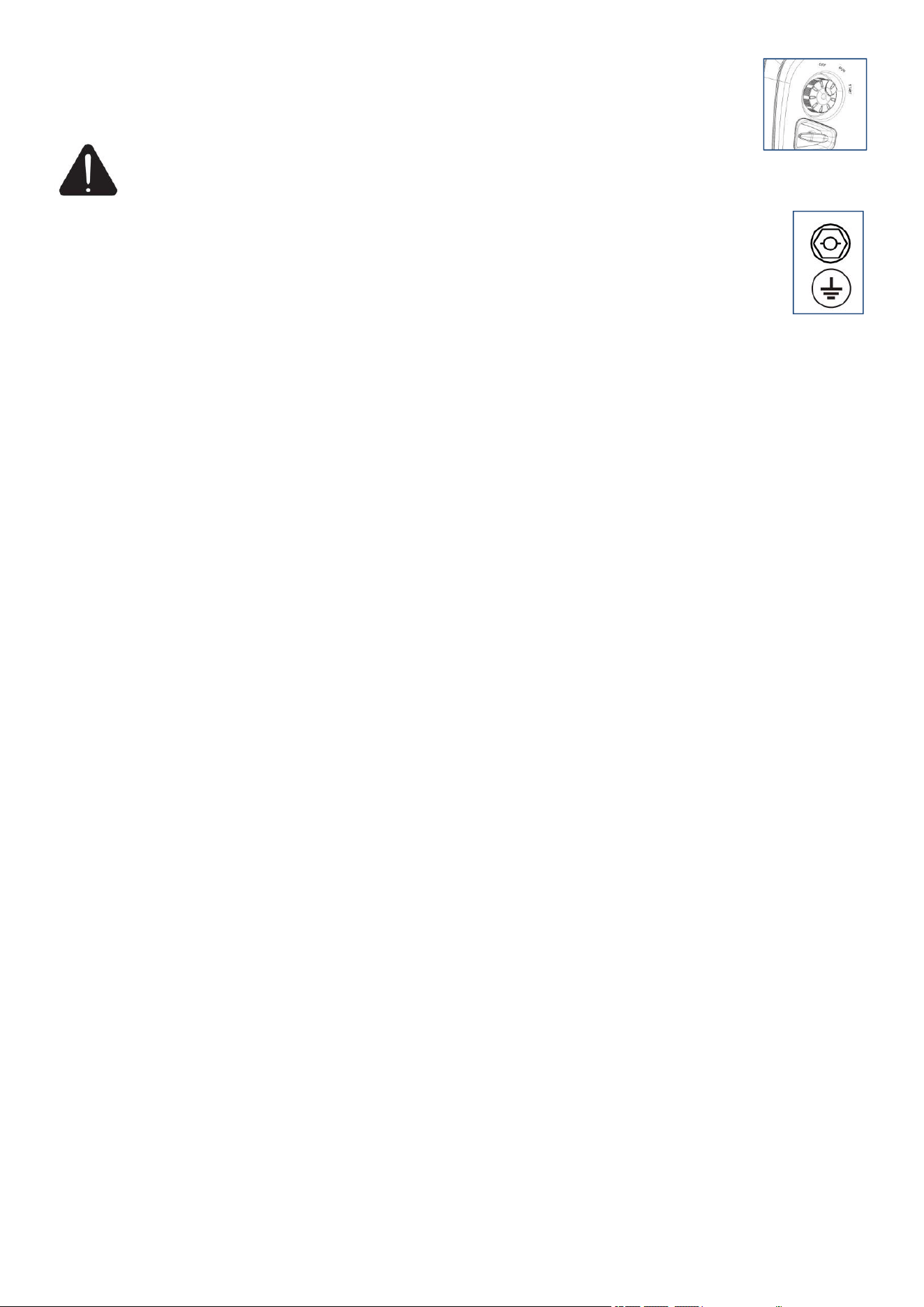

Ground Terminal
DANGER: Failure to properly ground the generator can result in electric shock.
The ground terminal is connected to the ground wire to prevent electric shock.
The generator must be properly connected to an appropriate ground. It helps prevent electrical
shock if a ground fault condition exists in the generating set or in connected electrical devices,
especially when the unit is equipped with a wheel kit. Proper grounding also helps dissipate
static electricity, which often builds up in underground devices.
A ground terminal has been provided on the generating set. For remote grounding, connect of a length of
heavy gauge(4mm
2
12 AWG minimum) copper wire between the generating set ground terminal and a
copper rod driven into the ground.
Local electrical codes may also require proper grounding of the unit. We strongly recommend that you
consult with a qualified electrician for grounding requirements in your area.
Neutral Floating*
–– Neutral circuit IS NOT electrically connected to the engine crankcase/ground of the inverter generator.
–– The generator (stator winding) is isolated from the engine crankcase and from the AC receptacle ground
pin.
–– Electrical devices that require a grounded receptacle pin connection will not function if the receptacle
ground pin is not functional.
Neutral Bonded to Frame*
–– Neutral circuit IS electrically connected to the frame/ground of the generator.
–– The generator system ground connects lower frame cross-member below the alternator. The system
ground is connected to the AC neutral wire.
Fuel Tank Cap
Remove the fuel tank cap by rotating it anticlockwise to add fuel.
Parallel Operation
Make sure that the generating set is in a good running state before connecting it to other generating sets.
The total power of electric devices should not exceed rated power of generating set.
When electric motor starts, the overload indicator (red) will light up and normally it will stop within4
seconds. If it cannot stop, please call 1-872-314-0005 Mon-Fri 9-5 EST or email:
During parallel operation, energy-saving switches of generating sets should be in the same position. To
parallel operation, perform the following steps:
1. Connect one generating set to other generating set(s) in parallel. Use the parallel kit to make the parallel
connection (the parallel kit needs to be purchased separately).
2. Start the engine in proper order and make sure that the running indicator (green) is normal.
3. Connect the plug of electric devices to the AC receptacle of parallel kit.
4. Run the electric devices.
12
GENERATOR PREPARATION
The following section describes steps necessary to prepare the generator for use. If after reading this section,
you are unsure about how to perform any of the steps please call (872) 314-0005 Mon-Fri 9-5 EST for
customer service. Failure to perform these steps properly can damage the generator or shorten its lifespan.
Unpacking
Unpack the generator and all its parts. Do not discard the carton or any packaging until the
generator is completely assembled.
The generator fuel tank cap is not assembled, after received the device ,we can do as follows:
1. Tear the protective film on the fuel tank filling port.
2. Take the filter out from the fuel tank.
3. Put the mark on the fuel tank cap into the fuel tank, then put the filter back.
4. Now we can add the recommended gasoline into the tank normally.
Operating Location
● Check the temperature and humidity for generator operating.
-- Applicable temperature: -5℃
～
40℃(23℉~104℉
）
-- Applicable humidity: below 95%
● Only use OUTSIDE and place the generating set in a well-ventilated area.
● Only operate the generating set on a flat, level surface and in a clean, dry operating environment.
● Allow two feet clearance on all side of the generating set while operating it outdoors.
● Operate in specified area, if any problem on applicable occasion, please consult the authorized local
dealers. In some areas, generating set must be registered with the local utility. Generating set used to
construction sites may be subject to additional rules and regulations.
DANGER: The exhaust of the generating set contains carbon monoxide, using engine indoors
CAN KILL YOU! NEVER use inside any building or any kind of enclosure, EVEN IF doors and
windows are open. Place the generating set in a well-ventilated and clean area. Note the wind direction and
air current when place the generating set.
High Altitude
This generating set may require a high altitude carburetor kit to ensure correct operation at high altitudes.
Consult the authorized local dealer for high altitude kit information if you always operate your engine at
altitudes above 5,000 feet (1,500 meters).
CAUTION: Even with carburetor modification, generating set horsepower will decrease about
3.5% for each 1,000 feet (300 meters) increase in altitude. The effect of altitude on
horsepower will be greater than this if no carburetor modification is made.
Operation the engine at altitude below 5,000 feet (1,500 meters) with modified carburetor may cause the
generating set to overheat and result in serious engine damage. Please restore factory specifications of the
carburetor at the dealer when using the engine in a low altitude area.
Operating Condition
Check for loose or damaged parts, signs of oil or fuel leaks, and any other condition that may affect proper
operation. Repair or replace all damaged or defective parts immediately.
13
Clean the dirt or foreign objects on the surface around exhaust and air intake of generator. DO NOT move or
tip the generating set during operation. Use generating set only for intended uses. If you have questions about
intended use, ask your local dealer.
Engine oil check
WARNING: This engine is not filed with oil before send out to the factory. User must add the
proper amount of oil before operating the generator for the first time. Any attempt to crank or start
the engine before it has been properly filled with the recommended type and amount of oil may result in
engine damage and void your warranty.

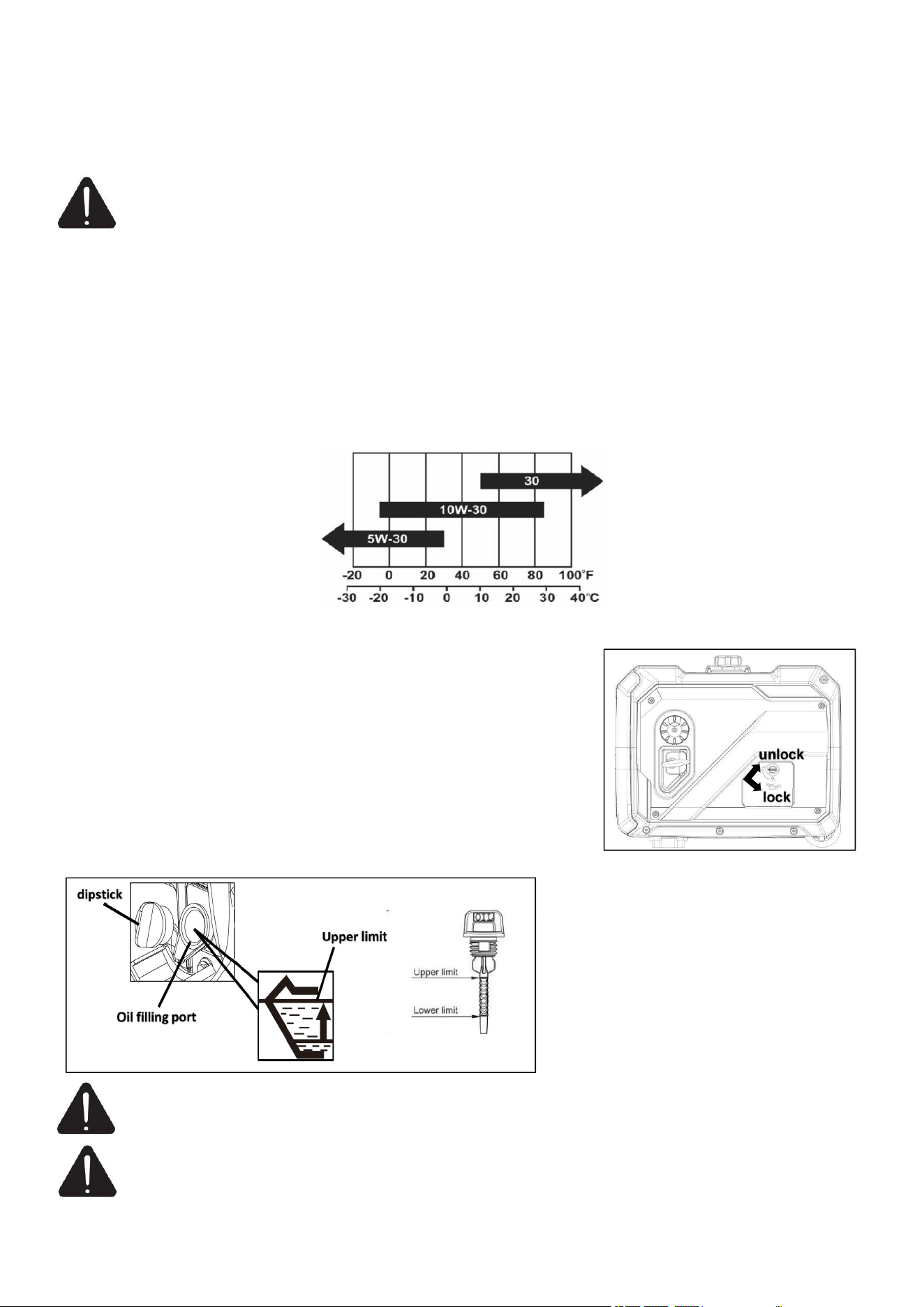

Engine Oil Recommendations
Only use 4-stroke engine oil of SJ,SL or equivalent level which are in accordance with or higher than API
standard.
Check the API label on oil bottle or other container, and make sure the “SJ,SL” or equivalent level letter is
in the label.
SAE 10W-30 is recommended for general, all-temperature use. Other viscosities shown in the chart may be
used when the average temperature in your area is within the indicated range.

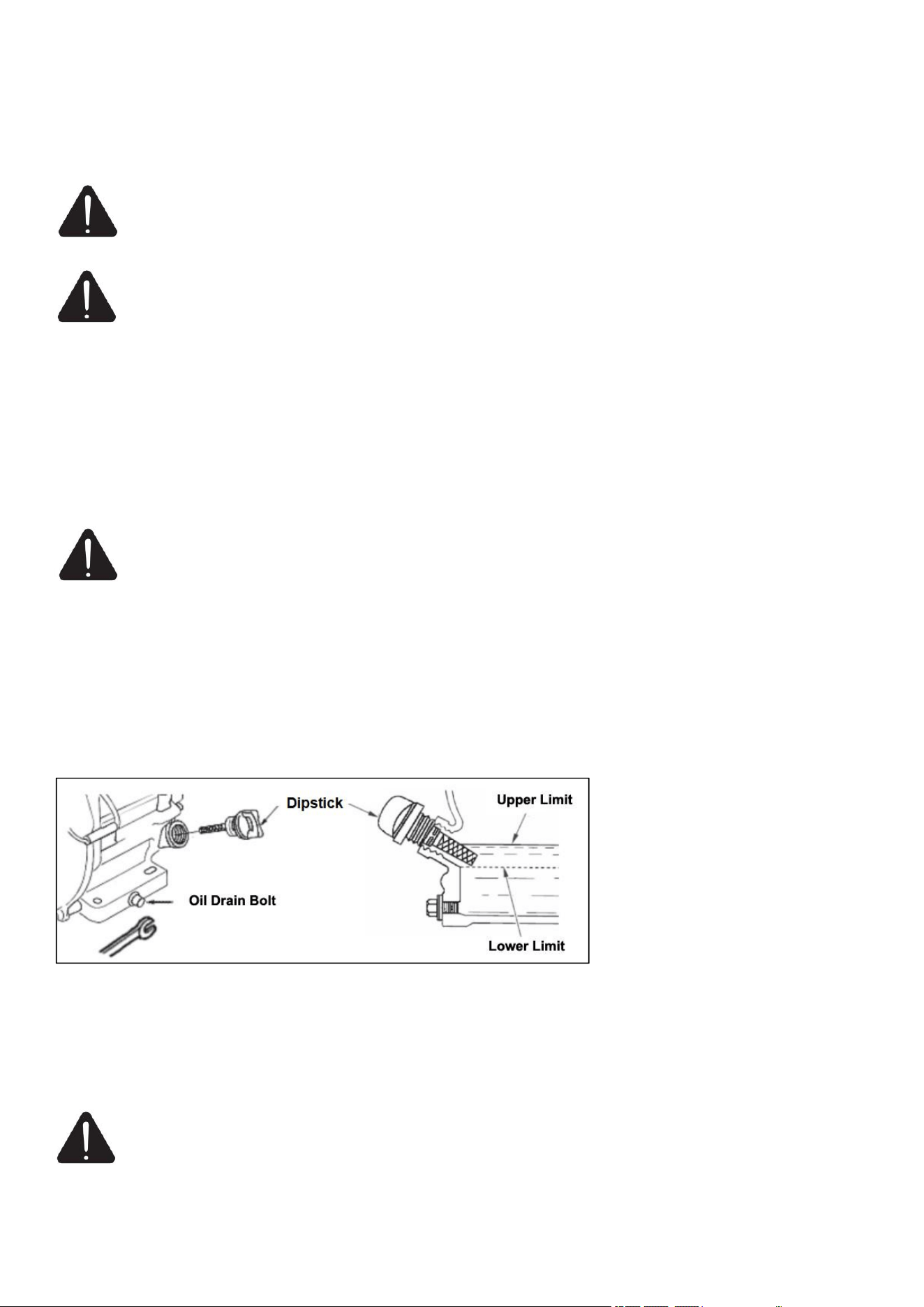

Add the engine oil
1. Unlock the oil maintenance cover and take off the cover.
2. Unscrew and remove the dipstick.
3. Add recommended oil to the upper limit(H).
4. Fully tighten the dipstick. If the oil is spilled, wipe it clean with a dry
cloth.
5. Install the appearance cover and lock it.
NOTE:The oil capacity (rated) of the engine crankcase is 21.1 fl. oz.
Properly dispose of any used oil at an approved waste management
facility.
CAUTION: Operate generator only on a level surfaces. Running the engine when the oil level
is low can seriously damage the engine.
The engine is equipped with a low oil sensor (applicable types) that will automatic stop the
engine when the oil level falls below the safe limit. To avoid the inconvenient of an
unexpected shutdown, fill to the upper limit and check the oil level regularly.
Ambient Temperature
14
Generator Fuel Check
WARNING: This generator may emit highly flammable and explosive gasoline vapors, which
can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even
if not directly in contact with gasoline!
● With the engine stopped, check the fuel level. Refill the fuel tank if necessary.
● Use clean, fresh, regular unleaded gasoline with a minimum octane rating of 87.
● Do not mix oil with gasoline.
● Gasoline shall not overflow the tank (the oil level is lower than the red oil level indicator). After
refueling, tighten the tank cover and wipe up any spilled fuel. Prevent dirt and water from entering the
tank.
● Do not use gasoline containing more than 10% ethanol or gasoline containing methanol, otherwise the
engine will be seriously damaged.

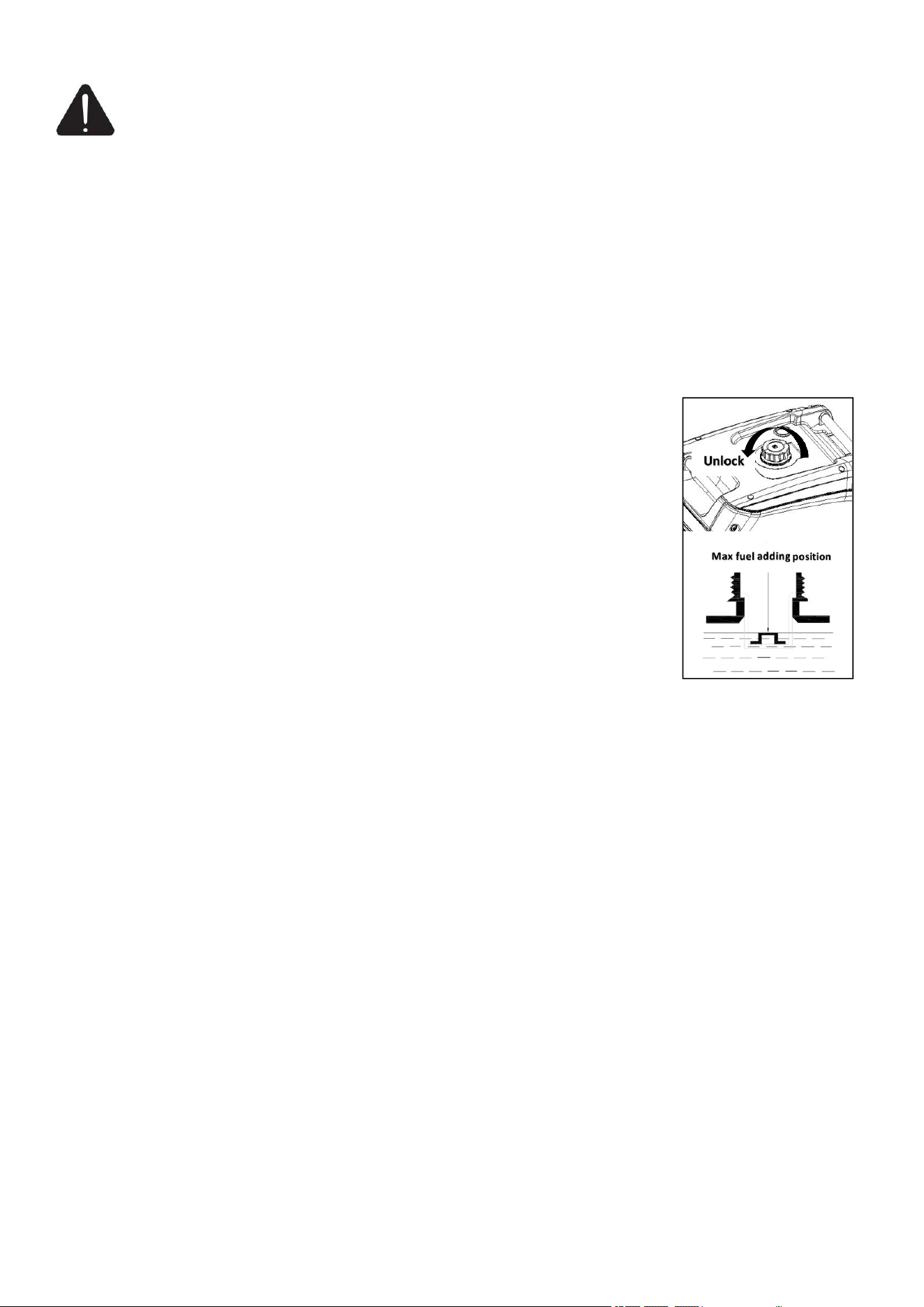

To add gasoline, follow these steps:
1. Make sure the generator stopped and it is on a level surface.
2. Unscrew fuel cap anticlockwise and set aside.
NOTE: The fuel cap may be tight and hard to unscrew.
3. Slowly add unleaded gasoline to the fuel tank. Be sure not to fill above the
upper limit mark. Always allow room for fuel expansion.
4. The capacity of the fuel tank is 3.43gallon(13L).
NOTE: Do not fill the fuel tank to the very top. Gasoline will expand and spill
over during use even with the fuel cap in place.
5. Reinstall the fuel cap tightly and wipe clean any spilled gasoline with a dry
cloth.
IMPORTANT:
● Do not fill tank indoors.
● Do not fill tank when the engine is running or hot.
● Never use an oil/gasoline mixture.
● Never use old gasoline.
● Avoid getting dirt or water into the fuel tank.
● Gasoline can age in the tank and make starting difficult. Never store generator for extended periods of
time with fuel in the tank or the carburetor.
● Turn the fuel cock off and drain the fuel from the carburetor.
● Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.
● It is important to prevent gum deposits from forming in essential fuel system parts, such as the
carburetor, fuel filter, fuel hose or tank during storage. Also, experience indicates that alcohol-blended fuels
(called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids
during storage.
● Acidic fuel can damage the fuel system of the generating set while in storage. Be sure to review the
instruction given in “Storage” section.
● Gasoline/ Alcohol Blends: up to 10% alcohol, 90% unleaded gasoline by volume is approved as a fuel.
Other gasoline/alcohol blends are not approved.
● Effects of old, stale or contaminated fuel are not warrantable.
● Allow the generating set to cool for at least two minutes before removing fuel cap when adding fuel.
● Loose the fuel cap slowly to relieve any pressure in the tank.
Electrical Devices
Disconnect all electrical devices from the generator and switch off the AC circuit breaker before start the
engine. The generator may be hard to start with electrical devices.
15
The connected electrical equipment must not exceed the maximum limit of the generator. Please refer to the
specification table for details.
NOTE: After completing the above preparation, the generator is ready to be started.
GENERATOR OPERATION
WARNING: It is prohibited to start or close the generating set when the output terminal of
generating set is connected to an electric device is in “ON” state.
Generator Start
● Disconnect the electrical equipment from the alternator's AC socket before starting the engine.
● Make sure that the ECO switch is on “OFF”position.
● For initial use (long unused, start after gasoline is used up), turn the fuel tap to "ON" position for 10 to
20 seconds before starting, so that gasoline can enter the engine carburetor.
● Do not connect device to the panel before generator start. The device should be in off position when it
is connecting to the generator.
Cold Start
1. Disconnect all electrical equipment from the generator output socket before
starting the engine.
2. Rotate the Fuel Tap to place the start button on "CHOKE" position as shown in
the right figure.
3. Grasp the recoil starter handle and pull slowly until resistance is felt, and then pull
rapidly to avoid kickback. Firmly grasp the generator to avoid tumble of generator.
NOTE: Pay attention to pull the starting handle, the pull angle should not be too large, to prevent the
handle from wearing the housing. Do not allow the starting handle to rebound and retract automatically to
avoid damage to the shell. Slowly put the starting handle back.
4. After starting the engine, rotate the Fuel Tap to place the start button in the "ON" position.
5. After all above operations, the engine can be normally loaded.
NOTE: To use electrical equipment, AC circuit breaker should be placed in "ON" position.
Warm Start
When the gasoline engine starts in the hot engine status, rotate the Fuel Tap to place the start button in the
"ON" position and pull the recoil starter.
WARNING: Check starter cord conditions before operating. Have it replaced immediately by
local authorized dealer if cord is frayed.
Using The Generator
WARNING: It is prohibited to start or close the generating set when the output terminal of
generating set is connected to an electric device is in “ON” state.
16
Connect to electrical devices
● Inspect power cord for damage before using. There is a hazard of electrical shock from crushing, cutting
or heat damage.
● Make sure that the generating set has been properly grounded. If the electric devices require grounding,
the generating set must ground.
● Make sure that the electric devices are in “OFF” position.
● Allow the engine to stabilize and warm up for a few minutes after starting.
● Connect and start the electric devices.
● Turn off all electric devices and disconnect them from the generating set.
DANGER: If connected devices overheat, turn them off and disconnect them from generating set.
Electrical Shock
To reduce the risk of electrical shock, DO NOT use electrical cords that are worn, frayed, bare or otherwise
damaged. DO NOT touch bare wires or receptacles. DO NOT handle generating set or electrical cords
while standing in water, while barefoot, or while hands or feet are wet.
Loading Capacity
WARNING: Do not overload the generating set.
Exceeding the generating set’s capacity can
damage the generating set and/or electric devices
connected to it.
Before starting the generator, it should be confirmed：
The total power of all electrical appliances (the sum of
resistance, capacitance and inductive load) shall not
exceed the rated power of the generator.
Follow these simple steps to calculate the watts necessary
for your purposes.
1. Count the electrical devices you will power at the same
time.
2. The amount of power you need to run with the devices
is the total rated watts of these items.
3. Starting power is the power needed shortly when
electric devices start. Since not all devices start at the
same time, starting power can be estimated by the
maximum power of all devices plus the total power
counted in step 2.
NOTE: Overload operation will lead to generator stalling or greatly shorten the life of the generator. If
there are multiple loads or electrical equipment connected to the generator set, please keep in mind that:
first turn on the highest starting load, then turn on the second, and finally turn on the lowest starting load.
WARNING: It is necessary to equip with circuit protector or switch to isolate the generating set
from the electric utility when the generating set is mainly used for backup. Failure to isolate the
generating set from the power utility may result in injury or death to electric utility workers and damage to
the generating set due to back feed of electrical energy.
When using AC power, you can use DC power at the same time. If using both AC and DC output sockets,
note that the total power does not exceed the sum of AC and DC power.

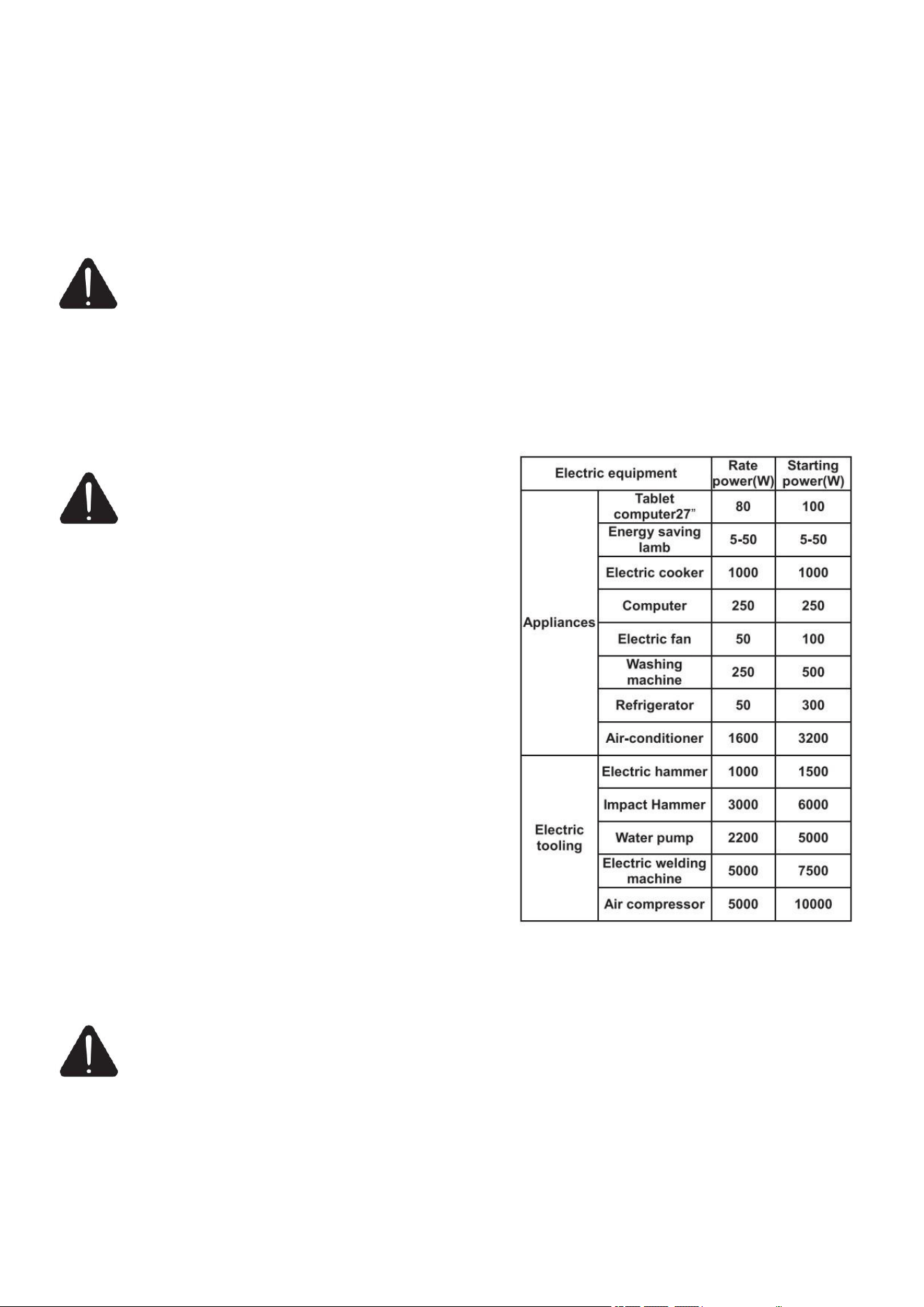

Wattage Reference Chart
17
DC application
The output voltage of DC socket is 15-20 V, for 12V DC load only.
● When AC power is used, DC power supply can be used.
● Overload of DC may make DC over protector act. Firstly, remove the DC load, wait for a few minutes,
and then reset the button of DC protector.
AC application
1. Start the engine, make sure the AC output light (green) is on.
2. Turn off the power supply switch and plug the device into the generator's output socket.
NOTE: In order to obtain the best operation effect and the maximum service life of the generator, the new
generator should run for at least 20 hours under 50% load, so that the engine performance can be optimized.

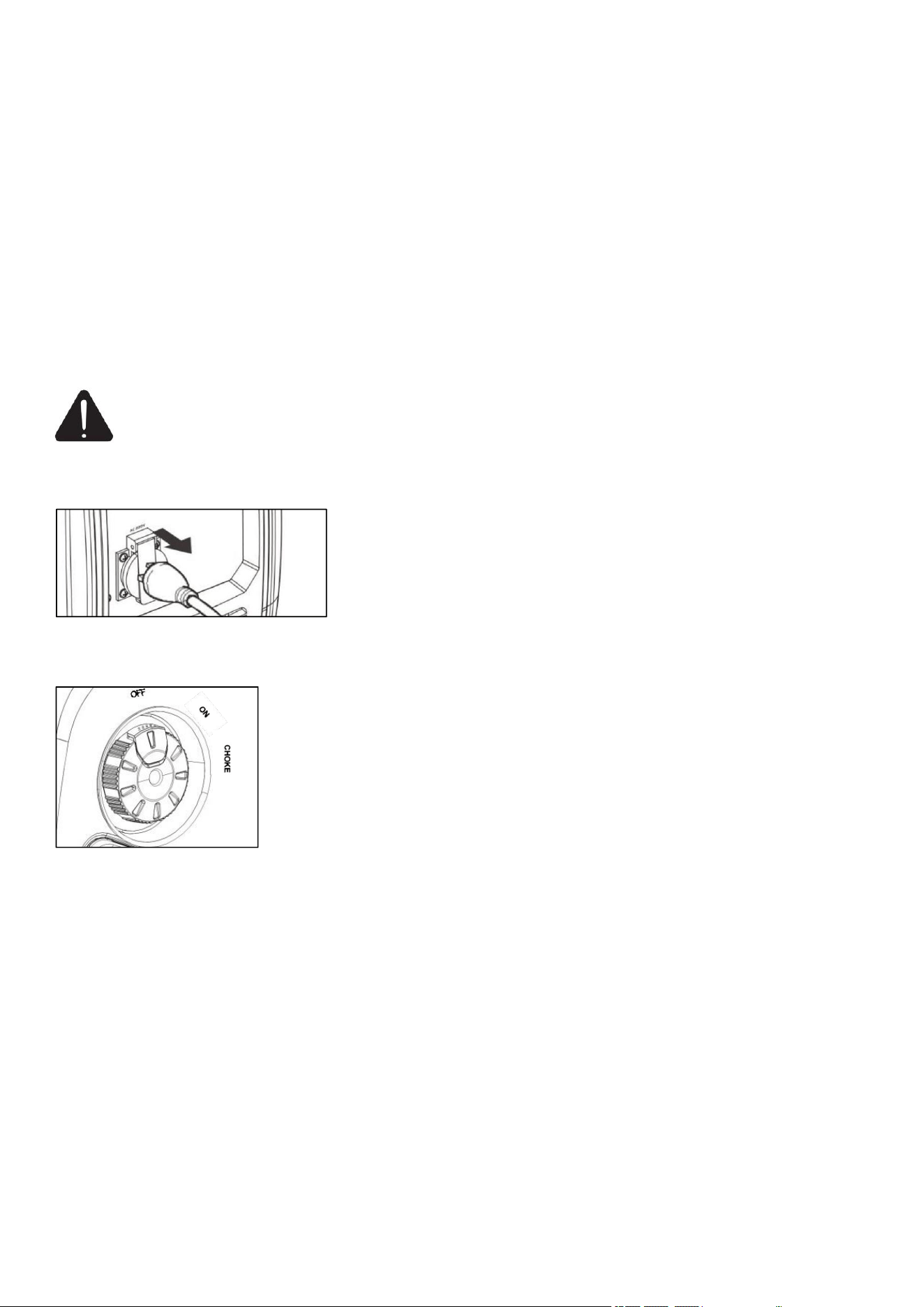

Stop The Generator
WARNING:Never stop the engine with electrical devices connected and with the connected devices in
“ON” position.
1. Switch off the connected electrical appliances, and remove the connectors of all electric equipment from
the generating set panel.
2. Make sure the ECO switch is in “OFF” position.
3. Rotate the Fuel Tap to place the start button on "OFF" position.
NOTICE: To stop the engine in an emergency, turn the Fuel Tap to the “OFF" position.
18
MAINTENANCE
The purpose of maintenance and periodic maintenance is to keep the generator in the best operating condition.
WARNING: Improper maintenance or failure correct a problem before operation can cause a
malfunction and result in property damage, serious injury or DEATH. lease use our original spare
parts or the same quality parts when replacing damaged parts.Improper maintenance will void your
warranty.
DANGER: Accidental starts can cause severe injury or death. Remove the spark plug cap and
ground generating set before performing any service.
WARNING: The filter element may contains PAHs, PAHs are harmful for your health. Please
wear gloves for protection during air filter maintenance.
● If the gasoline engine frequently works under high temperature or heavy load, change the oil every 25
hours.
● If the engine frequently work under dusty or other severe circumstances, clean the air filter element

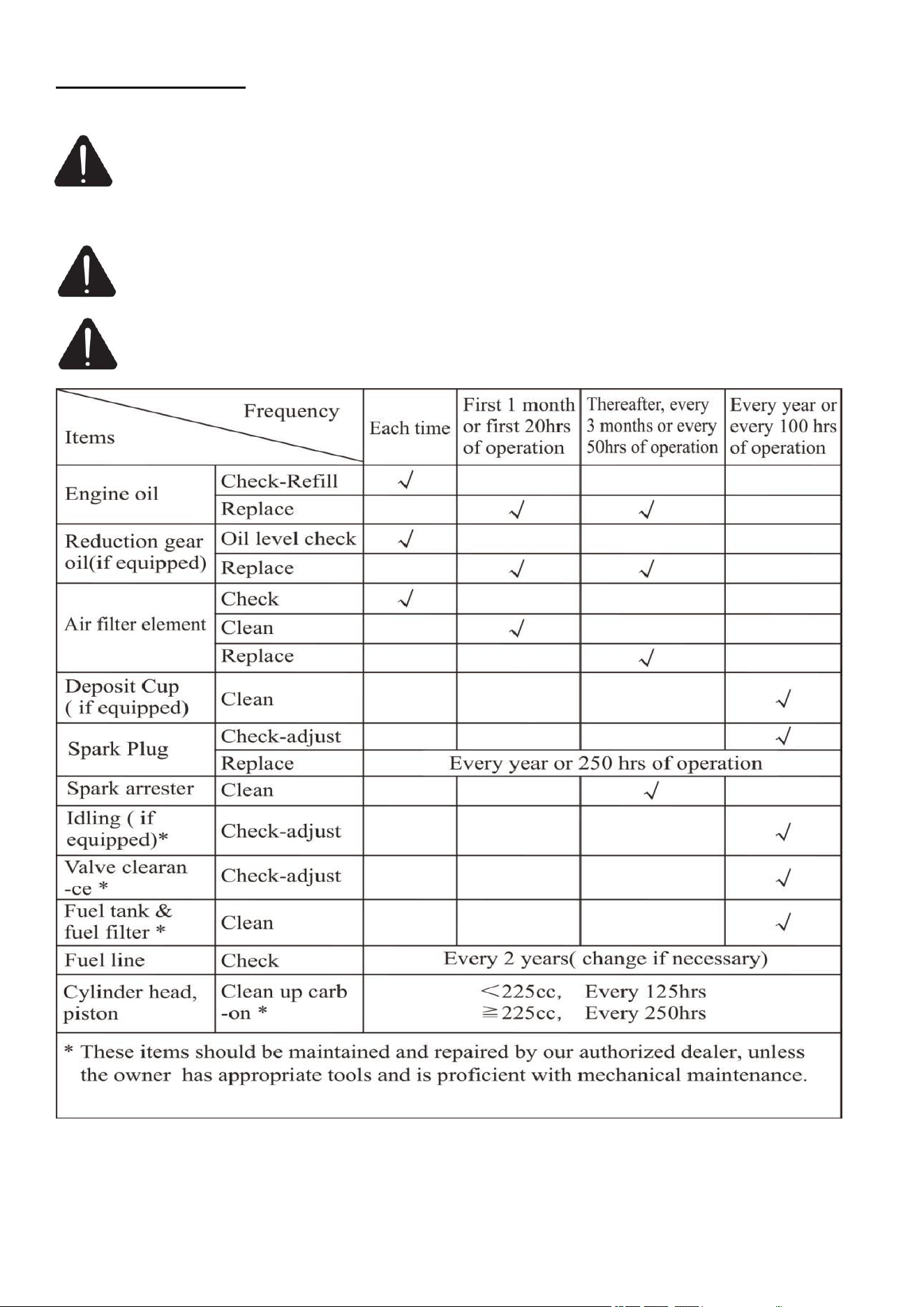

Maintenance Schedule
19
every 10 hours; If necessary, change the air filter element every 25 hours.
● If maintenance period and the exact time(hour), the one which comes first should govern.
● If you have missed the scheduled time to maintain your engine, do it as soon as possible.
Generator Maintenance
WARNING: Never clean the generator when it is running! Never use water to clean the
generating set. Water can enter the generating set through the cooling slots and damage the
generating set windings.
WARNING: Do not modify the generator in any way. Do not tamper with governed speed.
Generator supplies correct rated frequency and voltage when running at factory set. Tampering
with the factory set governor will void your warranty.
● Make certain that the generator is kept clean and stored properly.
● Use a dry cloth to clean exterior surfaces of the generating set. Use a soft brush to clean the dirt and
oil.
● Use an air compressor (25 PSI) to clear dirt and debris from the generating set.
● Inspect all air vents and cooling slots to ensure that they are clean and unobstructed.
Changing The Oil
WARNING: Change the oil when the engine is warm form operation. The oil can reach up to
140℃under that condition. Careful operation should be taken to prevent burns.
1. Place the machine on a level surface.
2. Unlock the oil maintenance cover and remove the dipstick.
3. Turn open the oil drain bolt and drain the oil (collect it with a waste oil box).
4. Install the oil drain bolt and tighten it.
5. Add recommended oil to the upper limit(H).
6. Fully tighten the dipstick.
7. Properly dispose of any used oil at an approved waste management facility.
For conforming to the environment requirement, the used oil will be put into a sealed container and then be
transported to the service station for recycle. Do not throw it into the trash or pour it on the ground.

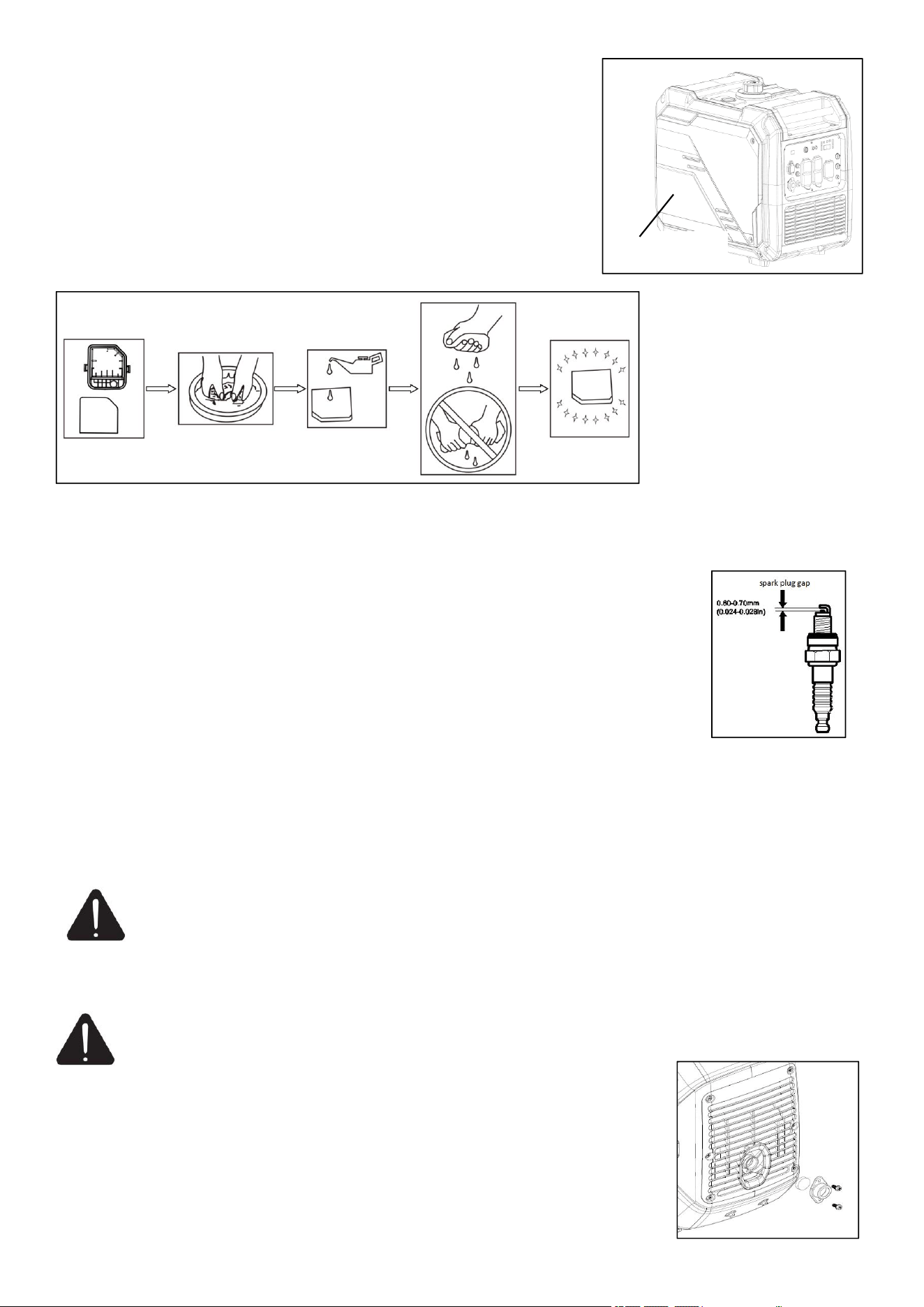

Air Filter Maintenance
WARNING: Do not run the engine without the air filter, or serious danger can result.
A dirty Air Cleaner will restrict air flow into the carburetor. Please clean and maintain the air
cleaner regularly to prevent carburetor from breaking down,If generators are often used in high dust areas,
they need to be maintained more frequently.
20
1. Loosen the cover screw and remove the appearance cover.
2. Loose the filter fix clamp and remove the cover of the air filter.
3. Remove the foam filter element.
4. Wash in liquid detergent and warm water.
5. Squeeze thoroughly dry in a clean cloth.
6. Saturate in clean engine oil.
7. Squeeze in a clean absorbent cloth to remove all excess oil.
8. Assemble the filter element onto the filter unit.
9. Assemble the filter fix clamp.
10. Reinstall the air filter maintenance cover and the appearance cover.
Spark Plug Maintenance
Spark plug gap : 0.6mm-0.7mm(0.024-0.028 in). Spark plug tighten torque: 12.5N.m
The spark plug is important for proper engine operation. A good spark plug should be
intact, free of deposits, and properly gapped. Refer to Recommended Maintenance
Schedule. To inspect the spark plug:
1. Remove the spark plug maintenance cover, and take off the spark plug cap.
2. Using the spark plug spanner to loose and take off the spark plug.
3. Check the spark plug, if the spark plug insulator cracked or chipped, change a
new one. Clean any dirt from the spark plug cap and spark plug base with wire brush if reuse it.
4. Measure the spark plug gap with a standard gauge. The normal value should be:0.6-0.7mm (0.024-
0.028in), adjust if necessary.
5. Carefully thread the spark plug into the engine by hand.
6. After the spark plug is seated, use spark plug wrench to tighten the plug.
7. Attach the spark cap to the plug and connect the spark plug wire to the plug.
CAUTION: Only use recommended spark plug or equivalent. Do not use spark plugs that have
improper heat range.
Spark Collector Maintenance
WARNING: The spark collector must be maintained for every 100 hours of engine operation.
1. When the muffler is cooled, loosen the screws from the muffler outlet and
take off the spark collector.
2. Use a brush to clean the carbon deposits on the spark collector. If the spark
collector is damaged, and replace it.
3. Re-install the spark collector.Fuel Tank Filter Maintenance.
Spark plug&air filter
maintenance cover
21

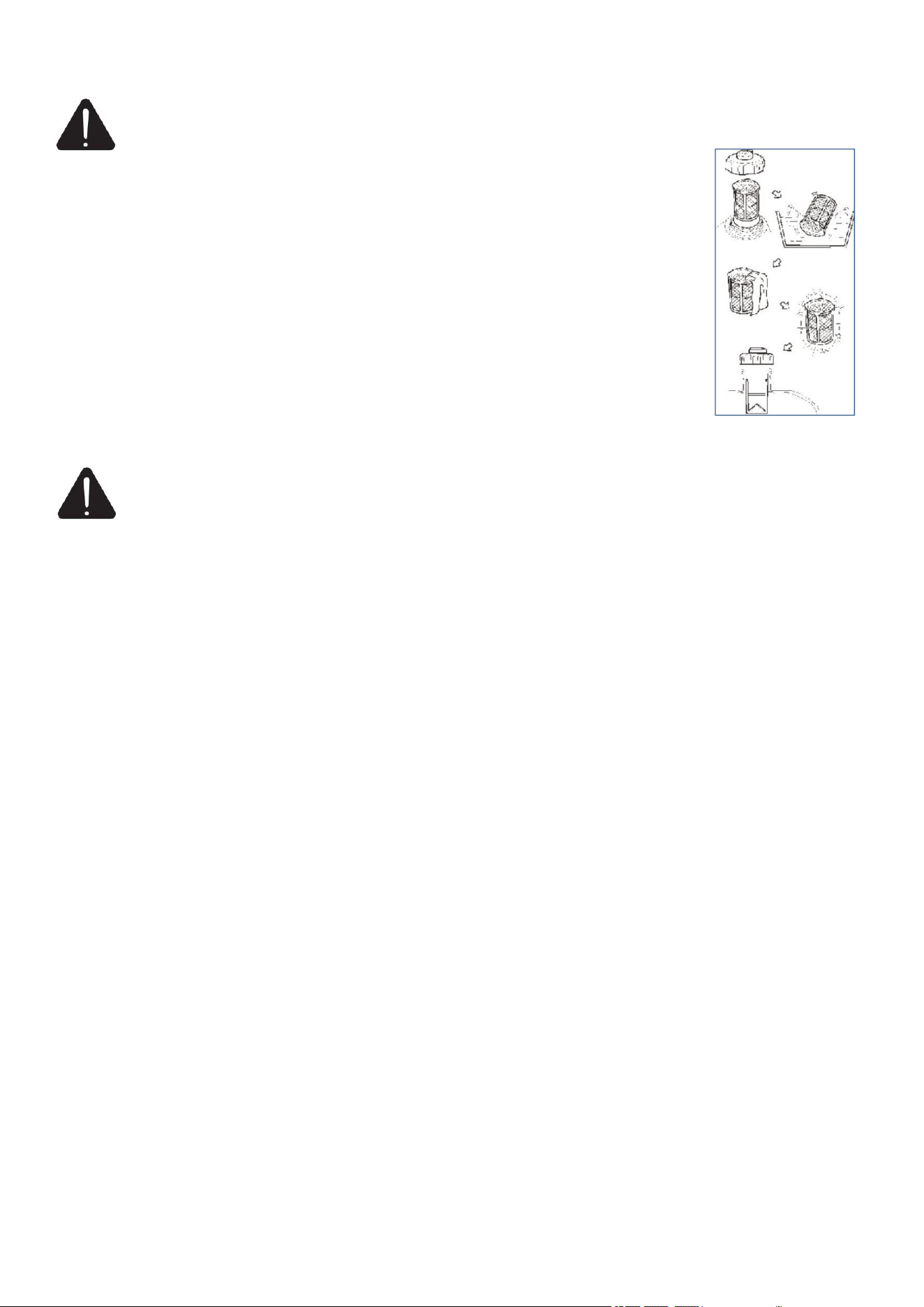

Fuel Tank Filter Maintenance
WARNING:Never use the gasoline while smoking or in the vicinity of an open flame.
1. Remove the fuel tank cap and filter.
2. Clean the filter with gasoline.
3. Wipe the filter and install it.
4. Install the fuel tank cap.
NOTE: Be sure the fuel tank cap is tightened securely.
Transport And Storage
WARNING: Gasoline is highly flammable and extremely explosive. Empty the fuel tank and shut
off fuel tap before storing or transporting this generating set.
We can move the generator with its carrying handle.
To prevent fuel spillage when transporting or during temporary storage, the generating set should be
secured upright in its normal operating position, with the fuel tap OFF.
When transporting
● Do not overfill the tank.
● Do not operate the generating set while it is on vehicle. Take the generating set off the vehicle and use
it in a well-ventilated place. Avoid a place exposed to direct sunlight when putting the generating set on a
vehicle. If the generating set is left in an enclosed vehicle for many hours, high temperature inside the
vehicle could cause fuel to vaporize resulting in a possible explosion.
● The generator must not be transported a long time on rough road. If you have to drive on a road like
this,drain off the gasoline and oil beforehand.
When storage for a long period
The generating set should be started at least once every 2 weeks and allowed to run for at least 20 minutes.
Follow the instructions below for longer term storage if the generating set will be out of service for 2
months or more.
● Allow the generating set to cool completely before storage.
● Clean the generating set according to instruction in maintenance section.
● Drain all fuel completely from the fuel tank, fuel hose and carburetor to prevent gum from forming.
● Turn off the fuel supply at the fuel valve.
● Change the oil.
● Reattach the spark plug.
● Remove the spark plug and pour about 15ml of oil into the cylinder. Crank the engine slowly to
distribute the oil and lubricate the cylinder.
● Store the unit in a clean, dry area out of direct sunlight.
22
TROUBLESHOOTING
Failure
Trouble
Solution
Inventor
generator fails to
start.
1. Fuel tap is in “OFF” position.
2. Lack of fuel.
3. Lack of engine oil.
4. Spark plug is splashed by fuel.
5. No ignition.
1. Rotate the fuel tap to “START” position.
2. Fill fuel tank per instructions in this manual.
3. Check oil level. Add recommended oil if the oil level is low.
This engine is equipped with a low oil sensor. The engine cannot
be started unless the oil level is above the prescribed lower limit.
4. Remove the spark plug and wipe the fuel.
5. Remove the spark plug cap.Clean any dirt around the plug
base, and then remove the spark plug. Install the spark plug in
the plug cap. Turn the engine switch to “START” position.
Grounding the electrode to any engine ground, pull the recoil
starter to see if sparks jump across the gap. If there is no spark,
replace the plug.
Reinstall the plug and start engine according to instructions in
this manual.
Engine runs well
at no-load, but
bogs when load
is applied.
1. Short circuit in a connected
load.
2. Generator is overloaded.
3. Engine speed is too slow.
4. Shorted generator circuit.
1. Disconnect shorted electrical load.
2.Check your generator limits. Press the overload protector off
and reduce loads.
3. Turn off the ECO switch and try again.
4. Consult Customer Service.
Engine shuts
down during
operation.
1. Out of fuel.
2. Low oil level.
3. Fault in engine.
4. Temperature is too high.
1. Fill recommended fuel to fuel tank.
2. Fill recommended oil to correct level.
3. Consult Customer Service.
4. Wait for temperature reduced and restart the generator.
Generating set
has no output.
1. Breaker trip.
2. Inadequate cord sets or
extension cords.
1. Reset circuit breakers.
2. Check cord sets or extension cords capabilities in section
controls; check cable size in this manual.
Engine lacks
power.
1. Load is too high.
2. Dirty air filter.
3. Engine needs to be serviced.
1. Reduce load (see Know Generator Limits ).
2. Clean or replace air filter.
3. Contact IASD. Maintenance your generator.
Engine will not
start; or starts
and runs rough.
1. Fuel tap is in OFF position.
2. Dirty air filter.
3. Out of fuel.
4. Stale fuel.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. fuel is mixed with water.
8. Low oil level.
9. Excessive rich fuel mixture.
10. Engine lost compression.
1. Turn fuel tap to ON position.
2. Clean or replace air filter.
3. Fill fuel tank.
4. Drain fuel tank and fill with fresh fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain fuel tank and fill with fresh fuel.
8. Fill crankcase with recommended oil to correct level.
9. Contact IASD.
10. Contact IASD.
Engine is
running, but AC
output is not
available.
1. Circuit breaker OPEN.
2. Poor connection or defective
cord set.
3. Connected device is bad.
4. Fault in generator.
5. The AC outlet cable is loosen.
1. Reset circuit breaker.
2. Check and repair.
3. Connect another device that is in good condition.
4. Contact Customer Service.
5. Remove the panel cover and connect the cable. It should be
done with a qualified electrician.
23

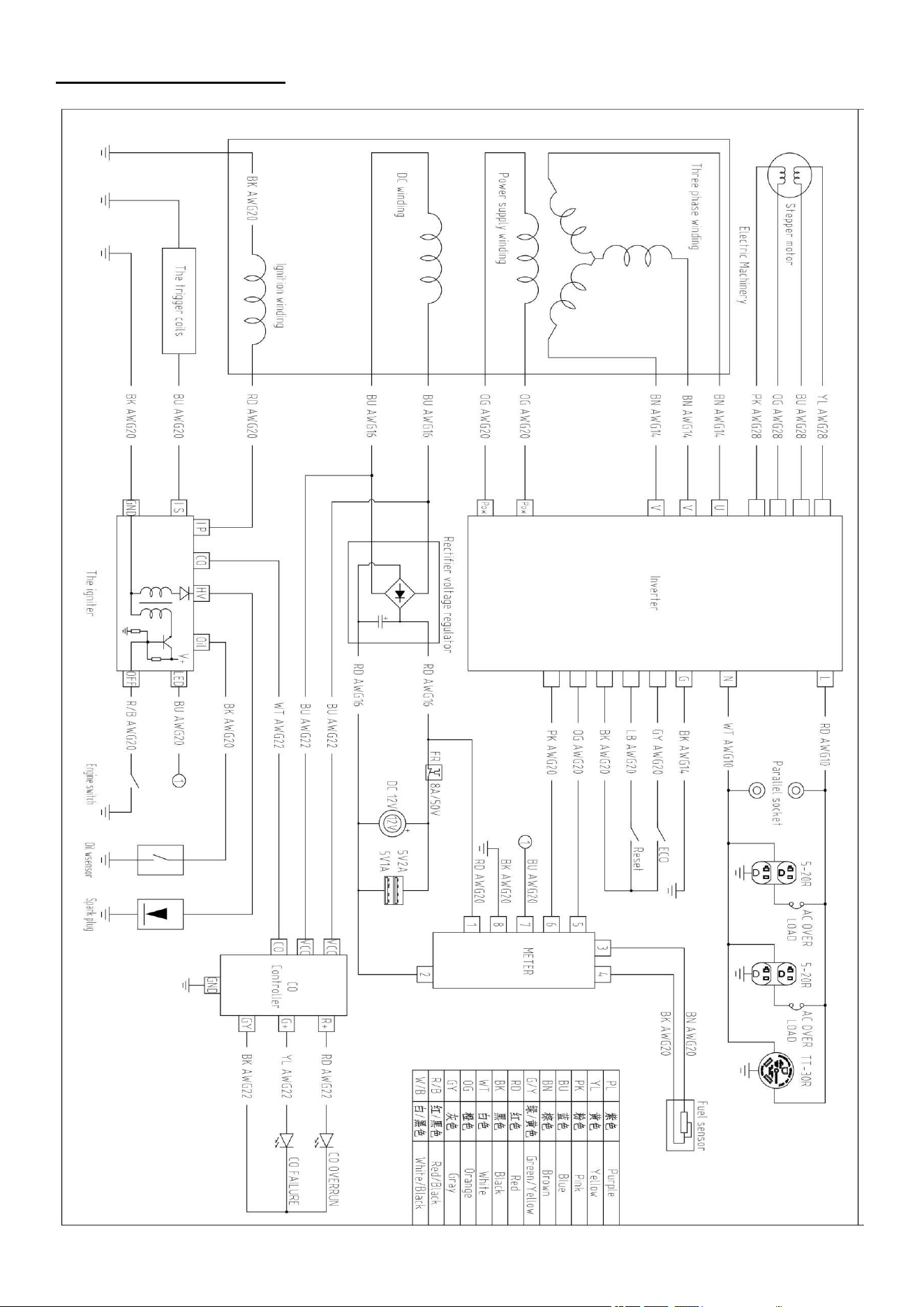

WIRING DIAGRAM
24
EXPLODED VIEW & PARTS LIST
Generator Exploded View
Generator Part List
Item Stock＃ Description Qty Item Stock＃ Description Qty
1
41410-G30B501-H0400 Baseplate Assembly
1 44
25214-G290503-00000 Gauge Cover
1
2
92318-G290503-00000 Square Nut
6 45
25550-G240010-00000 Spill Valve
1
3
92319-G290502-00000 Clip-on Nut
22 46
25580-G370001-00000 Spill Valve Mounting Plate
1
4
41410-G30B502-H0200 Baseplate Assembly
1 47
25501-G79B501-00000 Steam-hose
1
5
44220-G660501-00000 Wheel Assembly
2 48
25134-G30B501-00000 Fuel Line Protective Sleeve
1
6
93120-G050010-00000 Fuel Tank Gasket
4 49
25190-G290032-00000 Fuel Filter Screen Assembly
1
7
92110-0600-00100 Nylon Hexagon Lock Nut
2 50
95206-G290502-00000 Clamp
1
8
91107-0512-00100
Hexagon Flange Bolt - Heavy
Series - Grade B
4 51
25130-G30B501-000I0 Fuel Line
1
9
41110-G220020-00000
Shock-absorbing Pad
Assembly, Left
1 52
95206-E010010-00000 Clamp
1
10
41110-G220010-00000
Shock-absorbing Pad
Assembly, Left
1 53
25108-G290010-00000 Fuel Tank Support Sleeve
4
11
41120-G220010-00000
Shock-absorbing Pad
Assembly, Right
1 54
25101-V050503-00000 Shock-absorbing Pad, Fuel Tank
2
12
41120-G220020-00000
Shock-absorbing Pad
Assembly, Right
1 55
25190-G290031-00000 Fuel Filter Screen Assembly
1
13
92201-0800-00101 Hexagon Flange Nut
8 56
25109-G290011-H0400 Fixed Nut,Fuel Tank
1
14
41130-G220010-00000
Shock-absorbing Seat
Assembly, Frame
2 57
25110-G370502-H0400 Fuel Tank Cap Assembly
1
15
91101-0612-00100
Hexagon Flange Bolt - Small
Series
8 58
41460-G30B501-H0400 Top Shell Assembly
1
16
H225iD Engine
1 59
25221-G290011-00000 Rubber Pad, Gauge Window
1
17
41102-G220020-H0200 Engine Mounting Bracket
1 60
25220-G290021-00000 Gauge Window
1
18
25183-G220010-00000 Air Shroud Plate
1 61
26233-G30B501-H0400 Rubber Sleeve, Filling Port
1
19
41102-G220010-H0200 Engine Mounting Bracket
1 62
44410-G30B501-H0200 Handlebar Assembly
2
20
91101-0820-00100
Hexagon Flange Bolt - Small
Series
2 63
91705-G290506-00000 Hexagon Step Bolt
22
21
41420-G30B501-H0400 Left Housing Assembly
1 64
23151-G79D501-H04D0 Plug
8
22
44412-G30B503-H0200 Handle Connection Base
1 65
44412-G30B501-H0200 Handlebar Connection Base
1
23
44402-G30B501-H0200 Handlebar Bracket
1 66
44412-G30B502-H0200 Handlebar Connection Base
1
24
91101-0610-00100
Hexagon Flange Bolt - Small
Series
6 67
25103-G30B501-00000 Bushing
2
25
91705-G220010-00000 Hexagon Step Bolt
8 68
91101-0645-00100 Hexagon Flange Bolt - Small Series
2
26
41421-G30B501-C0100 Left Cover Plate
1 69
36103-G30B501-H0400 Panel Holder Assembly
1
27
91705-G290504-00000 Hexagon Step Bolt
8 70
65419-G30B000-H0400 Limit Plate
2
28
41430-G30B501-H0400 Right Housing Assembly
1 71
36314-G30B000-H0200 Inverter Mounting Bracket
1
29
44412-G30B504-H0200 Handle Connection Base
1 72
36300-G30B503-00000 Inverter
1
30
44402-G30B502-H0200 Handlebar Bracket
1 73
91202-0408-00100 Cross Recessed Pan Head Screw
2
31
31430-G220010-00000 Starting Switch Assembly
1 74
36168-G370507-00000 Connection Wire
1
32
91210-4216-00100
Cross Recessed Countersunk
Head Tapping Screws
3 75
31150-G220501-00000 Variable Voltage Rectifier
1
33
41431-G30B501-C0100 Right Cover Plate
1 76
36120-G30B508-H0200 Control Panel
1
34
41440-G220010-C0100 Knob Assembly
1 77
91202-0510-00200 Cross Recessed Pan Head Screw
6
35
93102-0408-00100 Small Washer - Grade A
1 78
36010-G660502-00000 Controller
1
36
91202-0416-00200
Cross Recessed Pan Head
Screw
1 79
91719-E040010-00000 Wire Clamp
1
37
41403-G30B501-C0100 Access Door
1 80
91206-4832-00100
Cross Recessed Pan Head Tapping
Screw
1
38
41440-G290022-H0400 Knob Assembly
1 81
44410-G30B503-H0400 Handlebar Assembly
1
39
41450-G290011-H0400 Baffle Plate Assembly
1 82
44410-G30B504-H0400 Handlebar Assembly
1
40
92110-0500-00200 Nylon Hexagon Lock Nut
1 83
44410-G30B502-H0200 Handlebar Assembly
1
41
91202-0412-00200
Cross Recessed Pan Head
Screw
3 84
91101-0612-00200 Hexagon Flange Bolt - Small Series
8
42
25100-G30B501-H0400 Fuel Tank
1 85
91101-0616-00100 Hexagon Flange Bolt - Small Series
1
43
25210-G30B501-00000 Gauge Assembly
1
25
26
Engine Exploded View
Generator Part List
Item Stock＃ Description Qty Item Stock＃ Description
1
13310-E200010-00000
Spring-type straight pin -
Coiled, Standard duty
1 49
92403-E010010-00000 Flywheel nut
2
94100-6205-00000 Deep groove bearings
2 50
33330-G300010-00000 Magneto rotor assembly
3
93116-E010010-00000 Deep groove bearings
2 51
26201-E200010-00000 Cooling fan
4
91709-E010010-00000 Oil drain bolt
2 52
91101-0616-00100
Hexagon flange bolt - Small
series
5
90001-E010010-00000 Oil seal
1 53
28001-E200010-00000 Starter cup
6
17021-E020010-00000 Valve lifter
2 54
91101-0630-00100
Hexagon flange bolt - Small
series
7
17210-E140010-00000 Camshaft assembly
1 55
26203-E200010-00000 Wind Shield
8
91101-0616-00100
Hexagon flange bolt - Small
series
2 56
91101-0612-00100
Hexagon flange bolt - Small
series
9
91101-0610-00100
Hexagon flange bolt - Small
series
1 57
31340-E180504-00000 Trigger assembly
10
31080-E200010-00000 Oil sensor assembly
1 58
91206-3513-00200
Cross recessed pan head tapping
screw
11
93302-0814-00001 Aligning pin
2 59
91101-0620-00100
Hexagon flange bolt - Small
series
12
13001-E200010-00000 Gasket, Crankcase
1 60
28100-E200502-H0202 Recoil starter component
13
91101-0832-00100
Hexagon flange bolt - Small
series
6 61
13006-E200010-00000
Outlet wire baffle
，
Motor
14
13410-E200010-00000 Crankcase cover assembly
1 62
95203-E040010-00000 Wire clip
15
19010-E200010-H0400 Oil dipstick assembly
1 63
91719-E040010-00000 Wire clamp
16
15310-E200010-00000 Crankshaft assembly
1 64
91101-0610-00100
Hexagon flange bolt - Small
series
17
15010-E140020-00001 Connecting rod assembly
1 65
26231-E200010-00000
Air shroud upper housing,
Crankcase
18
15100-E140010-00000 Piston
1 66
91101-0610-00100
Hexagon flange bolt - Small
series
19
15200-E140010-00000 Piston ring
1 67
26232-E200010-00000
Air shroud lower housing,
Crankcase
20
15121-E010010-00000 Piston pin
1 68
91206-4813-00100
Cross recessed pan head tapping
screw
21
15122-E010010-00000 Collar, Piston pin
2 69
93104-0513-00500 Plain washer - Product grade C
22
93302-1016-00001 Aligning pin
2 70
31300-E200504-00000 Ignition coil
23
11131-E030020-00000 Gasket,Cylinder head
1 71
91101-0612-00100
Hexagon flange bolt - Small
series
24
91718-E203501-00000 Bolt, Cylinder head
4 72
91707-E200010-00000 Double end bolt (Intake)
25
11140-E200020-00000 Cylinder head assembly
1 73
22002-E010010-00000 Gasket, Air intake
26
11121-E200010-00000 Intake valve
1 74
22006-E200010-00000 Heat shield, Carburetor
27
11122-E200010-00000 Exhaust valve
1 75
22007-E010020-00000 Gasket, Carburetor heat shield
28
11102-E010010-00000 Spring, Valve
2 76
25300-E200010-000I1 Carburetor
29
17310-E200010-00000 Valve rocker arm assembly
2 77
22001-E010020-00000 Gasket, Air filter
30
17341-E200010-00000 Valve rocker arm shaft
2 78
92201-0600-00100 Hexagon flange nut
31
91101-0610-00100
Hexagon flange bolt - Small
series
1 79
22100-E200501-00000 Air filter
32
17301-E200010-00000 Baffle, Rocker arm shaft
1 80
22004-E200010-00000 Exhaust pipe
33
11108-E200010-00000 Lock clamp, Valve
4 81
25130-E200010-000I0 Fuel Line
34
11101-E204501-Z0100 Oil sheild
1 82
25132-E010010-00000 Fuel Line Clamp
35
11106-E200010-00000 Spring seat, Intake valve
2 83
25132-E180502-00000 Fuel Line Clamp
36
17010-E200010-00000 Valve push rod assembly
2 84
91708-E010020-00001 Double end bolt (Exhaust)
37
31110-E010020-00000 Spark plug assembly
1 85
23001-E010010-00000 Gasket, Exhaust
38
11432-E200010-00000 Gasket, Breath groove cover
1 86
91101-0512-00100
Hexagon flange bolt - Small
series
39
19211-E200010-00000 Oil filter screen
1 87
91206-3513-00200
Cross recessed pan head tapping
screw
40
91101-0510-00100
Hexagon flange bolt - Small
series
2 88
26002-E200010-00000 Rear shield, Muffler
41
11431-E200010-00000 Cover, Breath groove
1 89
91101-0612-00100
Hexagon flange bolt - Small
series
42
11401-E200010-00000 Gasket, Cylinder head cover
1 90
92101-0800-00100 Hexagon nuts, Style 1
43
91101-0616-00100
Hexagon flange bolt - Small
series
4 91
23100-G30B501-00000 Muffler
44
11410-E200010-00000 Cylinder head cover assembly
1 92
91206-3513-00200
Cross recessed pan head tapping
screw
45
91101-0616-00100
Hexagon flange bolt - Small
series
2 93
26001-E200010-00000 Front shield, Muffler
46
26235-E200010-00000 Air shroud, Cylinder head
1 94
93208-G290502-00000 Retaining ring for bearing clip
47
91718-E180011-00000 Bolt, Cylinder head
3 95
23018-G220010-00000 Air shroud, Muffler
48
33310-G220506-00000 Magneto stator assembly
1 96
91101-0612-00100
Hexagon flange bolt - Small
series
27
28
TWO (2) YEARS LIMITED WARRANTY
Amerisun is committed to building tools that are dependable for years. Our warranties are consistent with our
commitment and dedication to quality.
TWO (2) YEARS LIMITED WARRANTY OF AMERISUN PRODUCTS FOR HOME USE.
Amerisun (“Seller") warrants to the original purchaser only, that all Amerisun consumer power tools will be free from
defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all
Amerisun Products, if the tool is used for professional or commercial use.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Two (2) Years Limited Warranty
and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of
parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly
handled, or misrepaired by persons other than Seller or Authorized Service Center. To make a claim under this
Limited Warranty, you must return the entire power tool product; transportation prepaid, to Amerisun Include a
legible copy of the original receipt, which lists the date of purchase (month and year) and the name of the company
purchased from.
THIS LIMITED WARRANTY DOES NOT APPLY TO ANY ACCESSORY ITEMS INCLUDED WITH THE
TOOL SUCH AS CIRCULAR SAW BLADES OTHER RELATED ITEMS OR TO ANY REPLACEMENT PARTS
LISTED UNDER MAINTENANCE.
ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF
PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY
NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
(INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR
USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA
AND FROM COUNTRY TO COUNTRY.
For questions / comments, technical assistance or repair parts –
Please call toll free at: 1-872-314-0005
(M-F 9am – 5pm EST)
Email: [email protected]
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
