Operation Manual
PLATE COMPACTOR
MODEL NUMBER: TPC80, TPC80H
To reduce the risk of injury, the user must read and understand the Operator’s
Manual before using this product. Save these instructions for future reference.
5. Compaction Tips
2
Table of Contents
1. Safety Information
1.1 Laws Pertaining to Spark Arresters
1.2 Operating Safety
1.3 Operator Safety while using Gasoline Engines
1.4 Service Safety
3. Operation
3.1 Recommended Fuel
3.2 Before Starting
3.3 Starting the Engine
3.4 Stopping the Engine
3.5 Application
3.6 Operation
4. Maintenance
4.1 Maintenance Schedule
4.2 Cleaning Plate
4.3 Drive Belt
4.4 Exciter Lubrication
4.5 Spark Plug
4.6 Engine Oil
4.7 Air Cleaner
4.8 Cleaning Sediment Cup
4.9 Carburetor Adjusment
4.10 Troubleshooting
4.11 Storage
4.12 Liing the Machine
4.13 Transporting the Machine
2. Technical Data
2.1 Engine Data
2.2 Machine Data
3
4
4
5
5
7
7
7
8
9
8
9
10
10
10
11
11
12
13
14
14
15
16
16
17
17
6
6
7
---------------------------------------------------------------------
----------------------------------------------------------
-----------------------------------------------------------------------------
---------------------------------------------------------------------------------
------------------------------------------
-------------------------------------------------------------
------------------------------------------------------------------------
--------------------------------------------------------------------
-------------------------------------------------------------------------
-------------------------------------------------------------------------------
------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------
------------------------------------------------------------------------------------
-------------------------------------------------------------------------------
--------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------
------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------
------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------
----------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------
----------------------------------------------------------------------------
18
-------------------------------------------------------------------------
3
Register Your Equipment
Thank you for purchasing TOMAHAWK® equipment! Your product is covered by the
TOMAHAWK® Warranty policy, but in order to activate your warranty, we need you to register
your product. In addition to activating your equipment warranty, product registration will
grant you access to important product updates, streamlined customer service and more.
INCLUDED WITH YOUR REGISTRATION
☑ Equipment Warranty Activation
☑ Product Updates
☑ Streamlined Customer Service
☑ Excusive Discounts and Sales
STEPS TO REGISTER YOUR EQUIPMENT
1. Visit www.tomahawk-power.com
2. Choose “Product Registration” at the bottom of the page
3. Enter your equipment’s serial number to get started
4. Provide all required information
5. Submit Registration
Equipment Resources
TOMAHAWK® Customer Service doesn’t stop at checkout. We understand to keep a job-site
running smoothly - the proper equipment, spare parts, instruction manuals, and more are
needed at the drop of a hat. Visit www.tomahawk-power.com to gain access to the incredible
resources below.
How To Video Library
More of a visual person? Visit our Video Library for equipment
assembly instructions, troubleshooting tips, and more!
Found on each product listing or the Service Videos Page
Manual and Assembly Guide Library
Visit our Manual Library if you are looking for a lost
operations manual or a particular spare part?
Found on each product listing or the Tomahawk Manuals Page
Service Requests
In need of a quick fix or a service center referral? Submit a
Service Request and a Tomahawk Technician will respond
shortly to get you the help you need.
Choose “Service Request” at the bottom of www.tomahawk-power.com
4
This manual provides information and procedures to safely operate and maintain this
equipment. For your own safety and protection from injury, carefully read, understand and
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the equipment. If you lose this manual or need an
additional copy, please contact Tomahawk Power LLC or visit www.tomahawk-power.com
This equipment is built with user safety in mind; however, it can present hazards if
improperly operated and serviced. Follow operating instructions carefully. If you have
questions about operating or servicing this equipment, contact Tomahawk Power.
The information contained in this manual is based on equipment’s production at the time of
publication. Tomahawk Power reserves the right to change any portion of this information
without notice.
No part of this publication may be reproduced in any form or by any means, electronic or
mechanical, including photocopying, without express written permission from
Tomahawk Power.
Any type of reproduction or distribution not authorized by TOMAHAWK® represents an
infringement of valid copyrights and will be prosecuted. We expressly reserve the right to
make technical modifications, even without due notice, which aim at improving our
machines or their safety standards.
1. SAFETY INFORMATION
This manual contains DANGER, WARNING, CAUTION, and NOTE callouts which must be
followed to reduce the possibility of personal injury, damage to the equipment, or improper
service.
1.1 Laws Pertaining to Spark Arresters
Notice: State Health Safety Codes and Public Resources Codes specify that in certain
locations spark arresters be used on internal combustion engines that use hydrocarbon
fuels. A spark arrester is a device designed to prevent accidental discharge of sparks or
flames from the engine exhaust. Spark arresters are qualified and rated by the United
States Forest Service for this purpose.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
DANGER
WARNING
CAUTION
5
1.2 Operating Safety
Familiarity and proper training are required for the safe operation of equipment!
Equipment operated improperly or by untrained personnel can be dangerous! Read
the operating instructions contained in both this manual and the engine manual and
familiarize yourself with the location and proper use of all controls. Inexperienced
operators should receive instruction from someone familiar with the equipment before
being allowed to operate the machine.
1.2.1 NEVER allow anyone to operate this equipment without proper training. People
operating this equipment must be familiar with the risks and hazards associated with it.
1.2.2 NEVER touch the engine or muffler while the engine is on or immediately aer it has
been turned off. These areas get hot and may cause burns.
1.2.3 NEVER use accessories or attachments that are not recommended by Tomahawk
Power. Damage to equipment and injury to the user may result.
1.2.4 NEVER leave machine running unattended.
1.2.5 ALWAYS be sure operator is familiar with proper safety precautions and operation
techniques before using machine.
1.2.6 ALWAYS wear approved safety goggles or safety glasses with side shields, or when
needed, a face shield. Use a dust mask in dusty work conditions. Also use non-skid safety
shoes, hardhat, gloves, dust collection systems, and hearing protection when appropriate.
This applies to all persons in the work area.
1.2.7 ALWAYS close fuel valve on engines equipped with one when machine is not being
operated.
1.2.8 ALWAYS store equipment properly when it is not being used. Equipment should be
stored in a clean, dry location out of the reach of children.
1.2.9 ALWAYS operate machine with all safety devices and guards in place and in working
order. DO NOT modify or remove safety devices. DO NOT operate machine if any safety
devices or guards are missing or inoperative.
1.2.10 ALWAYS read, understand, and follow procedures in Operator's Manual before
attempting to operate equipment.
1.3 Safety While Using Combustion Engines
Internal combustion engines present special hazards during operation and fueling!
Read and follow warning instructions in engine owner's manual and safety guidelines
below. Failure to follow warnings and DANGER safety guidelines could result in severe
injury or death.
1.3.1 DO NOT run machine indoors or in an enclosed area such as a deep trenches unless
there is adequate ventilation, through such items as exhaust fans or hoses are provided.
Gasoline exhaust from the engine contains poisonous carbon monoxide gas; exposure to
carbon monoxide can cause loss of consciousness and may lead to death.
1.3.2 DO NOT smoke while operating machine.
1.3.3 DO NOT smoke when refueling engine.
1.3.4 DO NOT refuel hot or running engine.
1.3.5 DO NOT refuel engine near open flame.
1.3.6 DO NOT spill fuel when refueling engine.
1.3.7 DO NOT run engine near open flames.
1.3.8 ALWAYS refill fuel tank in well-ventilated area.
1.3.9 ALWAYS replace fuel tank cap aer refueling.
WARNING
WARNING
1.3.10 ALWAYS check fuel lines and fuel tank for leaks and cracks before starting engine.
1.3.11 DO NOT run machine if fuel leaks are present or fuel lines are loose.
1.4 Service Safety
Poorly maintained equipment can become a safety hazard! In order for the
equipment to operate safely and properly over a long period of time, periodic
maintenance and occasional repairs are necessary.
1.4.1 DO NOT attempt to clean or service machine while it is running. Rotating parts can
cause severe injury.
1.4.2 DO NOT crank a flooded engine with the spark plug removed on gasoline-powered
engines. Fuel trapped in the cylinder will squirt out the spark plug opening.
1.4.3 DO NOT test for spark on gasoline-powered engines, if engine is flooded or the smell
of gasoline is present. A stray spark could ignite fumes.
1.4.4 DO NOT use gasoline or other types of fuels or flammable solvents to clean parts,
especially in enclosed areas. Fumes from fuels and solvents can become explosive.
2. TECHNICAL DATA
2.1 Product Features
TOMAHAWK® plate compactors are robust and versatile construction tools designed for
compacting various types of soil, gravel, and asphalt surfaces. The primary intended use is to
achieve maximum compaction efficiency and stability in a wide range of construction and
landscaping projects. Building a solid foundation enhances the durability and longevity of
roads, parking lots, driveways, sidewalks, and other paved areas. Its ergonomic design and
maneuverability enable it to navigate tight spaces and uneven terrain, making it suitable for
both residential and commercial applications.
2.2 Engine Data
6
Model TPC80 - 5.5HP Kohler Model TPC80 - 6HP Kohler Model TPC80H - 5.5HP Honda Model
Engine Make Kohler CH255 Kohler CH260 Honda GX160
Engine Type Air-cooled 4-stroke OHV Air-cooled 4-stroke OHV Air-cooled 4-stroke OHV
Start Type Pull Pull Pull
Horsepower 5.5 6 5.5
Engine Displacement 177cc 208cc 163cc
Peak Torque 11.2 -lb 10.42 -lb 7.6 -lb
Engine Rated Speed 4,000 RPM 4,000 RPM 4,000 RPM
Bore 68 mm 70 mm 68 mm
Stroke 49 mm 54 mm 45 mm
Engine Lubrication SAE 10W30 SG / SF SAE 10W30 SG / SF SAE 10W30 SG / SF
Oil Capac
ity 0.63 US qt. (0.6 L) 0.625 US qt. (0.6 L) 0.61 US qt. (0.58 L)
Fuel Type 91 Octane Gasoline 91 Octane Gasoline 91 Octane Gasoline
Fuel Tank Capacity 3.8 U.S. qts (3.6 liters) 3.8 U.S. qts (3.6 liters) 3.3 U.S. qts (3.1 liters)
Engine Dimensions 12.7” x 15.2” x 14.2” (L x W x H) 12.7” x 15.2” x 14.2” (L x W x H) 12.2” x 14.3” x 13.6” (L x W x H)
Engine Dry Weight 38.7 lbs 38.7 lbs 33 lbs
Engine Warranty 3 Year 3 Year
3 Year
Spark Plug NGK BPR 6ES NGK BPR 6ES NGK BPR 6ES
DANGER
7
2.3 Machine Data
3. OPERATION
3.1 Recommended Fuel
The engine requires regular grade unleaded gasoline, 87 octane or higher. Use only fresh,
clean gasoline.
NOTE: Gasoline containing water or dirt will damage fuel system. Consult engine
owner's manual for complete fuel specifications.
3.2 Before Starting
3.2.1 Read and understand safety and operating instructions at beginning of this manual.
3.2.2 Check:
-Oil level in engine
-Fuel level
-Condition of air cleaner
-Tightness of external fasteners
-Condition of fuel lines
Model TPC80 - 5.5HP Kohler Model TPC80 - 6HP Kohler Model TPC80H - 5.5HP Honda Model
Centrifugal Force 13 Kn 13 Kn 13 Kn
Max Exciter Speed 5800 RPM 5800 RPM 5800 RPM
Compaction Force 3000 lb/ 3000 lb/ 3000 lb/
Compaction of Cohesive Soils 22 inches 22 inches 22 inches
Vibration Frequency 100 Hz 100 Hz 100 Hz
Vibrations per Minute 6400 6400 6400
Max Travel Speed 79 /min 79 /min 79 /min
Plate Depth 21 inches 21 inches 21 inches
Package Dimensions 17 inches 17 inches 17 inches
Weight 176 lbs 176 lbs 170 lbs
Product W
arranty 1 Year 1 Year 1 Year
CA (CARB) Compliant Yes Yes Yes
EPA Compliant Yes Yes Yes
If you have just unboxed this plate compactor, oil will need to be
added. This plate compactor’s engine does not ship with oil. Add .6L of
10W-30 oil before starting the engine.
3.3 Starting the Engine

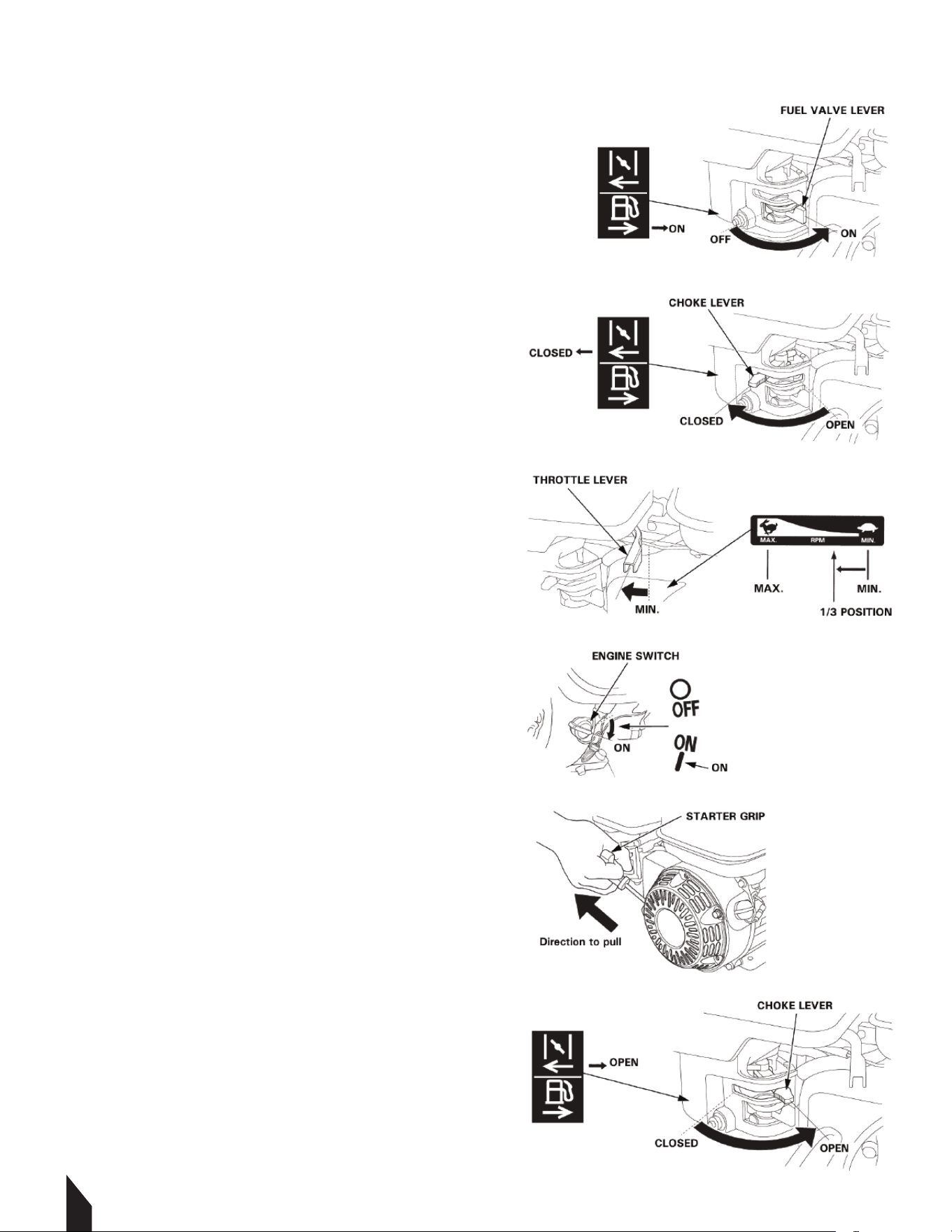

3.3.1 Adjust the fuel valve lever (1) to the ON
position.
3.3.2 When starting a cold engine, position
the choke lever (2) to the CLOSED state.
NOTE: If restarting a warm engine, keep the
choke lever (2) in the OPEN position.
3.3.3 Shi the throttle lever (3) away from
the MIN position, moving it about 1/3 of the
way towards the MAX position.
3.3.4 Set the engine switch (4) to the ON
position.
3.3.5 Gently pull the recoil starter grip (5)
until you encounter resistance, then briskly
pull it in the direction indicated by the arrow.
Aerwards, release the starter grip gently.
NOTE: To prevent any damage to the starter,
avoid allowing the starter grip to snap back
forcefully against the engine. Instead, gently
return it to its original position.
3.3.6 If the choke lever (6) was initially set to
the CLOSED position for starting, gradually
transition it to the OPEN position as the
engine begins to warm up.
3.4 Stopping the Engine
3.4.1 Adjust the throttle lever (3) to the
minimum (MIN) position.
3.4.2 Switch off the engine by turning the
engine switch (4) to the OFF position.
3.4.3 Move the fuel valve lever (1) to the OFF
position.
Note: In case of an emergency, promptly
turn the engine switch (4) to the OFF
position to stop the engine. For regular
shutdowns, follow the procedure mentioned
earlier.
1
2
3
4
5
6
8
3.6 Using the Equipment
Run engine at full throttle and allow plate to pull itself along at its normal speed. When
operating on an incline it may be necessary to assist plate by pushing it forward slightly.
Depending on the material being compacted, three or four passes are recommended to
achieve the best compaction.
While a certain amount of moisture in the soil is necessary, excessive moisture may cause
soil particles to stick together and prevent good compaction. If soil is extremely wet, allow
it to dry somewhat before compacting.
If soil is so dry as to create dust clouds while operating plate, some moisture should be
added to the ground material to improve compaction. This will also reduce service to the
air filter.
NOTE: When using the plate on paving stones, attach a pad to the bottom of the plate to
prevent chipping or grinding surface of the stones. A special polyurethane pad designed for
this purpose is available as an optional accessory. See Page 20 for a installation guide.
3.7 Building a Brick Patio
A plate compactor is essential for building a brick patio as it ensures a firm and stable base
by compacting the soil and base materials, preventing future settling and ensuring the
longevity of the patio. Having a brick patio is a true delight. Its durable and low-maintenance
nature allows for long-lasting beauty and the perfect spot to create wonderful moments with
family and friends.
3.7.1 Steps for Laying a Brick Patio
1. If there is an existing patio – remove the old bricks, paving stones, or concrete.
2. Excavate 7 inches of soil using a shovel, then compact the ground with the plate
compactor.
3. Apply 2 inches of graded base and compact it.
4. Place nylon lines 3 inches above the graded base and lay steel pipes (screed rails) 2 inches
below the lines.
5. Spread sand across the entire area and use a screed to level it.
6. Fill any low spots with additional sand and re-screed as needed.
7. Start placing pavers in one corner, being careful not to slide them, and continue installing
them, ensuring staggered joints.
8. Install plastic edging around the patio perimeter.
9. Spread a ½-inch layer of sand over the bricks and vibrate it into the paver joints using the
plate compactor.
10. Install a protective paver pad to prevent breaking or scuffing the bricks.
11. Sweep away excess sand with a push broom.
9
DO NOT operate plate on concrete or on extremely hard, dry, compacted surfaces.
The plate will jump rather than vibrate and could damage both plate and engine.
4. MAINTENANCE
4.1 Maintenance Schedule
The chart below lists basic engine maintenance. Refer to engine manufacturer's Operation
Manual for additional information on engine maintenance.
4.2 Cleaning Plate
Clean the plate aer use to remove dirt, stones, and mud caught under the engine console.
If plate is being used in a dusty area, check engine cylinder cooling fins for heavy dirt accu-
mulation. Keep engine cylinder fins clean to prevent engine from overheating.
10
Daily
before
starting
Check fuel level.
Check engine oil level.
Inspect fuel lines.
Check and adjust drive belt.
Clean air cleaner elements.
Inspect shockmounts for
damage.
Change engine oil.
Clean engine cooling fins.
Clean sediment cup / fuel
filter.
Check and clean spark plug.
Check and adjust valve
clearance.
Change exciter oil.
Inspect air filter. Replace
as needed.
Check and tighten external
hardware.
Aer
first 20
hours
Every 2
weeks or
50 hours
Every
month or
100 hours
Every
year or
300 hours
11

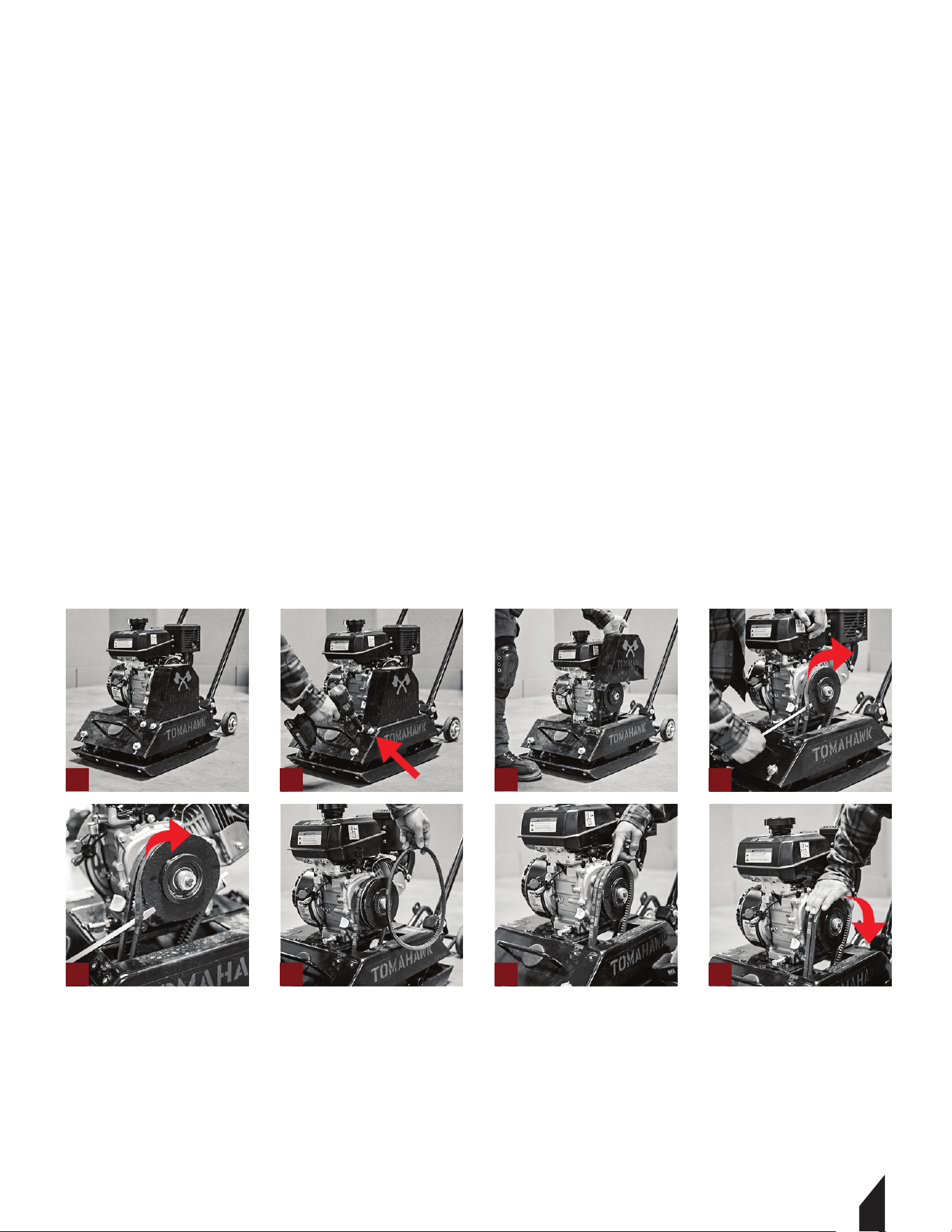

4.3 Drive Belt (Fig.3)
On new machines or aer installing a new belt, check belt tension aer first 20 hours of
operation. Check and adjust belt every 50 hours thereaer.
To change the belt:
4.3.1 Remove the four hex nuts securing the belt cover. (B-C)
4.3.2 Remove the 1st belt. Use a scredriver to ease the 1st belt off by placing under the belt
and on the lip of the pulley, then pulling up. Remove the 2nd belt using the same technique
and shiing the 2nd belt from the inner groove to the outer groove and then off of the
pulley. (D-F)
4.3.3 Install a new belt on pulley. Place around the inner groove of the lower pulley and the
inner groove of the upper pulley. (G) Holding the belt firm, turn the pulley clockwise. (H)
Repeat for the 2nd belt.
4.3.4 Replace Belt
4.4 Exciter Lubrication (Fig. 4)
The exciter assembly is a self-contained, sealed unit. The bearings are lubricated using
automatic transmission fluid (see Technical Data for type). Change fluid once every year or
300 hours of operation. When changing fluid, replace O-ring.
Fig. 3
A B C D
E F G H
4.5 Spark Plug (Fig. 5)
Clean or replace spark plug as needed to ensure proper operation. Refer to the engine
owner's manual.
The muffler becomes very hot during operation and remains hot for a while aer stopping
the engine. Do not touch the muffler while it is hot.
Note: Refer to the Technical Data for the recommended spark plug type and the electrode
gap setting (page 6).
To change fluid:
4.4.1 Remove the rubber cap from the front of the compactor’s housing. (A)
4.4.2 Remove the drain nut from the compactor’s exciter box with a 19mm socket. (B)
12
Fig. 4
4.4.3 Tip baseplate up and drain fluid from exciter
assembly. Dispose of used fluid in an appropriate
manner. Contact local recycling center.
4.4.4 Add 150 ml (5 ounces) of automatic transmis-
sion fluid to exciter housing and fasten end cover to
exciter. Do not overfill exciter or bearings may over-
heat.
4.4.5 Set up console assembly to baseplate and
install belt, beltguard, and hose to water tank.
A
B
C
13
4.6 Engine Oil (Fig. 6)
4.6.1 Drain oil while the engine is still warm.
4.6.2 Remove the oil fill plug (a) and drain plug (b) to
drain oil.
4.6.3 Install drain plug.
4.6.3 Fill the engine crankcase through the oil
opening (b), to the upper mark on the dipstick (c).
Do not thread in the dipstick to check the level. See
Technical Data for oil quantity and type (page 6).
4.6.4 When the crankcase is full, reinstall the dipstick.
Note: In the interests of environmental protection, place a plastic sheet and a container
under the machine to collect any liquid which drains off. Dispose of this liquid in accor-
dance with environmental protection legislation.

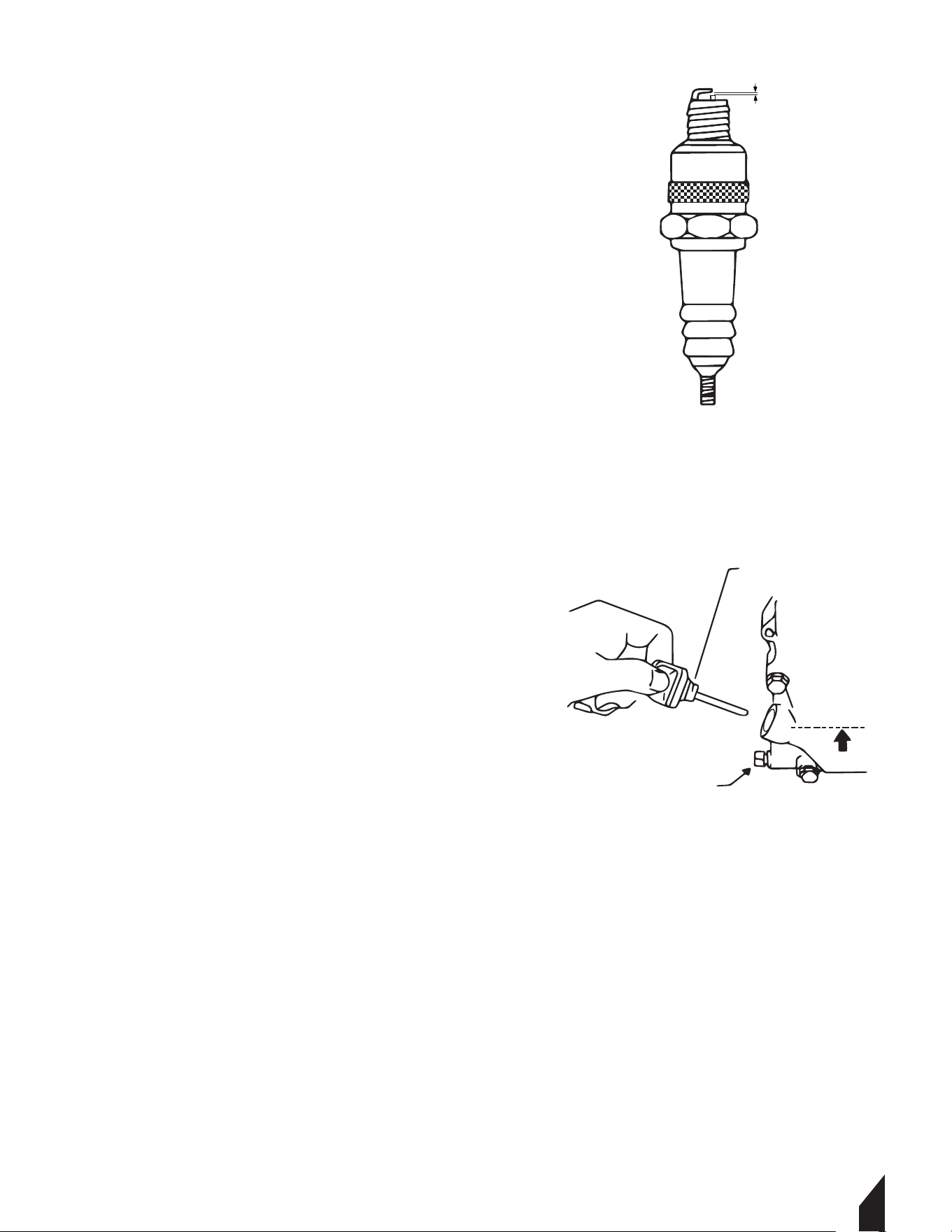

4.5.1 Remove spark plug and inspect it.
4.5.2 Replace plug if the insulator is cracked or
chipped.
4.5.3 Clean spark plug electrodes with a wire brush.
4.5.4 Set the electrode gap (a).
4.5.5 Tighten spark plug securely.
CAUTION: A loose spark plug can become very hot and
may cause engine damage.
a
Fig. 5
Fig. 6
a
b
c

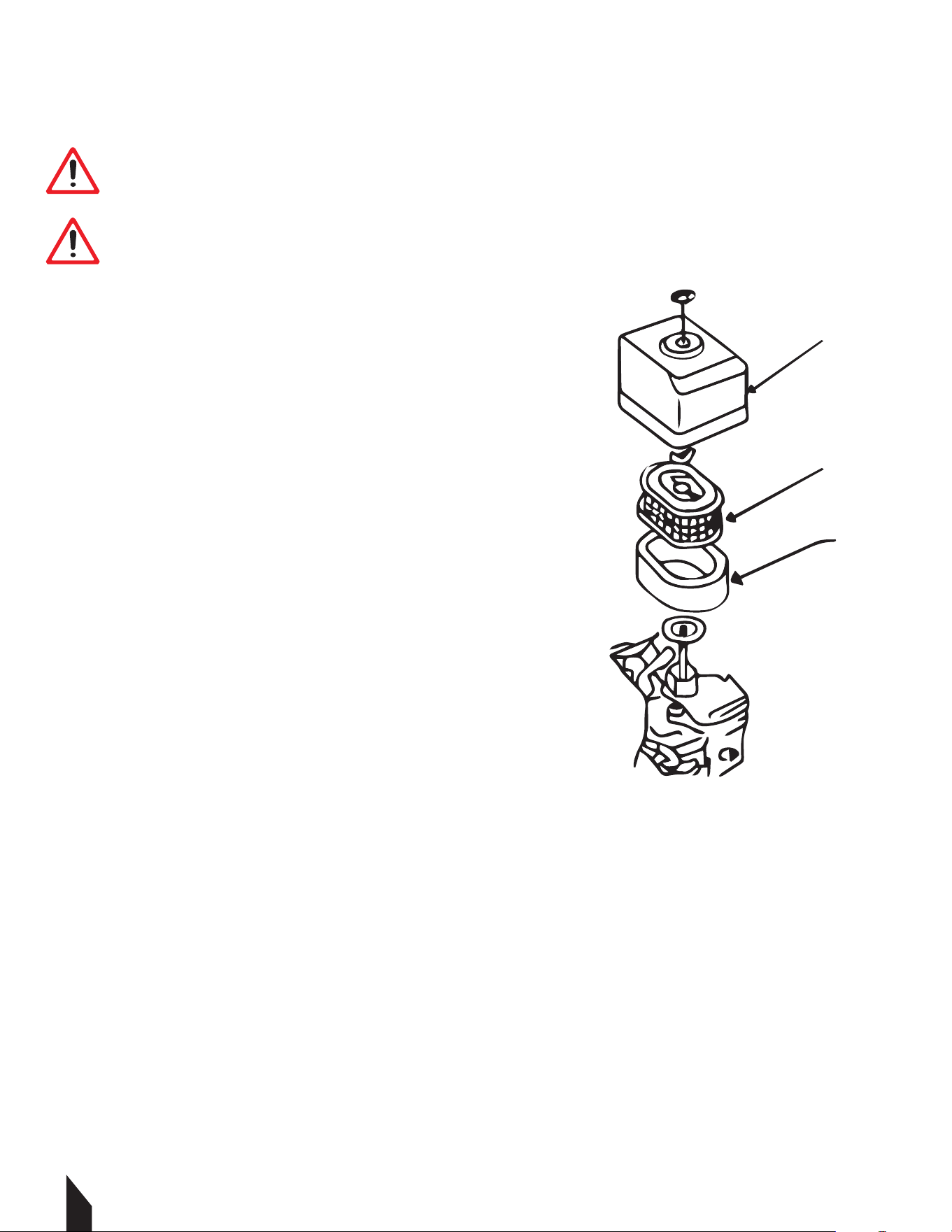

4.7 Air Filter (Fig. 7)
NEVER use gasoline or other types of low flash point solvents for cleaning the air
cleaner. A fire or explosion could result.
NEVER run engine without air cleaner: Severe engine damage will occur.

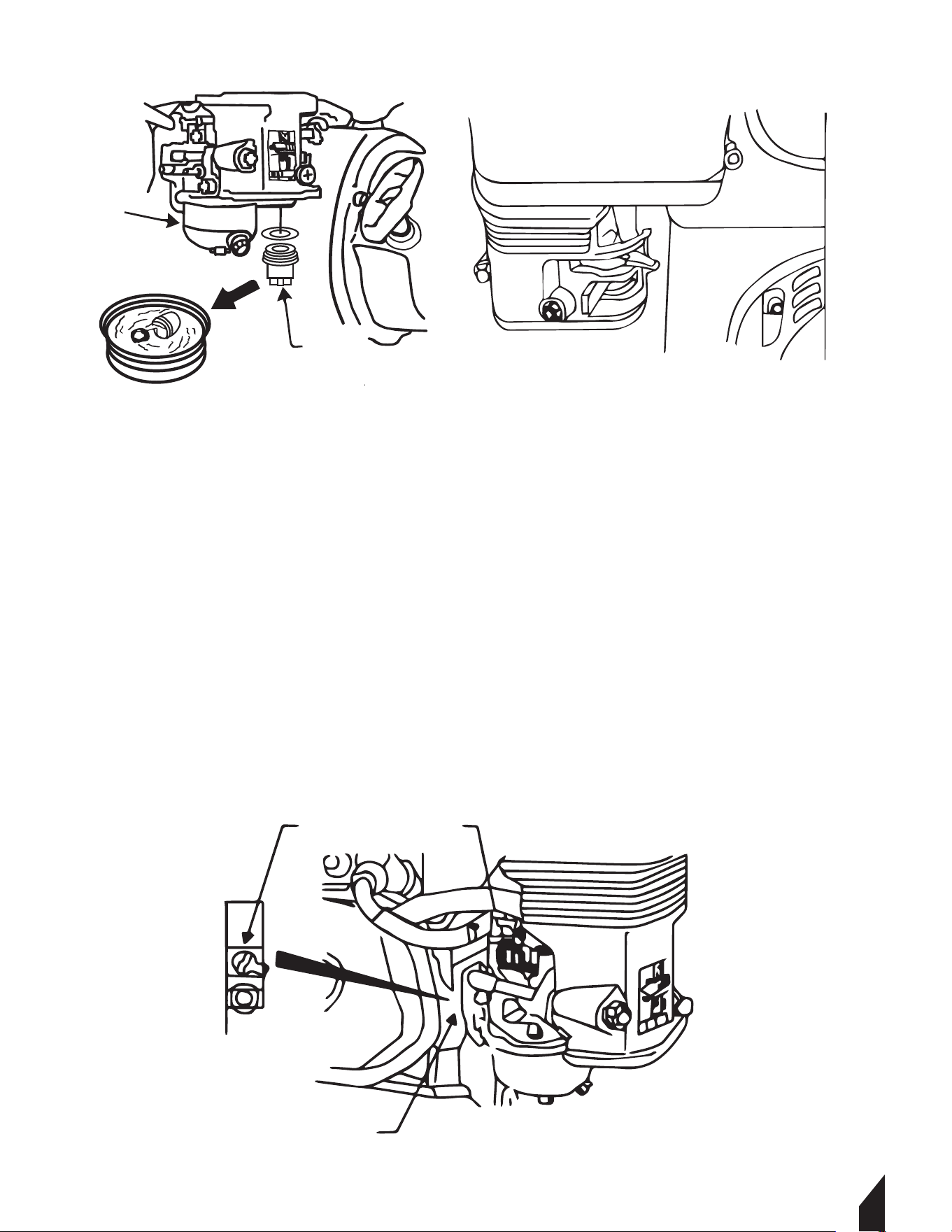

4.8 Cleaning Sediment Cup (Fig. 8)
4.8.1 Turn fuel valve off.
4.8.2 Remove sediment cup (a) and O-ring (b).
4.8.3 Wash both thoroughly in a nonflammable solvent. Dry and reinstall them.
4.8.4 Turn fuel valve on and check for leaks.
14
The engine is equipped with a dual element air cleaner.
Under normal operating conditions, elements should
be cleaned once every week. Under severe, dry and
dusty conditions, the elements should be maintained
daily. Replace an element when saturated with dirt that
cannot be removed.
4.7.1 Remove the air cleaner cover (a). Remove both
elements and inspect them for holes or tears. Replace
damaged elements.
4.7.2 Wash the foam element (b) in a solution of mild
detergent and warm water. Rinse it thoroughly in clean
water. Allow the element to dry thoroughly.
4.7.3 Tap the paper element (c) lightly to remove
excess dirt or blow compressed air through the filter
from the inside out. Replace the paper element if it
appears heavily soiled.
WARNING
CAUTION
Fig. 7
a
c
b
15
4.9 Carburetor Adjustment (Fig. 9)
4.9.1 Start the engine and allow it to warm up to operating temperature.
4.9.2 Set the pilot screw (a) 2 turns out. See Note.
4.9.3 With the engine idling, turn the pilot screw (a) in or out to the setting that produces
the highest rpm.
4.9.4 Aer the pilot screw is adjusted, turn the throttle stop screw (b) to obtain the stan-
dard idle speed. See Technical Data.
Note: On some engines the pilot screw is fitted with a limiter cap (c) to prevent excessive
enrichment of the air-fuel mixture in order to comply with emission regulations. The mix-
ture is set at the factory and no adjustment should be necessary. Do not attempt to remove
the limiter cap. The limiter cap cannot be removed without breaking the pilot screw.
Fig. 8
Fig. 9
a
b
a
c b
4.10 Troubleshooting
4.11 Storage
If plate is being stored for more than 30 days:
4.11.1 Remove loose stones and dirt from plate.
4.11.2 Clean engine cylinder cooling fins.
4.11.3 Clean or replace air filter.
4.11.4 Change exciter oil.
4.11.5 Change engine oil and follow procedures described in engine manual for engine
storage.
16
Problem / Symptom
-Plate does not develop
full speed.
-Poor compaction.
-Engine running, no
vibration.
• Engine throttle control is not completely open.
• Throttle control is not adjusted correctly.
• Ground is too wet, plate sticking. Allow soil to dry
before compacting.
• Drive belt is loose or worn, slipping on pulleys. Adjust or
replace belt. Check that the engine mounting bolts are
tight.
• Exciter bearings binding. Check condition and level of
oil in exciter. Add or change oil.
• Air filter is clogged with dust, reducing engine
performance. Clean or replace air filter.
• Engine speed is too low. Check the engine speed with
tachometer. Adjust or repair engine to run at correct the
speed. Refer to engine manual.
• Engine throttle is not open.
• Drive belt is loose or broken. Adjust or replace.
• Clutch is damaged. Inspect and replace clutch.
• Engine speed is low. Check engine speed.
• Too much oil in exciter. Adjust oil to the correct level.
-Plate jumps or
compacts unevenly.
• Ground surface is too hard.
• Shockmounts loose or damaged.
Reason / Remedy
4.12 Liing Machine
See Technical Data for the weight of the machine.
To li machine manually:
4.12.1 Stop the engine.
4.12.2 Obtain help from a partner and plan the li.
4.12.3 Grasp the machine by its cage and liing slot.
4.12.4 Li the machine.
To reduce risk of back injury while liing, keep your feet flat on ground and
shoulder width apart. Keep your head up and back straight.
To li machine mechanically:
CAUTION: Before attempting to li, be sure that all liing devices can safely handle the
weight of the machine. See Technical Data (page 7) for the weight of the machine.
Attach hook, harness, or cable to the machine as shown and li as desired.
CAUTION: DO NOT li the vibroplate by its guide handle. The vibroplate can shi, causing it
to fall.
4.13 Transporting the Machine
To avoid burns or fire hazards, let the engine cool before transporting the machine
or storing indoors.
4.13.1 Turn the fuel valve to the off position and keep the engine level to prevent fuel from
spilling.
4.13.2 Tie down the machine on vehicle to prevent the machine from sliding or tipping
over.
WARNING
WARNING
17
1718
5. COMPACTION TIPS
5.1 Soil Drop Test: Soil preparedness refers to the “wetness” of the dirt or soil. Soil needs
to be 50% dry and 50% wet, before starting compaction. A simple “hand test” can deter-
mine this. Pick up a handful of soil with your hand and squeeze the dirt. Observe whether
the soil is powdery or if it breaks apart when dropped. If the soil does break apart, it means
that it is too dry. If the soil keeps together in one piece when dropped, it is ready for com-
paction.
5.2 Soil Testing: Testing: The function of this step is to measure the density of an aggregate
material to ensure the increase of density when driving out air. At a low moisture content
level, there are more soil particles assembling together. In order to determine if the soil is
compacted properly, there are several methods.
5.2.1 Soil Testing: Test strips are useful to determine the method of compaction and
understand how many passes of your plate compactor are needed to achieve the optimum
compaction. Every layer of compacted soil meets a specific percentage on the proctor
curve. Through soil testing, it is possible to identify optimum moisture. Soil testing mea-
sures the soil density compared to the degree of compaction specifications, as well as the
effect of the moisture.
A common laboratory method called the Proctor Compaction Test can be used to deter-
mine the optimal moisture content for a given soil type. The goal of this method is to
understand the soil’s maximum dry density. A second method of soil testing is known as
the California Test 216 and is used to find the relative compaction of untreated and treated
soils.
Four factors account for optimum compaction including li thickness, pressure, and soil
moisture content. During the compaction process, the soil's moisture adds density and
lubricates soil particles, until there is a maximum dry unit weight without voids in the soil.

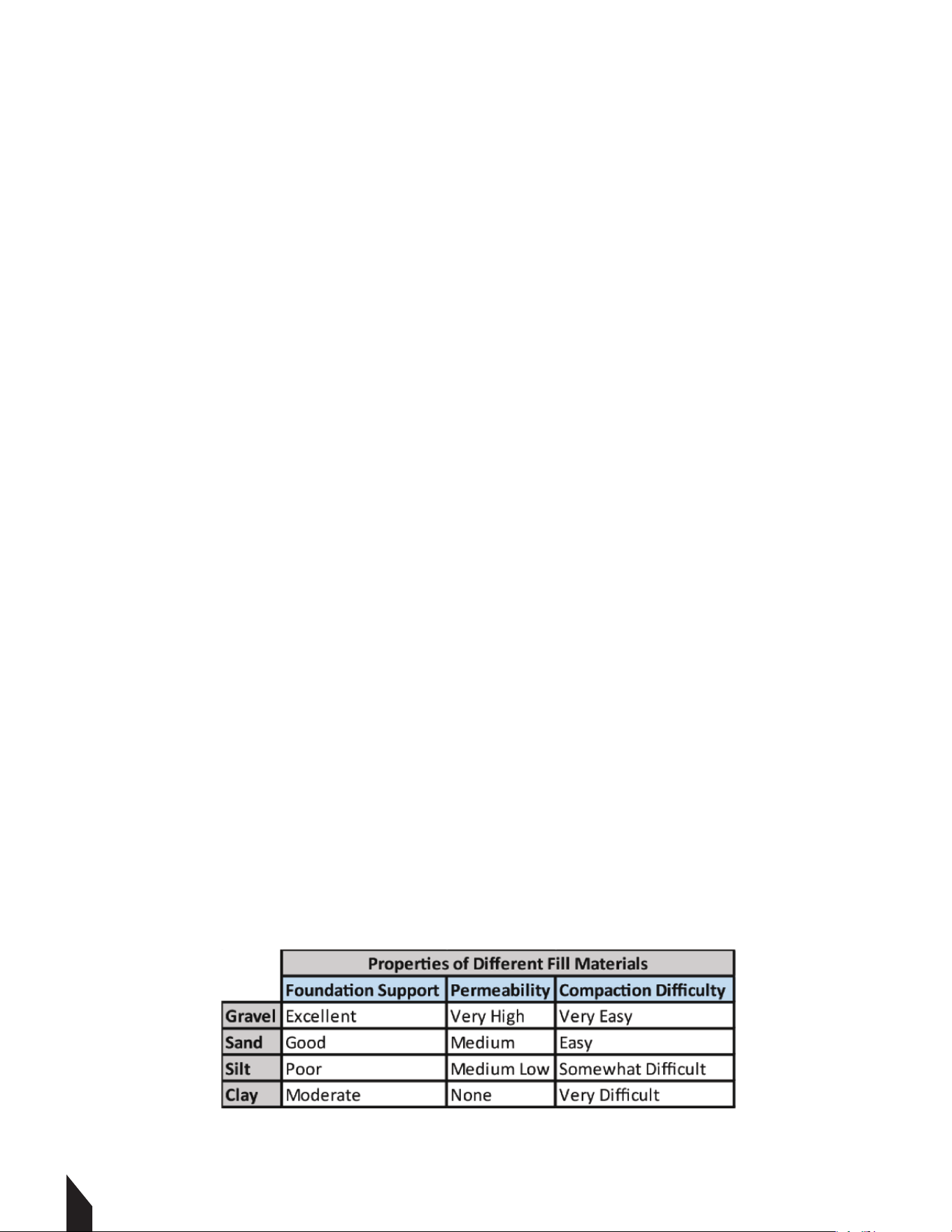

The table below explains the different outcomes and properties of fill materials.
19

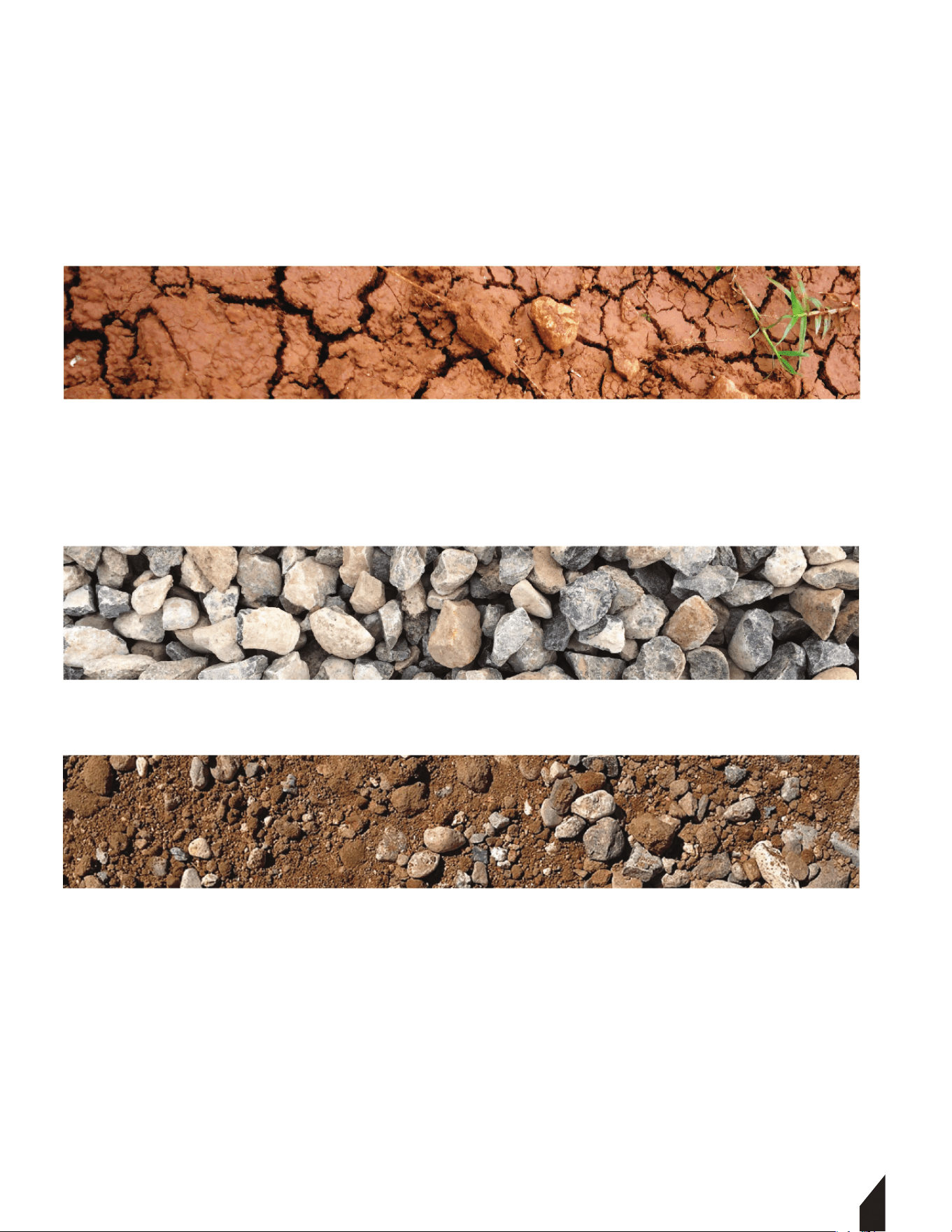

5.3 Compaction Terms
5.3.1 Cohesive soils: Clays and mixes have a particular particle size of less than .003” or
.002” and are typically classified as cohesive soils. This type of soil is primarily used for
retaining pond beds and mound fills. These soils are dense due to the strongly bound mo-
lecular attraction. Cohesive soils and water will not mix easily, but only once the soils are
moist it will feel sticky.
5.3.2 Granular soils: These soils have particle sizes of .003” or greater, like sand. Water
drains easily through the soils particles of granular soils. The larger the particles, the larger
the equipment needed to achieve lower frequencies and higher compaction force. Plate
compactors are typically the best option for compacting granular soils - however, depend-
ing on the vibration frequency and particle size, reversible plate compactors and double
drum rollers may be more appropriate for this type of work.
5.3.3 Mixed soils: Sometimes soils can be a mixture of both types, cohesive and granular.
Thus choosing the appropriate compaction equipment is more difficult. We recommend
testing your equipment to match the best machine to the desired job.
5.3.4 Static force: Found in the deadweight of machines, static force applies pressure
downward on soil surfaces. As a result, soil particles compress in the topsoil layer.
5.3.5 Vibratory force: This force is engine-driven, creating a downward force, in addition to
the machine's static weight. Vibrations compress the soil material closer together to
increase density.
5.3.6 Types of compaction: There are four types of compaction that can be applied to soils
or asphalt. Each one takes place using one of the two types of the forces explained above
(static or vibratory).
A. Vibration: Periodic motion of particles with rotating weight in opposite directions
from a position of equilibrium.
1720

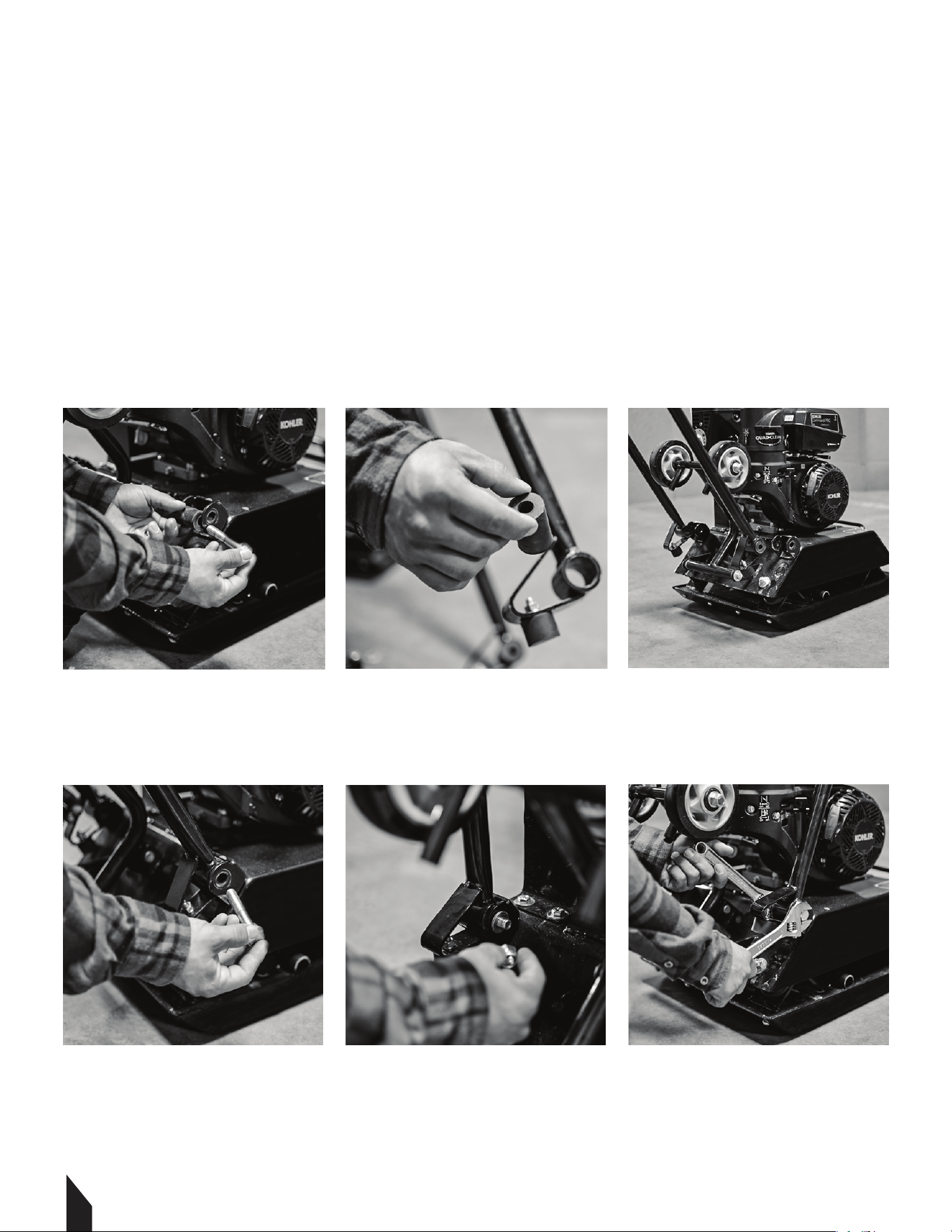

6. HANDLE ASSEMBLY
6.1 Remove the bolts and isolation mounts from the back of the compactor. (Fig. 10)
6.2 Fit the isolation mounts into the bottom of the handles. (Fig. 11)
6.3 Align the base of the handles to the back of the compactor and fit into the
brackets. (Fig. 12)
6.4 Fit the bolts back into the isolation mounts on either side of the handles. (Fig. 13)
6.5 Fasten in place the nuts. (Fig. 14)
6.6 Securely tightly. (Fig. 15)
B. Impact: An action of one object coming into contact with another.
C. Kneading: Force is applied by alternating movement in adjacent positions.
D. Pressure: The process of continuous physical force against solid materials.
Fig. 10 Fig. 12Fig. 11
Fig. 13 Fig. 15Fig. 14

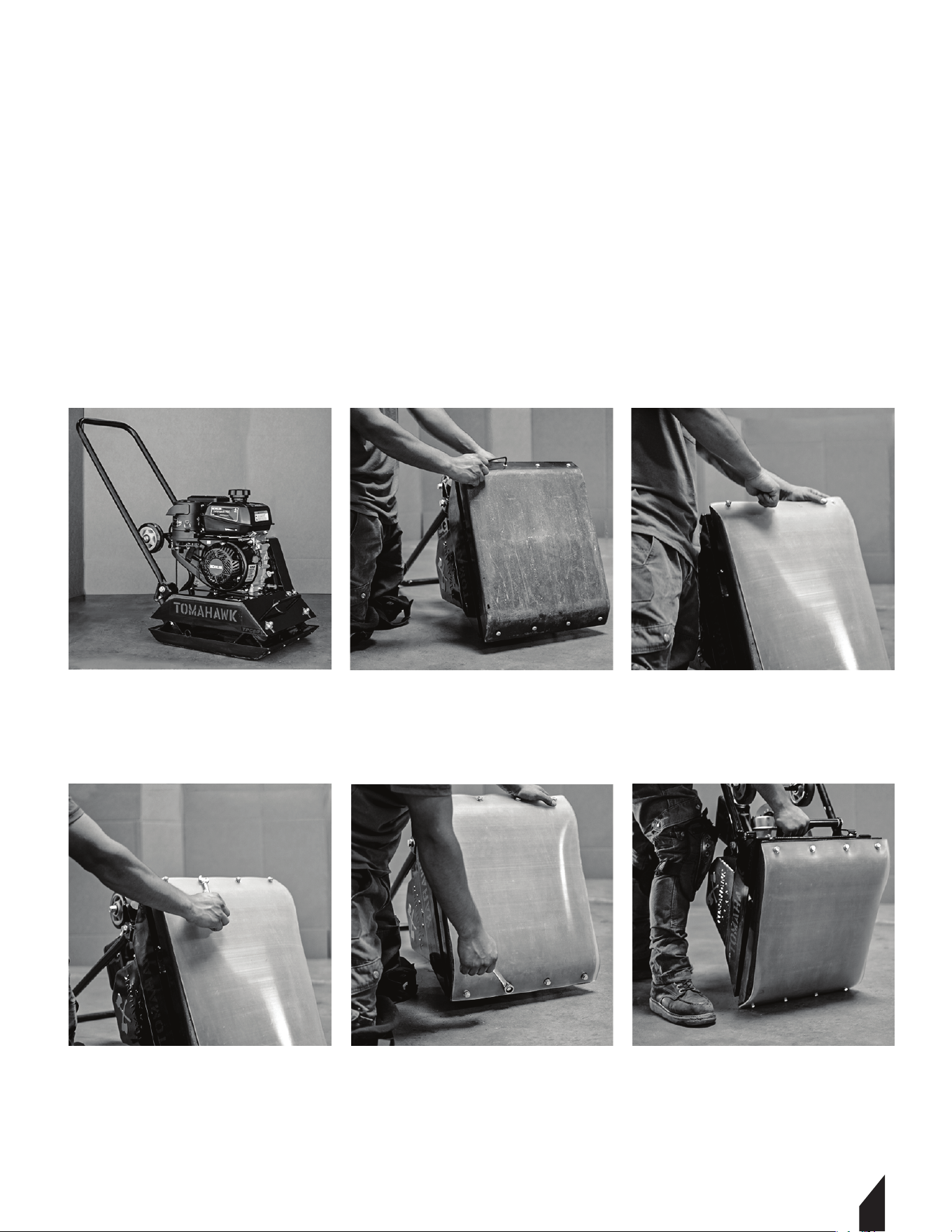

7. PAVER PAD ASSEMBLY
7.1 Grab the poly pad hardware kit a 5mm allen wrench and a 13mm wrench to complete
this assembly.

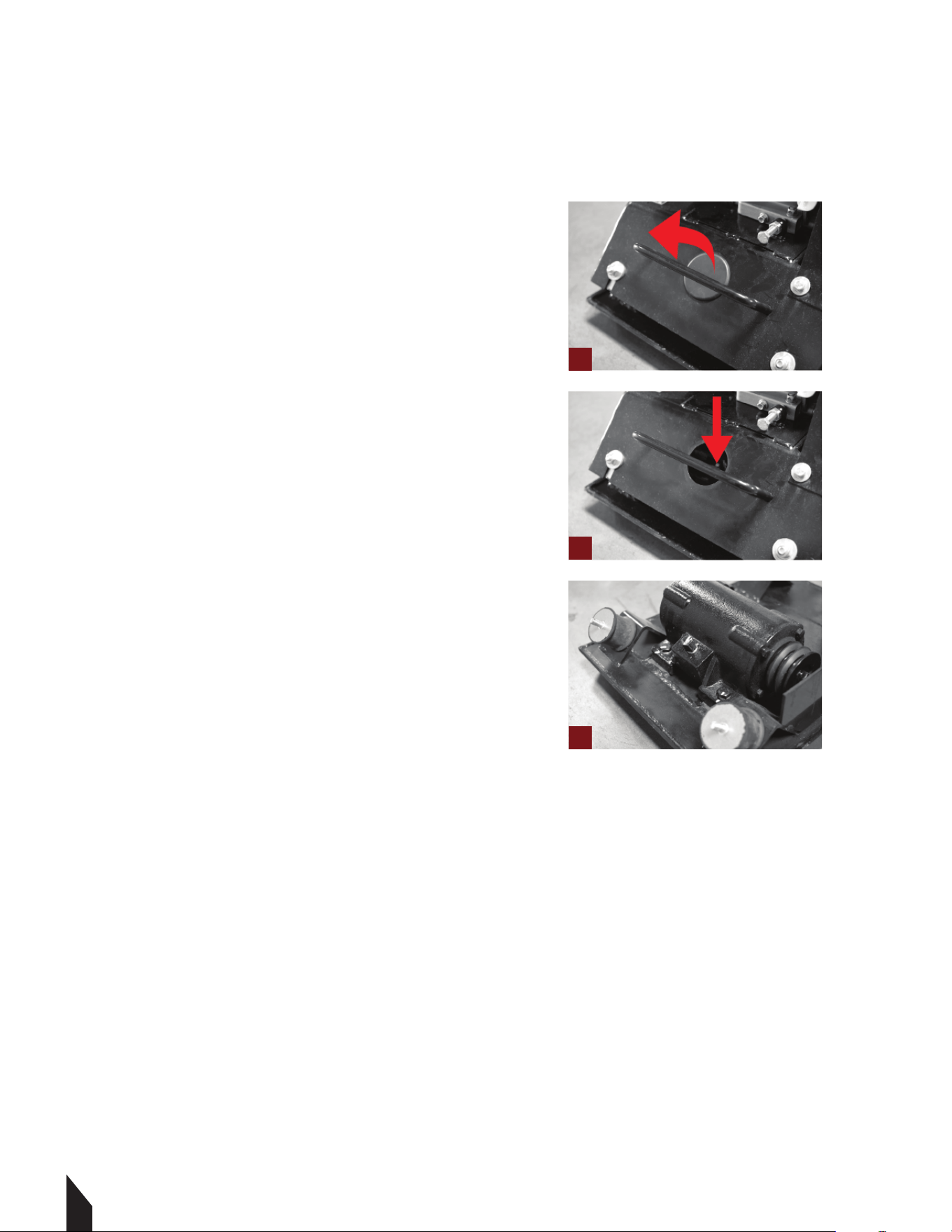

7.2 Flip the compactor over and begin removing the screw around the plate using a 5mm
allen wrench. (Fig. 17)
7.3 Attach the pad using the larger screws found in the hardware kit. (Fig. 18)
7.4 Fasten the larger screws with a 13mm wrench. (Fig. 19)
7.5 Fasten the bottom screws. (Fig. 20)
7.6 Right-side the plate compactor gently. (Fig. 21)
Fig. 16 Fig. 18Fig. 17
Fig. 19 Fig. 21Fig. 20
21

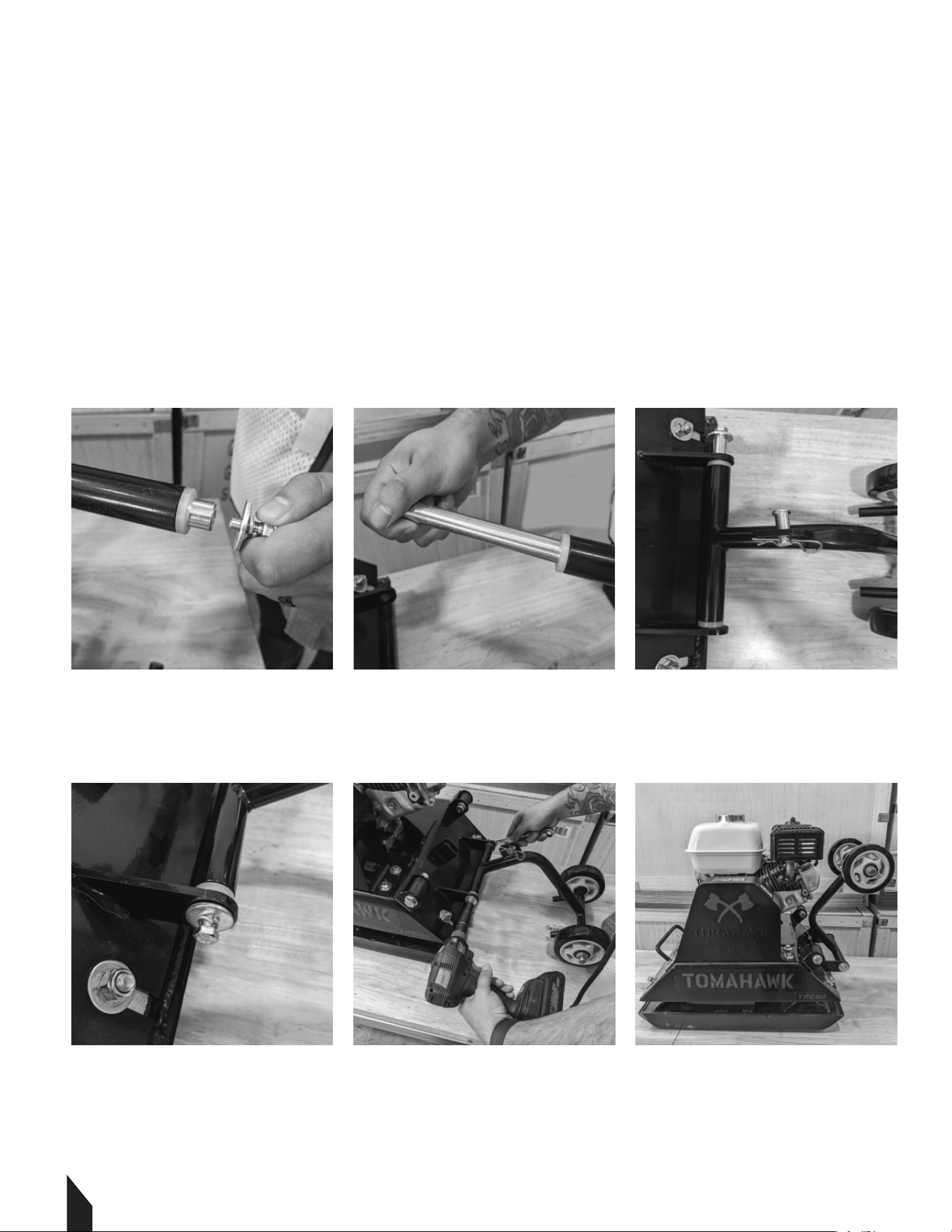

8. WHEEL KIT ASSEMBLY
8.1 Remove the screw and washer from the base of the wheel kit (Fig. 22)
8.2 Remove the bar from the base of the wheel kit (Fig. 23)
8.3 Place the base of the wheel kit into the back of the compactor and secure in place with
the bar (Fig. 24)
8.4 Replace the screw and washer on the right side of the wheel kit (Fig. 25)
8.5 Fasten the wheel kit in place using a 13mm socket wrench (Fig. 26)
8.6 To keep the wheels raised, li up an secure in place with the pin (Fig. 27)
17
22
Fig. 22 Fig. 24Fig. 23
Fig. 25 Fig. 27Fig. 26
9. PARTS MANUAL
23
No. Part No. Part Name Qty.
1 5/16-24*1-UNF-G5 Screw
1
2 GB/T5287-φ8 Washer
3
3 GB/T894.1-φ30 Retaining Ring
1
4 GB/T893.1-φ62 Ring
1
5 JPC80.5-1A Clutch Drum
1
6 GB/T276-6206-2RS Bearing
1
7 JPC80.5.1A Clutch
1
8 HZR96-9 Key
1
9 CH260 Engine
1
10 A29 V Belt
2
11 GB/T5783-M12*30 Screw
1
12 GB/T93-φ12 Washer
5
13 JPC80.4-7 Washer
1
14 GB/T1096-A7*7*20 Key
1
15 JPC80.4-5 Pulley
1
16 GB/T5783-M8*25 Screw
8
17 GB/T93-φ8 Washer
19
18 GB/T13871-TC32*48*8 Oil Seal
1
19 JPC80.4-3 Bearing Holder
1
20 GB/T3452.1-φ80*3 O Sealing
2
21 NJ307EMC3 Bearing
2
22 JPC80.4-6 Drain Plug
1
23 JPC80.4-1 Exciter Housing
1
24 GB/T5783-M12*45 Screw
4
25 JPC80.4-2 Exciter Shaft
1
26 JPC80.4-4 Bearing Holder
1
27 GB/T96-φ10 Washer
4
28 GB/T889.1-M10 Nut
4
29 GB/T6170-M10 Nut
5
30 GB/T5783-M10*50 Screw
1
31 HZR80-4
Rubber Stopper 1
32 GB/T97.1-φ8
Washer 4
33 GB/T5783-M8*16
Screw 6
34 HZR80.4B
Kit-Upper Beltguard 1
PARTS LIST
24
No. Part No. Part Name Qty.
39 TPC80-3
Handle Holder 2
40 GB/T93-φ10
Washer 8
41 GB/T5783-M10*25
Screw 2
42 GB/T889.1-M12
Nut 4
43 GB/T97.1-φ12
Washer 6
44 1WG2.0-60.29
Tire 2
45 TPC80.3.1
Support 1
46 HZR80B-1
Joint Shaft 1
47 HZR80B.6-1
Nylon Bushing 2
48 GB/T882-B-12*30
Pin 1
49 QC/T623-2.5*50
R-Pin 1
50 TPC80.1A
Baseplate 1
51 GB/T5782-M12*70
Screw 2
52 TPC80-2
Rubber Sleeve 2
53 TPC80.3B
Handle 1
54 GB/T6170-M8
Nut 2
55 HZR80.5.2
Shockmount 2
56 GB/T5789-M8*12
Screw 8
57 TPC80.7
Shockmount 4
PARTS LIST
25
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
HAVE QUESTIONS?
Contact us. We’re here to help!
Email us at [email protected]
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
COMPACTION
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
FINISHINGFINISHING
1.6HP Backpack Concrete Vibrator
Part#: TVIBH + TVW10-P
1.6 HP Honda GX35 engine
Consolidation with speeds of 10,000-12,000 VPM
Quick Connect centrifugal clutch vibrator
1” and 2” Diameter Whips Available in 10ft Length
3 Year Engine Warranty & 1 Year Product Warranty
8” Gas Powered Concrete Scarifier
Part#: TSCAR8H
5.5 HP Honda GX160 Engine
Remove traffic lines at 800 - 1,000 linear ft/hr
Tungsten Carbide Blade Kit Available
OSHA approved dust port for silica vacuum removal
3 Year Engine Warranty & 1 Year Product Warranty
36” & 46” Concrete Power Trowel
Part#: TPT36H/K & TPT46H/K
6 HP/14HP Kohler & 5.5HP/8.5HP Honda Engines
Adjust trowel blade pitch from 0-28°
60-115 RPM rotor speed for superior concrete finishes
Includes float pan and trowel blades
3 Year Engine Warranty & 1 Year Product Warranty
HAVE QUESTIONS?
Contact us. We’re here to help!
Email us at [email protected]
3,550 lbs/ft Vibratory Rammer
Part#: TR68H
3.6 HP Honda GXR120 Engine
Easily achieve a 100% compaction rating
3-in-One Fuel System with carburetor protection
13” x 11” plate for narrow trenches and corners
3 Year Engine Warranty & 1 Year Product Warranty
3,400 lbs/ft Plate Compactor
Part#: TPC90H
5.5 HP Honda GX160 Engine
Easily achieve a 100% compaction rating
22” x 20” cold, rolled steel beveled base plate
Includes 3.5 gallon water tank for asphalt compaction
3 Year Engine Warranty & 1 Year Product Warranty
3,000 lbs/ft Plate Compactor
Part#: TPC80 & TPC80H
6 HP Kohler CH260 & 5.5 HP Honda GX160 Engines
Easily achieve a 100% compaction rating
16.5” x 21.5” plate for narrow trenches and corners
Optional Honda Engine model: TPC80H
3 Year Engine Warranty & 1 Year Product Warranty
COMPACTION
6.5 Gal Backpack Concrete Sprayer
Part#: TCS6.5
Maintain constant, adjustable pressure up to 450 PSI
Achieve superior concrete finishes with even spraying
Spray 15,000 sq ft in less than 10 minutes
Compatible with major manufacturer wands
1 Year Product Warranty
1.6 HP Vibratory Concrete Screed
Part#: TVSA-H
1.6 HP Honda GX35 Engine
Aluminum Magnesium blades available from 8ft - 14ft
Finish concrete 4X faster than other screed methods
360° adjustable handle placement
3 Year Engine Warranty & 1 Year Product Warranty
6” Early Entry Green Concrete Saw
Part#: TFS6H
5.5 HP Honda GX160 Engine
Maximum cutting depth of 1 3/16 inches
OSHA compliant vacuum port for dust collection
Includes 6” early entry concrete blade
3 Year Engine Warranty & 1 Year Product Warranty
FINISHINGFINISHING
USE CODE
SAVE10
AT CHECKOUT FOR
10% OFF YOUR ORDER AT
WWW.TOMAHAWK-POWER.COM
www.tomahawk-power.com
www.tomahawk-power.com
(866) 577-4476
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
USA
INVERTER SERIESINVERTER SERIES
www.tomahawk-power.com
(866) 577-4476
3.7 Gallon 3HP Backpack Fogger
Part#: TMD14
Turbo Boosted Pump with 40ft + Horizontal Reach
Sprays 1 acre in 30 minutes
10X Faster than Manual Pump Sprayers
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
Commercial 38" Push Sweeper
Part#: TOS38
Collect up to 14.5 gallons of dust and debris
Can be used indoors & outdoors on wet or dry surfaces
Includes integrated airflow control and fine dust filter
Lightweight design, capable of fitting through doorways
1 Year Product Warranty
210 Amp Portable Welder Generator
Part#: TWG135Ai
Steady 50 - 135 Amp DC welding output
3300 Watt Inverter Generator
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
2 Year Product Warranty
210 Amp Portable Welder Generator
Part#: TWG210A
Steady 50 - 210 Amp DC welding output
2000 Watt Inverter Generator
60% Duty Cycle for extended use
Suitable for welding rods from 6010 to 7024
2 Year Product Warranty
INVERTER SERIES
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
5 Gallon Backpack Power Sprayer
Part#: TPS25
Reach Up to 30ft Horizontal Reach
Sprays acres in 10 minutes
10X Faster than Manual Pump Sprayers
50-435 Adjustable PSI Commercial Grade Pump
1 Year Product Warranty
4.75 Gallon Battery Power Sprayer
Part#: eTPS18
Reach Up to 30ft Horizontal Reach
Sprays 6000 sq ft in 10 minutes
10X Faster than Manual Pump Sprayers
70 PSI Commercial Grade Pump
1 Year Product Warranty
4 Gal. Motorized Fertilizer Spreader
Part#: TGS30
Reach up to 30ft Horizontally
Sprays 1 acre in 30 minutes
20X Faster than push spreaders
Converts to Leaf Blower with 200 MPH Air Velocity
1 Year Product Warranty
3” Full Trash Water Pump
Part#: TW3H
Moves liquids at a rate up to 375 gal/min
Handle solids up to 1.5"
Silicone carbide seals and a chrome plated volute
8 HP engine protected by rugged all purpose frame
3 Year Engine Warranty & 1 Year Product Warranty
AND MORE GENERATORSWELDING / POWER
INVERTER SERIES
Part#: TG2000i
2000 Max Watts, 1600 Rated Watts
Run Time of 8 hours on 1 gallon of gas
OSHA and GFCI Compliant
Parallel technology capable for double the power
2 Year Product Warranty
2000 Watt Inverter Generator
AND MORE POWER / WELDINGPEST CONTROL
ASSEMBLED IN THE
PARTS SOURCED GLOBALLY
USA
* All coupons in this manual are valid only for orders placed on www.tomahawk-power.com, unless otherwise noted. Coupon codes
may only be used once per customer and may not be combined with any other offer. Coupons may expire at any time without notice.
Tomahawk understands to keep a job-site running smoothly the proper equipment and
spare parts are needed at the drop of a hat. With same day shipping and faster
delivery times, count on Tomahawk to keep you powered throughout the day! With
long lasting parts and engines, Tomahawk equipment will be the star of your fleet for
years to come. Visit www.tomahawk-power.com to get started today!
Power Your World
FACEBOOK
facebook.com/TomahawkPowerUSA
YOUTUBE
youtube.com/TomahawkPower
INSTAGRAM
@tomahawkpower
TOMAHAWK®, LLC
San Diego, CA
Sales Support
(866) 577-4476
Equipment Support
(866) 577-4476
www.tomahawk-power.com
