Operating and Installation
Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the
first time.
en-US M.-Nr. 12 253 870
Contents
2
IMPORTANT SAFETY INSTRUCTIONS................................................................... 4
Caring for the environment......................................................................................... 11

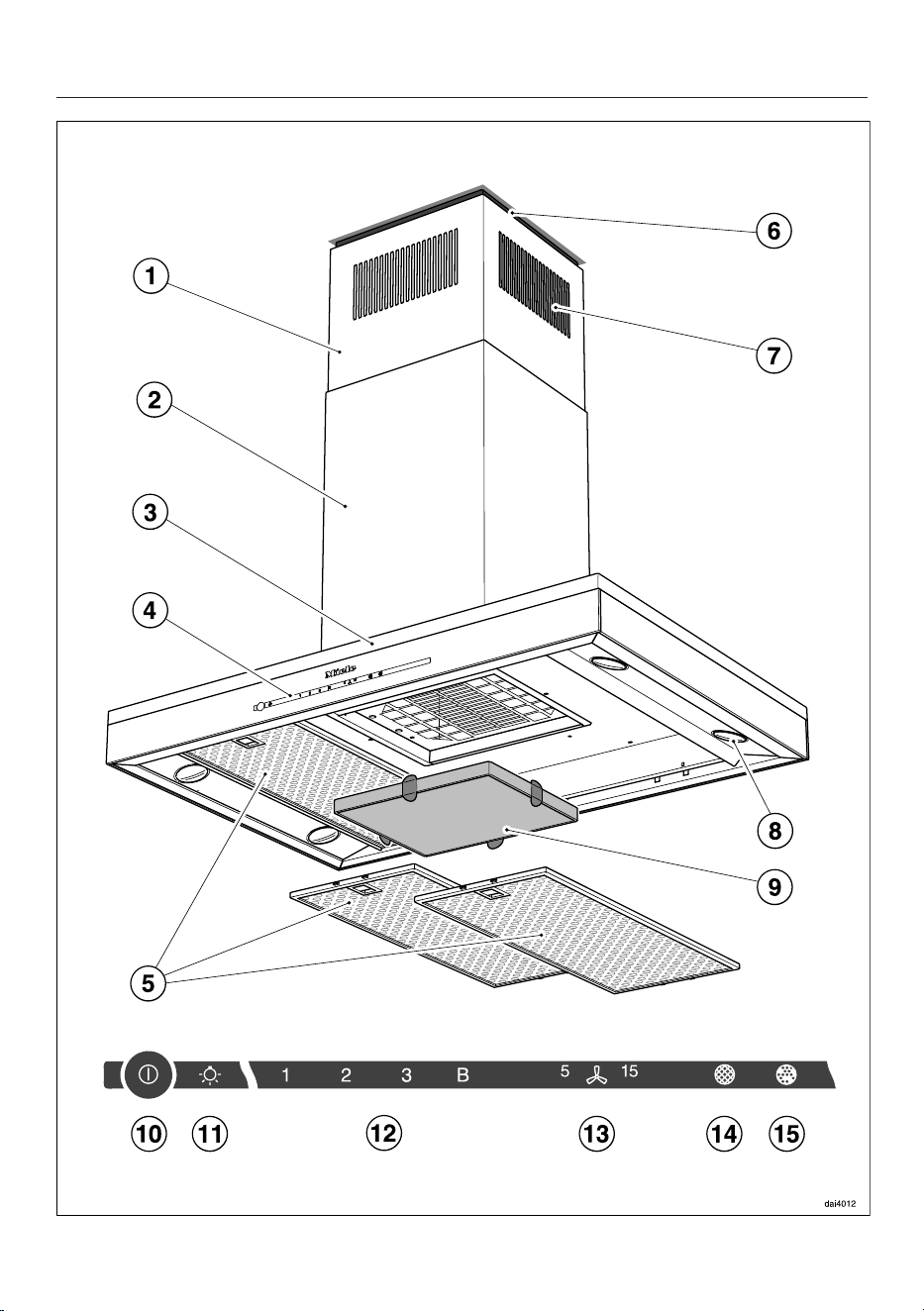

Guide to the ventilation hood..................................................................................... 12
Description of functions.............................................................................................. 14
Before using for the first time..................................................................................... 15
Selecting extraction mode or recirculation mode......................................................
15
Setting up Miele@home...............................................................................................
15

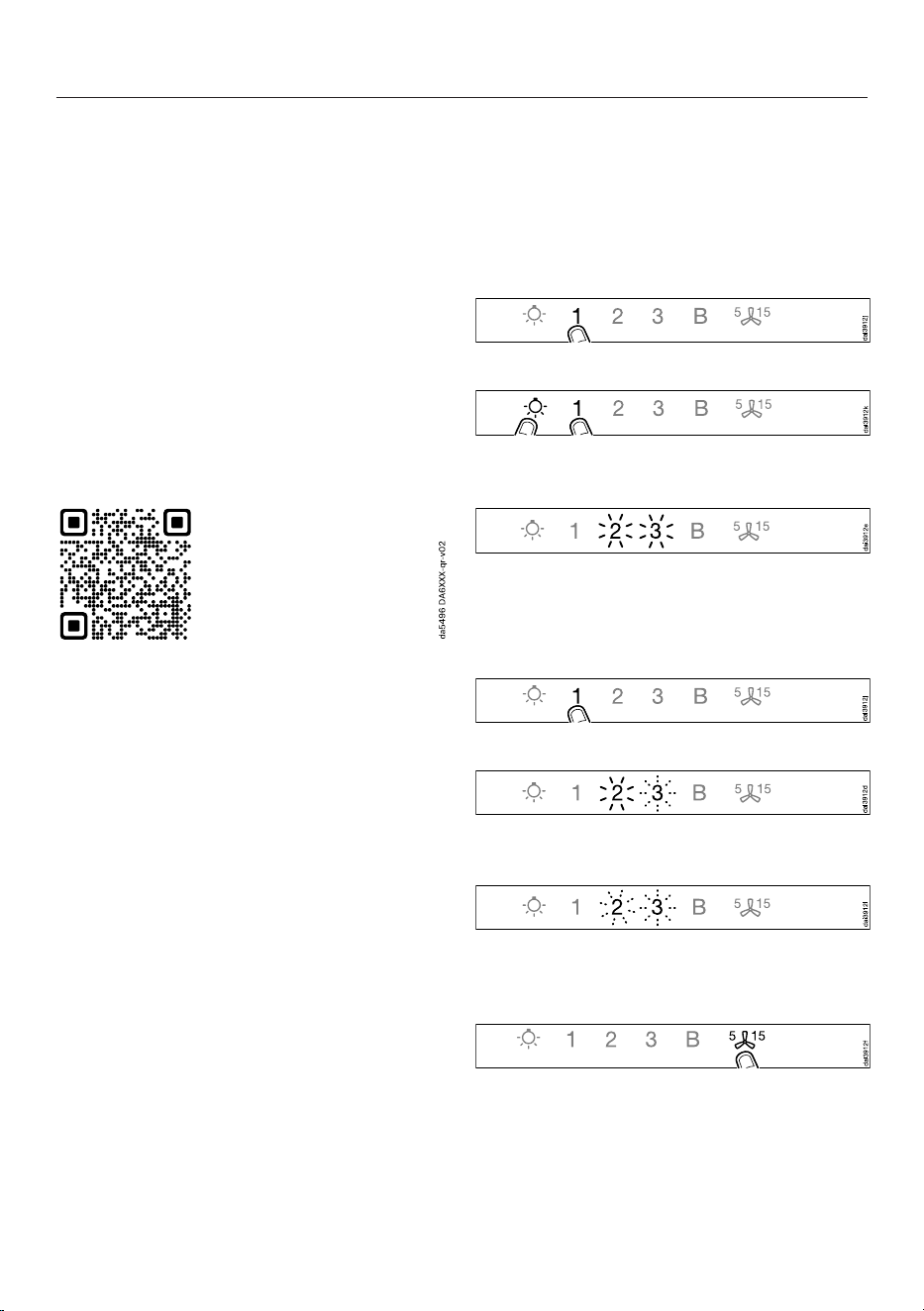

Performing Scan & Connect................................................................................... 16
Signing out of WiFi (reset to factory settings) ..................................................... 16
Setting up Con@ctivity .................................................................................................
17
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 17
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0)............................ 18
Reattempting the connection ................................................................................. 18
Con@ctivity with direct wireless connection (Con@ctivity 2.0)...................... 19
Operation (Automatic mode) ..................................................................................... 22
Cooking with Con@ctivity (Automatic mode)...........................................................
22
Cooking process.............................................................................................................
22
Temporarily exiting Automatic mode...........................................................................
23
Resuming Automatic mode..................................................................................... 23
Operation (Manual mode)........................................................................................... 24
Cooking without Con@ctivity (Manual mode) ..........................................................
24
Turning on the blower ....................................................................................................
24
Selecting the power level..............................................................................................
24
Selecting the delayed shutdown time.........................................................................
24
Turning off the blower....................................................................................................
24
Dimming/switching the overhead lighting on/off......................................................
25
Power management.......................................................................................................
25
Safety shut-off ................................................................................................................
25
Operation (Automatic and Manual modes)............................................................. 26
Filter saturation indicator ..............................................................................................
26
Adjusting the grease filter filter saturation indicator ........................................... 26
Adjusting or deactivating the filter saturation indicator for the charcoal filter 27
Checking the filter saturation indicator ................................................................. 27
Energy-saving tips......................................................................................................... 28
Cleaning and care ......................................................................................................... 29
Stainless steel housing..................................................................................................
29
Important information for appliances with stainless steel surfaces................. 29
Important information for appliances with lacquered housing.......................... 29
Contents
3
Grease filters...................................................................................................................
30

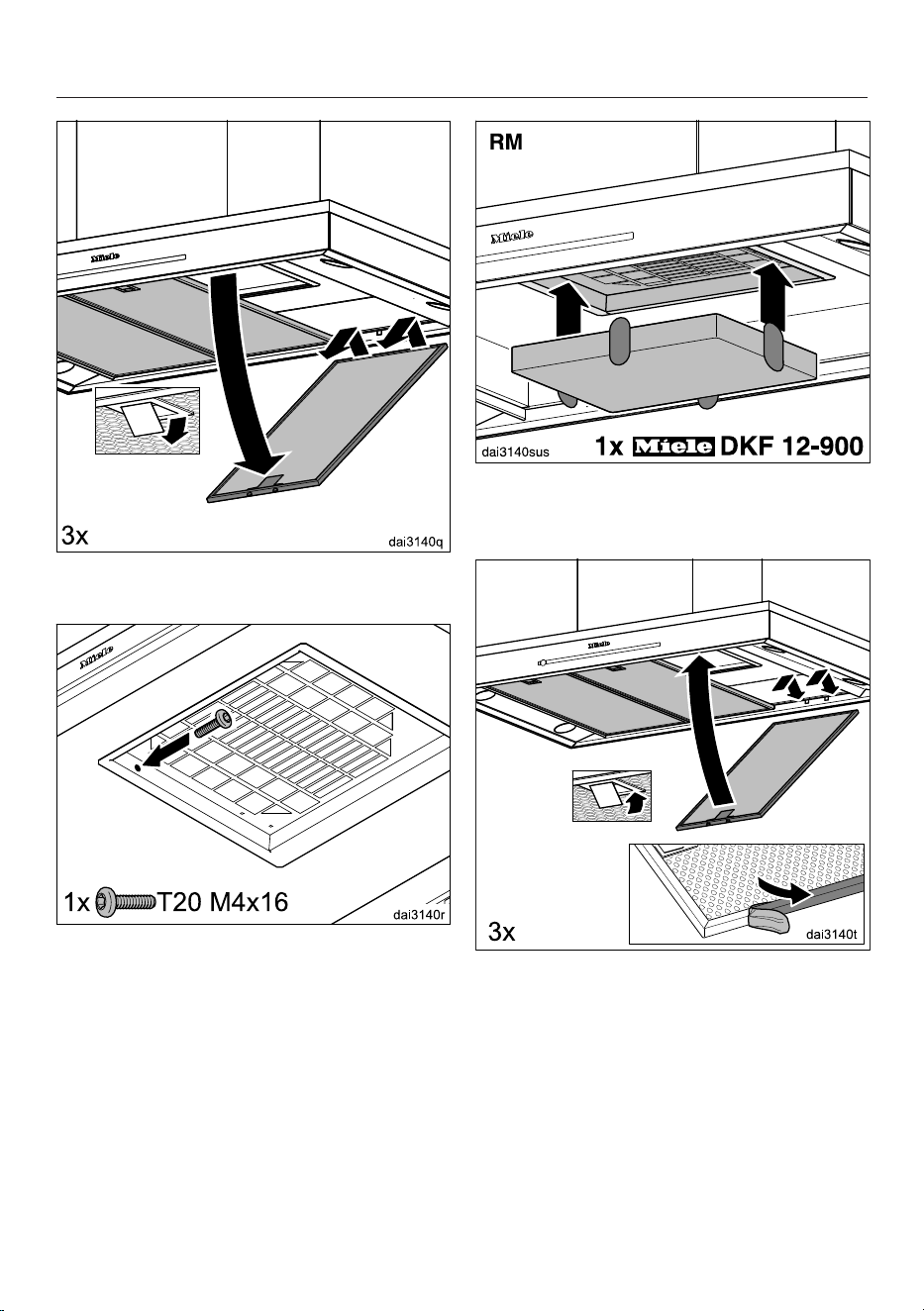

Replacing the grease filter....................................................................................... 31
OdorFree Charcoal Filter...............................................................................................
32
Resetting the filter saturation indicator for the charcoal filters ......................... 32
Disposing of charcoal filters.................................................................................... 32
Customer Service ......................................................................................................... 33
Contact in the event of a fault......................................................................................
33
Location of the data plate .............................................................................................
33
Appliance warranty and product registration.............................................................
33
Installation...................................................................................................................... 34
Before installation ..........................................................................................................
34

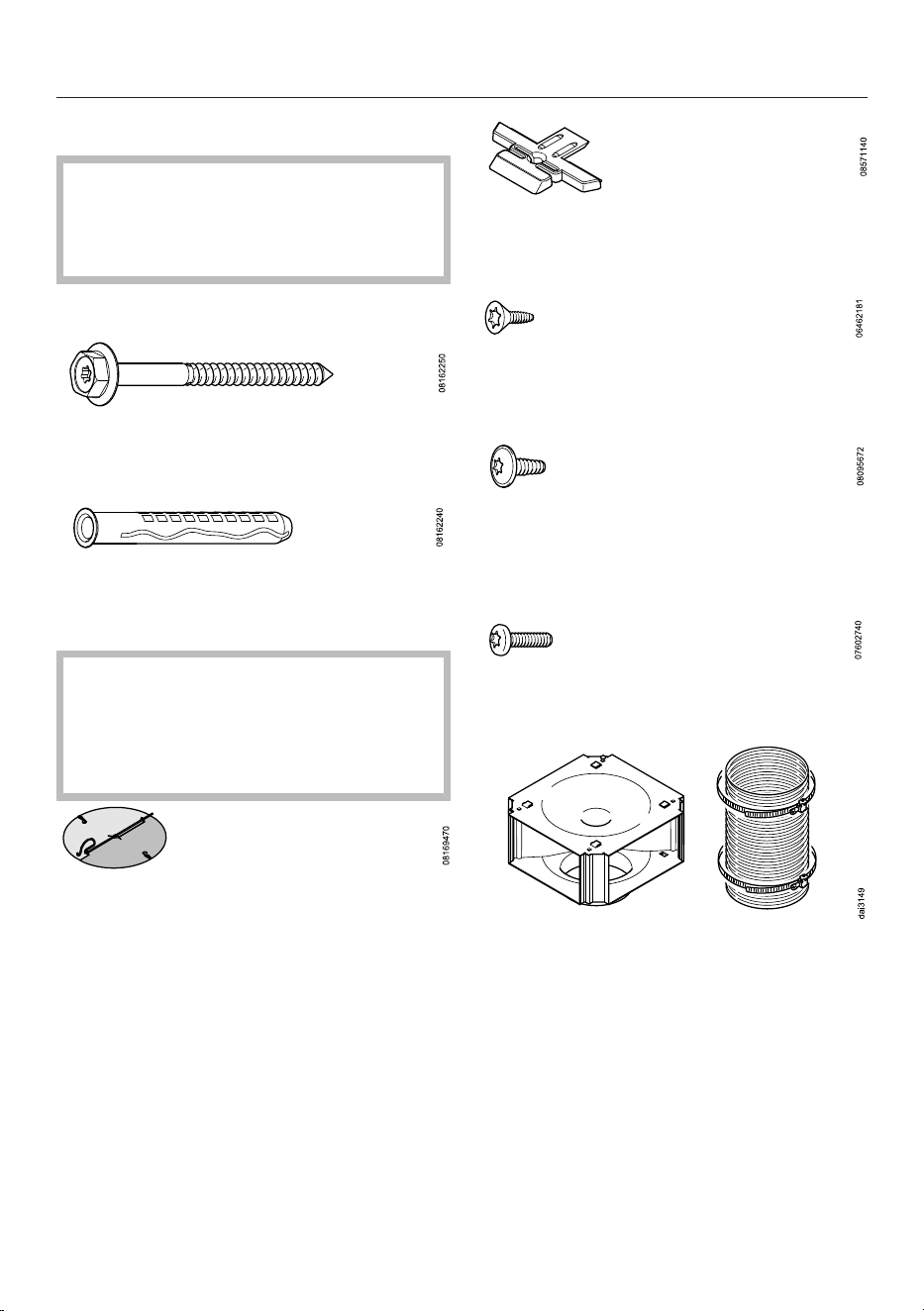

Installation parts.............................................................................................................
34

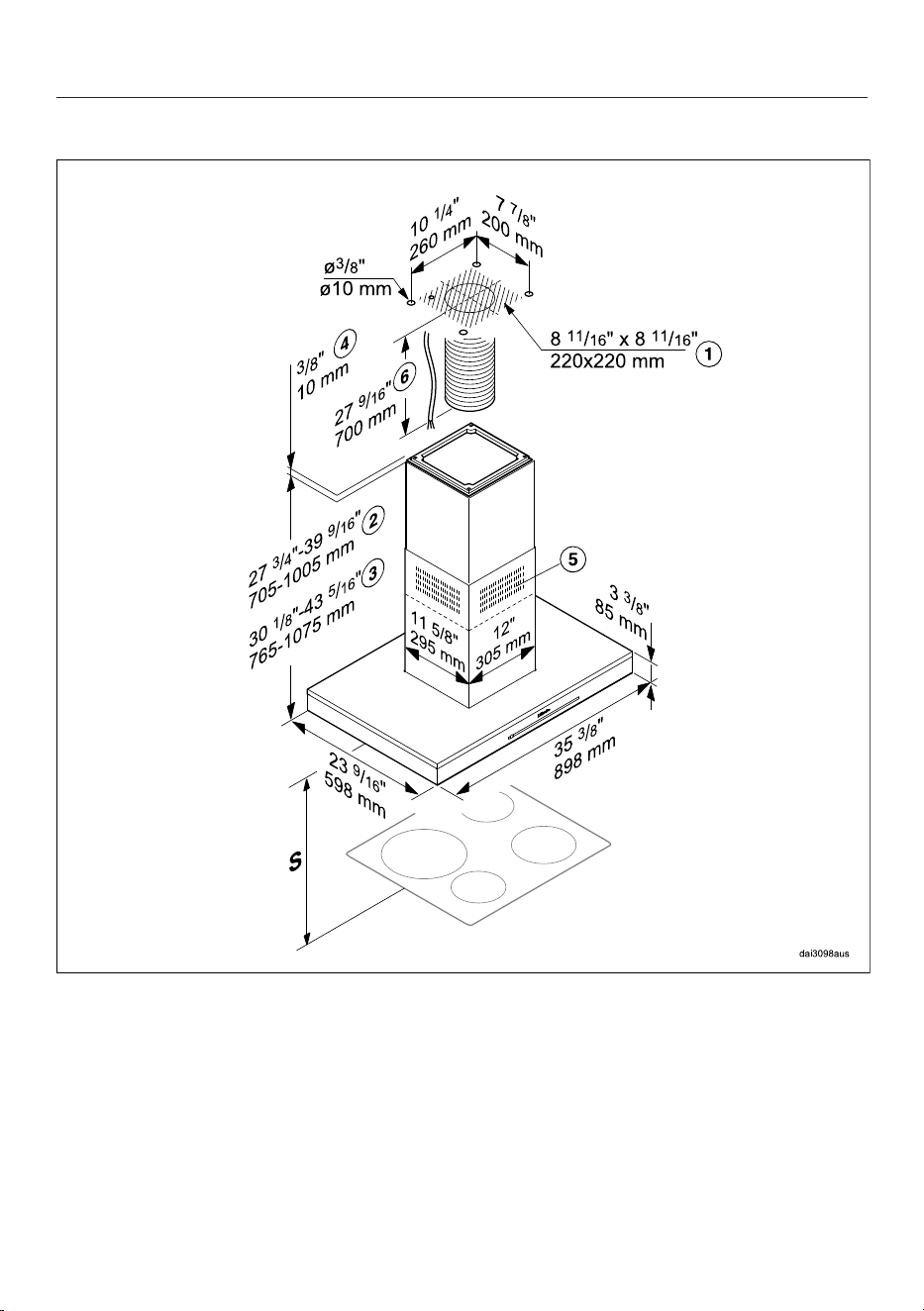

Appliance dimensions....................................................................................................
35
Distance between cooktop and ventilation hood (S)................................................
36
Installation recommendations......................................................................................
37
Structural support ..........................................................................................................
37
Removing the protective film........................................................................................
37
Air venting........................................................................................................................
48
Non-return flap.......................................................................................................... 48
Condensate ............................................................................................................... 49

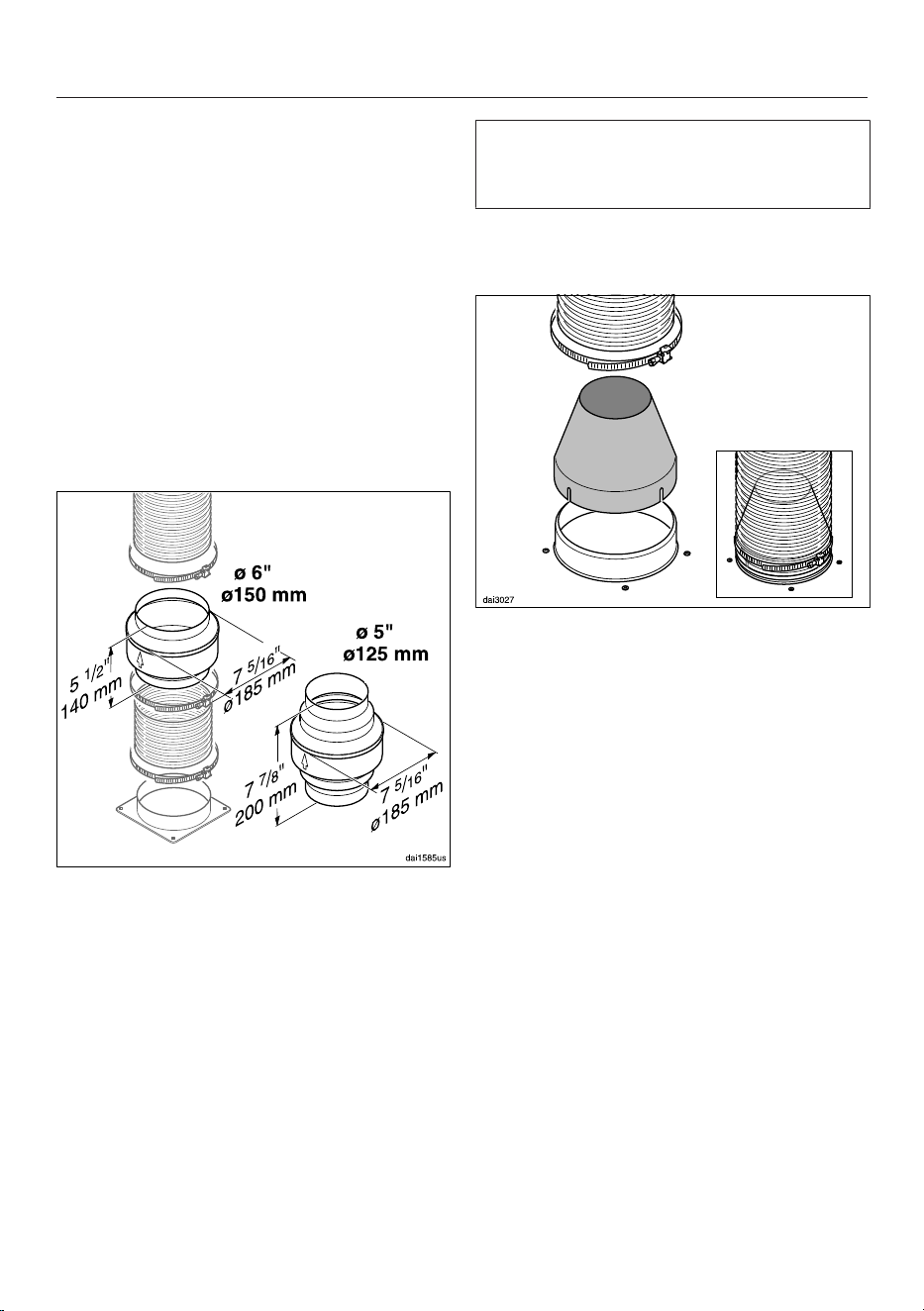

Reducing Collar ........................................................................................................ 49

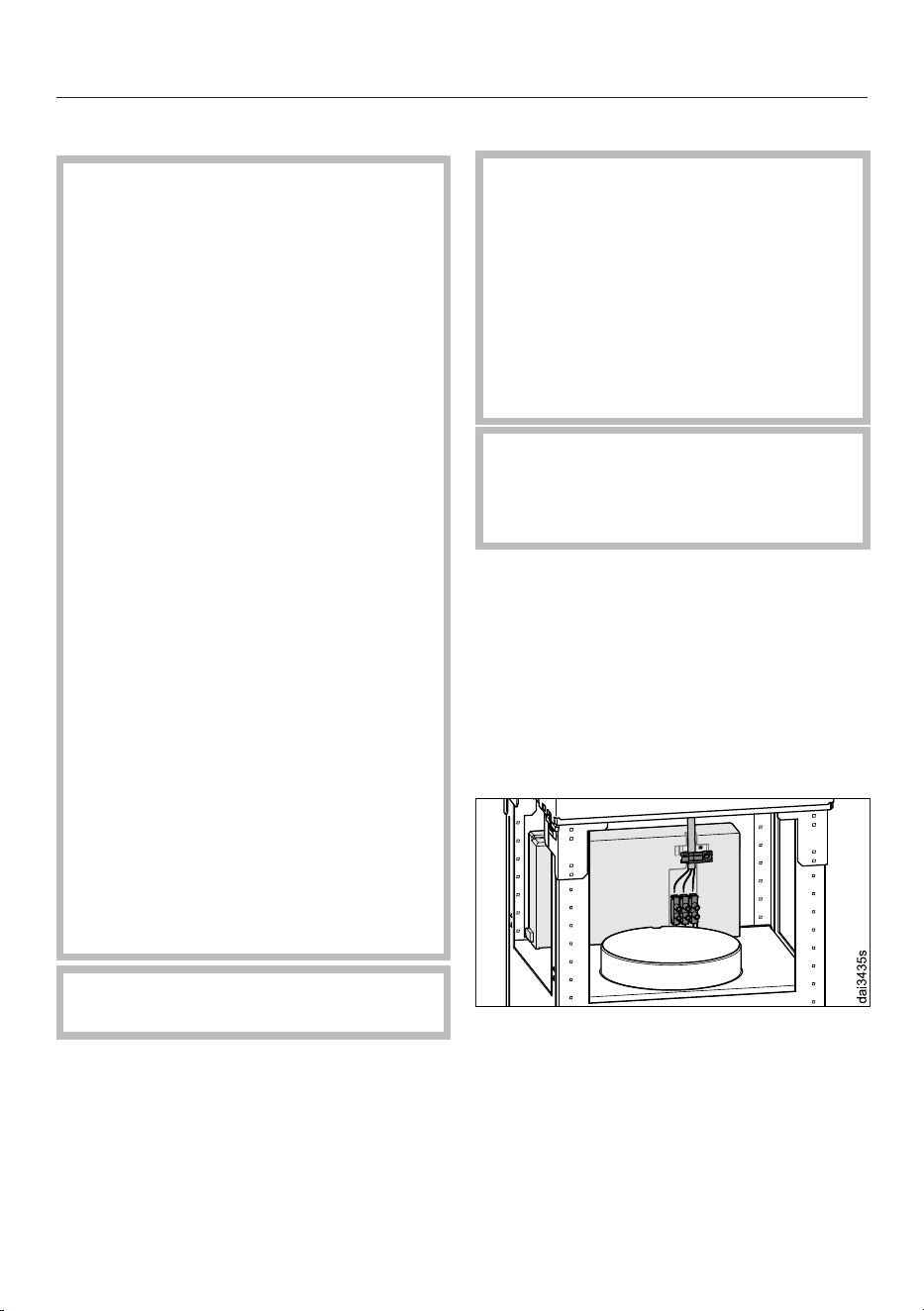

Electrical connection .....................................................................................................
50
Grounding Instructions............................................................................................ 50
Technical data............................................................................................................... 51
Optional accessories for recirculation mode..............................................................
51
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them on
to any future user.
Appropriate use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
Where a recirculation ventilation hood is installed above a gas
cooktop, please check that all local codes are observed to insure an
adequate supply of fresh air.
This appliance is suitable for installation above gas or electric
cooking surfaces. Please refer to cooktop instructions.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
Safety with children
Children must be kept away from the ventilation hood unless they
are constantly supervised.
Children must not be allowed to clean or service the hood.
Please supervise children in the vicinity of the hood and do not let
them play with it.
The LED ClearView lighting is very intense.
Avoid looking directly into the light for prolonged periods of time.
IMPORTANT SAFETY INSTRUCTIONS
5
Danger of suffocation. While playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head, presenting the risk of suffocation. Keep packaging
material away from children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
- Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to prevent
power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
- Do not use replacement parts that have not been recommended
by the manufacturer (e.g. parts made at home using a 3D printer).
Unauthorized installation, maintenance, and repairs can cause
considerable danger for the user. Installation, maintenance, and
repairs must only be carried out by a Miele authorized technician.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronized
with the grid power supply (e.g., island networks, back-up systems) is
possible. A prerequisite for operation is that the power supply system
complies with national and local codes.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronized with the grid power supply, or these measures must be
replaced by equivalent measures in the installation.
IMPORTANT SAFETY INSTRUCTIONS
6
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance.
If in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed “Installation
diagram” and in the “Cleaning and care” section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
- The circuit breakers on the electrical service panel are tripped.
- The screw-type fuses on the electrical service panel have been
removed.
- The power cord (if present) has been unplugged from the socket
(pull the plug not the cord).
IMPORTANT SAFETY INSTRUCTIONS
7
Correct use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
- a) Never leave surface units unattended. Boilovers cause smoking
and greasy spillovers may ignite. Heat oils slowly on low or
medium settings.
- b) Always turn the hood on when cooking at a high heat.
- c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
- d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Open flames are a fire hazard.
The use of an open flame under the ventilation hood is not permitted.
To avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the ventilation hood could draw flames into the
filter. Fat deposits could ignite, presenting a fire hazard.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
- a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
- b) NEVER PICK UP A FLAMING PAN - You may be burned.
- c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
- d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on “Kitchen Fire Safety Tips” published by NFPA.
IMPORTANT SAFETY INSTRUCTIONS
8
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
- When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
- Select cookware that is suitable for the size of the burner.
- Adjust the flame so that it never extends up the sides of the
cookware.
- Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
Overheated oil and fat can ignite, causing fire damage to the
ventilation hood.
Do not leave cookware, pans, and deep-fat fryers unattended when
cooking with oil or fat. Similarly, never leave an open flame
unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
- a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
- b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
IMPORTANT SAFETY INSTRUCTIONS
9
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
- c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
- d) Ducted hoods must always be vented to the outdoors.
- e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance’s manufacturer.
Safety regulations prohibit the installation of a ventilation hood
over solid fuel stoves.
An insufficient safety distance between the cooktop and the
ventilation hood can result in damage to the ventilation hood.
The minimum safety distances between the top of the cooktop and
the bottom of the ventilation hood given in the “Installation” section
of this manual must be observed, unless the cooktop manufacturer
states that a greater safety distance is required.
If more than one cooking appliance is installed beneath the
ventilation hood, and they have different minimum safety distances
to the ventilation hood, select the greater distance.
The information provided in “Installation” must be observed when
installing the ventilation hood.
Components can have sharp edges which may cause injury.
Wear gloves to protect your hands.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service. Always observe local building
code requirements when selecting duct material.

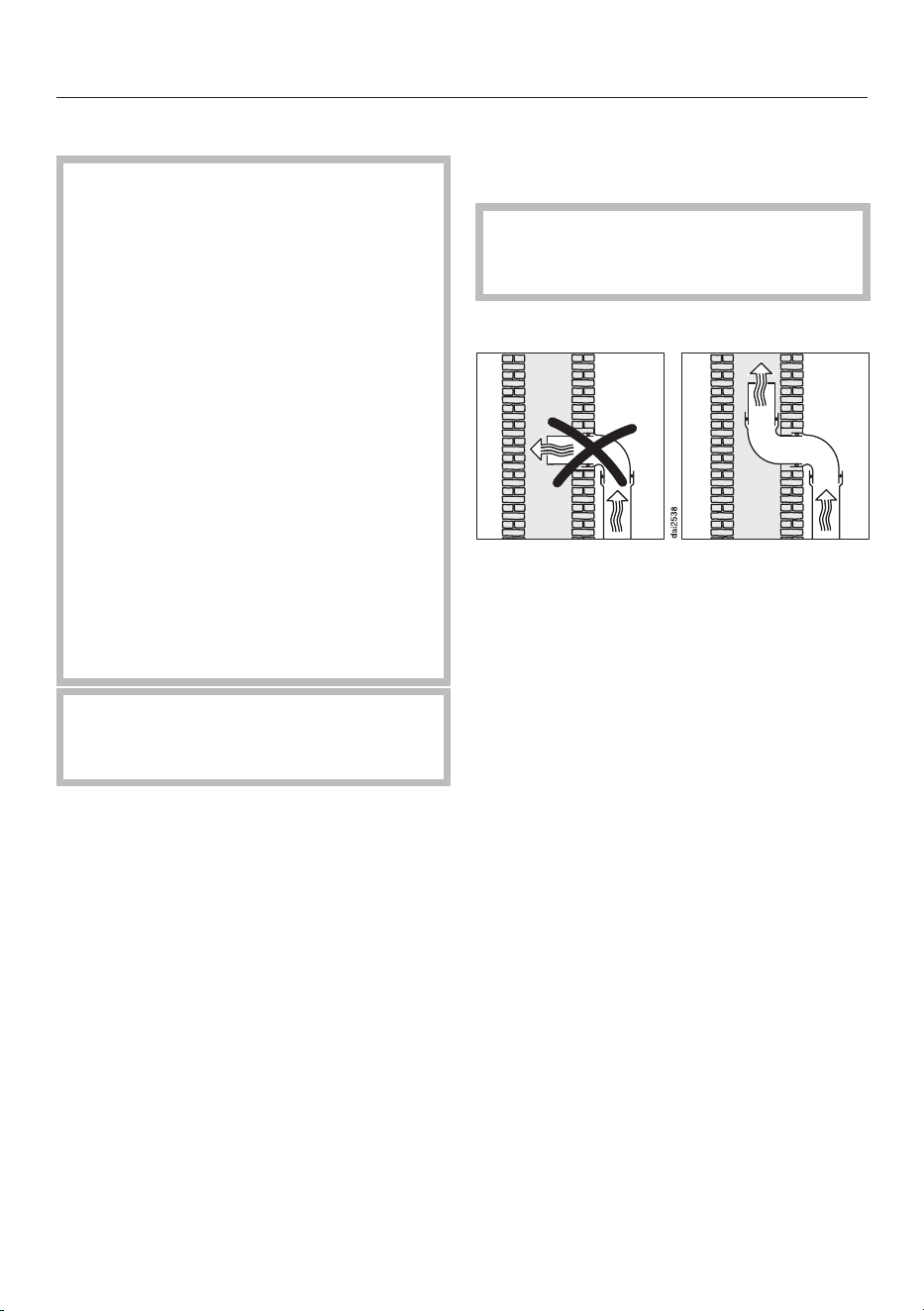

Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
IMPORTANT SAFETY INSTRUCTIONS
10
Cleaning and maintenance
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories and parts
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become void.
Defective components should be replaced by Miele original parts
only. Only with these parts can safety of the appliance be assured as
intended by the manufacturer.
Miele will guarantee to supply functional parts for a minimum of
10years and up to 15years following the discontinuation of your
ventilation unit.
FCC Declaration of Conformity
These devices comply with FCC Rules Part 15. This equipment has
been tested and found to be in compliance with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules of Operation
and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20cm) between
the radiator and your body.
Industry Canada Statement
This digital apparatus does not exceed the Class B limits for Radio
Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
Caring for the environment
11
Disposal of the packing material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out
of the reach of children. Danger of
suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
Guide to the ventilation hood
12
Guide to the ventilation hood
13
a
Telescopic extension piece
b
Duct cover
c
Canopy
d
Controls
e
Grease filter
f
Spacer frame
The spacer frame creates a shadow gap between the chimney and the ceiling.
The ventilation hood can be installed with or without the spacer frame.
g
Recirculation vents
Only for recirculation mode
h
Overhead lighting
i
Charcoal filters
Optional accessories for recirculation mode
j
Sensor control for turning the blower on and off
k
Sensor control for switching the lighting on and off and for dimming the lighting
l
Sensor controls for setting the blower power
m
Sensor control for the delayed shutdown function
n
Sensor control for the grease filter saturation indicator
o
Sensor control for the charcoal filter saturation indicator
Description of functions
14
The following functions are available on
your ventilation hood, depending on the
model:
Extraction mode
The air is drawn in and cleaned by the
grease filters and directed outside.
Recirculation mode
The recirculation mode requires a
recirculation kit and OdorFree Charcoal
Filter (available as optional accessories,
see “Technical Data” for more
information)
The air is drawn in and first cleaned by
the grease filters and then by an
OdorFree Charcoal Filter. The cleaned
air is then recirculated back into the
kitchen.
Before using for the first time
15
Selecting extraction mode or
recirculation mode
The ventilation hood can be operated
with either extraction mode or
recirculation mode. The power of the
blower is adapted to suit the selected
mode of operation. The ventilation
hood is set up at the factory for
recirculation mode. It has to be reset
for extraction mode.
To reset it for extraction mode, the filter
saturation indicator for the charcoal
filter(s) has to be deactivated.

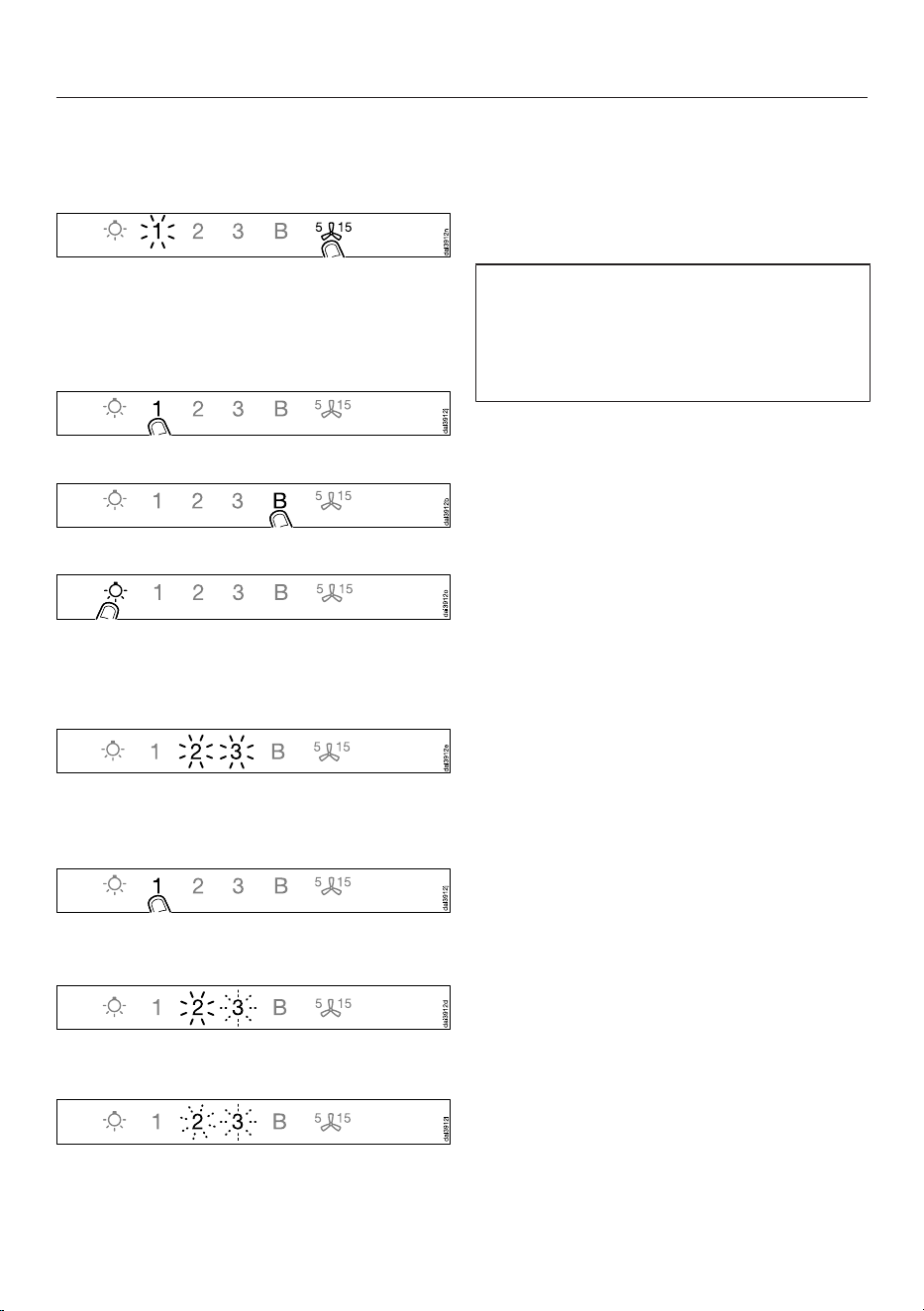

Switch off the blower and the lighting.
Touch the delayed shutdown
control and the charcoal filter
control at the same time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
Touch the B control.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
Extraction mode has now been set.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Setting up Miele@home
Required:
- a WiFi network
- the Miele app
- a Miele user account. You can create
a user account via the Miele app.
Your ventilation hood is equipped with
an integrated WiFi module. Connect the
ventilation hood to your household WiFi
network. You will then be able to
operate the ventilation hood via the
Miele app.

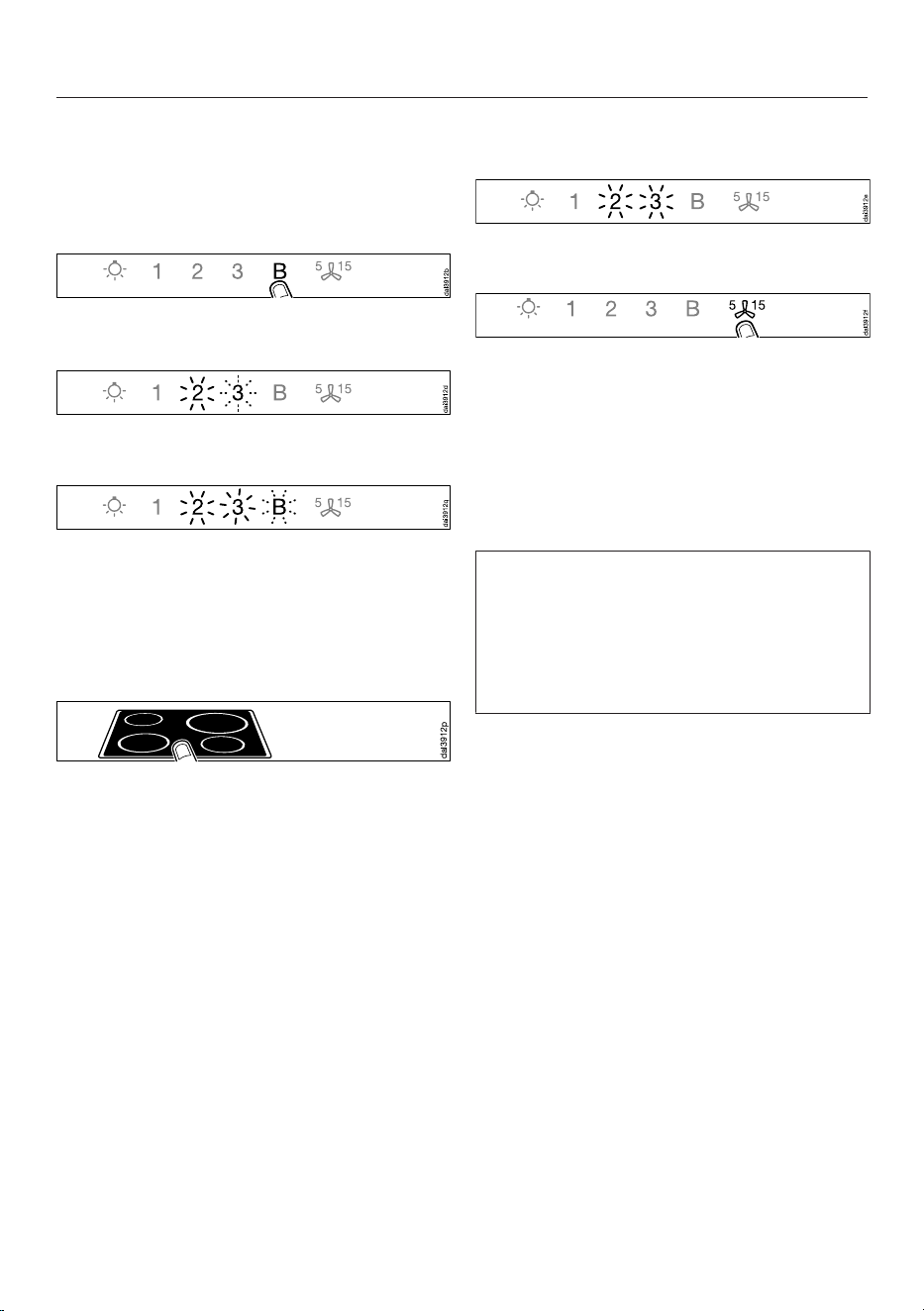

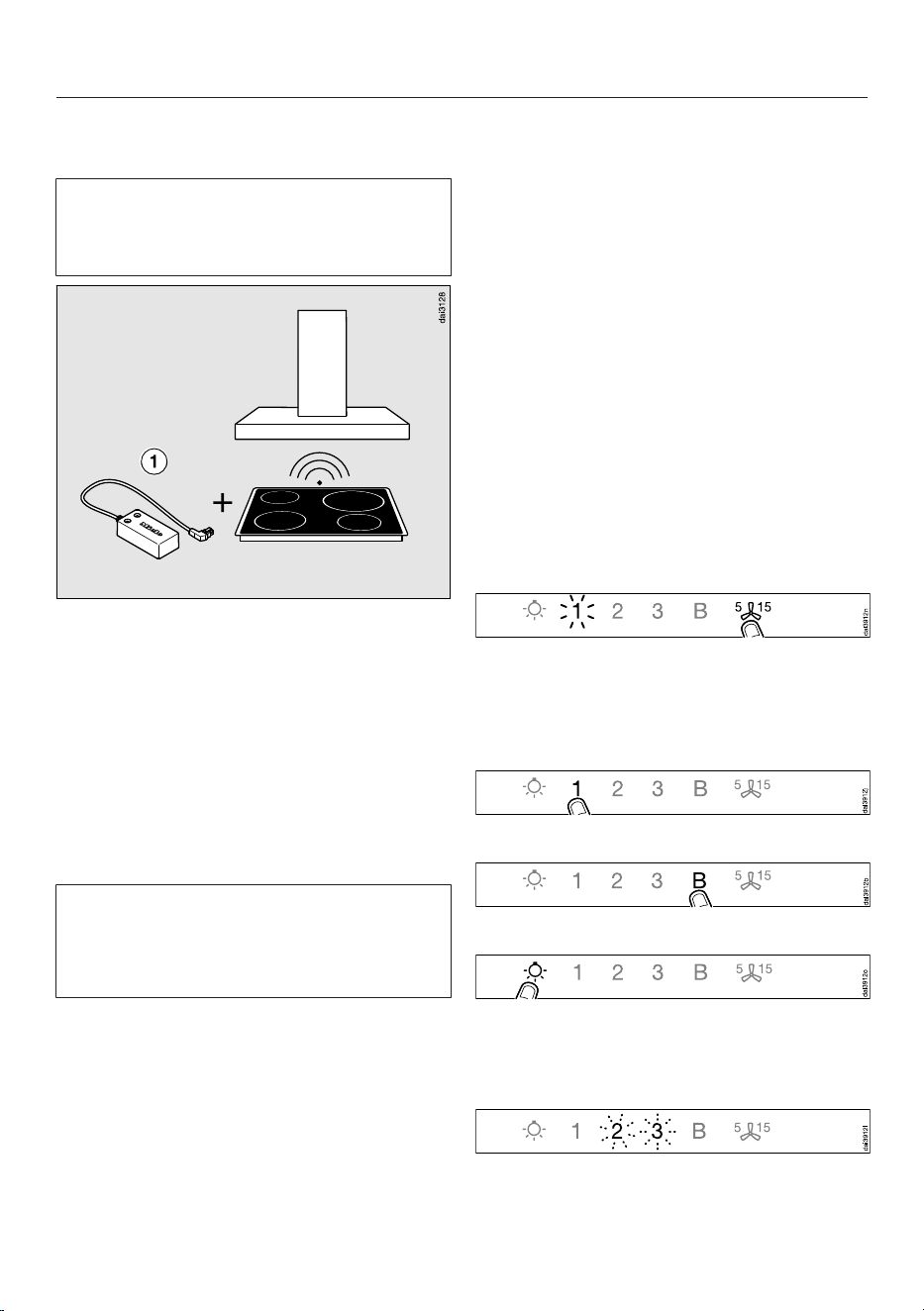

If your Miele cooktop is connected to a
home WiFi network, you can control the
ventilation hood automatically via the
Con@ctivity function.
Before installing the ventilation hood
in its final location, ensure that the
signal of your WiFi network is strong
enough.
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability, please
visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Before using for the first time
16
Performing Scan & Connect
Scan the QR code.
If you have installed the Miele app and
have a user account, you will be taken
directly to the networking steps.
If you have not yet installed the Miele
app, you will be taken to the Apple App
Store
®
or the Google Play Store™.
Install the Miele app and set up a user
account.
Scan the QR code again.
The Miele app will guide you through
the setup process.
Signing out of WiFi (reset to factory
settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
Switch the ventilation hood off.
Press and hold the 1 control.
Touch the lighting control at the
same time.
With an existing WiFi connection, 2 and
3 will light up constantly.
The ventilation hood is ready for
disconnection during the next two minutes.
Touch the 1 control.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will flash
on and off. The connection has now
been disconnected.
Quit disconnection mode on the
ventilation hood by touching the
delayed shutdown control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Before using for the first time
17
Setting up Con@ctivity
Con@ctivity is the direct
communication system between an
induction Miele cooktop and a Miele
ventilation hood. It enables the
ventilation hood to operate
automatically depending on the
operational state of a Miele cooktop
with onset controls.
- When a burner is turned on, the
overhead lighting on the hood turns on
automatically. After a brief delay, the
ventilation hood blower also comes
on.
- The ventilation hood selects the
power setting automatically during
cooking. The power level selected by
the ventilation hood depends on the
number of cooking zones being used
and their power levels.
- After switching the cooktop off, the
blower and the overhead lighting will
switch off automatically after a
specified period of time.
Detailed information about this function
can be found under “Operation”.
This ventilation hood can be operated
with the Con@ctivity function via a
WiFi connection (Con@ctivity 3.0) or
via a wireless connection (Con@ctivity
2.0).
Con@ctivity via the home WiFi
network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele cooktop
Connect the ventilation hood and
cooktop to your home WiFi network
(see “Setting up Miele@home”).
The Con@ctivity function will be
activated automatically.
Before using for the first time
18
Con@ctivity via a direct WiFi
connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele cooktop
If you do not have a home network, you
can establish a direct connection
between the cooktop and the ventilation
hood.
Switch the ventilation hood off.
Press and hold the B control.
Touch the 1 button for
approx.5seconds at the same time.
2 will light up constantly, 3 will flash on
and off.
The ventilation hood will be ready for
connection in the next 2minutes.
Start the Wi-Fi connection on the
cooktop. For more details, see the
cooktop operating instructions.
When successfully connected, 2 and 3
will light up constantly.
Quit connection mode on the
ventilation hood by touching the
delayed shutdown control.
Con@ctivity has now been activated.
With a direct Wi-Fi connection, it is
not possible to connect the cooktop
and the ventilation hood to a home
network. Should this be required at a
later date, the direct Wi-Fi connection
between the cooktop and the
ventilation hood must be disconnected
first (see “Signing out of Wi-Fi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the ventilation hood cancels the
process.
Disconnect the connection to the
ventilation hood (see “Signing out of
WiFi”) and to the cooktop.
Attempt to make the connection
again.
Before using for the first time
19
Con@ctivity with direct wireless
connection (Con@ctivity 2.0)
Required:
- Con@ctivity 2.0 enabled Miele
induction cooktop
This ventilation hood is supplied with a
Con@ctivity 2.0 wireless stick .
The wireless stick can only be used with
cooktops that are fitted with a slot for
the wireless stick to operate the
Con@ctivity function.
Check the installation instructions for
the Con@ctivity 2.0 stick to ensure
that it is compatible with your
cooktop.
Please note that you cannot set up a
WiFi connection at the same time as a
wireless connection (Con@activity
2.0, remote control).
Installing the Con@ctivity 2.0 stick
See the relevant installation
instructions provided with the
Con@ctivity 2.0 stick.
Activating the wireless connection
The ventilation hood and the cooktop
must be installed and operational.
The wireless connection must be
activated on the ventilation hood and
the cooktop at the same time.
Activation on the ventilation hood is
described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.
Activating the ventilation hood
The cooktop and ventilation hood
must be switched off.
Touch the delayed shutdown
control for approx. 10seconds
until 1 lights up.
Then touch in turn:
- the 1 control,
- then the B control,
- then the lighting control.
The ventilation hood is now in signing
on/off mode.
If a wireless connection has not yet
been established, 2 and 3 will flash at
the same time.
Before using for the first time
20
If a wireless connection has already
been established, 2 and 3 will light up
constantly (Con@ctivity 2.0 is already
activated or a remote control is signed
on).
Touch the B control to activate
Con@ctivity 2.0.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will light
up constantly, B will flash on and off.
The search for a wireless connection will
start.
Activating the cooktop
While the ventilation hood is
searching for a signal, start activating
the cooktop.
For more details, see the cooktop
operating instructions.
When the cooktop registers that a
connection has been established, exit
activation on the cooktop.
Finishing activation on the ventilation
hood
When successfully connected, B will go
out, and 2 and 3 will light up constantly.
Confirm activation with the delayed
shutdown control. All the
indicator lights will go out.
The Con@ctivity function is now ready
for use.
If you do not confirm within 4minutes,
activation will be canceled.
You only need to carry out the
activation procedure once. If the
appliances are disconnected from the
electricity supply, for example during a
loss of power, they will still remain
activated.
Activation failed
If a wireless connection cannot be
established despite activation of the
Con@ctivity function on the ventilation
hood and cooktop, the function must
first be deactivated and then reactivated
on both appliances.
Before using for the first time
21
Deactivating the wireless connection
The cooktop and ventilation hood
must be switched off.
Touch the delayed shutdown
control for approx. 10seconds
until 1 lights up.
Then touch in turn:
- the 1 control,
- then the B control,
- then the lighting control.
The ventilation hood is now in signing
on/off mode.
If a wireless connection has already
been established, 2 and 3 will light up
constantly.
Touch the 1 control to deactivate
Con@ctivity 2.0.
2 will light up constantly, 3 will flash on
and off.
After a few seconds, 2 and 3 will start
flashing on and off.
The wireless connection has now been
deactivated.
To deactivate the cooktop, please
refer to the corresponding operating
instructions.
Please bear in mind that disabling the
connection will also disable any
remote control function being used.
The remote control must then be
reactivated.
Operation (Automatic mode)
22
When Con@ctivity is active, the
ventilation hood always operates in
automatic mode (see “Before using for
the first time – Setting up
Con@ctivity”).
If you wish to operate the ventilation
hood manually; see “Operation
(Manual mode) – Cooking without
Con@ctivity”.
Cooking with Con@ctivity
(Automatic mode)
Turn on a burner to the desired power
setting.
The overhead lighting will come on.
After a few seconds, the blower will
come on, briefly operating at power
level 2 before immediately switching to
level 1.
The ventilation hood selects the power
level automatically during cooking.
This level is determined by the total
output of the cooktop, i.e., the number
of burners in operation and the power
levels selected.
If you select a higher power level on the
cooktop or switch on multiple burners,
the ventilation hood will switch to a
higher blower level.
If you select a lower power level on the
cooktop or turn off a burner, the
ventilation hood will accordingly switch
to a lower blower level.
Examples for power levels 1 to B
Reaction time
Changing the power setting on the
cooktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the cooktop transmits the information
to the hood in intervals.
The reaction time can vary from a few
seconds to a couple of minutes.
Cooking process
For example, you switch on a burner
at the highest power level to heat
cookware for frying. After approx.
10seconds to 4minutes, you then
reduce the power level (60seconds
to 5minutes for a HiLight cooktop).
The ventilation hood recognizes a
cooking process.
The ventilation hood turns itself on and
when the cooktop power level has been
reduced, the ventilation hood switches
to power level 3 and remains at that
level for approx. 5minutes.
After this, the blower level is once again
determined by the Con@ctivity
function.
You can also manually select a different
blower level before then.
Operation (Automatic mode)
23
Switching off
Turn off all burners.
Over the next few minutes, the
ventilation hood blower setting will
decrease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air.
- From the Booster setting, the blower
switches immediately to level3.
- From level 3, it will switch to level 2
after approx. 1minute.
- From level 2, it will switch to level 1
after 2minutes.
- After 2minutes at level 1, the blower
automatically turns off.
- After another 30seconds, the
overhead lighting turns off.
The cooking process is then finished.
Temporarily exiting Automatic
mode
To temporarily exit Automatic mode
when cooking:
Manually select a different blower
level; or
Manually turn the ventilation hood off;
or
Activate the delayed shutdown
function on the ventilation hood.
The blower will switch itself off after
the selected run-on time, and the
lighting will remain on.
The ventilation hood functions are now
operated manually (see “Operation
(Manual mode)”).
Resuming Automatic mode
The ventilation hood resumes Automatic
mode:
- If the ventilation hood has not been
used for a period of approx. 5minutes
after the manual selection of a blower
level; or
- If the manually selected blower level
once again matches the automatic
setting; or
- The ventilation hood blower and the
cooktop have been switched off for at
least 30seconds.
Automatic mode will resume next
time the cooktop is switched on.
You can also operate the ventilation
hood manually for a complete cooking
process.
To do so, switch the ventilation hood
blower on before the cooktop.
If the ventilation hood and the cooktop
have been switched off for at least
30seconds after cooking, Automatic
mode will resume next time the cooktop
is switched on.
Operation (Manual mode)
24
Cooking without Con@ctivity
(Manual mode)
The ventilation hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Automatic mode) – Temporarily
exiting Automatic mode”).
Turning on the blower
Switch the blower on as soon as you
start cooking. This is to ensure that
vapors are captured right from the start.
Touch the On/Off control.
The blower switches on at power level
2.
Selecting the power level
Power levels 1 to 3 are available for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B booster
level.
Select the power level required by
tapping a button from 1 to B.
Reducing power down from the
Booster setting
If power management is activated
(default setting), the blower
automatically switches back to level 3
after 5minutes.
Selecting the delayed shutdown
time
It is advisable to run the blower for a
few minutes after cooking has finished.
This helps to neutralize any lingering
vapors and odors in the air.
It also reduces the risk of residues
accumulating in the ventilation hood
and any resultant odors.
The delayed shutdown function enables
the blower to continue running for a pre-
determined time before switching itself
off automatically.
After you have finished cooking, touch
the delayed shutdown control.
- Once: blower switches off after
5minutes (5 lights up).
- Twice: blower switches off after
15minutes (15 lights up).
- If you touch the delayed shutdown
control again, the blower will
remain switched on ( will go out).
Turning off the blower
Press the On/Off control to turn
the blower off.
Operation (Manual mode)
25
Dimming/switching the
overhead lighting on/off
The overhead lighting can be switched
on and off and dimmed independently
of the blower.
Touch the lighting control briefly to
switch it on or off.
The lighting will switch on at maximum
brightness.
With the lighting switched on, press
and hold the lighting control. The
brightness will gradually dim until you
release the control.
To increase the brightness, press and
hold the lighting control again until
the desired level has been reached
and then release it.
Power management
The ventilation hood is equipped with a
power management system. Power
management helps to save energy. It
ensures that the blower power level is
reduced automatically and that the
lighting is switched off.
- If the booster level is selected, the
blower automatically switches to level
3 after 5 minutes.
- If the blower is set to level 3, 2, or 1, it
switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.
- The overhead lighting will switch off
automatically after 12hours.
You can deactivate power management.
Keep in mind that this may increase
energy consumption.
Activating/deactivating power
management
Switch off the blower and the lighting.
Touch the delayed shutdown
control for approx. 10seconds,
until 1 lights up in the power level
display.
Then press in order:
- the lighting control,
- the 1 control, and then
- the lighting control.
When power management is turned on,
the 1 and B indicators will be
continuously lit.
When it is turned off, the 1 and B
indicators will flash.
Touch the 1 control to deactivate
power management.
The 1 and B indicators will flash.
Touch the B control to activate power
management.
The 1 and B indicators will be
continuously lit.
Confirm the setting by pressing the
delayed shutdown control.
All the indicator lights will go out.
If you do not confirm the new setting
within 4minutes, the ventilation hood
will revert to the previous setting.
Safety shut-off
If power management has been
deactivated, the ventilation hood will
switch itself off automatically after
12hours if it has been left on (blower
and overhead lighting).
To switch it back on, press the On/
Off control or the lighting
control.
Operation (Automatic and Manual modes)
26
Filter saturation indicator
The ventilation hood registers the length
of time it has been operated.
The filter saturation indicators show
when the filters need to be cleaned or
changed by lighting up the grease filter
symbol or charcoal filter symbol .
Additional information on cleaning and
changing the filters and resetting the
filter saturation indicators can be found
under “Cleaning and care”.
Adjusting the grease filter filter
saturation indicator
The filter saturation indicator can be set
to suit the customer’s cooking habits.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter interval of 20hours if
food is fried regularly.
- A shorter cleaning interval is also
recommended if the customer only
cooks occasionally. This will prevent
grease buildup from hardening and
making cleaning more difficult.
- Select a longer cleaning interval of 40
or 50hours if the customer uses very
little fat when cooking.
Switch off the blower and the lighting.
Touch the delayed shutdown
control and the grease filter
control at the same time.
The grease filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1.................................................... 20hours
2................................................... 30hours
3................................................... 40hours
B................................................... 50hours
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
grease filter control .
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Operation (Automatic and Manual modes)
27
Adjusting or deactivating the filter
saturation indicator for the charcoal
filter
The charcoal filter is needed for
recirculation mode.
The filter saturation indicator can be set
to suit the customer’s cooking habits.
It has to be deactivated for vented
mode.
The factory default setting is an interval
of 180hours.
Switch off the blower and the lighting.
Touch the delayed shutdown
control and the charcoal filter
control at the same time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
1.................................................. 120hours
2................................................. 180hours
3................................................ 240hours
B.............................................. Deactivated
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the ventilation hood
will revert to the previous setting.
Checking the filter saturation indicator
Before the set operating time has run
out, you can check what percentage of
the time has elapsed.
Press the On/Off control to turn
the blower on.
Press and hold the grease filter
control or the charcoal filter control
.
One or more of the power level
indicators will flash.
The number of flashing indicators shows
the elapsed operating time as a
percentage.
1 ......................................................... 25%
1 and 2 .............................................. 50%
1 to 3 ................................................. 75%
1 toB .............................................. 100%
The elapsed operating time remains
stored in the memory when the
ventilation hood is turned off or in the
event of an interruption to the power
supply.
Energy-saving tips
28
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during extraction mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
ventilation hood will switch on and off
automatically. The ventilation hood
will select the optimum power level
for the cooking you are doing, which
ensures low energy consumption.
- If you are operating the ventilation
hood manually, please note the
following:
– Check the power level selected on
the ventilation hood. A low power
level is usually sufficient. Only use
the Booster setting when
necessary.
– When a large volume of cooking
vapors are being produced, switch
to a high power level in good time.
This is more efficient than
operating the hood for longer to try
to capture cooking vapors that
have already been distributed
throughout the kitchen.
– Make sure that you switch off the
hood after use.
If cooking vapors and odors still
need to be removed from the
kitchen air after cooking, use the
delayed shutdown function. The
blower will switch off automatically
after the selected delayed
shutdown time.
Cleaning and care
29
Before proceeding with any
maintenance or cleaning task, the
ventilation hood must be
disconnected from the power supply,
see “IMPORTANT SAFETY
INSTRUCTIONS”.
Stainless steel housing
General information
The surfaces and control buttons
are susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control buttons
using warm water and liquid dish
soap. Apply with a sponge cloth.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
- Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
- Abrasive cleaners such as scouring
powder, scouring liquid, abrasive
sponges such as pot scourers, or used
sponges that still contain residues
from abrasive cleaners
Important information for appliances
with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important information for appliances
with lacquered housing
Minor scratches on the surface are
inevitable when cleaning the casing;
they may be visible depending on the
lighting in the kitchen.
Special instructions for glass surfaces
Glass surfaces can be cleaned using a
cleaner specifically for use on glass.
Cleaning and care
30
Grease filters
Risk of fire
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the
ventilation hood.
The grease filters must be cleaned at
regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the ventilation hood
and in the kitchen.
Cleaning intervals
Accumulated grease solidifies over a
longer period of time and makes
cleaning more difficult. The grease filters
should therefore be cleaned every 3 to
4 weeks.
The filter saturation indicator reminds
you to regularly clean the grease filters
by illuminating the grease filter
symbol.
You can adjust the interval for the filter
saturation indicator to match your
cooking habits (see “Operation
(Automatic and Manual modes)”).

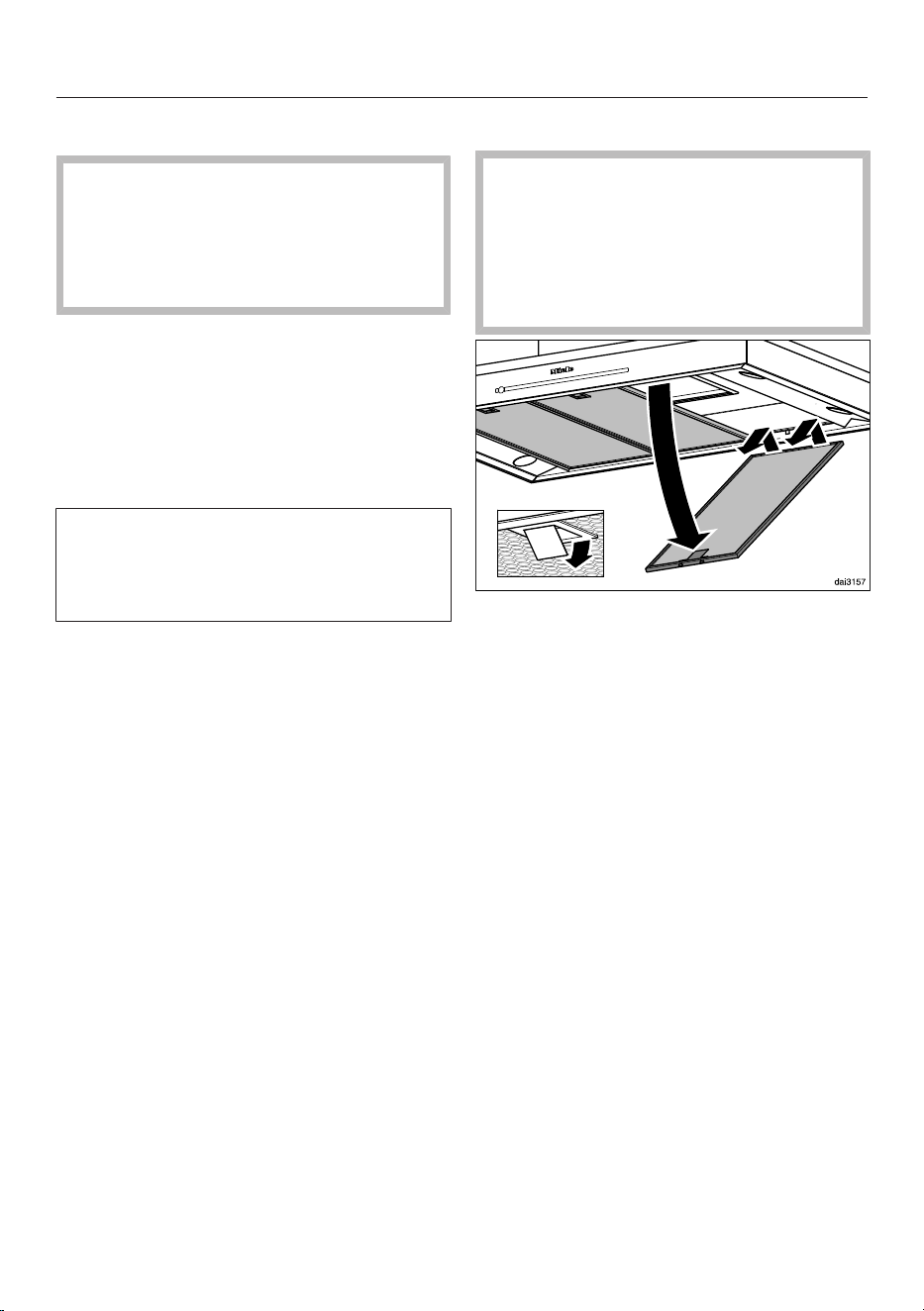

Removing the grease filters
When handling the grease filter,
be careful not to drop it.
This can result in damage to the filter
and the cooktop below.
Make sure you hold the filter securely
at all times when handling it.
To remove a grease filter, release the
locking clip. Then, open the filter to a
45° angle, unhook it, and remove it
from the hood.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and dish soap. Do not use undiluted
dish soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
- Lime removers
- Abrasive powders or abrasive liquids
- Aggressive all-purpose cleaners and
degreaser sprays
- Oven sprays
Cleaning and care
31
Cleaning the grease filters in a
dishwasher
Place the grease filters upright or
slightly inclined in the lower basket.
Ensure the spray arm is not
obstructed.
Use a commonly available household
dishwashing detergent.
In a Miele dishwasher use the
“Normal” program.
Depending on the detergent used,
cleaning the filters in a dishwasher
may cause the inside filter surfaces to
become discolored. However, this will
not affect the functioning of the grease
filters in any way.
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the filters for cleaning,
also clean off any accessible oil or fat
buildup from the housing. Doing so will
prevent a fire hazard.
Reinsert the grease filters. When
inserting the grease filters, make sure
that the locking clip is facing outward.

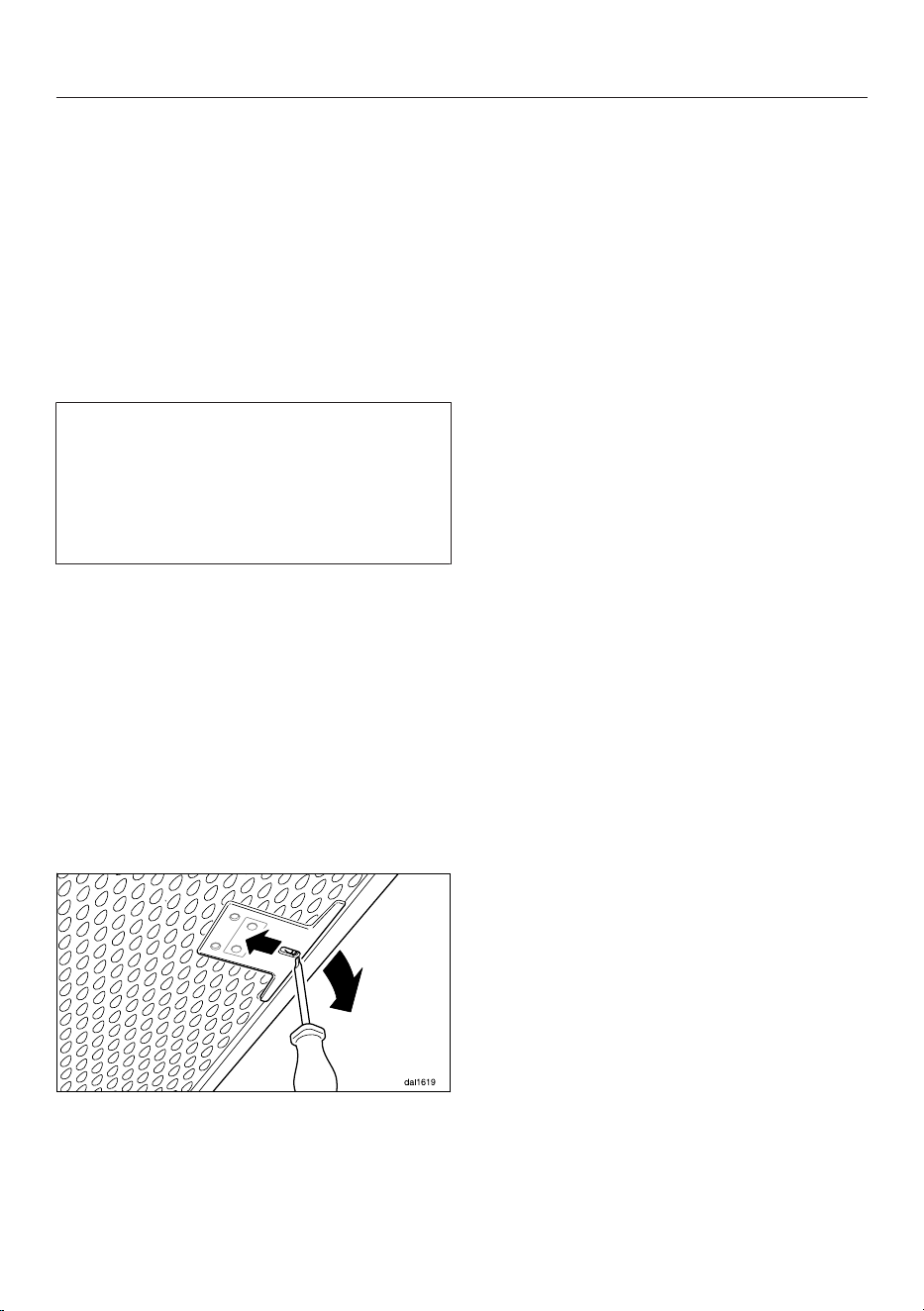

If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Resetting the filter saturation indicator
for the grease filters
Once cleaning is complete, the filter
saturation indicator must be reset.
While the blower is turned on, touch
the grease filter control for approx.
3seconds, until only the 1 is flashing.
The grease filter symbol goes out.
When cleaning the grease filters before
the full operating time has elapsed:
Touch the grease filter control for
approx. 6seconds, until only the 1 is
flashing.
Replacing the grease filter
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
Miele Customer Service (see end of
these operating instructions for contact
details) or from your Miele dealer.
Cleaning and care
32
OdorFree Charcoal Filter
With recirculation mode, a charcoal
filter must be fitted in addition to the
grease filters. The charcoal filter is
designed to absorb cooking odors.
The charcoal filter is fitted in the canopy
above the grease filters.

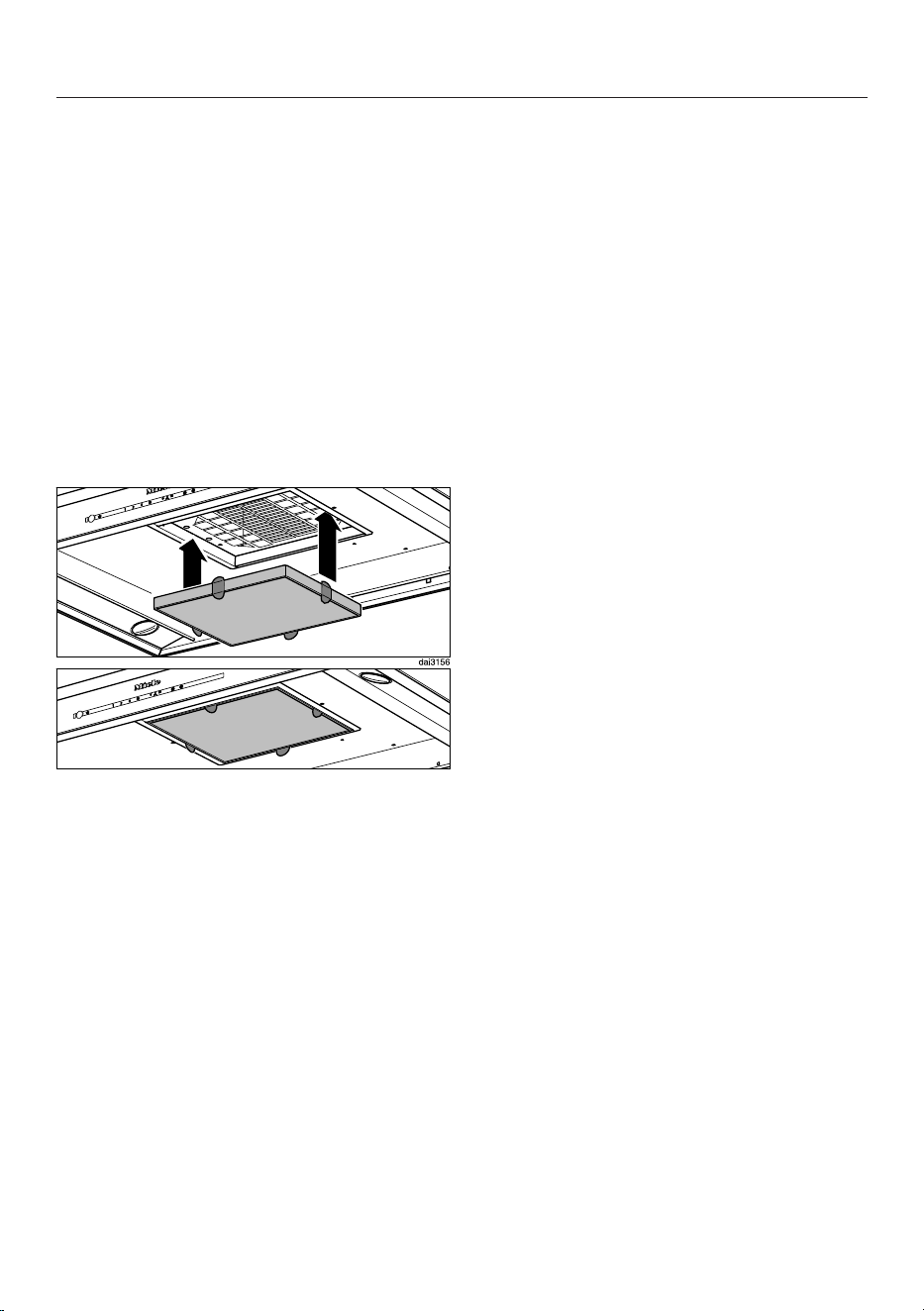

How to install/replace a charcoal filter
Remove the grease filters before
fitting or replacing a charcoal filter.
Take the charcoal filter out of its
packaging.
Press the charcoal filter into the
frame.
Reinsert the grease filters.
When to change the OdorFree
Charcoal Filter
Replace the charcoal filter when it no
longer absorbs kitchen odors
effectively.
It should be replaced at least every 6
months.
The filter saturation indicator reminds
you to regularly replace the charcoal
filter by illuminating the charcoal filter
symbol.
Resetting the filter saturation indicator
for the charcoal filters
After changing the charcoal filters, the
filter saturation indicator must be reset.
Touch the charcoal filter control for
approx. 3seconds with the blower
switched on until only the indicator
light for level 1 is flashing.
The charcoal filter symbol will go out.
If you want to replace the charcoal filter
before the full operating time elapses:
Touch the charcoal filter control for
approx. 6seconds until only the
indicator light for level 1 is flashing.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Charcoal filters are available to order via
the Miele Web Store (see end of this
booklet for contact details), or from your
Miele dealer.
The charcoal filters are listed under
“Technical data” at the back of this
booklet.
Customer Service
33
Information to help you rectify faults
yourself and about Miele spare parts
can be found at www.miele.com/
service.
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Appliance warranty and product
registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at www.mieleusa.com.
Installation
*INSTALLATION*
34
Before installation
Before installation, it is important
to read the information contained in
this chapter and in the “IMPORTANT
SAFETY INSTRUCTIONS” chapter.
Installation parts
4 screws, 7 x 110mm and
4 plugs, 10 x 80mm
for securing the ventilation hood to the
ceiling (not for use in USA / CDN).
The screws and plugs are designed
for use in solid ceilings only.
Use different fasteners for other
ceiling construction types. Make sure
that the ceiling can support the load.
1 non-return flap
for fitting into the exhaust socket on the
motor unit (not needed for recirculation
mode). Depending on the model, the
non-return flap may already be
mounted.
4 extension piece holders
for aligning and securing the telescopic
chimney
4 screws, M4 x 8.5mm
for securing the extension piece
holders.
14 screws, M4 x 8mm
for securing the spacer frame and
securing the hood to the installation
frame.
1 screw, M4 x 16mm
for securing the chimney.
DUI 32 recirculation kit for
recirculation mode
(not supplied, available as an optional
accessory). The kit includes a
directional unit, aluminum hose, and
hose clips.
Installation
*INSTALLATION*
35
Appliance dimensions
a
Mounting area for the exhaust ducting and power cable. In recirculation mode,
only the power cord is required.
b
Possible height range for appliance in extraction mode
c
Possible height range for appliance in recirculation mode
d
Alternative installation with spacer frame
e
Air vent positioned at the top for recirculation
f
A power cord is required to connect the hood to the socket in the ceiling. With
extraction mode flexible ducting is also required.
Installation
*INSTALLATION*
36
Exhaust connection 6" (150mm)
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the “IMPORTANT SAFETY
INSTRUCTIONS” section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610mm)
Electric Barbeques and Fryers 26" (660mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660mm) 30" (760mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660mm) 30" (760mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
Installation
*INSTALLATION*
37
Installation recommendations
- A distance of at least 26" (660mm)
is recommended above electric
cooktops to provide more workspace
and easier cooking under the hood.
- When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
- Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
- To achieve optimum vapor extraction,
the ventilation system must be
centered over the cooktop, not to the
side or behind.
- The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
- The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves, ceilings
or decorative elements in the vicinity
of the ventilation hood.

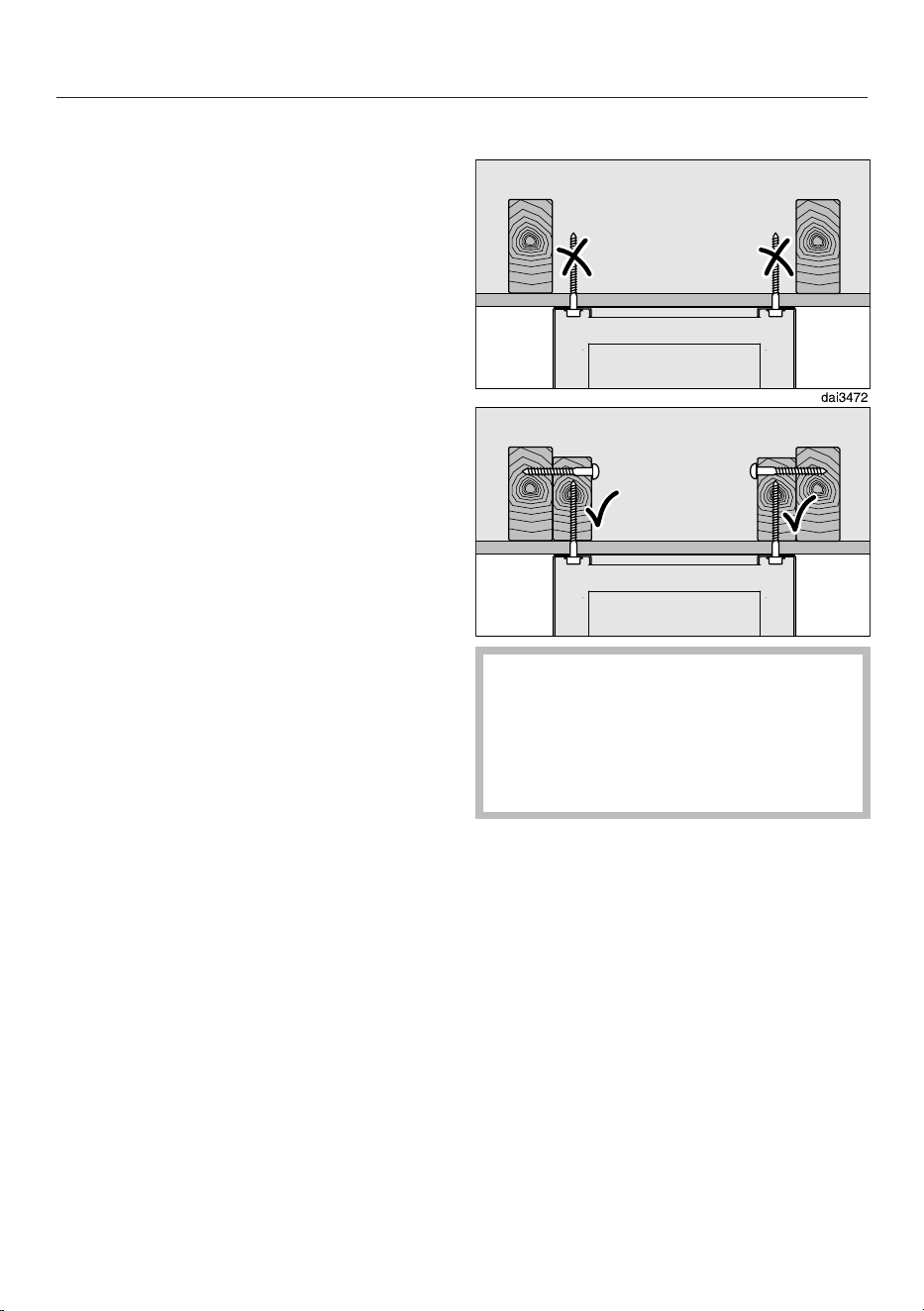

Structural support
The hood must be attached to rigid
structural framing that is supported
in its entirety by the ceiling joists, or
to the ceiling joists directly. Do not
attach the plate directly to the ceiling
with anchors, toggle bolts, etc.
Removing the protective film
The housing components are covered
by a protective film to prevent them
from damage during transport.
Please remove this film before
installing the housing components. It
can be peeled off easily without any
additional tools.
Installation
*INSTALLATION*
38
8
5
/
8
"
220 mm
8
5
/
8
"
220 mm
dai3435aus

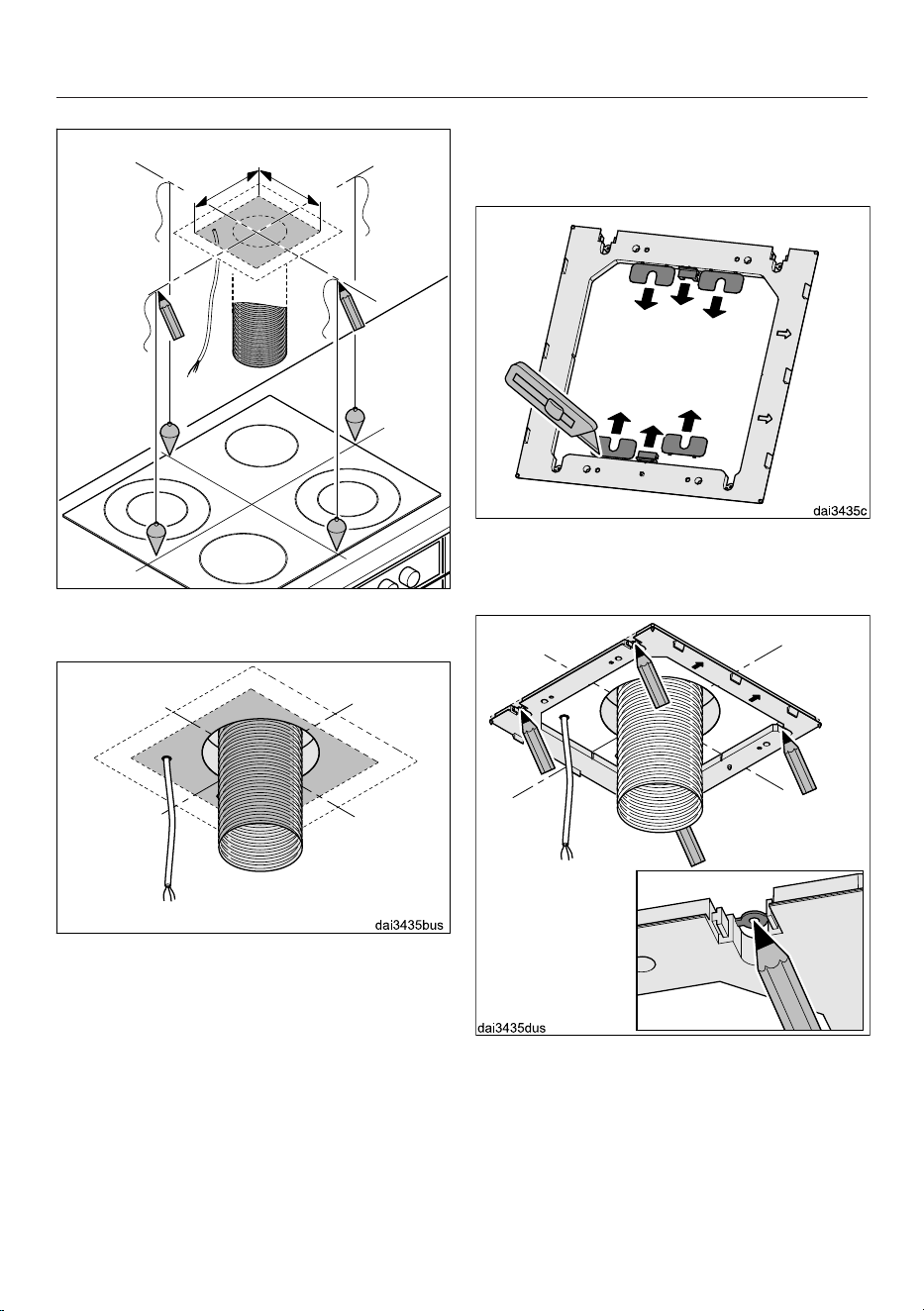

Draw two intersecting lines on the
ceiling.
For extraction mode:
- Lay the vent duct and feed it down
through the ceiling in the area shown.
A section of flexible vent duct approx.
28"(700mm) long is needed
between the ceiling and the
ventilation hood’s vent socket.
Lay the power cord and feed it down
through the ceiling in the area shown.
A power cord approx. 28"(700mm)
long is needed between the ceiling
and the ventilation hood’s power
connection.
Use a knife to release the four spacers
and the two covers from the spacer
frame supplied.
Use the spacer frame as a drilling
template. Place it on the ceiling with
the arrows pointing forwards. Using
the notches, align the spacer frame
on the intersecting lines and make
pencil marks for the drill holes.
Installation
*INSTALLATION*
39

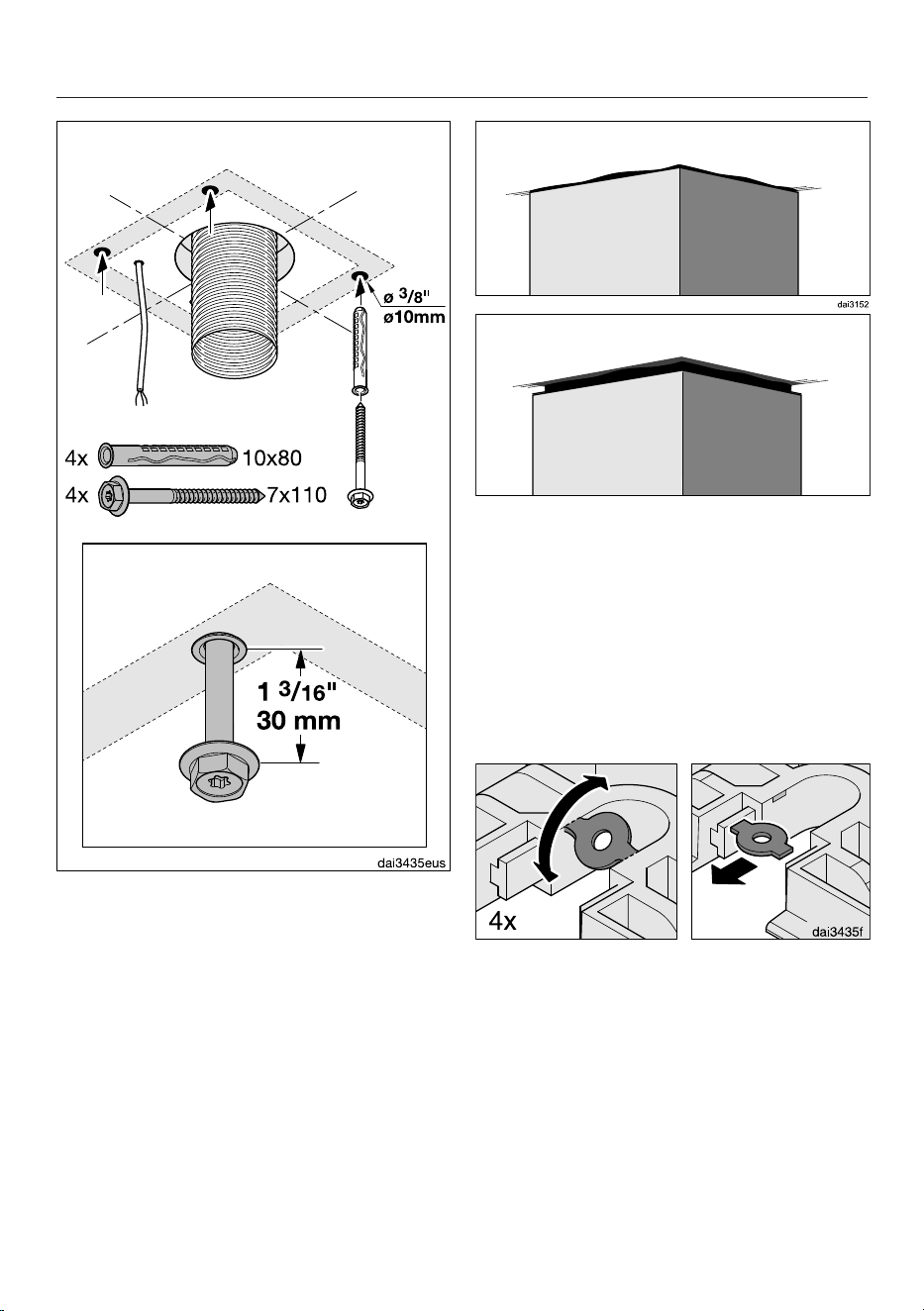

Drill four holes ³/₈“ (10mm),
approx. 4 ¹/₂” (115mm) deep for the
plugs supplied.
Place the four plugs in the holes and
screw in the four screws so that they
protrude by approx. 1 ³/₁₆" (30mm).
The spacer frame can be installed
between the chimney and the ceiling.
This creates a shadow which gives the
illusion of a gap between the ceiling and
the chimney. This is useful if the ceiling
is not level or is uneven. The hood is
aligned vertically with the spacers
supplied. Visual irregularities between
the chimney and the ceiling are then
concealed by the shadow.
If you wish to install the hood with the
spacer frame, remove the four inserts
from the fixing holes.
Installation
*INSTALLATION*
40

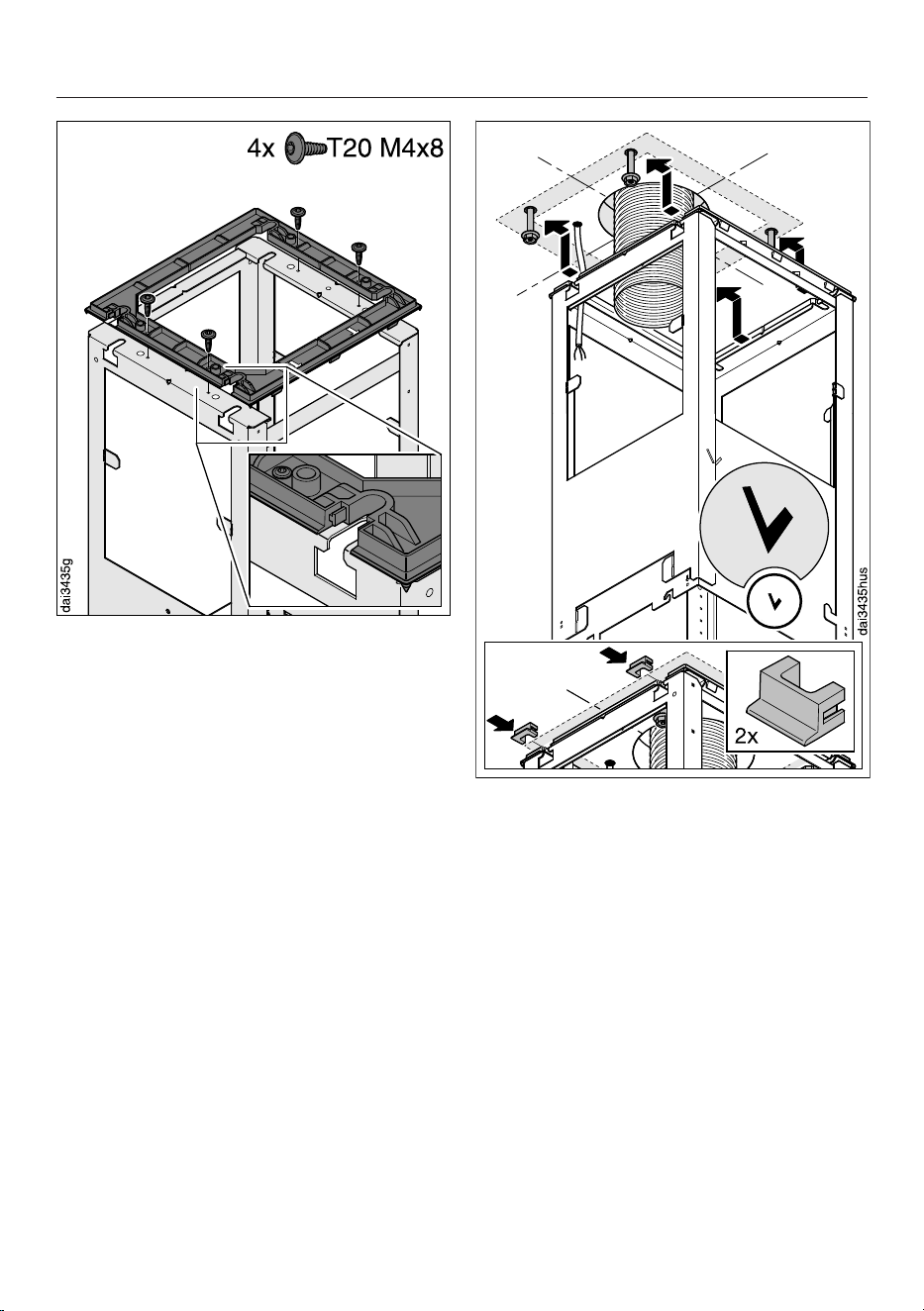

Mount the spacer frame onto the
installation frame.
Hang the installation frame on the
four screws. The front of the frame is
marked with a “V”.
If using the spacer frame, place the
two covers into the fixing holes.
Installation
*INSTALLATION*
41

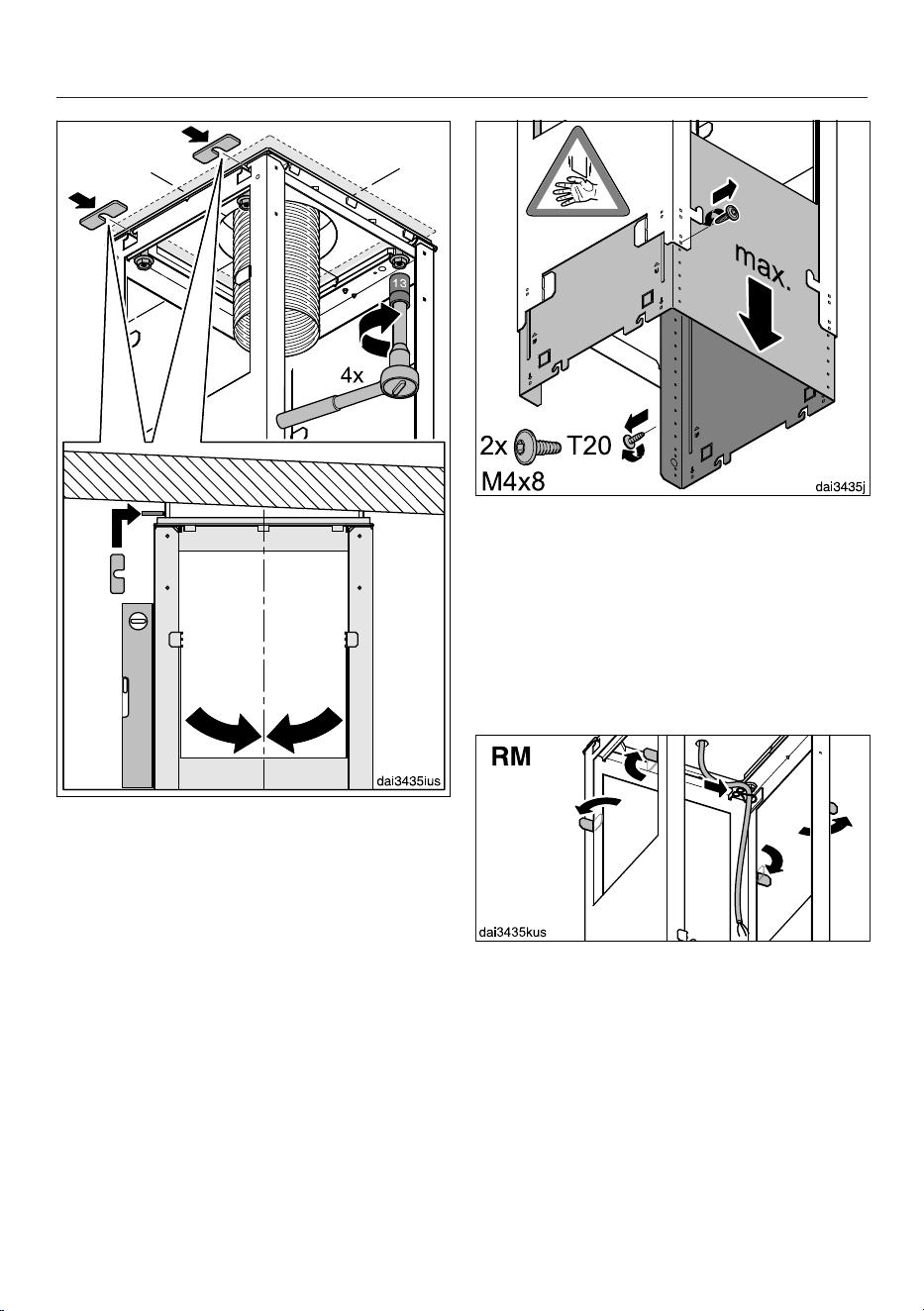

Align the installation frame and
secure it with the screws.
The spacers, which were removed
from the spacer frame at the start,
can be used to align the hood
vertically.
Holding the installation frame
securely, remove the two fixing
screws and extend the installation
frame to its maximum length.
Replace the screws.
The directional unit from recirculation kit
DUI 32 (optional accessory) is installed
for recirculation mode (RM):
Bend the four retaining tabs on the
installation frame outward.
Place the power cord inside the
installation frame.
Installation
*INSTALLATION*
42

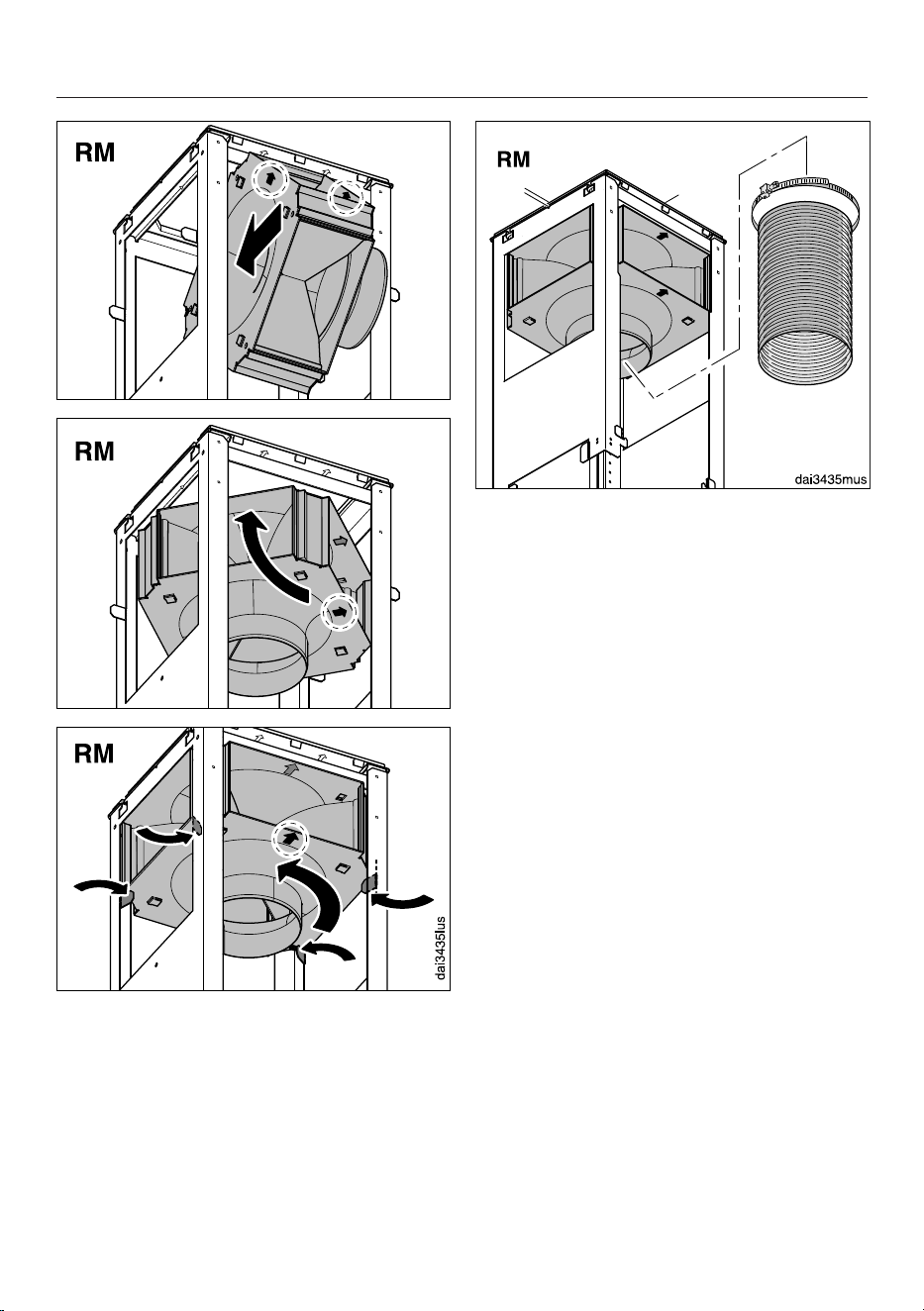

Install the directional unit as shown.
Note the marking on the front.
Bend the retaining tabs back and
approx. 45° inward to hold the
directional unit in place.
Secure the hose to the directional unit
socket using a hose clip.
Check that the hose is held securely.
Installation
*INSTALLATION*
43

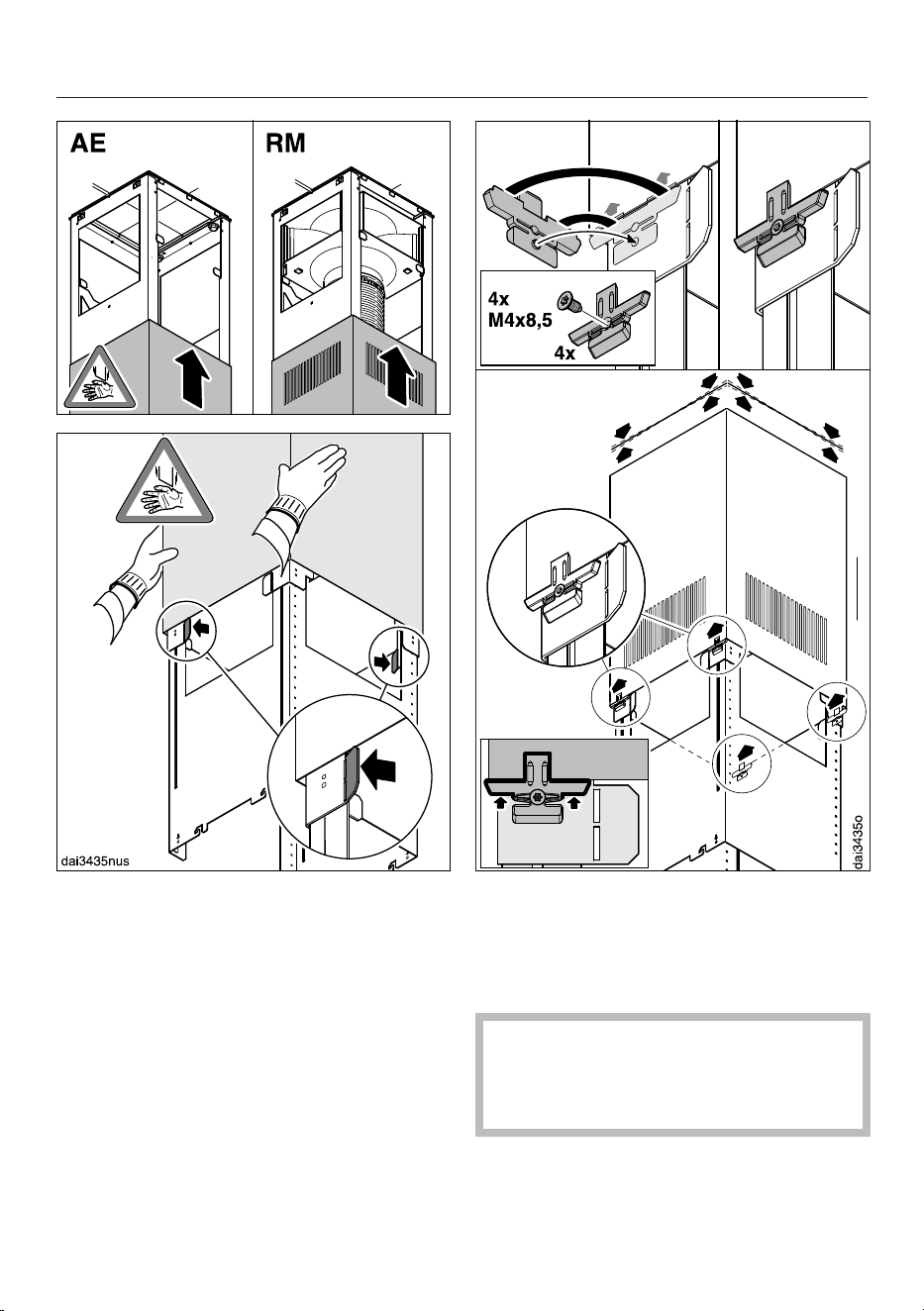

Push the telescopic chimney over the
installation frame:
- with the recirculation grilles at the
bottom for extraction mode (AE),
- with the recirculation grilles at the top
for recirculation mode (RM).
Bend the two retaining tabs outwards
to prevent the telescopic chimney
from slipping down again.
Fit the four telescopic chimney
clamps. When the screws are
tightened, the clamps spread out and
push the telescopic expansion piece
upwards.
Tighten the screws only until the top
edge of the telescopic chimney is
evenly aligned with the ceiling or the
spacer frame.
Installation
*INSTALLATION*
44

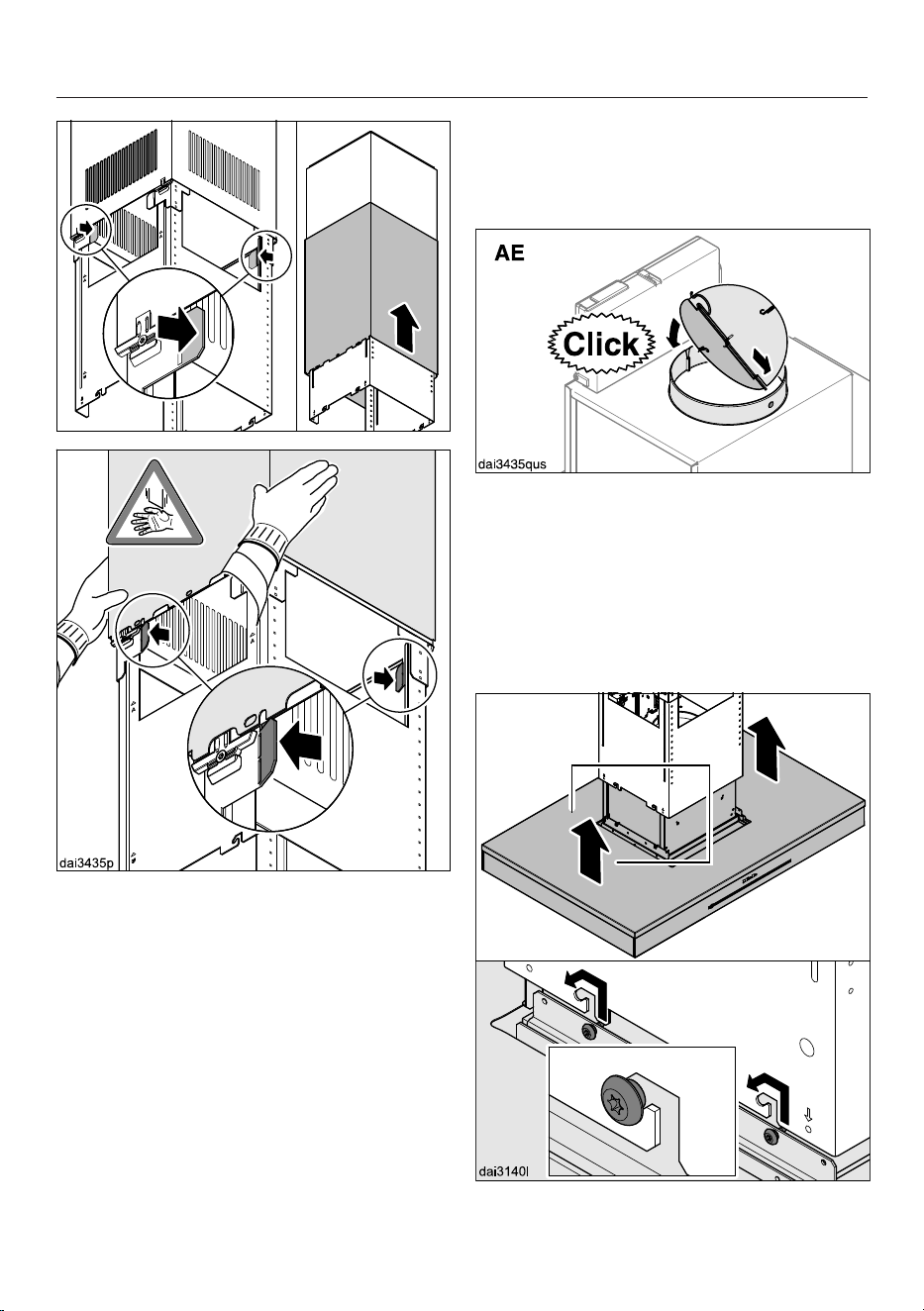

Bend back the two retaining tabs.
Push the chimney over the telescopic
extension piece and bend the
retaining tabs outward again to
prevent the chimney from slipping
down again.
A non-return flap is supplied with the
hood or is already fitted in the exhaust
socket of the motor unit (depending on
model).
With vented mode (AE) insert the
non-return flap in the exhaust socket
if your ducting system is not equipped
with one.
Recirculation mode (RM) does not
require the non-return flap to be
inserted. If there is one present, it
should be removed.
Hang the hood on the brackets, making
sure that the controls are at the front.
Installation
*INSTALLATION*
45

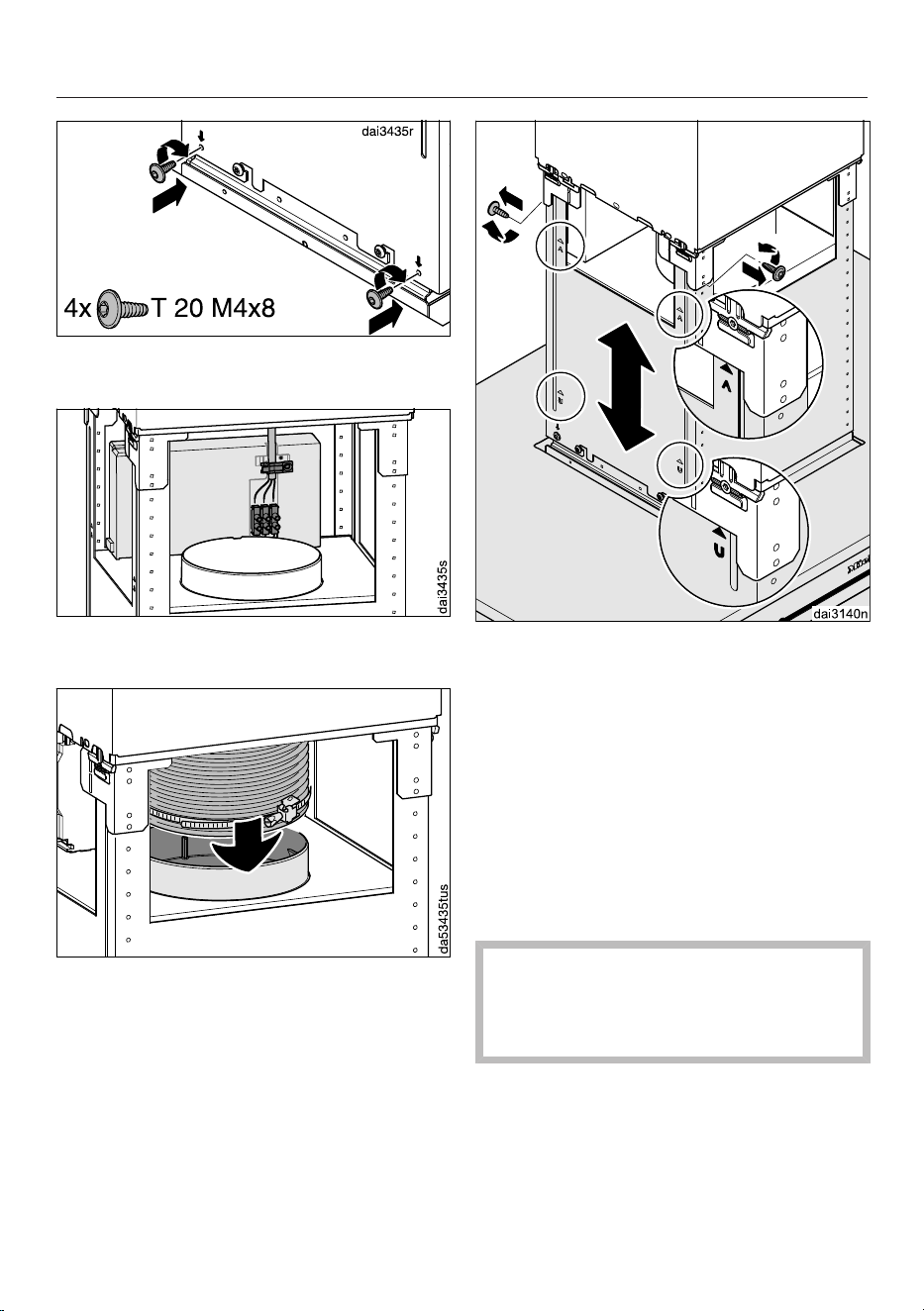

Secure the hood with the screws
supplied.
Connect the power cord. See
“Electrical connection.”
Slide the vent duct onto the vent
socket and secure it (using a hose
clip, for example).
Unscrew both screws from the
installation frame again.
The canopy can now be adjusted to the
desired height, observing the
permissible height ranges:
- With extraction mode: upwards as far
as it will go, downwards only to the
“A” marking.
- With recirculation mode: upwards as
far as the “U”, downwards as far as it
will go.
Follow the instructions in “Appliance
dimensions.” Safety distances
between the cooktop and ventilation
hood must be observed.
Installation
*INSTALLATION*
46

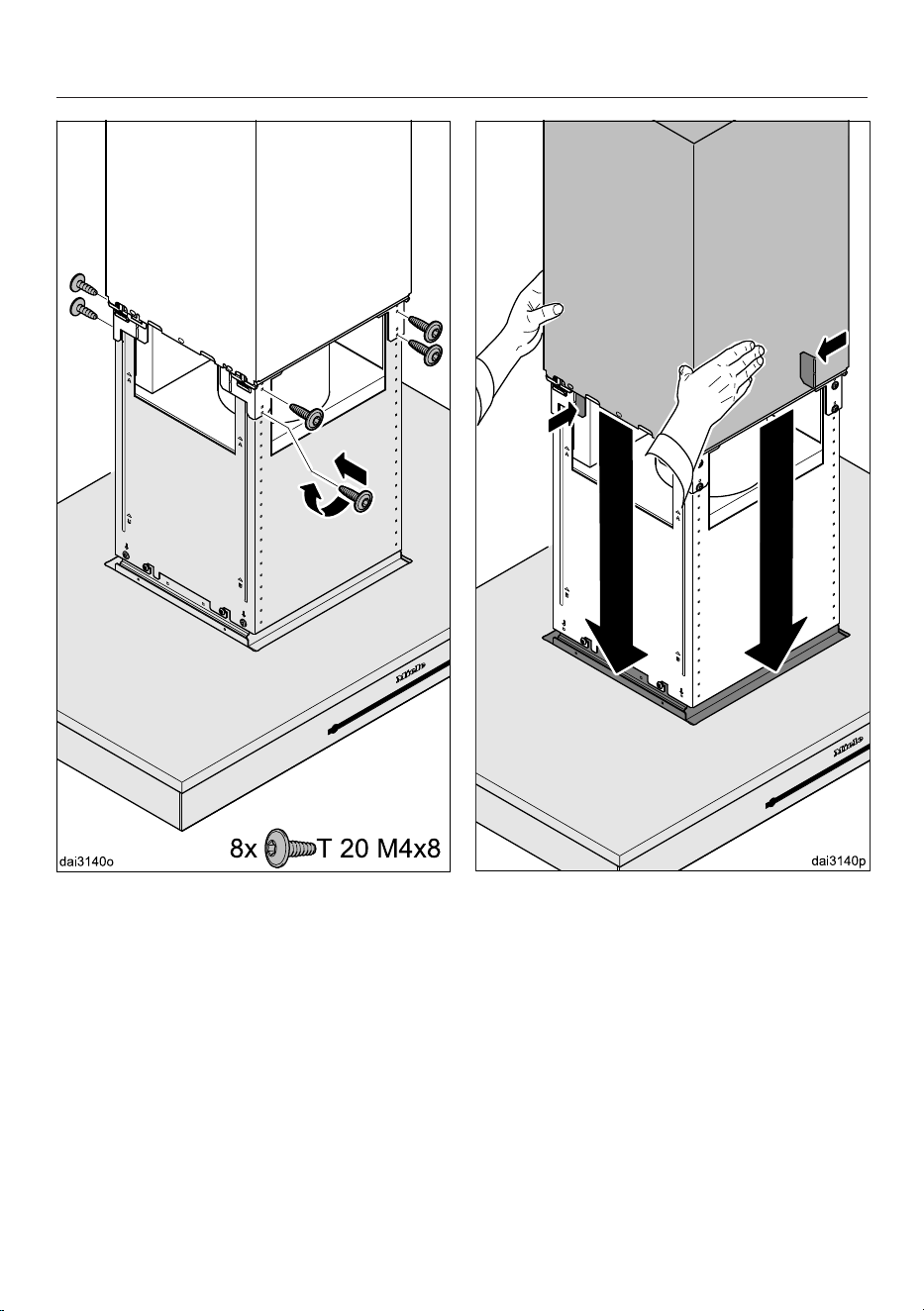

Raise the canopy to the desired
height and secure it with the screws.
Hold the chimney securely, bend back
the retaining tabs and carefully lower
it.
The chimney will locate in the cut-out in
the canopy.
Installation
*INSTALLATION*
47
Remove the grease filters from the
hood.
Insert the safety screw on the inside.
With recirculation mode (RM)
ventilation hoods, insert the OdorFree
Charcoal Filter.
Carefully remove the protective foil
from the grease filters.
Reinsert the grease filters.
Installation
*INSTALLATION*
48
Air venting
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be harmful
or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
“IMPORTANT SAFETY
INSTRUCTIONS” to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
ducting made from approved non-
flammable materials for ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the vent ducting must
not be smaller than the cross-section
of the vent collar (see “Appliance
dimensions”). This applies in
particular when using flat ducting.
- The ducting should be as short and
straight as possible.
- Only use wide radius bends.
- The ducting must not be kinked or
compressed.
- All connections must be strong and
airtight.
- If the ducting has flaps, these must be
opened whenever the ventilation hood
is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Ventilation stack
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the vent
system.
A non-return flap ensures that when the
ventilation hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional accessory)
is recommended. Both of these have a
built-in non-return flap.
If the on-site vent system does not have
a non-return flap, one is supplied with
the ventilation hood.
The non-return flap is installed in the
exhaust socket of the fan.
Installation
*INSTALLATION*
49
Condensate
If the ducting is to run through cool
rooms or ceiling space, for example, the
significant variations in temperature
between the different areas can cause
condensate to form. Insulate the
ducting to reduce temperature
variations.
If the ducting is to be laid horizontally, it
must be laid with a downwards sloping
gradient of at least ³/₈" (1cm) per
meter. This is to ensure that condensate
cannot drain back into the ventilation
hood.
In addition to insulating the ducting, it is
advisable to also install a condensate
trap for collecting and evaporating any
potential condensate.
Condensate traps for 5" (125mm) or 6"
(150mm) diameter ducting are available
as optional accessories.
When installing a condensate trap,
ensure that it is positioned vertically and
as closely as possible to the ventilation
hood above the exhaust vent. The arrow
on the casing indicates the direction of
airflow.
Miele will not accept warranty claims
for any functional defects or damage
caused by inadequate ducting.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Installation
*INSTALLATION*
50
Electrical connection
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician in
strict accordance with national
regulations (for USA: ANSI-NFPA
70) and local safety regulations.
Installation, repairs and other work by
unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable for
use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE
MUST BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short
circuit, grounding reduces the risk of
electric shock by providing a path of
least resistance.plug.
If there is any doubt, have the
electrical system of the house
checked by a qualified electrician.
To increase security before the
machine is installed, it is
recommended to install a protective
switch (30 mA).
The hood must be hard wired
accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
If the unit will be hard wired to the
electricity supply, the wire gauge of the
individual leads must be between 18
AWG and 16 AWG.
The strain relief must be used to ensure
problem-free connection.
Technical data
51
Blower motor 350W
Overhead lighting 4x3W
Total connected load 362W
Supply voltage, frequency 120VAC, 60Hz
Fuse 15A
Weight 77lbs (35kg)
WiFi module
Frequency range 2.400–2.4835GHz
Maximum transmission power < 100mW
ZigBee® module
Frequency band 2.405–2.48GHz
Maximum transmission power < 10mW
Optional accessories for recirculation mode
DUI32 conversation kit and DKF12-900 charcoal filter
WiFi module EK037
FCC ID: 2ACUWEK037
IC: 5669C-EK037
ZigBee® module EK038
FCC ID: 2ACUWEK038
IC: 5669C-EK038
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
1-800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 12 253 870 / 02en-US
DA 6698 D
