E S S E N T I A L S FOR LIFE
User
Manual
MODEL
GGSVDE45W
Vented Clothes Dryer
4.5kg Capacity
2
Purchase Details
For future reference, please record the following
information which can be found on the rating plate
and the date of purchase which can be found on your
sales invoice.
The rating plate is located on the rear of the appliance.
Therefore please fit the duplicate data plates or label on the
outside of the cupboard to sure that the label can be easily
seen during operation.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
3
Contents 2 Purchase Details
5 Welcome
6 General Safety Instructions
10 Product Overview
12 Getting Started: Installation
17 Instructions
20 FAQs
21 Other Useful Information
26 Warranty
4
This page
is intentionally
left blank
5
Welcome Congratulations on purchasing your
new Clothes Dryer! The Sôlt brand is
proudly distributed within Australia
by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual
for information regarding your product’s parts and labour
warranty, or visit us online at www.residentia.group
At Residentia Group, we are customer obsessed and our
Support Team are there to ensure you get the most out
of your appliance. Should you want to learn more about
recommended drying temperatures, the various features of
your Dryer, and importantly taking care of your appliance
when cleaning, our Support Team are here to help.
You can use our online Support Centre at anytime by
visiting http://support.residentiagroup.com.au, or you can
contact us via calling us on 1300 11 HELP (4357).
It is important that you read through the following use and
care manual thoroughly to familiarise yourself with the
installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an Sôlt appliance and we
look forward to being of service to you.
Kind Regards,
The Residentia Team
Residentia Group
—
Head Office.
165 Barkly Ave
Burnley
Victoria 3121
Australia
—
ACN.
600 546 656
—
Online.
residentia.group
6

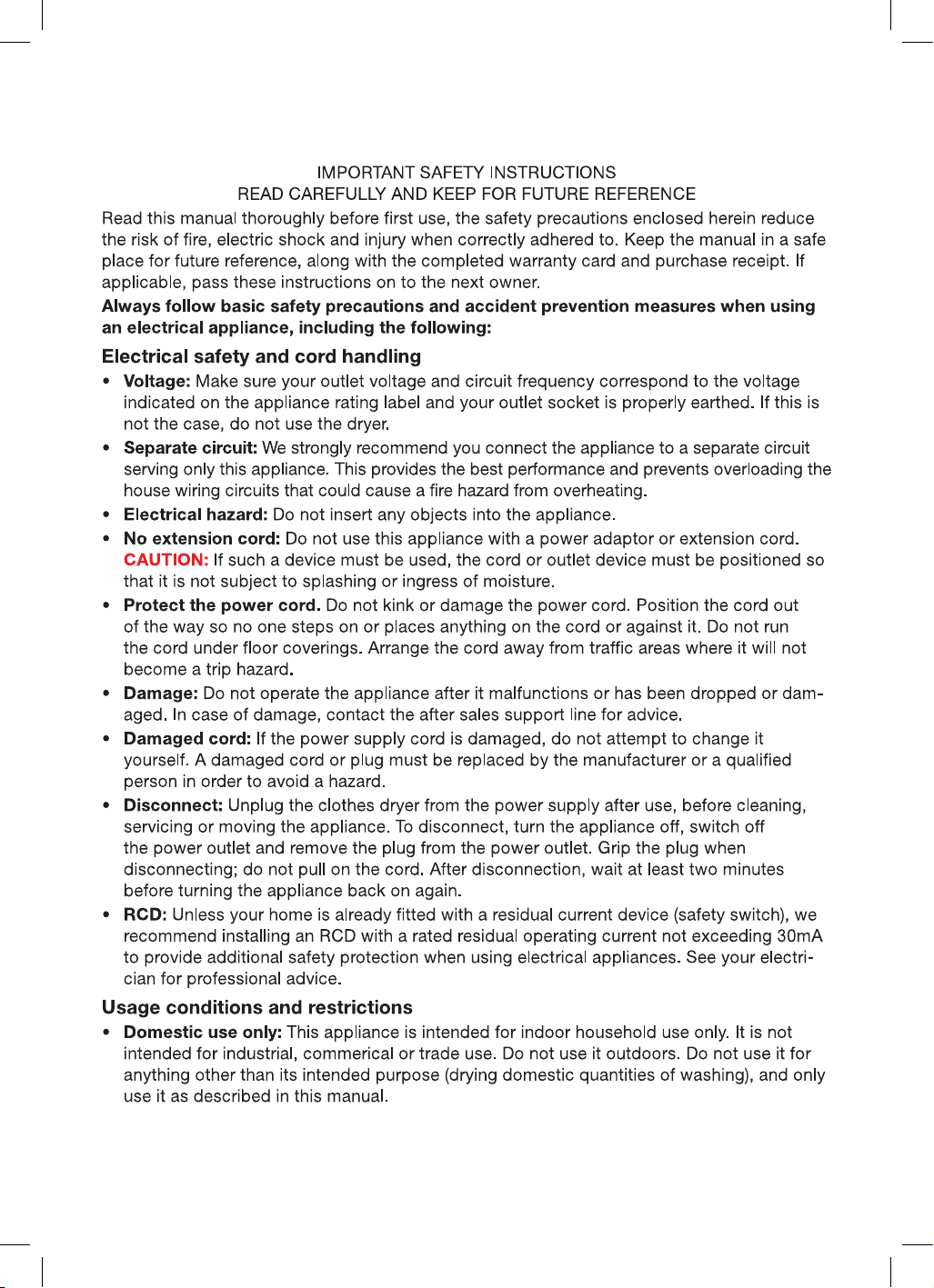

General Safety Instructions
7
General Safety Instructions
8
CAUTION!
The items listed below are UNSUITABLE for clothes drying. They can cause fire in the
clothes dryer or extensive damage. DO NOT place the following items into the clothes
dryer.
• Items containing foam rubber (also known as latex foam) or similarly textured rubber-like
materials — when heated, these materials can spontaneously combust and cause a re.
• Items that have been spotted or soaked with cooking oil, or with highly ammable
substances — these substances constitute a re hazard. Highly ammable substances used
in domestic environments include acetone, alcohol, petrol, kerosene, some stain removers,
dry-cleaning solvents, turpentine, waxes, wax removers and some hair care products. (This
also includes items that have previously been cleaned or spotted with dry-cleaning solvents or
other ammable or explosive substances.)
• Washing these items thoroughly beforehand in hot water with an extra amount of detergent
will reduce, but not necessarily eliminate the hazard. The ‘cool down’ cycle of a clothes dryer
should be used to reduce the temperature of the items. They should not be removed from the
clothes dryer or piled or stacked while hot.
• Undergarments that contain metal reinforcements (such as underwire bras), which can come
loose during drying and damage the clothes dryer.
• Plastic articles such as shower caps or waterproof baby bibs.
• Rubber-backed articles, clothes tted with foam rubber pads, pillows, galoshes and rubber
coated tennis shoes.
• Fabric softeners or similar products, unless they are specically recommended by the product
manufacturer for use in a clothes dryer to eliminate the effects of static electricity.
CAUTION!
• Do not use the tumble dryer if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the tumble dryer.
• Do not allow lint to accumulate around the tumble dryer. Clean the lter after every use.
• Adequate ventilation has to be provided to avoid the back-ow of gases into the room from
appliances burning other fuels, including open res.
This symbol alerts you to take care as oil-affected items can ignite
spontaneously, especially when exposed to heat, such as in a clothes dryer.
The items become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become hot enough
to catch re. Piling, stacking or storing oil-affected items can prevent heat
from escaping and so create a re hazard.
This symbol alerts you to take care of a potential hot surface. As some
surfaces with this item become hot, please do not touch them while during
a cycle.
General Safety Instructions
9
Warning and Caution
• Oil affected items can ignite spontaneously, especially when exposed to heat sourcessuch as
in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation
creates heat. If the heat cannot escape, the items can become hot enough to catch re. Piling,
stacking or storing oil-affected items can prevent heat from escaping and so create a re
hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated
by hair care products be placed in a tumble dryer they should rst be washed in hot water with
extra detergent - this will reduce, but not eliminate, the hazard.
• Remove all objects from pockets such as lighters and matches.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are
quickly removed and spread out so that the heat is dissipated.
• WARNING: The appliance must not be supplied through an external switching device, such as
a timer, or connected to a circuit that is regularly switched on and off by a utility.
• That the appliance must not be installed behind a lockable door, a sliding door or a door with a
hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the
tumble dryer door is restricted.
General Safety Instructions
10
KEY
1 Door
2 Window
3 Start Button
4 Program Selector / Timer
1
2 3
4
Product Overview
11
20
40
60
80
40
20
60
80
100
120
140
160
180
200
4.5KG DR YER
LOW
HIGH
Timer (m in .)
OFF
OFF
COOL D OWN
HEAT DRY
AIR DRY
10
10
10
9
10
Product Overview
12

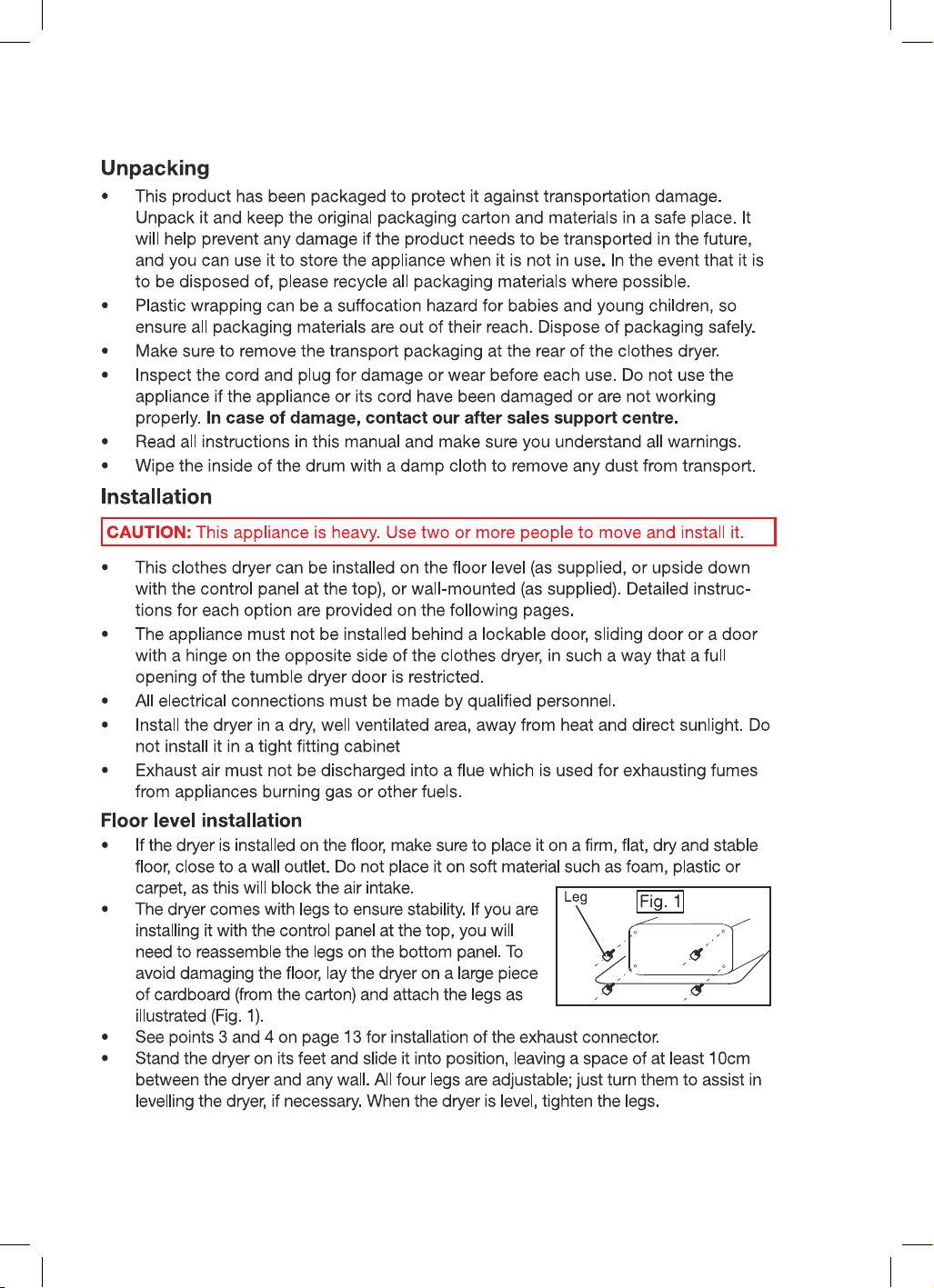

Getting Started: Installation
13

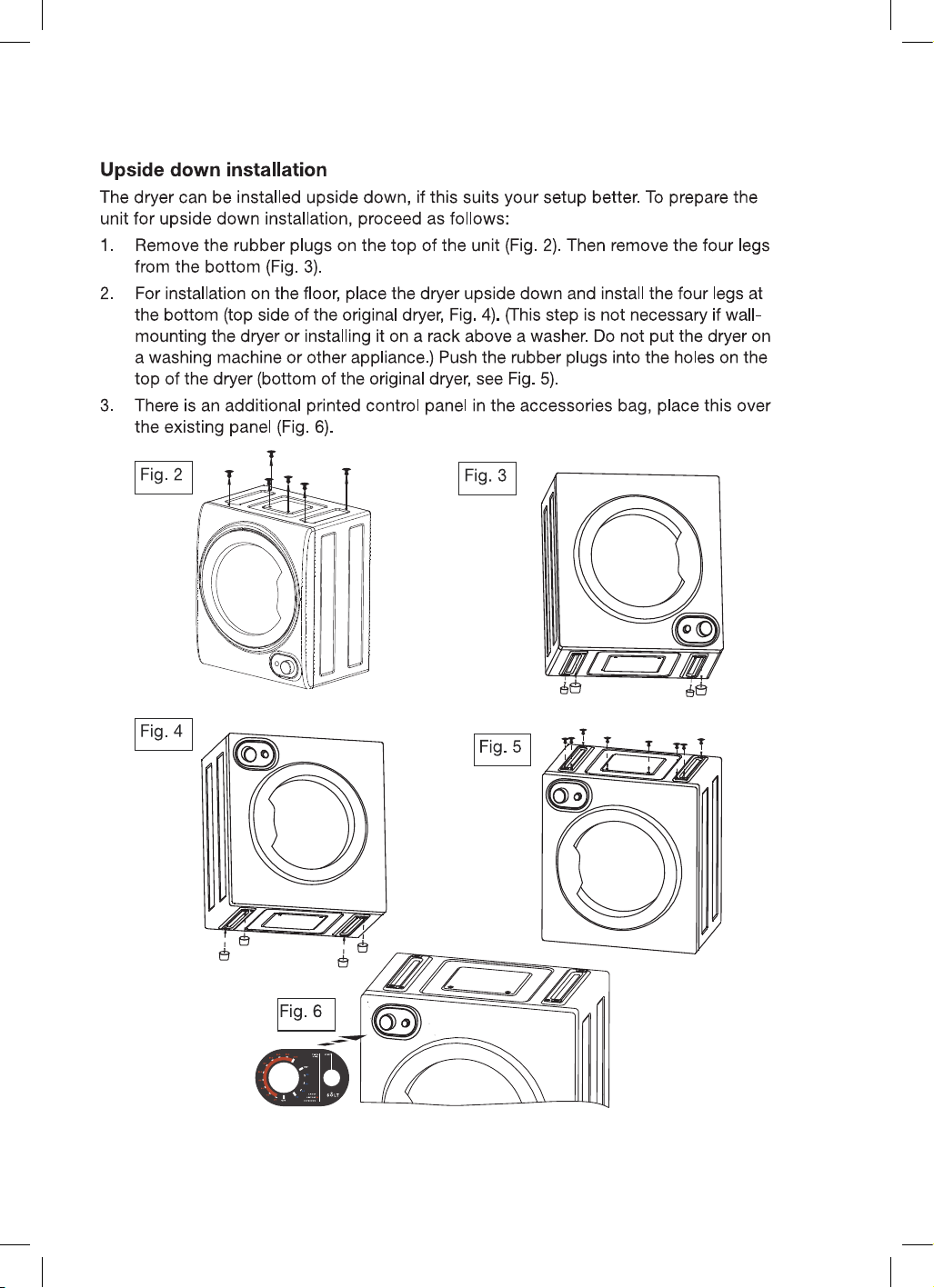

Getting Started: Installation
14

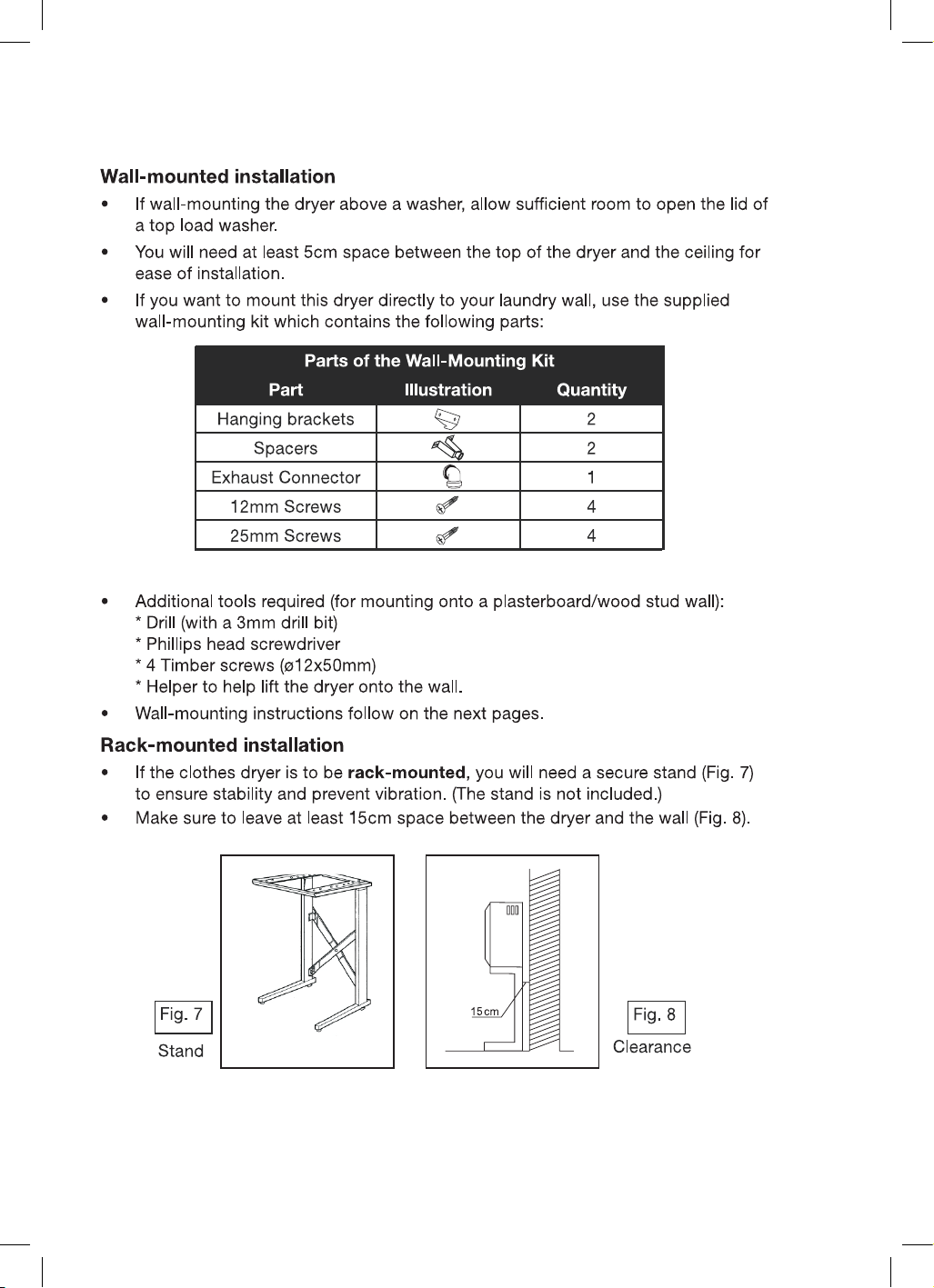

Getting Started: Installation
15

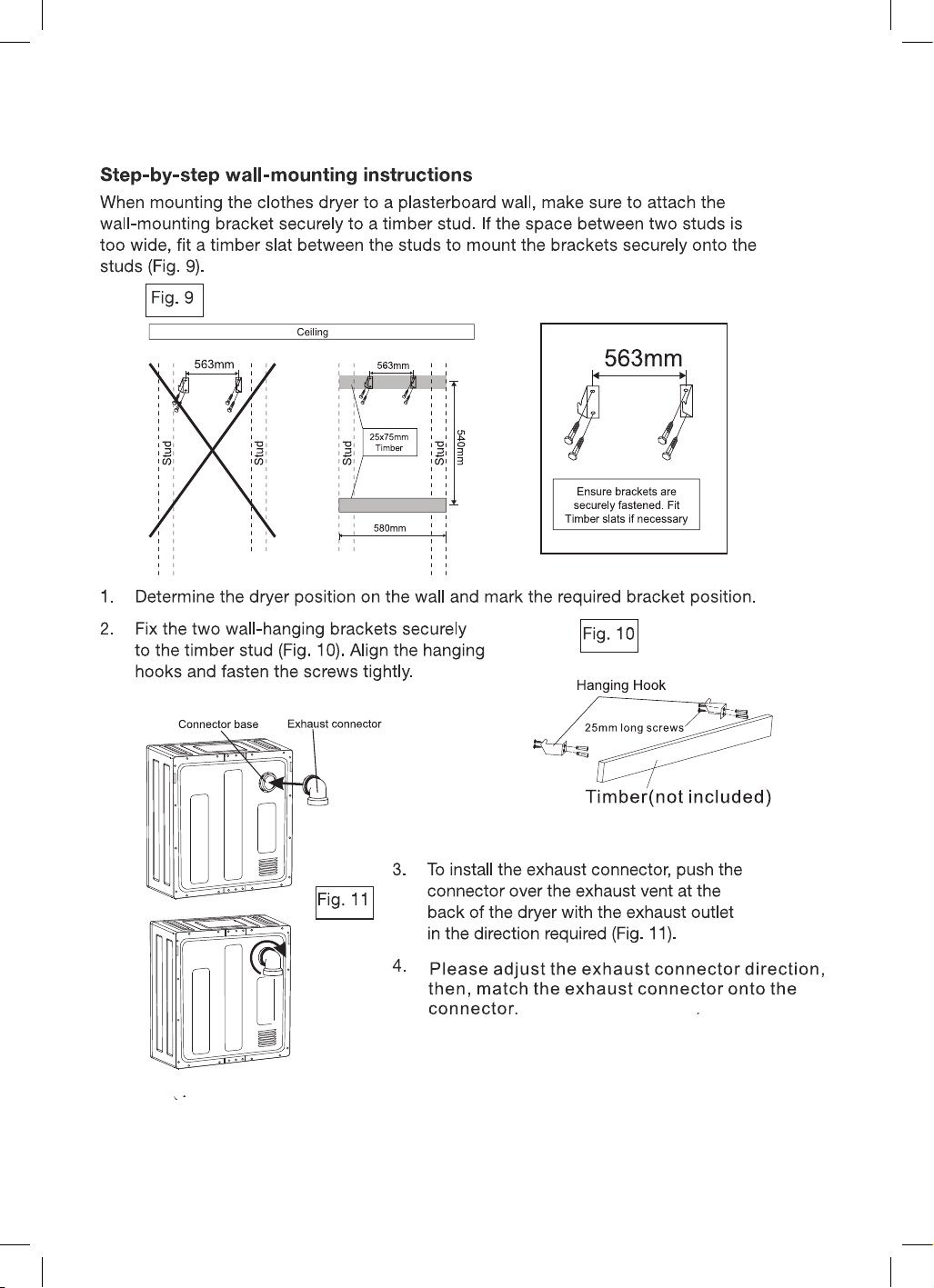

Getting Started: Installation
16

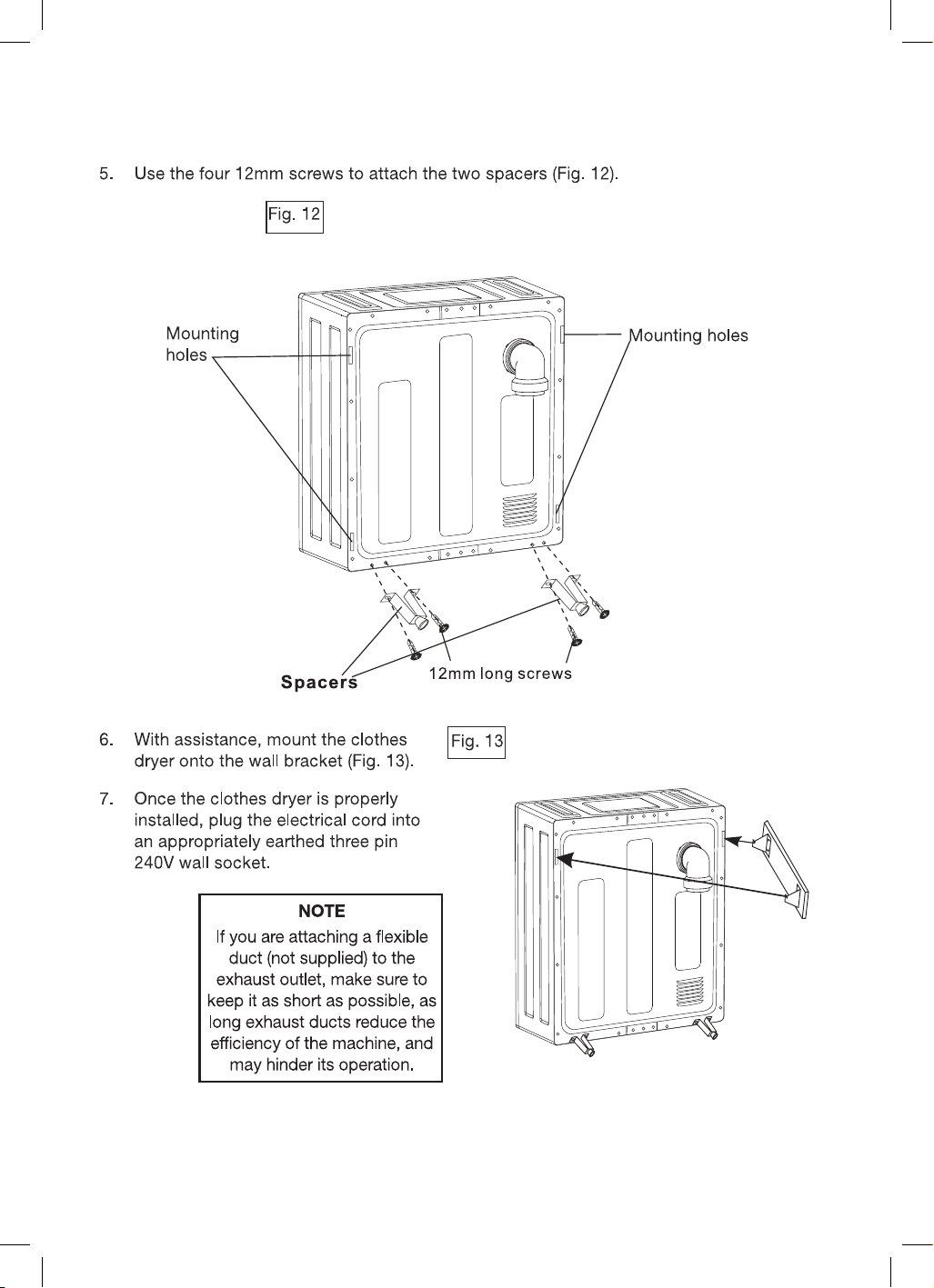

Getting Started: Installation
17
21
19
Instructions
18
2 1
The control panel at the front of the clothes dryer consists of a Drying Program Selector/
Timer Dial (1) and the Start Button (2)

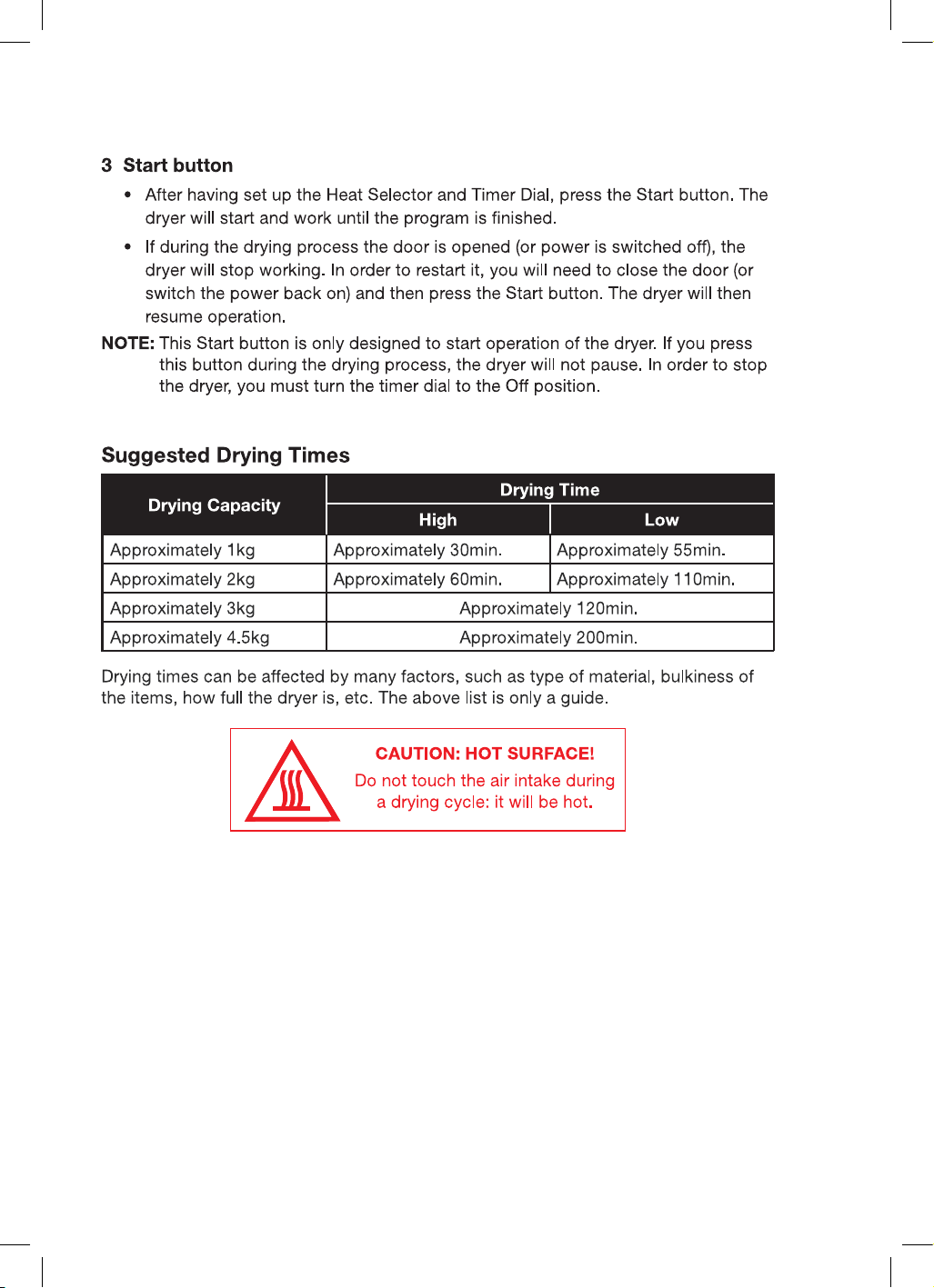

Start button
After having set up the Heat Selector and Timer Dial, press the Start Button. The dryer will start and work until the
program is nished.
NOTE: If during the drying process the door is opened (or power is switched off), the dryer will stop working. In
order to restart it, you will need to close the door (or switch the power back on) and then press the Start Button.
The dryer will resume operation.
Instructions
19
Instructions
20
Insert
Insert
I
FAQs
21
Other Useful Information
22
Other Useful Information
23
support@residentiagroup.com.au
GGSVDE45W 4.5kg Clothes Dryer are available for
Other Useful Information
24
GGSVDE45W
600
21kg
requirements as set out by
465 700
Other Useful Information
25
This page
is intentionally
left blank
26
WARRANTY TERMS & CONDITIONS
VENTED ClOThES DRYER
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. IN ThIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 165 Barkly Ave, Burnley VIC 3121, ACN 600 546 656
in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL
and includes a situation when an Appliance cannot
be repaired or it is uneconomic for Residentia Group,
at its discretion, to repair an Appliance during the
Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months, following
the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its
ASR will, at no extra charge if your Appliance is readily
accessible for service, without special equipment
and subject to these terms and conditions, repair or
replace any parts which it considers to be defective.
Residentia Group or its ASR may use remanufactured
parts to repair your Appliance. You agree that any
replaced Appliances or parts become the property of
Residentia Group. This warranty does not apply to light
globes, baeries, filters or similar perishable parts.
4. Parts and Appliances not supplied by Residentia
Group are not covered by this warranty.
Warranty Information
27
5. You will bear the cost of transportation, travel and
delivery of the Appliance to and from Residentia
Group or its ASR. If you reside outside of the service
area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and
from Residentia Group or its ASR, in all instances,
unless the Appliance is transported by Residentia
Group or its ASR, the Appliance is transported at
the owner’s cost and risk while in transit to and from
Residentia Group or its ASR.
6. Proof of purchase is required before you can make a
claim under this warranty.
7. You may not make a claim under this warranty unless
the defect claimed is due to faulty or defective parts
or workmanship. Residentia Group is not liable in the
following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly
maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or
incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions
supplied with the Appliance;
(b) the Appliance is modified without authority from
Residentia Group in writing;
(c) the Appliance’s serial number or warranty seal has
been removed or defaced;
(d) the Appliance was serviced or repaired by anyone
other than Residentia Group, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and the
relationship between you and Residentia Group are
governed by the law applicable where the Appliance
was purchased.
9. To the extent permied by law, Residentia Group
excludes all warranties and liabilities (other than as
contained in this document) including liability for any
loss or damage whether direct or indirect arising from
your purchase, use or non use of the Appliance.
10. For Appliances and services provided by Residentia
Group in Australia, the Appliances come with a
guarantee by Residentia Group that cannot be
excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a
major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also
entitled to have the Appliance repaired or replaced
if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure. The
benefits to you given by this warranty are in addition
to your other rights and remedies under a law in
relation to the Appliances or services to which the
warranty relates.
11. At all times during the Warranty Period, Residentia
Group shall, at its discretion, determine whether repair,
replacement or refund will apply if an Appliance has a
valid warranty claim applicable to it.
12. To enquire about claiming under this warranty, please
follow these steps:
(a) carefully check the operating instructions, user manual
and the terms of this warranty;
(b) have the model and serial number of the Appliance
available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
13. You accept that if you make a warranty claim,
Residentia Group and its ASR may exchange
information in relation to you to enable Residentia
Group to meet its obligations under this warranty.
IMPORTANT
Before calling for service, please ensure that the steps in
point 12 have been followed.
Telephone contacts
► Service: Please call 1300 11 HELP (4357)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The Australian Consumer Law requires the
inclusion of the following statement with
this warranty:
28
T. 1300 11 4357
E. support@residentiagroup.com.au
E S S E N T I A L S FOR LIFE
An initiative by
Residentia Group
www.solt.house
