Smeg SE363ETB Hob Black

User Manual - Transcript

• Page 1 - English - : Contents EN 1 Instructions 38 11 General safety instructions 38 12 Appliance purpose 42 13 Manufacturers liability 42 14 Disposal 42 15 Identification plate 43 16 This user manual 43 17 How to read the user manual 43 2 Description 44 21 General Description 44 22 Cooking zones 44 23 Symbols 48 3 Use 49 31 Preliminary operations 50 32 Using the cooking hob 50 4 Cleaning and maintenance 59 41 Cleaning the surfaces 59 42 Ordinary weekly cleaning 59 43 Food stains or residues 59 44 What to do if 60 5 Installation 61 51 Safety instructions 61 52 Section cut from the countertop 61 53 Mounting 65 54 Electrical connection 66 55 Instructions for the installer 70 We advise you to read this manual carefully which contains all the instructions for maintaining the appliances aesthetic and functional qualities For further information on the product wwwsmegcom
• Page 2 - English - : Instructions 1 Instructions 11 General safety instructions Risk of personal injury During use the appliance and its accessible parts become very hot Never touch the heating elements during use Protect your hands by wearing heatproof gloves during use Never try to put out a fire or flames with water Turn off the appliance and smother the flames with a fire blanket or other appropriate cover This appliance may be used by children aged at least 8 and by people of reduced physical sensory or mental capacity or lacking in experience in the use of electrical appliances provided that they are supervised or instructed by adults who are responsible for their safety Children must not play with the appliance Keep children under the age of eight at a safe distance unless they are constantly supervised Keep children under the age of 8 away from the appliance when it is in use Cleaning and maintenance must not be carried out by unsupervised children Be aware of how rapidly the cooking zones heat up Do not let pans heat up when dry as there is a danger of them overheating Fats and oils can catch fire if they overheat Do not leave the appliance unattended while preparing foods containing oils or fats If fats or oils catch fire never put water on them Place the lid on the pan and turn off the relevant cooking zone The cooking process must always be monitored A short cooking process must be continuously monitored
• Page 3 - English - : Instructions EN Do not place metal objects such as dishes or cutlery on the hob surface during use as they may overheat Do not insert pointed metal objects cutlery or utensils into the slots in the appliance Do not pour water directly onto very hot trays Do not use or store flammable materials near the appliance or directly underneath the hob Do not use aerosols in the vicinity of this appliance whilst it is in use Switch off the appliance immediately after use Do not modify this appliance Always use any necessary required personal protective equipment PPE before performing any work on the appliance installation maintenance positioning or movement Before performing any work on the appliance switch off the power supply Have qualified personnel carry out installation and assistance interventions according to the standards in force Do not try to repair the appliance yourself or without the intervention of a qualified technician If the power supply cable is damaged contact technical support immediately and they will replace it Risk of damaging the appliance Do not use abrasive or corrosive detergents eg scouring powders stain removers and metallic sponges on glass parts Use wooden or plastic utensils Do not seat on the appliance Do not use the hob as a support surface Do not obstruct ventilation openings and heat dispersal slots Do not use steam jets to clean the appliance
• Page 4 - English - : Instructions Never leave the appliance unattended during cooking operations where fats or oils could be released as these could then heat up and catch fire Be very careful Fire hazard Never leave objects on the cooking surfaces Do not use the appliance to heat rooms for any reason Cooking vessels or griddle plates should be placed inside the perimeter of the hob All pans must have smooth flat bottoms If any liquid does boil over or spill remove the excess from the hob Take care not to spill acid substances such as lemon juice or vinegar on the hob Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt plastic or aluminium foil Do not put empty pans or frying pans on switched on cooking zones Do not use rough or abrasive materials or sharp metal scrapers Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating Installation This appliance must not be installed in a boat or caravan Position the appliance into the cabinet cutout with the help of a second person Check that the carcase material is heat resistant Check that the carcase has the required openings If the electrical supply is restricted means of allpole disconnection must be accessible and incorporated in the fixed wiring in accordance with the wiring rules
• Page 5 - English - : Instructions EN To avoid potential overheating the appliance must not be installed behind a decorative door or a panel Have the electrical connection performed by authorised technical personnel The appliance must be connected to earth in compliance with electrical system safety standards Use cables withstanding a temperature of at least 90C The tightening torque of the screws of the terminal supply wires must be 15 2 Nm The power cable must only be installed or replaced by a qualified technician For this appliance If cracks or fissures form or if the glass ceramic cooking surface breaks turn off the appliance immediately Disconnect the power supply and call Technical Support Avoid hard solid objects falling on the cooking surface Do not use the hob if the pyrolytic cycle is taking place inside any oven installed below Do not touch or clean the hob surface during operation or when the residual heat indicator lights are still on Activate the controls lock when you have children or pets which could reach the hob After use the cooking zones remain hot for a certain period of time after they have been turned off Do not touch the hob surfaces Keep sensor keys clean at all times and do not rest any object on them
• Page 6 - English - : Instructions 12 Appliance purpose This appliance is intended for cooking food in the home environment Every other use is considered improper The appliance is not designed to operate with external timers or with remotecontrol systems 13 Manufacturers liability The manufacturer declines all liability for damage to persons or property caused by Use of the appliance other than that specified Failure to comply with the instructions in the user manual Tampering with any part of the appliance The use of nonoriginal spare parts 14 Disposal This appliance must be disposed of separately from other waste Directives 200295EC 2002 96EC 2003108EC The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment in accordance with current European directives To dispose of the appliance Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste or return it to the retailer when purchasing an equivalent product on a one for one basis Power voltage Danger of electrocution Disconnect the mains power supply
• Page 7 - English - : Instructions EN Our appliances are packaged in non polluting and recyclable materials Deliver the packing materials to the appropriate recycling centre 15 Identification plate The identification plate bears the technical data serial number and brand name of the appliance Do not remove the identification plate for any reason 16 This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the users reach for the whole working life of the appliance Read this user manual carefully before using the appliance 17 How to read the user manual This user manual uses the following reading conventions 1 Sequence of instructions for use Standalone instruction Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended Do not let children play with the plastic bags Instructions General information on this user manual on safety and final disposal Description Description of the appliance and its accessories Use Information on the use of the appliance and its accessories cooking advice Cleaning and maintenance Information for proper cleaning and maintenance of the appliance Installation Information for the qualified technician Installation operation and inspection Safety instructions Information Advice
• Page 8 - English - : Description 2 Description 21 General Description The appliance features cooking zones with various diameters and power levels depending on the model The position and the heat of the cooking zones are limited to within the diameters of the circles traced on the glass The cooking zones are of the HIGHLIGHT type they turn on after a few seconds and the heating is adjustable using the controls on the front panel The cooking zones with two or three concentric circles allow double or triple heating cooking is possible either within the small circle or on both circles 22 Cooking zones Model with frame 60 cm

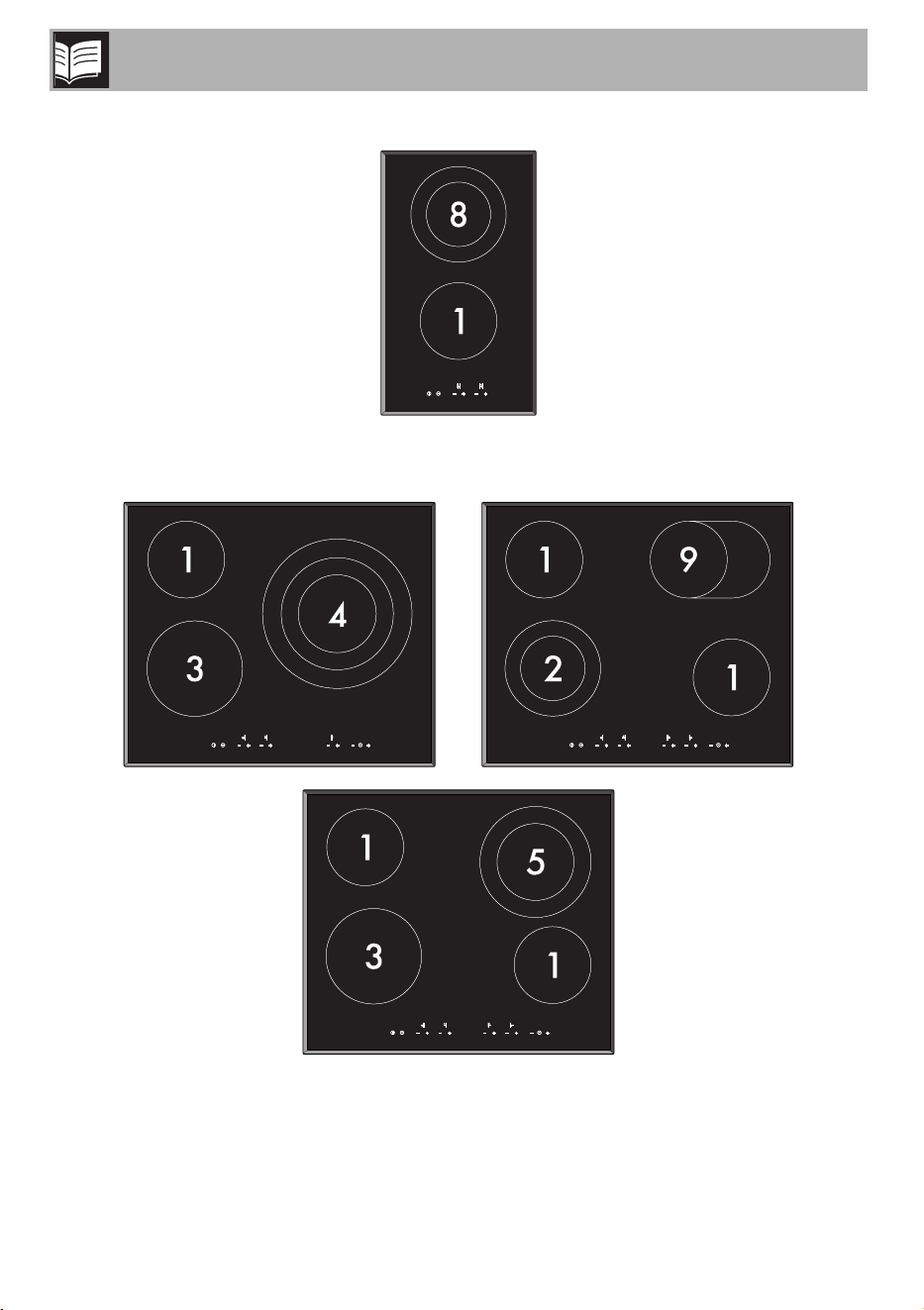

• Page 10: Description Model with bevelled edge 30 cm 60 cm

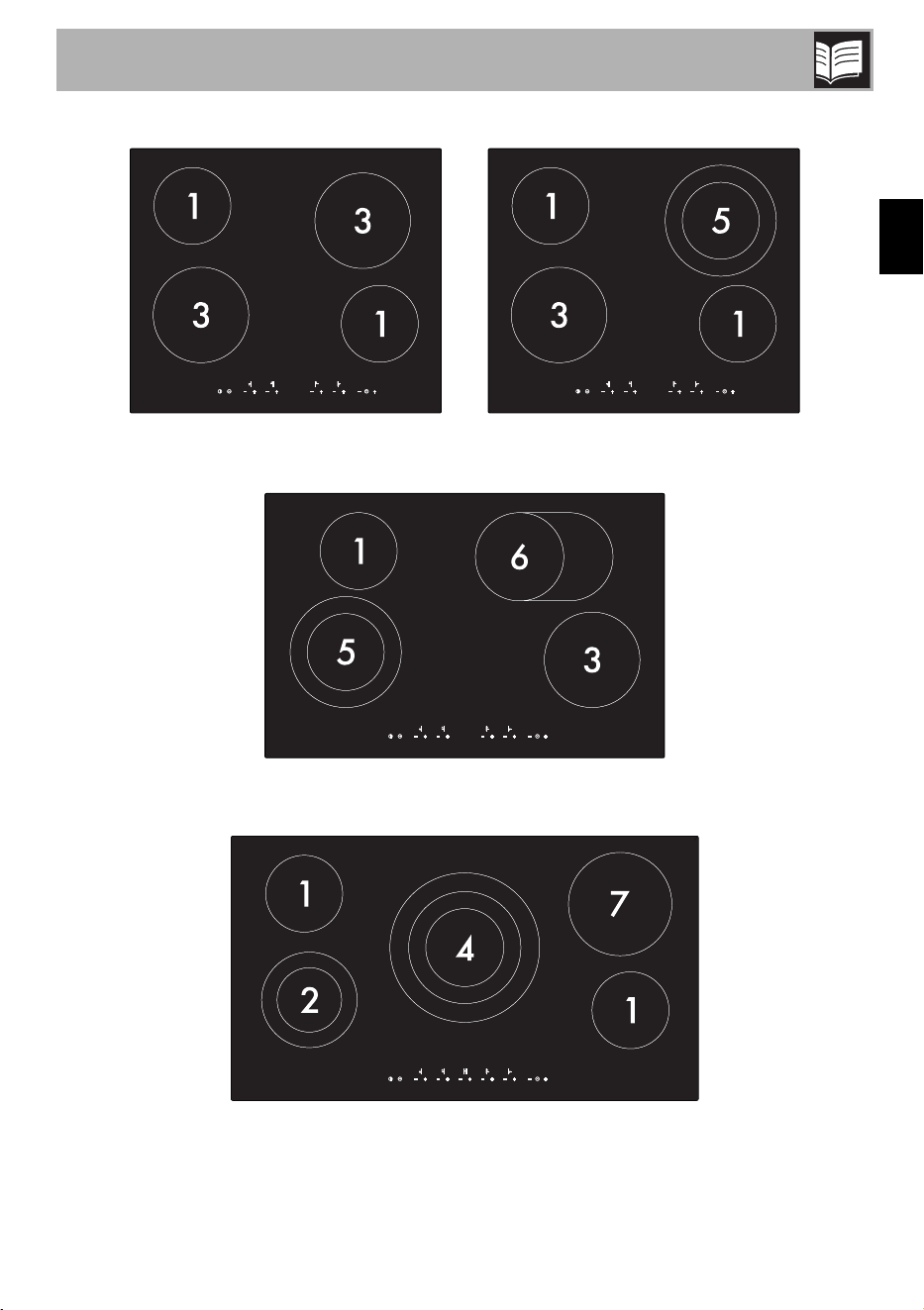

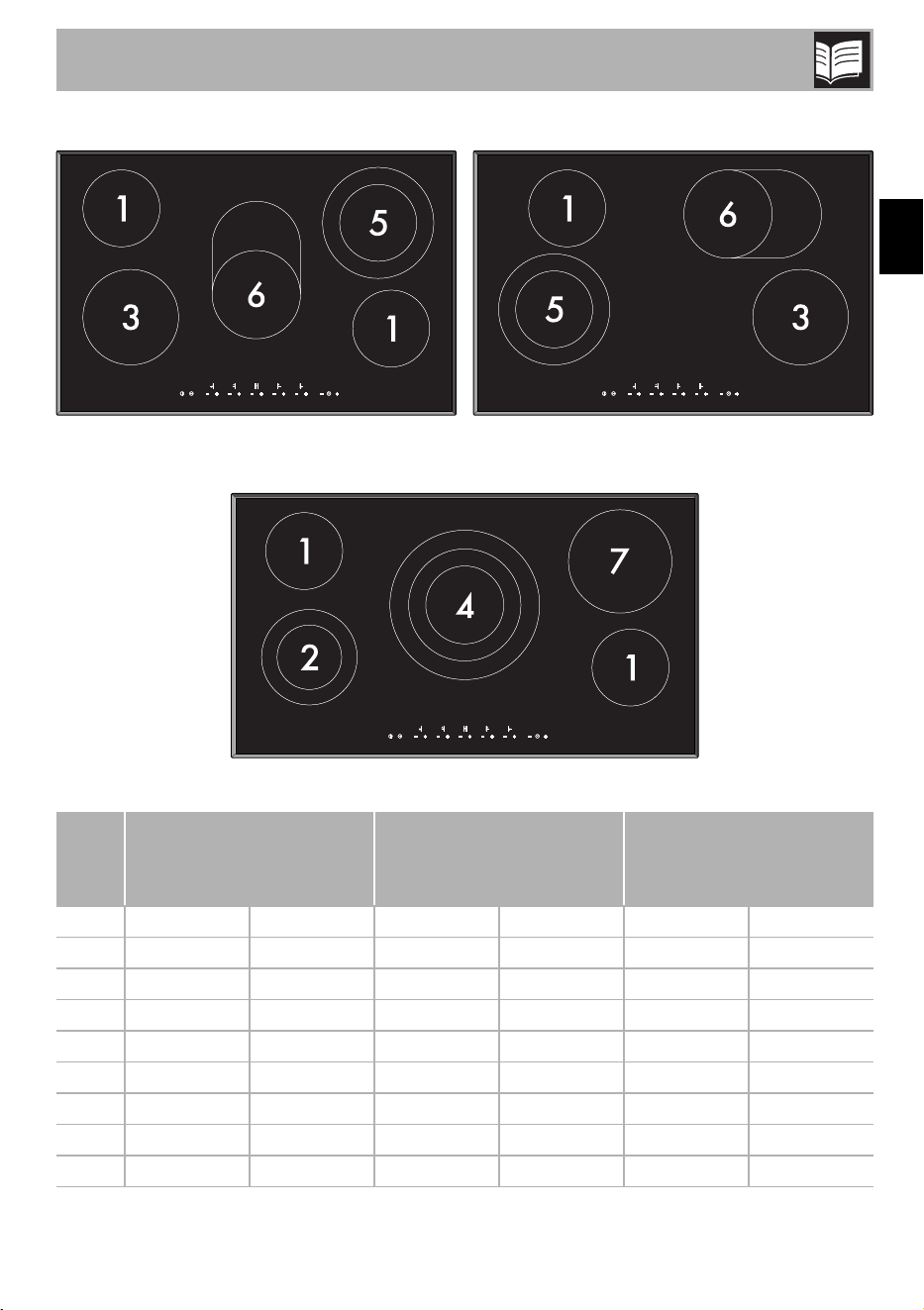

• Page 11 - English - : Description EN 77 cm 90 cm power levels are approximate and may vary according to the settings made and the mains voltage Zone Outer diameter mm Max power draw W Inner diameter mm Max power draw W Intermediate diameter mm Max power draw W 1 148 2 184 3 184 4 288 5 214 6 oval plate 7 199 8 184 9 oval plate
• Page 12 - English - : Description 23 Symbols ONOFF key Turns the hob on or off Controls lock key Activates or deactivates the controls lock if pressed for 3 seconds Increase key Increases the power level or cooking time Decrease key Reduces the power level or cooking time Timer key on some models only Activates the minute minder or the automatic shutdown timer Cooking zones Front left Rear left Central Rear right Front right Central right Front 30 cm model only Rear 30 cm model only
• Page 13 - English - : Use EN 3 Use High temperature Danger of burns Protect your hands by wearing heat proof gloves during use Do not touch or clean the surface of the hob while it is in use or when appears on one or more displays Do not put empty pans or frying pans on switched on cooking zones Keep children under the age of 8 away from the appliance when it is in use Activate the controls lock when you have children or pets which could reach the hob After use the cooking zones remain hot for a certain period of time after they have been turned off Do not touch the hob surfaces High temperature Danger of fire or explosion Do not use or leave flammable materials near the appliance or directly underneath the hob Do not cook in closed tins or containers plastic kitchenware or containers Do not leave the appliance unattended during cooking operations where fats or oils could be released In case you notice cracks or fissures or you cannot turn off the appliance disconnect the power supply and contact the Assistance Centre Improper use Risk of damage to surfaces Do not use the hob if the pyrolytic cycle is taking place inside any oven installed below Never place pans with bases which are not perfectly flat and smooth Avoid hard solid objects falling on the cooking surface In case you notice cracks or fissures turn off the appliance immediately disconnect the power supply and contact Technical Support Do not use the hob as a support surface
• Page 14 - English - : Use 31 Preliminary operations In order to remove any moisture that could have accumulated during the manufacturing process and for the electronic circuits and control keypad to work properly 1 Remove the protective films from the external surfaces of the appliance and accessories 2 Remove any labels apart from the technical data plate 32 Using the cooking hob All the appliances control and monitoring devices are located together on the front panel The hob is controlled by means of the Touch Control sensor buttons The power in the cooking zones can be adjusted to various levels Lightly touch a symbol on the glass ceramic surface A beep will sound to confirm every effective touch Switching on the cooking hob To switch on the hob hold down the ON OFF key for at least 3 seconds If no cooking zone is activated within 30 seconds of switching on the hob switches off automatically On first connection to the electrical mains an automatic check will be carried out that will switch on all indicator lights for a few seconds It might happen that on the displays the text appears to indicate that during factory testing the hob was switched off with residual heat active After 6 minutes this indications deactivates automatically Saucepans and other pans must not cover the sensor buttons as otherwise they could accidentally deactivate the appliance
• Page 15 - English - : Use EN Switching on a single cooking zone 1 After switching on the hob use the Increase keys to activate the required cooking zone The display shows the symbol 2 Press the Increase key again The display shows the symbol or to indicate that the cooking zone is on at the maximum power 3 Press the Increase and Decrease keys to increase or decrease the required power level Switching on the double cooking zone 1 After setting the maximum power or press the Increase keys On the display a lighted dot comes on beside the power setting to indicate that the double cooking zone or has switched on 2 Press the Increase and Decrease keys to increase or decrease the required power level If the Increase key is pressed when the cooking zone is at the maximum power or the cooking zone deactivates When the cooking zone is off it cannot be activated by pressing the Decrease key If the Increase key is pressed when the cooking zone is at the maximum power or the cooking zone deactivates
• Page 16 - English - : Use Switching on the triple cooking zone 1 After setting the maximum power or press the Increase keys On the display a lighted dot comes on beside the power setting to indicate that the internal cooking zone or has switched on 2 Press the Increase key again to completely activate the cooking zone On the display a lighted dot flashes beside the power setting to indicate that the entire cooking zone or has switched on 3 Press the Increase and Decrease keys to increase or decrease the required power level Melting function To activate the Melting function first turn on the hob then 1 After having set the power to or for multiple cooking zones press the Increase key appears on the display 2 Press the Increase key again appears on the display Residual heat After switching off the cooking zone if it is still hot is displayed If the Increase key is pressed when the cooking zone is at the maximum power or the cooking zone deactivates This function can be used to melt food such as butter chocolate etc High temperature Danger of burns Children cannot readily see the residual heat indicator The cooking zones remain hot for a certain period of time even after they have been turned off Make sure that children never touch the hob
• Page 17 - English - : Use EN Accelerator This function can be used to reach the selected heating level more quickly The cooking zones will start at maximum power Once the selected power level is reached power is reduced 1 Using the Increase and Decrease keys select a power level between 1 and 9 also in double or triple mode 2 Press the Increase and Decrease keys simultaneously for the cooking zone to be heated using the accelerator function The display alternately shows and the power level just selected Controls lock The controls lock is a device that protects the appliance from accidental or inappropriate use Useful for preventing accidental changes to set cooking values the lock can be activated while the hob is on or off 1 After switching on the hob press the Controls lock key for at least 2 seconds A lighted dot appears on the key to indicate that the controls are locked Pressing any key or is displayed depending on the model 2 Press the Controls lock key for at least 2 seconds The lighted dot above the symbol switches off to indicate that the controls have been unlocked and any key can be pressed Power level Heating time with function activated minutes For safety reasons the ONOFF key stays active with at least one cooking zone switched on The entire hob can be switched off at any time even if the controls lock is active
• Page 18 - English - : Use Minute minder timer on some models only This function allows you to set a minute minder timer which will sound a buzzer at the end of the preset time from 1 to 99 minutes 1 Press the Timer key when the appliance is off The display shows to indicate that the timer can be modified 2 Press the Increase or Decrease key to set the required timer time hold the keys down to advance more quickly 3 At the end of the set time the hob will warn the user with a series of buzzers To stop this indication press the Timer key 4 To deactivate the minute minder timer during the countdown zero its value using the Decrease key When the display shows the timer will be deactivated Automatic shutdown timer on some models only This function allows you to program the automatic shutdown of each cooking zone at the end of a set period of time from 1 to 99 minutes 1 Press the Timer key The display shows to indicate that the timer can be modified 2 Press the Timer key again If at least one cooking zone is active a lighted dot comes on under the controls of the first active zone from left to right 3 Press the Increase or Decrease key to set the required automatic shut down time hold the keys down to advance more quickly or select a further cooking zone using the Timer key 4 To modify the set time press the Timer key until a lighted dot appears under the controls of the cooking zone for which you wish to carry out the change 5 At the end of the previously set time the hob deactivates the cooking zone and warns the user with a series of buzzes Press any key to stop the indication
• Page 19 - English - : Use EN Secondary menu The hob has a secondary menu for activating or deactivating some parameters 1 Automatic controls lock activating this mode one minute after the last operation by the user the controls lock will automatically activate 2 Showroom activating this mode the appliance deactivates all heating elements while keeping the control panel active useful for demonstration purposes in store Every minute appears for one second on the display To use the hob normally set this mode to 3 ECOlogic on some models only activating this mode the hob electronics automatically adjust the power levels to stay within the set maximum power absorbed 3 or 4 kW To use the hob at maximum power set this mode to On first installing within two minutes of powering on the hob hold down the Increase and Decrease keys for the first cooking zone the one near the symbol The cooking zone display shows the number of the setting currently being modified 1 Automatic controls lock 2 Showroom 3 ECOlogic with its setting at the side activated deactivated For example indicates that the Automatic controls lock is deactivated Press the Increase or Decrease key to change the settings for value or If the ECOlogic parameter is modified you can select the following values 3 kW 4 kW maximum power draw To advance and change the subsequent settings press the Controls lock key If the automatic shutdown timer is activated and no cooking zone is active it functions like a minute minder timer If the hob is already installed and in use cut the power supply to the hob Switch the power back on and proceed as indicated above within two minutes
• Page 20 - English - : Use Advice on energysaving The diameter of the base of the pan must correspond to the diameter of the cooking zone When buying a saucepan check whether the diameter indicated is that of the base or the top of the container as the top is almost always larger than the base The base of the cookware must be thick and completely flat It should also be clean and dry The hob should be clean and dry as well When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also makes it possible to preserve the vitamins in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover saucepans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Do not use castiron cookware or cookware with a rough base Under certain circumstances if the hob and the oven are being used at the same time the maximum power limit that can be used by the electrical system might be exceeded
• Page 21 - English - : Use EN Cooking information table on some models only Power level Cooking mode Suitable for OFF setting Off U Dishwarming Warming up dishes Cooking small amounts of food minimum power Melting butter chocolate or similar products Cooking small amounts of food Keeping small amounts of water on the boil whipping up sauces with egg yolk or butter 3 4 Normal cooking Heating solid or liquid food keeping water on the boil defrosting deepfrozen food cooking 2 or 3 egg omelettes fruit and vegetables various cooking processes Cooking large amounts of food Keeping water on the boil cooking 4 or 6 egg omelettes fruit and vegetables various cooking processes Cooking large amounts of food roast Stewing meat fish and vegetables simmering food making jams etc 7 8 Roasting larger pieces frying with flour Roasting meat fish steaks and liver sautéing meat fish eggs etc 9 P Roasting browning cooking maximum power Deepfrying potatoes etc or bringing water to the boil rapidly
• Page 22 - English - : Use Limiting the cooking time The hob has an automatic device which limits the duration of use If the cooking zone settings are not changed the maximum duration of operation for each zone depends on the power level selected When the device for limiting the duration of use is activated the cooking zone turns off a short alert sounds and if the zone is hot the symbol appears on the display Protection from overheating If you are using the hob at full power for a long time for the electronics it could be difficult to cool down especially if the room temperature is high In this case a device intervenes to cut off the power supply to the front cooking zones and the display shows and flashing If the temperature of the electronic circuit board does not decrease the device will disconnect power to all the cooking zones and will appear on the display on some models only Cooking can be resumed once the temperature returns below alarm levels Other functions If you press three or more controls at the same time or for a long period eg due to accidentally placing a saucepan on them or due to an overflow of liquid an automatic device deactivates all the cooking zones if they are on and the display will show error Remove the cause of the error from the keys Power level Maximum cooking time min U 600 1 600 2 360 3 300 4 240 5 180 6 120 7 120 8 120 P70
• Page 23 - English - : Cleaning and maintenance EN 4 Cleaning and maintenance 41 Cleaning the surfaces To keep the surfaces in good condition they should be cleaned regularly after use Let them cool first 42 Ordinary weekly cleaning Clean and maintain the hob once a week using an ordinary glass cleaning product Always follow the manufacturers instructions The silicon in these products creates a protective waterrepellent membrane which also resists dirt All marks stay on the membrane and can therefore be removed easily After cleaning dry the surface with a clean cloth Make sure that there is no detergent left on the cooking surface as it will undergo a corrosive reaction when heated up and could modify the structure of the cooking surface 43 Food stains or residues Light coloured marks from pans with aluminium bases can be easily cleaned off with a cloth moistened in vinegar Remove any burnton residue after cooking rinse with water and dry thoroughly with a clean cloth Dirt which may have fallen on the hob while cleaning lettuce or potatoes can scratch the hob when moving pans Consequently remove any dirt from the cooking surface immediately Changes in colour do not affect the operation and stability of the glass These are not alterations to the material of the hob but just residues which have not been removed and have then carbonised Improper use Risk of damage to surfaces Do not use steam jets to clean the appliance Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt plastic or aluminium foil Keep sensor keys clean at all times and do not rest any object on them Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating Do not use abrasive or corrosive detergents eg scouring powders stain removers and metallic sponges on glass parts Use wooden or plastic utensils
• Page 24 - English - : Cleaning and maintenance Shiny surfaces can form due to the bases of pans especially aluminium ones rubbing on the surface and due to the use of unsuitable detergents They are difficult to remove using conventional cleaning products It may be necessary to repeat the cleaning process several times Use of corrosive detergents or rubbing of pan bases can wear away the decoration on the hob over time and contribute to the formation of stains 44 What to do if The hob does not work Make sure that the hob is connected and that the main switch is turned on Make sure that there is no power failure Make sure that the fuse has not blown In this case replace the fuse Make sure that the circuit breaker of the residential electrical system has not tripped In this case reset the circuit breaker Make sure that the sensor key are not locked by the Controls lock Make sure that the keys are not partially covered by a damp cloth a liquid or a metal object The cooking results are unsatisfactory Make sure that the cooking temperature is not too high or too low The hob smokes Let the hob cool down and clean it once cooking is complete Make sure that the food has not spilled out of the pan and use a larger cooking vessel if needed The display shows E2 Make sure that there is no spilled food on the sensor keys Remove any pan or object that are partially resting on the sensor keys E appears on the display One of the keys has been kept pressed for a long time or a technical fault has occurred In the latter case contact Technical Support The fuses blow or the circuit breaker of the residential electrical system trips repeatedly Call Technical Support or an electrician There are cracks or fissures in the hob Turn off the appliance immediately disconnect the power supply and contact Technical Support

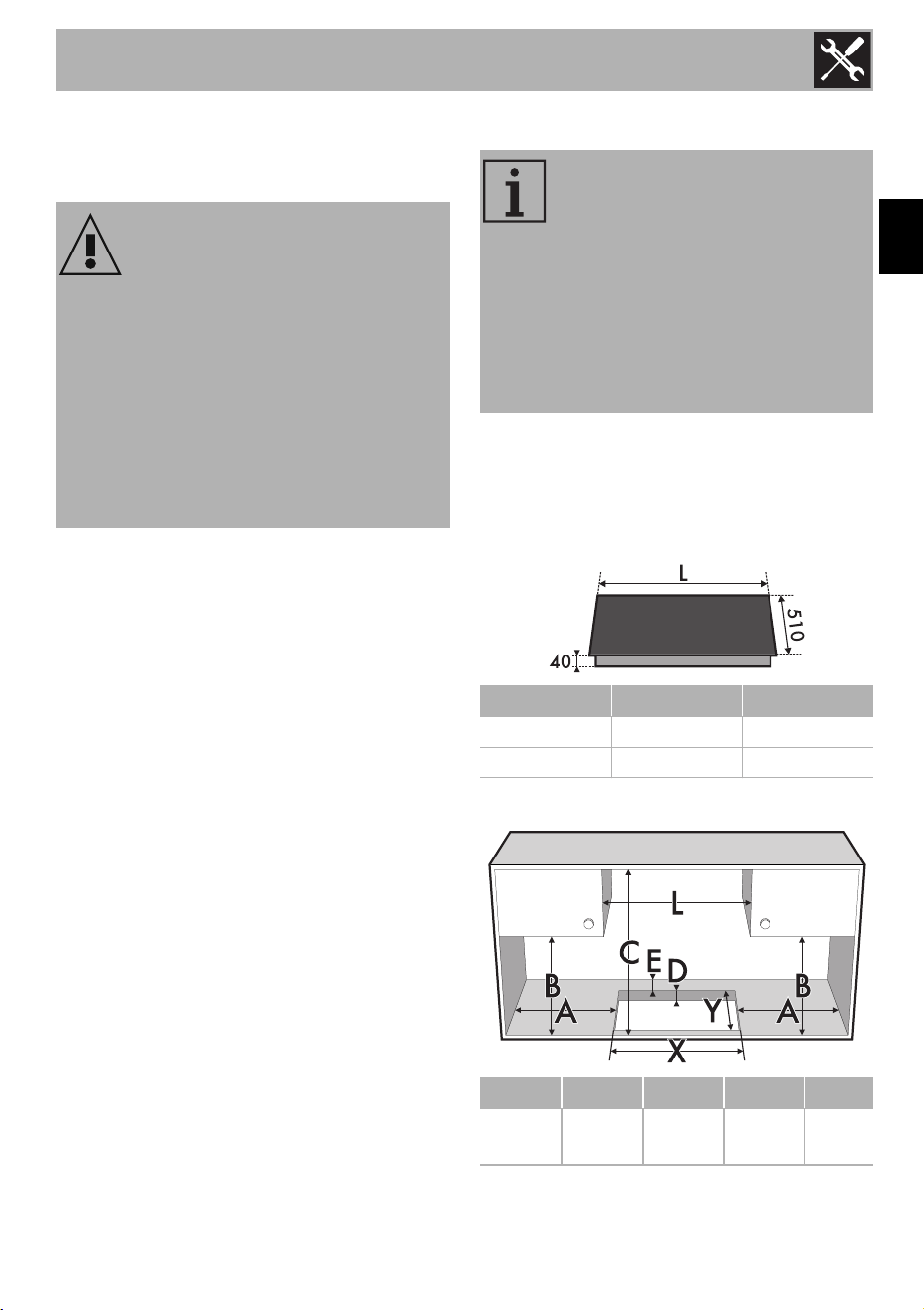

• Page 25 - English - : Installation EN 5 Installation 51 Safety instructions Veneers adhesives or plastic coatings on adjacent furniture should be temperature resistant gt90C otherwise they might warp over time The minimum clearance between a ventilation hood and the cooking surface must be at least the distance indicated in the ventilation hood installation instructions The minimum clearances must also be respected for the edges of the hob on the back as indicated in the mounting illustrations 52 Section cut from the countertop Make a hole in the countertop of the unit according to the dimensions shown in the figure mm Hobs with a frame Heat production during appliance operation Risk of fire Check that the carcase material is heat resistant Check that the carcase has the required openings CAUTION The surface temperature exceeds 95C To avoid a hazard under bench access must be restricted The following operation requires building andor carpentry work and must therefore be carried out by a competent tradesman Installation can be carried out on various materials such as masonry metal solid wood or plastic laminated wood as long as they are heat resistant gt90C L X Y 570 560 500 760 750 500 A B C D E min min min 2060 min

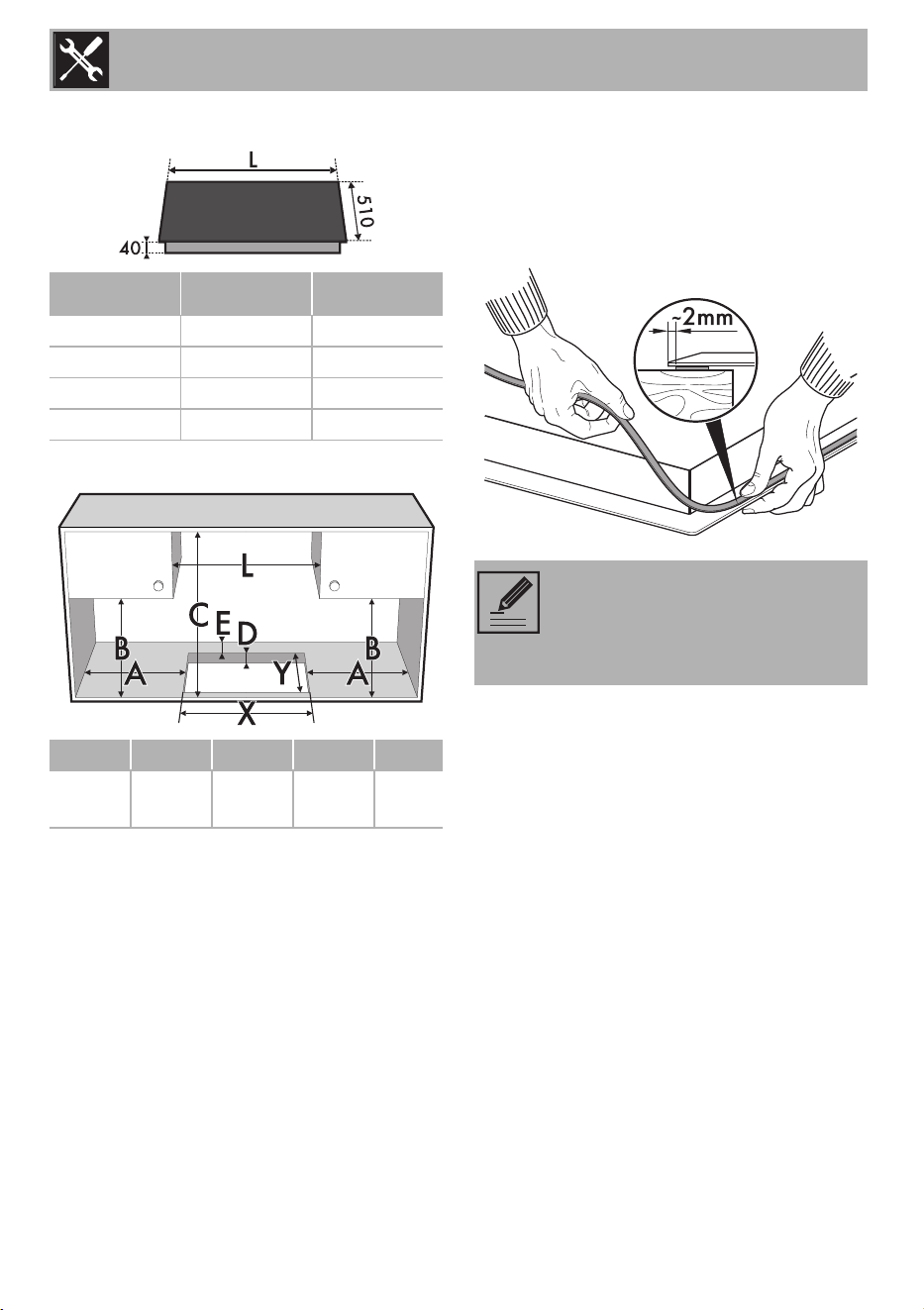

• Page 26 - English - : Installation Hobs with bevelled edge Hob seal To prevent leakage of liquid between the frame of the hob and the countertop place the adhesive seal provided along the entire outer edge of the hob before assembly L X Y 300 270 490 600 565 490 770 745 490 900 850 490 A B C D E min min min 2060 min Do not use silicone to secure the hob This would make it impossible to remove the hob if necessary without damaging it

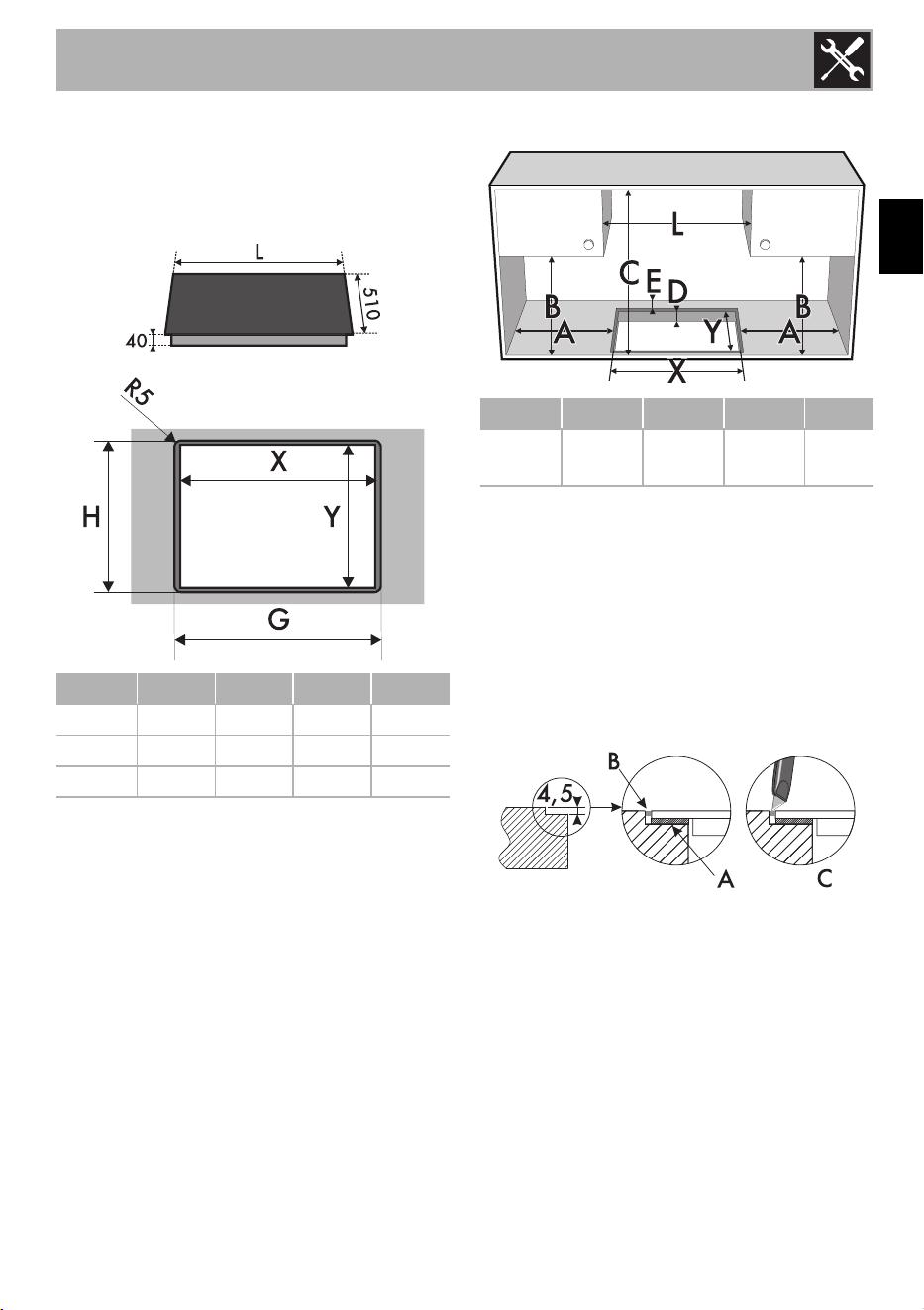

• Page 27 - English - : Installation EN Hobs with a straight edge For this kind of hobs additional milling is needed in the recessed hole if you wish to install the hob flush with the work surface After laying the adhesive seal A on the glass surface and after positioning and securing the hob fill the edges with insulating silicone B and wipe away any excess In the event the hob needs to be removed cut the silicone using a cutter before attempting to remove it C L X Y G H 600 565 490 604 514 770 745 490 774 514 900 865 490 904 514 A B C D E min min min 2060 min

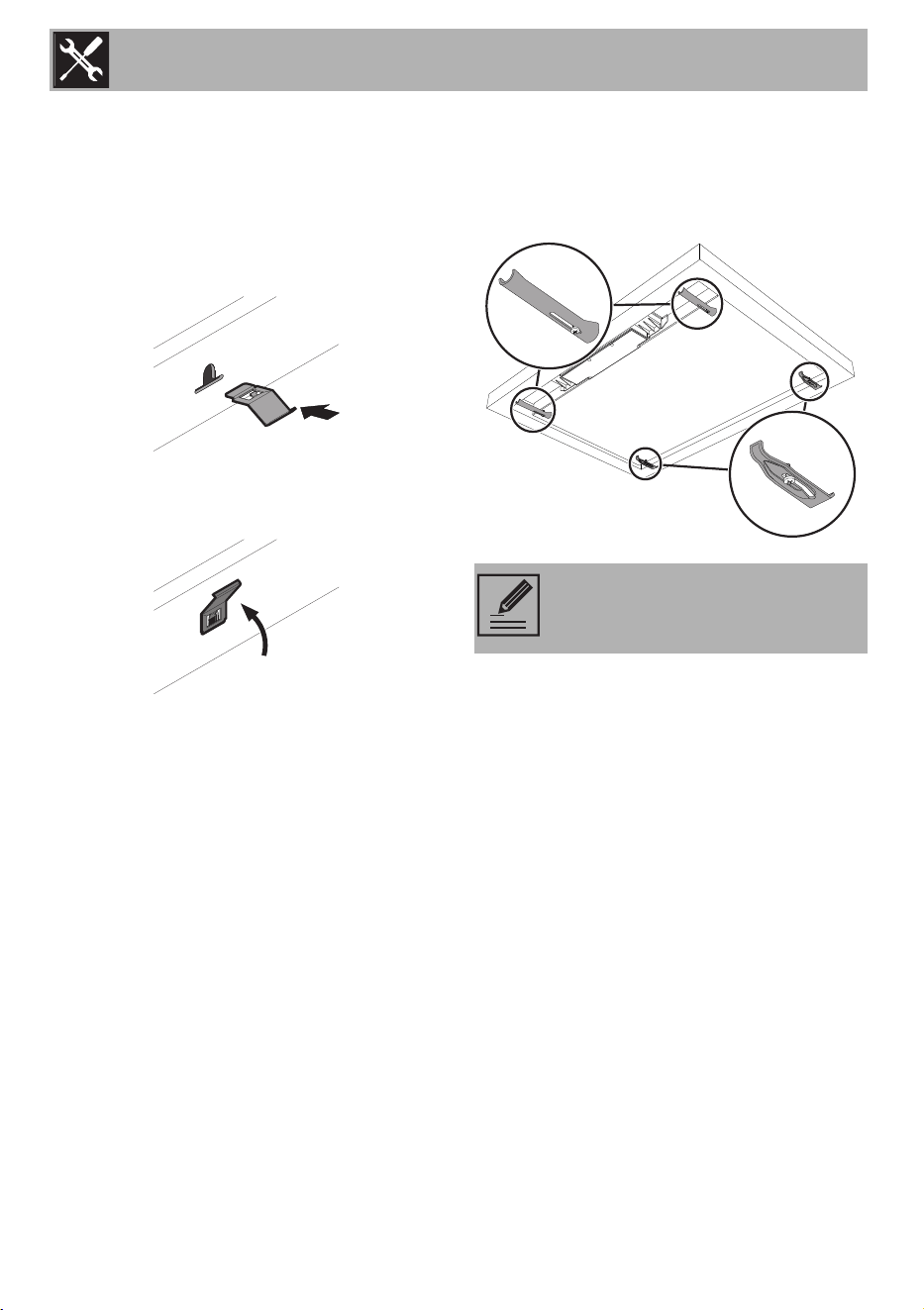

• Page 28 - English - : Installation Spring clips To ensure the hob is fixed and centred as accurately as possible the clips provided must be positioned as described below 1 Fit the clips by gently pressing them horizontally into the appropriate space 2 Then turn them upwards to fix them in place Fixing brackets Screw the fixing brackets into the holes on the sides of the bottom casing to properly fasten the hob to the structure If tightened too much the glass may be strained and crack

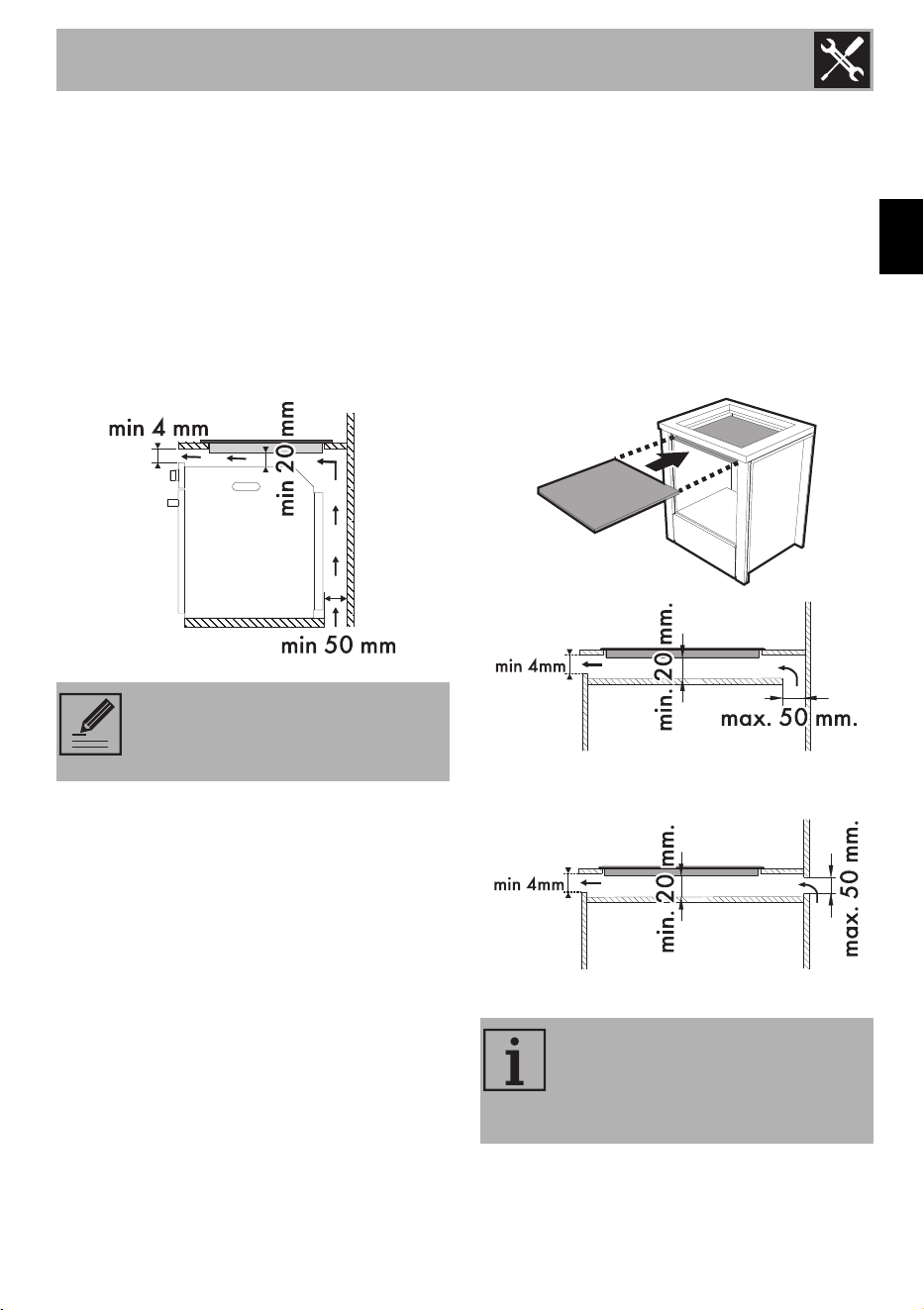

• Page 29 - English - : Installation EN 53 Mounting Over builtin oven unit The clearance between the hob and the kitchen furniture or other installed appliances must be enough to ensure sufficient ventilation and air discharge If installed above an oven a space must be left between the bottom of the hob and the top of the appliance installed below On top of an empty kitchen unit or drawers If there are other pieces of furniture lateral walls drawers etc dishwashers or fridges under the hob a doublelayer wooden base must be installed at least 20 mm from the bottom of the hob to avoid any accidental contact It must only be possible to remove the doublelayer base by using suitable tools opens on bottom opens on rear If installed on top of an oven the latter must be equipped with a cooling fan Failure to install the doublelayer wooden base exposes the user to possible accidental contact with sharp or hot parts
• Page 30 - English - : Installation 54 Electrical connection General information Check the grid characteristics against the data indicated on the plate The identification plate bearing the technical data serial number and brand name is visibly positioned on the appliance Do not remove this plate for any reason Perform the ground connection using a wire that is 20 mm longer than the other wires The appliance can work in the following modes 30 cm models 220240 V 1N Use the 3 x 15 mm² threecore cable that is fitted Connection with plug and socket Make sure that the plug and socket are of the same type Avoid using adapters and shunts as these could cause overheating and a risk of burns Power voltage Danger of electrocution Have the electrical connection performed by authorised technical personnel Use personal protective equipment The appliance must be connected to earth in compliance with electrical system safety standards Disconnect the mains supply Use cables withstanding a temperature of at least 90C The tightening torque of the screws of the terminal supply wires must be 15 2 Nm The power cable must only be installed or replaced by a qualified technician Use the cable provided depending on the model following the instructions below

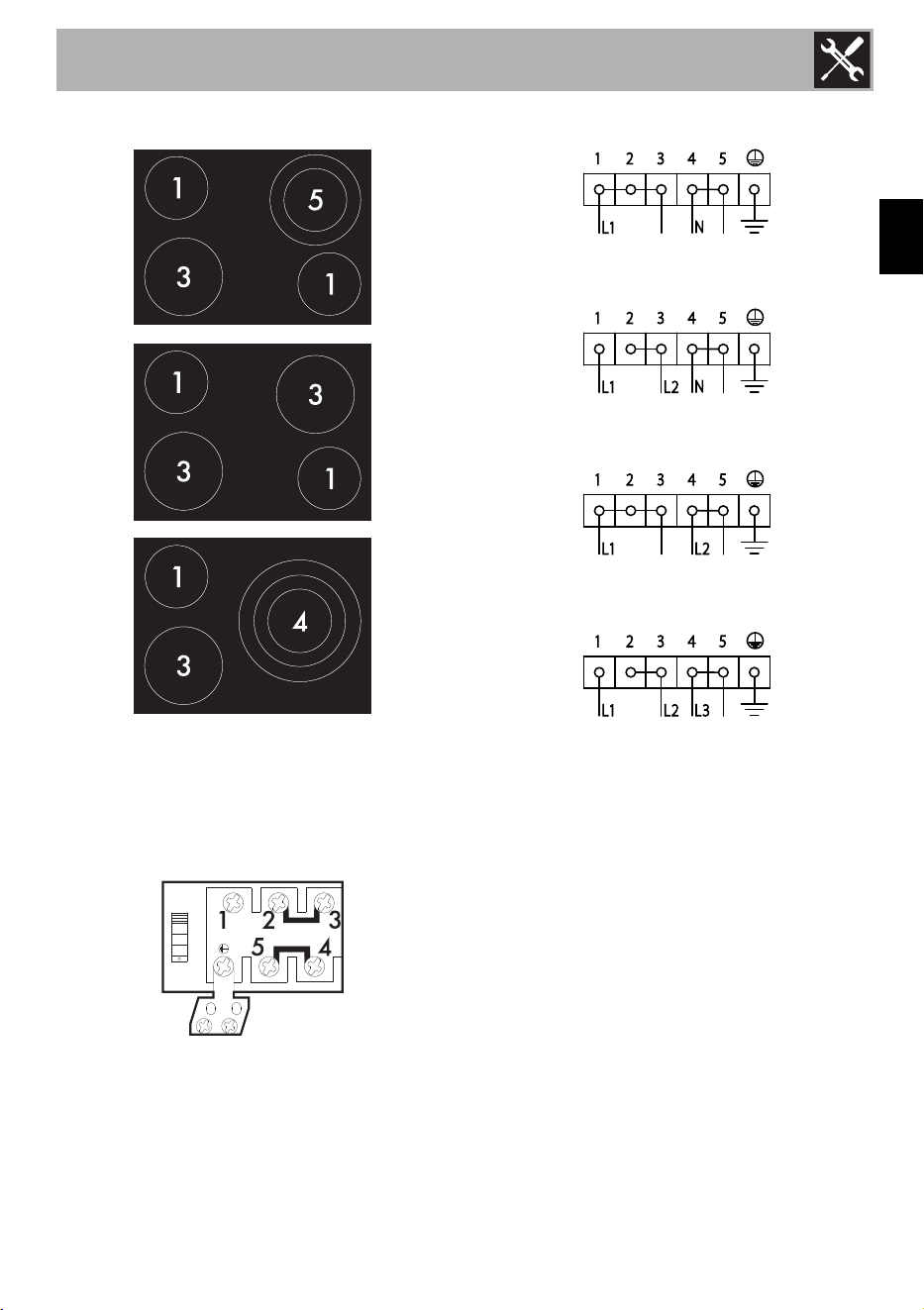

• Page 31 - English - : Installation EN 60 cm models The diagram below illustrates the power supply terminal from below with no cables connected Terminals 2 and 3 and terminals 4 and 5 must be connected at all times 220240 V 1N 380415 V 2N 220240 V 2 220240 V 3 Use the 5 x 25 mm² fivecore cable provided

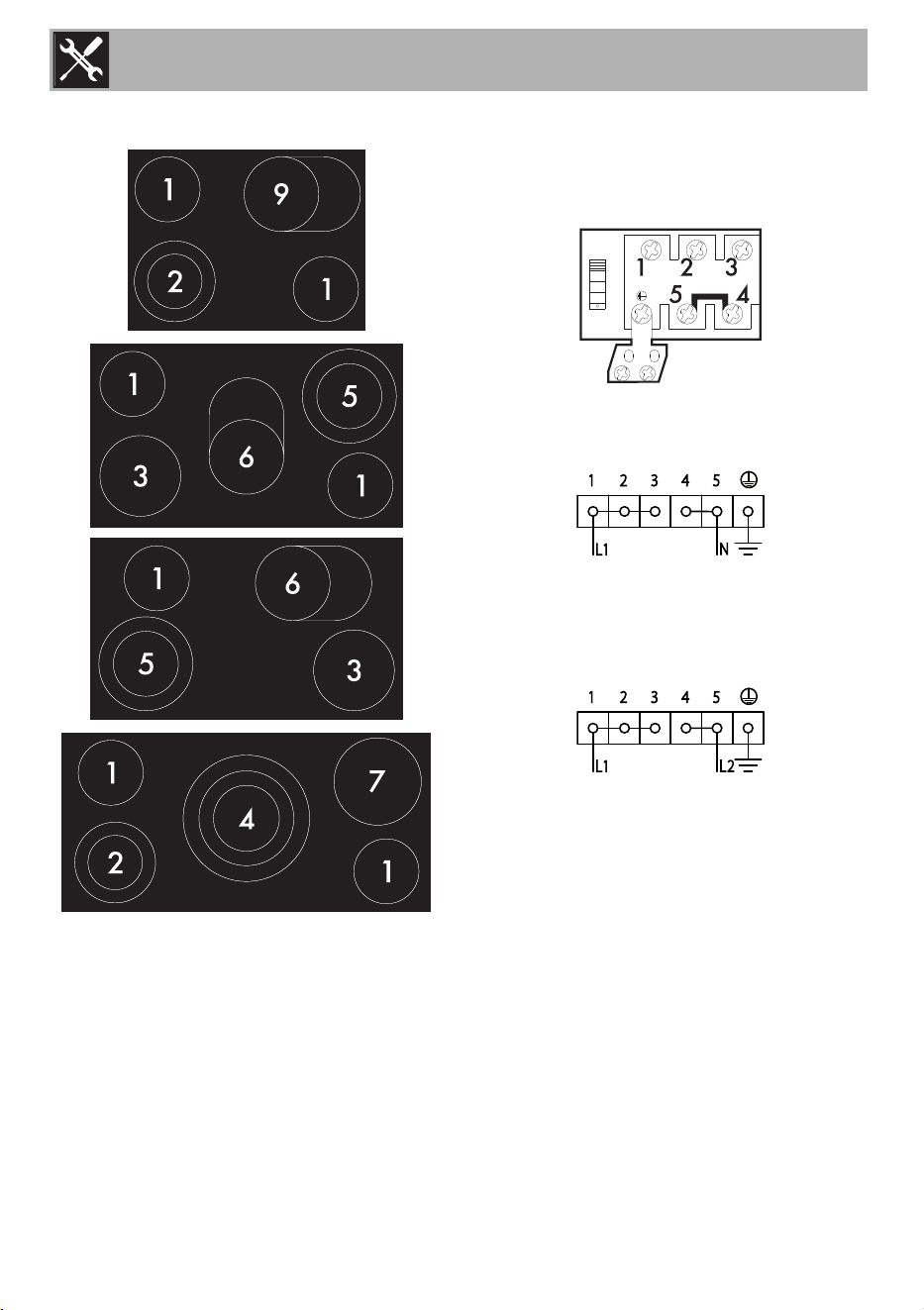

• Page 32 - English - : Installation 60 77 90 cm models The diagram below illustrates the power supply terminal from below with no cables connected Terminals 4 and 5 must be connected at all times 220240 V 1N Use the 3 x 6 mm² threecore cable provided 220240 V 2 Use the 3 x 6 mm² threecore cable provided

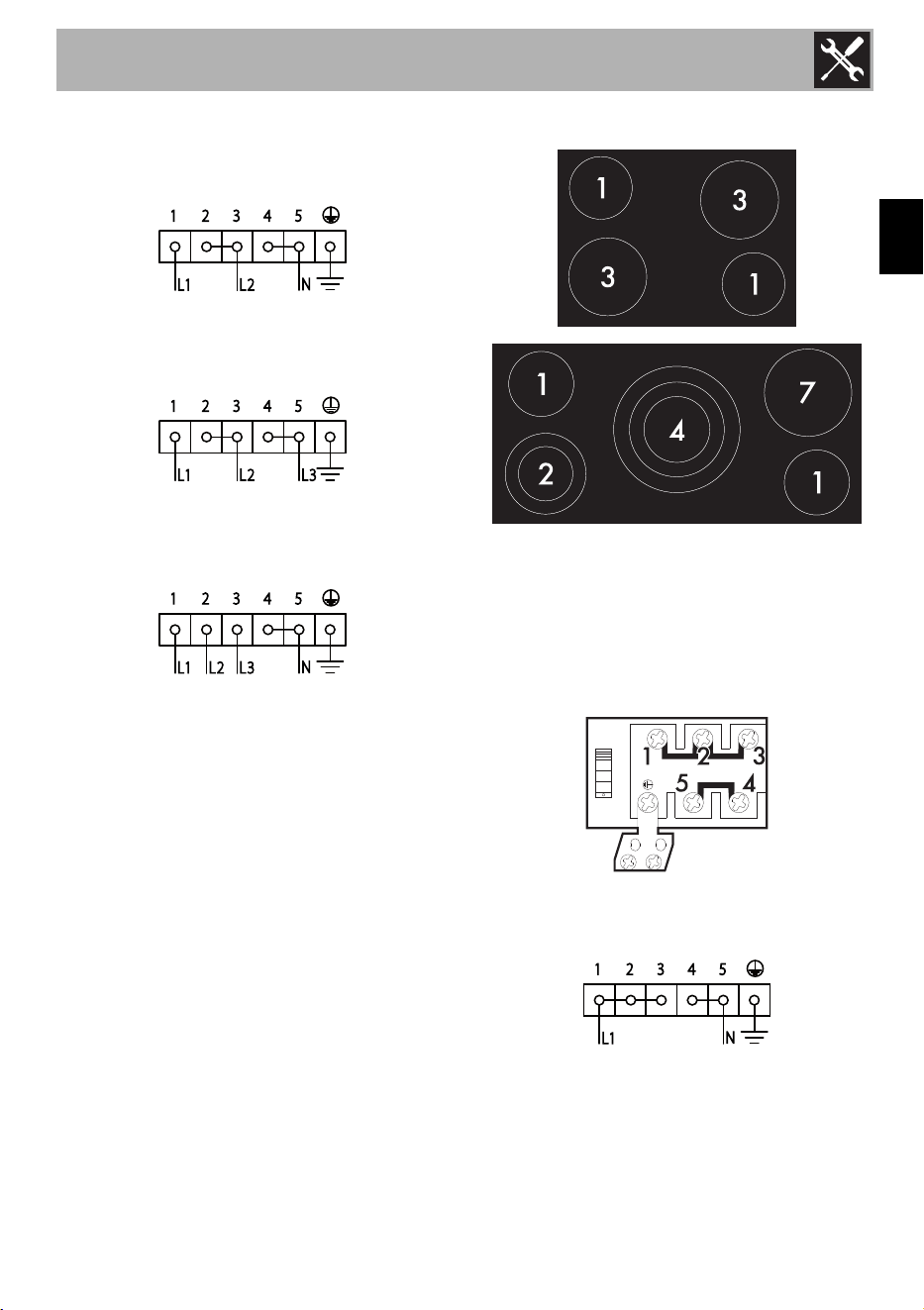

• Page 33 - English - : Installation EN If the cable is replaced the appliance can also function in the following modes 380415 V 2N 4 x 4 mm² fourcore cable 220240 V 3 4 x 4 mm² fourcore cable 380415 V 3N 5 x 25 mm² fivecore cable 60 90 cm models only 3kW The diagram below illustrates the power supply terminal from below with no cables connected Terminals 1 2 and 3 and terminals 4 and 5 must be connected at all times 220240 V 1N 3 x 15 mm² threecore cable provided
• Page 34 - English - : Installation Fixed connection Fit the power line with an omnipolar circuit breaker in compliance with installation regulations The circuit breaker should be located near the appliance and in an easily reachable position Testing At the end of installation carry out a brief inspection test If it fails to work after making sure that you have carried out the instructions correctly contact Technical Support 55 Instructions for the installer Do not bend or trap the power cable The appliance must be installed according to the installation diagrams If the appliance does not work correctly after having carried out all the checks contact your local Authorised Service Centre Once the appliance has been installed please explain to the user how to use it correctly Run the power cable in the rear part of the unit Make sure that it does not come into contact with the lower part of the hob or a built in oven below it Be careful when connecting additional electrical appliances Connection cables must not come into contact with hot cooking zones
