SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

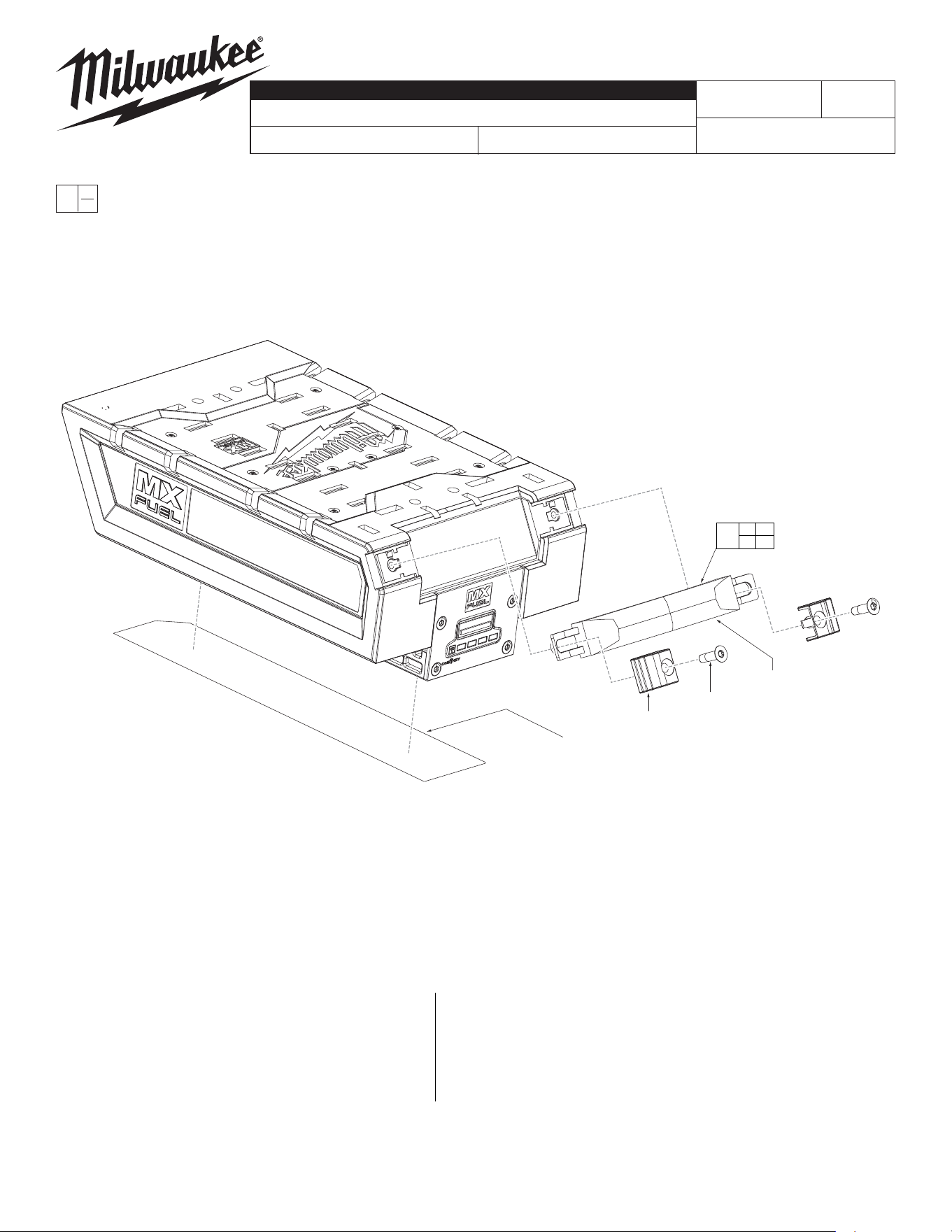

Drwg. 1
54-04-F600
0
00
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
5
2
(2x)
3
(2x)
4
2 3
4
1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 14-34-7035 Handle Service Kit (1)
2 --------------- Part Latches (2)
3 --------------- Screws (2)
4 --------------- Handle (1)
5 12-25-9865 Nameplate (1)
FIG. NOTES
5 A clean, dry surface is essential for proper performance for any
adhesive system. The area intended for application of any adhesive
label or nameplate must be prepared by cleaning with isopropyl
alcohol. The solvent is to be applied with a clean, lint free applicator
and the surface allowed to dry before applying the label or nameplate.
CATALOG NO. MXFXC608
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MX FUEL™ 8.0 Li-Ion Battery Pack
STARTING
SERIAL
DATE
Feb. 2023
WIRING INSTRUCTION
L18A
