Wire-Free Camera
Operation Instruction
（BW4-N)
aftersale@rraycom.com
Please email us:
Customer Service
Phone:
+1 2027384449
Facebook
Rraycomz@gmail.com
Claim
warranty for your device
1-year
(Sun. - Thur. 8pm - 12pm)
01
Camera *1 Bracket *1 USB Cable *1
Instruction*1 Mounting Kit *1
④
③
⑤
① ②
Packing List
Appearance
BW4-N
Indicator light
Photosensitive
PIR
MIC
02
At the bottom
BW4-N
OFF/ON
USB
5V 1.5A
Charging
Speaker
TF card
Reset
Use a power adapter with a
power rating of 5V 2A or below.
Caution：
03
Reset Green light flashes
Indicator light definition
Charging Red light
Fully Charged Off
No network Blue light flashes
Wifi connected Blue (when it wakes up)
Sleep Off
At the bottom
OFF/ON
TF card
Reset
* 5V 1.5A Power
adaptor Only
Press and hold the reset button for about 3 seconds,
the green indicator light flashes, and the camera
finish reset when the blue light is on.
Scan the QR code to download the APP.
Or search for "O-KAM" to download through the app store
(Google play/ APP Store).
04
Step-1
Power-on
Reset
O-KAM
Download the APP
Quick start
>>>
Press and hold the power button until you hear
the prompt, and the indicator light flashes blue slowly.
Click "Register now" at the login interface
-- Select the address
-- Enter your phone number
-- Get the verification code.
After entering the verification code
you need to set the password and click Finish.
05
①
②
>>> APP account registration
Step-2
Log in and click "Add" button found at the "Home" interface
or click the " " in the upper right corner.
06
①
>>> Add cameras
Step-3
At the QR code scanning interface, scan the QR code on the
camera.
07
②
>>> Add cameras
Step-4
Switch the camera "On".
(No need for "Long press")
Click "Next" when the indicator
light flashes in blue slowly.
Confirm that the camera is
ready for WiFi configuration
when the indicator light
flashes in blue slowly. And
click "Next"
08
>>>>>>
③ ④
Enable the location service of your phone, and allow the O-KAM
APP to access the location. Confirm the WiFi and enter the
password.
* Make sure the Wi-Fi is 2.4Ghz. WiFi password case sensitive.
2.4Ghz
5 Ghz
09
>>>
⑤
The APP will automatically generate a QR code. Point the camera
lens at the QR code and keep it at a distance of 6-8 inches. You'
ll hear a beep and voice prompt when it's scanned successfully.
10
>>>
⑥
6-8 INCHES

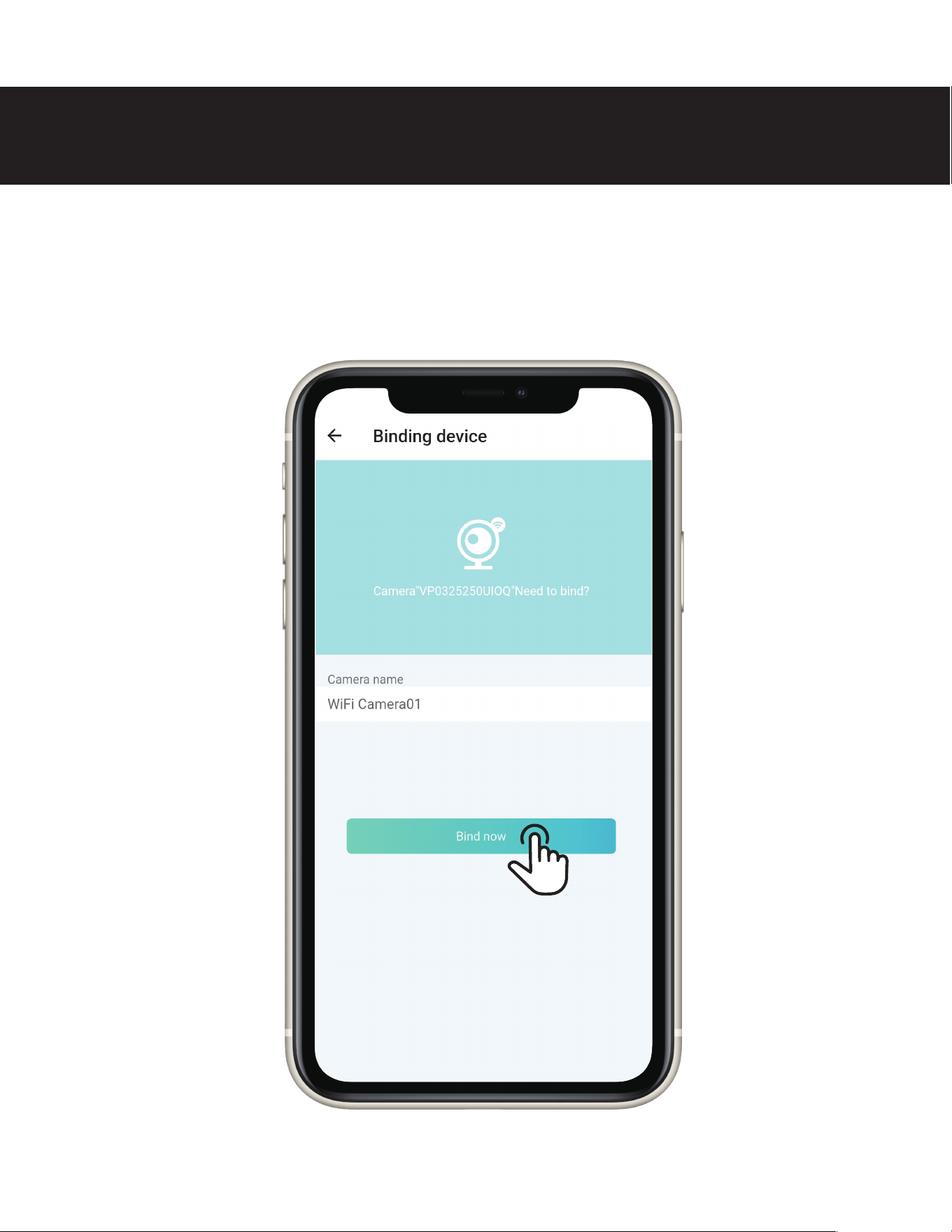

When the device is connected to the WiFi, name the camera
and click "Bind Now".
11
>>>
⑦

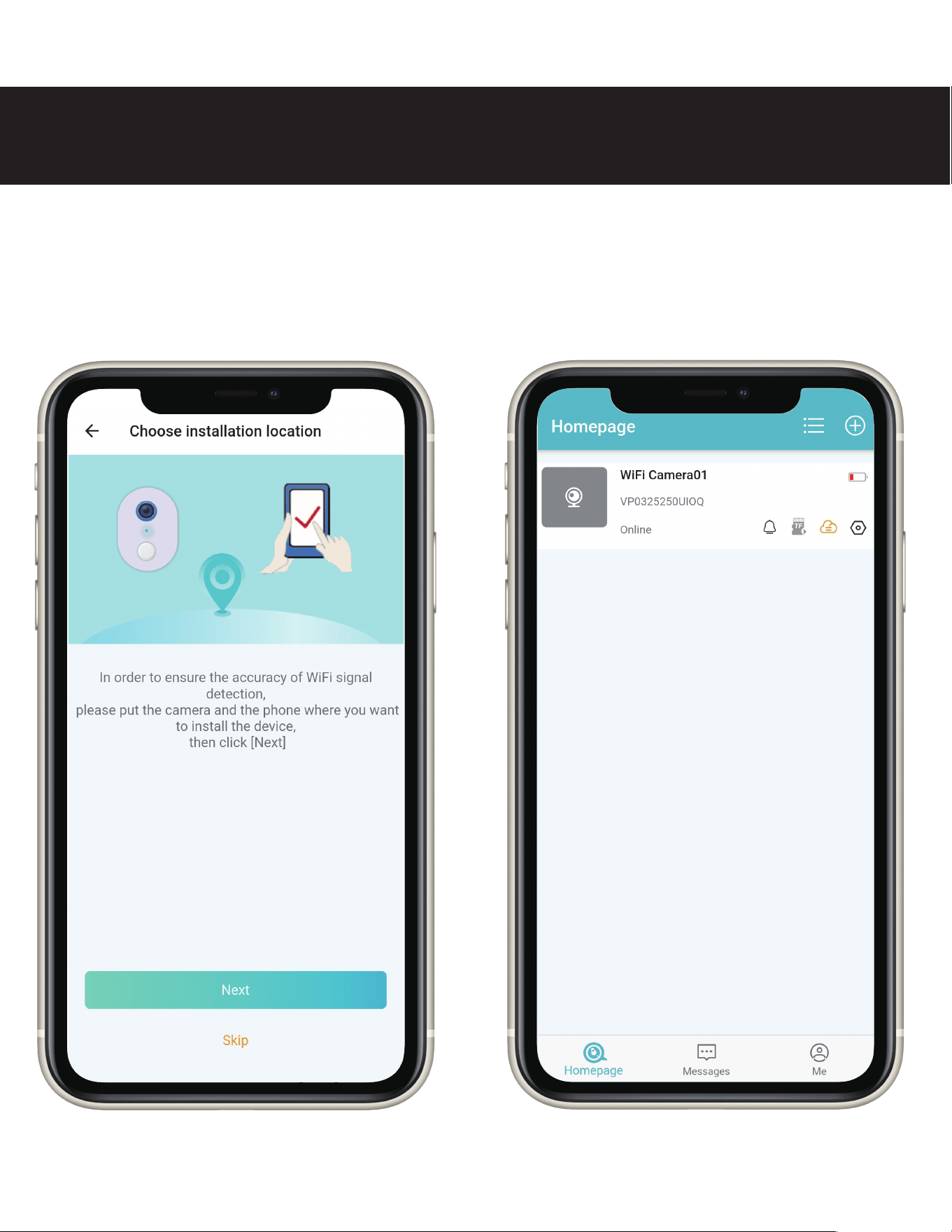

Please take the camera and phone to the location where
you're going to install the camera, and then click "Next" to
test the signal strength.
Make sure there is strong WiFi signal strength at the location.
12
>>>
⑧
13

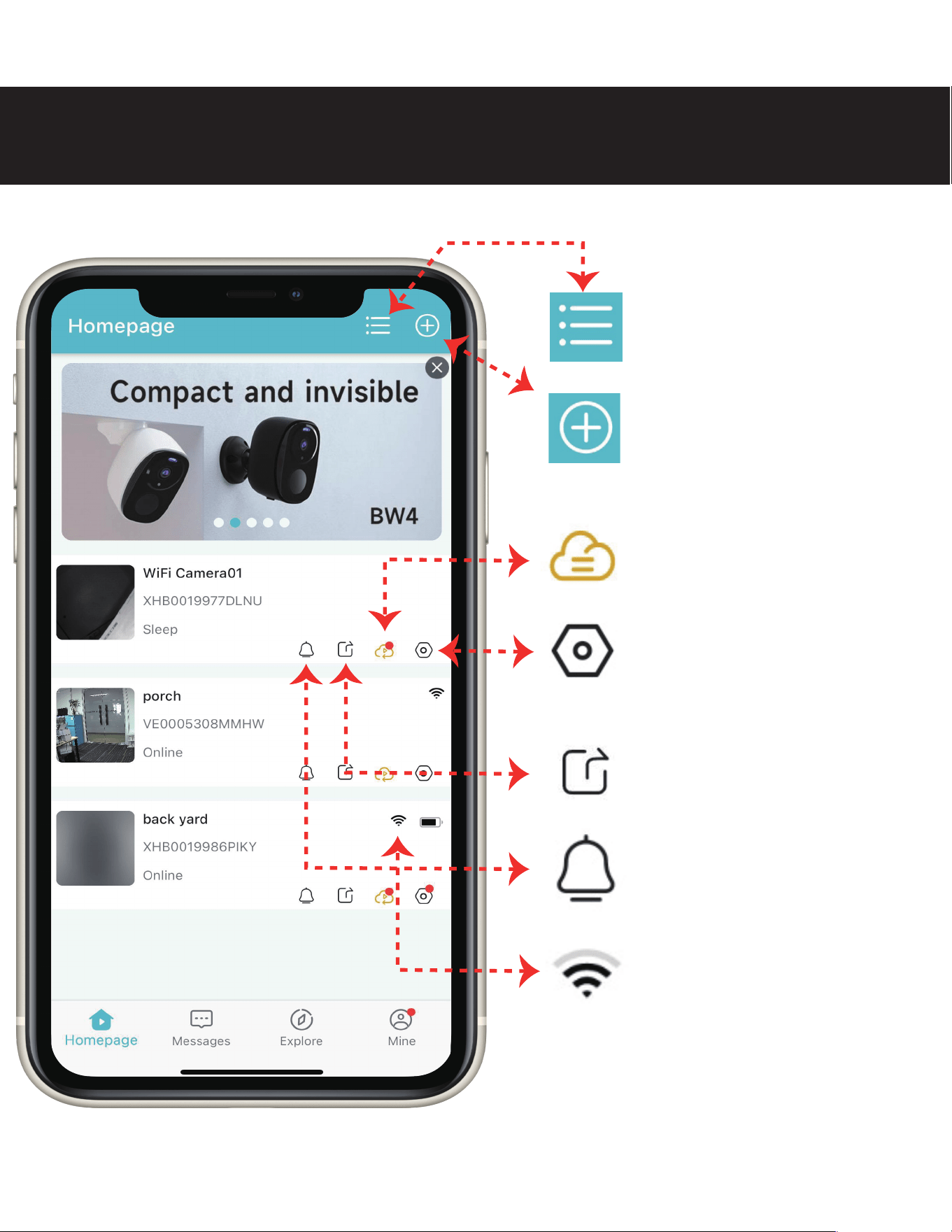

Home introduction.①
>>>
APP function introduction
Step-5
Multi-device view
Add device
System settings
Cloud service
Share camera
Do not disturb mode
WiFi display
14

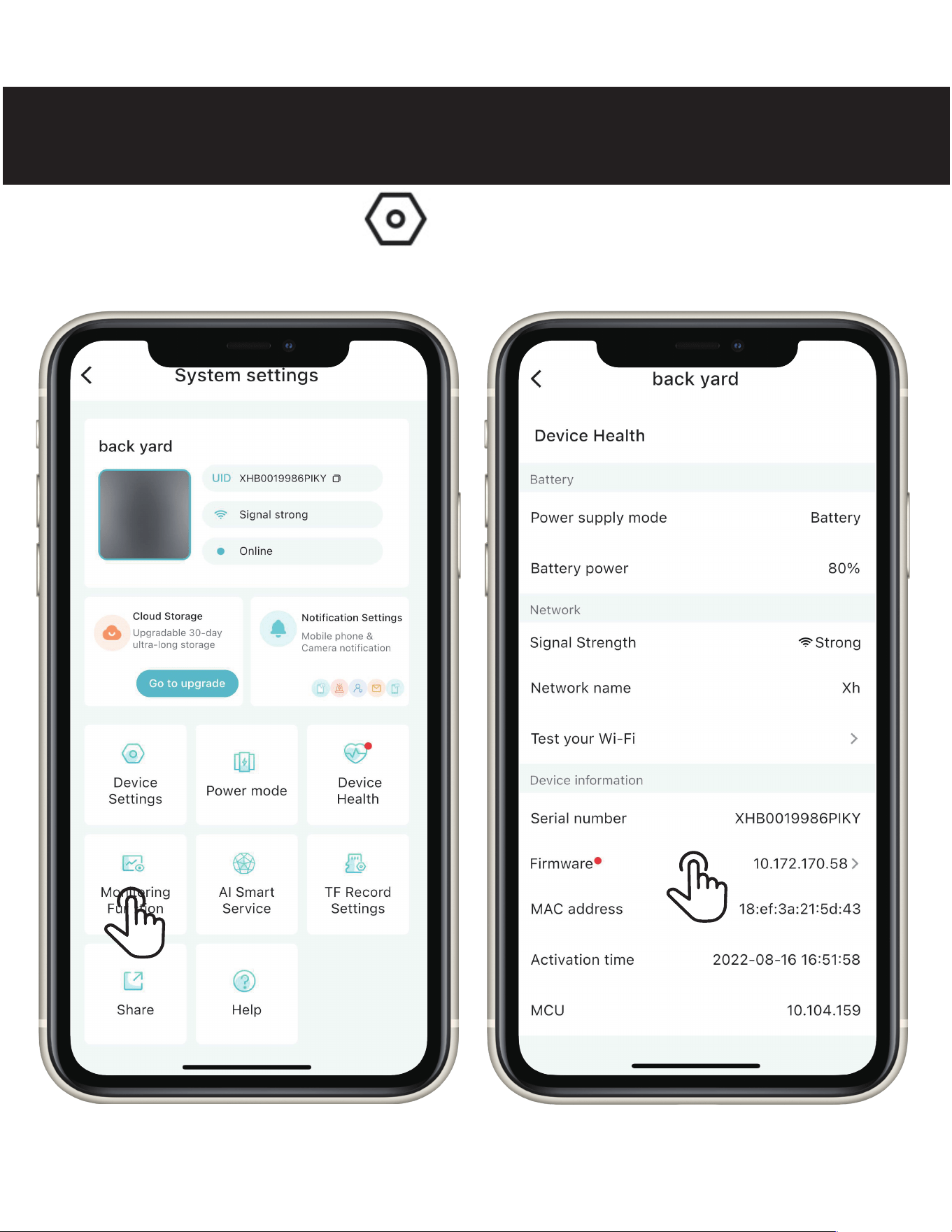

Enter system settings "
Tap on the “Device Health”- “Firmware”to update (Suggested)
"-monitoring function
>>>
Monitoring settings
Step-6
15

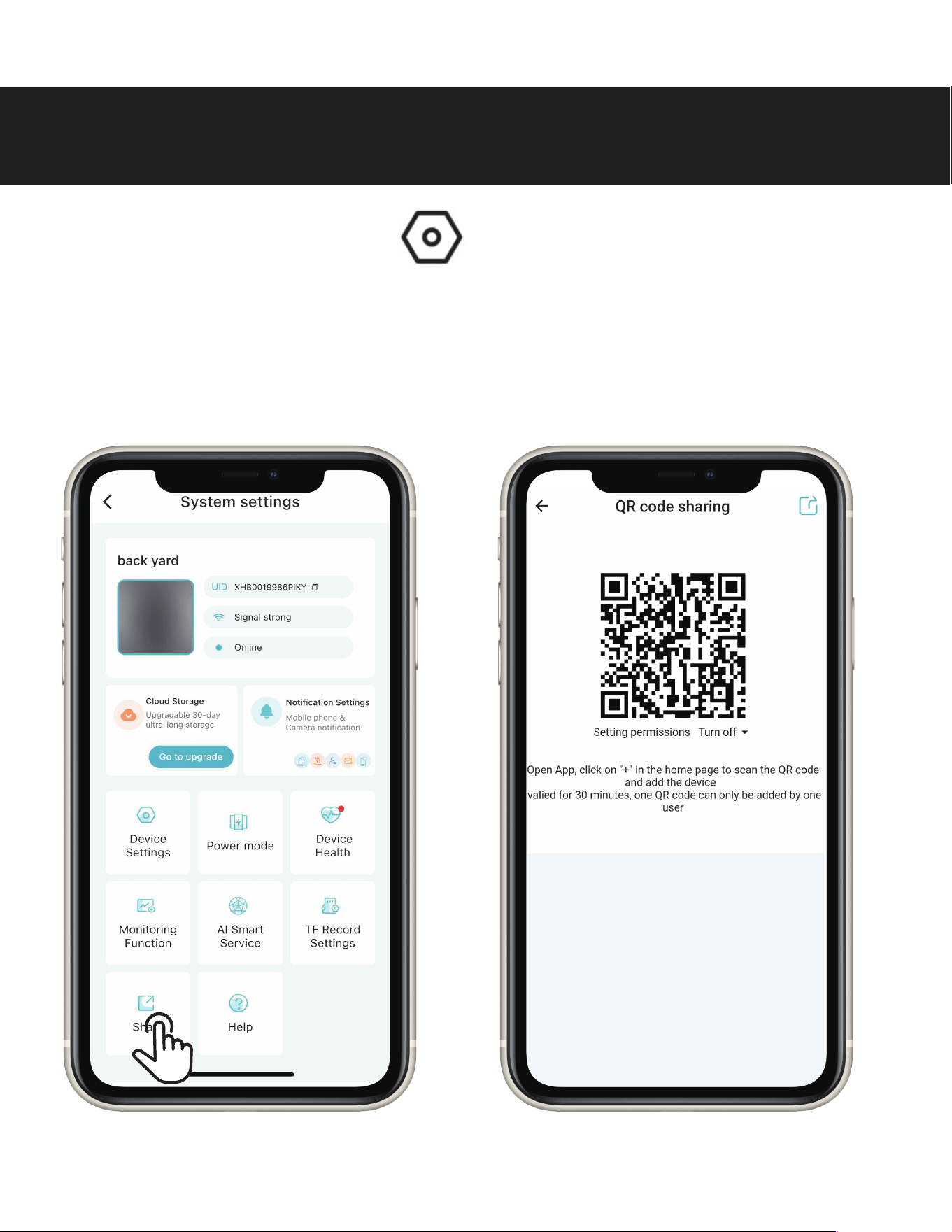

Enter the system settings " "- Share
Sharing method: Share the QR code to a user. The other user
adds the camera by scanning the QR code;The QR code is
valid for 30 minutes, and one QR code can only be shared
with one user. Generate more QR codes for more members.
Maximum of 4 people can live view.
>>>
Share the device
Step-7
Tutorial
Videos
Please scan the QR code below
16
