ADJUSTABLE ANGLE GRINDER CUTTING
SHROUD
MODEL NO: AGCS01
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Read all safety warnings, instructions, illustrations and specications provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, re and/or serious injury. Save all warning and instructions for future reference.
9 This product is an accessory to an angle grinder. Apply all safety advice concerning the use of an angle grinder when using this
product.
WARNING! Grinder MUST be disconnected from mains supply during assembly.
2. INTRODUCTION

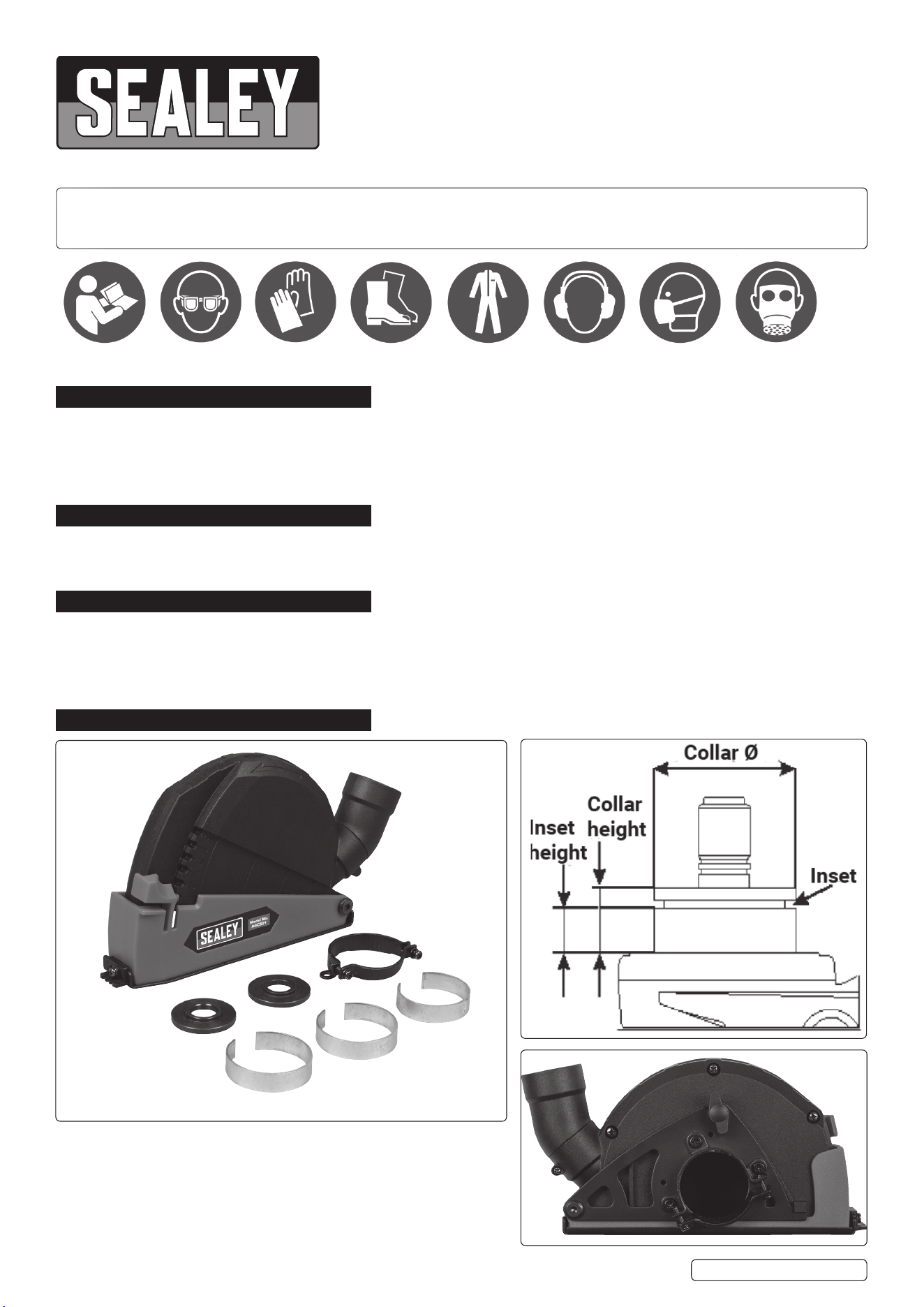

Professional dust control guard for cutting a range of materials. Collar clip and spacers provided to adjust the shroud for Ø115mm
to Ø125mm angle grinders. Hose end for extraction of harmful dust in concrete surfacing applications. Six notches allow for adjustable
depth control. Universal hose connector enables the hose to swivel.
3. SPECIFICATION
Model No: ................................................................ AGCS01
Contents:
Cutting Shroud (x1), Wrench (x1), Pressing Plate (x2), Spacer Rings (x4), 39mm, 45mm, 48mm, 50mm.
Diameter: ...............................................Ø115mm - Ø125mm
Weight: ...................................................................... 0.599kg
4. CONTENTS
AGCS01 Issue:1 17/02/25
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear ear
protection
Wear safety
footwear
Wear protective
clothing
Wear a mask
Wear respiratory
protection
(fumes)
Cutting depth
adjustment
and
cover
release
Vacuum
connection
Collar clip
Collar spacers
Undo to release
collar clip plate
5. OPERATION
5.1. Connect to vacuum extraction. Risk assess the cutting task to be performed. Perform a run up test and operation of the shroud before
commencing work to ensure all parts are correctly aligned.
Original Language Version
© Jack Sealey Limited
Select collar clip to match grinder. Refer to
diagram on front page
Use spacers as necessary
Tighten screws

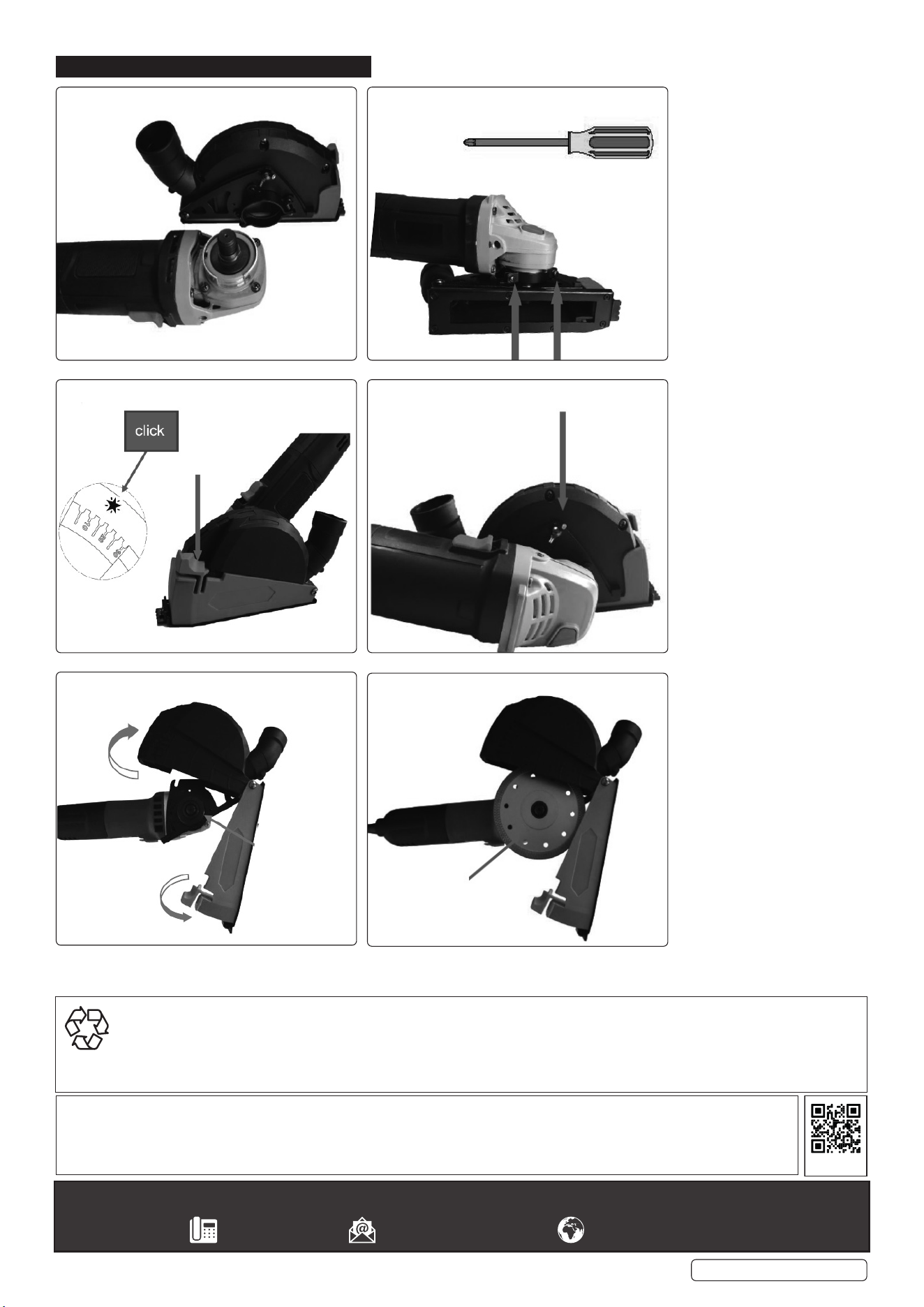

Angle adjustment Undo thumbscrew to open
Pass grinder through shroud assembly.
Fit ange
Fit ange nut, tighten
