241-0353
BRUSHLESS RECIPROCATING
SAW
OPERATOR’S MANUAL
CAUTION:
To Reduce the Risk of Injury, User Must
Read and Understand the Operator’s Manual. Save These
Instructions For Future Reference.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free: 1-866-917-4374 (M-F 8:30am-5:00pm EST).
TABLE OF CONTENTS
Safety Symbols ......................................................... Page 2
Safety Instructions ...................................................... Page 3
Overview/Specifications ................................................. Page 8
Assembly ............................................................. Page 9
Operation ............................................................. Page 9
Maintenance .......................................................... Page 15
Troubleshooting ....................................................... Page 16
Parts List ............................................................. Page 17
Schematic Drawing .................................................... Page 18

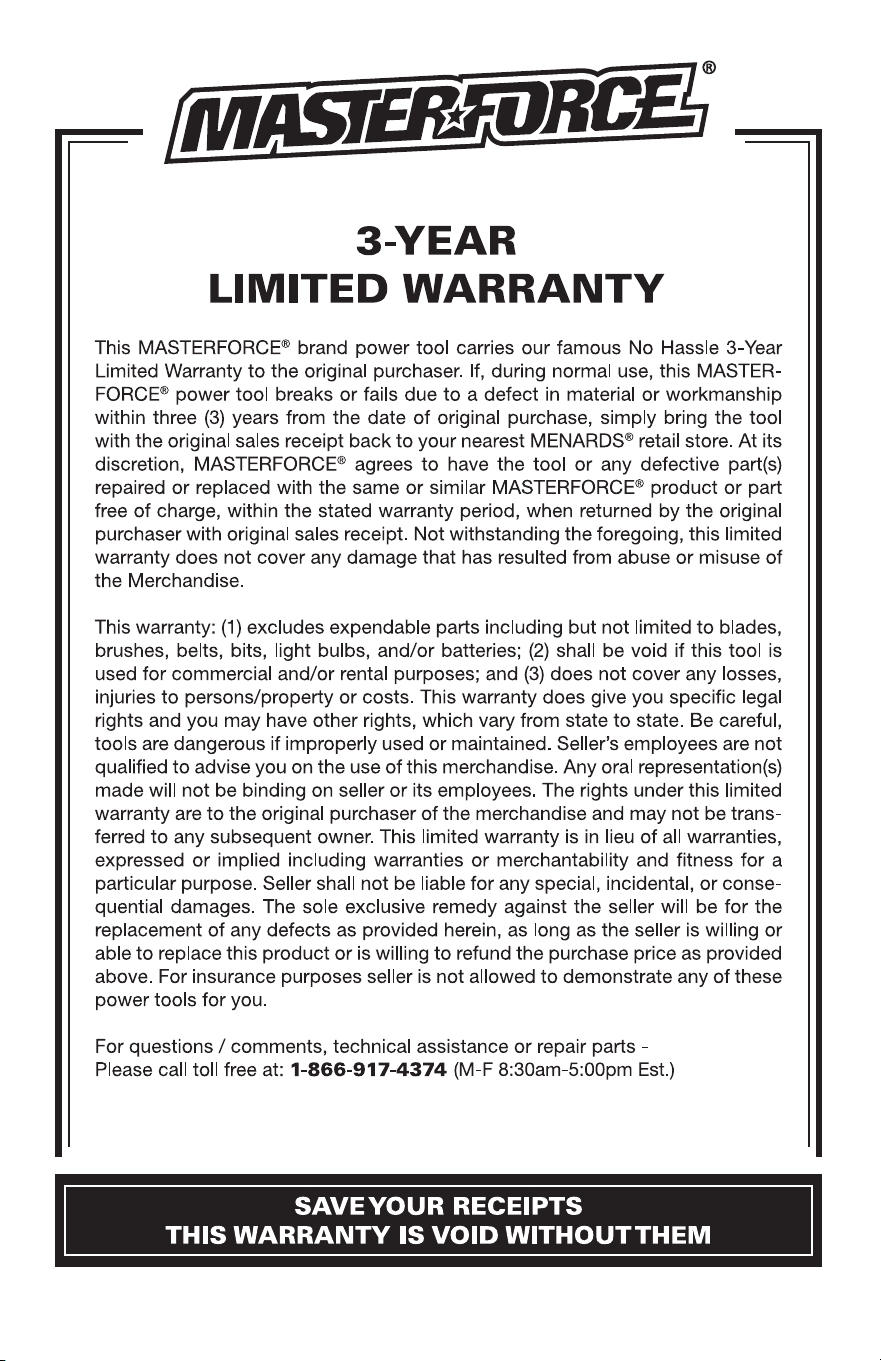

Warranty .............................................................Page 19
Page 2
SAFETY SYMBOLS
Some of these following symbols may be used on this tool. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the tool better and
more safely.
WARNING:
To ensure safety and reliability, all repairs should be performed by a
qualified service technician.
Symbol
Name
Designation / Explanation
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
lbs Pounds Weight
n
o
No-load speed Rotational speed at no load
SPM
Strokes per Minute Unit of speed
� or d.c.
Direct current Type of characteristic of current
Read instruction
manual
To reduce the risk of injury, user must
read instruction manual.
Page 3
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols, and the explanations with them, deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger. The
instructions and warnings they give are no substitutes for proper accident prevention
measures.
WARNING:
Be sure to read and understand all safety instructions in this manual,
including all safety alert symbols such as “DANGER”, “WARNING” and “CAUTION” before
using this tool. Failure to follow all instructions listed below may result in electric shock,
fire, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, OR CAUTION. May be used
in conjunction with other symbols or pictographs.
DANGER:
Indicates an imminently hazardous situation, which, if not avoided,
will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation, which, if not avoided,
could result in minor or moderate injury.
NOTICE:
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SAVE THESE INSTRUCTIONS!
SAFETY INSTRUCTIONS
Page 4
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING:
Read all safety warnings,
instructions, illustrations and specifications
provided with this power tool. Failure to
follow all instructions listed below may
result in electric shock, fire and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS
FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers
to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
WORK AREA SAFETY
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
3. Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the
outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
2. Avoid body contact with earthed
or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your
body is earthed or grounded.
3. Do not expose power tools to rain or
wet conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors,
use an extension cord suitable for outdoor
use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
6. If operating a power tool in a damp
location is unavoidable, use a ground fault
circuit interrupter (GFCI) protected supply.
Use of an GFCI reduces the risk of electric
shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing
and use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may
result in serious personal injury.
2. Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid
safety shoes, hard hat or hearing protection
used for appropriate conditions will reduce
personal injuries.
3. Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the
switch or energizing power tools that have
the switch on invites accidents.
4. Remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
5. Do not overreach. Keep proper footing
and balance at all times. This enables better
control of the power tool in unexpected
situations.
SAFETY INSTRUCTIONS
Page 5
SAFETY INSTRUCTIONS
6. Dress properly. Do not wear loose
clothing or jewelry. Keep your hair and
clothing away from moving parts. Loose
clothes, jewelry or long hair can be caught in
moving parts.
7. If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
8. Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and
safer at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power tool
that cannot be controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
4. Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
5. Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that may affect the power
tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
7. Use the power tool, accessories
and tool bits etc. in accordance with
these instructions, taking into account
the working conditions and the work to
be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow
for safe handling and control of the tool in
unexpected situations.
BATTERY TOOL USE AND CARE
1. Recharge only with the charger
specified by the manufacturer. A charger
that is suitable for one type of battery pack
may create a risk of fire when used with
another battery pack.
2. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
3. When battery pack is not in use, keep
it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make
a connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
4. Under abusive conditions, liquid may
be ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the
battery may cause irritation or burns.
5. Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
6. Do not expose a battery pack or tool to
fire or excessive temperature. Exposure to
fire or temperature above 265 °F (130 °C)
may cause explosion.
Page 6
SAFETY INSTRUCTIONS
7. Follow all charging instructions and
do not charge the battery pack or tool
outside the temperature range specified in
the instructions. Charging improperly or at
temperatures outside the specified range may
damage the battery and increase the risk of
fire.
SERVICE
1. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Never service damaged battery packs.
Service of battery packs should only
be performed by the manufacturer or
authorized service providers.
SAFETY INSTRUCTIONS FOR
RECIPROCATING SAW
1. Hold the power tool by insulated
gripping surfaces, when performing an
operation where the cutting accessory may
contact hidden wiring. Cutting accessory
contacting a “live” wire may make exposed
metal parts of the power tool “live” and
could give the operator an electric shock.
2. Use clamps or another practical way
to secure and support the workpiece to a
stable platform. Holding the workpiece by
hand or against your body leaves it unstable
and may lead to loss of control.
3. Keep hands away from cutting area.
Do not reach under the material being cut.
The proximity of the blade to your hand is
hidden from your sight.
4. Always disconnect the battery pack
before changing the saw blade.
5. Make certain that all adjusting levers
and the blade holder are tight before
making a cut. Loose adjusting levers and
holders can cause the tool or blade to slip.
Loss of control may result.
6. Check that the switch is off before
attaching the battery pack. Accidental
starting could cause injury.
7. Never touch the saw blade after
immediate use
. It may be hot after
prolonged use.
8. Always wear safety goggles or eye
protection when using this tool. Use a dust
mask or respirator or connect the tool to an
external dust vacuum if cutting generates a
great amount of dust.
IMPORTANT SAFETY INSTRUC-
TIONS
1. To reduce the risk of electric shock or
damage to the chargers and batteries, use
only with the MASTERFORCE
®
20V battery
packs and chargers listed.
Battery pack Charger
252-8031 (2.0Ah)
252-8003 (2.5Ah)
252-8034 (4.0Ah)
252-8013 (4.0Ah)
252-8005 (5.0Ah)
252-8014 (8.0Ah)
252-8025
252-8037
252-8026
252-8043
2. For best results, your battery and tool
should be stored, charged and used in a
location where the temperature is more
than 41°F (5°C) but less than 104°F (40°C).
Do not store outside or in vehicles.
DANGER:
People with electronic
devices, such as
pacemakers, should consult their
physician(s) before using this product.
Operation of electrical equipment in close
proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
Page 7
WARNING:
Drilling, sawing, sanding or machining wood
products can expose you to wood dust, a
substance known to the State of California
to cause cancer. Avoid inhaling wood dust
or use a dust mask or other safeguards for
personal protection. For more information
go to www.P65Warnings.ca.gov/wood
WARNING:
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals
known to the state of California to cause
cancer, birth defects, or other reproductive
harm. Some examples of these chemicals
are:
- Lead from lead-based paints
- Crystalline silica from bricks, cement, and
other masonry products
- Arsenic and chromium from chemically-
treated lumber
Your risk from these exposures varies,
depending upon how often you do this type
of work. To reduce your exposure to these
chemicals:
- Work in a well-ventilated area.
- Work with approved safety equipment,
such as dust masks that are specially
designed to filter out microscopic particles.
- Avoid prolonged contact with dust from
power sanding, sawing, grinding, drilling,
and other construction activities. Wear
protective clothing and wash exposed
areas with soap and water. Allowing dust
to get into your mouth or eyes or to lie on
the skin may promote absorption of harmful
chemicals.
SAVE THESE INSTRUCTIONS!
SAFETY INSTRUCTIONS
Page 8
OVERVIEW
Saw Blade
Handle
Hook
Orbit-control
Lever
Shoe-release
Button
Pivot Shoe
Blade
Clamp
LED Work Light
Rafter Hook
Switch-lock Button
Variable-speed
Trigger Switch
Rated voltage 20 V d.c.
No load speed 0-3200 SPM
Blade stroke 1-1/4’’ (32 mm)
Sawing capacity in wood 11-13/16" (300 mm)
Sawing capacity in steel 25/32” (20 mm)
Weight (without battery) 6 lbs. 3 oz. (2.8 kg)
SPECIFICATIONS
Page 9
WARNING:
If any part is broken or
missing, DO NOT attach the battery pack
or operate the tool until the broken or
missing part is replaced. Failure to do so
could result in possible serious injury.
WARNING:
Do not attempt to
modify this tool or create accessories not
recommended for use with this tool. Any
such alteration or modification is misuse
and could result in a hazardous condition
leading to possible serious injury.
WARNING:
Your tool should
never be connected to the battery pack
when you are assembling parts, making
adjustments, cleaning, or when it is not in
use. Disconnecting the tool will prevent
accidental starting, which could cause
serious personal injury.
ASSEMBLY
PACKING LIST
- Cordless reciprocating saw
- Saw blade
- Operator’s manual
UNPACKING
1. Carefully remove the tool and any
accessories from the carton. Make sure
that all items listed in the packing list are
included.
2. Inspect the tool carefully to make sure
that no breakage or damage occurred
during shipping.
3. Do not discard the packing material
until you have carefully inspected and
satisfactorily operated the tool.
ATTACH THE BATTERY PACK
(FIG. 1)
FIG. 1
Battery-release
Button
1. Align the raised ribs on the battery pack
with the grooves on the bottom of the
tool, then slide the battery pack onto the
tool.
2. Ensure that the battery-release button
on the battery pack snaps into place
and the battery pack is secured to the
tool before beginning operation.
NOTICE: When placing the battery pack
on the tool, be sure that the raised ribs on
the battery pack align with the grooves
on the tool and the latches snap into
place properly. Improper assembly of the
battery pack can cause damage to internal
components.
DETACH THE BATTERY PACK
(FIG. 1)
1. Press the battery-release button to
release the battery pack.
2. Pull the battery pack to remove it from
the tool.
OPERATION
Page 10
INSTALL THE BLADE (FIG. 2)
FIG. 2
Blade Clamp
Saw Blade
WARNING:
Use only a standard
reciprocating saw blade. Never try to use
T- or U-shaped jig saw blade. Failure to heed
this warning could cause loss of control and
can result in possible serious injury.
1. Remove the battery pack from the tool.
2. Turn the blade clamp sleeve
counterclockwise.
3. Insert the blade into the slot in the blade
clamp as far as it will go.
4. Release the blade clamp sleeve to lock
the blade in place.
NOTE: The blade may be installed with the
teeth pointing up or down, depending on the
cutting operation.
NOTE: To obtain the best performance from
the saw, it is important to select the correct
blade for the application and type of mate-
rial to be cut.
Blades with fewer teeth, e.g., 10 teeth per
inch (TPI), are typically used for cutting
wood; blades with more teeth are better for
cutting metal or plastic.
We recommend 14 TPI blades for plastics
and soft metals and 18 TPI blades for hard
metals.
REMOVE THE BLADE (FIG. 2)
WARNING:
The saw blade may be
very hot after use. Allow the blade to cool
down or wear gloves when removing a saw
blade.
1. Remove the battery pack from the tool.
2. Turn the blade clamp sleeve
counterclockwise.
3. Pull the blade out of the blade clamp.
PIVOT SHOE (FIG. 3)
FIG. 3
Pivot Shoe
Shoe-release Button
For maximum control and longer blade life,
the pivot shoe slides in and out to provide
support through the effective stroke length.
1. Remove the battery pack from the tool.
2. Press the shoe-release button to release
the shoe.
3. Pull the shoe to the desired position.
4. Release the shoe-release button to lock
the shoe.
5. To pivot the shoe, hold the saw securely,
and then manually pivot the shoe to the
desired angle.
OPERATION
Page 11
OPERATION
WARNING:
To avoid injury and
damage, do not operate the saw without
the shoe in place. The shaft may strike
against the workpiece and damage the re-
ciprocating mechanism.
WARNING:
Do not push the shoe-
release button while sawing. It will cause
the shoe to release from the desired position
and cause loss of control and injury.
WARNING:
To reduce the risk of
injury, be sure the blade extends beyond
the shoe and all the way through the work-
piece throughout the entire stroke. Blade
may shatter if it hits the shoe or the work-
piece.
RAFTER HOOK (FIG. 4)
FIG. 4
Rafter Hook
Your tool is equipped with a convenient rafter
hook for hanging your tool. Use the hook
to hang the saw from a rafter or beam or
other similar secure structure for temporary
storage during work. Recommended lumber
size to support the saw with the hook is 2x4.
To use, simply lift up the hook until it snaps
into the open position.
When not in use, always lower the hook until
it snaps into the closed position.
HANDLE HOOK (FIG. 5)
FIG. 5
Handle
Hook
The handle hook is another option for
hanging the tool on a 2x lumber (1-1/2’’) or
similar sturdy material.
ORBITAL ACTION (FIG. 6)
Orbit-control
Lever
FIG.6
This reciprocating saw has the option of
orbital action to make the blade swing
slightly as it cuts.
1. Move the switch-lock button to the
middle position and then remove the
battery pack from the tool.
2. Turn the orbital-control lever to the
“
”position for orbital cutting action.
3. Turn the orbital-action selector to the
“
” position for straight cuts without
orbital action.
Page 12
OPERATION
NOTICE: To prevent damage to the tool,
always allow the motor to come to a
complete stop before changing position of
the orbital-control lever.
NOTICE: Do not use the orbital action
setting when cutting metal.
SWITCH-LOCK BUTTON (FIG. 7)
FIG. 7
Switch-lock
Button
Autosense Lock High Speed
The switch-lock button can lock the switch
in the off position. It also switches between
two speed modes: “A” for autosense and“H”
for high speed.
Autosense mode: Push the switch-lock
button to the far right position marked
“A” to activate the autosense mode. The
autosense mode is mainly focused on steel
pipe cutting application. This function helps
user hold the tool with no-load speed to 400
SPM to reduce vibration, once the blade
engaged the work piece, it will reach to the
highest speed (up to 2000 SPM) which is the
most suitable speed setting for steel pipe
cutting.
In autosense mode, the variable speed is
non-adjustable.
NOTE: Do not use the autosense mode
when the blade is already engaged into
workpiece; a low-speed startup is for better
saw blade alignment which helps to achieve
smoother start of the cut.
Lock mode: Press the switch-lock button
to the middle position marked “
”to lock
the trigger switch and reduce the chance of
unintentionally starting the tool.
High speed mode: Push the switch-lock
button to the far left position marked “H”
to activate the high speed mode. In high
speed mode, the speed is controlled by
the pressure applied on the variable-speed
trigger switch.
VARIABLE-SPEED TRIGGER
SWITCH (FIG. 8)
FIG. 8
Variable-speed
Trigger Switch
Your tool is equipped with a variable-speed
trigger switch. The tool can be turned on and
off by depressing or releasing the variable-
speed trigger switch.
The variable-speed trigger switch delivers
higher speed with increased trigger pressure
and lower speed with decreased trigger
pressure.
NOTE: The trigger switch delivers variable
speed range only when the tool is at the high
speed mode.
Page 13
LED WORK LIGHT (FIG. 9)
FIG. 9
LED Work Light
The LED work light, located on the front of
the saw, automatically turns on with a slight
squeeze of the trigger switch before the tool
starts running.
This provides additional illumination on the
surface of the workpiece.
The LED work light will turn off approximately
10 seconds after the trigger switch is
released.
The LED work light will turn off if the tool has
automatically stopped working because of
an overload, overheating, under-voltage, or
other issues.
GENERAL CUTTING (FIG. 10)
FIG. 10
OPERATION
WARNING:
Before attaching the
battery pack to the tool, always check to
determine that the switch performs prop-
erly and returns to the off position when
released.
WARNING:
Hold the tool only by
the plastic handle and the insulated grip
area to help prevent electric shock. You
may encounter electrical wiring when saw-
ing into walls or floors. Sawing into a “live”
wire will cause electric shock.
1. Remove the battery pack from the saw.
2. Make sure that the workpiece is firmly
clamped in place.
3. Use the appropriate type and size of
blade for the workpiece material and
thickness.
4. Check for clearance behind the
workpiece so that the blade will not
impact another surface.
5. Mark the line of cut clearly. If cutting
metal, apply cutting oil to the line.
6. Attach the battery pack to the saw.
7. Hold the saw firmly with both hands and
away from you. Make sure to keep your
hands on the insulated gripping areas
only.
8. Press the switch-lock button to unlock
the trigger switch and select a desired
speed mode. Squeeze the variable-
speed trigger switch to start the saw
and bring it to the maximum desired
cutting speed before applying the blade
to the workpiece.
9. Place the shoe firmly against the
workpiece while cutting. Use only
enough steady pressure on the blade to
keep the saw cutting; do not force the
tool.
10. Reduce pressure as the blade comes to
the end of the cut.
11. Allow the saw to come to a complete
stop before removing the blade from the
workpiece.
Page 14
PLUNGE CUTTING (FIG. 11)
A
B
FIG. 11
12. When sawing fiberglass, plaster,
wallboard, or spackling compound,
clean the ventilation slots frequently
with a vacuum or compressed air.
These materials are highly abrasive
and may accelerate the wear on motor
parts.
WARNING:
Always wear safety
goggles or safety glasses with side shields
when using compressed air to clean the
tool. If the operation is dusty, also wear a
dust mask.
OPERATION
NOTE: Cutting speeds depend on the
material to be cut. Hard materials, such as
metals, require lower speeds. For softer
materials, use higher speeds. Do not force
the saw. Let the blade and saw do the work.
NOTICE: When cutting pipes, especially
above/overhead, water may get into the
blade clamp causing rust buildup and
damage of the clamp and blade. To prevent
this, remove the blade and clean the blade
and blade clamp with soft cloth, then apply
WD-40 or similar lubricant to the blade
clamp.
Your reciprocating saw is ideal for plunge
cutting directly into surfaces that cannot be
cut from an edge, such as in walls or floors.
Plunge cutting may be done in two ways,
depending on how the blade is inserted.
Fig. 11 (A) shows how to plunge cut with the
teeth of the blade facing down.
Fig. 11 (B) shows how to plunge cut with the
teeth of the blade facing up.
NOTICE: Autosense mode is not suitable
for plunge cutting due to the sharp speed
change after loading.
WARNING:
Do not plunge cut into
metal surfaces.
WARNING:
To reduce the risk of
explosion, electric shock and property
damage, always check the work area for
hidden gas pipes, electrical wires or water
pipes when making blind or plunge cuts.
WARNING:
To avoid loss of con-
trol and serious injury, make sure that the
blade reaches maximum speed before it
touches the workpiece.
1. Remove the battery pack from the saw.
2. Make sure that the workpiece is firmly
clamped in place.
3. Use the appropriate type and size of
blade for the workpiece material and
thickness.
Page 15
4. Check for clearance behind the
workpiece so that the blade will not
impact another surface.
5. Attach the battery pack to the saw.
6. Hold the tool firmly, resting the edge of
the shoe on the workpiece.
7. With the blade just above the workpiece,
press the switch-lock button to unlock
the trigger switch and select a speed
mode. Squeeze the variable-speed
trigger switch to start the saw and
bring it to the maximum desired cutting
speed.
8. Use the edge of the shoe as a pivot
and raise the gripping handle of the
tool slowly. As the blade starts cutting,
plunging the blade into the workpiece
until the shoe rests firmly on the
workpiece.
9. After the blade has penetrated through
the workpiece and the shoe is fully
rested on the workpiece, continue
sawing along the marked cutting line.
OPERATION
METAL CUTTING
The saw can be used to cut metals, such
as sheet steel, pipe, steel rods, aluminum,
brass, and copper. Be careful not to twist or
bend the saw blade. Do not force the tool.
The use of cutting oil is recommended when
cutting soft metals and steel. Cutting oil will
keep the blade cool, increase cutting action,
and prolong blade life.
1. Securely clamp the workpiece in
position and make the cut close to the
clamping point to minimize vibration.
2. When cutting conduit pipe or angle
iron, clamp the workpiece in a vise, if
possible, and cut close to the vise.
3. To cut thin sheet material, “sandwich”
the material between pieces of
hardboard or plywood and clamp the
layers together to reduce vibration and
tearing of the material.
WARNING:
Never use gasoline as
cutting lubricant, because normal sparking
could ignite the fumes.
MAINTENANCE
1. Check for damaged, missing, or worn
parts.
2. Check for loose screws, misalignment
or binding of moving parts, or any other
condition that may affect the operation.
3. If abnormal vibration or noise occurs,
turn the tool off immediately and have
the problem corrected before further
use.
4. Using compressed air may be the most
effective cleaning method. Always wear
safety goggles when cleaning tools
using compressed air.
5. If water gets into the blade clamp,
remove the blade and clean the blade
and blade clamp with soft cloth, then
apply WD-40 or similar lubricant to the
blade clamp.
NOTICE: Failure to timely clean and
lubricate the blade clamp will cause rusting
and damage.
6. Store the tool indoors in a place that
is inaccessible to children. Keep away
from corrosive agents.
WARNING:
• When servicing, use only identical
replacement parts. Use of any other parts
may create a hazard or cause product
damage.
• To avoid serious personal injury,
always remove the battery pack from the
product when cleaning or performing any
maintenance.
Page 16
PROBLEM POSSIBLE CAUSE SOLUTION
Tool does not work.
Battery pack charge is
depleted.
Charge the battery pack.
The battery pack is not
inserted properly.
Insert the battery pack
properly.
Battery pack or the tool is
overheated.
Allow the battery pack or the
tool to cool down.
The tool is overloaded.
Restart the tool and do not
force the tool.
Blade binds, jams, or burns
the wood.
Improper operation. See “OPERATION” section.
Dull blade. Replace or sharpen blade.
Improper blade. Replace blade.
The motor is overheating.
Ventilation slots are
obstructed.
Clean and clear the
ventilation slots. Do not
cover the ventilation slots
with your hand during
operation.
TROUBLESHOOTING
Page 17
PARTS LIST
No. Part Name No. Part Name
1 Switch Button 27 Washer
2 Pothook 28 Pin
3 Hexagon Socket Screw 29 Plain Washer
4 Tapping Screw 30 Pin
5 Tapping Screw 31 Bevel Gear
6 Circlips For Shaft 32 Pin
7 Ball Bearing 33 Ball Bearing
8 Clamp 34 Plain Washer
9 Rotor 35 Screw
10 Stator 36 Screw with Washer
11 Ball Bearing 37 Gear Case
12 Rubber Stick 38 Gear Case Bracket
13 Electric Assembly 39 L R Housing Set
14 Trigger Switch 40 Pivot Shoe
15 LED Assembly 41 Front Handle
16 Hexagon Socket Screw 42 Support Plate
17 Gear Case Cover 43 Screw
18 Spring 44 Limit Plate
19 Plunger Set 45 Cap
20 Crank Roller 46 Spring B
21 Needle Bearing 47 Pendulum Knob
22 Washer 48 Pin
23 Hexagon Socket Screw 49 Spring
24 Shaft 50 Quick Chuck Lever
25 Eccentric Block 301 Reciprocatingsaw Blade
26
Balance Plate
Page 18
SCHEMATIC DRAWING
BRUSHLESS RECIPROCATING SAW
09/2024
© 2024 Menard, Inc., Eau Claire, WI 54703
