Digital Musical Karaoke Keyboard
PKBRD4112 - PKBRD6111 - PKBRD4911PK
PKBRD4112
PKBRD4911PK
PKBRD6111/PKBRD6111.5
Visit Our Website
SCAN ME
PyleUSA.com
USER GUIDE
www.PyleUSA.com
2
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
IMPORTANT NOTICE FOR SAFETY USE
Please read the following information before use.
1. Power Adaptor Information: This product does not include a power adaptor.
You can use the adaptor from your mobile phone.
Ensure the adaptor specications are: INPUT: 100-240V- 50/60Hz
OUTPUT: DC 5V, 1000mA or above, and it should have CE or UL approval.
The adaptor used with this product should be regularly examined for potential
hazards, such as damage to the cable, cord, plug, or enclosure. If such damage
is found, do not use the product until the damage has been properly repaired.
2. Charging Indicator: The WHITE power ON/OFF button also functions as the
charging indicator. The button will light up red while the piano is charging.
When the built-in Li-ion battery is fully charged, the red light will turn o.
It takes about 4 hours to fully charge the battery.
3. Battery Maintenance: If the piano is not used for more than two months,
please charge it every two months to maintain the performance and service
life of the built-in Li-ion battery.
4. Charging Safety:
• This product must be charged by adults.
• The Li-ion battery is xed inside the toy. Do not attempt to remove it or
expose it to re or high temperatures, as it may cause an explosion hazard.
5. USB Cable Usage: This product includes a USB cable. If using a dierent USB
cable, ensure it is free from damage. It is recommended to use the original
USB cable and adaptor from your mobile phone. Inferior USB cables and
adaptors may cause noise and other potential hazards while using the
keyboard.
6. Age Suitability: This product is not suitable for children under 3 years old.
7. Volume Precautions: Do not play the music loudly for prolonged periods.
Excessively loud music can damage your hearing.
8. Placement Restrictions:
Do not place this product in the following locations:
• Humid or dusty places.
• Kitchens or areas with cooking fumes.
• Near air conditioners, electric blankets, or exposed to direct sunlight or any
other source of heat.
www.PyleUSA.com
3
9. Electronic Interference: Do not place this product near TVs, radios, or other
electronic devices that may cause audio or video interference.
10. Unplugging Adaptor: Unplug the adaptor before cleaning the product or
when it will not be used for an extended period.
Illustration
POWER SUPPLY
DC adaptor: Use only a DC adaptor with a USB connector with an output
voltage of DC 5V and current of 1000mA or above. Using other voltage adaptors
may cause malfunction.
Attention: Charge the piano for 3-4 hours before the rst use. The power on/o
button will light up in red during charging and turn o when fully charged.
TURN ON FOR PLAYING
Press the power on/o button and play any white or black keys. If a piano
sound is heard, the keyboard works.
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
1. Power on/o/
Charging Indicator
2. Volume
3. Tempo
4. Transpose
5. Start/Stop
6. Digital Number
7. Demo
8. Teaching Function
(OKON, Follow, Guide)
9. Tone
10. Rhythm
11. Record
12. Sustain
13. Vibration
14. SYNC
15. Bass Chord ON/OFF
16. Rhythm Volume Control
17. Single nger chord
18. Fingered chord
19. Keyboard drum
20. Metronome
21. Key light on/o
22. Audio in jack
23. Microphone jack
24. DC 5V jack
www.PyleUSA.com
4
Sleep Function:
1. The keyboard will automatically enter sleep mode if not played for more than
3 minutes.
2. To wake it up, press any white or black key.
HOW TO PLAY
1. Power on/o/Charging Indicator: The WHITE power on/o button is also
the charging indicator. It lights up in red when charging and turns o when
fully charged.
2. Volume Control: Press the + or – button to adjust the volume.
3. Tempo Control: Press the + or – button to adjust the tempo.
4. Transpose Control: Press the + or – button to adjust the tune.
Tune range is from +6 to -6.
5. Start/Stop Control: In modes like TEACHING, REC, PLAY, DEMO, RHYTHM,
METRONOME, press this button to exit the mode. If no mode is selected,
press this button to start RHYTHM mode.
6. Digital Buttons: Use these to choose TONE, RHYTHM, or DEMO numbers.
Press + or - for more than 2 seconds to increase or decrease the numbers
shown in the LED. Ensure inputs are within limits, e.g., DEMO limit is 49.
7. Demo: There are 50 demos. Press DEMO to play songs in continuous playback
mode starting from song No. 00. Select songs using digital buttons or + and -
buttons. Press DEMO again or Start/Stop to stop.
8. Teaching Function: Three modes with key lighting guide, using 50 teaching
songs (same as demos).
A. OKON (One key for one note): Press this button and choose the DEMO
number with the digital buttons. Background music will play, and you can
play any keys, which will be corrected automatically. The correct key will
light up to guide the next note.
B. Follow: Press FOLLOW and choose the DEMO number. Background music
will play, and the correct key will light up, waiting for you to play.
The background music will stop until the correct key is pressed.
C. Guide: Press GUIDE and choose the DEMO number. Background music will
play, and you play along. If you forget the next note, stop for 3 seconds,
and the correct note will light up. Adjust tempo according to your speed
for practice.
www.PyleUSA.com
5
Note: You can also choose demo songs by pressing the white or black keys,
from 00 to 49, starting from the rst key on the left side up to the 50th key.
The demo number will be shown in the LED display.
9. Tone: Default tone is piano. There are 100 tones. Press TONE and use digital
buttons to choose the tone from 00 to 99.
10. Rhythm: There are 100 rhythms. Press Start/Stop to start rhythm playing
and use digital buttons to choose the rhythm from 00 to 99.
11. Record and Play: Press REC to record up to 85 notes. Press PLAY to play the
recorded music. Press REC again to clear all records.
12. Sustain (Available in BF-5301CL/BF-5302CL/BF-7301CL/BF-7302CL)
Press this button to extend the sound of the key.
13. Vibration (Available in BF-5301CL/BF-5302CL/BF-7301CL/BF-7302CL)
Press this button for a vibrating sound.
14. SYNC (Available in BF-6301CL/BF-6302CL/BF-8301CL/BF-8302CL)
Rhythm and chord will synchronize with the tone. Press this button and
choose Rhythm and Tone numbers. Choose Single Finger Chord or Fingered
Chord to play chords and tones simultaneously.
15. Bass Chord ON/OFF (Available in BF-6301CL/BF-6302CL)
Switches chord sound from BASS to PIANO.
16. Rhythm Volume Control (Available in BF-8301CL/BF-8302CL)
Adjust rhythm volume by pressing + or -.
17. Single Finger Chord: Refer to appendix 3 for ngering. Press RHYTHM and
choose any rhythm, then press SINGLE to enter this mode. Play one of the
20 keys on the left to start the chord. Press SINGLE again to exit.
18. Fingered Chord: Refer to appendix 3 for ngering. Press RHYTHM and
choose any rhythm, then press FINGER to enter this mode. Play three keys
of the 20 keys on the left to start the chord. Press FINGER again to exit.
19. Keyboard Drums/Animal Sounds: Refer to appendix 4 for the list of
keyboard drums/animal sounds. There are 61 voices for percussion and
animal sounds with 61 dierent keys. Press DRUM again to exit this function.
20. Metronome (Available in BF-5301CL/BF-5302CL/BF-7301CL/BF-7302CL)
Press this button to start beats from 1/4, repeating at 120 beats per minute.
Adjust tempo with + or -. Choose from 1/4, 2/4, 3/4, or 4/4 beats.
Press the button multiple times to cycle through the beats.
www.PyleUSA.com
6
21. Key Light ON/OFF: The key light is on by default. Press this button to turn
o the light.
22. Audio In Jack: Connect to a mobile phone/iPad/MP3 via audio cable for
playing more songs. Volume control is through the connected device.
23. Microphone: Connect the microphone to the MIC jack at the back of the
piano before use.
24. DC Jack: Connect the round pin of the USB power cord to the DC jack for
charging.
TROUBLESHOOTING
OPERATION NOTICE
1. Interference: Keep the product away from electric appliances like radios,
televisions, or tuners to avoid interference with audio or video signals.
2. Power Socket: Use the nearest power socket for easy disconnection in case
of malfunction or emergency.
3. Unplugging: Always unplug the adaptor when not in use.
4. Disassembly: Do not open or disassemble the product.
There are no user-serviceable parts inside. Stop using the product if it
behaves abnormally.
PROBLEM SOLUTION
No sound after pressing
the power ON/OFF
Check if the DC adaptor is correctly plugged in.
Check if the USB cable is properly connected on
both ends.
The keyboard stops
during playing.
Check if the power supply is disconnected.
Check if the USB cable is disconnected or
improperly plugged.
Register Product
Thank you for choosing PyleUSA. By registering your product,
you ensure that you receive the full benets of our exclusive
warranty and personalized customer support.
Complete the form to access expert support and to keep your
PyleUSA purchase in perfect condition.
PyleUSA.com/register
www.PyleUSA.com
7

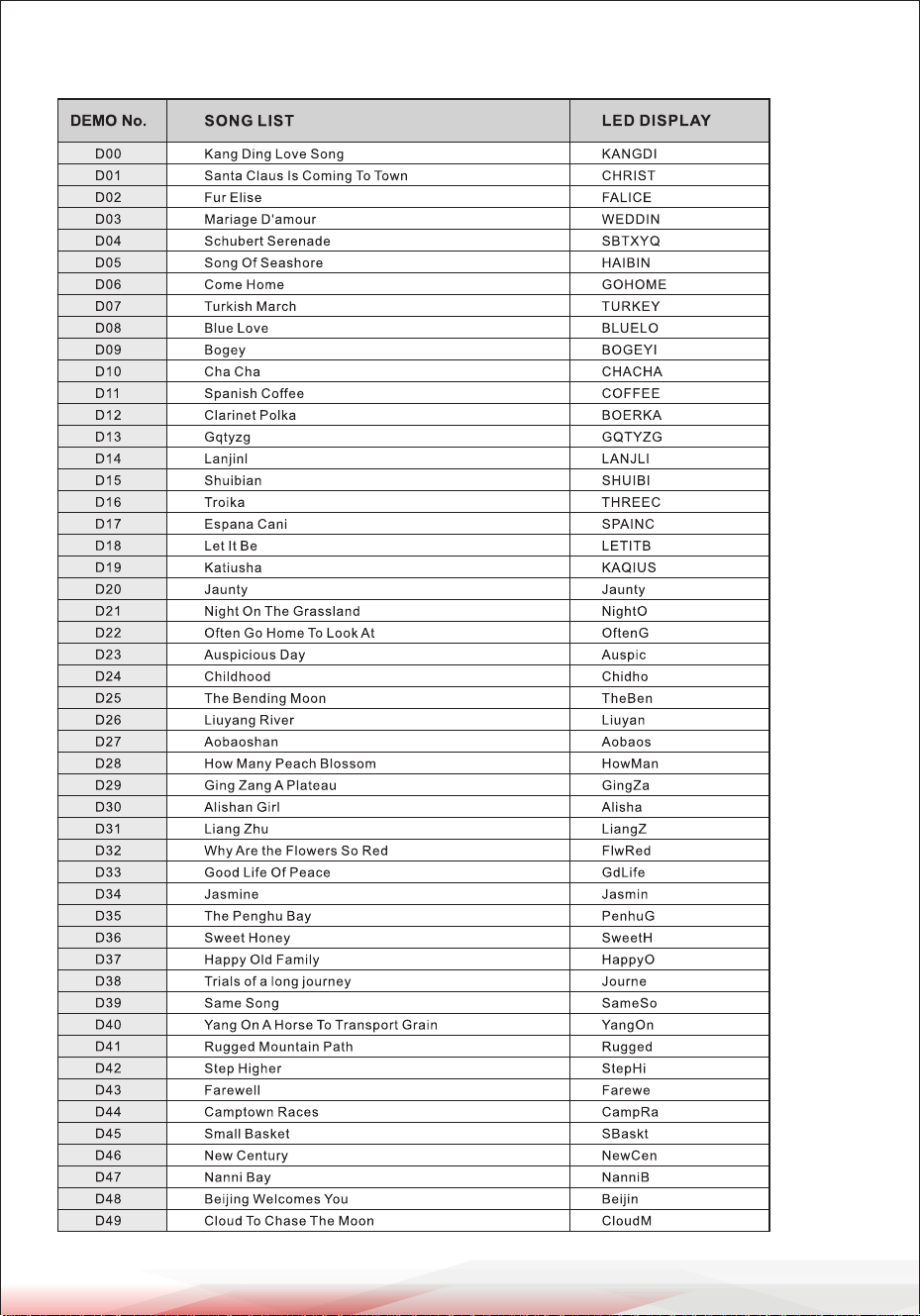

Appendix 1 (50 Demos)
www.PyleUSA.com
8

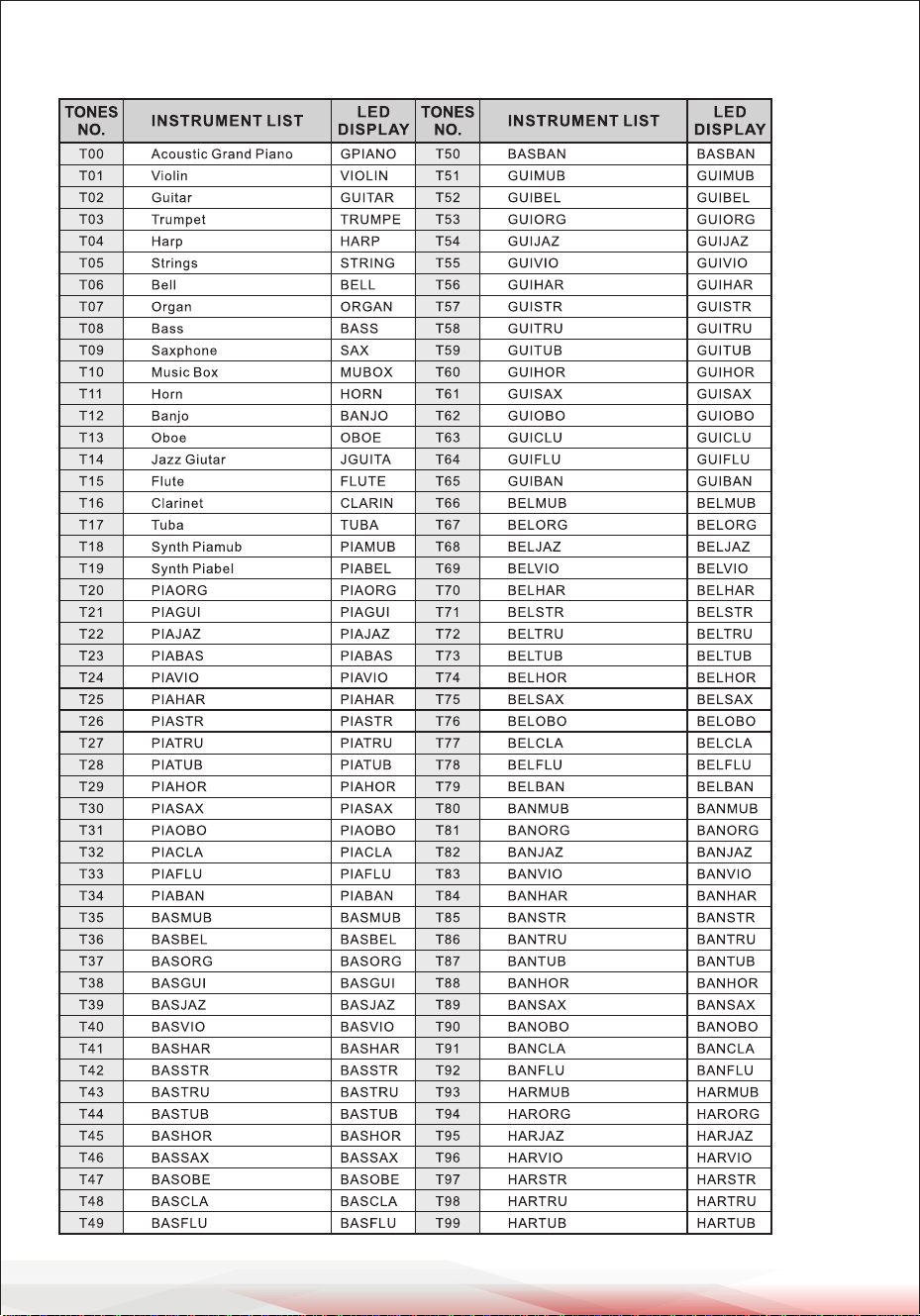

Appendix 2 (100 Tones)
www.PyleUSA.com
9

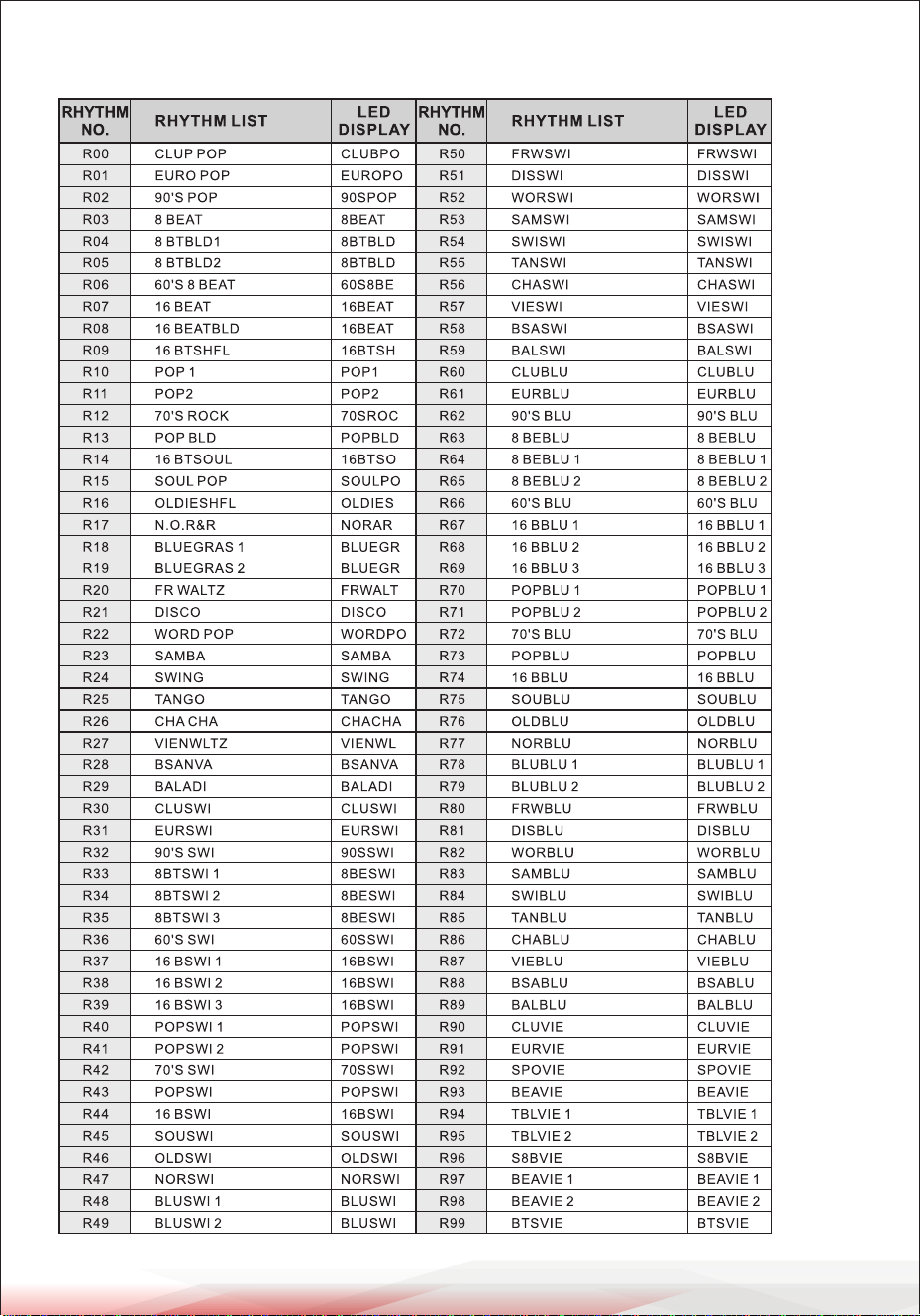

Appendix 2 (100 Rhythms)
www.PyleUSA.com
10

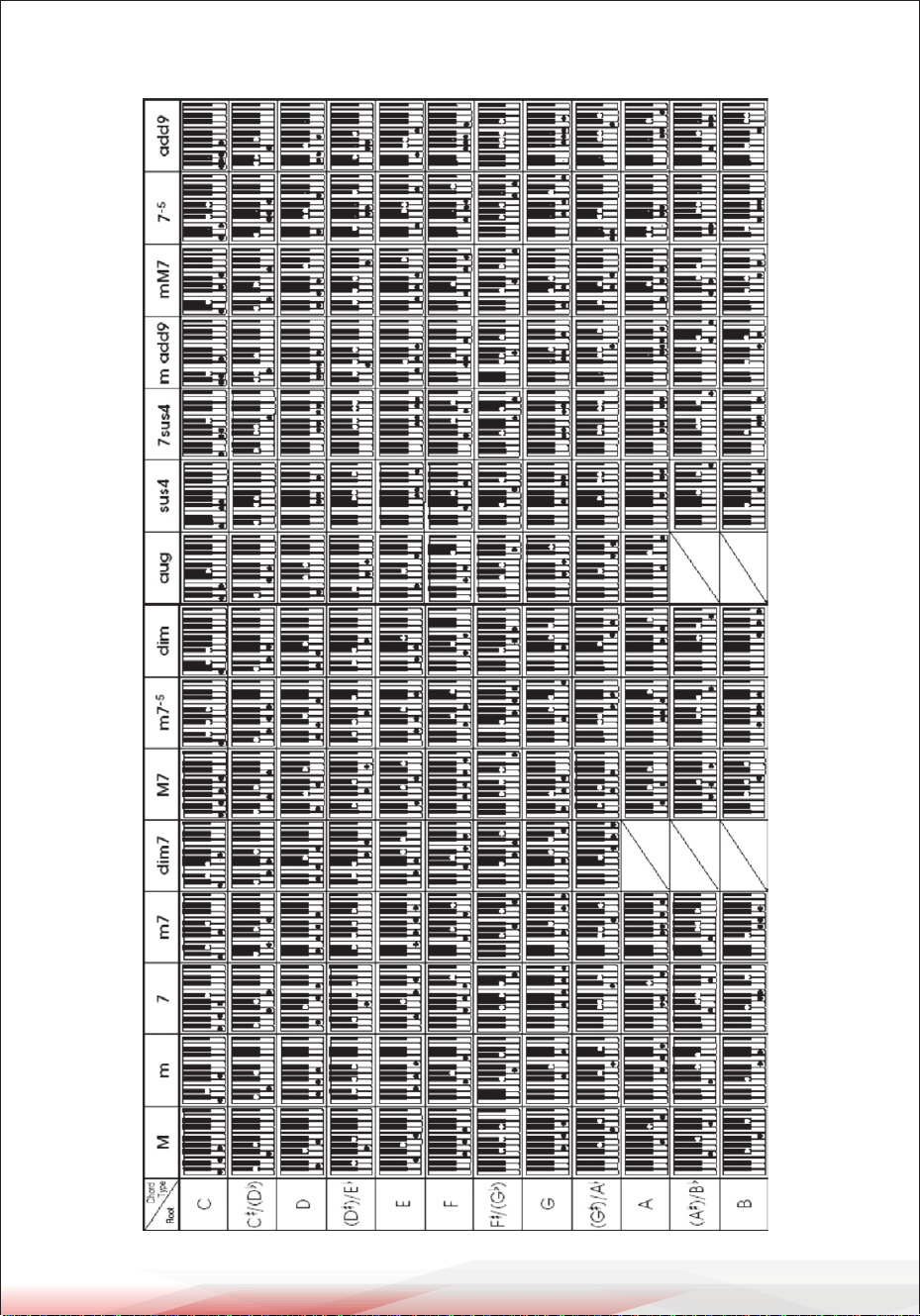

Appendix 3 (Single Finger Chord)
www.PyleUSA.com
11
Finger Chord
www.PyleUSA.com
12

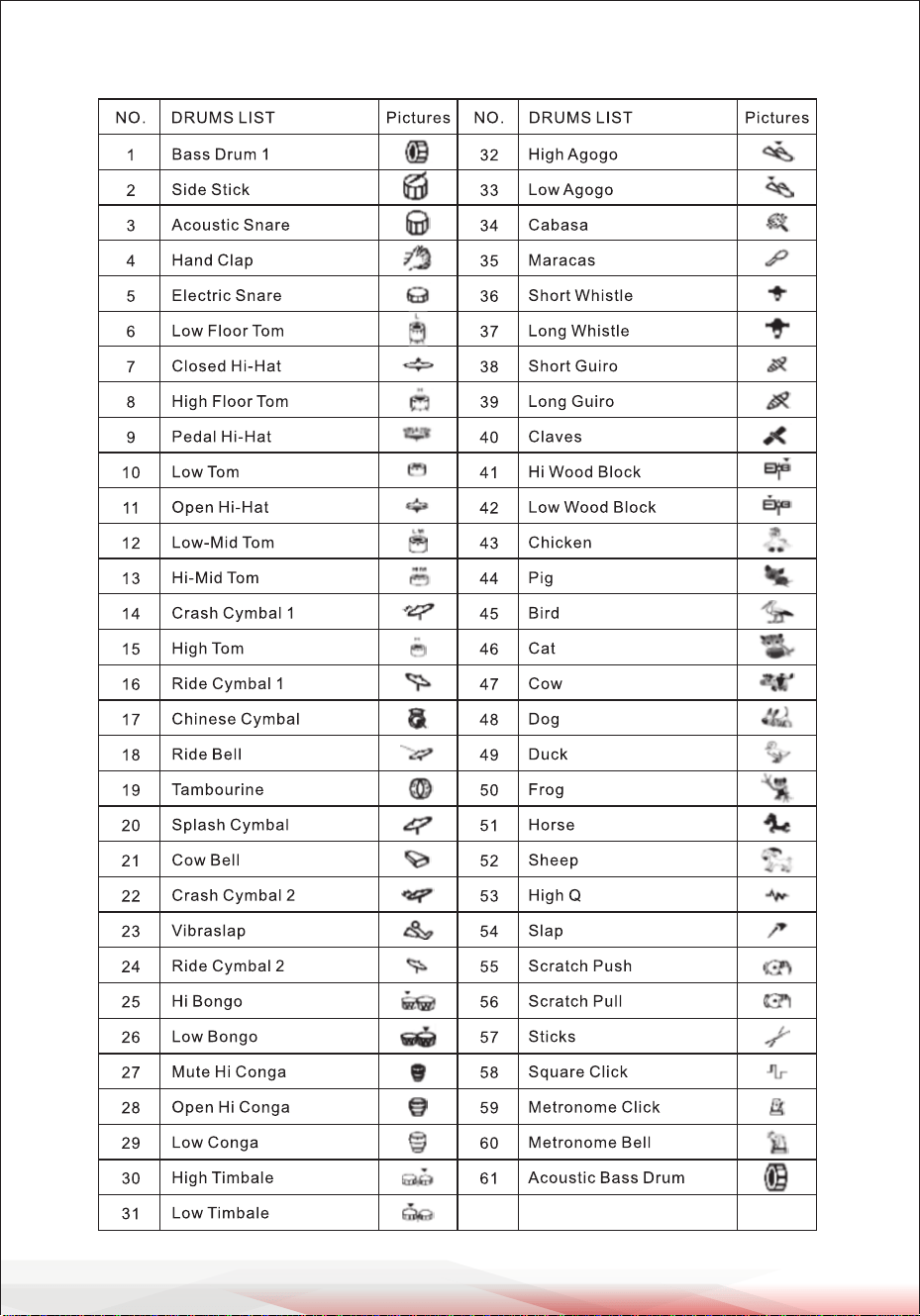

Appendix 4 (61 keys, drums combination and animal sounds list)
www.PyleUSA.com
13
PKBRD4112
Portable Electronic Piano Keyboard with Built-in Rechargeable Battery
and Wired Microphone (49 Keys)
Features:
•
2-in-1 Karaoke Keyboard: Play & Sing-Along!
•Includes Wired Handheld Microphone
•Compact & Portable Musical Piano
•Simple Electronic Plug-in Operation
•Portable Piano, Built-in Rechargeable Battery
•Integrated Button Drum Pad
•Built-in Full Range Stereo Speakers
•Connect & Stream Audio from External Devices
•Works with Smartphones, Tablets, Laptops, Computers
•Multiple Preset Selectable Keyboard Sound, Tone & Rhythm Styles
•Record & Playback Mode
•Adjustable Volume Control
•Auto Power OFF, Power Saving Function
•Perfect for Home Theater Living Room Performances
•Fun for Kids of All Ages: Children & Adults
Technical Specs:
•
(49) Keyboard Keys
•(16) Preset Selectable Tones
•(8) Preset Selectable Audio Rhythms
•Audio Interface: Aux (3.5mm) Input Jack / Mic Input
•Max Sound Level: Up to 98 dB
•USB/Power Cable Length: 3.9’ ft.
•Construction Material: Engineered ABS
•Built-in Rechargeable Battery: 3.7V Li-iOn
•Power Supply: 110/240V (DC 5V)
•Piano Dimensions(LxWxH): 20.8’’x 7.1’’x 2.1’’ -inches
www.PyleUSA.com
14
PKBRD6111 - PKBRD6111.5
Portable Electronic Piano Keyboard with Built-in Rechargeable Battery
and Wired Microphone (61 Keys)
Features:
•
2-in-1 Karaoke Keyboard: Play & Sing-Along!
•Includes Wired Handheld Microphone
•Compact & Portable Musical Piano
•Simple Electronic Plug-in Operation
•Portable Piano, Built-in Rechargeable Battery
•Integrated Button Drum Pad
•Built-in Full Range Stereo Speakers
•Connect & Stream Audio from External Devices
•Works with Smartphones, Tablets, Laptops, Computers
•Multiple Preset Selectable Keyboard Sound, Tone & Rhythm Styles
•Digital LED Display
•Adjustable Volume Control
•Record & Playback Mode
•Music Sheet Stand Holder
•Auto Power OFF, Power Saving Function
•Perfect for Home Theater Living Room Performances
•Fun for Kids of All Ages: Children & Adults
Technical Specs:
•
(61) Keyboard Keys
•(16) Preset Selectable Tones
•(10) Preset Selectable Audio Rhythms
•Audio Interface: Aux (3.5mm) Input Jack / Mic Input
•Max Sound Level: Up to 110 dB
•USB/Power Cable Length: 3.9’ ft.
•Construction Material: Engineered ABS
•Built-in Rechargeable Battery: 3.7V Li-iOn
•Power Supply: 110/240V (DC 5V)
•Piano Dimensions (LxWxH): 28.7’’ x 9.0’’ x 2.6’’ -inches
www.PyleUSA.com
15
PKBRD4911PK
Portable Kids Electronic Piano Keyboard with Built-in Rechargeable Battery
and Wired Microphone (49 Keys)
Features:
•
2-in-1 Karaoke Keyboard: Play & Sing-Along!
•Includes Wired Handheld Microphone
•Smart Piano Teaching Function with Piano Key Lighting
•Compact & Portable Musical Piano
•Simple Electronic Plug-in Operation
•Portable Piano, Built-in Rechargeable Battery
•Integrated Button Drum Pad
•Built-in Full Range Stereo Speakers
•Connect & Stream Audio from External Devices
•Works with Smartphones, Tablets, Laptops, Computers
•Multiple Preset Selectable Keyboard Sound, Tone & Rhythm Styles
•Adjustable Volume Control
•Record & Playback Mode
•Auto Power OFF, Power Saving Function
•Perfect for Home Theater Living Room Performances
•Fun for Kids of All Ages: Children & Adults
Technical Specs:
•
(49) Keyboard Keys
•(100) Preset Selectable Tunes
•(100) Preset Selectable Audio Rhythms
•(50) Preset Selectable Demos
•Audio Interface: Aux (3.5mm) Input Jack / Mic Input
•Max Sound Level: Up to 98 dB
•USB/Power Cable Length: 3.9’ ft.
•Construction Material: Engineered ABS
•Built-in Rechargeable Battery: 3.7V Li-iOn
•Power Supply: 110/240V (DC 5V)
•Piano Dimensions (LxWxH): 20.8’’ x 7.0’’x 2.1’’ -inches
Questions or Comments?
We are here to help!
Phone: 1.718.535.1800
PyleUSA.com/ContactUs
