PLANNING GUIDE
OVEN, 90CM
OVEN | OB90S9LEB1, OB90S9LEX2
© FISHER & PAYKEL LIMITED 2024 PAGE 290003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024
PLANNING GUIDE | OVEN, 90CM
This comprehensive Planning Guide provides you with the framework and tools to achieve your desired design outcome with Fisher & Paykel appliances. In this guide, you will
find a range of conceptual, detailed and dimensional product information to bring your ideas to life and create spaces that truly reflect your vision.
CONCEPT DESIGN PAGE DEVELOPED AND DETAILED DESIGN PAGE
CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
Specification Guides
Oven - Black 4
Oven - Stainless Steel 5
Overview 6
Data Sheet
Oven 8
i
i
© FISHER & PAYKEL LIMITED 2024 PAGE 390003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024
SPECIFICATION GUIDE
Specification Guides
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 490003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024

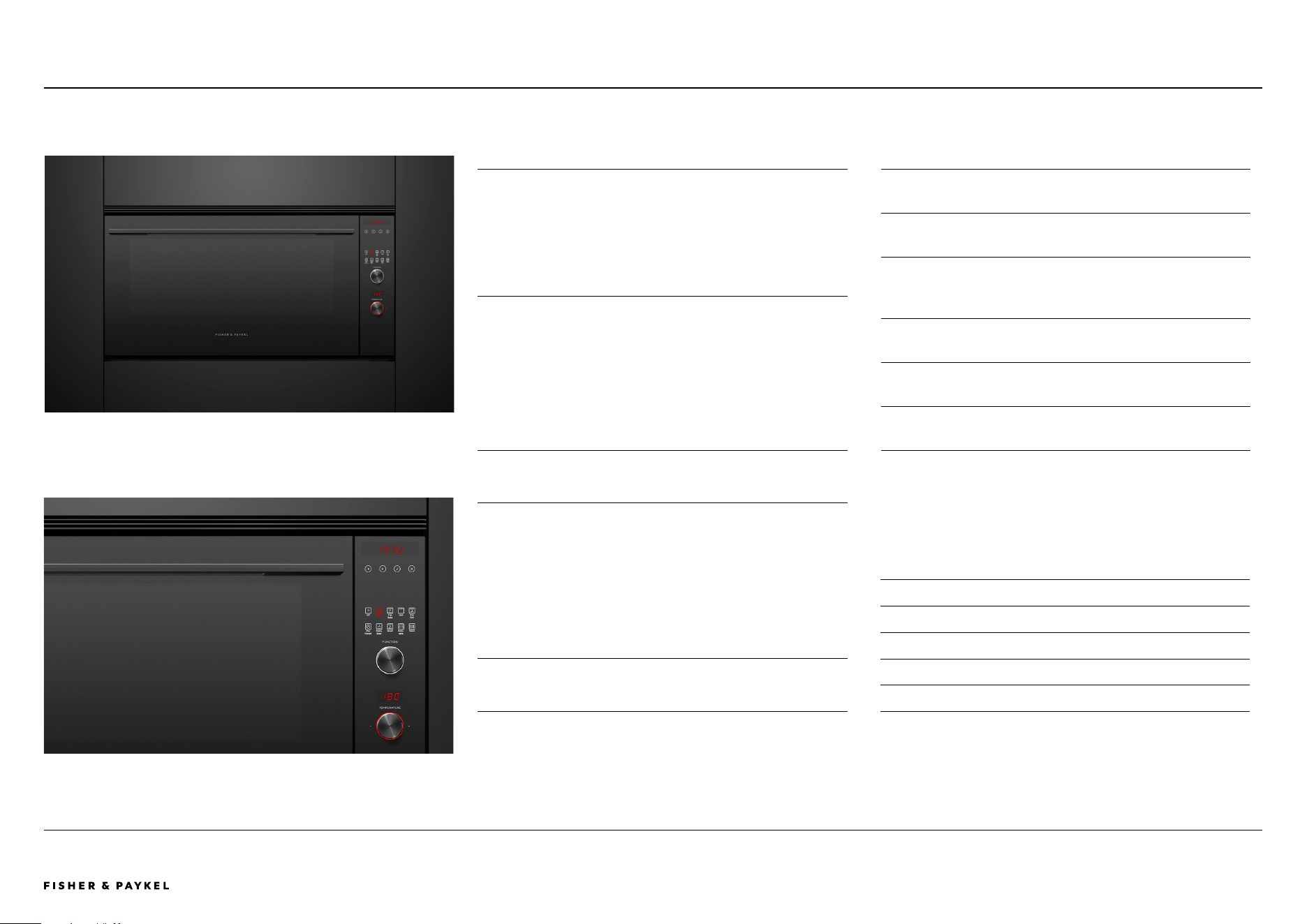

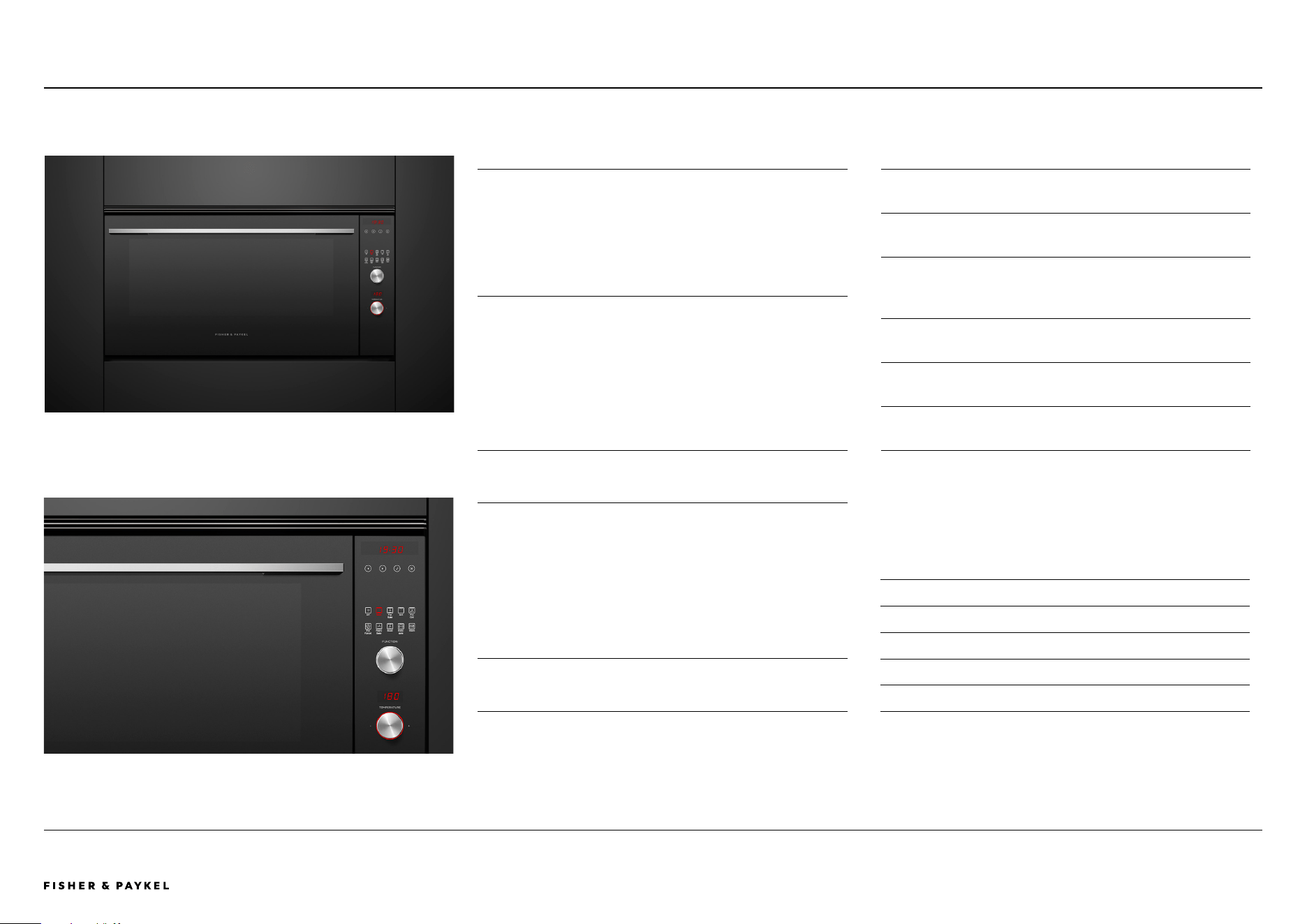

OVERVIEW
With a generous 100L capacity and a choice of black or
stainless steel finish, this built-in oven enhances any
kitchen. It oers nine pre-set functions, including Bake and
Rotisserie, and is designed for side-by-side and multi-shelf
cooking. AeroTech™ technology ensures even heat
distribution for perfect results every time.
PRODUCTS
OB90S9LEB1
Oven, 90cm, 9 Function
FEATURES
1
Premium handle styling and sleek black finish
2 Built-in professional grade rotisserie, ideal for succulent
roasts
3 Nine functions with pre-set temperatures include Bake,
Pastry Bake, and Fan Forced
4 Designed for side-by-side and multi-shelf cooking, with
four shelf positions
5 Generous 100L total capacity with a wide cavity
6 AeroTech™ technology for even heat circulation
SPECIFICATION GUIDE | OVEN, 90CM
OB90S9LEB1
SERIES & STYLE
Series 5
Contemporary - Black
Oven - Black
ACCESSORIES
1
Step Down Wire Shelf
2 Telescopic Sliding Runners
3 Grill Rack
4 Baking Tray
5 Roasting Dish
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 590003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024
OVERVIEW
With a generous 100L capacity and a choice of black or
stainless steel finish, this built-in oven enhances any
kitchen. It oers nine pre-set functions, including Bake and
Rotisserie, and is designed for side-by-side and multi-shelf
cooking. AeroTech™ technology ensures even heat
distribution for perfect results every time.
PRODUCTS
OB90S9LEX2
Oven, 90cm, 9 Function
SPECIFICATION GUIDE | OVEN, 90CM
OB90S9LEX2
Oven - Stainless Steel
FEATURES
1
Premium handle styling and stylish stainless steel finish
2 Built-in professional grade rotisserie, ideal for succulent
roasts
3 Nine functions with pre-set temperatures include Bake,
Pastry Bake, and Fan Forced
4 Designed for side-by-side and multi-shelf cooking, with
four shelf positions
5 Generous 100L total capacity with a wide cavity
6 AeroTech™ technology for even heat circulation
ACCESSORIES
1
Step Down Wire Shelf
2 Telescopic Sliding Runners
3 Grill Rack
4 Baking Tray
5 Roasting Dish
SERIES & STYLE
Series 5
Contemporary - Stainless Steel
<< CONTENTS
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any
product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available on our website fisherpaykel.com
© FISHER & PAYKEL LIMITED 2024 PAGE 690003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024

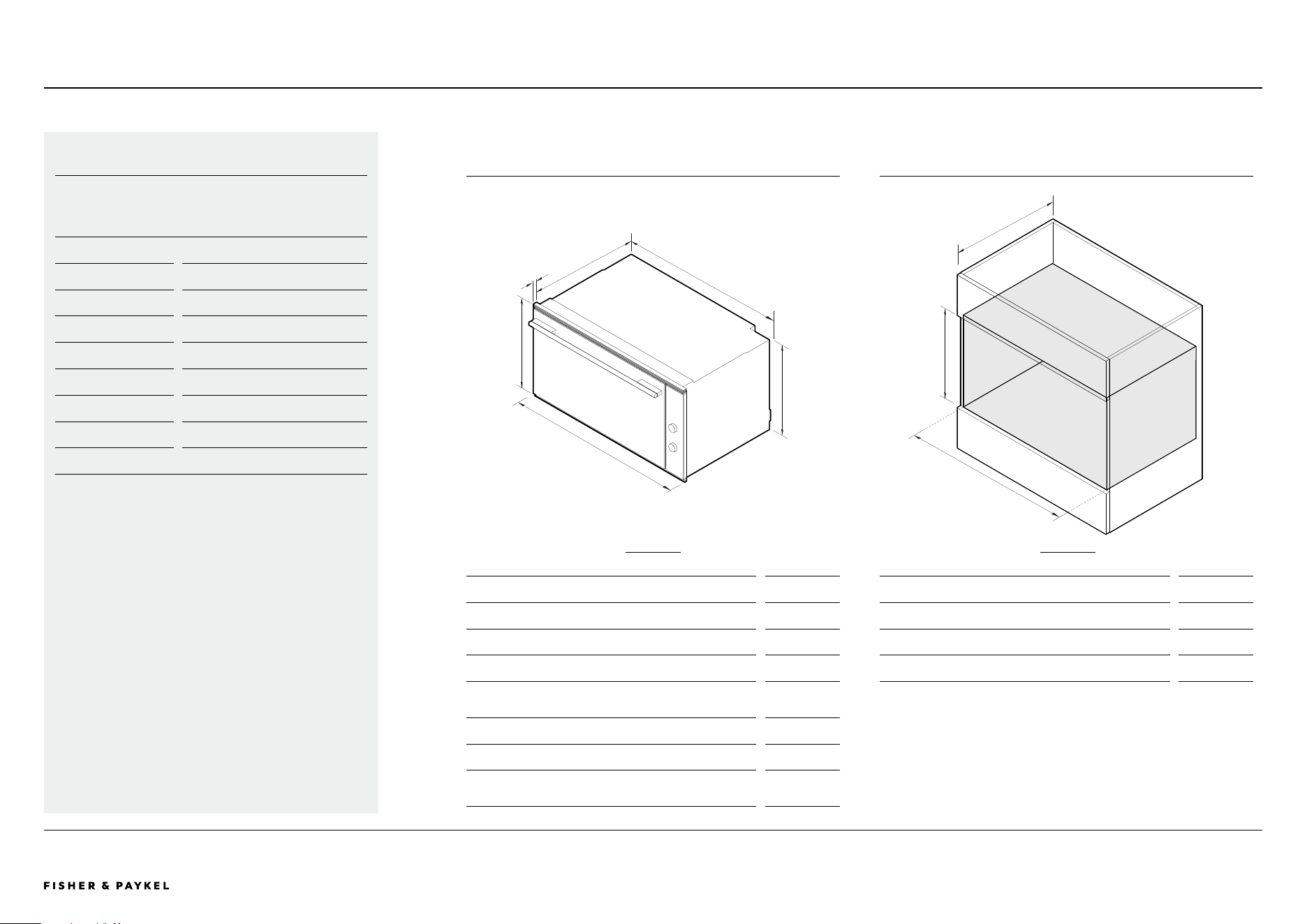

CAVITY DIMENSIONS: STANDARD INSTALLATION
mm
A Minimum inside height of cavity 480
B Minimum inside width of cavity 860
C Minimum inside depth of cavity 550
PRODUCT DIMENSIONS
mm
A Overall height 478
B Overall width 895
C Depth of chassis 544
D Thickness of oven control panel
(excl. handle and dials)
20
E Height of chassis 468
F Width of chassis 853
Depth of oven door when fully open
(measured from front of control panel)
418
OB90S9LEB1, OB90S9LEX2
SPECIFICATION GUIDE | OVEN, 90CM
SPECIFICATIONS
Model No. OB90S9LEB1, OB90S9LEX2
Dimensions H 478mm W 895mm D 564mm
Total Oven Capacity 100L
Weight
Packaged 71kg
Unpackaged 56kg
Electrical
Supply 220-240 V, 50 Hz
Service 21 A
A
B
C
C
A
B
d
ISO VIEWISO VIEW
f
e
Overview
<< CONTENTS
© FISHER & PAYKEL LIMITED 2024 PAGE 790003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024
DATA SHEET
Data Sheet
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(1/16''). Please read the Installation Guide for detailed information on
installing the product. For full installation instructions visit fisherpaykel.com
INDICATES CABINETRY / PRODUCT DATUM -------------------------
INDICATES CABINETRY CLEARANCES --------------------------------
© FISHER & PAYKEL LIMITED 2024 PAGE 890003504A PLANNING GUIDE COOKING - VERSION A - MAY 2024

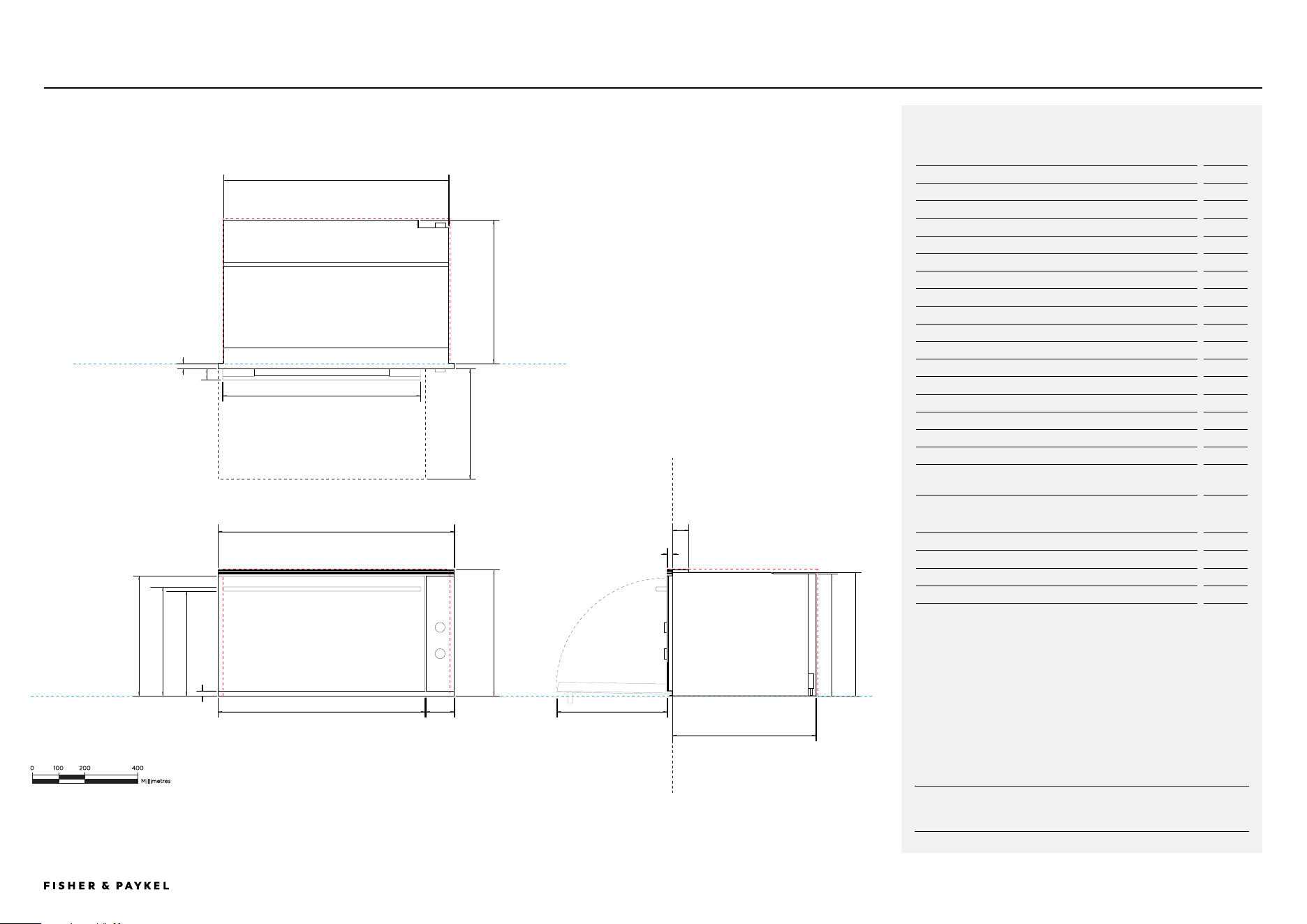

OB90S9LEB1, OB90S9LEX2DATA SHEET | OVEN, 90CM
Oven
100 200 4000
Millimetres
DATUM : FRONT OF CARCASS
DATUM : FRONT OF CARCASS
DATUM : BOTTOM OF CARCUSS
A
478
B
895
D
544
C
P
O
Q
N
I
C
E F
?
QL M
J
E
H
K
Model no:
Oven, 90cm - OB90S9LEB1, OB90S9LEX2
Product Dimensions
mm
A Overall height of product*
478
B Overall width of product
895
C Depth of control panel
20
D Depth of chassis
544
E Depth of top chassis step from front datum
61
F Height of chassis
468
G Height of chassis at the rear
463
H Height from bottom datum to top of door
455
I Height from bottom datum to top of handle
413
J Height from bottom datum to bottom of handle
397
K Height from bottom datum to top of vent
19
L Width of door
782
M Width of control panel
106
N Overall width of chassis
853
O Width of handle
750
P Depth of handle (measured from front of door)
42
Q Depth of oven door when fully open (measured from front of
control panel)
418
*All height measurements include mounted feet
Minimum Clearances
mm
Minimum inside height of cavity
480
Minimum inside width of cavity
860
Minimum inside depth of cavity
550
IMPORTANT NOTE: For full installation and clearance details please refer to our installation
manual.
<< CONTENTS
