10-INCH DRILL PRESS
WITH LASER CROSSHAIR
Instruction Manual
IMPORTANT:
Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-800-232-1195 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit
WENPRODUCTS.COM
MODEL 4211
CONTENTS
WELCOME 3
Introduction ..................................................................................................... 3
Specifications ................................................................................................... 3
SAFETY 4
General Safety Rules ........................................................................................ 4
Drill Press Safety Warnings ............................................................................. 6
Electrical Information ....................................................................................... 8
BEFORE OPERATING 9

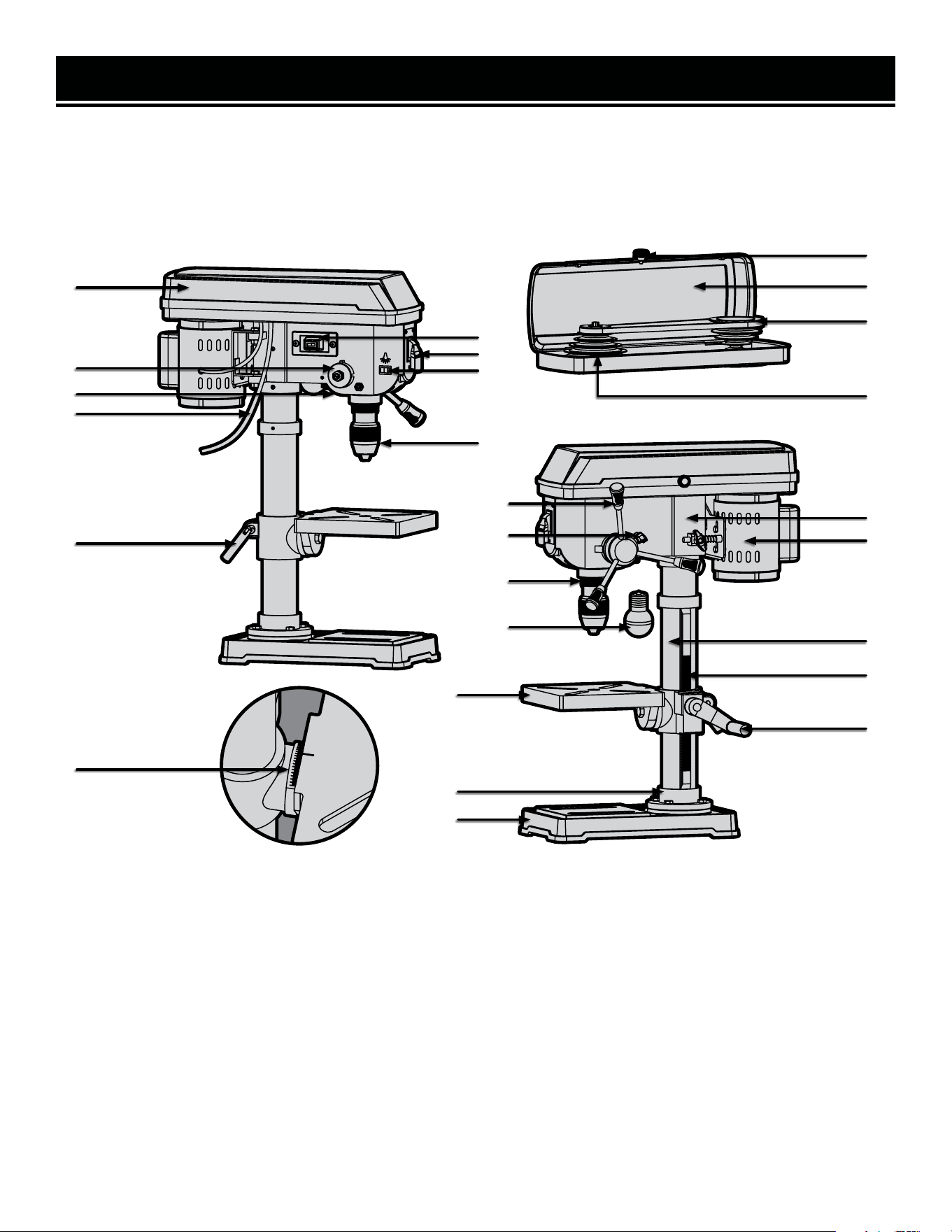

Know Your Drill Press ...................................................................................... 9

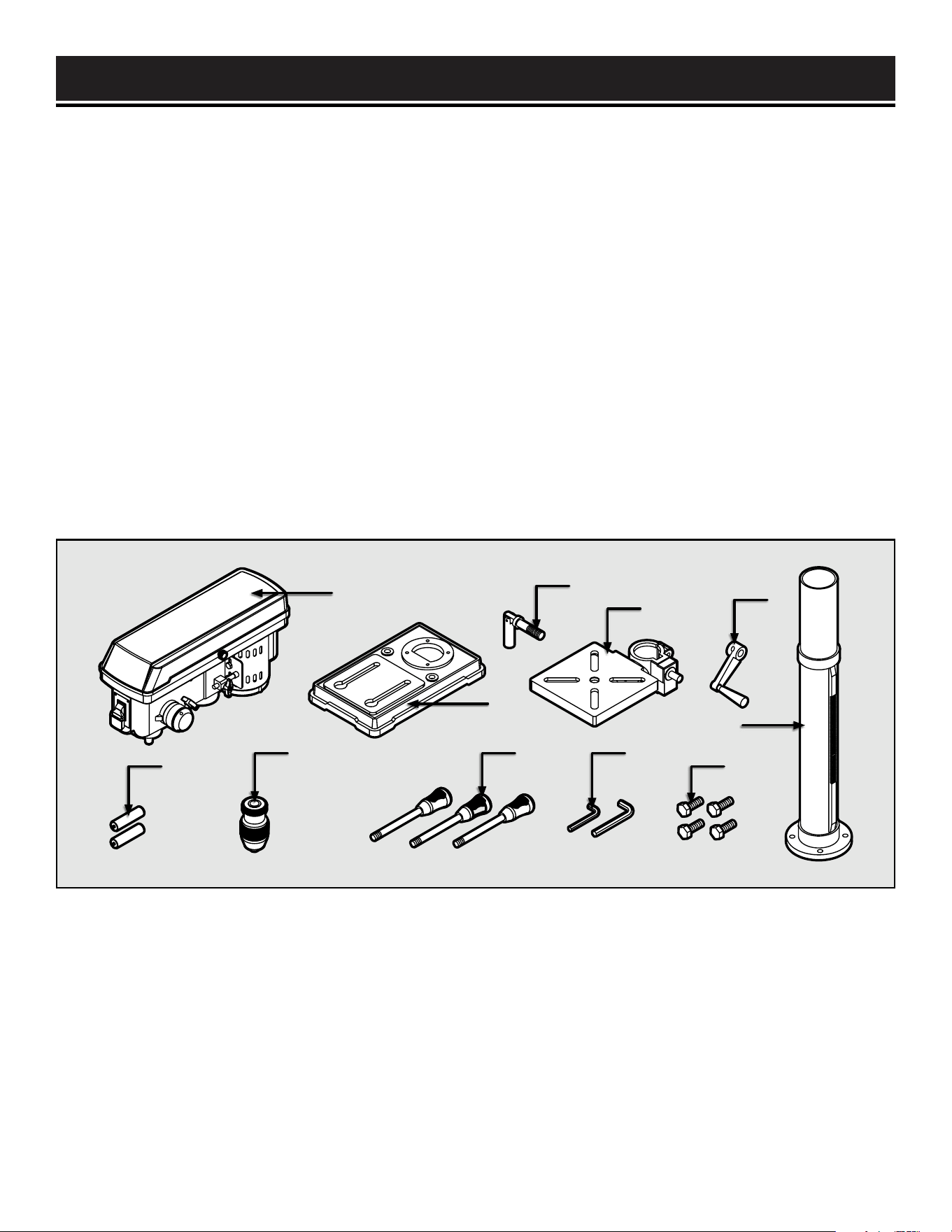

Unpacking & Packing List .............................................................................. 10

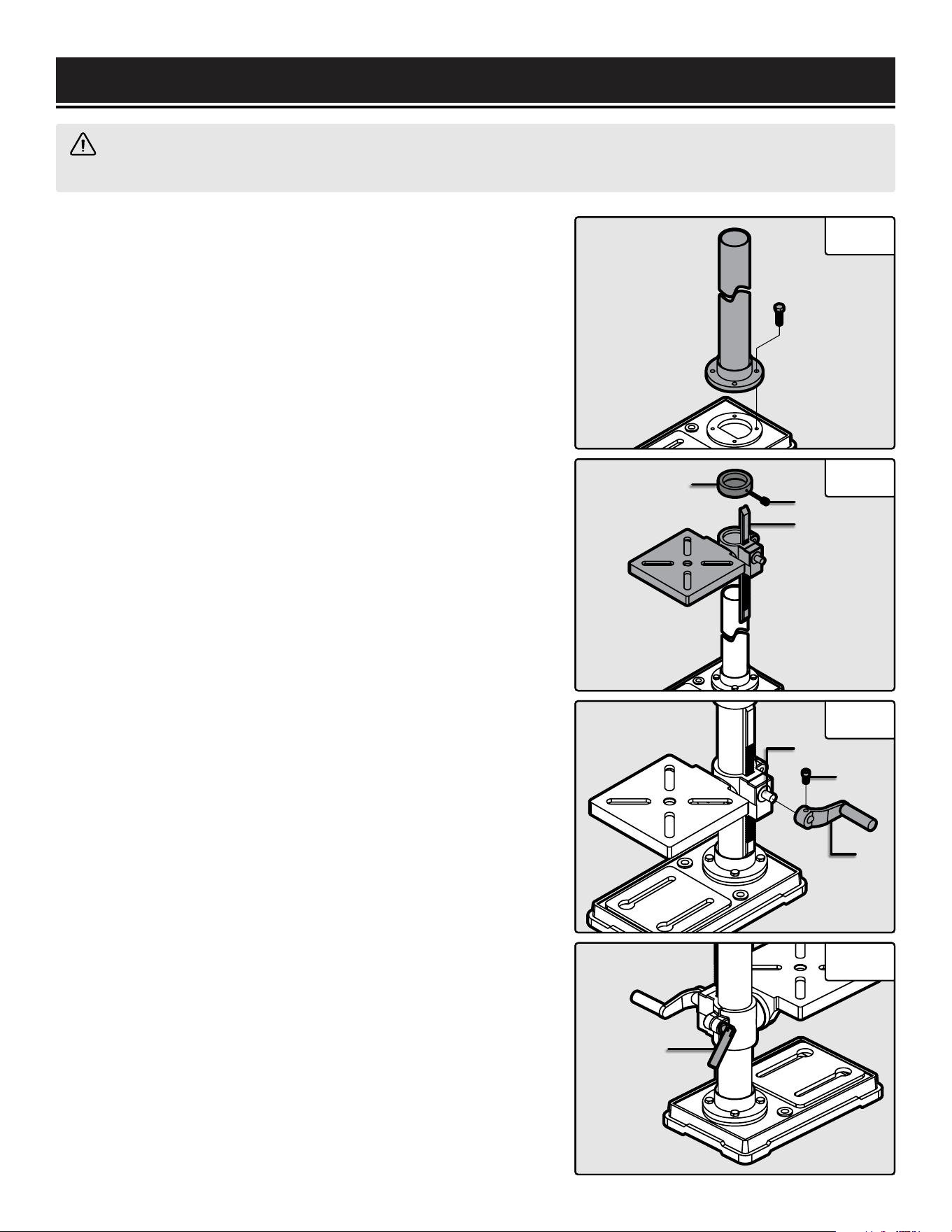

Assembly & Adjustments ............................................................................... 11
OPERATION & MAINTENANCE 19
Operation ....................................................................................................... 19
Maintenance ................................................................................................... 21
Troubleshooting Guide ................................................................................... 22

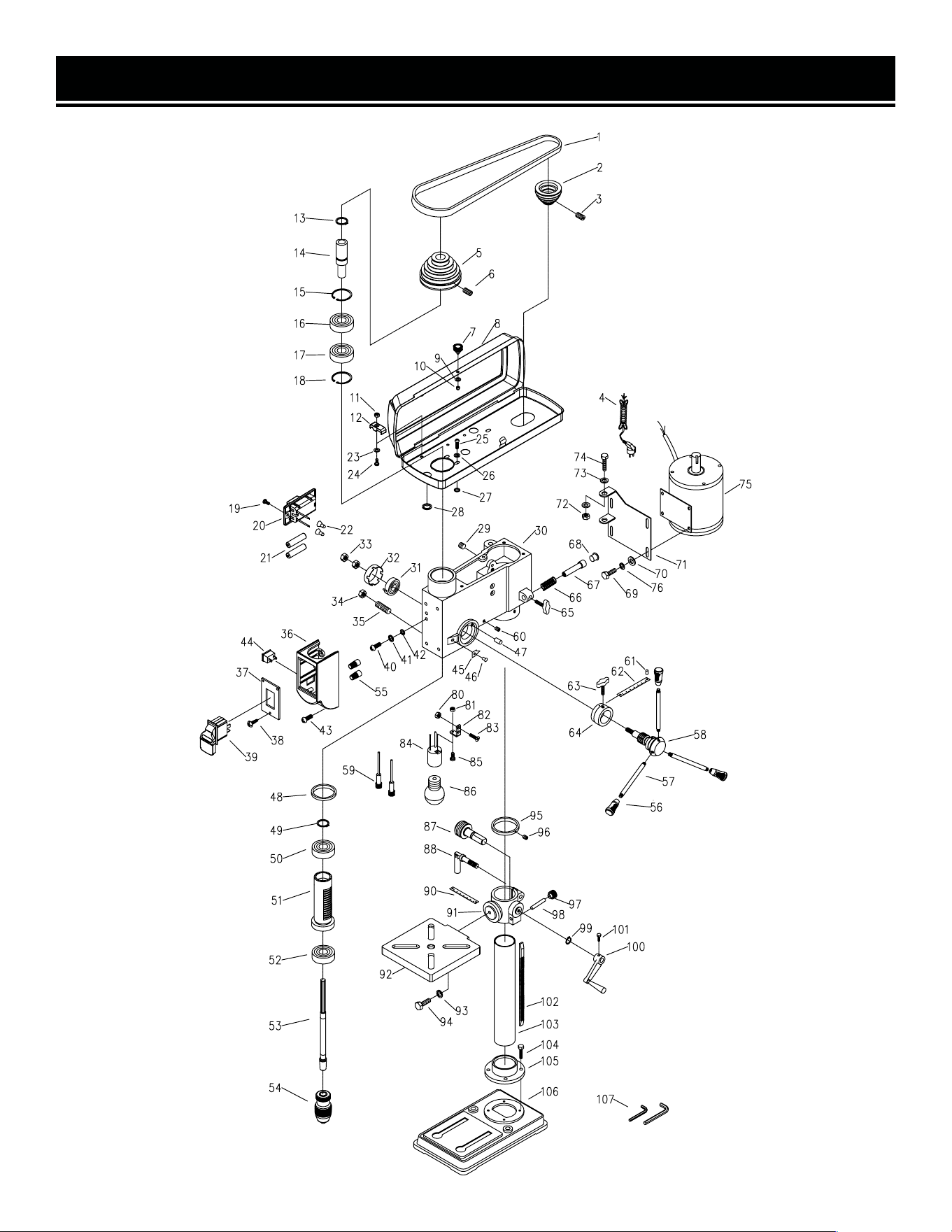

Exploded View & Parts List ............................................................................ 24
Warranty Statement ....................................................................................... 27
To purchase accessories and replacement parts for your tool, visit
WENPRODUCTS.COM
2
Drill Press Table (Model DPA2513 and DPA2412T)
Impact-Duty Titanium Step Drill Bit Set (Model DB238X, DB149X, and DP124X)
Forstner Bit Set (Model FB3508, FB5114)
Drill Press Clamp (Model 429DPC, 426DPC, and 430DPC)
Drill Press Vise (Model DPA423 and DPA424)
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Drill Press. We know you are excited to put your tool to work, but first, please
take a moment to read through the manual. Safe operation of this tool requires that you read and understand this
operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at 1-800-232-1195.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
Model Number 4211
Motor 120V, 60 Hz, 3.2A
Chuck Capacity 1/2 Inch
Spindle Stroke 2-1/2 Inches
Spindle Taper JT33
Speeds 600, 1100, 1700, 2400, 3100 RPM
Swing 10 Inches
Table Size 7-5/8 in. x 7-5/8 in.
Base Size 13-1/8 in. x 8-1/8 in.
Column Diameter 2-1/4 Inches
Total Height 26-1/2 Inches
Laser Class II, 650nm, 1mW
Weight 51 Pounds
3
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
4
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
DRILL PRESS SAFETY
1. TOOL PURPOSE. This drill press is designed to drill
through metal and wood. Drilling through other materials
could result in fire, injury, or damage to the workpiece.
Using the machine for any other purpose for which it
is not designed may result in serious injuries, machine
damage and voiding of the warranty.
2. MACHINE MOUNTING. For operation safety, the drill
press must be securely mounted onto a flat and stable
surface or stand.
3. PERSONAL SAFETY.
• Always wear ANSI Z87.1-approved glasses with side
shields, hearing protection and a dust mask.
• Do not wear loose clothing or jewelry, as they might get
drawn in by the tool. Tie back long hair.
• DO NOT wear gloves while operating this machine.
4. ELECTRIC CORDS. Keep cords away from heat, oil,
sharp edges, and moving parts of the tool. Have an elec-
trician replace or repair damaged or worn cords imme-
diately.
5. TOOL & ACCESSORIES INSPECTION. Before opera-
tion, check the tool and accessories for any damage or
missing parts. Do not use the tool if any part is missing
or damaged. Make sure all adjustments are correct and
all connections are tight. Keep all guards in place.
6. DRILLING ACCESSORIES.
• Make sure the drill bit is not damaged before use; only
use undamaged drill bits
• Make sure the drill bit is securely locked in the chuck
before turning ON.
• Make sure the chuck key is removed from the chuck
before turning ON.
• Use clamps or a vise (not included) to secure a work-
piece to the table. This will prevent the workpiece from
rotating with the drill bit.
7. Make sure the table lock is tightened before starting
the drill press.
8. WORKPIECE REQUIREMENTS.
• Only stand workpieces sturdy enough to withstand the
force of the drill bit.
• Inspect the workpiece for imperfections, nails, staples,
etc. before drilling. Never drill stock that has question-
able imperfections or embedded foreign objects.
• Do not drill materials without a flat surface unless a
suitable support is used (clamp or vise).
9. PREVENTING ACCIDENTAL STARTING. Make sure
the power switch is in the OFF position prior to plugging
in the machine. Always make sure the power switch is
in the OFF position and the machine is unplugged when
doing any cleaning, assembly, setup operations, or when
not in use.
10. Do not operate this tool until it is completely assem-
bled and installed according to the instructions.
11. Remove scrap pieces and other objects from the
table before turning ON the drill press.
WARNING!
Do not let comfort or familiarity with the product replace strict adherence to product safety
rules. Failure to follow the safety instructions may result in serious personal injury.
DRILL PRESS SAFETY WARNINGS
6
12. DRILLING THE WORKPIECE.
• Allow spindle to reach full speed before drilling the
workpiece.
• Never start the machine with the drill bit pressed
against the workpiece.
• Adjust the table or depth stop to avoid drilling into the
table.
• Set the drill press to the speed that is appropriate for
the material being drilled.
13. DO NOT TOUCH MOVING PIECES. Keep hands away
from the drill bit during operation. If cleaning is neces-
sary, turn off the machine and use a brush to remove
sawdust and chips instead of your hands.
14. Never perform layout, assembly or set-up work on
the table while the machine is ON.
15. After turning off the drill press, wait until the spindle
comes to a complete stop before touching the work-
piece. Always turn the drill OFF before removing scrap
from the table.
16. Before leaving the machine, always turn OFF and
unplug the machine, remove the drill bit, and clean the
table. Turn Off and unplug the machine before cleaning,
making adjustments or changing drill bits. Accidental
start-ups may occur if the tool is plugged in during an
accessory change or adjustment.
17. CLEANING. Never use solvents to clean plastic parts.
Solvents could dissolve or otherwise damage the mate-
rial. Use only a soft damp cloth to clean plastic parts.
18. REPLACEMENTS. Should any component of your
drill press be missing/damaged or fail in any way, shut
OFF the switch and remove the plug from power sup-
ply outlet. Replace the missing, damaged, or failed parts
using only identical replacement parts before resuming
operation.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other ma-
sonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how
often you do this type of work. To reduce your exposure
to these chemicals, work in a well-ventilated area with
approved safety equipment such as dust masks special-
ly designed to filter out microscopic particles.
These safety instructions can’t possibly warn of every
scenario that may arise with this tool, so always make
sure to stay alert and use common sense during op-
eration.
WARNING!
Do not let comfort or familiarity with the product replace strict adherence to product safety
rules. Failure to follow the safety instructions may result in serious personal injury.
DRILL PRESS SAFETY WARNINGS
7
ELECTRICAL INFORMATION
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
3.2A 18 gauge 16 gauge 16 gauge 14 gauge
3.
Check
with a licensed electrician or service personnel if you do not completely
understand the grounding instructions or whether the tool is properly grounded.
4.
Use only three-wire extension cords
that have three-pronged plugs and outlets
that accept the tool’s plug. Repair or replace a damaged or worn cord immediately.
CAUTION!
In all cases, make certain the outlet in question is properly grounded. If
you are not sure, have a licensed electrician check the outlet.
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown
, grounding provides the path of least resistance for an electric
current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an
equipment grounding conductor and a grounding plug. The plug MUST be plugged into a matching outlet
that is properly installed and grounded in accordance with ALL local codes and ordinances.
1.
Do not modify the plug provided.
If it will not fit the outlet, have the proper outlet installed by a licensed
electrician.
2.
Improper connection
of the equipment grounding conductor can result in electric shock. The conductor
with the green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or
replacement of the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor
to a live terminal.
1.
Examine extension cord before use.
Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2.
Do not abuse extension cord.
Do not pull on cord to disconnect from receptacle; always disconnect by pulling
on plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension
cord. Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3.
Use a separate electrical circuit for your tool.
This circuit must not be less than a 12-gauge wire and should
be protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An un-
dersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows the
correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The smaller
the gauge number, the heavier the cord.
Fig. 1
8
KNOW YOUR DRILL PRESS
TOOL PURPOSE
Drill presses are mainly used to drill clean, precise cylindrical holes into workpieces or enlarge existing holes. You
may also find other uses for your drill press such as reaming, countersinking, counterboring, tapping, etc. Refer to
the following diagrams to become familiarized with all the parts and controls of your drill press. The components
will be referred to later in the manual for assembly and operation instructions.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
Housing Cover
Spindle Return Spring
Laser Light
Power Cord
Table Lock
Table Bevel Guide
Laser Power Switch
Power Switch
Worklight Power Switch
Chuck
Feed Handle
Depth Adjustment Lock
Spindle
15
11
1
5
7
4
3
2
6
8
9
10
12
13
14
16
17
18
19
20
21
22
23
24
25
26
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
Worklight
Table
Column Mount
Base
Housing Knob
Speed Chart
Drive (Motor) Pulley
Front (Spindle) Pulley
Drill Press Head
Motor
Column
Rack
Table Adjustment Handle
9
CLEANING THE WORK TABLE SURFACE
Your drill press comes protected with a layer of anti-rust coating on its exposed (non-painted) metal surfaces. Clean
the rust-protected surfaces using a soft cloth, moistened with kerosene. Do not use gasoline, or cellulose-based
solvents such as paint thinner or lacquer thinner, as these will damage the painted surfaces. After cleaning, apply a
light coat of good-quality paste wax to the table and column to prevent rust. Wipe all parts thoroughly with a clean,
dry cloth.
PACKING LIST
Check your packing list against the diagram below. If any part is damaged or missing, please contact our customer
service at 1-(800) 232-1195, M-F 8-5 CST or email us at [email protected] and DO NOT plug the drill
press in or turn ON.
UNPACKING & PACKING LIST
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the drill press from the packaging. Make sure to take
out all contents and accessories. Do not discard the packaging until the drill press is completely assembled.
Before using the drill press, you must assemble the unit using the instructions in this section. Check your packing
list against the diagram below. If any part is damaged or missing, please contact our customer service at 1-(800)
232-1195, M-F 8-5 CST or email us at [email protected].
1
2
8
11
97
6
3
4
5
10
1. Head / Motor Assembly
2. Base
3. Table Locking Handle
4. Table Assembly
5. Table Adjustment Handle
6. AAA Batteries (2) (Inside Head)
7. Chuck
8. Feed Handles (3)
9. Hex Wrenches (2)
10. Hex Head Bolts (4)
11. Column Assembly
10
ATTACHING COLUMN ASSEMBLY TO BASE
1. Place the column tube on the base, aligning the column support
holes to the base holes (Fig. 2).
2. Install a hex head bolt in each column support hole and tighten
bolts using the adjustable wrench (not included).
ATTACHING TABLE TO COLUMN
1. Loosen set screw (Fig. 3 - 1) in rack collar and remove the collar
from the column.
2. Remove the rack (Fig. 3 - 3) from the column.
3. Placing the rack into the table bracket, slide the table assembly
with rack down directly onto the column (Fig. 3). The longer edge
of the rack without gear teeth should be towards the top of the drill
press.
4. Place the column collar down onto the rack and tighten the set
screw with the smaller hex wrench to hold the rack in position.
5. Insert the table adjustment handle (Fig. 4 - 1) onto the adjustment
shaft (Fig. 4 - 2). Align the socket-head set screw (Fig. 4 - 3) on the
handle with the flat of the adjustment shaft. Using the larger hex
wrench, tighten the set screw.
6. Position the table directly over the base, and tighten the table
locking handle (Fig. 5 - 1) to secure table assembly.
WARNING!
Do not plug in or turn on the tool until it is fully assembled according on the instructions. Failure
to follow the safety instructions may result in serious personal injury.
ASSEMBLY & ADJUSTMENTS
Fig. 2
Fig. 3
Fig. 4
Fig. 5
1
2
3
1
2
3
1
11
CAUTION!
The drill press head is heavy. To avoid injury, two
people should lift it into position.
ASSEMBLY & ADJUSTMENTS

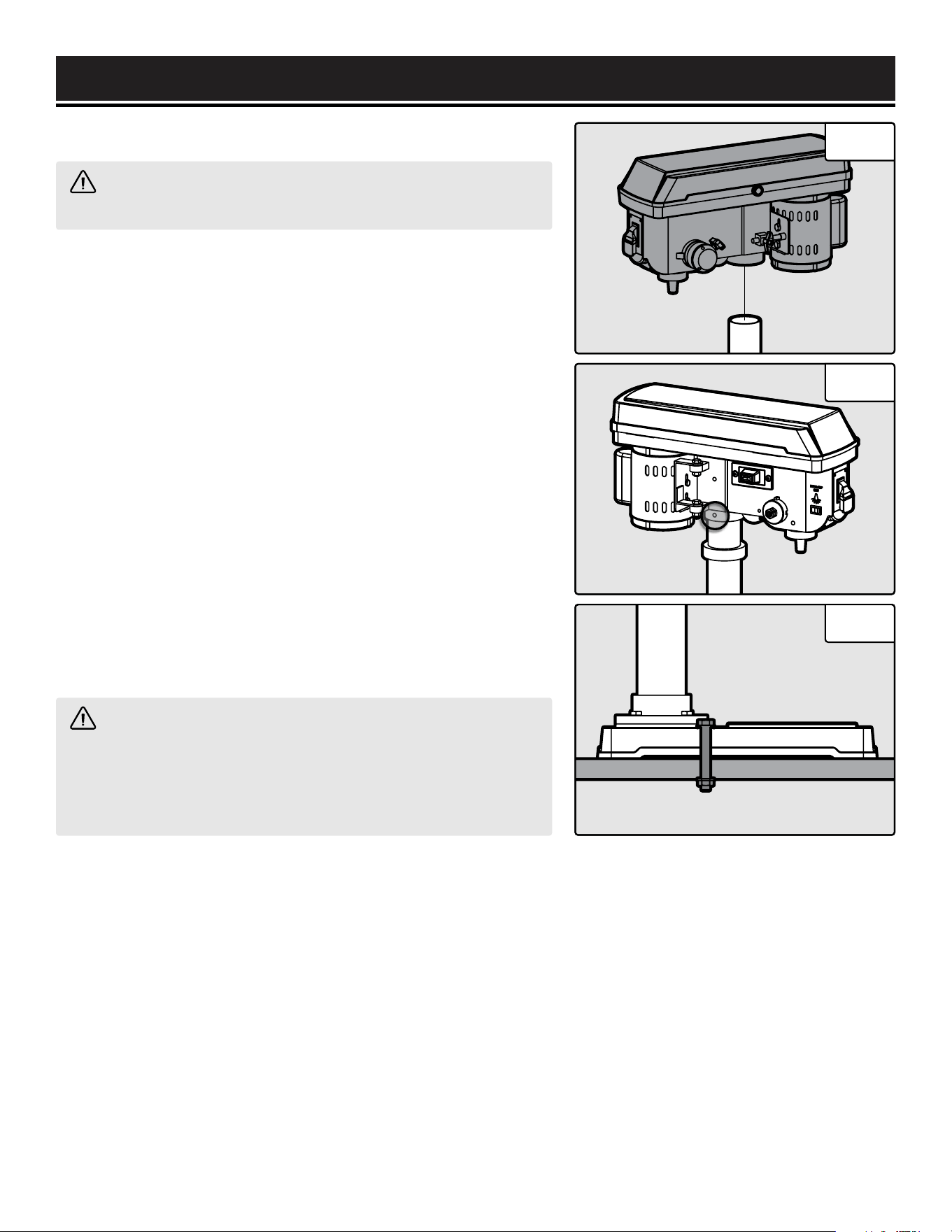

DRILL PRESS HEAD TO COLUMN
1. Carefully lift the drill press head assembly and position it over the
column (Fig. 6).
2. Place the mounting opening on the drill press head over the top
of the column. Make sure the drill press head is seated properly on
the column.
3. Align the direction of the drill press head with the direction of the
base and the table.
4. Tighten the set screw using a hex wrench (Fig. 7).
MOUNTING THE DRILL PRESS
The drill press must be securely fastened through the mounting
holes to a stand or workbench with heavy-duty fasteners (fasteners
and mounting hardware not included) (Fig. 8). This will prevent the
drill press from tipping over, sliding, or walking during operation.
IMPORTANT: If the stand or workbench has a tendency to move
during operation, fasten the workbench securely to the floor.

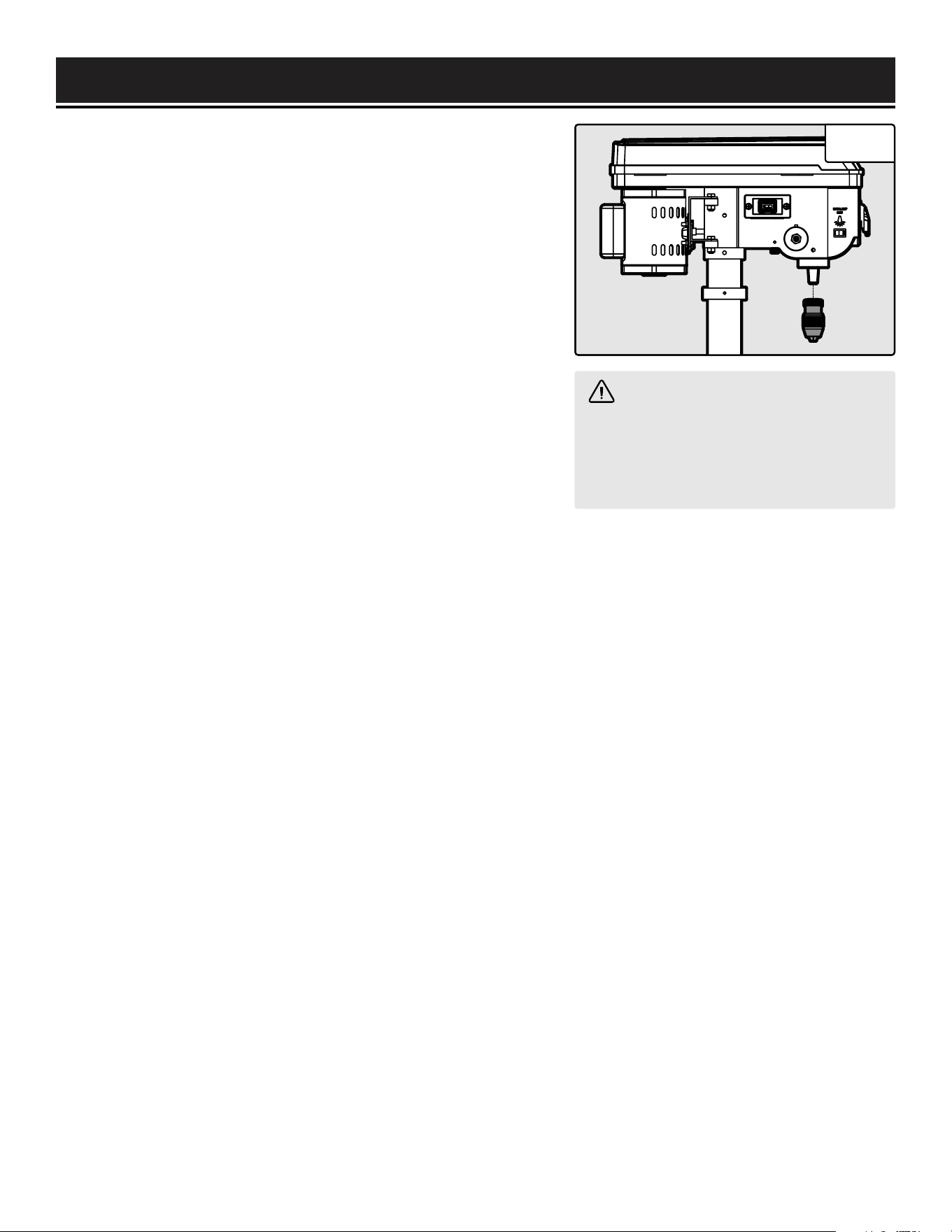

INSTALLING THE CHUCK
CAUTION!
Before any assembly of the chuck to the drill
press spindle, clean all mating surfaces with a non-petroleum
based product; such as acetone or lacquer thinner. Any oil or
grease used in the packing of these parts must be removed; oth-
erwise the chuck may come loose during operation.
1. Unplug your drill press before you begin installing the chuck. Lower the drill press table and place a cloth on it to
protect the chuck if it is dropped.
2. Wipe the chuck and spindle with a clean rag. Do not use solvents yet, these will be used when you are ready to
set it into place.
Instructions continue on the next page.
Fig. 6
Fig. 7
Fig. 8
12
CAUTION!
To avoid damaging the
chuck, make sure the jaws are complete-
ly recessed into the chuck. Do not use
a metal hammer to drive the chuck into
the spindle.
ASSEMBLY & ADJUSTMENTS
3. Completely remove any burrs found on the inner mating surface
of the chuck with a diamond coated tool or a fine file. Use a grade
000 steel wool pad to lightly go over the chuck and spindle. This
removes oxidation and dirt that you cannot see.
NOTE: Do steps 1-3 even if your chuck is new. New chucks can still
have burrs, oxidation, and dirt.
4. Use lacquer thinner or acetone on a lint free rag to clean the
chuck. Do not touch these surfaces with your hands after cleaning.
Rubbing alcohol does not work well, as it contains oil. Let the chuck
dry before continuing.
5. Retract the jaws of the chuck all the way into the body. Slide the
chuck’s socket onto the spindle. See Fig. 9.
6. Using hand force, firmly push the chuck up onto the spindle. Us-
ing a rubber mallet or dead blow hammer, tap the chuck upwards
once to lock the tapers together. You can also use a piece of wood
between the chuck and a standard hammer. Test the fit by gently
pulling downward on the chuck. If the chuck pulls off, go back to
step one and try again, making sure to thoroughly clean the mating
surfaces. Your chuck is now set into your drill press and should stay
in place until you need to remove it.
Fig. 9
REMOVING THE CHUCK
NOTE: To avoid possible damage to the drill or chuck, be prepared to catch the chuck as it falls. Placing a towel on
the drill press table can soften the impact if you do drop the chuck.
1. Turn the feed handles to lower the chuck to the lowest position, making it close to the table.
2. Place a ball joint separator above the chuck and tap it lightly with a hammer to cause the chuck to drop from the
spindle. You should hold the chuck and be ready to catch it when it is released.
13
ASSEMBLY & ADJUSTMENTS

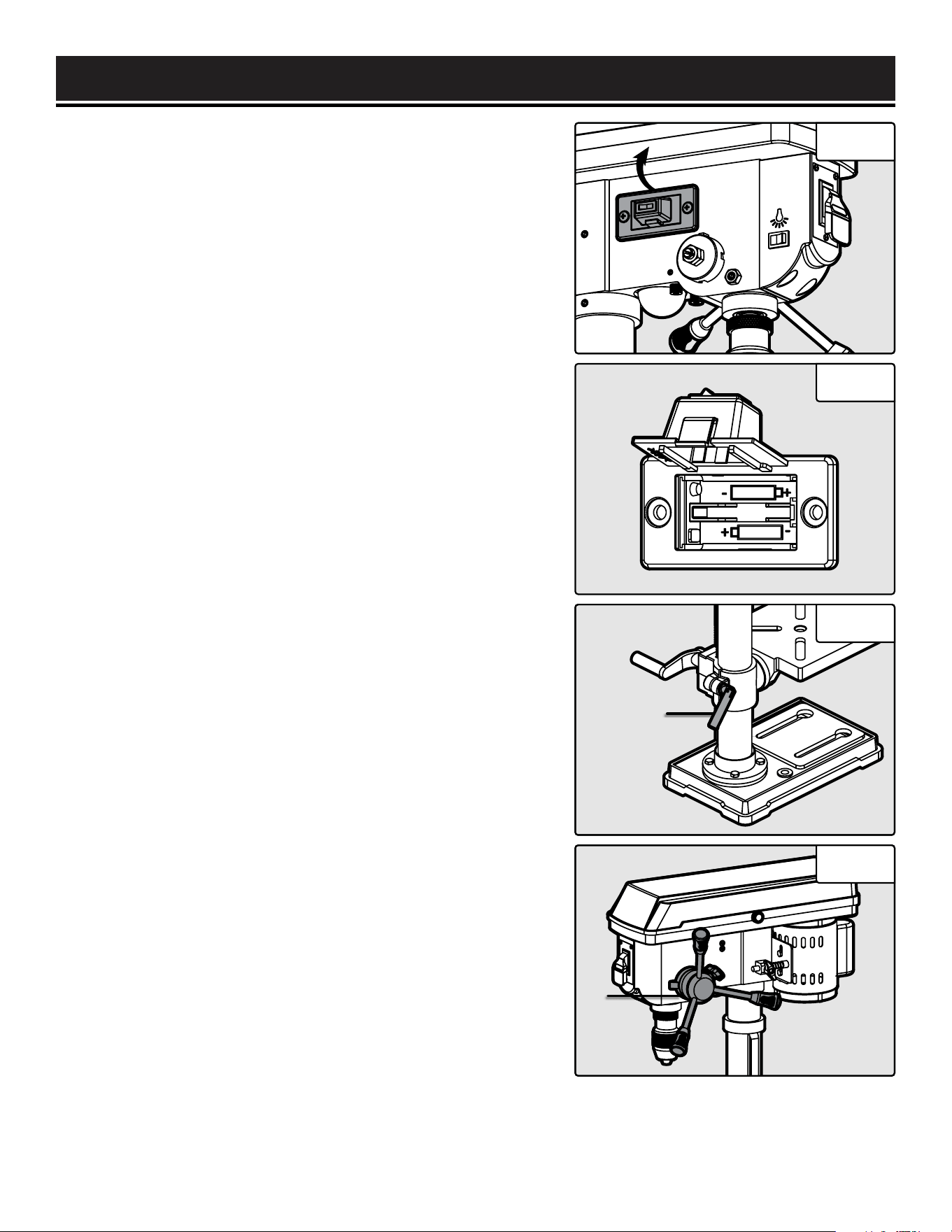

INSTALLING LASER BATTERIES (PRE-INSTALLED)
1. Turn off the drill laser.
2. Pull the tab located below the laser switch and lift up the laser
switch cover (Fig. 10).
3. Install two AAA batteries into the battery slots and close the switch
cover (Fig. 11).
RAISING OR LOWERING THE TABLE
1. Loosen the table locking handle and turn the crank handle until the
table is at the desired height (Fig. 12).
2. Tighten the table locking handle before drilling.
ROTATING THE TABLE
1. Loosen the table locking handle (Fig. 12 - 1) and turn the table
around the column to the desired position.
NOTE: The rack should rotate around the column with the table
support bracket. If the rack binds and does not rotate, slightly loosen
the set screw in the rack collar.
2. Tighten the table locking handle before drilling.
FEED HANDLES
1. Insert the three feed handles into the threaded openings on the
feed hub (Fig. 13 - 1).
2. Manually tighten the handles into the openings. If desired, use an
adjustable wrench (not included) to grip the flats of the feed handles
and fully tighten them into the feed hub.
NOTE: When using the drill press, one or two of the feed handles
may be removed if an unusually-shaped workpiece interferes with
handle rotation.
Fig. 10
Fig. 11
Fig. 12
Fig. 13
1
14
1
ASSEMBLY & ADJUSTMENTS

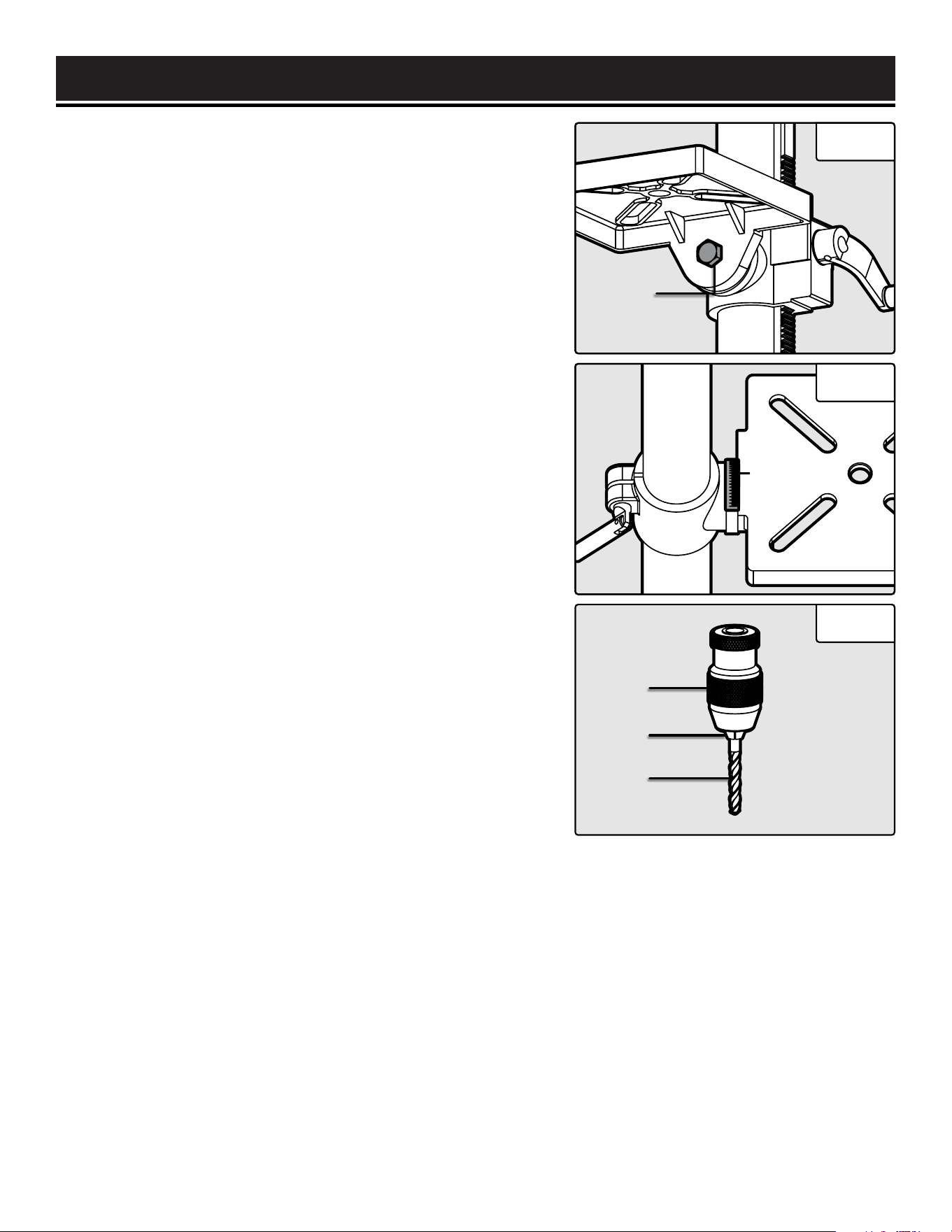

TILTING THE TABLE
1. Loosen the bevel lock bolt (Fig. 14 - 1) with a 19 mm socket or
wrench (not included).
2. Tilt the table to the desired angle, using the bevel scale (Fig. 15)
as a basic guide.
3. Re-tighten the bevel lock bolt.
4. To return the table to its original horizontal position, loosen the
bevel lock bolt.
5. Realign the table to the 0° setting on the bevel scale.
6. Tighten the bevel lock bolt with the wrench.
INSTALLING A DRILL BIT
1. Turn the chuck (Fig. 16 - 1) counterclockwise to open the jaws
(Fig. 16 - 2).
2. Insert a drill bit (Fig. 16 - 3) into the chuck so the chuck jaws grip
as much of the bit's shank as possible.
3. Center the drill bit in the chuck jaws before the final tightening of
the chuck.
4. Tighten the chuck jaws.
Fig. 14
Fig. 15
Fig. 16
1
1
2
3
15
ASSEMBLY & ADJUSTMENTS

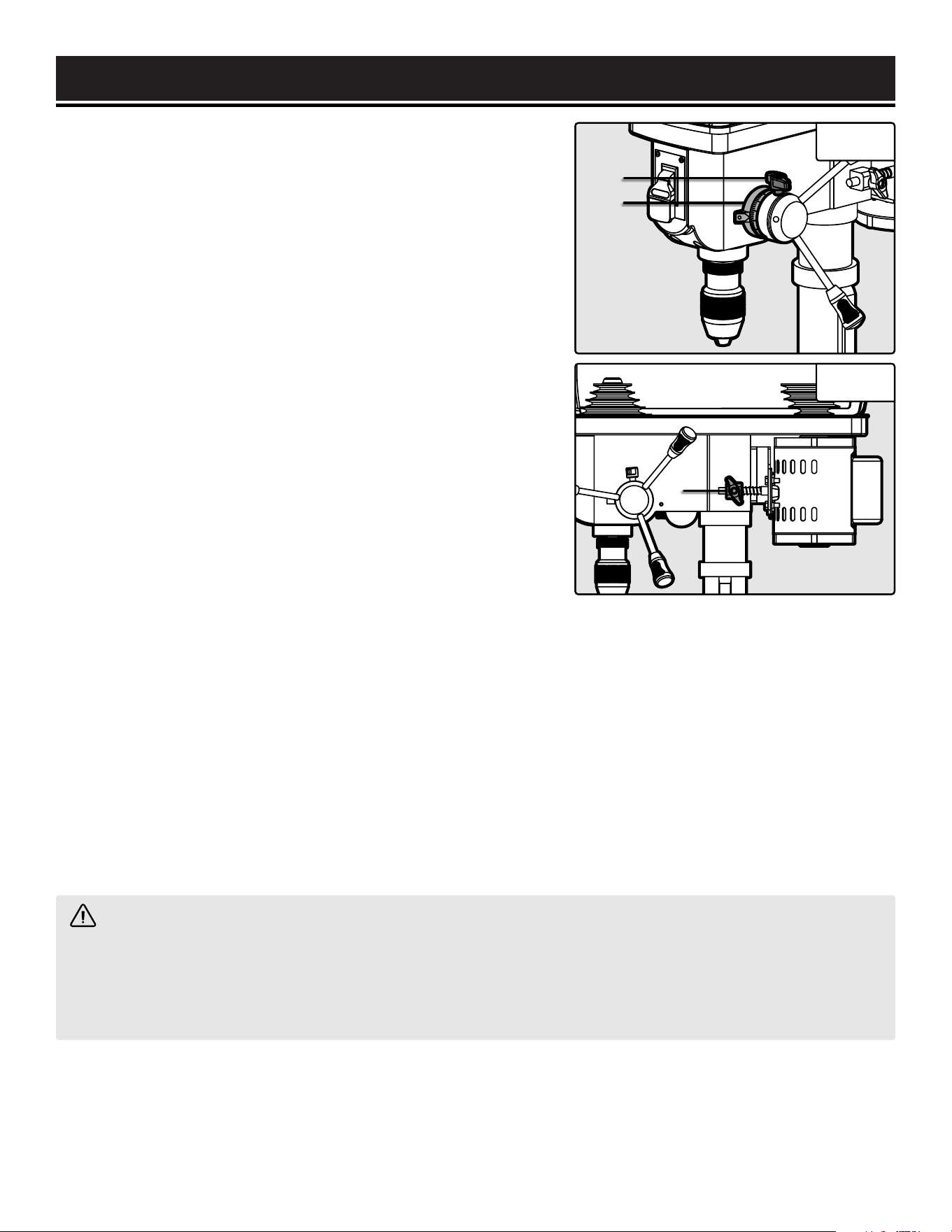

FEED DEPTH ADJUSTMENT
1. Loosen the depth locking knob (Fig. 17 - 1).
2. Turn the depth scale ring (Fig. 17 - 2) to the desired depth.
3. Lock the scale ring in place by tightening the depth locking knob.
SPEED ADJUSTMENT
1. Unplug the drill press.
2. To change to another one of the five available speeds, open the
belt housing cover and loosen the belt tension locking knob (Fig.
18 - 1).
3. Pull the motor towards the front of the press and tighten the
belt tension locking knob. Adjust the position of the belt on the belt
pulleys.
NOTE: Ensure that the belt runs on the same setting of each pulley
(e.g. if the belt is on the third setting of the motor pulley, it should be
on the third setting of the spindle pulley as well).
4. Loosen the belt tension locking knob and push the motor towards
the rear of the drill press, ensuring that the belt is under tension.
Tighten the belt tension locking knob. Close the belt housing cover.
CHANGE THE LIGHTBULB
To change the lightbulb, turn off and unplug the machine. Turn the
old bulb counter-clockwise to remove it, and screw in the new bulb.
You may then plug in and restart the machine.
NOTE: Do not install a bulb rated higher than 60W. Replacement
bulbs can be ordered from wenproducts.com by searching part
number 4210B-086.
ADJUST THE LASER
Fig. 17
Fig. 18
WARNING!
Do not stare directly at the laser beam. Please observe all safety rules.
• Never aim the beam at a person or an object other than the workpiece.
• Do not project the laser beam into the eyes of others.
• Always make sure the laser beam is aimed at a non-reflective workpiece, as the laser beam could project into
your eyes or the eyes of others.
Instructions continue on the next page.
1
2
16
1
ASSEMBLY & ADJUSTMENTS

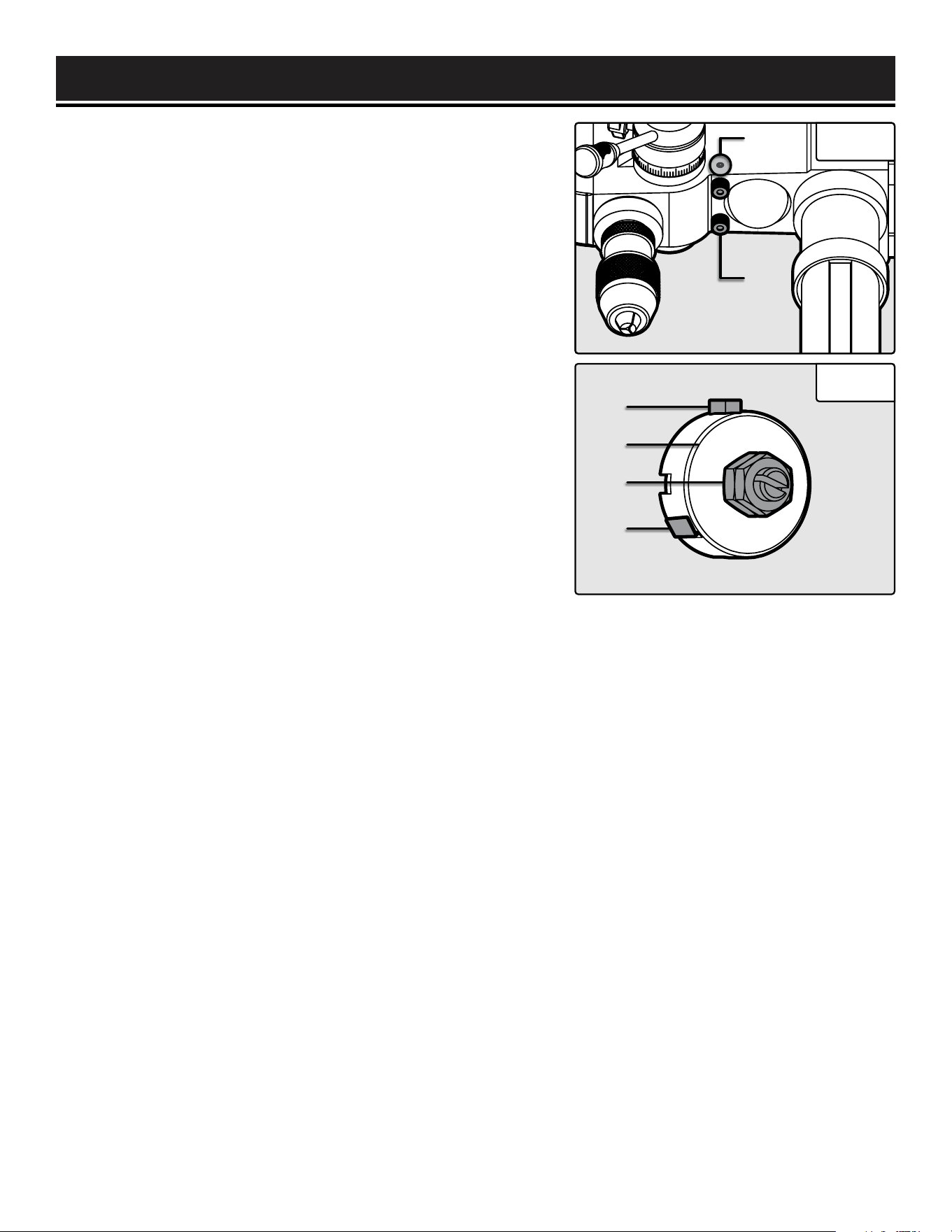

1. Unplug the drill press.
2. Place a workpiece on the table.
3. Turn the laser switch to the ON position.
4. Lower the drill bit to meet the workpiece. The two laser lines
should cross where the drill meets the workpiece.
5. If the laser needs to be adjusted:
a. Using a 3 mm hex key, turn the laser adjustment set screws (FIg.
19 - 1) counterclockwise.
b. Rotate the laser light housing (Fig. 19 - 2) until the two laser lines
intersect where the drill meets the work piece. DO NOT stare directly
at the laser lines.
6. Re-tighten the adjustment set screws (1). Be sure to not over
tighten the set screws.
SPINDLE RETURN SPRING
The spindle is equipped with an auto-return mechanism. The main
components are a spring and a notched housing. The spring was
properly adjusted at the factory and should not be readjusted unless
absolutely necessary.
1. Unplug the drill press.
2. Place a screwdriver into the loop (Fig. 20 - 1) to hold the spring
in place.
3. Loosen the two housing nuts (Fig. 20 - 3) approximately 1/4” (6
mm). Do not remove the nuts from the threaded shaft. Do not allow
the spring or spring housing to slip out of control.
4. While firmly holding the spring housing (Fig. 20 - 4), carefully pull
the spring housing out until it clears the raised notch (Fig. 20 - 2).
5. Turn the housing so that the next notch is engaged with the raised
notch (Fig. 20 - 2).
• To increase the spindle return tension, turn the spring housing
counter-clockwise.
• To decrease the tension, turn the spring housing clockwise.
6. Tighten the two housing nuts. Do not overtighten the two nuts. If
the nuts are tightened too much, the movement of the spindle and
feed handles will become sluggish.
Fig. 19
Fig. 20
1
2
2
4
3
1
17
ASSEMBLY & ADJUSTMENTS

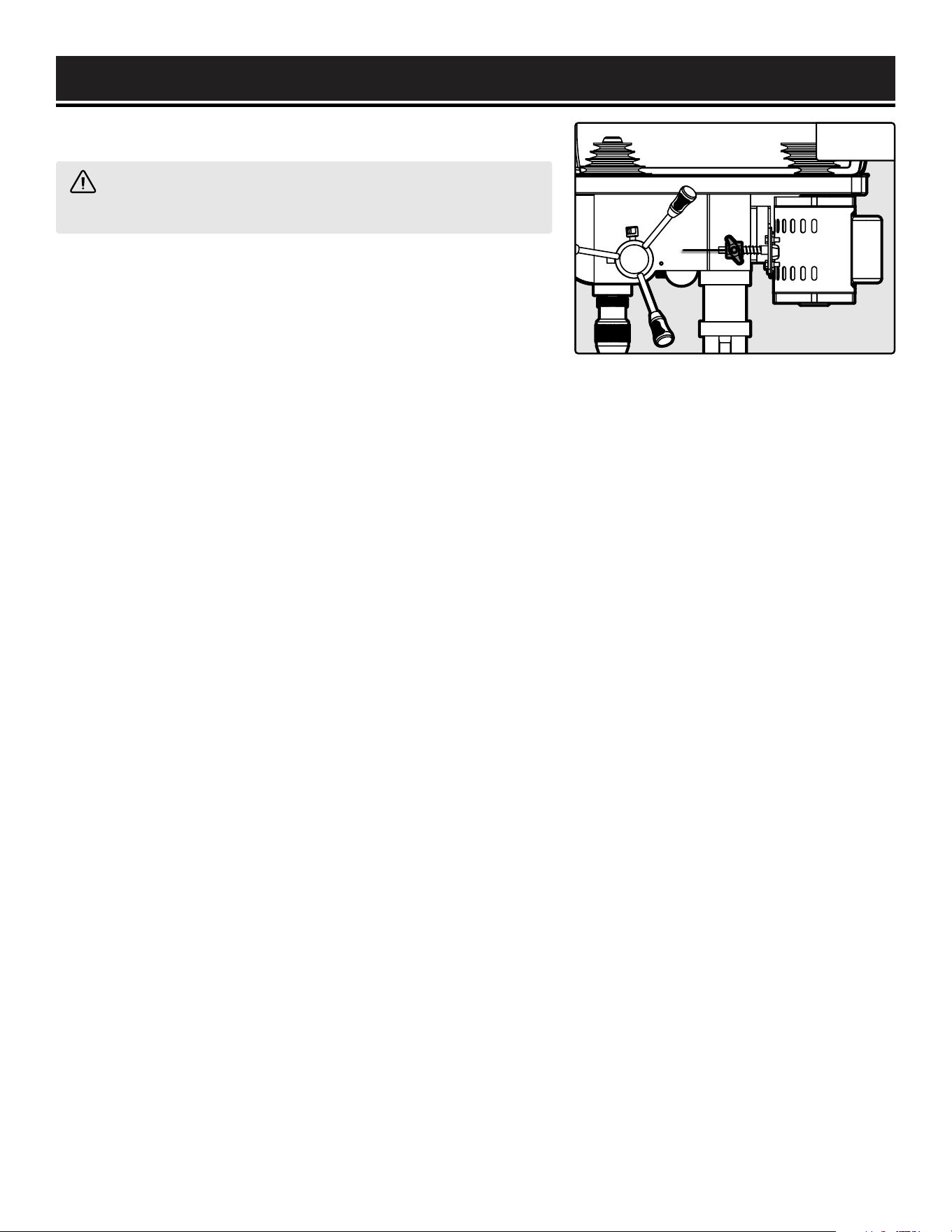

REPLACE THE BELT
Fig. 21
1. Open the housing cover. Loosen the belt tension locking knob
(Fig. 21 - 1).
2. Remove the belt from the housing cover if it is broken. If it is not
broken, but is too stretched to operate correctly, work the belt off the
drive (motor) pulley. Then remove the belt from the front spindle.
3. Replace with a new belt. Install the belt over the pulleys at the
desired speed. Pull the motor back to make the belt taut. Once the
desired tension has been achieved, tighten the belt tension locking
knob.
WARNING!
Disconnect the drill press from the power source
before replacing the belt.
18
1
OPERATION

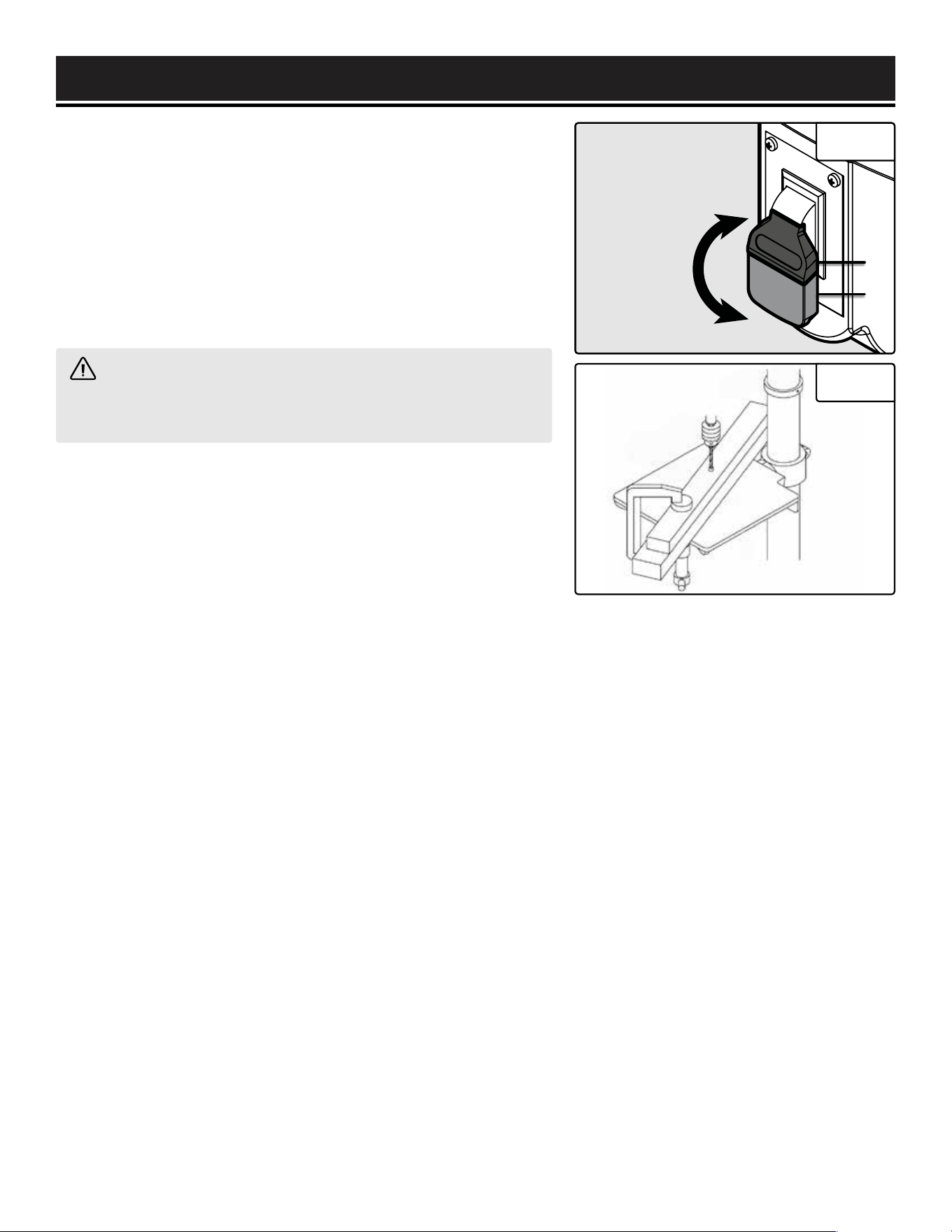

ON / OFF SWITCH WITH SAFETY KEY
1. To turn the drill press ON, insert the yellow safety key (Fig. 22 - 1)
into the switch housing (Fig. 22 - 2). As a safety feature, the switch
cannot be turned ON without the safety key.
2. Flip the switch upward to the ON position.
3. To turn the drill press OFF, flip the switch downward.
4. To lock the switch in the OFF position, remove the safety key (Fig.
22 - 1) from the switch. Store the safety key in a safe place.
Fig. 22
Fig. 23
WARNING!
Remove the safety key whenever the drill is not
in use. Place the key in a safe place and out of the reach of chil-
dren.
LASER ON/OFF SWITCH
The laser switch is located on the lefthand side of the drill press (Fig.
10, p. 14). Replace batteries as needed by popping open the hous-
ing.
POSITION THE TABLE AND WORKPIECE
Always place a piece of scrap material (wood, plywood, etc.) on the
table underneath the workpiece. This will prevent splintering on the
underside of the workpiece as the drill bit breaks through. To keep
the material from spinning out of control, it must contact the left side
of the column as illustrated (Fig. 23), or be clamped (not included)
to the table.
NOTE: For small workpieces that cannot be clamped to the table, use
a drill press vise (not included). The vise must be clamped or bolted
to the table to avoid injury. Drill press clamps and drill press vises
can be purchased at wenproducts.com.
DRILLING SPEEDS
There are a few important factors to keep in mind when determining
the best drilling speed:
• Material type
• Hole size
• Drill bit or cutter type
• Quality desired
Smaller drill bits require greater speed than larger drill bits. Softer
materials require greater speed than harder materials.
1
2
ON
OFF
19
OPERATION
GENERAL DRILLING GUIDELINES - DRILLING A HOLE
WARNING!
To prevent the workpiece and the backup material from slipping from your hand while drilling,
position the workpiece and backup material to the left side of the column. If the workpiece and the backup mate-
rial are not long enough to reach the column, clamp the workpiece and backup material to the table. Failure to
do this could result in personal injury.
1. Mark where you want to drill in workpiece by using a center punch or a sharp nail, or turn ON the laser to mark
your drilling point.
2. Before turning the drill press ON, turn the feed handles to bring the drill bit down. Line the drill bit tip up with the
mark. Clamp the workpiece in place.
3. Turn ON the drill press and pull down on the feed handles with the appropriate force needed to allow the drill bit
to drill through the material.
NOTE: Feeding too slowly might cause the drill bit to turn in the chuck. Feeding too rapidly
might stop the motor, cause the belt to slip, force the workpiece loose, or break the drill bit. Practice with scrap
material to get the feel of the machine before attempting to do any drilling operation.
DRILLING WOOD
• Brad point bits are preferred. Metal-piercing twist bits may be used on wood.
• Do not use auger bits. Auger bits turn so rapidly that they can lift the workpiece off of the table and whirl it around.
• Always protect the drill bit by positioning the table so that the drill bit will enter the center hole when drilling
through the workpiece.
• To prevent splintering, feed the drill bit slowly right as the bit is about to cut through to the backside of the work-
piece.
• To reduce splintering and protect the point of the bit, use scrap wood as a backing or a base block under the
workpiece.
FEEDING THE DRILL BIT
• Pull down on the feed handles with only enough force to allow the drill bit to cut.
• Feeding too rapidly might stall the motor, cause the belt to slip, damage the workpiece, or break the drill bit.
• Feeding too slowly will cause the drill bit to heat up and burn the workpiece.
20
MAINTENANCE
WARNING!
To avoid accidents, turn OFF and unplug the tool from the electrical outlet before cleaning, ad-
justing, or performing any maintenance or lubrication work.
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool. If any of these following conditions exist, do not use until
parts are replaced.
Check for:
• Loose hardware or improper mounting,
• Misalignment
• Damaged cord/electrical wiring,
• Cracked or broken parts, and
• Any other condition that may affect its safe operation
WARNING!
Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
CAUTION!
Most plastics are susceptible to damage from various types of commercial solvents. Do not
use any solvents or cleaning products that could damage the plastic parts. Some of these include but are not
limited to: gasoline, carbon tetrachloride, chlorinated cleaning solvents, and household detergents that contain
ammonia.
CLEANING & STORAGE
1. After every operation, use a vacuum to remove sawdust or metal shavings from the tool surfaces, motor hous-
ing and work area. Keep the ventilation openings free from dust and debris to prevent the motor from overheating.
2. Wipe the tool surfaces clean with a soft cloth or brush. Make sure water does not get into the tool.
3. Apply a light coat of paste wax to the column and table to help keep these surfaces clean and rust free.
4. Store the tool in a clean and dry place away from the reach of children.
LUBRICATION
The ball bearings in the spindle and the V-belt pulley assembly are greased and permanently sealed, and require no
lubrication. Pull the spindle down and oil the quill moderately every three months.
Lubricate the table bracket and locking knobs if they become difficult to use.
PRODUCT DISPOSAL
Used power tools should not be disposed of together with household waste. This product contains electronic com-
ponents that should be recycled. Please take this product to your local recycling facility for responsible disposal and
to minimize its environmental impact.
21
PROBLEM CAUSE SOLUTION
Noisy Operation
1) Incorrect belt tension
2) Dry spindle
3) Loose spindle pulley
4) Loose motor pulley
1) Adjust the belt tension (See REPLACE THE
BELT section)
2) Lubricate the spindle
3) Tighten the set screws on the side of the
spindle pulley
4) Tighten the set screws on the side of the
motor pulley
The drill bit burns
or smokes
1) Drilling at the incorrect speed
2) The wood chips are not coming out
of the hole
3) Dull drill bit
4) Feeding the workpiece too slowly
5) Not lubricated
1) Change the speed
2) Retract the drill bit frequently to clear the
chips
3) Resharpen or replace the drill bit
4) Feed fast enough to cut the workpiece
5) Lubricate the drill bit with cutting oil or mo-
tor oil
Excessive drill
run out or wob-
ble; drilled hole is
not round
1) Bent drill bit
2) Bit improperly installed in the chuck
3) Worn spindle bearings
4) Lengths of cutting flutes or angles
not appropriate for the hardness of the
wood grain
5) Chuck not properly installed
1) Replace the drill bit
2) Reinstall the bit
3) Bearings may need replacement. Contact
customer service (1-800-232-1195)
4) Resharpen the drill bit correctly or replace
with the appropriate type
5) Reinstall the chuck
WARNING!
Stop using the tool immediately if any of the following problems occur or risk serious personal
injury. If you have any questions, please contact customer service at
1-800-232-1195
(M-F 8-5 CST), or email
.
TROUBLESHOOTING GUIDE
22
PROBLEM CAUSE SOLUTION
Drill bit binds in
the workpiece
1) The workpiece is pinching the bit
2) Excessive feed pressure
1) Support or clamp the workpiece
2) Feed more slowly
Spindle returns
too slowly or too
quickly
Coil spring has improper tension Adjust the coil spring tension (see p .17)
Chuck falls off
spindle
Dirt, grease, or oil on the tapered sur-
face on the spindle or in the chuck
Clean the tapered surface of both the chuck and
spindle with a household detergent
Motor will not
run
1) Defective or broken switch
2) Defective or damaged power cord
3) Open circuit, loose connections, or
burned out motor
4) Low voltage
1) Take to a qualified service technician
2) Take to a qualified service technician
3) Take to a qualified service technician
4) Check the power line for the proper voltage.
Use another circuit or have a qualified electri-
cian upgrade the service.
Motor stalls
1) Short circuit in motor
2) Incorrect fuses or circuit breakers
3) Overloaded circuit
4) Low voltage
1) Take to a qualified service technician
2) Replace with correct fuse or circuit breaker
for the circuit
3) Turn off other machines and retry
4) Check the power line for the proper voltage.
Use another circuit or have a qualified electri-
cian upgrade the service.
WARNING!
Stop using the tool immediately if any of the following problems occur or risk serious personal
injury. If you have any questions, please contact customer service at
1-800-232-1195
(M-F 8-5 CST), or email
.
TROUBLESHOOTING GUIDE
23
ASSEMBLY & ADJUSTMENTS
EXPLODED VIEW & PARTS LIST
24
No. Part No. Description Qty.
1 4210B-001 V-belt 1
2 4210B-002 Motor Pulley 1
3 4210B-003 Set Screw 2
4 4210B-004 Power Cord 1
5 4210B-005 Spindle Pulley 1
6 4210B-006 Set Screw 2
7 4210B-007 Belt House Knob 1
8 4210B-008 Belt House 1
9 4210B-009 Flat Washer 1
10 4210B-010 Nut 1
11 4210B-011 Hex Nut 3
12 4210B-012 Cord Clamper 3
13 4210B-013 Retaining Ring 1
14 4210B-014 Sleeve 1
15 4210B-015 Retaining Ring 1
16 4210B-016 Ball Bearing 1
17 4210B-017 Ball Bearing 1
18 4210B-018 Retaining Ring 1
19 4210B-019 Pan Head Screw 2
20 4210B-020 Laser Battery Housing 1
21 4210B-021 AAA battery 2
22 4210B-022 Connecting terminal 2
23 4210B-023 Flat Washer 3
24 4210B-024 Pan Head Screw 3
25 4210B-025 Pan Head Screw 4
26 4210B-026 Flat Washer 4
27 4210B-027 Rubber Washer 4
28 4210B-028 Bushing 3
29 4210B-029 Set Screw 2
30 4210B-030 Head 1
31 4210B-031 Spring 1
32 4210B-032 Spring Cap 1
33 4210B-033 Hex Nut 2
34 4210B-034 Hex Nut 1
35 4210B-035 Set Screw 1
36 4210B-036 Switch Box 1
37 4210B-037 Switch Plate 1
38 4210B-038 Thread Forming Screw 3
39 4210B-039 Switch 1
No. Part No. Description Qty.
40 4210B-040 Pan Head Screw 2
41 4210B-041 Lock Washer 2
42 4210B-042 Serrated Washer 2
43 4210B-043 Pan Head Screw 4
44 4210B-044 Light Switch 1
45 4210B-045 Depth Pointer 1
46 4210B-046 Rivet 1
47 4210B-047 Pin 1
48 4210B-048 Rubber Washer 1
49 4210B-049 Retaining Ring 1
50 4210B-050 Ball Bearing 1
51 4210B-051 Quill 1
52 4210B-052 Ball Bearing 1
53 4210B-053 Spindle 1
54 DPA130L Keyless Chuck 1
55 4210B-055 Connecting Terminal 2
56 4210B-056 Knob 3
57 4210B-057 Feeding Handle 3
58 4210B-058 Gear Shaft 1
59 4210B-059 Laser 2
60 4210B-060 Set Screw 2
61 4210B-061 Rivet 2
62 4210B-062 Depth Scale 1
63 4210B-063 Wing Screw 1
64 4210B-064 Depth Stop Ring 1
65 4210B-065 Wing Screw 1
66 4210B-066 Spring 1
67 4210B-067 Pushing Shaft 1
68 4210B-068 Cap 1
69 4210B-069 Hex Head Bolt 4
70 4210B-070 Flat Washer 4
71 4210B-071 Motor Support 1
72 4210B-072 Hex Nut 2
73 4210B-073 Flat Washer 4
74 4210B-074 Hex Head Bolt 2
75 4210B-075 Motor 1
76 4210B-076 Lock Washer 4
80 4210B-080 Hex Nut 2
81 4210B-081 Hex Nut 1
ASSEMBLY & ADJUSTMENTS
EXPLODED VIEW & PARTS LIST
25
ASSEMBLY & ADJUSTMENTS
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
82 4210B-082 Support Plate 1
83 4210B-083 Flat Head Screw 2
84 4210B-084 Light Bulb Holder 1
85 4210B-085 Pan Head Screw 1
86 4210B-086 Light Bulb 1
87 4210B-087 Worm Shaft 1
88 4210B-088 Table Locking Handle 1
90 4210B-090 Angle Scale 1
91 4210B-091 Table Support 1
92 4210B-092 Table 1
93 4210B-093 Washer 1
94 4210B-094 Hex Head Bolt 1
95 4210B-095 Column Collar 1
No. Part No. Description Qty.
96 4210B-096 Set Screw 1
97 4210B-097 Worm Gear 1
98 4210B-098 Pin 1
99 4210B-099 Retaining Ring 1
100 4210B-100 Table Adjusting Handle 1
101 4210B-101 Socket Head Bolt 1
102 4210B-102 Rack 1
103 4210B-103 Column 1
104 4210B-104 Hex Head Bolt 4
105 4210B-105 Column Support 1
106 4210B-106 Base 1
107 4210B-107 Wrench 2
26
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to qualit
y.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREA
T LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer
power
tools
will be free from defects in material or workmanship during personal use for a period of two (2) years from
date
-
fessional or commer
cial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts.
SELLER’S SOLE OBLIG
ATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per-
mitted
by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which
are
defective
in material or workmanship and which have not been subjected to misuse, alteration, careless handling,
misrepai
r, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants/
fuels,
or other conditions adversely affecting the Product or the component of the Product, whether by accident or
intentionall
y, by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to
keep
-
chase. Place of Pur
chase must be a direct vendor of Great Lakes Technologies, LLC. Pur
chasing through third party
vendors,
including but not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant,
voids the warranty included with this product. Contact [email protected] or 1-800-232-1195 with the
following
information to make arrangements: your shipping address, phone number, serial number, required part
numbers, and proof of pur
chase. Damaged or defective parts and products may need to be sent to WEN before the
replacements can be shipped out.
-
turning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must
be
shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The
product
must be fully insured with a copy of the proof of purchase enclosed. There must also be a description of
the
will be returned and shipped back to the pur
chaser at no charge for addresses within the contiguous United States.
THIS
LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING
FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT-
TERIES,
RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL
BE
LIMITED IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND
SOME
CANADIAN
PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMIT
ATION MAY NOT APPLY TO YOU.
IN
NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT
LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
ST
ATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN-
CIDENT
AL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS
LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS
WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNT
RY.
THIS
LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND
THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CON-
T
ACT THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WAR-
RANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING
CHARGES MAY APPLY.
27
V. 2021.10.27
THANKS FOR
REMEMBERING
