10" VARIABLE SPEED
DRILL PRESS
Instruction Manual
IMPORTANT:
Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit
WENPRODUCTS.COM
MODEL DP1062V
2
CONTENTS
WELCOME 3
Introduction ......................................................................................................3
Specifications ....................................................................................................3
SAFETY 4
General Safety Rules .........................................................................................4
Drill Press Safety Warnings ..............................................................................6
Electrical Information ........................................................................................8
BEFORE OPERATING 9

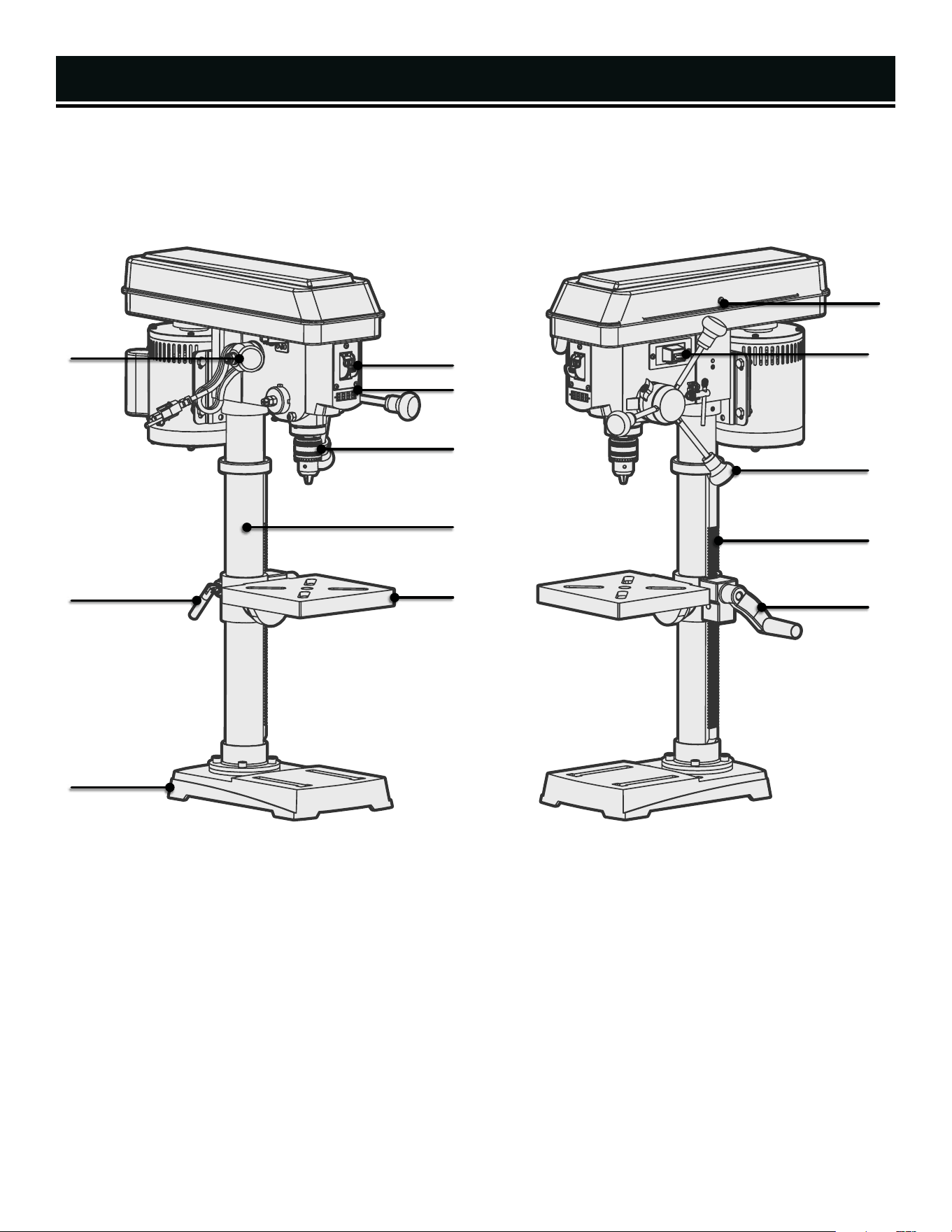

Know Your Drill Press .......................................................................................9

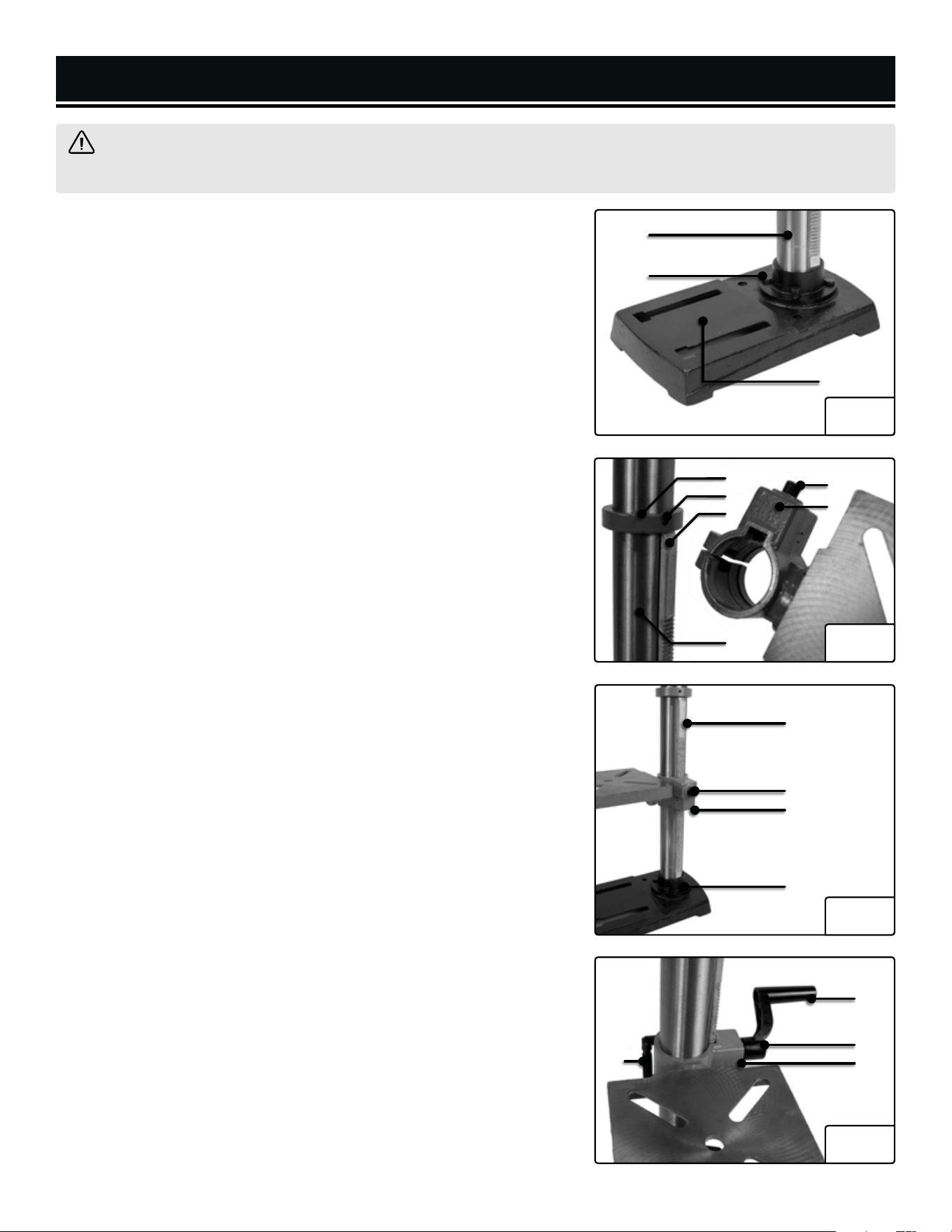

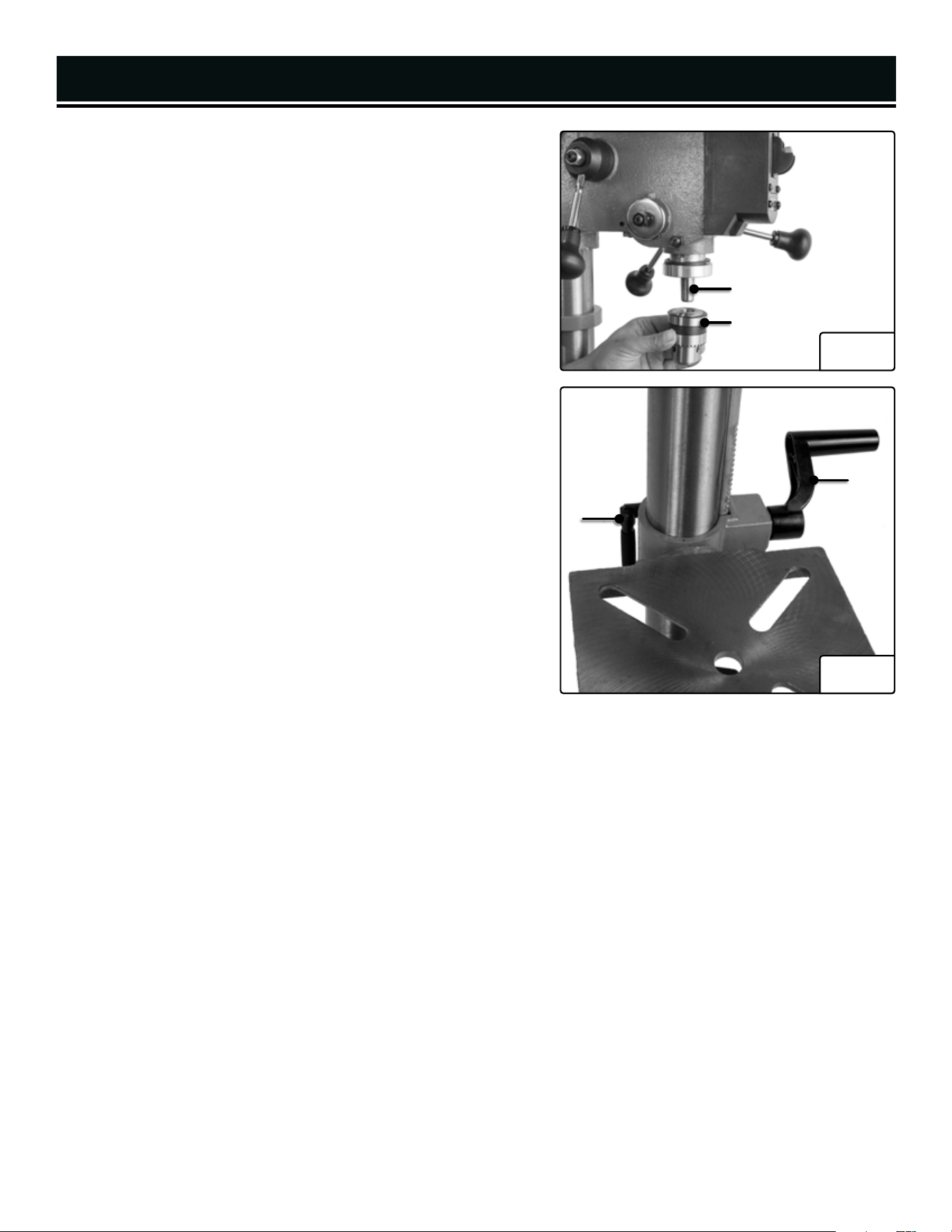

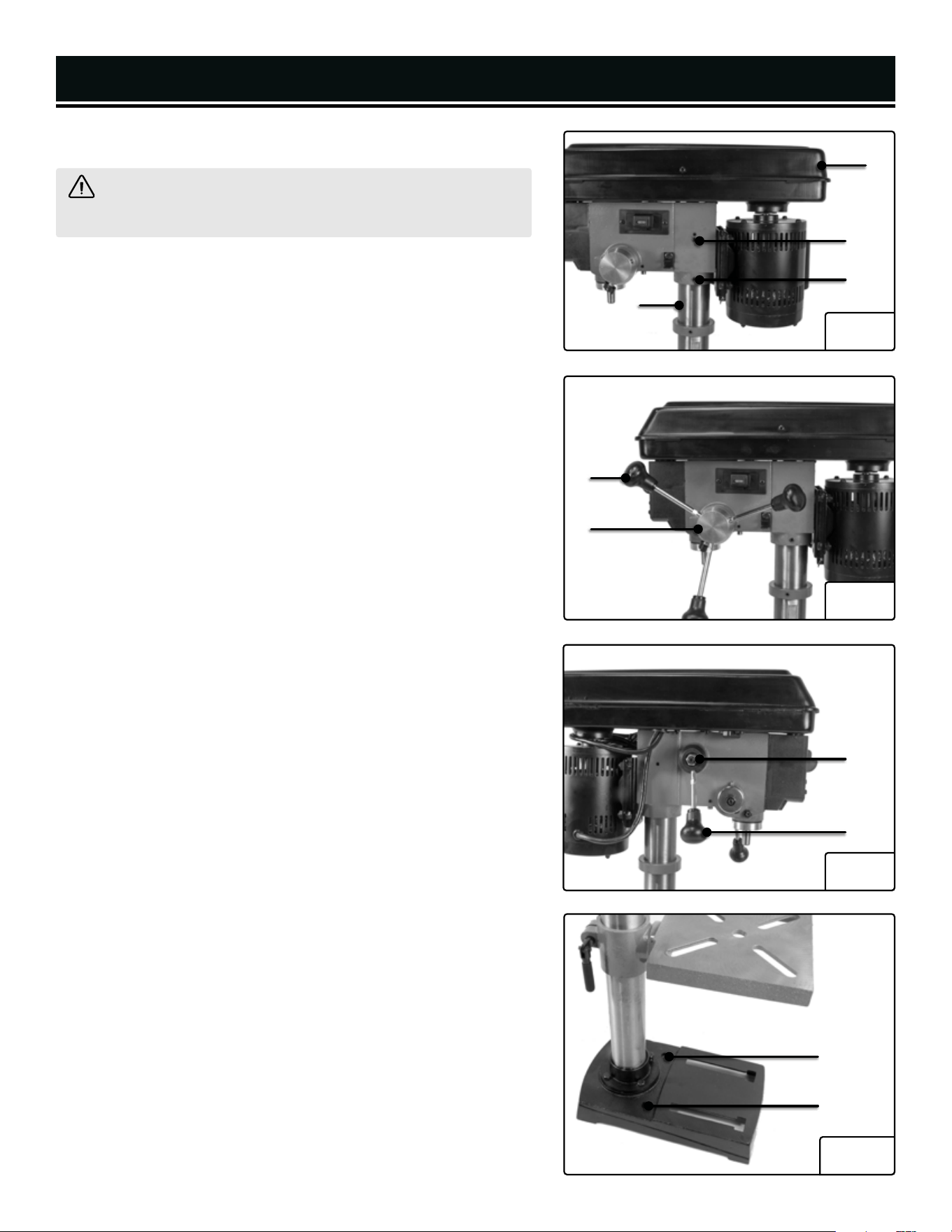

Assembly & Adjustments ................................................................................10
OPERATION & MAINTENANCE 18
Operation ........................................................................................................18
Maintenance ....................................................................................................21
Troubleshooting Guide ....................................................................................22

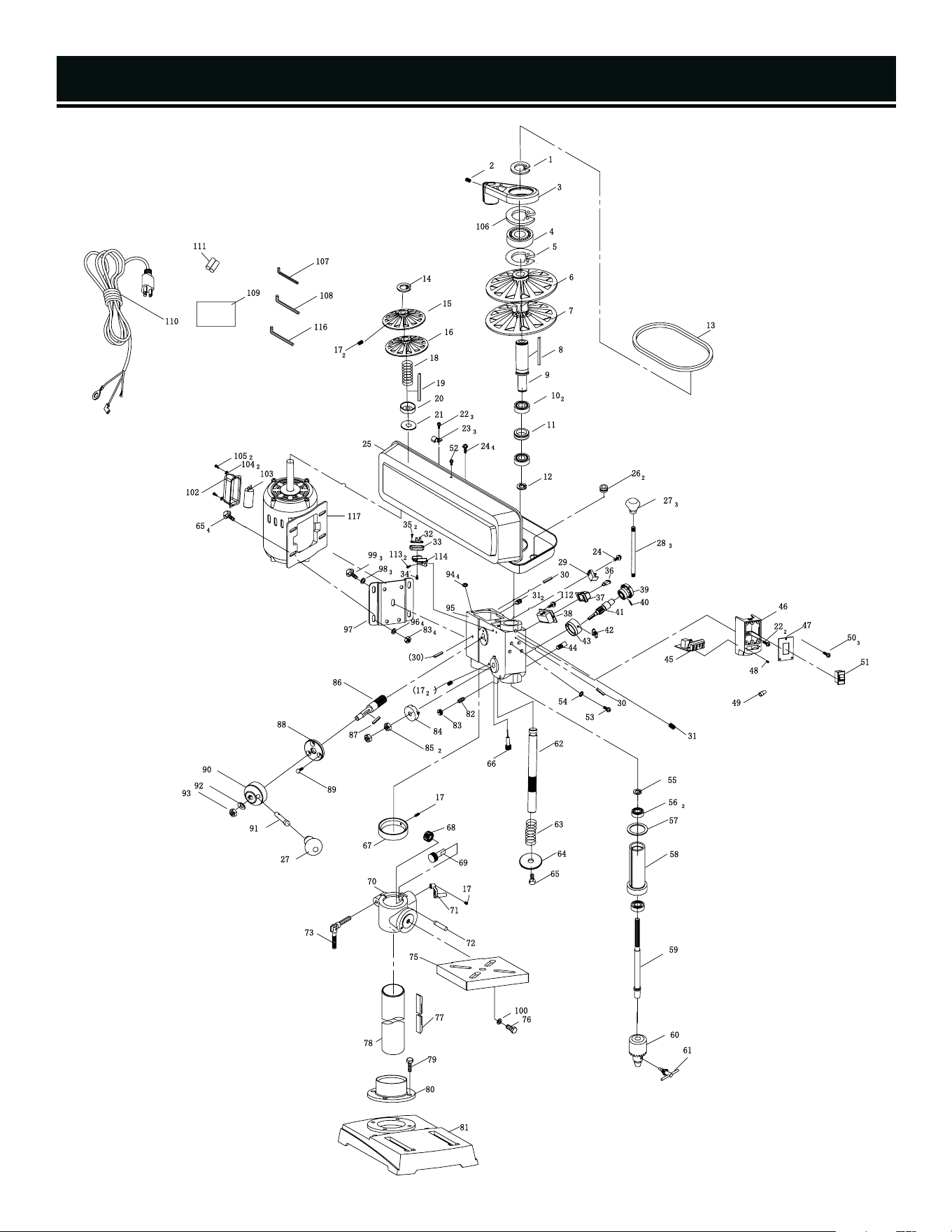

Exploded View & Parts List .............................................................................24
Warranty Statement ........................................................................................27
To purchase replacement parts and accessories for your tool, visit
WENPRODUCTS.COM
3
Model Number DP1062V
Motor 120V, 60 Hz, 6.2A
Speed 530-3100 RPM (No Load)
Chuck Capacity 1/2 in.
Stroke 2 in.
Swing 10 in.
Chuck Taper JT33
Capacity (Chuck to Base) 15 in.
Table Bevel 0º to 45º Left and Right
Product Weight 59.6 lbs
Product Dimensions 13.19 in. x 19.29 in. x 33.86 in.
SPECIFICATIONS
INTRODUCTION
Thanks for purchasing the WEN Drill Press. We know you are excited to put your tool to work, but first, please
take a moment to read through the manual. Safe operation of this tool requires that you read and understand this
operator’s manual and all the labels affixed to the tool. This manual provides information regarding potential safety
concerns, as well as helpful assembly and operating instructions for your tool.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact our customer service at
1-847-429-9263.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
Indicates danger, warning, or caution. The safety symbols and the explanations with them deserve your
careful attention and understanding. Always follow the safety precautions to reduce the risk of fire, electric shock
or personal injury. However, please note that these instructions and warnings are not substitutes for proper ac-
cident prevention measures.
4
GENERAL SAFETY RULES
WORK AREA SAFETY
1. Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable liquids,
gases or dust. Power tools create sparks which may ig-
nite the dust or fumes.
3. Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
ELECTRICAL SAFETY
1. Power tool plugs must match the outlet. Never mod-
ify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfac-
es such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of elec-
tric shock.
4. Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric
shock.
5. When operating a power tool outdoors, use an ex-
tension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
6. If operating a power tool in a damp location is un-
avoidable, use a ground fault circuit interrupter (GFCI)
protected supply. Use of a GFCI reduces the risk of elec-
tric shock.
PERSONAL SAFETY
1. Stay alert, watch what you are doing and use com-
mon sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury.
2. Use personal protective equipment. Always wear
eye protection. Protective equipment such as a respira-
tory mask, non-skid safety shoes and hearing protection
used for appropriate conditions will reduce the risk of
personal injury.
3. Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or
energizing power tools that have the switch on invites
accidents.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
5. Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or jew-
elry. Keep your hair and clothing away from moving
parts. Loose clothes, jewelry or long hair can be caught
in moving parts.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
5
GENERAL SAFETY RULES
7. If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
POWER TOOL USE AND CARE
1. Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
2. Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained us-
ers.
5. Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s opera-
tion. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits, etc.
in accordance with these instructions, taking into ac-
count the working conditions and the work to be per-
formed. Use of the power tool for operations different
from those intended could result in a hazardous situa-
tion.
8. Use clamps to secure your workpiece to a stable
surface. Holding a workpiece by hand or using your
body to support it may lead to loss of control.
9. KEEP GUARDS IN PLACE and in working order.
SERVICE
1. Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is main-
tained.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities may contain
chemicals, including lead, known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of
these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
masonry products.
• Arsenic and chromium from chemically treated
lumber.
Your risk from these exposures varies depending on
how often you do this type of work. To reduce your ex-
posure to these chemicals, work in a well-ventilated area
with approved safety equipment such as dust masks
specially designed to filter out microscopic particles.
Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool”
in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
SAVE THESE SAFETY INSTRUCTIONS.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
1. TOOL PURPOSE. This drill press is designed to drill through metal wood, plastic, and tiles. Drilling through
other materials could result in fire, injury, or damage to the workpiece. Using the machine for any other purpose
for which it is not designed may result in serious injuries, machine damage and voiding of the warranty.
2. MACHINE MOUNTING. For operation safety, the drill press must be securely mounted onto a flat and stable
surface or stand.
3. PERSONAL SAFETY.
• Always wear ANSI Z87.1-approved glasses with side shields, hearing protection and a dust mask.
• Do not wear loose clothing or jewelry, as they might get drawn in by the tool. Tie back long hair.
• DO NOT wear gloves while operating this machine.
4. Electric Cords. Keep cords away from heat, oil, sharp edges, and moving parts of the tool. Have an electrician
replace or repair damaged or worn cords immediately.
5. TOOL & ACCESSORIES INSPECTION. Before operation, check the tool and accessories for any damage or
missing parts. Do not use the tool if any part is missing or damaged. Make sure all adjustments are correct and all
connections are tight. Keep all guards in place.
6. DRILLING ACCESSORIES.
• Make sure the drill bit is not damaged before use; only use undamaged drill bits
• Make sure the drill bit is securely locked in the chuck before turning ON.
• Make sure the chuck key is removed from the chuck before turning ON.
• Use clamps or a vise (sold seperately to secure a workpiece to the table. This will prevent the workpiece from
rotating with the drill bit.
7. Make sure the table lock is tightened before starting the drill press.
8. WORKPIECE REQUIREMENTS.
• Only stand workpieces sturdy enough to withstand the force of the drill bit.
• Inspect the workpiece for imperfections, nails, staples, etc. before drilling. Never drill stock that has questionable
imperfections or embedded foreign objects.
• Do not drill materials without a flat surface unless a suitable support is used (clamp or vise).
9. PREVENTING ACCIDENTAL STARTING. Make sure the power switch is in the OFF position prior to plugging in
the machine. Always make sure the power switch is in the OFF position and the machine is unplugged when doing
any cleaning, assembly, setup operations, or when not in use.
10. Do not operate this tool until it is completely assembled and installed according to the instructions.
11. Remove scrap pieces and other objects from the table before turning ON the drill press.
6
DRILL PRESS SAFETY WARNINGS
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
SPECIFIC RULES FOR THE DRILL PRESS
12. DRILLING THE WORKPIECE.
• Allow spindle to reach full speed before drilling the workpiece.
• Never start the machine with the drill bit pressed against the workpiece.
• Adjust the table or depth stop to avoid drilling into the table.
• Set the drill press to the speed that is appropriate for the material being drilled.
13. Do not touch moving pieces. Keep hands away from the drill bit during operation. If cleaning is necessary,
turn off the machine and use a brush to remove sawdust and chips instead of your hands.
14. Never perform layout, assembly or set-up work on the table while the machine is ON.
15. After turning off the drill press, wait until the spindle comes to a complete stop before touching the workpiece.
Always turn the drill OFF before removing scrap from the table.
16. Before leaving the machine, always turn OFF and unplug the machine, remove the drill bit, and clean the table.
Turn Off and unplug the machine before cleaning, making adjustments or changing drill bits. Accidental start-ups
may occur if the tool is plugged in during an accessory change or adjustment.
17. CLEANING. Never use solvents to clean plastic parts. Solvents could dissolve or otherwise damage the
material. Use only a soft damp cloth to clean plastic parts.
18. REPLACEMENTS. Should any component of your drill press be missing/damaged or fail in any way, shut OFF
the switch and remove the plug from power supply outlet. Replace the missing, damaged, or failed parts using
only identical replacement parts before resuming operation.
CALIFORNIA PROPOSITION 65 WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities may contain
chemicals, including lead, known to the State of California to cause cancer, birth defects, or other reproductive
harm. Wash hands after handling. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies depending on how often you do this type of work. To reduce your exposure
to these chemicals, work in a well-ventilated area with approved safety equipment such as dust masks specially
designed to filter out microscopic particles.
These safety instructions can’t possibly warn of every scenario that may arise with this tool,
so always make sure to stay alert and use common sense during operation.
7
DRILL PRESS SAFETY WARNINGS
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
8
ELECTRICAL INFORMATION
3. Check with a licensed electrician or service personnel if you do not completely under-
stand the grounding instructions or whether the tool is properly grounded.
4. Use only three-wire extension cords that have three-pronged plugs and outlets that
accept the tool’s plug (INSERT CR). Repair or replace a damaged or worn cord immedi-
ately.
CAUTION! In all cases, make certain the outlet in question is properly grounded. If you
are not sure, have a licensed electrician check the outlet.
GROUNDING INSTRUCTIONS
In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current
and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding
conductor and a grounding plug. The plug MUST be plugged into a matching outlet that is properly installed and
grounded in accordance with ALL local codes and ordinances.
1. Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a licensed electri-
cian.
2. Improper connection of the equipment grounding conductor can result in electric shock. The conductor with the
green insulation (with or without yellow stripes) is the equipment grounding conductor. If repair or replacement of
the electric cord or plug is necessary, DO NOT connect the equipment grounding conductor to a live terminal.
1. Examine extension cord before use. Make sure your extension cord is properly wired and in good condition.
Always replace a damaged extension cord or have it repaired by a qualified person before using it.
2. Do not abuse extension cord. Do not pull on cord to disconnect from receptacle; always disconnect by pulling on
plug. Disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.
Protect your extension cords from sharp objects, excessive heat and damp/wet areas.
3. Use a separate electrical circuit for your tool. This circuit must not be less than a 12-gauge wire and should be
protected with a 15A time-delayed fuse. Before connecting the motor to the power line, make sure the switch is in
the OFF position and the electric current is rated the same as the current stamped on the motor nameplate. Running
at a lower voltage will damage the motor.
Fig. 1
GUIDELINES AND RECOMMENDATIONS FOR EXTENSION CORDS
When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An
undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table below shows
the correct size to be used according to cord length and ampere rating. When in doubt, use a heavier cord. The
smaller the gauge number, the heavier the cord.
AMPERAGE
REQUIRED GAUGE FOR EXTENSION CORDS
25 ft. 50 ft. 100 ft. 150 ft.
6.2A 18 gauge 16 gauge 14 gauge 12 gauge
9
TOOL PURPOSE
Drill presses are mainly used to drill clean, precise cylindrical holes into workpieces or enlarge existing holes. You
may also find other uses for your drill press such as reaming, countersinking, counterboring, tapping, etc. Refer to
the diagram below and on page 10 to become familiarized with the parts and controls of your drill press.
V
arious drill bits, vises, clamps and other accessories can be purchased from wenproducts.com
KNOW YOUR DRILL PRESS
1
2
8
3
5
9
6
7
10
4
11
12
13
1. Speed Control Handle
2. Table Locking Handle
3. Base
4. ON / OFF Switch with Safety Key
5. Digital Speed Readout
6. Chuck
7. Column
8. Table
9. Housing Cover Screw
10. Laser ON / OFF Switch
11. Feed Handle
12. Rack
13. Crank Handle
10
UNPACKING
With the help of a friend or trustworthy foe, carefully remove the drill press from the packaging. Make sure to take
out all contents and accessories. Do not discard the packaging until the drill press is completely assembled.
Before using the drill press, you must assemble the unit using the instructions in this section. Check your packing
list against the diagram below. If any part is damaged or missing, please contact our customer service at 1-847-
CLEANING THE WORK TABLE SURFACE
Your drill press comes protected with a layer of anti-rust coating on its exposed (non-painted) metal surfaces, Clean
the rust-protected surfaces using a soft cloth, moistened with kerosene. Do not use gasoline, or cellulose-based
solvents such as paint thinner or lacquer thinner, as these will damage the painted surfaces. After cleaning, apply a
light coat of good-quality paste wax to the table and column to prevent rust. Wipe all parts thoroughly with a clean,
dry cloth.
PACKING LIST
Check your packing list against the diagram below. If any part is damaged or missing, please contact our customer
service at 1-847-429-9263, M-F 8-5 CST or email us at [email protected] and DO NOT plug the drill
press in or turn ON.
Tools needed for assembly (not included):
• Adjustable wrench
• Hammer and block of wood, or rubber mallet, or dead-blow hammer
ASSEMBLY & ADJUSTMENTS
Description Qty.
Head / Motor Assembly 1
Base 1
Table Locking Handle 1
Table Assembly 1
Table Adjustment Handle 1
AA Batteries 2
Chuck 1
Chuck Key 1
Spped Adjustment Handle 1
Feed Handle 3
Hex Wrenches 3
Socket Head Cap Screws 4
Column Assembly 1
11
ATTACHING COLUMN TO BASE (FIG. 2)
1. Place the column tube (Fig. 2 - 1) on the base (Fig. 2 - 2), aligning
the column support holes to the base holes.
2. Install a socket head cap screw (Fig. 2 - 3) in each column support
hole and tighten screws using the included 5mm hex wrench.
ATTACHING TABLE TO COLUMN (FIG. 3)
1. Loosen the set screw (Fig. 3 - 4) in the rack collar (Fig. 3 - 5) and
remove the collar from the column.
2. Remove the rack (Fig. 3 - 6) from the column (Fig. 3 - 7).
3. Insert the worm shaft (Fig. 3 - 8) into the hole of the table support
crank handle (Fig. 3 - 9) from inside the table support. The worm
shaft should extend outside the housing about 1"
(25 mm).
4. Insert the rack (Fig. 4 - 6) into the geared groove of the table support
(Fig. 4 - 9). Make sure the worm shaft (Fig. 4 - 8) on the inside of the
table support is engaged with the teeth of the rack. The table support
should sit at the center of the rack.
5. Slide the table support and rack assembly (Fig. 4 - 6, 4 - 8, and 4 -
9) down together onto the column. Insert the bottom edge of the rack
into the lip (Fig. 4 - 10) of the column support. Hold in this position
until step 6 is complete.
6. Place the collar (Fig. 3 - 5) bevel side down over the rack. Tighten
the set screw (Fig. 3 - 4) with the 3mm hex wrench to hold the rack
in position.
NOTE: Make sure there is enough clearance to allow the table to rotate
around the column. To avoid column or collar damage, only tighten
the set screw enough to keep collar in place.
7. Insert the table support crank handle (Fig. 5 - 12) into the worm
gear shaft on the side of the table support (Fig. 5 - 11). Make sure the
set screw (Fig. 5 - 13) is aligned on the flat of the shaft and as close
to the table support as possible. Tighten the set screw.
8. Position the table in the same direction as the base, and tighten the
column lock handle (Fig. 5 - 14).
2
5
4
6
7
9
9
ASSEMBLY & ADJUSTMENTS
WARNING! Do not plug in or turn on the tool until it is fully assembled according on the instructions. Failure
to follow the safety instructions may result in serious personal injury.
Fig. 2
Fig. 3
Fig. 4
Fig. 5
3
1
8
8
6
10
12
13
11
14
1. Carefully lift the drill press head assembly (Fig. 6 - 1) and
position it over the column (Fig. 6 - 2).
2. Place the mounting opening on the drill press head over the top
of the column. Make sure the drill press head is seated properly
on the column.
3. Align the direction of the drill press head with the direction of
the base and the table.
4. Tighten the set screws (Fig. 6 - 3) using a hex wrench.
FEED HANDLES (FIG. 7)
1. Insert the three speed handles (Fig. 7 - 4) into the threaded
openings on the feed hub (Fig. 7 - 5).
2. Manually tighten the handles into the openings.
NOTE: When using the drill press, one or two of the feed handles
may be removed if an unusually-shaped workpiece interferes with
the handle rotation.
SPEED HANDLE (FIG. 8)
1. Insert the speed handle (Fig. 8 - 6) into the threaded opening
on the speed hub (Fig. 8 - 7).
2. Manually tighten the handle into the opening.
MOUNTING THE DRILL PRESS (FIG. 9)
The drill press must be securely fastened through the mounting
holes (Fig. 9 - 8) to a stand or workbench with heavy-duty
fasteners (not included). This will prevent the drill press from
tipping over, sliding, or walking during operation.
IMPORTANT: If the stand or workbench has a tendency to move
during operation, fasten the workbench securely to the floor.
12
ASSEMBLY & ADJUSTMENTS
DRILL PRESS HEAD TO COLUMN (FIG. 6)
CAUTION! The drill press head is heavy. To avoid injury,
two people should lift it into position.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
1
3
3
2
4
5
7
6
8
8
1
2
INSTALL THE CHUCK (FIG. 10)
1. Inspect and clean the taper hole in the chuck and the spindle.
Remove all grease, coatings, and particles from the chuck and
chuck arbor surfaces with a clean cloth.
2. Open the chuck jaws by manually turning the chuck barrel
clockwise. Make sure the jaws are completely recessed inside the
chuck.
3. Seat the chuck on the chuck arbor by placing a block of wood
(not included) under the chuck and tapping the wood with a
hammer (not included). Alternatively, tap the chuck with a rubber
mallet (not included). Pull firmly down on the chuck to ensure it is
properly seated on the spindle. If it comes loose, clean the tapers
and repeat steps 1-3 until the chuck is properly seated.
CAUTION: To avoid damaging the chuck, make sure the jaws are
completely recessed into the chuck. Do not use a metal hammer
to drive the chuck into the spindle.
REMOVE THE CHUCK
1. Turn the feed handles to lower the chuck to the lowest position.
2. Place a ball joint separator above the chuck and tap it lightly with
a hammer to cause the chuck to drop from the spindle. Alternately,
you may use a set of #6 Jacobs wedges (sold serperately).
NOTE: Be prepared to catch chuck as it falls, or place a cloth on
the table to avoid damage to the table or chuck.
RAISE AND LOWER THE TABLE (FIG. 11)
1. Loosen the support lock handle (Fig. 11 - 1) and turn the crank
handle (Fig. 11 - 2) until the table is at the desired height.
2. Tighten the support lock handle before drilling.
ROTATE THE TABLE (FIG. 11)
1. Loosen the support lock handle (Fig. 11 - 1) and turn the table
around the column to the desired position.
NOTE: The rack should rotate around the column with the table
support bracket. If the rack binds and does not rotate, slightly
loosen the set screw in the rack collar.
2. Tighten the support lock before drilling.
Chuck
Spindle
13
ASSEMBLY & ADJUSTMENTS
Fig. 10
Fig. 11

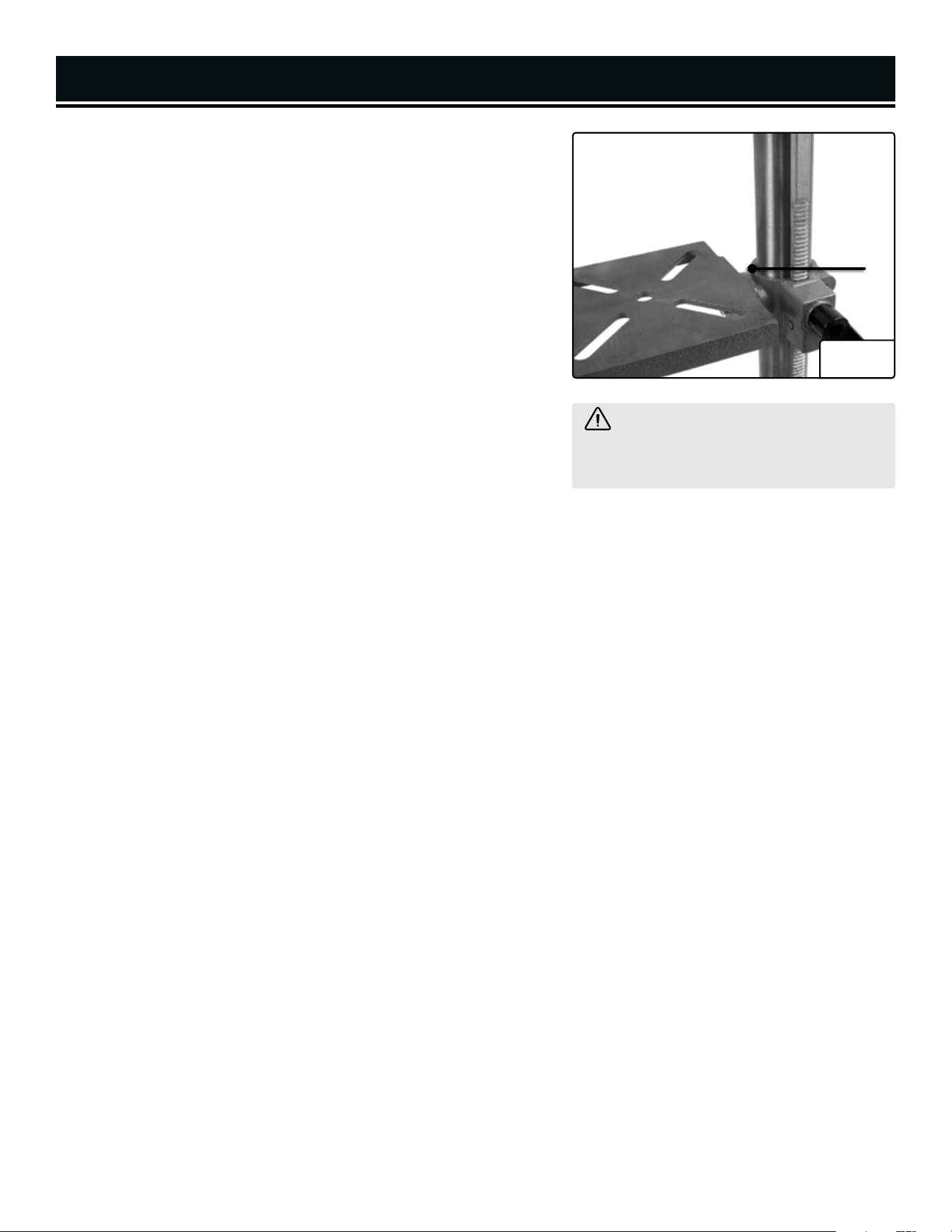

TILT THE TABLE (FIG. 12)
1. Loosen the bevel lock bolt (under table) with a suitable socket or
wrench (not included).
2. Tilt the table to the desired angle, using the bevel scale (Fig. 12
- 1) as a basic guide.
3. Re-tighten the bevel lock bolt.
4. To return the table to its original horizontal position, loosen the
bevel lock bolt.
5. Realign the table to the 0° setting on the bevel scale.
6. Tighten the bevel lock bolt with the wrench.
INSTALLING A DRILL BIT
1. Place the chuck key into the side keyhole of the chuck, meshing
the key with the gear teeth.
2. Turn the chuck key counterclockwise to open the chuck jaws on
the bit shank.
3. Insert a drill bit into the chuck far enough to obtain the maximum
grip of the chuck jaws.
4. Center the drill bit in the chuck jaws before the final tightening
of the chuck.
5. Tighten the chuck jaws using the chuck key to ensure that the
drill bit will not slip while drilling. Tighten all three holes on the
chuck to ensure maximum grip on the bit.
6. Remove the chuck key.
14
ASSEMBLY & ADJUSTMENTS
Fig. 12
1
WARNING! Make sure the chuck
key is removed from the chuck before
starting any drilling operation.
SQUARING THE TABLE TO THE DRILL BIT
1. Insert a 3-inch drill bit into the chuck and tighten.
2. Raise and lock the table about 1 inch from the end of the drill bit.
3. Place a combination square on the table. The drill bit should be parallel to the straight edge of the square.
4. If an adjustment is needed, loosen the bevel lock with a wrench.
5. Square the table to the bit by tilting the table.
6. Tighten the bevel lock bolt when square.

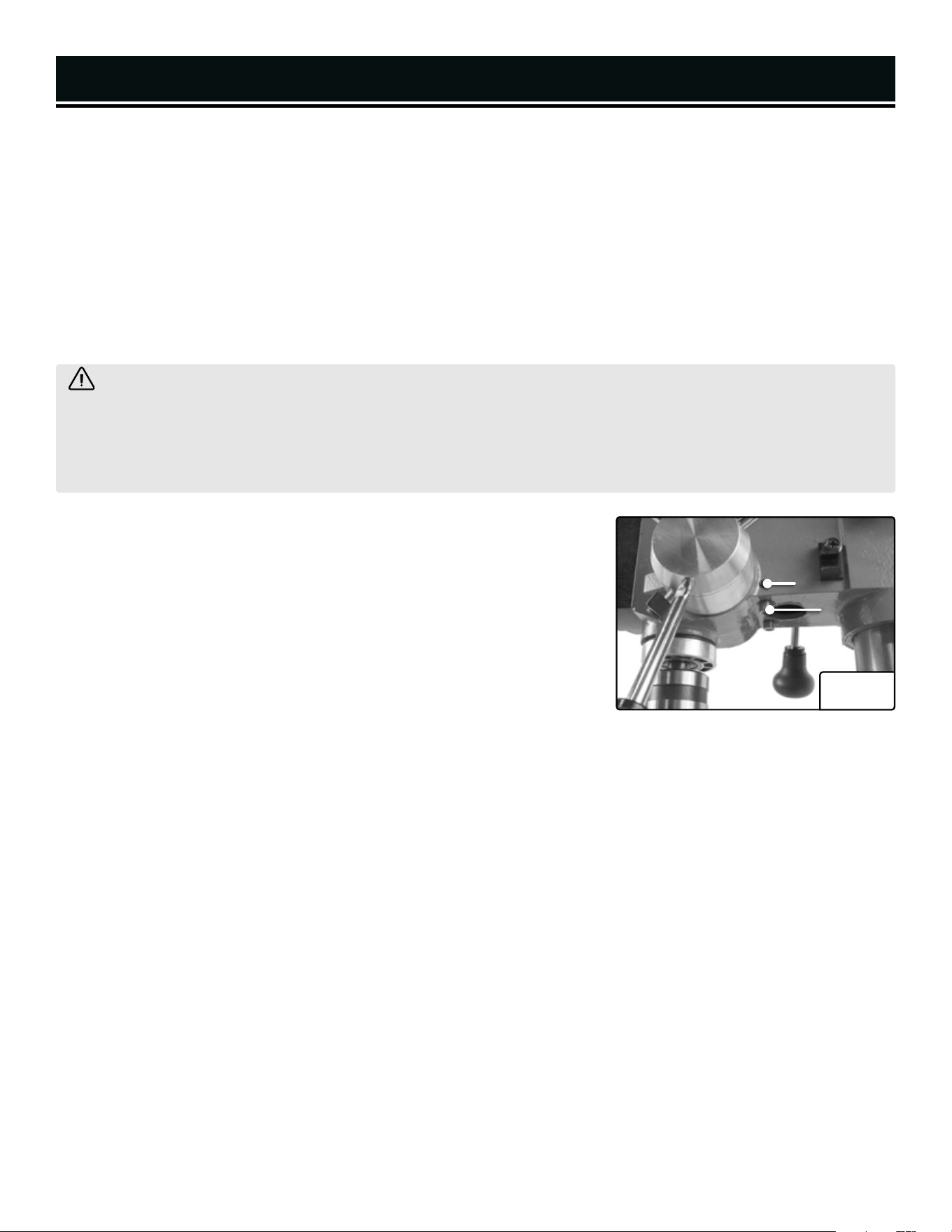

ADJUSTING THE LASER (FIG. 13)
1. Place a workpiece on the table.
2. Turn the laser switch to the ON position.
3. Lower the drill bit to meet the workpiece. The two laser lines should
cross where the drill meets the workpiece.
4. If the laser needs to be adjusted:
a. Using a 3mm hex key, turn the laser adjustment screws (Fig. 13 -
1) counterclockwise.
b. Rotate the laser light housing (Fig. 13 - 2) until the two laser lines
intersect where the drill meets the workpiece. DO NOT stare directly
at the laser lines.
5. Re-tighten the adjustment set screws (Fig. 13 - 1).
15
ASSEMBLY & ADJUSTMENTS
WARNING! Do not stare directly at the laser beam. Observe all safety rules.
• Never aim the beam at a person or an object other than the workpiece.
• Always make sure the laser beam is aimed at a workpiece that does not have reflective surfaces, as the laser
beam could reflect into your eyes or the eyes of others.
Fig. 13
1
2
16

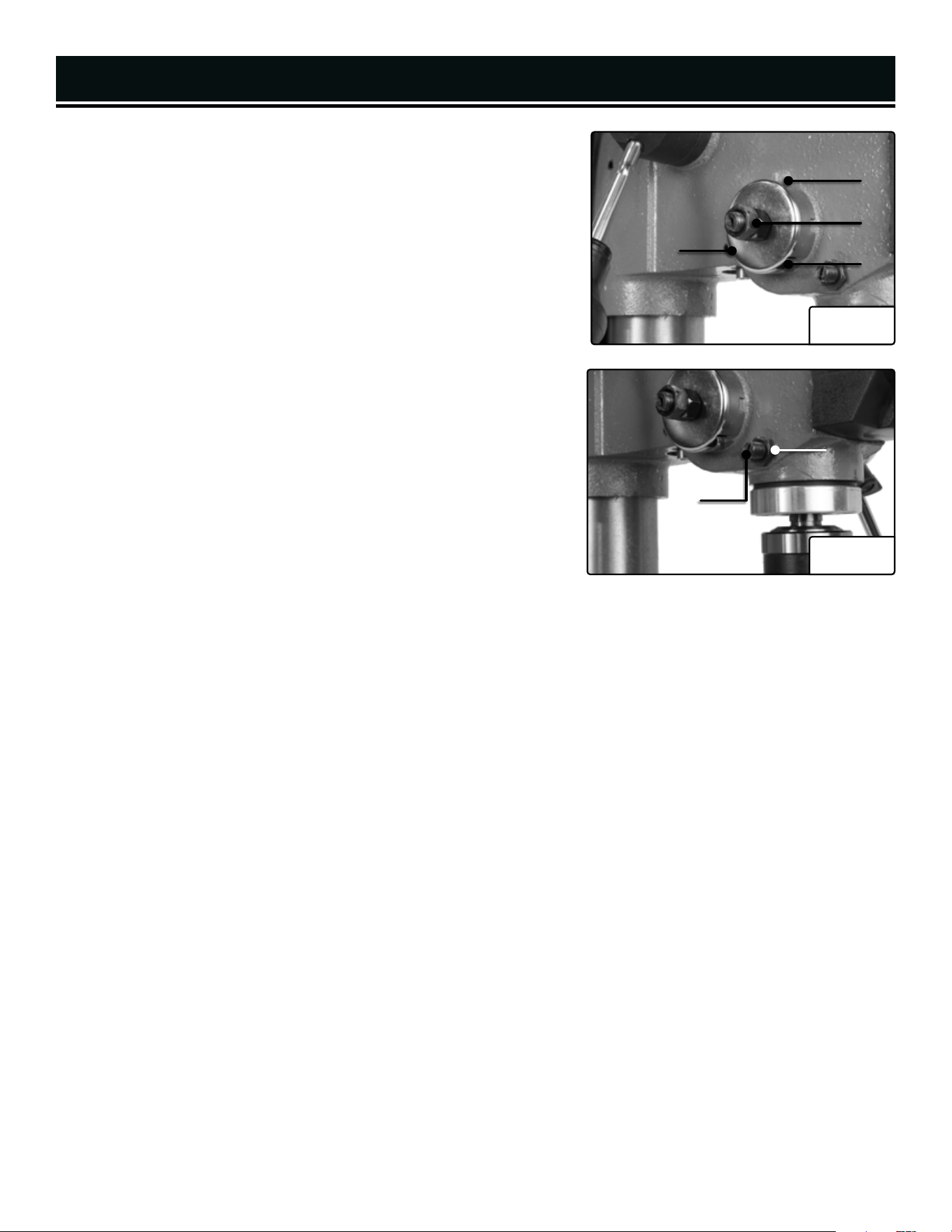

SPINDLE RETURN SPRING (FIG. 14A)
The spindle is equipped with an auto-return mechanism. The main
components are a spring and a notched housing. The spring was
properly adjusted at the factory and should not be readjusted unless
absolutely necessary.
1. Unplug the drill press.
2. Place a screwdriver into the loop (Fig. 14A - 1) to hold the spring
in place.
3. Loosen the two housing nuts (Fig. 14A - 3) approximately 1/4”
(6mm). Do not remove the nuts from the threaded shaft. Do not
allow the spring or spring housing to slip out of control.
4. While firmly holding the spring housing (Fig. 14A - 4), carefully
pull the spring housing out until it clears the raised notch (Fig. 14A
- 2).
5. Turn the housing so that the next notch is engaged with the raised
notch (Fig. 14A - 2).
• To increase the spindle return tension, turn the spring housing
counter-clockwise.
• To decrease the tension, turn the spring housing clockwise.
6. Tighten the two housing nuts. Do not overtighten the two nuts. If
the nuts are tightened too much, the movement of the spindle and
feed handles will become sluggish.
ANGULAR “PLAY” OF THE SPINDLE (FIG. 14B)
Move the spindle to the lowest downward position and hold in place.
Try to make the spindle revolve around its axis while also moving it
with a side motion. If there is too much “play”, proceed as follows:
1. Loosen the lock nut (Fig. 14B - 5).
2. Without obstructing the upward and downward motion of the
spindle, turn the screw (Fig. 14B - 6) clockwise to eliminate the
“play.” NOTE: A little bit of “play” is normal.
3. Tighten the lock nut (Fig. 14B - 5).
ASSEMBLY & ADJUSTMENTS
Fig. 14A
Fig. 14B
2
3
1
4
5
6
Belt tension and drill press speed is controlled by automatic adjustments made to the diameter of the front spindle
when the speed handle is moved.
NOTE: See page 19 for information on the variable speed function of this drill press.
1. Plug in the drill press and turn it ON. Adjust the speed to the highest setting, then turn the drill press OFF and
unplug it.
2. Open the belt cover (remove the Phillips-head screw from the right side, then open the lid.
3. Press down on the bottom side of the motor pulley. This will loosen the belt tension. Work the belt off the pulleys.
4. Place the new belt on the motor pulley, then press down on the bottom side of the pulley as before and get the
belt as close to the motor shaft as possible. Make sure the bottom side of the pulley is pushed fully downward.
5. Work the belt around the spindle pulley. The belt will not be taut, but will self-seat later.
6. Close and secure the belt cover.
7. Plug in and turn ON the drill press. The belt will self-seat and achieve proper tension on its own.

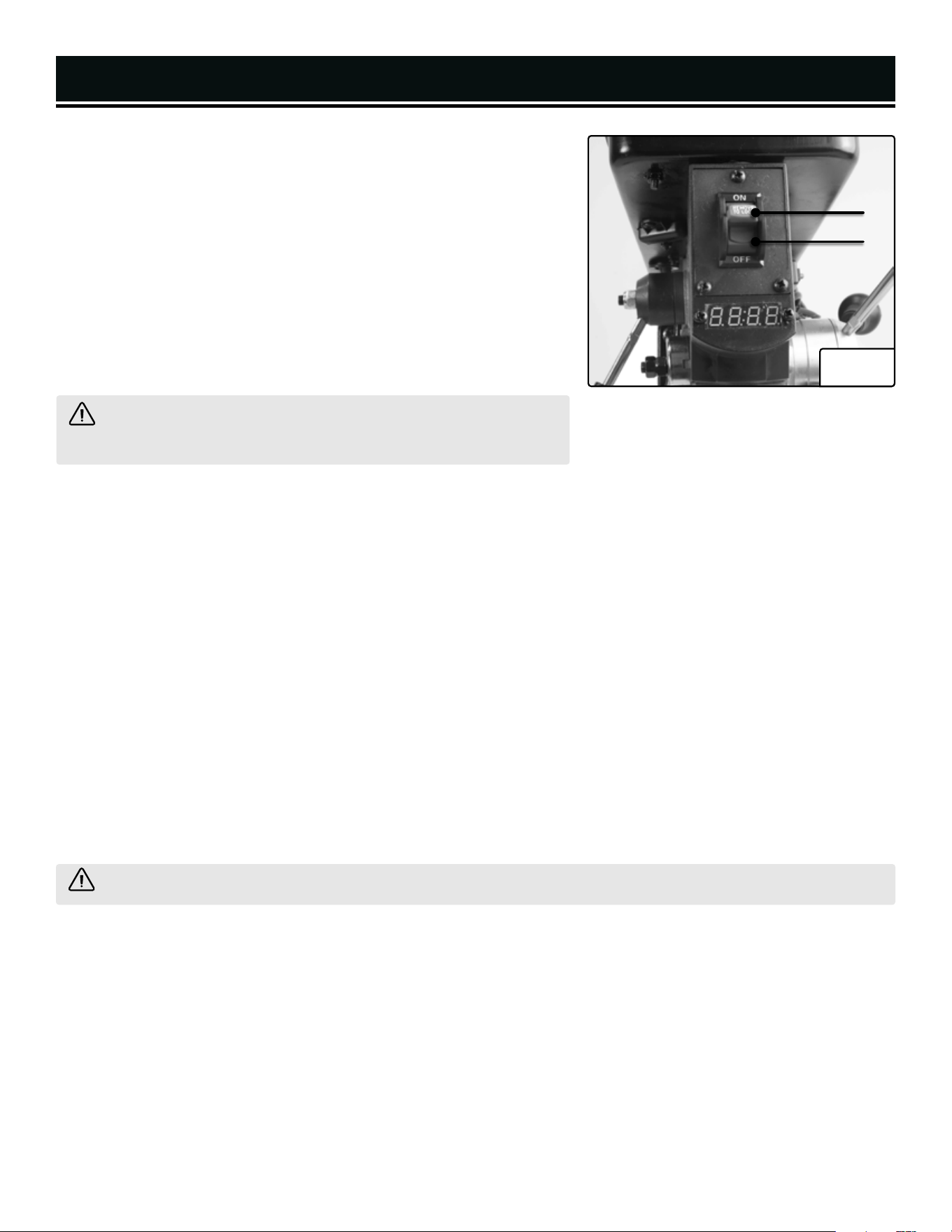

DRILL PRESS ON/OFF SWITCH (FIG. 15)
1. To turn the drill press ON, insert the yellow safety key
(Fig. 15 - 1) into the switch housing (Fig. 15 - 2). As a safety feature,
the switch cannot be turned ON without the safety key.
2. Turn the switch to the ON position.
3. To turn the drill press OFF, flip the switch downward.
4. To lock the switch in the OFF position, remove the safety key (Fig.
15 - 1) from the switch. Store the safety key in a safe place.
CHANGING THE BELT
17
ASSEMBLY & ADJUSTMENTS
WARNING! Disconnect the drill press from the power source
before replacing the belt.
WARNING! Do not change the drive speed when the drill press is turned off.
Fig. 15
2
1

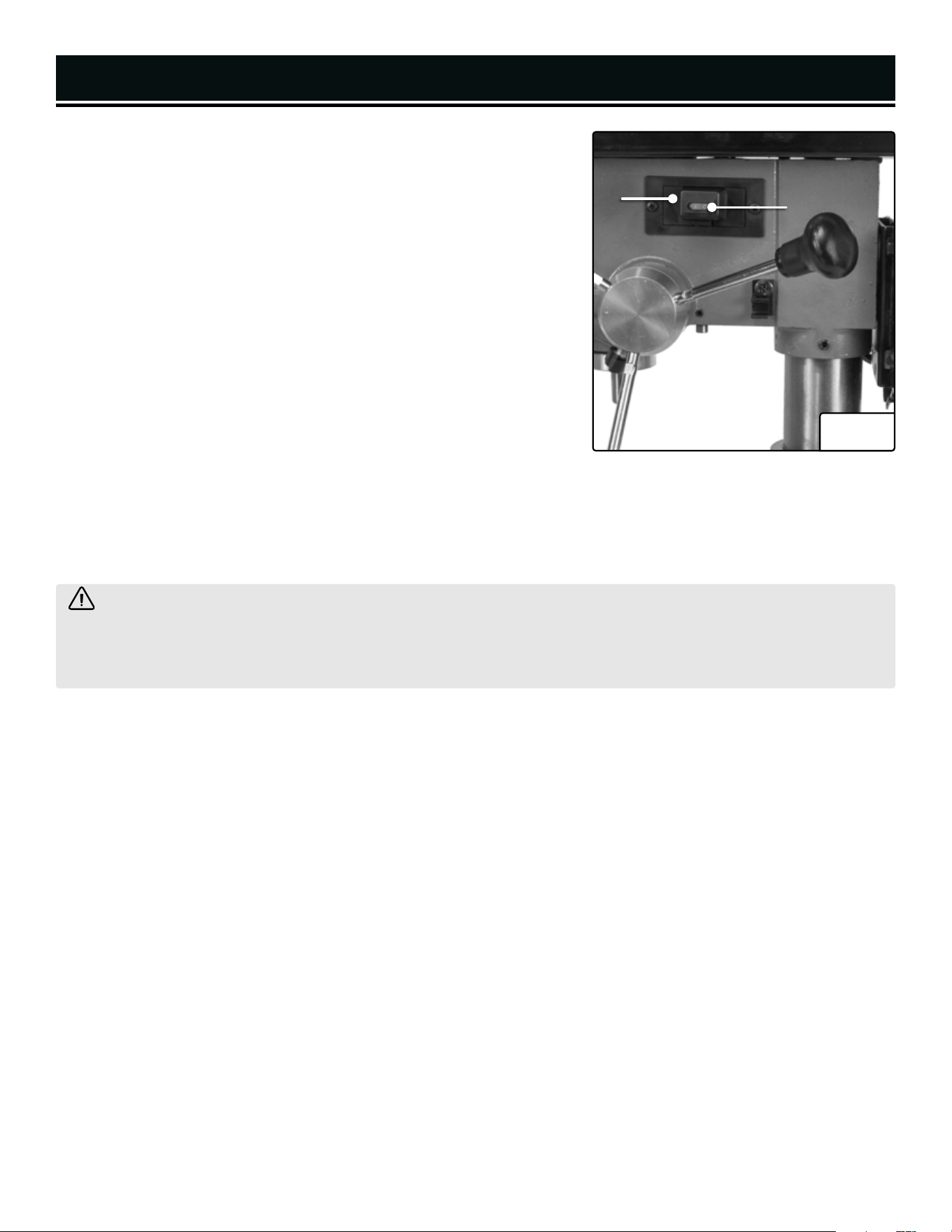

LASER LINE ON/OFF SWITCHES (FIG. 16)
The laser switch (Fig. 16- 1) is located on the left hand side of the
drill press.
1. Pull the tab located below the laser switch and lift up the laser
switch cover (Fig. 16 - 2).
2. Install two AA batteries into the battery slots and close the switch
cover.
POSITION THE TABLE AND WORKPIECE
Always place a piece of backup material (wood, plywood, etc.) on
the table underneath the workpiece. This will prevent splintering on
the underside of the workpiece as the drill bit breaks through. To
keep the material from spinning out of control, it must contact the
left side of the column, or be clamped (not included) to the table.
NOTE: For small workpieces that cannot be clamped to the table,
use a drill press vise (not included). The vise must be clamped or
bolted to the table to avoid injury.
DRILLING GUIDELINES - DRILLING A HOLE
1. Mark where you want to drill the workpiece by using a center punch or a sharp nail. Turn ON the laser to mark
your drilling point.
2. Before turning the drill press ON, turn the feed handles to bring the drill bit down. Line the drill bit tip up with the
mark. Clamp the workpiece in place.
3. Turn ON the drill press and pull down on the feed handles with the appropriate force needed to allow the drill bit
to drill the material.
NOTE: Feeding too slowly might cause the drill bit to turn in the chuck. Feeding too rapidly might stop the motor,
cause the belt to slip, force the workpiece loose, or break the drill bit. Practice with scrap material to get the feel of
the machine before attempting to do any drilling operation.
18
OPERATION
WARNING! To prevent the workpiece and the backup material from slipping from your hand while drilling,
position the workpiece and backup material to the left side of the column. If the workpiece and the backup
material are not long enough to reach the column, clamp the workpiece and back material to the table. Failure to
do this could result in personal injury.
Fig. 16
1
2

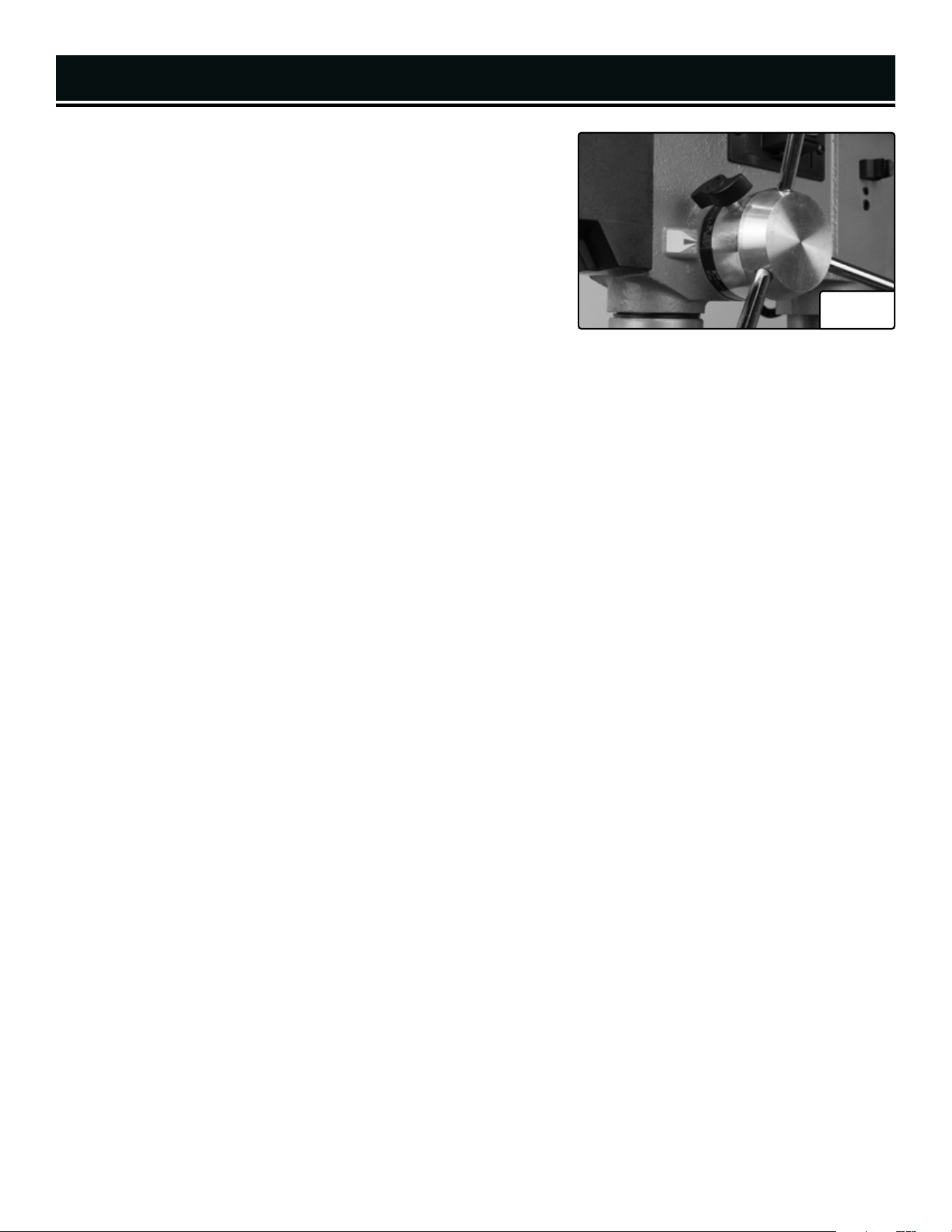

ADJUST THE DRILLING DEPTH (FIG. 17)
1. Loosen the depth scale knob and turn the depth scale ring to the
desired depth.
2. Lock the scale ring in place by tightening the depth knob. This
will stop the bit once it reaches a certain depth.
DRILLING SPEEDS
NOTE: View Drill Bit Size Recommendations on page 20 for general
guidelines.
There are a few important factors to keep in mind when
determining the best drilling speed:
• Material type
• Hole size
• Drill bit or cutter type
• Quality desired
19
OPERATION
Smaller drill bits require greater speed than larger drill bits. Softer materials require greater speed than harder
materials. See page 19 for recommended speeds for particular materials.
DRILLING METAL
• Use metal-piercing twist drill bits.
• It is always necessary to lubricate the tip of the drill with oil to prevent overheating of the drill bit.
• All metal workpieces should be clamped down securely. Any tilting, twisting, or shifting causes a rough drill
hole, and increases the potential of drill bit breakage.
• Never hold a metal workpiece with your bare hands. The cutting edge of the drill bit may seize the workpiece
and throw it, causing serious injury.
• If the metal is flat, clamp a piece of wood under it to prevent turning. If it cannot be laid flat on the table, then
it should be blocked and clamped.
DRILLING WOOD
• Brad point bits are preferred. Metal piercing twist bits may be used on wood.
• Do not use auger bits. Auger bits turn so rapidly that they can lift the workpiece off of the table and whirl it
around.
• Always protect the drill bit by positioning the table so that the drill bit will enter the center hole when drilling
through the workpiece.
• To prevent splintering, feed the drill bit slowly right as the bit is about to cut through to the backside of the
workpiece.
• To reduce splintering and protect the point of the bit, use scrap wood as a backing or a base block under the
workpiece.
Fig. 17
20
DRILL BIT SIZE RECOMMENDATIONS
RPM Wood Aluminum, Zinc, Brass Iron, Steel
2000 to 3100 3/8 in. 9.5 mm 7/32 in. 5.6 mm 3/32 in. 2.4 mm
1400 to 2000 5/8 in. 16 mm 11/32 in. 8.75 mm 5/32 in. 4 mm
1000 to 1400 7/8 in. 22 mm 15/32 in. 12 mm 1/4 in. 6.4 mm
800 to 1000 1-1/4 in. 31.75 mm 11/16 in. 17.5 mm 3/8 in. 9.5 mm
530 to 800 1-5/8 in. 41.4 mm 3/4 in. 19 mm 5/8 in. 16 mm

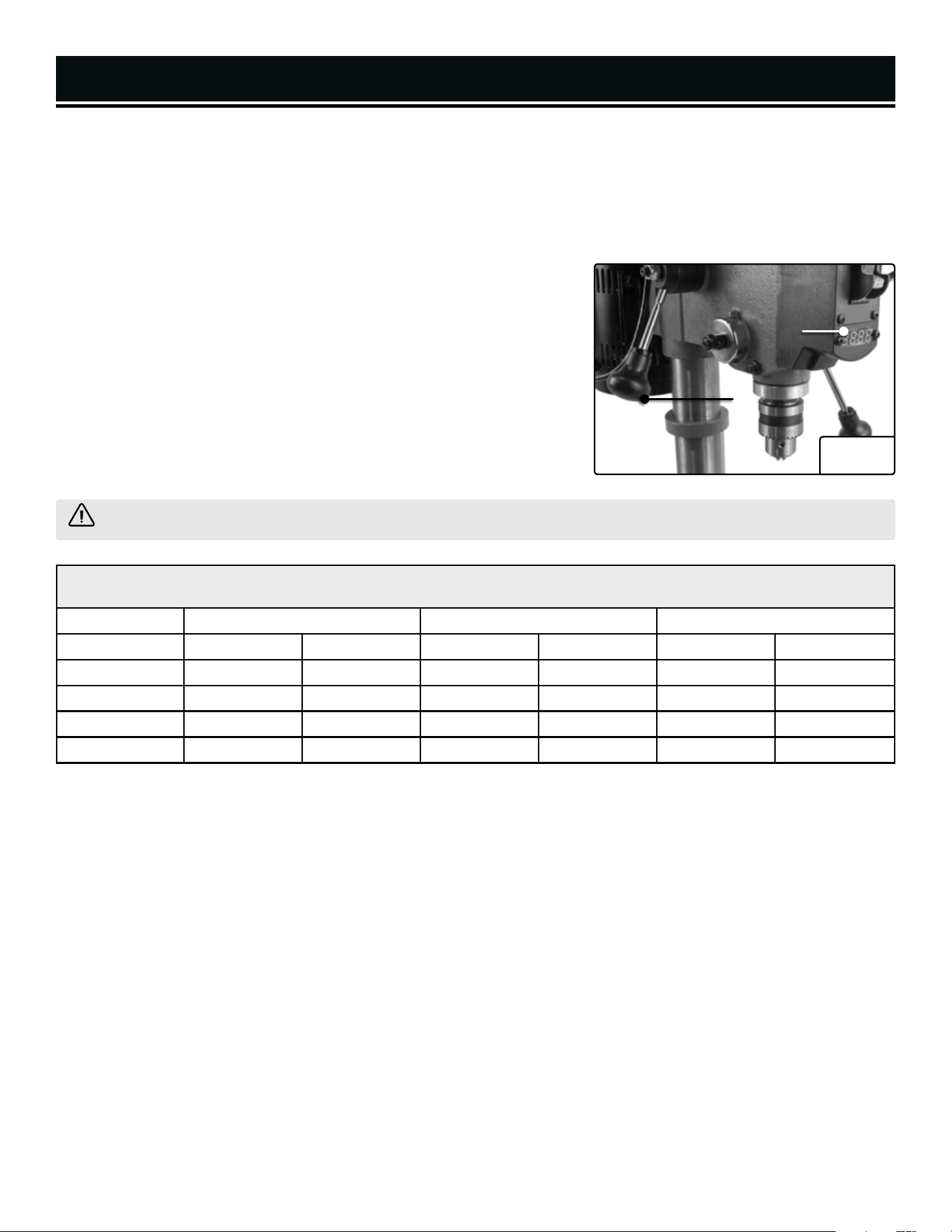

MECHANICAL VARIABLE SPEED (FIG. 18)
This is a mechanical variable speed drill press. To increase or
decrease the speed when operating, raise or lower the speed handle
(Fig. 18 - 1).
Use the following table to determine the recommended speed for the
drill size you are using and the type of material you are to drill. While
drilling, check the speed on the digital speed readout (Fig. 18 - 2)
located at the front of the drill press.
FEEDING THE DRILL BIT
• Pull down on the feed handles with only enough force to allow the drill bit to cut.
• Feeding too rapidly might stall motor, cause the belt to slip, damage the workpiece, or break the drill bit.
• Feeding too slowly will cause the drill bit to heat up and burn the workpiece.
OPERATION
Fig. 18
2
1
WARNING! Do not change speeds using the variable speed handle without turning on the machine.
ROUTINE INSPECTION
Before each use, inspect the general condition of the tool. If any of these following conditions exist, do not use until
parts are replaced.
CHECK FOR:
• Loose hardware or improper mounting,
• Misalignment
• Damaged cord/electrical wiring,
• Cracked or broken parts, and
• Any other condition that may affect its safe operation
CAUTION: Most plastics are susceptible to damage from various types of commercial solvents. Do not use any
solvents or cleaning products that could damage the plastic parts. Some of these include but are not limited to:
gasoline, carbon tetrachloride, chlorinated cleaning solvents, and household detergents that contain ammonia.
CLEANING & STORAGE
1. After every operation, use a vacuum to remove sawdust or metal shavings from the tool surfaces, motor housing
and work area. Keep the ventilation openings free from dust and debris to prevent the motor from overheating.
2. Wipe the tool surfaces clean with a soft cloth or brush. Make sure water does not get into the tool.
3. Apply a light coat of paste wax to the column and table to help keep these surfaces clean and rust free.
4. Store the tool in a clean and dry place away from the reach of children.
LUBRICATION
The ball bearings in the spindle and the V-belt pulley assembly are greased and permanently sealed, and require no
lubrication. Pull the spindle down and oil the quill moderately every three months. Periodically lubricate the motor
pulley and motor shaft to avoid excessive vibration or speed adjustment failure.
Lubricate the table bracket and locking knobs if they become difficult to use.
PRODUCT DISPOSAL
Used power tools should not be disposed of together with household waste. This product contains electronic
components that should be recycled. Please take this product to your local recycling facility for responsible disposal
and to minimize its environmental impact.
21
MAINTENANCE
WARNING! To avoid accidents, turn OFF and unplug the tool from the electrical outlet before cleaning,
adjusting, or performing any maintenance or lubrication work.
WARNING! Any attempt to repair or replace electrical parts on this tool may be hazardous. Servicing of the
tool must be performed by a qualified technician. When servicing, use only identical WEN replacement parts.
Use of other parts may be hazardous or induce product failure.
PROBLEM CAUSE SOLUTION
Noisy Operation
or Excessive
Vibration
1. Incorrect belt tension.
1. Adjust the belt tension.
(See REPLACE THE BELT section)
2. Dry spindle. 2. Lubricate the spindle.
3. Loose spindle pulley.
3. Tighten the set screws on the side of the
spindle pulley.
4. Loose motor pulley.
4. Tighten the set screws on the side of the
motor pulley.
5. Seized motor pulley.
5. Lubricate motor pulley and motor shaft;
ensure that pulley opens and closes when
machine is ON and speed is adjusted.
The drill bit
burns or smokes
1. Drilling at the incorrect speed. 1. Change the speed.
2. The wood chips are not coming out
of the hole.
2. Retract the drill bit frequently to clear the
chips.
3. Dull drill bit. 3. Resharpen or replace the drill bit.
4. Feeding the workpiece too slowly. 4. Feed fast enough to cut the workpiece.
5. Not lubricated.
5. Lubricate the drill bit with cutting oil or
motor oil.
Excessive
drill run out or
wobble; drilled
hole is not round
1. Bent drill bit. 1. Replace the drill bit.
2. Bit improperly installed in the chuck. 2. Reinstall the bit.
3. Worn spindle bearings.
3. Bearings may need replacement. Contact
customer service at 1-847-429-9263.
4. Lengths of cutting flutes or angles
not appropriate for the hardness of the
wood grain.
4. Resharpen the drill bit correctly or replace
with the appropriate type.
5. Chuck not properly installed. 5. Reinstall the chuck.
22
TROUBLESHOOTING GUIDE
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replacements
should only be performed by an authorized technician. For any questions, please contact our customer service
at 1-847-429-9263, M-F 8-5 CST or email us at [email protected].
PROBLEM CAUSE SOLUTION
Drill bit binds in
the workpiece
1. The workpiece is pinching the bit. 1. Support or clamp the workpiece.
2. Excessive feed pressure. 2. Feed more slowly.
Spindle returns
too slowly or too
quickly
1. Coil spring has improper tension. 1. Adjust the coil spring tension (see p .17).
Chuck falls off
spindle
1. Dirt, grease, or oil on the tapered
surface on the spindle or in the chuck.
1. Clean the tapered surface of both the chuck
and spindle with a household detergent.
Motor will not
run
1. Defective or broken switch. 1. Contact customer service at 1-847-429-9263.
2. Defective or damaged power cord. 2. Contact customer service at 1-847-429-9263.
3. Open circuit, loose connections, or
burned out motor.
3. Contact customer service at 1-847-429-9263.
4. Low voltage.
4. Check the power line for the proper voltage.
Use another circuit or have a qualified electrician
upgrade the service.
5. Bad starting capacitor. 5. Contact customer service at 1-847-429-9263.
Motor stalls
1. Short circuit in motor. 1. Contact customer service at 1-847-429-9263.
2. Incorrect fuses or circuit breakers.
2. Replace with correct fuse or circuit breaker for
the circuit.
3. Overloaded circuit. 3. Turn off other machines and retry.
4. Low voltage.
4. Check the power line for the proper voltage.
Use another circuit or have a qualified electrician
upgrade the service.
23
TROUBLESHOOTING GUIDE
WARNING! Stop using the tool immediately if any of the following problems occur. Repairs and replacements
should only be performed by an authorized technician. For any questions, please contact our customer service
at 1-847-429-9263, M-F 8-5 CST or email us at [email protected].
24
EXPLODED VIEW & PARTS LIST
25
No. Part No. Description Qty.
1 4212B-001 Retaining Plate 1
2 4212B-002 Set Screw, M8x12 1
3 4212B-003 Cam 1
4 4212B-004 Ball Bearing, 6907Z 1
5 4212B-005 Elastic Ring 1
6 4212B-006
Spindle Movable
Pulley
1
7 4212B-007 Spindle Fixed Pulley 1
8 4212B-008 Key, A type, 4x4x64 1
9 4212B-009 Shaft Sleeve 1
10 4212B-010 Ball Bearing, 6203RZ 2
11 4212B-011 Retainer 1
12 4212B-012 Circlip, Ø17 1
13 4212B-013 V-Belt, Z-800 1
14 4212B-014 Circlip, Ø14 1
15 4212B-015 Motor Fixed Pulley 1
16 4212B-016 Motor Movable Pulley 1
17 4212B-017 Hex Screw, M6x10 6
18 4212B-018
Motor Compression
Spring
1
19 4212B-019 Key, A Type, 4x4x84 1
20 4212B-020 Spring Base 1
21 4212B-021 Spring Washer 1
22 4212B-022 Screw, M5x12 6
23 4212B-023 Cord Clamp 3
24 4212B-024 Screw, M6x12 5
25 4212B-025
Pulley Cover
Assembly
1
26 4212B-026 Rubber Bushing 2
27 4212B-027 Handle Knob 4
28 4212B-028 Handle Shaft 3
29 4212B-029 Handle Fixed Piece 1
30 4212B-030 Spring Pin, 6-15 2
31 4212B-031 Hex Screw, M8x8 2
32 4212B-032 Speed Sensor 1
33 4212B-033 Speed Sensor Base 1
34 4212B-034 Screw, ST4.2x10 1
35 4212B-035 Screw, S2.9x6 2
36 4212B-036 Laser Switch 1
No. Part No. Description Qty.
37 4212B-037 Battery Housing Cover 1
38 4212B-038 Battery Housing 1
39 4212B-039 Handle Seat 1
40 4212B-040 Spring Pin, 5-15 2
41 4212B-041 Feed Shaft 1
42 4212B-042 Depth Locking Knob 1
43 4212B-043 Scale Collar 1
44 4212B-044 Screw, M6x12 1
45 4212B-045
Digital Readout
Display
1
46 4212B-046 Switch Box 1
47 4212B-047 Switch Plate 1
48 4212B-048 Screw, ST4.2x10 2
49 4212B-049 Terminal 6
50 4212B-050 Screw, ST4.2x10 2
51 4212B-051 ON/OFF Switch 1
52 4212B-052 Flange Screw, M5x12 1
53 4212B-053 Screw, M5x8 2
54 4212B-054 Toothed Washer, M5 2
55 4212B-055 Spindle Circlip 1
56 4212B-056 Ball Bearing, 6201Z 2
57 4212B-057
Rubber Washer,
40mm
1
58 4212B-058 Quill 1
59 4212B-059 Spindle, JT33 1
60 4212B-060 Chuck, JT33 1
61 4212B-061 Chuck Key 1
62 4212B-062 Rack Shaft 1
63 4212B-063 Rack Shaft Spring 1
64 4212B-064 Washer, M8 1
65 4212B-065 Hex Flange Bolt 5
66 4212B-066 Laser 2
67 4212B-067 Collar 1
68 4212B-068 Internal Gear 1
69 4212B-069 Worm Gear 1
70 4212B-070 Table Support 1
71 4212B-071 Crank Handle 1
72 4212B-072 Inner Gear Shaft 1
73 4212B-073 Table Lock Handle 1
EXPLODED VIEW & PARTS LIST
26
No. Part No. Description Qty.
75 4212B-075 Table 1
76 4212B-076 Hex Bolt, M12x25 1
77 4212B-077 Rack 1
78 4212B-078 Column 1
79 4212B-079 Hex Bolt, M8x25 3
80 4212B-080 Column Base 1
81 4212B-081 Base 1
82 4212B-082
Quill Set Screw,
M8x20
1
83 4212B-083 Hex Nut, M8 5
84 4212B-084 Coil Spring Assembly 1
85 4212B-085 Hex Nut, 3/8x24 UNF 2
86 4212B-086 Gear Shaft 1
87 4212B-087 Key, A Type, 3x3x25 1
88 4212B-088
Speed Adjustment
Base
1
89 4212B-089
Phillips-Head Screw,
M5x12
3
90 4212B-090
Variable Speed Handle
Seat
1
91 4212B-091 Variable Speed Handle 1
92 4212B-092 Butterfly Spring 1
93 4212B-093 Hex Nut M10 1
No. Part No. Description Qty.
94 4212B-094 Washer 4
95 4212B-095 Head 1
96 4212B-096 Flat Washer, M8 4
97 4212B-097 Motor Plate 1
98 4212B-098 Spring Washer, M8 3
99 4212B-099 Hex Bolt, M8x10 3
100 4212B-100 Spring Washer, M12 1
102 4212B-102 Capacitor Cover 1
103 DP1050-097
Capacitor, CD60
150uF, 125V
1
104 4212B-104 Flat Washer, M4 2
105 4212B-105 Screw, M4x6 2
106 4212B-106 Circlip for Shaft Ø35 1
107 4212B-107 Hex Wrench, 3mm 1
108 4212B-108 Hex Wrench, 4mm 1
109 4212B-109 Manual 1
110 4212B-110 Power Cord 1
111 4212B-111 AA Battery 2
112 4212B-112 Screw, M4x8 2
113 4212B-113 Screw, M5x8 2
114 4212B-114 Counter Base 1
116 4214B-116 Hex Wrench, 6mm 1
117 DP1062V-117 Motor Assembly, 6.2A 1
EXPLODED VIEW & PARTS LIST
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer
power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
Ninety days for all WEN products if the tool is used for professional or commercial use.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent
permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without
charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or
misrepaired by persons other than Seller or Authorized Service Center. To make a claim under this Limited Warranty,
you must make sure to keep a copy of your proof of purchase that clearly defines the Date of Purchase (month and
year) and the Place of Purchase. Place of purchase must be a direct vendor of Great Lakes Technologies, LLC. Third
party vendors such as garage sales, pawn shops, resale shops, or any other secondhand merchant void the warranty
included with this product. Contact [email protected] or 1-847-429-9263 to make arrangements for
repairs and transportation.
When returning a product for warranty service, the shipping charges must be prepaid by the purchaser. The product
must be shipped in its original container (or an equivalent), properly packed to withstand the hazards of shipment.
The product must be fully insured with a copy of the warranty card and/or the proof of purchase enclosed. There
must also be a description of the problem in order to help our repairs department diagnose and fix the issue. Repairs
will be made and the product will be returned and shipped back to the purchaser at no charge.
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS THAT WEAR OUT FROM REGULAR USAGE
OVER TIME INCLUDING BELTS, BRUSHES, BLADES, ETC. ANY IMPLIED WARRANTIES SHALL BE LIMITED
IN DURATION TO TWO (2) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN
PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING
BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT.
SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY
TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO PORTABLE ELECTRIC TOOLS, BENCH POWER TOOLS, OUTDOOR
POWER EQUIPMENT AND PNEUMATIC TOOLS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND
THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT
THE WEN CUSTOMER SUPPORT LINE.
27
WARRANTY STATEMENT
V. 2024.08.17
THANKS FOR
REMEMBERING
