HAND MIXERS
INSTRUCTION MANUAL
MODEL:HM1410-UL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:HM1410-UL
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
HAND MIXERS
- 2 -
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions
should always be followed including the following:
1. Read all instructions.
2. Before use, check that the voltage of your wall outlet corresponds to
the one on the rating plate, which is on the bottom of the appliance.
3. Do not operate the appliance with a damaged cord or after a
malfunction or has been damaged in any manner.
4. Do not let the cord hang over the edge of the table counter or hot
surface.
5. Do not immerse the cord or the body of the mixer in the water, as this
would give rise to electric shock.
6. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent, or a similarly qualified person in order to avoid a
hazard.
7. Close supervision is necessary when your appliance is being used
near children or infirm persons.
8. Do not place an appliance on or near a hot gas or in a heated oven.
9. Never eject beaters or dough hooks when the appliance is in operation.
10. Do not leave the mixer unattended while it is operating.
11. Unplug from outlet while not in use, before putting on or taking off parts,
and before cleaning.
12. The use of attachments not recommended or sold by the manufacturer
may cause fire, electric shock, or injury
13. Remove the beaters from the mixer before washing.
14. Always check that the control is OFF before plugging the cord into a
wall outlet. To disconnect, turn the control to OFF, then remove the plug
- 3 -
from the wall outlet.Avoid contacting with moving parts.
15. Keep hands, clothing, spatulas, and other utensils away from beaters
during operation to reduce the risk of injury to persons and/or damage
to the mixer.
16. The appliance can be used by children aged 8 years and above and
persons with reduced physical, sensory, or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning using the appliance safely and understand the
hazards involved. Children shall not play with the appliance. Children
shall not make cleaning and user maintenance unless they are older
than 8 and supervised.
17. Keep the appliance and cord out of reach of children under 8 years old.
18. Switch off the appliance before changing accessories or approaching
parts that move in use.
19. This appliance is intended to be used in household and similar
applications such as:– Staff kitchen areas in shops, offices and other
working environments;
– Farm houses;
– By clients in hotels, motels and other residential type environments;
– Bed and breakfast type environments.
20. Save these instructions.
CHARGING THE BATTERY
Charge the battery regularly, especially after any long period without use.
This extends battery life and ensures the longest possible processing
cycles.
∙ During the charging process, the appliance cannot be used.
∙ Plug the power adapter of the included power supply unit into the socket
on the handle.
∙ Connect the power adapter supplied to the power socket.
∙ The LED should start to flash.
- 4 -
∙ When the battery is fully charged, all LED light up permanently. When the
battery is empty, the charging process takes approximately 2.5 hours.
∙ Unplug the power supply unit from the power socket.
∙ Take the power adapter of the power supply unit out of the connection
socket

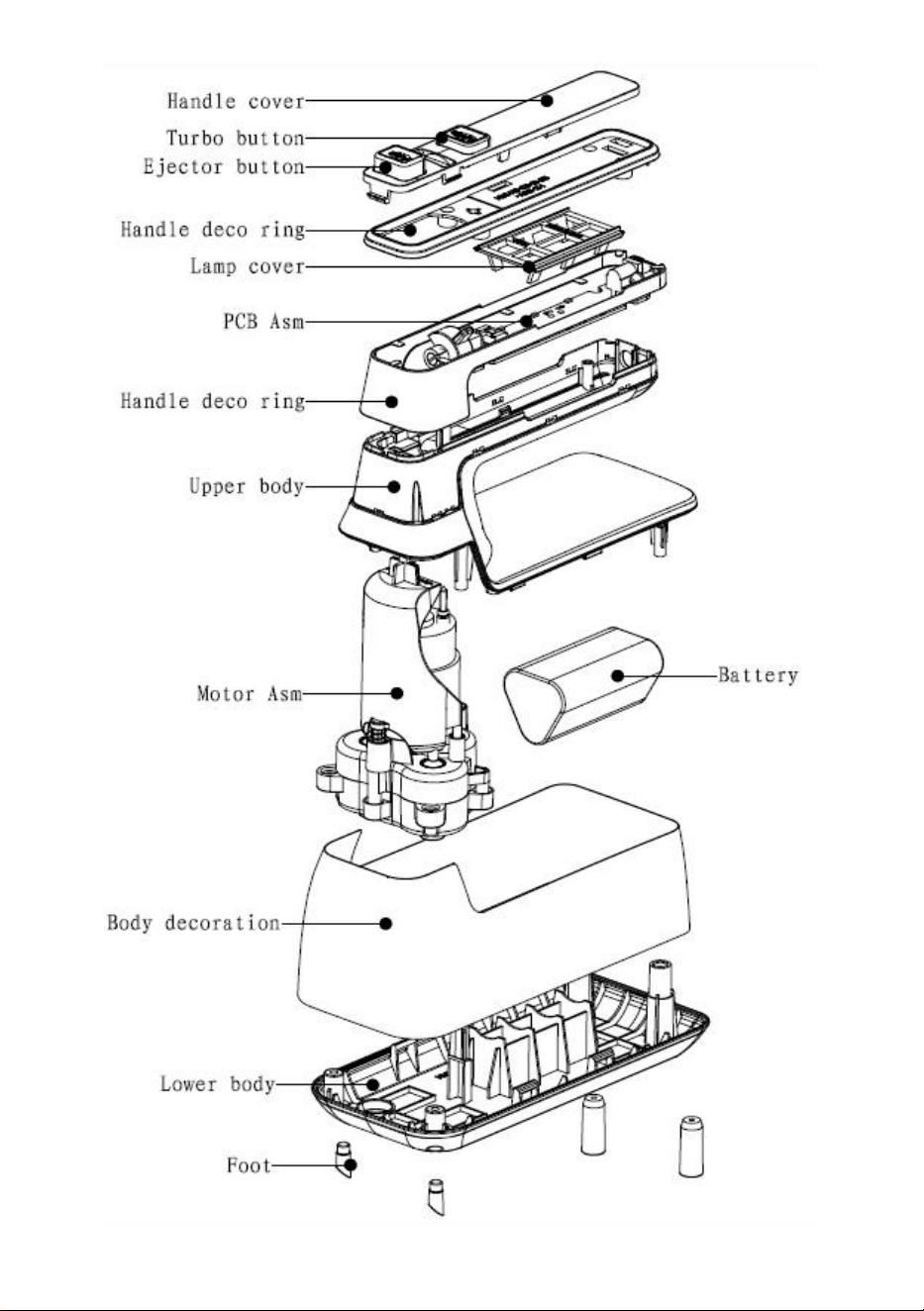

EXPLODED DRAWING
- 5 -
- 6 -
PARAMETER SPECIFICATION
Model
Rated
Voltage
Rated
Power
Max
Noise
Low
Speed
High
Speed
Battery
Capacity
HM1410
-UL
DC12V
100W
≤85dB
650RP
M
1100RP
M
11.1V /
2000mAH

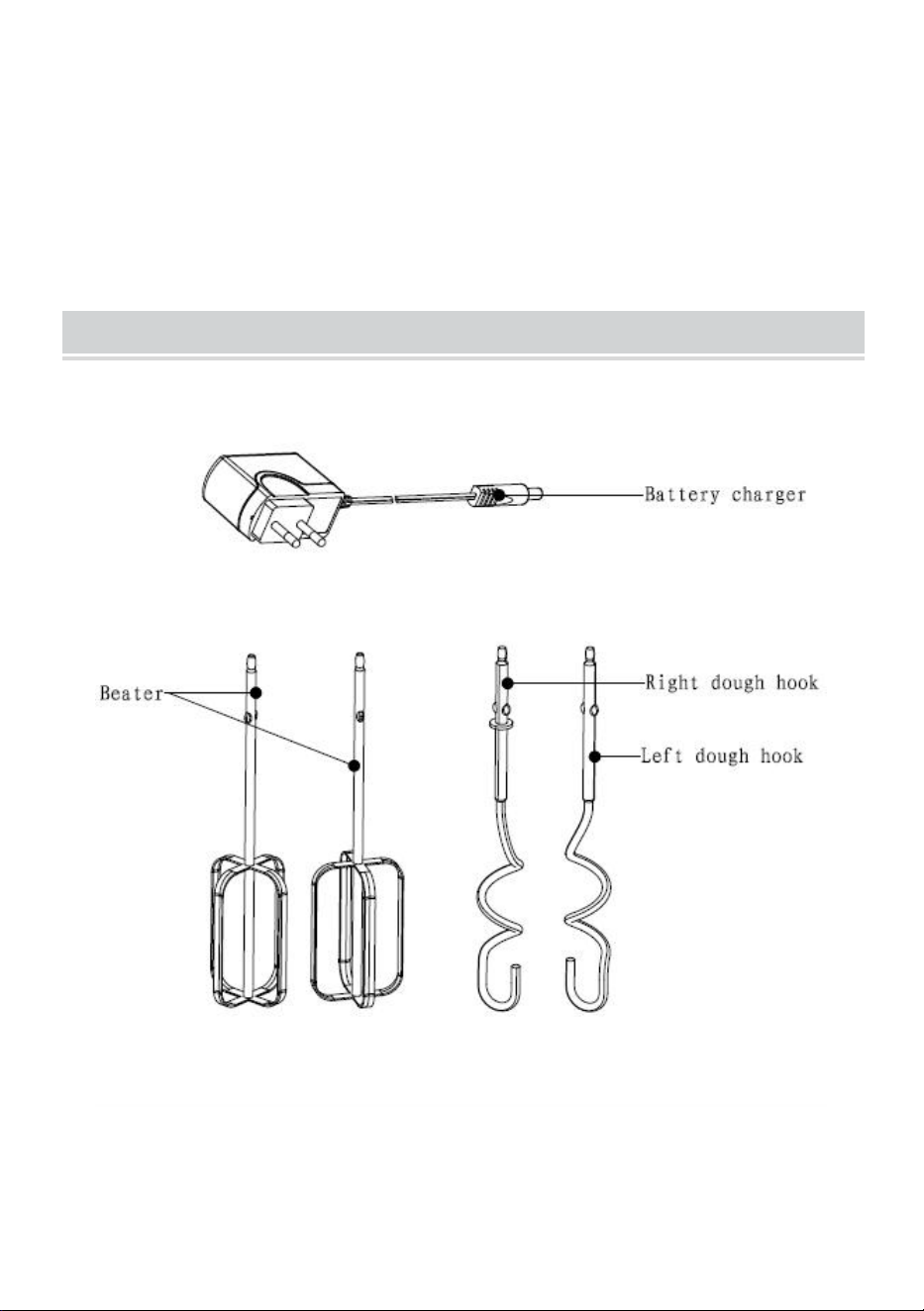

KNOW YOUR MIXER
BEFORE USING MIXER
Remove any packages, and disassemble any detachable parts. Clean the
dough hooks and beaters. Before assembling the mixer, ensure the power
cord is unplugged from the power outlet and the speed selector is at the “0”
position.
- 7 -
USING YOUR MIXER
1. Assemble proper beaters or dough hooks into mixer.
NOTE: Beaters can be inserted in either socket, as the beaters are
identical. For dough hooks, the one with the washer can only be
inserted into the bigger socket, and the other can only be inserted into
the smaller one. The two dough hooks can not be inserted in reverse.
2. Ensure the unit is at the “0” setting, then plug in the power source.
3. Set the speed selector to your desired speed. There are 6 speed
settings to be selected. When kneading yeast dough, suggest selecting
the speed selector by lower speed and then by higher speed to achieve
the best results. The mixer will run at the highest speed when pressing
turbo button.
WARNING: Do not stick knife, metal spoons, fork and so on into bowl
while operating.
NOTE: Please don’t let the unit contact acid food.
4. The max operation time per time shall be less than 5 minutes. Between
two continuous cycles, a minimum of 20 minutes of rest time must be
maintained.
NOTE: During operation you may rotate the bowl with hand to achieve
the best results.
5. When mixing is complete, turn the speed selector to “0” setting, and
unplug the cord from power outlet.
6. If necessary, scraping the excess food particles from the beaters or
dough hooks by rubber or wooden spatula.
7. Hold the beaters or dough hooks with one hand and press the Ejector
button firmly down with the other hand to remove the beater or dough
hooks.
- 8 -
NOTE:
1). Remove the beaters or dough hooks only the speed selector at the
“0” setting.
2). During operation, you can put the mixer vertically, but make sure the
speed selector is at the “0” setting.
8.Charge Time;
Charging time can’t be more than150min
COOKERY TIPS
1. Refrigerated ingredients, i.e., butter and eggs should be at room
temperature before mixing beginning. Set these ingredients out ahead of
time.
2. To eliminate the possibility of shells or deteriorated-off eggs in your
recipe, break eggs into separate containers first, then add to the mixture.
3. Do not over-beat. Be careful to mix/blend mixtures until recommended in
your recipe. Fold into dry ingredients only until just combined. Always
use the low speed.
4. Climatic conditions. Seasonal temperature changes, temperature of
ingredients and their texture variation from area to area all play a part in
the required mixing time and the results achieved.
5. Always start mixing at slow speeds. Gradually increase to the
recommended speed as stated in the recipe.
1.Beating eggs
Food：eggs
Operation: Put 100g(2-4pcs) mixtures of eliminable egg shells into the
container, choose beater, and let the appliance word at the highest position
for 3 minutes
- 9 -
2.Blending flour
Food: Flour, water
Using method: fill the flour 924g and water 665g mixture into bowl,
activating the product with installed dough hooks running at lower speed
for 30 seconds, then running at highest speed for 4.30 minutes, the food
can be mixing well.
CLEANING AND MAINTENANCE
1. Unplug the appliance and wait it completely cool down before clean.
2. Wipe over the outside surface of the head with a damp cloth and polish
with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Wash the beaters and dough hooks in warm soapy water and wipe them
with a dry cloth. The beaters and dough hooks may be washed in the
dishwasher.
CAUTION: The mixer can not be immersed into water or other liquid.
Warning: Any other serving should be performed by an authorized service
representative.
TROUBLESHOOTING
When the battery is low, the rear LED flash;
. when the battery is medium, the middle LED flash; and when the battery
is high, the front LED flash.
∙ The more LED that are permanently lit, the higher the charge level.
- 10 -
∙ When all LED light up permanently, the battery is fully charged.
. The fewer LED that are lit, the lower the charge level.
∙ When the battery power is below 20%, the rear two LED appear fl ashing.
. If all LED flash simultaneously, the appliance is overloaded and switches
off. You can switch it again immediately.
. If necessary, add less dough to prevent the appliance from switching off
again.
Made In China
