Dishwasher
User manual
DW80CG545*, DW80CG542*, DW80CG502*, DW80CB545*
North America_DW5000C_WEB_DW0003_English.indd 1 2023-06-28 11:12:23
English2
Contents
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Before using your dishwasher 7
Regulatory notice 8
Before you start 10
Unpacking your dishwasher 10
Checking parts 11
Unsuitable items for the dishwasher 13
Using your dishwasher 14
Basic use of racks 14
Detergent guidelines 23
Touchpad responsiveness 26
Operations 27
Control panel 27
Cycle overview 30
Simple steps to start your dishwasher 32
Settings 33
SmartThings 35
Special features 38
Maintenance 39
Cleaning 39
Long-term care 44
Cleaning the drain pump 44
Storing your dishwasher 45
North America_DW5000C_WEB_DW0003_English.indd 2 2023-06-28 11:12:23
English 3
Contents
Troubleshooting 46
Check these solutions if your dishwasher… 46
Information codes 51
Cycle chart 53
Appendix 57
Helping the environment 57
Specications 57
Open Source Announcement 58
Warranty (U.S.A) 59
Warranty (CANADA) 62
North America_DW5000C_WEB_DW0003_English.indd 3 2023-06-28 11:12:23
English4
SAVE THESE INSTRUCTIONS
Safety information
Safety information
Congratulations on your new Samsung dishwasher. This manual contains important
information on the installation, use, and care of your appliance. Please take time to read
this manual to take full advantage of your dishwasher’s many benets and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution, and care when installing, maintaining, and operating your dishwasher.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
To reduce the risk of re, explosion, electric shock, or personal injury when using your
dishwasher, follow these basic safety precautions:
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
NOTE
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
North America_DW5000C_WEB_DW0003_English.indd 4 2023-06-28 11:12:23
English 5
SAVE THESE INSTRUCTIONS
Safety information
California Proposition 65 Warning
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
WARNING
When using your dishwasher, follow basic precautions, including the following:
1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep
them out of the reach of children.
4. When loading items to be washed:
- locate sharp items so that they are not likely to damage the door seal, and
- load sharp knives with the handles up to reduce the risk of cut-type injuries.
5. Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent.
For plastic items not so marked, check the manufacturer’s recommendations.
6. Do not touch the HEATING ELEMENT during or immediately after use.
7. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
8. Do not tamper with the controls.
9. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
10. To reduce the risk of injury, do not allow children to play in or on the dishwasher.
11. Under certain conditions, hydrogen gas may be produced in a hot-water system that
has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-
water system has not been used for such a period, before using the dishwasher turn
on all hot-water faucets and let the water ow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas is ammable, do not smoke or use
an open ame during this time.
12. Remove the door to the washing compartment when removing an old dishwasher from
service or discarding it.
North America_DW5000C_WEB_DW0003_English.indd 5 2023-06-28 11:12:23
English6
SAVE THESE INSTRUCTIONS
Safety information
Safety information
CAUTION
• After unpacking the dishwasher, keep the packaging out of the reach of children.
• The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher
by yourself. Two or more people are needed to move a dishwasher and avoid potential
injuries.
• As with any equipment using electricity, water, and moving parts, potential hazards
exist.
• Do not install the dishwasher near electrical components. Keep the dishwasher away
from open ames.
• Install and level your dishwasher on an uncarpeted oor that can support its weight.
• Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet.
See page 7 for more information on grounding your dishwasher.
• Connect the ground wire to the green ground connector in the terminal box.
• After the dishwasher is installed, check that the drain hose is properly connected and
that there is no leakage from the hose connectors. If the drain hose is loose, it may
cause property damage.
• The water supply line is susceptible to breakage. As time goes by, it becomes less
exible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak,
replace it immediately.
• To safely operate this appliance, familiarize yourself with its operations and exercise
care when using it.
• Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do
not wash dishes exposed to these materials.
• Keep your dishwasher detergent out of the reach of children. Detergent has an adverse
effect on human organs. It contains elements for polishing and is corrosive. Avoid
letting the detergent come into contact with your skin and eyes.
• Do not push or place pressure on the door when it is open, as this may damage the
dishwasher or cause harm.
• Do not allow children to play in or on the dishwasher. They may harm themselves or
damage the dishwasher.
• Disconnect the power cord (or set the circuit breaker to off) before servicing your
dishwasher.
• Do not repair, replace, or service any part of your dishwasher yourself. Disassembly,
repairs, and modications are permitted by authorized service technicians only. Work
done by an unauthorized person may void your warranty.
North America_DW5000C_WEB_DW0003_English.indd 6 2023-06-28 11:12:23
English 7
SAVE THESE INSTRUCTIONS
Safety information
• Before disposing of your dishwasher, remove the door of the washing compartment or
the door latch so that children or small animals cannot get trapped inside.
• If the dishwasher is left unused for an extended period of time, turn off the water
supply.
• This dishwasher is intended for residential use only.
Before using your dishwasher
WARNING
Tip-Over Hazard
• Do not use the dishwasher until it is correctly installed.
• Do not push down on the dishwasher door when it is open.
• Do not place excessive weight on the dishwasher door when it is
open.
Electric Shock Hazard
Failure to follow these instructions can result in death, re, or electric
shock:
• Electrically ground the dishwasher
• Connect the ground wire to the green ground connector in the
junction box.
• Do not use an extension cord.
North America_DW5000C_WEB_DW0003_English.indd 7 2023-06-28 11:12:24
English8
SAVE THESE INSTRUCTIONS
Safety information
Safety information
Regulatory notice
FCC Notice
FCC CAUTION:
Any changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules. Operation is Subject to following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received including interference that cause
undesired operation.
For products sold in the US and Canadian markets, only channels 1–11 are available. You
cannot select any other channels.
FCC STATEMENT:
This equipment has been tested and found to comply within the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorienting or relocating the receiving antenna
• Increasing the separation between the equipment and receiver
• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.
• Consulting the dealer or an experienced radio/TV technician for help.
North America_DW5000C_WEB_DW0003_English.indd 8 2023-06-28 11:12:24
English 9
SAVE THESE INSTRUCTIONS
Safety information
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated so there is at least 8 inches
(20 cm) between the radiator and your body. This device and its antenna(s) must not be co-
located or operated in conjunction with any other antenna or transmitter.
IC Notice
The term “IC” before the radio certication number only signies that Industry Canada
technical specications were met. Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.
For products sold in the US and Canadian markets, only channels 1–11 are available. You
cannot select any other channels.
IC RADIATION EXPOSURE STATEMENT:
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated so there is at
least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s)
must not be co-located or operated in conjunction with any other antenna or transmitter.
North America_DW5000C_WEB_DW0003_English.indd 9 2023-06-28 11:12:24
English10
Before you start
Before you start
Be sure to have your installer follow these instructions closely so that your new
dishwasher works properly and that you’re not at risk of injury when washing dishes.
Unpacking your dishwasher
• Once your new dishwasher has been delivered to you, carefully unpack it and check for
any damage.
If the dishwasher has been damaged, make note of it on the waybill and keep a copy.
Do not install the dishwasher, and contact Samsung Customer Service at the number
listed on the next page.
• If there is no damage to the product, you can proceed with the installation. If you are
going to install it yourself, make sure to read through the installation guide and follow
the directions inside.
• After unpacking your dishwasher, keep the packaging out of the reach of children to
ensure their safety.
North America_DW5000C_WEB_DW0003_English.indd 10 2023-06-28 11:12:24
English 11
Before you start
Checking parts
When your dishwasher has been unpacked, make sure you’ve received all the parts shown
below.
If your dishwasher was damaged during shipping, or if you do not have all the parts,
contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).
03
04
05
02
06
07
01

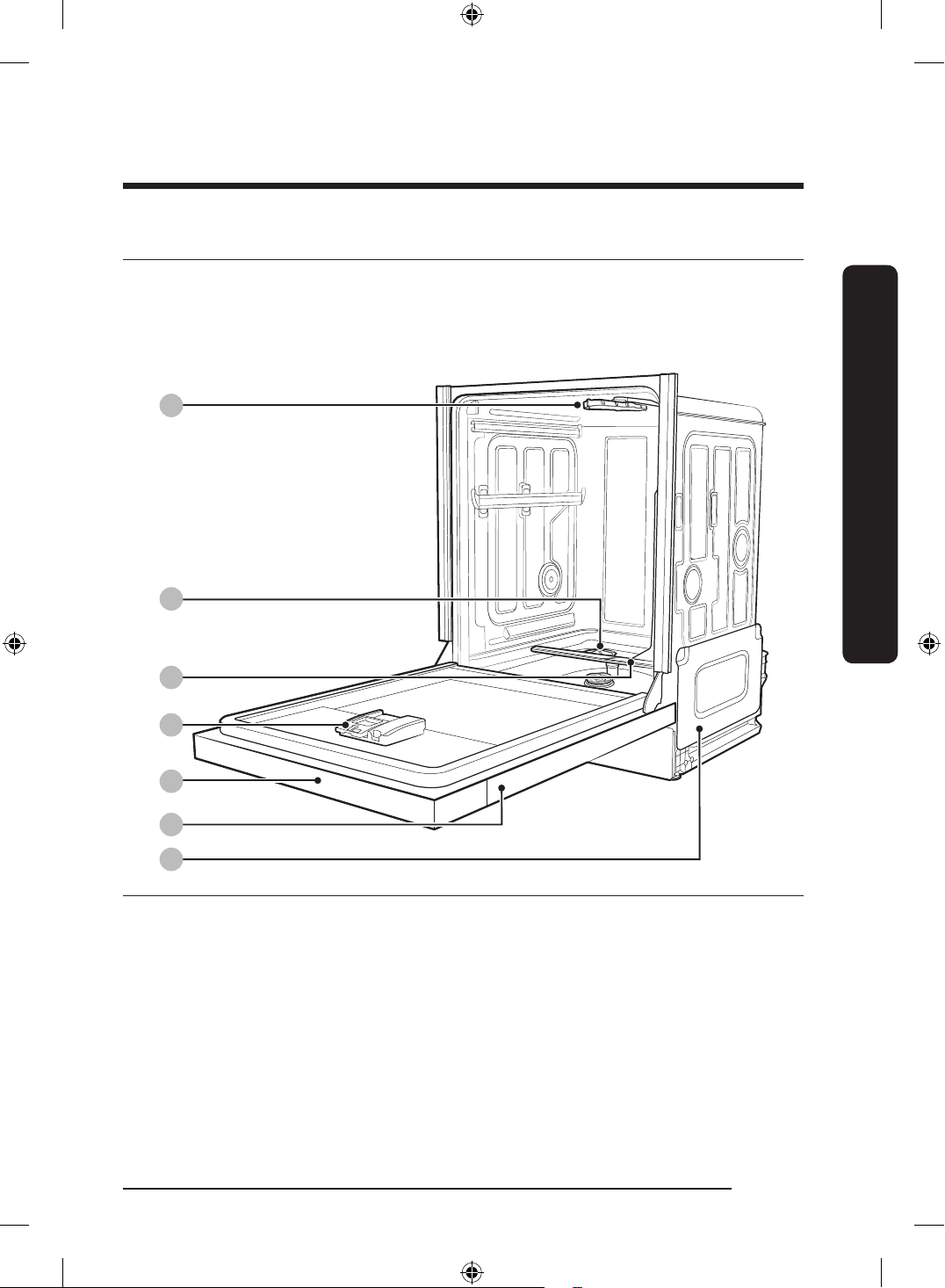

01 Top nozzle 02 Storm Wash
+
03 Lower nozzle
04 Dispenser 05 Control panel 06 Door
07 Base
* Storm Wash
+
: DW80CG545*, DW80CG542*, DW80CB545*
North America_DW5000C_WEB_DW0003_English.indd 11 2023-06-28 11:12:24
English12
Before you start
Before you start

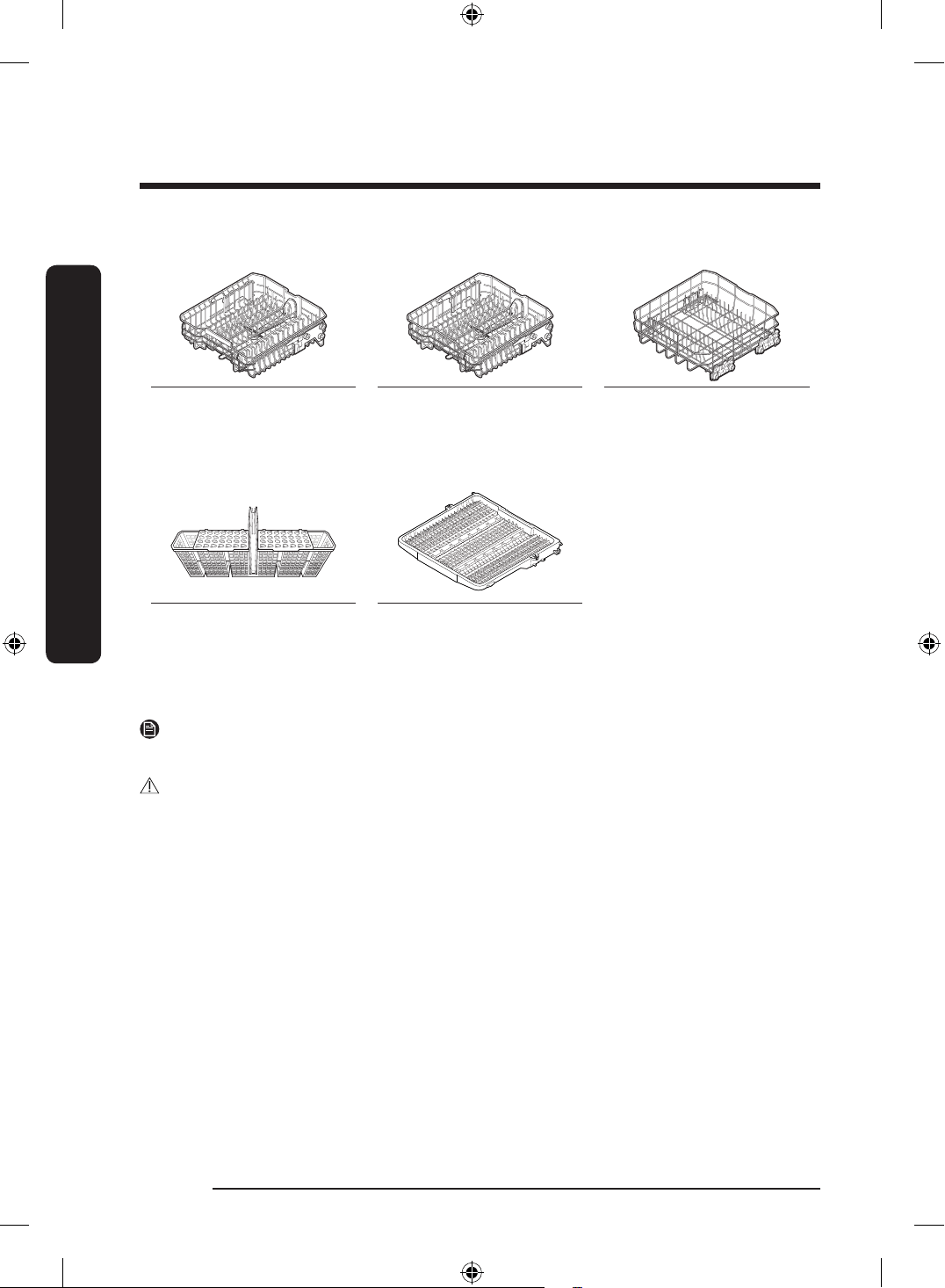

Accessories
Upper rack
(DW80CG545*,
DW80CB545* Models)
Upper rack
(DW80CG542*,
DW80CG502* Models)
Lower rack
Cutlery rack 3
rd
rack
(DW80CG545*,
DW80CB545* Models)
NOTE
Accessory parts - User/Installation manual, Installation Kit, Kick Plate.
CAUTION
• Do not wash items that are covered with ash, sand, wax, lubricating grease, or paint.
These materials will damage the dishwasher. Ash does not dissolve and will spread
inside the dishwasher.
• Remove food remains such as bones, fruit seeds, etc. and waste such as toothpicks,
paper napkins, etc. from your dishes. Food remains and waste can make noise, cause the
dishwasher to malfunction, and damage your dishes and dishwasher.
North America_DW5000C_WEB_DW0003_English.indd 12 2023-06-28 11:12:24
English 13
Before you start
Unsuitable items for the dishwasher
WARNING
Wash only items such as glass, porcelain, and cutlery which the manufacturer states is
dishwasher safe. Do not wash aluminium (for example grease lters). The dishwasher may
damage aluminium, or in extreme cases, cause a severe chemical reaction.
Do not wash the following items in the dishwasher.
• Copper, brass, tin, ivory, and aluminium items or items with adhesive
• Non-heat resistant plastics
• Craft items, antiques, valuable vases, and decorative glassware
• Pottery or glazed-ceramic items
• Wooden cutlery and crockery or items with wooden parts. (Including silver & gold)
• Delicate glassware or glassware containing lead crystal. Clouding may occur on the
glassware after frequent washing.
• Silver cutlery, crockery or items with silver parts.
NOTE
Silverware that has contacted food containing sulphur may become discoloured. Food with
sulphuric content include egg yolks, onions, mayonnaise, mustard, sh, sh brine, and
marinades.
North America_DW5000C_WEB_DW0003_English.indd 13 2023-06-28 11:12:24
English14
Using your dishwasher
Using your dishwasher
Basic use of racks
Height adjustment
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower
rack can accommodate larger sized dishes. Depending on where you set the upper rack
height, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the
upper rack can accommodated plates up to 8 in. (20 cm) in diameter.

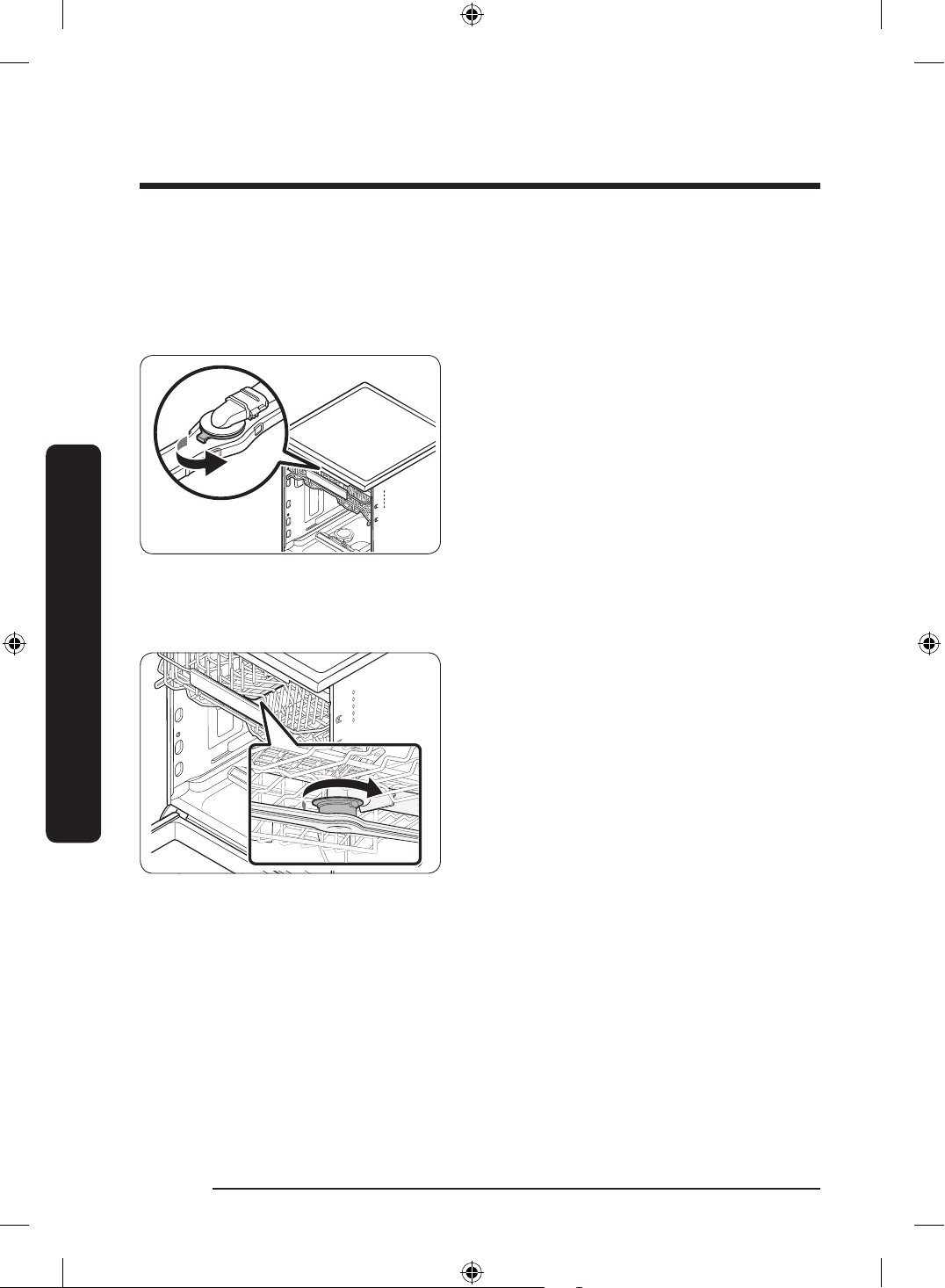

To raise the upper rack
Pull the upper rack upwards. The adjustable
handle will latch, and the upper rack will
rise.
To lower than upper rack
Hold both the adjustable handles located at
the left and right sides of the upper rack,
and then evenly press down.
CAUTION
• Adjust the height of the upper rack
before loading dishes into the rack.
Adjusting the rack after loading the
dishes may damage the dishes.
• Make sure to hold both handles when
adjusting, or the dishwasher door may
not close properly.
North America_DW5000C_WEB_DW0003_English.indd 14 2023-06-28 11:12:24
English 15
Using your dishwasher
Removing the upper rack

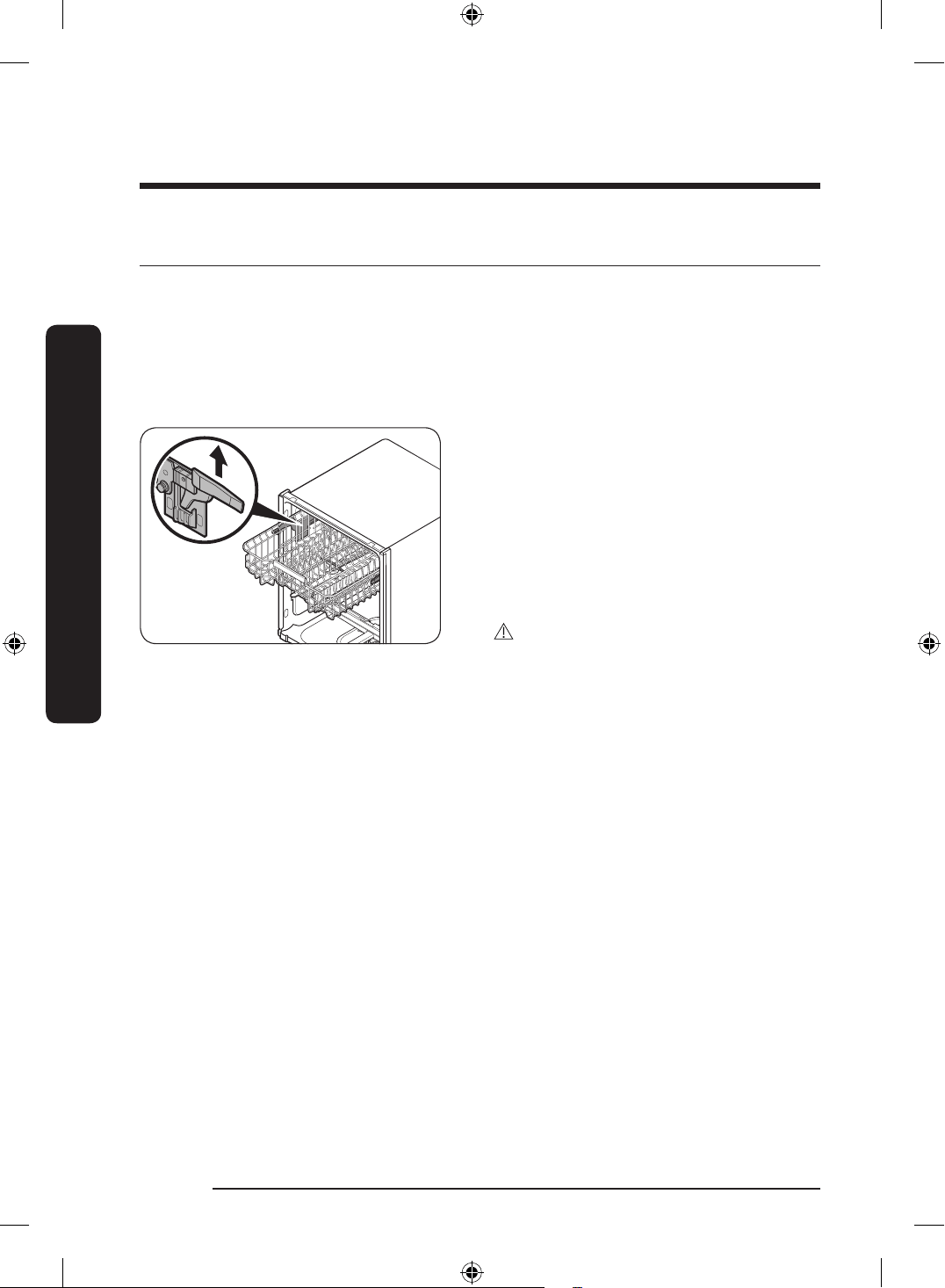

Pull the upper rack towards the front and then remove it by lifting it up slightly and
pulling it towards the front. See the illustrations below.
CAUTION
While the upper rack is removable, it must be installed for the dishwasher to operate
properly.
If you attempt to operate the dishwasher without the rack, noise will occur and the
dishwasher will perform poorly.

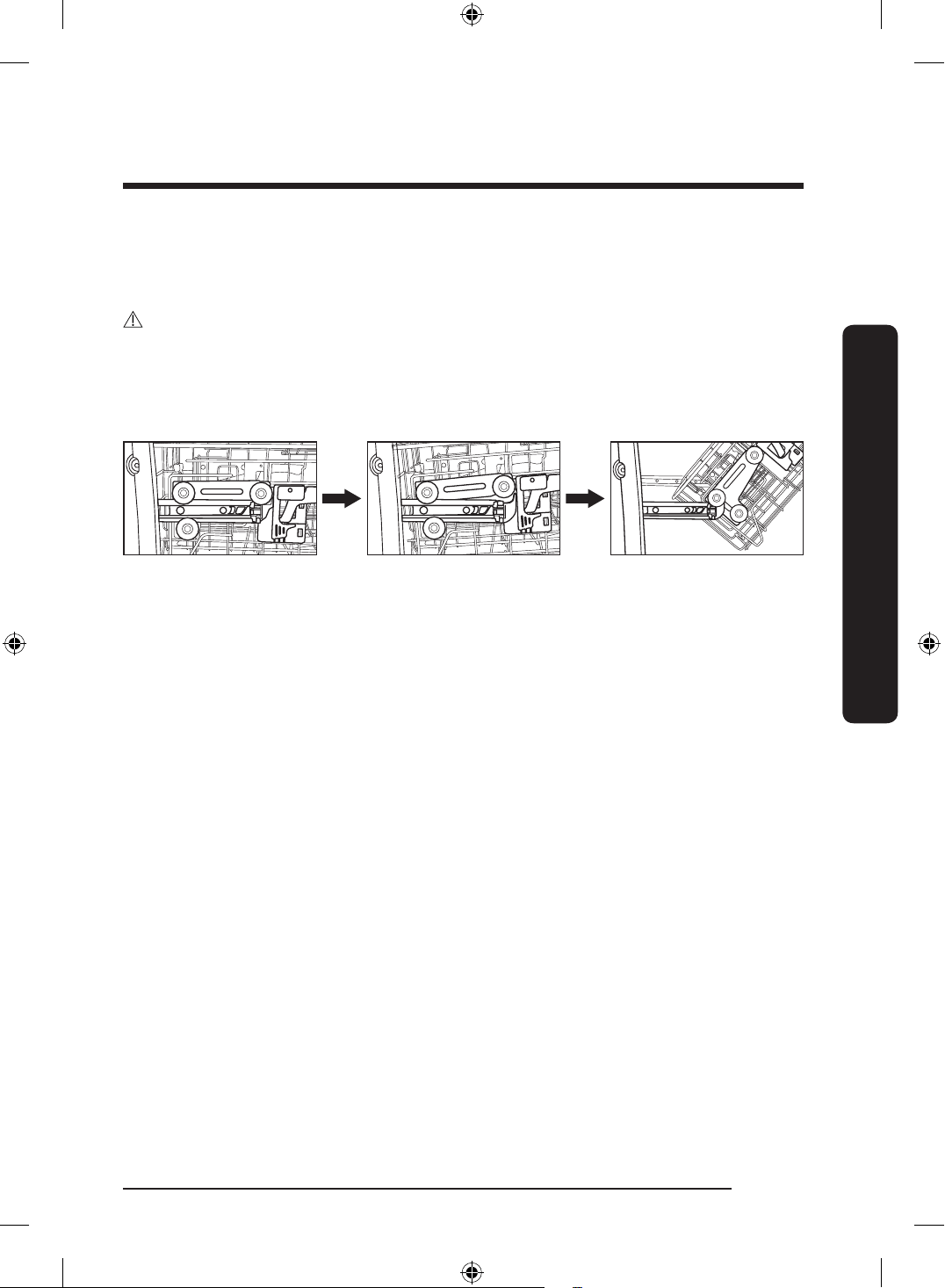

Step 1. Step 2. Step 3.
North America_DW5000C_WEB_DW0003_English.indd 15 2023-06-28 11:12:25
English16
Using your dishwasher
Using your dishwasher
Removing the 3
rd
Rack

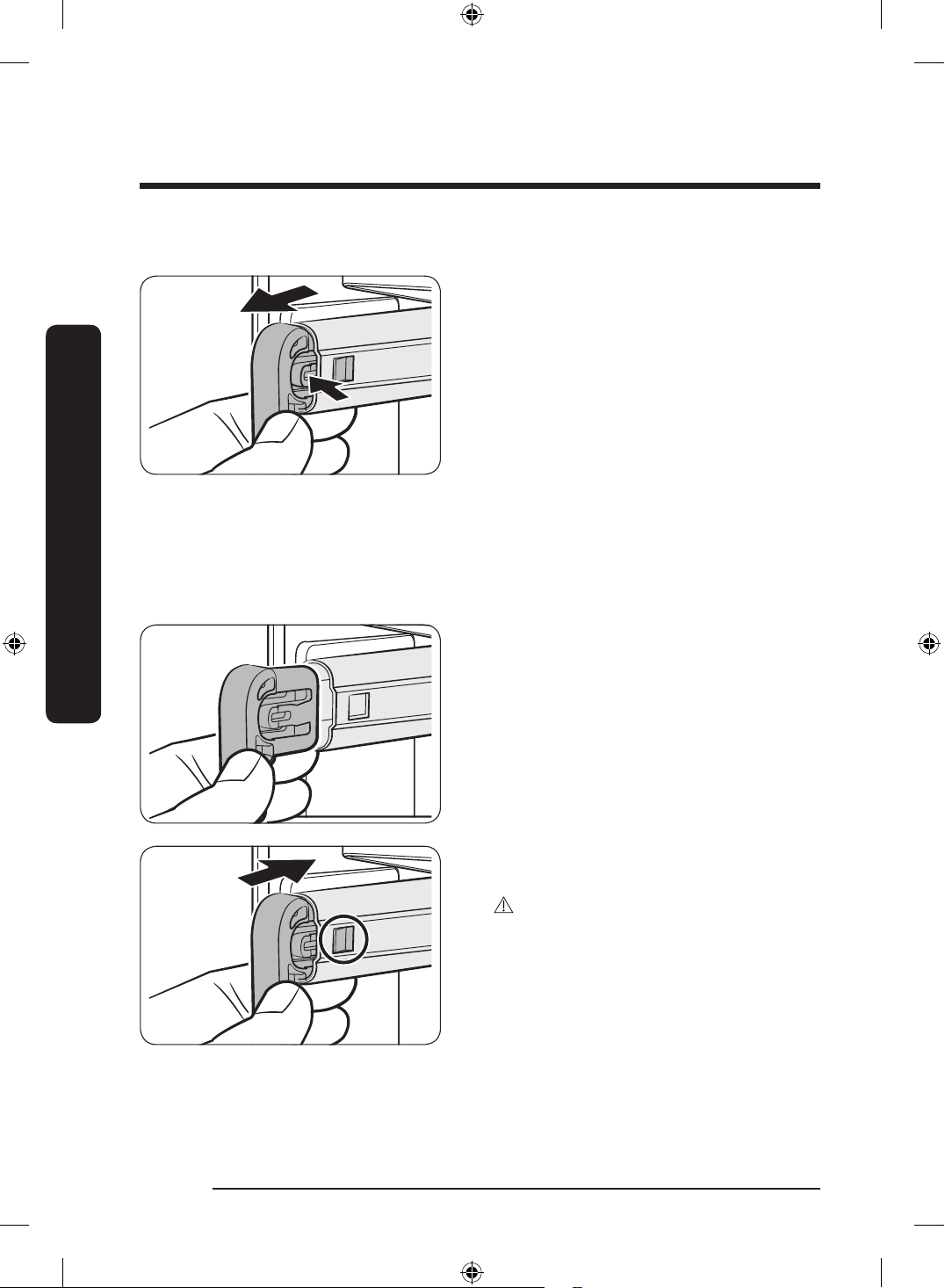

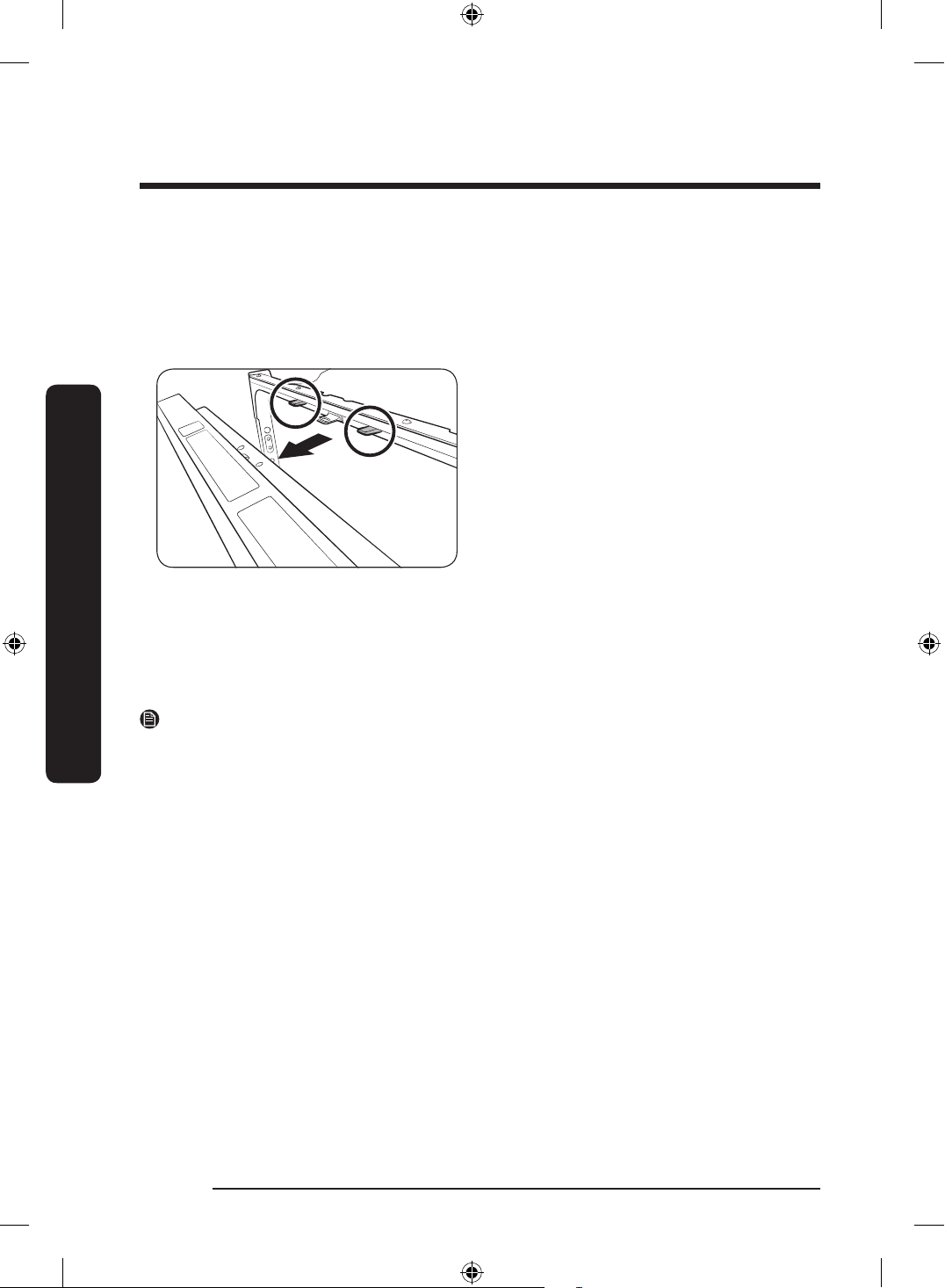

1. Stand facing the dishwasher, and then
pull the 3
rd
rack out so that the handles
at the ends of the rack supports (dark
grey in the illustration) are even with
the end of the rack.
2. With your right thumb, nd the small
indentation on the inside of the left
rack support that houses the tab for the
handle lock.
3. Push the handle lock tab (that is to your
left) with the tip of your thumb, and
then pull the handle towards you until
it disengages from the support.
4. Repeat this process with the right
handle using your left thumb.
5. When the handles are removed, remove
the 3
rd
rack from the dishwasher.
6. Reverse the order of removal to
re-insert the 3
rd
rack.
CAUTION
Make sure the hook-shaped part of the
handle faces downward and the handle
lock (circled) re-engages when reinserting
the handle into the rail.
North America_DW5000C_WEB_DW0003_English.indd 16 2023-06-28 11:12:25
English 17
Using your dishwasher
Loading dishes
Loading the lower rack
The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots,
lids, casserole dishes, and plates.
Load large items such as pans and pots into the dishwasher so their open sides face
downwards. Recommended loading cups, stemware, and small plates into the upper rack.
See the recommended loading patterns below.
8 place settings
10 place settings
12 place settings
North America_DW5000C_WEB_DW0003_English.indd 17 2023-06-28 11:12:25
English18
Using your dishwasher
Using your dishwasher
Loading the Storm Wash
+
Area

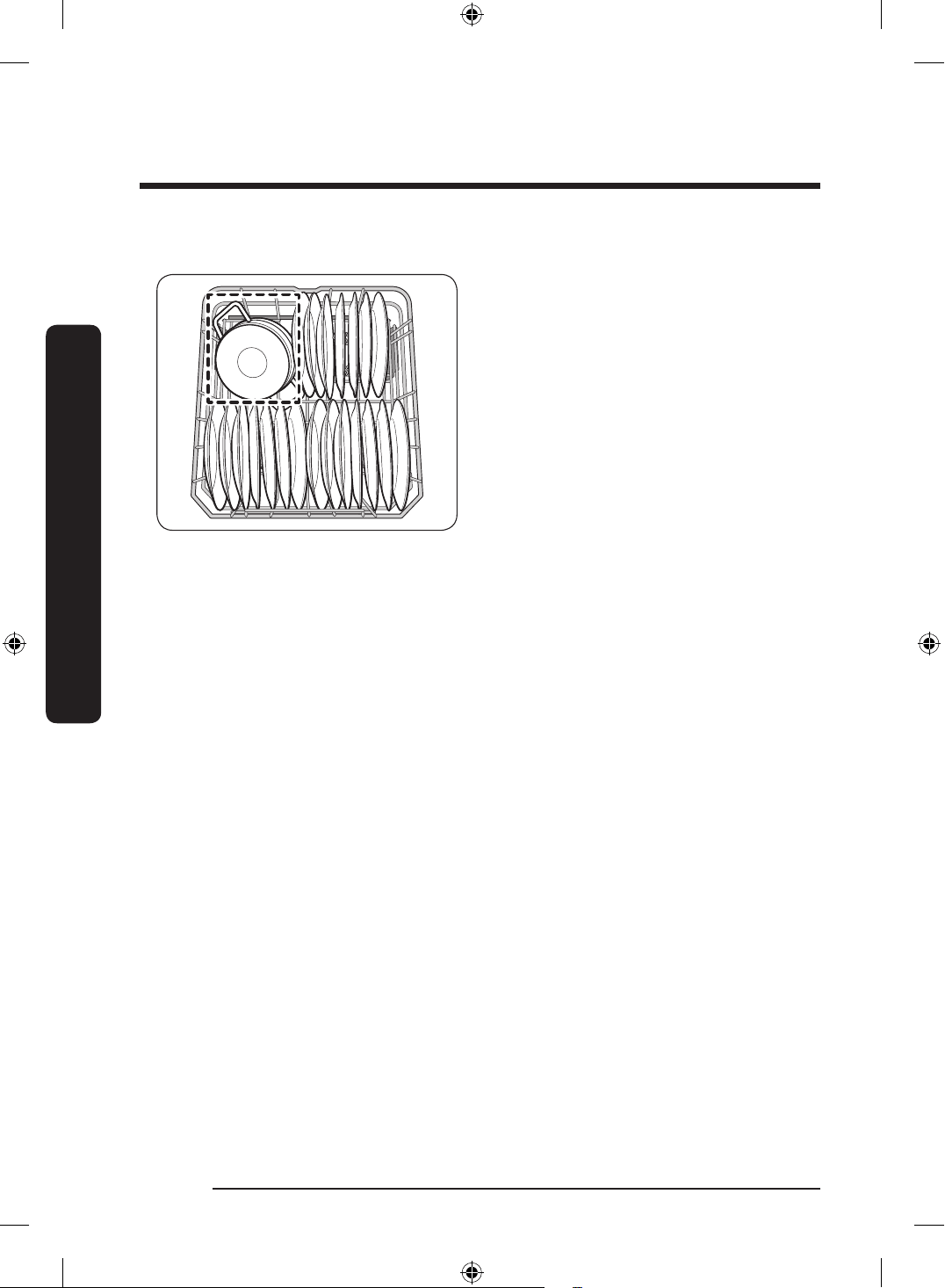

For more effective cleaning, load larger
items into the Storm Wash
+
area on the left
side of the lower rack (Dotted zone).
When you select Storm Wash
+
, the
dishwasher supplies additional power to
reinforce the water jet in the Storm Wash
+
area.
Make sure pot handles and other items
do not interfere with the rotation of the
nozzles.
North America_DW5000C_WEB_DW0003_English.indd 18 2023-06-28 11:12:25
English 19
Using your dishwasher
Loading the upper rack

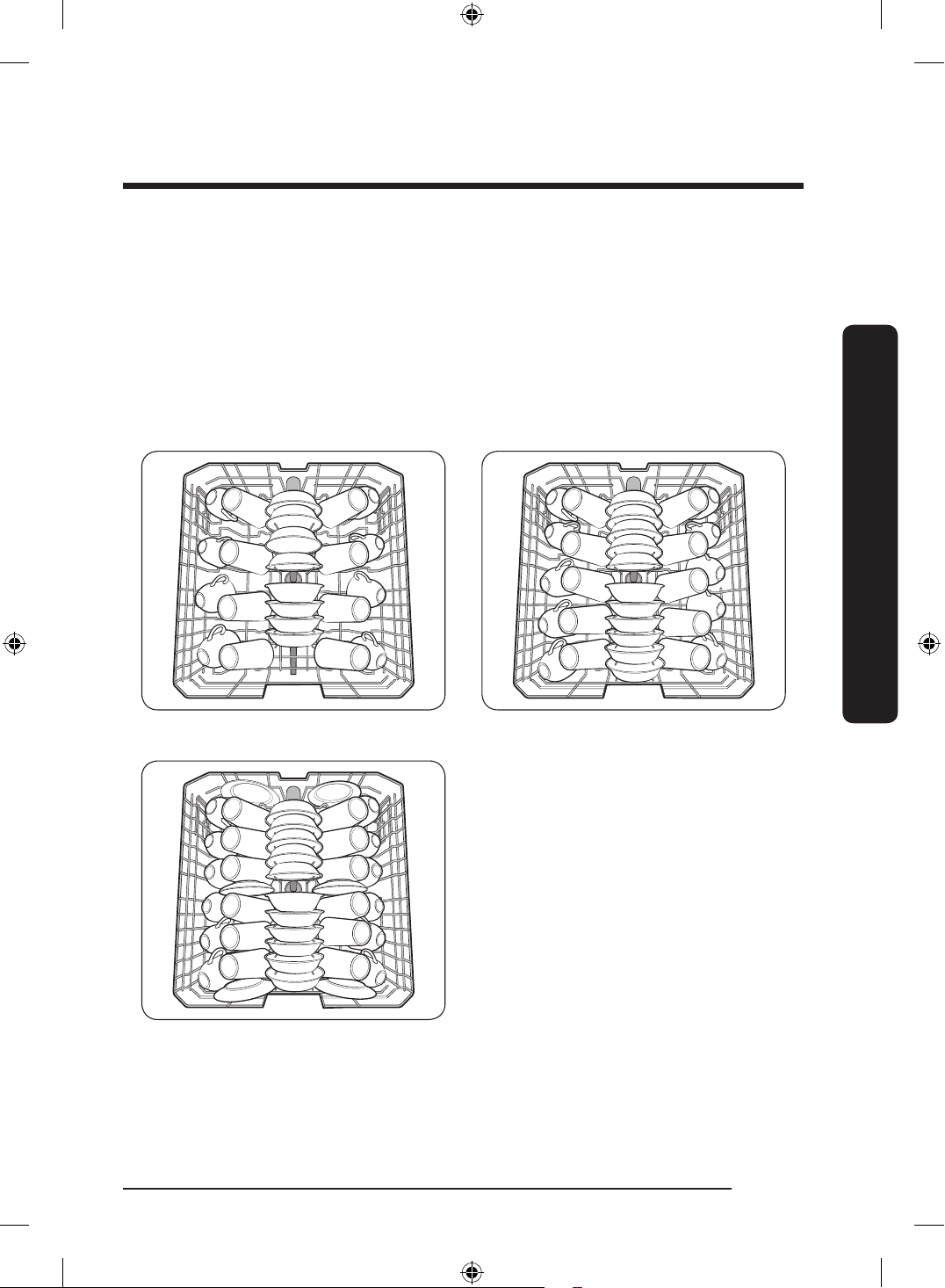

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked
“dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front
of each plate faces the back of the plate in front of it, and the open sides of the plates at
the center of the dishwasher face each other. See the illustrations below.
Make sure the loaded dishes do not interfere with the rotation of the nozzle which is
located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)
When loading dishes, pull the upper rack out sufciently so you can load it without striking
the counter above.
8 place settings 10 place settings
12 place settings
North America_DW5000C_WEB_DW0003_English.indd 19 2023-06-28 11:12:25
English20
Using your dishwasher
Using your dishwasher
Loading the 3
rd
Rack
TM

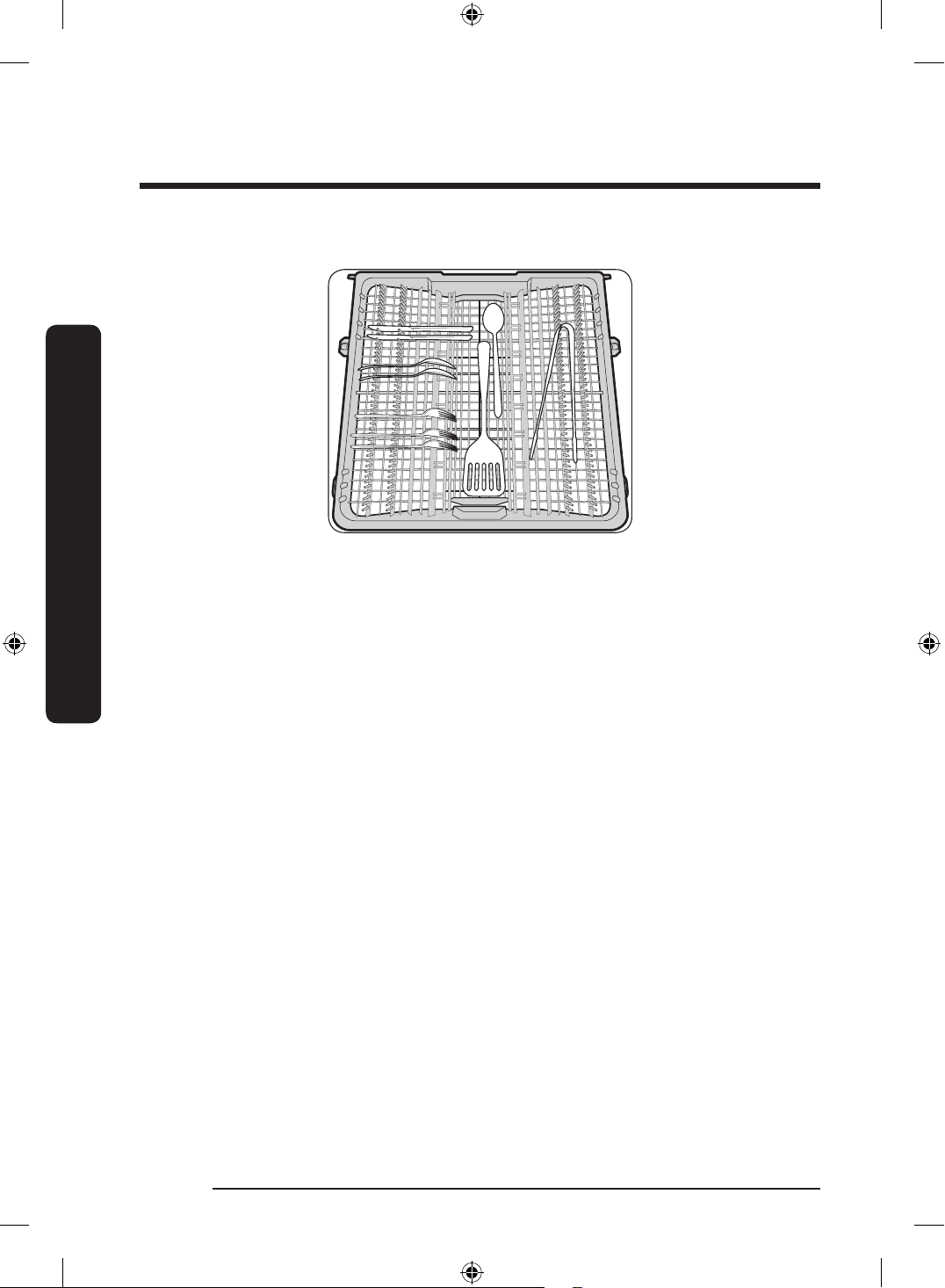

The 3rd rack is best suited for atware and cooking or serving utensils. Use it with the
spoon stands in the lower basket. You can load cutlery and utensils in the 3rd rack or the
spoon stands in the lower basket.
Removing the 3rd Rack
The entire 3rd rack can be removed if more space is needed on the upper rack for larger
items. (See the "Removing the 3rd Rack" section on page 16.)
North America_DW5000C_WEB_DW0003_English.indd 20 2023-06-28 11:12:26
English 21
Using your dishwasher
Loading the Cutlery rack

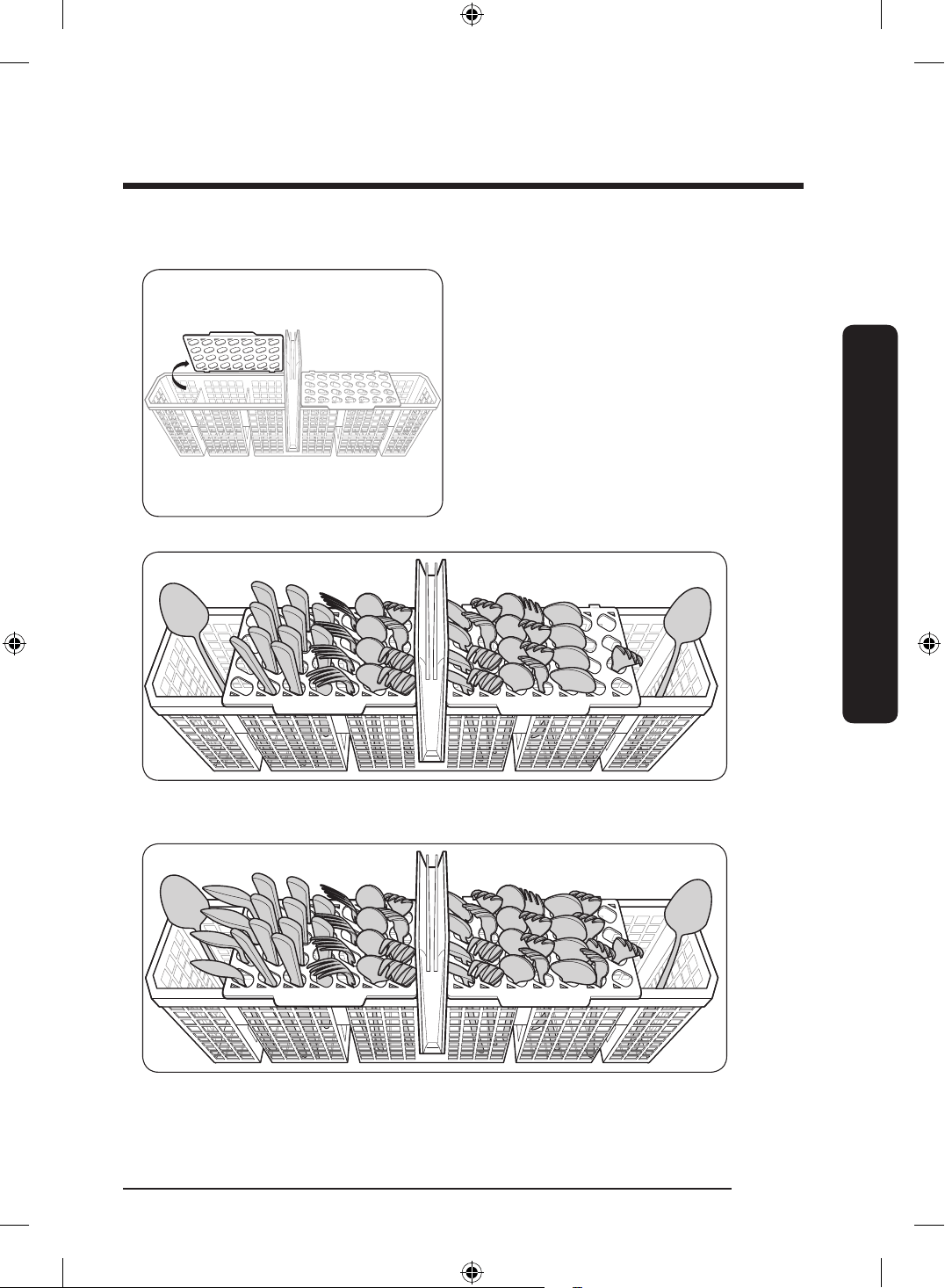

The cutlery rack consists of two
compartments.
You can place each knife, spoon, or fork
separately into the spoon stands in the
basket’s covers to prevent chipping and
discoloration. See the illustrations below.
You can use the cutlery rack with the
cover open. Refer to the illustration on
the left.
8 place settings
10 place settings
North America_DW5000C_WEB_DW0003_English.indd 21 2023-06-28 11:12:26
English22
Using your dishwasher
Using your dishwasher
12 place settings

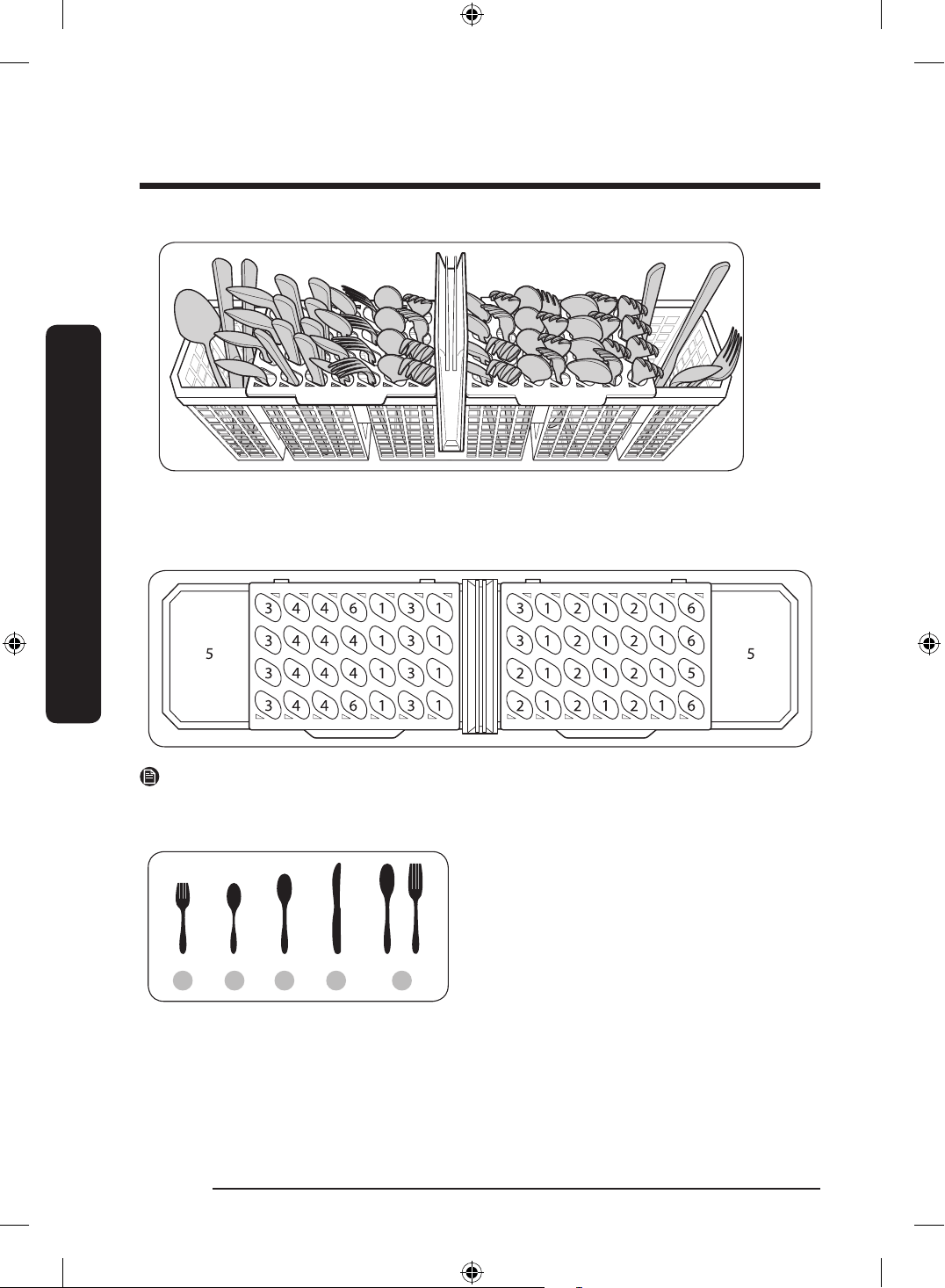

The spoon stands as seen from above with the suggested placement of cutlery items.
Match the numbers in the diagram to the numbers in the list of cutlery items below.
NOTE
Do NOT let any item extend through the bottom. Do not load chopsticks in this rack.
Chopsticks should be loaded on the 3rd rack.
1 2 3 4 5
1. Forks
2. Tea spoons
3. Dinner spoons
4. Knives
5. Serving spoons and Serving forks
6. Remaining items
North America_DW5000C_WEB_DW0003_English.indd 22 2023-06-28 11:12:26
English 23
Using your dishwasher
Detergent guidelines
All dishwasher cycles require detergent in the detergent compartment. Apply detergent as
appropriate for the selected cycle to ensure best performance.
WARNING
• Do not consume dishwasher detergent. Avoid breathing in detergent fumes. Dishwasher
detergent contains irritants and caustic chemicals that can induce respiratory conditions.
If you have consumed dishwasher detergent or inhaled detergent fumes, seek medical
attention immediately.
• Keep dishwasher detergent out of children’s reach.
CAUTION
Use dishwasher detergent only. Other types of detergent produce excessive foam, which
may decrease the dishwasher’s performance or cause it to malfunction.

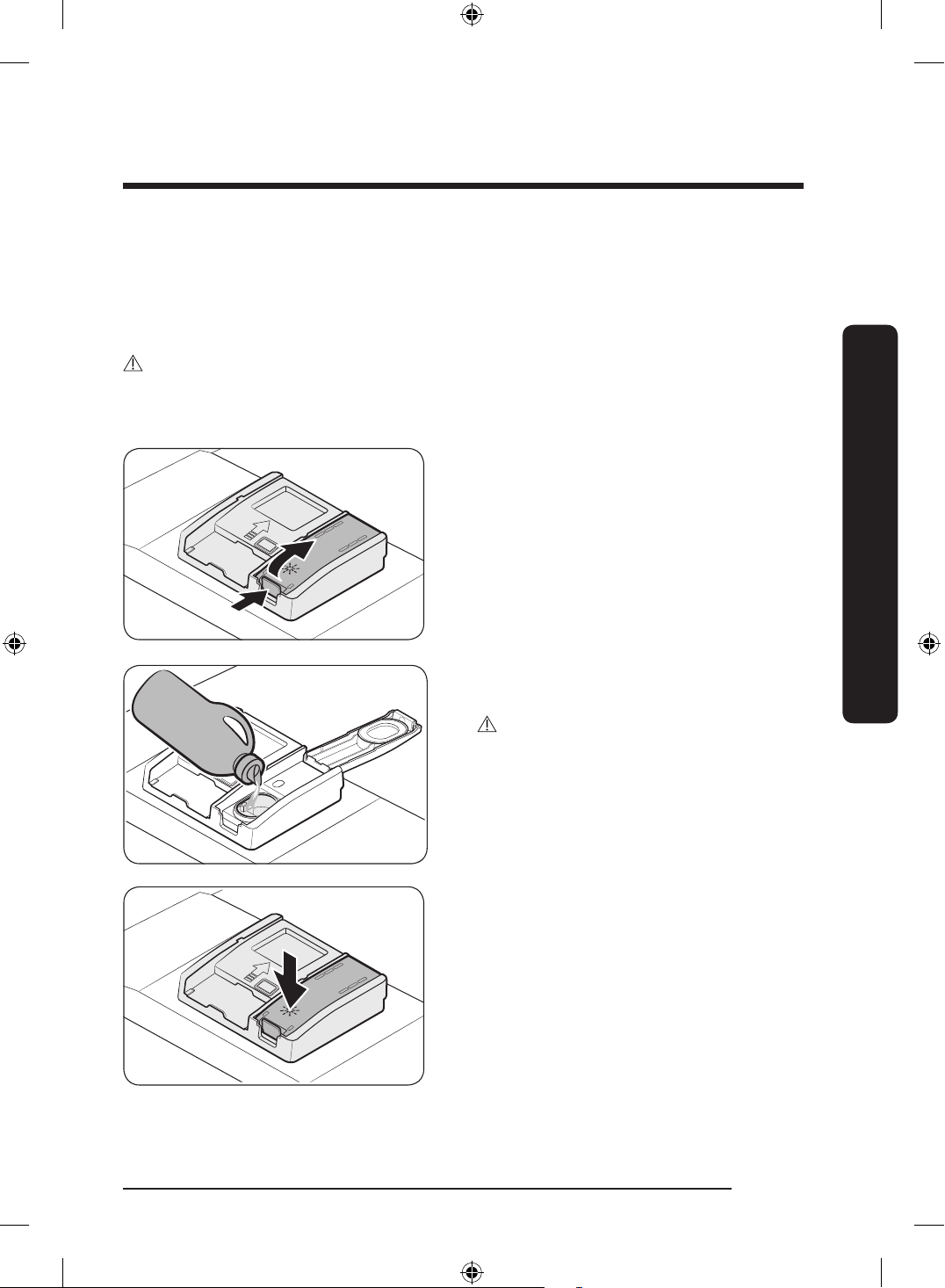

To ll the detergent dispenser

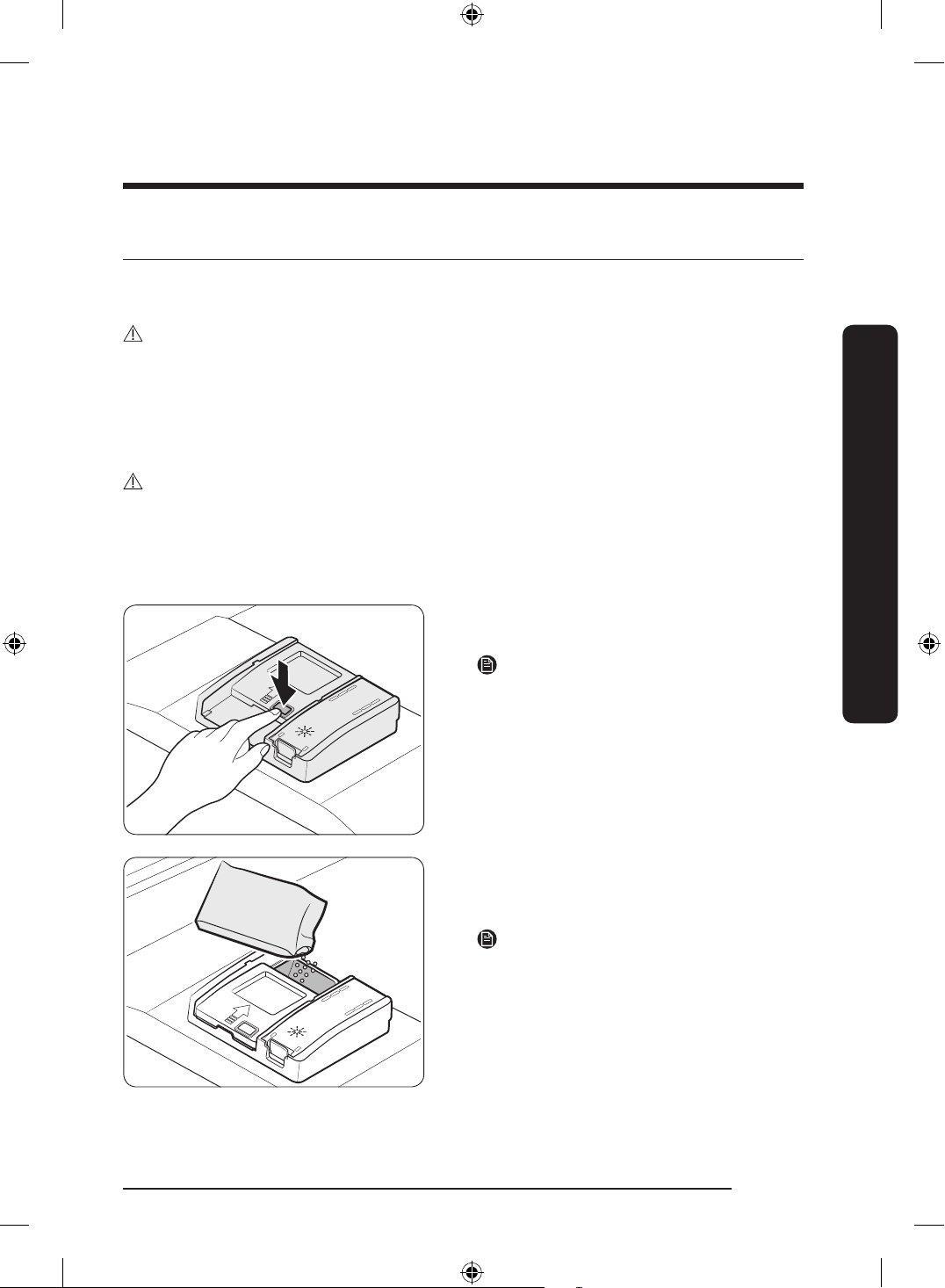

1. Open the detergent dispenser cap by
pressing the detergent dispenser catch.
NOTE
The cap remains open at the end of a cycle.
2. Add the recommended amount of
detergent to the main wash detergent
compartment.
NOTE
There is no separate button that is specic
to using tablet detergents.
North America_DW5000C_WEB_DW0003_English.indd 23 2023-06-28 11:12:26
English24
Using your dishwasher
Using your dishwasher
3. Close the lid by sliding it up.
4. If the items are heavily soiled, pour
a small amount of detergent onto the
door for better cleaning results.
NOTE
The additional detergent will activate
during the pre-wash process.
The cover opens automatically to dispense the detergent during the wash.
North America_DW5000C_WEB_DW0003_English.indd 24 2023-06-28 11:12:27
English 25
Using your dishwasher
Rinse aid
Rinse aid improves the drying performance of the dishwasher. When the Rinse Rell
indicator lights up on the control panel, rell with rinse aid. Only use liquid rinse aid.
Powdered rinse aid will clog the compartment opening and cause the dishwasher to
malfunction.
CAUTION
• Do not apply any type of detergent to the rinse aid compartment.
• Do not over ll the compartment. Excessive rinse aid may overow during a cycle.
1. Open the rinse aid reservoir cap.
2. Fill the rinse aid reservoir with rinse
aid.
CAUTION
Do not ll the reservoir above the full level
indicator. Excess rinse aid can overow
during the wash cycle.
3. Close the rinse aid reservoir cap.
North America_DW5000C_WEB_DW0003_English.indd 25 2023-06-28 11:12:27
English26
Using your dishwasher
Using your dishwasher
Touchpad responsiveness
To prevent the touch-enabled controls from losing responsiveness, follow these
instructions.
• Touch the center of each button with
one nger.
• Do not touch more than one button at a
time, except as directed.
• Clean the surface of the control panel
regularly with a soft, damp cloth.
North America_DW5000C_WEB_DW0003_English.indd 26 2023-06-28 11:12:27
English 27
Operations
Operations
WARNING
To reduce the risk of re, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.

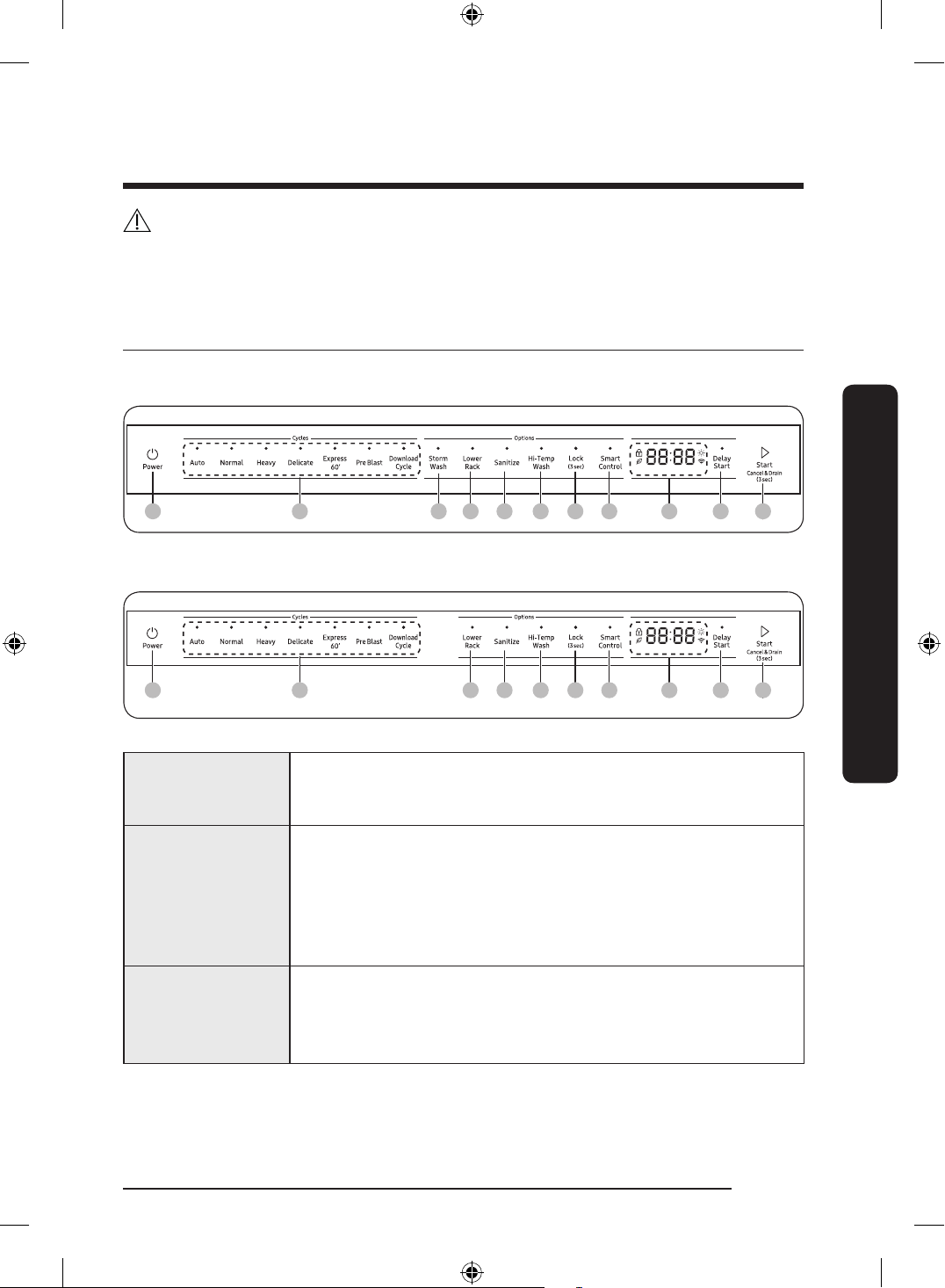

Control panel
DW80CG545*, DW80CG542*, DW80CB545* Series
01 02 03 04 05 06 07 08 09 1110
DW80CG502* Series
01 02 04 05 08 09 111006 07
01 Power
When you press the Power button, the Cycle On light for the
most recently started cycle turns on. When the selected cycle is
complete, the dishwasher powers off automatically.
02 Cycle Selector
Select the appropriate wash cycle depending on the soil level of
your dishes. After you select a cycle, the Cycle On light for that
cycle lights.
If you want to change the cycle once it has started, press the
Power button. Then, turn on the dishwasher again and select a
new cycle.
03 Storm Wash
+
Use this option when you want to wash pots and pans, durable
serving bowls, and other large, very dirty, hard to clean dishes.
To use Storm Wash
+
, place the dishes face down in the storm wash
nozzle up area in the lower basket.
North America_DW5000C_WEB_DW0003_English.indd 27 2023-06-28 11:12:27
English28
Operations
Operations
04 Lower Rack
If selected, only the lower rack nozzle is activated to reduce both
the cycle time and power consumption. Use this cycle to wash a
small load of dishes or glasses in the lower rack. To wash heavily
soiled items, select the Storm Wash
+
option.
05 Sanitize
With the Sanitize option selected, the water temperature is
increased to 167 ˚F (75 ˚C) in the nal rinse cycle for high
temperature sanitization.
If you select the Sanitize option, the "Sanitize" lamp blinks
when the water temperature reaches the sanitary temperature
(over 155 ˚F (68 ˚C)), and then remains illuminated until the Sanitize
option ends.
When you open the door or press the
Power button, the "Sanitize"
lamp turns off.
NOTE
Only Normal cycle with the Sanitize option has been designed to
meet the requirements for soil removal and sanitization efcacy
in NSF 184. Certied residential dishwashers are not intended for
licensed food establishments.
For the Sanitize mode, the amount of detergent as 3/4 oz (20 g) in
Main wash dispenser and 1/3 oz (10 g) on the door for pre-wash
is used.
06 Hi-Temp Wash
Raises the main wash temperature to improve cleaning for loads
containing tough, baked-on food.
07 Lock (3 sec)
Control Lock allows you to lock the buttons on the control panel
so children cannot accidently start the dishwasher by pressing the
buttons on the panel.
To lock and unlock the buttons on the control panel, hold the
Lock (3 sec) button down for three (3) seconds when the power is
On.
08 Smart Control
You can monitor and control the dishwasher remotely through
a Wi-Fi connection. To connect the dishwasher to your smart
phone for the rst time, press and hold Smart Control. For more
information, see the “SmartThings” section on page 35.
09 Display
Displays information about the current cycle including the cycle
time, remaining time, Delay Start settings, and other cycle-specic
information.
If a problem occurs during operation, an information code will
appear with a warning sound. Refer to the information codes on
page 51.
North America_DW5000C_WEB_DW0003_English.indd 28 2023-06-28 11:12:27
English 29
Operations
10 Delay Start
Delay a cycle for up to 24 hours in one-hour increments. To
increase the delay start time, press or hold the Delay Start button.
The hour displayed indicates the time at which the wash will start.
- After setting the delay time, press the Start button, and then
close the door to start the cycle.
- To change the delay time after the dishwasher has started,
rst turn the dishwasher off and turn it back on. Then, select a
new cycle and change the delay time settings.
11 Start
To start a cycle, press the
Start button before closing the door.
Cancel & Drain: To cancel a currently running cycle and drain the
dishwasher, press and hold the
Start button for three (3) seconds.
Once the dishwasher is reset, select a cycle and option, and then
press
Start to restart the dishwasher.
Indicators
Control Lock indicator
Lights up if Control Lock is activated, and blinks if any
button except for the
Power button is pressed.
AI Energy mode
indicator
• AI Energy mode becomes active when the
SmartThings app allows it to be enabled.
• With the AI Energy mode enabled, the indicator
turns on if an AI Energy mode compatible cycle is
selected.
• Not all cycles are available with this mode.
The indicator turns off if an AI Energy mode
incompatible cycle is selected.
• AI Energy mode helps reduce power consumption.
However, it takes a longer cycle time.
Rinse Refll indicator
Lights up if the dishwasher runs out of rinse aid.
Smart Control
Lights up if SmartThings is activated.
North America_DW5000C_WEB_DW0003_English.indd 29 2023-06-28 11:12:28
English30
Operations
Operations
Cycle overview
01
02 03 04
05
06 07
01 Auto
This cycle detects the level of soil and automatically initiates
the optimal cycle after a few minutes of operation.
02 Normal
Use this cycle for normally soiled dishes.
The energy-usage label is based on this cycle.
03 Heavy Use this cycle for heavily soiled dishes.
04 Delicate
Use this cycle for soiled, fragile items such as ne glassware
and crystal glass (wine glass). Do not use this cycle for other
glassware because clouding or etching may occur.
05 Express 60'
Use this cycle when you need to wash dishes quickly. It takes
about 1 hour.
06 Pre Blast
Use this cycle for dislodging large food debris roughly in a
quick time and preventing caking. No detergent or rinse is
applied.
07 Download Cycle
Beside the default cycles, you can download and use additional
cycles on your phone.
North America_DW5000C_WEB_DW0003_English.indd 30 2023-06-28 11:12:28
English 31
Operations
Download Cycle
Beside the default cycles, you can download and use additional cycles on your phone.
1. Press Power button, and then select the Download Cycle.
2. Select a downloadable cycle on your phone app.
Cycles available: Plastic, Pots Pans, Baby Care, Night.
- The default cycle is Plastic.
- You can save the downloaded cycle for future use.
3. Press Start button, and close the door of the dishwasher.
Plastic
Appropriate for cleaning plastic dishes that are vulnerable
to heat and temperature.
Pots Pans
Appropriate for cleaning cookware such as pans and pots
that are likely to be soiled heavily.
Baby Care
Use this cycle to rinse dishes with high-temperature water
before drying. No detergent is applied.
Night
Use this cycle for normal dishwashing after a meal. This
cycle takes a longer time but less energy than the Normal
cycle.
North America_DW5000C_WEB_DW0003_English.indd 31 2023-06-28 11:12:28
English32
Operations
Operations
Simple steps to start your dishwasher
1. Open the door, and then load the dishwasher. Make sure dishes are empty.
2. If applicable, put the dishes in the lower rack. If adding the Storm Wash
+
option, put the
dishes in the left side of the lower rack.
3. Add detergent to the detergent dispenser. For better results, add rinse aid to the rinse
aid compartment.
NOTE
You should use rinse aid for better drying performance. You can further improve drying
performance by also selecting the
Sanitize option.
4. Press Power, and then select a cycle with necessary options (Lower Rack, Storm Wash
+
,
Hi-Temp Wash, Sanitize).
If you change the cycle after selecting an option, the option is released.
5. Press Start, and then close the door within 3 seconds. The dishwasher starts the cycle
after draining for a few seconds.
NOTE
• To change the cycle after it has started, press and hold Start for 3 seconds to cancel the
cycle. Then, select a new cycle.
• To resume after you have opened the door to stop the dishwasher while operating,
simply press Start rst, then close the door.
North America_DW5000C_WEB_DW0003_English.indd 32 2023-06-28 11:12:28
English 33
Operations
Settings
You can change the Sound, Auto Release™ Dry alert, Rinse aid amount, and
Auto Release™ Dry settings to your preference. To change the settings, press the Sanitize
and Delay Start buttons simultaneously for 3 seconds. Press Sanitize to navigate through
the sub menus, and then press Delay Start to conrm your changes.
Sound
U1/U0
Auto Release™
Dry alert
J1/J0
Rinse aid amount
F0~F6
Auto Release™
Dry
A1/A0
After setting is nished, press
Power button or Sanitize and Delay Start buttons.
Sound
Press
Sanitize until 'U0' or 'U1' is displayed. To mute the dishwasher, select 'U0', and then
press the Sanitize and Delay Start buttons at the same time or the Power button. To
unmute, select '
U1', and then press the Sanitize and Delay Start buttons at the same time or
the
Power button.
Auto Release™ Dry alert
You can enable or disable the setting that alerts you when the door opens to start the
Auto Release™ Dry function.
Press
Sanitize until 'J1' or 'J0' is displayed. To disable the Auto Release™ alert, select 'J0',
and then press the Sanitize and Delay Start buttons at the same time or the Power button.
To enable, select 'J1', and then press the Sanitize and Delay Start buttons at the same time
or the Power button.
Rinse aid amount
Press
Sanitize until ‘F0~F6’ is displayed. The higher the number, the more rinse aid the
dishwasher uses. To improve drying performance, select a higher number.
If your dishes appear discolored after a wash, switch to a lower number.
The factory default level is
‘F4’.
NOTE
For DW80CG502* model, please press Hi-Temp Wash instead of Sanitize.
North America_DW5000C_WEB_DW0003_English.indd 33 2023-06-28 11:12:28
English34
Operations
Operations
Auto Release™ Dry
The Auto Release™ Dry function, which is designed to improve drying performance,
automatically opens the dishwasher’s door 1 to 15 minutes before a cycle ends.
You can enable or disable Auto Release™ Dry in two ways: Using the Setting Mode or using
the switch keys. Both methods are described as shown below.
Press Sanitize until “A1” or “A0” is
displayed. Then, press Delay Start to enable
(A1) or disable (A0) Auto Release™ Dry.
Using the switch Keys :
DW80CG545*, DW80CG542*, DW80CB545*
Series
Press the
Storm Wash
+
+ Sanitize button
for 3 second to enable (A1) or disable (A0)
Auto Release™ Dry.
DW80CG502* Series
Press the
Lower Rack + Hi-Temp Wash
button for 3 second to enable (A1) or
disable (A0) Auto Release™ Dry.
NOTE
• Once the door opens on the Auto Release™ Dry mode, the door cannot be closed
manually for the next 2 minutes.
• Disabling (A0) “Auto Release™ Dry” can affect the drying results. Enable (A1)
“Auto Release™ Dry” for better drying result.
• After a cycle is complete, the door automatically opens to let steam out. This is normal
and not a product malfunction.
• For DW80CG502* model, please press Hi-Temp Wash instead of Sanitize.
North America_DW5000C_WEB_DW0003_English.indd 34 2023-06-28 11:12:28
English 35
Operations
SmartThings
Wi-Fi connection
On your phone, go to
Settings, and then connect to your home Wi-Fi network.
Download
On an app market (Google Play Store, Apple App Store, Samsung Galaxy Apps), nd the
SmartThings app using “SmartThings” as the search term. Download and install the app on
your device.
NOTE
• The SmartThigns app is designed for Android 8.0 or later, iOS 13.0 or later.
• For improved performance, the SmartThings app is subject to change without notice, or
discontinued support according to the manufacturer’s policy.
Log in
You must rst log into SmartThings using your Samsung account. To create a new Samsung
account, follow the instructions on the app. You don’t need a separate app to create your
account.
NOTE
If you have a Samsung account, use the account to log in. A registered Samsung phone user
can log in automatically.
To register your device to SmartThings
1. Make sure your phone is connected to a wireless network.
2. Run SmartThings on your phone. iPhone users are required to provide the login
information each time they access the app.
3. When a message of “A new device is found.”, select Add.
4. If no message appears, select + and then select your dishwasher in a list of devices
available. If your dishwasher is not listed, select Device Type > Specifc Device Model,
and then add your dishwasher manually.
5. Follow the on screen instructions to complete the connection process for your
dishwasher. Press and hold Smart Control for more than 5 seconds until the “AP”
message appears on the display. Your dishwasher will be registered with the app.
6. When the process is complete, your dishwasher will appear in the list of devices on
your SmartThings App.
7. Tap the dishwasher icon to open the dishwasher page.
8. When a network connection is established, the Wi-Fi icon lights up on your dishwasher.
North America_DW5000C_WEB_DW0003_English.indd 35 2023-06-28 11:12:28
English36
Operations
Operations
Dishwasher app
Integrated control: You can monitor and control your dishwasher both at home and on the
go.
• Select the dishwasher icon on SmartThings. The dishwasher page appears.
• Check the operation status or notications related to your dishwasher, and then change
options or settings if necessary.
NOTE
• This device is designed for household use only (Class B), and can be used in all
residential areas.
• This device may cause wireless interference, and neither the manufacturer or the
installer of this device can provide a safety measure of any kind.
• Recommended encryption methods are WPA/TKIP and WPA2/AES. Newly developed
Wi-Fi protocols or unapproved Wi-Fi protocols are not supported.
• The reception sensitivity of a wireless network may be affected by surrounding wireless
environments.
• If your Internet provider has registered the MAC address of your PC or the modem
module for permanent use, your Samsung dishwasher may fail to connect to the
Internet. If this is the case, contact your Internet provider.
• The Internet rewall may interrupt your Internet connection. If this happens, contact
your Internet provider.
• If your dishwasher still fails to connect to the Internet after you have followed the
instructions from your Internet provider, contact a local Samsung retailer or service
center.
• To install and set up your wired or wireless router, refer to the user manual that came
with your router.
• Your Samsung dishwasher supports the Wi-Fi 2.4 GHz protocols.
• Your Samsung dishwasher supports the IEEE802.11 b/g/n (2.4 GHz), Soft-AP protocols.
(IEEE802.11n is recommended)
• An unapproved wired/wireless router may fail to connect to your Samsung dishwasher.
• The SmartThings app is available on Android devices with OS 8.0 or higher and iOS
devices with iOS 13 or higher. The app is optimised for Samsung phone (Galaxy S and
Note series).
• Some functions of the app may operate differently on third-party devices.
• The app is subject to change without notice for improved performance.
North America_DW5000C_WEB_DW0003_English.indd 36 2023-06-28 11:12:28
English 37
Operations
SmartThings
Category Checkpoint Description
Monitoring
Washing status
You can check the current cycle and its
options, and the remaining cycle time.
Smart Control
The Smart Control status is shown for
the dishwasher.
Energy monitoring
Use this to monitor the energy
consumption status.
Control
Start/Pause/Cancel
Select a cycle and necessary options,
and then select Start/Pause/Cancel to
start an operation, to stop temporarily,
or to cancel the current operation.
My Favorite
Add frequently used cycles and options
to My Favorite for later use.
Delay Start
Set Delay Start to start the cycle at a
scheduled time. (Delay up to 24 hours.)
Notifcation
Cycle completed
Noties you that the current cycle is
complete.
Detergent
Noties you if the dishwasher is out of
rinse aid.
Washing Recipe Cycle recommendation
Recommends the best cycle with optimal
options for loaded dishes.
Homecare Wizard Maintenance
The wizard features a device
management service and a usage guide.
North America_DW5000C_WEB_DW0003_English.indd 37 2023-06-28 11:12:28
English38
Operations
Operations
Special features
Delay Start
You can delay the cycle starting time up to 24 hours in 1-hour increments. To increase the
delay time, press Delay Start. The hour displayed indicates the time at which the cycle will
start.
1. Open the door, and then load the dishwasher.
2. Press Delay Start, and then press or hold Delay Start to change the time in 1-hour
increments.
3. Close the door, and then press Start.
NOTE
To change the delay time once the dishwasher has started, press Power and then restart
the dishwasher.
Touch Controls
Touch controls allow you to operate the dishwasher easily.
• They are convenient to operate, requiring only a soft touch.
• Have a simple and stylish design.
• Are easy to clean.
NOTE
If you have children or you want to clean the Control Interface, recommended activating
the Control Lock feature to lock the control buttons.
Control Lock
To prevent children from playing with the dishwasher, Control Lock locks all button
controls except for Power.
• To activate Control Lock, press and hold Lock (3 sec) for 3 seconds. With Control Lock
activated, you cannot select a cycle or option, or start an operation.
• To deactivate Control Lock, press and hold Lock (3 sec) again for 3 seconds.
• Control Lock remains active after the dishwasher restarts. To cancel Control Lock, you
must deactivate it rst.
North America_DW5000C_WEB_DW0003_English.indd 38 2023-06-28 11:12:28
English 39
Maintenance
Maintenance
Cleaning
Keep the dishwasher clean to improve performance, reduce unnecessary repairs, and
lengthen its lifecycle.
Exterior
Clean spills on the surface of the dishwasher as they occur. Use a soft, damp cloth on the
control panel to gently wipe away spills and dust.
CAUTION
• Do not use benzene, wax, thinner, chlorine bleach, alcohol, or other chemical substances.
These materials may discolour the surface of the dishwasher and cause stains.
• The dishwasher has electric parts inside. Do not sprinkle water directly onto the
dishwasher. Protect electrical components from coming in contact with water.
• For a stainless-steel door panel, clean using a stainless steel cleaner for home
appliances and a clean, soft cloth.
Interior
Clean the interior of the dishwasher on a regular basis to remove any dirt or food particles.
Wipe inside the dishwasher and inside the door with a wet dishcloth. To maintain optimum
cleanliness, recommended running the Self Clean cycle periodically with the dishwasher
empty.
To keep the cutlery pad clean, turn it over after each use. To remove white spots and odors
from the cutlery pad, run the Self Clean cycle with the dishwasher empty and no detergent
until the cutlery pad ushes. Then, stop the cycle and put an 8-ounce cup of white vinegar
into the lower basket. Close the door, and then resume the cycle.
Use a damp cloth to remove lime scale or grease deposits inside the dishwasher.
Alternatively, apply some detergent, and then run an empty cycle using the highest rinse
temperature.
CAUTION
• Do not remove the front seal (the long rubber seal enclosing the opening of the
dishwasher). The seal keeps the inner side of the dishwasher sealed.
North America_DW5000C_WEB_DW0003_English.indd 39 2023-06-28 11:12:28
English40
Maintenance
Maintenance
Nozzles
To prevent the nozzles from being clogged or if the nozzles are clogged, remove and clean
each nozzle. Use caution when removing the nozzles as they may break.
Top nozzle
1. Open the door, then pull out the upper
rack. The top nozzle is visible on the
top.
2. Turn counter clockwise and remove the
nozzle cap, then remove the nozzle.
3. Unclog and clean the nozzle.
4. Reinsert the nozzle, then tighten the
cap clockwise.
5. Rotate the nozzle by hand to make sure
the nozzle is engaged correctly.
Upper nozzle
1. Open the door, then pull out the upper
rack to reveal the upper nozzle.
2. Loosen and remove the nut, then
remove the nozzle.
3. Unclog and clean the nozzle.
4. Reinsert the nozzle, then tighten the
nut by hand.
5. Rotate the nozzle by hand to make sure
the nozzle is engaged correctly.
North America_DW5000C_WEB_DW0003_English.indd 40 2023-06-28 11:12:29
English 41
Maintenance
Lower nozzle
1. Open the door, then pull out the lower
rack. The lower nozzle is visible on the
bottom.
2. Unclog and clean the nozzle.
3. Reinsert the nozzle.
4. Rotate the nozzle by hand to make sure
the nozzle is engaged correctly.
Filter
Recommended cleaning the lter every month.
1. Open the door, then remove the lower
rack rst.
2. Turn the lter handle counterclockwise
to unlock the Coarse lter.
North America_DW5000C_WEB_DW0003_English.indd 41 2023-06-28 11:12:29
English42
Maintenance
Maintenance

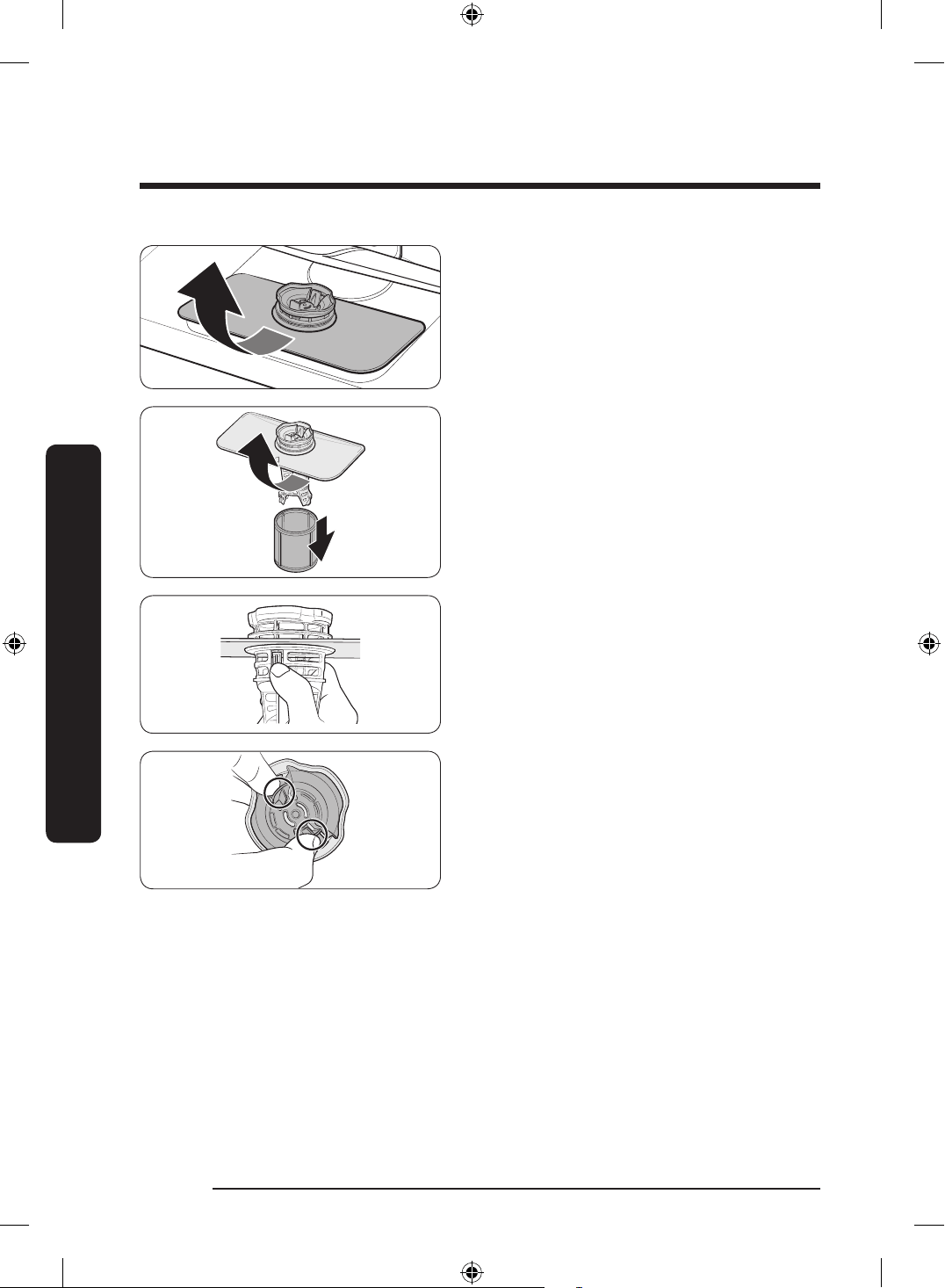

3. Remove the Coarse lter, then the
cylindrical micro lter underneath.
North America_DW5000C_WEB_DW0003_English.indd 42 2023-06-28 11:12:29
English 43
Maintenance

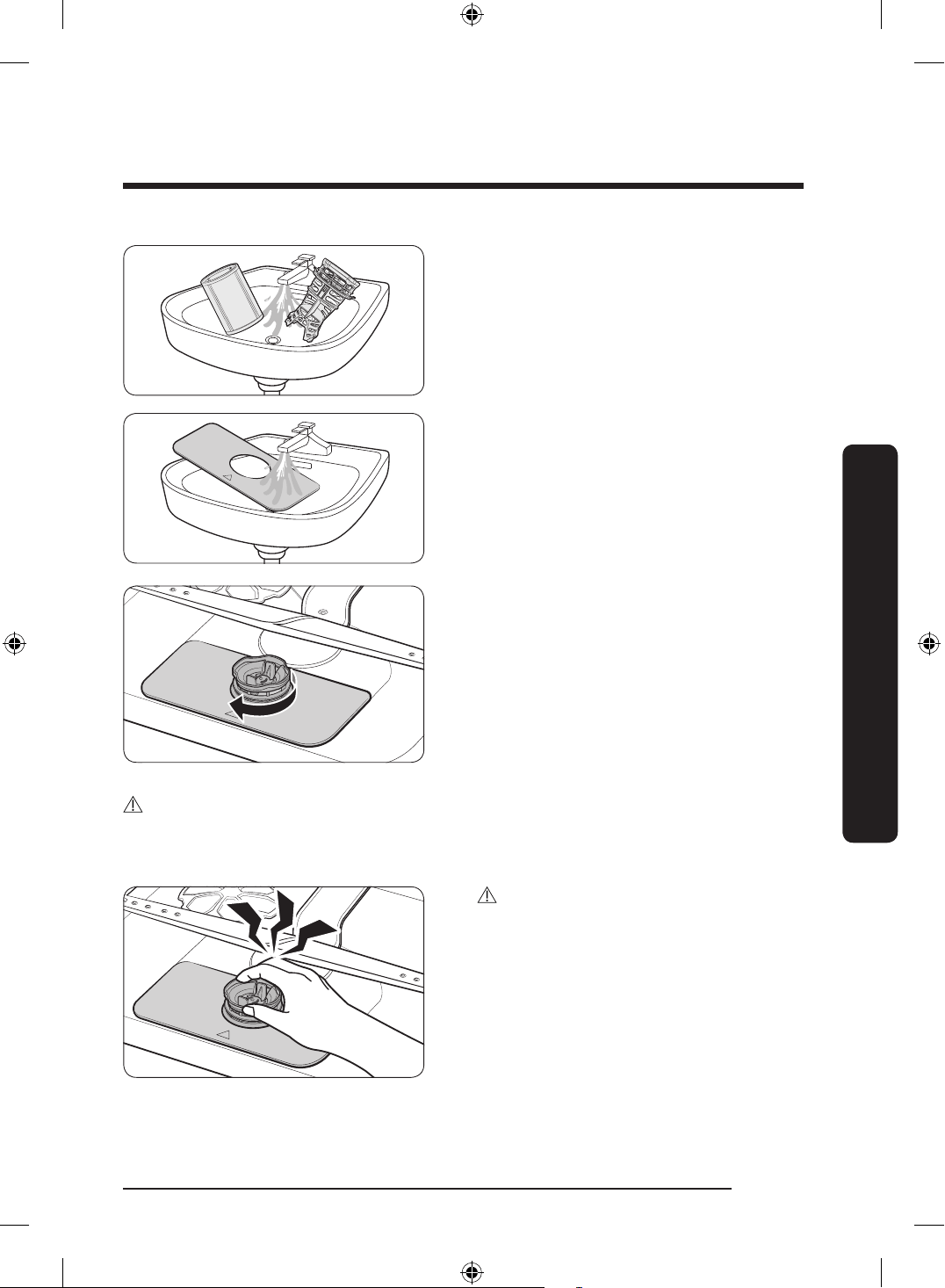

4. Remove any dirt and impurities from
the micro lter and the Coarse lter.
5. Rinse both lters with running water,
and then dry well.
6. Reinsert the lter, and then the Coarse
lter.
7. Turn the lter handle clockwise to lock.
CAUTION
Make sure the Coarse lter is closed properly. A loose cover can reduce the ltering
performance.
CAUTION
When removing the lter, the hand can
caught between the rotor and lter.
North America_DW5000C_WEB_DW0003_English.indd 43 2023-06-28 11:12:29
English44
Maintenance
Maintenance
Long-term care
If you are not using the dishwasher for an extended period of time, rst drain the unit
completely, and then disconnect the water hose. Shut off the water supply valve and the
circuit breaker. Water remaining in the hoses or the internal components can damage the
dishwasher.
Cleaning the drain pump
If the dishwasher fails to drain (5C is displayed) because the drain pump is clogged with a
foreign matter, if there is an abnormal noise coming from the drain pump, you must unclog
and clean the drain pump as instructed below.
1
2

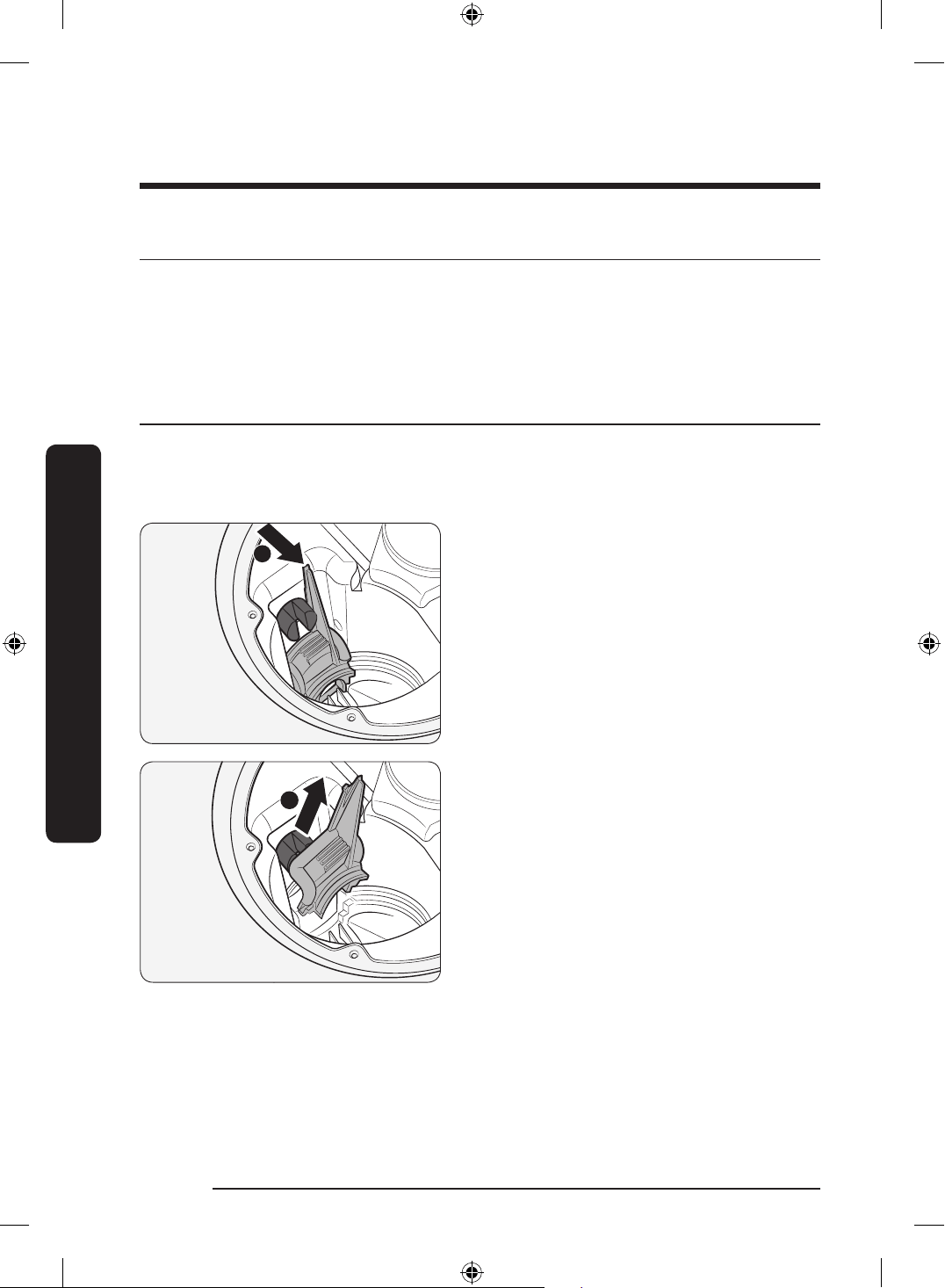

1. Remove the lower rack.
2. See the “Filter” section to remove the
cylindrical micro lter.
3. Remove any moisture from the lter
using a sponge.
4. Remove the drain-pump cover by
pushing its handle in the direction of
the arrow (1), and then pulling up (2).
5. Check the Drain Pump's impeller to see
if it’s in good condition. Then, remove
any foreign matter from the pump.
6. Reinsert the drain-pump cover and
press it down until you hear a click.
North America_DW5000C_WEB_DW0003_English.indd 44 2023-06-28 11:12:30
English 45
Maintenance
Storing your dishwasher
If you need to store your dishwasher for an extended period of time, rst drain and
disconnect it. If water remains in the hoses and internal components, you can damage the
dishwasher.
After draining and disconnecting the dishwasher, be sure to turn off the water supply valve
and circuit breaker.
North America_DW5000C_WEB_DW0003_English.indd 45 2023-06-28 11:12:30
English46
Troubleshooting
Troubleshooting
Check these solutions if your dishwasher…

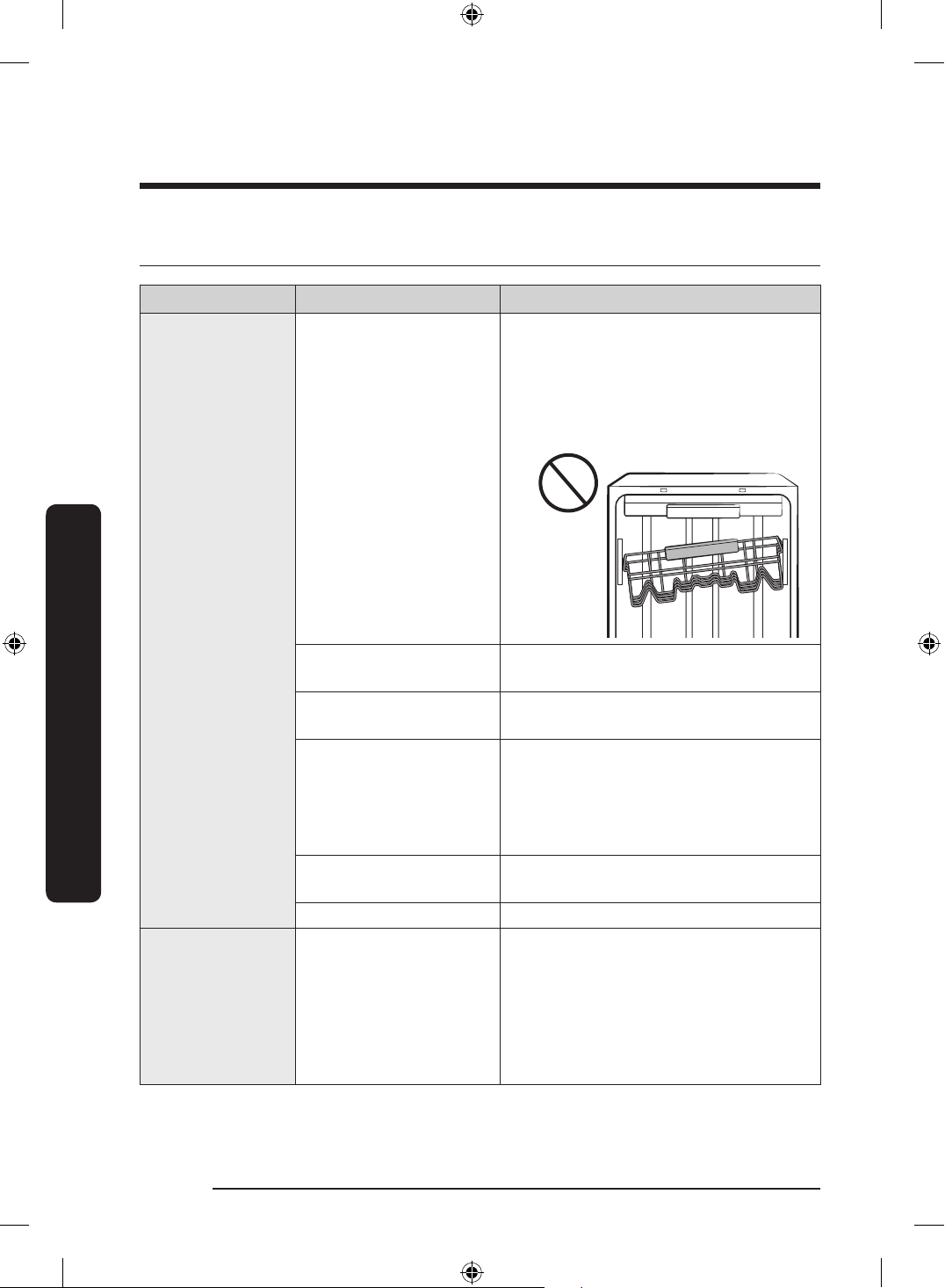

Problem Possible cause Solution
Will not start.
The door is not closed
completely.
• Check if the door is latched and
closed completely. Check whether the
Upper Rack is properly joined to the
Duct Nozzle.
• Also, check if the Upper Rack is
crooked or unbalanced.
The Start button was not
pressed.
• Check the information code on page 51
that appears on the display.
Doesn't operate at all.
• Make sure the power cord is
connected properly.
The water supply does
not work.
• Check if the water supply valve is
open.
• Check if the supplied water pressure
is between 20 and 120 psi (between
140 and 830 kPa).
The Control Panel is
locked.
• Unlock the Control Lock, (See page
38.)
A circuit breaker is open. • Reset the circuit breaker.
An operation or
cycle is taking too
long.
The dishwasher is
connected to a cold water
supply.
• Check if the water supply line is
connected to a cold water supply. To
work properly, the dishwasher must
be connected to a hot water supply.
(If connected to a cold water supply,
additional time is required to heat the
cold water.)
North America_DW5000C_WEB_DW0003_English.indd 46 2023-06-28 11:12:30
English 47
Troubleshooting
Problem Possible cause Solution
There are
food particles
remaining on
dishes.
(Not cleaning
properly.)
The cycle selected was
unsuitable.
• Select a cycle according to the
number and soil level of the dishes, as
directed in this manual.
The water temperature
is low.
• Connect the water supply line to a hot
water supply. For best performance,
the temperature of the supplied water
should be 120 ˚F (49 ˚C).
Low water pressure.
• The water pressure should be
between 20 and 120 psi (140-
830 kPa).
The water is too hard.
(water hardness)
• Use a commercial dishwasher cleaner.
• Use high-quality, fresh detergent with
rinse aid.
Dishwasher detergent
was not used.
• Use automatic dishwasher detergent.
• Recommended a powder type or
multi-function tablet dishwasher
detergent.
Detergent remains in the
dispenser.
• Make sure large items such as cookie
sheets, cutting boards, or contaners,
etc. are not blocking the detergent
dispenser and preventing it from
opening properly.
• Rearrange the dishes so they do not
interfere with detergent dispenser
operation.
North America_DW5000C_WEB_DW0003_English.indd 47 2023-06-28 11:12:30
English48
Troubleshooting
Troubleshooting
Problem Possible cause Solution
There are
food particles
remaining on
dishes.
(Not cleaning
properly.)
There is no rinse aid.
• Check the dispenser and add rinse
aid.
• Use liquid type rinse aid.
A nozzle is clogged. • Clean the nozzle. See page 41.
The dishes are
improperly loaded.
Too many dishes have
been loaded.
• Rearrange the dishes so they do not
interfere with nozzle rotation and
detergent dispenser operation.
• Load only an appropriate number of
dishes.
• Load your dishes as recommended.
(See page 17.)
• Load the heavily soiled items into the
Storm Wash
+
area. (See page 18)
The lters are clogged or
not correctly fastened.
(Food soils remain on the
lter.)
• Scrape food from dishes prior to
loading. (Do not pre-rinse.)
• Clean the lter. (See page 41.)
• Make sure the lters are correctly
fastened.
Less water than required
is supplied.
• Check if the supplied water pressure
is between 20 and 120 psi (between
140 and 830 kPa).
Leaves glasses
with a light flm.
The water supplied
is hard and too much
detergent was used.
• Underload the dishwasher and use a
rinse aid to minimize this.
Aluminum dishes were
included in the wash
load.
• Remove the marks on the dishes
using a low sensitivity cleaner.
Leaves a yellow
or brown flm on
the inside of the
dishwasher.
This is caused by coffee
and tea soils.
• Remove the soils using a spot cleaner.
• Use a cycle with a higher
temperature.
North America_DW5000C_WEB_DW0003_English.indd 48 2023-06-28 11:12:30
English 49
Troubleshooting
Problem Possible cause Solution
Does not dry
dishes well.
There is no rinse aid
in the dispenser or not
enough rinse aid was
used.
• Check the dispenser and add rinse
aid.
• Use a liquid type rinse aid.
• Check the rinse aid settings.
The temperature of the
water is low when the
dishwasher is running.
• Connect the water supply line to a hot
water supply.
• Use rinse aid with the Sanitize option.
Too many dishes have
been loaded.
• Proper loading of items can affect
drying.
• Load your dishes as recommended.
(See page 17.)
Glasses and cups with
concave bottoms hold
water. This water may
spill onto other items
when you unload.
• After nishing the cycle, empty the
lower rack rst and then the upper
rack. This will prevent water dripping
from the upper rack onto the dishes
in the lower rack.
Auto Release™ Dry is
turned off.
• Turn Auto Release™ Dry on.
• For DW80CG545*, DW80CG542*,
DW80CB545*
Press the
Storm Wash
+
+ Sanitize
button for 3 seconds to access the
Auto Release™ Dry menu. Select "A1"
to activate Auto Release™ Dry.
• For DW80CG502*
Press the
Lower Rack + Hi-Temp Wash
button for 3 seconds to access the
Auto Release™ Dry menu. Select "A1"
to activate Auto Release™ Dry.
Multiple detergent
tablets were used
without selecting the
Sanitize option.
• Select the Sanitize option or use rinse
aid.
North America_DW5000C_WEB_DW0003_English.indd 49 2023-06-28 11:12:30
English50
Troubleshooting
Troubleshooting
Problem Possible cause Solution
Has a bad odor.
Water was left over from
an incomplete cycle.
• Clean the dishwasher by running the
Heavy cycle with the dishwasher
empty and no detergent.
The Drain Hose is
obstructed.
• Contact a qualied service technician
to remove any obstruction from the
drain hose.
The dishwasher is not
used daily or soiled
dishes are left in unit too
long.
• With the dishwasher empty and no
detergent, place a glass with 8 ounces
of vinegar upright into the lower rack,
and then run a Heavy cycle.
Is too noisy.
Sound is generated when
the dispenser cover is
open and the drain pump
is operating in an early
stage.
• This is normal operation.
The dishwasher is not
leveled.
• Ensure the dishwasher is leveled
properly.
Foreign material (a screw,
a plastic piece) is in the
pump chamber.
• Contact a qualied service technician
to remove foreign material from the
pump chamber.
There is a ‘chopping’
sound because a nozzle
is bumping against the
dishes.
• Rearrange the dishes.
Less water than required
is supplied.
• Check if the supplied water pressure
is between 20 and 120 psi (between
140 and 830 kPa).
Does not have a
smoothly rotating
nozzle.
Nozzle holes are clogged
with food particles.
• Clean the nozzle holes. (See page 41.)
The nozzle is blocked by
a dish or pot and cannot
rotate.
• After placing the dishes into the
racks, rotate the nozzles by hand
to check whether any of the dishes
interfere with them.
Water won’t
pump out of the
dishwasher.
The drain is clogged.
• Clean the drain pump by removing
the drain-pump cover. (See page 44.)
North America_DW5000C_WEB_DW0003_English.indd 50 2023-06-28 11:12:30
English 51
Troubleshooting
Problem Possible cause Solution
Has a bent upper
rack after dishes
are loaded.
The dishes are not loaded
properly.
• Load your dishes as recommended.
(See page 17.)
Cannot close the
door.
Auto Release™ Dry mode
is in operation.
• Once the door opens in the
Auto Release™ Dry mode, the door
cannot be closed manually for the
next 2 minutes. You may close the
door after 2 minutes.
Information codes
The Control Panel displays information codes to help you understand what is occurring
with your dishwasher.
Code Action
LC
Leakage check.
• If a leak occurs on the water supply valve connection, close the water
supply valve and go to your house circuit breaker panel, set the
dishwasher’s circuit breaker switch to off, and then contact the installer
to x.
If the problem continues, contact an authorized Samsung service center.
4C
Water supply check.
• Check if the water supply valve is closed or clogged, or is frozen. Also
check if the supplied water pressure is less than required.
If the problem continues, close the water supply valve, and then contact
an authorized Samsung service center.
5C
Drain check.
• After closing the water supply valve, check whether the drain hose is
clogged or folded. Also, check whether the drain hole inside the sump is
clogged.
If the problem continues, contact an authorized Samsung service center.
HC
High temperature heating check.
• Functional check. With the dishwasher empty, add detergent, and then
run a cycle. If the problem continues, go to your house circuit breaker
panel, set the dishwasher’s circuit breaker switch to off, and then contact
an authorized Samsung service center.
North America_DW5000C_WEB_DW0003_English.indd 51 2023-06-28 11:12:30
English52
Troubleshooting
Troubleshooting
Code Action
3C
Pump operation check.
• Functional check. Turn off the dishwasher and try to start it again.
If the problem continues, contact an authorized Samsung service center.
PC
Zone wash function check.
• Functional check. Turn off the dishwasher and try to start it again.
If the problem continues, contact an authorized Samsung service center.
For any codes not listed above, call 1-800-SAMSUNG (726-7864).
North America_DW5000C_WEB_DW0003_English.indd 52 2023-06-28 11:12:30
English 53
Cycle chart
Cycle chart
Cycle Auto Normal Heavy
Cycle sequence
Prewash
Mainwash
Rinse
Hot Rinse
Dry End
Prewash
Mainwash
Rinse
Hot Rinse
Dry End
Prewash
Mainwash
Rinse
Hot Rinse
Dry End
Temp
[˚F (˚C)]
Main wash 131-149 (55-65) 113-145 (45-63) 149 (65)
Hot Rinse
*Sanitize 167 ˚F
(75 ˚C)
140-149 (60-65) 129-144 (54-62) 145 (63)
Water consumption
[gal (ℓ)]
4.03-5.38
(15.25-20.35)
2.6-5.3
(9.85-20.05)
5.61 (21.25)
Cycle time (min) 118-139 111-142 154
Available
Options
Lower Rack O O O
Storm Wash
+
O O O
Hi-Temp Wash O O O
Sanitize O O O
Delay Start O O O
North America_DW5000C_WEB_DW0003_English.indd 53 2023-06-28 11:12:30
English54
Cycle chart
Cycle chart
Cycle Delicate Express 60' Pre Blast
Cycle sequence
Prewash
Mainwash
Rinse
Hot Rinse
Dry End
Mainwash
Rinse
Hot Rinse
Dry End
Prewash End
Temp
[˚F (˚C)]
Main wash 122 (50) 131 (55) -
Hot Rinse
*Sanitize 167 ˚F
(75 ˚C)
131 (55) 131 (55) -
Water consumption
[gal (ℓ)]
4.35 (16.45) 3.01 (11.4) 1.11 (4.2)
Cycle time (min) 109 60 10
Available
Options
Lower Rack O O X
Storm Wash
+
X O X
Hi-Temp Wash X O X
Sanitize X O X
Delay Start O O O
North America_DW5000C_WEB_DW0003_English.indd 54 2023-06-28 11:12:30
English 55
Cycle chart
Cycle Plastic Pots Pans
Cycle sequence
Mainwash
Rinse
Hot Rinse
Dry End
Prewash
Mainwash
Rinse
Hot Rinse
Dry End
Temp
[˚F (˚C)]
Main wash 140 (60) 158 (70)
Hot Rinse
*Sanitize 167 ˚F
(75 ˚C)
136 (58) 149 (65)
Water consumption
[gal (ℓ)]
3.5 (13.25) 5.61 (21.25)
Cycle time (min) 102 165
Available
Options
Lower Rack O O
Storm Wash
+
X O
Hi-Temp Wash X O
Sanitize X O
Delay Start O O
North America_DW5000C_WEB_DW0003_English.indd 55 2023-06-28 11:12:30
English56
Cycle chart
Cycle chart
Cycle Baby Care Night
Cycle sequence
Rinse
Dry End
Prewash
Mainwash
Rinse
Hot Rinse
Dry End
Temp
[˚F (˚C)]
Main wash - 140 (60)
Hot Rinse
*Sanitize 167 ˚F
(75 ˚C)
163 (73) 129 (54)
Water consumption
[gal (ℓ)]
1.08 (4.1) 5.09 (19.25)
Cycle time (min) 89 157
Available
Options
Lower Rack X O
Storm Wash
+
X O
Hi-Temp Wash X O
Sanitize X O
Delay Start O O
• When you select the
Auto or Normal cycle, running the Prewash and Rinse cycles
depends on the soil level of the load.
• The water consumption and wash time varies depending on the steps or options you
add, and on the pressure and temperature of the supplied water.
North America_DW5000C_WEB_DW0003_English.indd 56 2023-06-28 11:12:30
English 57
Appendix
Appendix
Helping the environment
• Your dishwasher is manufactured from recyclable materials. If you decide to dispose of
it, please observe local waste disposal regulations. Cut off the power cord so that the
appliance cannot be connected to a power source.
• Remove the door so that animals and small children cannot get trapped inside the
appliance.
• Do not exceed the detergent quantities recommended in the detergent manufacturers’
instructions.
Specications
MODEL
DW80CG5450MTAA / DW80CG5450SRAA / DW80CG5420SRAA /
DW80CG5420MTAA / DW80CG5020SRAA / DW80CB545012AA /
DW80CB5450APAA / DW80CG5451SRAA / DW80CG5451MTAA
Type Built-in Dishwasher
Power 120 V / 60 Hz AC only, 15 A circuit breaker
Wash capacity
15 place settings
14 place settings (DW80CG5420*, DW80CG5020*)
Used water pressure 20-120 psi (140-830 kPa)
Rated power uasge
Wash Motor 60-100 W
Heater 1200 W
Dimensions
(Width × Depth ×
Height)
23
7
/
8
x 25 x 33
7
/
8
in. (605 x 636 x 860 mm)
(DW80CG5450****, DW80CG5420****, DW80CG5020****)
23
7
/
8
x 27
5
/
16
x 33
7
/
8
in. (605 x 693 x 860 mm)
(DW80CG5451****)
Weight (Unpacked)
83.78 Ib (38 kg)
(DW80CG5420**** / DW80CG5020**** /
DW80CG5450AP** / DW80CG545***)
88.18 Ib (40 kg)
(DW80CG545012**)
North America_DW5000C_WEB_DW0003_English.indd 57 2023-06-28 11:12:30
English58
Open Source Announcement
Open Source Announcement
The software included in this product contains open source software.
The following URL http://opensource.samsung.com/opensource/SMART_TP1_0/seq/0 leads
to open source license information as related to this product.
North America_DW5000C_WEB_DW0003_English.indd 58 2023-06-28 11:12:30
English 59
Warranty (U.S.A)
Warranty (U.S.A)
SAMSUNG DISHWASHER
LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE
AND/OR PROOF OF DELIVERY
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials
or workmanship for the following limited warranty periods, starting on the date of
delivery to the original consumer purchaser:
One (1) year parts and labor
Five (5) years, Printed Circuit Board, Racking and Stainless Door Liner & Tub for leakage
(Parts Only)
This limited warranty is valid only on products purchased and used in the United States
that have been installed, operated, and maintained according to the instructions attached
to or furnished with the product. To receive warranty service, the purchaser must contact
SAMSUNG at the address or phone number provided below for problem determination and
service procedures. Warranty service can only be performed by a SAMSUNG authorized
service center. The original dated bill of sale and/or proof of delivery must be presented
upon request to SAMSUNG or SAMSUNG’s authorized service center to receive warranty
service.
SAMSUNG will provide in-home service within the contiguous United States during the
warranty period at no charge, subject to availability of SAMSUNG authorized servicers
within the customer’s geographic area. If the product is located in an area where service by
a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge
or required to bring the product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
During the applicable warranty period, a product will be repaired, replaced, or the purchase
price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned
parts in repairing a product, or replace the product with a new or reconditioned product.
Replacement parts and products are warranted for the remaining portion of the original
product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products
are the property of SAMSUNG and you must return them to SAMSUNG.
North America_DW5000C_WEB_DW0003_English.indd 59 2023-06-28 11:12:30
English60
Warranty (U.S.A)
Warranty (U.S.A)
This limited warranty covers manufacturing defects in materials or workmanship
encountered in normal household, noncommercial use of this product and shall not
cover the following: damage that occurs in shipment, delivery, installation, and uses for
which this product was not intended; damage caused by unauthorized modication or
alteration of the product; product where the original factory serial numbers have been
removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage
including scratches, dents, chips, and other damage to the product’s nishes; damage
caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or
God; damage caused by use of equipment, utilities, services, parts, supplies, accessories,
applications, installations, repairs, external wiring or connectors not supplied or authorized
by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations
and surges; damage caused by failure to operate and maintain the product according
to instructions; in-home instruction on how to use your product; and service to correct
installation not in accordance with electrical or plumbing codes or correction of household
electrical or plumbing (that is house wiring, fuses, or water inlet hoses).
The cost of repair or replacement under these excluded circumstances shall be the
customer’s responsibility.
Visits by an authorized servicer to explain product functions, maintenance or installation
are not covered by this limited warranty. Please contact SAMSUNG at the number below
for assistance with any of these issues.
EXCLUSION OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you. This warranty
gives you specic rights, and you may also have other rights, which vary from state to
state.
North America_DW5000C_WEB_DW0003_English.indd 60 2023-06-28 11:12:30
English 61
Warranty (U.S.A)
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT,
OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS
LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK,
HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL
THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply
to you. This warranty gives you specic rights, and you may also have other rights, which
vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product. No
warranty or guarantee given by any other person, rm, or corporation with respect to this
product shall be binding on SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
In USA
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
North America_DW5000C_WEB_DW0003_English.indd 61 2023-06-28 11:12:30
English62
Warranty (CANADA)
Warranty (CANADA)
SAMSUNG DISHWASHER
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS
CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials
and workmanship for a limited warranty period of:
One (1) year parts and labor
Five (5) years, Printed Circuit Board, Racking and Stainless Door Liner & Tub for leakage
(Parts Only)
This limited warranty begins on the original date of purchase, and is valid only on products
purchased and used in the Canada. To receive warranty service, the purchaser must contact
SAMSUNG for problem determination and service procedures. Warranty service can only
be performed by a SAMSUNG authorized service center. The original dated bill of sale must
be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized
service center. SAMSUNG will provide in-home service during the warranty period at no
charge, subject to availability within the contiguous Canada.
In home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as
stipulated herein, with new or reconditioned parts or products if found to be defective
during the limited warranty period specied above. All replaced parts and products
become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts
and products assume the remaining original warranty, or ninety (90) days, whichever is
longer.
North America_DW5000C_WEB_DW0003_English.indd 62 2023-06-28 11:12:31
English 63
Warranty (CANADA)
This limited warranty covers manufacturing defects in materials and workmanship
encountered in normal, noncommercial use of this product and shall not apply to the
following: damage that occurs in shipment; delivery and installation; applications and
uses for which this product was not intended; altered product or serial numbers; cosmetic
damage or exterior nish; accidents, abuse, neglect, re, water, lightning, or other acts
of nature or God; use of products, equipment, systems, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG that damage this product or result in service problems;
incorrect electrical line voltage, uctuations and surges; customer adjustments and
failure to follow operating instructions, maintenance and environmental instructions that
are covered and prescribed in the instruction book; product removal and reinstallation;
problems caused by pest infestations. This limited warranty does not cover problems
resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house
wiring, cost of a service call for instructions, or xing installation errors. SAMSUNG does
not warrant uninterrupted or error-free operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR
FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY
PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING
ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS,
FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND
EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN
THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED
DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO
OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE
THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN
THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR
EXCLUSIVE REMEDY.
North America_DW5000C_WEB_DW0003_English.indd 63 2023-06-28 11:12:31
English64
Warranty (CANADA)
Warranty (CANADA)
Some states or provinces do not allow limitations on how long an implied warranty
lasts, or the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusions may not apply to you. This warranty gives you specic rights, and
you may also have other rights, which vary from state to state or province to province.
To obtain warranty service, please contact SAMSUNG at:
In CANADA
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9 Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
North America_DW5000C_WEB_DW0003_English.indd 64 2023-06-28 11:12:31
Memo
North America_DW5000C_WEB_DW0003_English.indd 65 2023-06-28 11:12:31
Memo
North America_DW5000C_WEB_DW0003_English.indd 66 2023-06-28 11:12:31
Memo
North America_DW5000C_WEB_DW0003_English.indd 67 2023-06-28 11:12:31
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
U.S.A
- Consumer Electronics
1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG(726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
bit.ly/samsungdishwashers
North America_DW5000C_WEB_DW0003_English.indd 68 2023-06-28 11:12:31
