Further information and explanations are
available online:
Table of contents
1 Safety...........................................4
1.1 General information................... 4
1.2 Intended use.............................. 4
1.3 Restriction on user group.......... 4
1.4 Safe installation ......................... 5
1.5 Safe use .................................... 7
1.6 Safe cleaning and mainten-
ance........................................... 9
2 Preventing material damage ....10
3 Environmental protection and
saving energy............................11
3.1 Disposing of packaging .......... 11
3.2 Save energy and conserve
resources................................. 11
3.3 Energy saving mode ............... 11
4 Installation and connection......11
4.1 Unpacking the appliance ........ 11
4.2 Contents of package ............... 11
4.3 Requirements for the install-
ation location ........................... 12
4.4 Removing the transit bolts ...... 13
4.5 Connecting the appliance ....... 14
4.6 Aligning the appliance............. 15
5 Before using for the first time ..16
5.1 Starting an empty washing
cycle ........................................ 16
6 Familiarising yourself with
your appliance...........................17
6.1 Appliance ................................ 17
6.2 Detergent drawer..................... 17
6.3 Control panel........................... 18
7 Display .......................................19
8 Buttons ......................................21
9 Programmes ..............................23
10 Accessories.............................27
11 Laundry....................................27
11.1 Preparing the laundry............ 27
11.2 Care symbols on the care
labels ..................................... 27
12 Detergents and care
products ..................................28
13 Basic operation .......................28
13.1 Switching on the appliance ... 28
13.2 Setting a programme ............ 28
13.3 Opening the door .................. 28
13.4 Loading laundry..................... 28
13.5 Inserting the measuring aid... 29
13.6 Using the measuring aid ....... 29
13.7 Adding detergent and care
product .................................. 29
13.8 Starting the programme ........ 29
13.9 Soaking laundry..................... 29
13.10 Adding laundry .................... 30
13.11 Cancelling the pro-
gramme ............................... 30
13.12 Unloading the laundry ......... 30
13.13 Switching off the appli-
ance..................................... 30
14 Childproof lock........................30
14.1 Activating the childproof
lock........................................ 30
14.2 Deactivating the childproof
lock........................................ 30
en
3
15 Basic settings..........................31
15.1 Overview of the basic set-
tings....................................... 31
15.2 Changing the basic set-
tings....................................... 31
16 Cleaning and servicing...........31
16.1 Cleaning the drum................. 31
16.2 Cleaning the detergent
drawer.................................... 32
16.3 Cleaning the auxiliary liquid
detergent dispenser com-
partment ................................ 33

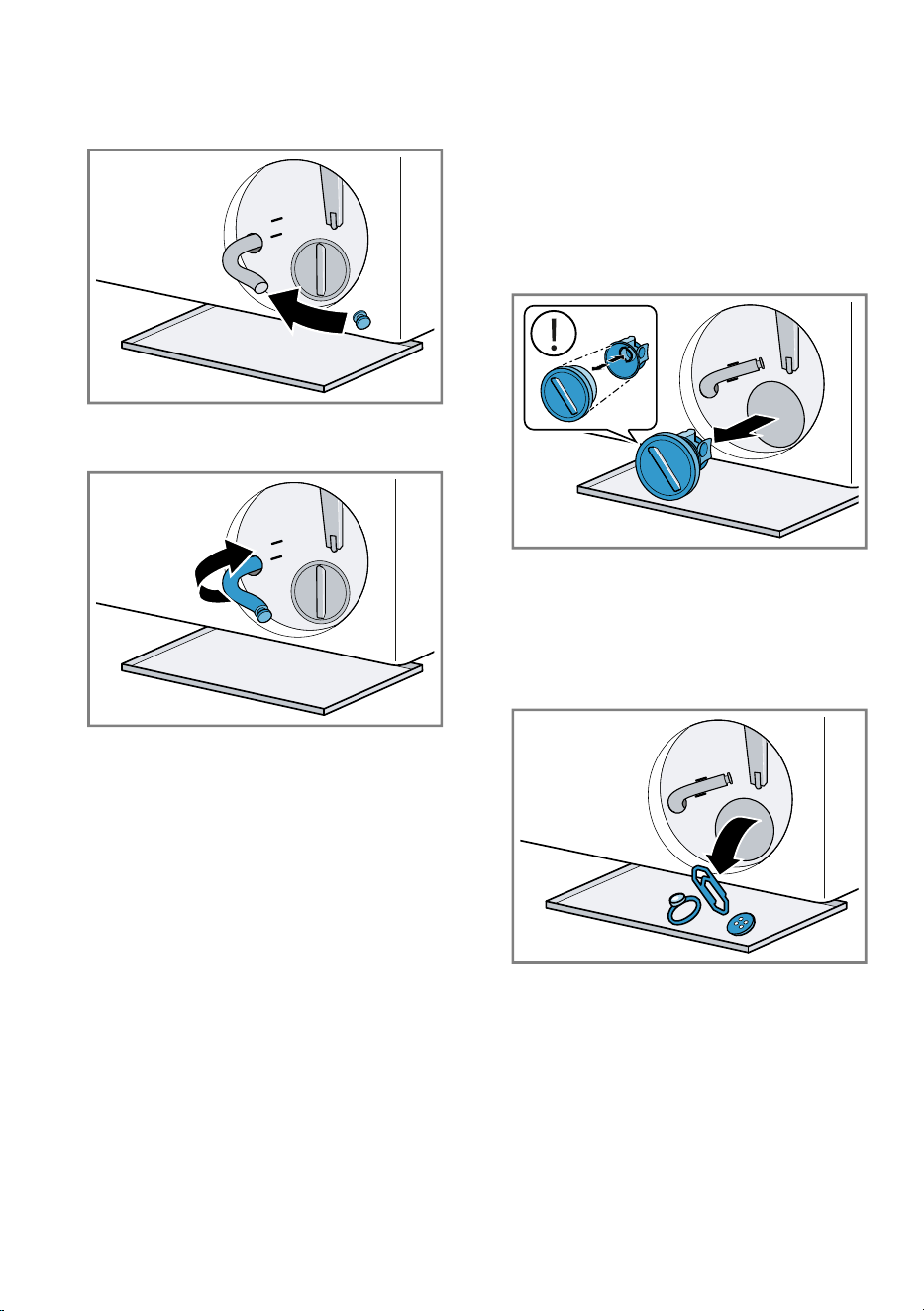

16.4 Cleaning the drain pump....... 33
16.5 Cleaning the rubber gasket .. 36
17 Troubleshooting......................37
17.1 Emergency release ............... 43
17.2 Restart the appliance. ........... 43
18 Transportation, storage and
disposal ...................................43
18.1 Removing the appliance ....... 43
18.2 Inserting the transit bolts....... 43
18.3 Using the appliance again .... 44
18.4 Disposing of old appliance ... 44
19 Customer Service....................44
19.1 Product number (E-Nr.) and
production number (FD)........ 44
20 Technical data .........................44
en Safety
4
1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product information safe
for future reference or for the next owner.
¡ Do not connect the appliance if it has been damaged in transit.
1.2 Intended use
Only use this appliance:
¡ for washing machine-washable fabrics and hand-washable wool
in accordance with the care label.
¡ with tap water and commercially available detergents and care
products suitable for washing machines.
¡ in private households and in enclosed spaces in a domestic en-
vironment.
¡ Up to an altitude of 4000 m above sea level.
1.3 Restriction on user group
This appliance may be used by children aged 8 or over and by
people who have reduced physical, sensory or mental abilities or
inadequate experience and/or knowledge, provided that they are
supervised or have been instructed on how to use the appliance
safely and have understood the resulting dangers.
Do not let children play with the appliance.
Cleaning and user maintenance must not be performed by chil-
dren unless they are being supervised.
Keep children under the age of 3 years and pets away from the
appliance.
Safety en
5
1.4 Safe installation
WARNING‒Risk of electric shock!
Incorrect installation is dangerous.
▶ Connect and operate the appliance only in accordance with the
specifications on the rating plate.
▶ Connect the appliance to a power supply with alternating cur-
rent only via a properly installed socket with earthing.
▶ The protective conductor system of the domestic electrical in-
stallation must be properly installed. The installation must have
a sufficiently large cross section.
▶ When using a residual current circuit breaker, only use a type
with the mark.
▶ Never equip the appliance with an external switching device,
e.g. a timer or remote control.
▶ When the appliance is installed, the mains plug of the power
cord must be freely accessible. If free access is not possible, an
isolating switch must be integrated into the permanent electrical
installation according to the installation regulations.
▶ When installing the appliance, check that the power cable is not
trapped or damaged.
If the insulation of the power cord is damaged, this is dangerous.
▶ Never let the power cord come into contact with hot appliance
parts or heat sources.
▶ Never let the power cord come into contact with sharp points or
edges.
▶ Never kink, crush or modify the power cord.
WARNING‒Risk of fire!
It is dangerous to use an extended power cord and non-approved
adapters.
▶ Do not use extension cables or multiple socket strips.
▶ Only use adapters and power cords approved by the manufac-
turer.
▶ If the power cord is too short and a longer one is not available,
please contact an electrician to have the domestic installation
adapted.
en Safety
6
WARNING‒Risk of injury!
The heavy weight of the appliance may result in injury when lifted.
▶ Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack,
the installed appliance may fall.
▶ Only stack the dryer on a washing machine using the connec-
tion kit from the dryer manufacturer . No other installation
method is permitted.
▶ Do not install the appliance in a washer-dryer stack if the dryer
manufacturer does not offer a suitable connection kit.
▶ Do not install appliances from different manufacturers and with
varying depths and widths in a washer-dryer stack.
▶ Do not install a washer-dryer stack on a platform; the appli-
ances may tip over.
WARNING‒Risk of suffocation!
Children may put packaging material over their heads or wrap
themselves up in it and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION‒Risk of injury!
The appliance may vibrate or move when in use.
▶ Place the appliance on a clean, even, solid surface.
▶ Align the appliance using the appliance feet and a spirit level.
If hoses and power cords have been laid incorrectly, this causes a
tripping hazard.
▶ Lay hoses and power cords in such a way that there is no risk
of tripping.
If the appliance is moved by holding onto protruding components,
such as the appliance door, the parts may break off.
▶ Do not move the appliance by holding onto protruding parts.
CAUTION‒Risk of cutting!
Touching sharp edges on the appliance may lead to cuts.
▶ Do not touch the sharp edges on the appliance.
Safety en
7
▶ Wear protective gloves when installing and transporting the ap-
pliance.
1.5 Safe use
WARNING‒Risk of electric shock!
If the appliance or the power cord is damaged, this is dangerous.
▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always
unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately un-
plug the power cord or switch off the fuse in the fuse box and
turn off the water tap.
▶ Call customer service. →Page44
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of harm to health!
Children can lock themselves in the appliance, thereby putting
their lives at risk.
▶ Do not install the appliance behind a door as this may obstruct
the appliance door or prevent it from opening.
▶ With redundant appliances, unplug the power cord. Then cut
through the cord and damage the lock on the appliance door
beyond repair so that the appliance door will no longer close.
When spinning larger, waterproof items of laundry, imbalances
may arise and lead to injuries.
▶ Do not wash and spin larger items of laundry, such as blankets
or mattress covers, in the appliance.
WARNING‒Risk of suffocation!
Children may breathe in or swallow small parts, causing them to
suffocate.
▶ Keep small parts away from children.
▶ Do not let children play with small parts.
en Safety
8
WARNING‒Risk of poisoning!
Detergents and care products may result in poisoning if con-
sumed.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
WARNING‒Risk of explosion!
Laundry that has been pretreated with flammable cleaning agents
that contain solvents may cause an explosion in the appliance.
▶ Rinse pretreated laundry thoroughly with water before washing.
CAUTION‒Risk of injury!
The covering plate may break if you stand on or climb onto the
appliance.
▶ Do not stand on or climb onto the appliance.
The appliance may tip over if you sit on or lean against the open
door.
▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the drum while it is still turning may cause hand in-
juries.
▶ Wait for the drum to come to a complete stop before reaching
inside.
CAUTION‒Risk of scalding!
When you wash at high temperatures, the detergent solution gets
hot.
▶ Do not touch the hot detergent solution.
CAUTION‒Risk of chemical burns!
If the detergent drawer is opened, detergent and care products
may spray out from the appliance. Contact with eyes or skin may
cause irritation.
▶ Rinse eyes and/or skin thoroughly with clean water if they come
into contact with detergents or care products.
▶ If accidentally swallowed, seek medical advice.
▶ Keep detergents and care products out of the reach of children.
Safety en
9
1.6 Safe cleaning and maintenance
WARNING‒Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its
features.
▶ Repairs to the appliance should only be carried out by trained
specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be re-
placed by the manufacturer, the manufacturer's Customer Ser-
vice or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.
▶ Before cleaning, pull out the mains plug or switch off the fuse in
the fuse box.
▶ Do not use steam- or high-pressure cleaners, hoses or sprays
to clean the appliance.
WARNING‒Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use the manufacturer's original spare parts and original ac-
cessories.
WARNING‒Risk of poisoning!
Poisonous fumes may be given off if you use cleaning agents that
contain solvents.
▶ Do not use cleaning agents that contain solvents.
en Preventing material damage
10
2 Preventing material
damage
ATTENTION!
The functionality of the appliance
may be impaired if you use the
wrong quantity of fabric softener, de-
tergent, care product or cleaning
agent.
▶ Follow the dosage recommenda-
tions from the manufacturer.
Exceeding the maximum load capa-
city impairs the function of the appli-
ance.
▶ Observe the maximum load capa-
city for each programme and do
not exceed it.
→"Programmes", Page23
The appliance is secured for trans-
portation using transit bolts. Transit
bolts which have not been removed
may result in material damage and
damage to the appliance.
▶ Before starting up the appliance,
remove the transit bolts completely
and keep them in a safe place.
▶ Before transport, fit the transit bolts
fully in order to prevent damage in
transit.
Material damage may be caused if
the water inlet hose is connected in-
correctly.
▶ Tighten the screw connections on
the water inlet until they are hand-
tight.
▶ Connect the water inlet hose dir-
ectly to the water tap, without any
additional connecting elements
such as adapters, extensions or
valves.
▶ Ensure that the inner diameter of
the water tap is at least 17mm.
▶ Make sure that the length of the
thread on the connection to the
water tap is at least 10mm.
If the water pressure is too high or
too low, the appliance may not be
able to operate properly.
▶ Ensure that the water pressure in
the water supply system is at least
100kPa (1bar) and max.
1000kPa (10bar).
▶ If the water pressure exceeds the
maximum value specified, a pres-
sure-reducing valve must be in-
stalled between the drinking water
connection and the hose set of the
appliance.
▶ Do not connect the appliance to
the mixer tap of an unpressurised
hot-water boiler.
Modified or damaged water hoses
may result in material damage and
damage to the appliance.
▶ Never kink, crush, modify or cut
through water hoses.
▶ Only use the water hoses supplied
with the appliance or genuine
spare hoses.
▶ Never re-use water hoses that
have been used before.
Operating the appliance using water
that is dirty or too hot may lead to
material damage and damage to the
appliance.
▶ Only operate the appliance with
cold mains water.
Unsuitable cleaning products may
damage the surfaces of the appli-
ance.
▶ Do not use harsh or abrasive de-
tergents.
▶ Do not use cleaning products with
a high alcohol content.
▶ Do not use hard scouring pads or
cleaning sponges.
▶ Clean the appliance with nothing
but water and a soft, damp cloth.
▶ Remove all detergent residue,
spray residue or other residues im-
mediately if they come into contact
with the appliance.
Environmental protection and saving energy en
11
3 Environmental protec-
tion and saving energy
3.1 Disposing of packaging
The packaging materials are environ-
mentally compatible and can be re-
cycled.
▶ Sort the individual components by
type and dispose of them separ-
ately.
3.2 Save energy and con-
serve resources
If you follow these instructions, your
appliance will use less electricity and
less water.
¡ Choose programs with low temper-
atures and longer wash times and
use maximum load capacity.
→Page23
¡ Add detergent based on the laun-
dry's degree of soiling.
¡ Reduce the washing temperature
for lightly and normally soiled laun-
dry.
¡ Set the maximum spin speed if
you want to dry the laundry in the
tumble dryer afterwards.
3.3 Energy saving mode
If you do not use the appliance for a
brief period, it automatically switches
to energy-saving mode.
Energy-saving mode ends when you
use the appliance again.
4 Installation and con-
nection
4.1 Unpacking the appliance
ATTENTION!
Objects remaining in the drum that
are not designed for operation with
the appliance may cause material
damage and damage to the appli-
ance.
▶ Remove these objects, along with
all supplied accessories, from the
drum before starting the appliance.
1. Remove any packaging and pro-
tective covers completely from the
appliance.
→"Disposing of packaging",
Page11
2. Check the appliance for visible
damage.
3.
Open the door. →Page28
4. Remove any accessories from the
drum.
5. Close the door.
4.2 Contents of package
After unpacking all parts, check for
any damage in transit and complete-
ness of the delivery.
ATTENTION!
If the appliance is operated with in-
complete or defective accessories,
the appliance may not be able to op-
erate properly, or this may result in
material damage or damage to the
appliance.
▶ Do not operate the appliance with
incomplete or defective accessor-
ies.
en Installation and connection
12
▶ Replace the accessories in ques-
tion before operating the appli-
ance.
→"Accessories", Page27
Note:The appliance has undergone
a function test at the factory. This
may cause water stains in the appli-
ance, which the first wash cycle re-
moves.
The delivery consists of the following:
¡ Washing machine
¡ Accompanying documents
¡ Transit bolts →Page13
¡ Cover caps
¡ Water inlet hose →Page14
4.3 Requirements for the in-
stallation location
WARNING
Risk of electric shock!
The appliance contains live parts.
Touching live parts is dangerous.
▶ Do not operate the appliance
without a cover cap.
WARNING
Risk of injury!
When using the appliance on a base,
the appliance may tip over.
▶ Always secure the feet of the appli-
ance to a base using the manufac-
turer's fixing brackets →Page27
before using the appliance for the
first time.
ATTENTION!
If residual water in the appliance
freezes, this may cause damage to
the appliance.
▶ Do not install or operate this appli-
ance anywhere that is liable to ex-
perience frost or outdoors.
If the appliance is tilted at an angle
greater than 40°, residual water may
leak out of the appliance and cause
material damage.
▶ Tilt the appliance carefully.
▶ Transport the appliance in an up-
right position.
Installation loca-
tion
Requirements
Base Secure the appli-
ance with fixing
brackets
→Page27.
Wooden joist
floor
Place the appli-
ance on a water-
resistant wooden
board (minimum
thickness of
30mm) which is
screwed tightly to
the floor.
Kitchen unit Only install the
appliance under-
neath a continu-
ous worktop that
is securely con-
nected to adja-
cent cabinets.
Required niche
width: 60cm.
Against a wall Do not trap the
power cord or
the hoses
between the wall
and the appli-
ance.
Installation and connection en
13
4.4 Removing the transit
bolts
The appliance is secured for trans-
portation using transit bolts on the
rear of the appliance.
Note:Keep the transit bolt screws
and the sleeves in a safe place for fu-
ture transport.
→"Inserting the transit bolts",
Page43
1. Pull the hose out of the holders.
2. Unscrew and remove all of
the screws for the 4 transit bolts
using a WAF 13 wrench.
3. Remove the power cable from the
holder.
4. Remove the 4 sleeves.
5. Insert the 4 cover caps and
push them downwards .
Note:To install the transit bolts to
transport the appliance, perform
these steps again in the reverse or-
der.
en Installation and connection
14
4.5 Connecting the appliance
Connecting the water inlet hose
ATTENTION!
Material damage may be caused if
the water inlet hose is connected in-
correctly.
▶ Tighten the screw connections on
the water inlet until they are hand-
tight.
1. Connect the water inlet hose.
2. Connect the water inlet hose to a
tap (26.4mm=3/4").
3. Open the water tap carefully and
check that the connection points
are tight.
Water outlet connection types
This information is intended to help
you to connect this appliance to the
water outlet.
ATTENTION!
When draining, the water outlet hose
is subject to water pressure and may
come loose from the installed con-
nection point.
▶ Secure the water outlet hose
against unintentional loosening.
In the event of a blocked or covered
outlet, accumulated wastewater can
flow back into the appliance.
▶ Before operating the appliance, en-
sure that the wastewater drains
away quickly and eliminate any
blockages.
Note:Observe the draining heights.
The maximum draining height is
100cm.
Siphon Secure the con-
nection point with
a (24–40 mm)
hose clamp.
Sink Fix and secure
the water outlet
hose with an el-
bow.
→"Accessories",
Page27
Plastic pipe with
rubber sleeve or
gully
Fix and secure
the water outlet
hose with an el-
bow.
→"Accessories",
Page27
Connecting the appliance to the
electricity supply
Note:Your electrical domestic install-
ation for this appliance must comply
with the local legal provisions and
Installation and connection en
15
safety regulations, and should in-
clude a residual current circuit-
breaker.
1. Insert the mains plug of the appli-
ance's power cable in a socket
nearby.
The connection details of the appli-
ance can be found under Tech-
nical data →Page44.
2. Check the mains plug is inserted
properly.
4.6 Aligning the appliance
In order to reduce noise and vibra-
tion and to prevent the appliance
from moving, align the appliance cor-
rectly.
1. Use a WAF 17 wrench to loosen
the lock nuts in a clockwise direc-
tion.
2. To align the appliance, turn the ap-
pliance feet. Check that the appli-
ance is level using a spirit level.
All appliance feet must stand firmly
on the ground.
3. Use a WAF 17 wrench to tighten
the lock nuts against the housing
until they are hand-tight.
In doing so, hold the foot tight and
do not adjust its height.
en Before using for the first time
16
5 Before using for the
first time
Prepare the appliance for use.
5.1 Starting an empty wash-
ing cycle
Your appliance was inspected thor-
oughly before leaving the factory. To
remove any residual water, run the
first wash cycle without any laundry.
1. Turn the programme selector to
ล้างถังซัก Drum Clean.
2. Close the door.
3. Pull out the detergent drawer.
4. Pour approx. 1 litre of tap water
into compartment II.
5. Add washing powder containing
oxygen bleach to compartment II.
To prevent foaming, use only half
of the amount of detergent recom-
mended by the detergent manufac-
turer for light soiling. Do not use
detergent suitable for woollens or
delicates.
6. Push in the detergent drawer.
7.
Start the programme. →Page29
8. Start the first wash cycle or set the
programme selector to ปิด Off to
switch off the appliance.
→"Basic operation", Page28
Familiarising yourself with your appliance en
17
6 Familiarising yourself with your appliance
6.1 Appliance
You can find an overview of the parts of your appliance here.
1
2
4
6
3
5
7
7
On certain models, specific details such as the colour and shape may differ
from those pictured.
1
Maintenance flap for the drain
pump →Page33
2
Door →Page28
3
Detergent drawer →Page17
4
Control panel →Page18
5
Water outlet hose →Page14
6
Power cord →Page14
7
Transit bolts →Page13
6.2 Detergent drawer
Note:Observe the manufacturer's in-
structions on the use and dosage of
the detergent and care product and
the information in the programme de-
scriptions.
en Familiarising yourself with your appliance
18
2
3
1
4
1
Measuring aid for liquid deter-
gent
2
Compartment II: Detergent for
the main wash
3
Compartment : Fabric
softener
4
Compartment I: Detergent for
prewash and soaking
6.3 Control panel
You can use the control panel to configure all functions of your appliance and
to obtain information about the operating status.
2 3
1 1
4
4
1
Programmes →Page23
2
Programme selector
→Page28
3
Display →Page19
4
Buttons →Page21
Display en
19
7 Display
The display shows the current settings, options or relevant information.
Depending on the programme status, the display shows some information in
the area, e.g. .
Example: Display
Display Description
0:40
1
Expected programme duration or programme time re-
maining in hours and minutes.
+8h
1
Programme end time →Page21
9.0
1
Recommendation for the maximum load capacity for the
selected program in kg.
- 1400
Set spin speed in rpm. →Page21
: No spin cycle, draining only
- 90
Set temperature in °C. →Page21
(cold)
(Start/Pause) Start, cancel or pause
¡ Lights up: The programme is running and can be can-
celled or paused.
¡ Flashes: The programme can be started or continued.
Programme status: Pretreatment
Programme status: Washing
Programme status: Rinsing
Programme status: Spinning
End Programme status: Programme end
1
Example
en Display
20
Display Description
¡ Lights up: The childproof lock is activated.
¡ Flashes: The childproof lock is activated and the appli-
ance has been operated. →Page30
(Easy Iron)
The crease-reduction function is activated. →Page22
+1 +2 +3
Additional rinse cycles are activated. →Page22
Prewash is activated. →Page21
Soaking is activated. →Page21
and The programme pauses and you can still load more laun-
dry within 15 minutes. Pretreatment is activated and
the soaking has finished.
Options:
¡ Add laundry. Start the programme. →Page29
¡ Do not add any laundry. Start the programme.
→Page29
¡ Do not add any laundry. Wait for 15 minutes. The pro-
gramme starts after 15 minutes have elapsed.
(Speed Per-
fect)
Shortened programme duration is activated. →Page21
The "Blood" stain type is activated.
The "Cosmetics" stain type is activated.
The "Cooking fat/cooking oil" stain type is activated.
The "Tea" stain type is activated.
Flashes: Drum cleaning is required. Run the ล้างถังซัก
Drum Clean programme for cleaning and caring for the
drum and the outer tub. →Page31
¡ Lights up: The door is locked and cannot be opened.
¡ Flashes: The door is not closed properly.
¡ Off: The door is unlocked and can be opened.
¡ No water pressure. →Page38
¡ The water pressure from the tap is too low.
1
Error code, error display, signal. →Page37
1
Example
Buttons en
21
8 Buttons
The selection of programme settings depends on the programme that is set.
Button Selection More information
Start/Pause ¡ Start
¡ Cancel
¡ Pause
Start, cancel or pause the pro-
gramme.
Speed Perfect ¡ Activate
¡ Deactivate
Activate or deactivate a shorter pro-
gramme duration.
Note:Energy consumption increases.
The washing result is not affected by
this.
Anti Stain Multiple selection Select the type of stain.
The temperature, drum movement and
soaking time are all adjusted to suit
the type of stain.
Ready In Up to 24 hours Set the programme end time.
The programme duration is already in-
cluded in the set number of hours.
Once the programme has started, the
programme duration is displayed.
Temp. ℃ - 90 Adjust the temperature.
Set temperature in °C.
Spin - 1400 Adjust the spin speed or deactivate
the spin cycle.
Set spin speed in rpm.
If is selected, the water is drained
and the spin cycle is deactivated. The
laundry stays wet inside the drum.
Easy Iron &
Ready In
¡ Activate
¡ Deactivate
→"Childproof lock", Page30
Spin Multiple selection
→"Basic settings", Page31
Pretreatment ¡ (Prewash)
¡ (Soaking)
Selecting activates the Prewash
programme.
Prewash for washing heavily soiled
laundry.
Selecting activates the Soaking pro-
gramme.
Before the main wash cycle starts, the
laundry remains in the water for
longer.
For laundry with particularly stubborn
soiling.
en Buttons
22
Button Selection More information
Extra Rinse ¡ +1
¡ +2
¡ +3
Activate or deactivate up to three ad-
ditional rinse cycles.
Recommended for particularly sensit-
ive skin or in regions with very soft
water.
Easy Iron ¡ Activate
¡ Deactivate
Activate or deactivate the reduced
creasing programme.
In order to reduce creasing in the
laundry, the spin cycle and the spin
speed are adapted.
Note:The laundry has a higher resid-
ual moisture after washing. To reduce
creasing, hang up the laundry immedi-
ately after washing.
Programmes en
23
9 Programmes
Notes
¡ The laundry's care labels provide you with additional information about pro-
gramme selection.
→"Care symbols on the care labels", Page27
¡ The programme's temperature setting guarantees that the recommended
temperature on the care label is not exceeded. The temperature that is
reached in the appliance may differ from the set temperature. This means
that the best possible washing performance is achieved with optimal energy
efficiency.
Programme Description Max.
load
(kg)
ผ้าฝ้าย Cot-
tons
Wash hard-wearing items made from cotton or
linen.
Also suitable as a short programme for normally
soiled laundry when you activate Speed Per-
fect.
Programme setting:
¡ Max. 90 °C
¡ Max. 1400rpm
9.0
5.0
1
ซักประหยัด
Cottons Eco
Wash hard-wearing items made from cotton or
linen.
Energy-saving programme.
Note:To save energy, the actual washing temperat-
ure may deviate from the set washing temperature.
The washing performance meets legal require-
ments.
Programme setting:
¡ max. 60 °C
¡ Max. 1400rpm
9.0
ชุดเด็กKids Wash hard-wearing items made from cotton or
linen.
Suitable for children's clothing.
Use the ผ้าบอบบาง/ผ้าไหม Delicates/Silk pro-
gramme to wash items with printing, badges or with
delicate fabrics.
Programme setting:
¡ Max. 90 °C
¡ Max. 1400rpm
6.0
1
Speed Perfect activated
2
Washing not possible
en Programmes
24
Programme Description Max.
load
(kg)
ผ้าสังเคราะห์
Synthetics
Wash items made from synthetic fabrics.
Programme setting:
¡ Max. 60 °C
¡ Max. 1000 rpm
4.0
ผ้าหลายชนิด
Mix Load
Wash items made from cotton, linen or synthetic
fabrics.
Suitable for lightly soiled laundry.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
4.0
ผ้าบอบบาง/ผ้า
ไหม Delic-
ates/Silk
Wash delicate, washable items made from silk, vis-
cose and synthetic fabrics.
Use a detergent that is suitable for delicates or silk.
Note:Wash especially delicate items or items with
hooks, eyelets or clips in a mesh laundry bag.
Tip:Gently cleaning the laundry reduces abrasion
of textile fibres and microplastic fibres.
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
2.0
ซักถนอมผ้าขน
สัตว์ Wool
Hand- or machine-washable items that are made
from wool or contain wool.
To prevent the laundry from shrinking, the drum
moves the items very gently with long pauses.
Use a detergent that is suitable for wool.
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
2.0
ล้างน้ำ�Rinse Rinse and then spin the laundry, and drain the wa-
ter.
Programme setting: Max. 1400 rpm
–
ปั่นหมาด/
ระบายน้ำ�Spin/
Drain
Spin the laundry and drain the water.
If you only want to drain the water, activate . The
laundry is not spun.
Programme setting: Max. 1400 rpm
–
ป้องกัน
ภูมิแพ้Al-
lergyPlus
Wash hard-wearing items made from cotton or
linen.
Suitable for allergy sufferers and for strict hygiene
requirements.
6.5
1
Speed Perfect activated
2
Washing not possible
Programmes en
25
Programme Description Max.
load
(kg)
Note:Once the set temperature has been reached,
it remains constant throughout the entire washing
process.
Programme setting:
¡ Max. 60 °C
¡ Max. 1400rpm
ชุด
กีฬาSportswear
Wash sports and leisure items made from synthetic
fabrics.
Use a detergent that is suitable for sports items.
Do not use fabric softener.
Tip:Use the ผ้าสังเคราะห์ Synthetics programme
to wash heavily soiled laundry.
Programme setting:
¡ Max. 40 °C
¡ Max. 800rpm
2.0
ผ้านวมQuilt/
Blanket
Wash pillows or quilts stuffed with synthetic fibres
or down fillings.
Wash large items separately.
Use a detergent that is suitable for down or delic-
ates.
Use sparingly.
Do not use fabric softener.
Note:To prevent excessive foaming, remove air
from laundry items by rolling them up before you
wash them.
Programme setting:
¡ Max. 60 °C
¡ Max. 1000rpm
2.5
ล้างถังซัก
Drum Clean
Clean and care for the drum. →Page31
Use this programme in the following cases:
¡ Before using the appliance for the first time
¡ If you regularly wash at temperatures of 40°C or
lower
¡ After a prolonged period of non-use
Use washing powder containing oxygen bleach.
Add the washing powder containing oxygen bleach
to compartment II for the main wash. →Page17
Halve the amount of detergent to avoid foaming.
Do not use fabric softener.
–
2
1
Speed Perfect activated
2
Washing not possible
en Programmes
26
Programme Description Max.
load
(kg)
Do not use liquid detergent or detergent that is in-
tended for woollens or delicates.
Note:The drum cleaning indicator flashes to re-
mind you if you have not used a programme at
60°C or higher for a long time.
ด่วน
15นาที/
30นาทีQuick
15/30 min
Wash items made from cotton, or synthetic or blen-
ded fabrics.
Short programme for small items of lightly soiled
laundry.
Note:To adjust the programme duration, activate
or deactivate Speed Perfect.
Programme setting:
¡ Max. 40 °C
¡ Max. 1000rpm
4.0
2.0
1
1
Speed Perfect activated
2
Washing not possible
Accessories en
27
10 Accessories
Use original accessories. These have been made especially for your appliance.
Use Order num-
ber
Water inlet hose ex-
tension
Extend the water inlet hose for cold water
or AquaStop (approx. 2.50 m).
WMZ2381
Water outlet hose
extension
Extend the water outlet hose (2.20m). 11057910
Fixing brackets Improves the stability of the appliance. WMZ2200
Elbow Secure the water outlet hose in place. 00655300
11 Laundry
11.1 Preparing the laundry
ATTENTION!
Objects remaining in the laundry may
damage the laundry and the drum.
▶ Remove all items from any pock-
ets in your laundry before using
the appliance.
Note
The appliance and fabrics are
protected when you prepare your
laundry.
¡ Brush off sand and soil
¡ Sort the laundry according to col-
our and textiles and observe the
care labels
¡ Close all zips, hook and loop
fasteners, hooks and eyes
¡ Tie cloth belts, cloth straps and
cords together
¡ Remove curtain fittings and lead
strips
¡ Wash small or particularly delicate
items in a mesh washing bag
¡ Wash large and small items of
laundry together
¡ Wash laundry with fresh stains im-
mediately
¡ Pretreat laundry with dried stains
and wash several times
¡ Load the laundry unfolded into the
drum
¡ Before loading the drum, any laun-
dry that has been pre-treated with
chlorine bleach should be rinsed
several times
11.2 Care symbols on the
care labels
Washing care symbols
Symbol Recommended pro-
gramme
Cottons (normal)
Easy Care (gentle)
Delicates/Silk for washing
by hand (particularly
gentle)
Woollens (hand wash)
(not suitable for machine-
washing)
en Detergents and care products
28
12 Detergents and care
products
You can protect your appliance and
your laundry by selecting and using
the correct detergents and care
products.
The manufacturer's instructions for
use and dosage can be found on the
packaging.
Notes
¡ When using liquid detergents, only
use liquid detergents that are self-
flowing
¡ Do not mix different liquid deter-
gents
¡ Do not mix detergent and fabric
softener
¡ Do not use products that have ex-
pired or are highly congealed
¡ Do not use products containing
solvents, caustic agents or volatile
substances
¡ Do not use chlorine bleach
¡ Do not use dyes regularly as fixing
salt can damage stainless steel
¡ Do not use color-bleaching agents
in the appliance
13 Basic operation
13.1 Switching on the appli-
ance
Requirement:The appliance has
been correctly installed and connec-
ted. →Page11
▶ Turn the programme selector to a
programme.
13.2 Setting a programme
1. Turn the programme selector and
set the required programme.
→Page23
2. If required, adjust the programme
settings. →Page21
The programme settings are not
saved permanently for the pro-
gramme.
13.3 Opening the door
1. Grip under the door handle and
pull on the door.
2. Open the door.
13.4 Loading laundry
Note:To prevent creasing, note the
maximum load for the programmes.
→Page23
Requirements
¡ The laundry is prepared and sor-
ted. →Page27
¡ The drum is empty.
Basic operation en
29
1.
Open the door. →Page28
2. Place the laundry in the drum.
3. Close the door.
Ensure that there is no laundry
trapped in the door.
13.5 Inserting the measuring
aid
1. Pull out the detergent drawer.
2. Insert the measuring aid.
13.6 Using the measuring aid
To more easily measure the liquid
detergent, you can use a measuring
aid in the detergent drawer.
Note:Do not use a measuring aid for
viscous detergents, for washing
powder, or when the prewash or pro-
gramme end time is activated.
Requirements
¡ The detergent drawer →Page17
has been pulled out.
¡ The measuring aid is inserted.
→Page29
▶ Pour the liquid detergent into the
measuring aid.
Do not exceed the MAX mark on
the measuring aid.
13.7 Adding detergent and
care product
Note:Observe the information about
detergents and care products
→Page28.
1. Pull out the detergent drawer.
2. If required, use the dosing aid.
→Page29
3. Pour in the detergent.
→"Detergent drawer", Page17
4. If required, add the care product.
5. Push in the detergent drawer.
13.8 Starting the programme
Requirements
¡ A programme is set. →Page28
¡ The door is closed.
▶ Press Start/Pause.
a The drum rotates and load detec-
tion takes place. This can take up
to 2 minutes, after which water
enters the drum.
a The display shows the programme
duration or the programme end
time.
a After the programme has ended,
the display shows: End.
13.9 Soaking laundry
Note:No additional detergent is re-
quired for soaking. The appliance
uses the filled detergent for soaking
and washing.
Requirements
¡ The laundry is placed in the appli-
ance. →Page28
¡ A programme has started.
→Page29
1. Press Start/Pause approx.
10minutes after the programme
start.
The programme pauses and the
laundry can soak.
en Childproof lock
30
2. Press Start/Pause after the re-
quired soaking time.
13.10 Adding laundry
After the programme starts, you can
remove or add laundry depending on
the programme status.
1. Press Start/Pause.
The appliance pauses.
Note:If you want to add laundry,
follow the instructions on the dis-
play. →Page20
2.
Open the door. →Page28
3. Add or remove laundry.
4. Close the door.
5.
Start the programme. →Page29
13.11 Cancelling the pro-
gramme
1. Press Start/Pause.
2.
Open the door. →Page28
The appliance door remains
locked for safety reasons if the
temperature and water levels are
high.
– If the temperature is high, start
the ล้างน้ำ�Rinse programme.
– If the water level is high, start
the ปั่นหมาดSpin programme
or select a suitable programme
for draining. →Page23
3.
Remove the laundry. →Page30
13.12 Unloading the laundry
1.
Open the door. →Page28
2. Remove the laundry from the
drum.
13.13 Switching off the appli-
ance
1. Turn the programme selector to ปิด
Off.
2. Turn off the tap.
3. Cleaning the rubber gasket.
→Page36
Note:Leave the appliance door and
the detergent drawer open to dry.
14 Childproof lock
Secure your appliance against being
operated unintentionally using the
controls.
14.1 Activating the childproof
lock
▶ Press on both Easy Iron &
Ready Inbuttons for approx.
3seconds.
a The display shows .
a The control elements are locked.
a The childproof lock remains active
even after the appliance has been
switched off and in the event of a
power cut.
14.2 Deactivating the child-
proof lock
Requirement:To deactivate the
childproof lock, the appliance must
be switched on.
▶ Press on both Easy Iron &
Ready Inbuttons for approx. three
seconds.
So that the programme currently
running is not cancelled, the pro-
gramme selector must be set to
the initial programme.
a goes out on the display.
Basic settings en
31
15 Basic settings
You can configure the basic settings
for your appliance to meet your
needs.
15.1 Overview of the basic
settings
1
2
3
4
Programme selector with programme
positions
1
No basic setting.
2
Set the volume of the signal
at the end of the programme:
0 (off) to 4 (very loud)
3
Set the volume of the signal
tone emitted when the but-
tons are pressed:
0 (off) to 4 (very loud)
4
Activate (On) or deactivate
(OFF) the reminder to clean
the drum.
15.2 Changing the basic set-
tings
1. Set the programme selector to po-
sition 1. →Page31
2. Press Spinand, at the same
time, turn the programme selector
to position2.
a The display shows the current
value.
3. Use the programme selector to se-
lect the required basic setting.
→Page31
4. To change the value, press
Ready In.
5. To save the changes, switch off
the appliance.
16 Cleaning and servi-
cing
To keep your appliance working effi-
ciently for a long time, it is important
to clean and maintain it carefully.
16.1 Cleaning the drum
Clean the drum if you have carried
out 20 washing cycles at a temperat-
ure of 40°C or lower, if flashes, or
if you have not used the appliance
for a prolonged period, but at least
once a year.
CAUTION
Risk of injury!
Permanently washing at low temper-
atures and a lack of ventilation for
the appliance may damage the drum
and cause injury.
▶ Regularly run a programme for
cleaning the drum or wash at tem-
peratures of at least 60°C.
▶ Leave the appliance to dry after
every operation with the door
open, and leave the detergent
drawer to dry.
▶ Run the ล้างถังซัก Drum Clean
programme without laundry but
with washing powder that contains
oxygen bleach or a cleaning agent
for caring for the inside of the ap-
pliance.
en Cleaning and servicing
32
16.2 Cleaning the detergent
drawer
Note
Scan the QR code to see an anima-
tion of the process.
1. Pull out the detergent drawer.
2. Press down on the insert and re-
move the detergent drawer.
3. Pull out the insert upwards.
4. Clean the detergent drawer and in-
sert with water and a brush, and
then dry them.
5. Fit the insert and click it into place.
6. Clean the opening for the deter-
gent drawer.
7. Push in the detergent drawer.
Cleaning and servicing en
33
16.3 Cleaning the auxiliary li-
quid detergent dis-
penser compartment
If there is liquid detergent residue in
the auxiliary compartment:
1. Pull out the dispenser drawer and
remove the auxiliary compartment
by grasping the front end and
pulling upwards.
2. Remove the siphon cap by pulling
it upwards, then clean the auxiliary
compartment and siphon cap by
rinsing with tap water or using a
brush.
3. Reinsert the siphon cap into the
auxiliary compartment (making
sure to align the installation marks)
and push down firmly until it clicks
into place.
4. Place the auxiliary compartment
back into the detergent drawer.
Note:Clean the auxiliary liquid deter-
gent dispenser compartment regu-
larly to avoid residue and blockages.
16.4 Cleaning the drain pump
Clean the drain pump regularly, at
least once a year, as well as in the
event of faults, e.g. blockages or rat-
tling noises.
Note
Scan the QR code to see an anima-
tion of the process.
Observe the following safety instruc-
tions before you start the animation.
en Cleaning and servicing
34
Emptying the drain pump
1. Turn off the tap.
2. Switch off the appliance.
→Page30
3. Disconnect the appliance's mains
plug from the power supply.
4. Open and remove the mainten-
ance flap.
5. Slide a suitable receptacle under
the opening for draining the deter-
gent solution.
6. Take the drain hose out of the
holder.
7.
CAUTION-Risk of scalding!
When you wash at high temperat-
ures, the detergent solution gets
hot.
▶ Do not touch the hot detergent
solution.
To allow the detergent solution to
flow out into the container, remove
the sealing cap.
Cleaning and servicing en
35
8. Once emptied, press firmly on the
locking cap.
9. Insert the drain hose into the
holder.
Cleaning the drain pump
Requirement:The drain pump is
empty. →Page34
1. Since water may remain in the
drain pump, unscrew the pump
cap carefully.
‒ The filter insert in the pump
housing may become stuck due
to coarse particles of dirt.
Loosen the dirt and remove the
filter insert.
The pump cap is comprised of two
parts which can be taken apart for
cleaning.
2. Clean the interior, the thread on
the pump cap and the pump hous-
ing.
3. Ensure that the impeller in the
drain pump can rotate.
4. Insert the pump cap.
‒ Ensure that the parts of the
pump cap are correctly as-
sembled.
en Cleaning and servicing
36
5. Screw the pump cap as far as it
will go.
The handle on the pump cap must
be in a vertical position.
6. Insert and close the maintenance
flap.
Before the next wash
To prevent unused detergent from
flowing straight into the outlet in the
next wash, run a suitable programme
for draining after you have emptied
the drain pump.
1. Open the water tap.
2. Insert the mains plug.
3. Switch on the appliance.
4. Pour 1litre of water into compart-
ment II.
5. Select a suitable programme for
draining.
→"Programmes", Page23
16.5 Cleaning the rubber gas-
ket
Clean the rubber gasket regularly.
1.
Open the door. →Page28
2. Remove any foreign objects and
fluff from the rubber gasket.
3. Clean the outside and the inside of
the rubber gasket with a damp
cloth and wipe dry.
Troubleshooting en
37
17 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshoot-
ing information before contacting after-sales service. This will avoid unneces-
sary costs.
WARNING
Risk of electric shock!
Improper repairs are dangerous.
▶ Never make any technical modifications to the appliance or its features.
▶ Repairs to the appliance should only be carried out by trained specialist
staff.
▶ Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by the
manufacturer, the manufacturer's Customer Service or a similarly qualified
person in order to prevent any risk.
Fault Cause and troubleshooting
The display goes out
and (Start/Pause)
flashes.
Energy-saving mode is active
▶ Press Start/Pause.
E:36 -10 / E:30 -80 /
E:18
The detergent solution
is not being pumped
out.
The water outlet hose is connected too high, is kinked
or trapped, or has been extended impermissibly.
▶ Check the installation of the water outlet hose.
→Page14
Drain pipe or water outlet hose is blocked.
▶ Clean the drain pipe and the water outlet hose.
The drain pump is blocked or the pump cover is not
installed correctly.
▶ Check that the pump cover is installed correctly.
→Page33
▶
Clean the drain pump. →Page33
Detergent dosage is too high.
▶ Reduce the amount of detergent for the next wash-
ing cycle with the same load.
E:36 -25 -26 Drain pump is blocked.
▶
Clean the drain pump. →Page33
E:60 -2B / E:32 /
H:32
The appliance has interrupted the spin cycle because
the laundry is unevenly distributed.
▶ Redistribute the laundry in the drum.
E:30 -10 / The tap is turned off.
▶ Turn on the tap.
The water inlet hose is kinked or jammed.
en Troubleshooting
38
Fault Cause and troubleshooting
E:30 -10 / ▶ Check the installation of the water inlet hose.
→Page14
The filters in the water inflow are blocked.
▶ Clean the filters in the water inflow.
Scan the QR code to see an animation of the pro-
cess.
The water pressure is low.
▶ Check whether the tap has sufficient water pres-
sure.
The water level measuring system is defective.
With this error message, the appliance starts a drain-
ing process.
1. Wait approx. 5 minutes until the draining process
ends.
2. Restart the appliance.
If required, start the draining process again.
3. If the fault persists, call customer service.
→Page44
E:30 -20 Critical malfunction.
▶ Turn off the water tap.
With this error message, the appliance starts a drain-
ing process.
1. Wait approx. 5 minutes until the draining process
ends.
2. Restart the appliance.
If required, start the draining process again.
3. If the fault persists, call customer service.
→Page44
Detergent dosage is too high.
▶ Reduce the amount of detergent for the next wash-
ing cycle with the same load.
Additional water has been added.
▶ Do not add any extra water to the appliance while it
is operating.
Troubleshooting en
39
Fault Cause and troubleshooting
All other error codes. Malfunction
1. Restart the appliance.
2. If the fault occurs again, disconnect the appliance
from the power supply for at least 30 seconds.
Unplug the appliance from the mains or switch off
the circuit breaker in the fuse box.
3. If the fault persists, call customer service.
→Page44
Please specify the exact error message when call-
ing. If possible, document the fault with photos and
videos.
Heavy foam build-up. Detergent dosage is too high.
▶ Mix one tablespoon of fabric softener with 0.5 litres
of water and pour the mixture into compartment II
(not for outdoor clothing, sportswear or items
stuffed with down).
▶ Reduce the amount of detergent for the next wash-
ing cycle with the same load.
flashes. The door is not completely closed.
1. Ensure that there is no laundry trapped in the door.
2. Close the door.
Drum cleaning is required.
▶
Clean the drum. →Page31
The programme does
not start.
Childproof lock is activated.
▶
Deactivate the childproof lock. →Page30
Ready In is activated.
▶
Check whether Ready In is activated. →Page21
The programme is
paused or has been
interrupted, but the
door will not open.
The temperature is too high.
▶ Start the ล้างน้ำ�Rinse programme or wait until
the temperature has dropped.
Water level is too high.
▶ Start the ปั่นหมาดSpin programme or a suitable
draining programme. →Page23
The door cannot be
opened due to a
power cut.
The door is locked.
▶ Open the door using the emergency release.
→Page43
Drum jerks after the
programme starts.
Not a fault. An internal motor test is started.
No action required.
en Troubleshooting
40
Fault Cause and troubleshooting
Drum rotates, water
does not flow in.
Not a fault. Load detection is active for up to 2
minutes.
No action required.
No water is visible in
the drum.
Not a fault. Water is below the visible area.
No action required.
The spin cycle runs
several times.
Not a fault. The appliance eliminates an imbalance by
repeatedly redistributing the laundry.
No action required.
The appliance is vi-
brating, 'wandering'
and making loud
noises during the spin
cycle.
Appliance is not correctly aligned.
▶
Align the appliance. →Page15
The appliance feet are not fixed.
▶
Secure the appliance's feet. →Page15
Transit bolts have not been removed.
▶
Remove the transit bolts. →Page13
High spin speed not
reached.
Easy Iron is activated.
▶ Select a programme that is suitable for the type of
fabric. →Page23
The appliance is using a reduced spin speed to elim-
inate an imbalance.
No action required.
The programme dura-
tion changes during
the wash cycle.
Not a fault. The programme sequence is optimised
electronically, another rinse cycle is switched on due
to heavy foam build-up, or an imbalance is eliminated.
No action required.
Whooshing, hissing or
sucking noises.
Not a fault. Water is pumped in or detergent solution
is pumped out.
No action required.
Banging noises, rat-
tling in the drain
pump.
A foreign object is in the drain pump.
▶
Clean the drain pump. →Page33
There are detergent
residues on the laun-
dry.
Detergents may contain water-insoluble substances
that deposit on the laundry.
▶ Start the ล้างน้ำ�Rinse programme or brush out
the laundry after drying.
The laundry is too wet
after the spinning
cycle.
A low spin speed is selected.
▶ Start the ปั่นหมาดSpinprogramme.
▶ The next time you run a wash cycle, set a higher
spin speed.
The appliance is using a reduced spin speed to elim-
inate an imbalance.
1. Redistribute the laundry in the drum.
Troubleshooting en
41
Fault Cause and troubleshooting
The laundry is too wet
after the spinning
cycle.
2. Start the ปั่นหมาดSpinprogramme.
Easy Iron is activated.
▶
Set a suitable programme. →Page23
Creasing. The selected programme is unsuitable for the type of
fabric.
▶
Set a suitable programme. →Page23
A high spin speed is selected.
▶ The next time you run a wash cycle, set a lower
spin speed.
The load is unsuitable.
▶ Observe the programme's maximum load capacity.
→Page23
▶
Prepare the laundry. →Page27
Water is leaking out at
the water inlet hose.
The water inlet hose is not correctly connected or is
damaged.
▶ Check the installation of the water inlet hose.
→Page11
Replace the water inlet hose if it is damaged.
Water is leaking out at
the water outlet hose.
The water outlet hose is not connected correctly or is
damaged.
▶ Check the installation of the water outlet hose.
→Page11
Replace the water outlet hose if it is damaged.
Water is leaking from
below the door.
Dirt on the door or seal causes leaks.
▶ Clean the door and the seal.
Detergent or fabric
softener drips off the
seal and collects on
the door or in the seal
fold.
There is too much detergent or fabric softener in the
detergent drawer.
▶ When dosing, observe the marking in the detergent
drawer. →Page29
Residual water is
present in the com-
partment .
Insert in compartment is blocked.
▶
Clean the detergent drawer. →Page32
Fabric softener re-
mains in the detergent
drawer.
The use of fabric softener is not supported for the se-
lected programme.
▶ Check whether the use of fabric softener is suppor-
ted for the selected programme. →Page23
Transportation, storage and disposal en
43
17.1 Emergency release
Releasing the door
Requirement:The drain pump is
empty. →Page34
1. ATTENTION! Escaping water may
cause material damage.
▶ Do not open the door if you can
see water through the glass.
Pull the emergency unlock down-
wards with a tool and release.
a The door lock is released.
2. Insert the maintenance flap and
lock it into place.
3. Close the service flap.
17.2 Restart the appliance.
1. Restart the appliance.
2. If the fault occurs again, discon-
nect the appliance from the power
supply for at least 30 seconds.
Unplug the appliance from the
mains or switch off the circuit
breaker in the fuse box.
3. If the fault persists, call customer
service. →Page44
Please specify the exact error mes-
sage when calling. If possible, doc-
ument the fault with photos and
videos.
18 Transportation, stor-
age and disposal
18.1 Removing the appliance
1. Turn off the tap.
2. Empty the water inlet hose.
3. Switch off the appliance.
→Page30
4. Unplug the appliance's mains plug.
5. Drain the water.
→"Cleaning the drain pump",
Page33
6. Detach the hoses.
18.2 Inserting the transit
bolts
Secure the appliance before trans-
portation using transit bolts in order
to prevent transport damage.
1. Use a screwdriver to remove the 4
cover caps.
Keep the cover caps.
2. Insert the 4 transit bolts.
→"Removing the transit bolts",
Page13
en Customer Service
44
18.3 Using the appliance
again
▶ For further information, see Install-
ation and connection →Page11
and Starting an empty washing
cycle →Page16.
18.4 Disposing of old appli-
ance
Valuable raw materials can be re-
used by recycling.
WARNING
Risk of harm to health!
Children can lock themselves in the
appliance, thereby putting their lives
at risk.
▶ Do not install the appliance behind
a door as this may obstruct the ap-
pliance door or prevent it from
opening.
▶ With redundant appliances, unplug
the power cord. Then cut through
the cord and damage the lock on
the appliance door beyond repair
so that the appliance door will no
longer close.
1. Unplug the appliance from the
mains.
2. Cut through the power cord.
3. Dispose of the appliance in an en-
vironmentally friendly manner.
Information about current disposal
methods are available from your
specialist dealer or local authority.
19 Customer Service
Detailed information about the war-
ranty period and the warranty condi-
tions in your country is available via
the QR code on the enclosed docu-
ment on service contacts and war-
ranty conditions, from our customer
service or on our website.
If you contact Customer Service, you
will require the product number (E-
Nr.) and the production number (FD)
of your appliance.
You can find the contact details for
our customer service via the QR
code on the enclosed document on
service contacts and warranty condi-
tions or on our website.
19.1 Product number (E-Nr.)
and production number
(FD)
You can find the product number (E-
Nr.) and the production number (FD)
on the appliance's rating plate.
Depending on the model, the rating
plate is located:
¡ On the inside of the door.
¡ On the inside of the maintenance
flap.
¡ On the rear of the appliance.
Make a note of your appliance's de-
tails and the Customer Service tele-
phone number to find them again
quickly.
20 Technical data
Appliance height 84.8cm
Appliance width 59.8cm
Appliance depth 59.0cm
Appliance depth
with door closed
63.6cm
Appliance depth
with door open
107.3cm
Weight 70.6kg
Maximum load 9.0kg
Technical data en
45
Mains voltage 220-240V,
50Hz
Minimum in-
stallation protec-
tion
10A
Nominal power 1900-2300W
Water pressure ¡ Minimum:
100kPa
(1bar)
¡ Maximum:
1000kPa
(10bar)
Length of the wa-
ter inlet hose
150cm
Length of the wa-
ter outlet hose
150cm
Length of the
power cord
160cm
Thank you for buying a
Bosch Home Appliance!
Register your new device on MyBosch now and profit directly from:
• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service
Free and easy registration – also on mobile phones:
www.bosch-home.com/welcome
Looking for help?
You'll find it here.
Expert advice for your Bosch home appliances, help with problems
or a repair from Bosch experts.
Find out everything about the many ways Bosch can support you:
www.bosch-home.com/service
Contact data of all countries are listed in the attached service direct-
ory.
*9001946390*
9001946390 (050619)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
www.bosch-home.com
A Bosch Company
