AD610 Pro User’s Manual_English_V1.0
Trademarks
ANCEL is the trademark of OBDSPACE TECHNOLOGY CO.,LTD
All other marks are trademarks or registered trademarks of their respective holders.
Copyright Information
©2024 OBDSPACE TECHNOLOGY CO.,LTD
All rights reserved.
Disclaimer
The information, specifications and illustrations in this manual are based on the latest information available at the
time of printing.
ANCEL reserves the right to make changes at any time without notice.
Visit our website at
www.anceltech.com
For Technical Assistance, send us email at
support@anceltech.com
2
AD610 Pro User’s Manual_English_V1.0
One-Year Limited Warranty
Subject to the conditions of this limited warranty, OBDSPACE TECHNOLOGY CO.,LTD (“ANCEL”) warrants its
customer that this product is free of defects in material and workmanship at the time of its original purchase
for a subsequent period of one (1) year.
In the event this product fails to operate under normal use, during the warranty period, due to defects in
materials and workmanship, ANCEL will, at its sole option, either repair or replace the product in accordance
with the terms and conditions stipulated herein.
Terms and Conditions
1 If ANCEL repairs or replaces the product, the repaired or replaced product shall be warranted for the
remaining time of the original warranty period. No charge will be made to the customer for replacement
parts or labor charges incurred by ANCEL in repairing or replacing the defective parts.
2 The customer shall have no coverage or benefits under this limited warranty if any of the following
conditions are applicable:
a) The product has been subjected to abnormal use, abnormal conditions, improper storage, exposure to
moisture or dampness, unauthorized modifications, unauthorized repair, misuse, neglect, abuse, accident,
alteration, improper installation, or other acts which are not the fault of ANCEL, including damage caused by
shipping.
b) The Product has been damaged from external causes such as collision with an object, or from fire, flooding,
sand, dirt, windstorm, lightning, earthquake or damage from exposure to weather conditions, an Act of God,
or battery leakage, theft, blown fuse, improper use of any electrical source, or the product was used in
combination or connection with other product, attachments, supplies or consumables not manufactured or
distributed by ANCEL.
3 The customer shall bear the cost of shipping the product to ANCEL. And ANCEL shall bear the cost of
shipping the product back to the customer after the completion of service under this limited warranty.
4 ANCEL does not warrant uninterrupted or error-free operation of the product. If a problem develops during
the limited warranty period, the consumer shall take the following step-by-step procedure:
a) The customer shall return the product to the place of purchase for repair or replacement processing,
contact your local ANCEL distributor or visit our website www.ANCELtech.us to get further information.
b) The customer shall include a return address, daytime phone number and/or fax number, complete
description of the problem and original invoice specifying date of purchase and serial number.
c) The customer will be billed for any parts or labor charges not covered by this limited warranty.
d) ANCEL will repair the Product under the limited warranty within 30 days after receipt of the product. If
ANCEL cannot perform repairs covered under this limited warranty within 30 days, or after a reasonable
number of attempts to repair the same defect, ANCEL at its option, will provide a replacement product or
refund the purchase price of the product less a reasonable amount for usage.
e) If the product is returned during the limited warranty period, but the problem with the product is not
covered under the terms and conditions of this limited warranty, the customer will be notified and given an
estimate of the charges the customer must pay to have the product repaired, with all shipping charges billed
to the customer. If the estimate is refused, the product will be returned freight collect. If the product is
returned after the expiration of the limited warranty period, ANCEL’ normal service policies shall apply and
the customer will be responsible for all shipping charges.
5 ANY IMPLIED WARRANTY OF MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE OR USE, SHALL
BE LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY. OTHERWISE, THE
FOREGOING LIMITED WARRANTY IS THE CONSUMER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED. ANCEL SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL, PUNITIVE
OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOSS OF ANTICIPATED BENEFITS OR
PROFITS, LOSS OF SAVINGS OR REVENUE, LOSS OF DATA, PUNITIVE DAMAGES, LOSS OF USE OF THE PRODUCT
3
AD610 Pro User’s Manual_English_V1.0
OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIPMENT OR FACILITIES,
DOWNTIME, THE CLAIMS OF ANY THIRD PARTIES, INCLUDING CUSTOMERS, AND INJURY TO PROPERTY,
RESULTING FROM THE PURC HASE OR USE OF THE PRODUCT OR ARISING FROM BREACH OF THE WARRANTY,
BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL OR EQUITABLE THEORY, EVEN IF
ANCEL KNEW OF THE LIKELIHOOD OF SUCH DAMAGES. ANCEL SHALL NOT BE LIABLE FOR DELAY IN
RENDERING SERVICE UNDER THE LIMITED WARRANTY, OR LOSS OF USE DURING THE PERIOD THAT THE
PRODUCT IS BEING REPAIRED.
6. Some states do not allow limitation of how long an implied warranty lasts, so the one-year warranty
limitation may not apply to you (the Consumer). Some states do not allow the exclusion or limitation of
incidental and consequential damages, so certain of the above limitations or exclusions may not apply to you
(the Consumer). This limited warranty gives the Consumer specific legal rights and the Consumer may also
have other rights which vary from state to state.
4
AD610 Pro User’s Manual_English_V1.0
Safety Information
For your own safety and the safety of others, and to prevent damage to the equipment and vehicles, read this
manual thoroughly before operating your scanner. The safety messages presented below and throughout this
user’s manual are reminders to the operator to exercise extreme care when using this device. Always refer to
and follow safety messages and test procedures provided by vehicle manufacturer. Read, understand and
follow all safety messages and instructions in this manual.
Safety Message Conventions Used
We provide safety messages to help prevent personal injury and equipment damage. Below are signal words
we used to indicate the hazard level in a condition.
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the
operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury to the
operator or to bystanders.
Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor injury to the
operator or to bystanders.
Important Safety Instructions
And always use your scanner as described in the user’s manual, and follow all safety messages.
● Do not route the test cable in a manner that would interfere with driving controls.
● Do not exceed voltage limits between inputs specified in this user’s manual.
● Always wear ANSI approved goggles to protect your eyes from propelled objects as well as hot or caustic
liquids.
● Fuel, oil vapors, hot steam, hot toxic exhaust gases, acid, refrigerant and other debris produced by a
malfunction engine can cause serious injury or death. Do not use the scanner in areas where explosive vapor
may collect, such as in below-ground pits, confined areas, or areas that are less than 18 inches (45 cm)
above the floor.
● Do not smoke, strike a match, or cause a spark near the vehicle while testing and keep all sparks, heated
items and open flames away from the battery and fuel / fuel vapors as they are highly flammable.
● Keep a dry chemical fire extinguisher suitable for gasoline, chemical and electrical fires in work area.
● Always be aware of rotating parts that move at high speed when an engine is running and keep a safe
distance from these parts as well as other potentially moving objects to avoid serious injury.
● Do not touch engine components that get very hot when an engine is running to avoid severe burns.
● Block drive wheels before testing with engine running. Put the transmission in park (for automatic
transmission) or neutral (for manual transmission). And never leave a running engine unattended.
● Do not wear jewelry or loose fitting clothing when working on engine.
● Don't connect or disconnect the equipment while the ignition is on or the engine is running.
5
AD610 Pro User’s Manual_English_V1.0
Table of Contents
ONE-YEAR LIMITED WARRANTY............................................................................................................................. 2
SAFETY INFORMATION........................................................................................................................................... 4
1 USING THIS MANUAL.......................................................................................................................................... 7
1.1 BOLD TEXT .................................................................................................................................................................7
1.2 SYMBOLS AND ICONS ................................................................................................................................................... 7
2 INTRODUCTIONS................................................................................................................................................. 7

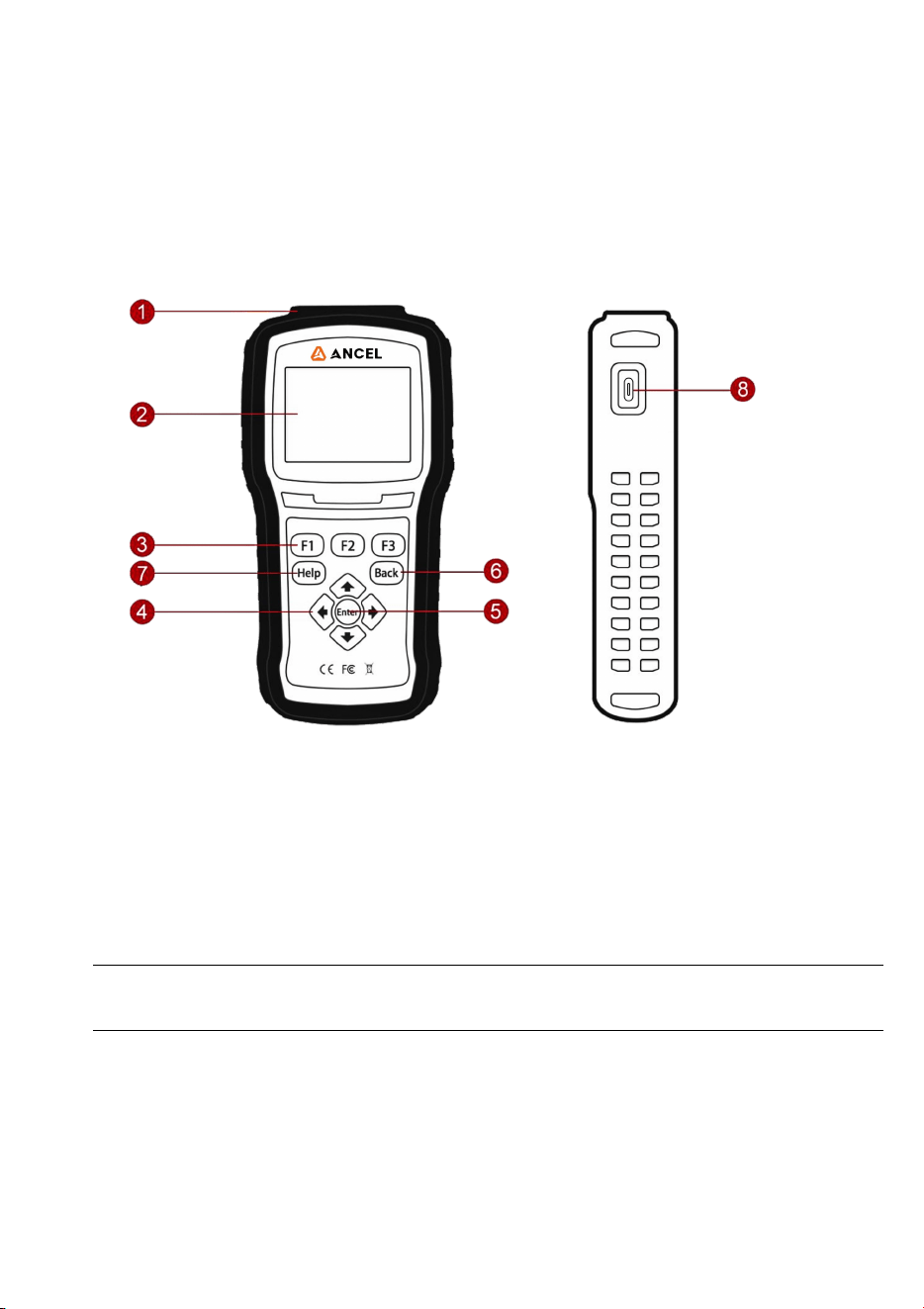

2.1 SCANNER DESCRIPTIONS ...............................................................................................................................................8
2.2 ACCESSORY DESCRIPTIONS ............................................................................................................................................ 8
2.3 TECHNICAL SPECIFICATIONS ........................................................................................................................................... 9
3 GETTING STARTED ............................................................................................................................................... 9
3.1
PROVIDING POWER TO SCANNER ....................................................................................................................................9
3.1.1
CONNECTING TO VEHICLE POWER ............................................................................................................................9
3.1.2
CONNECTING TO PERSONAL COMPUTER WITH USB CABLE .......................................................................................... 9
3.2

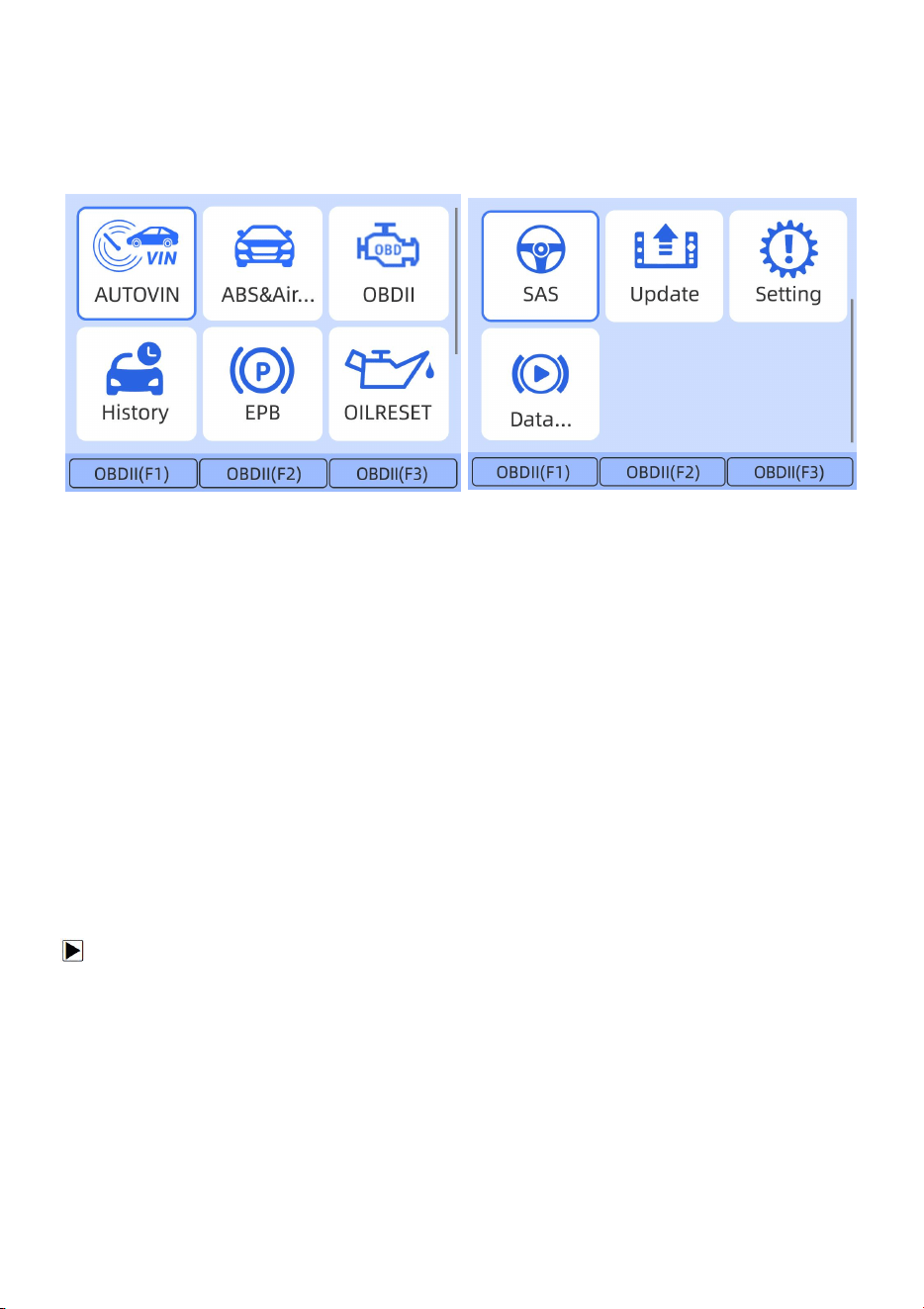

APPLICATION OVERVIEW ...............................................................................................................................................9
3.3
INPUT DIALOG BOX ....................................................................................................................................................10
4 DIAGNOSTIC OPERATIONS................................................................................................................................. 11
4.1
VEHICLE IDENTIFICATION ............................................................................................................................................. 11
4.1.1
Auto VIN ........................................................................................................................................................12
4.1.2

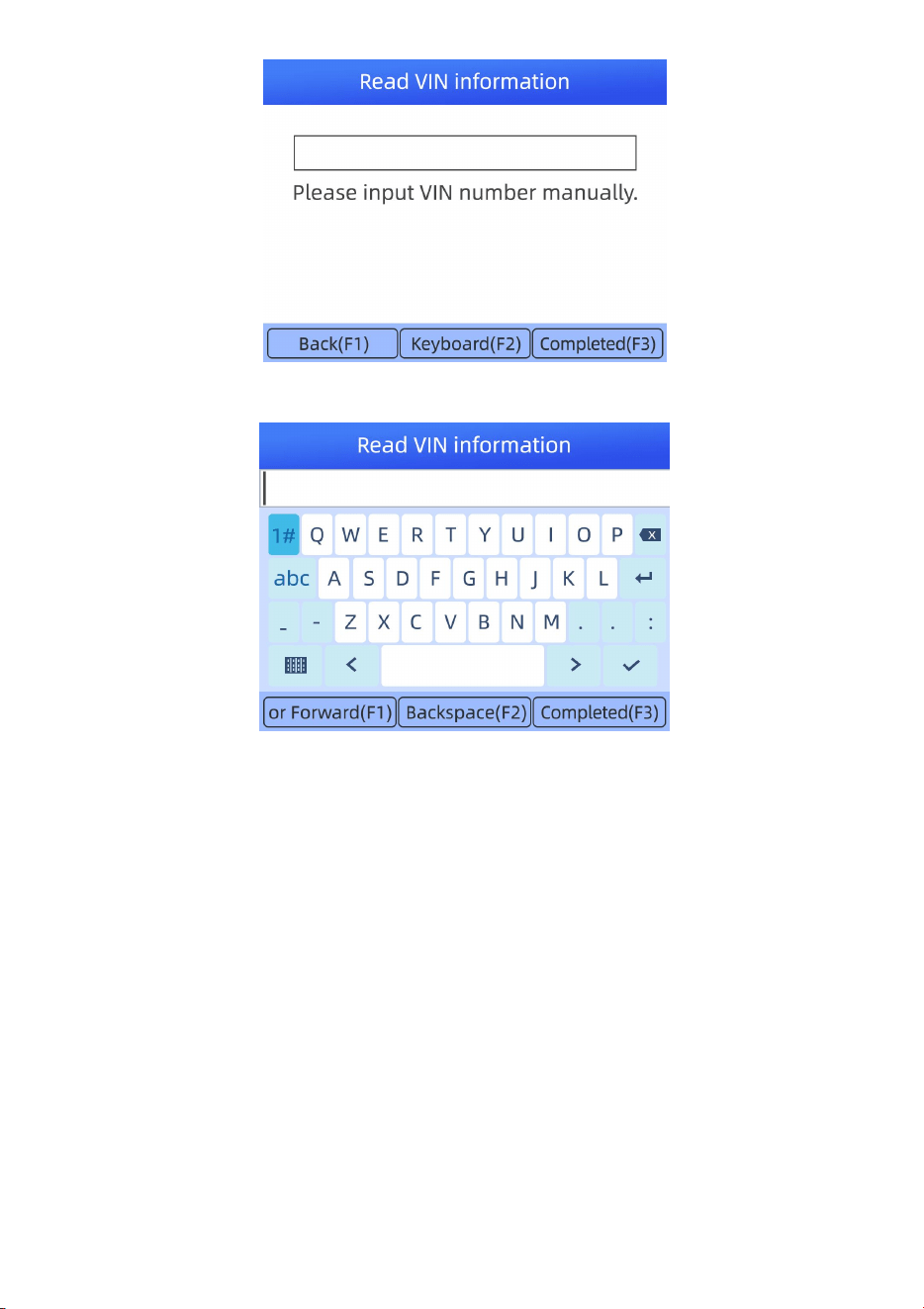

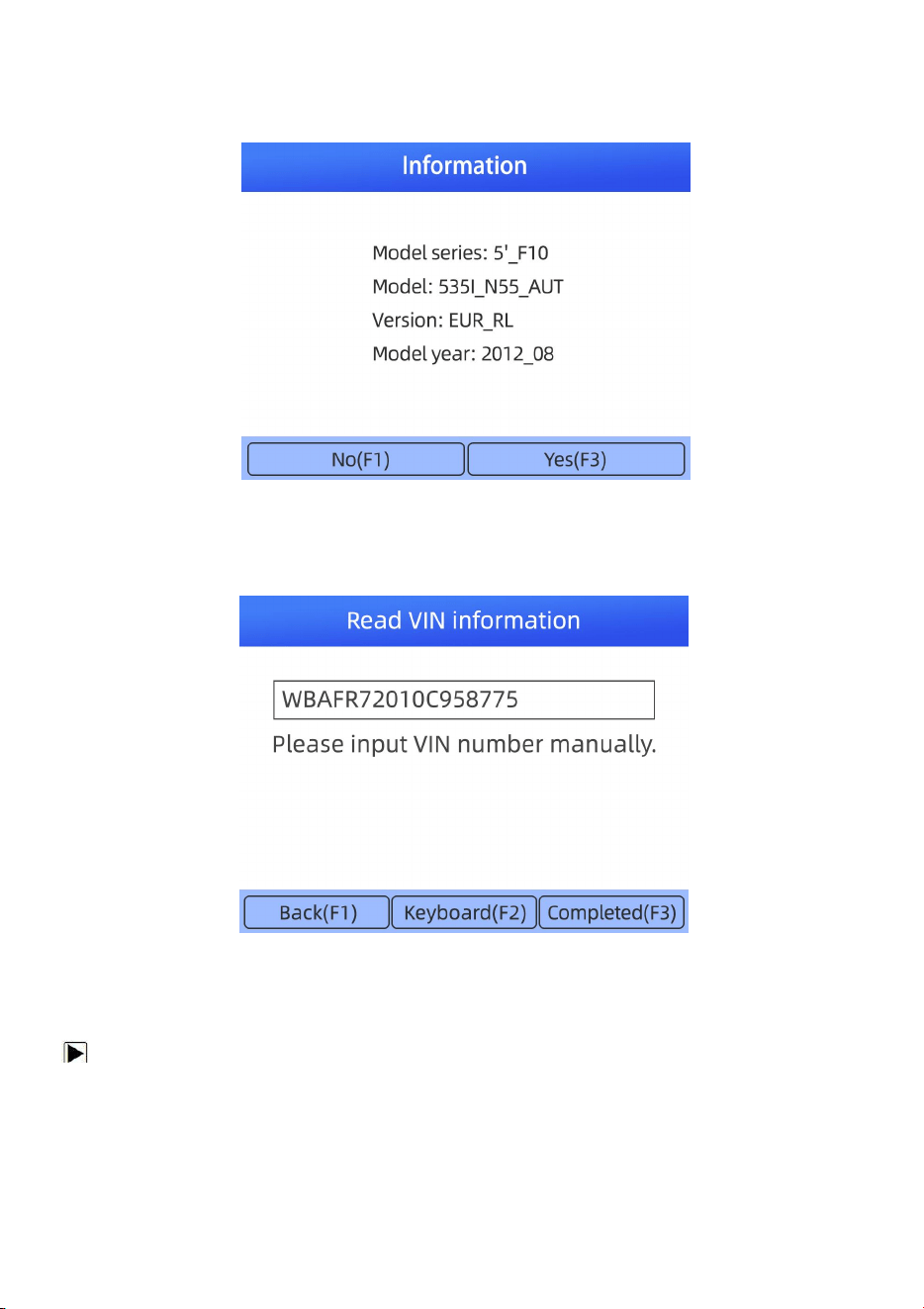

Manual VIN Entry ..........................................................................................................................................14
4.1.3

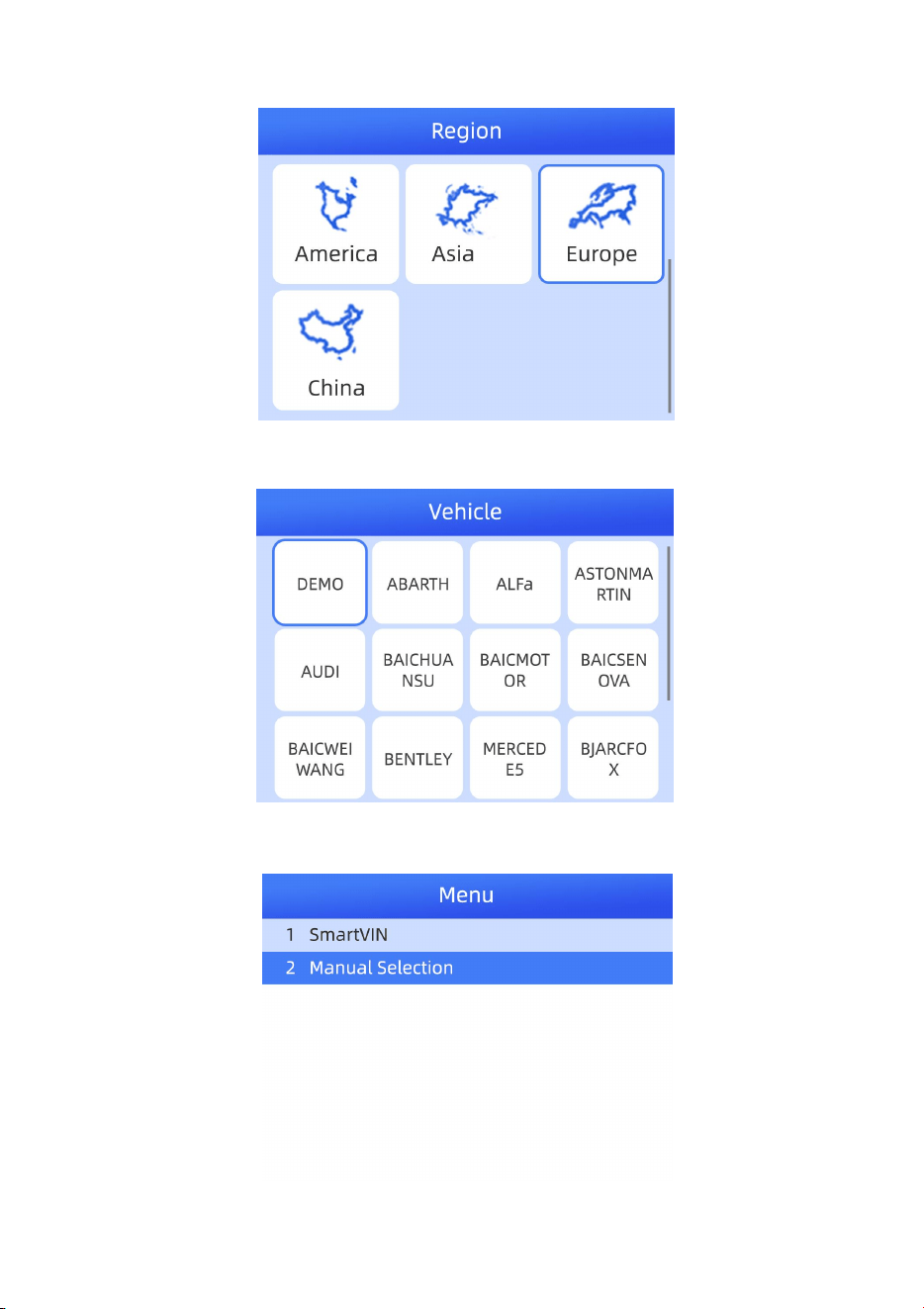

Manual Vehicle Selection............................................................................................................................. 15
4.2
SYSTEM SELECTION .................................................................................................................................................... 16
4.2.1

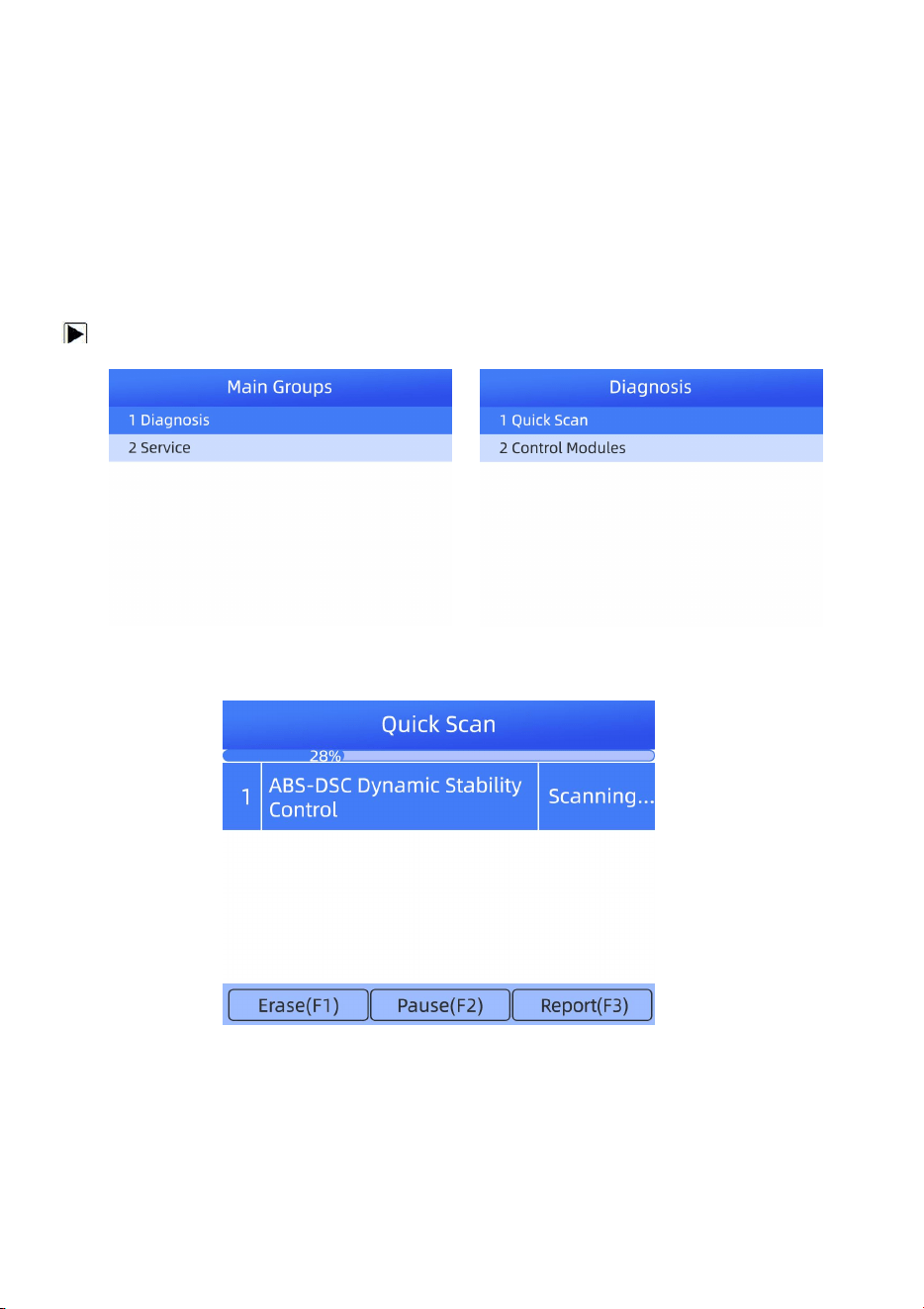

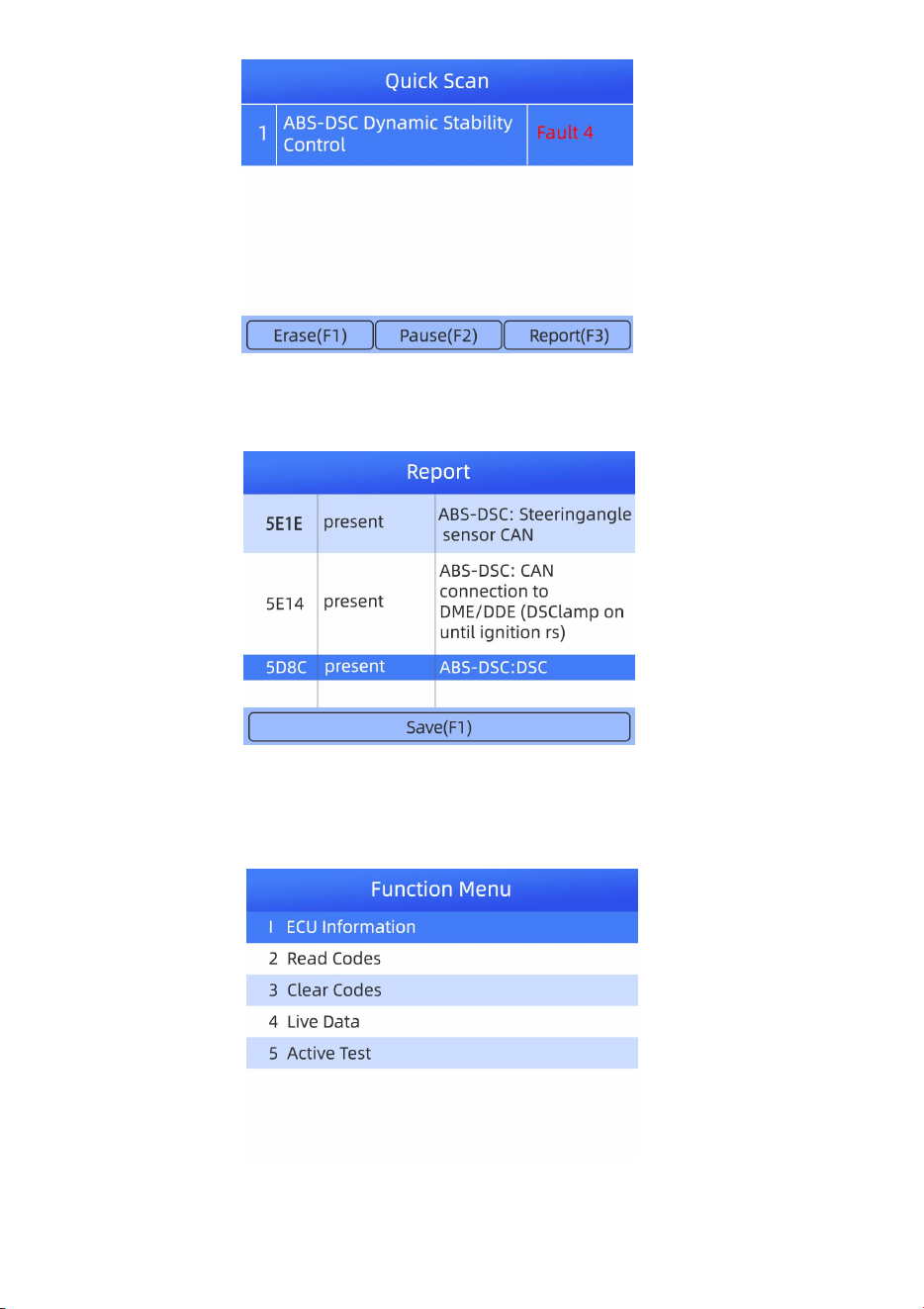

Quick Scan.................................................................................................................................................... 16
4.2.2
Manual Selection ..........................................................................................................................................18
4.3
DIAGNOSTIC FUNCTION SELECTION ...............................................................................................................................18
4.3.1
Read Codes ................................................................................................................................................... 19
4.3.2
Clear Codes ...................................................................................................................................................20
4.3.3

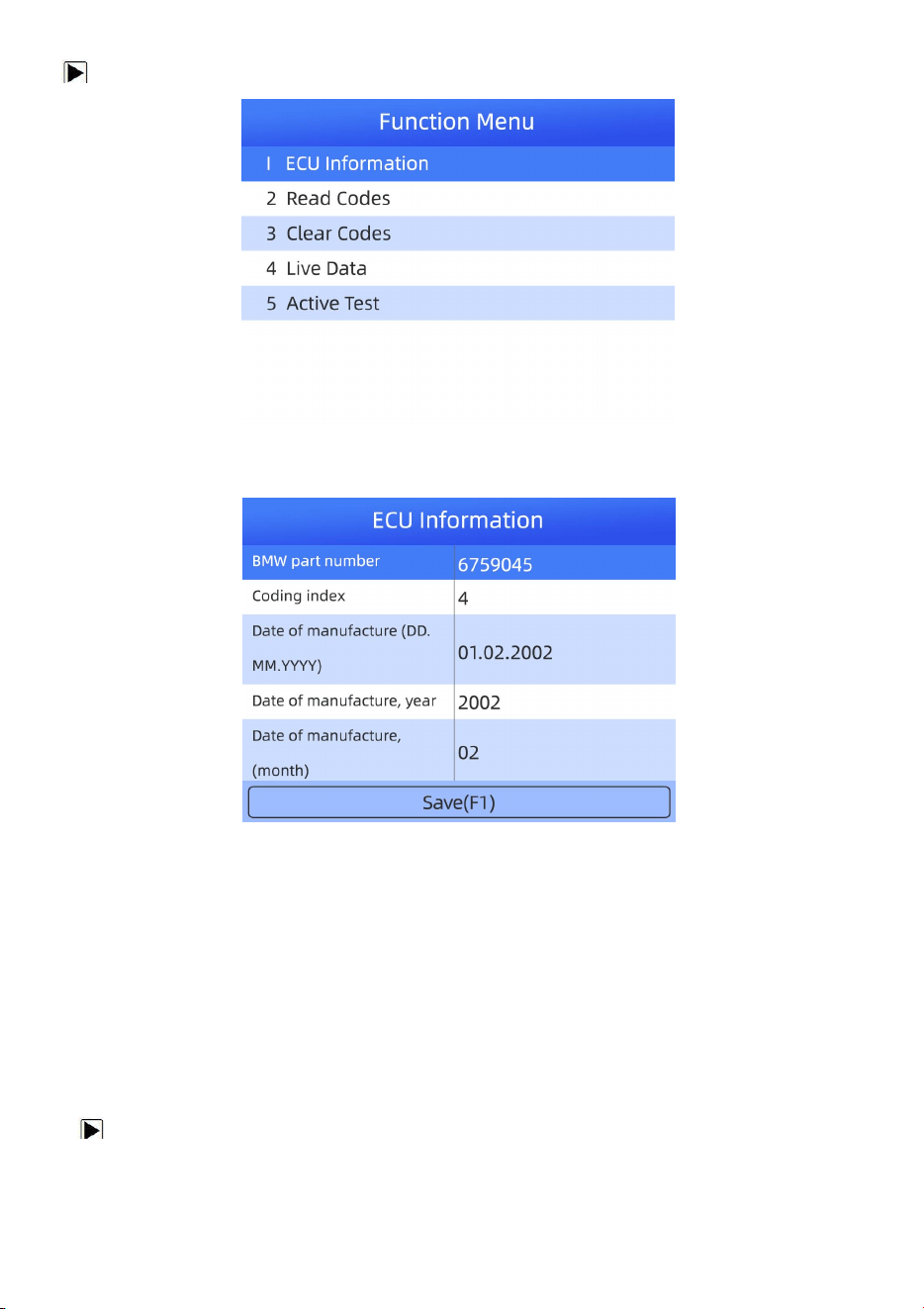

ECU Information ........................................................................................................................................... 20
4.3.4

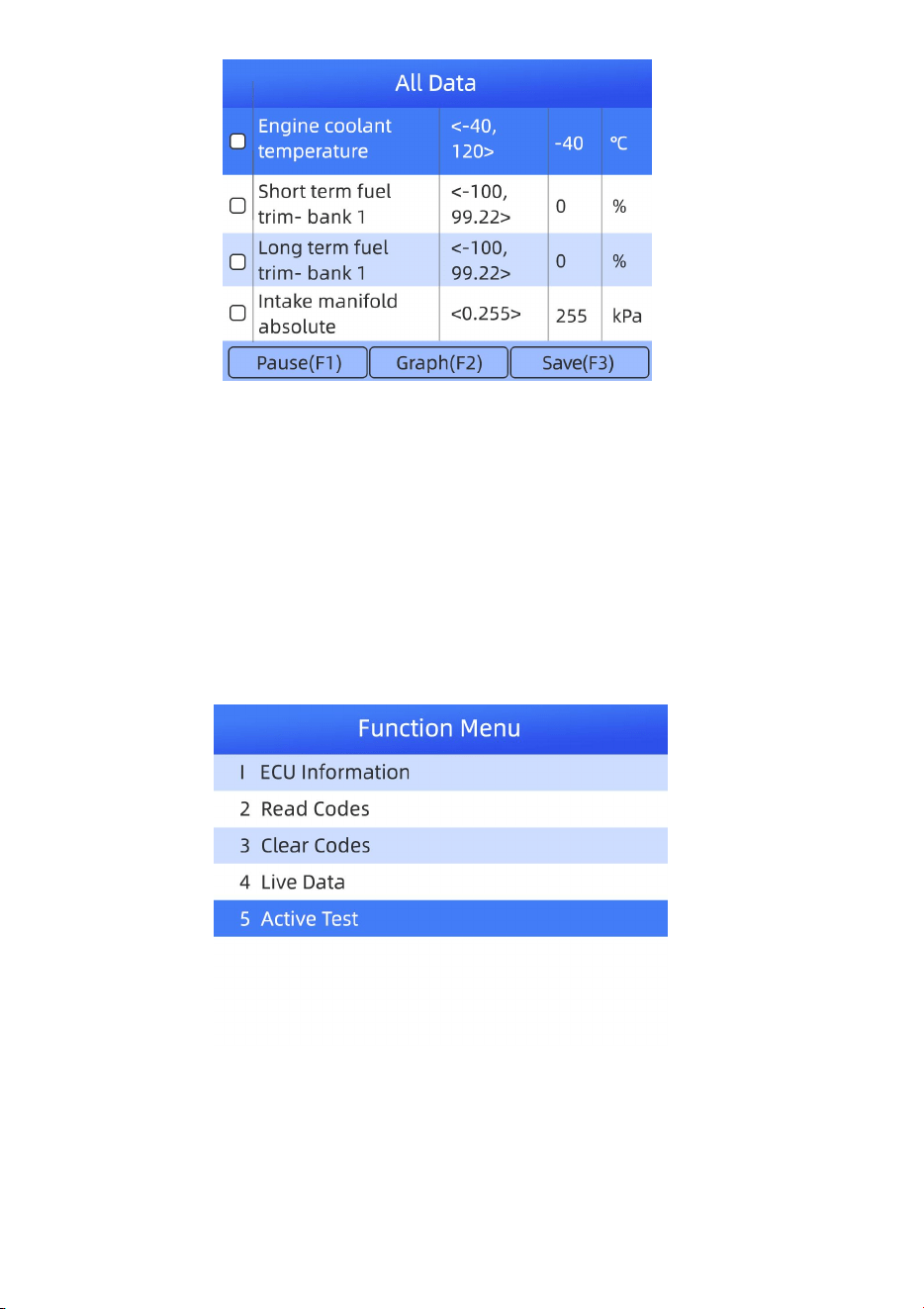

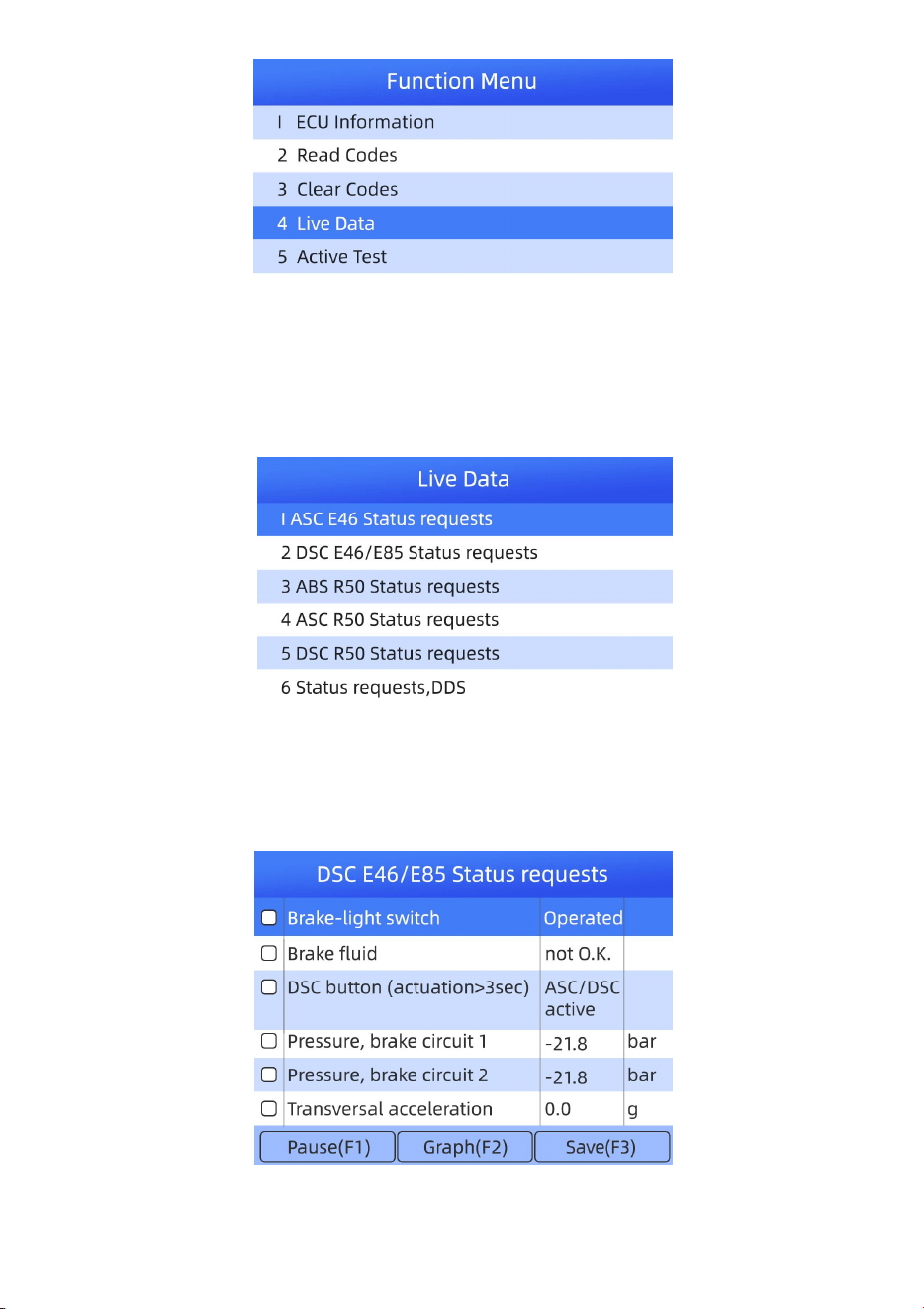

Live Data....................................................................................................................................................... 21
4.3.4.1
Complete List............................................................................................................................................. 21
4.3.4.2
Custom List ................................................................................................................................................ 23
4.3.5

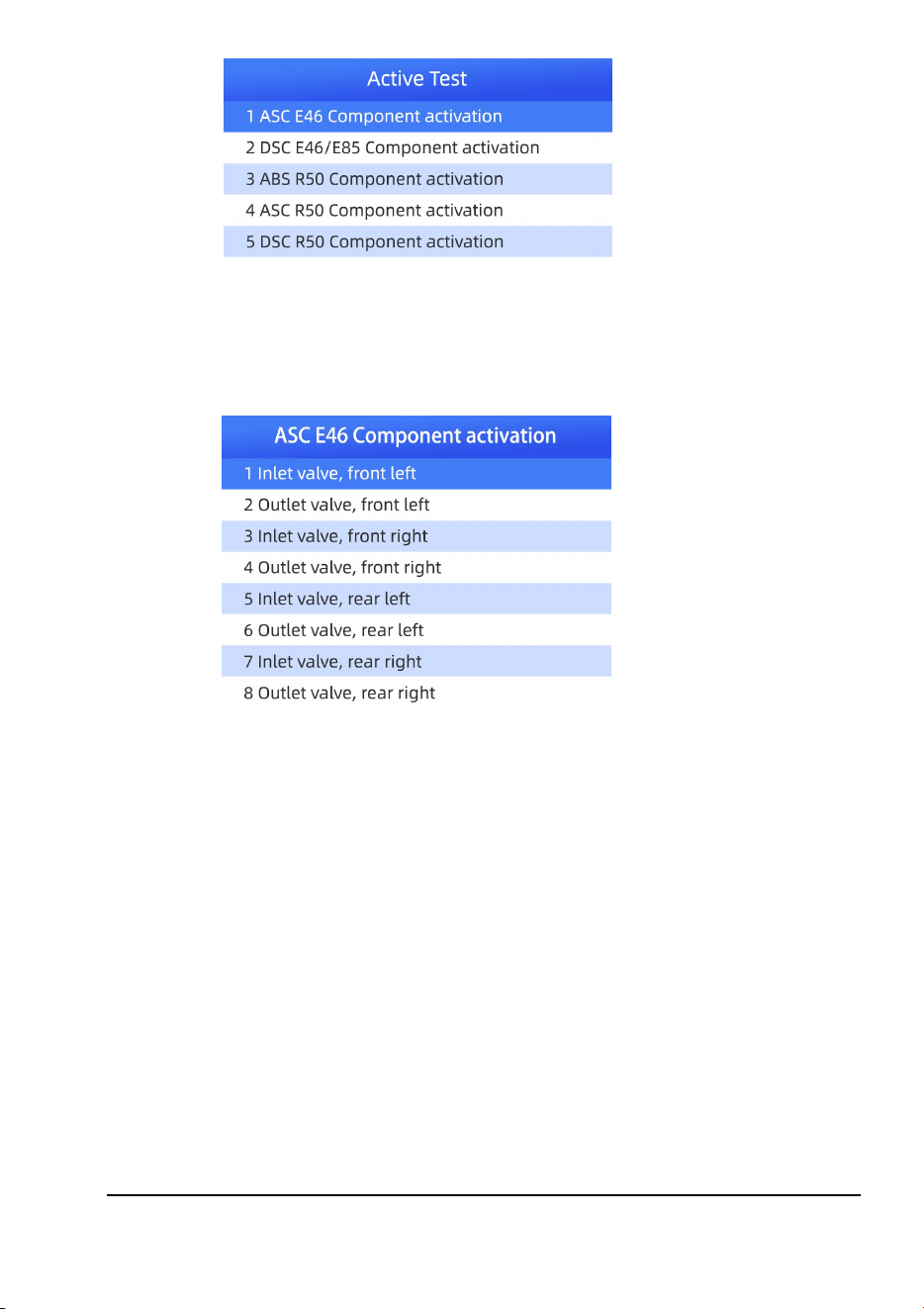

Active Test.....................................................................................................................................................26
4.3.6

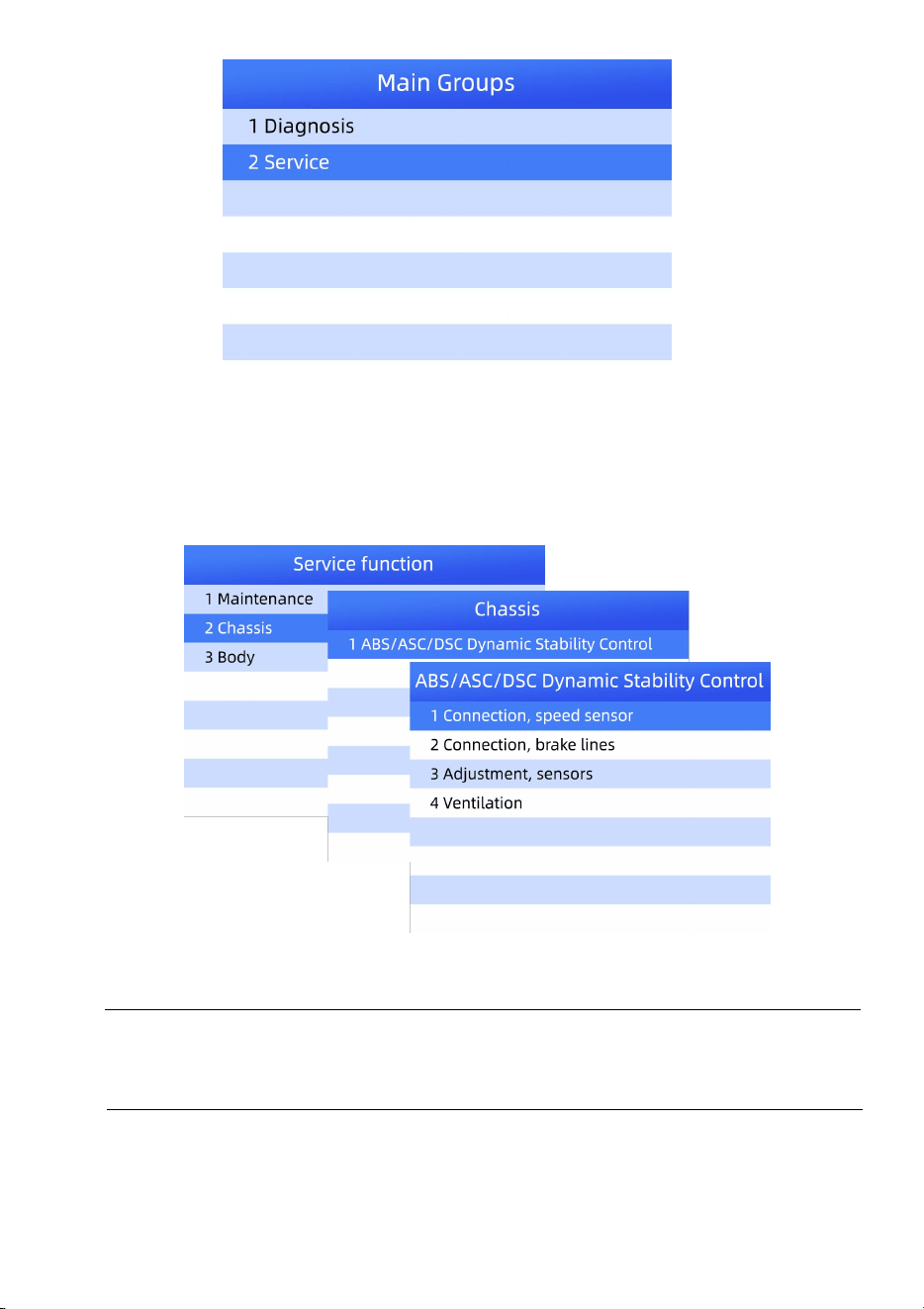

Special Functions.......................................................................................................................................... 26
5 OBDII/EOBD OPERATIONS................................................................................................................................. 28
5.1
CLEAR CODES ........................................................................................................................................................... 29
5.2

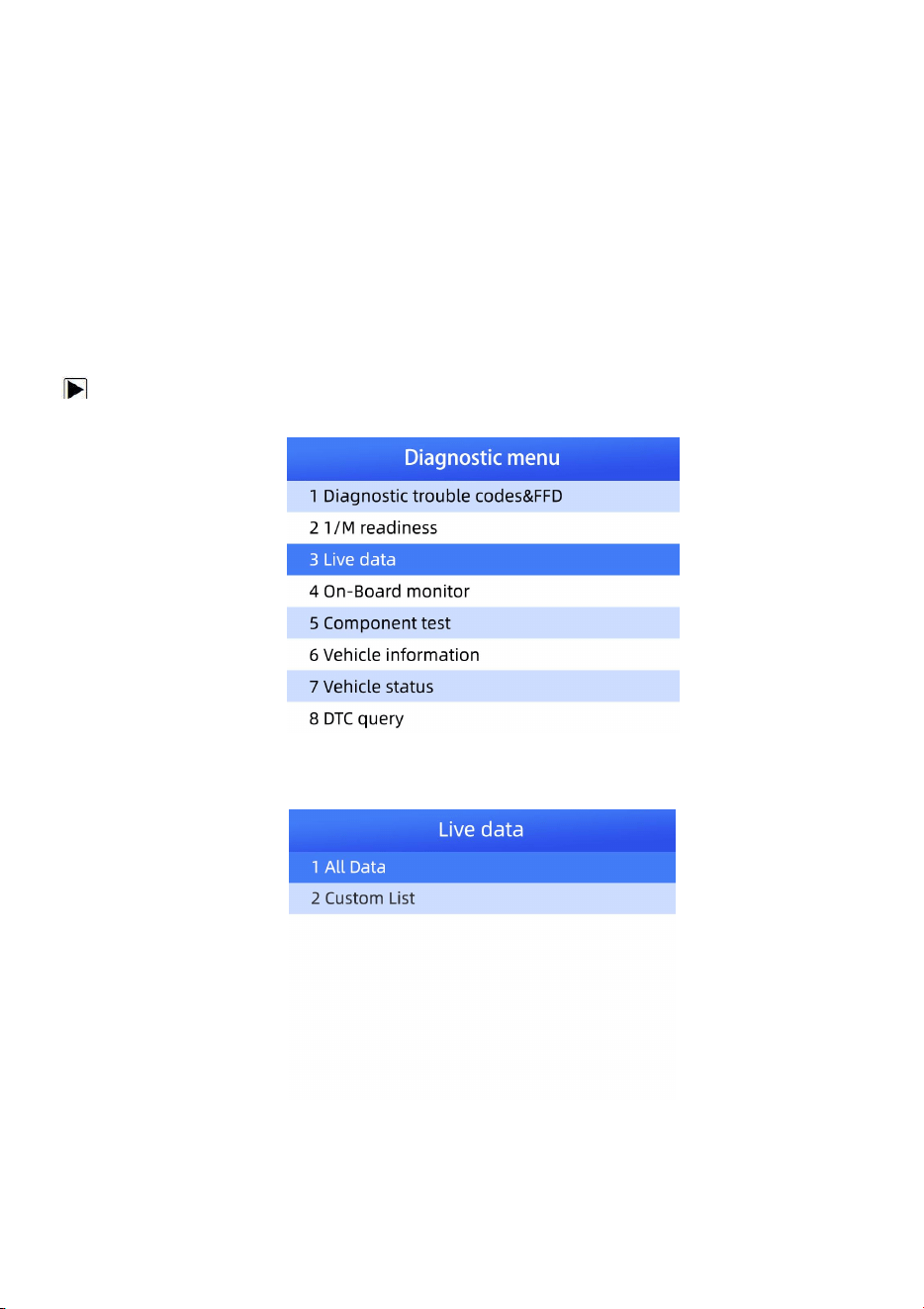

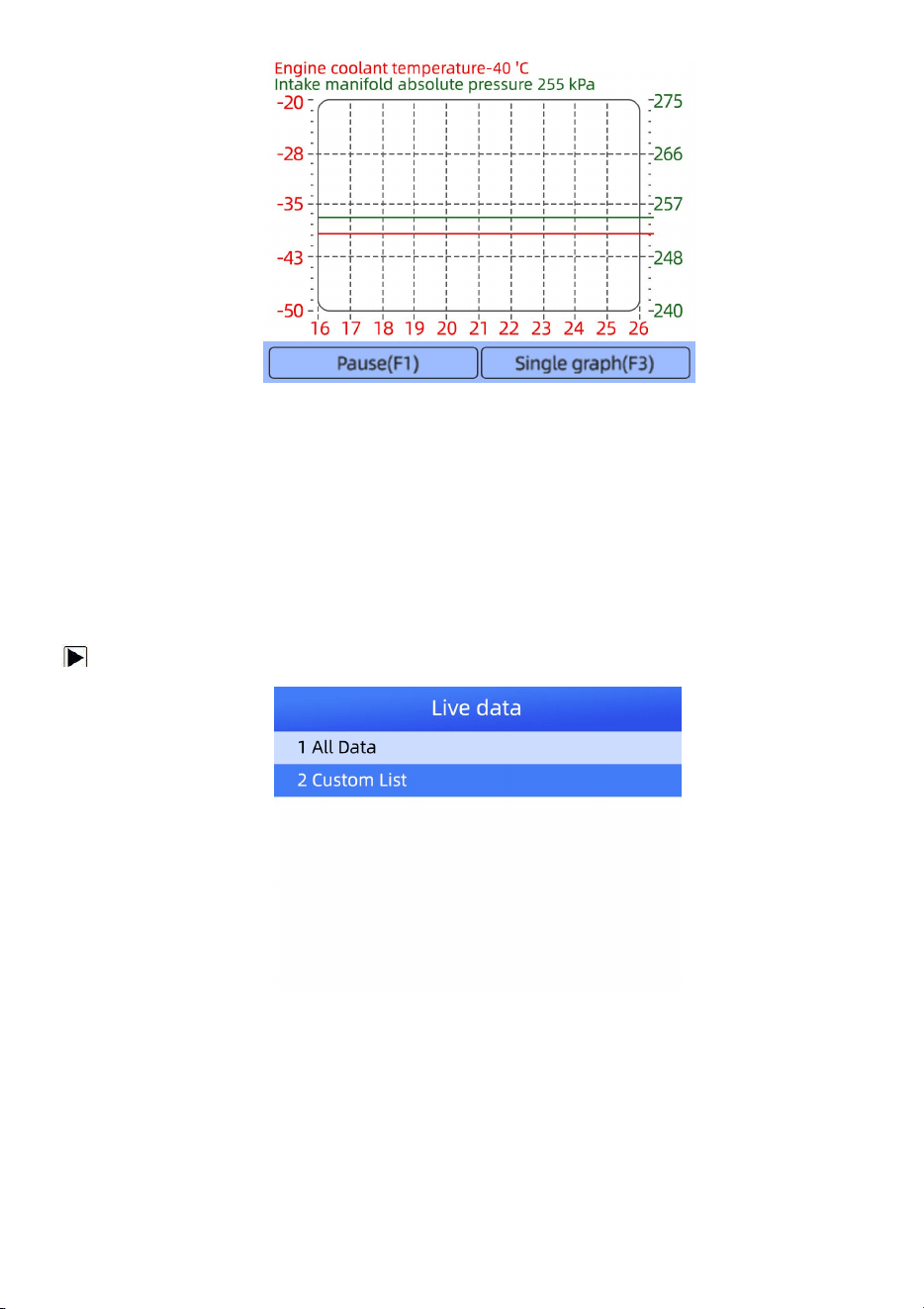

LIVE DATA ................................................................................................................................................................ 32
5.2.1
Complete Data List ........................................................................................................................................32
5.2.2
Custom List................................................................................................................................................... 34
5.3

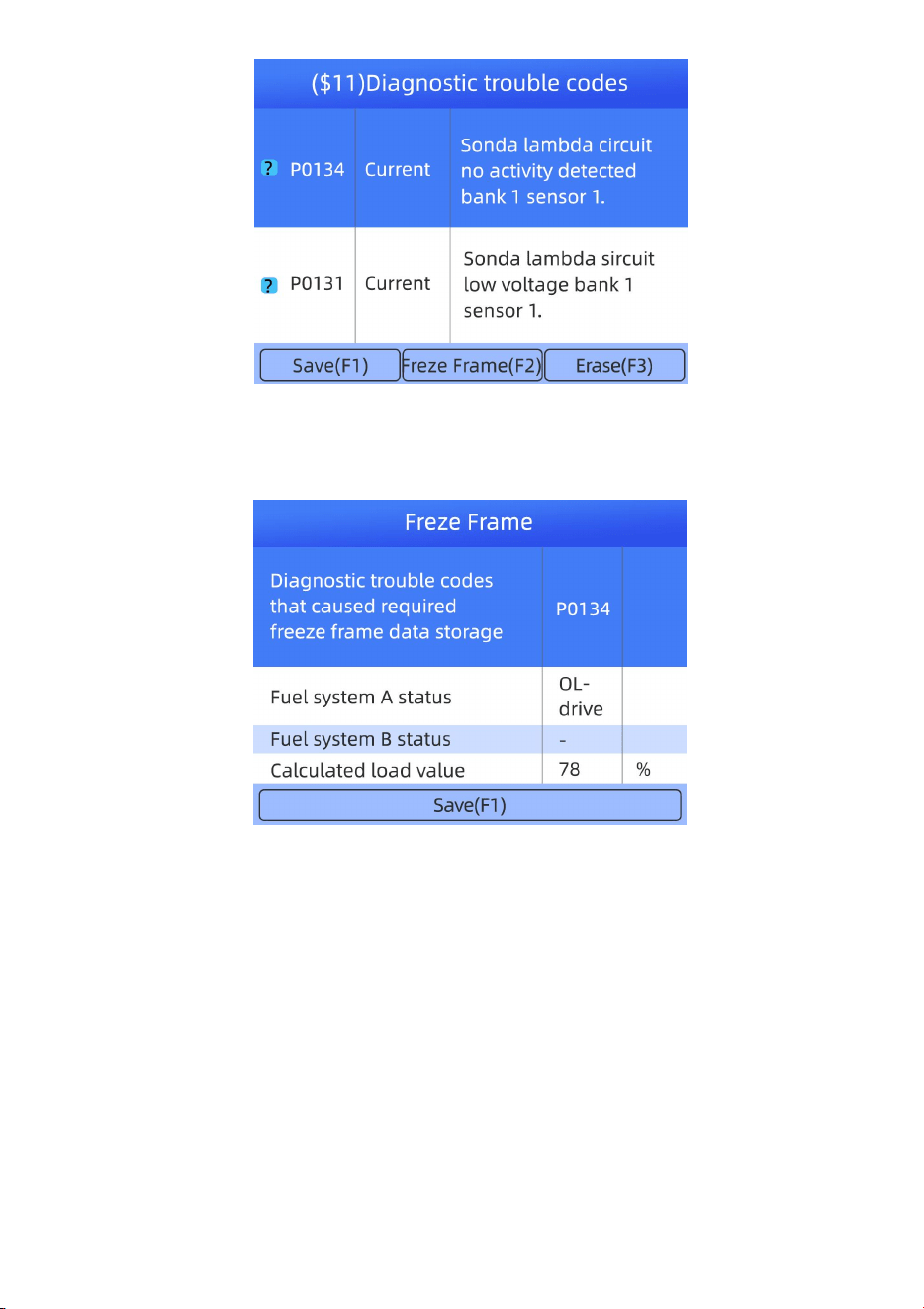

FREEZE FRAME ..........................................................................................................................................................36
6
AD610 Pro User’s Manual_English_V1.0
5.4
READ I/M READINESS STATUS DATA ............................................................................................................................. 37
5.5
SONDA LAMBDA MONITOR ..........................................................................................................................................39
5.6
ON-BOARD MONITOR TEST ........................................................................................................................................ 41
5.7
COMPONENT TEST .....................................................................................................................................................43
5.8
REQUEST VEHICLE INFORMATION ................................................................................................................................. 43
5.9
MODULES PRESENT ................................................................................................................................................... 45
5.10

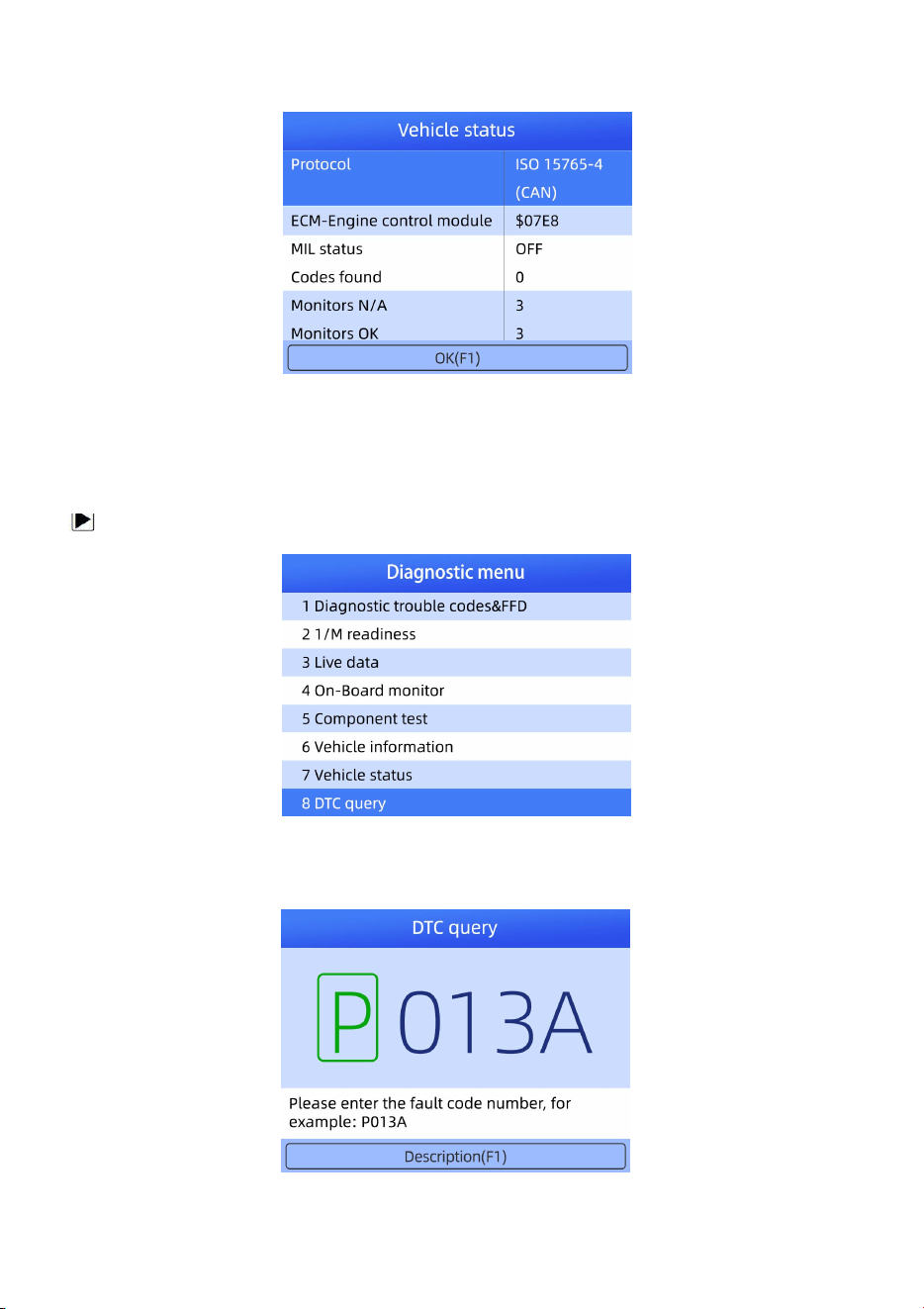

DTC LOOKUP ..........................................................................................................................................................46
6 SYSTEM SETUP .................................................................................................................................................. 47
6.1 SELECT LANGUAGE .....................................................................................................................................................47
6.2 CHANGE UNITS ......................................................................................................................................................... 48

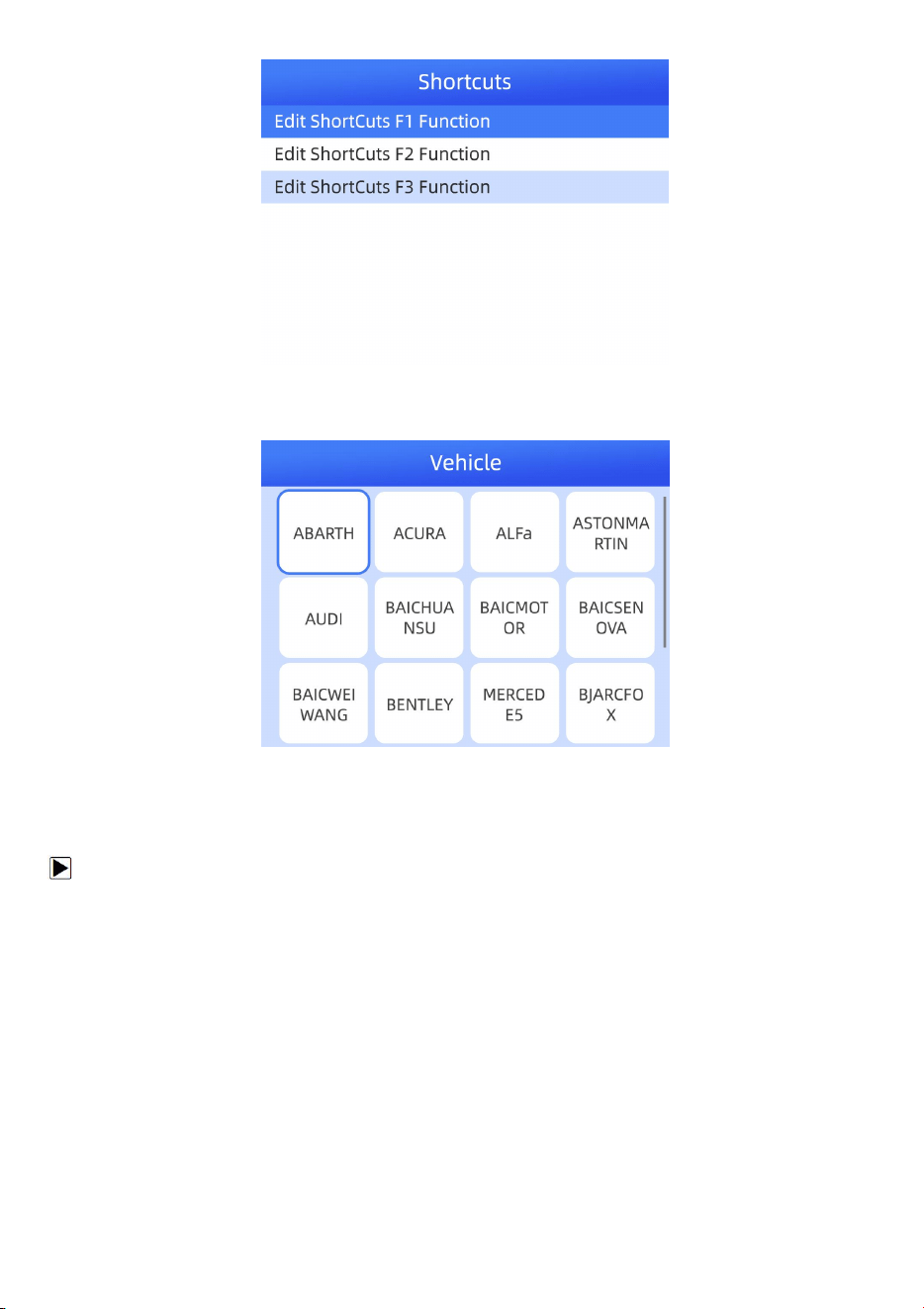

6.3 CONFIGURE SHORTCUT KEYS ....................................................................................................................................... 48
6.4 DISPLAY TEST ............................................................................................................................................................50
6.5 KEYPAD TEST ............................................................................................................................................................ 50
6.6 TOOL INFORMATION ...................................................................................................................................................51
7 UPDATE............................................................................................................................................................. 52
8 UNINSTALL........................................................................................................................................................ 54
7
AD610 Pro User’s Manual_English_V1.0
1 Using This Manual
We provide tool usage instructions in this manual. Below is the conventions we used in the manual.
1.1 Bold Text
Bold text is used to highlight selectable items such as buttons and menu options.
Example:
Press the ENTER button to select.
1.2 Symbols and Icons
1.2.1 Solid Spot
Operation tips and lists that apply to specific tool are introduced by a solid spot ●.
Example:

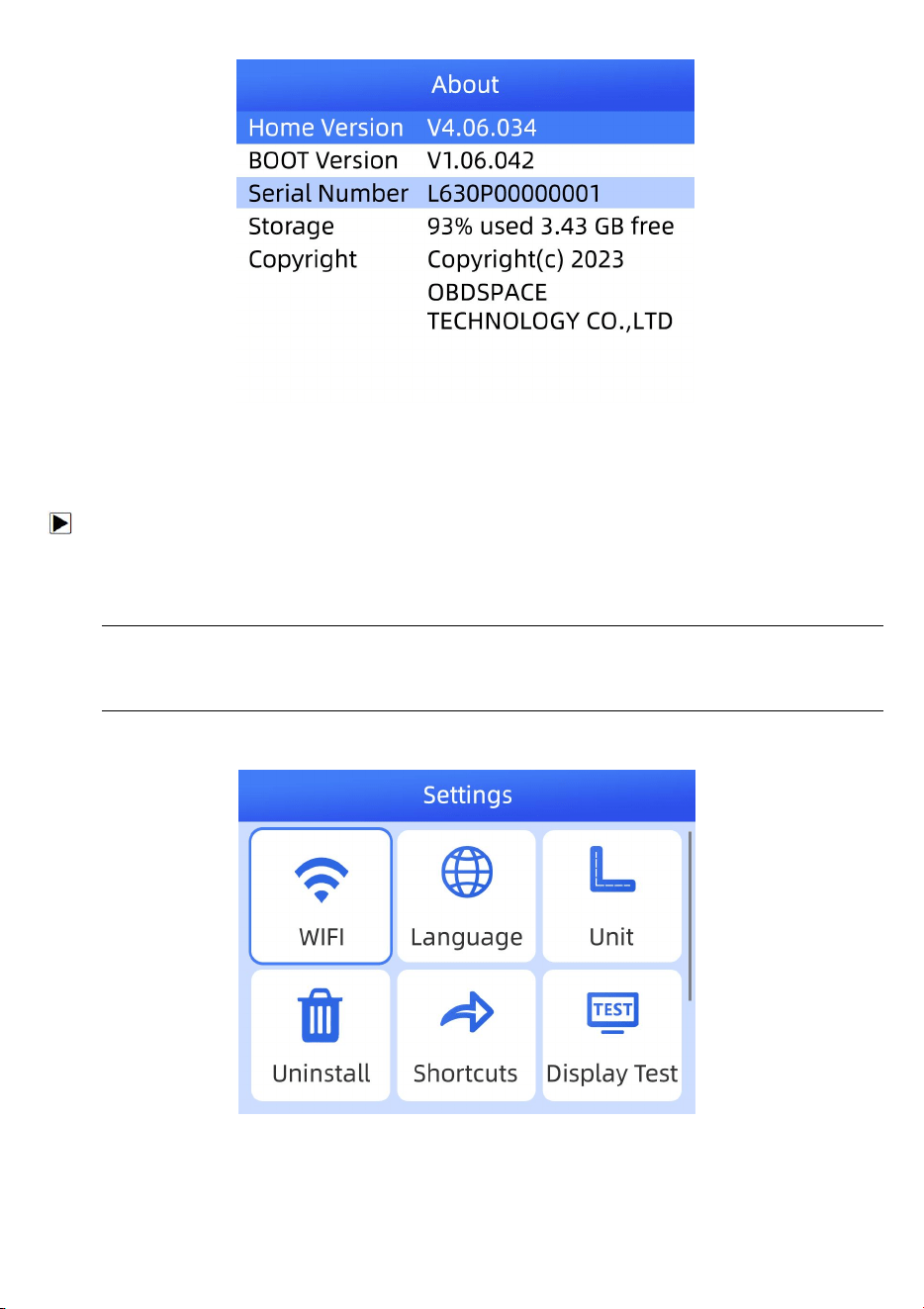

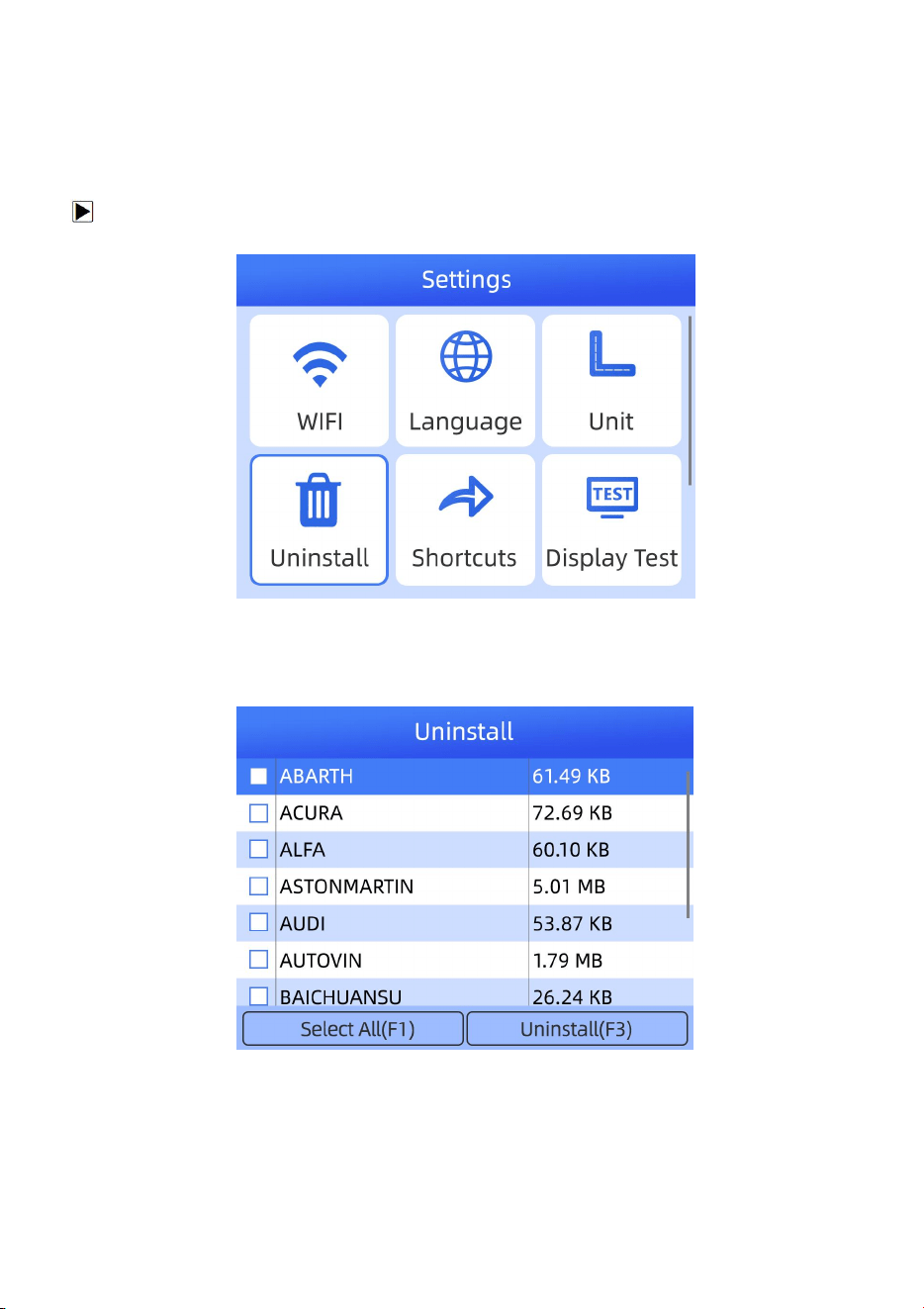

When Settings is selected, a menu that lists all available options displays. Menu options include:
● WIFI
● Language
● Unit
● Shortcuts
● Uninstall
● Display Test
● Keypad Test
● About
1.2.2 Arrow Icon
An arrow icon indicates a procedure.
Example:

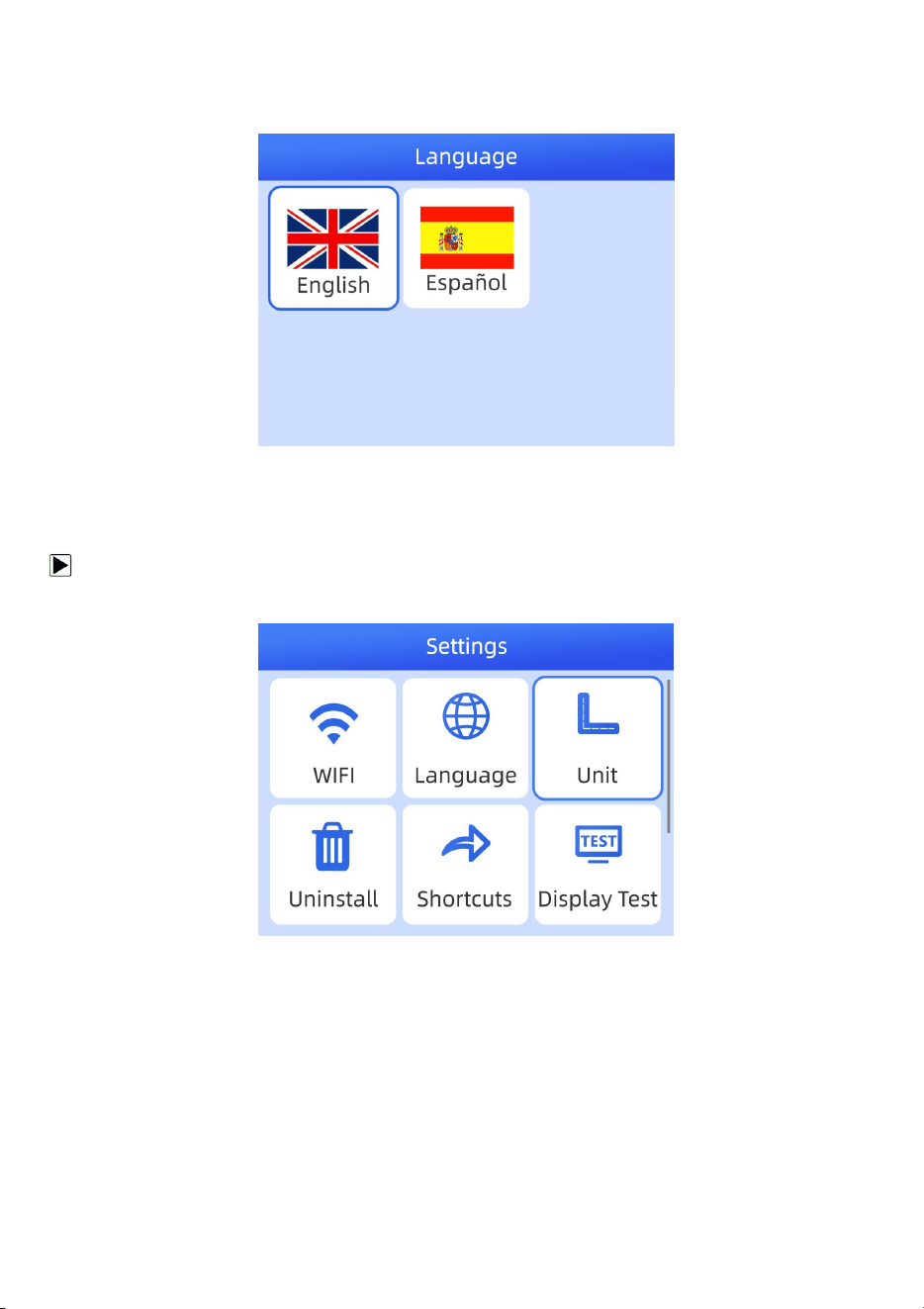

To change menu language:
1. Scroll with the arrow keys to highlight Language on the menu.
2. Press the ENTER button to select.
1.2.3 Note and Important Message
Note
A NOTE provides helpful information such as additional explanations, tips, and comments.
Example:
NOTE
Test results do not necessarily indicate a faulty component or system.
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle.
Example:
IMPORTANT
Do not soak keypad as water might find its way into the scanner.
2 Introductions
This series of scanners from ANCEL are innovative diagnostic tools for most vehicles on the road today.
8
AD610 Pro User’s Manual_English_V1.0
With the tool properly connected to the vehicle’s data link connector (DLC), you can use the scanner to read
diagnostic trouble codes and view “live” data readings from a variety of control systems. You can also save
“recordings” of the data readings, and print stored information.
2.1 Scanner Descriptions
This section illustrates external features, ports and connectors of the scanner.
Figure 2-1 Front View
1 Diagnostic Port - provides connection between vehicle and the scanner.
2 LCD Display - shows menus, test results and operation tips.
3 Function Keys / Shortcut keys - three keys that correspond with “buttons” on some screens for executing
special commands or provide quick access to most frequently used applications or functions.
4 Direction Keys - select an option or scroll through a screen of data or text.
5 ENTER Key - executes a selected option and generally goes to the next screen.
6 BACK Key - exits a screen and generally returns to previous screen.
7 HELP Key - displays helpful information.
8 USB Port - provides USB power connection between the scanner and PC/laptop.
IMPORTANT
Do not use solvents such as alcohol to clean keypad or display. Use a mild nonabrasive detergent and a soft
cotton cloth.
2.2 Accessory Descriptions
This section lists the accessories that go with the scanner. If you find any of the following items missing from
your package, contact your local dealer for assistance.
1 User’s Guide - provides operation instructions for the usage of the scanner.
2 Diagnostic Cable - provides connection between the scanner and a vehicle.
3 USB Cable - provides connection between the scanner and a computer to update and print data.
9
AD610 Pro User’s Manual_English_V1.0
4 Warranty Card - A warranty card is required if you need any repair or replacement from us.
5 Blower Molding Case - stores the scanner and its accessories.
2.3 Technical Specifications
Display: Backlit, 2.8’’ TFT color display
Working Temperature: 0 to 60 ℃ (32 to 140℉)
Storage Temperature: -20 to 70℃ (-4 to 158℉)
Power Supply: 8-18V vehicle power and 3.3V USB power
Dimensions: (L*W*H): 200*130*40mm
Weight: 0.9 Kg
3 Getting Started
This section describes how to provide power to the scanner, provides brief introductions of applications loaded
on the scanner and display screen layout and illustrates how to input text and numbers with the scan tool.
3.1 Providing Power to Scanner
Before using the scanner, make sure to provide power to the scanner.
The unit operates on any of the following sources:
● 12-volt vehicle power
● USB connection to computer
3.1.1 Connecting to Vehicle Power
The scanner normally powers on whenever it is connected to the data link connector (DLC).
To connect to vehicle power:
1. Locate the data link connector (DLC). The DLC is generally located under the dash on the driver side of the
vehicle.
2. Attached the Diagnostic cable to the scanner and tighten the captive screws to ensure good connection.
3. Connect a correct adapter to the data cable according to the vehicle being serviced and plug it into the
vehicle DLC.
4. Switch the ignition key to the ON position.
5. The scanner automatically boots up.
IMPORTANT
Never try to provide power for the scan tool from USB connection when the scan tool is communicating with a
vehicle.
3.1.2 Connecting to Computer with USB Cable
The scan tool also receives power through the USB port when it is connected to a computer for software
updates and printing of data.
To connect to computer:
1. Connect the scanner to a computer with the USB cable provided.
3.2 Application Overview

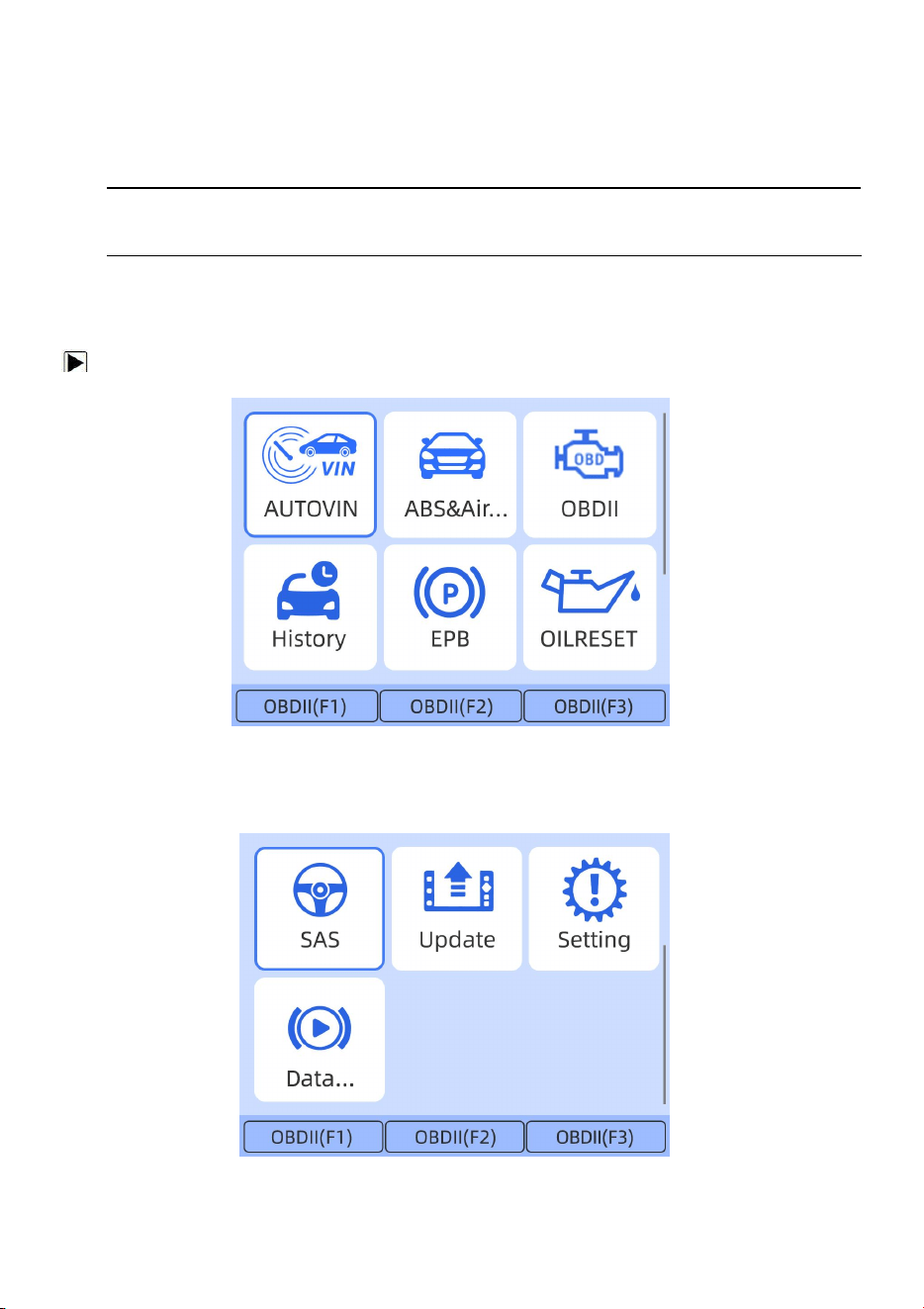

When the scan tool boots up, the Home screen opens. This screen shows all applications loaded on the unit.
The available vehicle applications may vary depending on software configuration.
● Auto VIN - leads to screens for identifying a car by VIN reading.
● OBDII/EOBD - leads to OBDII screens for all 9 generic OBD system tests.
● Diagnostic - leads to screens for diagnostic trouble code information, live data stream, ECU information of
a variety of vehicles.
10
AD610 Pro User’s Manual_English_V1.0
● Maintenance - leads to screens of tests of the most frequently required service features.
● Settings - leads to screens for adjusting default settings to meet your own preference and view information
about the scanner.
● Data Manager - leads to screens for access to data records.
● Update - leads to screen for updating the scanner.
Figure 3-1 Sample Home Screen
3.3 Input Dialog Box
This section illustrates how to use the scan tool to input letters and numbers, such as VIN number, channel
number, test values and DTC number. Typically, you may be required to input letters or numbers when you are
doing any of the following operations.
● VIN entry
● input channel number
● set adaptation value
● enter block number
● enter login code
● key matching
● look up DTCs
The scan tool provides 4 different types of keyboard to meet your specific needs. Depending on the needs of
text entry, it automatically shows the most suitable keypad.
● classic QWERTY keyboard for input of texts that contain both letters and numbers
● numeric keyboard for input of numbers
● alphabet keyboard for input of letters
● hexadecimal keyboard for special functions, such as key matching, UDS coding
To input text with the scan tool:
1. When you are requested to input text, press the function key Keyboard.
11
AD610 Pro User’s Manual_English_V1.0
Figure 3-2 Sample Input Text Screen
2. Scroll with the arrow keys to highlight your desired letter or number and press the ENTER key to confirm.
Figure 3-3 Sample Numeric Keyboard Screen
3. To delete a letter or number, use the function key Cursor Forward to move the cursor to it and then press
the Backspace button.
4. When finished the entry, press Completed key to continue.
Test
4 Diagnostic Operations
This section illustrates how to use the scanner to read and clear diagnostic trouble codes, and view
“live” data readings and ECU information on controllers installed on 48 vehicles and also save
“recordings” of the data readings.
4.1 Vehicle Identification
The vehicle identification information presented is provided by the ECM of the vehicle being tested.
Therefore, certain attributes of the test vehicle must be entered into the scan tool to ensure the data
displays correctly. The vehicle identification sequence is menu driven, you simply follow the screen
prompts and make a series of choices. Each selection you make advances you to the next screen. A Back
button in the upper left corner of the screen returns you to the previous screen. Exact procedures may
12
AD610 Pro User’s Manual_English_V1.0
vary somewhat by vehicle.
It typically identifies a vehicle by any of the following means:
●
Automatic VIN acquisition
● Manual VIN entry
● Manual vehicle selection
NOTE
Not all identification options listed above are applicable to all vehicles. Available options may vary by
vehicle manufacturer.
4.1.1
Auto VIN
Auto VIN allows to identifying a vehicle by automatically requesting the vehicle identification number
(VIN).
To identify a vehicle automatic VIN acquisition:
1.Scroll with the arrow keys to highlight Auto VIN from the main menu and press the ENTER key to start.
Figure 4-1 Sample Main Menu Screen
Or scroll with the arrow keys to highlight ABS&SRS from the Application menu and press the ENTER key to
start. If you have the application assigned to one of the function keys at the bottom of the screen, you can
alternatively press the function key to start the application.
Figure 4-2 Sample Application Menu
13
AD610 Pro User’s Manual_English_V1.0
2.A screen with vehicle manufacturer areas displays. Select the area where the vehicle
manufacturer is from. A menu of all vehicle manufacturers from this areadisplays.
Figure 4-3 Sample Vehicle Manufacturer Area Selection Screen
3.Select the vehicle manufacturer. A list of vehicle identification options displays.
Figure 4-4 Sample Vehicle Manufacturer Selection Screen
4.Select SmartVIN from the menu, and press the ENTER key.
14
AD610 Pro User’s Manual_English_V1.0
Figure 4-5 Sample VIN Acquisition Screen
5.The scan tool starts to communicate with the vehicle and read the Vehicle Specification or VIN Code
automatically.
Figure 4-6 Sample VIN Automatic Acquisition
6.Answer YES if the Vehicle Specification or VIN code is correct and a menu of controller selection
displays. Answer NO if it is incorrect, and you are required to enter the correct VIN number
manually.
Figure 4-7 Sample manual VIN entry screen
4.1.2
Manual VIN Entry
Manual VIN Entry identifies a vehicle by manually inputting a 17-digit VIN code.
To identify a vehicle by manual VIN entry:
1.Refer to Step 1-3 of 4.1.1 Automatic VIN Acquisition.
2.Select an appropriate option from the menu. A virtual keyboard opens for VINentry.
15
AD610 Pro User’s Manual_English_V1.0

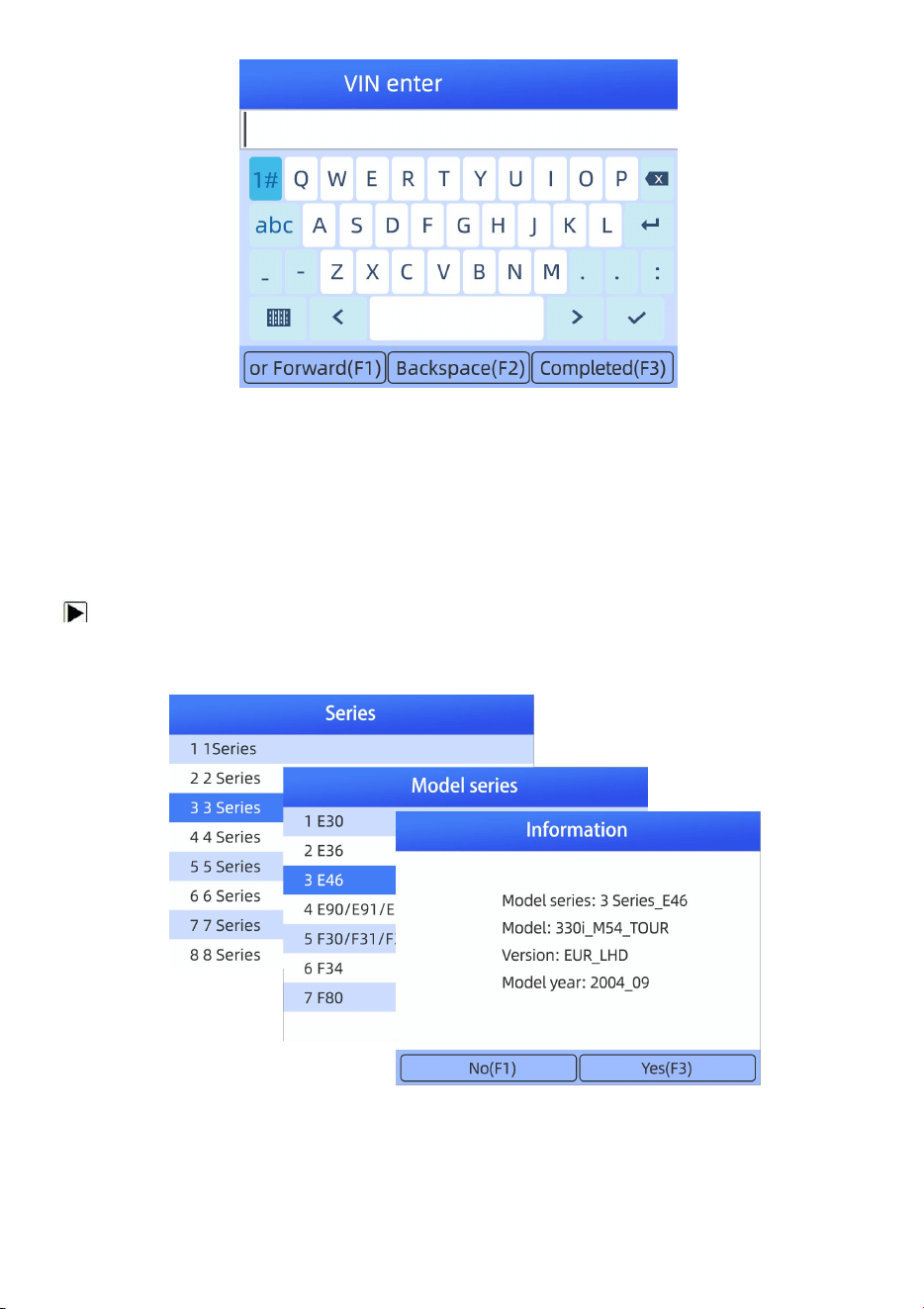

Figure 4-8 Sample Manual VIN Entry with Keyboard
3.Input a valid VIN code and use the function key Completed to confirm. The scan tool starts to
identify the vehicle.
4.1.3
Manual Vehicle Selection
Manual Vehicle Selection identifies a vehicle by making several selections according to certain VIN
characters, such as model year, and engine type.
To identify a vehicle by manual vehicle selection:
1.Refer to Step 1-3 of 4.1.1 Automatic VIN Acquisition.
2.On each screen that appears, select the correct option and then press the ENTER key. Do this until the
complete vehicle information is entered and the menu of controller selectiondisplays.
Figure 4-9 Sample Manual Vehicle Selection Screen
16
AD610 Pro User’s Manual_English_V1.0

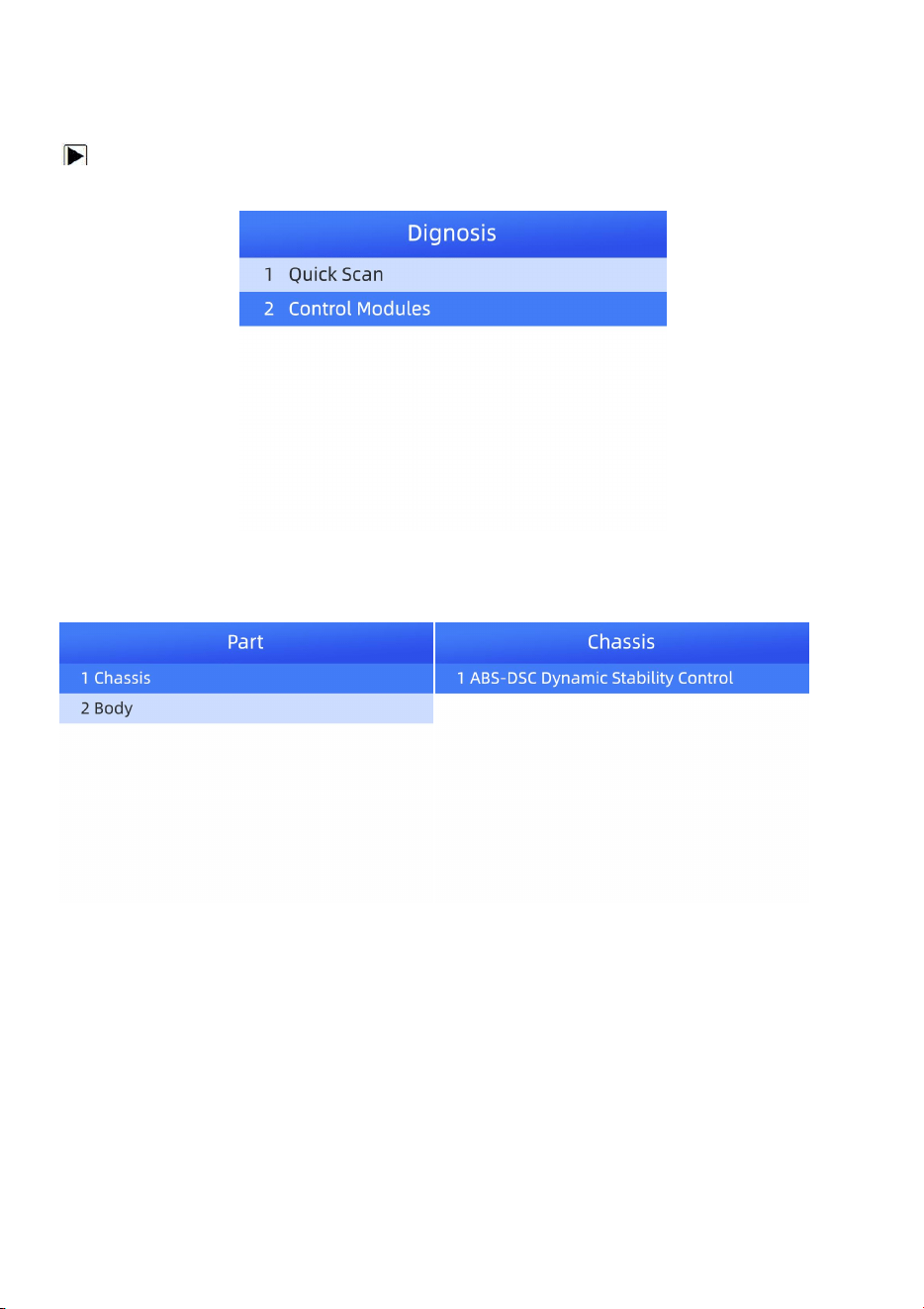

4.2 System Selection
When you have completed the identification of vehicle, a menu for selecting system to test
displays. Menu options typically include:
● Quick Scan
● Control Modules
● Service
4.2.1Quick Scan
Quick Scan performs an automatic system test to determine which control modules are installed on the
vehicle and obtain diagnostic trouble codes (DTCs) overview. Depending on the number of control modules,
it may take a few minutes to complete the test.
To perform an automatic system scan:
3.Scroll with the arrow keys to highlight Quick Scan from the menu and press ENTER tostart.
.
Figure 4-10 Sample Select System Scan Screen
5.4-11To pause the scan, press the function key corresponding with Pause on the screen.
Figure 4-11 Sample Automatic system scan screen
6.At the end of successful automatic controller scan, a menu with a list of installed controllers together with
their DTC overview displays.
17
AD610 Pro User’s Manual_English_V1.0
Figure 4-12 Sample Quick scan
7.If there is diagnostic trouble code(s) detected in a control unit, press the function key corresponding with
Report on the screen to view details of code information, and press the function key Erase to clear them.
Figure 4-13 Sample Report screen
8.Press function key F1 to save the trouble code information.
9.Select the system you would like to test, and press the ENTER key. When the scanner has
established connection with the vehicle, the Function Menu displays.
Figure 4-14 Sample Function Menu screen
18
AD610 Pro User’s Manual_English_V1.0
4.2.2 Manual Selection
Manual Selection screen displays all controllers available of the vehicle manufacturer. The controllers
listed on the menu do not mean that they are installed on the vehicle.
To select a system for testing:
10.Scroll with the arrow keys to highlight Manual Selection from the menu and press the ENTER key.
A controller menu displays.
Figure 4-15 Sample Control Unit Menu Screen
11.Select the system you would like to test. When the scanner has established connection with the vehicle,
the Function Menu displays.
Figure 4-16 Sample Common menu screen

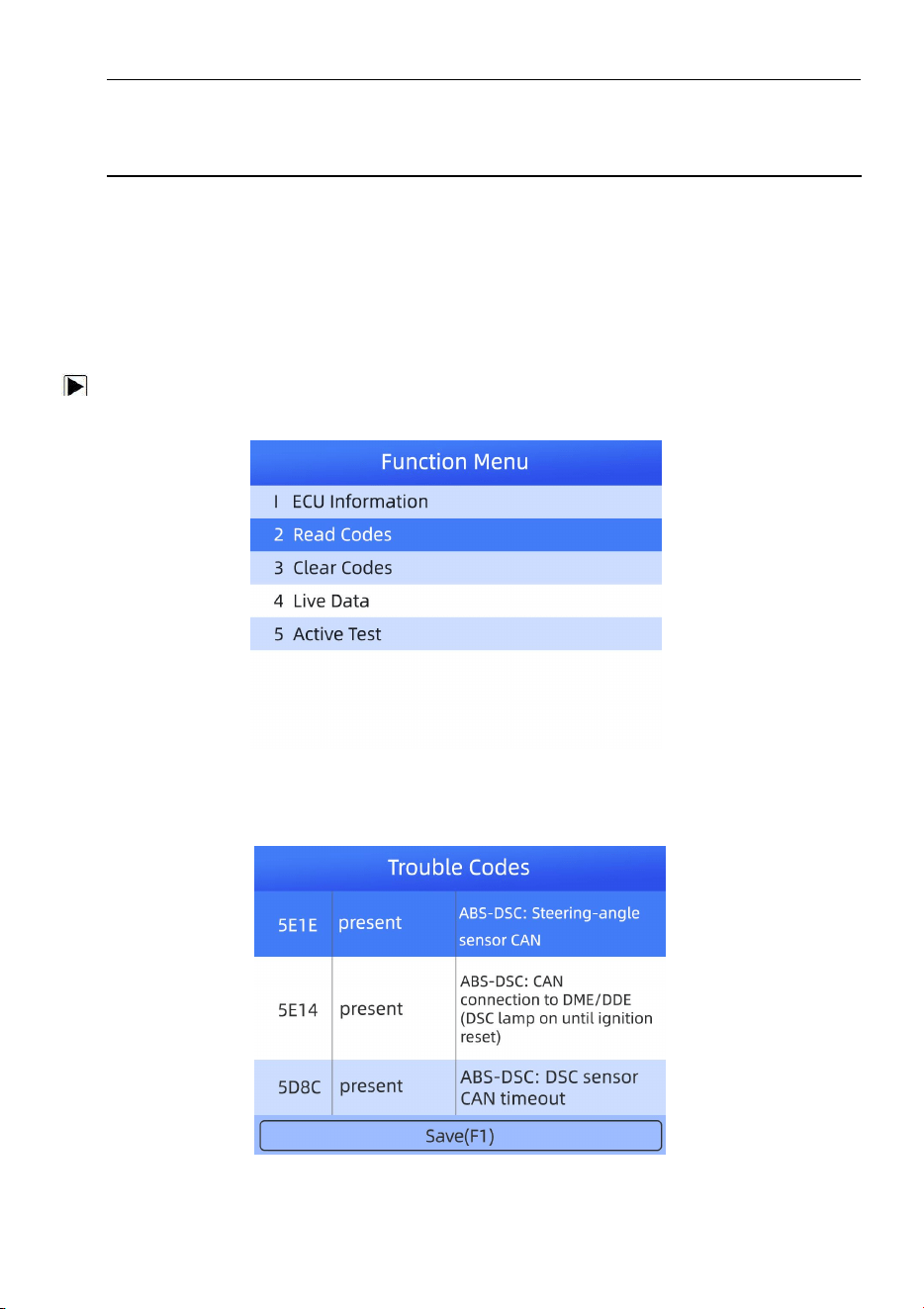

4.3 Diagnostic Function Selection
After a system is selected and the scanner establishes communication with the vehicle, the
Function Menu displays. The menu options may include:
● Read Codes
● Erase Codes
● ECU Information
● Live Data
●
Special Function
19
AD610 Pro User’s Manual_English_V1.0
NOTE
Not all function options listed above are applicable to all vehicles. Available options may vary by the year,
model, and make of the test vehicle. A “The selected mode is not supported!” message displays if the
option is not applicable to the vehicle under test.
4.3.1 Read Codes
Read Codes menu lets you read trouble codes found in the control unit. Typical menu options
Present/Permanent/Current codes stored in a control module are used to help identify the cause of a
trouble or troubles with a vehicle. These codes have occurred a specific number of times and indicate a
problem that requires repair.
History codes are also referred to as past codes that indicate intermittent DTCs that are not
currently active.
To read codes from a vehicle:
12.Scroll with the arrow keys to highlight Read Codes from Function Menu and press theENTER
key. A code list including code number and its description displays.
Figure 4-17 Sample Function menu screen
13.Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys
to scroll back and forth through different screens of data.
Figure 4-18 Sample Code Screen
20
AD610 Pro User’s Manual_English_V1.0
14.Press function key Save to store DTC information. Or use the BACK key toexit.
4.3.2 Clear Codes
Clear Codes menu lets you to clear all current and stored DTCs from a selected control module. Also it
erases all temporary ECU information, including freeze frame. So make sure that the selected system are
completely checked and serviced by technicians and no vital information will be lost before clearing codes.
NOTE
● To clear codes, make sure that the ignition key is switched to ON with the engineoff.
●
Erase Codes does not fix the problem that caused the fault! DTCs should only be erased after
correcting the condition(s) that caused them.
To clear codes:
15.Scroll with the arrow keys to highlight Clear Codes from Function Menu and press the ENTER key.

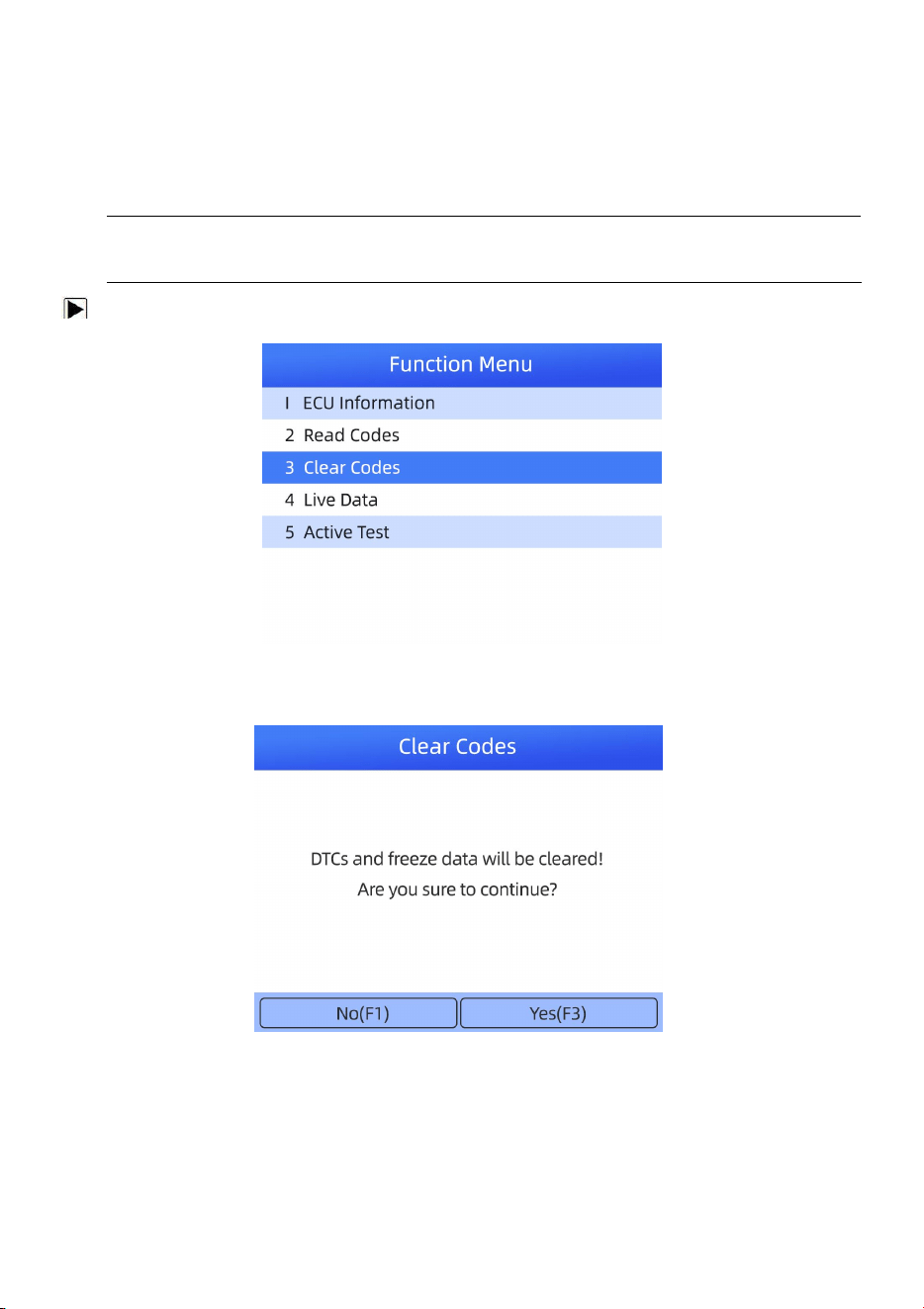

Figure 4-19 Sample Function Menu Screen
16.Follow the on-screen instructions and answer questions about the vehicle being tested to
complete the procedure.
Figure 4-20 Sample Clear Codes Screen
17.Check the codes again. If any codes remain, repeat the Clear Codes steps.
4.3.3 ECU Information
ECU Information screen displays the identification data of the control module under test, such as the
control module identification string and the control module coding.
21
AD610 Pro User’s Manual_English_V1.0
To read ECU information:
18.Select ECU Information from the menu and press the ENTERkey.
Figure 4-21 Sample Function Menu Screen
19.A screen with detailed information of the selected control module displays.
Figure 4-22 Sample ECU Information Screen
20.Press function key Save to store ECU information. Or use the BACK key toexit.
4.3.4 Live Data
Live Data menu lets you view and record real time PID data from a selected vehicle electronic control
module.
Menu options typically include:
● Complete List
●
Custom List
4.3.4.1 Complete List
Complete Data List menu lets you view all live PID data from a selected system.
To view all live PID data
1. Scroll with the arrow keys to highlight Live Data from the menu and press the ENTER key to
display the live data menu.
22
AD610 Pro User’s Manual_English_V1.0
Figure 4-23 Sample Live Data Selection Screen
2. Select the Complete List from the menu and press the ENTER key to display the datastream
screen.

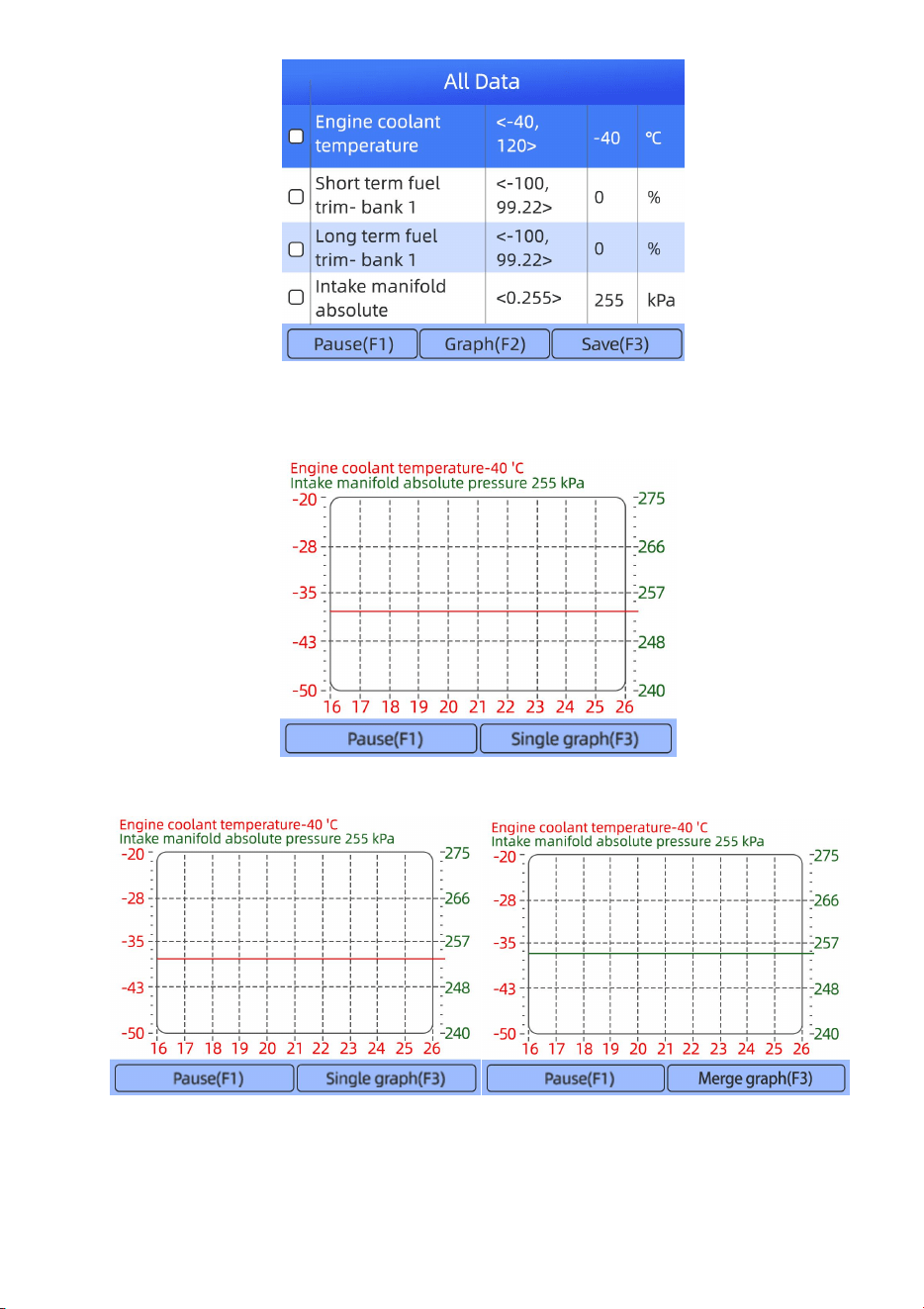

Figure 4-24 Sample Complete List Screen
3. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow
keys to scroll back and forth through different screens of data.
Figure 4-25 Sample PID graph Screen
23
AD610 Pro User’s Manual_English_V1.0
4. Scroll with the up and down arrow keys to highlight a line, if the One Graphic on the bottom is
highlighted, it indicates the graphing is available for the selected line. Press the function key One Graphic
to display the PID graph.

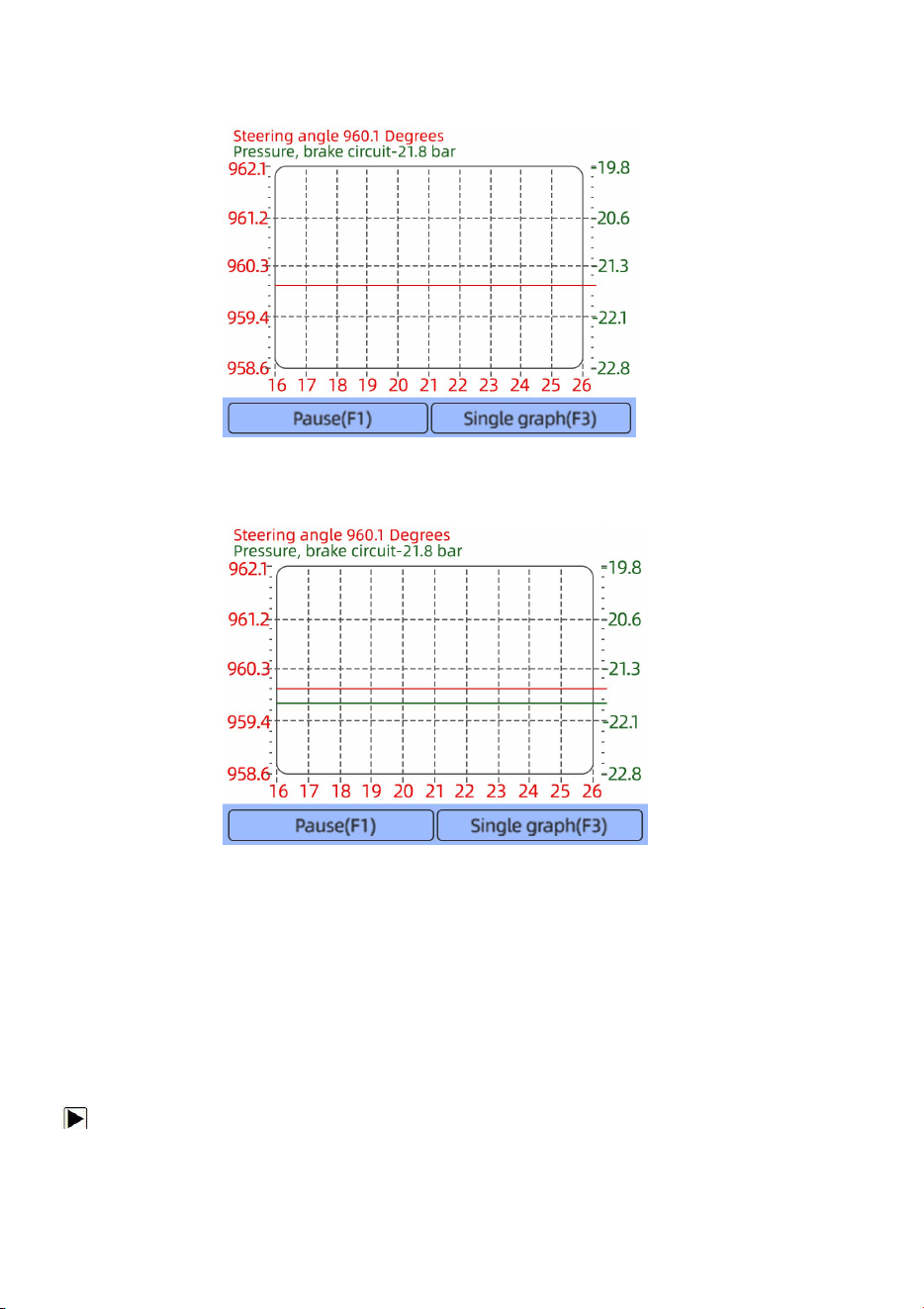

Figure 4-26 Sample PID Graph Screen
5. Press the function key Merge Graph to display two PID plots in one coordinate for easy and
intuitive diagnosis.
Figure 4-27 Sample Merged PID Plots Screen
6. To record the data to memory of the scanner, use the function key SAVE, and press Stop Saving to stop
recording at any time.
7. Press Back to return to text viewing of PID data.
8. Select Pause to suspend collecting data from the scanner and use the Continue key to resume
collecting data.
9. Press the Back key to return to the previous menu.
4.3.4.2 Custom List
Custom List menu lets you to minimize the number of PIDs on the data list and focus on any suspicious or
symptom-specific data parameters.
To create a custom list:
10. Select Custom List from the menu and press the ENTER key.
24
AD610 Pro User’s Manual_English_V1.0

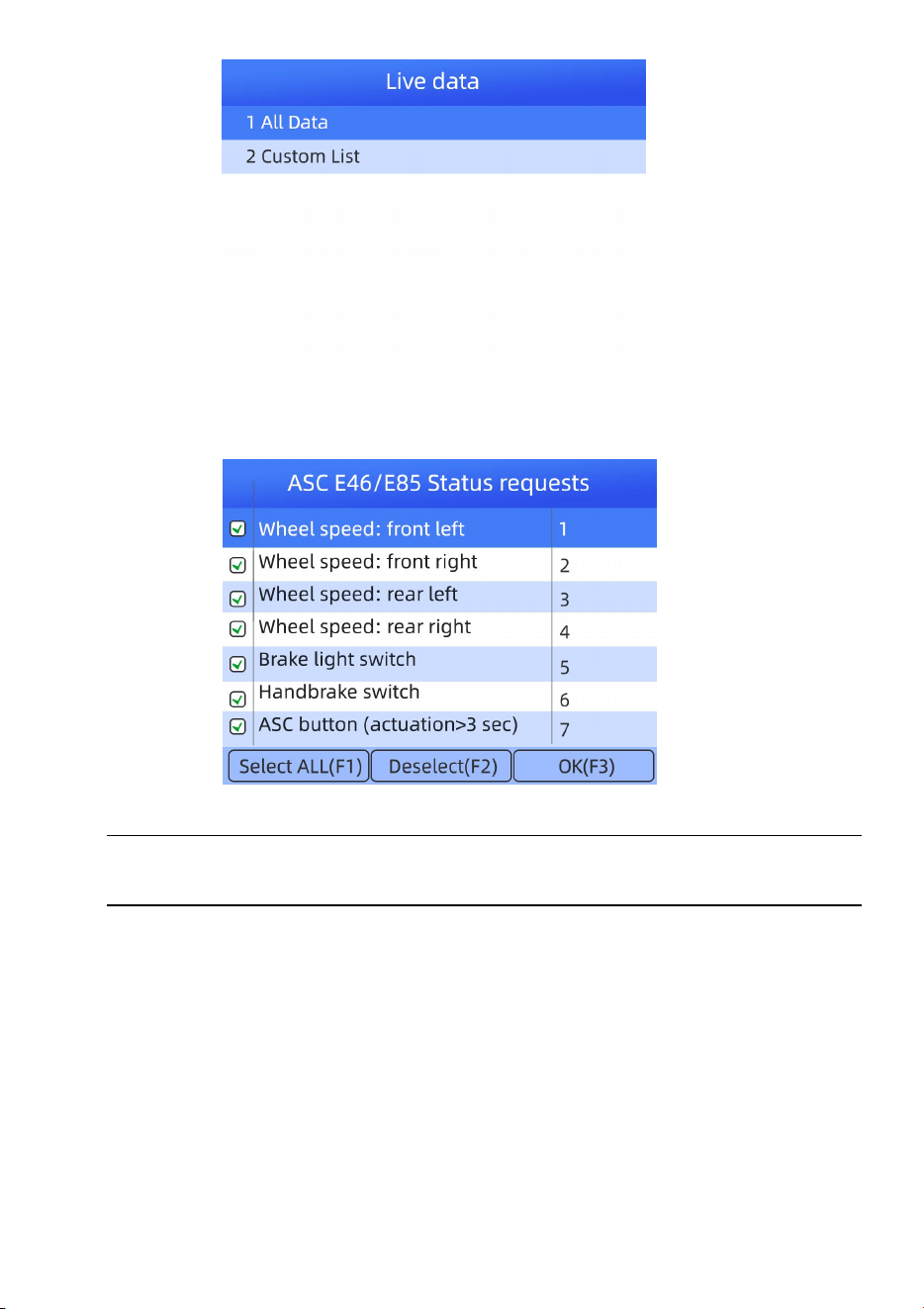

Figure 4-28 Sample Live Data Screen
1. The custom data stream selection screen displays. Scroll with the up and down arrow keys to
highlight a line, press the ENTER key and then repeat the action to make moreselections.

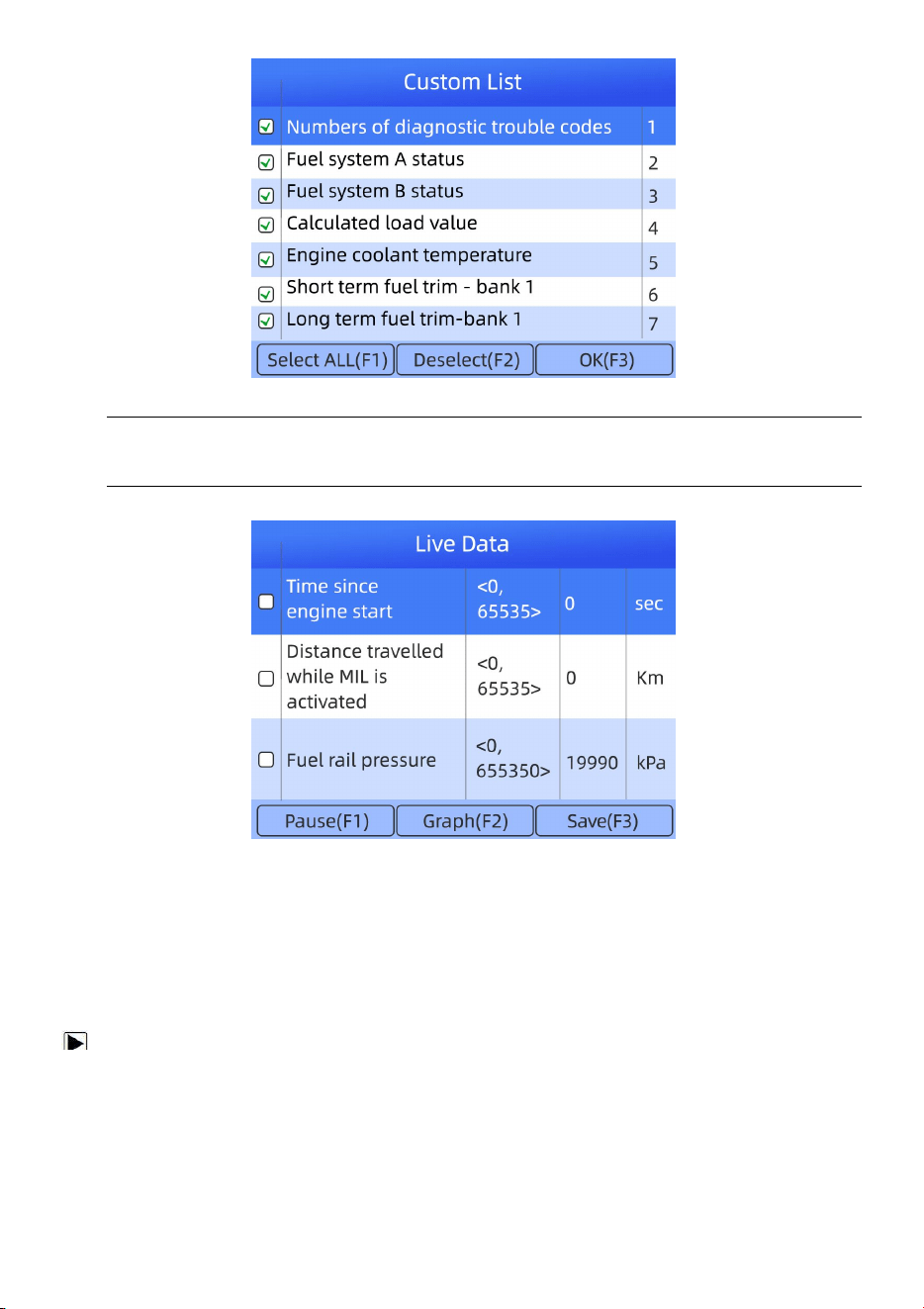

Figure 4-29 Sample Custom List Selection Screen
NOTE
To deselect an item, select it again and then press the ENTER key. Alternatively, use the function keys Select
All and Deselect to select or deselect all items at once.
2. When finished selection, use the function key VIEW DATA to display selecteditems.
25
AD610 Pro User’s Manual_English_V1.0
Figure 4-30 Sample Data stream Screen
4.3.5 Active Test
Active Tests, also known as Actuator Tests, are bi-directional diagnostic tests on vehicle systems and component.
The tests let you to use the scanner temporarily activate or control a vehicle system or component, and when you
exit the test, the system/component returns to normal operation. Some tests display a command to the operator.
For example, if “Press Brake Pedal” displays, the operator has to press and hold the brake pedal and then
continue. The sequence, number and type of tests are dictated by the control module.On some systems, the
actuator tests cannot be restarted until the ignition key is switched off for some time. Alternatively, briefly start
and run the engine, shut down, turn the ignition to the run position, then re-initiate the actuator tests.
To start a test:
1. Press Active Test from the menu.
Figure 4-31 Sample Active Test Screen
2.Select an option to start the test .
26
AD610 Pro User’s Manual_English_V1.0
Figure 4-32 Sample Selection Active Test Screen 1
3.Follow on-screen instructions to make proper selections and operations to complete the tests.
Figure 4-33 Sample Selection Active Test Screen 2
4.Press " Back " to exit.
4.3.6 Special Functions
Special tests are bi-directional diagnostic tests on anti-lock brake systems and air bags. The tests let you to
use the scanner temporarily activate or control a vehicle system or component, and when you exit the test,
the system/component returns to normal operation.
Some tests display a command to the operator. For example, if “Press Brake Pedal” displays, the operator
has to press and hold the brake pedal and then continue. The number, and type of tests will vary for each
vehicle, year and components.
Typical special test options include:
●
ABS Manual Control Tests – allows to manually control the actuators in order to test ABS motors,
solenoids, solenoid enable relays, EMBs, and more.
●
ABS Motor Test – allows to manually control the ABS pump motor.
● ABS Version Test – displays the name of the brake system and the ABS controller version number,
software ID, and sequence value.
● Actuator Tests – allows to manually control the actuators in order to test AYC valves, inlet valves,
outlet valves, pump motors, and TRACS valves.
● Autobleed Test, Automated Bleed, or Service Bleed – removes air from the internal brake fluid
chambers after servicing the brakes.
27
AD610 Pro User’s Manual_English_V1.0
IMPORTANT
● Before bleeding the brake system, make sure no diagnostic codes are present.
●
Do not let the master cylinder run dry during the brake bleeding procedure.
●
Do not allow brake fluid to contact the motor pack or the electricalconnectors.
● Use a recommended brake fluid. Do not use silicone brake fluids in an ABS-equippedvehicle.
After bleeding the brake system, check the brake pedal for excessive travel or a “spongy” feel. Bleed
again if either condition is present.
●
Automated Test – automatically commands each solenoid valve and the pump motor on and off to
test for proper operation.
● Brake Bleed Preparation Test – prepares the brake lines for bleeding by clearing air from the modulator.
The test rehomes all the ABS and TCS motors, cycles the TCS motors, and then returns all motors to
the “home” position at the bottom of thebore.
● Function Test – automatically commands the ABS relay, valve solenoids, and pump motor on and off to
test for proper operation.
●
Gear Tension Relief Test – relieves tension from the ABS motor gears so you can separate the ABS
motor pack from the ABS hydraulicmodulator.
●
Hydraulic Control Tests – allows to manually engage and disengage the ABS solenoids for
troubleshooting the hydraulic functions.
●
Idle Up Manual Control Test – allows to manually control the idle up actuators.
●
Lamp Tests – allows to manually control the ABS or TCS warning or indicatorlamps.
●
Motor Rehome Test – prepares the brake lines for bleeding by clearing air from the
modulator. The test returns all ABS motors to their “home”positions.
●
Pump Motor Tests – allows to manually control the pump motor.
● Relay Test – allows to manually engage and disengage either the ABS or TCS relays in order to test
relay operation.
●
Requested Torque Test – allows to manually control the engine torque to test for proper
operation of the traction control system (TCS).
●
Setup SDM Serial Number (Air Bag Sensing and Diagnostic Module) – allows to program a new air
bag serial number into the dash integration module (DIM). You use this test after installing a new air
bag; otherwise a diagnostic trouble code will be set when you turn on the ignition.
●
Solenoid Tests – allows to manually control the inlet and output valvesolenoids.
●
System Identification – displays information about the brake system, the vehicle, and the ABS controller.
● TCS Test – allows to control the pump motor in order to apply fluid pressure to the front wheel circuits.
● Traction Control System (TCS) Manual Control Tests – allows to perform motor tests and an adjuster
assembly control test.
●
Voltage Load Test – “loads” the ABS battery supply circuit to test for adequate battery capacity.
To perform special tests on a vehicle:
1. Scroll with the arrow keys to Service on the menu and press the ENTER key.
28
AD610 Pro User’s Manual_English_V1.0
Figure 4-34 Sample Function menu screen
2. A group selection screen, test selection screen, several step-by-step instruction screens, or bi-
directional control screen may appear. Read the screens and follow all instructions.If
necessary, use the function keys to perform commands or answer any questions. If more than 3
function keys displays, use the Up/Down arrow keys to select a command and press the ENTER key to
confirm.
Figure 4-35 Sample Special function screen
3. When completed, press the BACK key to return to previous screens.
NOTE
Not all function options listed above are applicable to all vehicles. Available options may vary by the year,
model, and make of the test vehicle. A “The selected mode is not supported!” message displays if the
option is not applicable to the vehicle under test.
5 OBDII/EOBD Operations
OBD-II/EOBD menu lets you access all OBD service modes. According to ISO 9141-2, ISO 14230-4, and
29
AD610 Pro User’s Manual_English_V1.0
SAE J1850 standards, the OBD application is divided into several sub programs, called ‘Service $xx’.
Below is a list of OBD diagnostic services:
● Service $01 - request current powertrain diagnostic data
●
Service $02 - request powertrain freeze frame data
●
Service $03 - request emission-related diagnostic trouble codes
●
Service $04 - clear/reset emission-related diagnostic information
●
Service $05 - request oxygen sensor monitoring test results
●
Service $06 - request on-board monitoring test results for specific monitoredsystems
●
Service $07 - request emission-related diagnostic trouble codes detected during currentor last
completed driving cycle
●
Service $08 - request control of on-board system, test or component
●
Service $09 - request Vehicle Information
When OBDII/EOBD application is selected from Home screen, the scanner starts to detect the
communication protocol automatically. Once the connection has established, a menu that lists all of the
tests available on the identified vehicle displays. Menu options typically include:
● System Status
●
Read Codes
●
Freeze Frame Data
●
Erase Codes
●
Live Data
●
I/M Readiness
●
O2 Sensor Test
●
On-board Monitor Test
●
Component Test
●
Vehicle Information
●
Modules Present
● Code Lookup
NOTE
Not all function options listed above are applicable to all vehicles. Available options may vary by the year,
model, and make of the test vehicle. A “The selected mode is not supported!” message displays if the
option is not applicable to the vehicle under test.
5.1
Diagnostic trouble codes & FFD
Read Codes menu lets you read both stored codes and pending codes found in the control unit. Typical
menu options include:
●
Stored Codes
●
Pending Codes
Diagnostic trouble codes stored in a control module are used to help identify the cause of a trouble
or troubles with a vehicle. These codes have occurred a specific number of times and indicate a
problem that requires repair.
Pending codes are also referred to as maturing codes that indicate intermittent faults. If the fault does
not occur within a certain number of drive cycles (depending on vehicle), the code clears from memory.
If a fault occurs a specific number of times, the code matures into a DTC and the MIL illuminates or
blinks.
To read codes/pending codes from a vehicle:
1. Scroll with the arrow keys to highlight Diagnostic trouble codes & FFD from Diagnostic Menu and press
the ENTER key.
30
AD610 Pro User’s Manual_English_V1.0

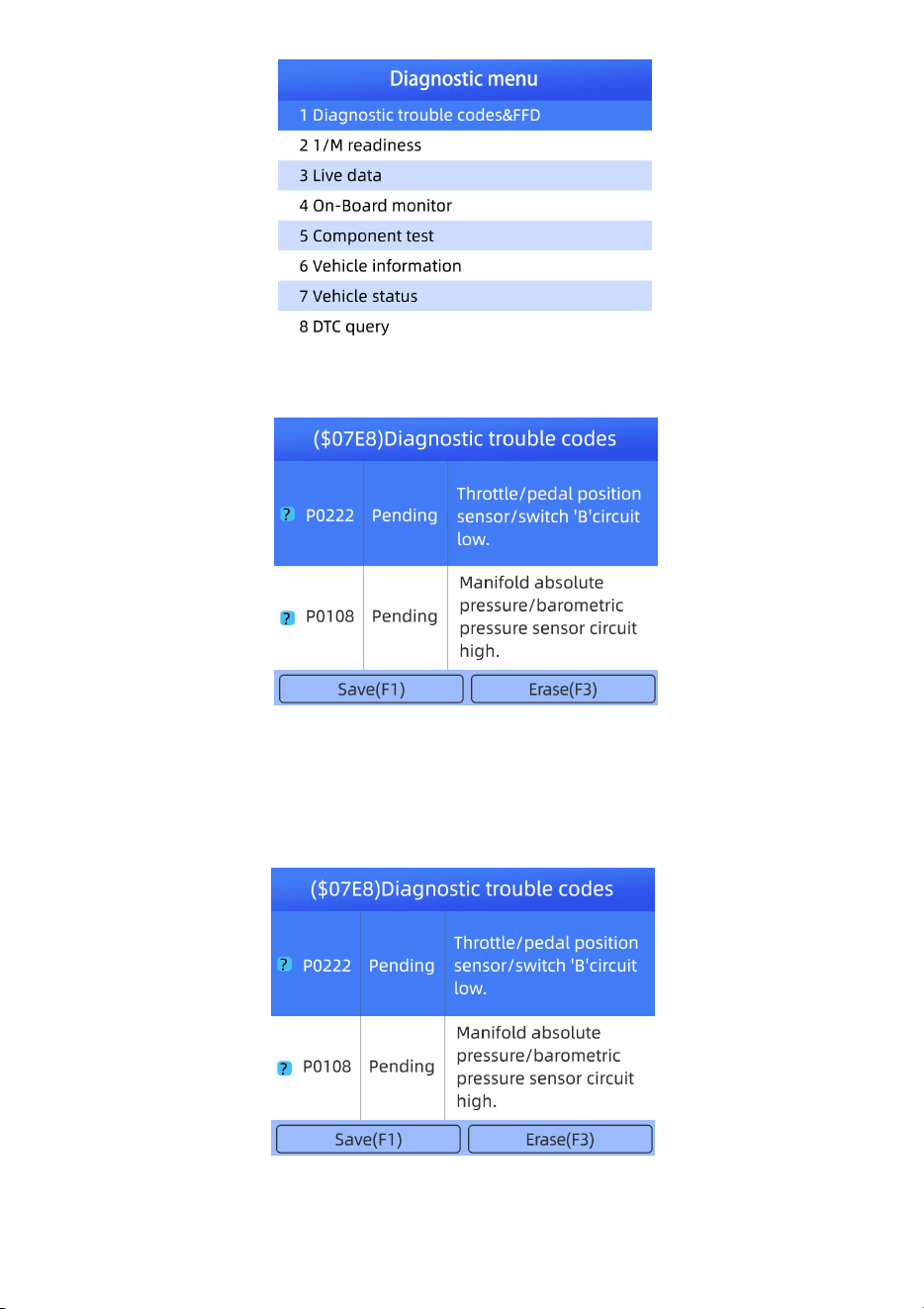

Figure 5-1 Sample Diagnostic Menu Screen
2. It will display Stored Codes or Pending Codes on the menu.
Figure 5-2 Sample Read Codes Screen
If no DTCs are present the message “No (Pending) Codes Found!” is displayed. If any manufacturer
specific or enhanced codes detected, select vehicle a make before viewing DTC information.
3. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to
scroll back and forth through different screens of data.
31
AD610 Pro User’s Manual_English_V1.0

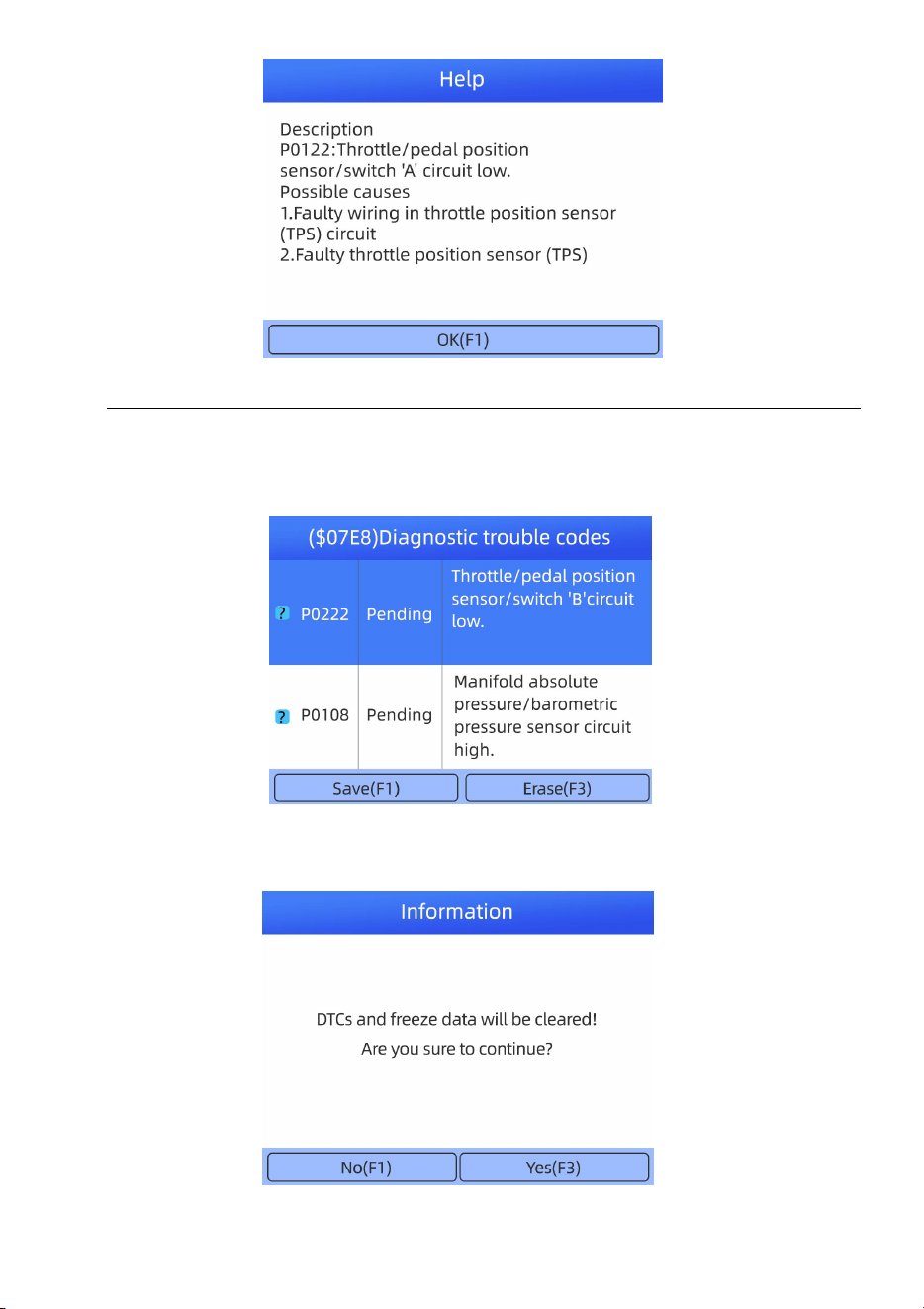

Figure 5-3 Sample Code screen
NOTE
“?”means there are help information. No “?”means there are no help information.
4. Click “ Erase “ to erase codes.
Figure 5-4 Sample Erase Codes Screen
5. Follow the on-screen instructions and answer questions about the vehicle being tested to
complete the procedure.
32
AD610 Pro User’s Manual_English_V1.0
Figure 5-5 Sample Erase Codes Screen
6. Check the codes again. If any codes remain, repeat the Erase Codessteps.
5.2
Live Data
Live Data menu lets you view and record real time PID data from the electronic control module. Menu
options typically include:
●
Complete List
●
Custom List
5.2.1
Complete Data List
Complete Data List menu lets you view all live PID data from a selected system.
To view all live PID data:
1. Scroll with the arrow keys to highlight Live Data from the menu and press the ENTER key to
display the live data menu.
Figure 5-6 Sample Live Data Selection Screen
2. Select the Complete List from the menu and press the ENTER key to display the datastream
screen.
Figure 5-7 Sample Complete List Screen
3. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow
keys to scroll back and forth through different screens of data.
33
AD610 Pro User’s Manual_English_V1.0
Figure 5-8 Sample PID graph Screen
4. Scroll with the up and down arrow keys to highlight a line, if the One Graphic on the bottom is
highlighted, it indicates the graphing is available for the selected line. Press the function key One Graphic
to display the PID graph.
Figure 5-9 Sample PID Graph Screen
5. Press the function key Two Graphics to display two PID graphs in one screen
Figure5-10 Sample Two PID Graph Screen
6. Press the function key Merge Graph to display two PID plots in one coordinate for easy and
intuitive diagnosis.
34
AD610 Pro User’s Manual_English_V1.0
Figure 5-11 Sample Merged PID Plots Screen
7. To record the data to memory of the scanner, use the function key SAVE, and press Stop Saving
to stop recording at any time.
8. Press Back to return to text viewing of PID data.
9. Select Pause to suspend collecting data from the scanner and use the Continue key to resume
collecting data.
10.Press the Back key to return to the previous menu.
5.2.2 Custom List
Custom Data List menu lets you to minimize the number of PIDs on the data list and focus on any suspicious
or symptom-specific data parameters.
To create a custom data list:
1.Select Custom List from the menu and press the ENTER key.
Figure 5-12 Sample Live Data Menu Screen
2.The custom data stream selection screen displays. Scroll with the up and down arrow keys to
highlight a line, press the ENTER key and then repeat the action to make moreselections.
35
AD610 Pro User’s Manual_English_V1.0
Figure 5-13 Sample Custom Data stream Selection Screen
NOTE
To deselect an item, select it again and then press the ENTER key. Alternatively, use the function keys Select
ALL and Deselect to select or deselect all items at once.
3.When finished selection, use the function key VIEW DATA to display selecteditems.
Figure 5-14 Sample Data stream Screen
5.3
Freeze Frame
Freeze Frame menu displays freeze frame data, a snapshot of critical vehicle operating conditions
automatically recorded by the on-board computer at the time of the DTC set. It is a good function to
help determine what caused the fault.
To view freeze frame data:
1. Select Freeze Frame from the Diagnostic Menu. Details of freeze frame datadisplays.
36
AD610 Pro User’s Manual_English_V1.0
Figure 5-15 Sample Diagnostic Menu Screen
2. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to
scroll back and forth through different screens of data. If no freeze frame detected, the message “No
freeze frame data stored!” is displayed.
Figure 5-16 Sample Freeze Data Screen
3. Press function key Save to store freeze frame information. Or use the BACK key toexit.
5.4
Read I/M Readiness Status Data
I/M Readiness option allows to view a snapshot of the operations for the emission system on
OBDII/EOBD vehicles.
I/M Readiness is a useful function used to check if all monitors are OK or N/A. The vehicle’s computer
performs tests on the emission system during normal driving conditions. After a specific amount of drive
time (each monitor has specific driving conditions and time required), the computer’s monitors decide if the
vehicles emission system is working correctly.
When the monitor’s status is:
● OK - vehicle was driven enough to complete the monitor.
● INC (Incomplete) - vehicle was not driven enough to complete the monitor.
●
N/A (Not Applicable) - vehicle does not support that monitor.
37
AD610 Pro User’s Manual_English_V1.0
There are two types of I/M Readiness tests:
●
Since DTCs Cleared - shows status of the monitors since the DTCs were lastcleared.
● This Drive Cycle - shows status of monitors since the start of the current drive cycle. Below is
a list of abbreviations and names of OBD II monitors supported by thescanner.
No.
Abbreviation
Name
1
Misfire Monitor
Misfire Monitor
2
Fuel System Mon
Fuel System Monitor
3
Comp. Component
Comprehensive Components Monitor
4
Catalyst Mon
Catalyst Monitor
5
Htd Catalyst
Heated Catalyst Monitor
6
Evap System Mon
Evaporative System Monitor
7
Sec Air System
Secondary Air System Monitor
8
A/C Refrig Mon
Air Conditioning Refrigerant Monitor
9
Oxygen Sens Mon
Oxygen Sensor Monitor
10
Oxygen Sens Htr
Oxygen Sensor Heater Monitor
11
EGR System Mon
Exhaust Gas Recirculation System
Monitor
NOTE
●
To review I/M Readiness status, make sure that the ignition key is switched to ON with the engine
off.
●
Not all monitors are supported by all vehicles.
To retrieve I/M Readiness Status data:
4. Scroll with the arrow keys to highlight I/M Readiness from Diagnostic Menu and pressthe
ENTER key. If vehicle supports both types of monitors, a screen for monitor type selection displays.
Select a monitor type and press the ENTER key

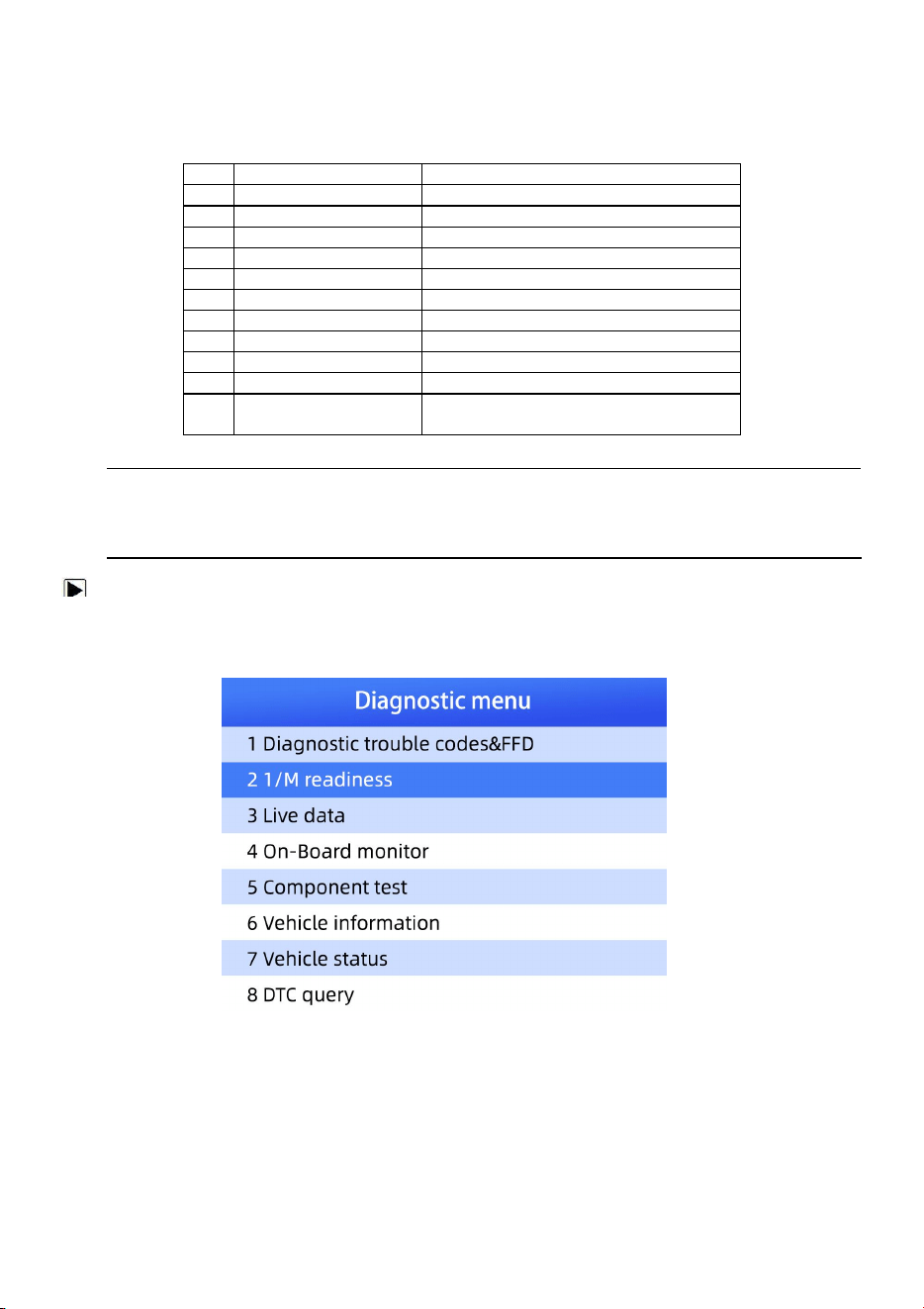

Figure 5-17 Sample Diagnostic Menu Screen
5. Depending on readiness test, one of these 2 screens will be present. Use the up and down arrow keys
to scroll through data to select lines, and left and right arrow keys to scroll back and forth through
different screens of data.
38
AD610 Pro User’s Manual_English_V1.0

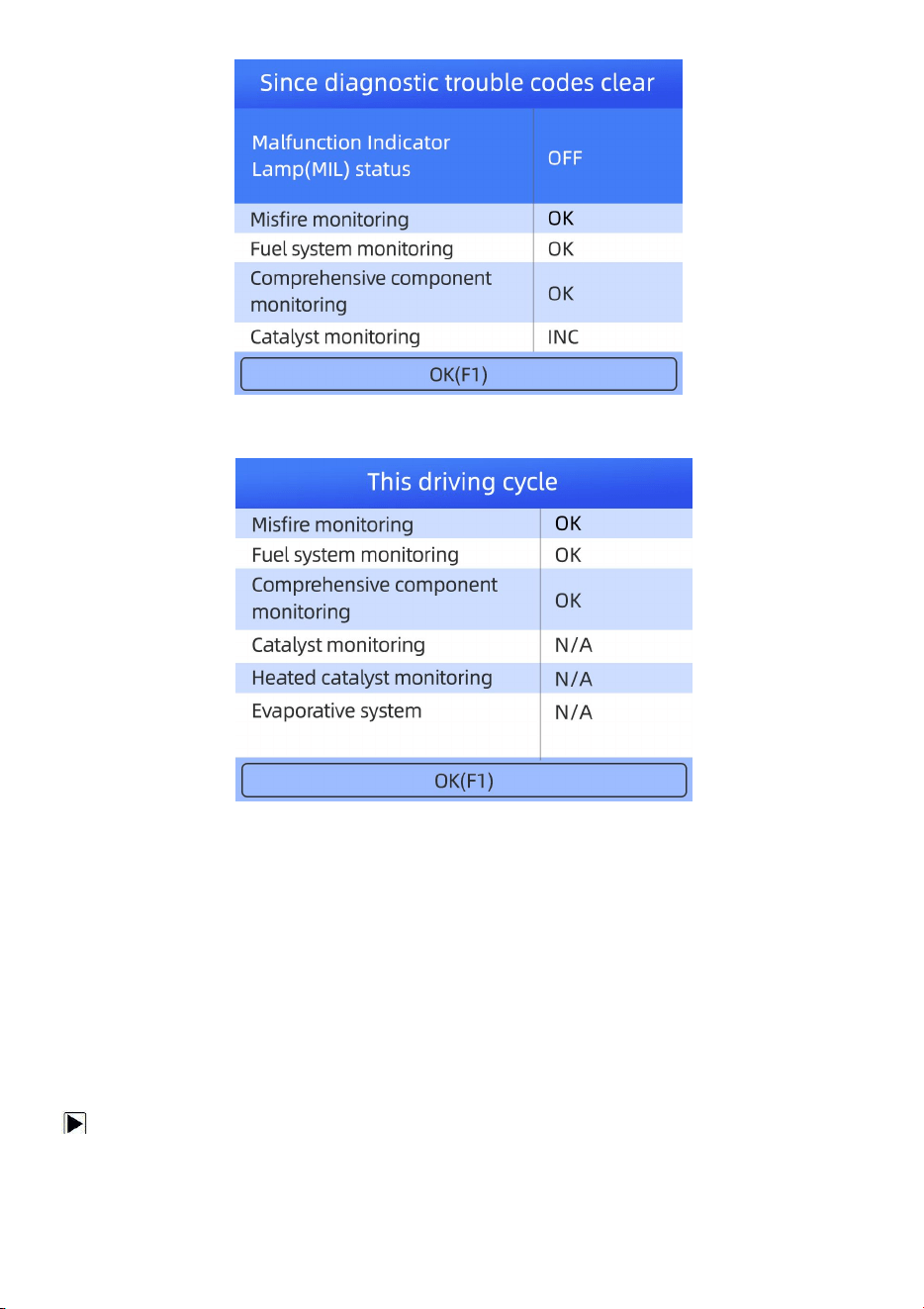

Figure 5-18 Sample IM Readiness Screen 1
Or
Figure 5-19 Sample IM readiness screen 2
6. Press the BACK key to exit.
5.5
Sonda lambda monitor
OBD II regulations require certain vehicles monitor and test oxygen (O2) sensors to isolate fuel and
emissions related faults. The O2 Monitor Test function is used to retrieve completed O2 sensors
monitor test results.
The O2 Monitor Test is not an on-demand test. O2 sensors are not tested when selected via the menu
but tested when engine operating conditions are within specified limits.
If the vehicle uses a controller area network (CAN) protocol to communicate, this function is not
supported by vehicle. Refer to “On-Board Monitor Tests” on page 38-39 for O2 monitor data of CAN-
equipped vehicles.
To retrieve O2 monitor data:
1. Scroll with the arrow keys to highlight Sonda lambda monitor from Diagnostic Menu and pressthe
ENTER key. A screen with a list of available sensors displays.
39
AD610 Pro User’s Manual_English_V1.0

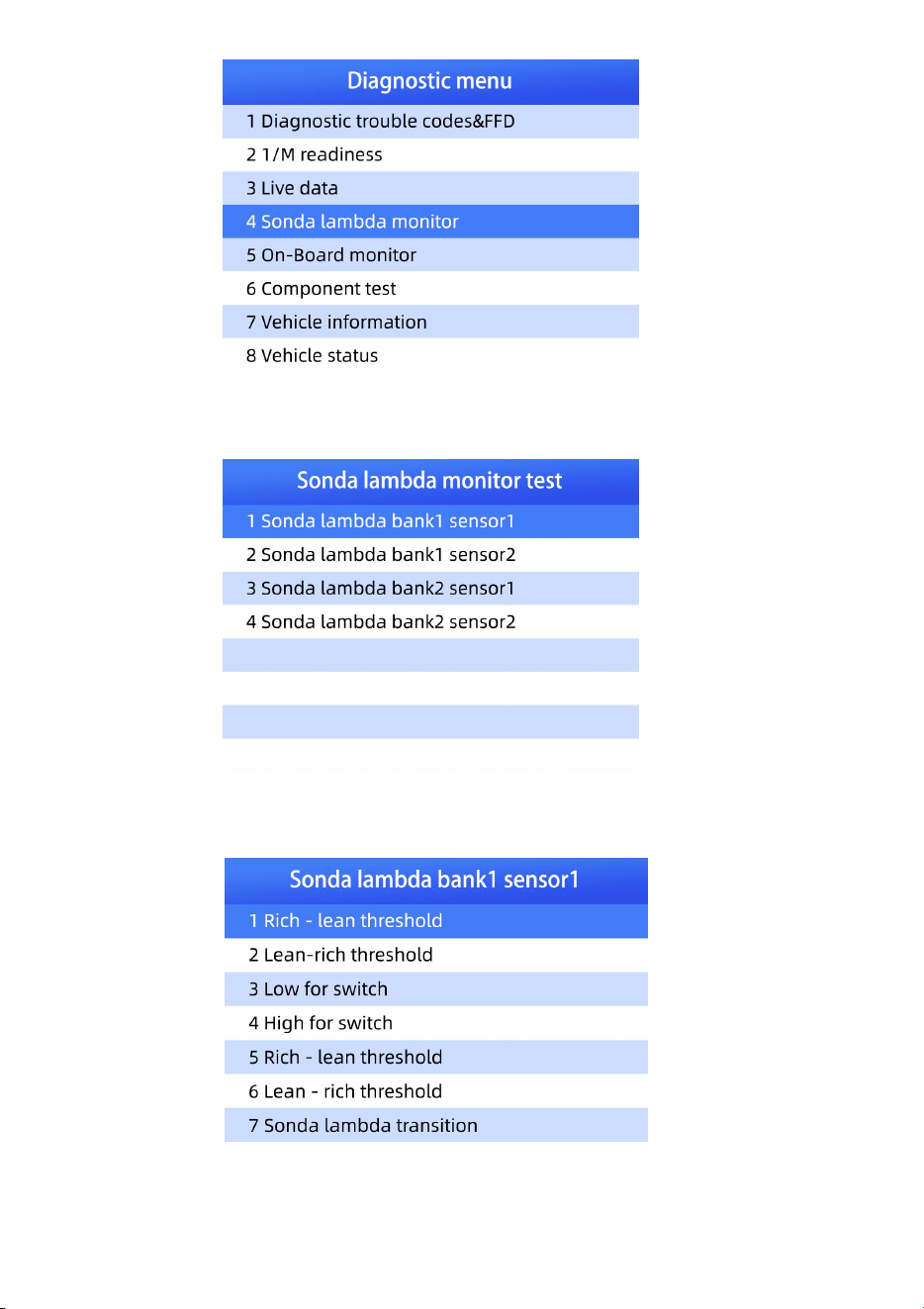

Figure 5-20 Sample Diagnostic Menu Screen
2. Scroll with the arrow keys to highlight an O2 sensor and press the ENTER key to confirm. A screen
with details of the selected sensor displays.
Figure 5-21 Sample O2 Monitor Test screen
3. Use the up and down arrow keys to scroll through data to select lines, and left and right arrow keys to
scroll back and forth through different screens of data.
40
AD610 Pro User’s Manual_English_V1.0

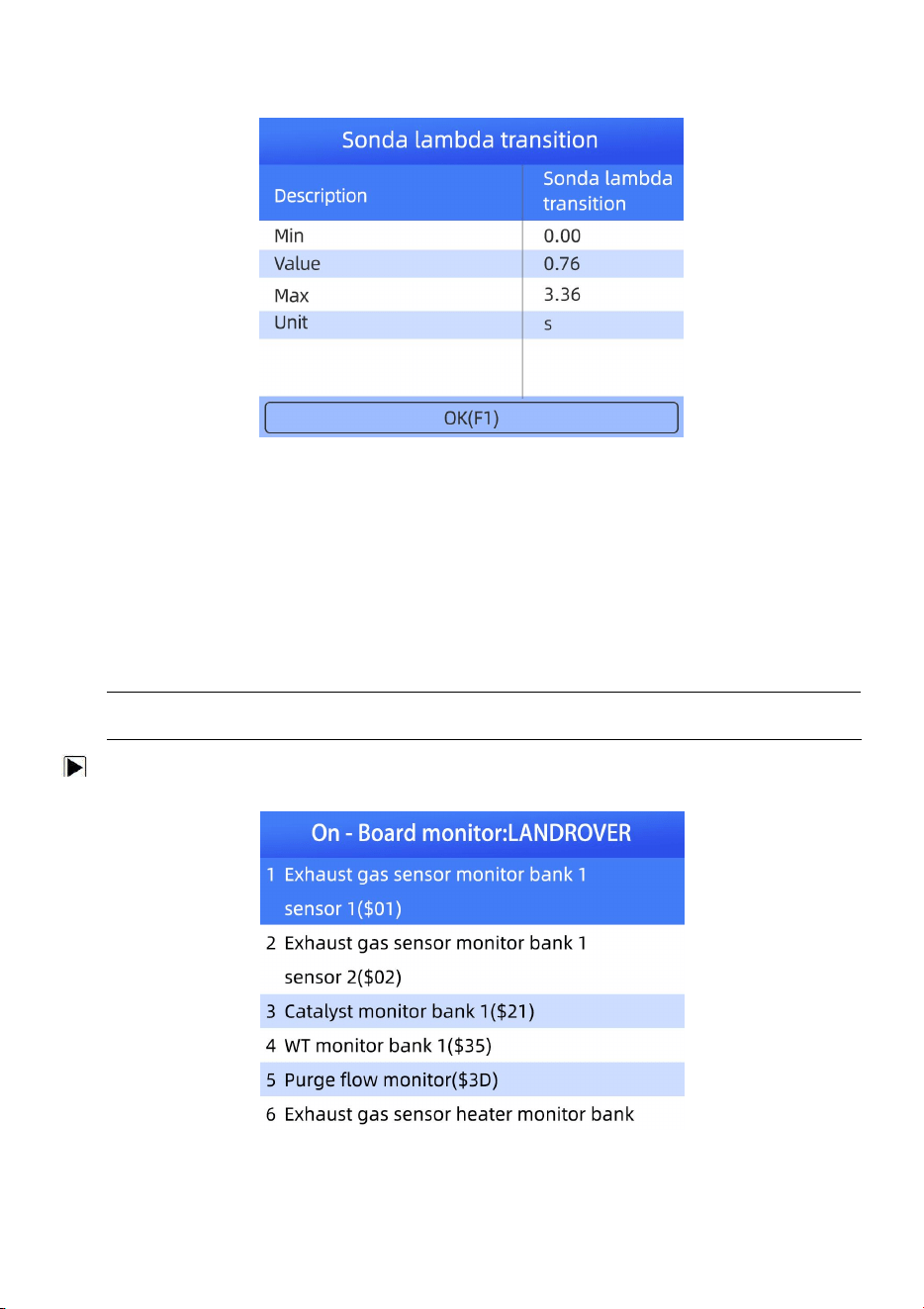

Figure 5-22 Sample O2 Bank1 Sensor 1 Screen
4. Press Enter key to view data of selection.
Figure 5-23 Sample data of $81 screen
5. Press the BACK key to exit and return.
5.6
On-Board Monitor Test
The On-Board Monitor Test function is useful after servicing or after clearing a vehicle ECU’s memory. It
receives test results for emission-related powertrain components and systems that are not continuously
monitored for Non-CAN vehicles. And for CAN vehicles, it receives test data for emission-related
powertrain components and systems that are and are not continuously monitored. It is vehicle
manufacturer who is responsible for assigning test and component IDs.
NOTE
Test results do not necessarily indicate a faulty component or system.
To request on-board monitor test results:
1. Scroll with the arrow keys to highlight On-Board Monitor Test from Diagnostic Menuand
press the ENTER key.
Figure 5-24 Sample Diagnostic Menu Screen
2. Depending on the protocol the vehicle used, one of these 2 screensshows.
41
AD610 Pro User’s Manual_English_V1.0

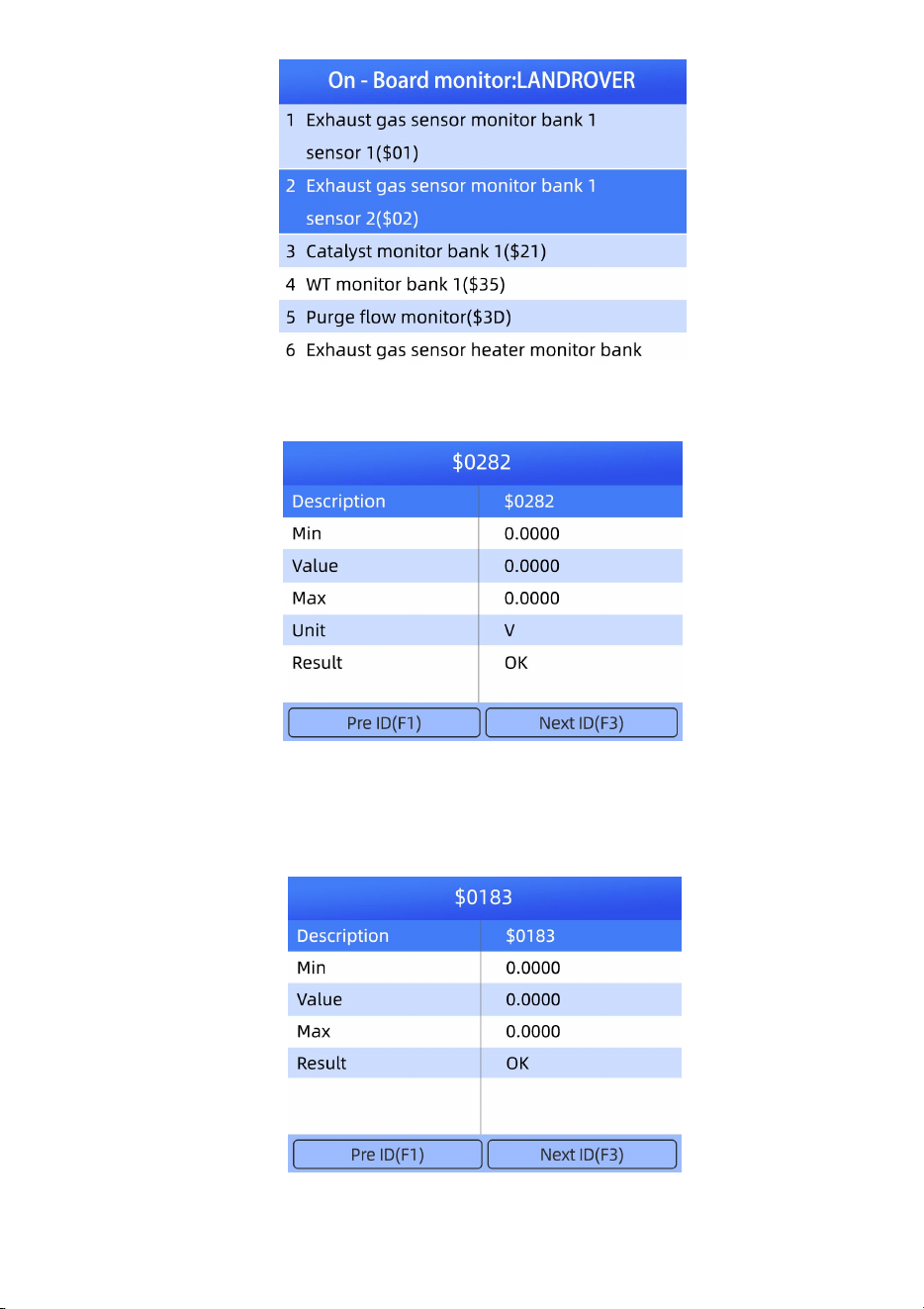

Figure 5-25 Sample Non-CAN Vehicle Test Screen
Or
Figure 5-26 Sample CAN vehicle test screen
3. Scroll with the arrow keys to highlight a test group and press the ENTER key to confirm. A screen with
details of the selected sensor displays. Use the up and down arrow keys to scroll through data to
select lines, and left and right arrow keys to scroll back and forth through different screens of data.
For non-CAN vehicles, test screen is illustrated as below:
42
AD610 Pro User’s Manual_English_V1.0

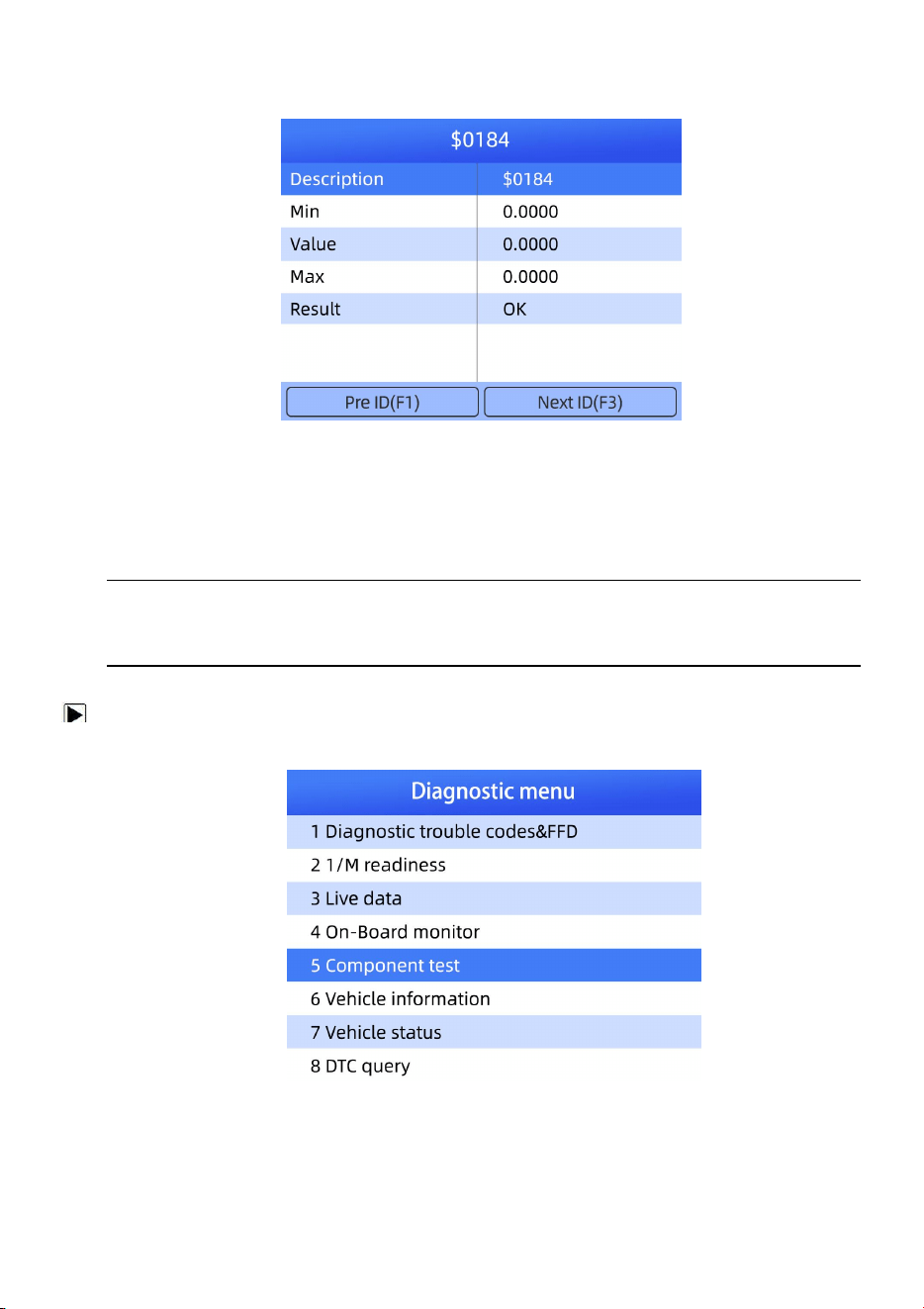

Figure 5-27 Sample Non-CAN vehicle test screen
For CAN vehicles, test screen is illustrated as below:
Figure 5-28 Sample Can vehicle test screen
4. Press the BACK key to exit and return.
5.7
Component Test
Component Test allows the scanner to control operation of vehicle components, tests or systems.
NOTE
● Some manufacturers do not allow tools to control vehicle systems.
● The manufacturer sets the criteria to automatically stop test. Refer to appropriate vehicle service manual
before using this function.
To perform a component test:
5. Scroll with the arrow keys to highlight Component Test from Diagnostic Menu and pressthe
ENTER key. A screen with a list of available tests displays.
Figure 5-29 Sample Diagnostic Menu Screen
6. Scroll with the arrow keys to highlight a system or component, press the ENTER key to start test and
the scanner displays the message “Command Sent!”.
43
AD610 Pro User’s Manual_English_V1.0

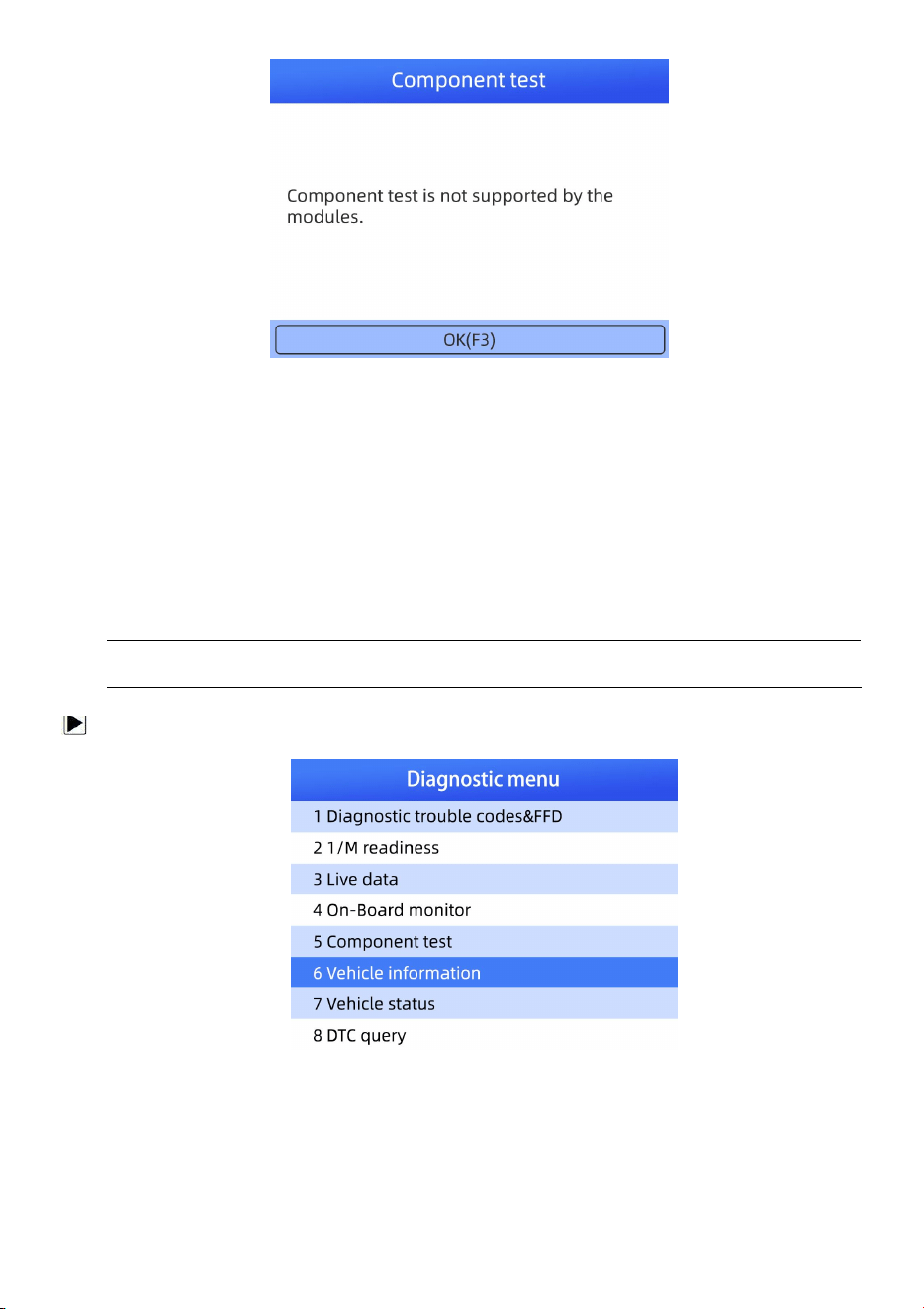

Figure 5-30 Sample Component test screen
7. Press the BACK key to exit and return.
5.8
Request Vehicle Information
Vehicle Information allows to request the vehicle’s VIN number, calibration ID(s) which identifies
software version in vehicle control module(s), calibration verification numbers (CVN(s)) and
in-use performance tracking on model year 2000 and newer OBD II compliant vehicles.
CVNs are calculated values required by OBD II regulations. They are reported to check if emission-
related calibrations have been changed. Multiple CVNs may be reported for a control module. It may
take several minutes to do the CVN calculation. In-use performance tracking tracks performance of key
readiness monitors.
NOTE
Available options will vary depending on the vehicle under test.
To request vehicle information:
1. Scroll with the arrow keys to highlight Vehicle Info. from Diagnostic Menu and pressthe
ENTER key.
Figure 5-31 Sample Diagnostic Menu Screen
2. Follow on-screen instruction and send the command to read vehicle information. A screen with a list of
available options displays.
44
AD610 Pro User’s Manual_English_V1.0

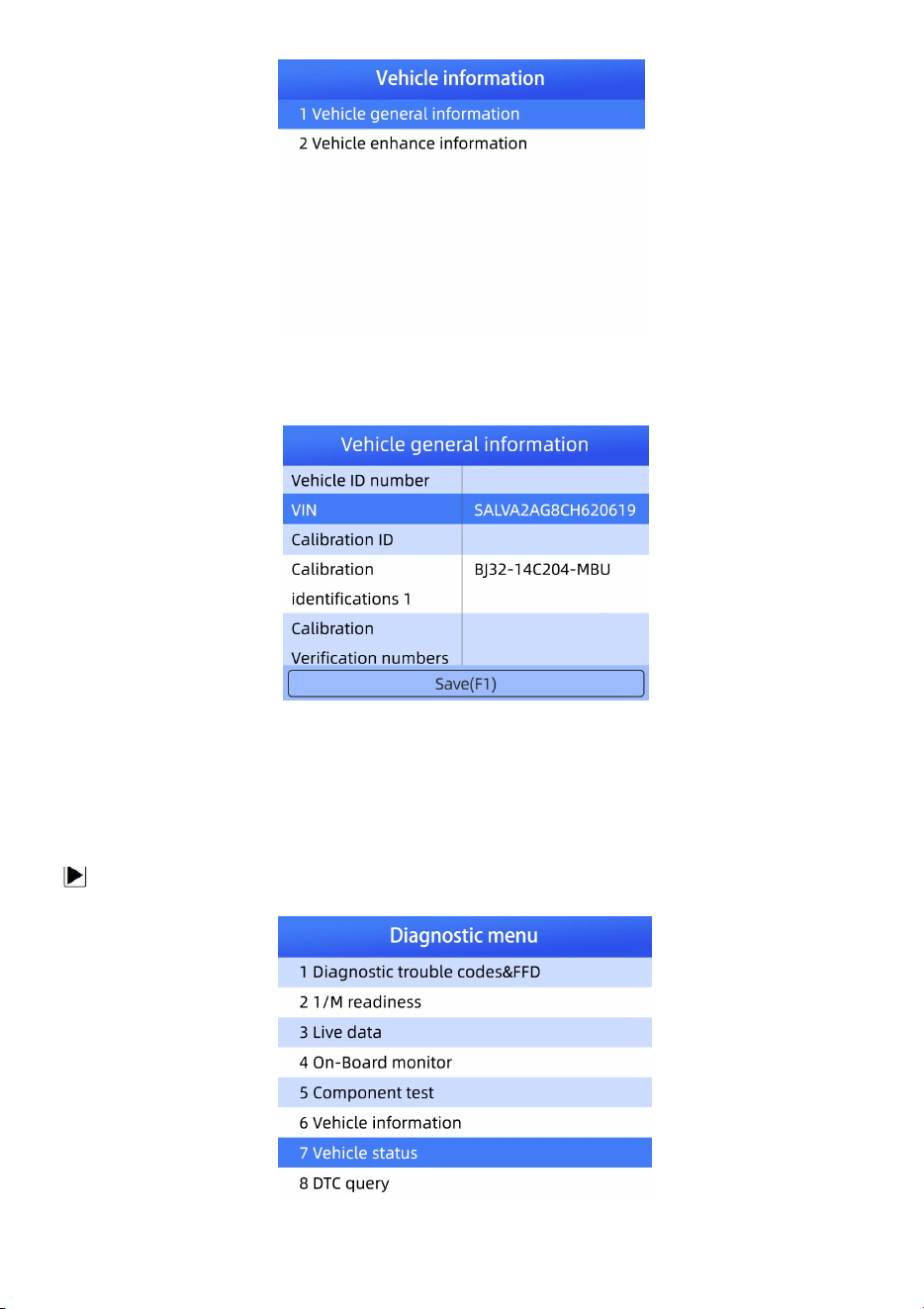

Figure 5-32 Sample Vehicle Info Screen
3. Scroll with the arrow keys to highlight an available option and press the ENTER key. A screen with
details of the selected option displays.
Figure 5-33 Sample Calibration ID Screen
4. Press function key Save to store the readiness data. Or use the BACK key to exit andreturn.
5.9
Vehicle status
The scanner identifies module IDs and communication protocols for OBD2 modules in the vehicle.
To view module IDs and communication types:
1. Scroll with the arrow keys to highlight Vehicles status from Diagnostic Menu and pressthe
ENTER key.
45
AD610 Pro User’s Manual_English_V1.0
Figure 5-34 Sample Diagnostic Menu Screen
2. A screen with the module IDs and protocols displays.
Figure 5-35 Sample Module Present Screen
5.10

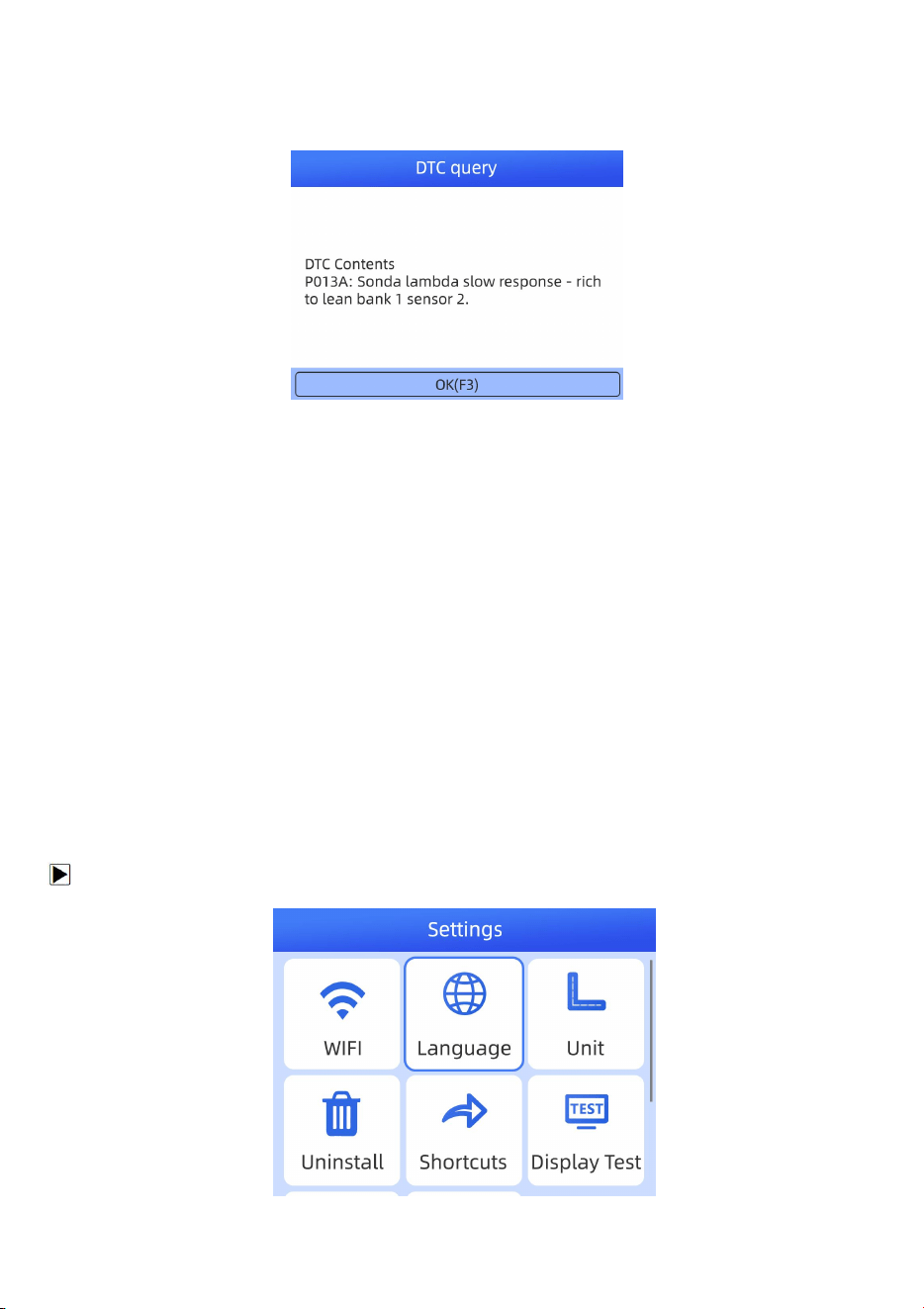

DTC Query
DTC Lookup menus allows to request DTC definitions stored in the scan tool. To Look
up DTCs:
1. Scroll with the arrow keys to highlight DTC query. from Diagnostic Menu and pressthe
ENTER key.
Figure 5-36 Sample Diagnostic Menu Screen
2. Enter a valid code number and press the function keyFinish.
Figure 5-37 Sample DTC Lookup Screen
46
AD610 Pro User’s Manual_English_V1.0
3. A screen with code number and its definition displays. If definition could not be found (SAE or
Manufacturer Specific), the scanner displays “DTC definition not found! Please refer to vehicle service
manual!” If a P1xxx, C1xxx, B1xxx or U1xxx code is entered, select a vehicle make to look for DTC
definitions. Press the Back key to exit.
Figure 5-38 Sample Trouble Codes Screen
6 System Setup
This section illustrates how to program the scanner to meet your specific needs.
When Settings is selected, a menu with available service options displays. Menu options typically include:
● Language
● Unit
● Shortcuts
● Beep Set
● Display Test
● Keypad Test
● About
6.1 Select Language
Selecting Language opens a screen that allows you to choose system language. The scan tool is set to display
English menus by default.
To configure system language:
1. Scroll with the arrow keys to highlight Language from Settings menu and press ENTER key.
47
AD610 Pro User’s Manual_English_V1.0
Figure 6-1 Sample Settings Screen
2. Press left and right arrow key select a language and press the ENTER key to confirm. Press the Back key to
exit and return.
Figure 6-2 Sample Language Selection Screen
6.2 Change Units
Selecting Unit opens a dialog box that allows you to choose units of measure.
To change the unit setup:
1. Scroll with the arrow keys to highlight Units from Settings menu and press the ENTER key.
Figure 6-3 Sample Settings Screen
2. Press the up and down arrow key select an item and press the ENTER key to save and return.
48
AD610 Pro User’s Manual_English_V1.0

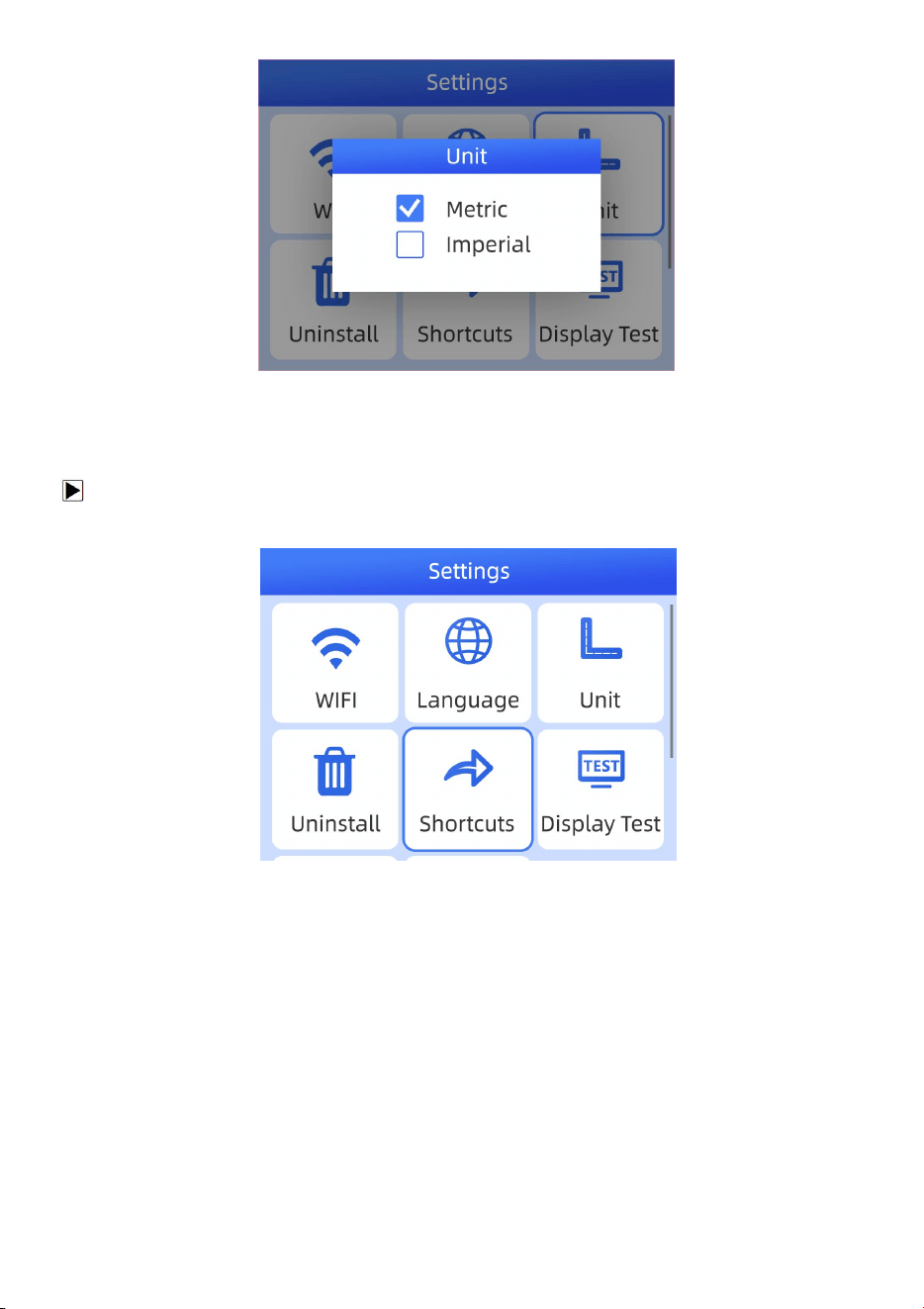

Figure 6-4 Sample Unit Selection Screen
6.3 Configure Shortcut Keys
Selecting Shortcuts option lets you to change the functionality of the shortcut buttons.
To assign a function to a shortcut button:
1. Scroll with the arrow keys to highlight Shortcuts from Settings menu and press the ENTER key. A screen with
available shortcut keys displays.
Figure 6-5 Sample Settings screen
2. Press the up and down arrow key select a shortcut key and press the ENTER key. A screen with a list of
loaded applications displays.
49
AD610 Pro User’s Manual_English_V1.0
Figure 6-6 Sample Shortcuts Screen
3. Scroll with the arrow keys to highlight an application and press the ENTER key to assign the application to
the shortcut key.
Figure 6-7 Sample Shortcuts Screen
6.4 Display Test
Selecting Display Test option opens a screen that allows you to check the functionality of the display.
To test the display:
1. Scroll with the arrow keys to highlight Display Test from Settings menu and press the ENTER key to start test.
Check if there are any missing spots in the LCD screen.
50
AD610 Pro User’s Manual_English_V1.0

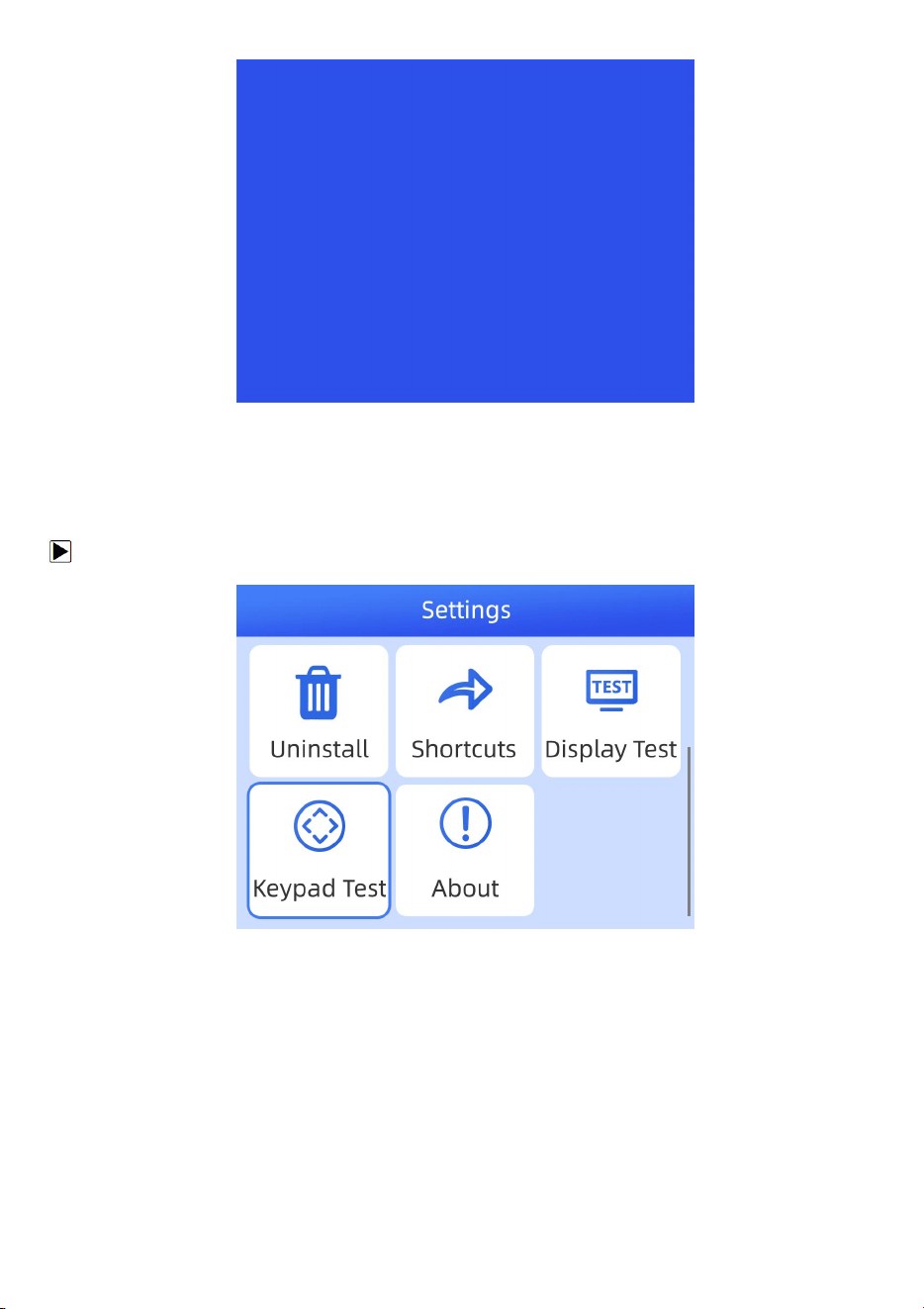

Figure 6-8 Sample LCD Test Screen
2. To quit the test, press the Back key.
6.5 Keypad Test
Selecting Keypad Test option opens a screen that allows you to check the functionality of the keypad.
To test the keypad:
1. Scroll with the arrow keys to highlight Keypad Test from Settings menu and press ENTER key.
Figure 6-9 Sample Settings Screen
2. Press any key to start test. The virtue key corresponding with the key you pressed will be highlighted on the
screen if it works correctly.
51
AD610 Pro User’s Manual_English_V1.0

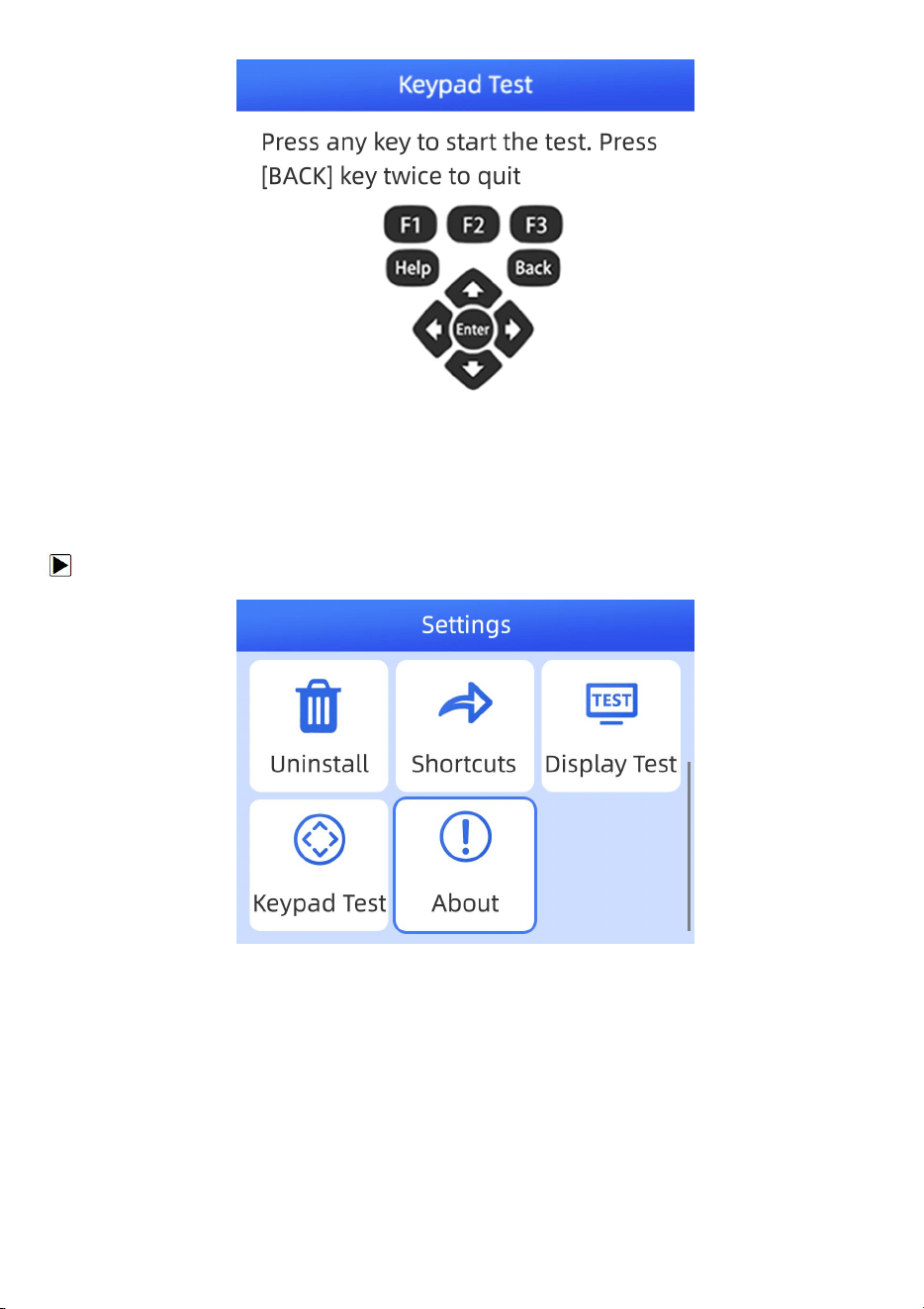

Figure 6-10 Sample Keypad Test Screen
3. To quit the test, press Back key twice.
6.6 Tool Information
Selecting About option opens a screen that shows information about your scan tool, such as serial number,
which may be required for product registration.
To view information of your scan tool:
1. Scroll with the arrow keys to highlight About from Settings menu and press the ENTER key.
Figure 6-11 Sample Settings Screen
2. A screen with detailed information of the scanner displays.
52
AD610 Pro User’s Manual_English_V1.0
Figure 6-12 Sample Tool Information Screen
3. Press the Back key to exit.
7 Update
To update scanner, you need the following tools:
● The scan tool
● Available WIFI service
● power supply with USB ports or diagnostic cable
NOTE
Before updating, please make sure your network works correctly.
Before updating, please make sure you have already created a ANCEL ID.
Before updating, please make sure your scanner is turned on.
1.Enter Update and select an avaliable WIFI to connect.
Figure 7-1 Sample WIFI Screen
53
AD610 Pro User’s Manual_English_V1.0

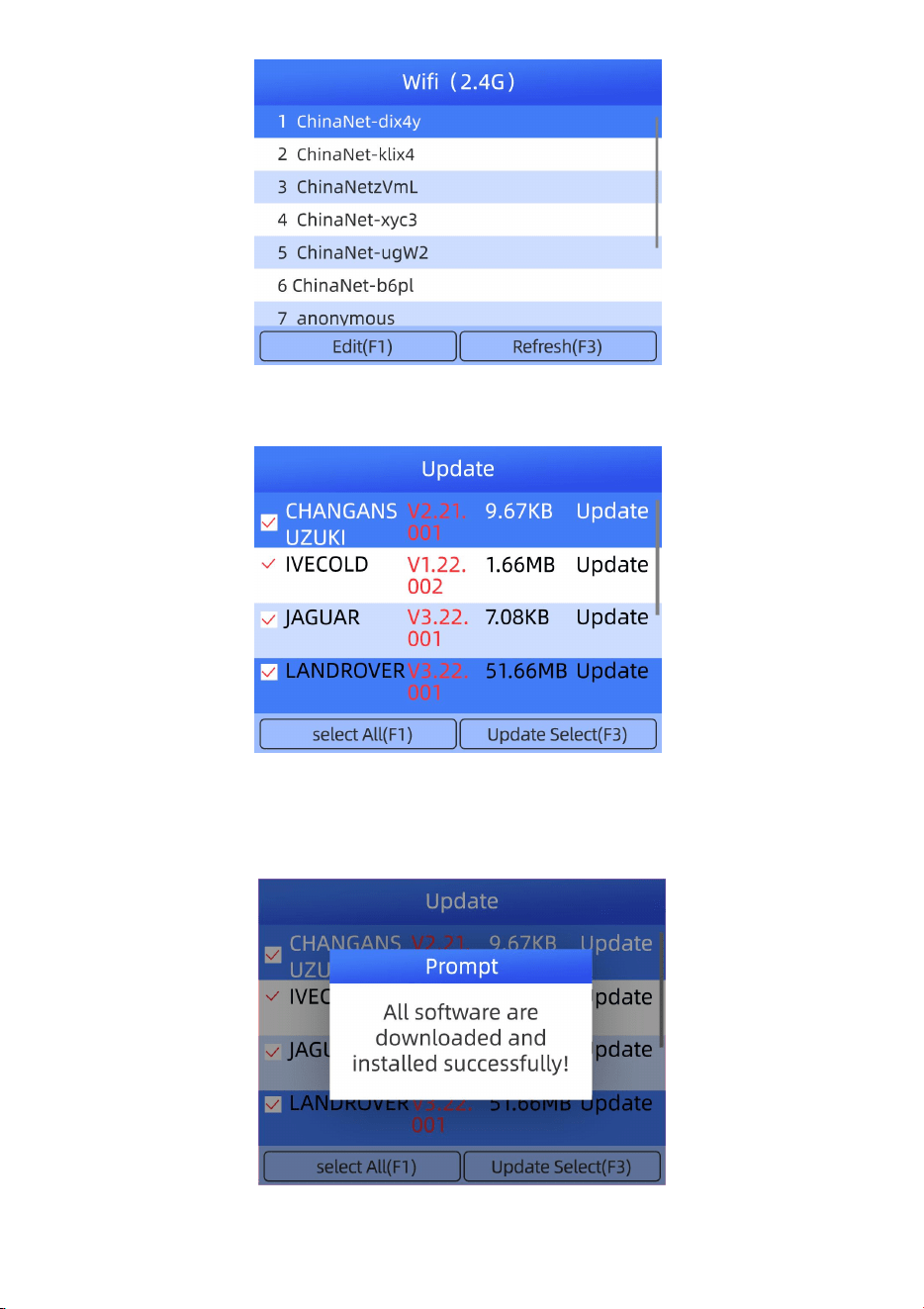

Figure 7-2 Sample WIFI Selection Screen
2.In the Update, click the check box(es) in front of the software(s) you wish to update and then click the
Update Select button to download.
Figure 7-3 Sample Upgrade Check Screen
3.When all the items are updated, an “All software downloads are successfully installed!”
message displays.
54
AD610 Pro User’s Manual_English_V1.0
Figure 7-4 Sample Update Completed Screen
8 Uninstall
This option allows you to uninstall the vehicle software installed in the scanner.
To uninstall a vehicle software:
1. Enter Settings application on home screen.
Figure 8-1 Sample Uninstall Vehicle Software Screen
2. Select the Uninstall Vehicle Software option on the option list.
3. Choose the vehicle software you want to delete or choose Select All to Uninstall.
Figure 8-2 Sample Uninstall Vehicle Software Screen
