Introduction
This basic HDBaseT wall plate transmitter/receiver kit is a cost effective HDMI extension
product from AVPro Edge’s ConferX line of products. Able to handle 4k at 10.2 Gbps, this
single gang wall plate transmitter fits in any standard mud ring and works with standard
category cable to deliver a stable signal long distances. This extender kit is able to send a
4k signal 40 Meters and a 1080p signal 70 meters using CAT6a with HDBaseT technology.
This is the ideal video extension solution for single office settings, home theaters,
conference rooms, huddle spaces and any other place you need to deliver an HDMI single
over a long distance. Perfect for any basic HDMI extension job and able to handle
resolutions from PC’s, Apple products, Tablets, Bluray Players or any other HDMI source
outputting 4K at 30hz.
1) UHD over Category Cable: The length of manufactured HDMI cable is unchangeable after it is made and
they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized
factory environment due to its extremely high frequencies and high density. This does not allow installers
or users to remake or make cables on a DIY basis. CAT-6A cables are available widely and can be reworked
easily by the installer or end-user
NOTE: High Quality CAT6a Shielded or higher required for maximum performance.
2) DISTANCE: By using AC-CXWP-HDMO-KIT, the transmission distance for HD 1080P is 70 meters & 4K is
up to 40 meters.
3) AUTO SENSING: This wall plate is designed to be a "Set it & forget it" piece of hardware. When the user
plugs in their device (BYOD), the wall plate automatically senses the signal and makes it active.
4) POWER: No local power required when you use the AC-EX7
0-UHD-BR. Power is provided by ultra-
stable PoE technology. Optionally you can power it locally for use with any HDBaseT Receiver.
5) SINGLE GANG: Save space and make a squeaky clean installation with the single gang configuration.
This wall plate fits in more places than ever!
Key benefits of using AC-CXWP-HDMO-BKT:
What's in the box
• AC-CXWP-HDMO-T (Transmitter)
• AC-EX70-UHD-BR (Receiver)
• 3.5mm stereo plug to female DB9 for RS-232 to PC
• 12V 2APower Supply
• 2 Mounting Screws
• Decora Wall Plate Cover (White)
AC-CXWP-HDMO-BKT
Page 2
Al
Pro
'm!F"'
....
\T
ConferX
AVPROEDGE
-
2222
E
52ND
ST
N
SIOUX
FALLS.
SD
5n04
-
1.an.886.5
1
12
-
+1.605.274.6055
-
AC-CXWP-HDMO-BKT
Page 3

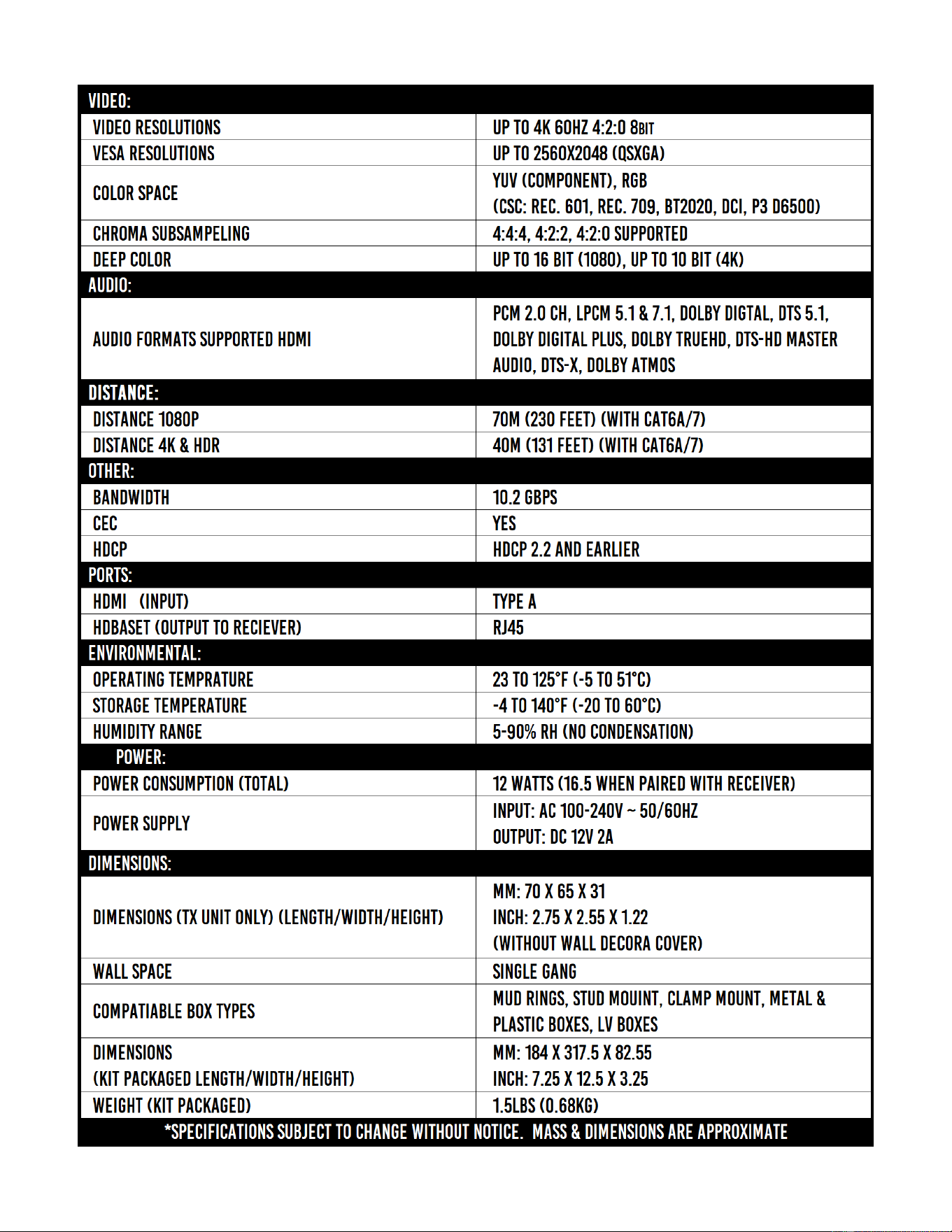

VIDEO:
VIDEO
RESOLUTIONS
VESA
RESOLUTIONS
COLOR
SPACE
CHROMA
SUBSAMPELING
DEEP
COLOR
AUDIO:
AUDIO
FORMATS
SUPPORTED
HDMI
DISTANCE:
DISTANCE
1080P
DISTANCE
4K
&
HOR
OTHER:
BANDWIDTH
CEC
HDCP
PORTS:
HDMI
<INPUT)
HDBASET
COUTPUT
TO
RECIEVER)
ENVIRONMENTAL:
OPERATING
TEMPRATURE
STORAGE
TEMPERATURE
HUMIDITY
RANGE
POWER:
POWER
CONSUMPTION
CTOTAU
POWER
SUPPLY
DIMENSIONS:
DIMENSIONS
CTX
UNIT
ONLY)
(LENGTH/WIDTH/HEIGHT)
WALL
SPACE
COMPATIABLE
BOX
TYPES
DIMENSIONS
(KIT
PACKAGED
LENGTH/WIDTH/HEIGHT)
WEIGHT
(KIT
PACKAGED)
UP
TO
4K
60HZ
4:2:0
8BIT
UP
TO
2560X2048
CQSXGA)
YUVCCOMPONENT),
RGB
Al
Pro
-
.,.."'
\T
ConferX
CCSC:
REC
.
601,
REC
.
709,
BT2020,
DCI,
P3
06500)
4:
4:4
,
4:2:2,
4:2:0
SUPPORTED
UP
TO
16
BIT
(1080),
UP
TO
10
BIT
C4K)
PCM
2.0
CH,
LPCM
5.1 &
7.1,
DOLBY
DIGTAL,
DTS
5.1,
DOLBY
DIGITAL
PLUS
,
DOLBY
TRUE
HD,
DTS-HD
MASTER
AUDIO,
DTS
-
X,
DOLBY
ATMOS
70M
(230
FEET)
(WITH
CAT6A/7)
40M
(131
FEET)
(WITH
CAT6A/7)
10.2
GBPS
YES
HDCP
2.2
AND
EARLIER
TYPE
A
RJ45
23
TO
125°F
C-5
TO
51°C)
-4
TO
140°F
C-
20
TO
60°C)
5-90%
RH
CNO
CONDENSATION)
12
WATTS
(16.5
WHEN
PAIRED
WITH
RECEIVER)
INPUT:
AC
100
-
240V
-
50/60HZ
OUTPUT:
DC
12V
2A
MM:
70
X
65
X
31
INCH:
2.75
X
2.55
X
1.22
(WITHOUT
WALL
DECORA
COVER)
SINGLE
GANG
MUD
RINGS
,
STUD
MOUINT
,
CLAMP
MOUNT
,
METAL
&
PLASTIC
BOXES,
LV
BOXES
MM:
184
X
317.5
X
82.55
INCH:
7.25
X
12
.5 X
3.25
1.5LBS
C0
.
68KG)
*SPECIFICATIONS
SUBJECT
TO
CHANGE
WITHOUT
NOTICE.
MASS
&
DIMENSIONS
ARE
APPROXIMATE
AVPROEDGE
-
2222
E
52N
D
ST
N
SIOUX
FA
L
LS
. so
5n04
-
1.Bn
.
886
.
5112
-
+1.605
.
274
.
6055
-
SU
PP
ORT@AVP
RO
EDGE.C
OM
Applications:
This unit is designed to work flawlessly with all PC, VESA and traditional
resolutions up to and including 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. VGA supports
DCI 2K, 1080P, 1920x1200x60. In addition to its compact and robust design, it
transmits the digital signal up to 70 meters (230’) giving you ultimate flexibility,
especially in large rooms like libraries or auditorium style rooms/classrooms. For a
complete solution pair new wall plate transmitter (AC-CXWP-HDMO-T) with
the AC-EX70-UHD-BR HDBaseT Receiver to power the wall plate transmitter from
afar using PoE, thus eliminating the need for a power supply unit near the wall plate.
HDBaseT IN
(RJ45) &
Status Lights
Power Light
Link Light
Active Light
HDMI Input
AC-CXWP-HDMO-BKT
Page 4
LINK
LIGHT
ACTIVE
LIGHT
ACTIVE
LIGHT
HDBASET
PORT
HDRASETPORT
•
•
•
BLUE
BLUE
BLUE
AMBER
AIPro
""""
\T
ConferX
SOLID
INDICATES
TX
I
RX
ARE
CONMUNICATIN&
PROPERLY
SOLID
INDICATES
CONNECTION
WITH
DISPLAY
FLASHING
THE
LIGHT
FLASHES
DURING
THE
SYNC
PROCESS
.
IF
FLASHING
CONTINUOUSLY.
A
NAY
NOT
BE
PRESENT
FLASHING
INDICATES
HDBASET
ACTIVITY
SOLID
INDICATES
LINK
BETWEEN
HDBASET
TX
I.
RX
AVPROEDGE
-
2222
E
52ND
ST
N
SIOUX
FALLS
.
SD
5n04
-
1.Sn.886.5
1
12
- +
1.605.274.6055
-
Single Gang wall plate transmitter and No Compromises
■
Features
• HDMI 2.0 Input
• 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
• HDR 4:2:2 12 Bit Support
• HDCP 2.2 & Earlier Supported
• 70M (230ft) on 1080P, Up to 40m (131ft) on 4K (Cat6a)
• No Local Power Necessary (Powered by AC-EX70-UHD-BR)
• Single Gang, Low heat, Straight in rear RJ45 receptacle design.
• Rugged, long-life chassis
• Plug & Play auto input sensing
• Designed for the conference/classroom room so your customer
can focus on their meetings, not their video system.
• Single UTP/STP LAN cable (CAT-6A/7) for all signals
• ESD protection circuitry (Inputs / Outputs) till 7KV.
• Single Gang Construction (Fits Decora Type USA single gang
boxes and mud rings)
• Compatible with HDBaseT displays, projectors, AVR's
• Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS,
Dolby TrueHD, DTS HD-Master Audio, Atmos.
• Can Cascade for ultra-long distance
AC-CXWP-HDMO-BKT
Page 5
HDMI
-
CATGA
-
CONNECTION
DIAGRAM
•
•
I
•
/JllPro
~,;n..
\T
ConferX
AVPR
O
EDGE
-
2222
E
52ND
ST
N
SIOUX
FALLS,
SD
57104
-
1.an.886.5
1
12
- +
1.605.27
4
.6055
- SUPP
■
Powering the AC-CXWP-HDMO-T
There are 2 ways to power the unit:
1. Use a HDBaseT Receiver that provides up stream power. This kit comes with the
AC-EX70-UHD-BR.
2. If you will be using the unit directly into a NON PoE Provider (AVR, Projector,
Display, or other HDBaseT receiver), you can power it using a 5V MINI USB Type
power supply. We recommend the AC-PSU-5V-MINI-USB
*NOTE: In these diagrams, arrows indicate the flow of POWER, not other signals.
Tx
OPTION 1: PoE From Receiver (AC-EX100-UHD-R3)
OPTION 2: Local power to work with other HDBaseT devices
HDBaseT Compatible Projector
CAT6/7 for
Audio & Video
Signals
Rx
AC-CXWP-HDMO-BKT
Page 6
/JtllPro
-=
\T
ConferX
AVPR0EDGE
-
2222
E
52ND
ST
N
SIOUX
FALLS.
SD
sno4
-
1.an.886.5112
-
+1.605.274.6055
-
■
Mounting Options
The AC-CXWP-HDMO-T has seemingly limitless mounting options. While it
