680MM MODULAR REEL CABINET
MODEL NO: APMS63
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general
workshop practice regulations are adhered to when using this cabinet.
9 Locate cabinet in a suitable work area.
9 Keep the work area clean, uncluttered and ensure there is adequate
lighting.
WARNING! Use cabinet on level and solid ground, preferably concrete.
9 Keep the cabinet clean and tidy in accordance with good workshop
practice.
9 Keep children and unauthorised persons away from the work area.
8 DO NOT use the cabinet for any purpose other than that for which it is
designed.
8 DO NOT use the cabinet outdoors.
8 DO NOT place the cabinet in a damp or wet location or an area where
there is condensation.
8 DO NOT clean the cabinet with any solvents which may damage the
surfaces or the protective coating.
8 DO NOT move the cabinet when there are items placed inside.
8 DO NOT step on the shelves.
8 DO NOT overload the cabinet.
2. INTRODUCTION

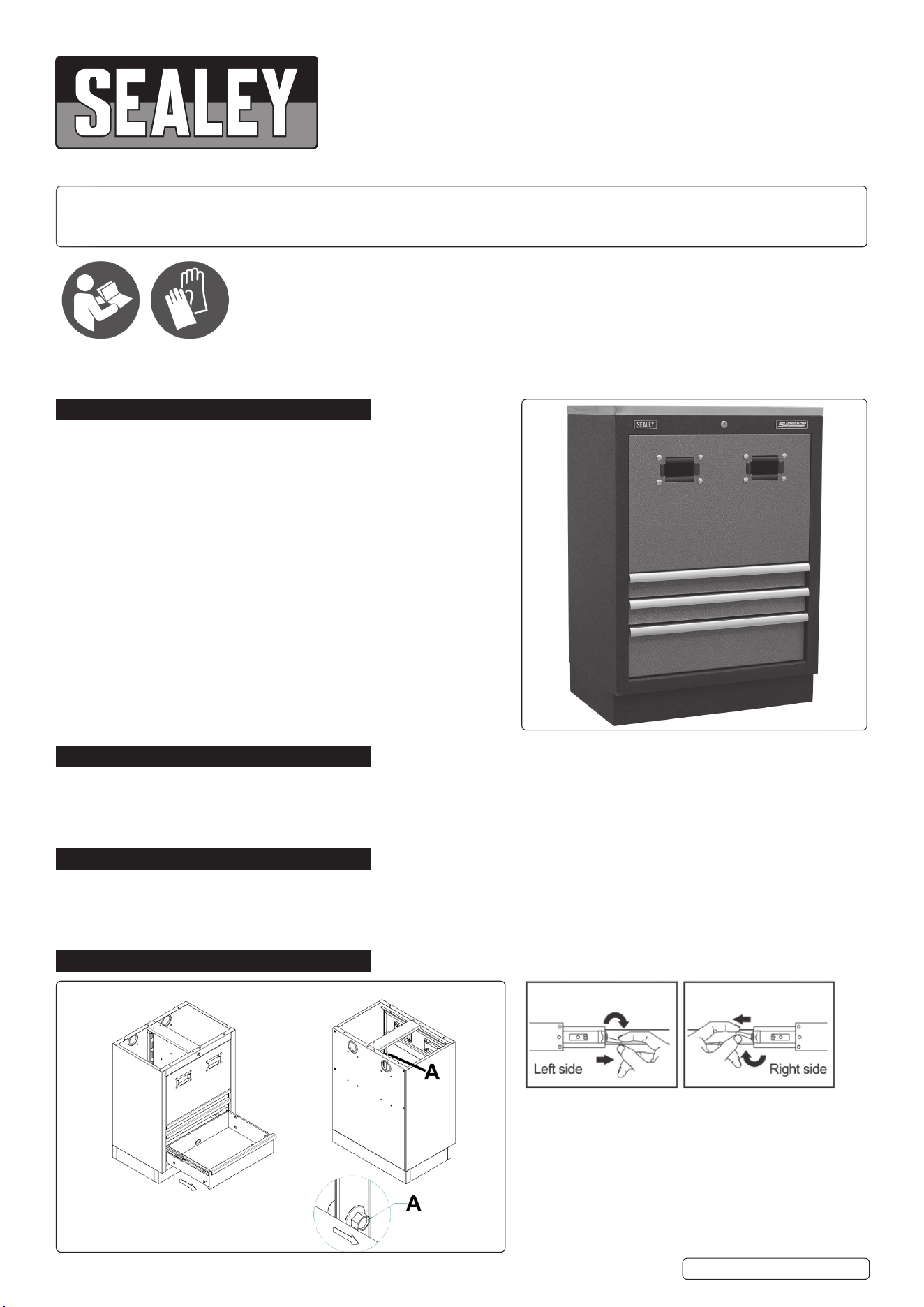

N.B. ILLUSTRATED WITH OPTIONAL WORKTOP - Don’t forget to order your choice of pressed wood or stainless steel separately. Use as part
of a complete garage storage system or as an individual storage unit. Solid reel cabinet for convenient and tidy use of cable reels and air hose
reels. Aluminium handles. Choose between pressed wood or stainless steel worktop as an optional extra. Suitable for use with Sealey Air Reels
SA811, SA812, SA813 and SA14, and Cable Reels CRM101 and CRM151.
3. SPECIFICATION
Model no: ................................................................. APMS63
Size (W x D x H): ....................................680 x 460 x 910mm
Small drawer (x2): ..................................... 565 x 400 x 60mm
Large drawer (x1): ...................................565 x 400 x 135mm
4. ASSEMBLY
APMS63 Issue 2 15/01/25
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear
protective
gloves

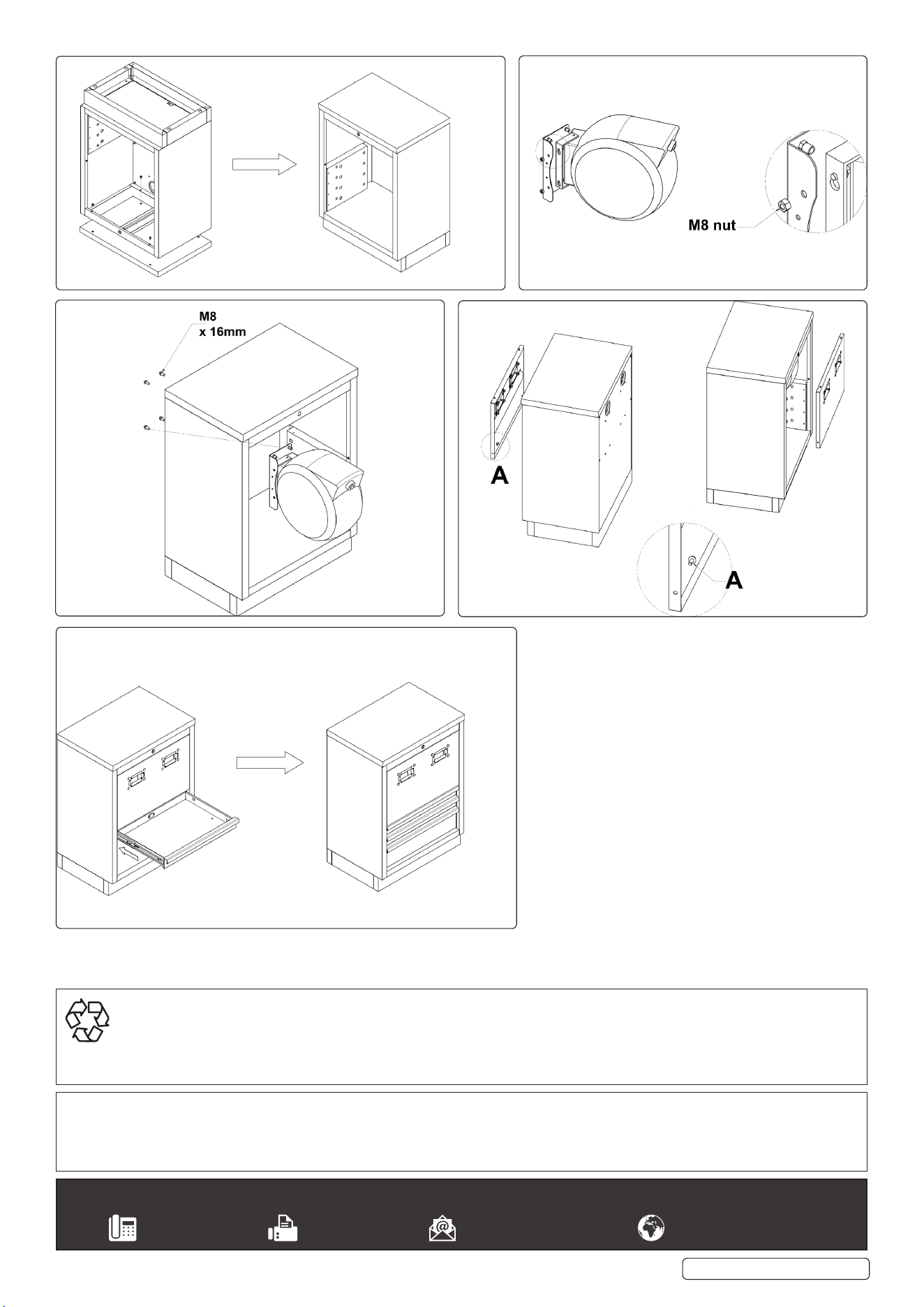

STEP 1:
Remove drawers (see right)
STEP 2:
Remove
front
panel
One each side
Drawer weight capacity: ................................................. 20kg
Original Language Version
© Jack Sealey Limited
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
STEP 3:
Fit worktop (not supplied)
STEP 4:
Fit bracket to reel
STEP 5:
Fit reel into cabinet
STEP 6:
Ret front panel
STEP 7:
Ret drawers
