665MM MODULAR 4 DRAWER CABINET WITH
WORKTOP
MODEL NO: APMS84
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Use the cabinet on level and solid ground, preferably concrete. Avoid tarmacadam since the cabinet may sink into
the surface.
9 Locate the cabinet in a suitable working area.
9 Keep the cabinet clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
9 Take care of sharp edges when assembling.
8 DO NOT use the cabinet for any purpose other than that for which it is designed.
8 DO NOT use the cabinet outside.
8 DO NOT get the cabinet wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT clean the cabinet with any solvents which may damage the surfaces.
Note: The assembly of this product may require assistance.
2. INTRODUCTION
Use as part of a complete garage storage system or as an individual storage unit. Four drawers tted with ball bearing slides. Features
adjustable feet for levelling on uneven oors. Supplied with worktop and a lock with two keys. Supplied at-packed for ease of transportation
and requires some simple self-assembly.
3. SPECIFICATION
Model No. ........................................................APMS84
Overall Size (W x D x H) ................. 665 x 460 x 820mm
Large Drawer (x2) ........................... 570 x 370 x 100mm
X-Large Drawer (x2) .......................570 x 370 x 215mm
4. CONTENTS
4.1. Check contents prior to assembly.
4.2. Contact stockist with regard to any discrepancy.
APMS84 Issue 3 08/11/23
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear protective
gloves
Wear safety
footwear
g.1

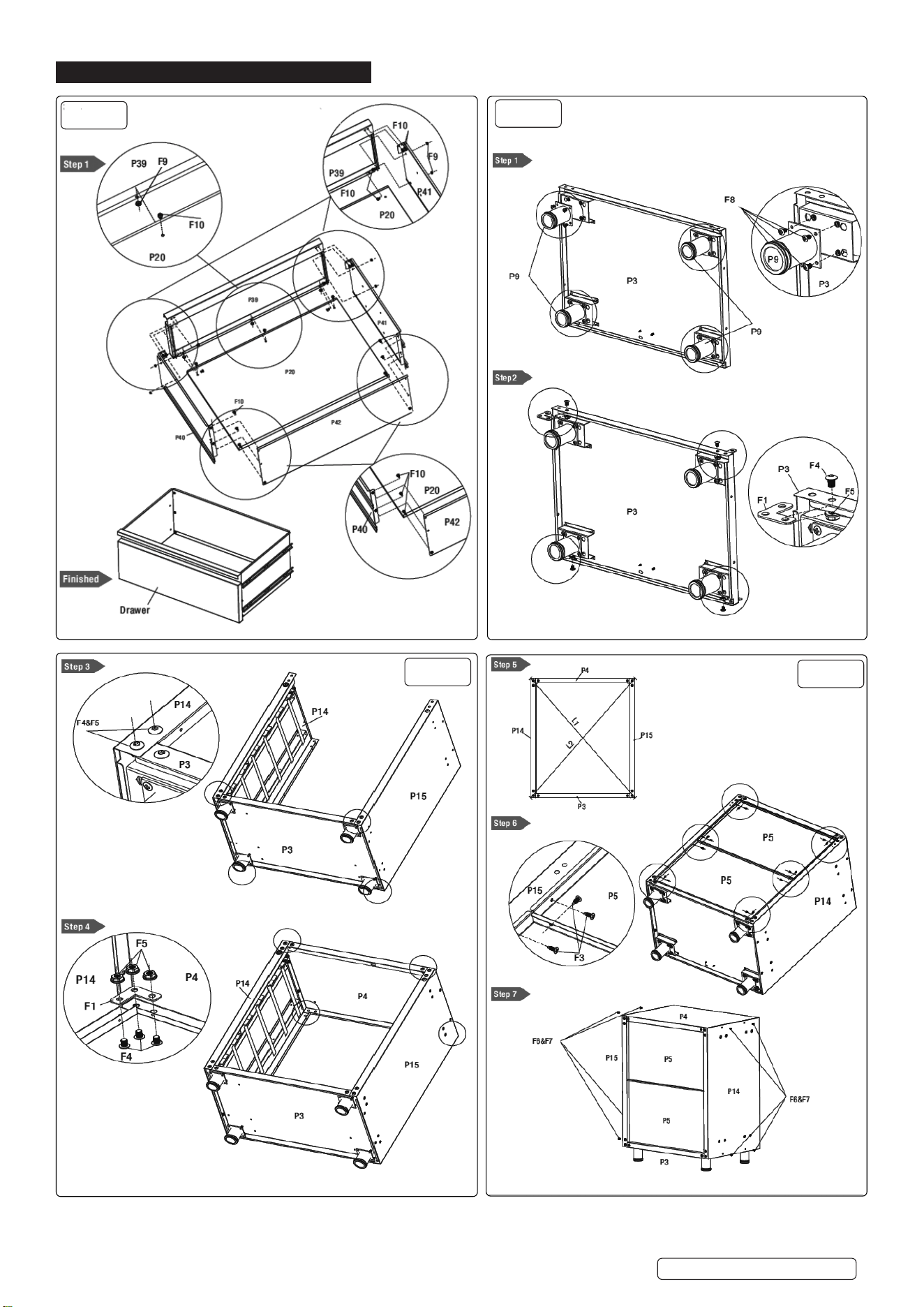

5. ASSEMBLY.
Original Language Version
© Jack Sealey Limited
g.2
g.3
APMS84 Issue 3 08/11/23
g.4
g.5
Square the cabinet frame. Make
sure the measurements from
corner to corner should be equal
distance before completly tighten
the bolts.
NOTE: Maximum weight limit drawers:- 25Kg
Maximum weight limit cabinet:- 150Kg
g.6
To place the draw back, simply push the ball bearing carriage all the way to the end
of the slides (on both sides), and align the side runners on the drawer with the side
tracks on the unit. Push it carefully until it stops.
NOTE: If they do not go smoothly please take out and repeat step.
If you need to remove drawer, please pull the drawer all the way out, then push the
plastic release lever out of the ball bearing slide up on one side and down on the
other side. Then pull the draw out completely.
Original Language Version
© Jack Sealey Limited
APMS84 Issue 3 08/11/23
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
