instructions for
modular 2 door cabinet with worktop
665mm
model no: apmS81
thank you for purchasing a Sealey product. manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. Safety
1.1. General Safety
warninG! use the cabinet on level and solid ground, preferably concrete. Avoid tarmacadam since the cabinet may sink into the
surface.
9 locate the cabinet in a suitable working area.
9 Keep the cabinet clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the work area.
9 take care of sharp edges when assembling.
8 do not use the cabinet for any purpose other than that for which it is designed.
8 do not use the cabinet outside.
8 do not get the cabinet wet or use in damp or wet locations or areas where there is condensation.
8 do not clean the cabinet with any solvents which may damage the surfaces.
2. introduction
Modularstoragesystemidealforanygarageorworkshop.Canbeeasilyadjustedandupgradedtosuitspecicneeds.Purchasea
simple base cabinet or create a custom storage system.
standard features include:
•Ballbearingdrawerslidesthroughout.
•Basecabinetsaresuppliedwithaworktopasstandard.
•Floorcabinetsfeatureadjustableshelves.
•Eachunitissuppliedwithalockandtwokeys.
•Suppliedatpackedandwillrequiresomesimpleassembly.
•Twodooroorandwallcabinetsfeatureperforatedpegboardpanelsontheinsideofthedoors.
3. Specification
model no. ........................................................ APMS81
overall size (W x d x H) .................665x460x820mm

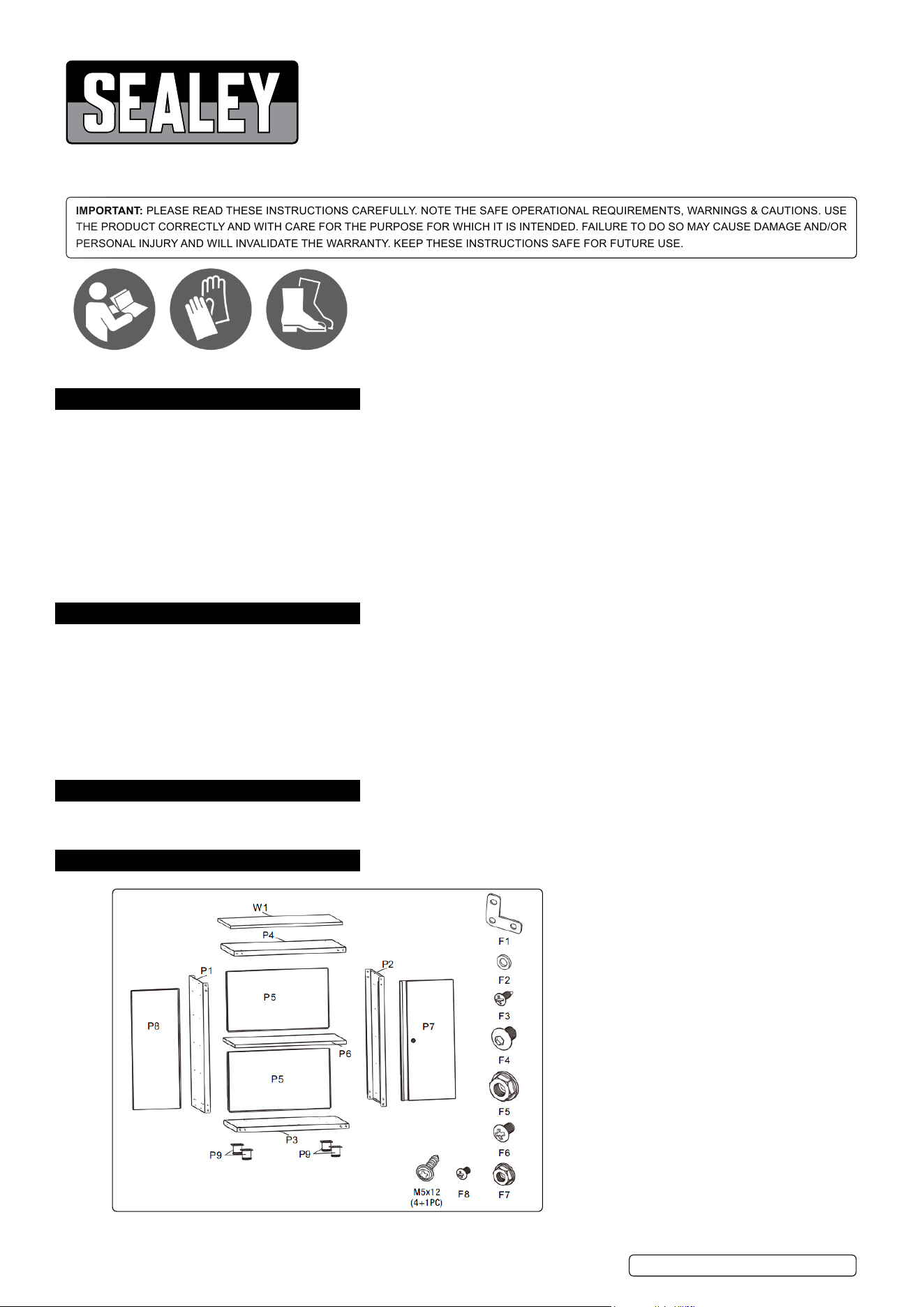

4. contentS
APMS81|Issue108/02/18
Original Language Version
© Jack sealey limited
refer to
instructions
Wear protective
gloves
Wear safety
footwear
shelf weight limit .................................................... 18kg
cabinet weight limit ................................................ 72kg
APMS81|Issue108/02/18
Original Language Version
© Jack sealey limited
5. aSSembly
Step 1
Step 2
Step 3
Step 4

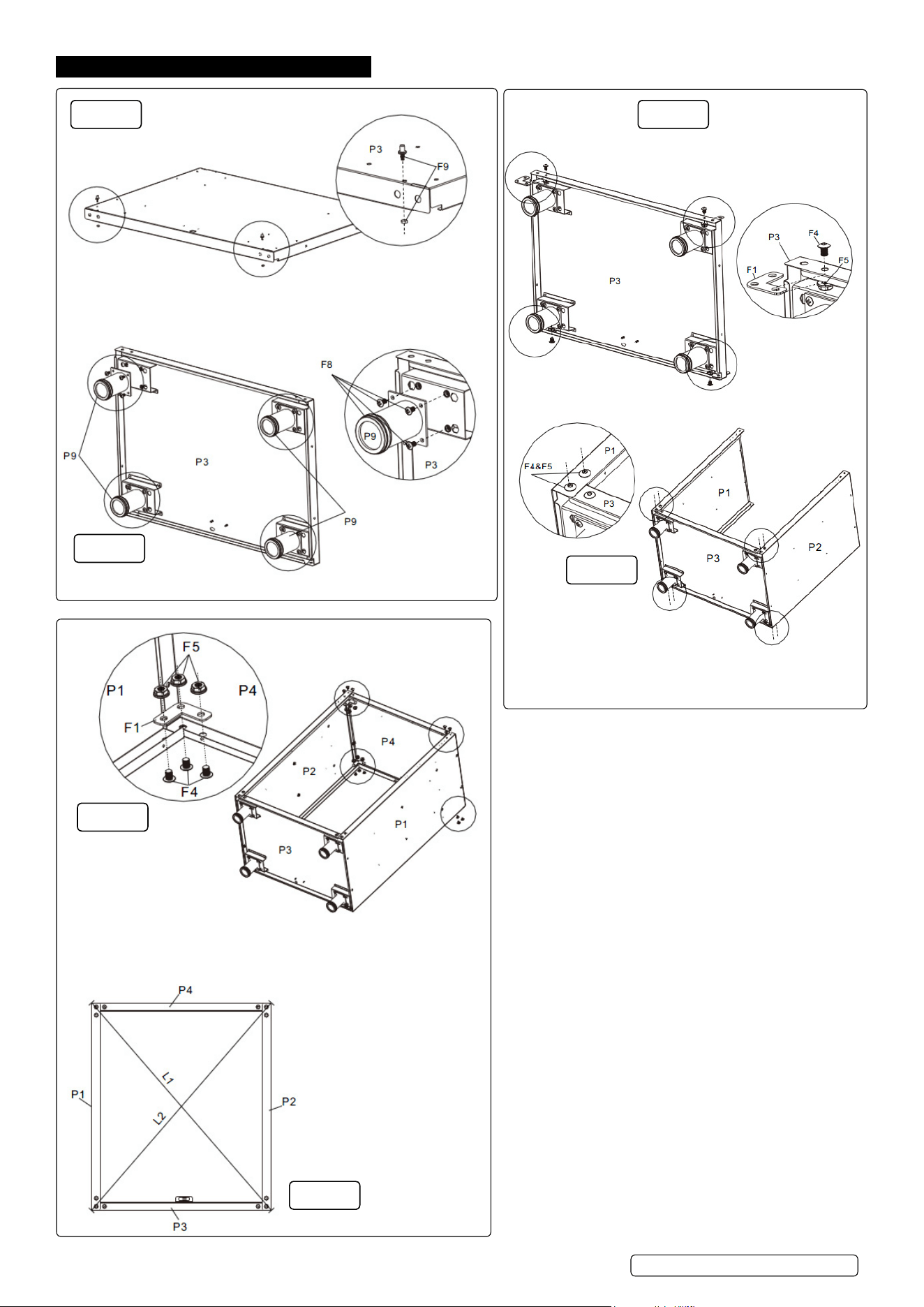

Assemble cabinet frame
fit door pivots
fit side supports x 4
fit sides
Step 5
Step 6
Squarethecabinetframe.Makesurethemeasurementsfrom
cornertocornerareequalbeforecompletelytighteningthebolts.
L1=L2
fit internal supports.
fit cabinet top.
APMS81|Issue108/02/18
Original Language Version
© Jack sealey limited
Step 7
Step 8
Step 9

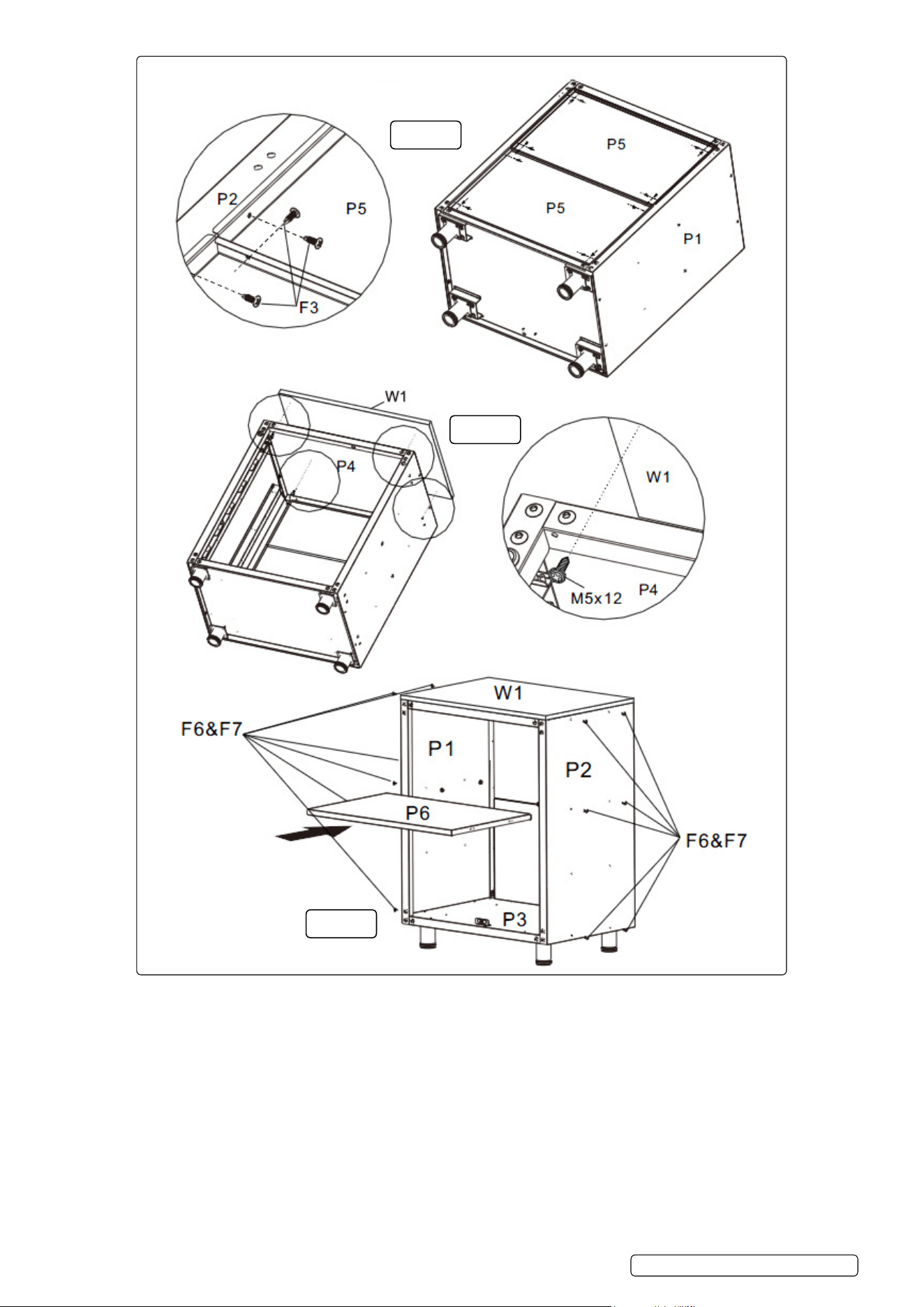

fit back panels
fit worktop
fit side wall to top, shelf and bottom bolts
APMS81|Issue108/02/18
Original Language Version
© Jack sealey limited
Sealey Group, kempson way, Suffolk business park, bury St edmunds, Suffolk. ip32 7ar
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
environment protection
recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceableandrequiresdisposal,drainanyfluids(ifapplicable)intoapprovedcontainersanddisposeoftheproductandfluids
according to local regulations.
note: it is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
important: no liability is accepted for incorrect use of this product.
warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
Step 10
finish
fit doors
