OWNER’S MANUAL
For Household Use Only
TABLE OF CONTENTS
Technical Details 2
How To Contact SEBO 2
Important Safety Instructions 3
SEBO DART Product Features 4
Power Head Features 4
Standard Features of all SEBO Vacuums 5
S-Class Filtration 5

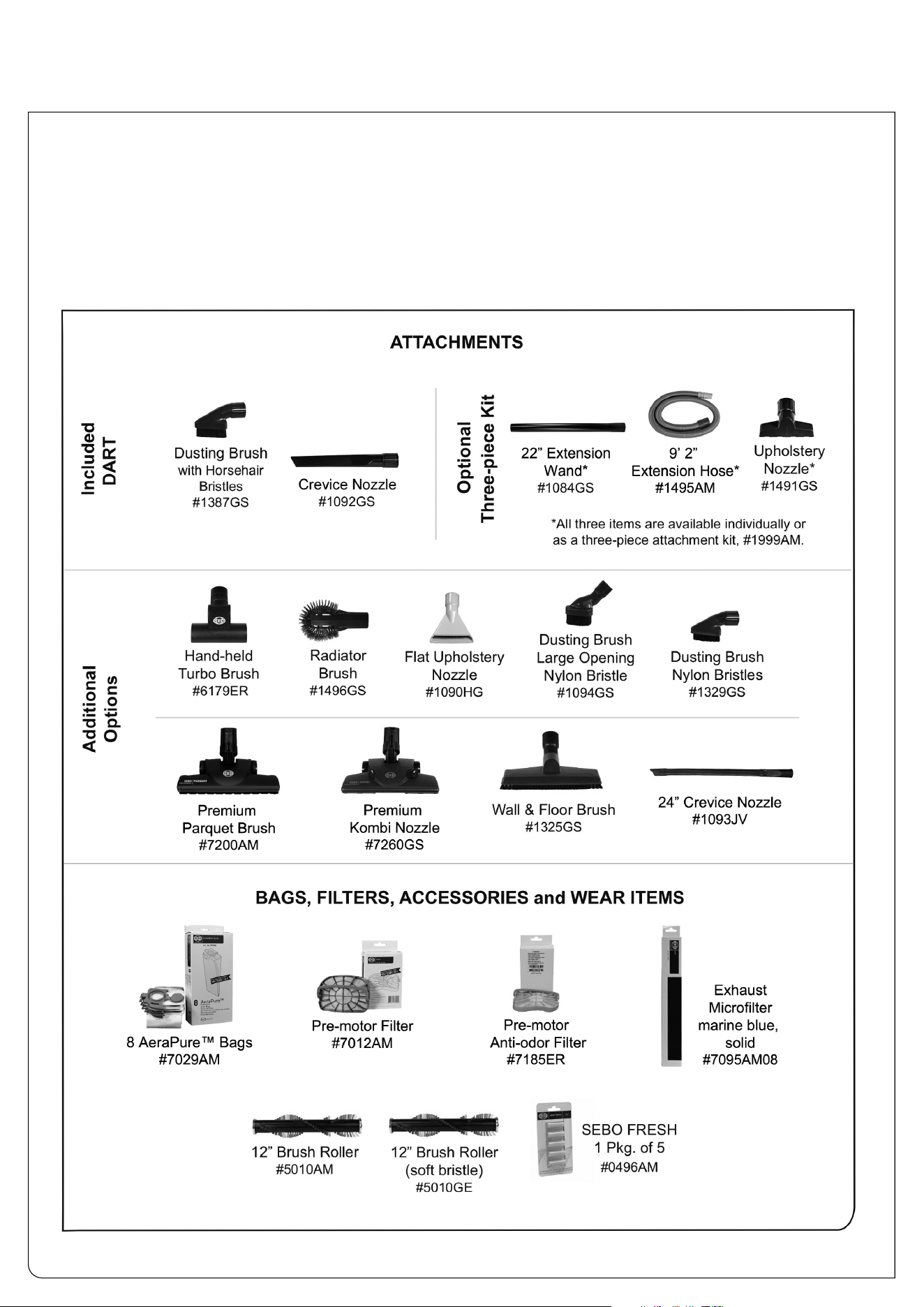

Optional Attachments, Accessories, Bags and Filters 6

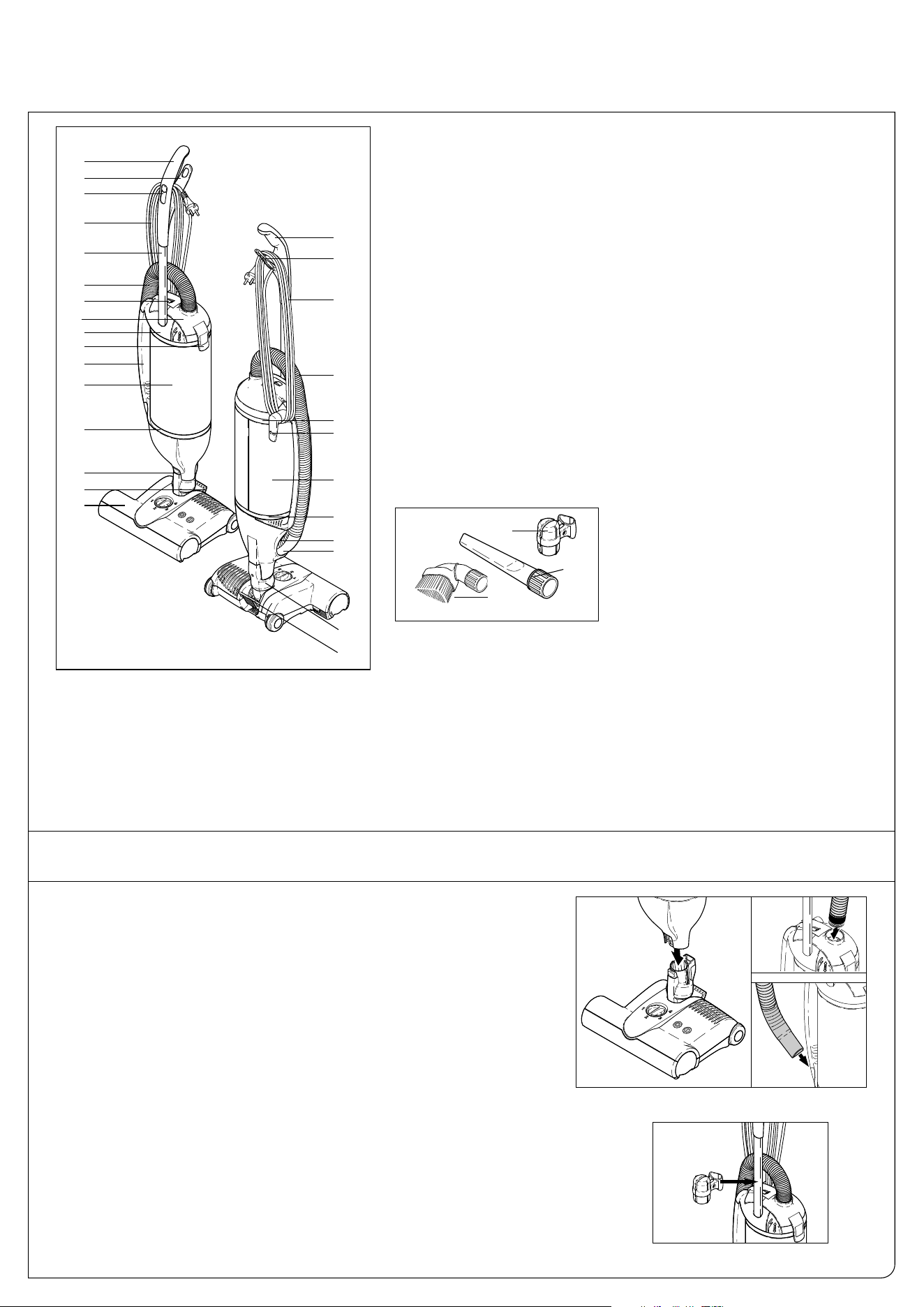

Identification of Parts 7
Standard Attachments 7
Assembly 7

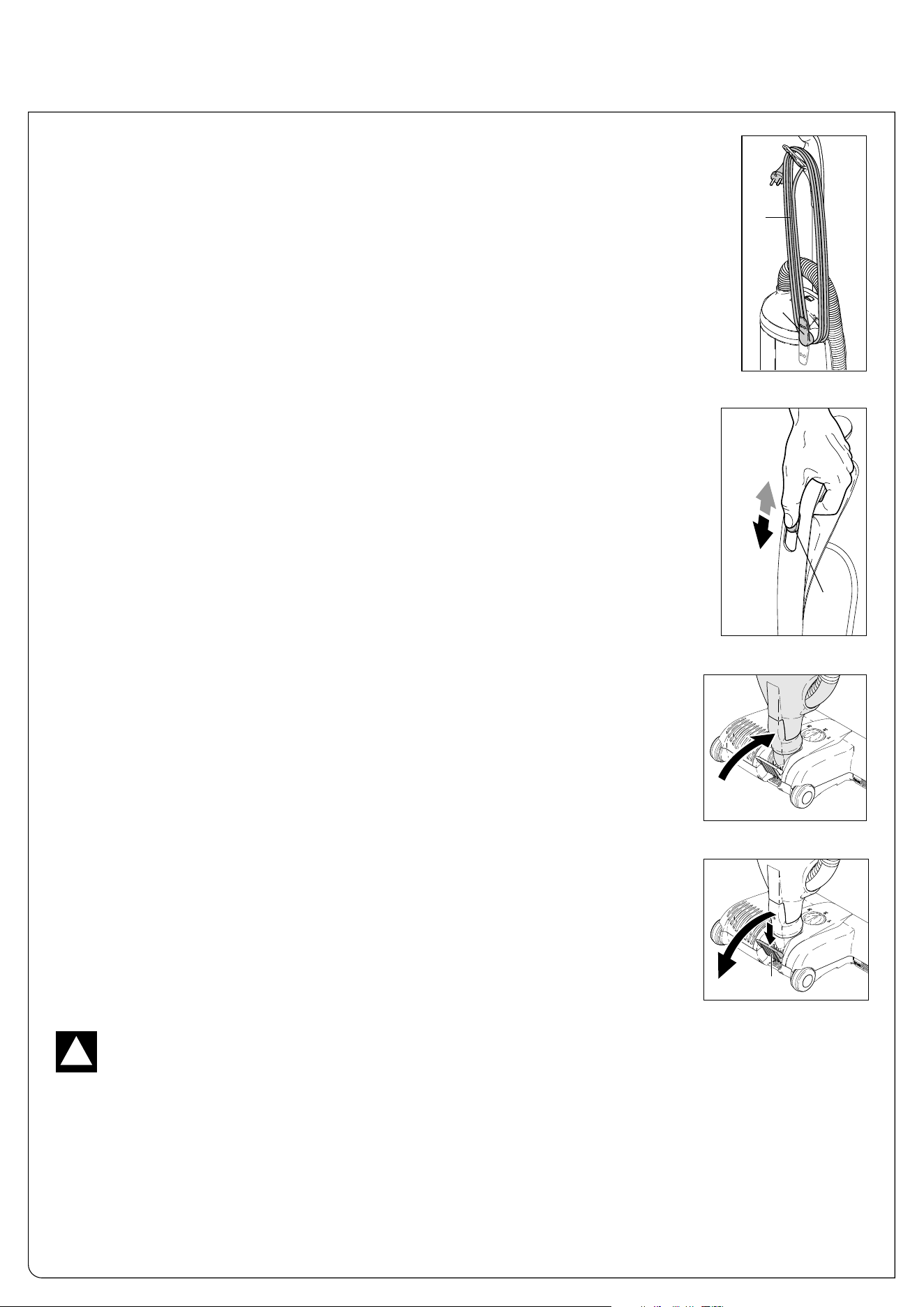

Operating Instructions 8
Starting the Machine 8
Operating with the Power Head 8
Using the Hose Handle & Attachments 9
Detachable Suction Unit 9
Bag Full or Clog Warning - Auto Shut-Off 9
Brush Obstruction Light - Auto Shut-Off 9
The Brush Height Adjustment Feature 9
Indicator Lights 9

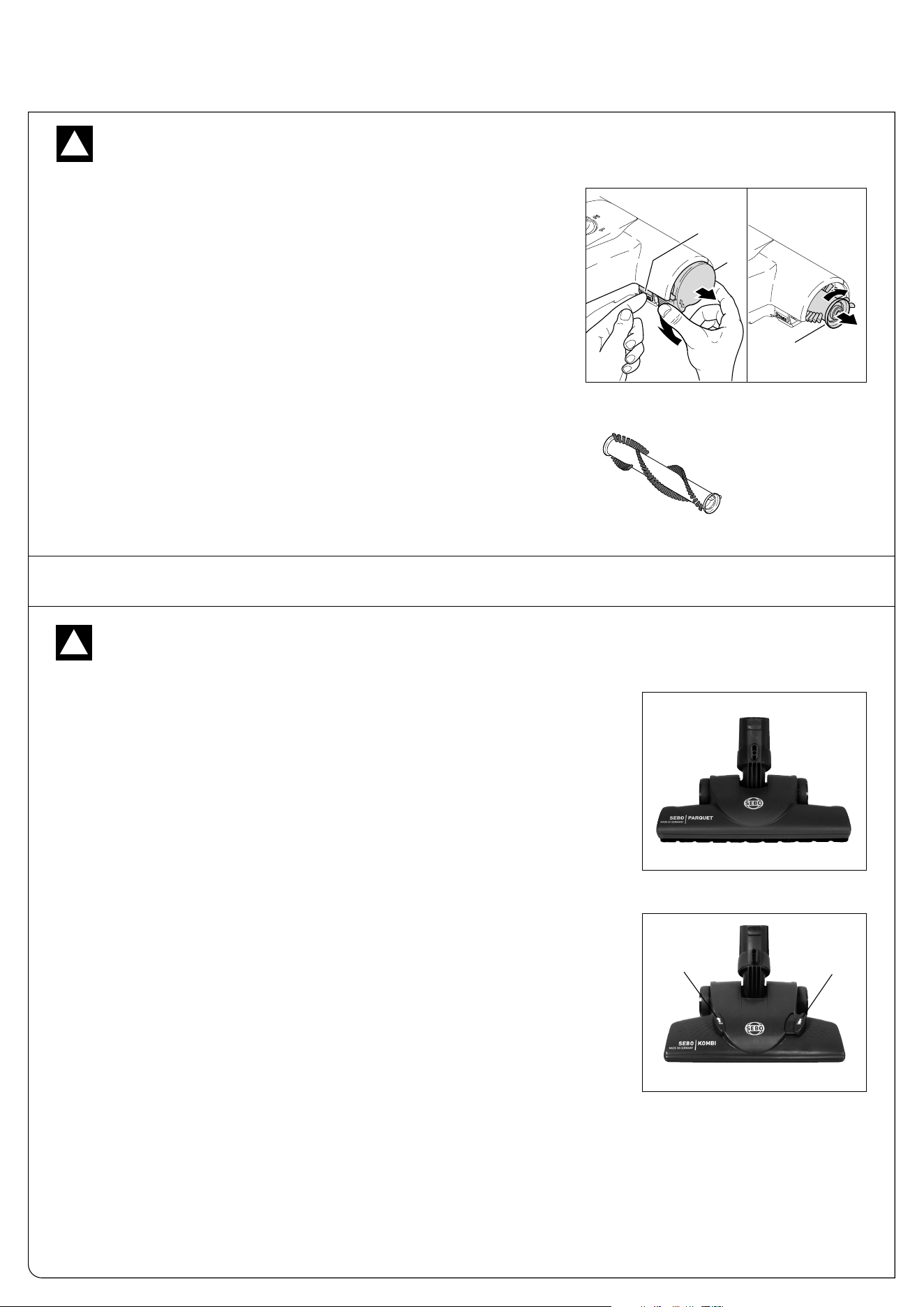

Power Head Maintenance 10
Removing the Brush Roller 10
Cleaning the Brush Roller 10
Use and Maintenance of Optional Floor Tools and Brushes 10
The Optional Premium Parquet Brush 10
The Optional Premium Kombi Nozzle 10

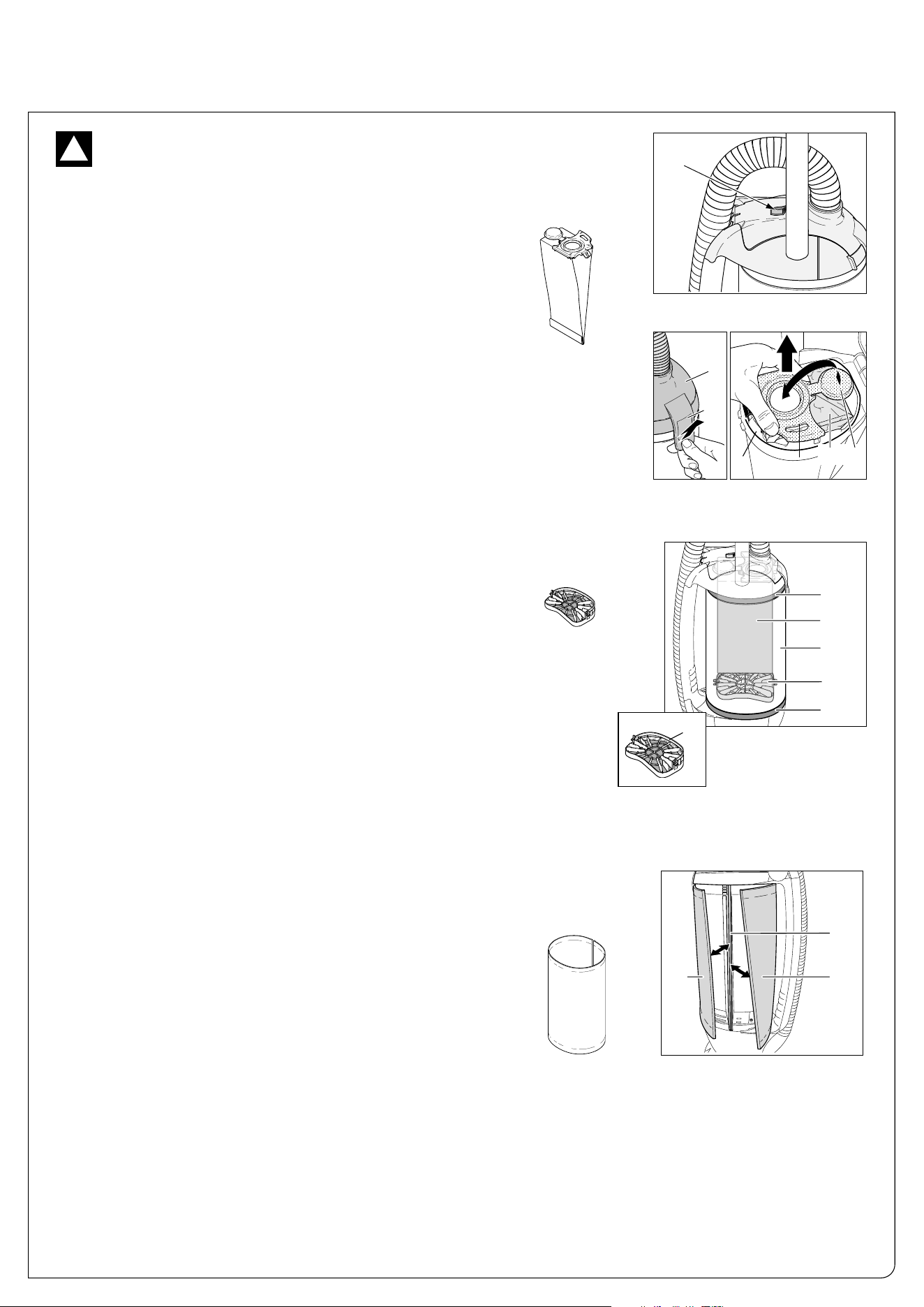

Vacuum Maintenance 11
Changing the Filter Bag 11
Changing the Pre-motor Filter 11
Changing the Exhaust Filter 11

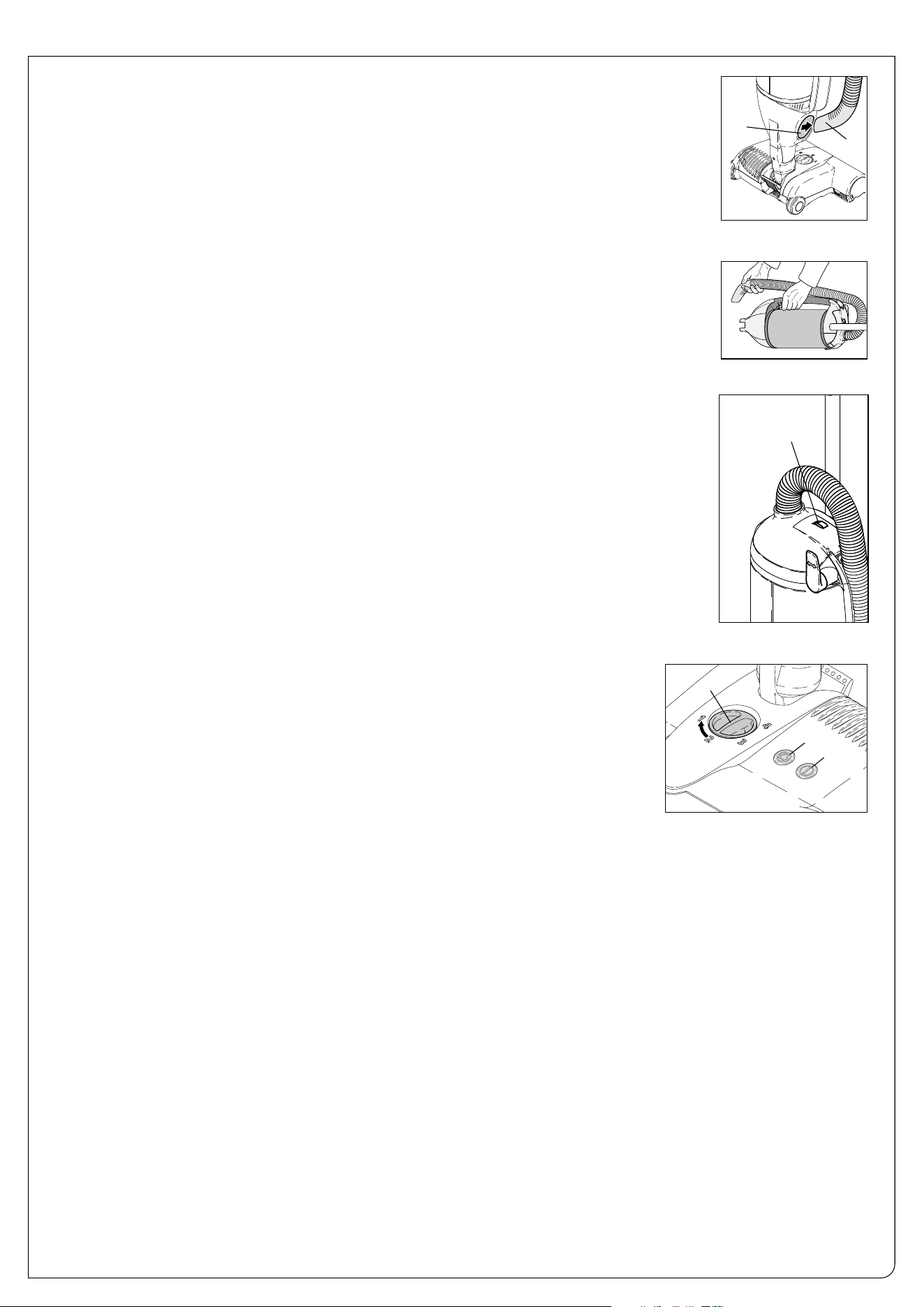

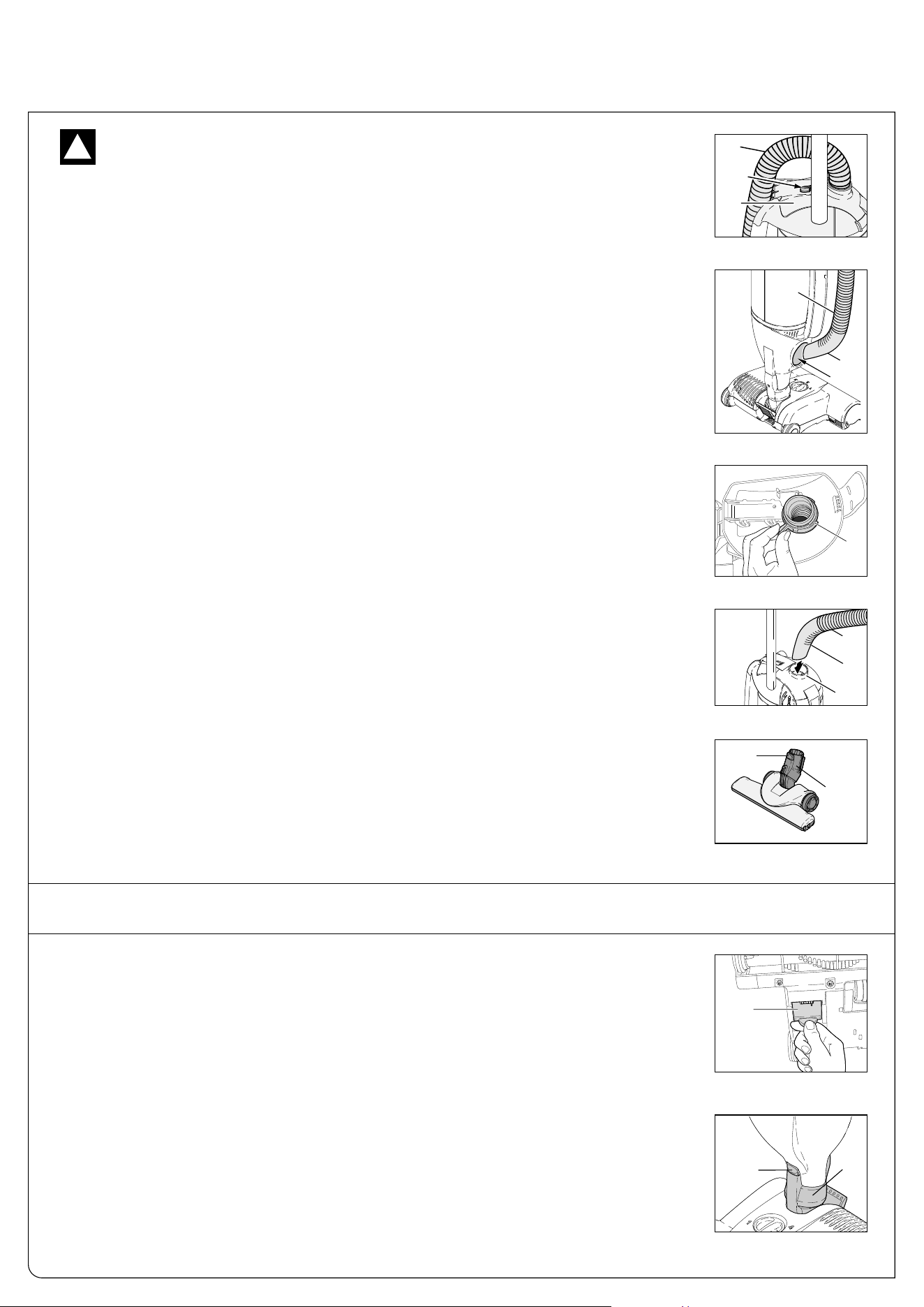

Clog Removal 12
Clogs in the Hose 12
Clogs in Optional Floor Tool Swivel Neck 12
Clog Removal in the Power Head 12
Clogs in the Airflow Pathway 12
Clogs in the Power Head Neck 12
Trouble-shooting Guide 13
Additional Trouble-Shooting Guide for Power Heads 14

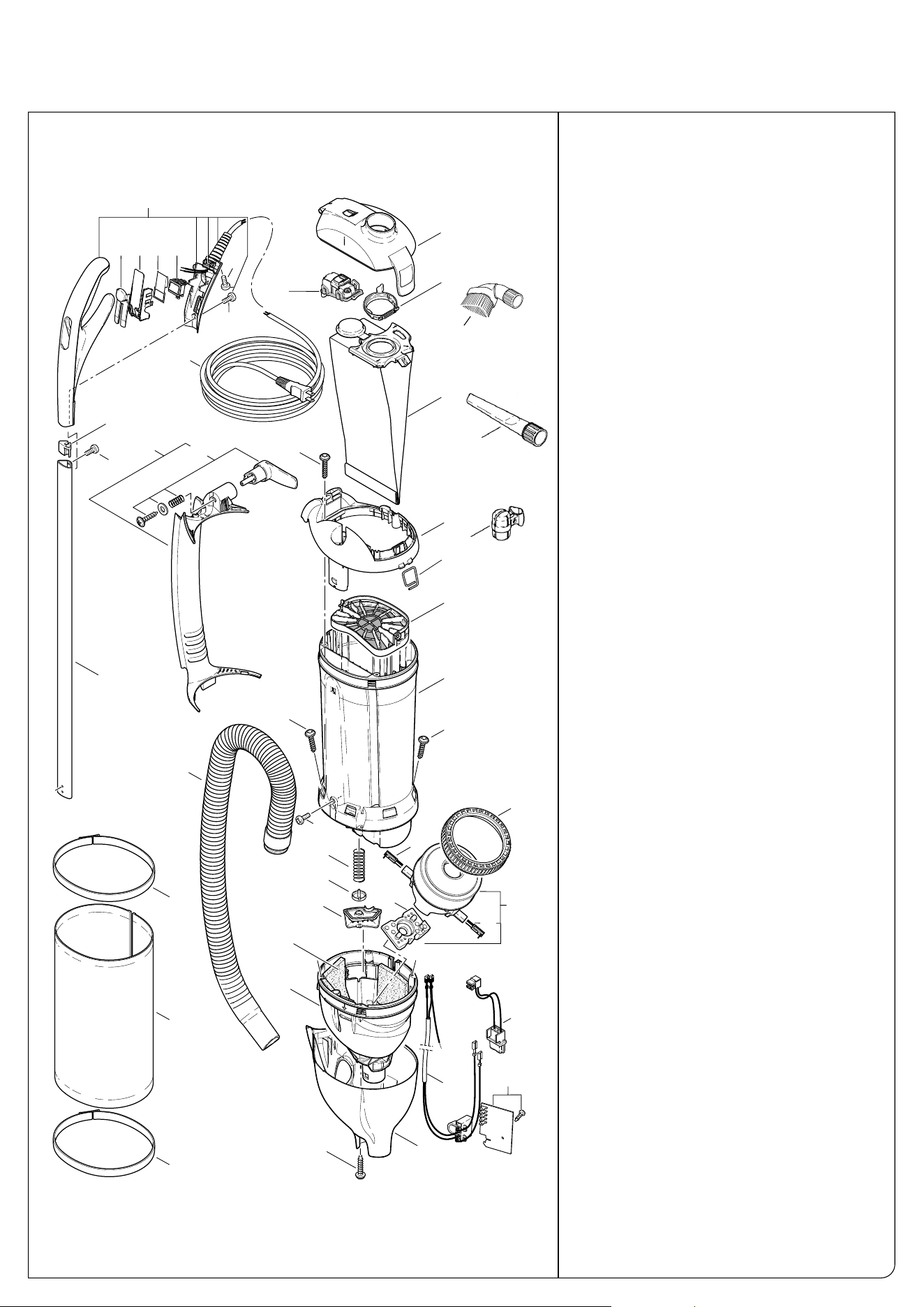

DART Bag Housing with Handle Schematic and Part Numbers 15

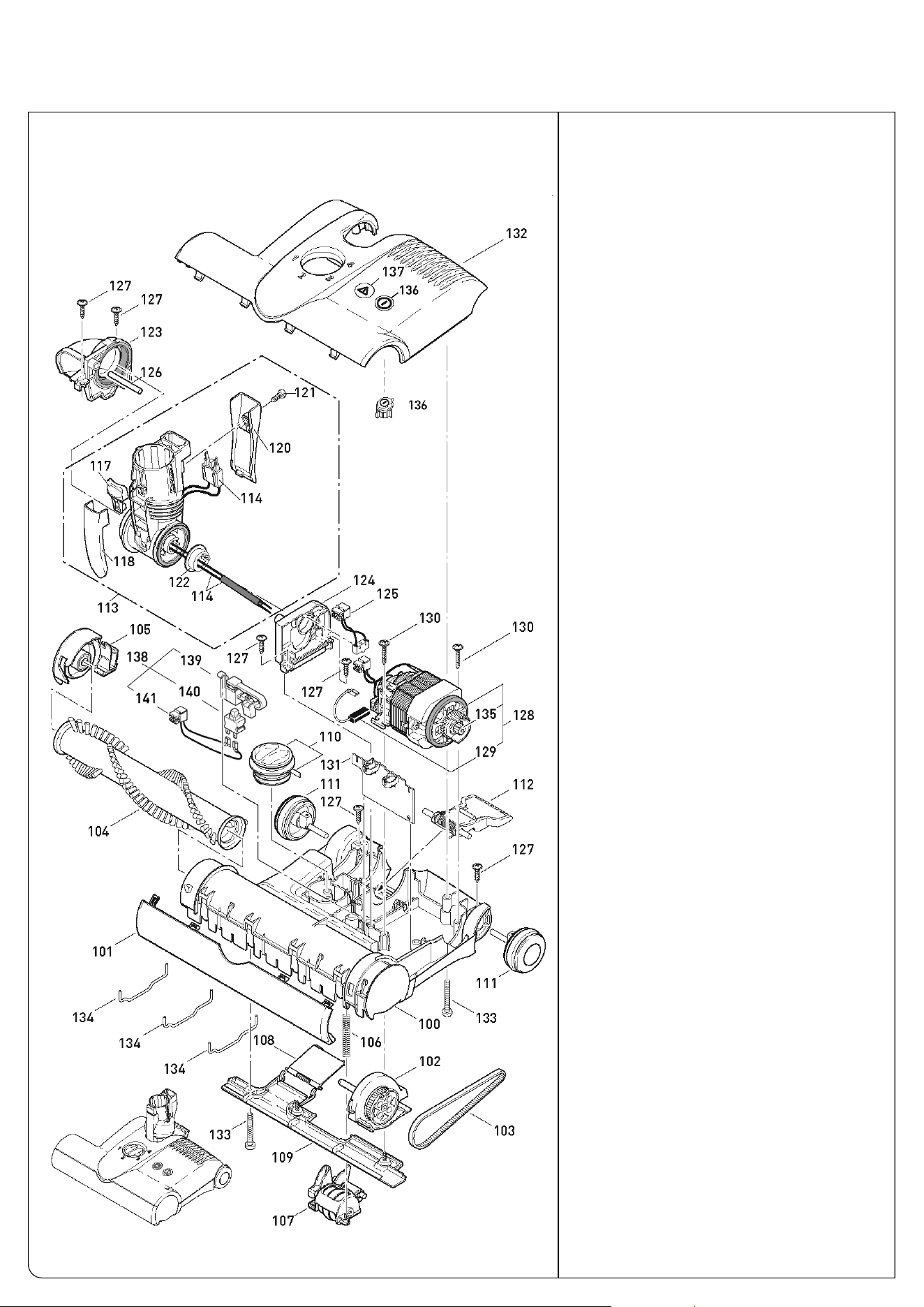

DART Power Head Schematic and Part Numbers 16
2
Vacuum motor 1000 Watts
Water lift (at motor) 90 inches
Airflow (at motor) 102 CFM
Filter bag capacity .92 gallon
Sound level 68 dBA
Weight 15.4 lbs
Cord length 31 feet
Range 34.5 feet
Technical details may be subject to change.
TECHNICAL DETAILS - VACUUM
Brush motor 175 Watts, 1.6 Amps
Width 12 inches
Brush Speed 2700 RPM
Brush roller Replaceable
Brush drive Toothed belt with electronic overload
protection
Technical details may be subject to change.
TECHNICAL DETAILS - POWER HEAD
To contact SEBO in the United States of America:
SEBO America, LLC
Telephone: (800) 334-6614 • Fax: (303) 792-9196
Website: www.sebo.us
For warranty coverage details please refer to your
Warranty Card included with your SEBO vacuum cleaner.
To contact SEBO in Canada:
SEBO Canada
Telephone: (877) 258-5005 • Fax: (800) 270-4807
Website: www.sebocanada.ca
For warranty coverage details and to register your
SEBO vacuum cleaner, go to www.sebocanada.ca
HOW TO CONTACT SEBO
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE
3
1. Do not leave vacuum while plugged in. Unplug from
outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not use near small children or pets. Do not allow to be
used as a toy. Use of this product by children should
always be supervised by an adult.
4. Use only as described in this manual. Use only
manufacturer-recommended attachments.
5. Do not use with a damaged cord or plug. If vacuum is not
working as it should, has been dropped, damaged, left
outdoors, or dropped into water, take it to a SEBO
service center.
6. Do not pull or carry by cord, use cord as a handle, close
a door on cord, or pull cord around sharp edges or cor-
ners. Do not run vacuum over cord. Keep cord away from
heated surfaces.
7. Do not unplug by pulling on cord. To unplug, grasp the
plug – not the cord.
8. Do not plug in if power switch is in the “ON” position.
9. Do not use outlets above counters to plug in vacuum –
damage to items in the surrounding area could occur.
10. Always carry the vacuum over steps and sills.
11. Do not handle plug or vacuum handle with wet hands.
12. Do not put any object into vacuum openings. Do not use
machine with any openings blocked. Keep openings free
of lint, hair, and anything that may reduce air flow.
13. Do not re-use filter bags or wash the filters.
14. Do not remove any screws from vacuum.
15. Do not vacuum up anything that is burning or smoking,
such as cigarettes, matches, or hot ashes.
16. Do not use vacuum without filter bag and/or filters in place.
17. Turn off all machine controls before unplugging.
18. Use extra care when cleaning on stairs.
19. Do not use machine to vacuum up flammable or
combustible liquids such as gasoline or use in areas
where they may be present.
20. Machines can cause a fire when operated near flammable
vapors or materials. Do not operate this vacuum near
flammable fluids, dust or vapors.
21. Maintenance and repairs must be done by qualified personnel.
22. Use only original SEBO replacement parts.
23. Do not use vacuum as a step.
24. Do not use the handle assembly (5), which inserts into the
top of the bag housing, to carry the machine. The carrying
handle is located on the side of the machine.
25. If vacuum is used on plush carpet or carpet with thick
padding, do not leave machine standing in one place with
machine turned on.
26. While the vacuum is in use, the power cord should be
unwound from the cable reel at least two thirds of its length.
27. Keep hair, loose clothing, fingers, and all parts of body away
from vacuum openings and moving parts. Do not place
fingers or other body parts under vacuum unless it is
unplugged. Do not touch the brush roller while the machine
is plugged in.
28. Do not place the power head over rug or carpet edges.
29. Store the vacuum in a dry place at room temperature. When
the vacuum is not in use, you should rewind the cord onto
the cord reel
30. Any other servicing should be performed by an authorized
service representative.
31. Avoid picking up sharp objects.
32. Always unplug vacuum before connecting or disconnecting
either hose or power head.
33. Use a SEBO power head only in combination with a SEBO
vacuum cleaner.
34. Do not connect power head to a malfunctioning or damaged
vacuum.
When using an electrical appliance, basic precautions must always be followed.
To reduce the risk of electric shock, this vacuum cleaner has a polarized plug; one blade is wider than
the other. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any
way. Connect only to the outlet type specified on the serial number plate underneath the machine.
SAVE THESE INSTRUCTIONS.
WARNING: To reduce the risk of fire, electric shock, or injury:
!

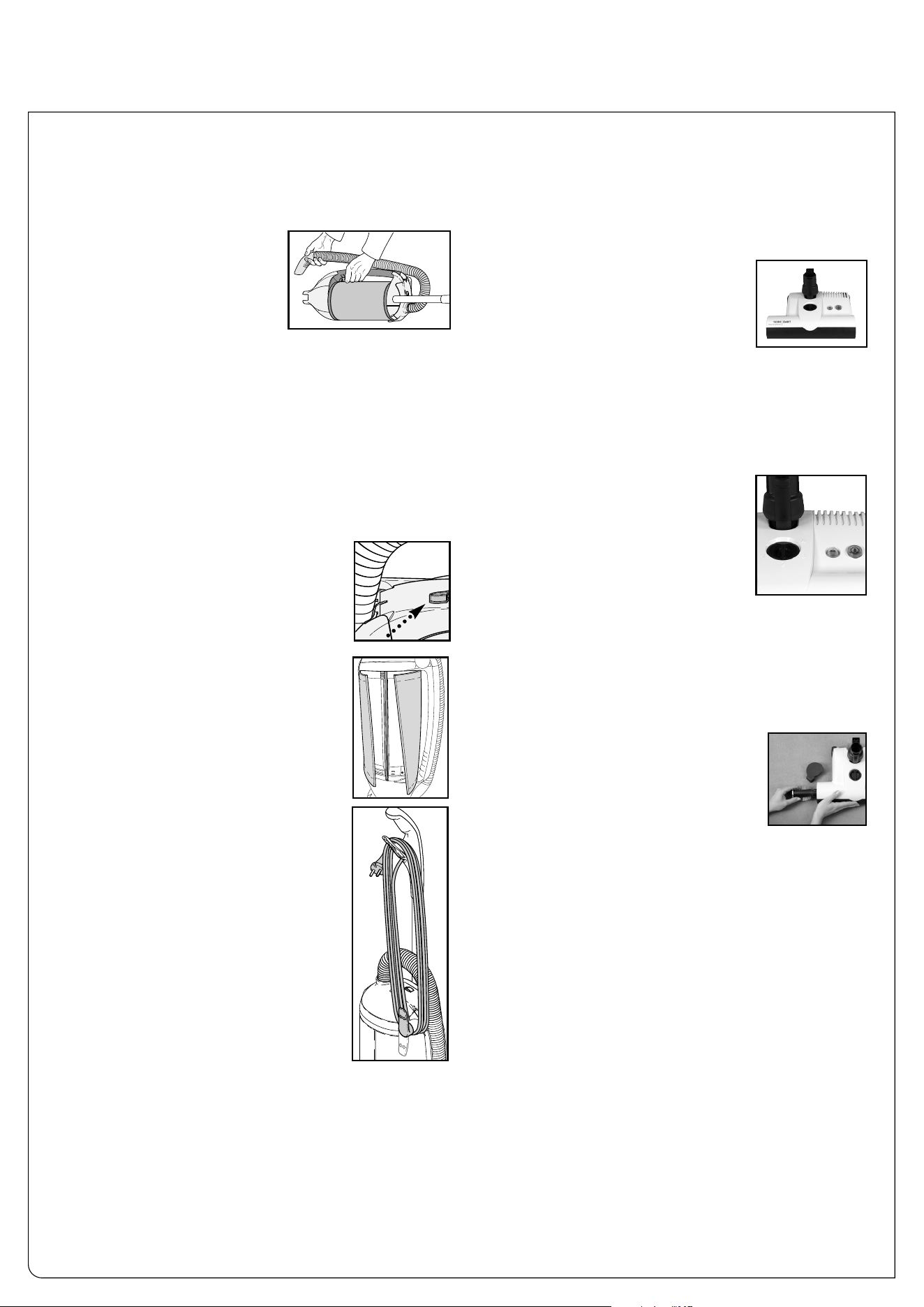

DESIGNED FOR CARPETS AND HARD FLOORS – The stylish DART
offers all the flexibility of a canister vacuum in an upright configura-
tion! It has an ultra-modern filtration system, a detachable suction
unit that becomes a hand-held vacuum, and an instant-use suction
hose.
Detachable Suction Unit Creates a
Hand-held Portable Vacuum – By
removing the power head or nozzle,
the DART instantly transforms from
an upright floor vacuum into a hand-
held portable vacuum, ideal for clean-
ing stairs, upholstery and car interiors. It can be easily carried
using its side handle or the optional shoulder strap attachment.
A Flat-to-the-floor 6-inch Profile – The vacuum’s low profile
makes cleaning under furniture and beds easy!
Instant-use Suction Hose – The integrated instant-use suction
hose is always ready! Just pull it out to clean corners, crevices or
furniture. Two on-board tools and a range of optional attachments
can be fitted to the hose, such as a 20-inch wand for cleaning hard-
to-reach areas or a 9-foot extension hose, which creates a total
length of 15 feet...perfect for cleaning stairs.
Full Bag or Clog Indicator – When a full bag, a clog
in the airflow pathway, or an excessively dirty
microfilter is detected, an indicator gauge on the
bag housing lid “fills” with orange color and an air-
flow bypass valve opens, to prevent overheating
and motor damage from a lack of adequate airflow.
Innovative Exhaust Filter...Design and
Functionality – Behind the stylish surface
hides an ultra-modern S-class exhaust micro-
filter that not only provides excellent filtration,
but it also absorbs motor noise, resulting in
extremely quiet operation.
Thirty-one Foot Cord with Rotating Quick-
release Hook – It is easy to quickly unwind the
cord by rotating the hook!
The DART Includes a Power Head and Two
On-board Tools – Along with a commercial
quality power head, the DART comes standard
with a crevice nozzle and dusting brush.
SEBO DART PRODUCT FEATURES
DART Power Head -
Designed for All Floor Surfaces.
The power head deep cleans carpets, or its spinning brush roller
can be shut off to clean delicate rugs and hard floors with straight
suction. It also has easy brush roller removal, and a warning light
illuminates when brush height is set too high for optimal cleaning,
the bristles are worn, or automatic shut-off occurs due to a brush
obstruction.
Power Head Width with One-sided Edge
Cleaning – The DART power head is 12 inch-
es wide with a 10
1
⁄2-inch cleaning path.
Manual and Automatic Brush Shut Off – The DART can clean
delicate rugs or hard floors with straight suction because the
brush roller can be manually switched off by pressing the green
illuminated on/off button on the power head cover. Also, the
brush roller automatically shuts off when the neck of the power
head is in its upright-locked position.
Brush Obstruction Light with Automatic
Brush Shut Off – If an obstruction becomes
jammed in the brush roller, a red brush-
warning light will quickly flash, the brush
roller will immediately stop spinning and the
vacuum will shut off.
The user should turn the
power switch off, unplug the machine, and
immediately remove the obstruction. If the
user restarts the machine without removing the obstruction, the
power head will again shut off and the red light will flash.
This pre-
vents the belt from breaking and protects the motor and carpet
from damage.
Four-level Manual Brush Height Adjustment – The brush can
be adjusted up or down for optimal cleaning effectiveness.
Easy Brush Removal and Cleaning – Cleaning
hair or other debris from the brush roller or
replacing it when its bristles are worn is quick
and easy, and no tools are required! This fea-
ture ensures consistently effective brush agi-
tation of the carpet pile.
Easy Maintenance – The clog removal door and brush roller are
easy to access on the power head.
4
STANDARD FEATURES OF ALL SEBO VACUUMS
55
Designed and Manufactured in Germany – Legendary quality,
reliability and performance make SEBO vacuums the first
choice of cleaning professionals throughout the world.
World’s Best Pet Vacuums – Because of superior power-head
and brush-roller technology, SEBO vacuums are the world’s
best for pet hair removal!
Tightly Sealed Vacuums Ensure Effective Filtration – Dirty air,
which flows through a vacuum, can only be filtered completely
if it does not escape into the room through seams or seals in
the machine. This is why all SEBO vacuums have tight seals
throughout.
Many vacuum companies with high-filtration claims are actual-
ly quoting specifications made by the manufacturer of the filter
material, as measured in the laboratory, not the filtration effec-
tiveness of the vacuum itself while operating. Whether or not
dirty air can escape through leaks in the body of the machine is
not considered. The filtration effectiveness of SEBO vacuums is
tested while they operate.
Reliable, Commercial-grade Components – All SEBO vacuums
are constructed with thick, reinforced, ABS plastic, aluminum
and metal parts, steel axles and bearings, and high-end, qual-
ity motors. Therefore, SEBO users own reliable, long-lasting
vacuum cleaners. Competing vacuums are made with thin,
flimsy, inexpensive, plastic materials, none of which are rein-
forced, and typically have useful lifespans of one or two years.
Rubber Wheels and Soft Bumpers Protect Homes – Smooth-
gliding, rubber wheels protect hard floors and provide excep-
tional maneuverability. In addition, the bumpers that surround
the power heads and the soft AIRBELT bumpers that surround
SEBO’s canisters protect furniture, walls, and vacuum hous-
ings from incurring scuffs and scratches during use.
Advanced, Brush-Roller Technology – SEBO’s brush rollers
are uniquely designed to funnel hair and debris into the power
head’s airflow channel, which improves vacuum cleaning per-
formance on all flooring surfaces.
Changing Bags is Easy and Clean – SEBO filter bags can be
changed in just a few seconds, and a hygiene cap keeps dust
sealed inside during removal and disposal.
Save Money! SEBO Vacuums Last for Years and Extend
Carpet Life! – If properly maintained, SEBO vacuums save ordi-
nary, residential users hundreds of dollars, by providing excel-
lent performance for ten to fifteen years or more, and their
deep-cleaning, power-brush technology extends the life of car-
pets. Typical vacuums perform poorly, even when new, and
usually do not last beyond two years. So six or seven “dispos-
able vacuums” must be purchased during the average life
expectancy of just one SEBO machine.
Incredible Warranty Coverage – All SEBO models include a
FREE seven-year warranty on the motor and five-years on non-
wear parts and labor charges.

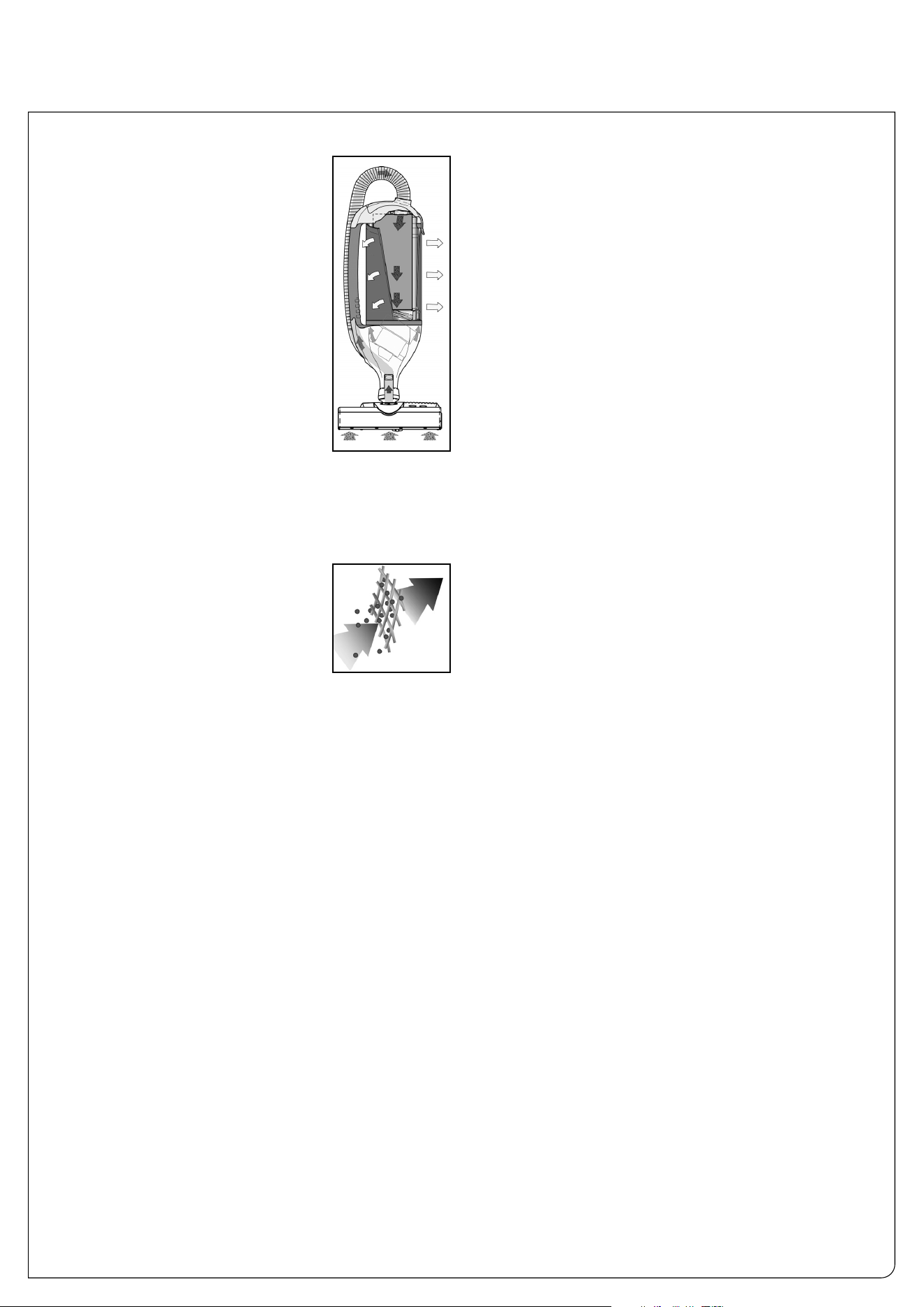

SEBO’s FILTRATION SYSTEM:
Bagged vs. Bagless . . . Bags are Better! –
Top-fill, three-layer AeraPure™ Bags are
an integral part of SEBO’s filtration system
because they hold virtually all the dirt cap-
tured by the vacuum, which improves the
effectiveness and useful life of the microfil-
ters. They also ensure continuously strong
suction because dirt enters from the top,
deposits at the bottom, accumulates
upward, and air exits through the sides,
which allows unimpeded airflow as they fill
to capacity. And they can be tightly sealed
with a hygiene cap when full, so no dust can
escape into the air during bag removal and
disposal.
In contrast, without bags to hold nearly all
the captured dirt, the microfilters on
bagless vacuums quickly clog from exces-
sive dirt build-up and must be replaced often, or a loss of suc-
tion and cleaning effectiveness will occur. In addition, dust
becomes airborne when emptying bagless dirt containers.
Lastly, bagless vacuum microfilters are expensive, usually
costing more than a multi-year supply of SEBO filter bags.
S-class, Pre-motor and/or Exhaust
Microfilters – S-class, Pre-motor and
Exhaust Microfilters (S =“Schwebstoff” =
airborne particles) are made from electro-
statically charged, micro-fiber material,
which attracts and captures dust particles
from the airflow of the vacuum before and
after it passes over the motor to cool it. Cooling the motor with
super-clean air increases motor life and reduces the possibili-
ty of maintenance, even after many years of use. Also, the
exhaust air is cleaned to the highest level before being emitted
from the machine. The S-class Standard requires filters to
absorb greater than 99.9% of particles down to 0.3 microns in
diameter. For comparison, 100 microns is the diameter of a
human hair. Their advantages are a relatively open texture that
allows smoother airflow for better suction performance, a
longer life expectancy, and they cost less than HEPA filters.
OPTIONAL ATTACHMENTS, ACCESSORIES, BAGS & FILTERS
In addition to the standard on-board tools, a variety of optional
attachments are available. The 9’ 2”extension hose (extends
suction hoses) and the 22” extension wand are very popular
because they create useful tools for cleaning stairs and out-of-
reach areas. Another popular attachment is the hand-held
Turbo Brush with an
air driven rotating brush
for removing pet
hair from upholstery and stairs. See page 10 for more informa-
tion on the Parquet Brush and Kombi Nozzle.
SEBO AeraPure™ filter bags can be purchased in boxes of
eight. SEBO bags, filters and accessories are reasonably priced
and widely available.
To create a fresh scent while vacuuming, SEBO FRESH” is
available. To use, deposit a scented stick in the filter bag.
6
IDENTIFICATION OF PARTS
7
Place the power head (16, 28) or floor tool (29, 30) on the floor with the
power head neck (20) upright. Hold the vacuum vertically and Insert the
suction opening of the vacuum into the neck of the head. Push firmly and
evenly downward until the tool release button (14) snaps into the locked
position - see figure 1.
Insert the black end of the hose (6) into the connection on the filter cover
(8) - see figure 2a. Insert the hose handle (19) into the suction opening (18)
on the side of the vacuum - see figure 2b. Press the hose into place on the
side of the machine.
Install the attachment clip (21) to the handle assembly (5) using the includ-
ed screw. Insert the crevice nozzle and dusting brush into the clip - see fig-
ure 3.
Standard Attachments
21. Attachment clip
22. Crevice Nozzle
23. Dusting Brush
1. Handle grip
2. Upper cable hook
3. On/Off switch
4. Power cable
5. Handle Assembly
6. Hose
7. Bag full indicator
8. Bag Housing cover
9. Bag housing
10. Bag housing release latch
11. Carrying handle
12. Exhaust filter
13. Exhaust filter clamps
14. Tool release button
15. Foot pedal
16. Power head
17. Cable hook
18. Suction opening
19. Hose handle
20. Power head neck
ASSEMBLY
21
22
23
Figure 1 Figure 2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
2
4
6
13
17
12
11
18
19
20
15
Figure 3
a.
b.
OPERATING INSTRUCTIONS
8
Starting The Machine
- Figures 4 & 5
Before turning on your vacuum cleaner, make sure that the vacuum is in its upright locked posi-
tion (figure 6).
1. With the power switch (3) in the OFF position, turn the cable hook (17) to the left or right to
release the cable (4). Lift the cable off the upper cable hook - see figure 4.
2. Plug the polarized power cord into a 120 volt wall outlet located near the floor.
3. Turn the On/OFF switch (3) downward to the ON position - see figure 5.
WARNING! The quality, condition, coating, texture, age and manufacturing technique of all floor surfaces vary.
Therefore, vacuums with rotating brushes, including your SEBO, may damage some floor coverings or surfaces. Some types
of high-gloss hardwood floors, cushion vinyl, berber carpets, long shag, and delicate or hand-woven carpets are particularly
vulnerable to damage by rotating brushes. When possible, consult the materials supplied by your flooring manufacturer for
information on proper upkeep and cleaning. To ensure that your new SEBO vacuum cleaner is compatible with your floor,
please test the vacuum cleaner on each type of flooring surface in a small inconspicuous area to determine if any
damage occurs. If damage occurs, stop using the vacuum cleaner immediately!
!
Operating with the Power Head
- Figures 6, 7, & 11
A. When the power head is switched on with the power head neck (figure 6) in the upright locked
position, the brush roller will not spin and the on/off light will illuminate in yellow. To release
the power head from the upright locked position, press down on the foot pedal (15, figure 7) and
lower the power head neck into the normal operating position. The brush roller will then start
spinning and the on/off light on the power head will illuminate in green. The handle can be low-
ered to a horizontal position useful for vacuuming under beds.
B. To clean delicate or hard floor surfaces with straight suction only, the power head is equipped
with an on/off switch (35, figure 11). When this switch is used to turn off the brush roller, the green
light will change to yellow, indicating to the user that the brush roller is not turning. Pushing the
button again will turn on the brush roller and the light will turn green.
NOTE: The brush roller is off and stopped only when the machine is in an upright position and
the handle is completely locked in place. If you have the machine at an angle, the brush roller
will spin. Leaving the machine in a stationary position for an extended period of time while the
brush roller is spinning may cause damage to your floor or carpet. You may also switch off the
brush roller by pressing the on/off switch (35, figure 11) on the top of the power head.
Always turn the power switch off when changing heads or unplugging the vacuum. Turn the
ON/OFF switch on to its OFF position, then unplug the vacuum when changing heads or storing
the vacuum. Make sure the handle is in its upright locked position before letting go of the han-
dle. NOTE: When switching off the power switch, always make sure the switch “clicks” into the
OFF position before unplugging the power cord.
When you have finished using the vacuum, turn the on/off switch to the OFF position. Then,
unplug the cord and wind it onto the upper cable hook and upper hook. The rubber tip on the
end of the handle allows the vacuum to be propped against a wall without damage.
4
Figure 4
17
Figure 6
Figure 7
Figure 5
ON
OFF
3
15
9
The Brush Height Adjustment Feature - Figure 11
To adjust the brush height, rotate the dial (33) for high carpet (dial setting 4) and progressively lower (bare floor is dial setting
1). The brush obstruction light located on top of the power head (34) will illuminate in red if the height setting is too high. Dial
down to the next number until the light is no longer illuminated. If the red light does not turn off, the brush roller may be worn.
Figure 11
33
34
35
Indicator Lights - Figure 11
By pushing the foot pedal (figure 7) and lowering the handle, you activate the power head and the brush begins spinning.
Failure to use the foot pedal will cause lasting damage to the machine. The electronic brush control constantly monitors the
status of the brush, communicating the status through the lights on top.
Green On/Off Light: Brush is on and spinning.
(35, figure 11)
Yellow On/Off Light: The brush roller has been switched off and the vacuum is operating with straight suction only.
(35, figure 11)
Red Brush-warning Light: The brush is not fully engaged in the carpet. The height adjustment should be lowered. If the
(34, figure 11) height adjustment is at its lowest setting, the brush is worn and needs to be replaced.
Red Brush-warning
Light Flashing: The brush is blocked. Turn off the power head, disconnect it from the power source, and then
( 34, figure 11) remove the blockage (see page 12).
Using the Hose Handle, Hose & Attachments - Figures 8 & 9
The hose handle (19) is useful for vacuuming corners and hard-to-reach areas. You may use the
hose handle with or without an attachment. Pull the hose handle (19) from the suction opening (18)
in the side of the vacuum. Keep a firm hold on the handle grip while using the hose handle as it
could tip if the hose is pulled too far. The standard attachments [the crevice nozzle (22) and dust-
ing brush (23)] and the optional attachments [the hand-held Turbo brush, upholstery nozzle,
straight tube and extension hose (see page 6)] may be inserted onto the hose handle. It is not nec-
essary to turn off the vacuum while switching the attachments. NOTE: When using the hose and
attachments, keep the vacuum in its upright position.
To change a floor tool or power head, switch off the power and unplug the vacuum. Press the tool
release button (14) and pull the vacuum out of the power head neck (20). Insert the vacuum into
the new tool and push down gently until it snaps into place. Plug the vacuum in and switch the
power on.
When changing power heads and floor tools, always switch the vacuum off with the main power
switch (3), and then unplug the power cord. NOTE: When switching off the power switch, always
make sure the switch “clicks” into the OFF position before unplugging the power cord.
Detachable Suction Unit - Figure 9
When detached from the power head, or floor tool, the DART transforms itself into a lightweight,
powerful suction unit, which can be carried around using its comfortable carrying handle (figure
9). Ideal for cleaning stairs, car interiors or upholstery. To remove a floor tool or power head,
switch off the power and unplug the vacuum. Press the tool release button (14) and pull the vac-
uum out of the power head neck (20).
Full Bag or Clog Indicator – Figure 10
When a full bag, a clog in the airflow pathway, or an excessively dirty microfilter is detected, an indi-
cator gauge on the bag housing lid (7) “fills” with orange color. The user should turn the switch off,
unplug the machine and immediately insert a new bag or remove the clog (to remove a clog, refer
to the Clog Removal section on page 12).
Figure 9
Figure 8
19
18
Brush Obstruction Light & Auto Shut Off – Figure 11
If an obstruction becomes jammed in the brush roller, a red brush-warning light will
quickly flash, the brush roller will immediately stop spinning and the power head will
shut off.
The user should turn the power switch off, unplug the machine, and immediately
remove the obstruction. If the user restarts the machine without removing the obstruction,
the power head will again shut off and the red light will flash.
This prevents the belt from
breaking and protects the motor and carpet from damage.
Figure 10
7
POWER HEAD MAINTENANCE
10
To remove a brush or floor tool, switch off the power and unplug the
vacuum. Then, press the tool release button (14) and pull the vacuum out of the
neck.
Premium Parquet Brush (optional) - Figure 13
The optional Parquet brush is specially designed for use on hard surfaces. The
brush should be cleaned regularly. Remove the parquet brush from the vacuum to
clean. Fibers and hair can be pulled out of the bristles manually, or vacuum the
bristles using the flexible hose.
Premium Kombi Nozzle (optional) - Figure 14
The optional Kombi nozzle is adjustable for carpet or hard floors. To set for carpet,
slide the up arrow button (39) to the right until it clicks into place. The hard floor
dusting brush will raise up allowing the head to move over the carpet. To set for
hard floors, slide the down arrow button (40) to the left until it clicks into place. The
brush will lower to gently sweep your floors. The slider in Figure 14 is set in the
position for carpet. The brush should be cleaned regularly. Remove the Kombi noz-
zle from the vacuum to clean. Fibers and hair can be pulled out of the bristles man-
ually, or vacuum the bristles using the flexible hose.
Figure 13
Figure 14
40
Always unplug vacuum from outlet before dismantling any part of machine!
!
USE AND MAINTENANCE OF FLOOR TOOLS AND BRUSHES
39
To remove the power head, switch off the power and unplug the
vacuum. Then, press the tool release button (12) and pull the vacuum
out of the neck.
Removing the Brush Roller - Figure 12
To remove the brush roller, press the button marked “PRESS” (36) and
turn the brush roller end cap (37) downward. Turn the brush (38) slight-
ly to the right and pull it out. We recommend regular removal of threads
and hair which have wound around the brush roller.
Cleaning the Brush Roller
Unplug the vacuum before attempting to clean the brush.
The brush should be cleaned regularly. Fibers and hair can be pulled out
of the brush while manually rotating the roller, or the roller can be
removed from the power head to clean it.
Always unplug vacuum from outlet before dismantling any part of the machine!
!
Figure 12
36
37
38
12” Brush roller
Part # 5010AM
11
VACUUM MAINTENANCE
Changing the Filter Bag - Figures 17 & 18
To change the filter bag, set the canister upright, open the bag
housing cover (8) by pulling the cover release flap (10) upward (fig-
ure 17). Seal the filter bag with the sealing cap (42). Grasp the seal-
ing plate (44) of the filter bag with your thumb and forefinger as
shown in figure 18 and lift the filter bag (43) out. Lower a new bag
into the holder, making sure that the 4 small tabs (indicated by
arrows on the sealing plate) fit into the appropriate grooves. The
front tab (45) of the sealing plate will fit loosely over the wire latch
lock. Push the bag housing cover (8) down firmly and snap the
cover release flap (10) into place. For your convenience, there is a
diagram on every filter bag showing the correct placement of the
bag. Do not re-use the filter bags. NOTE: The nature of the con-
tents of the filter bag will affect the point at which it needs chang-
ing. Fine dust may require an earlier change even though the bag
is not full. Fluff or hair allows air to pass through easily, so the fil-
ter bag may overfill before the orange “bag full” indicator dis-
plays.
Changing the Exhaust Filter - Figures 19 & 20
The exhaust filter (12) needs to be changed when it becomes
extremely dirty or clogged with dust, or after approximately 15 to
20 filter bags have been used. To remove the exhaust filter, set the
vacuum upright, and remove the filter retaining rings (13). To
release the filter retaining ring, use your thumb to push the retain-
ing ring clip the direction of the arrow, then pull the clip up. Pull the
plastic reinforced fabric strips out of the housing slot (48), and
remove the filter. To replace the filter, insert the plastic strip on
one end of the filter into the housing slot (48) and hold in place with
one hand while wrapping the filter around the machine, pulling it
taught. While holding the filter together, insert the top of the plas-
tic strip into the slot. While holding the top of the strip in place,
push the rest of the strip firmly into the slot. Replace the retaining
rings. NOTE: When reassembling, please ensure that the exhaust
filter is fitted correctly in the housing slots and the filter retain-
ing rings are installed correctly. Otherwise, the filter will be inef-
fective.
Figure 18
Figure 20
Figure 19
Always unplug vacuum from outlet
before dismantling any part of machine!
!
Changing the Pre-motor Filter - Figure 19
After 10 to 20 bags have been used, change the pre-motor filter
(46). To remove the filter, set the vacuum upright, pull the cover
release flap (10) outward and open the filter bag cover (8). Remove
the filter bag (see above). Grasp the handle (47) on the filter and
pull it out. To replace, use the handle (47) to hold on to and slide
the new filter down into the bottom of the bag housing. When cor-
rectly seated, it will snap into place. Insert the filter bag, close the
filter bag cover.
Figure 16
NOTE: Never operate the vacuum with incorrectly attached filters or without filters, filter bag, or bag housing cover (8).
Do not re-use filter bags. Do not wash and re-use filters.
7
4243
45
44
13
Figure 17
13
43
12
46
48
12
12
47
AeraPure™
Filter bag
Part # 7029AM
Pre-motor filter
Part # 7012AM
Exhaust filter
Part # 7095ER08
When the “bag full” indicator (7) displays, airflow is reduced due to
a full filter bag, dirty filters, or a clog. If the filter bag is empty and
the filters are clean, you may have a clog. Refer to page 12.
8
10
CLOG REMOVAL
12
Clogs in the Hose - Figures 21, 22, 23 & 24
Check for suction at the end of the hose (6) by pulling the hose handle (19) out of the
suction opening (18). If you can only feel a small amount of suction, the clog is in the
hose. To clear a blockage in the hose, hold the hose handle upright with one hand
blocking the top and switch on the machine. Quickly lift your hand on and off the end
of the hose. If that does not clear the clog, you may also clear clogs by reversing the
hose. To remove the hose from the machine, lift the filter bag cover. Loosen the safe-
ty ring (#49, figure 23) located inside the cover by pushing the lever clockwise as
shown in figure 23. Remove the hose. Close the filter bag cover and insert the hose
handle into the connecting tube (#50, figure 24) of the filter cover. Hold the hose
upright with one hand blocking the top and switch on the machine. If necessary, quick-
ly lift your hand on and off the end of the hose. When the clog is cleared, remove the
hose handle from the connecting tube. Loosen the safety ring (49) and insert the other
end of the hose back into the connecting tube. Release the safety ring so that it
secures the hose. Make sure the hose is connected, then close the filter bag cover.
Note: Do not insert a wire or stick into the hose. Doing so may cause damage to the
hose.
Clogs in Optional Floor Tool Swivel Neck - Figure 25
To check for a clog in the swivel neck (20) of an optional floor tool, remove the head by
pressing the release button (14). Pull the vacuum out of the suction neck. Clean out
pathway.
Always unplug vacuum from outlet before removing any clogs!
!
Figure 26
Figure 22
Figure 21
6
7
8
Figure 23
49
19
8
18
Figure 24
6
19
50
CLOG REMOVAL IN THE POWER HEAD
Clogs in the Airflow Pathway - Figure 26
Many clogs can be removed by accessing the airflow pathway via the orange colored
access door (51) located on the underside of the power head.
Clogs in the Power Head Neck - Figures 26 & 27
To check for a clog in the power head neck (20), remove the head by pressing the
release button (14). Pull the vacuum out of the neck. Push the obstruction down the
neck with a stick or long screwdriver and remove it through the orange access door
(51).
51
Figure 27
14
20
L
R
Figure 25
20
14
TROUBLE-SHOOTING GUIDE
13
PROBLEM
Does not turn on
Bag full indicator shows
Poor Suction
Does not pick up
Bag housing cover won’t
fully close
Filter bag doesn’t fit into
position
REASON
1. Not plugged into working outlet.
2. Cord worn, cut or broken.
3. The power control switch is
set to the “OFF” position.
1. Bag full.
2. Clog in hose, power head neck,
brush or head
1. Exhaust filter dirty.
1. Hose is not connected correctly
into the connecting tube.
2. Filter bag cover not closed.
1. Cover release flap not fully closed.
2. Bag not inserted properly.
3. Cover latch spring bent.
1. Pre-motor filter not
properly inserted.
SOLUTION
1. Use another outlet.
2. Replace cord.
3. Slide switch to the ON
position. See page 8.
1. Replace filter bag. See page 11.
2. See Clog Removal on page 12.
1. Replace exhaust filter. See page 11.
1. Check the safety ring. See page 12.
2. See below.
1. Reinsert bag. Lock the cover
release flap (10) down firmly.
2. Reinsert bag. Lock the cover
release flap (10) down firmly.
3. Straighten cover latch spring.
1. Remove the filter bag and make
sure the pre-motor filter is
seated correctly See page 11.
Always unplug vacuum from outlet before dismantling any part of the machine!
!
14
ADDITIONAL TROUBLE-SHOOTING GUIDE FOR POWER HEAD
PROBLEM
Power head does
not turn on
Red brush-warning
light is on
Yellow on/off light
is illuminated
Red brush-warning
light is flashing and
brush stops spinning
Does not pick up
REASON
1. Not plugged into good outlet.
2. The switch on the power head
is off.
3. The internal switch in the
power head neck is off because
the machine is in the upright
locked position.
1. Reduced brush action.
2. Brush worn.
1. The brush roller on/off button on
the power head is switched off.
1. Jammed brush roller.
2. Overload shut down from
excessively deep but loose
carpet pile (e.g., long shag
carpet).
1. Clog in airflow pathway or
power head neck.
SOLUTION
1. Use another outlet.
2. Press the power head brush
on/off switch. See page 9.
3. Release the foot pedal and
lower the neck to operating
level. See page 8.
1. Brush is not fully in contact with
the floor. Lower the height setting.
2. Replace brush. See page 10.
1. Press the power head brush
on/off switch. See page 9.
1. Remove brush roller
obstruction. See page 10.
2. If carpet pile is too deep and
loose, then use a “shag rake”
attachment instead of the
power head.
1. Remove clog. See page 12.
Always disconnect the power head before dismantling any part of the machine!
!
15
DART SCHEMATIC AND PARTS LIST
19
18
15
26
1
4
2
6
3
14
7
4
27
29
37
23
22
38
12
4
8
9
10
11
11
13
5
16
17
20
21
33
25
24
25
Y
15
Y
40
28
35
15
32393130
#9855AM DART - Arctic White (White/Dark Blue)
9855AM DART Arctic White (White/Dark Blue)
Pos. Part # Description
1 7002GS Air duct
2 7064 Internal wiring ET
3 7070 Internal cable
4 01016 Screw STS 4x16 - T20
5 7057HG Valve cover
6 7102ER Printed circuit board 120V
7 7098 Sound insulation
8 1047 VAC motor seal
9 7009 Motor mount
10 7041ER VAC motor 1000 Watts
11 05140S Carbon brush set
12 7143ER Bag housing
13 7012AM Pre-motor filter
14 7080ER Handle tube
15 0127 Screw M 4x10K
16 7025 Valve disc
17 7028ER Valve spring set
18 7090WE Hose duct, arctic white
19 7027WE Cable hook
20 7092WE Cover, bag housing
21 01017 Screw STS 4x20 - T20
22 7029AM AeraPure™ filter bag
23 7091WE Filter cover, white
24 7095ER08 Exhaust filter, marine blue
25 7017GS Exhaust filter clamp, gray black
26 7169AM Lower housing, arctic white
27 7076GS Tube plug
28 7164WE Handle complete w/screws
29 7127DG Cable, two wire
30 7035GS Sliding button
31 7178WE Handle frame
32 05138 Rocker switch, 2-pol.
33 7050SB Hose
35 01036 Screw 4 x 14
37 7094ER Filter Indicator, cpl.
38 7018OR Retaining ring w/spring
39 7142 Protection film
40 7024ER Spring
41 1387GS Dusting Brush
42 1092GS Crevice nozzle
43 7097GS Double attachment clip, gray black
41
42
43
Bag Housing and Handle
DART SCHEMATIC AND PARTS LIST
#9855AM DART - Arctic White (White/Dark Blue)
9855AM DART Arctic White (White/Dark Blue)
Pos. Part # Description
100 2324GS Chassis ET-1
101 2302GS Bumper, cpl.
102 2314GS Bearing block, left cpl.
103 2923 Belt 333 3M HTDII-6
104 5010AM Brush roller, cpl.
105 2313GS Bearing block, right cpl.
106 2929 Spring
107 2316GS Pile adjustment assembly, cpl.
108 2909VO Access door w/axle & spring
109 2304GS Rear bottom plate, cpl.
110 2931GS Pile adjustment button
111 2306GS Wheel, cpl.
112 2937OR Foot pedal w/axle & spring
113 2309GS Neck assembly, cpl. - DART
114 0876ER Wiring neck
117 1737GS Release button w/leaf spring
118 2962GS Button cover
120 2961GS Socket cover, TS-neck
121 01027 Screw F 3.9x9.5
122 2954 Swivel neck bearing
123 2311 Swivel neck support, right
124 2312 Swivel neck support, left
125 0880 Safety switch w/ wiring
126 2928 Axle
127 01021 Screw F 3.9x13
128 2973ER Brush motor 120V 175W w/pulley
129 05141S Carbon brush set
130 01020 Screw F 3.9x21
131 2684ER Controller board ET1, 120V, 175W
132 2331WEAM Power head cover, arctic white
133 0176TL Screw AM 4x30
134 5402 Wire tie
135 2319 Motor pulley
136 2957 On/off button/lens
137 2956 Lens right
138 2959ER Switch cpl. (incl. 139-141)
139 2958ER Lever w/leaf spring
140 05114 Switch 2-pole
141 0881 Wire
16
Power Head
