ASSEMBLY MANUAL & PARTS LIST - MANUEL DE MONTAGE & LISTE DE PIECES - MANUAL DE ARMADO Y LISTA DE PARTES
RETAIN FOR FUTURE REFERENCE - VEUILLEZ CONSERVER POUR REFERENCE ULTERIEURE - CONSERVAR PARA FUTURAS CONSULTAS
70084-E40 REV A 04/20
800050

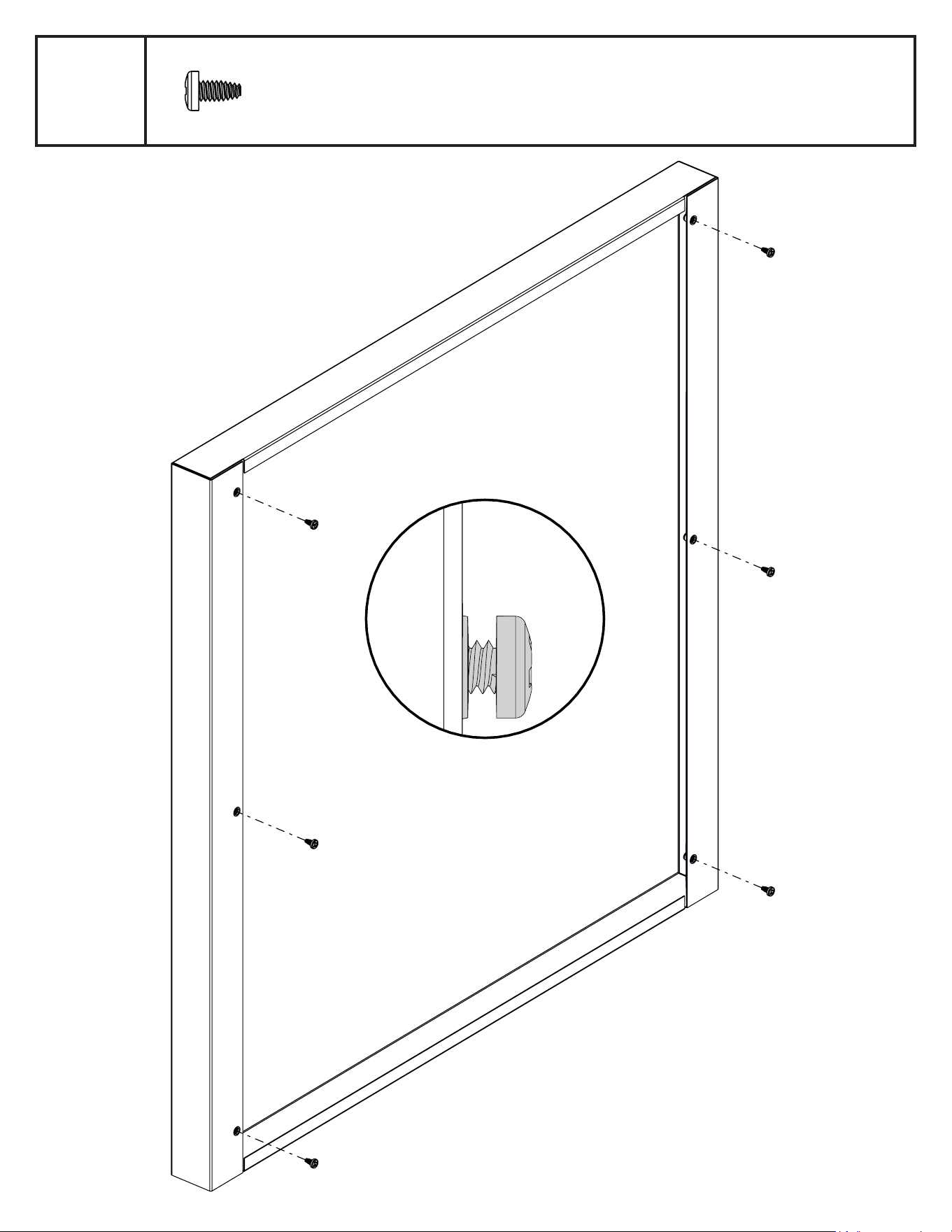

1
(6)
!

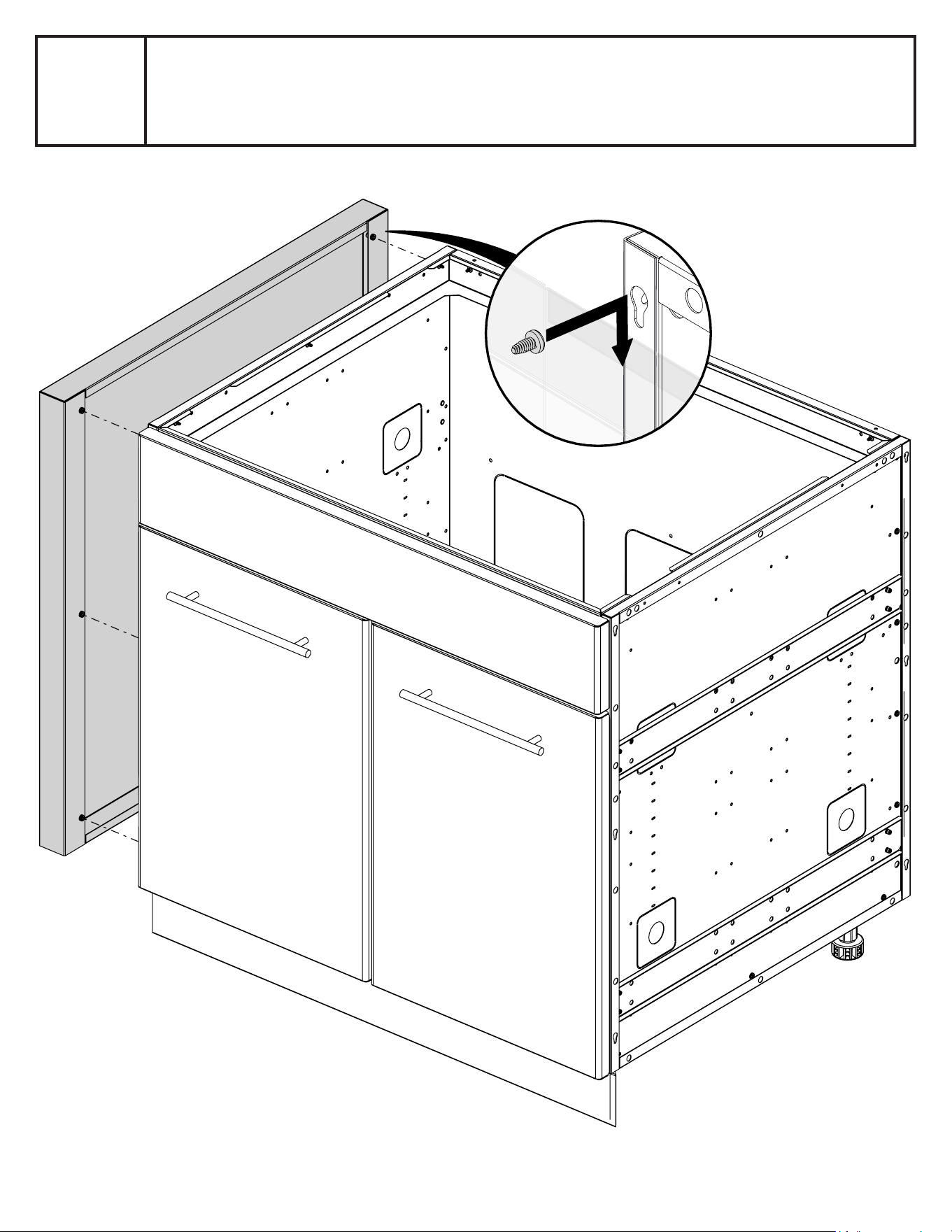

2

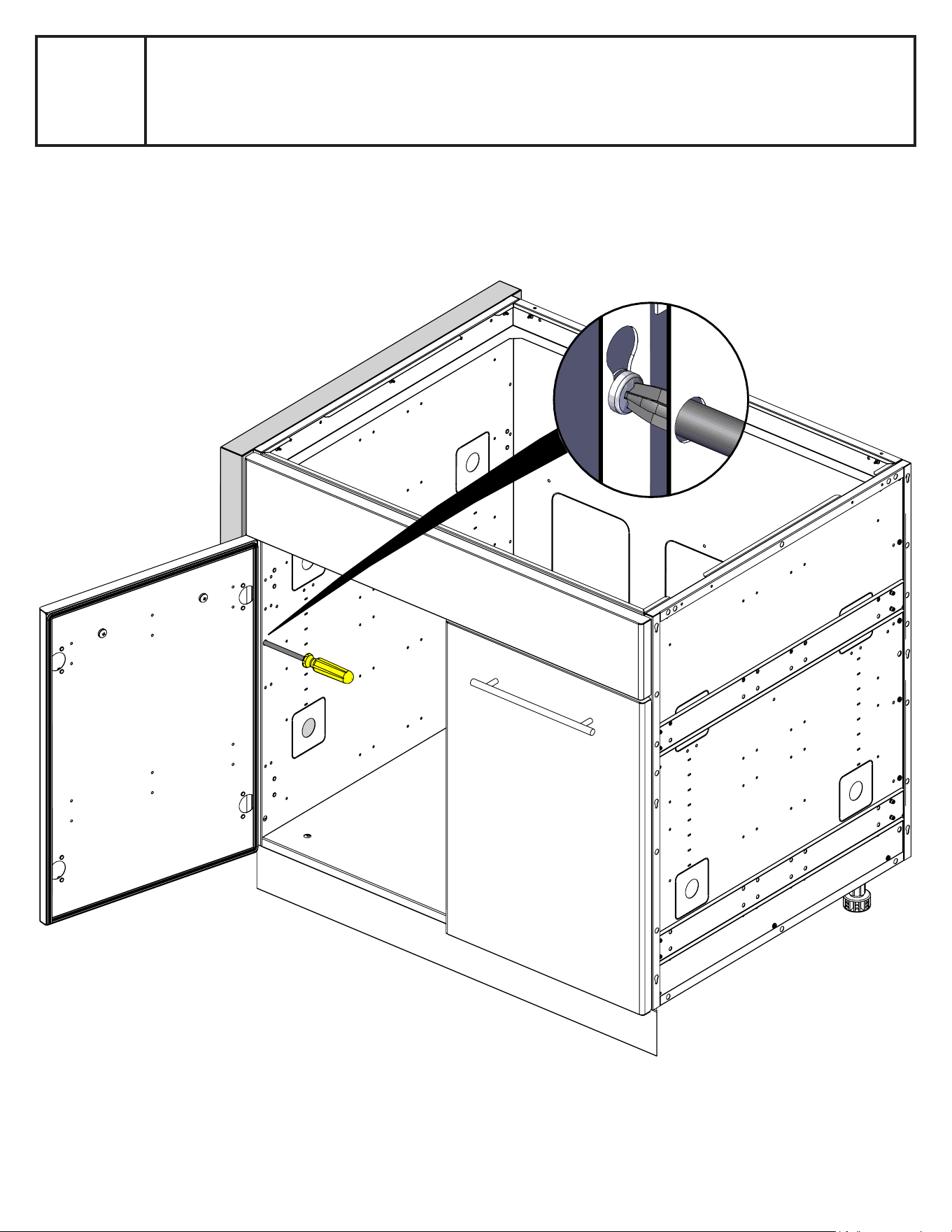

3
6x

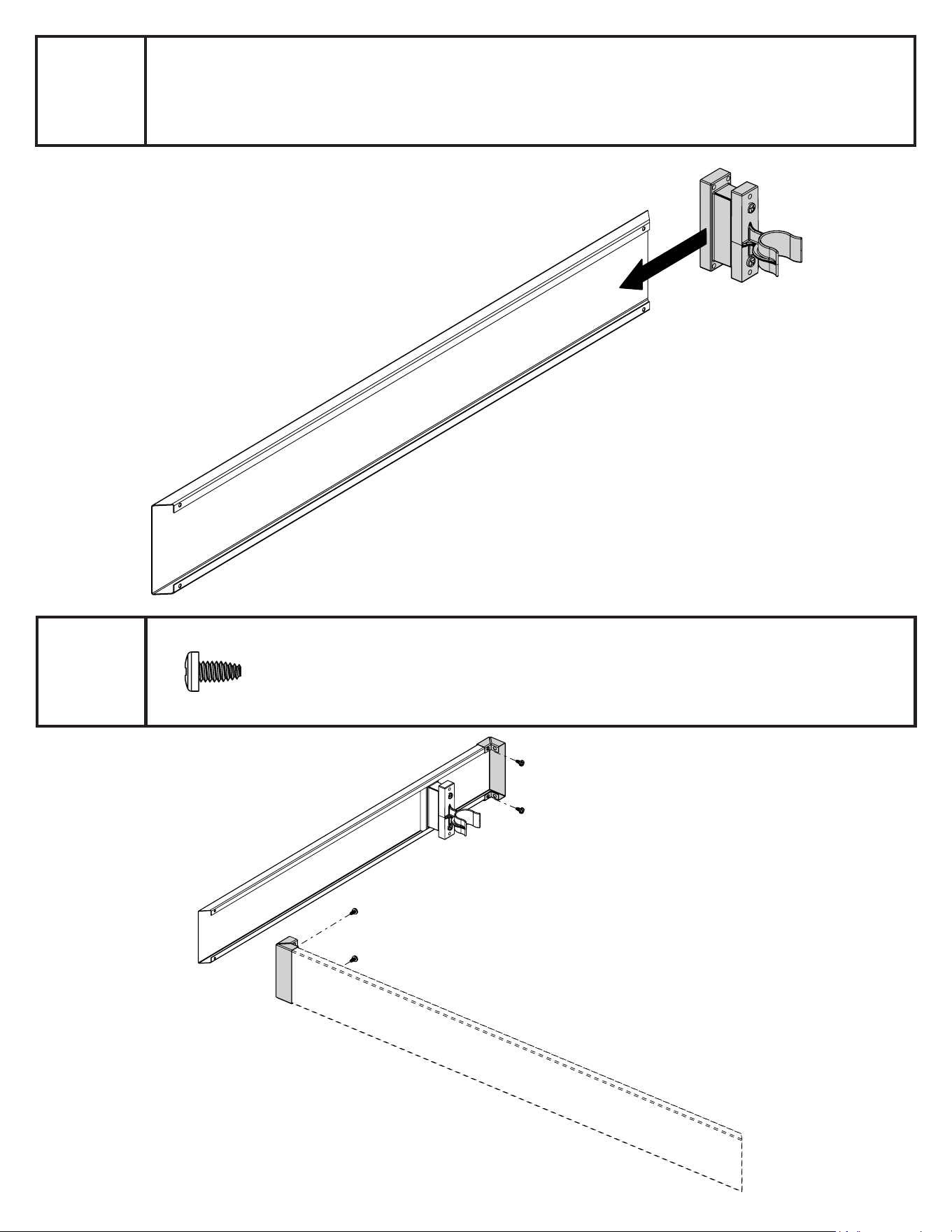

4
5
(4)

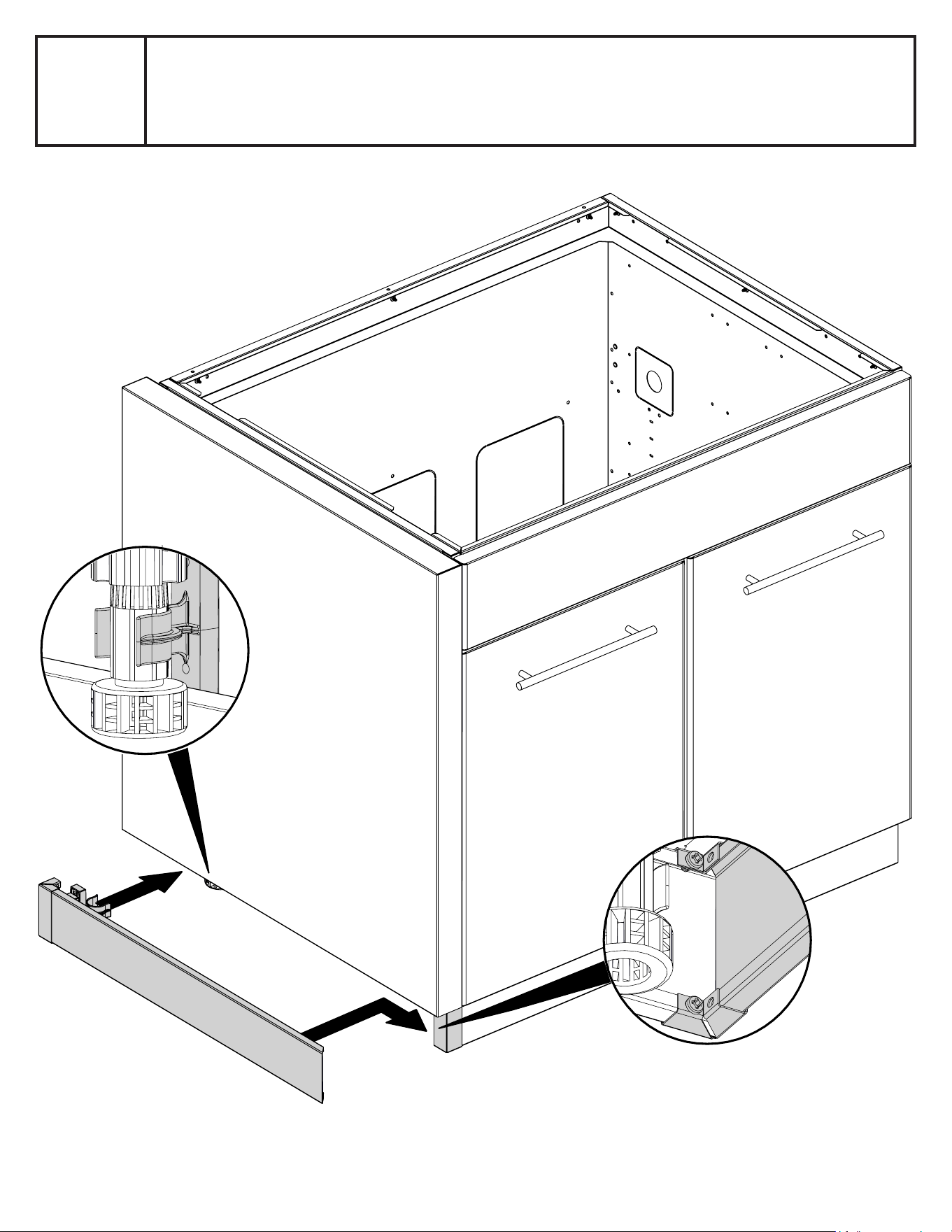

6

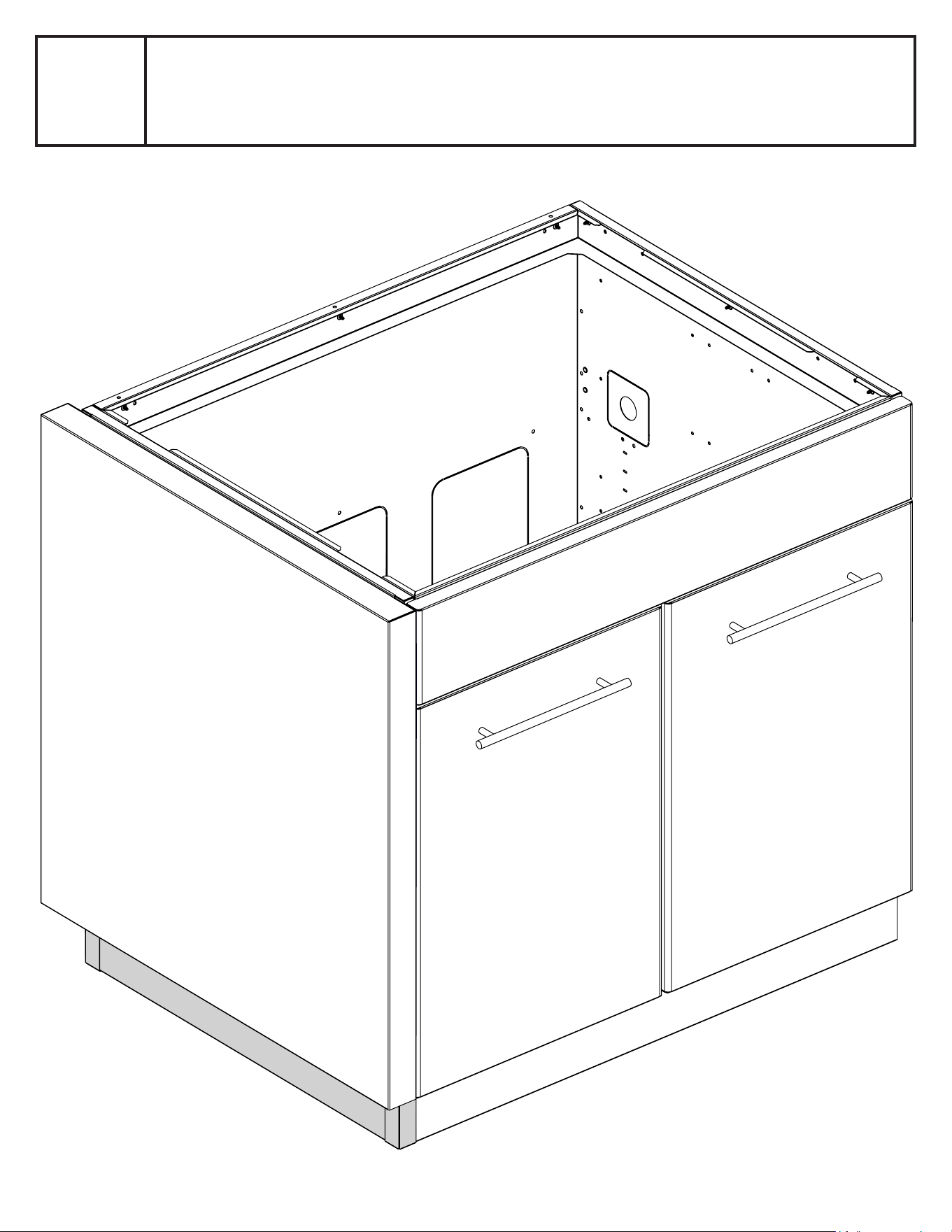

7

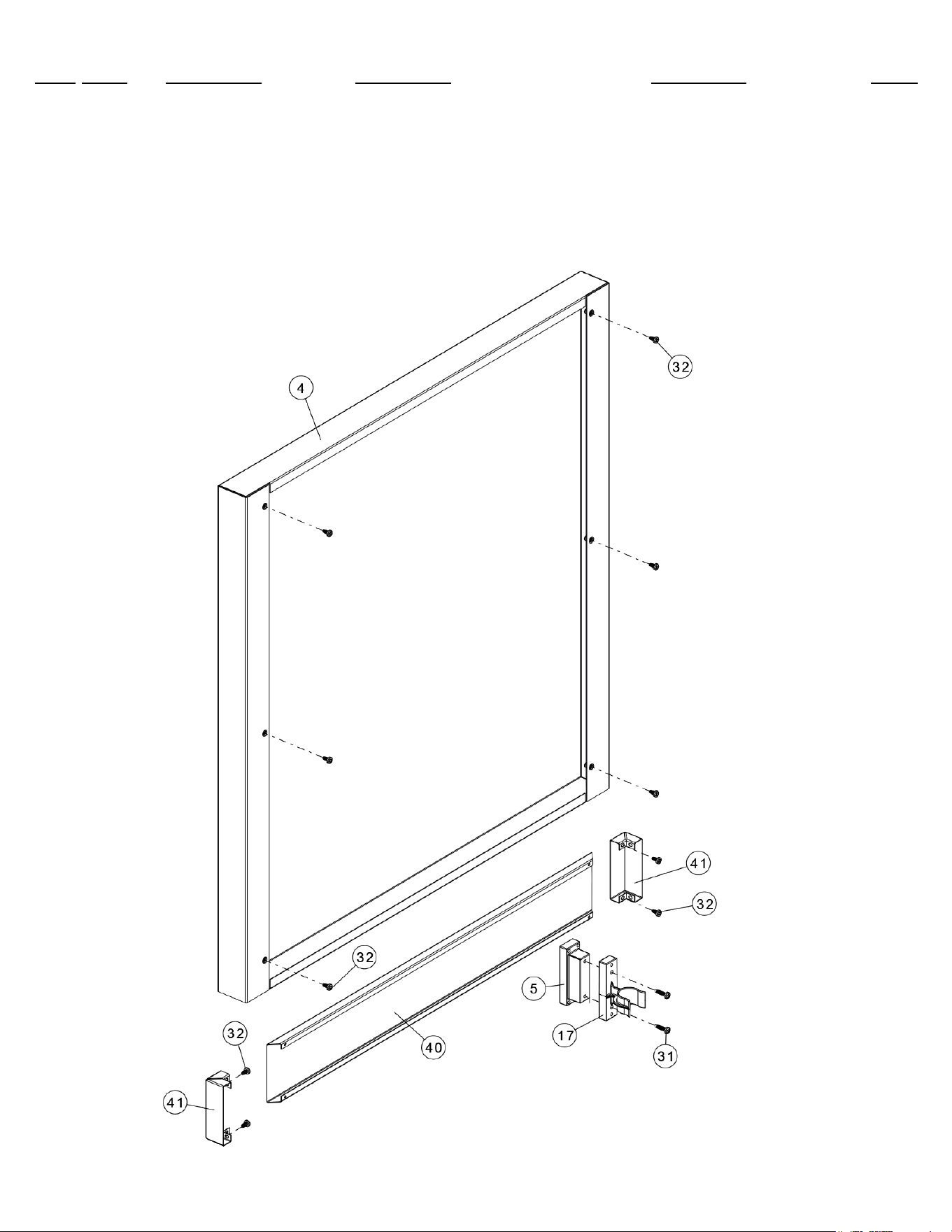

PARTS LIST / LISTE DES PIECES / LISTA DE PARTES
KEY # ITEM # DESCRIPTION DESCRIPTION DESCRIPTION 800050
4 71289-183 SIDE PANEL PANNEAU LATERALE PANEL LATERAL 1
5 71539-008 KICK PLATE SPACER
SPACER ESPACIADOR 1
17 71039-108 KICK PLATE LEG CLIP
ATTACHE POUR COUP-DE-PIED GRAPA PARA NIVELADOR
1
31 Y-29310 SCREW #10-24 X 3/4 VIS #10-24 X 3/4
TOURNILLO #10-24 X 3/4 2
32 Y-29304S SCREW #10-24 X 3/8 VIS #10-24 X 3/8 TOURNILLO #10-24 X 3/8 10
40 71109-003 KICK PLATE
PLAQUE COUP-DE-PIED RODAPIÉS
1
41 71530-113 KICK PLATE BRACKET
SUPPORT POUR PLAQUE COUP-DE-PIED BASE PARA GRAPA
2
