MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP 1 06/06/18
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP
Quick Assembly Deluxe Service Cart With Power Prep
Copyright © Professional Tool Products, 2018
All rights reserved
• Lock lid and drawers before moving. • Apply brake on locking casters anytime
cart is in place. • Do not pull cart. Push from handle on end to move. • Units
can tip or fall causing damage or personal injury. • Cart is designed to roll
easily on flat surfaces and should not be used on uneven or inclined surfaces.
• Do not open more than one loaded drawer at a time. • Do not stand on or
step in drawers. • Keep children away from unit. • Wear gloves when lifting
edges. • Before connecting to a power supply, always check to make sure the
power supply corresponds to the voltage required on the product. • Fully insert
plug to reduce the risk of electric shock. • Always unplug when not in use.
• Disconnect power before installing or servicing. • Do not try to plug in unit or
product when hands are wet or damp, or if standing on a wet or damp surface
or in water. • Never attempt to pick up unit or plugged in product that should fall
in standing water. • This unit is not waterproof and is intended for general use
indoors. • Do not use in potentially dangerous locations, such as flammable or
explosive atmospheres. • Keep cord away from heat, oil, sharp edges or moving
parts. • Failure to heed these warnings may result in personal injury and/or
property damage.
WARNING
SERVICE CART WEIGHT CAPACITY
Maximum Total Net Load ........................... 500 LBS
Top Lid of Cart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150 LBS
Bottom Shelf ...................................... 150 LBS
3" Drawer(s) each . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 LBS each
4" Drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 LBS each
5" Drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 LBS each
PLEASE NOTE: Loading cart beyond rated capacity may cause structural
damage to the cart as well as personal and /or property damage. Please
educate your customers to the dangers of overloading. Do not attempt to
push cart with items on the top lid.
WARNING
ASSEMBLY INSTRUCTIONS

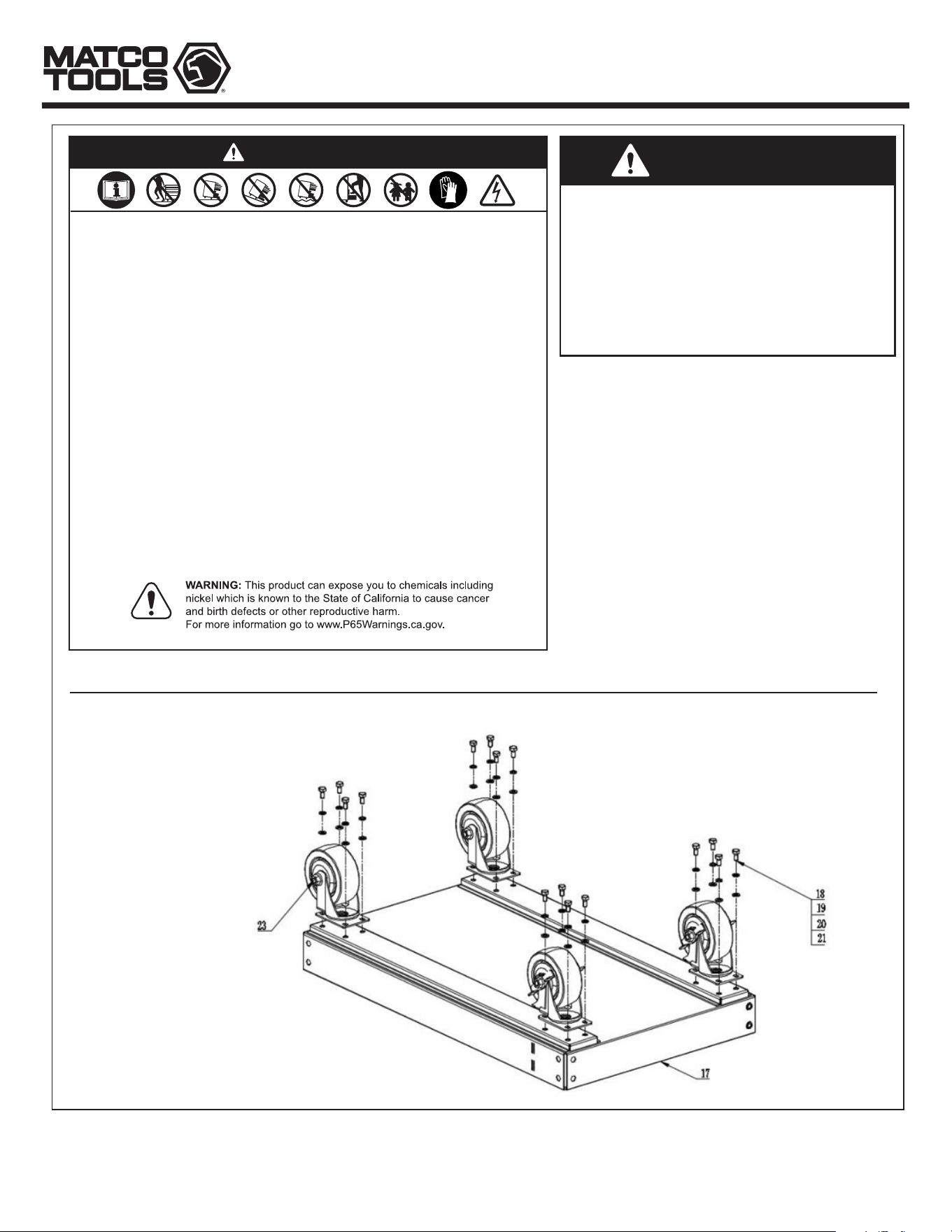

FIG. 1
Installing 4 pc. caster (#18/#23) onto the bottom tray
(#17) with #19/#20/#21.
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP 2 06/06/18
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP
Quick Assembly Deluxe Service Cart With Power Prep
ASSEMBLY INSTRUCTIONS

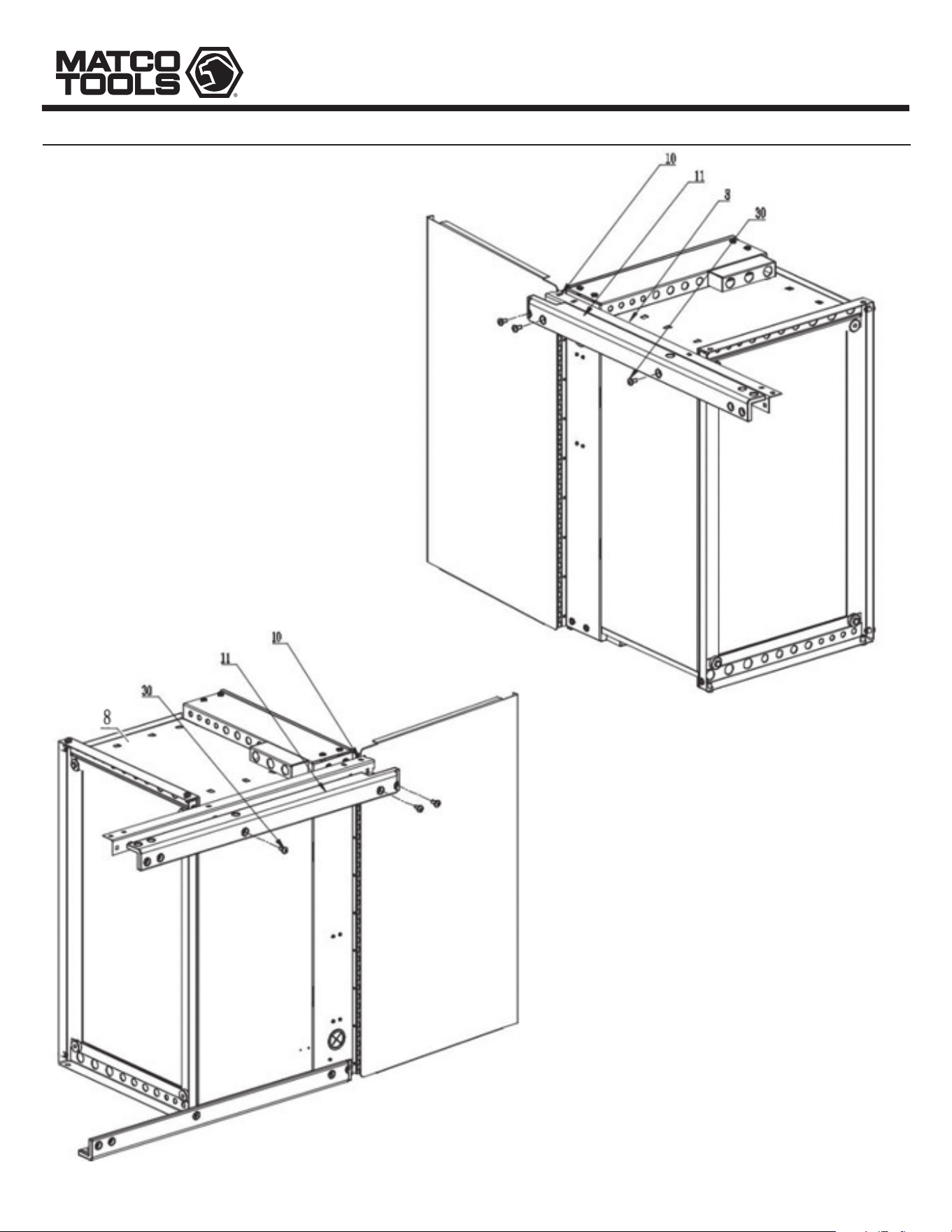

FIG. 2
Install leg/bumper(#10,#11) onto the cart body
(#8) and fasten with 6 blots (#30).
FIG. 3
Turn cart body 180º to install second leg/bumper (#10,#11)
onto the cart body (#8) and fasten with 6 blots (#30).
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP 3 06/06/18
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP
Quick Assembly Deluxe Service Cart With Power Prep
ASSEMBLY INSTRUCTIONS

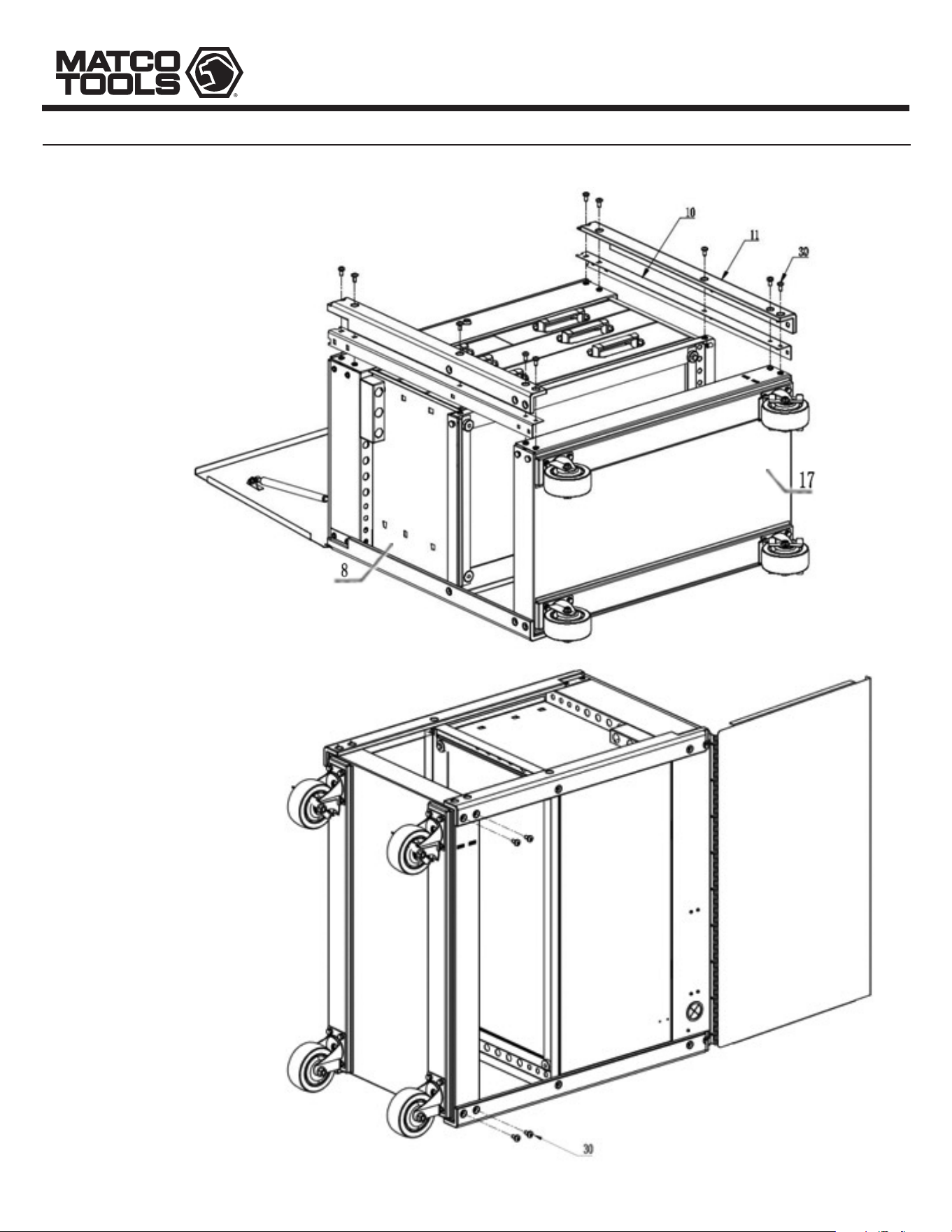

FIG. 5
Turn cart body 90° and fasten
remaining 8 bolts (#30).
FIG. 4
Turn cart body 90º to install 3rd and 4th leg/bumper(#10,#11)
onto the cart body (#8) and fasten with 6 blots (#30). Put
bottom tray w/casters (#17) onto the 4 legs and fasten with 8
bolts (#30)
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP 4 06/06/18
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP
Quick Assembly Deluxe Service Cart With Power Prep
ASSEMBLY INSTRUCTIONS

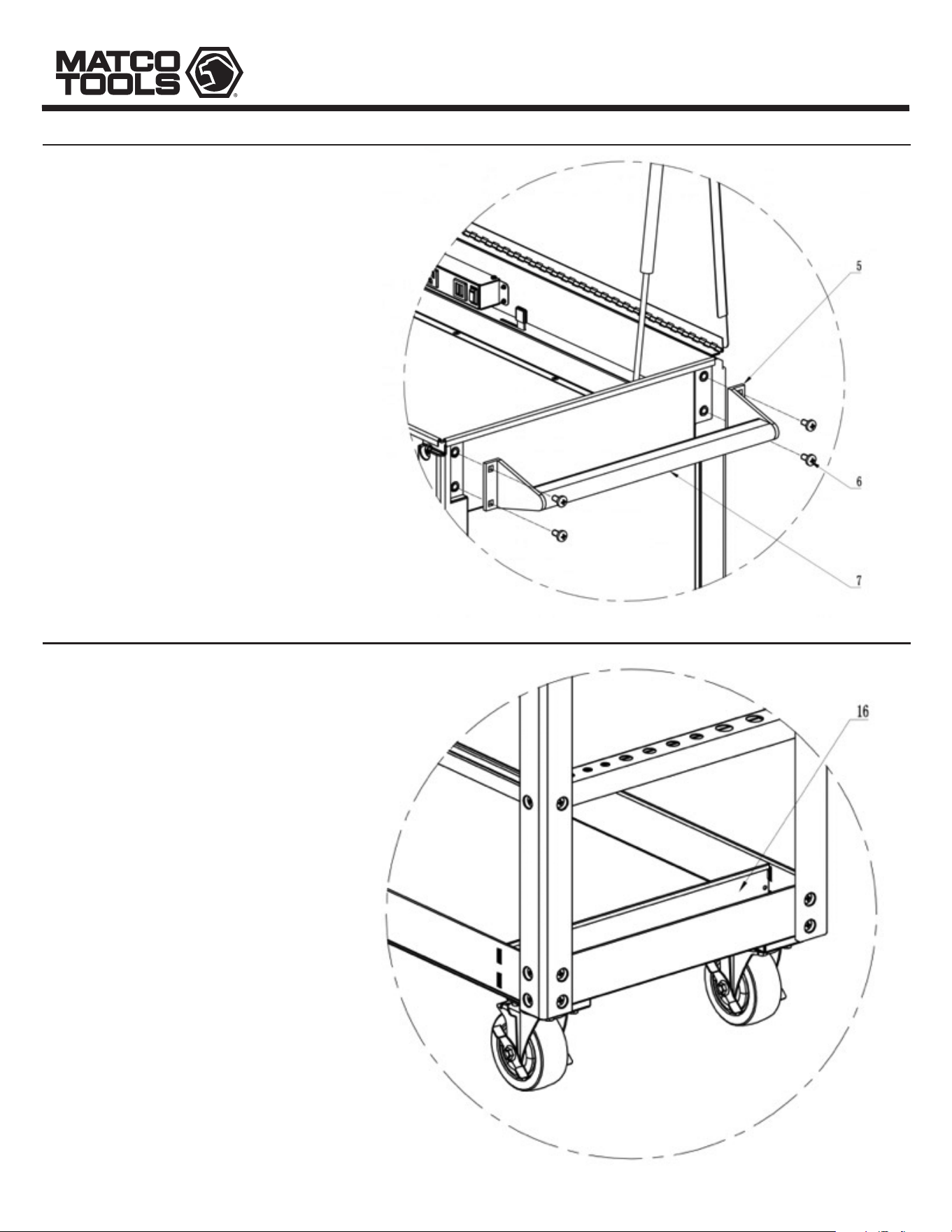

FIG. 6
Mount the push handle (#7) to the same side of the
cart as the locking casters, using the four bolts (#6)
provided.
FIG. 7
Install Spray Can Divider (#16) onto the bottom tray
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP 5 06/06/18
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP
Quick Assembly Deluxe Service Cart With Power Prep

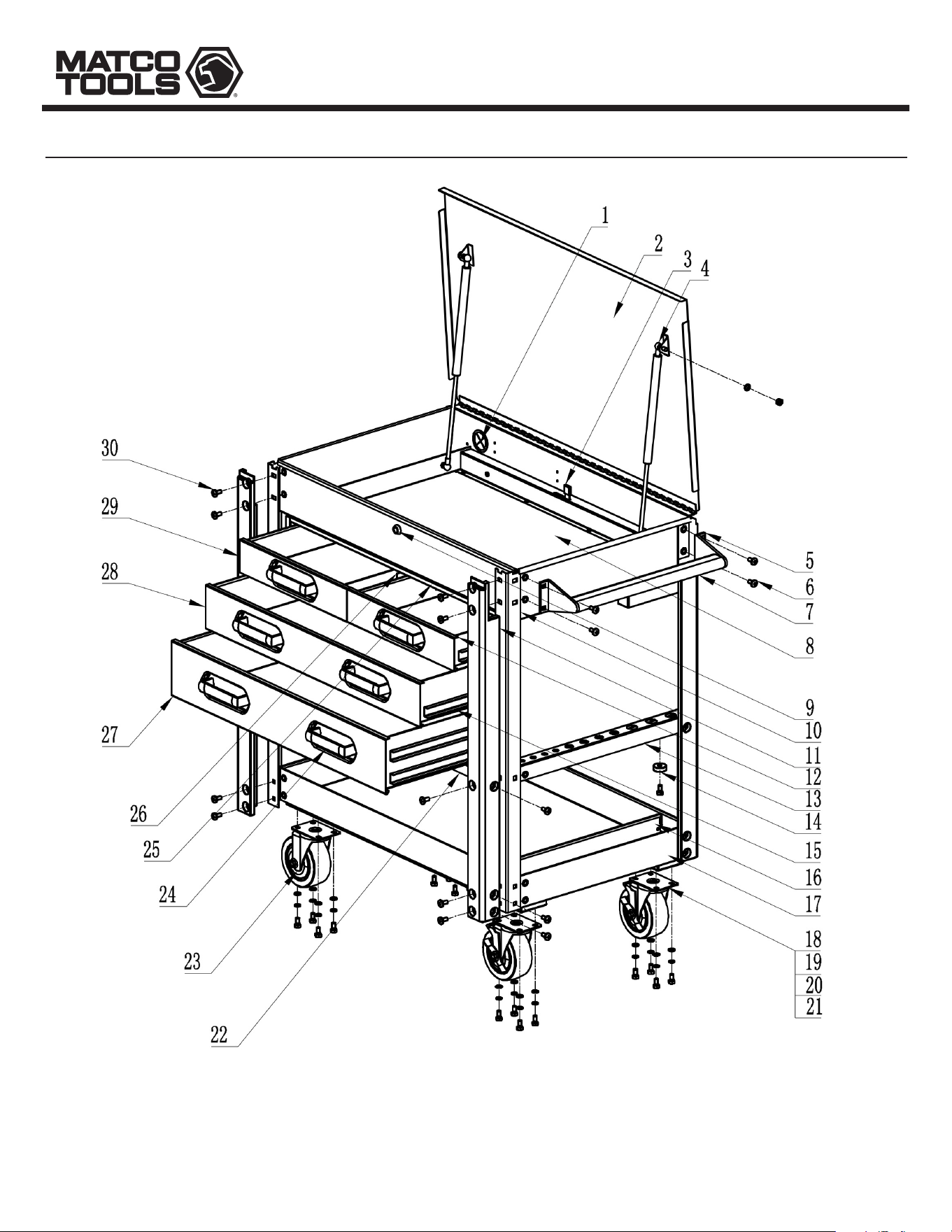

PARTS DRAWING
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP 6 06/06/18
MSC4RQP, -BKQP, -BLQP, -GQP, -OQP, -SBQP, -SVAQP, -TIQP
Quick Assembly Deluxe Service Cart With Power Prep
TROUBLESHOOTING
PARTS LIST AND PARTS DRAWING
Item No. Part No. No. Req'd Description
1 RS4RCP 1 Cord Rubber Protector
2 MSC4LIDR9 1 Lid - Red
MSC4LIDBK9 1 Lid - Black
MSC4LIDBL9 1 Lid - Blue
MSC4LIDNG9 1 Lid - Green
MSC4LIDNO9 1 Lid - Orange
MSC4LIDSB9 1 Lid - Stealth Black
MSC4LIDSVA9 1 Lid - Silver Vein
MSC4LIDTI9 1 Lid - Titanium
3 RSLMQPMRN 1 Locking Mechanism (Excludes Lock) - Red
RSLMQPMBKN 1 Locking Mechanism (Excludes Lock) - Black
RSLMQPMBLN 1 Locking Mechanism (Excludes Lock) - Blue
RSLMQPMNGN 1 Locking Mechanism (Excludes Lock) - Green
RSLMQPMNON 1 Locking Mechanism (Excludes Lock) - Orange
RSLMQPMSBN 1 Locking Mechanism (Excludes Lock) - Stealth Black
RSLMQPMSVAN 1 Locking Mechanism (Excludes Lock) - Silver Vein
RSLMQPMTIN 1 Locking Mechanism (Excludes Lock) - Titanium
4 RSGP 2 Gas Piston
RSGPBK 2 Gas Piston - Black
5 RS4QPHBC 2 Handle Backets/ Pair with Hardware - Chrome
RS4QPHBBK 2 Handle Backets/ Pair with Hardware - Black
6 RS4QPHBKC 8 M8x19 Bolts w/ Plum Bolts - Chrome
RS4QPHBKBK 8 M8x19 Bolts w/ Plum Bolts - Black
7 RSMSC4HDL 1 Push Handle
8 1 Cart Body
9 RSLKB 1 Lock with keys
10 RSMSC4PLGR 4 Leg/Each - Red
RSMSC4PLGBK 4 Leg/Each - Black
RSMSC4PLGBL 4 Leg/Each - Blue
RSMSC4PLGNG 4 Leg/Each - Green
RSMSC4PLGNO 4 Leg/Each - Orange
RSMSC4PLGSB 4 Leg/Each - Stalth Black
RSMSC4PLGSVA 4 Leg/Each - Silver Vein
RSMSC4PLGTI 4 Leg/Each - Titanium
11 RSMSC4BP 1 Safety bumper (4pc)
12 MSC4PLD3RR 1 3" Right Drawer - Red
MSC4PLD3BKR 1 3" Right Drawer - Black
MSC4PLD3BLR 1 3" Right Drawer - Blue
MSC4PLD3NGR 1 3" Right Drawer - Green
MSC4PLD3NOR 1 3" Right Drawer - Orange
MSC4PLD3SBR 1 3" Right Drawer - Stealth Black
MSC4PLD3SVRA 1 3" Right Drawer - Silver Vein
MSC4PLD3TIR 1 3" Right Drawer - Titanium
13 RSMSC4SRPR 1 Screwdriver/Prybar Holder - Red
RSMSC4SRPBK 1 Screwdriver/Prybar Holder - Black
RSMSC4SRPBL 1 Screwdriver/Prybar Holder - Blue
RSMSC4SRPNG 1 Screwdriver/Prybar Holder - Green
RSMSC4SRPNO 1 Screwdriver/Prybar Holder - Orange
RSMSC4SRPSB 1 Screwdriver/Prybar Holder - Steatlh Black
RSMSC4SRPSVA 1 Screwdriver/Prybar Holder - Silver Vein
RSMSC4SRPTI 1 Screwdriver/Prybar Holder - Titanium
14 RS4QPRC 1 Rubber Cushion
15 RSRBS 4 Roller Bearing Slides
16 RSMSC4SCDR 1 Spray Can Divider - Red
RSMSC4SCDBK 1 Spray Can Divider - Black
RSMSC4SCDBL 1 Spray Can Divider - Blue
RSMSC4SCDNG 1 Spray Can Divider - Green
RSMSC4SCDNO 1 Spray Can Divider - Orange
RSMSC4SCDSB 1 Spray Can Divider - Stealth Black
RSMSC4SCDSVA 1 Spray Can Divider - Silver Vein
RSMSC4SCDTI 1 Spray Can Divider - Titanium
17 MSC4QPBTR 1 Bottom Tray - Red
MSC4QPBTBK 1 Bottom Tray - Black
MSC4QPBTBL 1 Bottom Tray - Blue
MSC4QPBTNG 1 Bottom Tray - Green
MSC4QPBTNO 1 Bottom Tray - Orange
MSC4QPBTSB 1 Bottom Tray - Stealth Black
MSC4QPBTSVA 1 Bottom Tray - Silver Vein
MSC4QPBTTI 1 Bottom Tray - Titanium
18 RSSWLCS 2 5" Swivel Locking Caster / each
RSSWLCSBK 2 5" Swivel Locking Caster / each - Black
19 * 16 Washer
20 * 16 Spring Washer
21 * 16 M8 x 16 Bolt Kits
22 RSMSC4QPRPR 2 Reinforced Piece / each - Red
RSMSC4QPRPBK 2 Reinforced Piece / each - Black
RSMSC4QPRPBL 2 Reinforced Piece / each - Blue
RSMSC4QPRPNG 2 Reinforced Piece / each - Green
RSMSC4QPRPNO 2 Reinforced Piece / each - Orange
RSMSC4QPRPSB 2 Reinforced Piece / each - Stealth Black
RSMSC4QPRPSVA 2 Reinforced Piece / each - Silver Vein
RSMSC4QPRPTI 2 Reinforced Piece / each - Titanium
23 RSSWCS 2 5" Swivel Caster Non-Locking / each
RSSWCSBK 2 5" Swivel Caster Non-Locking / each - Black
Item No. Part No. No. Req'd Description
24 MSC4HC 1 6 Pc. Chrome Handles - Chrome
MSC4HBK 1 6 Pc. Chrome Handles - Black
25 RSMSC4JR 2 "J" Channel - Red
RSMSC4JBK 2 "J" Channel - Black
RSMSC4JBL 2 "J" Channel - Blue
RSMSC4JNG 2 "J" Channel - Green
RSMSC4JNO 2 "J" Channel - Orange
RSMSC4JSB 2 "J" Channel - Stealth Black
RSMSC4JSVA 2 "J" Channel - Silver Vein
RSMSC4JTI 2 "J" Channel - Titanium
26 RSMSC4CCPR 1 Center Clip-on pcs/pair - Red
RSMSC4CCPBK 1 Center Clip-on pcs/pair - Black
RSMSC4CCPBL 1 Center Clip-on pcs/pair - Blue
RSMSC4CCPNG 1 Center Clip-on pcs/pair - Green
RSMSC4CCPNO 1 Center Clip-on pcs/pair - Orange
RSMSC4CCPSB 1 Center Clip-on pcs/pair - Stealth Black
RSMSC4CCPSVA 1 Center Clip-on pcs/pair - Silver Vein
RSMSC4CCPTI 1 Center Clip-on pcs/pair - Titanium
27 MSC4PLD5R 1 5" Drawer - Red
MSC4PLD5BK 1 5" Drawer - Black
MSC4PLD5BL 1 5" Drawer - Blue
MSC4PLD5NG 1 5" Drawer - Green
MSC4PLD5NO 1 5" Drawer - Orange
MSC4PLD5SB 1 5" Drawer - Stealth Black
MSC4PLD5SVA 1 5" Drawer - Silver Vein
MSC4PLD5TI 1 5" Drawer - Titanium
28 MSC4PLD4R 1 4" Drawer - Red
MSC4PLD4BK 1 4" Drawer - Black
MSC4PLD4BL 1 4" Drawer - Blue
MSC4PLD4NG 1 4" Drawer - Green
MSC4PLD4NO 1 4" Drawer - Orange
MSC4PLD4SB 1 4" Drawer - Stealth Black
MSC4PLD4SVA 1 4" Drawer - Silver Vein
MSC4PLD4TI 1 4" Drawer - Titanium
29 MSC4PLD3RL 1 3" Left Drawer - Red
MSC4PLD3BKL 1 3" Left Drawer - Black
MSC4PLD3BLL 1 3" Left Drawer - Blue
MSC4PLD3NGL 1 3" Left Drawer - Green
MSC4PLD3NOL 1 3" Left Drawer - Orange
MSC4PLD3SBL 1 3" Left Drawer - Stealth Black
MSC4PLD3SVLA 1 3" Left Drawer - Silver Vein
MSC4PLD3TIL 1 3" Left Drawer - Titanium
30 RS4QPLHK 32 Leg Hardware Kit (M8 x 17)
RS4QPLHKBK 32 Leg Hardware Kit (M8 x 17) - Black
* RS4QPCHK Caster Hardware Kit (incl 19,20 & 21)
* RS4QPCHKBK Caster Hardware Kit - Black (incl 19,20 & 21)
Also available:
RSRBSDET8PK Ball Bearing Slide Detents (Package of 8).
RSMSC46LK 6 Piece Liner Kit
MSC4FC Set of 2 Fixed 5" x 2" Casters (Optional - Not Included)
RSMSC4RD Red Touch-Up Paint
RSBKP Black Touch-Up Paint
RSMSC4BLU Blue Touch-Up Paint
RSMSC4NG Green Touch-Up Paint
RSMSC4NO Orange Touch-Up Paint
RSMSC4SBP Stealth Black Touch-Up Paint
RSMSC4TI Titanium Touch-Up Paint
Touch-Up Paint Not Available for Silver Vein
Problem: Drawers appear not to fit, do not slide in accurately and bump the cart sides.
Solution: The roller bearing slides must be fully engaged into the mounting slots on all drawers. They potentially could fall out of position in shipment or
during assembly. Remove the drawer that is out of position. The drawer is removed by the two clips on the roller bearing slides. Simply push the roller
bearing slide back down into position. Insert the drawer back onto the roller bearing slides.
