Euromaid EO605DTB 60cm 5 Function Built-in Oven

PLEASE READ THE USER MANUAL CAREFULLY BEFORE USING THE UNIT

EO605DTB

60cm Built-in Oven

USER MANUAL

2

Dear Customer,

Congratulations on the purchase of your new product from Euromaid.

We recommend you please take some time to read the instruction manual

thoroughly to familiarise yourself with the functionality and operations to ensure

packaging materials are disposed of correctly.

Customer Care

Our Customer Care centre is available should you wish to learn more about

your appliance in relation to how to use it to its best potential, or tips on cleaning

as well as available accessories.

Thank you.

Regards,

Euromaid Australia and New Zealand

For further details please contact our Customer Care Team

New Zealand

Australia

3

Safety Information ....................................................................................................................

Warnings ...........................................................................................................................................

Environment Protection ...................................................................................................................

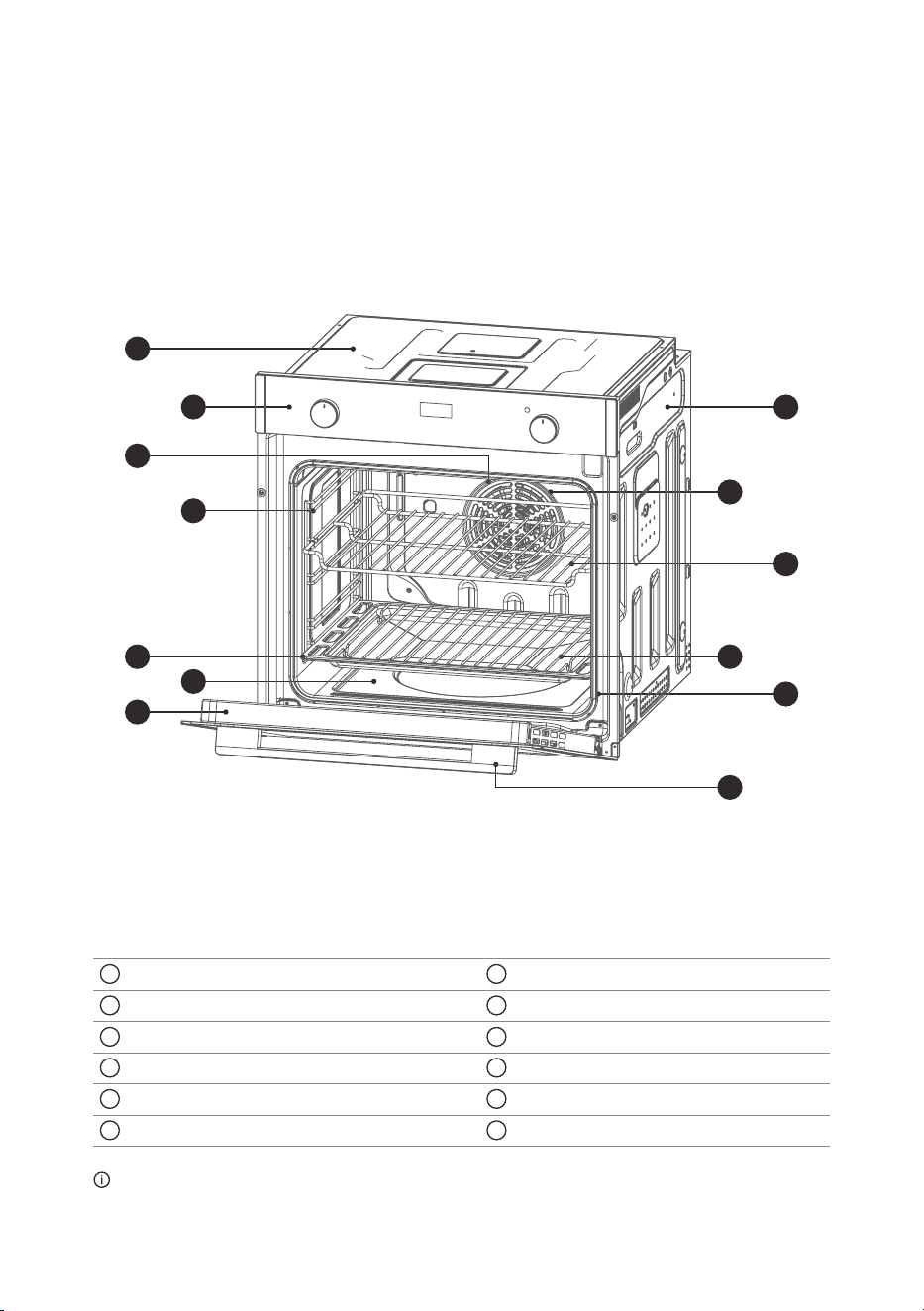

Product Overview ...................................................................................................................

Controls .............................................................................................................................................

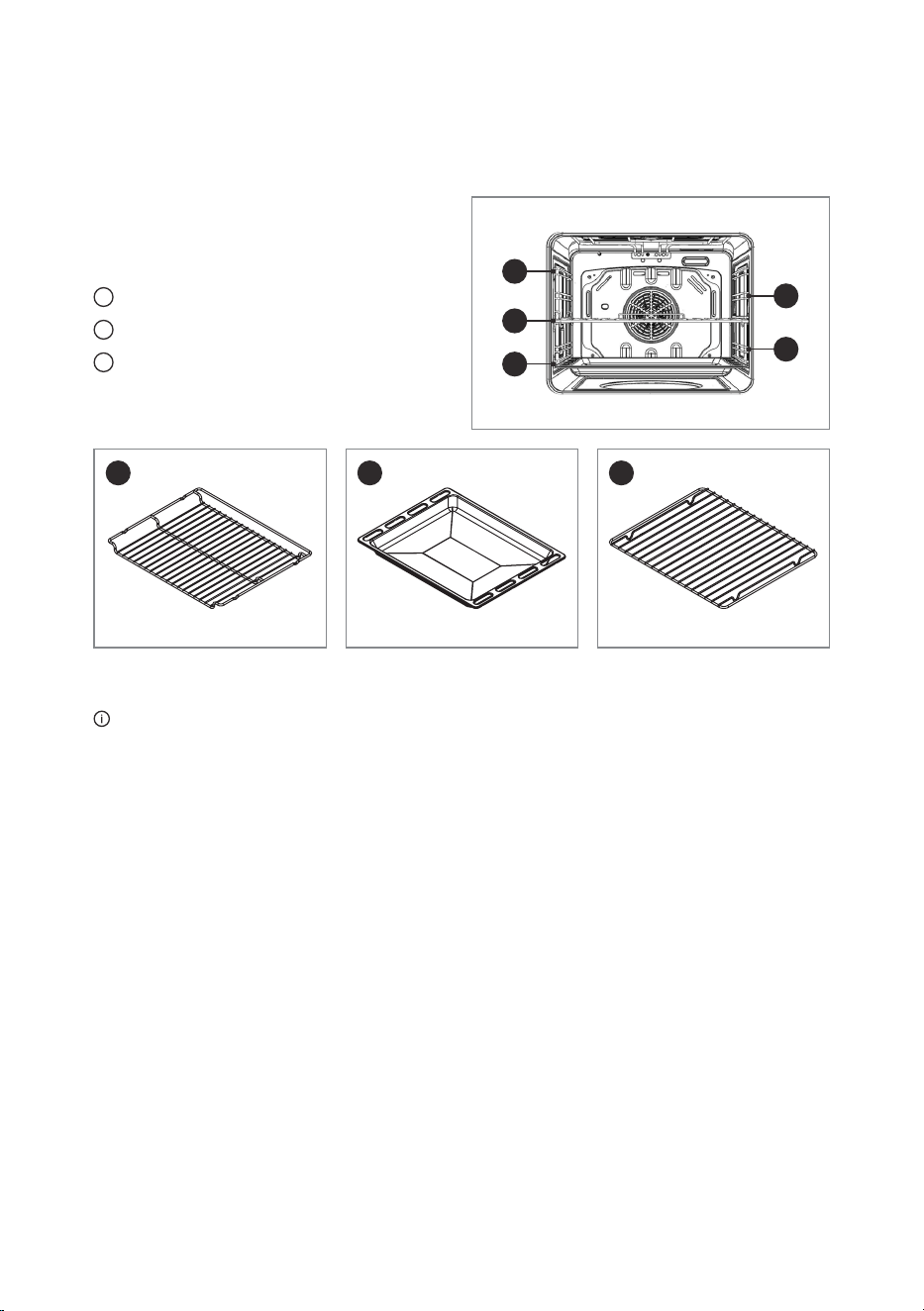

Oven and Accessories ...................................................................................................................

Cooking Modes ..............................................................................................................................

Installation ..............................................................................................................................

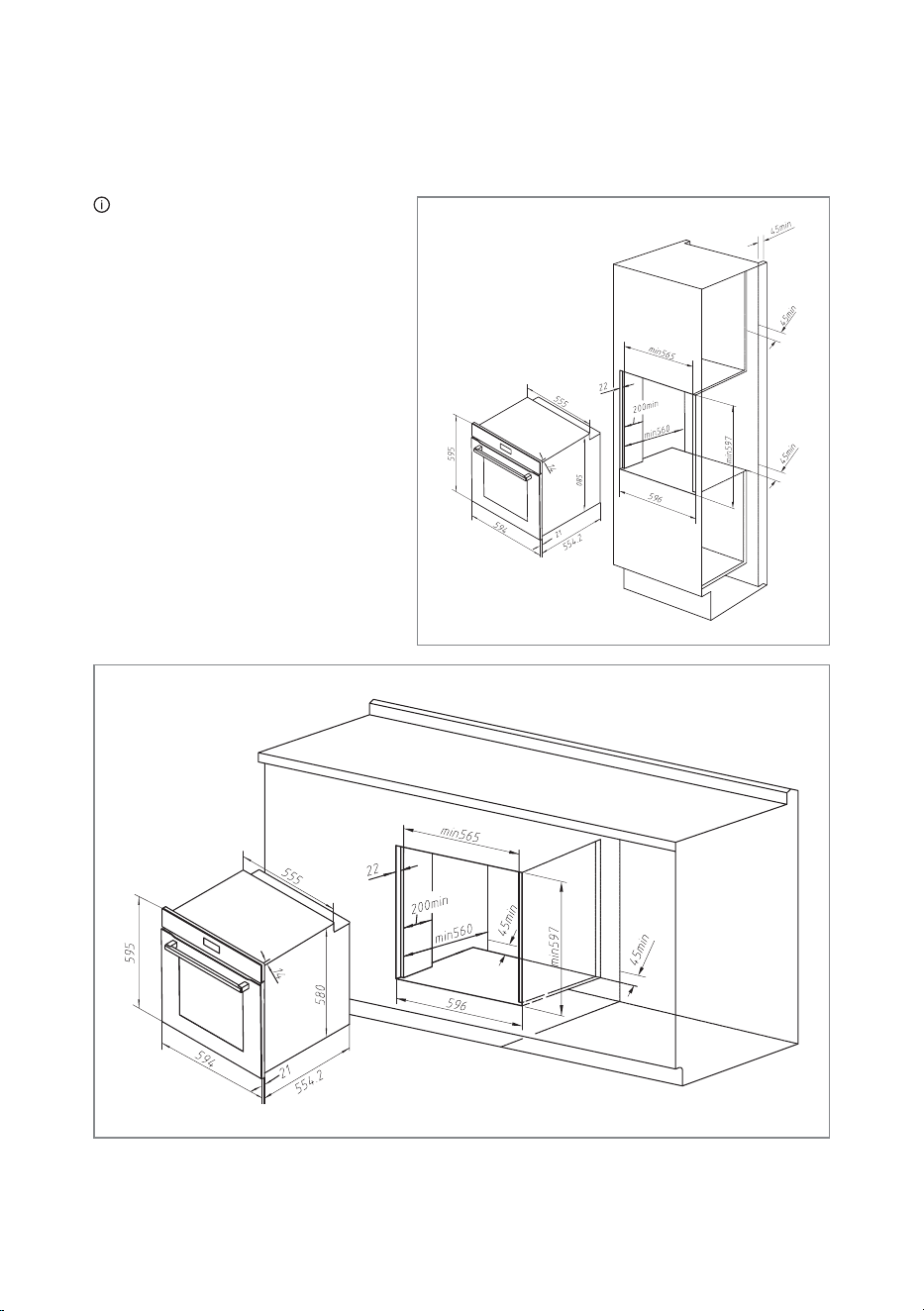

Cabinet Details ..............................................................................................................................

Cooking Guide ..............................................................................................................................

Cleaning & Maintenance .....................................................................................................

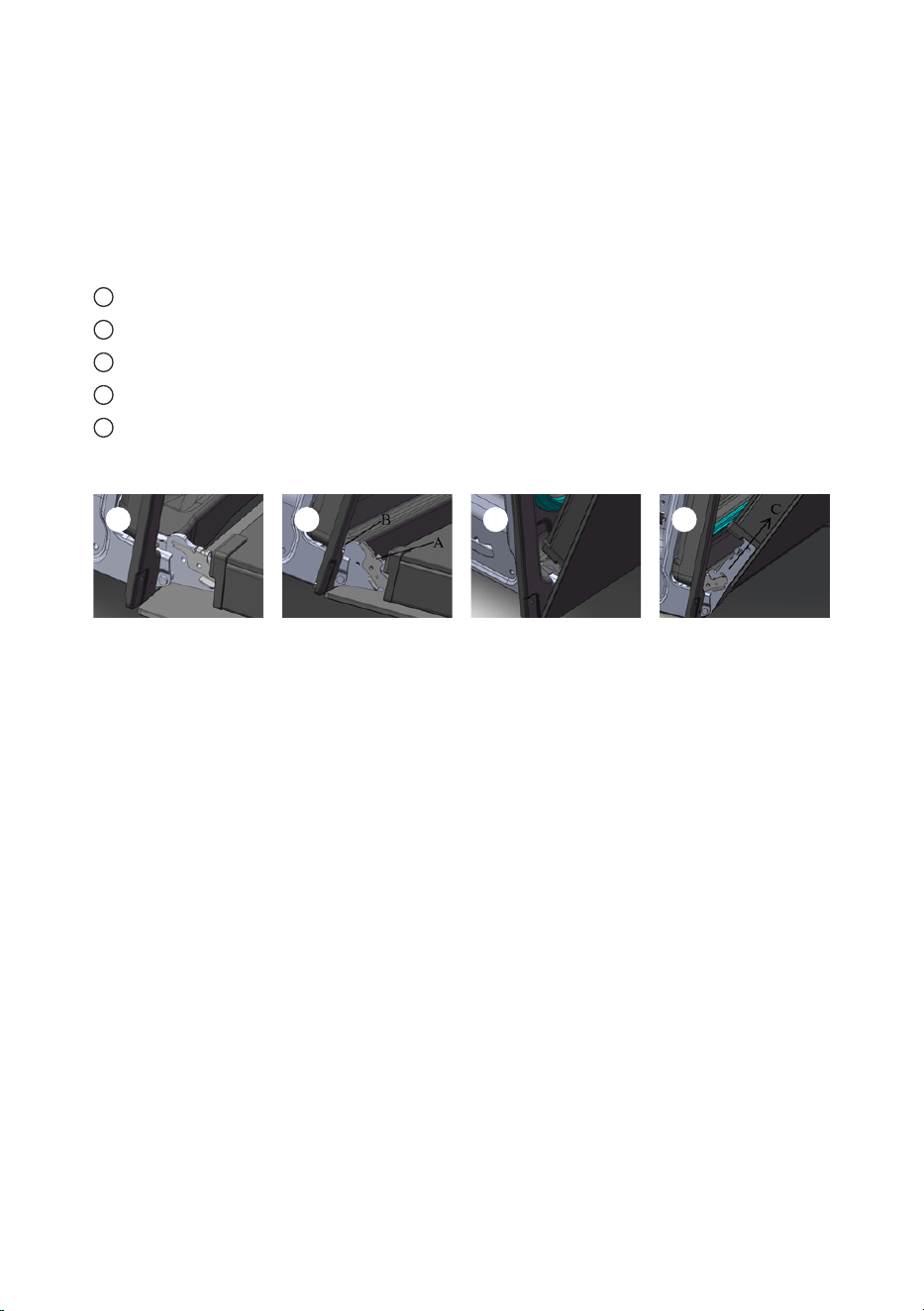

How to Remove the Oven Door ..................................................................................................

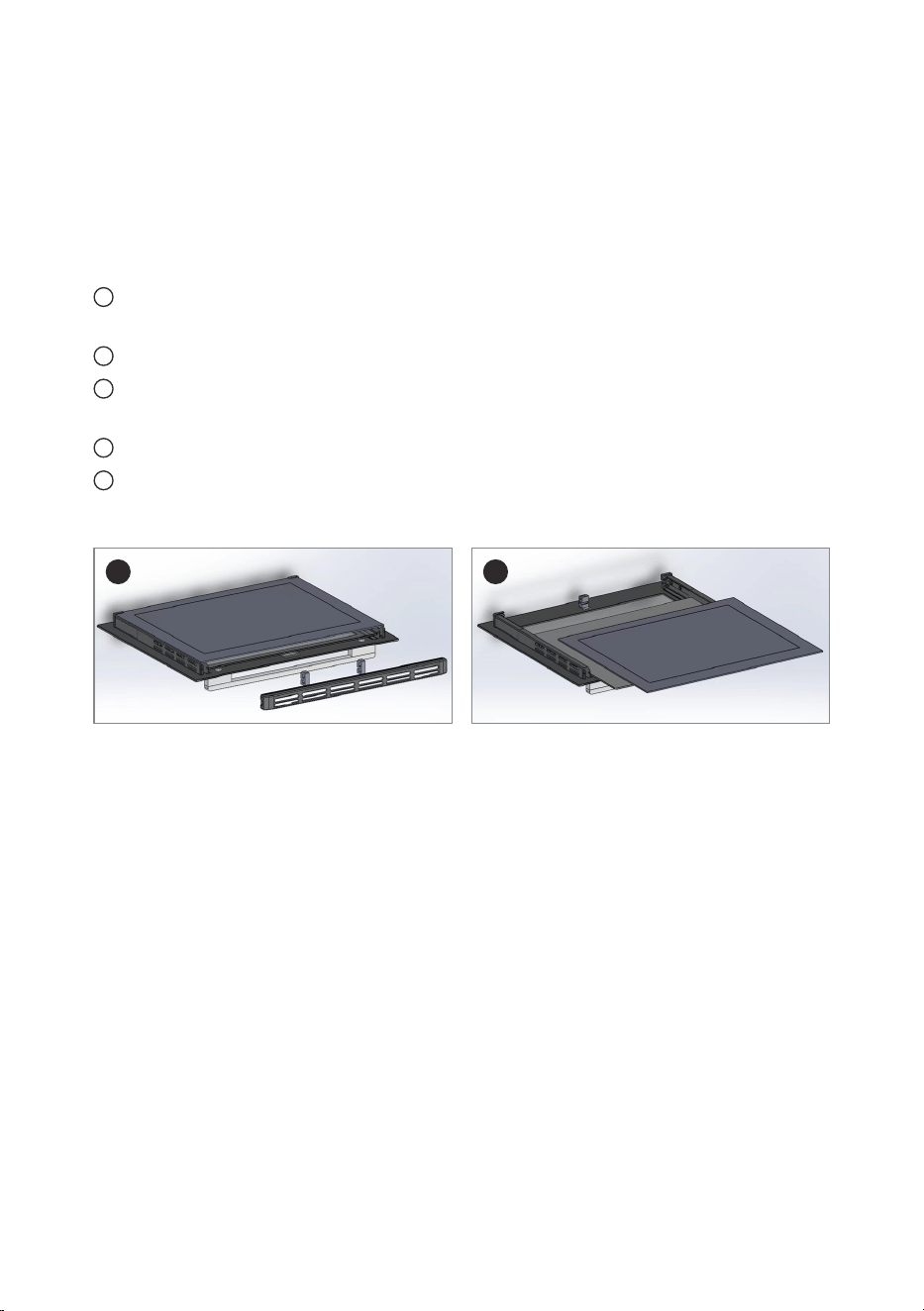

How to Dismantle the Oven Door for Cleaning .........................................................................

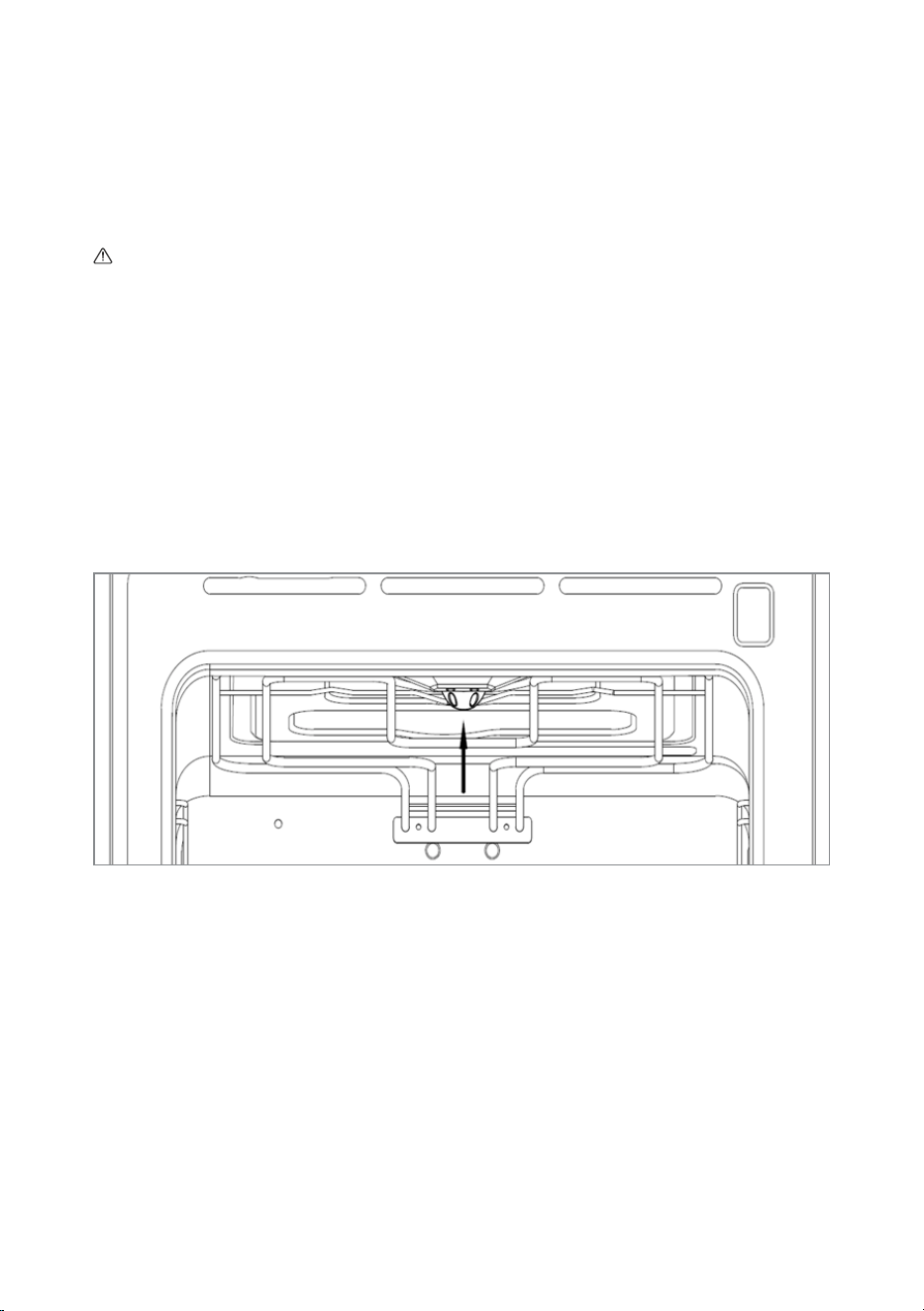

Replacing the Oven Lamp ...........................................................................................................

Product Information .....................................................................................................................

Manufacturer Gurantee .......................................................................................................

12 - 14

26 - 29

31 - 33

4

We recommend that you read the instructions in this owner’s manual carefully

before use for the best performance and to extend the life of your appliance.

It will provide you with all the information you need to ensure its safe installation,

any faults with your appliance.

• Always use original spare parts available from Glen Dimplex.

• This appliance is designed for non-commercial, household use

and it must not be altered in any way.

Warning! This appliance is a domestic kitchen appliance suitable for indoor installation.

It is not suitable for outdoor installations such as alfresco kitchens or garages unless a

qualified, competent installer has deemed the location and installation to be suitable

& compliant.

• This appliance can only be used safely when it is correctly connected to an

ecient earthing system in compliance with current electrical safety standards.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

• Young children should be supervised to ensure that they do not play with the appliance.

• Do not use a steam cleaner to clean the appliance.

5

Packaging items such as plastic bags, polystyrene, nails, etc. are potentially dangerous,

and therefore appropriate measures must be taken to prevent children and the disabled

from coming into contact with them.

Avoid the following:

• Touching the appliance with wet parts of the body.

• Using the appliance while barefoot.

• Improper or dangerous operation.

Authorised personnel must be contracted to:

• Install the appliance according to these installation

instructions and any local requirements.

• Replace the temperature probe if it is damaged. The probe is part of thermostat.

Only use the temperature sensing probe recommended for this oven.

Glen Dimplex Service Department must be contacted:

• If in doubt about the operation of the appliance.

• If in doubt about the soundness of the appliance aer removing it from its packaging.

• If the power supply cable has been damaged or needs to be replaced.

• If the appliance requires a service.

6

Warning! Do notinstall the appliance behind a

decorative door in order to avoid overheating.

Warning! Only use the appliance to cook food and nothing else.

Warning! Check that the appliance has not been

damaged immediately aer it has been unpacked.

Warning! Disconnect the appliance from the electrical mains if it is not

functioning properly and before cleaning or performing maintenance.

Warning! When le unused for a long period,

unplug the appliance from the electricity mains.

Warning! Use oven gloves to place cookware in the oven or when removing it.

7

The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaing indicates that this product

may not be treated as household waste. Instead it should be taken to the

appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negatice

consequences for the environment and human health, which could otherwise be caused

by inappropriate waste handling of this product. For more details information about

recycling of this product, please contact your local concil, your household waste

disposal service or the shop where you purchased the product.

Packaging Materials

8

9

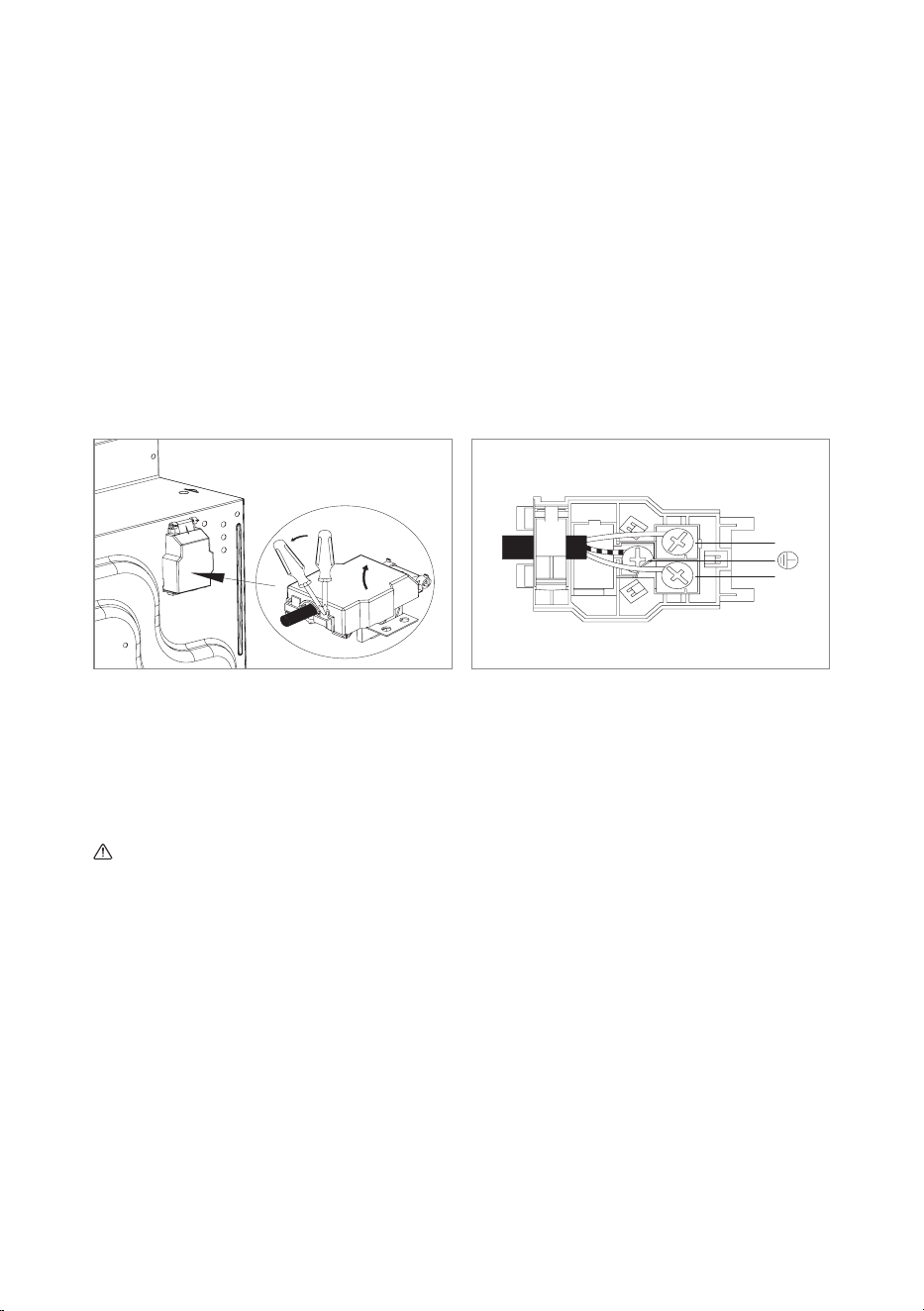

16

selected by means of a cooking mode selection knob, located on the control panel.

To operate the oven

• Turn the cooking mode selection knob to the desired cooking

mode (explanation of cooking modes is on pages 10 to 11).

• Turn the cooking temperature selection knob to the desired

temperature (cooking guide is on page 16) or to Max if Grilling.

• The first time you use your appliance, we recommend that you set the thermostat

to the highest setting, set the cooking mode selection knob to a cooking mode

and oven trays) on the bottom of the oven when it is in operation because this

could damage the enamel. Only place your cookware (dishes, trays, aluminum

foil, etc.) on the oven shelves provided with the appliance.

17

This model has a digital display, 24hr clock with 3 control buttons. When the power

is connected, the screen displays 12:00 and the bar above the symbol flashes.

Setting the time when power is first connected

• To set the correct time, press the or button to advance forward or backward

until the correct time is displayed. Aer 5 seconds the time will be locked in.

Adjusting the time

• Press the function button repeatedly until the bar above flashes, then press

Button functions

Decrease time

Increase time

Timer mode

Timer

Set cooking time

End cooking time

Set the time

18

Automatic setting

• Automatic setting of the oven allows you to select the end time, cooking time,

temperature and cooking mode. The oven will switch on, cook according to

Press the function button repeatedly until the bar above flashes,

Set cooking temperature and cooking mode by

• Aer these settings, the bars above and will flash,

indicating that the automatic cooking feature of the oven is set.

For example: if cooking time takes 45 minutes and you want it to finish at 14:00:

Press the function button repeatedly until the bar

Press the function button repeatedly until the bar

19

Semi-automatic setting

There are two methods of semi-automatic cooking:

Start cooking now and set cooking time

This semi-automatic setting of the oven allows you to start cooking immediately,

set the cooking time (up to 10 hours), select the temperature and cooking mode.

The oven will cook according to the selected cooking mode and temperature

and then switch o automatically once the cooking time has elapsed.

Press the function button repeatedly until the bar above flashes,

Start cooking now and set the finish time

Press the function button repeatedly until the bar above flashes, then press

or button to set the time to finish cooking (up to 23 hours and 59 minutes).

Set cooking temperature and cooking mode

The oven starts immediataely, the bar above will flash. When the finish

20

Timer

• The digital countdown timer can be set up to 23 hours and 59 minutes maximum.

Then press or button to set the countdown timer. Aer 5 seconds, the time

will be set and begin to count down. When the set time is reached, disappears

and the alarm will sound, press any button to stop the alarm.

Note: Aer pressing the function button, timer settings should be done within 5 seconds.

• In case of a power failure, all settings including the time display

will be lost. The time and any settings will need to be re-set.

The oven light

• Set the cooking mode selection knob to the symbol to switch on

the oven light. The oven light remains on when the oven is operating.

Cooling ventilation

• In order to cool down the exterior of the appliance, this model

is equipped with a cooling fan,which switches on automatically.

• When the cooling fan is on, you will notice a flow of air exiting

between the oven door and thecontrol panel.

21

of this versatile cooking appliance and the following directions are only a

• If the oven needs to be preheated, the fan forced mode should

be selected. This is the most ecient mode, which will reach the desired

temperature as quickly as possible using the least amount of energy.

• Once the food has been placed in the oven, the desired cooking mode

can then be selected.

• When cooking delicate foods on more than one shelf, use the

fan forced mode . This mode allows you to cook on 3 shelves at

Using the grill

• This multi-function oven has 2 dierent grilling modes.

• Use the grill mode with the oven door closed, place the food on the centre of

the grill pan, insert and fit the grill pan on either the 3rd or 4th shelf from the bottom.

Note: Only the central part of the top heating element operates for grilling.

• When using grill mode , we recommend you set the thermostat to the highest setting.

22

Using fan grill

• Use fan grill mode with the oven door closed. This mode is very

useful for grilling foods rapidly, as the distribution of heat by the fan makes it

• It can also be used for browning foods at the end of the cooking process,

such as adding that gratin finish to pasta bakes for example.

• When using fan grill mode , place the food on the 2nd or 3rd oven shelf from

the bottom, then place a dripping-pan on the 1st rack from the bottom to prevent

fat and grease from dripping onto the oven floor. We recommend you set the

23

Cooking pizza

• For best results when cooking pizza, use the fan forced mode .

• Preheat the oven for at least 10 minutes.

time, then turn the oven down aerwards.

• In general, the larger the roast, the lower the temperature setting.

• Place the meat on the centre of the shelf and place the dripping

pan beneath it to catch the fat.

24

25

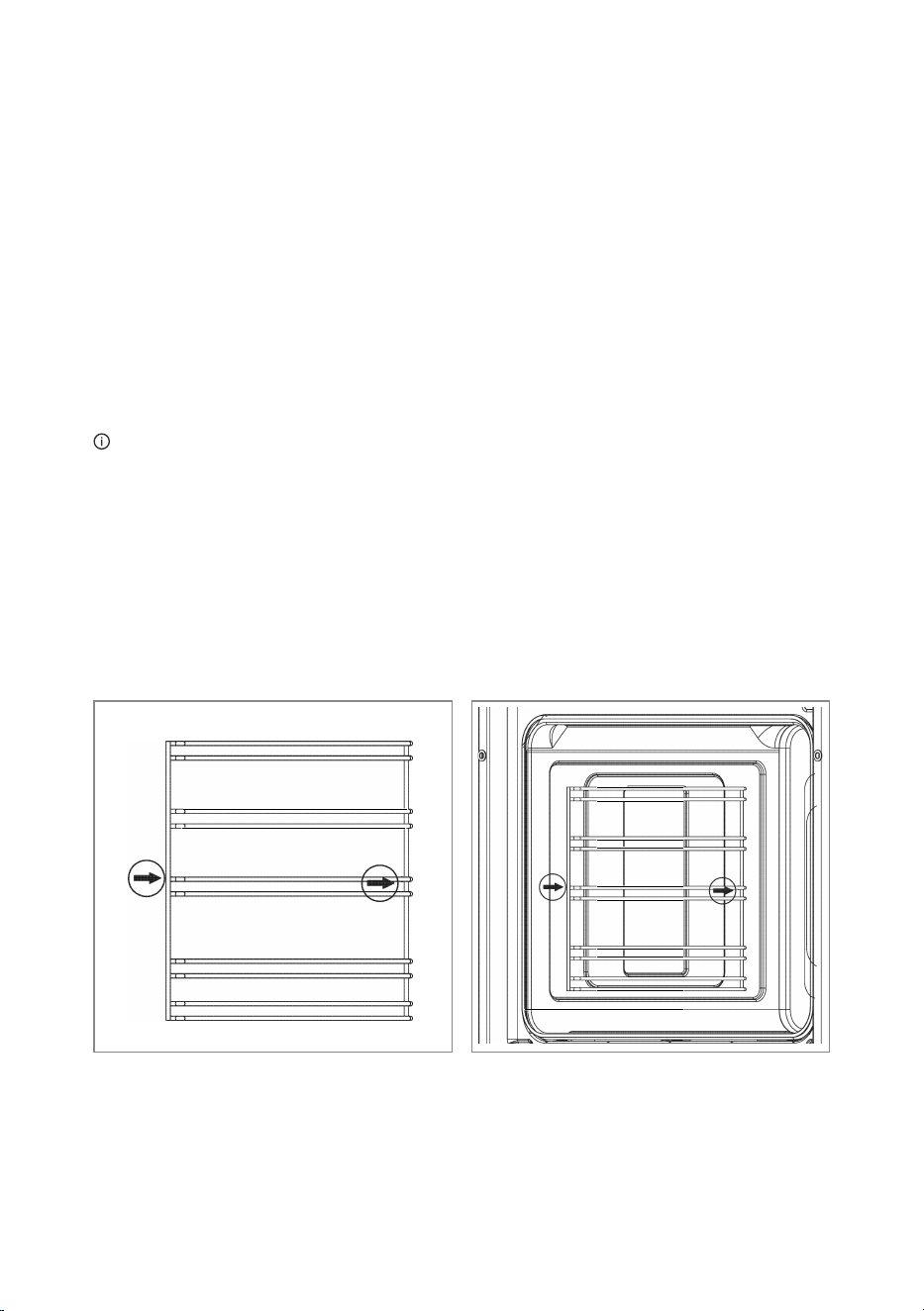

32

The repair relates to the replacement of consumable parts such as fuses and

You are unable to provide us with reasonable proof of purchase for the product;

The breakdown occurs aer the expiry of the express warranty period set out in

section 1 or;

T he product was not purchased in Australia / New Zealand as a brand-new product.

33

and New Zealand can be found at the end of this document.

To make a valid claim under this warranty, you must:

Lodge the claim with us as soon as possible and no later than

Provide us with the product serial number;

Provide us with reasonable proof of purchase for the product.

If required by us, provide us (or any person nominated by us) with access

If you make a valid claim under this warranty and none of the exclusions set

out in section 2 apply, we will, at our election, either repair the product or replace the

product with a product of identical specification (or where the product is superseded

or no longer in stock, with a product of as close a specification as possible).

Contact our Customer Care Team

34

35

caused by incorrect installation or improper use of the appliance. The manufacturer is

not responsible for any inaccuracies, due to printing or transcription errors, contained in

this manual. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered

necessary and useful, without aecting the essential safety and operating characteristics.

Glen Dimplex constantly seeks ways to improve the specifications and designs of their

products. Whilst every eort is made to produce up to date literature, this document

should not be regarded as an infallible guide. Actual product only should be used to

derive cut out sizes.

All appliances must be installed by a qualified person/s with adherence to the relevant

state and national building codes and regulations.

All Glen Dimplex appliances are for Domestic use only, and must be installed by

a licence installer into Domestic Applications only, without exception and to the

required Authorities guidelines. Any installation outside of this will VOID warranty.

Alfresco areas are not a Domestic application.
