USER MANUAL V1
Nexus 4 Pro S
1
1
2
5
5
6
8
8
9
31
38
38
39
41
Contents
1. Quick Start Guide
1.1 What’s in the Box?
1.2 Installation Guide
2. Basic Operation
2.1 Camera Overview
2.2 Button Description
2.3 LED Indicator
2.4 Screen Overview
2.5 Operation Guide
2.6 Menu Introduction
3. Specifications & FAQs
3.1 Specifications
3.2 Safety Warnings
3.3 FAQs
4. Warranty & Support 42
Before using the camera for the first time, please
read the product manual carefully to ensure correct
operation.
The dash cam needs to be connected to the power
supply to work properly.
To ensure driving safety, please do not operate the
device or watch the driving video via cell phone
during driving.
This product needs to be inserted into the SD card.
Please make sure the SD card is functioning
properly and is compatible with the device.
Please do not disassemble or repair the dash cam
without authorization. If the camera malfunctions,
please contact VANTRUE official customer service.
Please avoid installing the dash cam in a position
that will block the driver's view.
Please keep away from high temperature and
humid environment to ensure the normal operation
of the device.
In order to improve the product experience, the
product firmware will be updated from time to time,
you can download the latest version to enjoy the
latest features as needed.
Please do not install the dash cam in front of the
passenger to avoid safety hazards caused by the
device falling off.
Please note that the use of wireless CarPlay or
Android Auto may affect the connection of the
Vantrue APP.
Please use this product reasonably in compliance
with relevant laws and regulations.
·
·
·
·
·
·
·
·
·
·
·
Safety Warnings:
- 1 -
1. Quick Start Guide
1.1 What’s in the Box?
D. Car Charger
with Built-in
Type C Cable
(11.5ft)
J. Warning
Stickers *2
K. Spare Adhesive
Stickers
B. Rear Camera
F. Type C Data
Cable (3.3ft, for
transferring
files only)
G. Electrostatic
Stickers*2
M. Cable
Clip*6
A. N4 Pro S Front
Camera
C. GPS Adhesive
Mount
I. Dust-free Cloth
H. Crowbar
E. Rear Camera
Cable (20ft）
L. Quick User
Guide
N. Base for
Adhesive
Mount
O. Rear
camera
Mount
Q. CPL
Filter
T. LTE Module
Optional Accessories (Buy Separately)
R. Remote
Control
S. Hardwire
Kit
P. Adhesive
Promoter
CONNECTS THE WORLD
Primer
Adhesion promoter
EN
Non-woven wipes
2.0ml
- 2 -
1.2 Installation Guide
Here are some warm tips about installing the
N4 Pro S dash cam:
Please use a cleaning tool to clean the mounting
position of the front camera and the rear mirror
camera on the windshield first. After cleaning it,
then install the camera;
Before installing the front camera, we recommend
that you install the static sticker first, and then
install the front camera;
When installing the GPS bracket, we recommend
that you press the bracket against the windshield
after installing the 3M bracket in order to expel the
air on the contact surface between the bracket and
the windshield, and increase the adhesion of the
bracket.
After completing the installation of the car charger
adapter cable and the rear camera, we recommend
you to use the complimentary cable clasp to store
the car charger adapter cable and the rear lens
cable (refer to the reference pictures ⑤ and ⑥)
When using the N4 Pro S dash cam for the first
time, we recommend that you format the memory
card first.
·
·
·
·
·
- 3 -
Installation Diagram
③ Installation of electrostatic
sticker to windshield
④ Installation of the
N4 Pro S dash cam
① Attach the bracket to
the front camera
② Insert a memory
card
⑤ Installing the Car charger adapter and Wiring
- 4 -

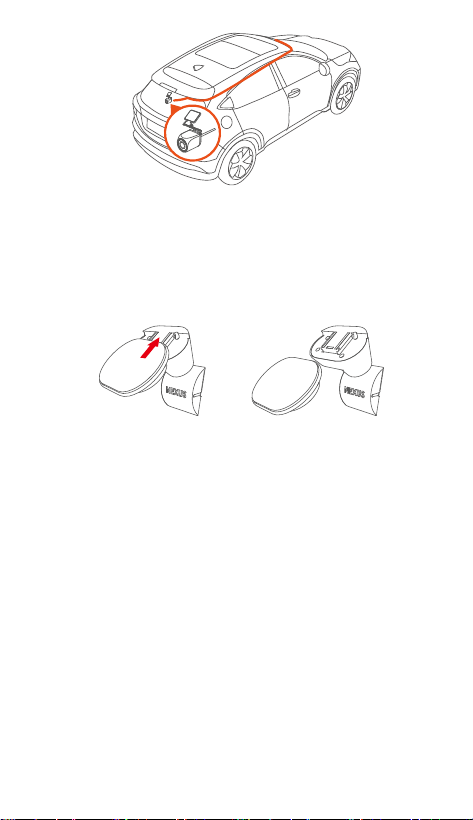

⑥ Installing the rear camera and wiring
Please note that the bracket is a split bracket . If you
need to remove the bracket , simply push the bracket
away from the bracket base to complete the removal.
- 5 -
2. Basic Operation
2.1 Camera Overview
1
6
VTE22L1577
7
8
5
9
4
3
2
- 6 -
N4 Pro S Front Camera
3.19" IPS screen
Cabin Camera
Infrared Lights for Cabin Camera
TYPE-C Port for Charging
(Cannot be used for Rear Camera connection and
data transfer)
TYPE-C Port for Connecting Rear Camera Cable or
Transferring Data
Serial Number
Memory Card Slot
Rear Camera
1
2
3
4
5
6
7
8
9
VTE22L1577
2 3 4
5
1
6
KeyNo. Description
• In the power-on state: long press to turn
off the camera; in the power-off state,
short press to turn on the camera；
• In the recording interface: short press to
turn on emergency recording and
snapshot；
• Wi-Fi mode: short press to snap a photo;
• In file browsing, short press to pop up
the menu for deleting files.
1
2.2 Button Description
- 7 -
• In the recording screen: Short press to
start/pause recording, long press to turn
off the screen;
• In the menu settings: short press to
confirm the option;
• In the playback video: short press to play
the video or pause the video.
2
• During video recording: short press to
switch the video window;
• In the menu setting and file browsing
screen: short press to select the previous
option or file, and long press to scroll
through the above options or files.
• When playing back the file: short press to
play back the video at double speed.
3
• During video recording: short press to
turn on/off the microphone; Long press to
enter parking mode (this operation can be
done with parking mode on);
• In the menu settings and file browsing
screen: short press to select the next
option or file and long press to scroll
through the options or files below;
• When playing a file, short press to pop
up a menu for deleting files.
4
• In the standby mode, short press to enter
the menu;
• In the power-on state, long press to turn
on or off WiFi;
• In the menu setting and file browsing
interface, short press to return to the
previous interface.
5
• Short press to restart the camera.
6
Reset
Button
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
- 8 -
LED Status
Description
LED
Steady green light
Blinking green light
Instandby
Camera is recording
REC
2.3 LED Indicator
2.4 Screen Overview
2.4G WiFi ON
5G WiFi ON
2.4G WiFi is connected
5G WiFi is connected
WiFi OFF
GPS is located successfully
GPS OFF
Memo card inseed
Loop Recording for
1 min;
Loop Recording for
3 min;
Loop Recording for
5 min;
Loop Recording OFF
Current
Resolution
R means Rear
Camera Display
Time and Date
F means Front Camera
Display
Voice Assistant ON
Voice Assistant OFF
Recording Time
(Current Clip)
Collision Detection
1080P Low Bitrates Recording ON
720P Low Bitrates Recording ON
Motion Detection
Low Framerate Recording ON
Time Lapse On
IR LED AUTO ON/OFF
IR LED ON
IR LED OFF
MIC ON
MIC OFF
G-sensor ON
G-sensor OFF
NO Memo card/SD
card error
Recorded driving speed
(KMH or MPH)
Privacy
mode is on
ACC is powered
on normally
LTE network
signal icon
Remote control
is connected
C means Cabin
Camera Display
HDR timer is on
Emergency
File Locked
- 9 -
2.5 Operation Guide
--APP Download
Please scan the QR code for the relevant version below
to download the app and install it.
Search for the "Vantrue" app in App Store or Google
Play Store to find the app and then download and
install it on your phone.
--Add a Device
Wi-Fi is automatically turned on when the N4 Pro S
dash cam is turned on. After turning off Wi-Fi, users
can turn on Wi-Fi again by using the shortcut keys, the
voice control function, or by going to the menu
settings.

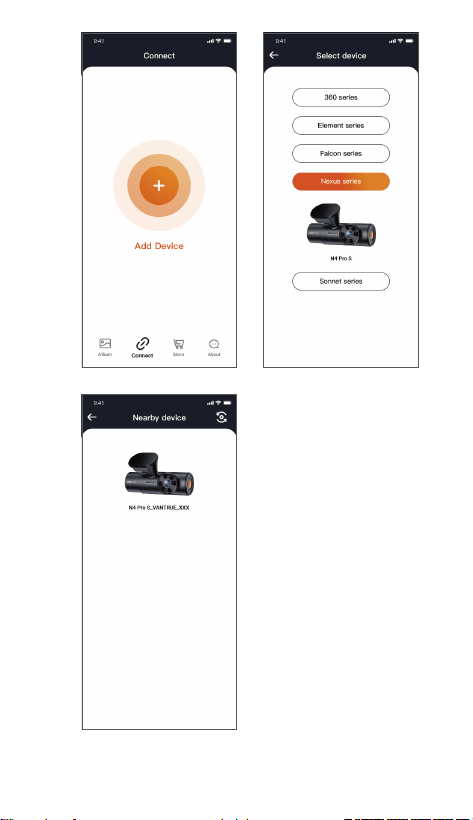

After the N4 Pro S camera’s Wi-Fi is turned on, click
"Add Device" on Vantrue App, select Nexus series,
select N4 Pro S model, confirm the corresponding Wi-Fi
name, and finally click to confirm the Wi-Fi connection.
- 10 -
- 11 -
Please note:
·
Please check whether the Wi-Fi function of your
phone is turned on first.
·
The initial password for this device is only used for
initial login. In order to prevent potential security risks,
please be sure to change the initial password after the
initial login to prevent others from logging into your
device without authorization or other adverse
consequences.
·
If you forget the password you set, you can go to the
camera's "System Settings" and choose Restore
Default Settings. After the camera restores the default
settings, the Wi-Fi password is the initial password
(12345678).
Please note that the camera's Wi-Fi password can only
be changed via the Vantrue app.

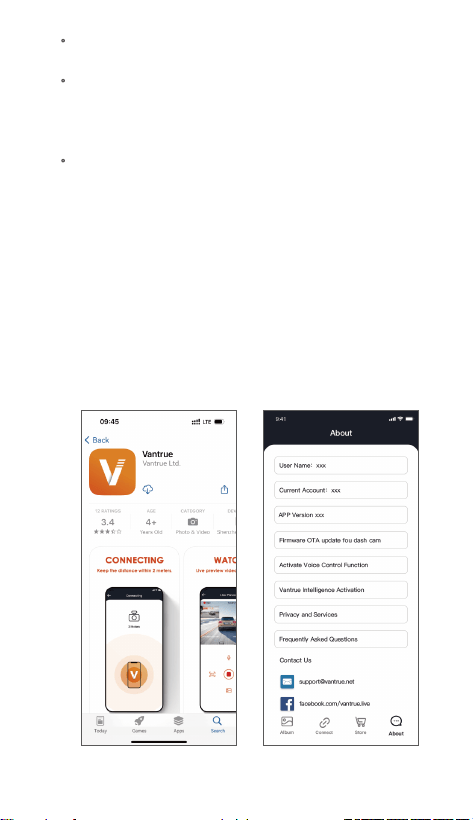

--Guidelines for the use of the APP
Please scan the QR code for the relevant version below
to download the app and install it.
Search for the "Vantrue" app in App Store or Google
Play Store to find the app and then download and
install it on your phone.
- 12 -
Full Screen
Microphone
ON/OFF
Camera
Displays
Switch
Camera
Setting
Album
Camera
Correction
Line
Start/Start
Recording
lcon
Mileage
Statistics
Snapshot
After entering the APP real-time preview, you can do
the following operations.
·
Video Preview: After the APP connects to the camera
successfully, the camera enters the real-time preview
page, click the full screen button or cell phone
horizontal playback, the real-time screen automatically
switches to full screen preview mode. Click the window
switch button to switch the front, and cabin video
windows, but only multi-channel recording mode can
use this function.
·
Playback Video: You can view the recorded video or
photo files in the SD card in the APP, click "File" and
then select the video to play back.
·
Video Download: You can choose to download videos
or pictures in the SD card browse file interface or in the
video playback. After downloading the video, you can
play it in the App local file and view the GPS track of the
video.
- 13 -
· Picture Capture: In the application's live preview
screen, you can capture the current picture.
·
Mileage Statistics: Users can click to download the
mileage information according to their needs. The
mileage information will be saved in the APP as a
picture or PDF file.
·
Camera Correction Line: The lens balance is
corrected by the accurate cross line, so that the
recording image will not be skewed.
--APP Upgrade
Open "Vantrue" App, connect the camera’s Wi-Fi, go to
"Settings>About", click "Detect new version", then the
App will automatically detect whether the App version
is the latest version.
If there is a new version of the App, follow the
instructions of the App to operate and upgrade the
version.
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
- 14 -
A. Resolution and PlatePix™ Timer
The picture quality mode is standard by default. Users
can turn on the PlatePix™ mode on demand and set the
automatic on and off time of this mode with the
PlatePix™ timer. This function prioritizes the
enhancement of license plate clarity, avoiding the
blurring of license plates due to lighting problems,
which may affect the evidence of accidents.

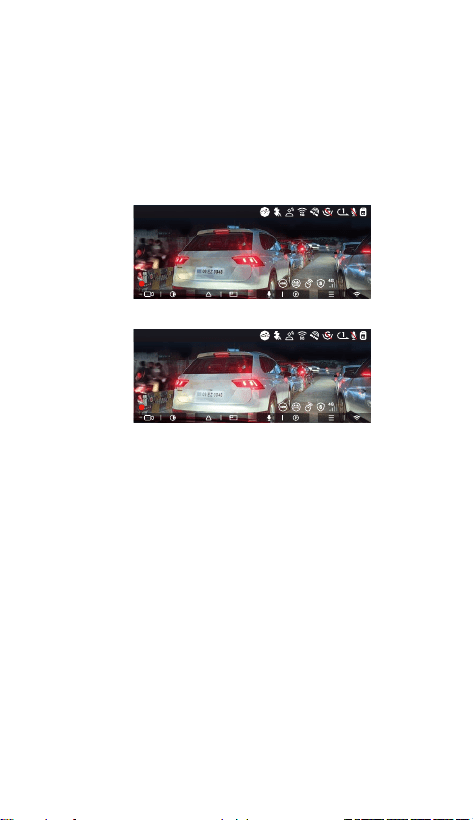

PlatePix™ Mode On
PlatePix™ Mode O
--Loop Recording
After inserting the memory card and connecting the
power, the N4 Pro S dash cam will automatically turn
on and enter loop recording. The duration of each
recorded video will be saved based on the loop
recording time you set, saved in the Normal Video
folder.
When the capacity of the Normal Video folder reaches
70% of the total capacity, the new loop recording file
will automatically overwrite the original loop recording
files. After this function is enabled, the video file will
automatically overwrite the loop, so as not to stop
recording during the driving process.
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
- 15 -
Note:
·
The normal operation of the loop recording function
is very dependent on the speed of the memory card, so
please format the memory card regularly to avoid
problems such as excessive memory card files and
card aging that affect the normal loop recording.
·
Please check the loop recording video regularly to
avoid the necessary videos being overwritten by loop.
·
After loop recording is turned off, the lock video
function will no longer work.
·
When the loop recording setting is turned off, the
length of each recording is 20 minutes. When the
memory card is full, the camera will stop recording and
prompt "card is full!"
--Event Recording
When driving, the user can lock manually or the dash
cam automatically locks the recording if special
circumstances are encountered.

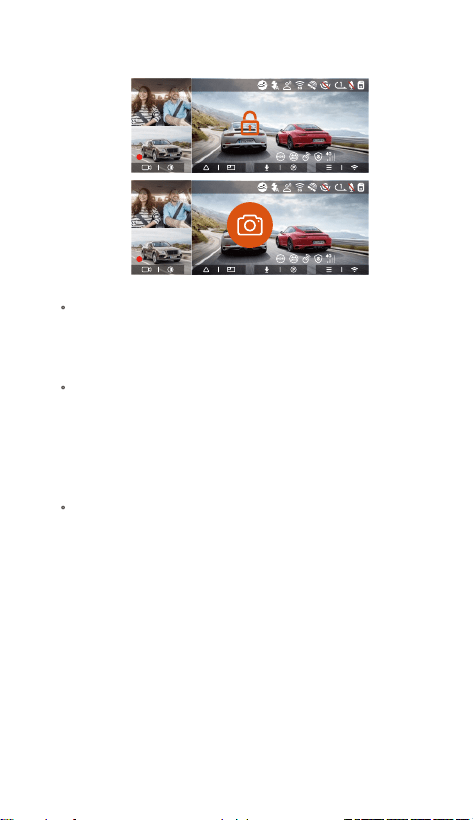

To manually lock the video, just press the button to
lock the current video and capture it.
During the lock video period, you can press the
button to capture multiple times.

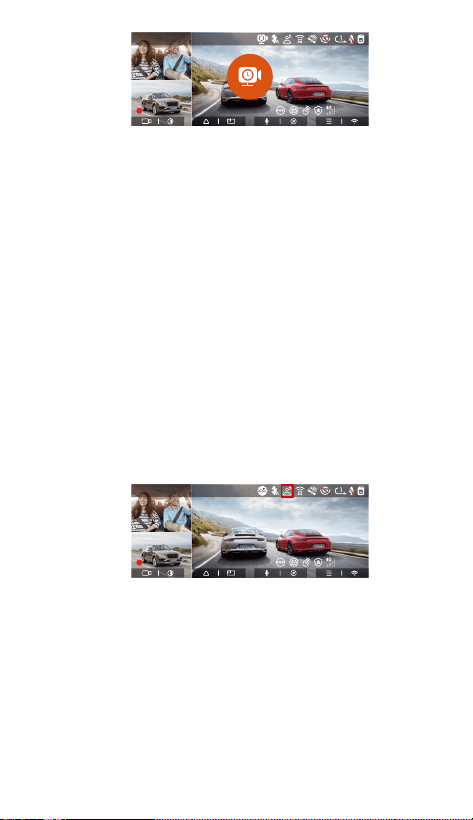

Auto-lock event recording: When the car is hit by a
collision or vibration, the dash camera will
automatically trigger and lock the current video when it
senses the vibration.
After the emergency recording is finished, the video will
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
- 16 -
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
be automatically saved in the Event Video Folder and
the photo will be saved in the photo folder.
Note:
·
The sensitivity of the automatic locking video trigger
is determined by the sensitivity of the collision. The
higher the sensitivity setting, the greater the probability
of being triggered.
·
When the total capacity of the event video files is 30%
of the total capacity of the current memory card, the
new event video files will automatically overwrite the
old event video files.
We recommend checking and saving event video files
regularly to avoid losing them.
·
Lock recording will not trigger in either of the
following situations: Loop recording is off or Time
lapse recording is on. When loop recording is turned
off/time-lapse recording is turned on, only pictures can
be captured when locking the recording.
Parking Mode
When parking, you can set up a variety of different
parking monitoring settings on your own, depending on
the vehicle itself, the parking environment, your own
needs, and other factors.
- 17 -
OK
Parking Monitor Settings
Parking Mode Camera Selection
Low Light Night Vision in Parking Mode
Collision Detection in Parking Mode
Motion Detection Area
OK
Parking Mode Camera Selection
Front+Cabin+Rear
Front+Cabin
Front+Rear
Front
Please note the following precautions when using the
parking mode:
To ensure that the dash camera can use the
parking mode function normally, please use the
VANTRUE hardwire kit cable or other stable and
continuous power supply for the camera.
It is recommended to use VANTRUE ACC hardwire
kit cable. If you use other brands of ACC hardwire
kit cable, you may not be able to use the ACC
function due to the different location of the ACC
detection PIN pin.
In the hot and sunny environment of summer, we
recommend you to choose the parking mode of
collision detection. When the ambient temperature
in the car reaches 60℃, we recommend you to turn
off the camera to avoid the camera working
abnormally due to high temperature.
Time-lapse recording and parking mode (including
collision detection, motion detection, low bit rate
recording, low frame rate mode) can only be turned
on one of the two. If one of them is turned on, the
other one will be turned off automatically.
All the files recorded in parking mode will be saved
in the parking video folder, in order to avoid the
parking mode files being overwritten by the loop,
please check them regularly to avoid losing them.
①
②
③
④
⑤
- 18 -
The parking mode function will be improved with
the firmware upgrade of the N4 Pro S dash camera.
Please pay attention to the firmware description
announcement on VANTRUE website for specific
changes, or consult with customer service staff.
⑥
After the ACC hardwire kit cable is disconnected,
the dash camera enters the parking monitoring
mode immediately.
When the vehicle is stationary for 5 minutes, the
camera will enter the parking monitoring mode
automatically.
Users can choose the appropriate entry mode
according to their own vehicle power supply
situation to ensure the normal operation of the
parking monitoring function.
①
②
③
Parking Mode Introduction
Due to the different ways of power supply to the
camera by the user, the way the car camera enters the
parking monitor mode is also different. At present, it
supports two ways to enter the parking monitoring
mode:
Parking Mode 1: Collision Detection
When the Collision Detection setting is on, the Collision
Detection icon will be displayed in the recording
interface, indicating that the camera is currently using
the Collision Detection mode.
The sensitivity of Collision Detection value can be
selected as 1/2/3/4/5. The higher the sensitivity level,
the easier it is to trigger Event recording. The sensitivity
is highest at 5.
- 19 -
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56

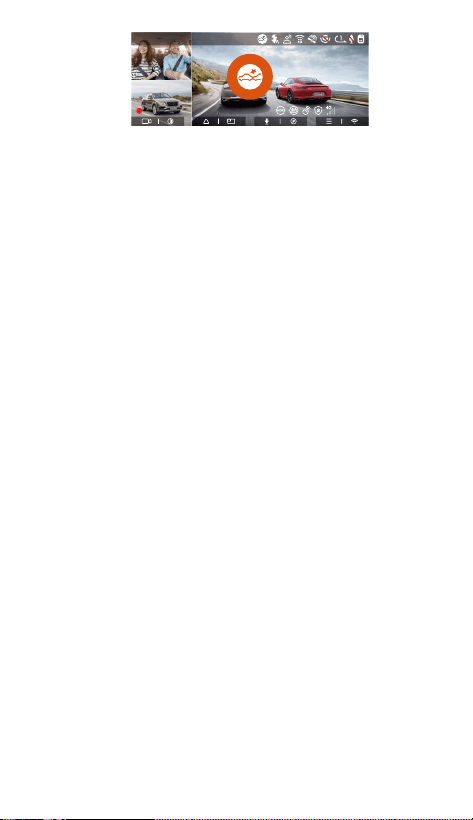

When the G-sensor detects that the vehicle has been
stationary for 5 minutes (entering collision detection
mode), the camera will display the appropriate icon in
the center of the screen and automatically shut down.
After shutting down, if the vehicle vibrates or moves,
the camera will automatically turn on and record a
1-minute video, and then turn off again to ensure that
key images are recorded.
According to different user habits, the collision
detection mode provides two startup modes: quick
start and power saving mode. Users can go to Record
Setup＞Parking Monitor Settings＞Collision Detection
in Parking Mode to choose.
Quick start: the device enters the standby mode with
the screen off, and when a collision occurs, the device
will immediately light up the screen to record video, and
save the file and continue to enter the standby mode
after the recording is completed.
Power Saving Mode: the device is completely turned
off, and automatically turns on to record after detecting
a collision, saves the file and turns off the device after
recording is completed, which is more energy-saving.
Note:
If the camera continues to be hit by a collision during
the collision detection recording process, it will exit the
collision detection mode, enter normal recording, and
continue to stand still for 5 minutes before entering
collision detection again.
- 20 -
Parking Mode 2: Motion Detection
When the Motion Detection setting is on, the Motion
Detection icon will be displayed in the recording
interface, indicating that the camera is currently using
the Motion Detection mode.
The process of triggering recording: N4 Pro S Dash
Cam supports pre-recording function, which can better
restore the whole process of the event. It adds 10
seconds of recorded footage before the triggering
event to the motion detection video, resulting in a
40-second motion detection recording (10 seconds of
pre-recording + 30 seconds after the triggering
recording).
You can select the detection lens and adjust the area
of motion detection in the parking monitoring settings
to more accurately monitor activities within a specific
range. This function works in conjunction with the
Motion Detection Parking Mode to ensure that the
device automatically triggers recording when it detects
abnormal movement, increasing surveillance
efficiency and reducing ineffective recordings.
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
OK
Parking Monitor Settings
Parking Mode Camera Selection
Low Light Night Vision in Parking Mode
Collision Detection in Parking Mode
Motion Detection Area
- 21 -
OK
Motion Detection Area
Front Area Detection
Rear Area Detection
Parking Mode 3: Low Bitrate Recording
When low bitrate recording is turned on, the screen
displays the low bitrate icon and records according to
the set resolution (1080P 15FPS or 720P 15FPS).
Parking Mode 4: Low Framerate Recording
When low frame rate recording is turned on, the camera
will record according to the 1FPS/5FPS/10FPS/15FPS
setting selected by the user.
The way to enter the low bitrate recording: after
parking the car and turning off the engine, the device
automatically enters the low bitrate mode, the
resolution of all the cameras are adjusted to the set
value, and the recording is recorded according to the
cycle recording time.
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
- 22 -
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
How to enter the low framerate recording mode: After
parking the car and turning off the engine, it will
automatically enter the low frame rate mode, which can
effectively retain the video integrity and save storage
space.
Note: The device needs stable power supply, if the
power supply is disconnected, the camera will
automatically shut down.
Voice Control
You can control the camera with voice command, such
as take photo, video start, turn on/off Wi-Fi, lock the
video, etc. Currently supported languages are English,
Japanese, Russian, Chinese and French. For more
detailed voice commands, please go to System Setup >
Voice Content to view them.
Mileage Statistics
N4 Pro S dash cam uses GPS information to analyze
mileage statistics such as driving time, driving mileage,
altitude, driving speed, etc. during the driving process.
Mileage files can be exported via APP.
Voice recognition has options of low
sensitivity/standard/high sensitivity/off. The default is
standard sensitivity.
C
R
F
2160P+1080P+1440P 30FPS
MP/H
14:25:3505-05-202500:00:37
56
- 23 -
In the APP real-time preview interface, you can select
the start time and end time, click OK, then you can
download the mileage statistics file in PDF or JPG
format and save it in the APP local folder.
- 24 -
GPS Function
GPS is enabled by default. The N4 Pro S dash camera
receives GPS signals via a GPS mount. It automatically
corrects the time and date in your area, records the
location where the video was taken and the speed of
the vehicle at the time.
GPS Information
40
46
39
43
48
- 25 -
Note:
The GPS connection will be completed within 1
minute after you turn on the device. If the GPS
connection is not successful within 1 minute,
please check
whether the GPS function is enabled;
whether the device is correctly connected to the
GPS bracket;
whether the environment affects the signal (e.g.
underground parking lots, tunnels, densely built-up
areas, etc).
GPS information is recorded along with the video.
To view it, please download and install the
VANTRUE App and VANTRUE GPS Player (available
for download at www.vantrue.net).
①
②
·
·
·

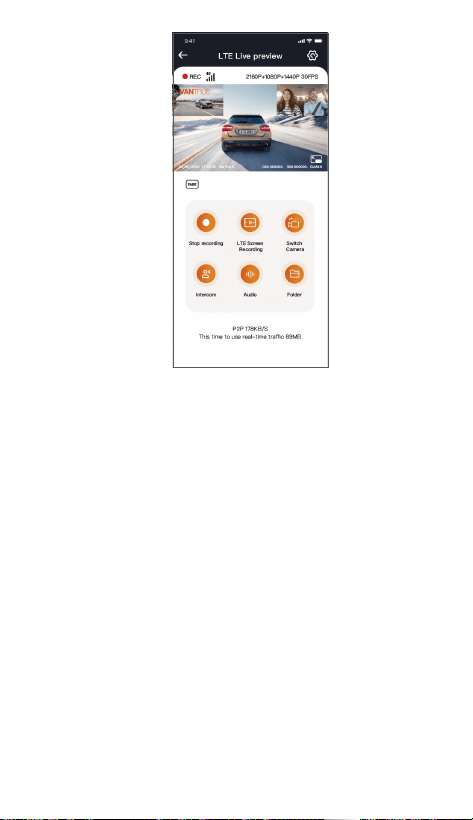

LTE Setup (need to use with LTE module, sold
separately)
For users to remotely view their vehicle's parking
situation, Vantrue introduces the LTE module. Users
can insert the SIM card into the LTE module and
connect the dash cam to realize remote monitoring.
- 26 -
In LTE settings, users can customize the settings:
a. Message push settings
b. SIM card traffic consumption limit
c. Picture quality of collision video upload
Users can flexibly adjust the settings according to the
SIM card package to ensure the efficient use of traffic
and remote monitoring functions.
Automatic time correction via GPS
The default setting of GPS auto time correction for N4
Pro S dash cam is on. If your location is Los Angeles,
you can select GMT-08:00. If you don't know the time
zone of your location, you can connect your phone to
the Wi-Fi of the camera, and turn on the automatic time
correction function in Vantrue APP, so the camera will
correct the time zone of the camera according to the
time zone of your phone.
- 27 -
OK
Time & Date
GPS Automatic Update
Set Date/Time Manually
ST/WT Auto Switch
Date Format
For users to watch clearer videos, Vantrue provides an
exclusive PC player:
-Mac users can search for “Vantrue Player” in Apple
APP Store and download it.
Windows users can go to Vantrue official website
(https://www.vantrue.net/app/app.html) to download
the latest version of the player.
The player supports video playback, GPS track view,
speed display and other functions to provide users with
a better video experience.
Note:
GPS automatic time correction needs to set the
correct time zone, you can refer to the
representative cities of each time zone.
Automatic switching between Winter Time and
Summer Saving Time is available for North America
only.
·
·
- 28 -
N4 Pro S Dash Cam Firmware Update
Upgrade method 1: Updates via files
Go to VANTRUE website to download the latest N4 Pro
S dashcam firmware, copy the firmware file to the root
directory of the memory card, then insert the memory
card back into the N4 Pro S camera, the system will
automatically upgrade with the updated firmware of the
Micro SD card after the dash cam is turned on.

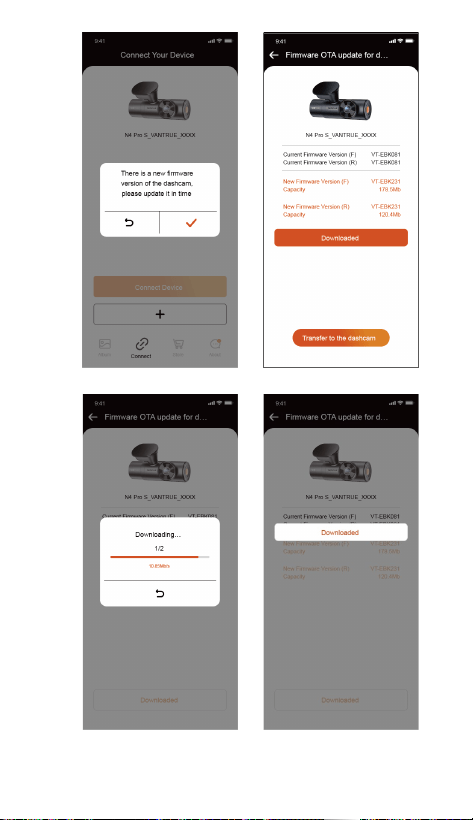

Upgrade method 2: OTA (Over the Air) Firmware
Update
After opening the APP, if you receive an update
reminder of the dashcam software, please confirm the
upgrade, and then it will jump to the OTA upgrade
interface, and then upgrade according to the APP
guidelines.
Upgraded Files
- 29 -
- 30 -
To upgrade firmware via file or OTA upgrade, N4
Pro S camera needs to keep power on.
To upgrade via OTA, internet data traffic is required
to download the upgrade file.
If you upgrade the firmware by file, you need to
format the memory card on the N4 Pro S dash
camera , and then copy the upgrade file to the
memory card to upgrade the firmware.
·
·
·
- 31 -
2.6 Menu Introduction
The N4 Pro S dash camera function setup has three
sections, Record Setup, System Setup, and File
Browsing. You can set your dash cam according to
your requirements with these function setting.
2.6.1 Record Setup
-Resolution: The N4 Pro S camera has 3 recording
modes:
Recording Mode Resolution
Default Settings
√
Front+Cabin+Rear
2160P+1080P+
1440P 30FPS
2160P+1080P+
1080P 30FPS
2160P+720P+
1080P 30FPS
1440P+1080P+
1440P 30FPS
1440P+720P+
1080P 30FPS
1080P+1080P+
1080P 30FPS
1080P+720P+
720P 30FPS
√
Front+Cabin
2160P+1080P
30FPS
2160P+720P
30FPS
1440P+1080P
30FPS
1440P+720P
30FPS
1080P+1080P
30FPS
- 32 -
Front+Cabin
1080P+720P
30FPS
√
Front+Rear
2160P+1440P
30FPS
2160P+1080P
30FPS
1440P+1440P
30FPS
1440P+1080P
30FPS
1080P+1080P
30FPS
√
Front
3840x2160P
30FPS
2560x1440P
30FPS
1920x1080P
30FPS
1280x720P
30FPS
-Picture Quality: There are 2 options available,
Standard and PlatePix™. The default setting is
Standard.
-Loop Recording: Default setting is 1 min. You can
choose the options among 1/3/5 min and OFF. With it
turned off, it will record 20 minutes of video each by
default until the card is full and then it won't record.
-IR LEDs: The default setting is Auto. You can set it to
auto/off/on.
-G-Sensor: Select the level of G-sensor you need, then
you can set 3 directions (Front + Rear/Left + Right/Up +
Down). The G-sensor value in each direction can be
selected as 1/2/3/4/5/Off. The higher the sensitivity
level, the easier it is to trigger event recording.
G-sensor is most sensitive when set to 5.
- 33 -
-Privacy Mode: The default setting is off. With it turned
on, the video is recorded in a three-stage loop mode.
-Audio Recording: The default setting is on. Set
recording to on or off.
-Audio Noise Reduction: The default setting is on. It
adjusts the audio effect of recording by dynamic noise
reduction. You can choose to turn it on or off.
-Exposure: You can set the camera exposure value of
the front or cabin camera of the car separately. The
default is +0.0.
-REC Status Light: Default setting is ON. You can
choose to turn on/off the recording status light.
-HDR: The default setting is on. You can adjust the
HDR on or off of the front and cabin cameras
separately.
-HDR Timer: Default setting is Off. When it's on, you
can choose when HDR is automatically turned on and
off.
-Rotate Display: Default setting is Off. You can set the
video screens of the front camera and cockpit camera
to flip up and down (180 degrees) separately.
-Mirror: Default setting is ON. When it is on, the screen
of the cabin camera is displayed in mirror mode.
-Number Plate: Select the number or letter to be set.
After setting, your license plate number can be
displayed in the recorded video.
-Stamp: Enable or disable the watermark stamp on
video and photos. The watermark stamp includes time
and date label, VANTRUE label, license plate number,
GPS location information, and speed label. All enabled
by default.
-Time Lapse: The default value is disabled. You can
choose to enable 1FPS/5FPS/10FPS/15FPS.
-Parking Mode: You can choose the parking mode you
need. There are Collision Detection / Motion Detection
/ Low Bit Rate Recording / Low Frame Rate Recording /
Off. Default setting is Off.
- 34 -
-Parking monitoring settings: this function includes
detection lens settings, parking micro-light night vision,
motion detection area settings, parking collision
detection mode adjustment.
-LTE Settings: This feature needs to be used after N4
Pro S dash cam connected to LTE module. Default
real-time push message, default use of 300MB data
traffic per day, crash video traffic-saving upload. Users
can change the settings as needed.
-Mileage statistics: Default setting is On. Turn on this
function, the dash cam will record the mileage
information, and you can export the mileage statistics
through the mileage statistics function in Vantrue APP.
-GPS Settings: GPS is enabled by default. GPS ON/OFF
settings, speed unit settings, and GPS information are
all set here.
-Language: Available languages are
English/Français/Español/Deutsch/Italiano/简体中文
/русский/日本語/Polski / 한국어.
-Wi-Fi: You can choose Wi-Fi mode, view Wi-Fi
information, etc.
The Wi-Fi auto-on option means that the Wi-Fi will
automatically turn off after 10 minutes of turning on. If
you choose on, Wi-Fi will always stay on; if you choose
off, Wi-Fi needs to be turned on manually.
Wi-Fi mode is 5G by default.
Wi-Fi information displays the Wi-Fi name and Wi-Fi
password.
-Voice Control: The default sensitivity is Standard.
Voice commands can be recognized after the option is
turned on. You can choose options such as low
sensitivity/high sensitivity/standard/off.
-Voice Content: You can use different commands to
remote control the camera to work.
2.6.2 System Setup
- 35 -
-Format SD Card: Format all data on the memory card.
-Format Reminder Setup: Select the reminder options:
15 Days, 1 Month, and Off. Default is off.
To prevent you from forgetting to format the memory
card regularly, we have added a format reminder time
setting. You can choose to be reminded after 15 days
or 1 month, and calculate 15 days or 1 month from the
set date. When the time is up, you can choose "OK" to
format, or choose "Next."
Note: If you changing the format reminder option, the
timing will restart as soon as the option is changed.
-Date & Time: There are two ways to set the time and
date:
① GPS auto update: GPS will update the time
automatically when it is turned on by default. GPS auto
update date and time is based on the time zone where
you set, so you need to choose the correct time zone
first;
② Manual set date/time: Turn off GPS auto update and
set date and time manually.
Summer/Winter time auto switch: The default setting is
off. When turned on, it will switch automatically
according to the daylight saving time and winter time
dates.
*This feature is only available in North America, if used
in other regions, it may cause time errors.
The date format and time zone settings are also set in
this menu.
-Auto LCD Off: Set the time to automatically turn off
the LCD display after no operation.
If you set the Auto LCD Off to 3 min, the camera’s LCD
screen will auto light off after 3 min but recording will
continue. If the setup is Off, the screen will not turn off.
You can choose the options among 30s, 1Min, 3Min
and OFF.
- 36 -
-LCD Brightness: The default setting is Auto with High,
Medium and Low options. Auto mode is where the
brightness will drop to 50% after 10 minutes of no
operation by the main camera.
-Device Sound: Set the volume of the device. The
default volume level is 2, the lowest is 0, and the
highest is 5.
-Warning Tone: According to different situations, the
dash cam is set with 5 kinds of prompt tones, which
are power-on/off sound, keys sound, file locked sound,
format sound, and abnormal stop recording reminder.
All prompt tones are turned on by default.
-Frequency: Different countries have different
frequencies. In order to avoid affecting the video, you
can choose 50Hz or 60Hz frequency according to
different regions.
-System Info: Check the current model, firmware
version, and the VANTRUE official website.
-Certification Info: You can view the certification
information of N4 Pro S dash cam.
-Default Settings: Reset the device back to factory
settings.
-Event: Critical event videos detected by G-Sensor
activity or manually locked by user, and all vibration
locking video in parking monitor mode.
Review the video and photo files recorded by the
camera.
2.6.3 Files
OK
Files
1/5
Event Video
Parking Video
Normal Video
- 37 -
-Files in Parking Mode: It contains parking mode
videos including video recorded in motion detection,
low framerate recording, and low bitrate recording
modes.
-Normal: This folder saves loop recording video and
time-lapse video, and private files..
-Photo: Photos files.
-All Files: All the videos and photos recorded.
Note: The suffix A represents the files recorded by the
Front camera, the suffix B represents the files recorded
by the Cabin camera.
A for the front camera
B for cabin camera
C for rear Camera
Year Date Time
P for the video recorded
in the parking mode
N for loop recording
T for time lapse video
S for privacy recording
E for event recording
Sequence
Number
20250505_140933_0008_N_A.MP4
20250505_140833_0007_P_B.MP4
20250505_140733_0006_T_C.MP4
20250505_140633_0005_S_A.MP4
File Format Definition
- 38 -
3. Specifications & FAQs
3.1 Specifications
Video File Format MP4
Camera Angle Front: 155° wide viewing angle;
Cabin: 160° wide viewing angle
Rear: 160° wide viewing angle
Aperture Front: F/1. 8 big aperture
Cabin: F/1. 8 big aperture
Rear: F/1. 8 big aperture
Languages English / Français / Español /
Deutsch / Italiano / 简体中文 /
русский / 日本語/ Polski / 한국어
Highest Video
Resolution
Front + Cabin+Rear:
2160P+1080P+1440P 30FPS
Front + Cabin:
2160P+1080P 30FPS
Front + Rear:
2160P+1440P 30FPS
Single Front Recording Mode:
3840x2160P 30FPS
Model N4 Pro S
Chips Novatek high-performance
processor
Image Sensor Sony Sensor
G-sensor 3-Axis G-sensor
WiFi Built-in 2.4GHz&5GHz
Screen 3.19” IPS Screen
Audio Built-in microphone and speaker
Picture File
Format
JPEG
- 39 -
USB Port Type C
Power Source Built-in super capacitor
Supply voltage
current
DC 5V 3A
Power 7W
Working
Temperature
-4°F to 140°F(-20°C to 60°C)
Storage
Temperature
-13°F to 158°F(-25°C to 70°C)
Memory Storage External: 32GB-1TB Micro SD
Card, U3, Class 10(not included
in the package)
3.2 Safety Warnings
This product is an auxiliary device for the purpose
of recording exterior images of vehicles, and some
functions may not be supported due to different
driving and vehicle environments.
Firmware upgrade will be carried out from time to
time to further improve the product, please pay
attention to the official notice of VANTRUE
according to the specific upgrade.
This product can record and save images of vehicle
accidents, but it does not guarantee that all
accident images can be recorded. The image may
not be recorded in a special folder because the
crash sensor cannot be activated for minor
crashes.
Be sure to turn off the power when inserting or
removing the memory card.
For stable use of the product, please format the
memory card at least once a month.
·
·
·
·
·
- 40 -
Generally, memory cards have a life span, and
long-term use of memory cards may result in data
not being saved. In this case, it is recommended to
purchase a new memory card for use. If the data is
destroyed due to the long-term use of the memory
card, the company will not be held responsible.
Do not install or operate this product while the
vehicle is running.
Do not subject the product to strong shocks or
vibrations, which may damage the product and
cause malfunction or inoperability.
Do not use chemical solvents or cleaning agents to
clean the product.
The ambient temperature range for normal use of
this device is -20 degrees Celsius to 60 degrees
Celsius. Exceeding this ambient temperature range
may cause the product to malfunction.
Do not place the product in an open flame. Do not
use the product in high temperature and high
humidity areas, as this may cause electric shock,
short circuit, and other hazards and damage the
product.
It is forbidden to disassemble or modify the car
charger by yourself, or use a short-circuit car
charger, otherwise it will cause personal injury,
electric shock, fire and other dangers or damage
the product.
Do not disassemble or modify this product to avoid
damaging the camera and generating heat and
causing fire.
·
·
·
·
·
·
·
·
- 41 -
3.3 FAQs
Camera can't be turned on: Please check the power
connection is good, as well as check if the power
cord or car charger is damaged.
Memory card error: Make sure you use a
compatible SD card, format the memory card to
FAT32 format, and format the memory card
regularly.
Video recording interruption or jamming: Please
check the rate of the memory card, we recommend
using U3/A2 grade memory card.
Poor night vision: Please clean the lens as well as
the car windshield and turn on HDR mode.
GPS can not be positioned: Make sure to use the
camera in outdoor open area to avoid signal
shielding interference.
Wi-Fi connection failure: Please restart the device
and make sure the Wi-Fi function of the car camera
is in the pending connection state. Also try to
switch the Wi-Fi band (5GHz/2.4GHz) of the car
camera and reconnect.
Button malfunction: Please check the firmware
version of the device and reset the camera.
If the problem is still not solved after troubleshooting,
please contact VANTRUE official customer service for
further assistance.
①
②
③
④
⑤
⑥
⑦
- 42 -
4. Warranty & Support
Warranty
The VANTRUE® N4 Pro S Dash Cam comes with a
full 12 months warranty. If you register your product
on our official site (www.vantrue.net/register), you
can extend the warranty to 18 months.
Support new
If you have any questions about the product, please
feel free to contact us at [email protected], or
leave us a message through the instant chat box:
www.vantrue.net, or open the VANTRUE APP, and find
it in the FAQ on the "About" page Answer.
Your opinion matters
VANTRUE® is firmly committed to always improving
our products, services, and user experience. If you
have any thoughts on how we can do even better, we
welcome your constructive feedback and
suggestions. Connect with us today at
www.vantrue.com Made in China
truly driven.
