Smeg SE364TDM Hob Black

User Manual

For SE364TDM.

PDF File Manual, 13 pages, Download pdf file

background
16 - PRECAUTIONS 91477A947/B
PRECAUTIONS 16
General safety instructions 16
Installation 19
Appliance purpose 20
This user manual 20
Manufacturer’s liability 20
Identification plate 20
Disposal 20
To save energy 21
Information on power consumption in off/stand-by
mode 21
How to read the user manual 21
DESCRIPTION 22

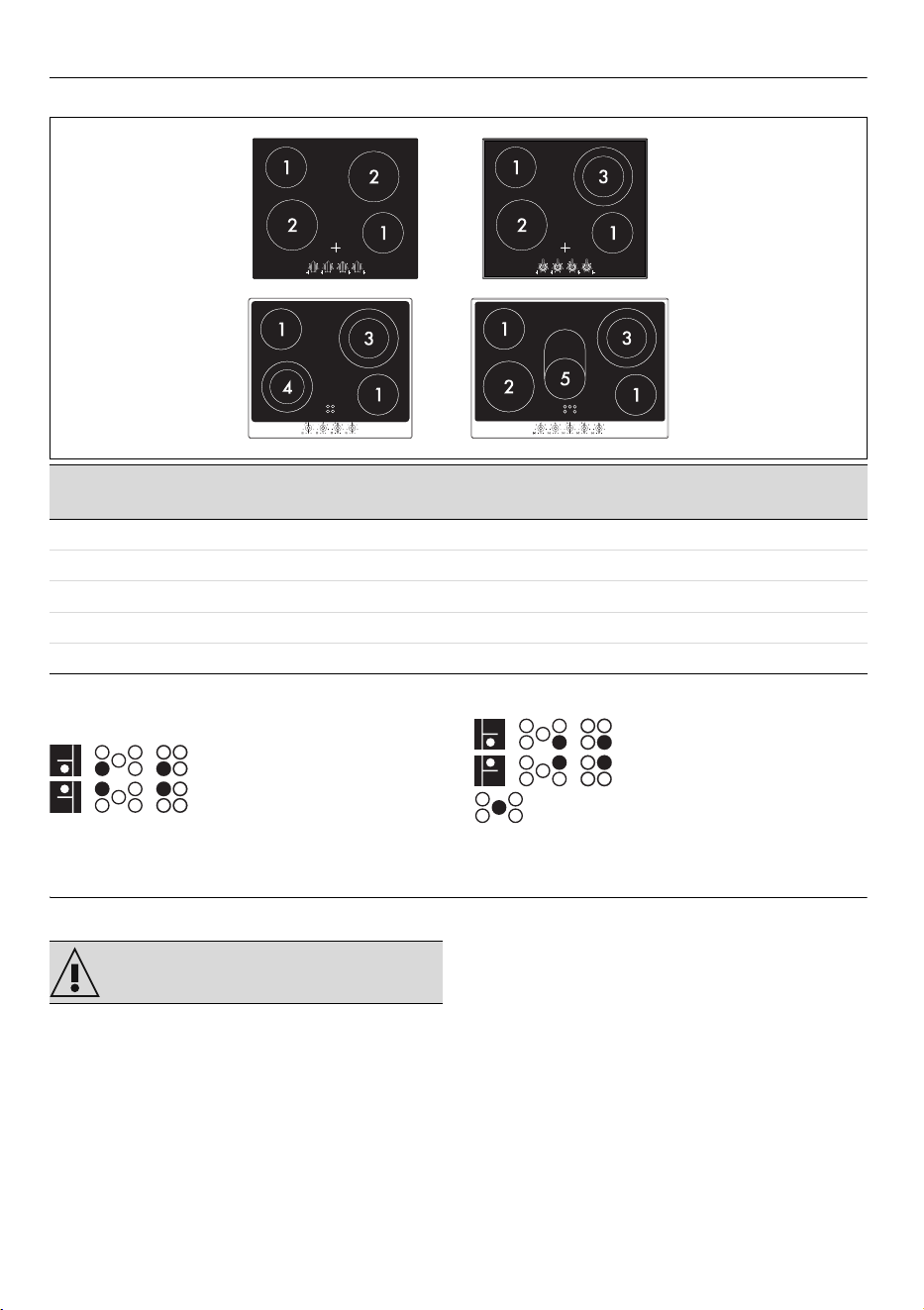

General description 22
USE 22
Preliminary operations 22
CLEANING AND MAINTENANCE 23
Cleaning the glass ceramic hob 23
What to do if... 24
INSTALLATION 24
Electrical connection 24
Section cut from the countertop 25
Mounting 26
Fixing to the built-in cabinet 27
Fixing to the built-in cabinet 27
Testing 27
Instructions for the installer 28
We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
The appliance becomes very
hot during use. Take care never
to touch the heating elements.
Protect your hands by using
oven gloves when handling hot
pans.
Never try to put out a fire or
flames with water: turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
This appliance may only be
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
Children must not play with the
appliance.
Keep children below the age
of 8 away from the appliance
unless they are constantly
supervised.
Keep children under the age of
8 away from the appliance
when it is in use.
Cleaning and maintenance
must not be carried out by
unsupervised children.
Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...

Other documents for Smeg SE364TDM

The following documents are available:
User Manual Energy Guide Other Documents Specification

Specifications

User Manual - Transcript

  • Page 1 - English - : 16 PRECAUTIONS 91477A947B PRECAUTIONS 16 General safety instructions 16 Installation 19 Appliance purpose 20 This user manual 20 Manufacturers liability 20 Identification plate 20 Disposal 20 To save energy 21 Information on power consumption in offstandby mode 21 How to read the user manual 21 DESCRIPTION 22 General description 22 USE 22 Preliminary operations 22 CLEANING AND MAINTENANCE 23 Cleaning the glass ceramic hob 23 What to do if 24 INSTALLATION 24 Electrical connection 24 Section cut from the countertop 25 Mounting 26 Fixing to the builtin cabinet 27 Fixing to the builtin cabinet 27 Testing 27 Instructions for the installer 28 We advise you to read this manual carefully which contains all the instructions for maintaining the appliances aesthetic and functional qualities For further information on the product wwwsmegcom PRECAUTIONS General safety instructions Risk of personal injury During use the appliance and its accessible parts become very hot Keep children well away from the appliance The appliance becomes very hot during use Take care never to touch the heating elements Protect your hands by using oven gloves when handling hot pans Never try to put out a fire or flames with water turn off the appliance and smother the flames with a fire blanket or other appropriate cover This appliance may only be used by children aged 8 years and over and by people of reduced physical sensory or mental capacity or lacking in experience in the use of electrical appliances provided that they are supervised or have been given instructions on the safe use of the appliance and of the hazards associated with it Children must not play with the appliance Keep children below the age of 8 away from the appliance unless they are constantly supervised Keep children under the age of 8 away from the appliance when it is in use Cleaning and maintenance must not be carried out by unsupervised children Be aware of how rapidly the cooking zones heat up Do not place empty pans on the heat Danger of overheating
  • Page 2 - English - : PRECAUTIONS 1791477A947B e After use the cooking zones remain hot for a certain period of time after they have been turned off Do not touch the hob surfaces The cooking process must always kept under control A short cooking process must be continuously monitored WARNING Leaving food that contains fat and oil unattended when cooking can be dangerous and can cause a fire DO NOT attempt to extinguish a fire with water Turn off the appliance and smother the flames for example with a lid or a blanket Do not use the Booster andor the Double Booster functions if present to heat fats or oils Fire hazard Do not place metal objects such as dishes or cutlery on the surface of the hob during cooking as they may overheat Do not cook foods in closed tins or containers or plastic containers Do not insert pointed metal objects cutlery or utensils into the slots in the appliance Do not use or store flammable materials near the appliance Do not pour water directly onto very hot trays If you need to move food or at the end of cooking open the door 5 cm for a few seconds let the steam come out then open it fully Switch off the appliance immediately after use Do not pull the cable to unplug the appliance if present DO NOT USE OR STORE FLAMMABLE MATERIALS IN THE STORAGE COMPARTMENT IF AVAILABLE OR NEAR THE APPLIANCE DO NOT USE AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IT IS IN USE DO NOT MODIFY THIS APPLIANCE Always wear personal protective equipment PPE before carrying out any work on the appliance installation maintenance positioning or moving Do not clean the appliance if it is still hot or in operation Before performing any work on the appliance switch off the power supply WARNING Make sure that the appliance has been switched off and disconnected from the mains power supply or that the mains power has been switched off before replacing the interior lighting bulbs The bulbs used in this appliance are specific for household appliances do not
  • Page 3 - English - : 18 PRECAUTIONS 91477A947B use them for home lighting Do not try to repair the appliance yourself or without the assistance of a qualified technician Installation and servicing should be carried out by qualified personnel in accordance with current standards If the power cable becomes damaged contact technical support immediately to arrange for it to be replaced in order to avoid possible hazards If cracks or fissures form or if the glass ceramic cooking surface breaks turn off the appliance immediately Disconnect the power supply and call Technical Support Do not touch or clean the hob surface during operation or when the residual heat indicator lights are still on Activate the controls lock when you have children or pets that could reach the hob Supervise children carefully as they cannot readily see the indication of residual heat After use the cooking zones remain hot for a certain period of time even if they have been turned off Keep children away from the cooking zones The appliance is not intended to operate with external timers or remotecontrol systems WARNING Only use a protective shield designed by the manufacturer of the cooking appliance The use of inadequate protective shields can lead to accidents Risk of damaging the appliance Do not use harsh or abrasive detergents or sharp metal scrapers to clean the glass door of the oven since they may scratch the surface and cause the glass to shatter Use wooden or plastic utensils Do not use steam jets to clean the appliance Do not use the appliance as a support surface Do not obstruct ventilation openings and heat dispersal slots Do not sit on the appliance Never leave the appliance unattended during cooking operations that could lead to oils and fats overheating and catching fire Be very careful Risk of fire Do not store objects on the cooking surfaces Do not spray any product near the appliance DO NOT FOR ANY REASON USE THE APPLIANCE AS A SPACE HEATER Do not use plastic kitchenware or containers for cooking Cooking vessels or griddle plates should be placed inside the perimeter of the hob
  • Page 4 - English - : PRECAUTIONS 1991477A947B e All pans must have smooth flat bottoms If any liquid does boil over or spill remove the excess from the hob Take care not to spill acid substances such as lemon juice or vinegar on the hob Do not spill sugar or sweet mixtures on the hob during cooking Do not place materials or substances that could melt or catch fire paper plastic or aluminium foil on the appliance while it is in use Do not use steam jets to clean the appliance Place the cookware directly on the glass ceramic surface Do not put empty pans or frying pans on switched on cooking zones Do not use rough or abrasive materials or sharp metal scrapers Do not use cleaning products containing chlorine ammonia or bleach on parts made of steel or that have metallic surface finishes eg anodizing nickel or chromiumplating Do not use abrasive or corrosive detergents eg scouring powders stain removers and metallic sponges on glass parts The glass ceramic surface is highly resistant to impacts However avoid hard solid objects falling on the cooking surface as they may cause it to break Keep sensor buttons clean at all times and do not place any object on them To prevent scratching the glass surface avoid sliding pots across it Lift them and place them gently where needed instead Installation THIS APPLIANCE MUST NOT BE INSTALLED IN A BOAT OR CARAVAN This appliance must not be installed on a pedestal Always use any necessary required personal protective equipment PPE before performing any work on the appliance installation maintenance positioning or movement Check that the cabinet has the required slots Check that the cabinet material is heat resistant Installation and servicing should be carried out by qualified personnel in accordance with current standards Have the electrical connection performed by authorised technical personnel The appliance must be connected to earth in compliance with electrical
  • Page 5 - English - : 20 PRECAUTIONS 91477A947B system safety standards Use cables withstanding a temperature of at least 90 C The tightening torque of the screws of the terminal supply wires must be 15 2 Nm Be careful when connecting additional electrical appliances Connection cables must not come into contact with hot cooking zones The power cable must only be installed or replaced by a qualified technician Allow the appliance to be disconnected after installation via an accessible plug or a switch in the case of a fixed connection Fit the power line with an all pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations This appliance can be used up to a maximum altitude of 2000 metres above sea level Appliance purpose This appliance is intended for cooking food in the home environment Every other use is considered inappropriate It cannot be used in employee kitchens shops offices and other working environments in farmsfarmhouses by guests in hotels motels and residential environments In bed and breakfast accommodation This user manual This user manual is an integral part of the appliance and must therefore be kept in its entirety and within the users reach for the whole working life of the appliance Read this user manual carefully before using the appliance The explanations in this manual include images which describe all that regularly appears on the display However it should be kept in mind that the appliance may be equipped with an updated version of the system and as such all that appears on the display may differ from those in the manual Manufacturers liability The manufacturer declines all liability for damage to persons or property caused by use of the appliance other than that specified failure to comply with the instructions in the user manual tampering with any part of the appliance use of nonoriginal spare parts Identification plate The identification plate bears the technical data serial number and brand name of the appliance Do not remove the identification plate for any reason Disposal This appliance conforms to the WEEE European directive 201219EU and must be disposed of separately from other waste at the end of its service life The appliance does not contain substances in quantities sufficient to be considered hazardous to health and the environment in accordance with current European directives Power voltage Danger of electrocution Disconnect the mains power supply Unplug the appliance
  • Page 6 - English - : PRECAUTIONS 2191477A947B e To dispose of the appliance Cut the power cable and remove it Deliver the appliance to the appropriate recycling centre for electrical and electronic equipment waste or return it to the retailer when purchasing an equivalent product on a one for one basis Our appliances are packaged in nonpolluting and recyclable materials Deliver the packing materials to the appropriate recycling centre To save energy The diameter of the base of the pan must not extend beyond the lines printed on the glass ceramic surface Pans must not be placed outside the perimeter of the hob or on the display When buying a pan check whether the diameter indicated is that of the base or the top of the pan as the top is almost always larger than the base When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also helps to retain vitamins contained in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Information on power consumption in offstandby mode Technical data on the appliances power consumption in offstandby mode can be found at wwwsmegcom under the page corresponding to the product in question How to read the user manual This user manual uses the following reading conventions Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended Do not let children play with the plastic bags Under certain circumstances if the hob and the oven are used at the same time the maximum power limit of the electrical system might be exceeded WarningCaution InformationAdvice
  • Page 7 - English - : 22 DESCRIPTION 91477A947B DESCRIPTION General description Power levels are approximate and may vary according to the pan used or the settings made Cooking zones Front left Rear left Front right Rear right Central USE Preliminary operations Remove any protective film from the outside or inside of the appliance including any accessories if present Remove any labels apart from the technical data plate Switching on the cooking zones The appliance has cooking zones of different diameters and power levels Their positions and the edges of the heated area are shown by the markings on the glass The cooking zones are of the HIGHLIGHT type they turn on after a few seconds and the heat can be adjusted using the controls on the front panel To turn the cooking zones on press and turn the knob to the required position between 1 and 6 The indicator lights located between the cooking zones turn on when the temperature of one or more radiant heating zones exceeds 60C Switching off the cooking zones To switch off cooking zones turn the corresponding knobs to 0 Zone Outside diameter mm Max power draw W Inside diameter mm Max power draw W 1 148 1200 2 184 1800 3 214 2200 148 1000 4 184 2000 124 800 5 oval plate 2000 148 1100 See General safety instructions
  • Page 8 - English - : CLEANING AND MAINTENANCE 2391477A947B e Dual heating zones on some models only To turn on the double heating zones press and turn the knob to the maximum setting 6 and then to When the knob is released it automatically returns to the highest power position To regulate the power of the dual heating plate turn the knob to the required position between 1 and 6 To go back to using just the central hot plate turn the knob to 0 and then press it and turn it to the required position between 1 and 6 Advice on energysaving The diameter of the base of the pan must correspond to the diameter of the cooking zone When buying a pot check whether the diameter indicated is that of the base or the top as the top is almost always larger than the base The base of the cookware must be thick and completely flat In addition the hob should be clean and dry as well When preparing dishes with long cooking times you can save time and energy by using a pressure cooker which also makes it possible to preserve the vitamins in the food Make sure that the pressure cooker contains enough liquid as if there is not enough and it overheats this may cause damage to both the pressure cooker and the cooking zone If possible always cover the pans with a suitable lid Choose a pan suitable for the quantity of food to be cooked A large halfempty saucepan leads to a waste of energy Do not use castiron cookware or cookware with a rough base Residual heat The indicator lights located between the cooking zones come on when the temperature of one or more of the radiant zones exceeds 60C These indicator lights switch off when the temperature falls below approximately 60C Power level table The power in the cooking zones can be adjusted to various levels In the table below you will find instructions for the different types of cooking CLEANING AND MAINTENANCE Cleaning the glass ceramic hob Cleaning the surfaces To keep the surfaces in good condition they should be cleaned regularly after use Let them cool first Ordinary daily cleaning Always and only use specific products that do If hob and oven are being used at the same time under certain conditions the maximum power limit that can be used by your electrical system might be exceeded Power level Suitable for 0 OFF setting Cooking small amounts of food minimum power 2 Cooking small amounts of food 3 Normal cooking Cooking large amounts of food roast Roasting larger pieces frying with flour Roasting browning cooking maxi mum power See General safety instructions
  • Page 9 - English - : 24 INSTALLATION 91477A947B not contain abrasives or chlorinebased acids Pour the product onto a damp cloth and wipe the surface rinse thoroughly and dry with a soft cloth or a microfibre cloth Weekly cleaning Clean and maintain the hob once a week using an ordinary glass ceramic cleaning product Always follow the manufacturers instructions The silicon in these products creates a protective waterrepellent membrane which also resists dirt All marks stay on the membrane and can therefore be removed easily After cleaning dry the surface with a clean cloth Make sure that there is no detergent left on the cooking surface as it might undergo an aggressive reaction when heated up and could modify the structure of the cooking surface Food stains or residues Light coloured marks from pans with aluminium bases can be easily cleaned off with a cloth moistened in vinegar Remove any burnton residues after cooking then rinse with water and dry thoroughly with a clean cloth Dirt which may have fallen on the hob while cleaning lettuce or potatoes can scratch the hob when moving pans Consequently remove any dirt from the cooking surface immediately Changes in colour do not affect the operation and stability of the glass These are not alterations to the material of the hob but just residues which have not been removed and have then carbonised Shiny surfaces can form due to the bases of pans especially aluminium ones rubbing on the surface and due to the use of unsuitable detergents They are difficult to remove using conventional cleaning products It may be necessary to repeat the cleaning process several times Use of corrosive detergents or rubbing of pan bases can wear away the decoration on the hob over time and contribute to the formation of stains What to do if The hob does not work Make sure that the hob is connected and that the main switch is turned on Make sure that there is no power failure Make sure that the fuse has not blown In this case replace the fuse Make sure that the circuit breaker of the residential electrical system has not tripped In this case reset the circuit breaker The cooking results are unsatisfactory Make sure that the cooking temperature is not too high or too low Make sure that the hob has proper ventilation and that the air intakes are completely free The hob smokes Let the hob cool down and clean it once cooking is complete Make sure that the food has not spilled out of the pan and use a larger cooking vessel if needed The fuses blow or the circuit breaker of the residential electrical system trips repeatedly Call Technical Support or an electrician There are cracks or fissures in the hob Turn off the appliance immediately disconnect the power supply and contact Technical Support INSTALLATION Electrical connection General information Check the mains characteristics against the data indicated on the plate The identification plate bearing the technical data serial number and brand name is visibly positioned on the appliance Do not remove this plate for any reason In case of stubborn dirt clean when cold using a damp kitchen sponge and neutral detergent then dry with a microfibre cloth We recommend the use of cleaning products distributed by the manufacturer After cleaning dry the appliance thoroughly to prevent any water or detergent from interfering with its operation or creating unsightly marks See General safety instructions

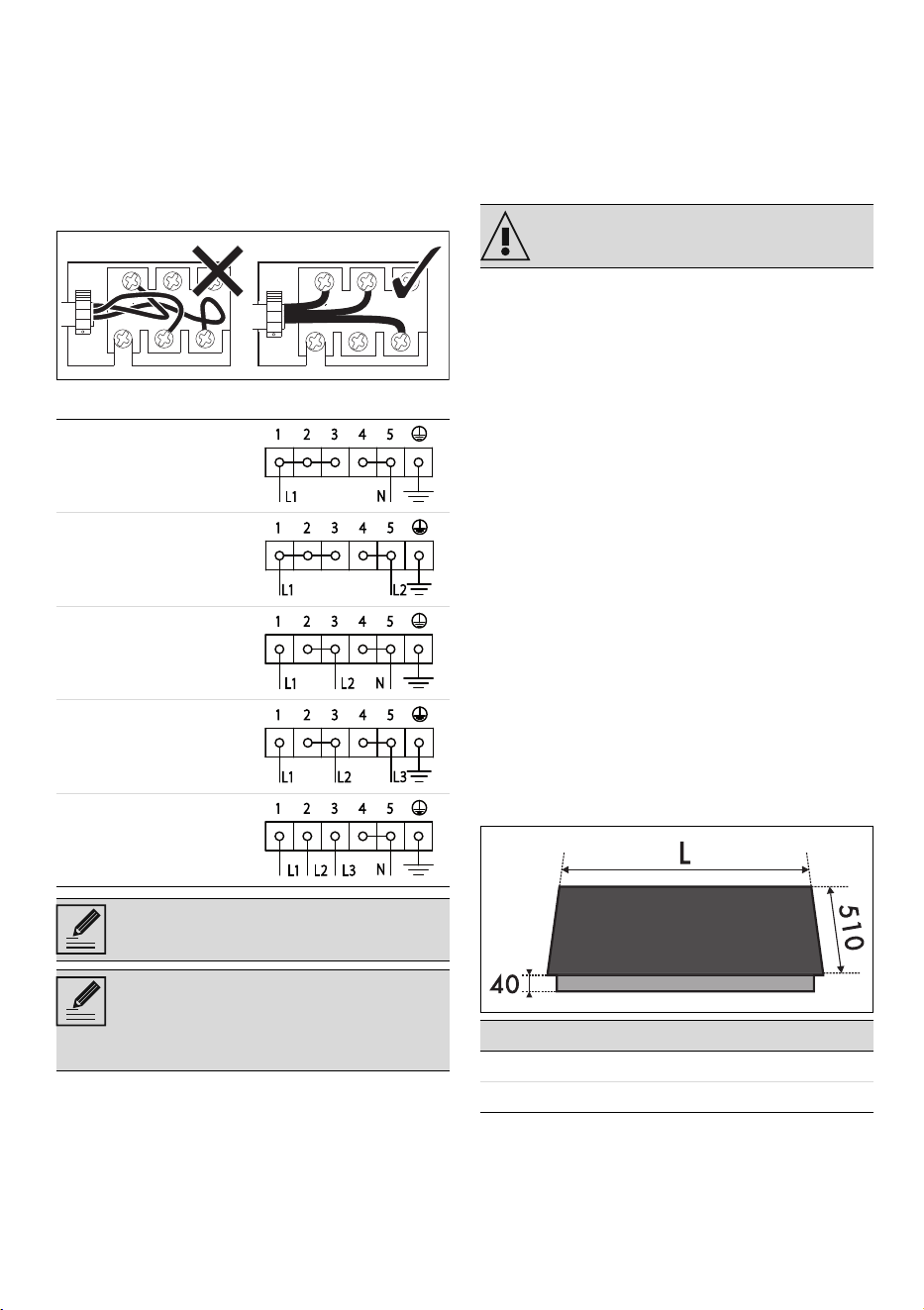

  • Page 10 - English - : INSTALLATION 2591477A947B e The appliance must be connected to ground using a wire that is at least 20 mm longer than the other wires Terminal block connection Arrange the cables in an orderly manner to avoid overlapping or contact with any jumpers The cables must be of the correct length to avoid builduptwisting inside the terminal box The appliance can work in the following modes Fixed connection Fit the power line with an allpole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations For the AustralianNew Zealand market The circuit breaker incorporated in the fixed connection must comply with ASNZS 3000 Section cut from the countertop Safety instructions for positioning and installation Installation can be carried out on various materials such as masonry metal solid wood or plastic laminated wood as long as they are heat resistant gt90C Veneers adhesives or plastic coatings on adjacent furniture should be temperature resistant gt90C otherwise they might warp over time If the piece of furniture does not have the required recess opening either it will have to be cut or masonry work carried out by a competent technician The minimum clearance between exhaust hoods and the cooking surface must be at least the distance indicated in the exhaust hood installation instructions The minimum clearances must also be respected for the edges of the hob on the back as indicated in the assembly instructions If the appliance is to be installed above an oven the oven must be fitted with a cooling fan Appliance overall dimensions mm Standard mounting and with bevelled edge mm 220240 V 1N 3 x 6 mm ² threecore cable 220240 V 2 3 x 6 mm ² threecore cable 380415 V 2N 4 x 4 mm ² fourcore cable 220240 V 3 4 x 4 mm ² fourcore cable 380415 V 3N 5 x 25 mm ² fivecore cable The values indicated refer to the cross section of the internal conductor The aforementioned power cables are sized taking into account the coincidence factor in compliance with standard EN 6033526 See General safety instructions MODELS cm L 60 600 70 720

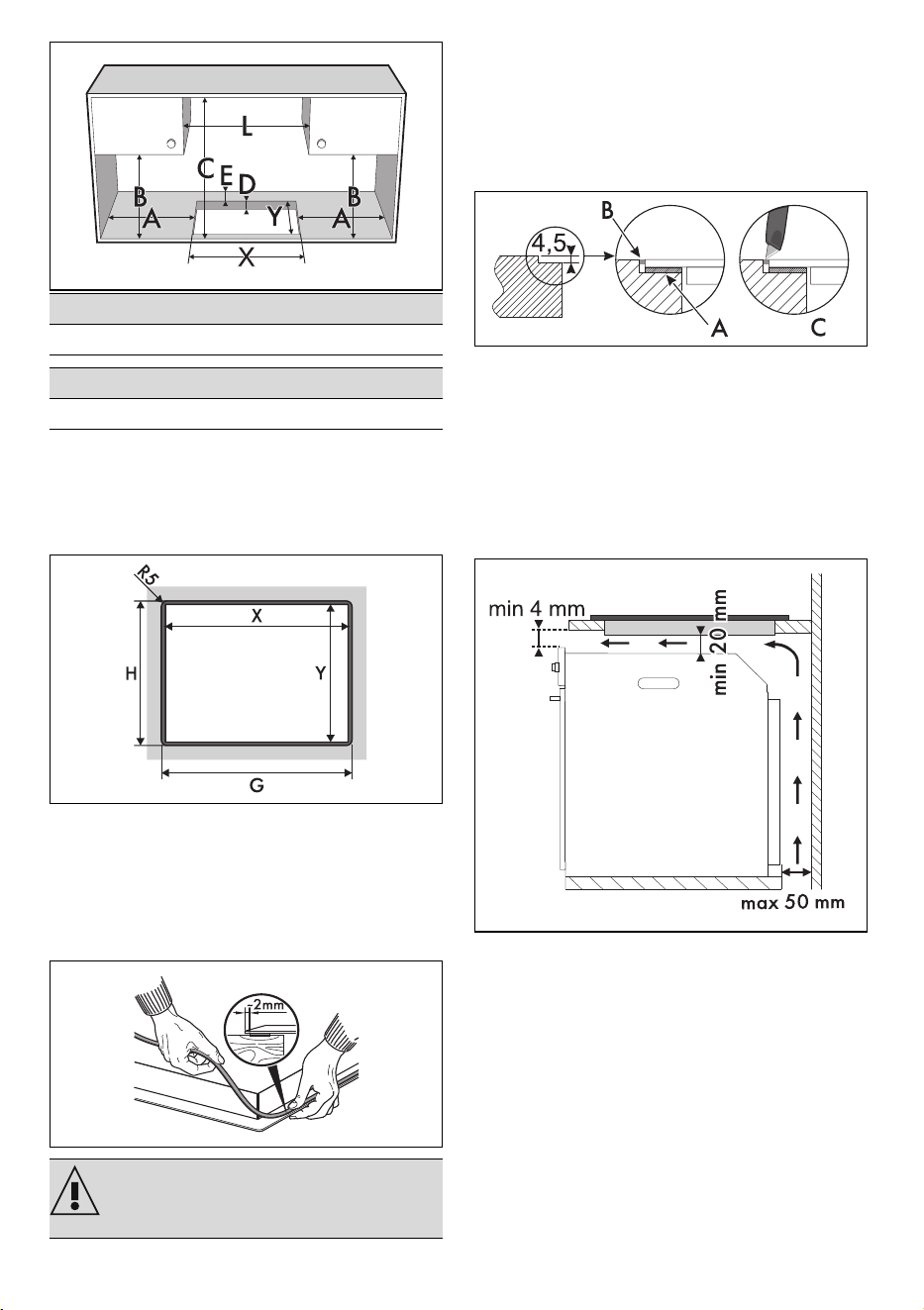

  • Page 11 - English - : 26 INSTALLATION 91477A947B Flush mounting For this type of mounting you have to make an additional cut at the edges of the recess in the furniture if you wish to install the hob flush with the countertop Refer to the measurements in the table above Hob seal To prevent leakage of liquid between the frame of the hob and the countertop place the adhesive seal provided along the entire outer edge of the hob before assembly In the case of flush mounting after placing the adhesive seal A on the glass surface and after positioning and securing the hob fill the edges with insulating silicone B and wipe off any excess If for any reason the hob needs to be removed cut the silicone using a cutter before attempting to remove it C Mounting On top of oven builtin unit The clearance between the hob and the kitchen furniture or other installed appliances must be enough to ensure sufficient ventilation and air discharge If installed above an oven a space must be left between the bottom of the hob and the top of the appliance installed below On top of empty kitchen unit or drawers If there are other pieces of furniture lateral walls drawers etc dishwashers or fridges under the hob a doublelayer wooden base must be installed at least 20 mm from the bottom of the hob to avoid any accidental contact It must only be possible to remove the doublelayer A B C D E min 150 min 460 min 750 20 60 min 50 L X Y G H 600 565 490 604 514 Do not use silicone to secure the hob This would make it impossible to remove the hob without damaging it

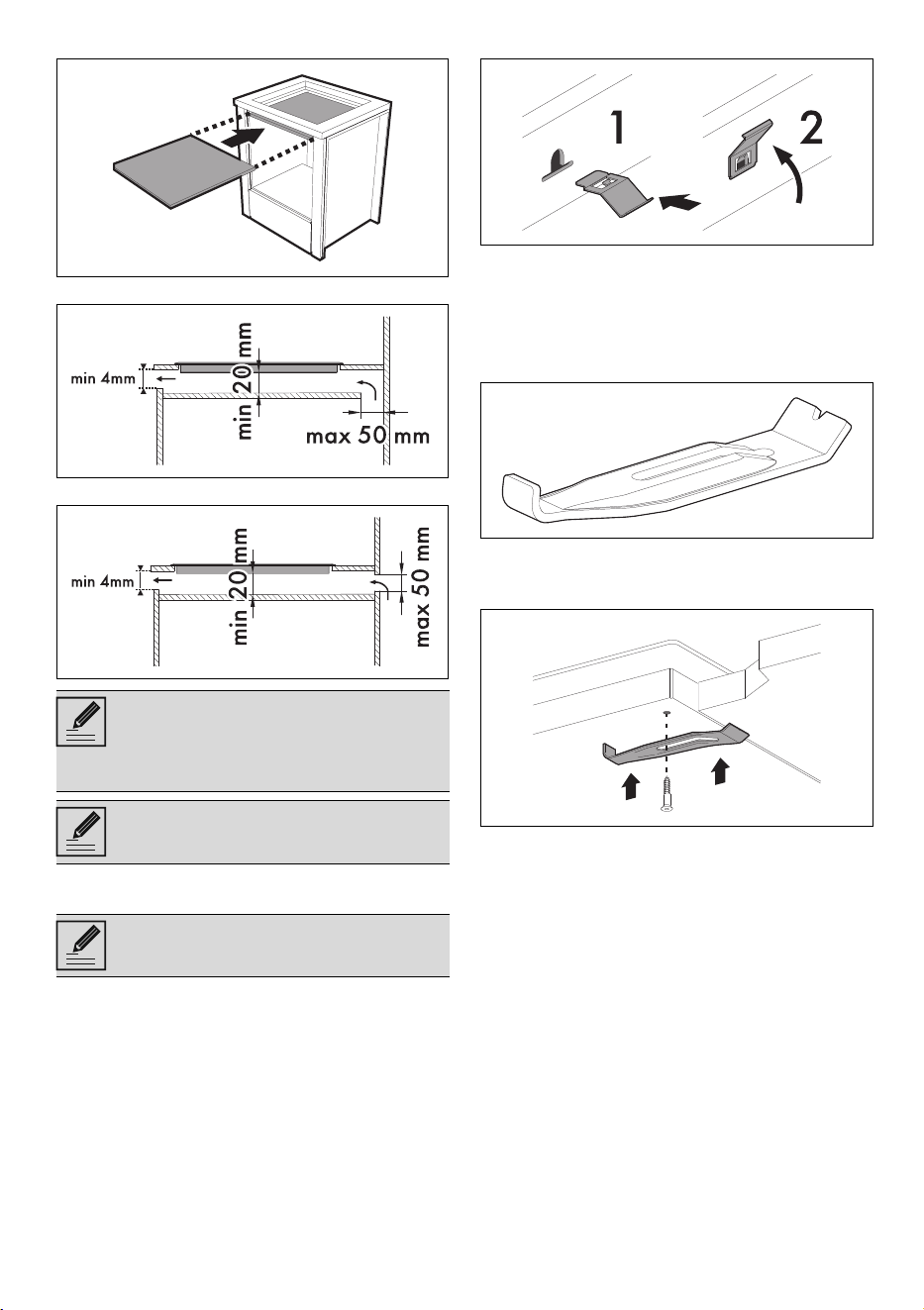

  • Page 12 - English - : INSTALLATION 2791477A947B e base using suitable equipment opens on bottom opens on rear Fixing to the builtin cabinet To ensure the hob is fixed and centred as accurately as possible the clips provided must be positioned as described below 1 Fit the clips by gently pressing them horizontally into the appropriate space 2 Then turn them upwards to fix them in place Fixing to the builtin cabinet In order to ensure fixing to the builtin cabinet and optimum centring the supplied fixing brackets must be screwed into the holes in the bottom casing Screw the fixing brackets into the dedicated holes to properly fasten the hob to the builtin structure Fixed connection Fit the power line with an allpole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions pursuant to installation regulations For the AustralianNew Zealand market The circuit breaker incorporated in the fixed connection must comply with ASNZS 3000 Testing At the end of installation carry out a brief inspection test If it fails to work after making sure that you have carried out the instructions correctly contact Technical Support Failure to install the doublelayer wooden base exposes the user to possible accidental contact with sharp or hot parts If installed on top of an oven the latter must be equipped with a cooling fan The clips should not be installed at the front of the appliance
