ROBOTIC POOL
CLEANER User Manual
WY100Pro
Thank you for purchasing Wybot
TM
Robotic Pool Cleaner.
Please read through the entire manual before using your new
robotic pool cleaner. We are not held liable for any loss or
injury caused by improper use. If you encounter a problem
with your Wybot
TM
product, please contact our customer
service for assistance.
WYBOT Customer Service:
Email: support@wybotpool.com
Web: www. wybotpool.com
Facebook: @WybotPool
TM ®
1
CONTENTS
Important Precautions..............................................................
01
1.
Introduction..........................................................................
03
2.
Packing List............................................................................
03
3. Product Diagram...................................................................
04
4.
Specifications........................................................................
05
5.
Operations............................................................................
06
5.1 Power button and indicator............................................
06
5.2
Attention.........................................................................
07
5.3
Filter Cleaning.................................................................
09
5.4
Charge the battery..........................................................
10
5.5
Charger indicator.............................................................
11
5.6
Installation of Floating Block...........................................
11
5.7 Smart Device connection................................................
13
5.8
Pool water condition.......................................................
13
6. Warranty...............................................................................
14
2
Important Precautions
Read and Follow All Instructions
1. Please read the manual carefully, and use the cleaner according to
the manual. We are not held liable for any loss or injury caused by
improper use.
2. Use the accessories recommended or sold by the manufacturer
only.
3. Dry the charging port after removing the cleaner out of water and
make sure the cleaner is switched off (the indicator is off) if you
want to charge the cleaner.
4. Use the original and authorized power charger only, do not charge
any other devices with this charger.
5. The power line must be connected to a leakage protected and
earthed socket when charging.
6. Do not charge the cleaner if the environment temperature is above
35℃ (95 ℉ ) or below 5℃ (41 ℉ )
7. Do not over charge the cleaner which will reduce the battery life.
8. The cleaner should be charged if it needs to be stored for a long
time (over 6 months) to maintain battery life.
9. To reduce the risk of electrical shock, do not use the charger if the
cord is damaged.
10. Never allow children to ride on it or play with it as a toy.
11. Do not power on the cleaner when it is out of the water.
12. Do not operate the cleaner when there are people in the pool.
13. Always clean and wash the filter tray after use.
14. Only professionals can disassemble the sealed driving kit of the
cleaner.
01
15. Do not operate the cleaner while pool filter is running.
16. The cleaner should be stored in a cool and ventilated place, away
from direct sunshine or any heat source, never cover it with
anything that would cause internal electrical components
overheating.
Save These Instructions
02
1. Introduction
The robotic pool cleaner WY100Pro is a new type of rechargeable
automatic cleaning equipment for swimming pools, cordless and easy
to use.
2. Packing List
Item
Name
Quantity
1
WY100Pro
1 pc
2
Charger
1 pc
3
Retrieving hook
1 pc
4
Floating blocks
2 pc
5
User Manual
1 pc
6
Quick Guide
1 pc
03

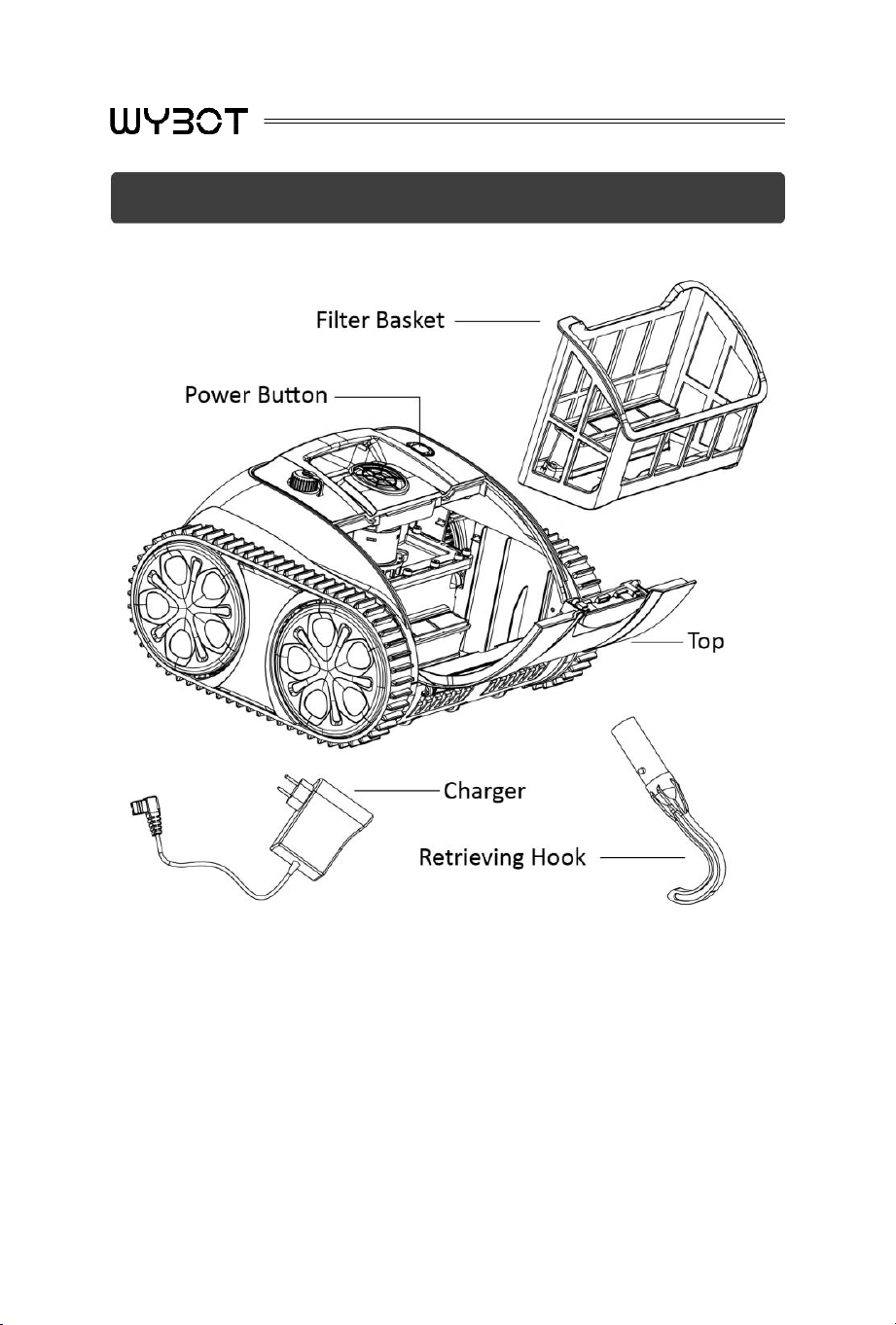

3. Product Diagram
04
4. Specifications
1. Model
WY100Pro
2. Rated Working Voltage
10.8V
3. Power
65W
4. Run Time
Max. 90min for one cycle
5. Charger Input
100-240V, 50-60Hz
6. Charger Output
5A
7. Battery Capacity
9200mAh
8. Charging Time
3-4 Hours
9. Pool Size
Up to 861sq.ft (80m
2
)
10.
Flow rate
approx.10m
3
/h(2642gal/h)
11.
Filter Density
180 μm
12. Moving Speed
approx. 36ft/min(11m/min)
13. Waterproof Grade
IPX8
14. Charging Environment Temperature
41 ℉ -95 ℉ (5℃ -35℃ )
15. Max Water Depth
8.2ft(2.5m)
16.
Product Size
14.6(L)*14.1(W)*9.4(H) inches
372(L)*360(W)*240(H) mm
17.
Weight
17.64lbs (8KG)
18.
Storage Condition
41
℉
-95
℉
(5
℃
-35
℃
), RH≤75%
NOTE: Chargers may vary, both are certified by authorization.
Supplier 1: FOSHAN SHUNDE GUANYUDA POWER SUPPLY CO.,LTD
Model: GM65-126500-D
Supplier 2: XINSU GLOBAL ELECTRONIC CO.,LIMITED.
Model: XSG1265000
05
5. Operations

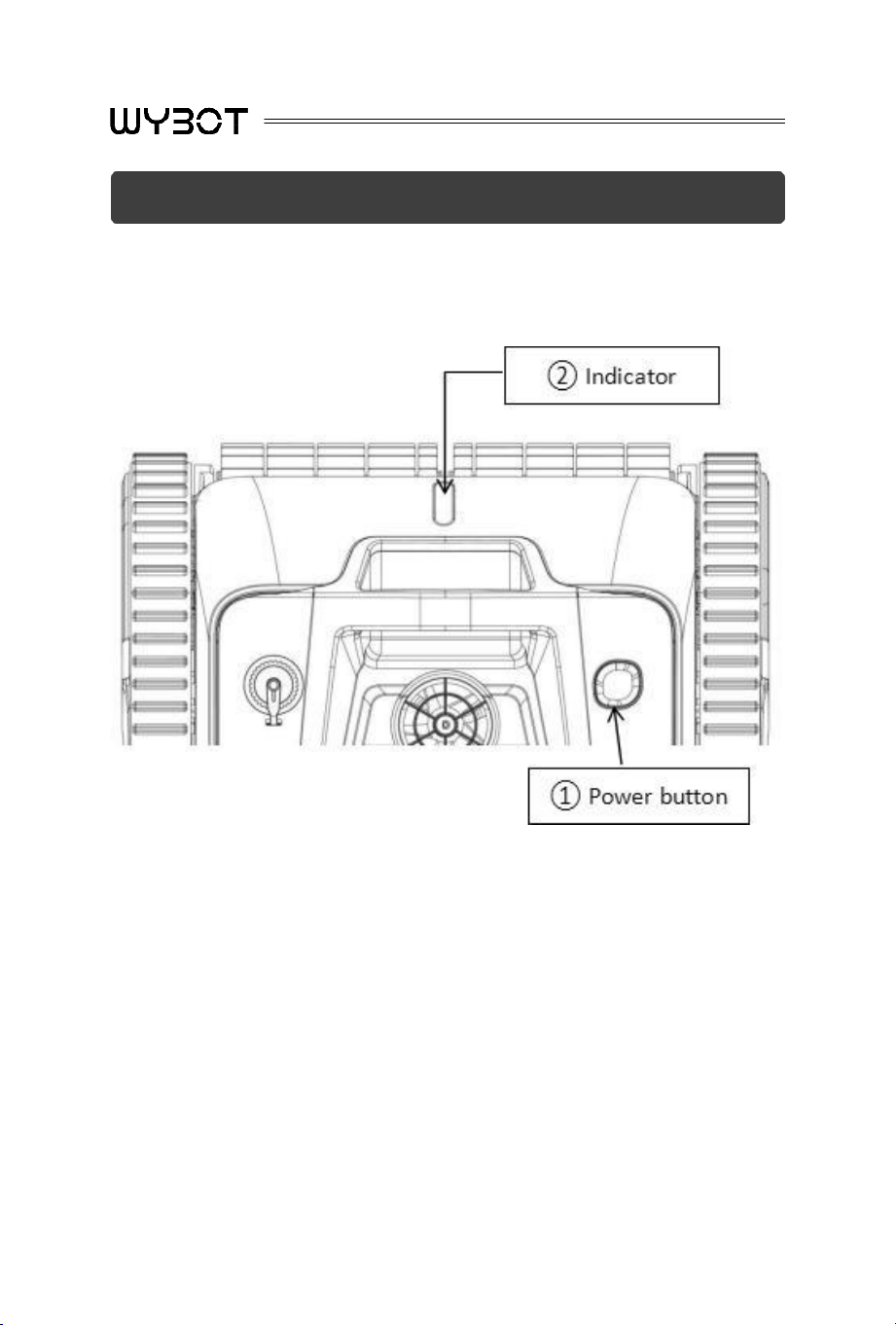

5.1 Power button and indicator
06
Item
Function
Description
Press the button, blue light indicates the cleaner is
①
Power on/
powered on.
off
Press the button again, red light indicates the cleaner is
powered off.
1.Blue light is steady on: power on
②
Indicator
2.Blue light flashes: the cleaner is working
3.Yellow light flashes: low battery and start to self-parking
4.Yellow light is steady on: self-parking finished
Note: When the yellow light is steady on, power off the cleaner and charge it.
Running the cleaner in the pool after charging, if it fails to work, please
contact after-sales service.
5.2 Attention

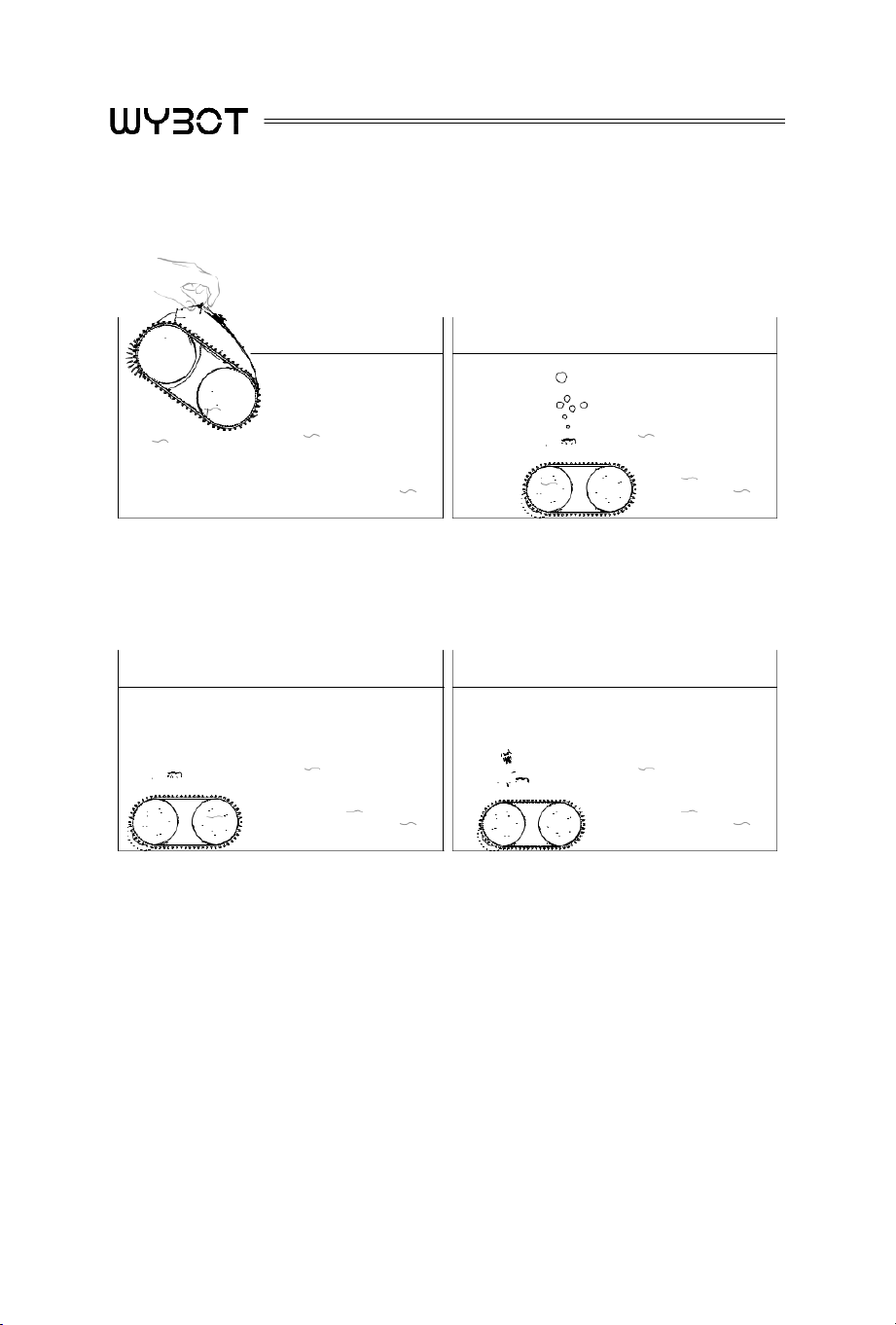

a. Put into the pool with the cleaner bottom towards the wall. Hold
on the robot and power on the cleaner. The cleaner will start
working after 20 seconds when emptying trapped air inside (make
sure to empty the inside air in order to make the robot work well),
then the cleaner can immerse into the pool floor
07
b. The cleaner will move to pool edge when finish working, then use
the hook to lift it out of the pool
08

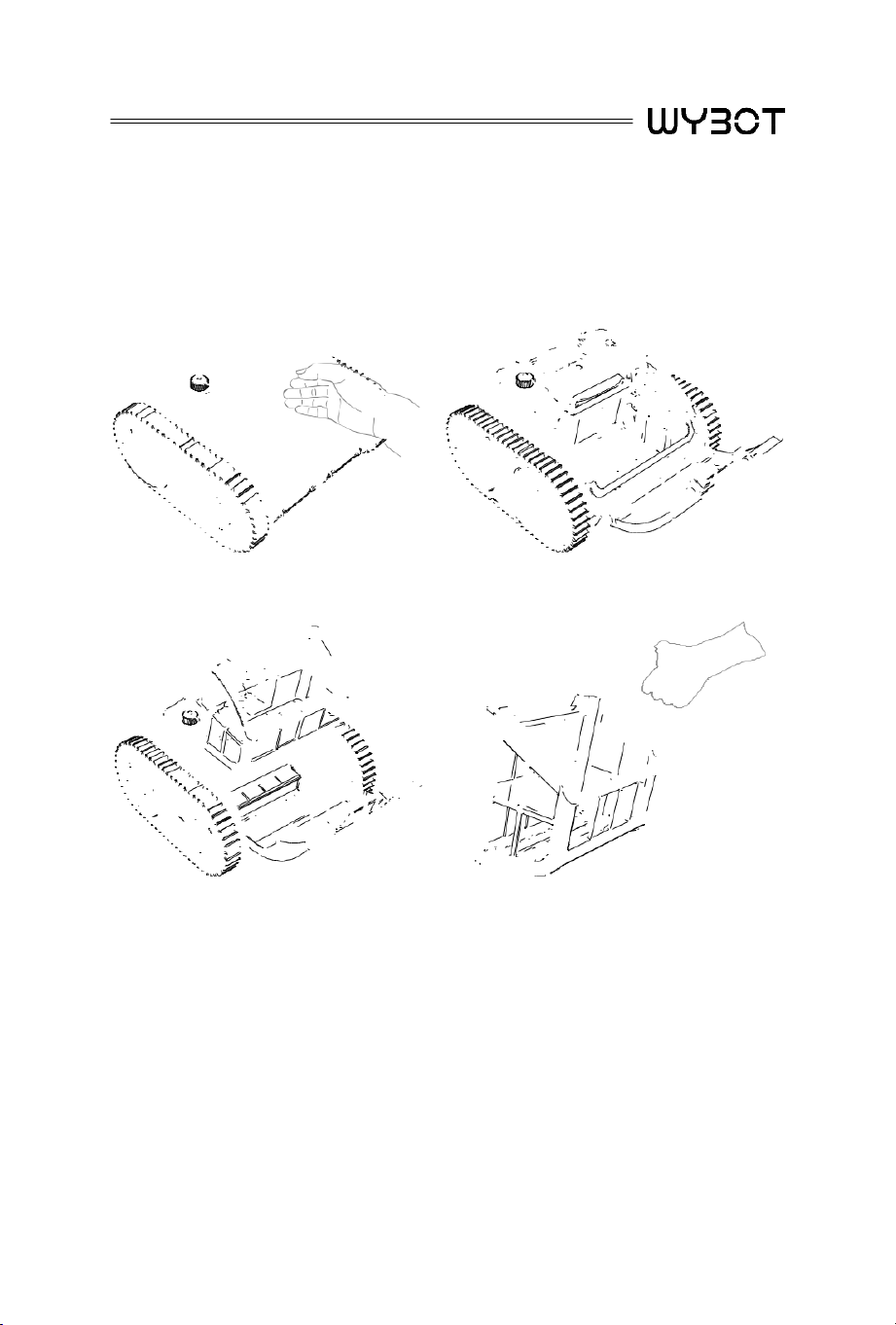

5.3 Filter Cleaning

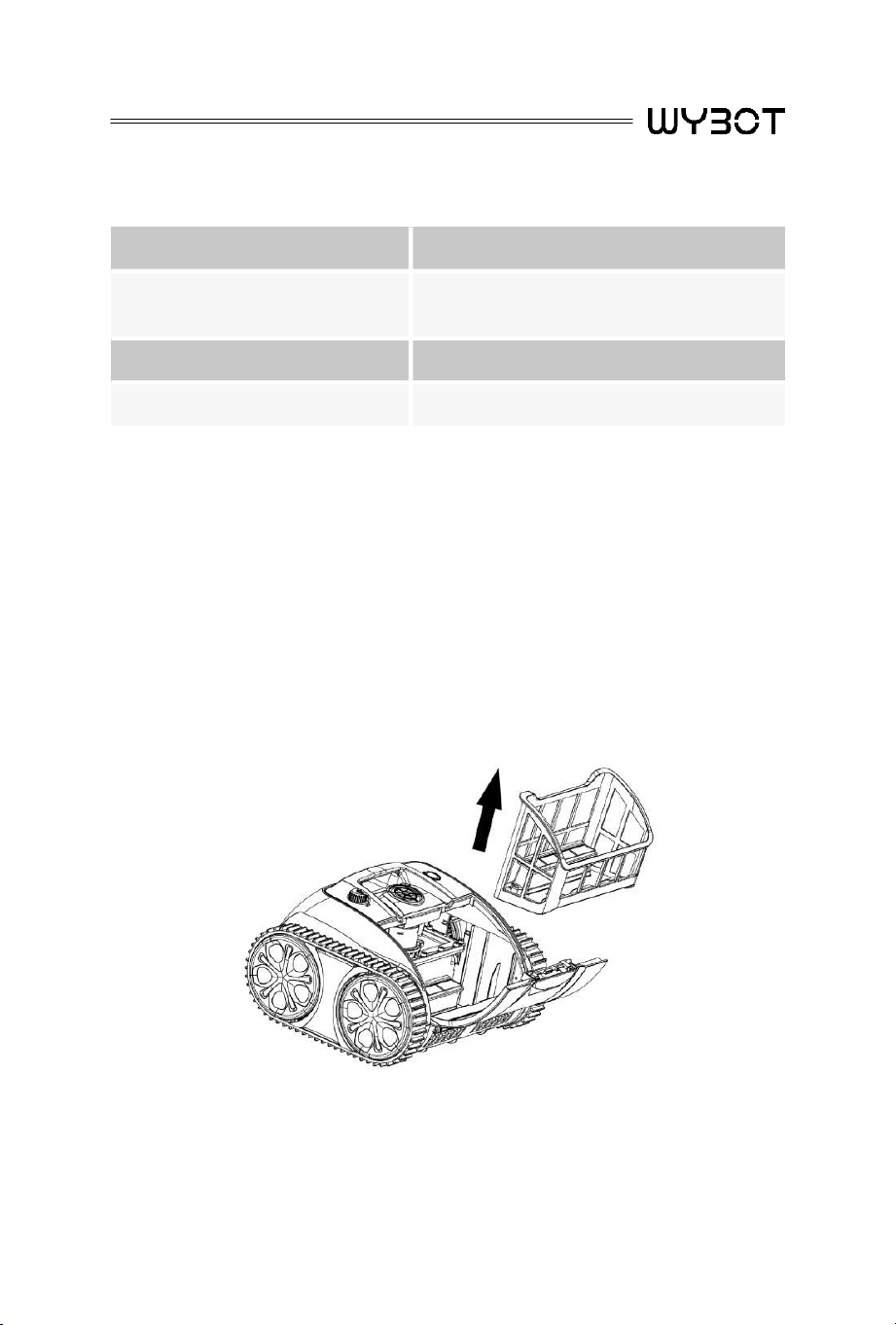

a. Open the top cover: Put the robot aside the pool and open the top
cover, the filter basket is located as shown in picture
b. Take out the filter basket c. Wash filter basket
d. Re-install the filter basket in reverse steps.
09
5.4 Charge the battery

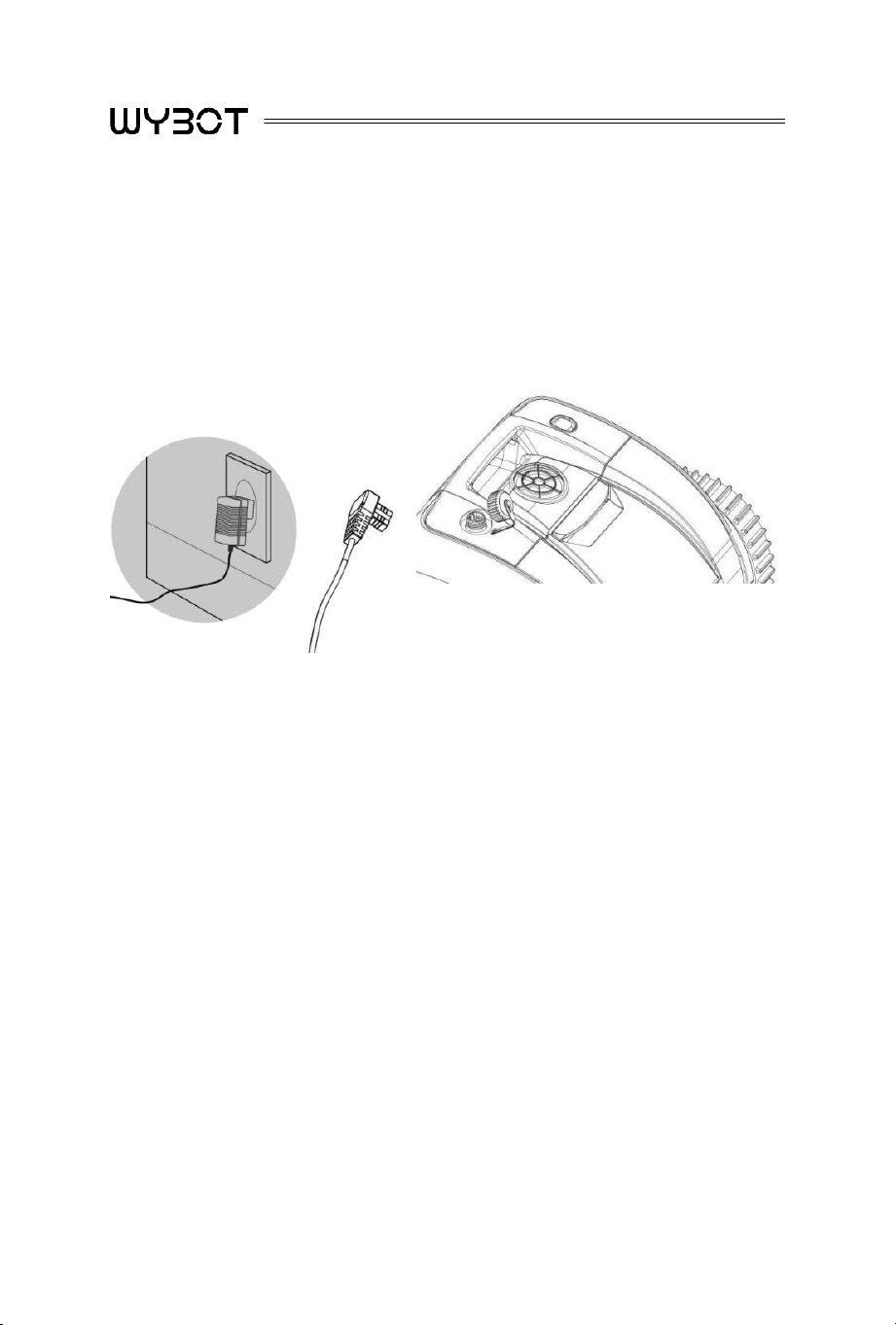

a. Remove the cleaner from the pool
b. Make sure the cleaner is powered off (no indicator flashes) and
charging port is dry, attach the charger to the charging socket. Red
light indicates it is charging, green light indicates it is fully charged.
LED Indicator
Red - Charging in Progress
Green - Fully Charged
Note: Charge the cleaner indoor and at least 3m (appr. 10ft) from the
edge of the pool for charging.
10
5.5 Charger indicator
Colour & Status of indicator
Charging status
Green light is steady on
Waiting for a recharge or connector not
plugged or charging finished
Red light is steady on
The battery is charging
Red light flashes
Low battery or battery is damaged
5.6 Installation of Floating Block
Attention: If your robot is performing well, please ignore
these instructions.
The following diagrams is limited to use of the floating blocks
when the robot cannot climb the pool walls or not able to climb
walls like used to.

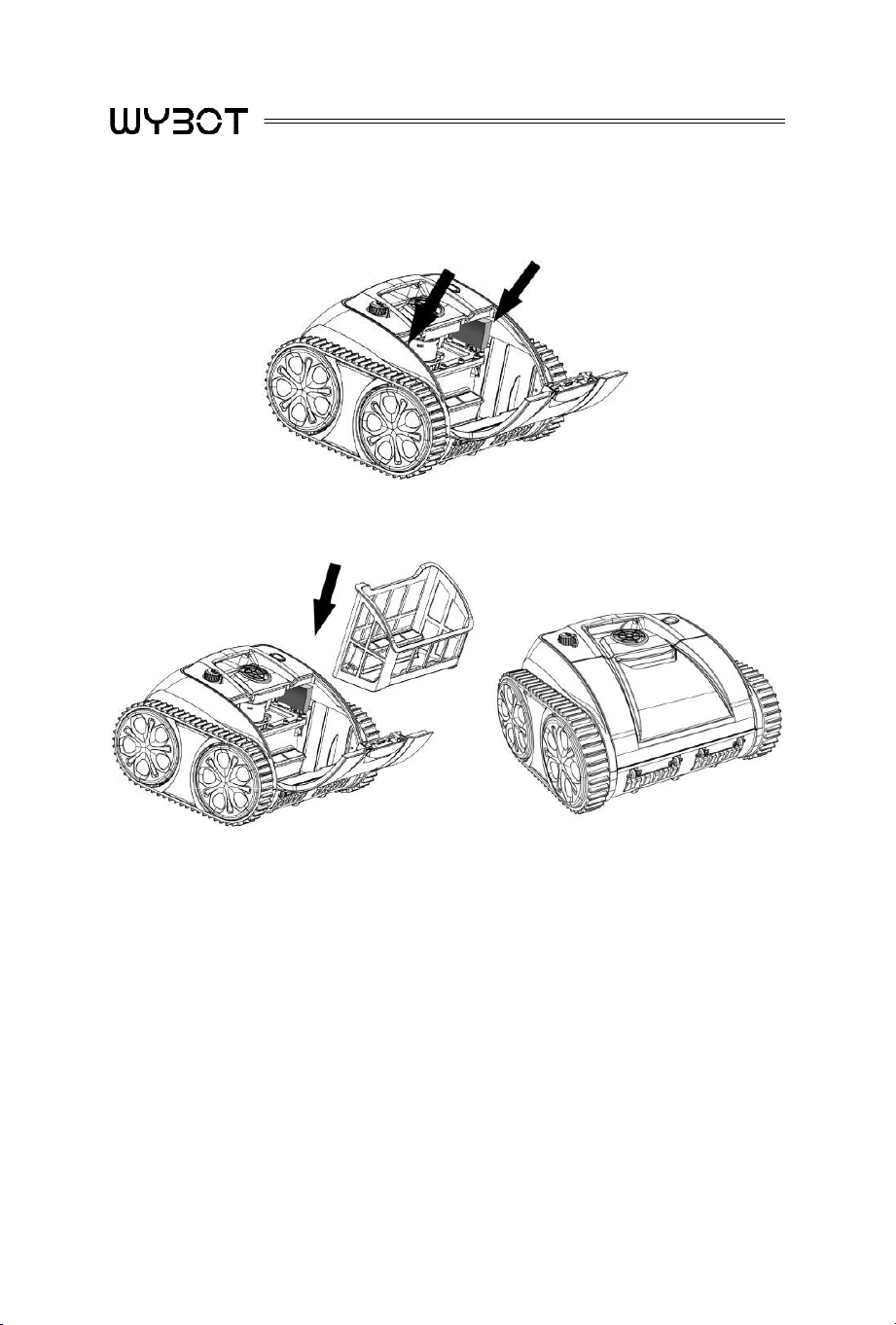

a. Open the filter cover and pick up the filter basket
11
b. Tear off the protective film on the back of the floater and stick one
by one according to the position shown in the figure
c. Install the filter basket and close the filter cover
12

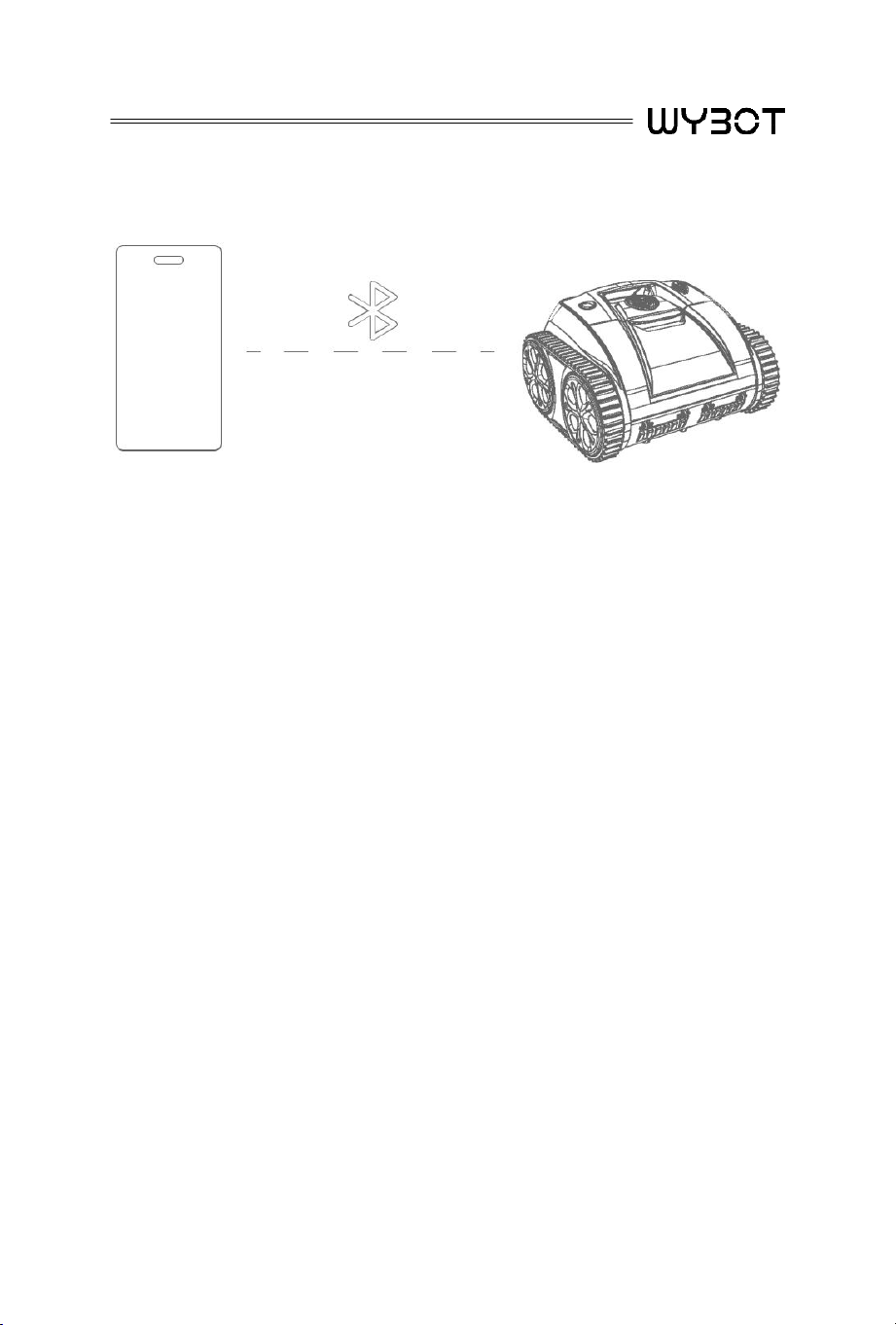

5.7 Smart Device connection
Easy operation on your smart devices:
1. Please download our WinnyGo App through Apple Store or Google
Play on your smart device;
2. Open the App, search your robot for connecting, then you
can operate the robot on your smart device.
5.8 Pool water condition
Remark: The pool water condition must be within following
parameters:
-PH: 7.0-7.4
-Temperature: 50 ℉ -95 ℉ (10℃ -35℃ )
-Salt: Max. 5,000 ppm
-Chlorine: Max. 2 ppm
13
6. Warranty
1. This product is covered by Wybot
TM
warranty for 24 months (only
for driving kit and control box kit) from the date of purchase.
Consumable parts are beyond warranty which include Filter Tray/
Brush/ Wheels/Nozzles.
2. This warranty is voided if the product has been altered, misused, or
has been repaired by unauthorized personnels.
3. The warranty extends only to manufacturing defects and does not
cover any damage resulting from mishandling of the product by
the owner.
4. The order number or record must be presented for any claim or
repair during the warranty period.
14
