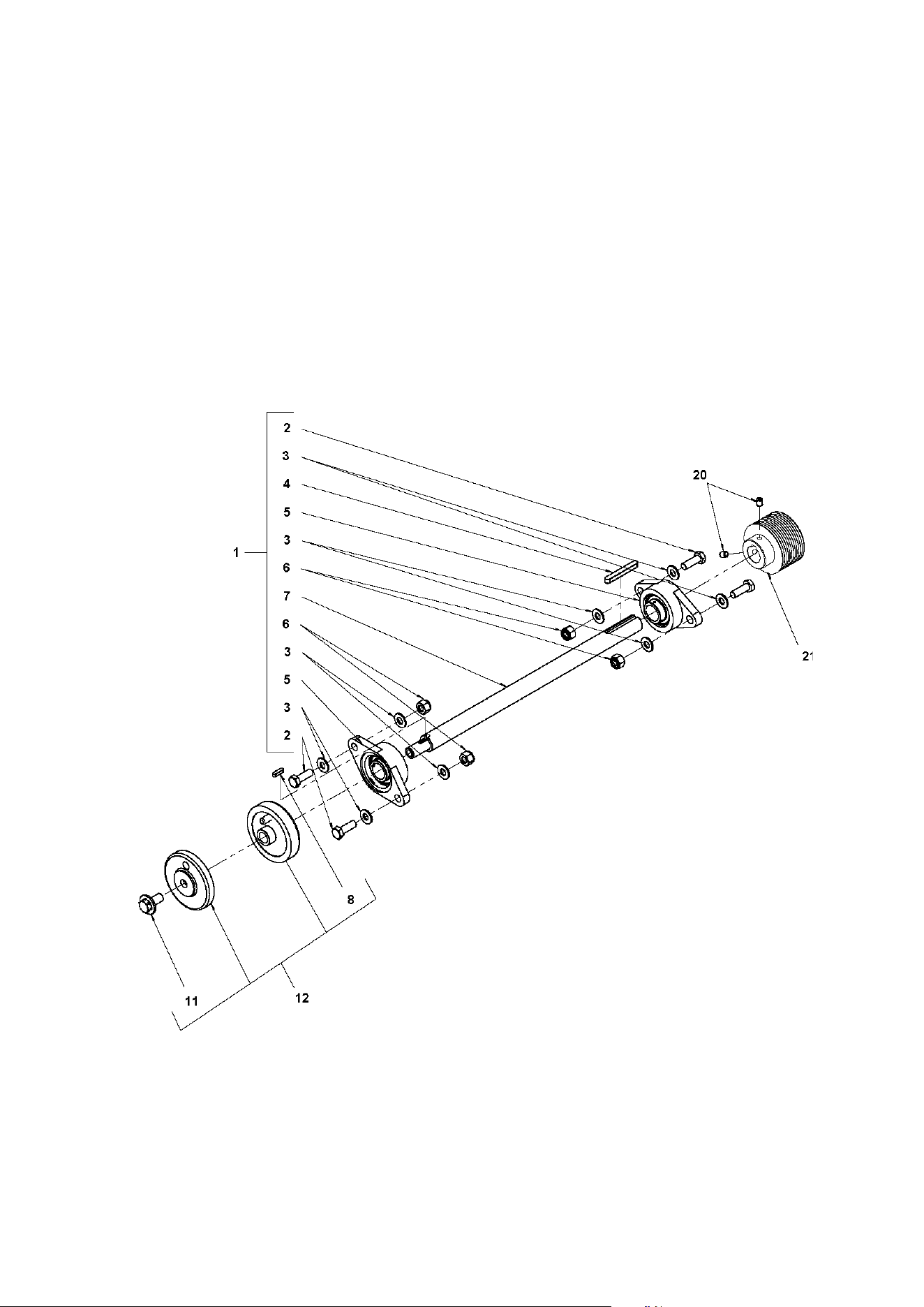

BLADEARM
BLADEARM
Ref PartNo Description Remark QTY KIT
1 5853134-01 BLADESHAFT
S/Nbefore20132100001,
seeservicebulletin
SB1300036
1
2 7252495-71 SCREWEHHM 4
3 7341172-01 WASHER 8
4 5430447-96 CLAVETTE8X7X63BOUTROND/ 1
5 5430450-52 BEARING 2
6 7322520-01 HEXAGONLOCKINGNUT 4
7 5811891-01 BLADESHAFT
S/Nbefore20132100001,
seeservicebulletin
SB1300036
1
8 5814928-01 KEY
S/Nbefore20132100001,
seeservicebulletin
SB1300036
2
11 5430773-44 SCREW 1
12 5853135-01 FLANGE
S/Nbefore20132100001,
seeservicebulletin
SB1300036
1
20 7287445-05 SCREWIHSETM 2
21 5430465-71 BLADESHAFT 1

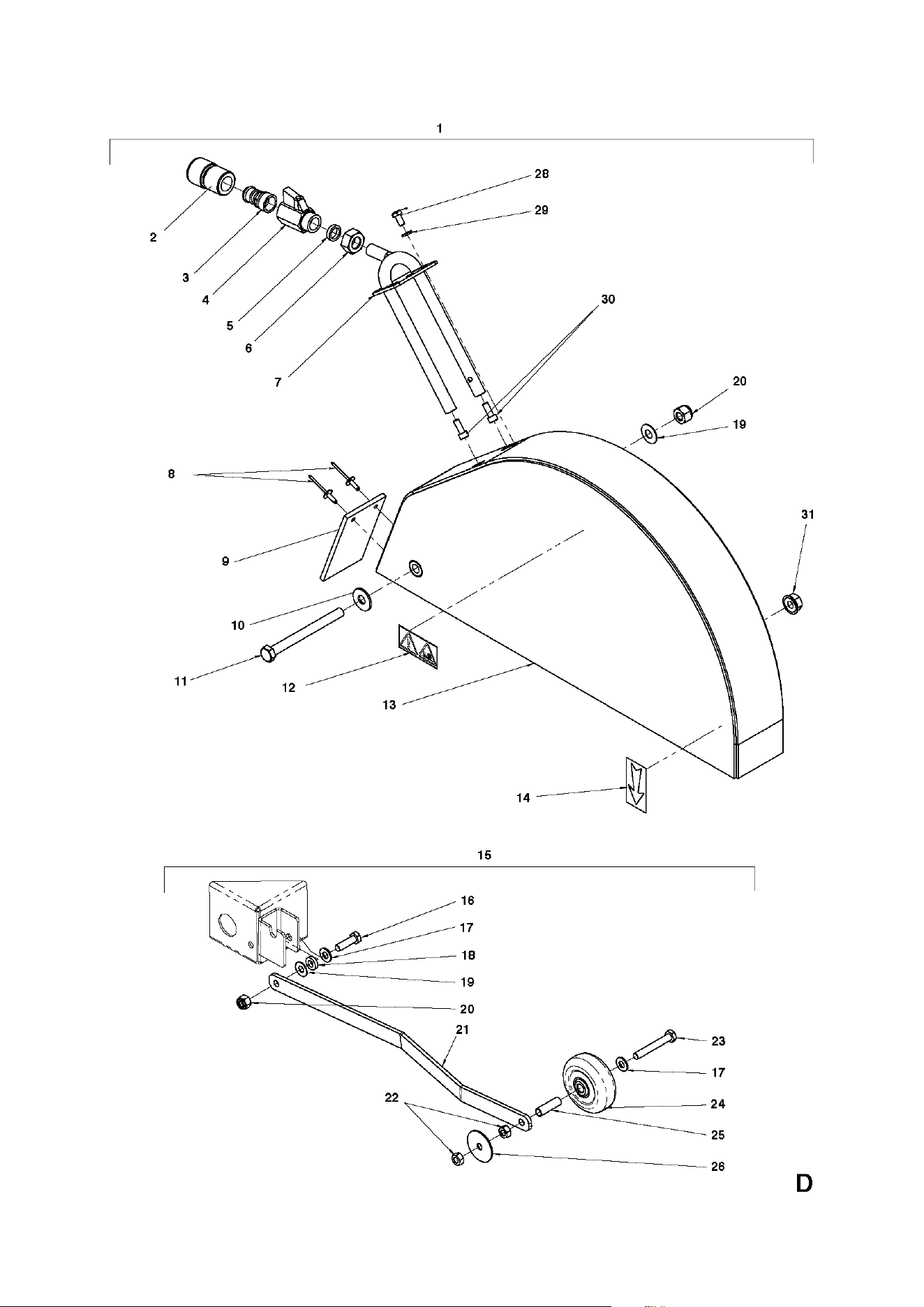

BLADEGUARDGUIDE
BLADEGUARDGUIDE
Ref PartNo Description Remark QTY KIT
1 5020829-01 BLADEGUARD 1
2 5430456-12 QUICKCOUPLING 1
3 5430456-10 ADAPTER 1
4 5430455-39 COUPLING 1
5 5430455-60 COLLET 1
6 5430455-61 ECROUPOURCOLLETBATTU/12.7/1 1
7 5430467-00 COLLECTOR 1
8 7227944-02 RIVET 2
9 5430428-75 RUBBERDEFLECTOR/FS450F/FS350C 1
10 7341174-41 WASHER 1
11 7252515-51 SCREWEHHM 1
12 5430458-82 GRAPH.DANGER+RISQUEDE/COUPUR 1
13 5449509-01 BLADEGUARD 1
14 5438500-37 STICKER 1
15 5040692-01 KIT 1
16 7252497-71 SCREWEHHM 1
17 7341172-01 WASHER 2
18 5430466-33 WASHER 1
19 5430447-32 RONDELRESSOR23X10,2X1/ 2
20 7322520-01 HEXAGONLOCKINGNUT 2
21 5040691-01 POINTER 1
22 7312320-01 HEXAGONNUT 2
23 7252505-51 SCREWEHHM 1
24 5430459-32 WHEEL 1
25 5422020-75 BUSHING 1
26 5422021-06 WASHER 1
28 7252366-71 SCREWEHHM 1
29 7341152-01 WASHER 1
30 7255368-01 SCREWIHSCM 2
31 7317120-51 HEXAGONNUTFLANGE 1

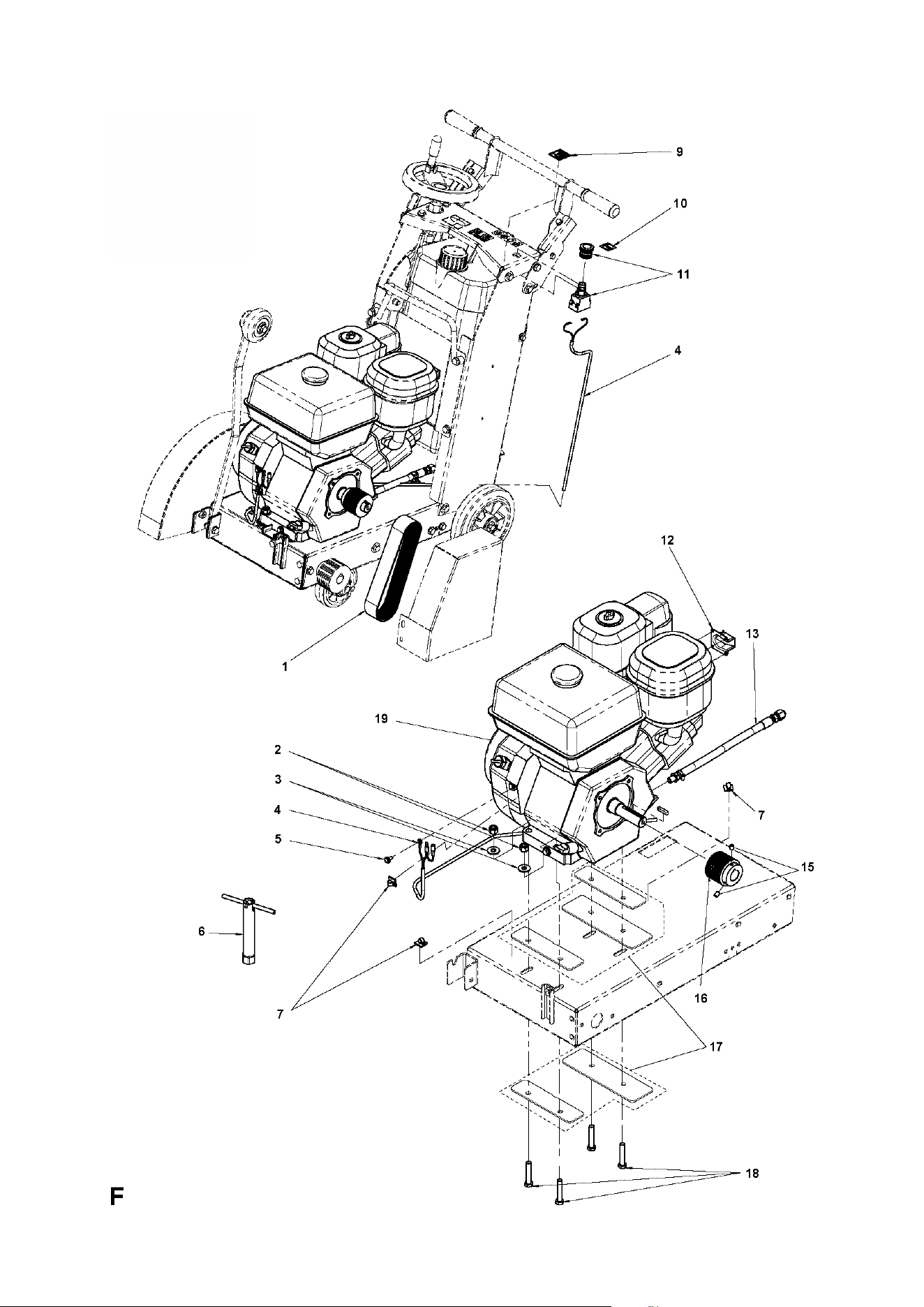

ENGINE
ENGINE
Ref PartNo Description Remark QTY KIT
1 5430449-64 BELT 1
2 7322520-01 HEXAGONLOCKINGNUT 4
3 7341174-41 WASHER 4
4 5421822-52 CORD 2
5 7252366-61 SCREWEHHFT 1
6 5430478-52 CLEABOUGIED.21L160/ 1
7 5430450-99 ATTACHEFILD/9ADH/ 5
9 5430457-88 NOISESTICKER108/ 1
10 5430458-71 GRAPHSTOP/ 1
11 5870050-01 STOPSWITCH 1
12 5430478-41 BOUCHONECHAPPEMENT/UNIVERSEL 1
13 5422021-51 OILDRAINASSY 1
15 7287445-05 SCREWIHSETM 2
16 5430465-72 PULLEY 1
17 5876138-01 PLATEKIT 1
18 7252502-51 SCREWEHHM 4
19 5779612-01 ENGINE 1
19 5741811-03 ENGINE
1

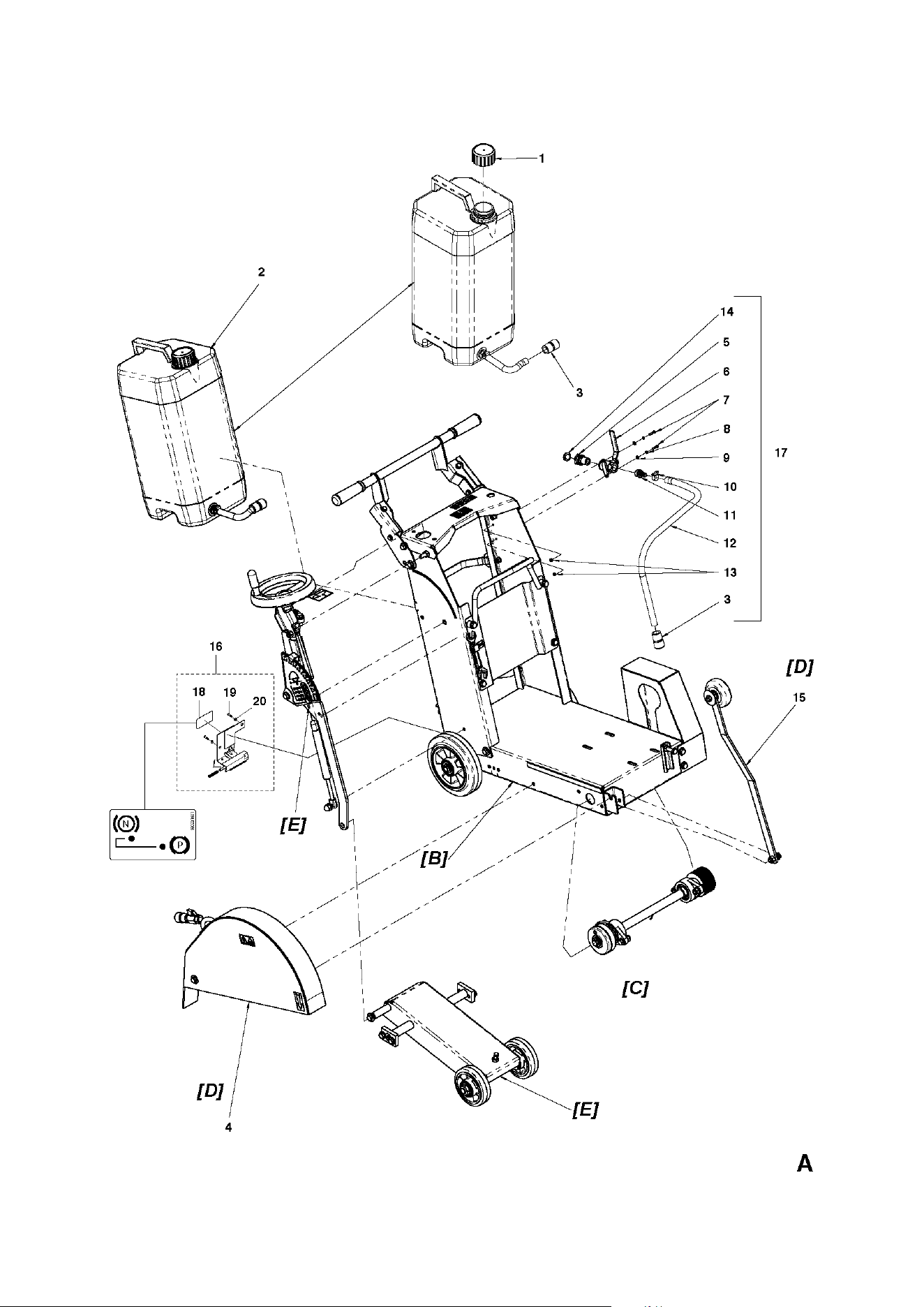

FRAME
FRAME
Ref PartNo Description Remark QTY KIT
1 5430455-99 PLUG 1
2 5430498-99 RESERVOIR 1
3 5430456-12 QUICKCOUPLING 2
4 5020829-01 BLADEGUARD 1
5 5422023-08 FITTING 1
6 5052134-01 VALVE 1
7 7252295-71 SCREWEHHM 2
8 7352164-01 LOCKWASHER 2
9 7341136-01 WASHER 2
10 5438503-44 CLIP 1
11 5422023-21 FITNG1/2"MNPTX12DIABARB 1
12 5430455-80 TUYTRICOCLAIRAL12*18/ 1Meter 1
13 7322512-01 HEXAGONLOCKINGNUT 2
14 5420456-40 FS900TRING/ 1
15 5040692-01 KIT 1
16 5826396-01 BRAKE 1
17 5422023-15 SIDELAMINATE US 1
19 7252491-71 SCREWEHHM 2 16
20 7341172-01 WASHER 2 16

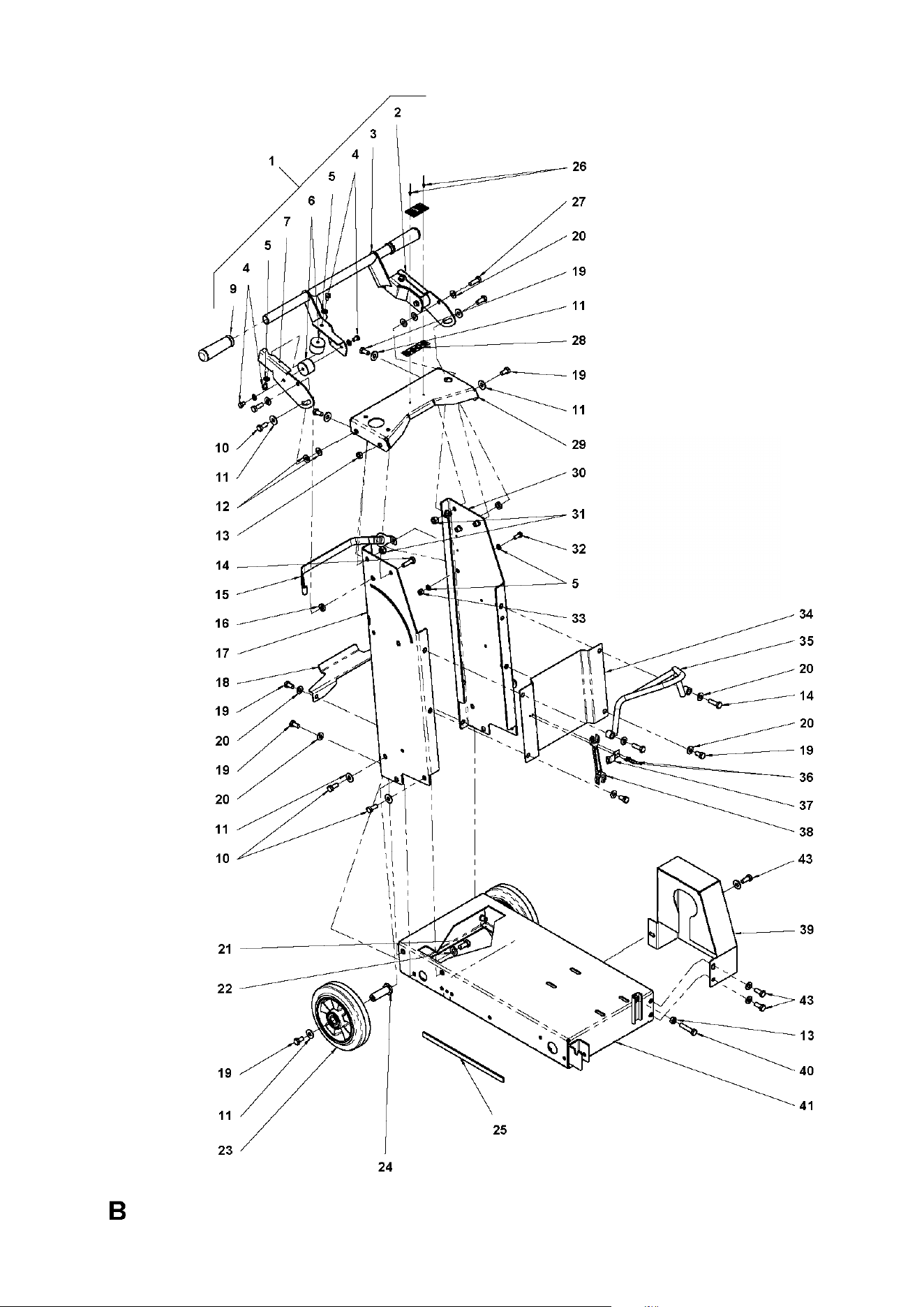

HANDLE
HANDLE
Ref PartNo Description Remark QTY KIT
1 5852471-01 HANDLE 1
2 5449511-01 ARM 1
3 5817939-02 HANDLEASSY 1
4 7252447-71 SCREWEHHM 8
5 7341163-01 WASHER 10
6 5818128-01 ANTIVIBRATIONELEMENT 4
7 5449510-01 ARM 1
9 5421395-68 GRIP 2
10 7252493-71 SCREWEHHM 6
11 7341174-41 WASHER 11
12 5430447-32 RONDELRESSOR23X10,2X1/ 4
13 7312320-01 HEXAGONNUT 2
14 7252497-71 SCREWEHHM 3
15 5430456-17 BELT 1
16 5430466-33 WASHER 2
17 5449505-01 SIDEPANEL 1
18 5449500-01 SUPPORT 1
19 7252491-71 SCREWEHHM 11
20 7341172-01 WASHER 10
21 7252534-71 SCREWEHHM 2
22 7341178-01 WASHER 2
23 5430459-51 WHEEL 2
24 5430425-15 WHEELAXLE 2
25 5430460-68 BANDENEOADH1FACE8*4/ 1
26 7227818-03 RIVET 2
27 7252495-71 SCREWEHHM 2
28 5430458-53 GRAPHISMECOMPO97044/ 1
29 5040685-01 CONSOLE 1
30 5449506-01 COVER EU 1
30 5449506-04 SIDEPANEL US 1
31 7322520-01 HEXAGONLOCKINGNUT 2
32 7252451-71 SCREWEHHM 1
33 7322118-01 LOCKNUT 1
34 5449498-01 PROTECTIVEPLATE 1
35 5449499-01 LIFTBAIL 1
36 5438501-03 RIVET 2
37 5430462-03 RESSORTN[34365/ 1
38 5430459-04 WRENCH 1
39 5825147-01 BELTGUARD 1
40 7252501-71 SCREWEHHM 1
41 5449503-01 FRAME 1
44
502 08 30-01 LOCKWASHER 3

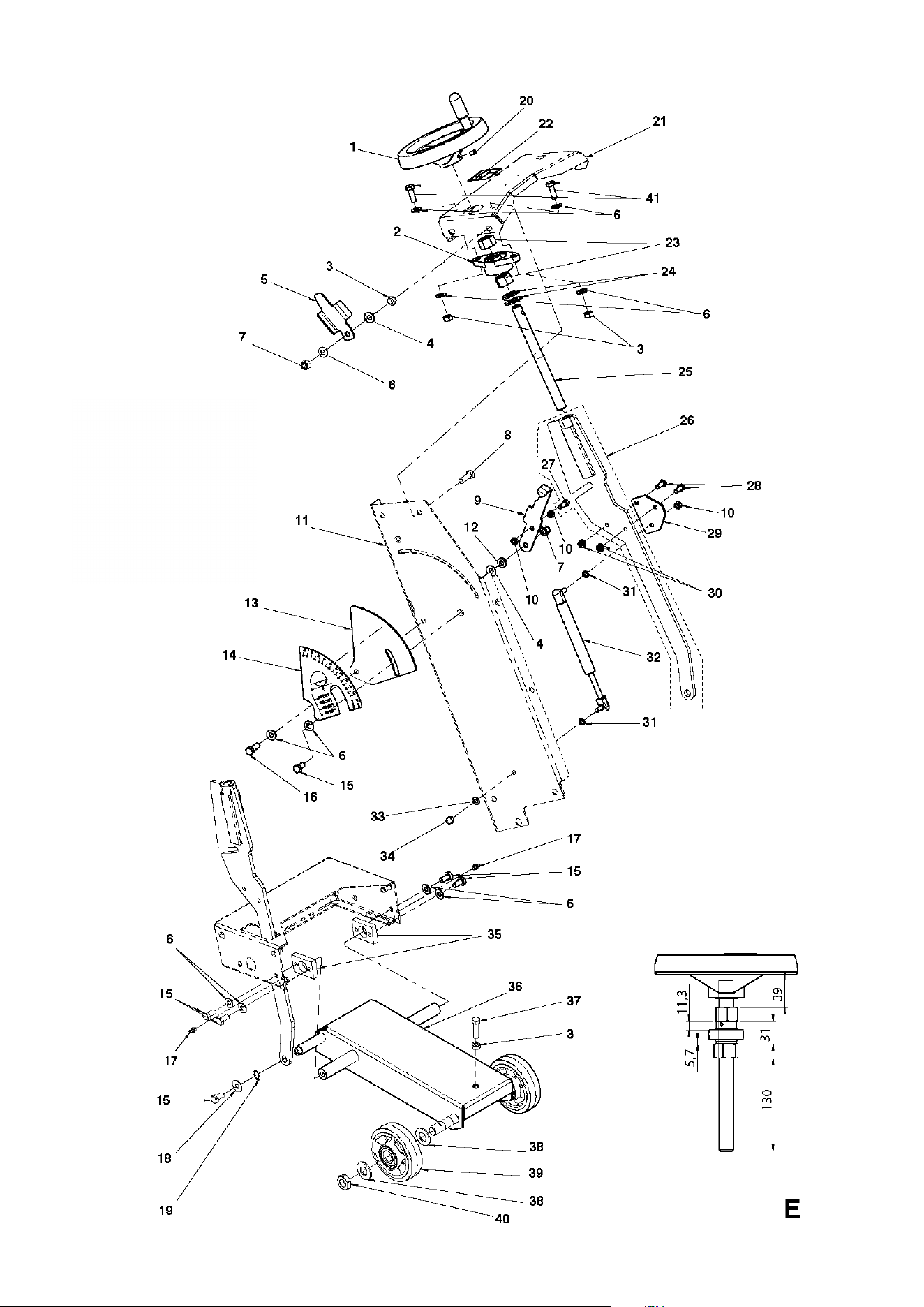

HEIGHTADJUSTMENT
HEIGHTADJUSTMENT
Ref PartNo Description Remark QTY KIT
1 5430762-94 HANDLE 1
2 5047989-01 BEARING 1
3 7312320-01 HEXAGONNUT 4
4 5430447-32 RONDELRESSOR23X10,2X1/ 2
5 5430766-51 BEFESTIGUNG 1
6 7341172-01 WASHER 11
7 7322520-01 HEXAGONLOCKINGNUT 2
8 7252497-71 SCREWEHHM 1
9 5430745-15 HOEHENVERSTELLUNG 1
10 7312318-01 HEXAGONNUT 3
11 5449505-01 SIDEPANEL 1
12 5430466-33 WASHER 1
13 5430796-29 ADJUSTINGSUPPORTD450FS400CS 1
14 5430796-19 STICKER 1
15 7252491-71 SCREWEHHM 6
16 7252495-71 SCREWEHHM 1
17 5042045-01 GREASE 2
18 7341174-41 WASHER 1
19 5438503-52 WASHER 1
20 7287447-05 SCREWIHSETM 1
21 5040685-01 CONSOLE 1
22 5430712-67 LABEL 1
23 5430447-72 NUT 2
24 5430763-29 WASHER 2
25 5430428-61 HEIGHTADJUSTER 1
26 5872243-01 HEIGHTADJUSTER 1
27 7255451-01 SCREWIHSCM 1
28 7252451-71 SCREWEHHM 2
29 5430745-26 GASFEDER 1
30 7317118-51 HEXAGONNUTFLANGE 2
31 7351164-01 SPRINGWASHER 2
32 5430762-93 SPRING 1
33 7341163-01 WASHER 1
34 5430447-66 NUT 1
35 5430419-59 CLAMP 2
36 5449504-01 CARRIAGE 1
37 7252499-71 SCREWEHHM 1
38 5430402-17 WASHER 4
39 5430459-49 WHEEL 2
40 5430447-57 ECROUPLATHM20BICHRO./ 2
41 7252495-71 SCREWEHHM 2
